Metro Under the Hood

Metro Under the Hood Zac Sweers

Metro Z a c Sweers

Metro (Under the Hood) Z a c Sweers

SLIDES TODO link •Part 2 of "Navigating Dependency Injection with
Metro" •(Metro) compiler internals •Focus on "what" and "why" •Occasionally "how" a a a

https://www.youtube.com/w a tch?v=9P7qUGi5_gc https://www.youtube.com/w a tch?v=jVfmtVK a 604

Compilers a a a

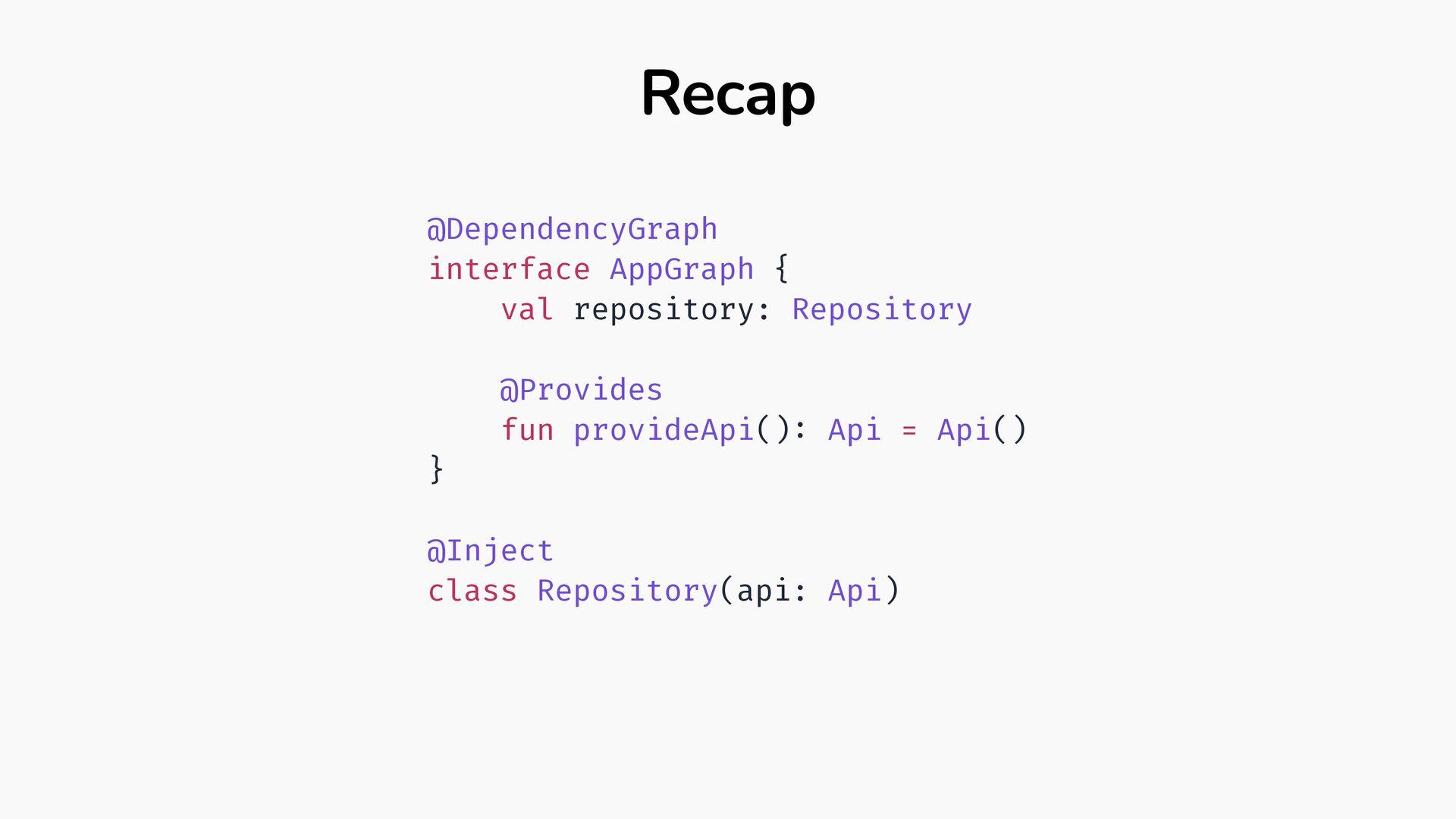

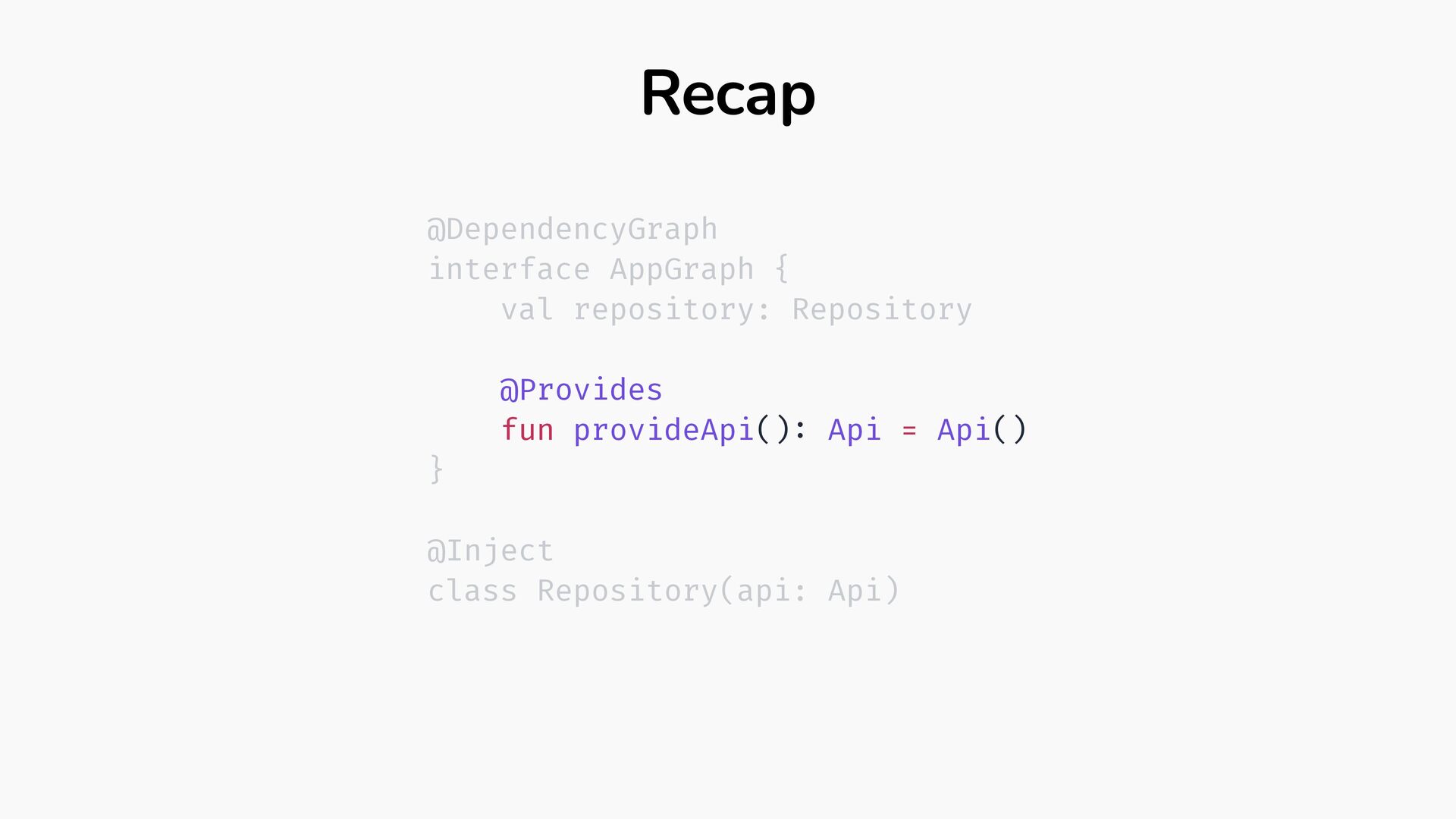

Recap @DependencyGraph interface AppGraph { val repository: Repository @Provides fun
provideApi() : Api = Api() } @Inject class Repository(api: Api)

https://plugins.jetbr a ins.com/plugin/276 1 6-kotlin-compiler-devkit

Factories @DependencyGraph interface AppGraph { val repository: Repository @Provides fun

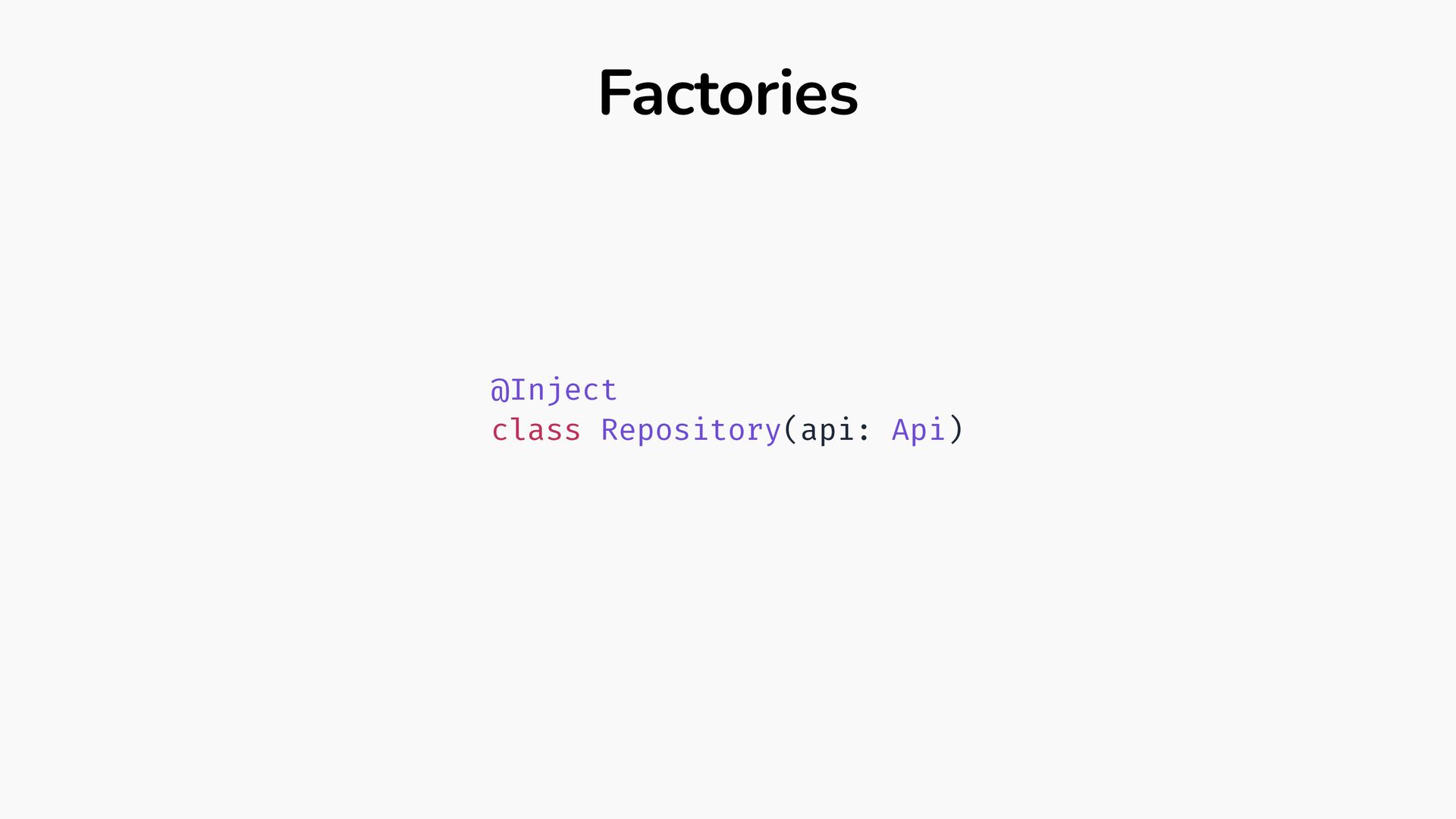

Factories @Inject class Repository(api: Api)

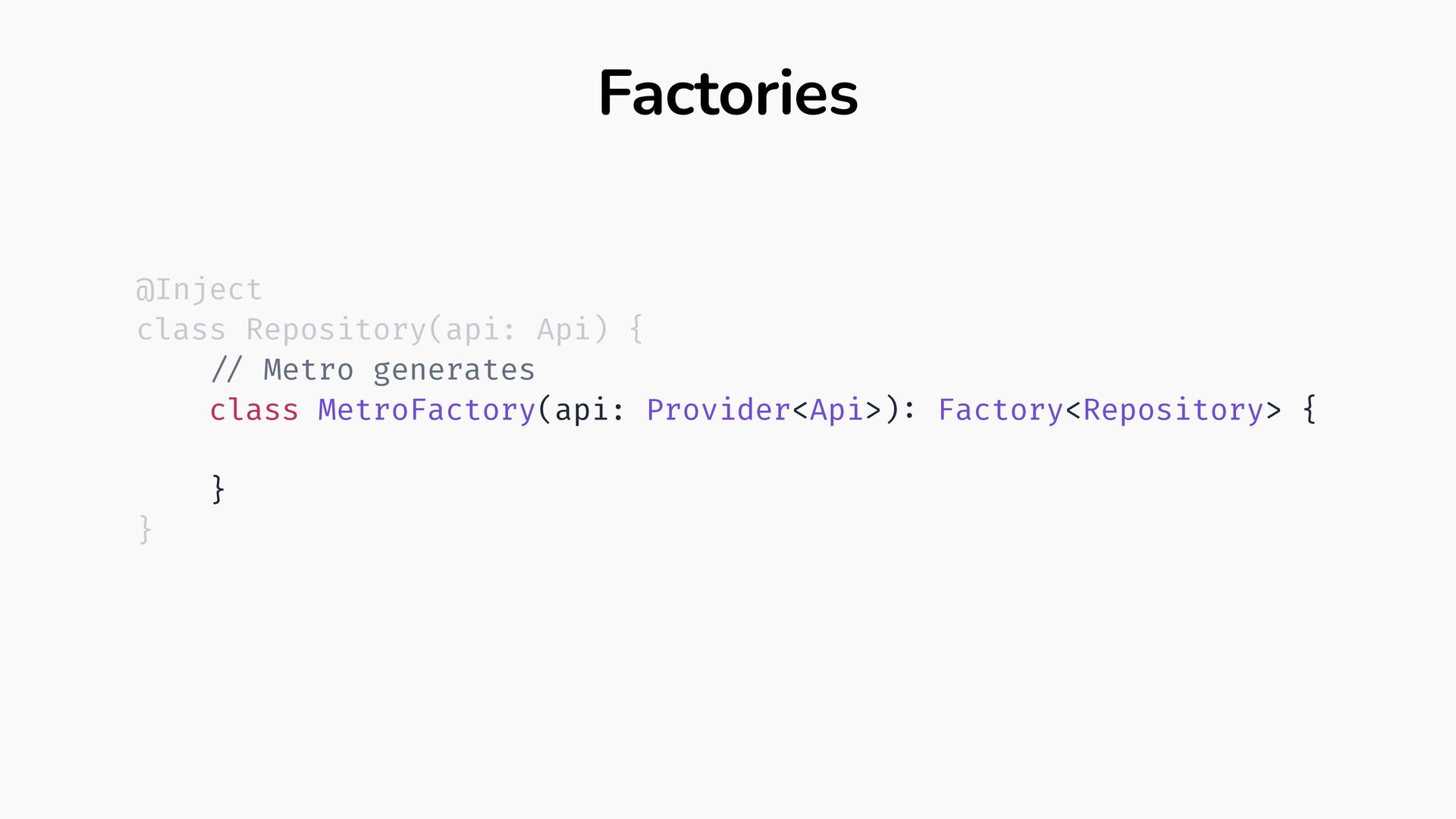

Factories @Inject class Repository(api: Api) { // Metro generates class
MetroFactory(api: Provider<Api>) : Factory<Repository> { } }

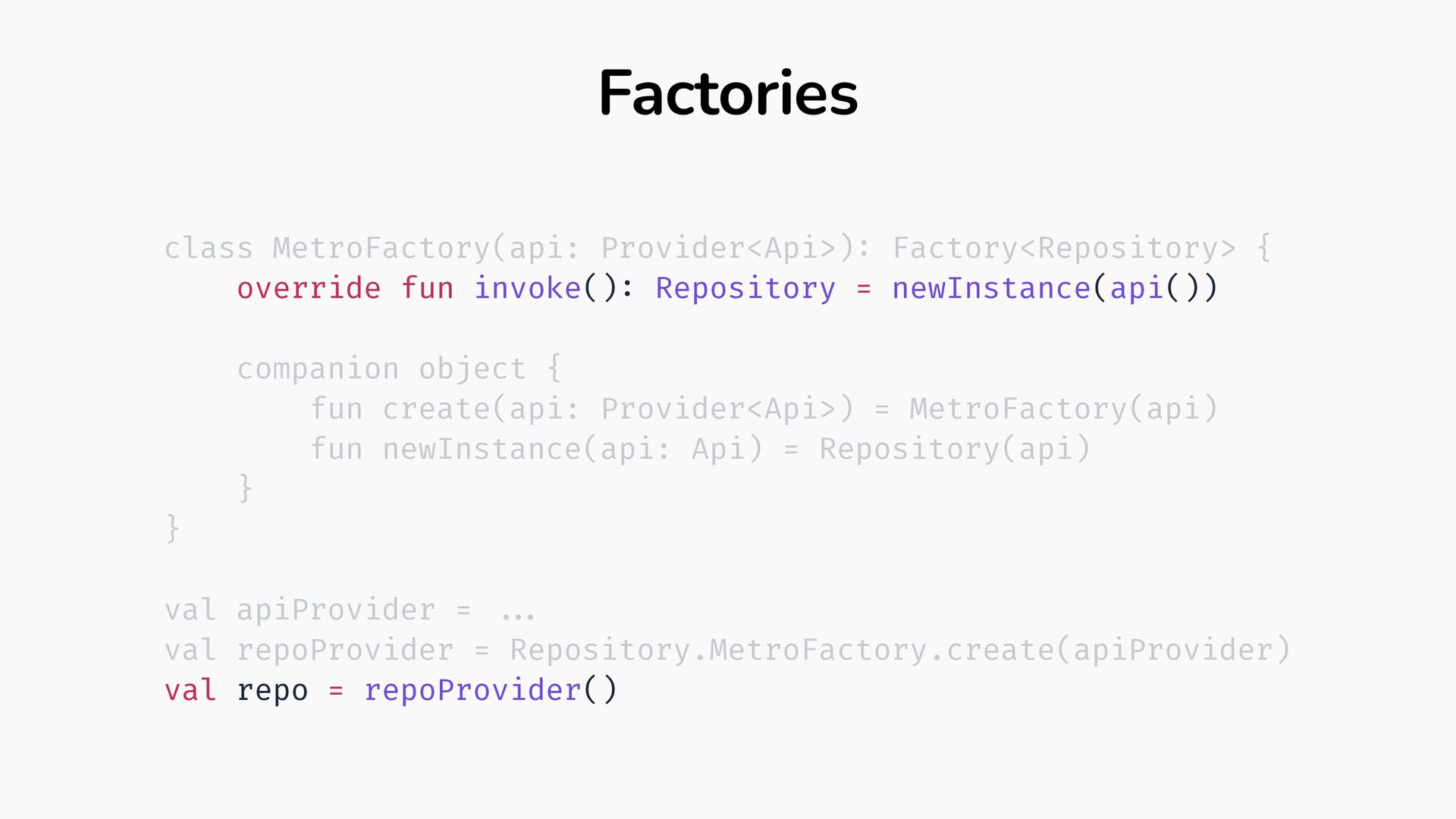

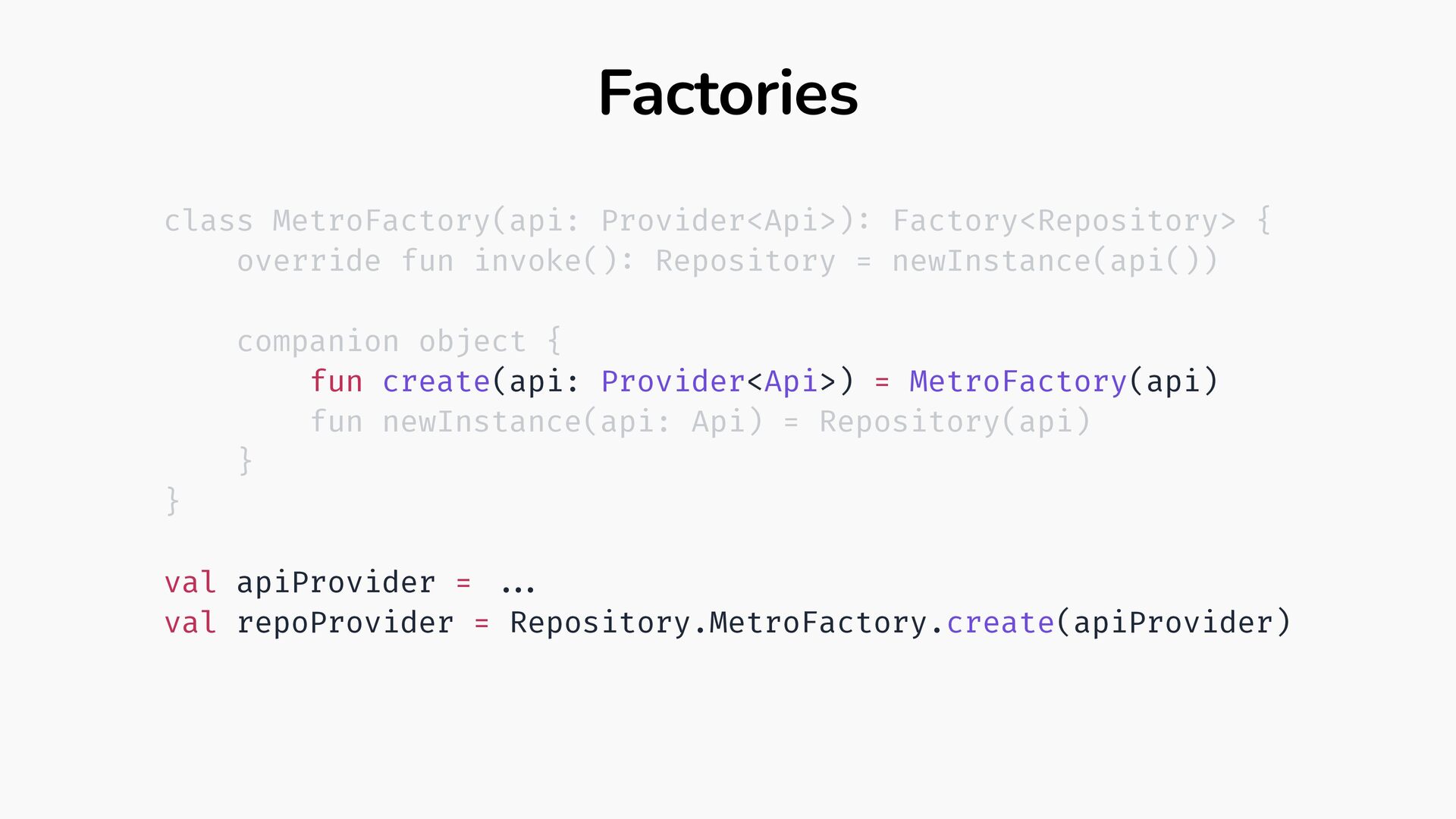

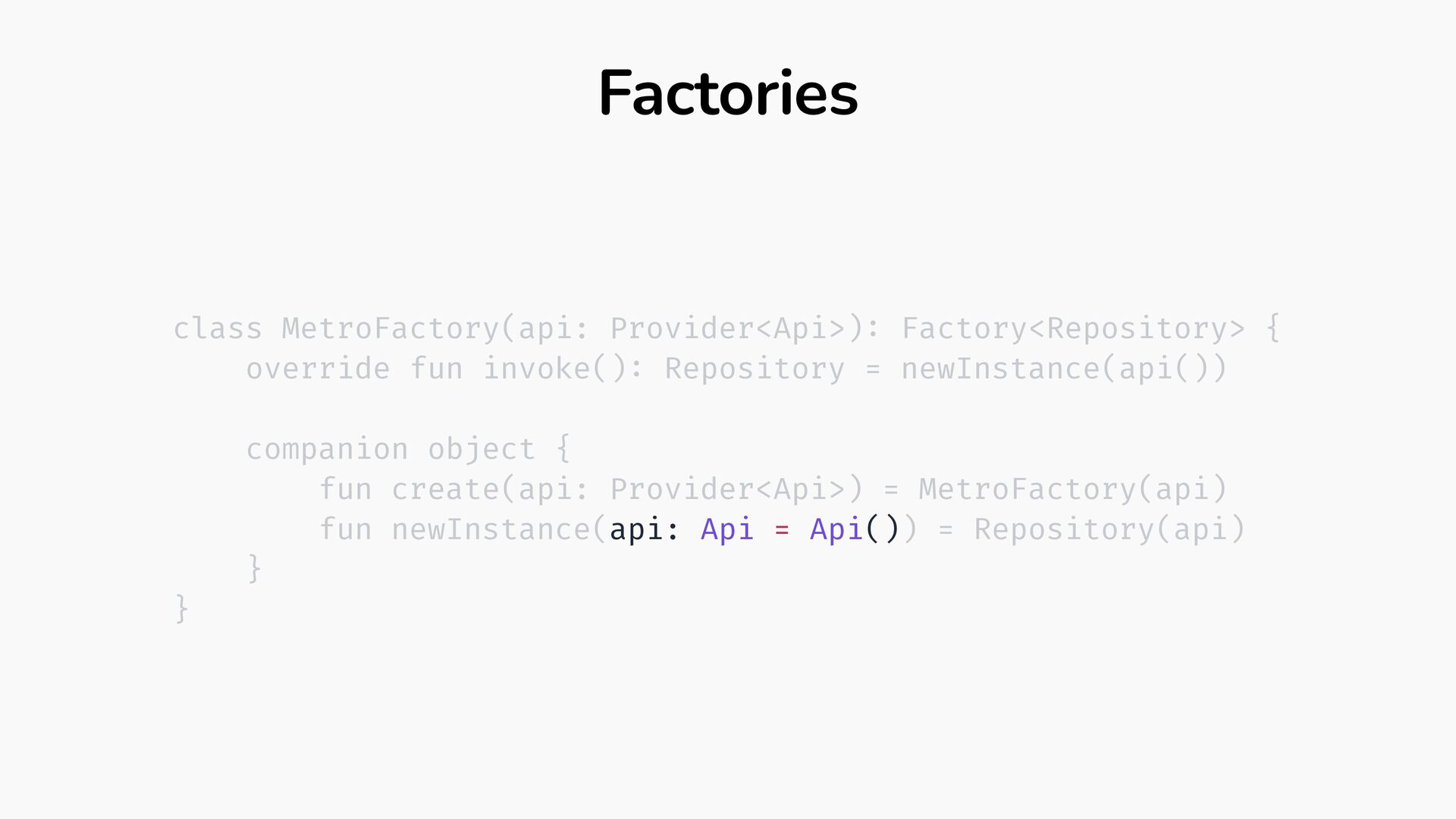

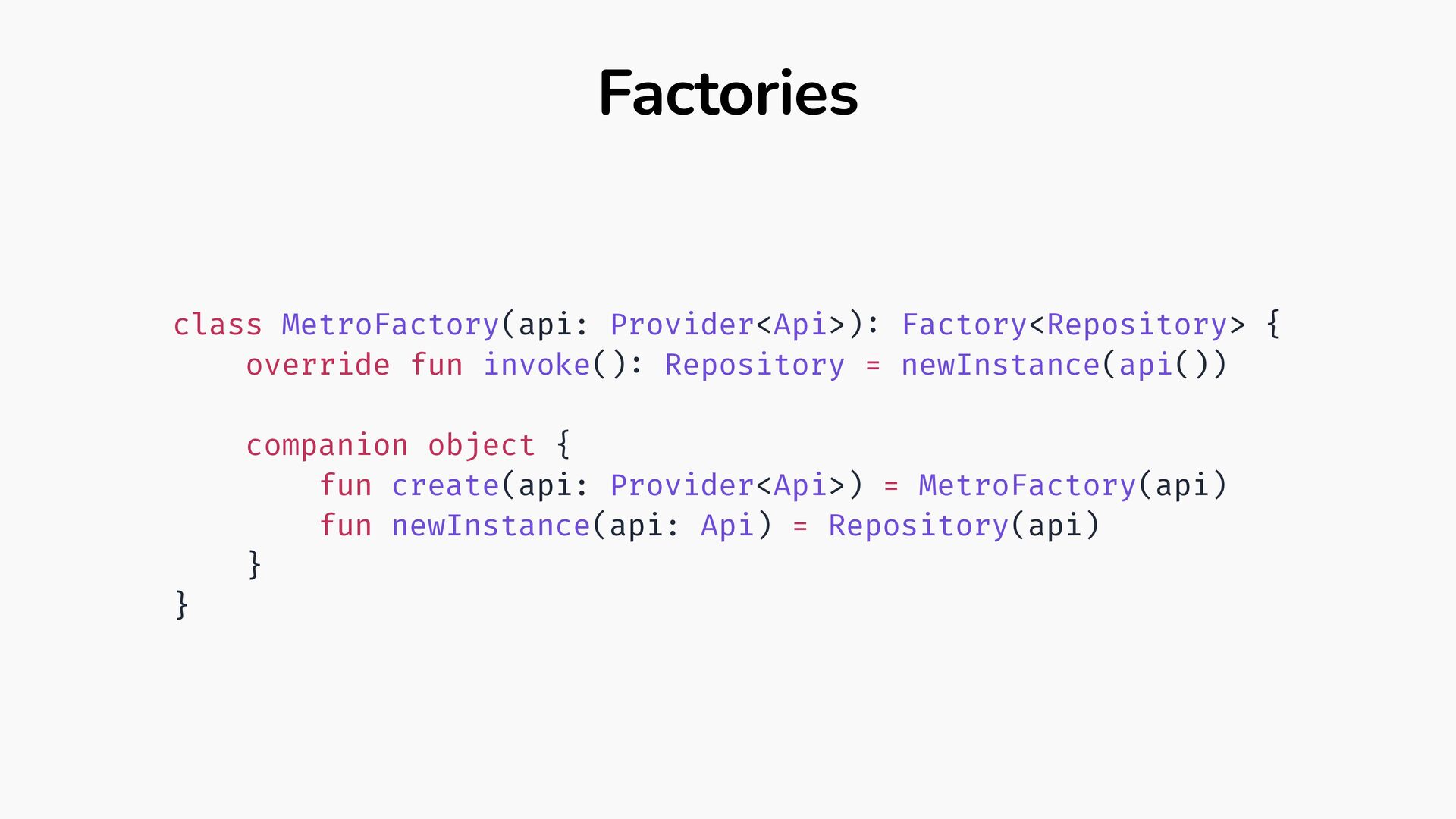

Factories class MetroFactory(api: Provider<Api>) : Factory<Repository> { override fun invoke()
: Repository = newInstance(api()) companion object { fun create(api: Provider<Api>) = MetroFactory(api) fun newInstance(api: Api) = Repository(api) } }

: Repository = newInstance(api()) companion object { fun create(api: Provider<Api>) = MetroFactory(api) fun newInstance(api: Api) = Repository(api) } } val apiProvider = ... val repoProvider = Repository.MetroFactory.create(apiProvider)

: Repository = newInstance(api()) companion object { fun create(api: Provider<Api>) = MetroFactory(api) fun newInstance(api: Api) = Repository(api) } } val apiProvider = ... val repoProvider = Repository.MetroFactory.create(apiProvider) val repo = repoProvider()

: Repository = newInstance(api()) companion object { fun create(api: Provider<Api>) = MetroFactory(api) fun newInstance(api: Api) = Repository(api) } }

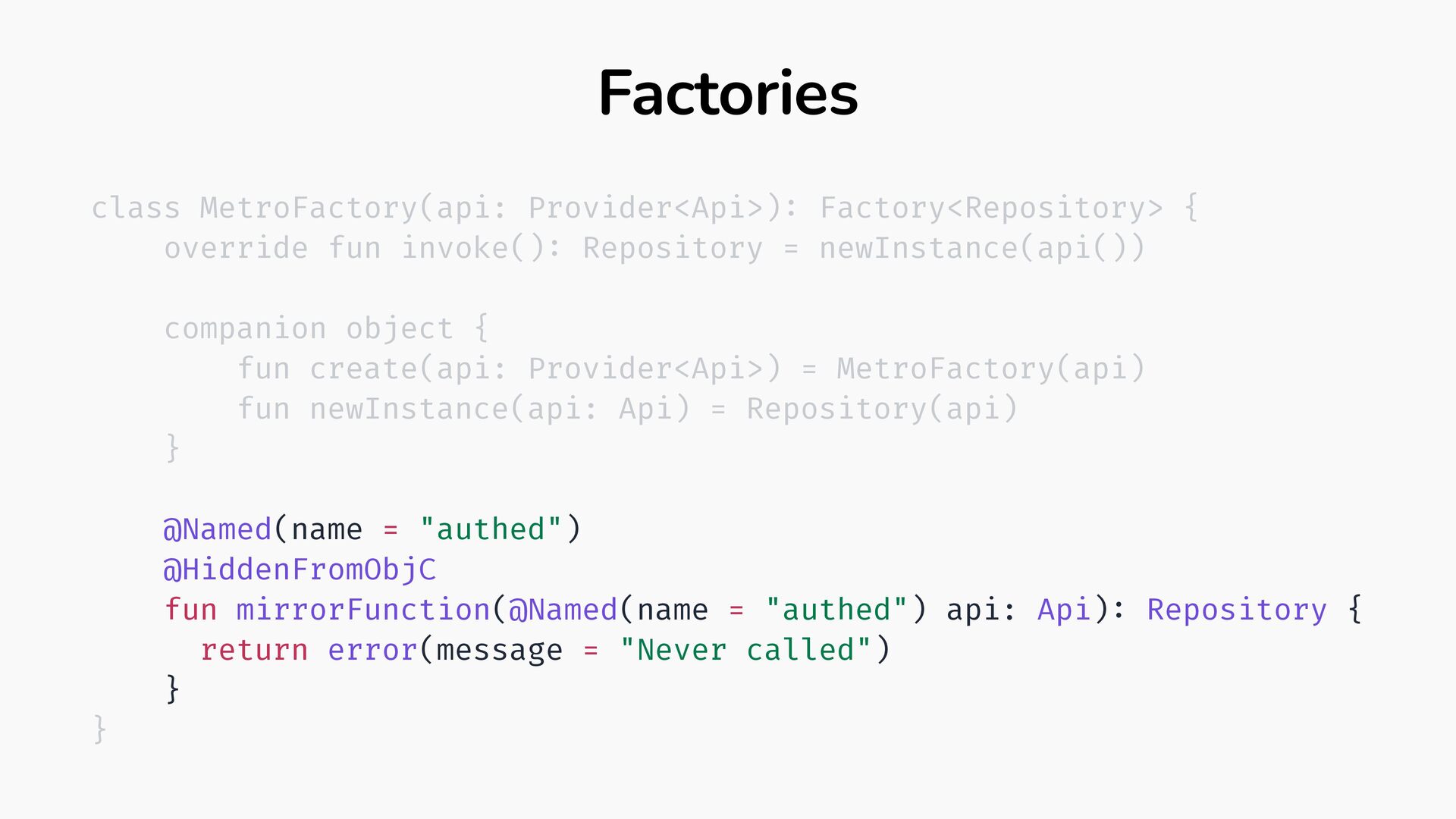

: Repository = newInstance(api()) companion object { fun create(@Named("authed") api: Provider<Api>) = MetroFactory(api) fun newInstance(api: Api) = Repository(api) } }

: Repository = newInstance(api()) companion object { fun create(api: Provider<Api>) = MetroFactory(api) fun newInstance(api: Api = Api()) = Repository(api) } }

Factories @Deprecated(HIDDEN) class MetroFactory(api: Provider<Api>) : Factory<Repository> { override fun
invoke() : Repository = newInstance(api()) companion object { @JvmStatic @JsStatic @HiddenFromObjC fun create(api: Provider<Api>) = MetroFactory(api) @JvmStatic @JsStatic @HiddenFromObjC fun newInstance(api: Api) = Repository(api) } }

: Repository = newInstance(api()) companion object { fun create(api: Provider<Api>) = MetroFactory(api) fun newInstance(api: Api) = Repository(api) } fun mirrorFunction(api: Api) : Repository { return error(message = "Never called") } }

: Repository = newInstance(api()) companion object { fun create(api: Provider<Api>) = MetroFactory(api) fun newInstance(api: Api) = Repository(api) } @Named(name = "authed") @HiddenFromObjC fun mirrorFunction(@Named(name = "authed") api: Api) : Repository { return error(message = "Never called") } }

Factories @Inject class Repository(api: Api) { // Metro generates class
MetroFactory(api: Provider<Api>) : Factory<Repository> { } }

Factories @Inject class Repository(api: Api)

Factories @DependencyGraph interface AppGraph { val repository: Repository @Provides fun

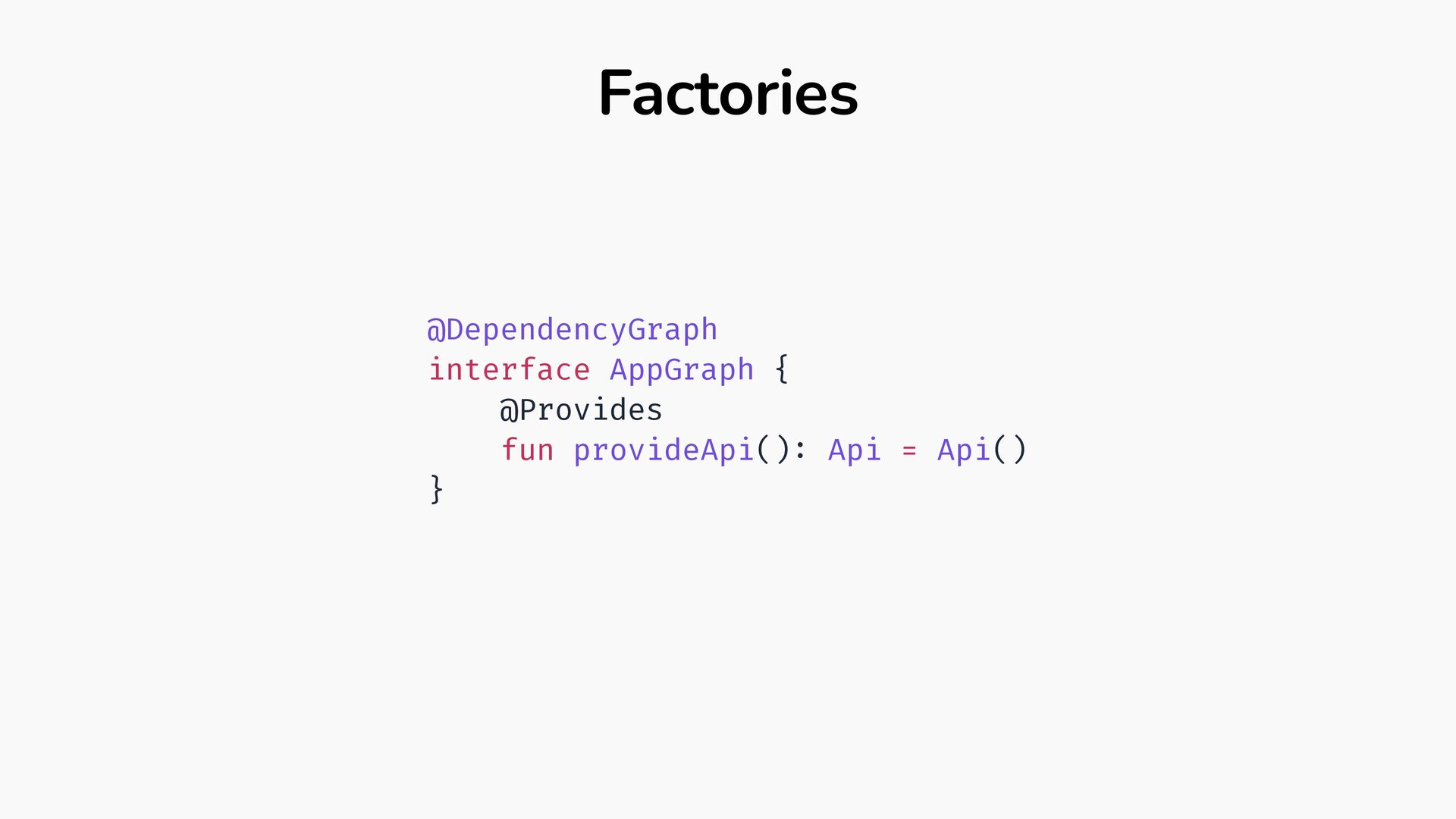

Factories @DependencyGraph interface AppGraph { @Provides fun provideApi() : Api
= Api() }

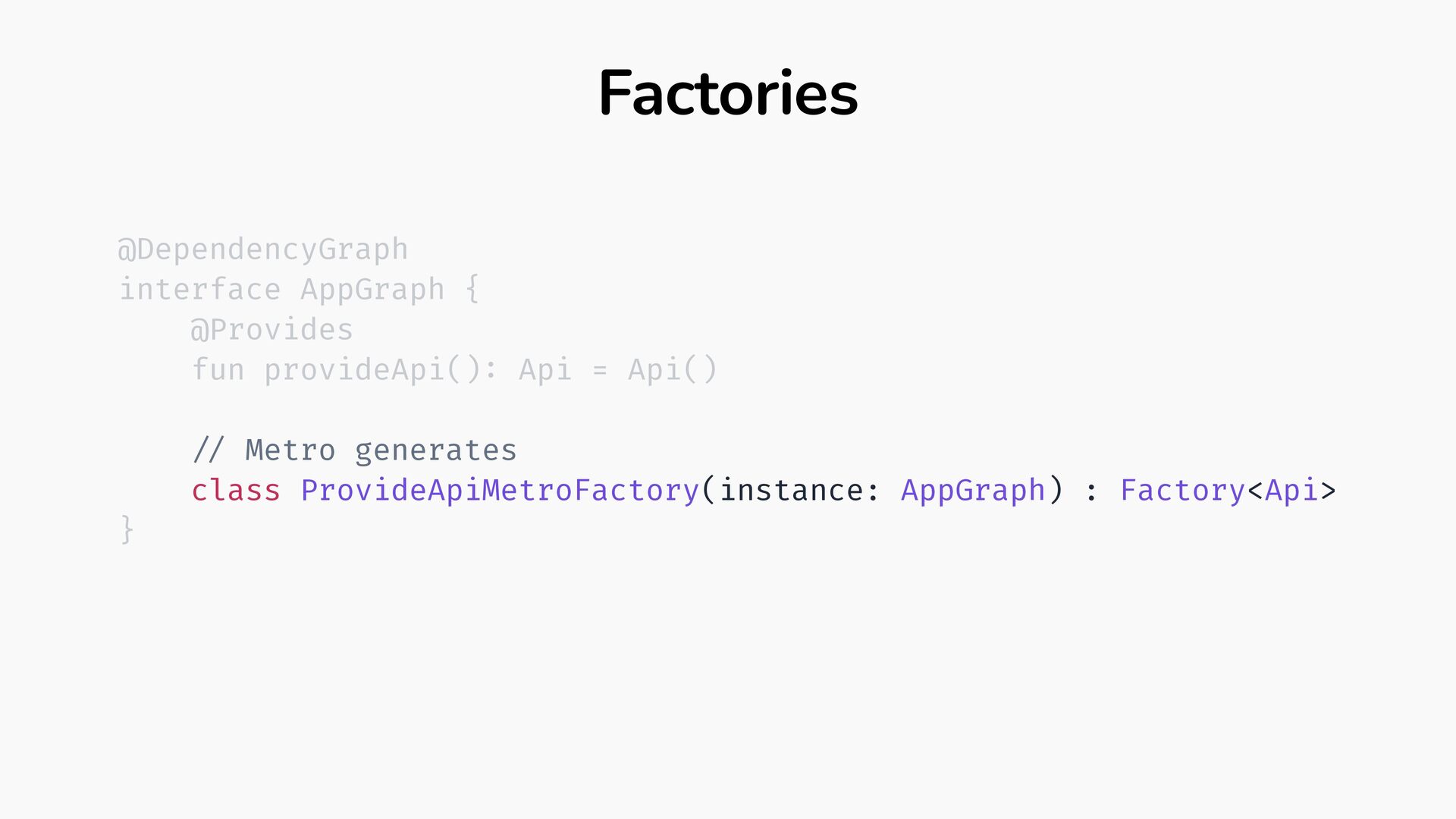

Factories @DependencyGraph interface AppGraph { @Provides fun provideApi() : Api
= Api() // Metro generates class ProvideApiMetroFactory(instance: AppGraph) : Factory<Api> }

Factories class ProvideApiMetroFactory(instance: AppGraph) : Factory<Api> { override fun invoke()
: Api = provideApi(instance) companion object { fun create(instance: AppGraph) : Factory<Api> = ProvideApiMetroFactory(instance) fun provideApi(instance: AppGraph) : Api = instance.provideApi() } fun mirrorFunction() : Api = error(message = "Never called") }

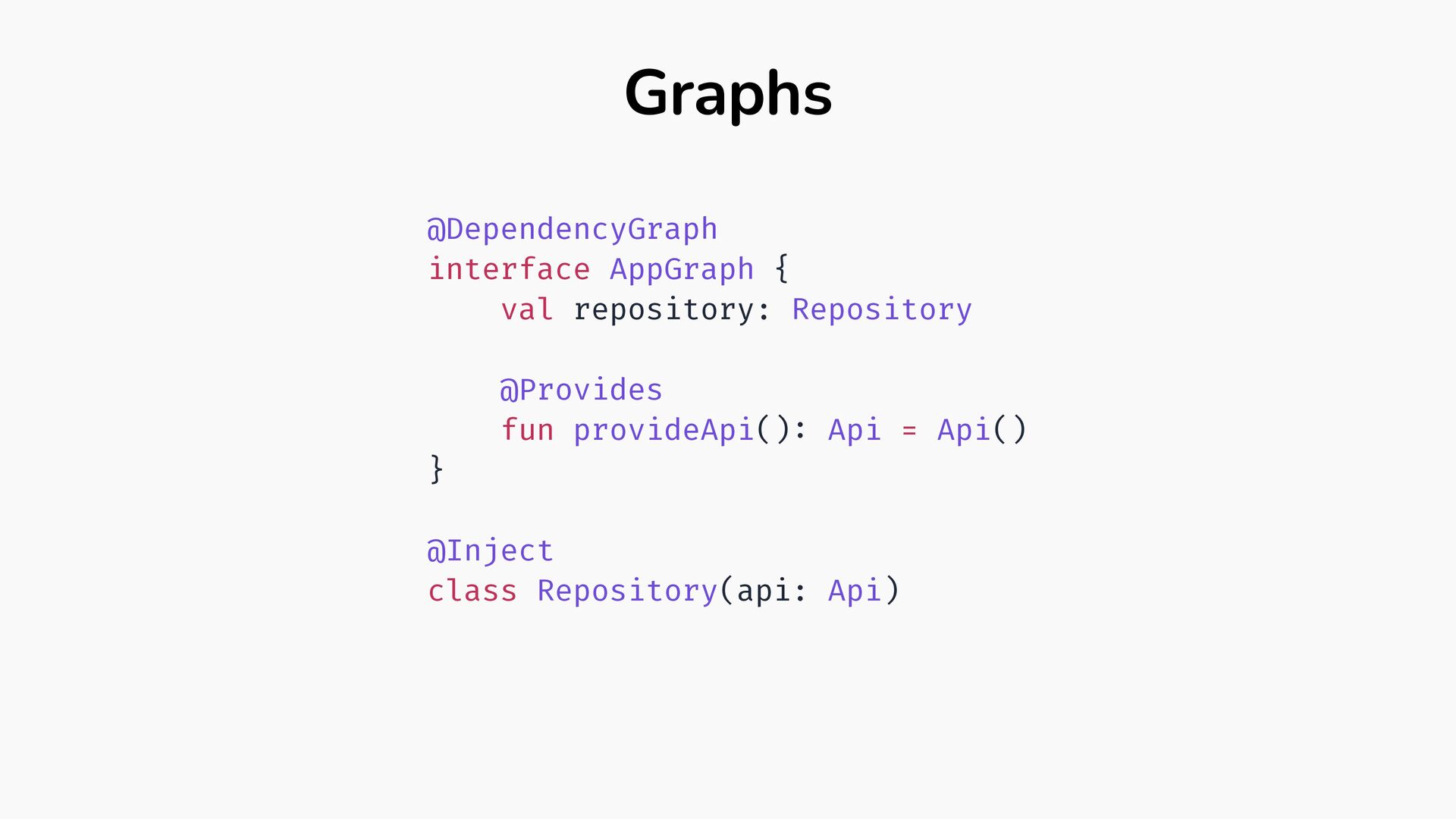

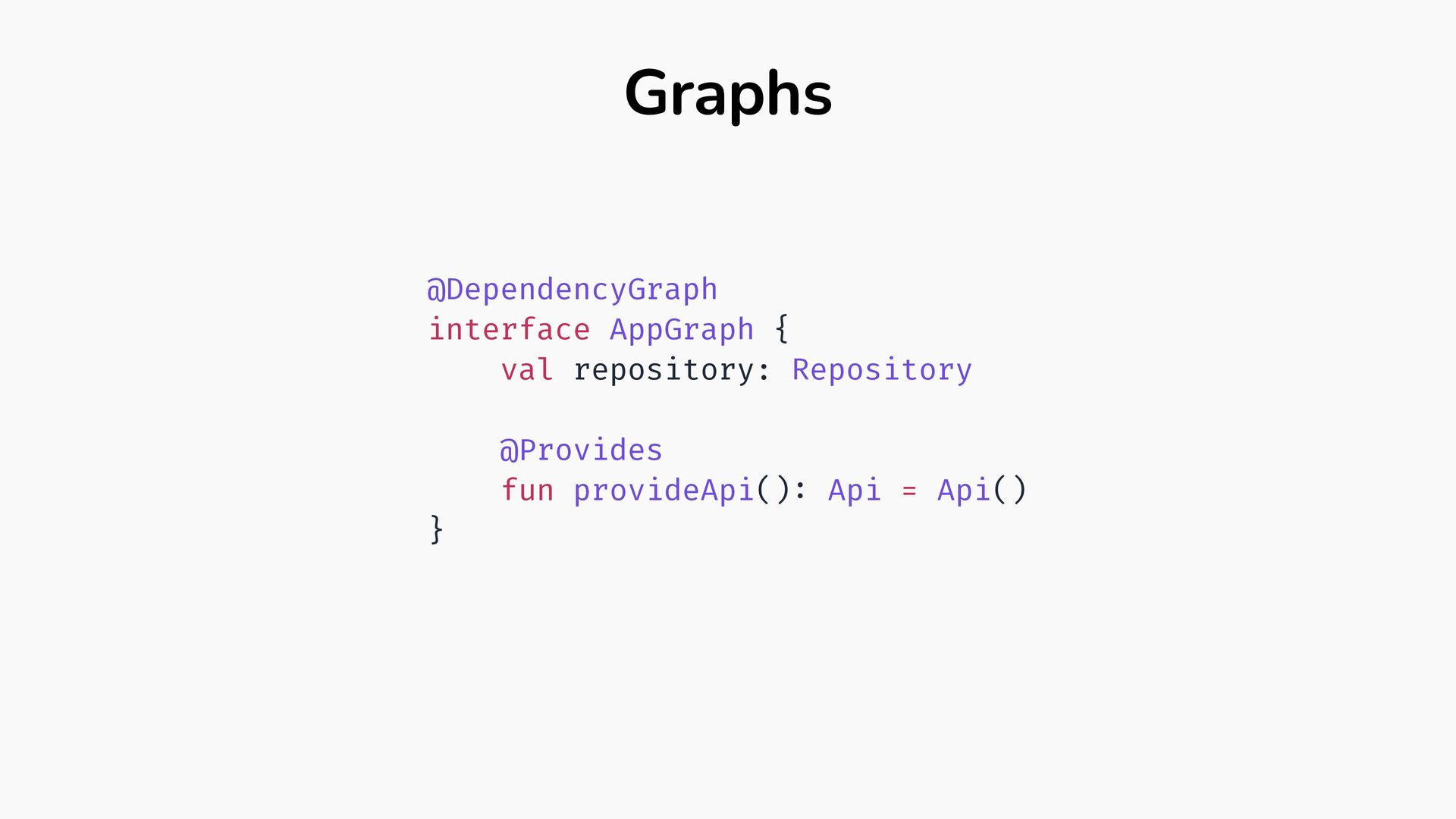

Graphs @DependencyGraph interface AppGraph { val repository: Repository @Provides fun
provideApi() : Api = Api() }

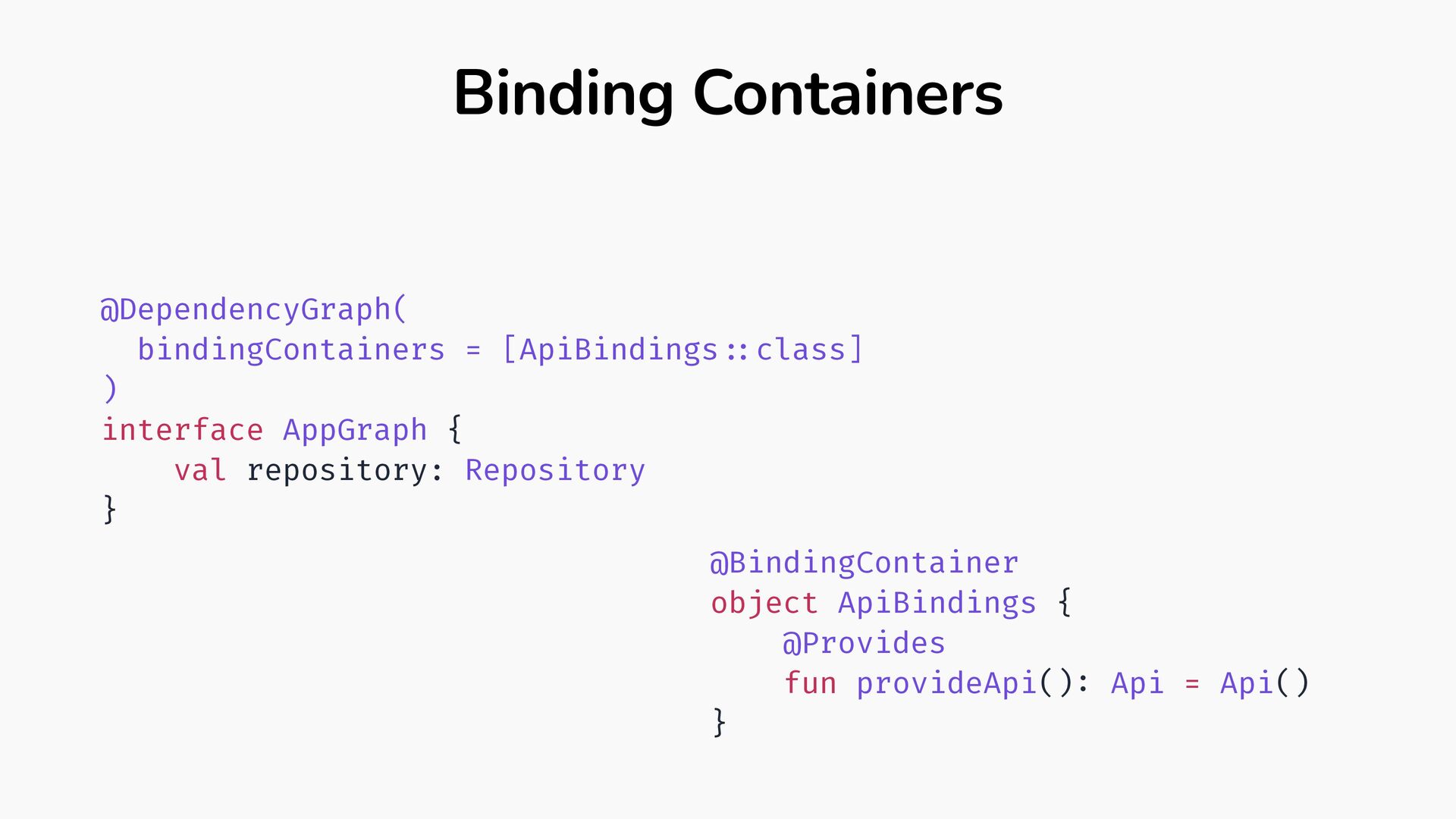

Binding Containers @BindingContainer object ApiBindings { @Provides fun provideApi() :
Api = Api() } @DependencyGraph( bindingContainers = [ApiBindings :: class] ) interface AppGraph { val repository: Repository }

Binding Containers @BindingContainer object ApiBindings { @Provides fun provideApi() :
Api = Api() }

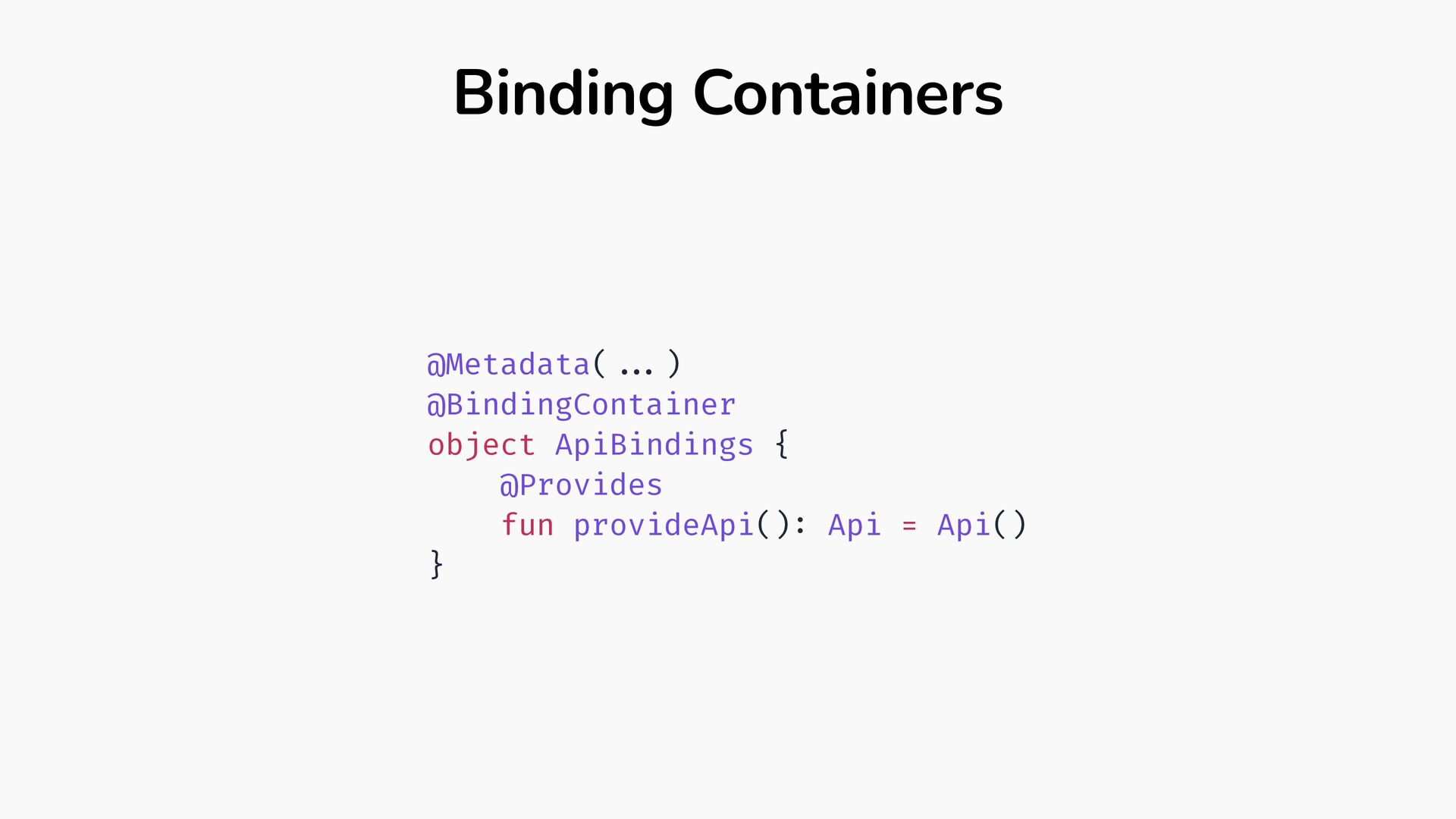

Binding Containers @Metadata( ... ) @BindingContainer object ApiBindings { @Provides
fun provideApi() : Api = Api() }

Binding Containers @Metadata( ... ) @BindingContainer object ApiBindings { @Provides
fun provideApi() : Api = Api() } message DependencyGraphProto { bool is_graph = 1; repeated ProviderFactoryProto provider_factories = 2; repeated string accessor_callable_names = 3; repeated int32 multibinding_accessor_indices = 4; repeated string included_binding_containers = 5; } message ProviderFactoryProto { string class_id = 1; bool invisible = 2; bool is_object = 3; string callable_name = 4; string property_name = 5; string new_instance_name = 6; }

Graphs @DependencyGraph interface AppGraph { // Metro generates class Impl
: AppGraph { override val val repository: Repository get() = Repository(provideApi()) } }

Graphs @DependencyGraph(AppScope :: class) interface AppGraph { // Metro generates
class Impl : AppGraph { private val repositoryProvider = DoubleCheck.provider(ProvideApiMetroFactory.create(this)) override val val repository: Repository get() = Repository(repositoryProvider()) } }

Graphs @DependencyGraph interface AppGraph { // Metro generates class Impl
: AppGraph { override val val repository: Repository get() = Repository( DoubleCheck.lazy(ProvideApiMetroFactory.create(this)) ) } } @Inject class Repository(api: Lazy<Api>)

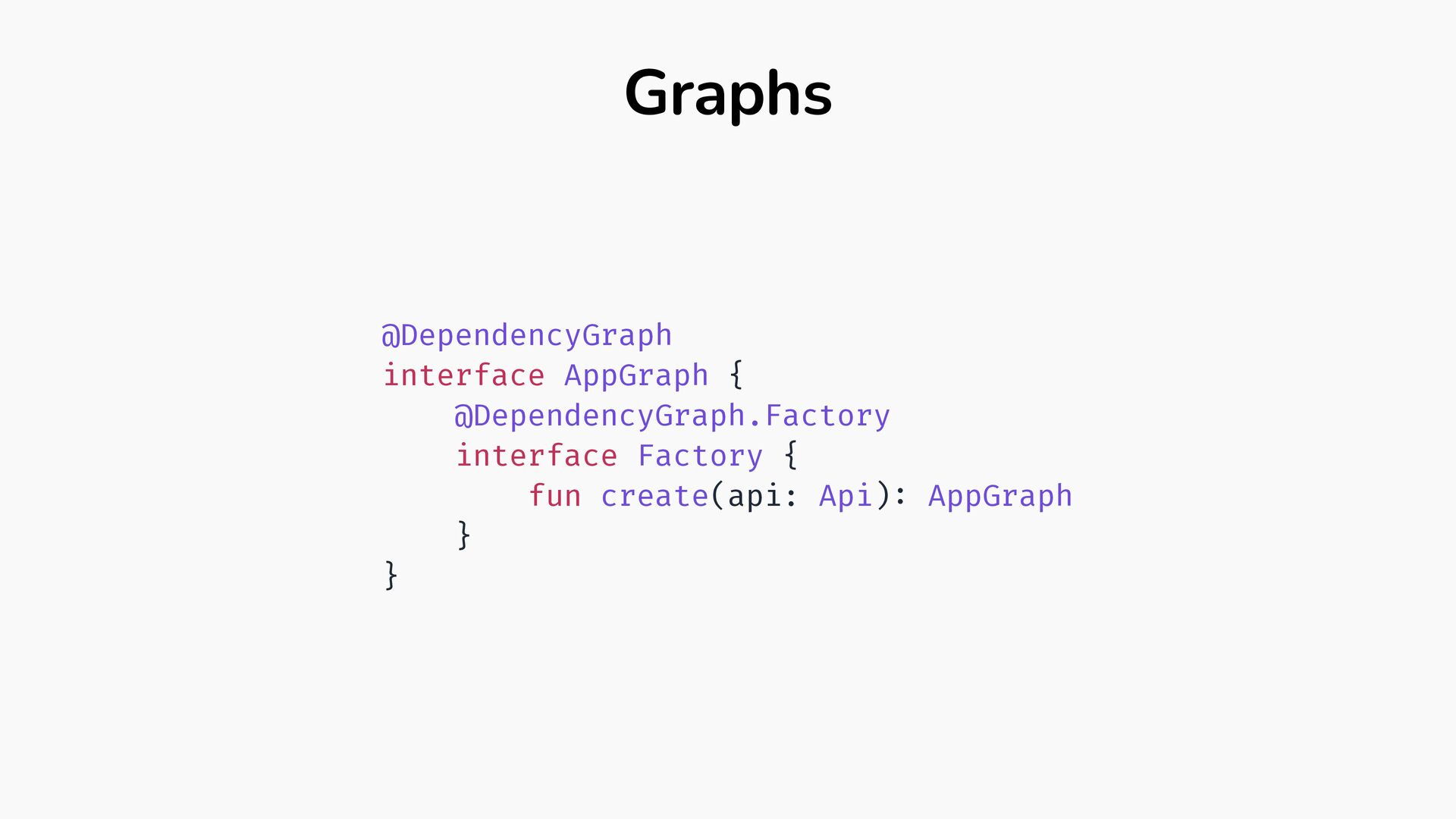

Graphs @DependencyGraph interface AppGraph { @DependencyGraph.Factory interface Factory { fun
create(api: Api) : AppGraph } }

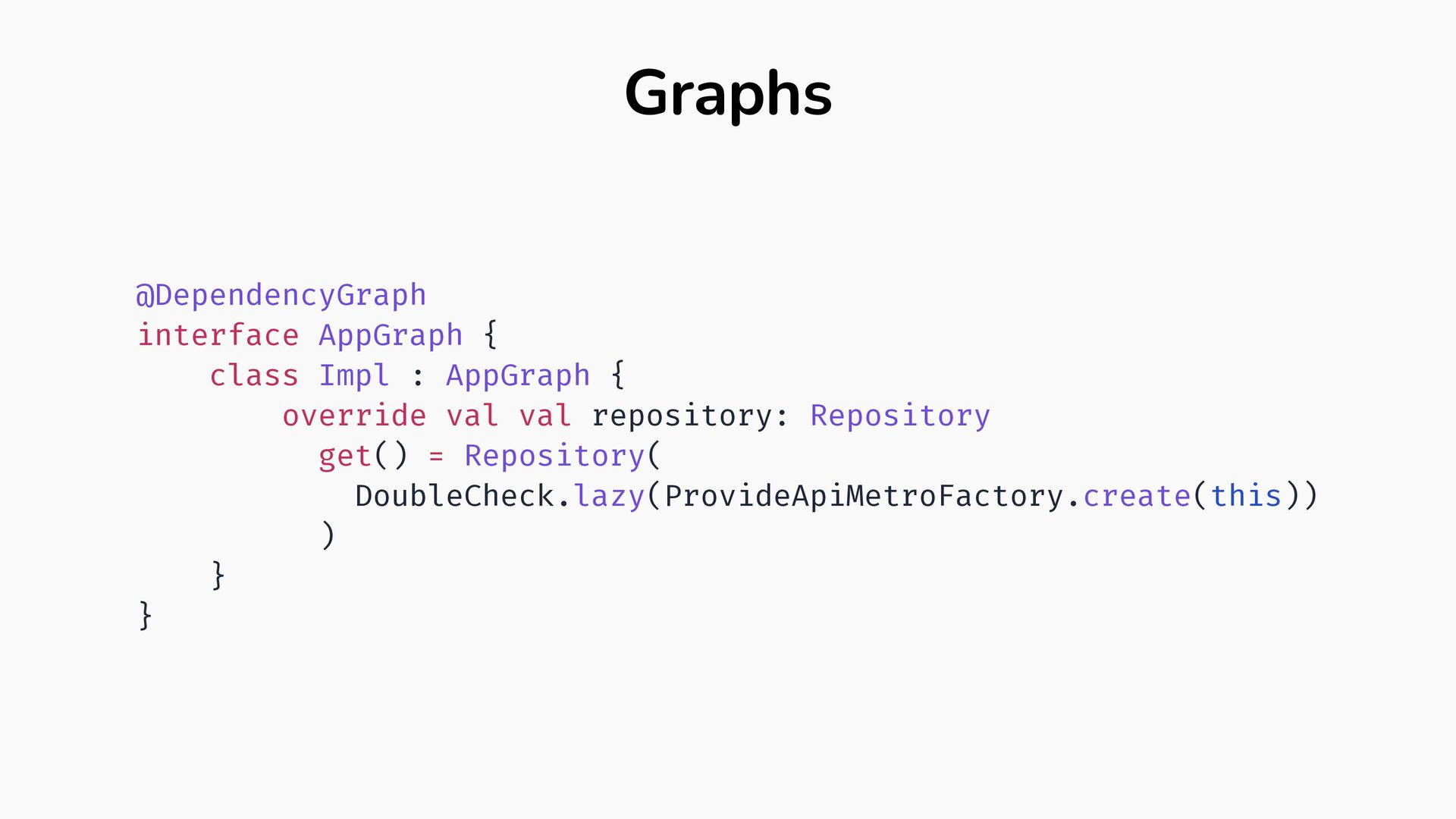

Graphs @DependencyGraph interface AppGraph { class Impl : AppGraph {
override val val repository: Repository get() = Repository( DoubleCheck.lazy(ProvideApiMetroFactory.create(this)) ) } }

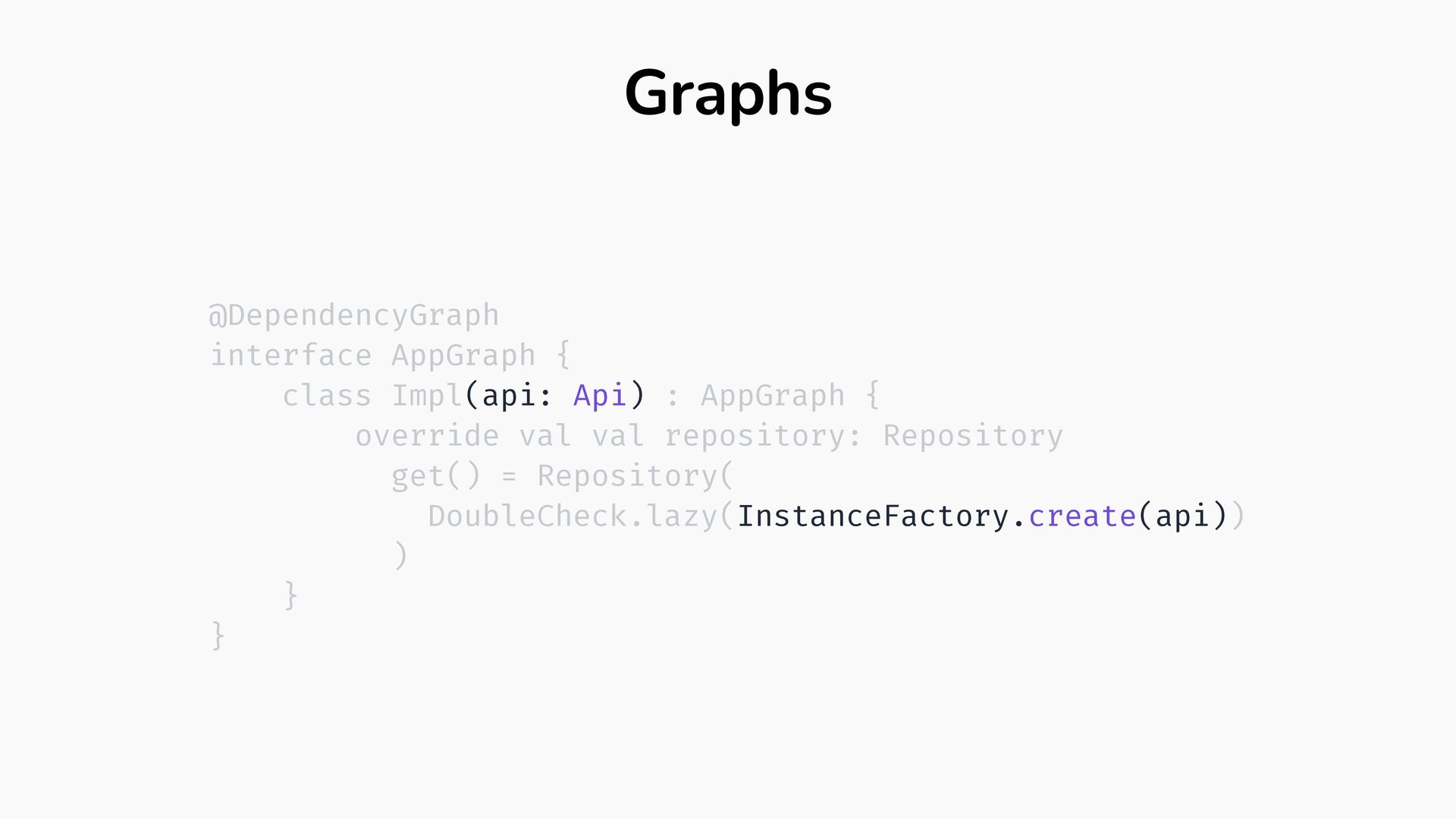

Graphs @DependencyGraph interface AppGraph { class Impl(api: Api) : AppGraph
{ override val val repository: Repository get() = Repository( DoubleCheck.lazy(InstanceFactory.create(api)) ) } }

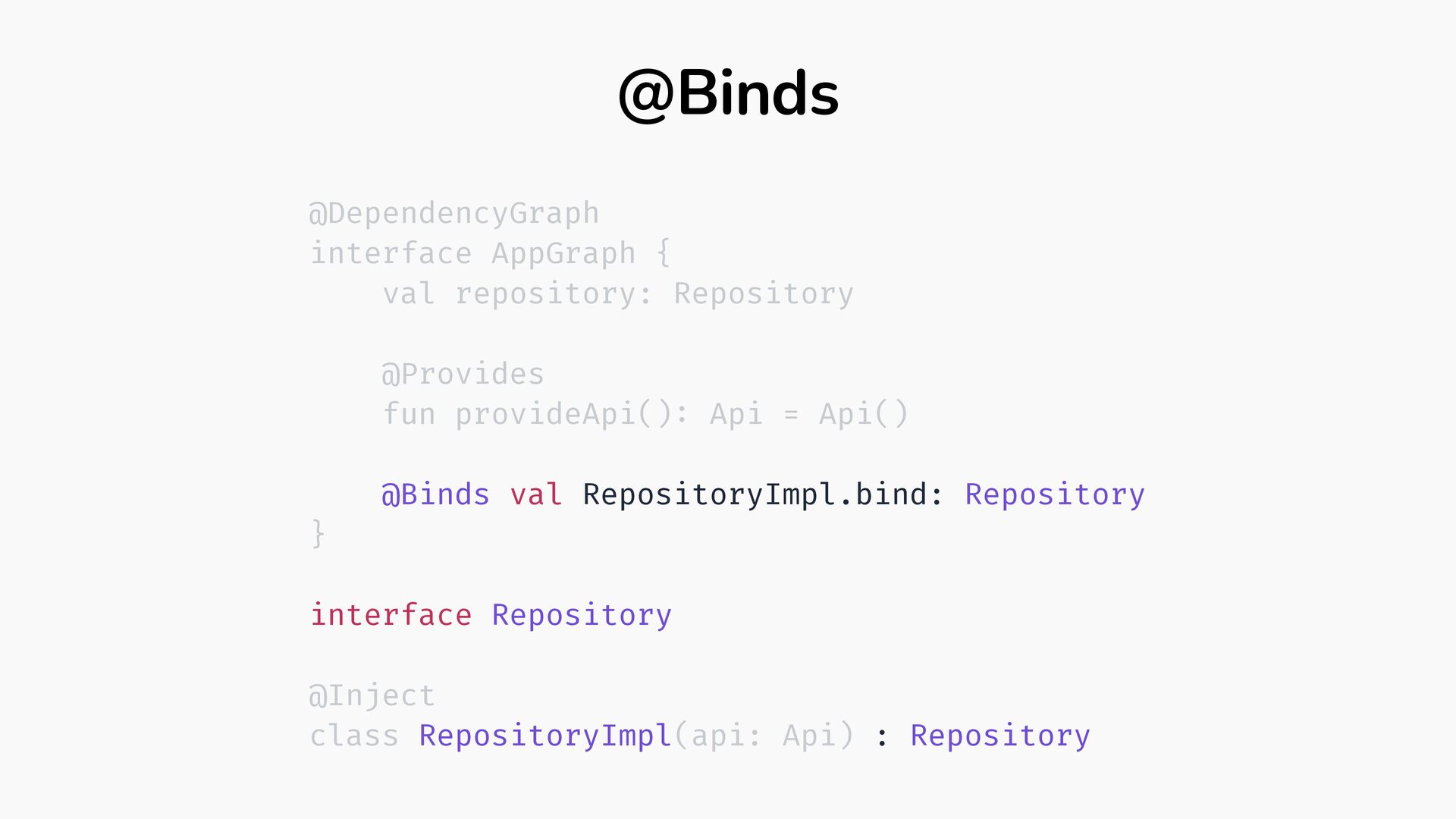

@Binds @DependencyGraph interface AppGraph { val repository: Repository @Provides fun
provideApi() : Api = Api() @Binds val RepositoryImpl.bind: Repository } interface Repository @Inject class RepositoryImpl(api: Api) : Repository

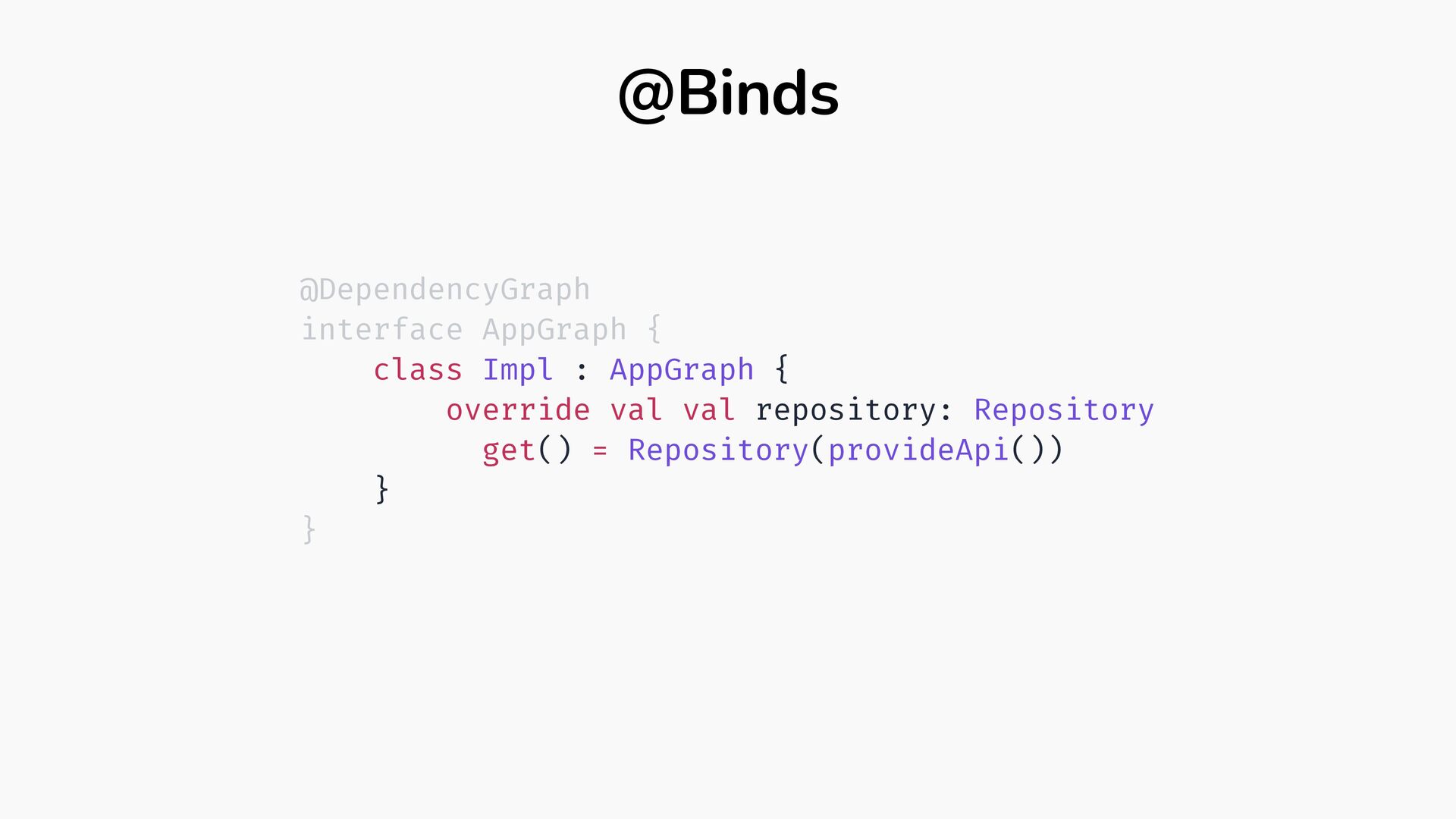

@Binds @DependencyGraph interface AppGraph { class Impl : AppGraph {
override val val repository: Repository get() = Repository(provideApi()) } }

@Binds @DependencyGraph interface AppGraph { class Impl : AppGraph {
override val val repository: Repository get() = RepositoryImpl(provideApi()) } }

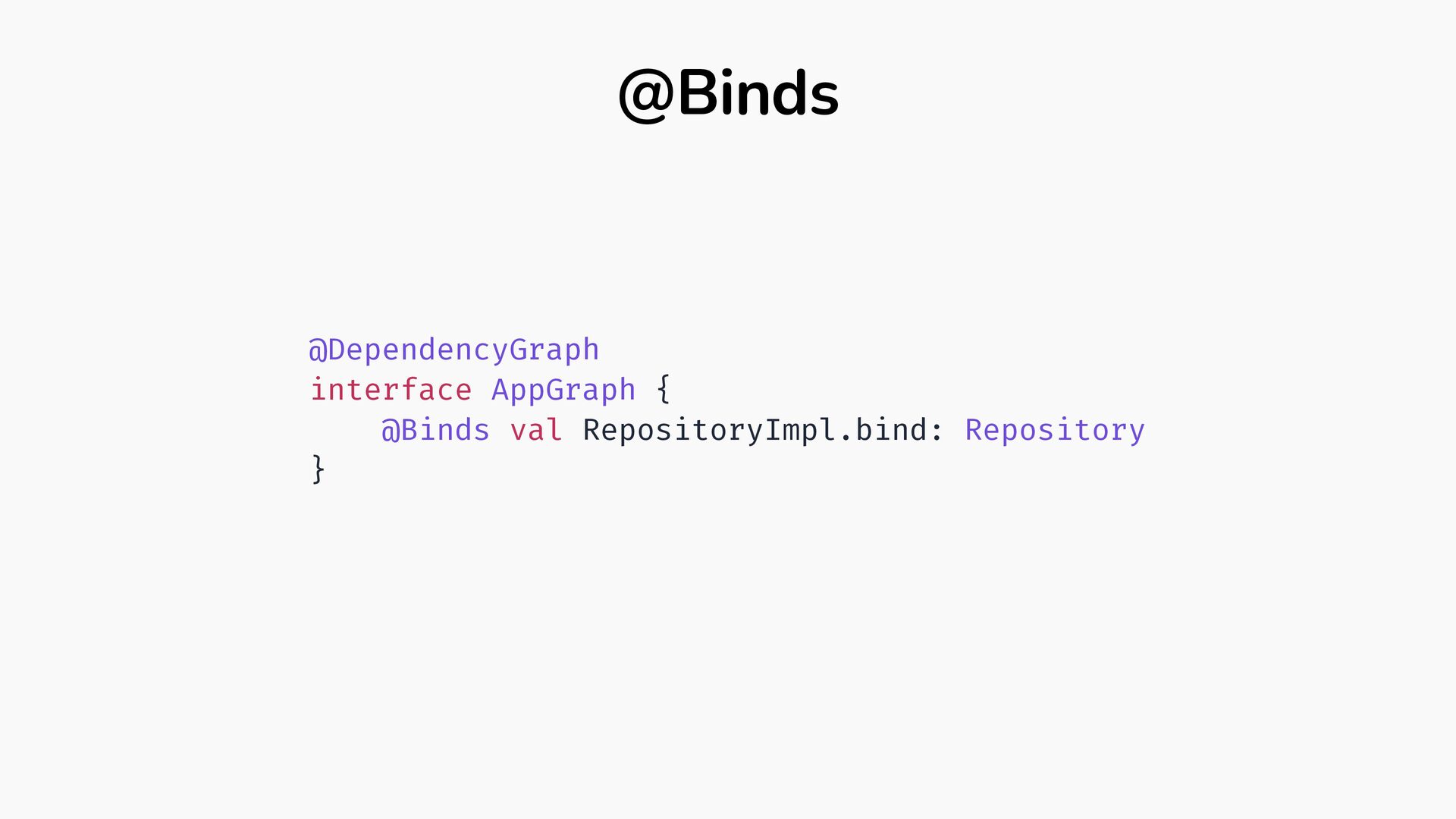

@Binds @DependencyGraph interface AppGraph { @Binds val RepositoryImpl.bind: Repository }

@Binds @DependencyGraph interface AppGraph { @Binds val RepositoryImpl.bind: Repository abstract

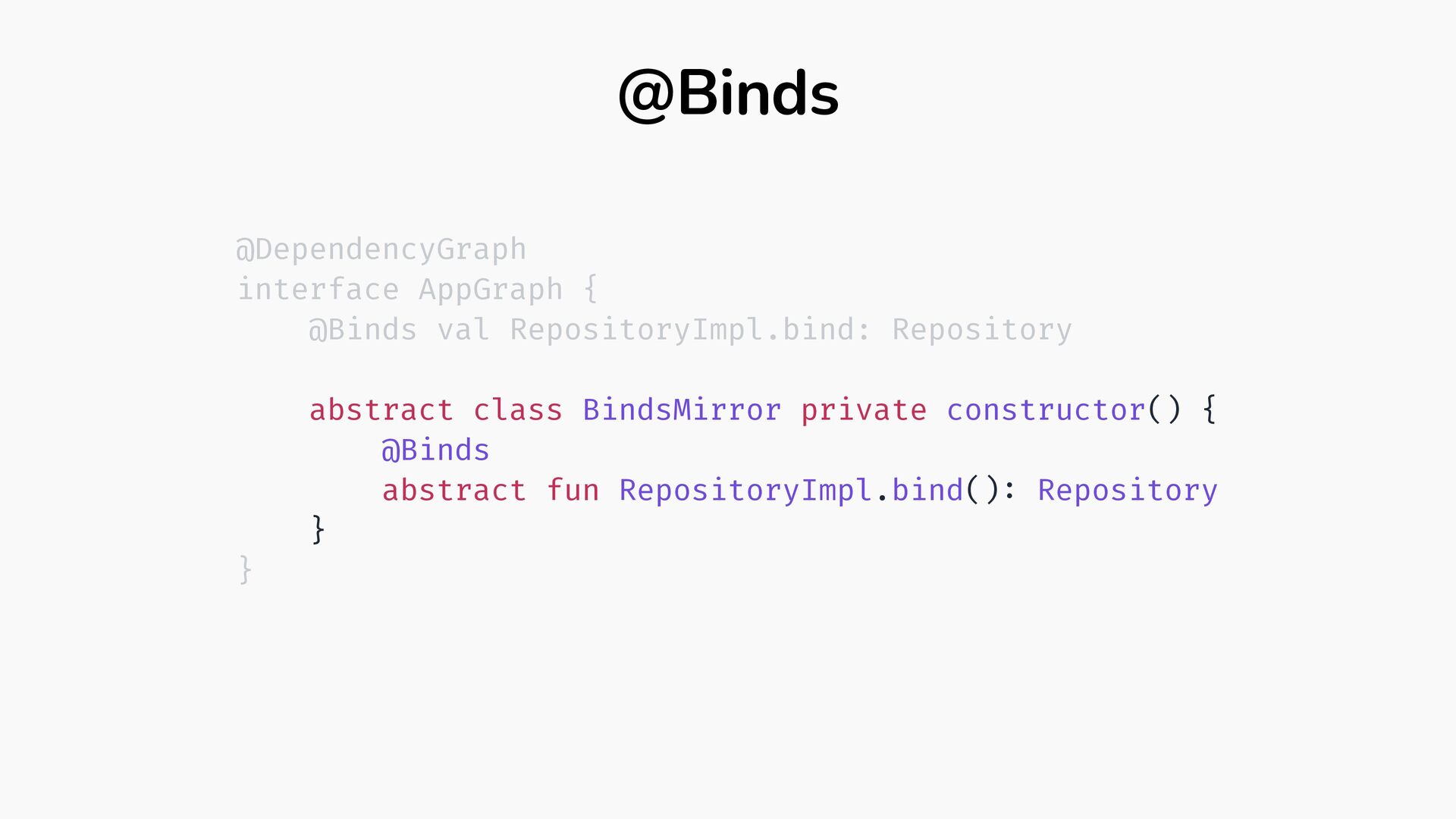

class BindsMirror private constructor() { @Binds abstract fun RepositoryImpl.bind() : Repository } }

@Binds @DependencyGraph interface AppGraph { @Binds val RepositoryImpl.bind: Repository @Deprecated(HIDDEN)
abstract class BindsMirror private constructor() { @Binds abstract fun RepositoryImpl.bind() : Repository } }

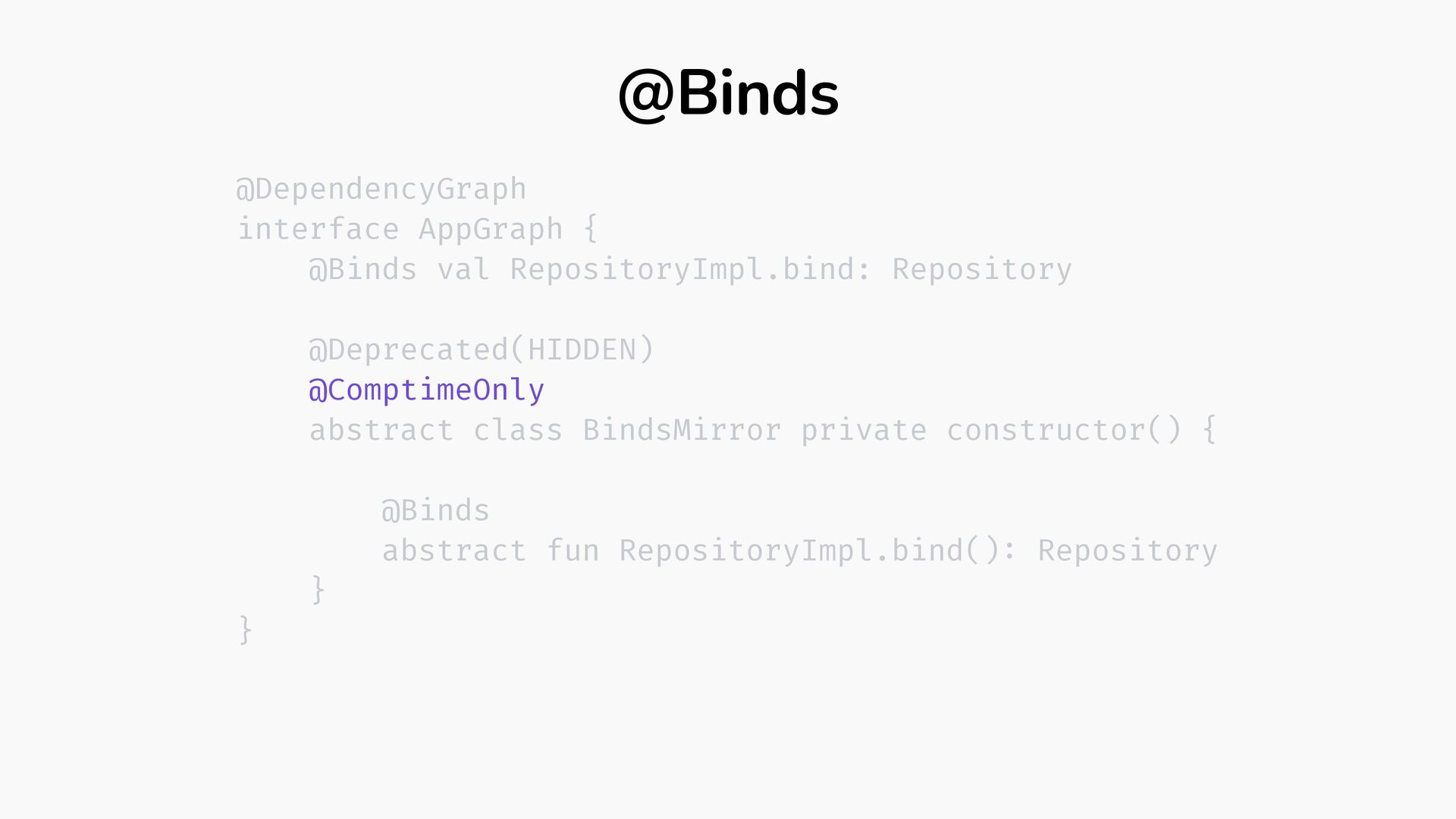

@ComptimeOnly abstract class BindsMirror private constructor() { @Binds abstract fun RepositoryImpl.bind() : Repository } }

@ComptimeOnly abstract class BindsMirror private constructor() { @Binds @CallableMetadata( ... ) abstract fun RepositoryImpl.bind() : Repository } }

@ComptimeOnly abstract class BindsMirror private constructor() { @Binds @CallableMetadata( callableName = "<get - bind>", propertyName = "bind", startOffset = 78, endOffset = 113 ) abstract fun RepositoryImpl.bind() : Repository }

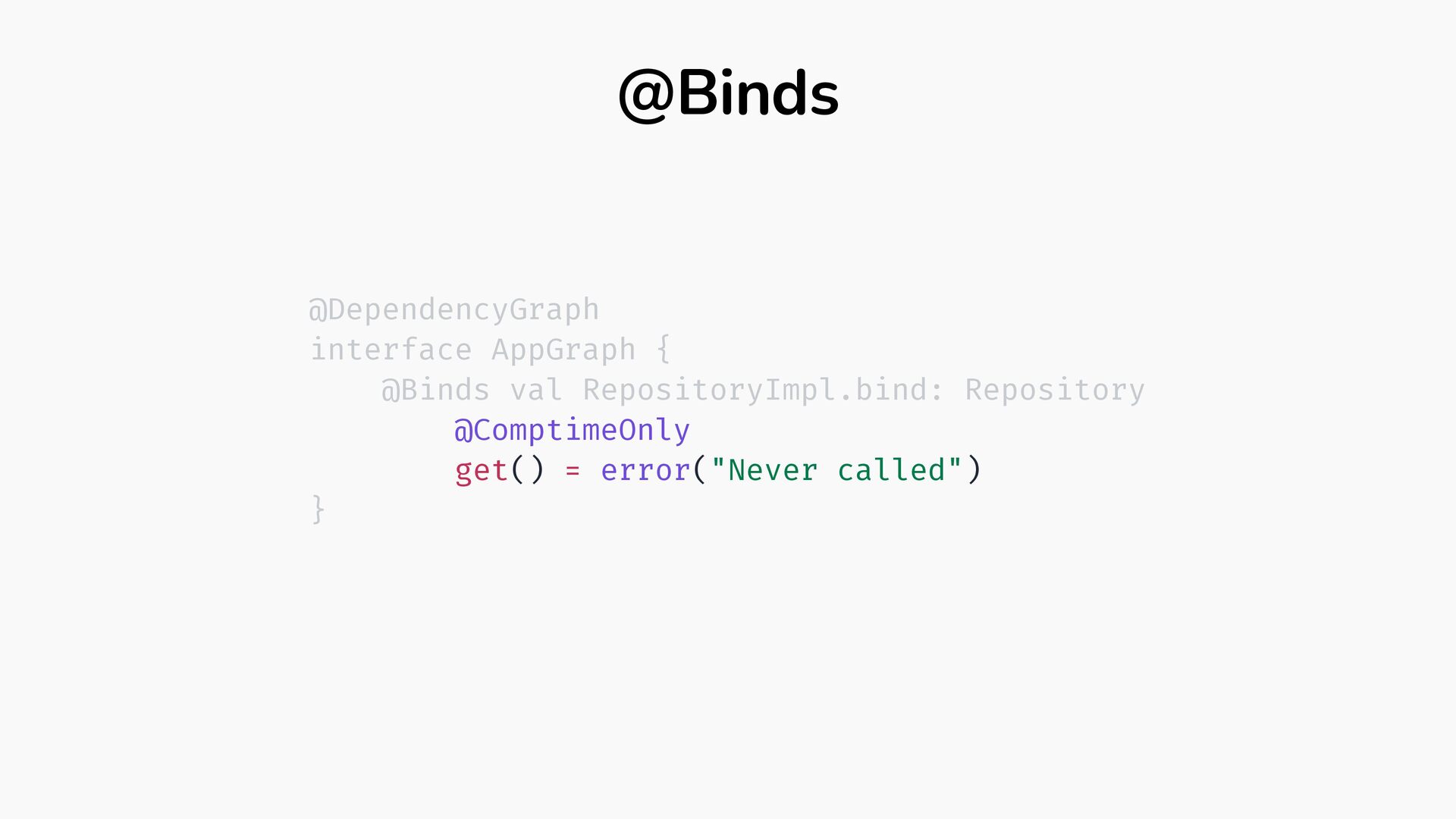

@Binds @DependencyGraph interface AppGraph { @Binds val RepositoryImpl.bind: Repository @ComptimeOnly
get() = error("Never called") }

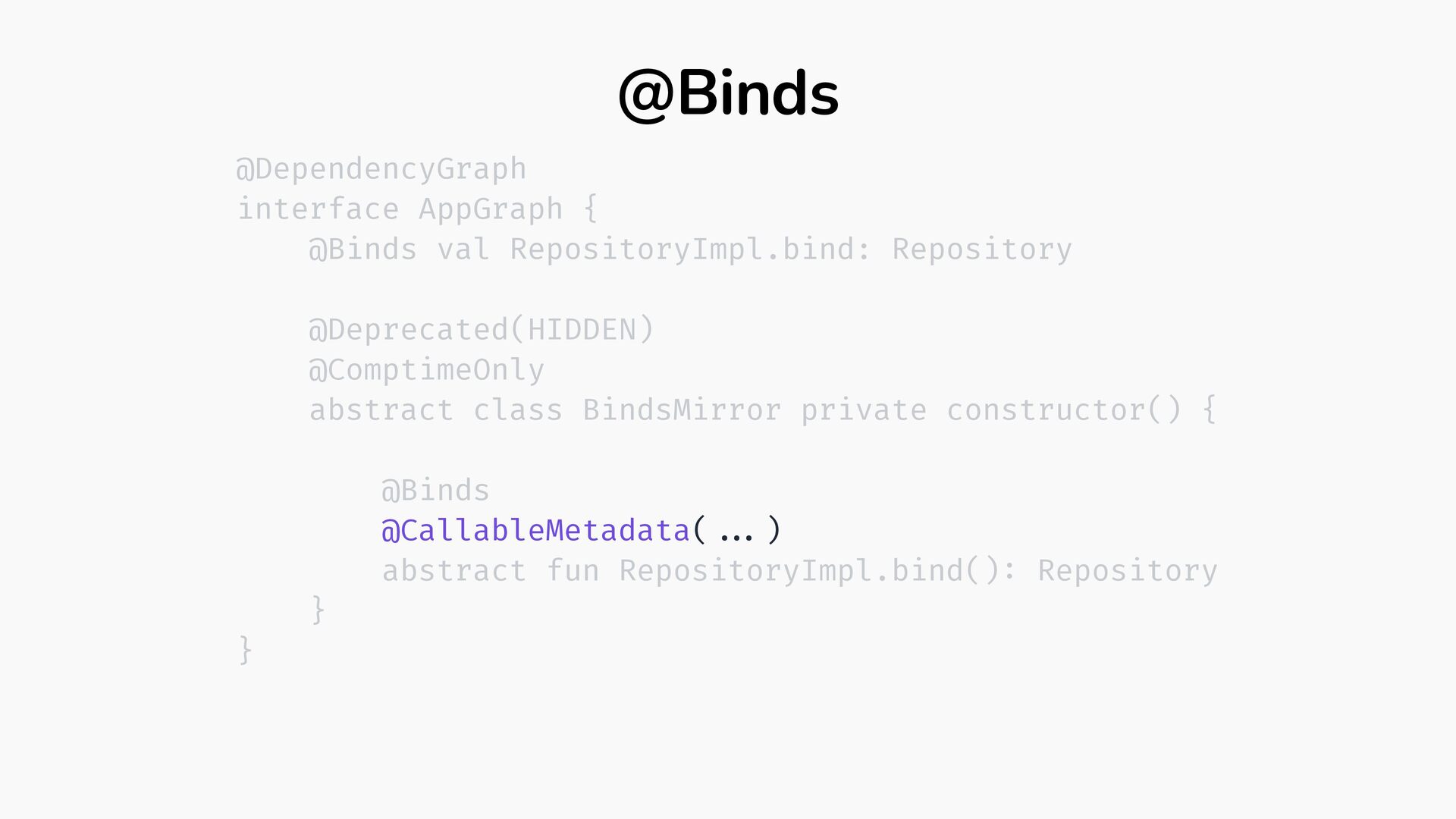

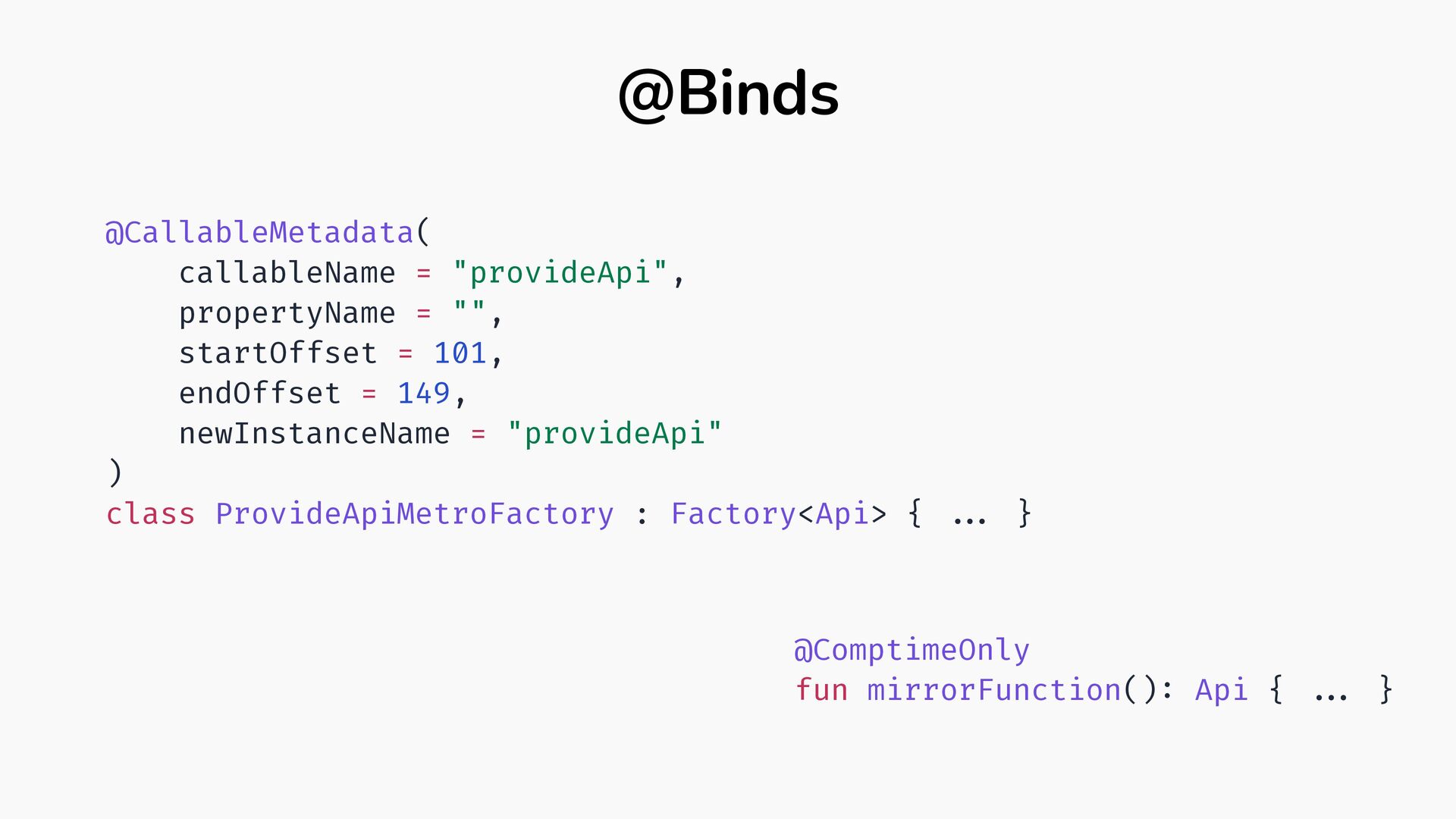

@Binds @CallableMetadata( callableName = "provideApi", propertyName = "", startOffset =
101, endOffset = 149, newInstanceName = "provideApi" ) class ProvideApiMetroFactory : Factory<Api> { ... } @ComptimeOnly fun mirrorFunction() : Api { ... }

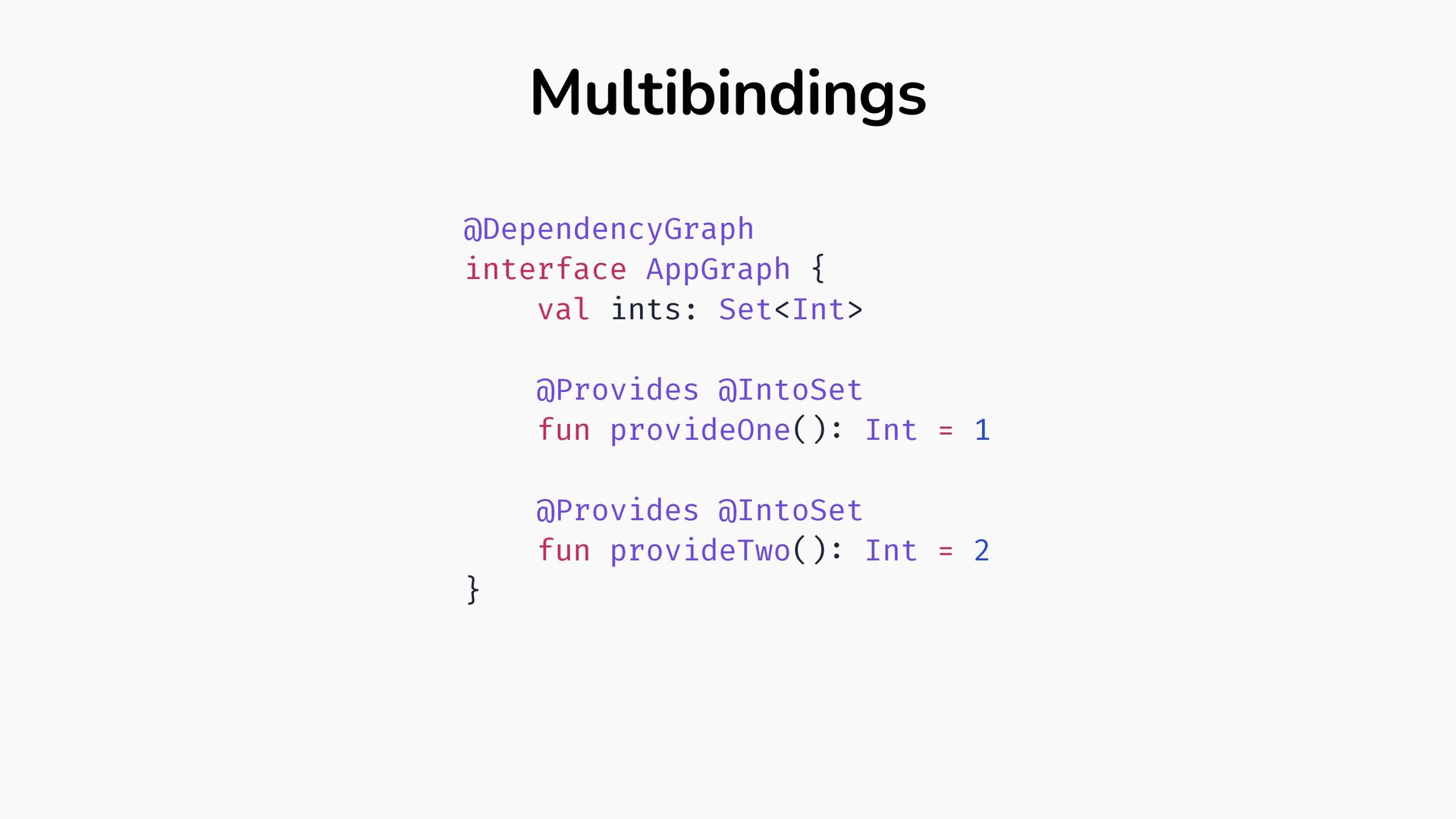

Multibindings @DependencyGraph interface AppGraph { val ints: Set<Int> @Provides @IntoSet
fun provideOne() : Int = 1 @Provides @IntoSet fun provideTwo() : Int = 2 }

Multibindings @DependencyGraph interface AppGraph { //... private val setOfInt: Set<Int>
get() = buildSet(2) { add(provideOne()) add(provideTwo()) } }

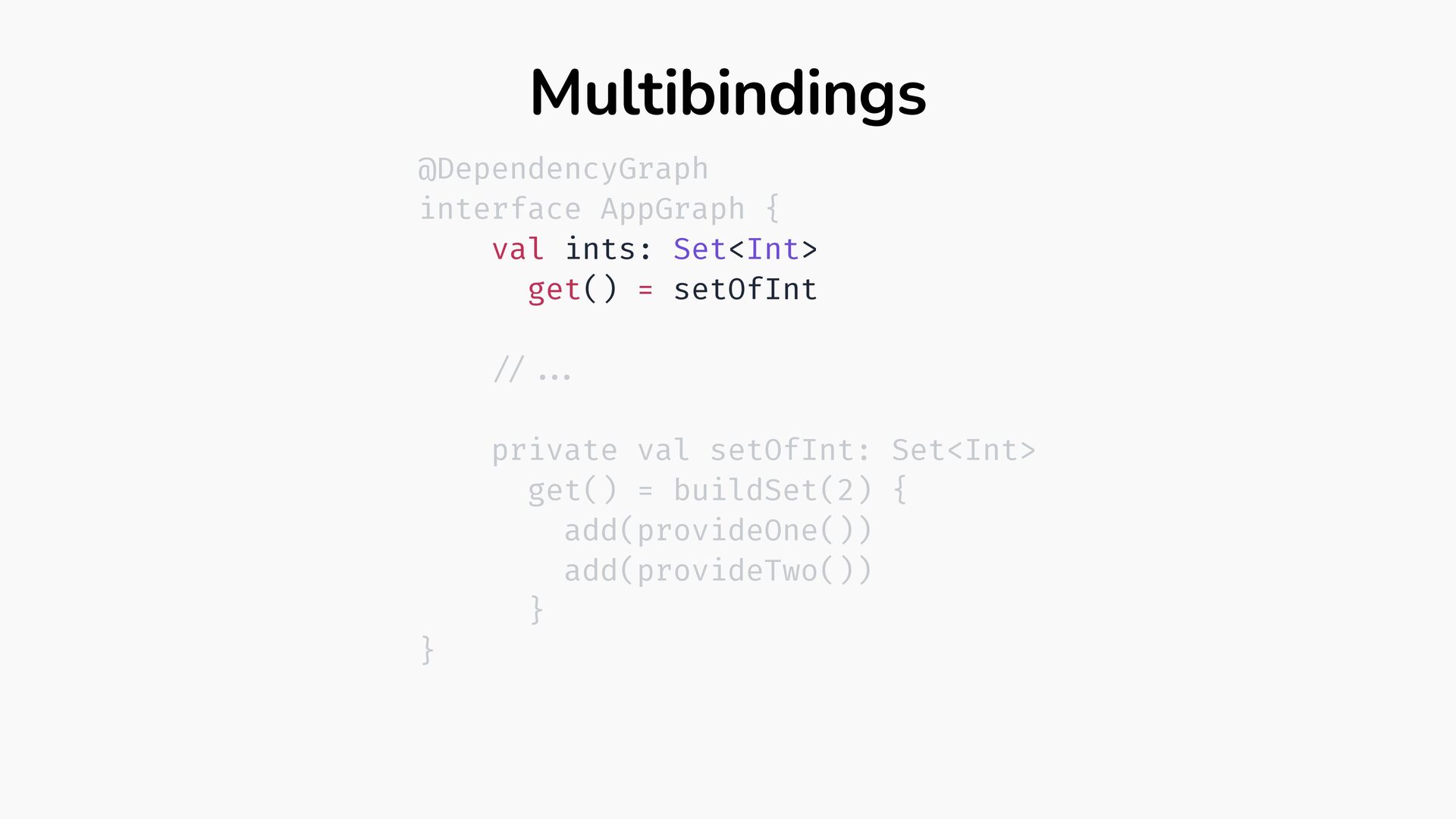

Multibindings @DependencyGraph interface AppGraph { val ints: Set<Int> get() =
setOfInt //... private val setOfInt: Set<Int> get() = buildSet(2) { add(provideOne()) add(provideTwo()) } }

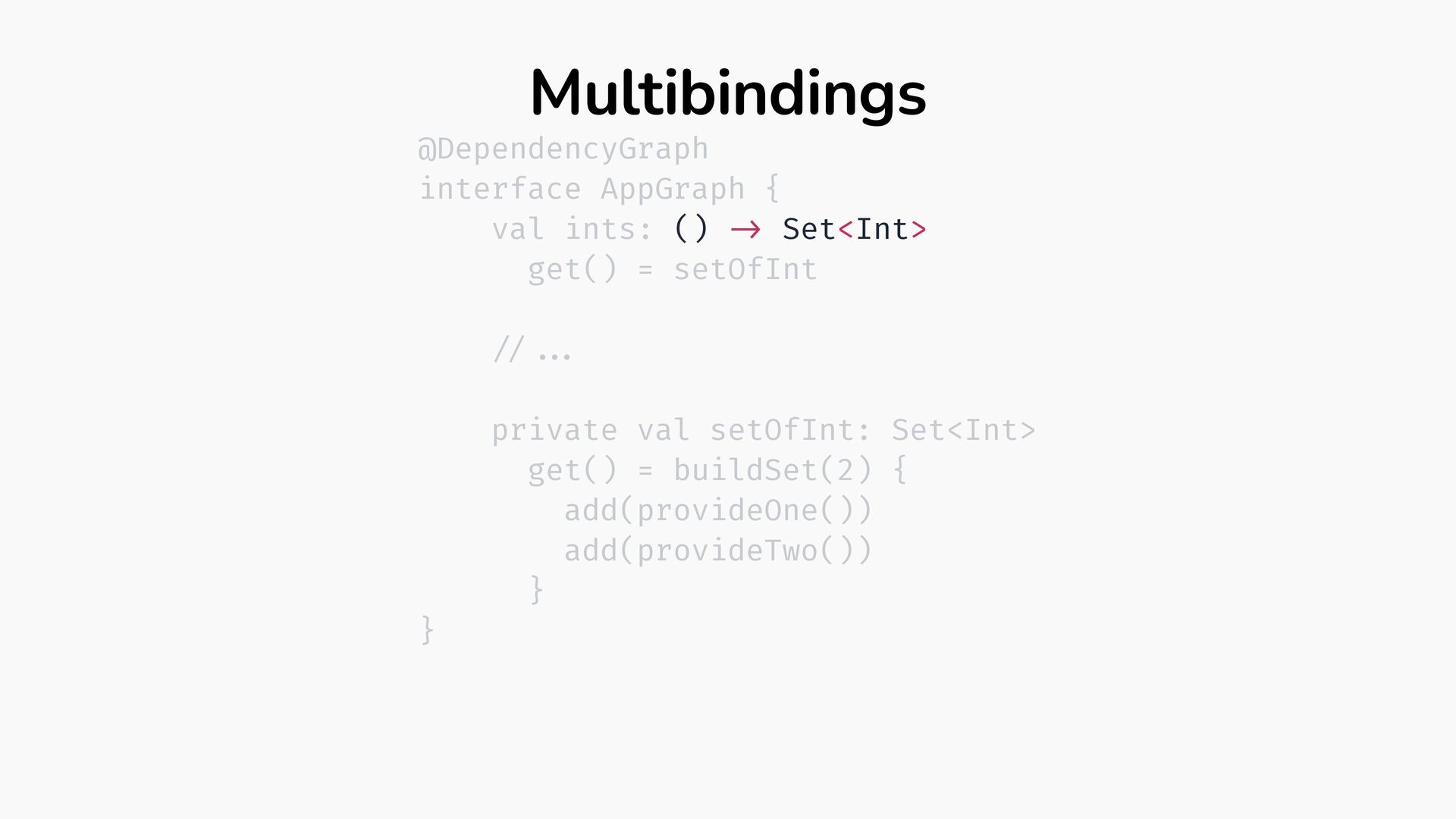

Multibindings @DependencyGraph interface AppGraph { val ints: () -> Set<Int>
get() = setOfInt //... private val setOfInt: Set<Int> get() = buildSet(2) { add(provideOne()) add(provideTwo()) } }

get() = setOfIntProvider //... private val setOfIntProvider: () -> Set<Int> get() { val builder = SetFactory.builder<Int>(2, 0) builder.addProvider(ProvideTwoMetroFactory.create()) builder.addProvider(ProvideOneMetroFactory.create()) return builder.build() } }

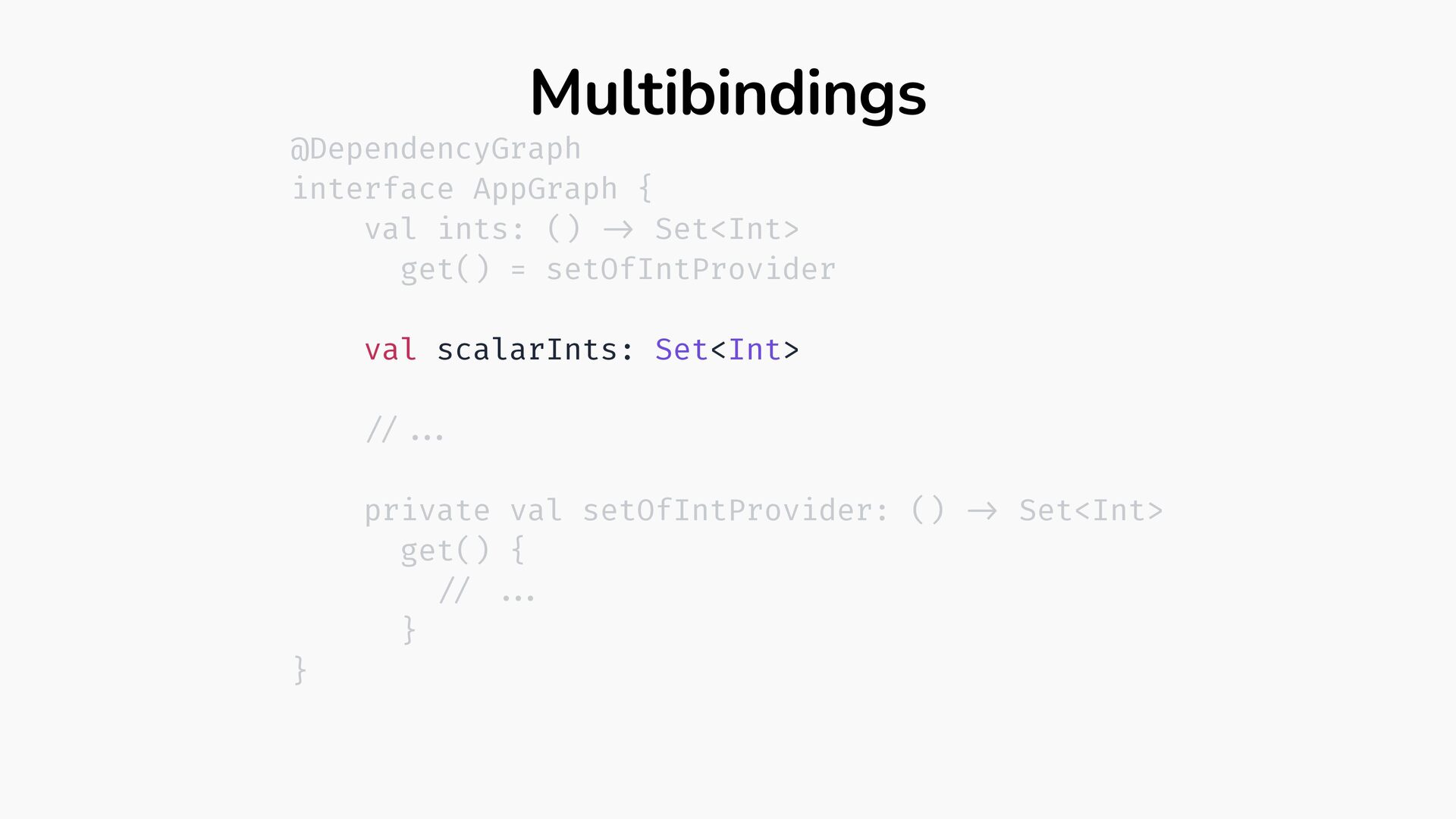

get() = setOfIntProvider val scalarInts: Set<Int> //... private val setOfIntProvider: () -> Set<Int> get() { // ... } }

get() = setOfIntProvider val scalarInts: Set<Int> get() = setOfIntProvider() //... private val setOfIntProvider: () -> Set<Int> get() { // ... } }

Multibindings @DependencyGraph interface AppGraph { val ints: Set<Int> @Provides @ElementsIntoSet
fun provideElements() : Set<Int> = setOf(1, 2) }

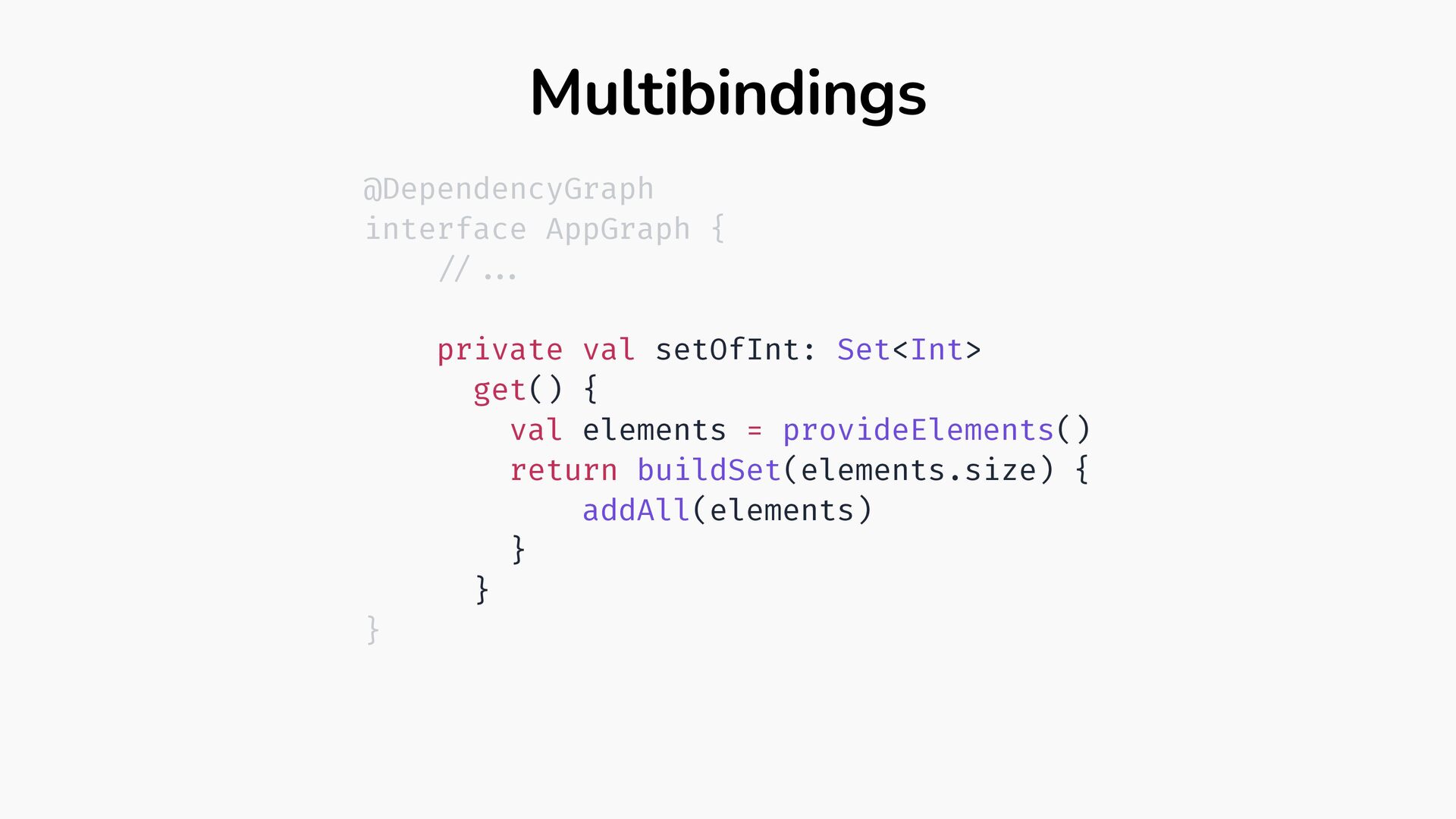

Multibindings @DependencyGraph interface AppGraph { //... private val setOfInt: Set<Int>
get() { val elements = provideElements() return buildSet(elements.size) { addAll(elements) } } }

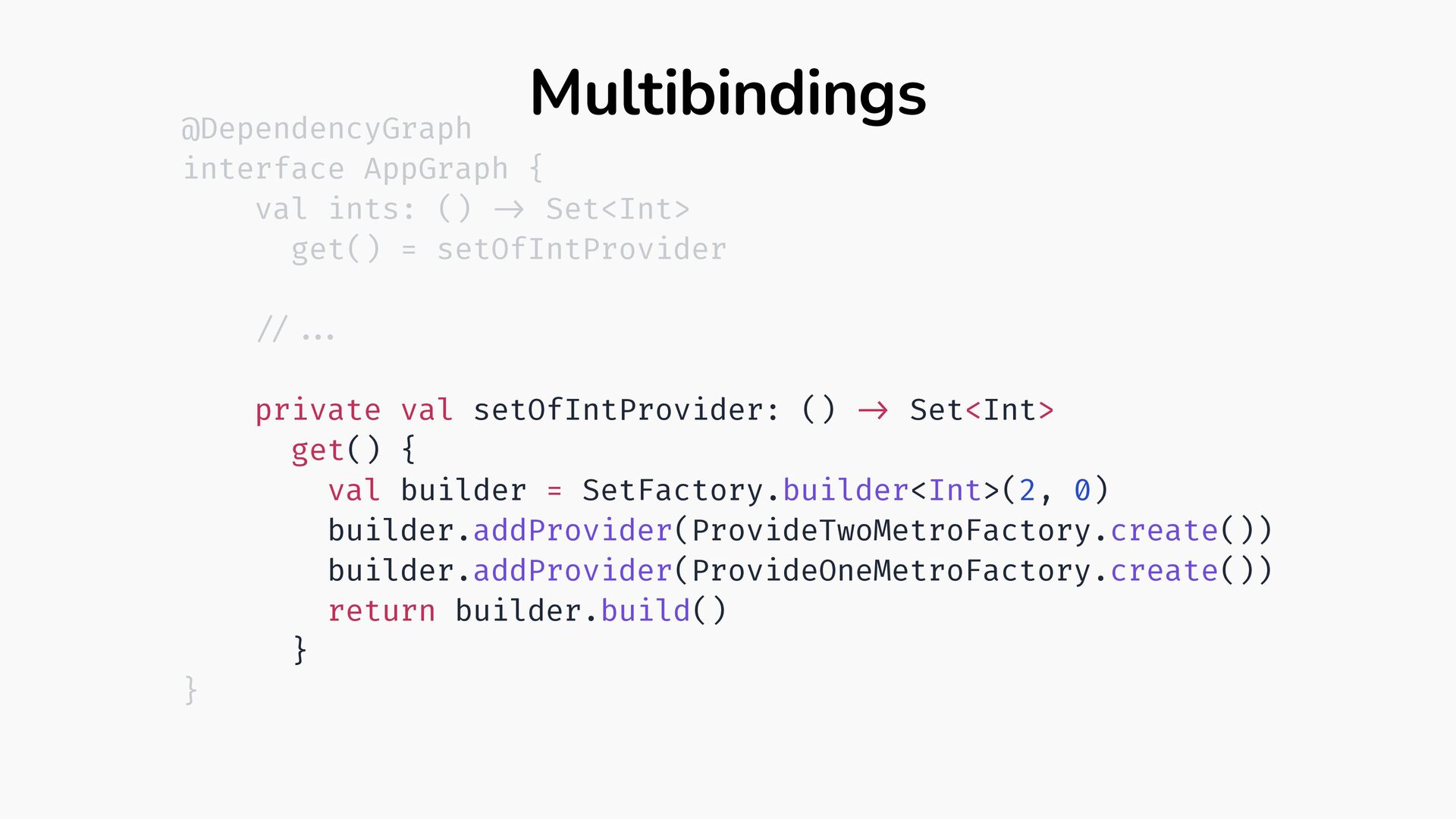

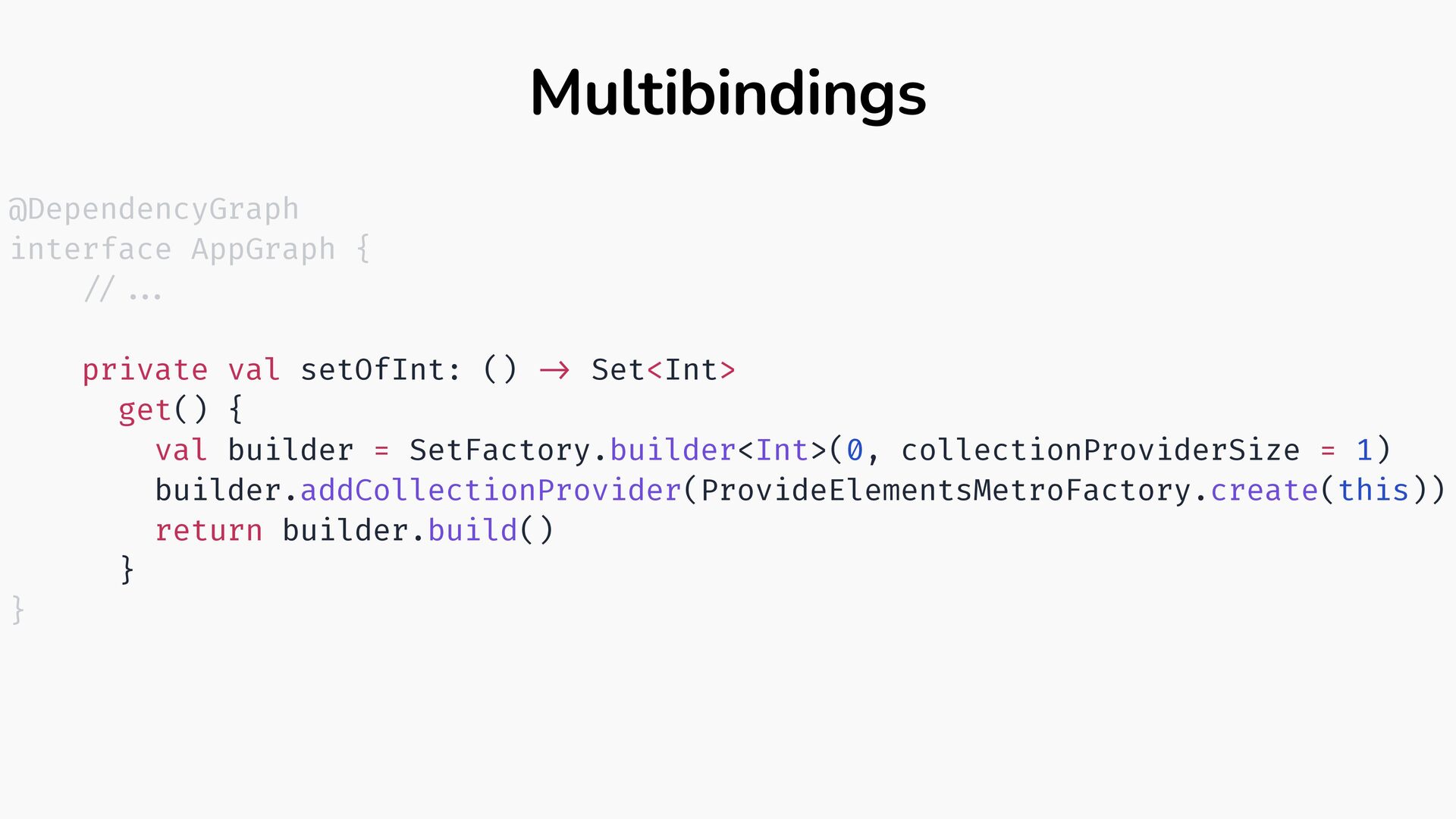

Multibindings @DependencyGraph interface AppGraph { //... private val setOfInt: ()
-> Set<Int> get() { val builder = SetFactory.builder<Int>(0, collectionProviderSize = 1) builder.addCollectionProvider(ProvideElementsMetroFactory.create(this)) return builder.build() } }

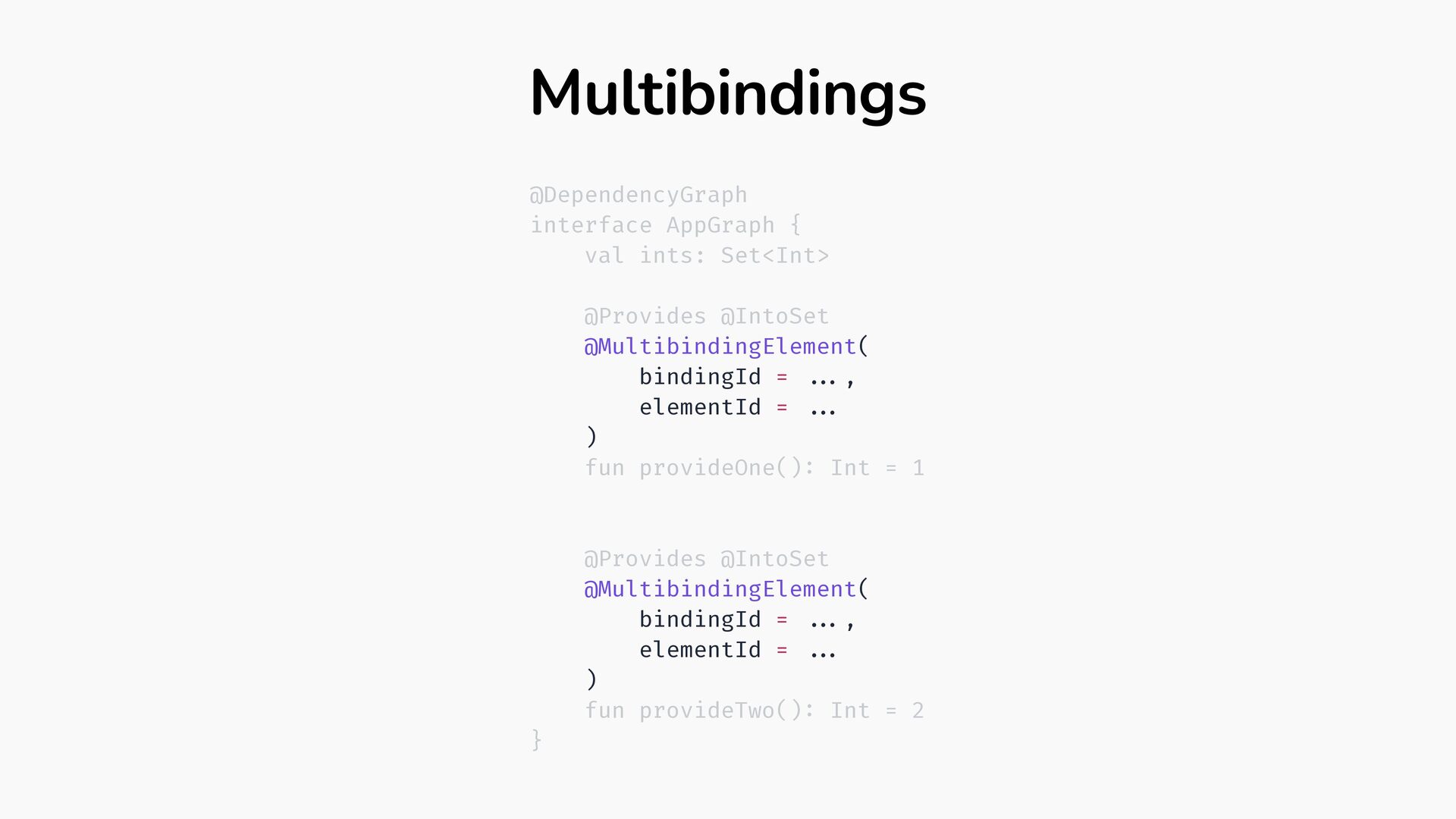

@MultibindingElement( bindingId = ... , elementId = ... ) fun provideOne() : Int = 1 @Provides @IntoSet @MultibindingElement( bindingId = ... , elementId = ... ) fun provideTwo() : Int = 2 }

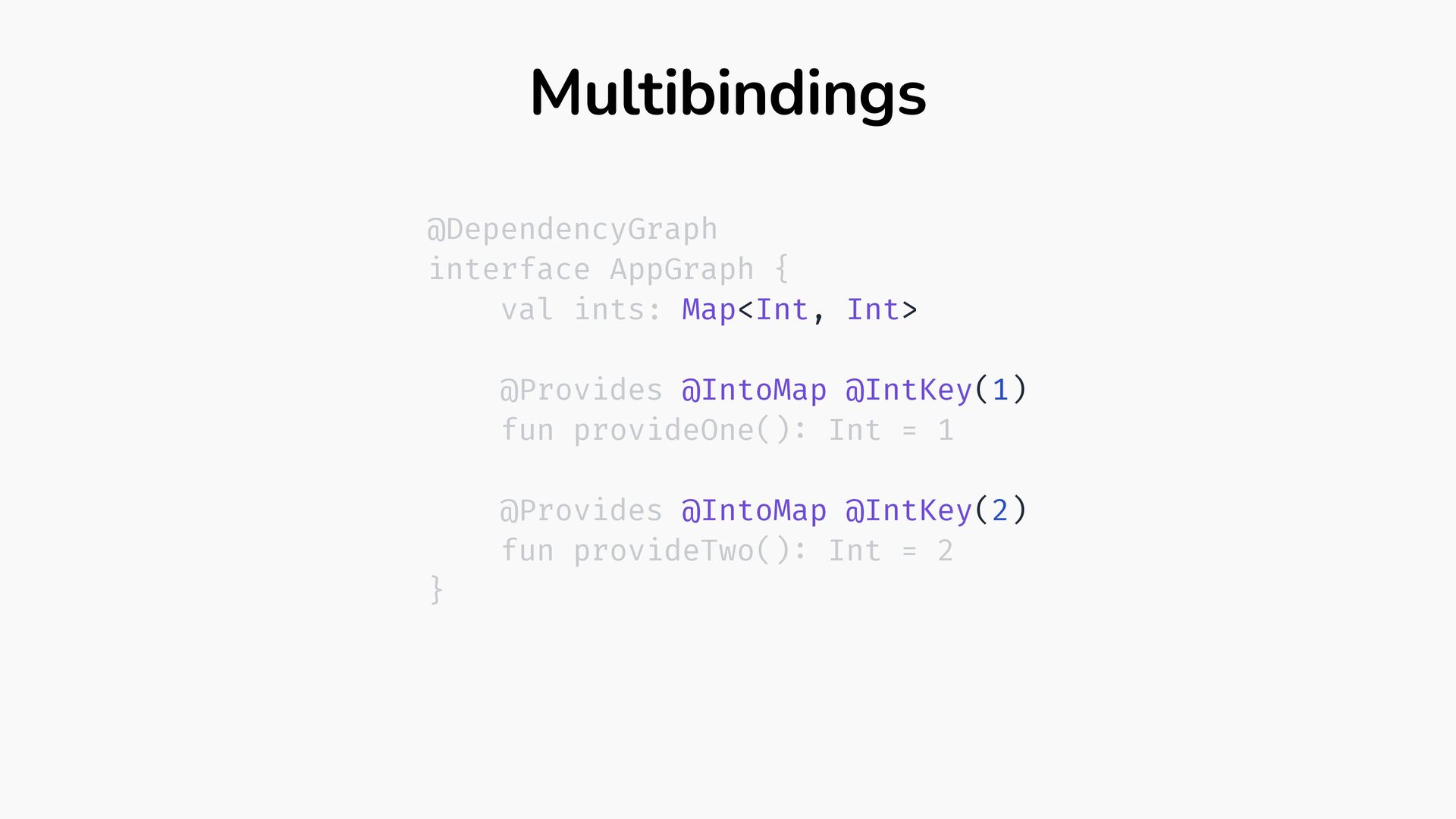

Multibindings @DependencyGraph interface AppGraph { val ints: Map<Int, Int> @Provides
@IntoMap @IntKey(1) fun provideOne() : Int = 1 @Provides @IntoMap @IntKey(2) fun provideTwo() : Int = 2 }

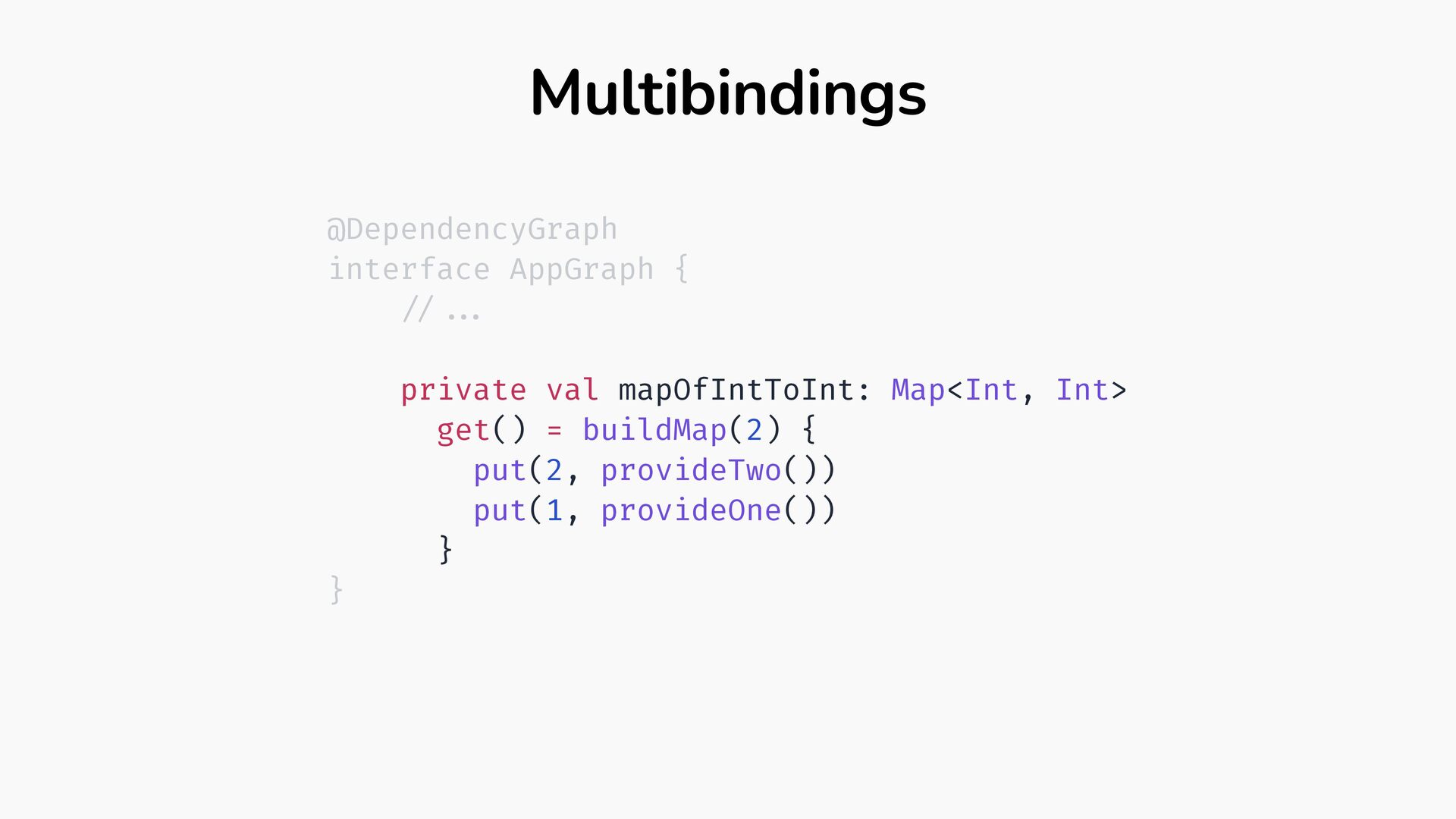

Multibindings @DependencyGraph interface AppGraph { //... private val mapOfIntToInt: Map<Int,
Int> get() = buildMap(2) { put(2, provideTwo()) put(1, provideOne()) } }

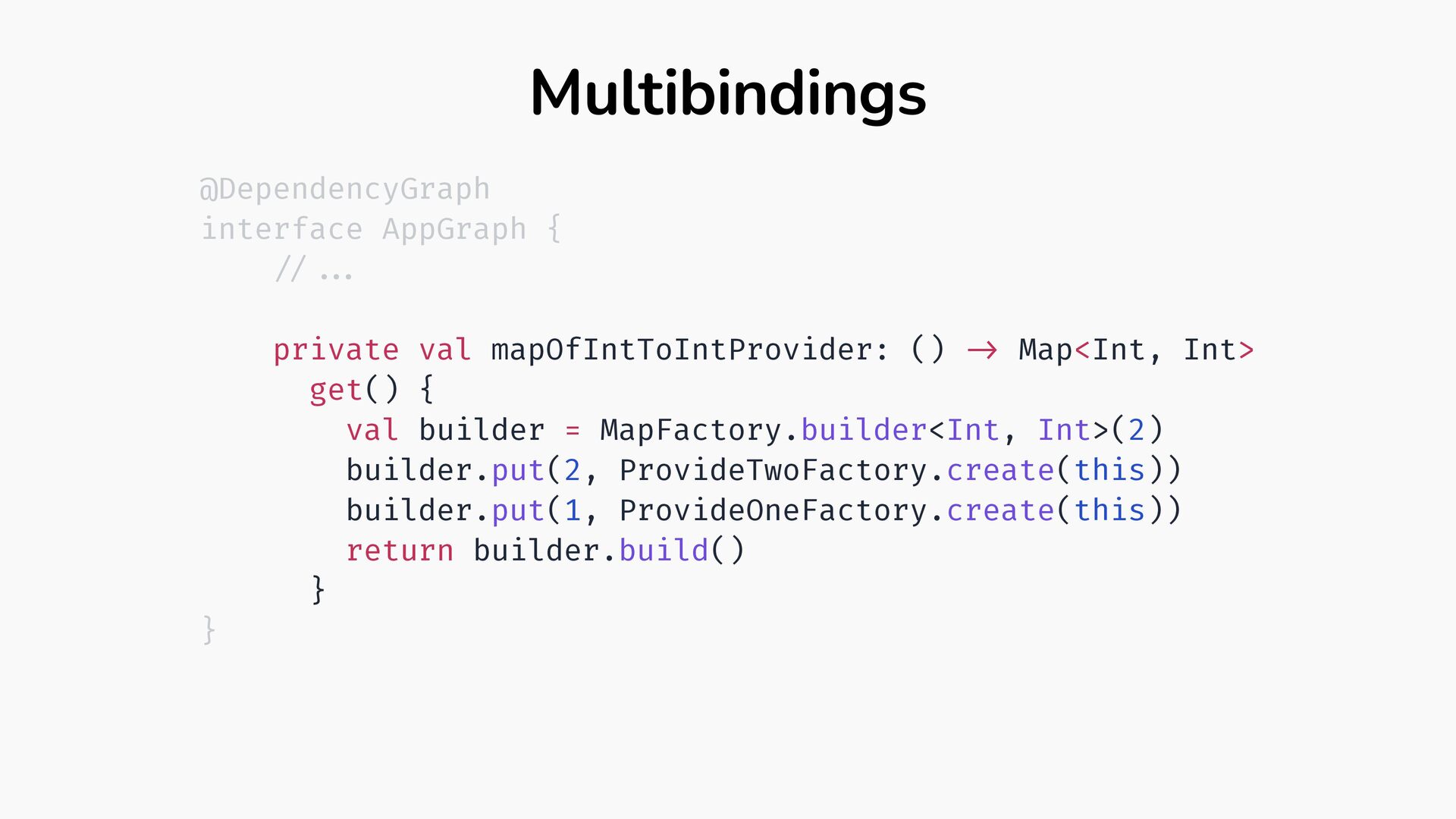

Multibindings @DependencyGraph interface AppGraph { //... private val mapOfIntToIntProvider: ()
-> Map<Int, Int> get() { val builder = MapFactory.builder<Int, Int>(2) builder.put(2, ProvideTwoFactory.create(this)) builder.put(1, ProvideOneFactory.create(this)) return builder.build() } }

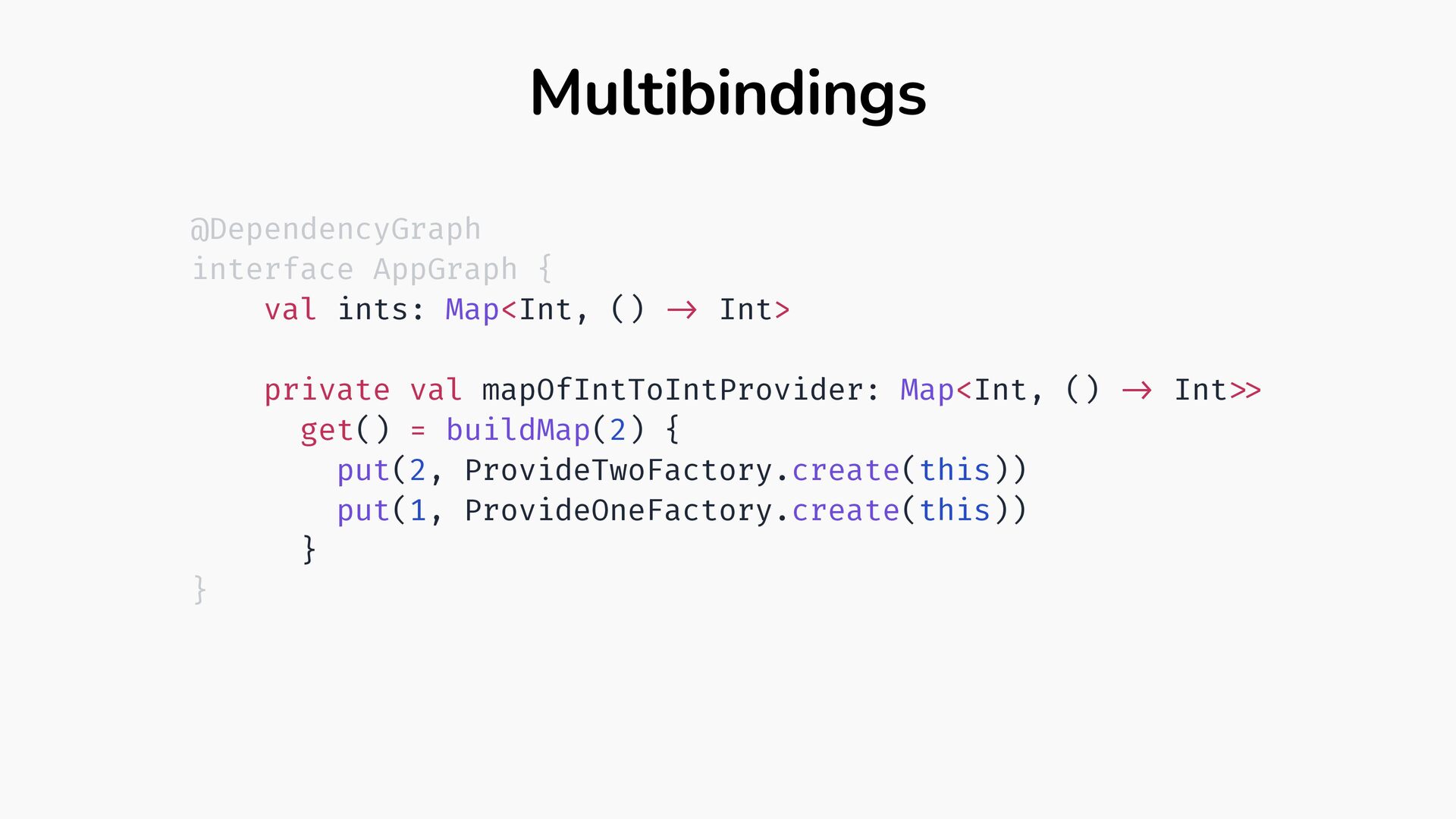

Multibindings @DependencyGraph interface AppGraph { val ints: Map<Int, () ->
Int> private val mapOfIntToIntProvider: Map<Int, () -> Int >> get() = buildMap(2) { put(2, ProvideTwoFactory.create(this)) put(1, ProvideOneFactory.create(this)) } }

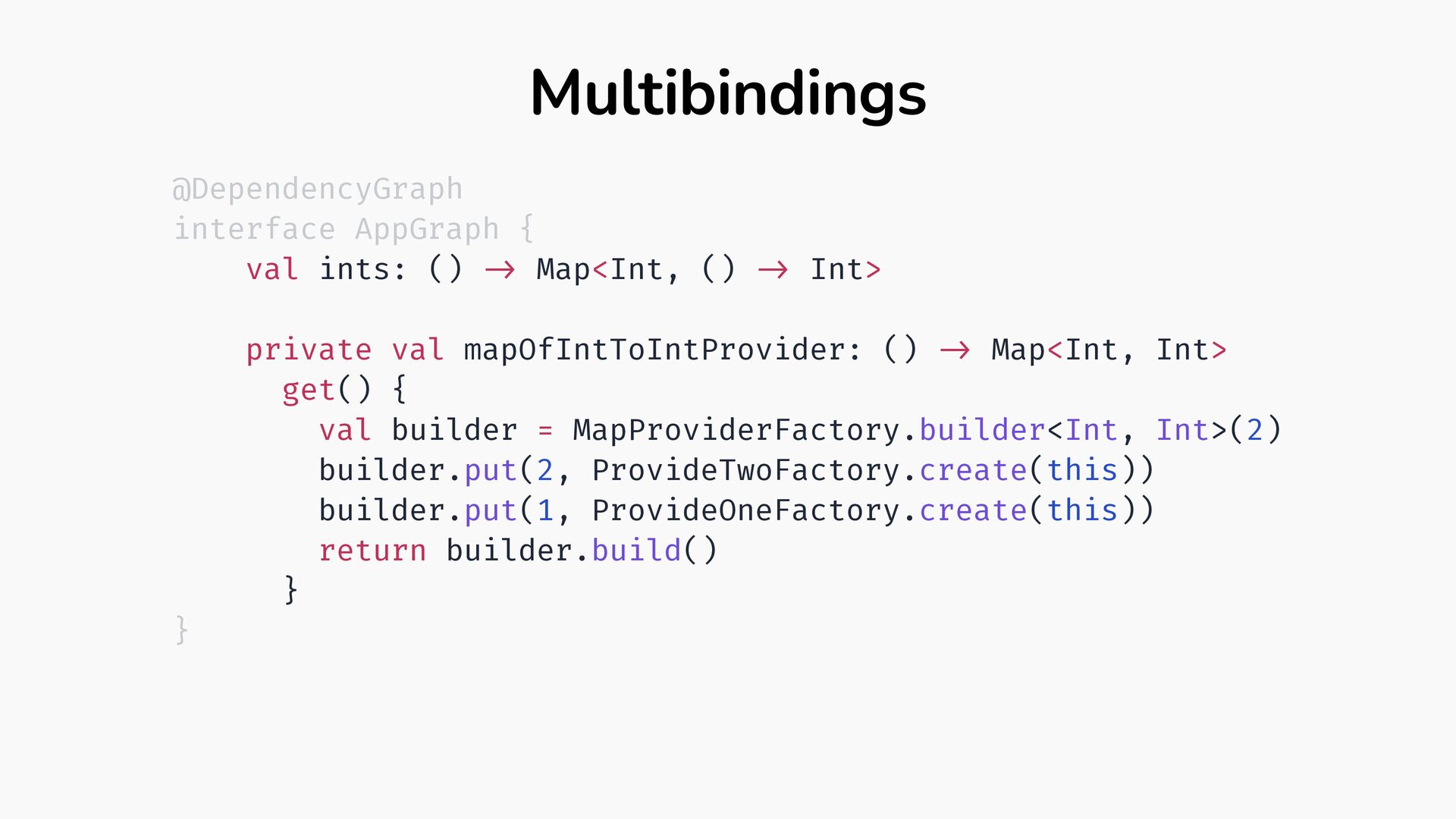

Multibindings @DependencyGraph interface AppGraph { val ints: () -> Map<Int,
() -> Int> private val mapOfIntToIntProvider: () -> Map<Int, Int> get() { val builder = MapProviderFactory.builder<Int, Int>(2) builder.put(2, ProvideTwoFactory.create(this)) builder.put(1, ProvideOneFactory.create(this)) return builder.build() } }

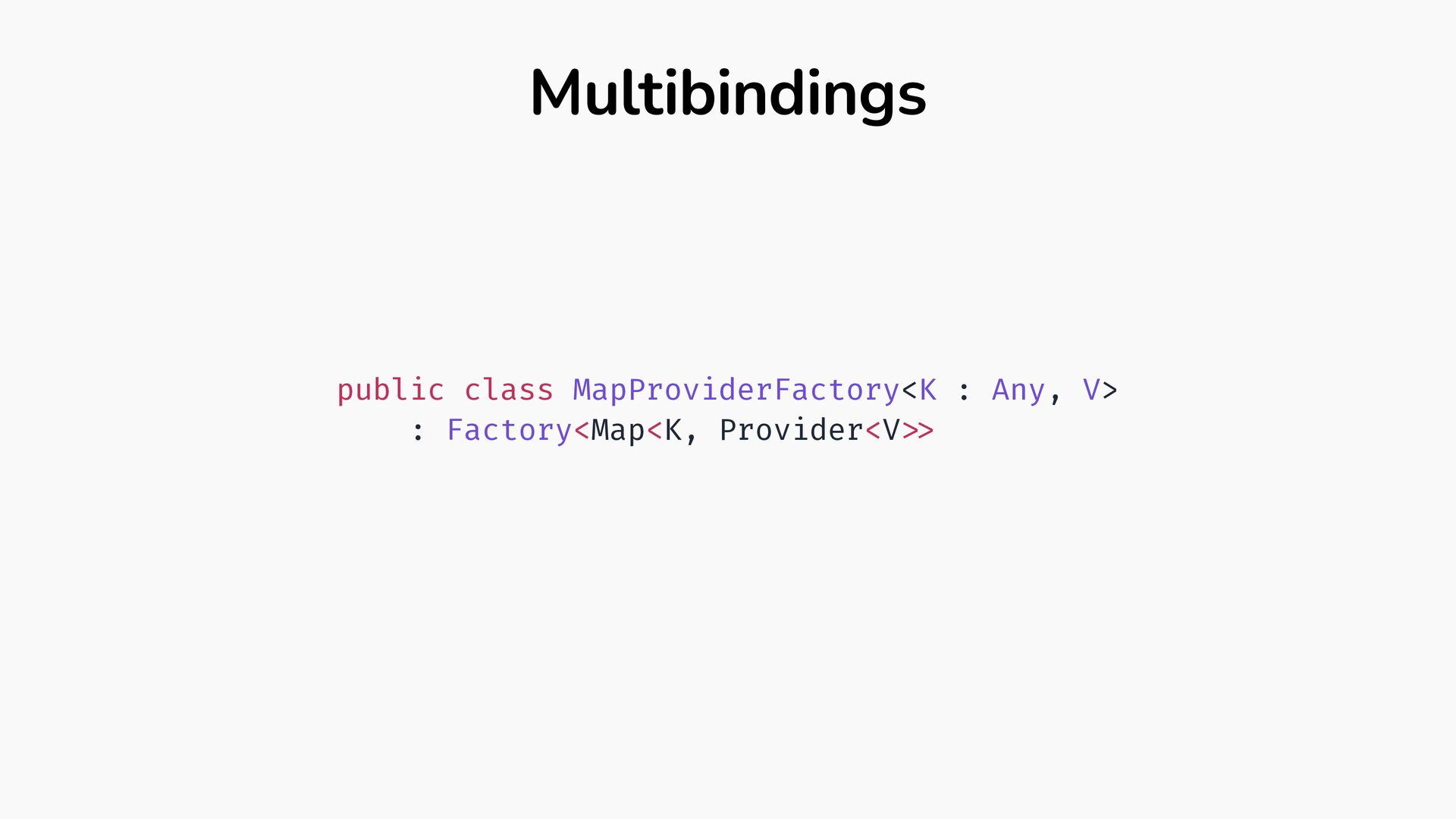

Multibindings public class MapProviderFactory<K : Any, V> : Factory<Map<K, Provider<V
>>

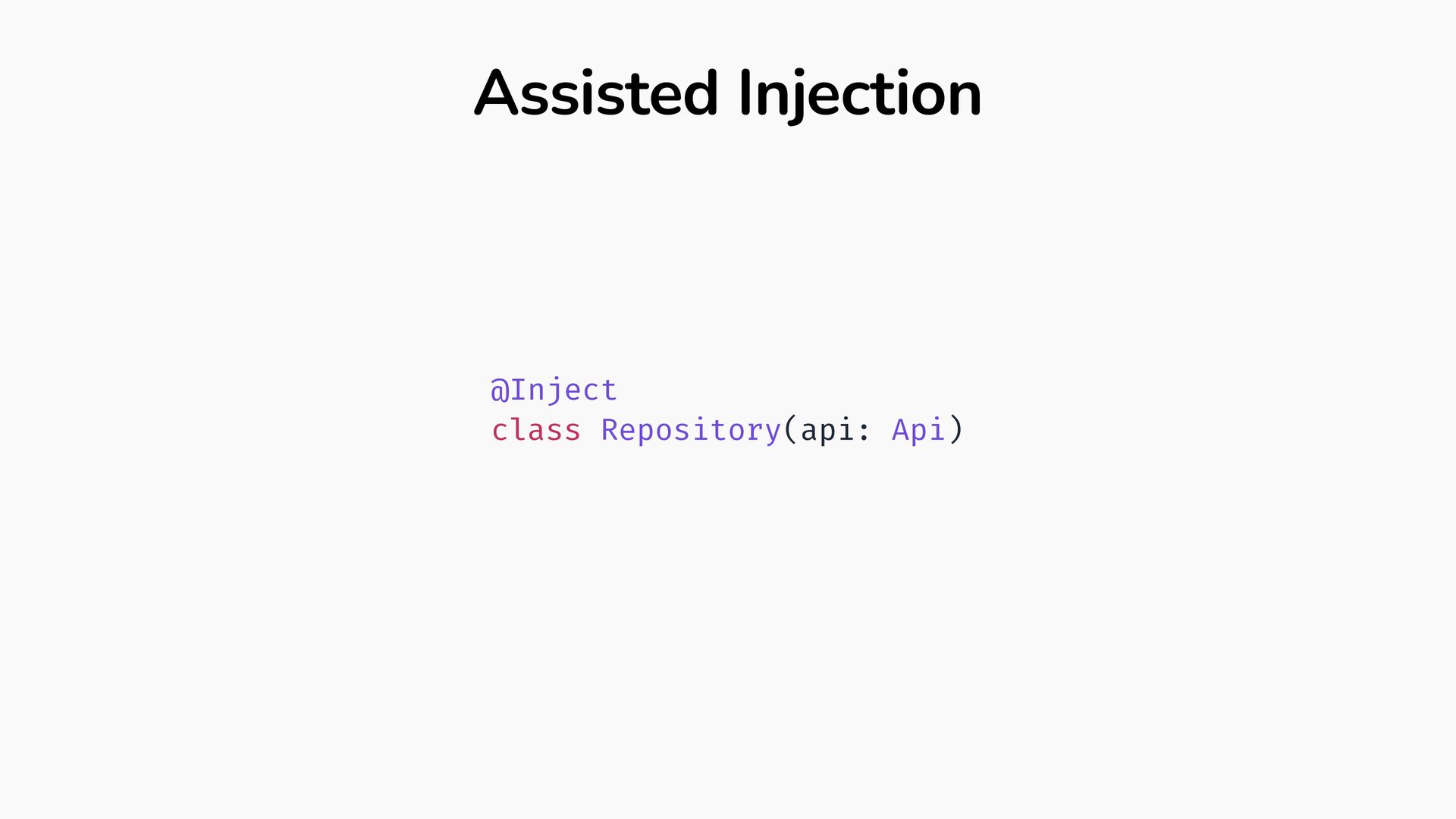

Assisted Injection @Inject class Repository(api: Api)

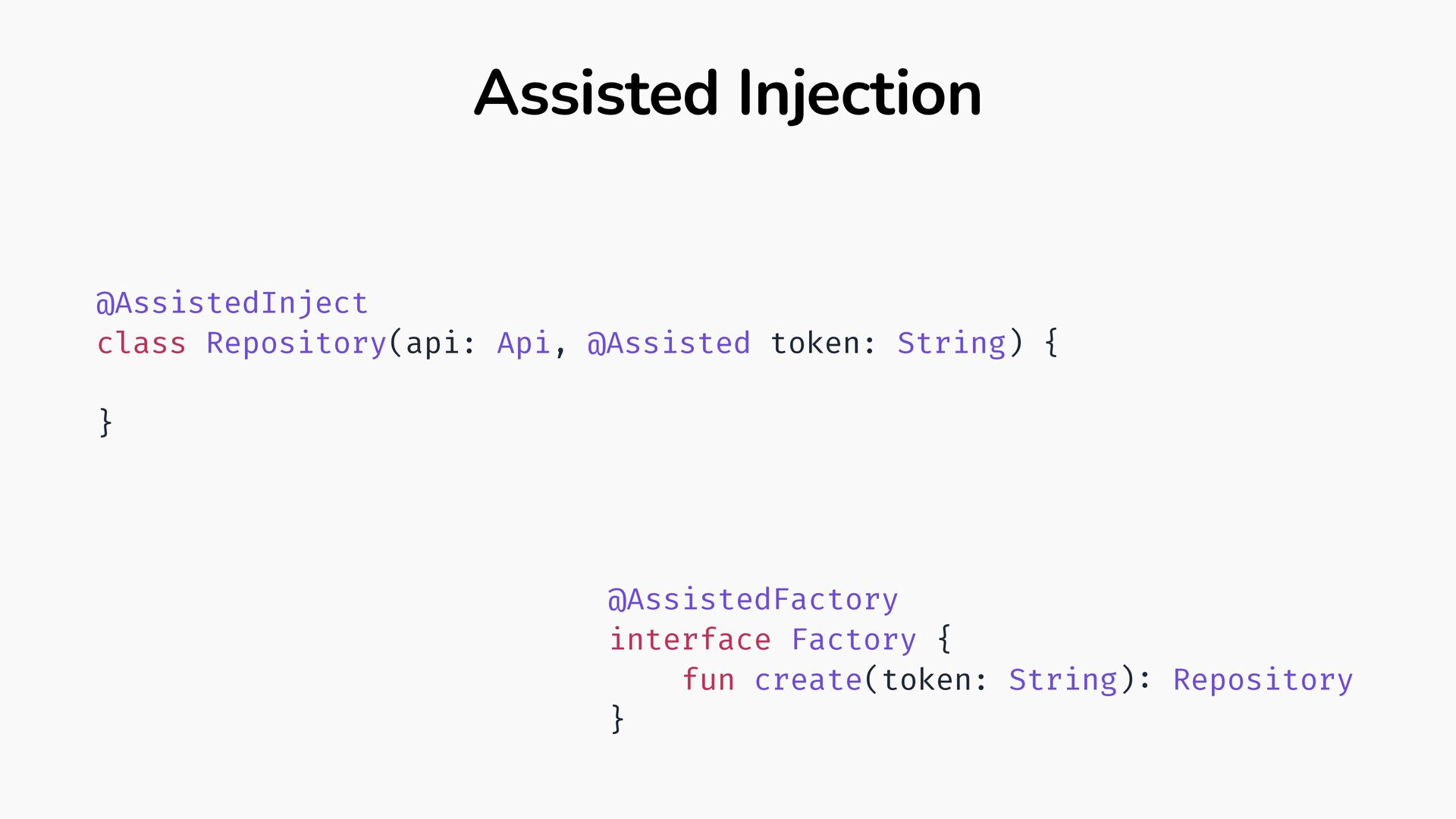

Assisted Injection @AssistedInject class Repository(api: Api, @Assisted token: String)

Assisted Injection @AssistedInject class Repository(api: Api, @Assisted token: String) {
@AssistedFactory interface Factory { fun create(token: String) : Repository } }

} @AssistedFactory interface Factory { fun create(token: String) : Repository }

}

// Metro Generates class MetroFactory(api: Provider<Api>) { operator fun invoke(token: String) : Repository = newInstance(api(), token) companion object { fun create(api: Provider<Api>) : MetroFactory = MetroFactory(api) fun newInstance(api: Api, token: String) : Repository = Repository(api, token) } } }

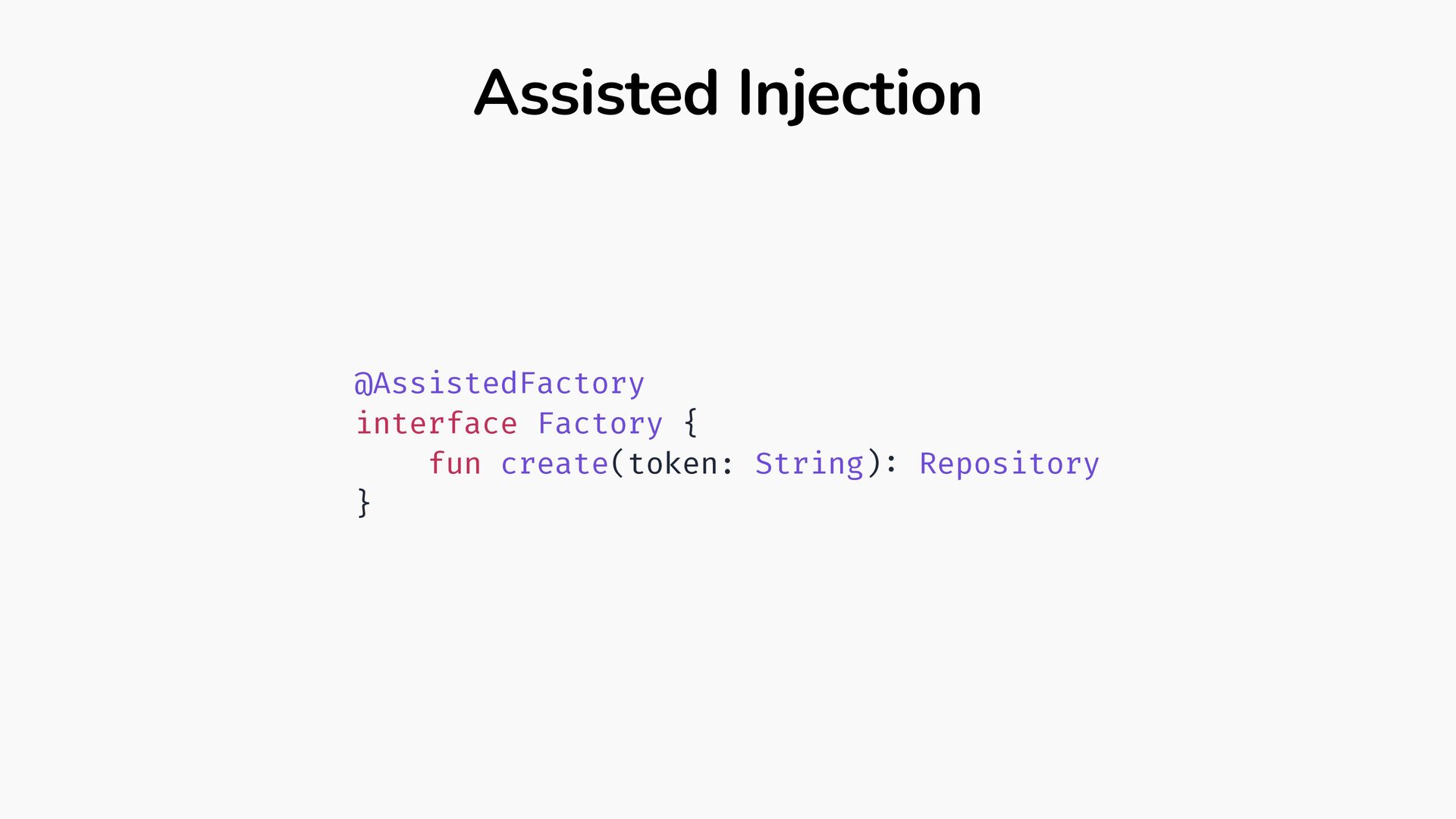

Assisted Injection @AssistedFactory interface Factory { fun create(token: String) :
Repository }

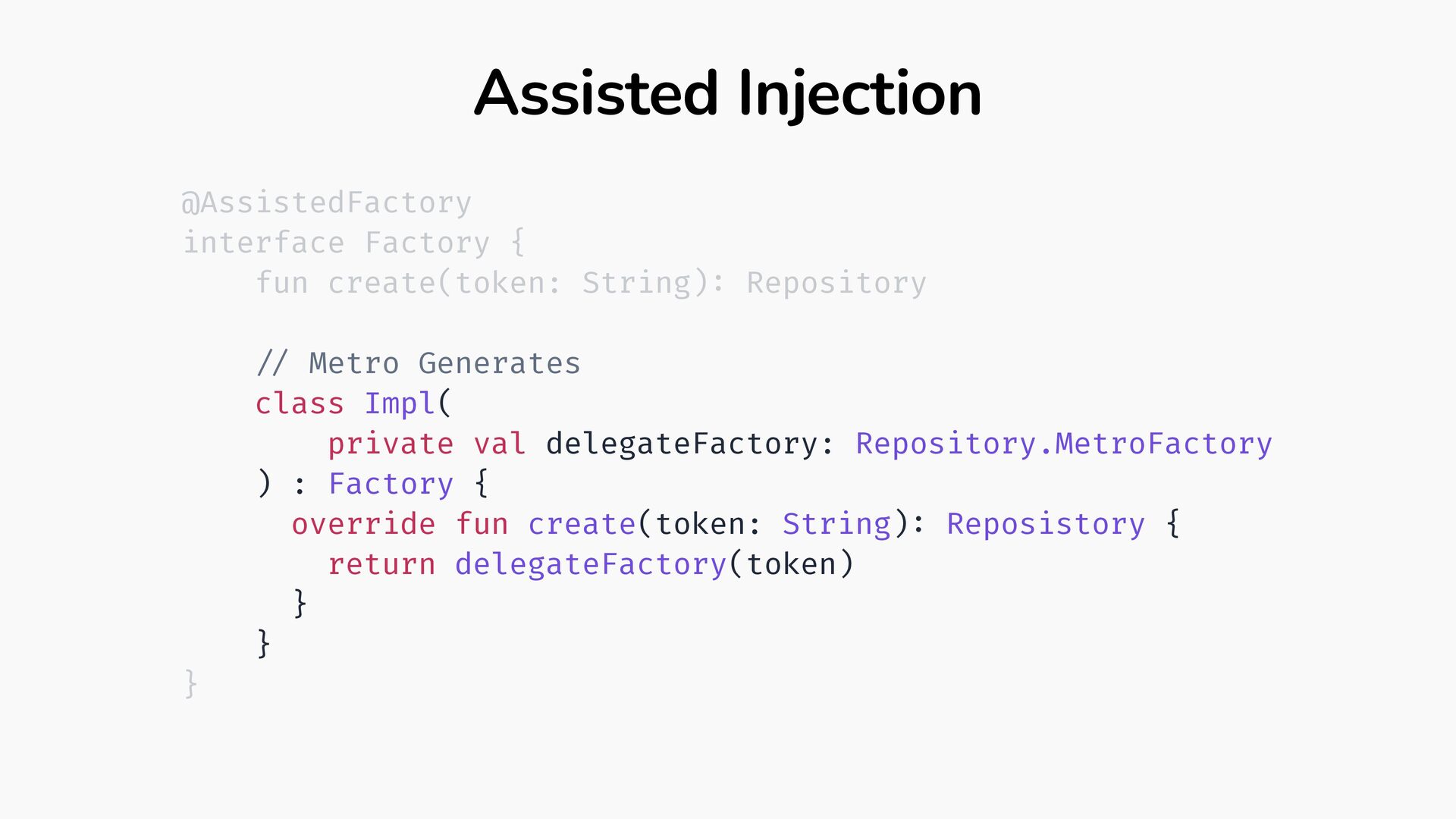

Assisted Injection @AssistedFactory interface Factory { fun create(token: String) :
Repository // Metro Generates class Impl( private val delegateFactory: Repository.MetroFactory ) : Factory { override fun create(token: String) : Reposistory { return delegateFactory(token) } } }

provideApi() : Api = Api() } @AssistedInject class Repository(api: Api, @Assisted token: String)

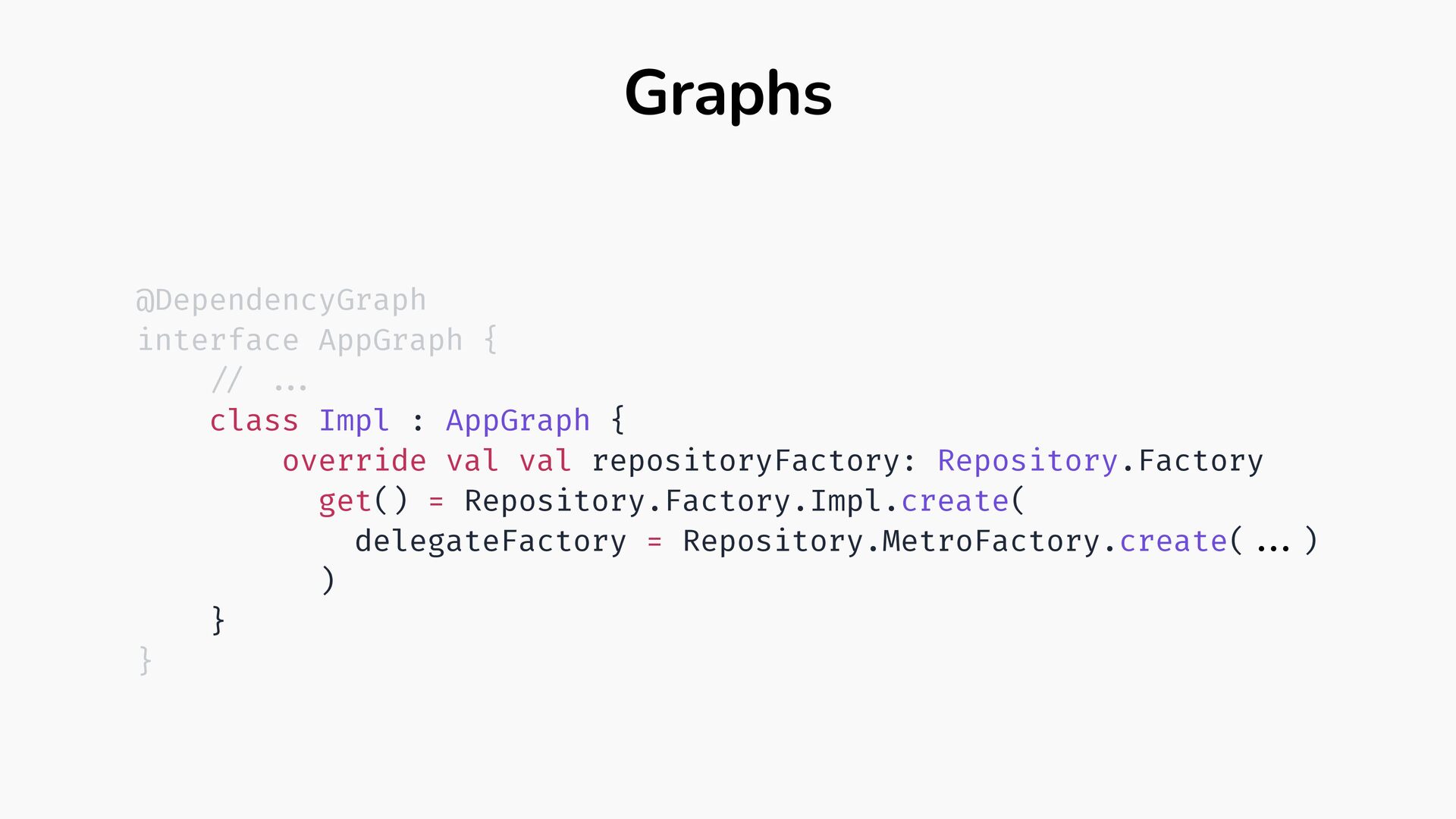

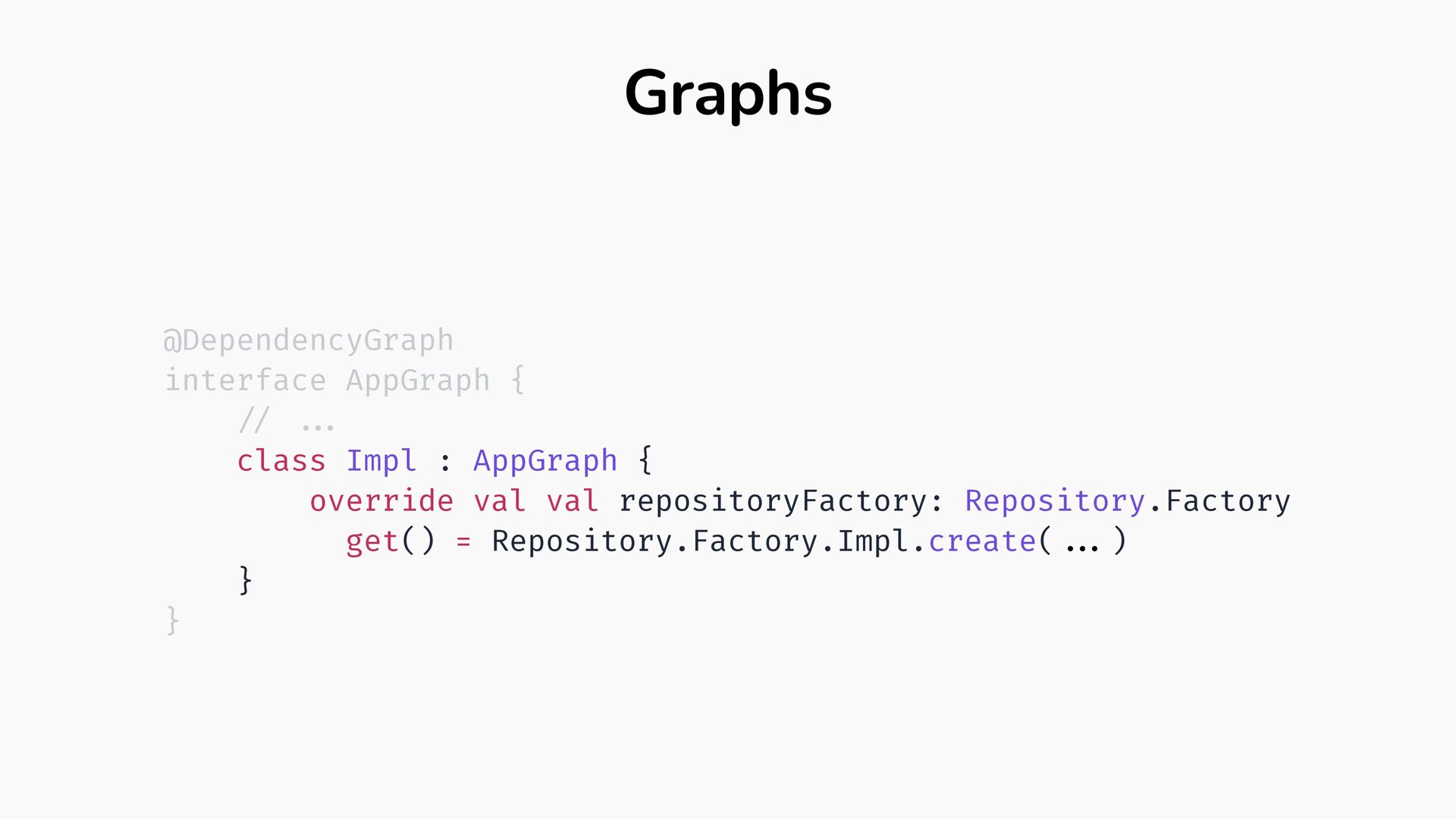

Graphs @DependencyGraph interface AppGraph { // ... class Impl :
AppGraph { override val val repositoryFactory: Repository.Factory get() = Repository.Factory.Impl.create( ... ) } }

AppGraph { override val val repositoryFactory: Repository.Factory get() = Repository.Factory.Impl.create( delegateFactory = Repository.MetroFactory.create( ... ) ) } }

AppGraph { override val val repositoryFactory: Repository.Factory get() = Repository.Factory.Impl.create( delegateFactory = Repository.MetroFactory.create( apiProvider = ProvideApiMetroFactory.create(this) ) ) } }

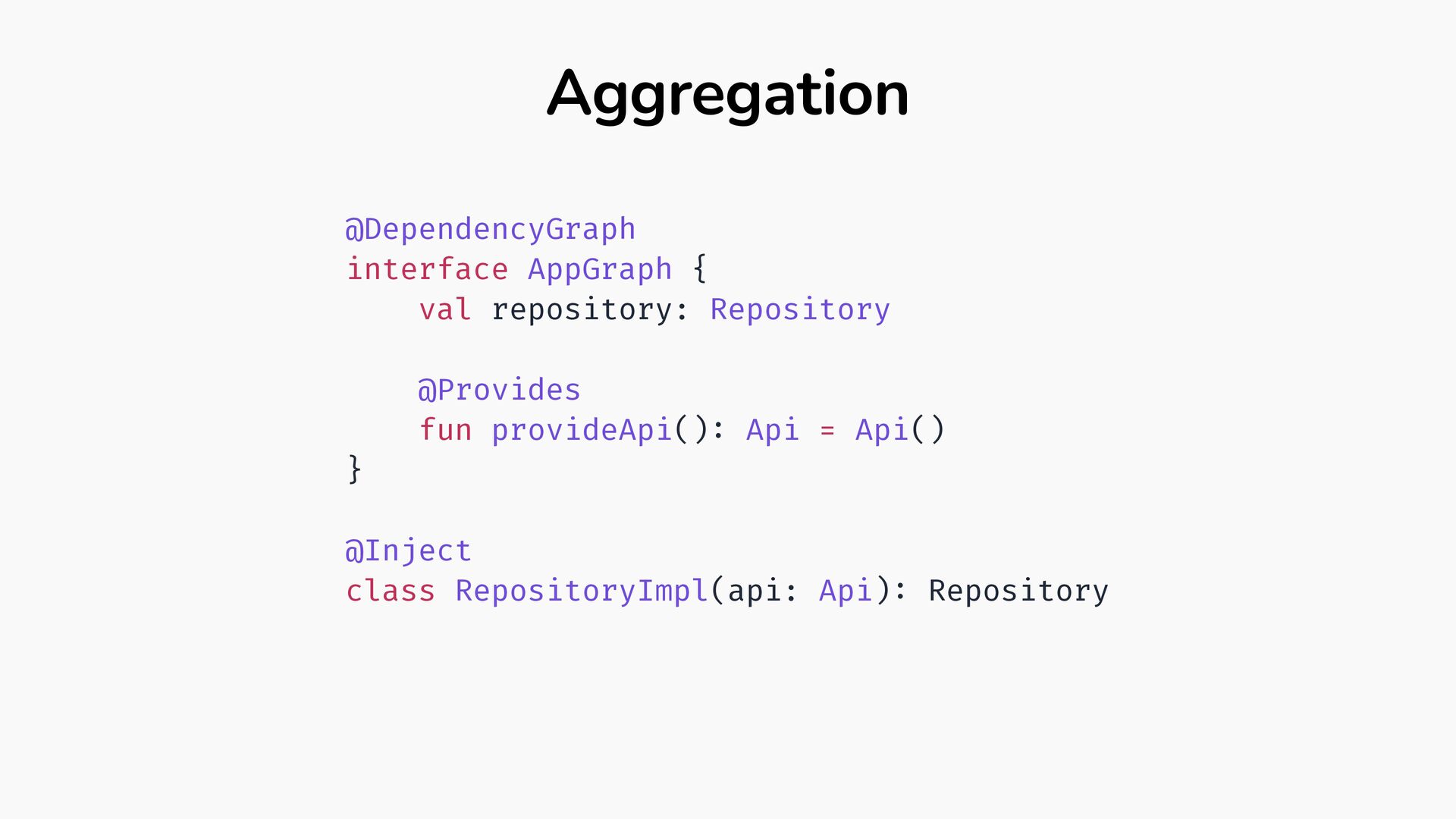

Aggregation @DependencyGraph interface AppGraph { val repository: Repository @Provides fun
provideApi() : Api = Api() } @Inject class RepositoryImpl(api: Api) : Repository

Aggregation @DependencyGraph interface AppGraph { val repository: Repository } @BindingContainer
object ApiBindings { @Provides fun provideApi() : Api = Api() } @Inject class RepositoryImpl(api: Api) : Repository

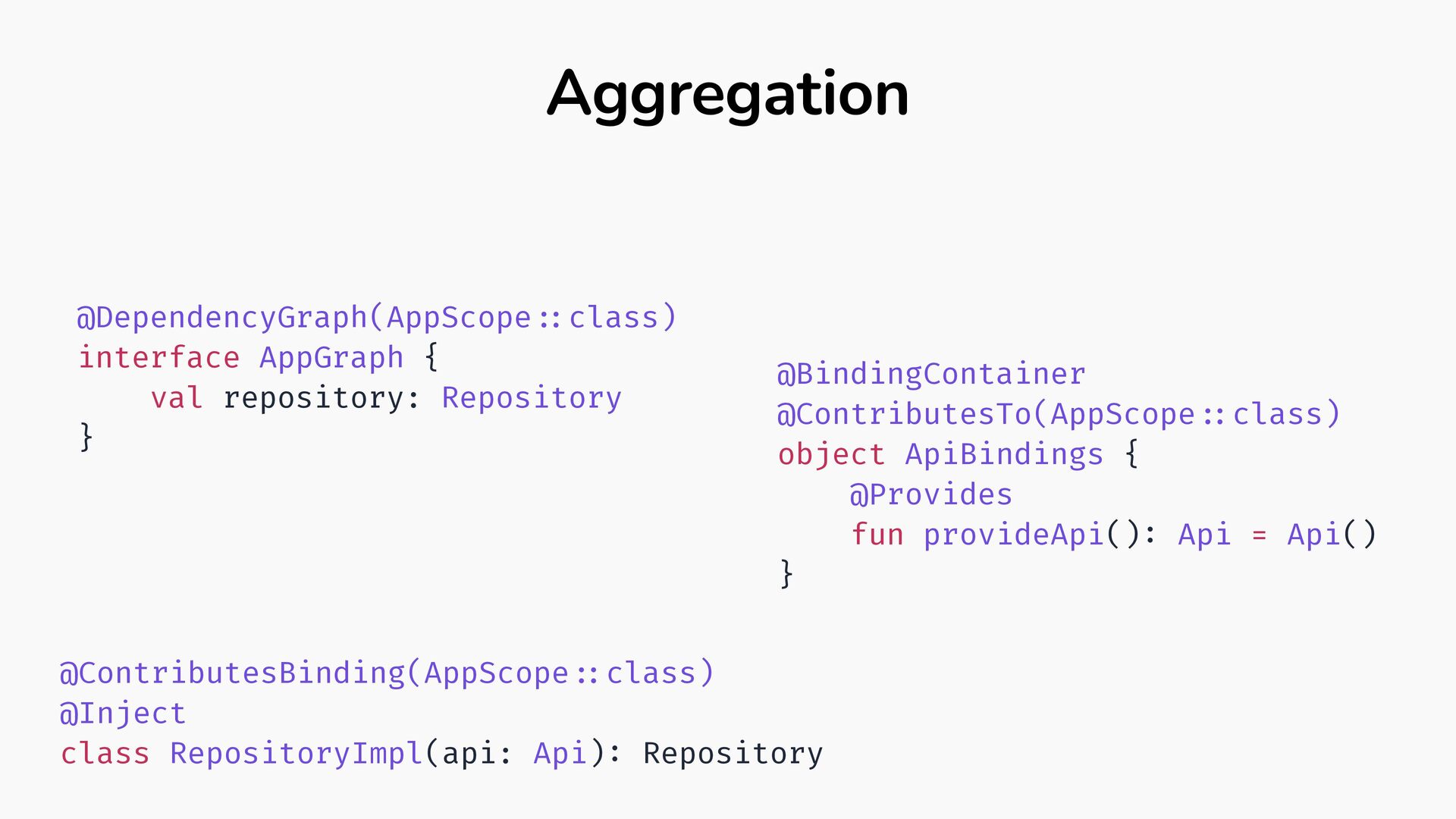

Aggregation @DependencyGraph(AppScope :: class) interface AppGraph { val repository: Repository
} @BindingContainer @ContributesTo(AppScope :: class) object ApiBindings { @Provides fun provideApi() : Api = Api() } @ContributesBinding(AppScope :: class) @Inject class RepositoryImpl(api: Api) : Repository

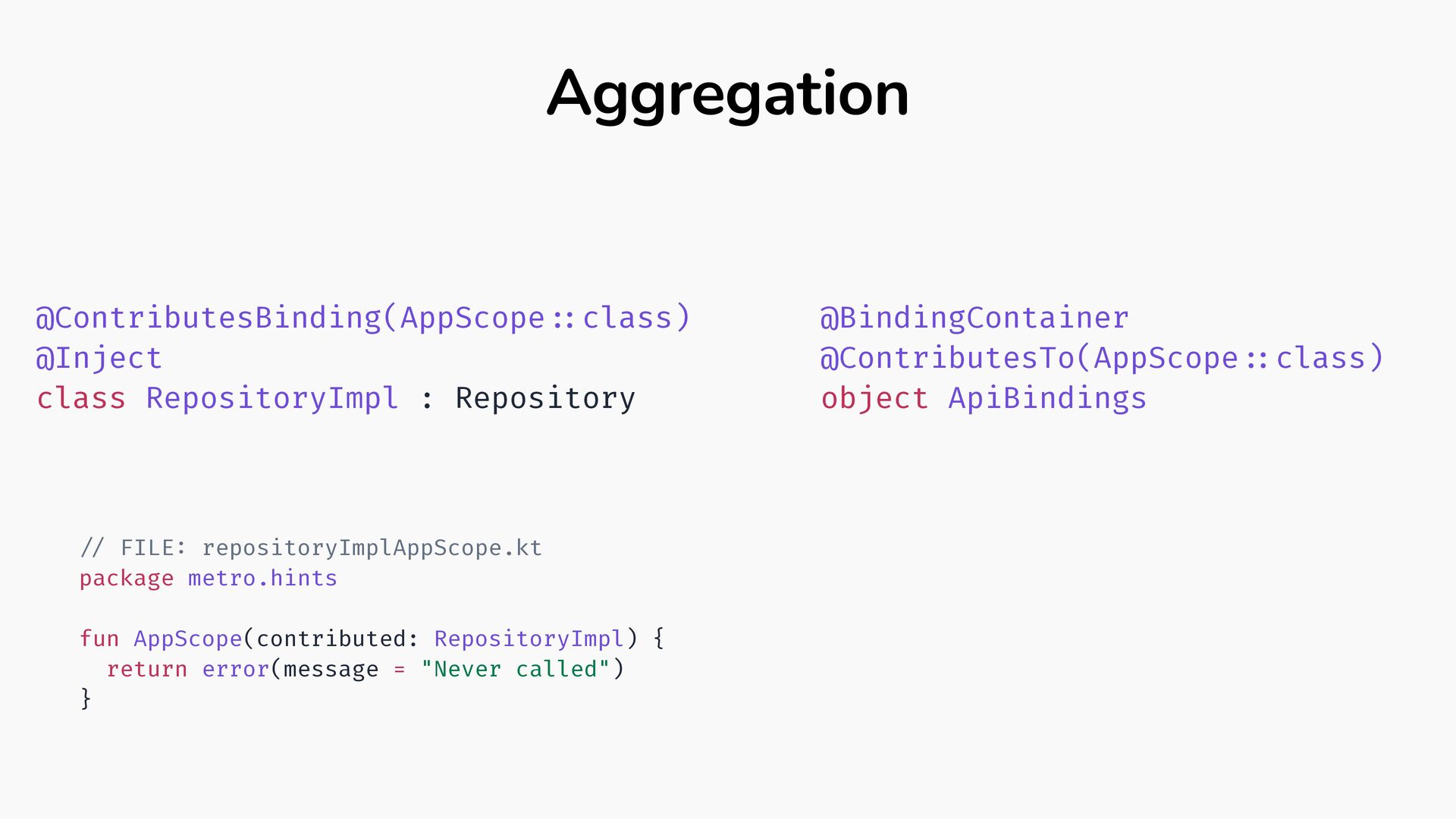

Aggregation @BindingContainer @ContributesTo(AppScope :: class) object ApiBindings @ContributesBinding(AppScope :: class)
@Inject class RepositoryImpl : Repository // FILE : repositoryImplAppScope.kt package metro.hints fun AppScope(contributed: RepositoryImpl) { return error(message = "Never called") }

Aggregation @BindingContainer @ContributesTo(AppScope :: class) object ApiBindings @ContributesBinding(AppScope :: class)
@Inject class RepositoryImpl : Repository // FILE : apiBindingsAppScope.kt package metro.hints fun AppScope(contributed: ApiBindings) { return error(message = "Never called") } // FILE : repositoryImplAppScope.kt package metro.hints fun AppScope(contributed: RepositoryImpl) { return error(message = "Never called") }

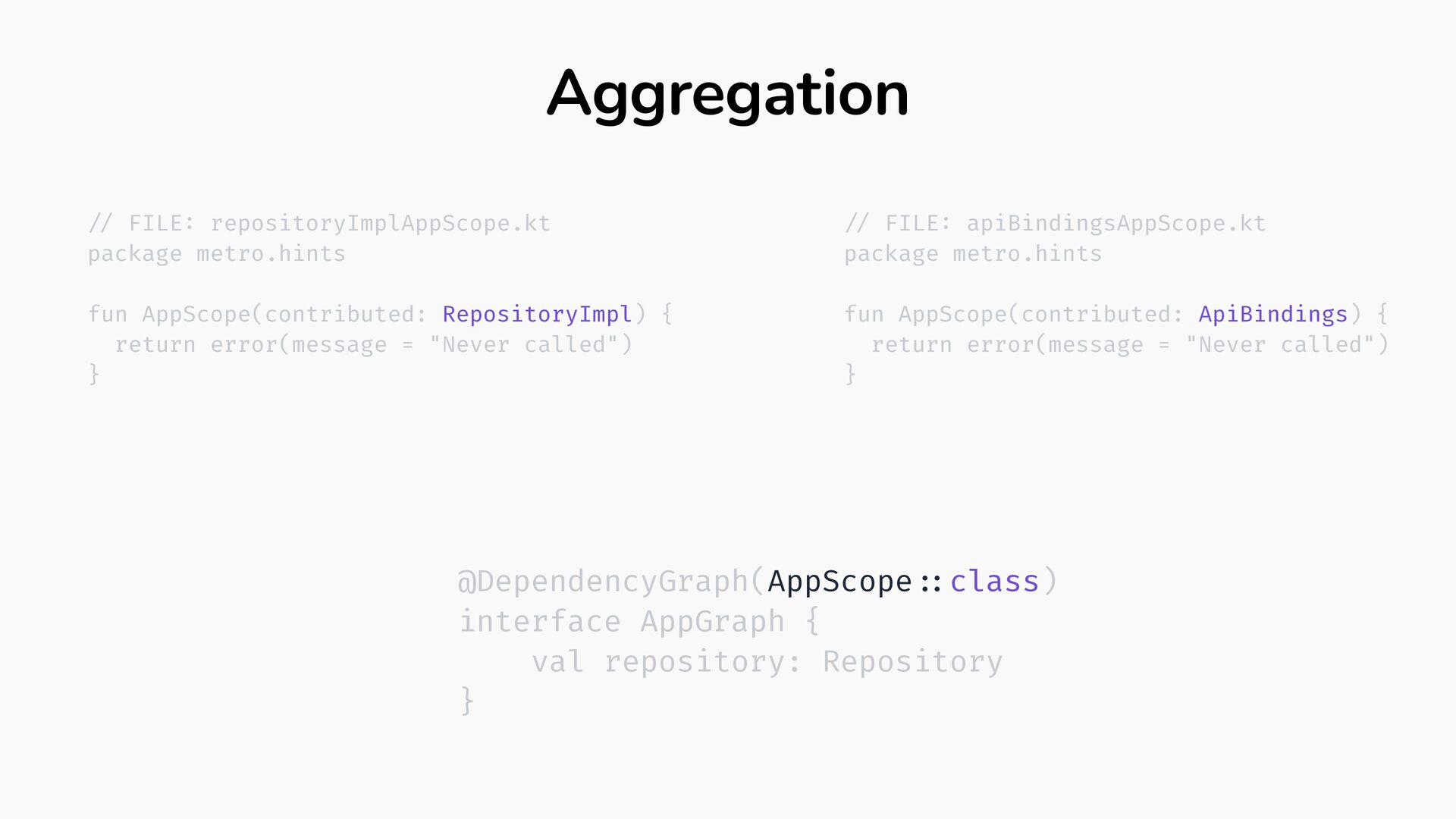

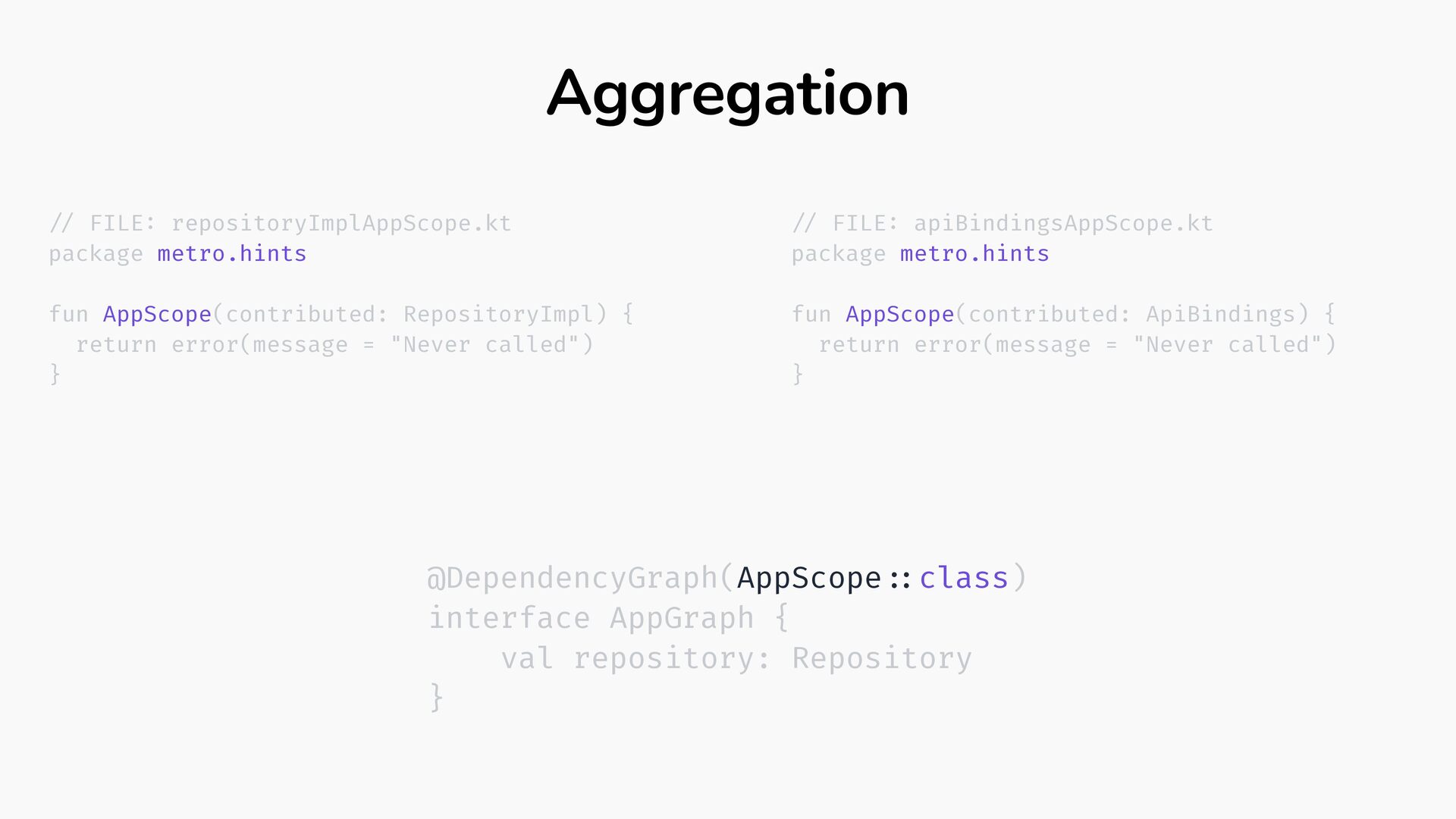

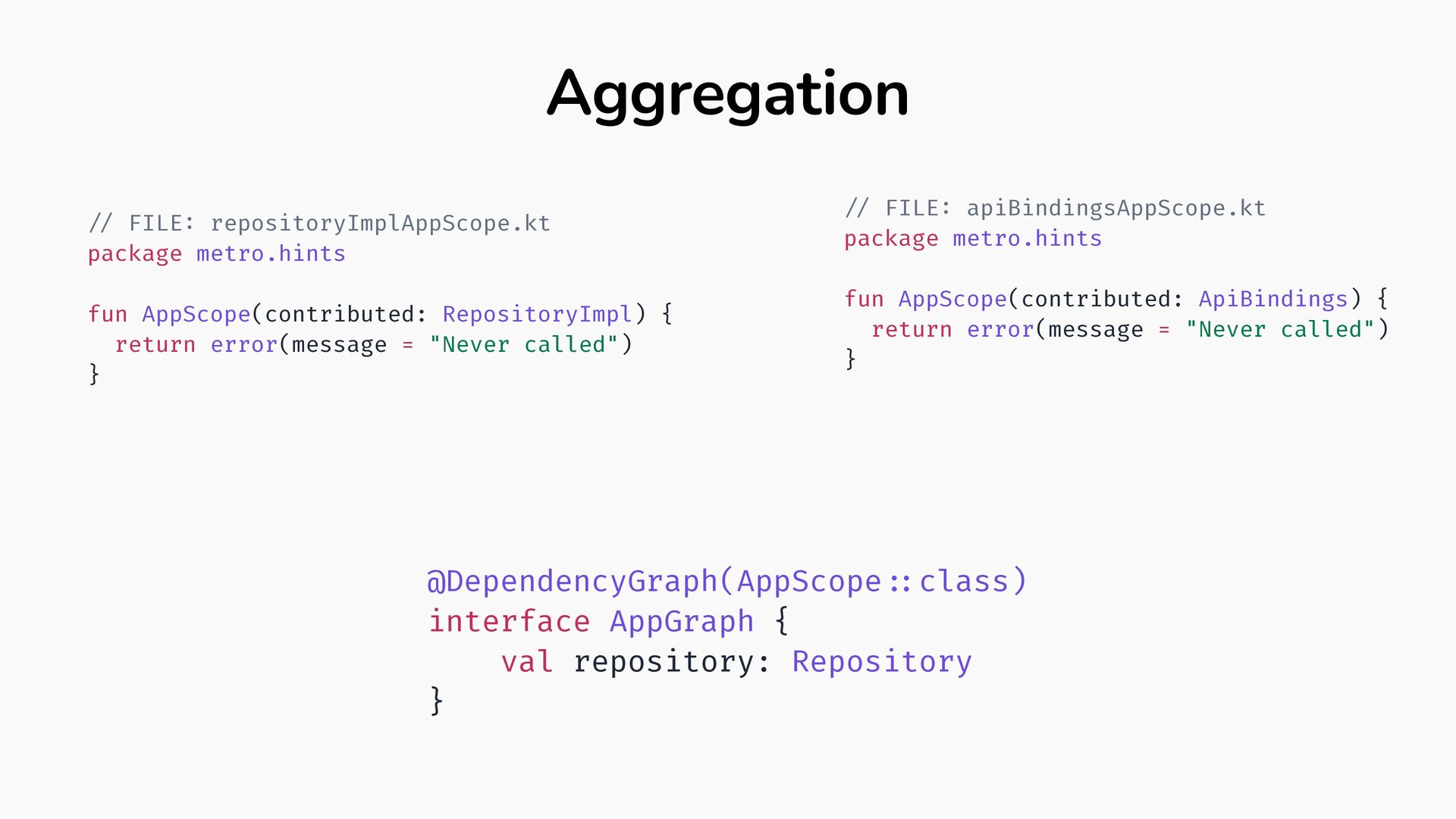

Aggregation // FILE : apiBindingsAppScope.kt package metro.hints fun AppScope(contributed: ApiBindings)
{ return error(message = "Never called") } // FILE : repositoryImplAppScope.kt package metro.hints fun AppScope(contributed: RepositoryImpl) { return error(message = "Never called") } @DependencyGraph(AppScope :: class) interface AppGraph { val repository: Repository }

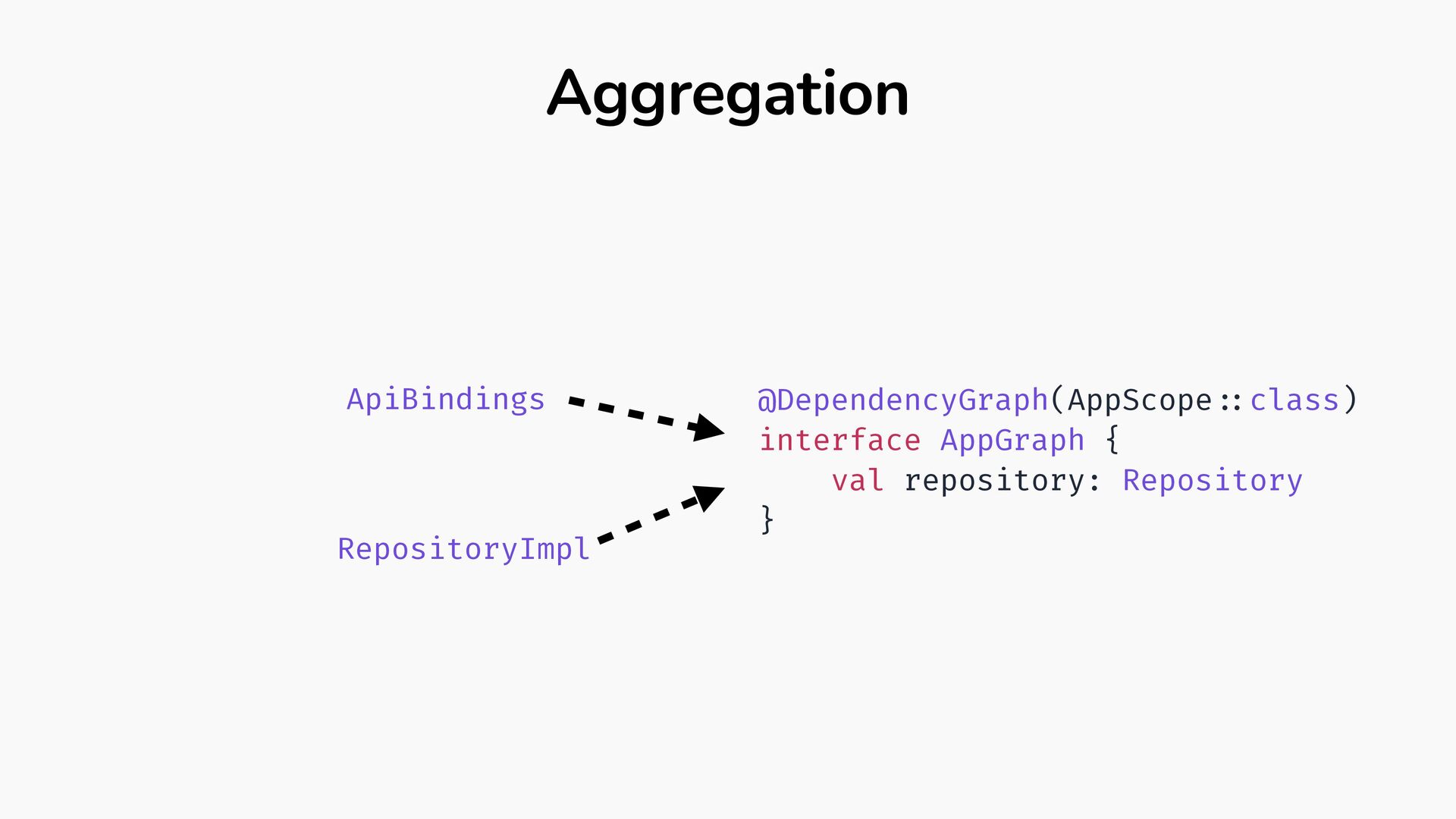

Aggregation ApiBindings RepositoryImpl @DependencyGraph(AppScope :: class) interface AppGraph { val
repository: Repository }

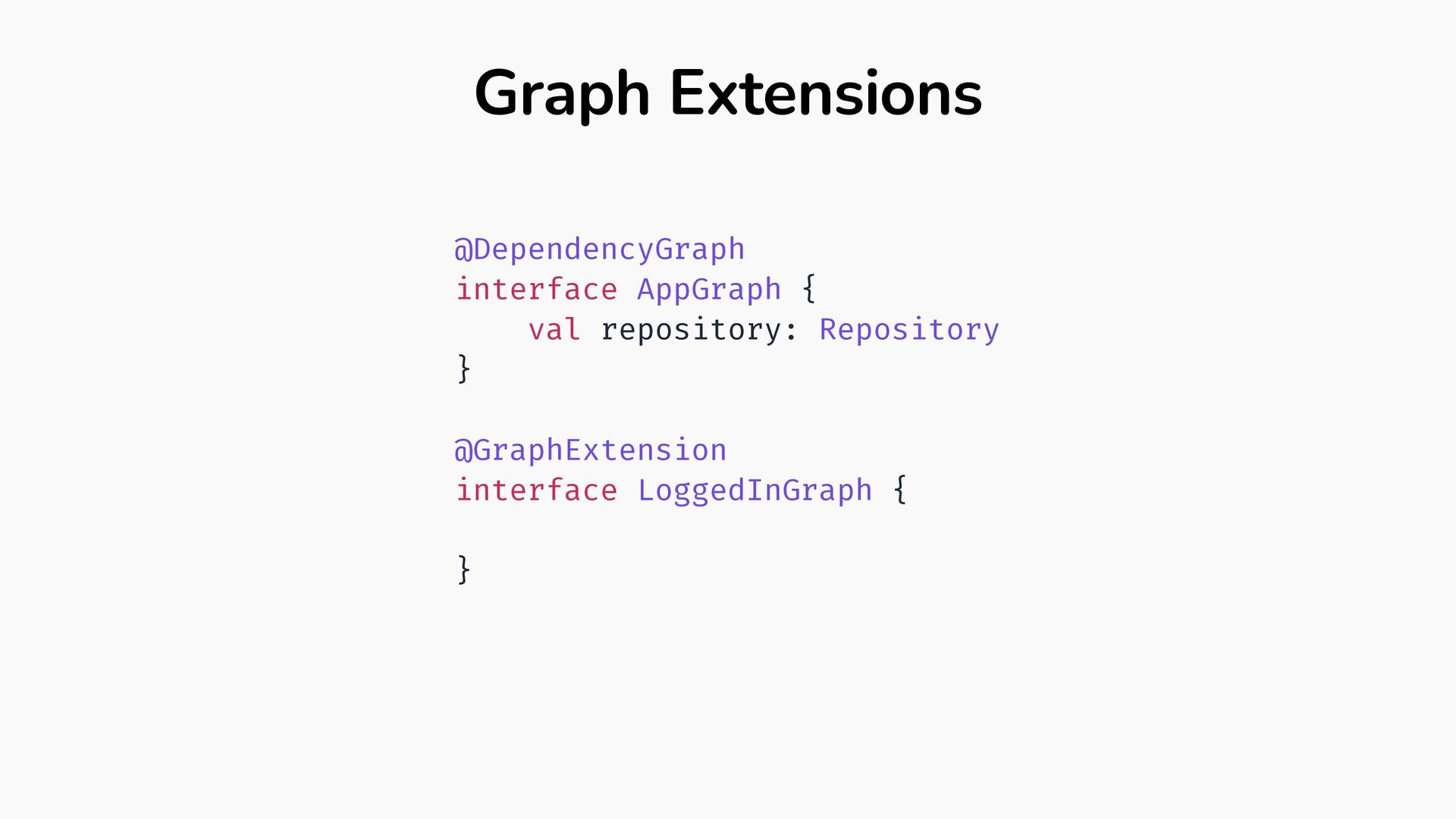

Graph Extensions @DependencyGraph interface AppGraph { val repository: Repository }
@GraphExtension interface LoggedInGraph { }

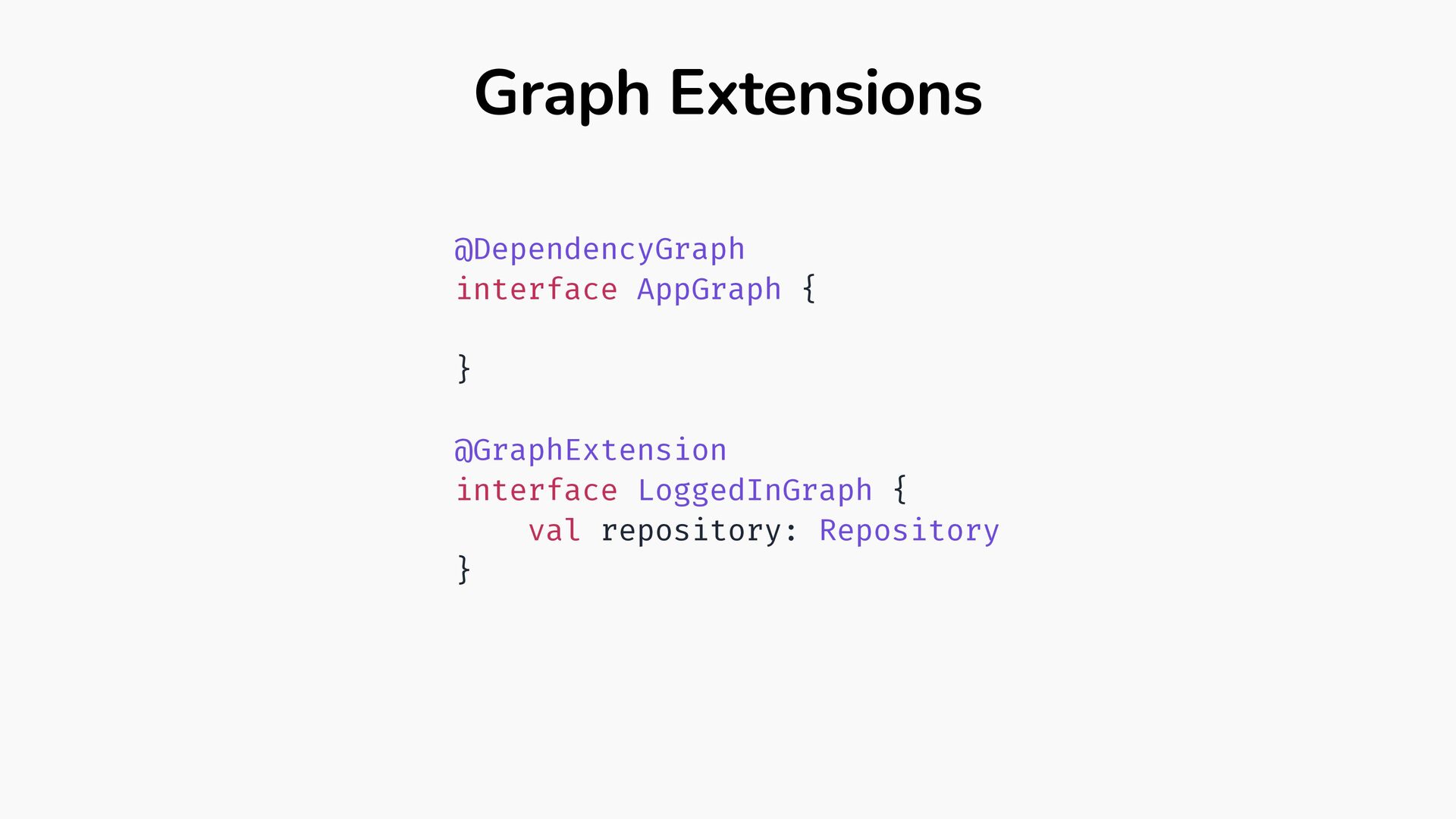

Graph Extensions @DependencyGraph interface AppGraph { } @GraphExtension interface LoggedInGraph
{ val repository: Repository }

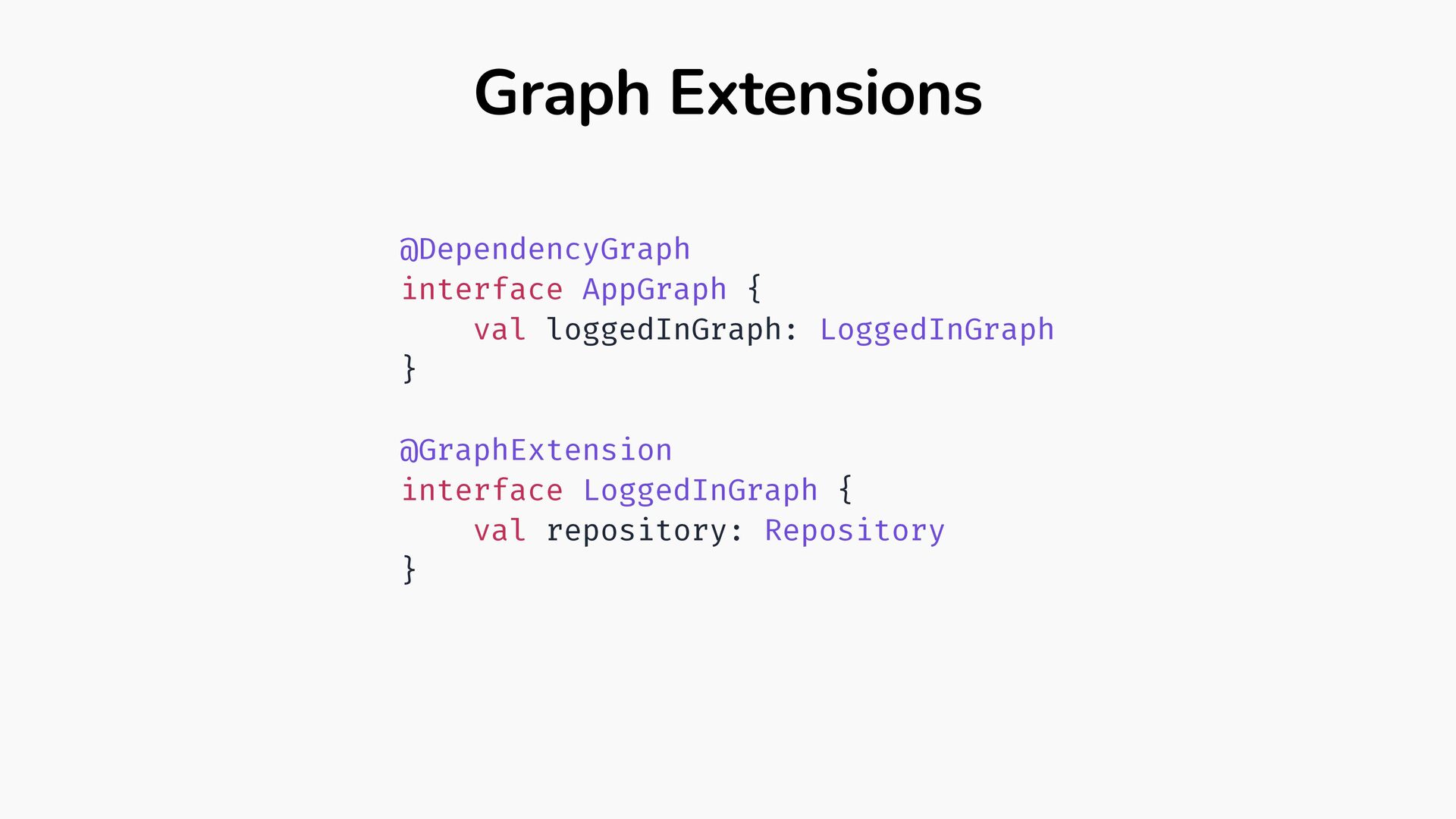

Graph Extensions @DependencyGraph interface AppGraph { val loggedInGraph: LoggedInGraph }
@GraphExtension interface LoggedInGraph { val repository: Repository }

Graph Extensions @DependencyGraph interface AppGraph { //... class Impl :
AppGraph { override val loggedInGraph: LoggedInGraph get() = //... } } @GraphExtension interface LoggedInGraph { val repository: Repository }

AppGraph { override val loggedInGraph: LoggedInGraph get() = //... } @DependencyGraph private class LoggedInGraphImpl(appGraph: AppGraph) : LoggedInGraph { override val repository: Repository } }

AppGraph { override val loggedInGraph: LoggedInGraph get() = LoggedInGraphImpl(this) } @DependencyGraph private class LoggedInGraphImpl(appGraph: AppGraph) : LoggedInGraph { override val repository: Repository } }

Graph Extensions @DependencyGraph interface AppGraph { //... @DependencyGraph private class
LoggedInGraphImpl(appGraph: AppGraph.Impl) : LoggedInGraph { override val repository: Repository get() = Repository(appGraph.provideApi()) } }

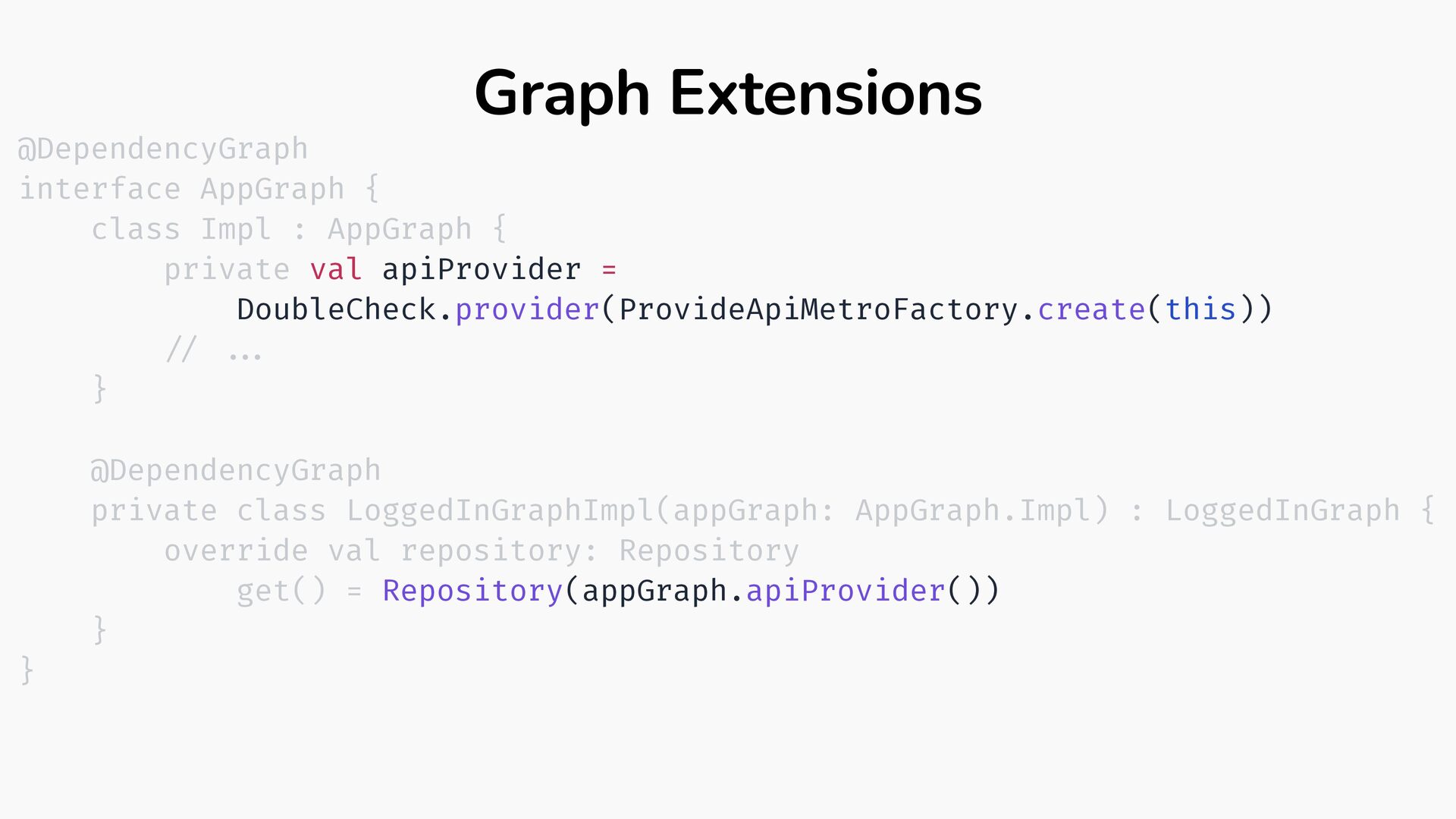

Graph Extensions @DependencyGraph interface AppGraph { class Impl : AppGraph
{ private val apiProvider = DoubleCheck.provider(ProvideApiMetroFactory.create(this)) // ... } @DependencyGraph private class LoggedInGraphImpl(appGraph: AppGraph.Impl) : LoggedInGraph { override val repository: Repository get() = Repository(appGraph.apiProvider()) } }

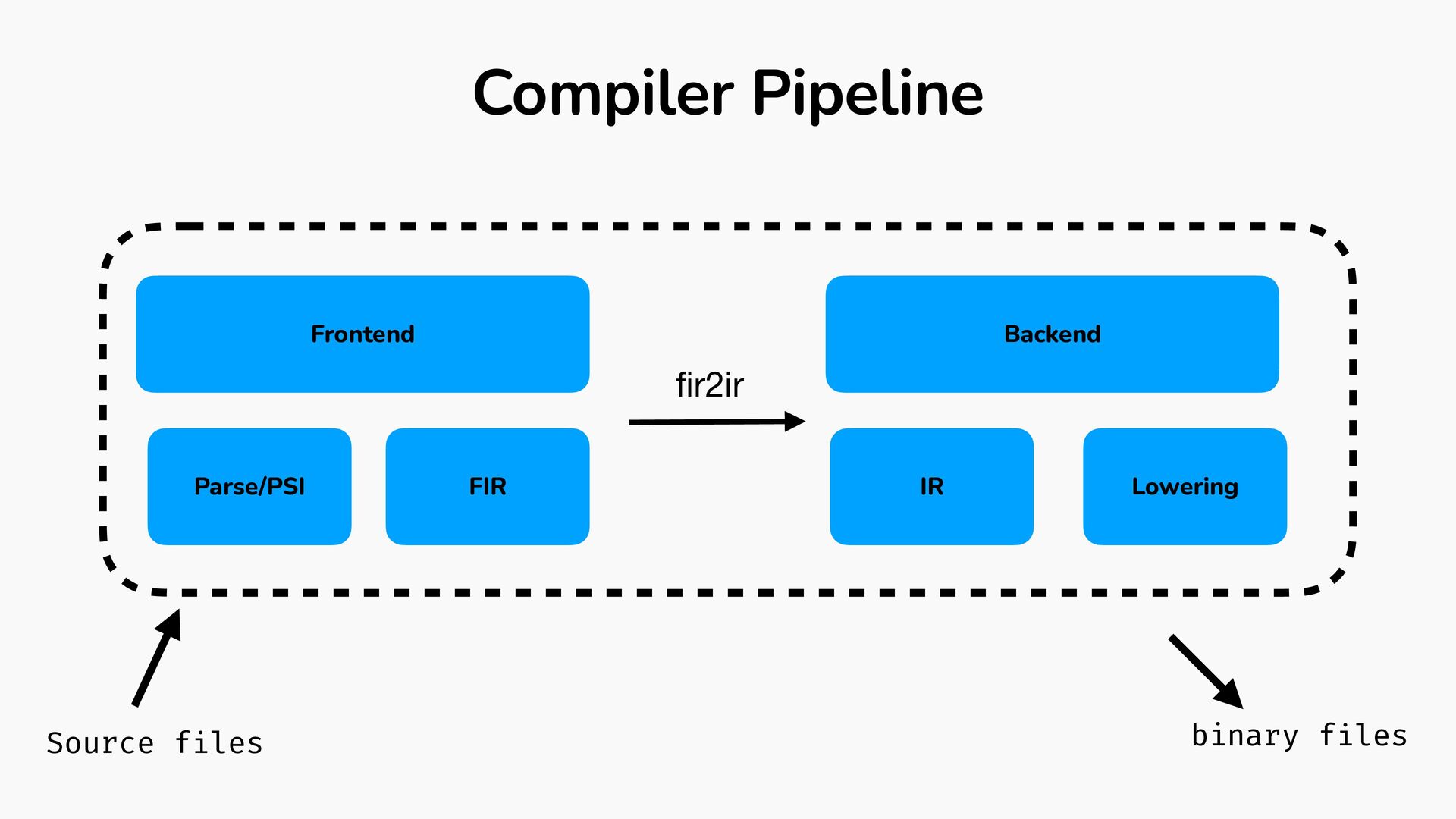

Compiler Pipeline

Compiler Pipeline binary f i les Frontend Backend FIR IR
Lowering Parse/PSI fi r2ir Source f i les

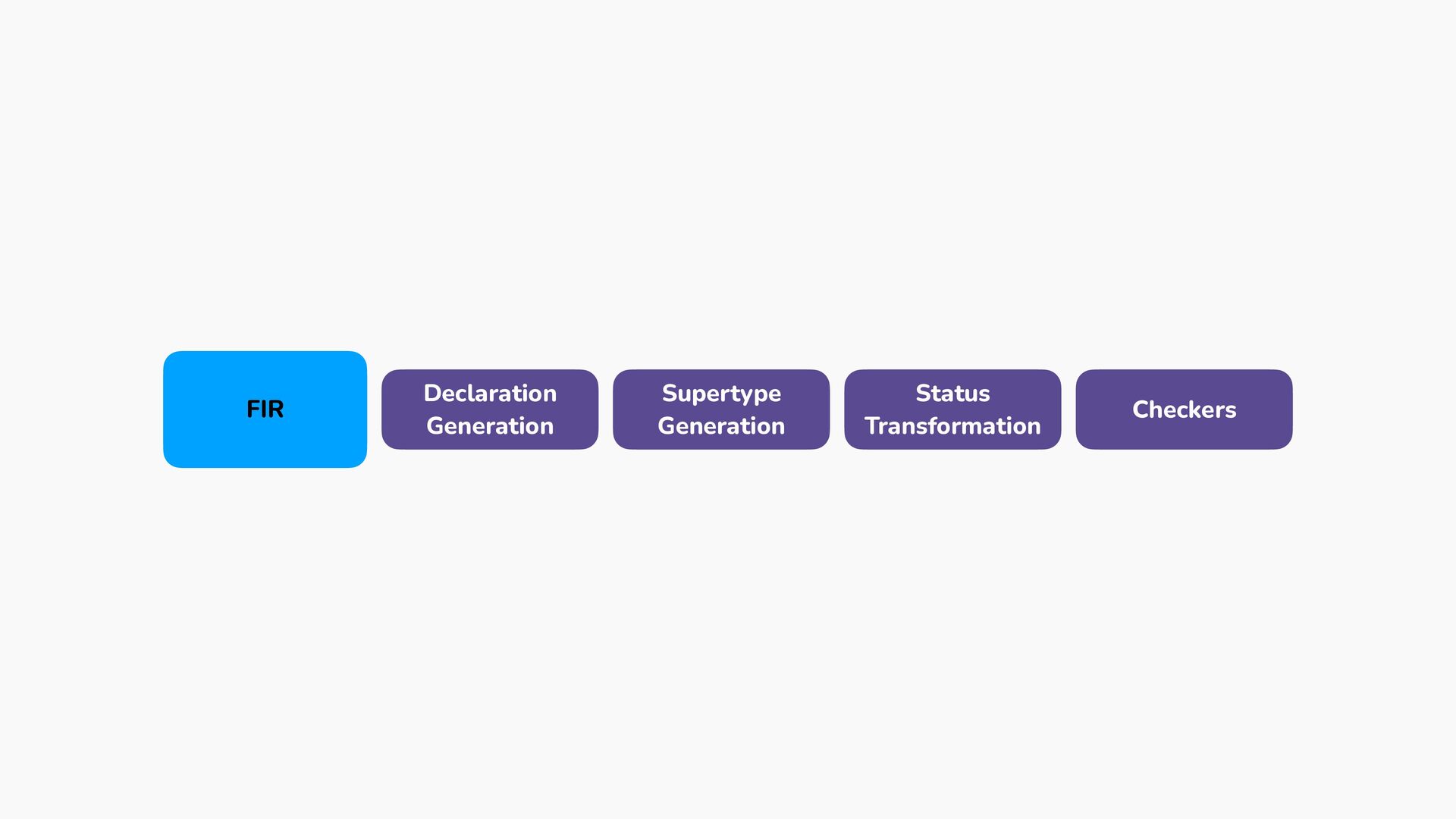

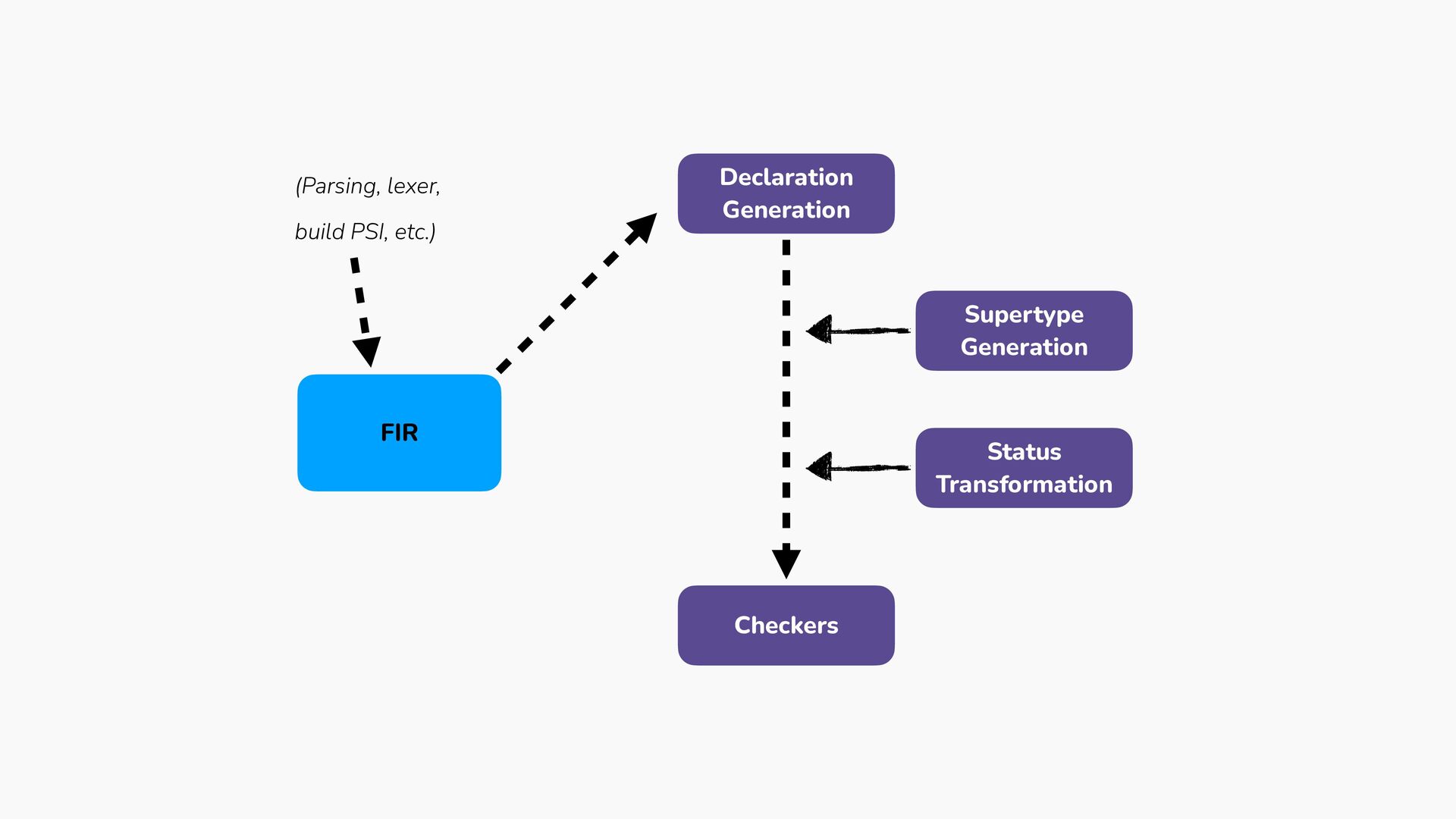

FIR Checkers Supertype Generation Declaration Generation Status Transformation (Parsing, lexer,
build PSI, etc.)

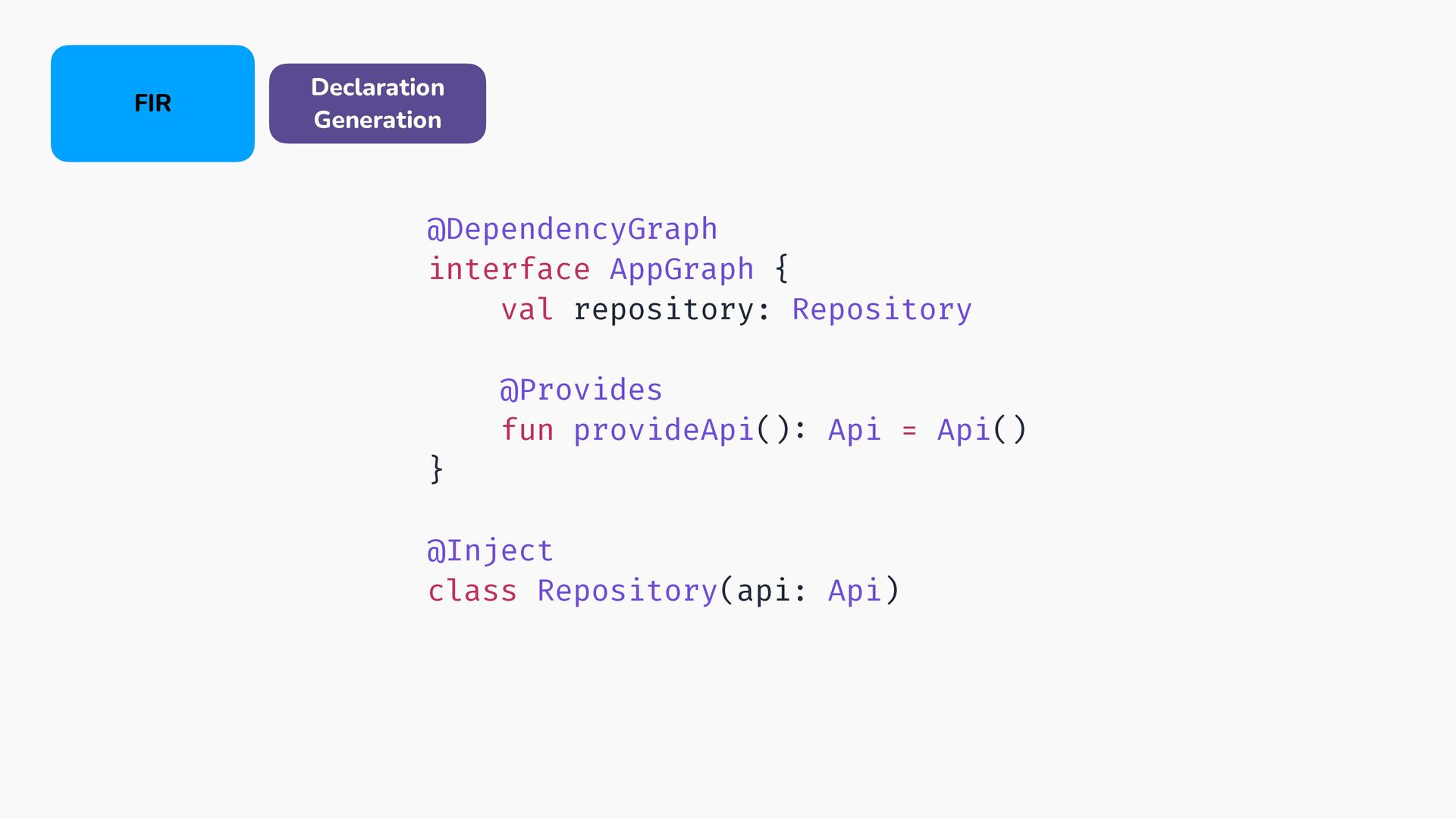

FIR Declaration Generation @DependencyGraph interface AppGraph { val repository: Repository
@Provides fun provideApi() : Api = Api() } @Inject class Repository(api: Api)

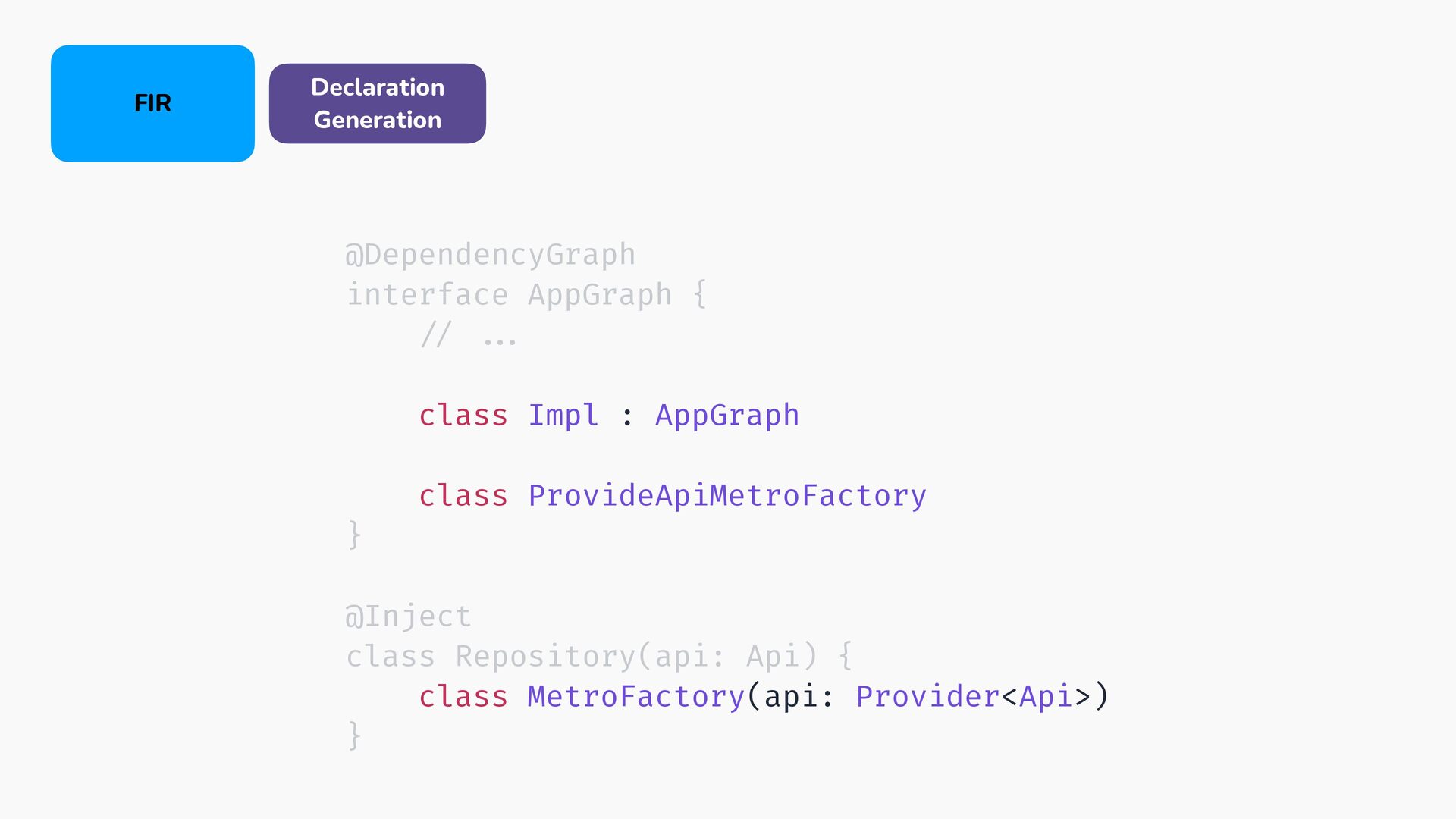

FIR @DependencyGraph interface AppGraph { // ... class Impl :
AppGraph class ProvideApiMetroFactory } @Inject class Repository(api: Api) { class MetroFactory(api: Provider<Api>) } Declaration Generation

AppGraph class ProvideApiMetroFactory : Factory<Api> } @Inject class Repository(api: Api) { class MetroFactory(api: Provider<Api>) : Factory<Repository> } Supertype Generation Declaration Generation

AppGraph class ProvideApiMetroFactory : Factory<Api> { companion object } } @Inject class Repository(api: Api) { class MetroFactory(api: Provider<Api>) : Factory<Repository> { companion object } } Supertype Generation Declaration Generation

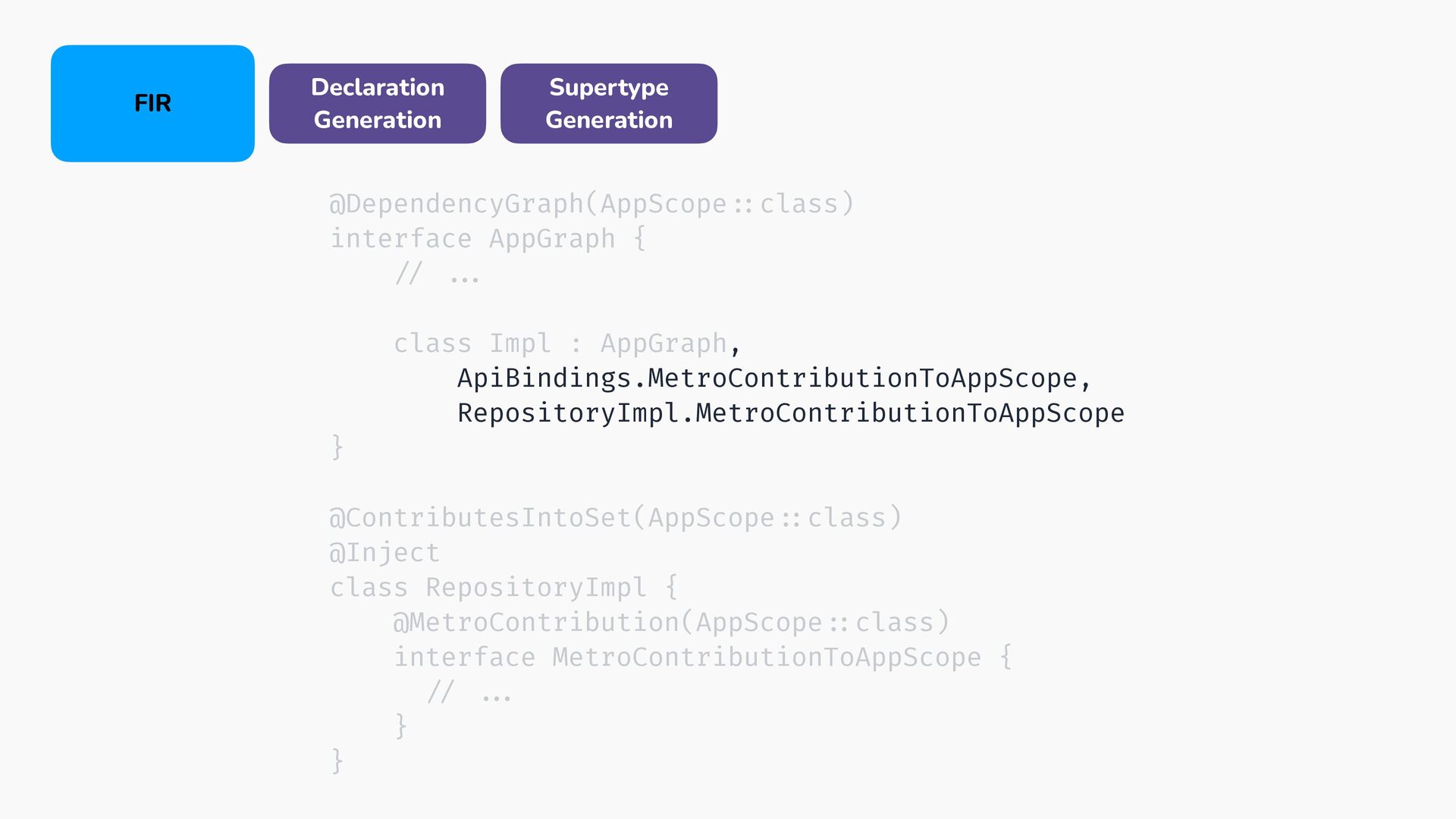

FIR @DependencyGraph(AppScope :: class) interface AppGraph { // ... class
Impl : AppGraph, ApiBindings.MetroContributionToAppScope, RepositoryImpl.MetroContributionToAppScope } @ContributesIntoSet(AppScope :: class) @Inject class RepositoryImpl { @MetroContribution(AppScope :: class) interface MetroContributionToAppScope { // ... } } Supertype Generation Declaration Generation

FIR Supertype Generation Declaration Generation

FIR Supertype Generation Declaration Generation Status Transformation

FIR Supertype Generation Declaration Generation Status Transformation Checkers

Compiler Pipeline binary f i les Frontend Backend FIR IR
Lowering Parse/PSI fi r2ir Source f i les

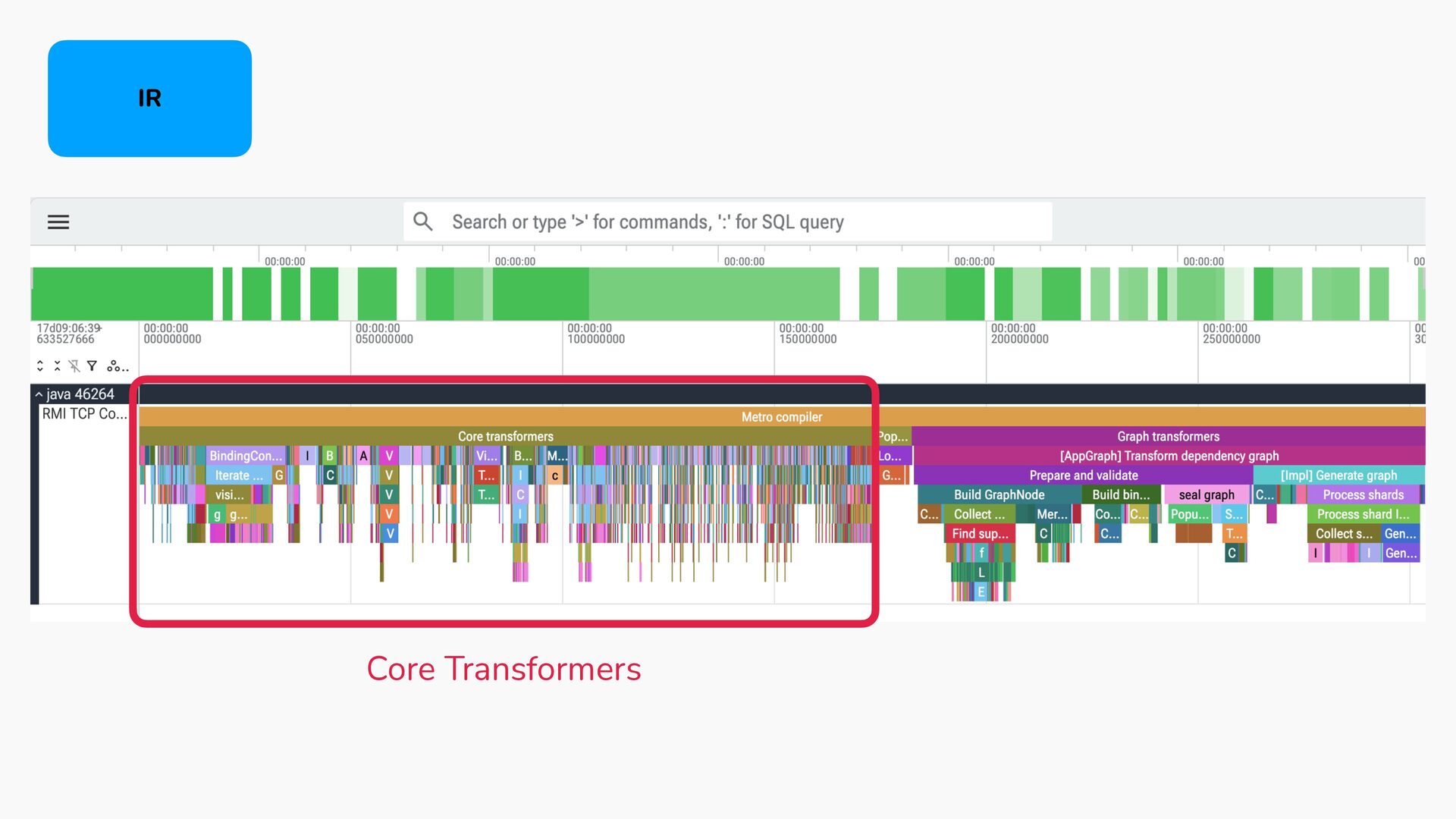

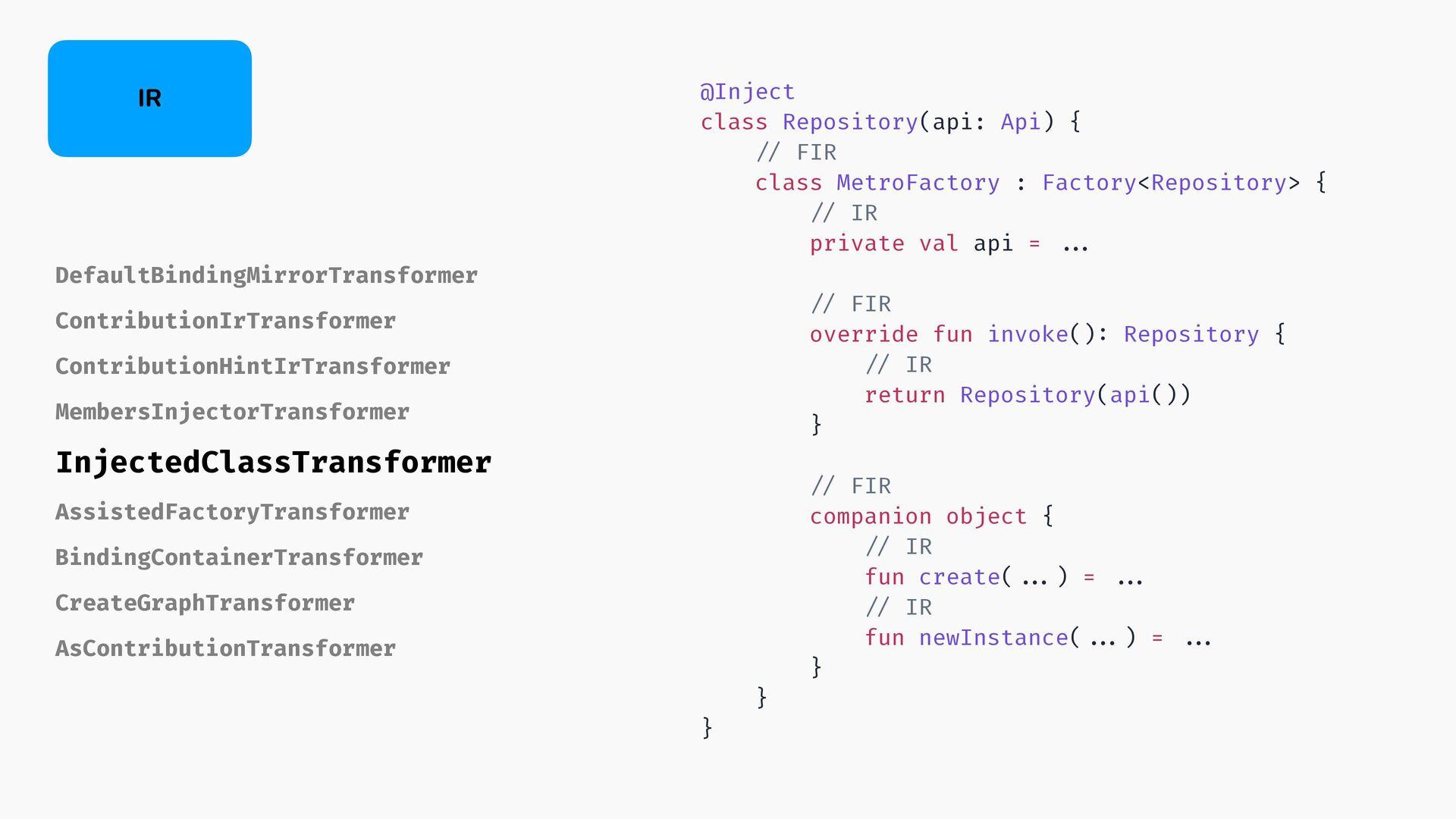

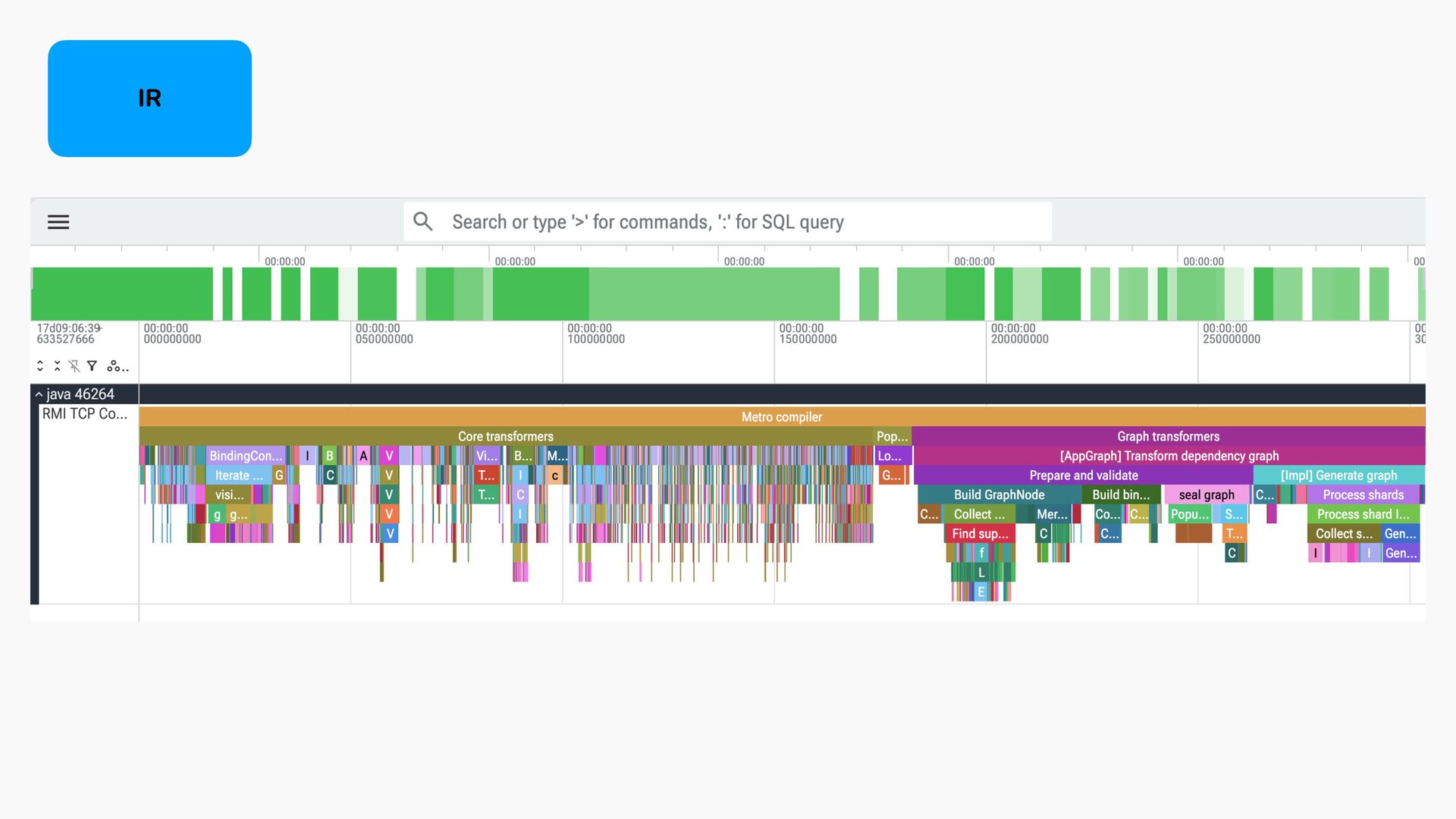

IR Core Transformers

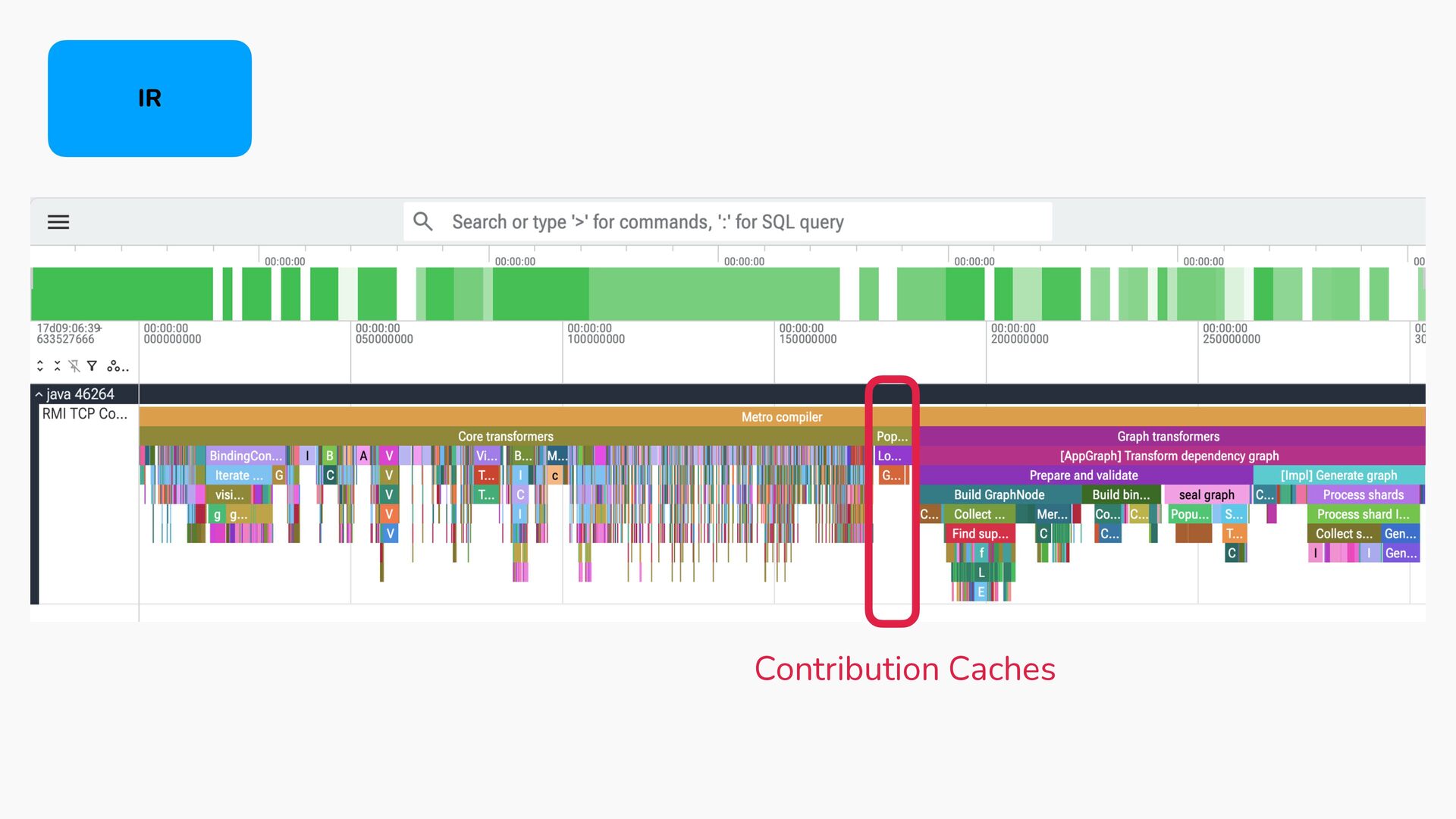

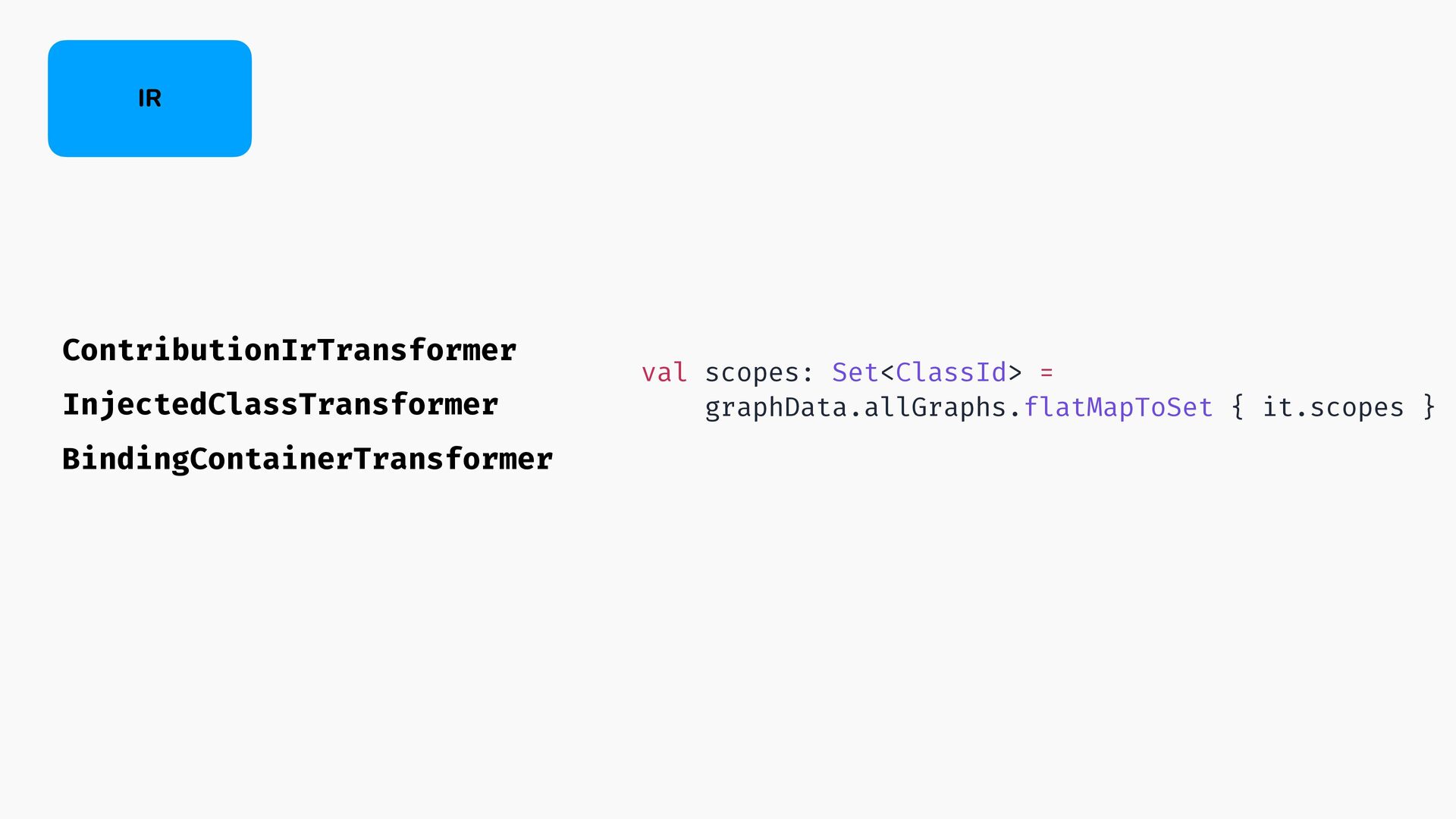

IR Contribution Caches

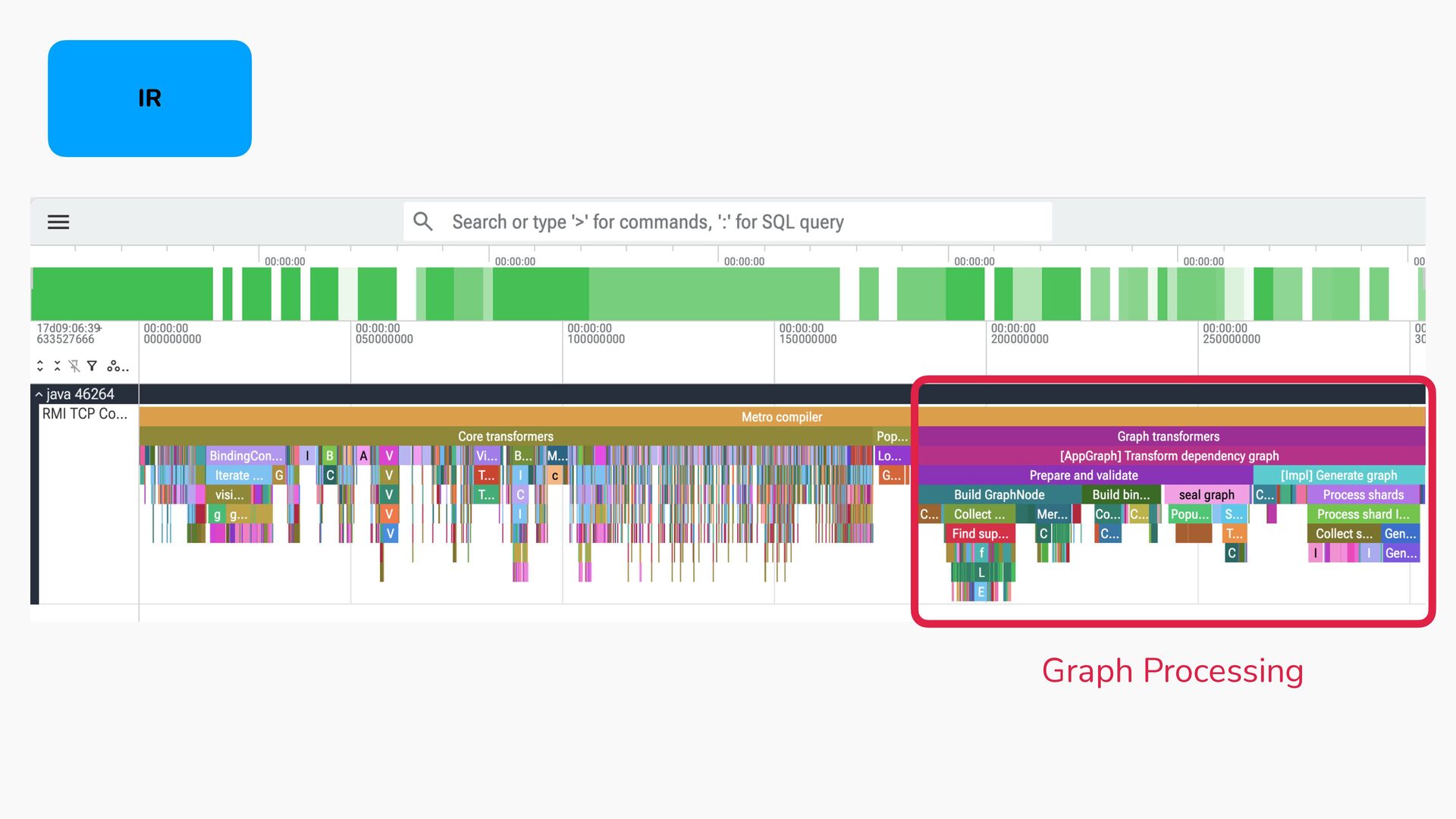

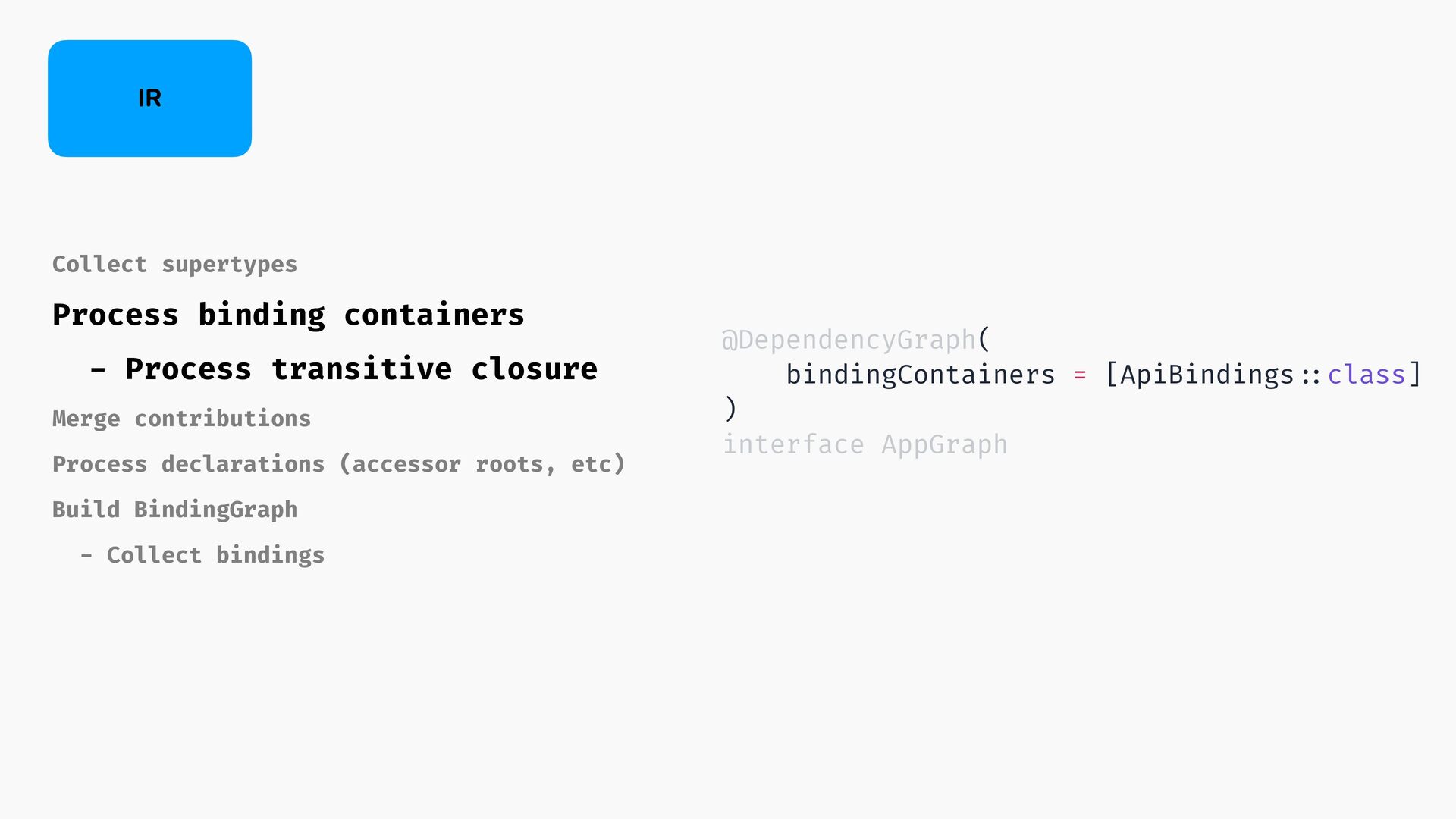

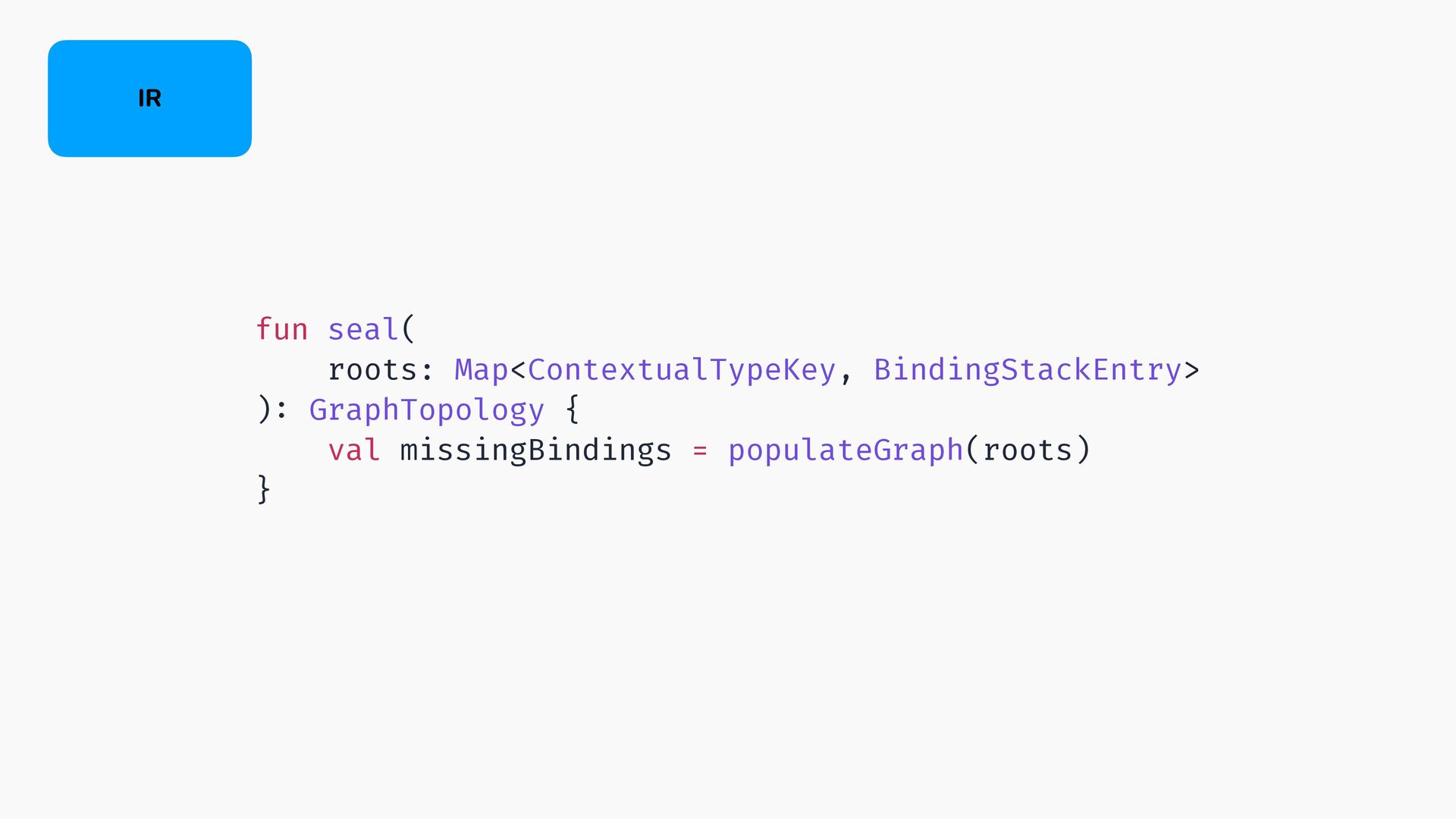

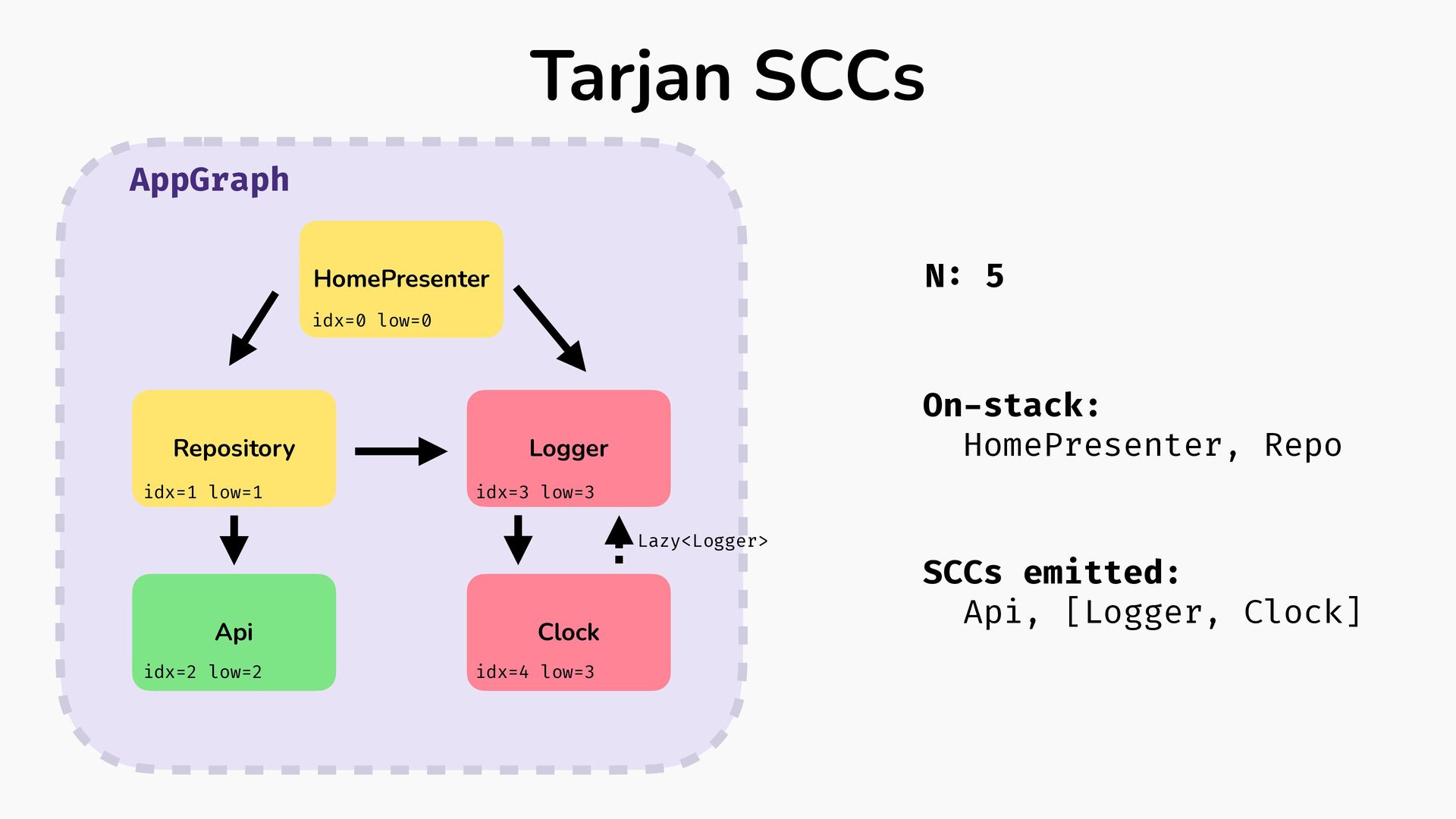

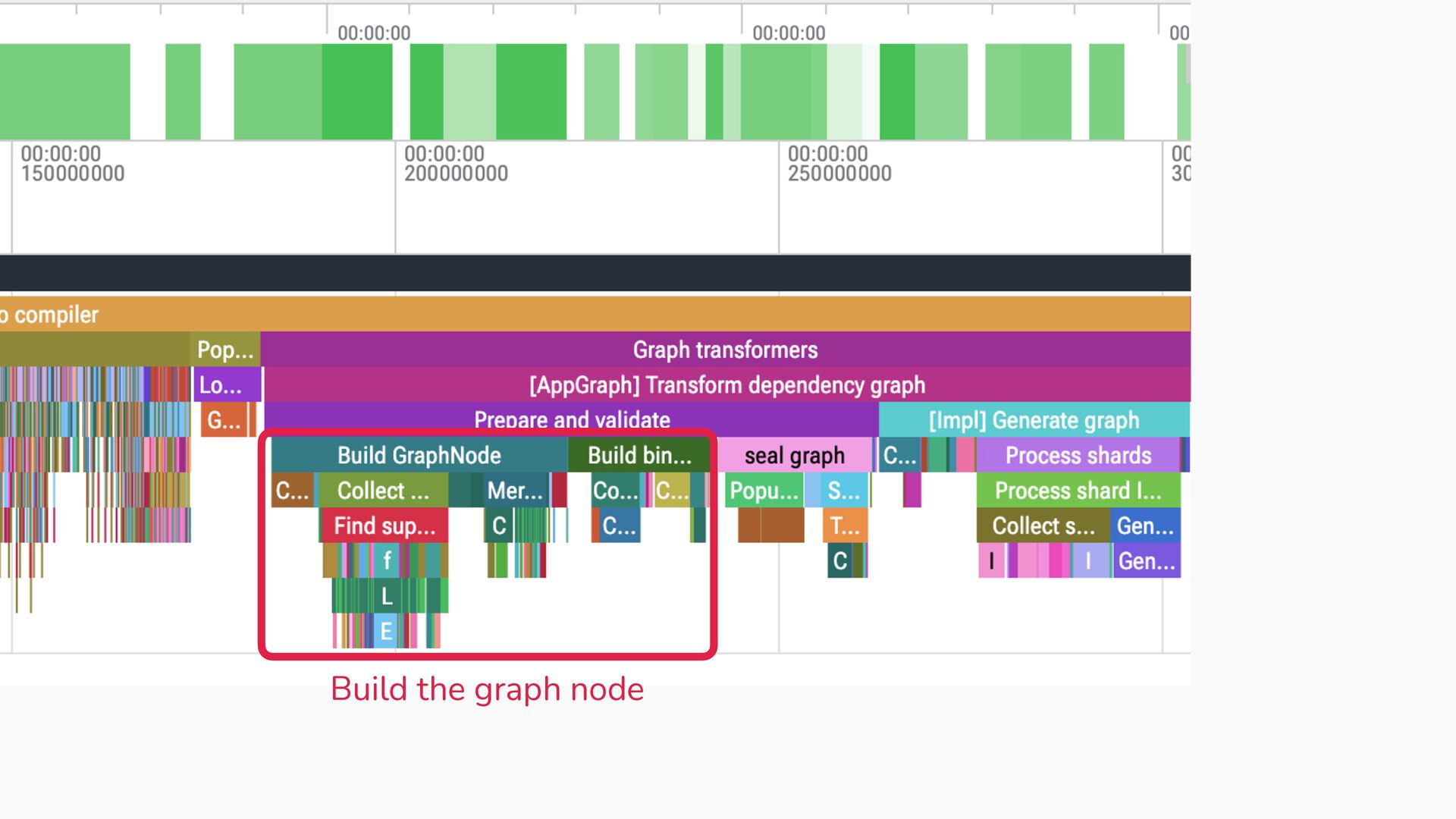

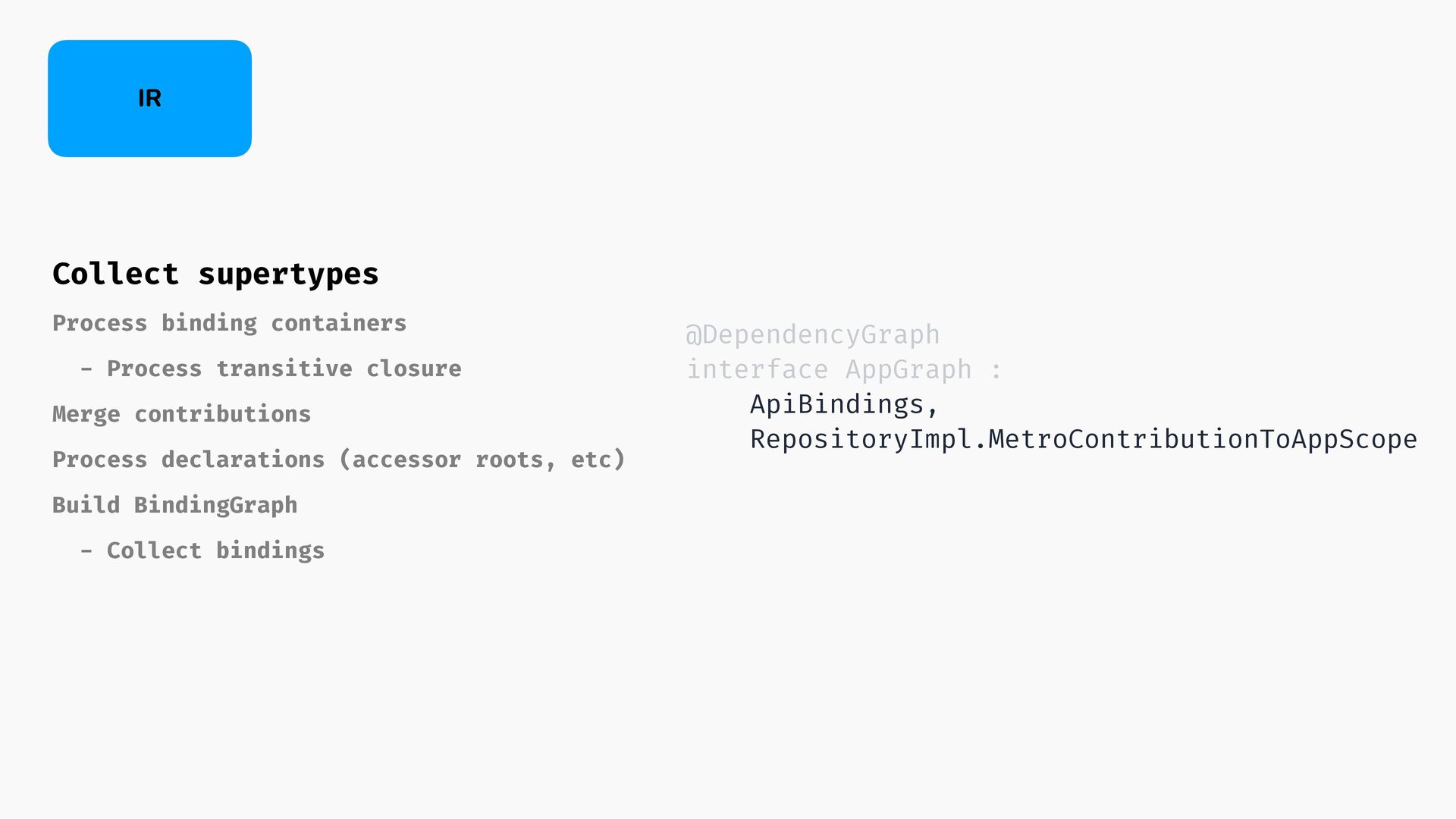

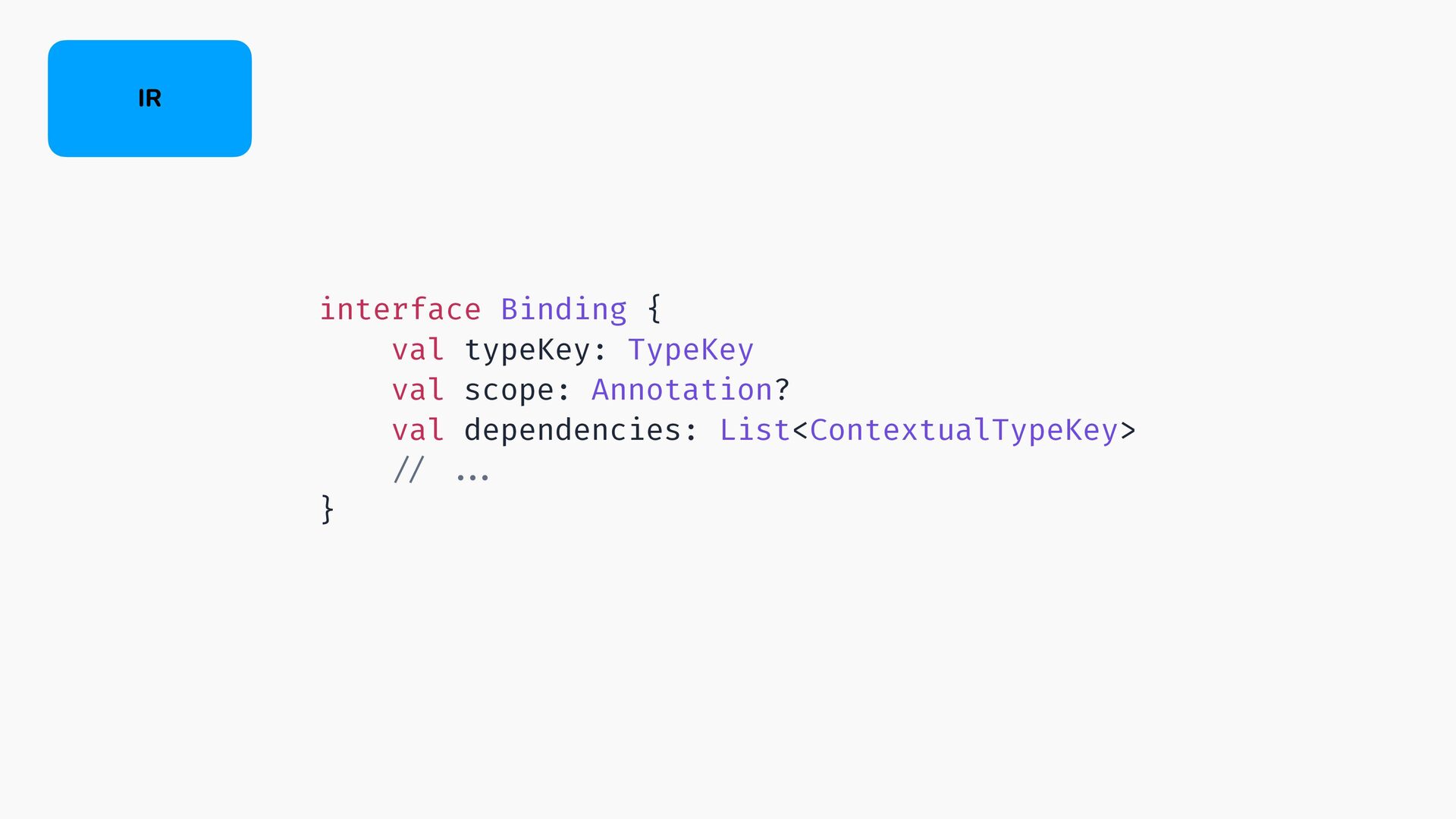

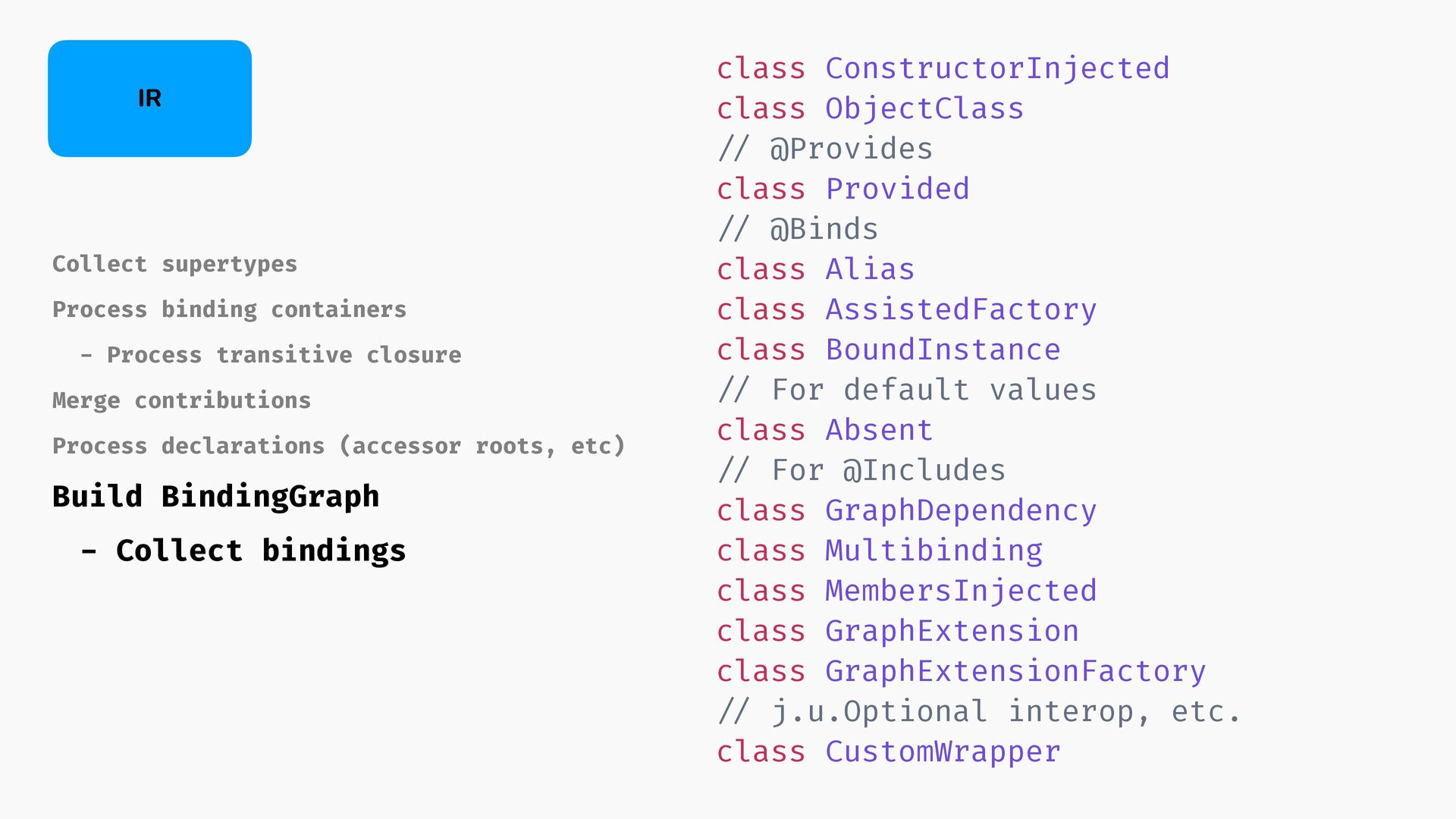

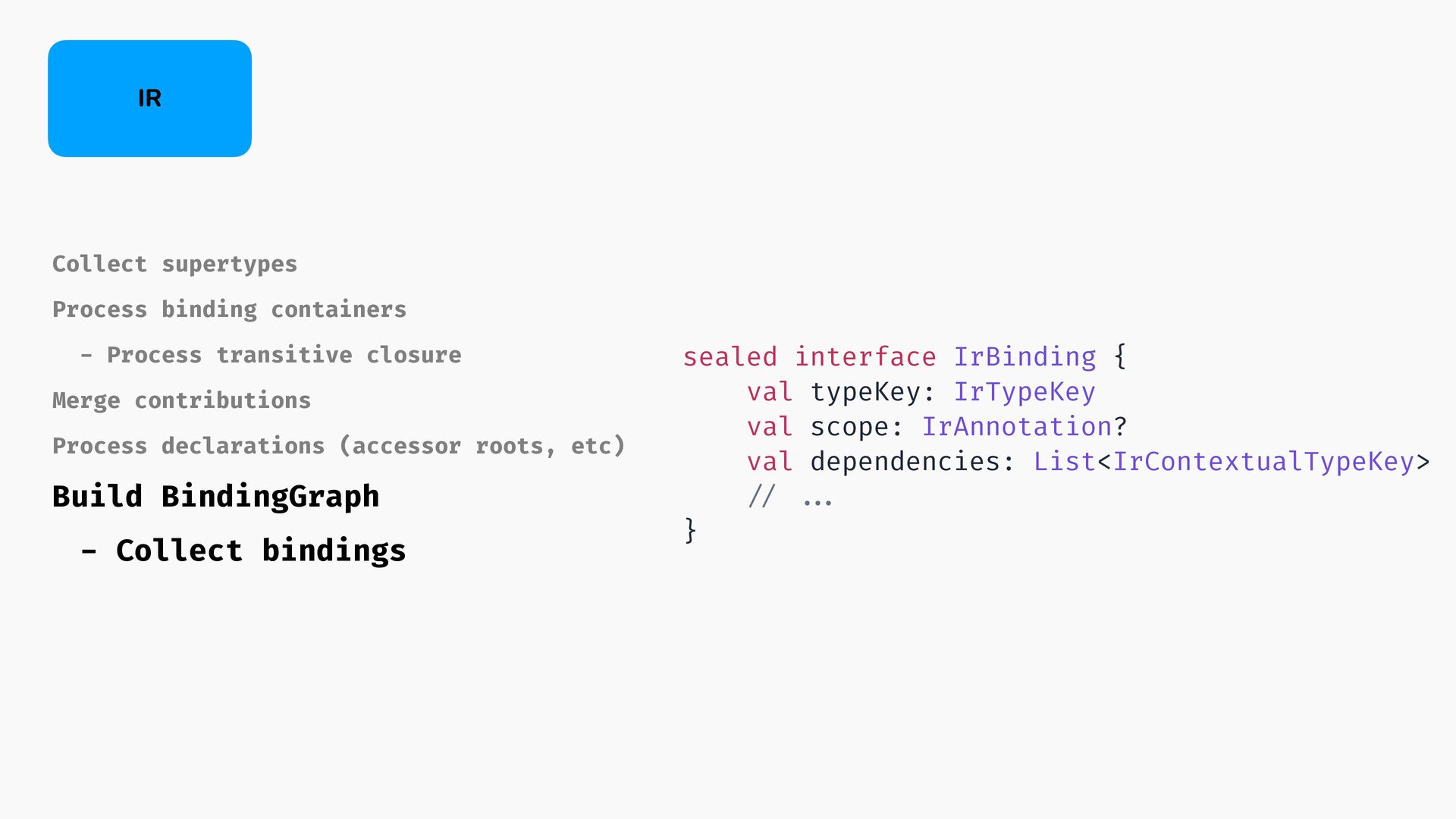

IR Graph Processing

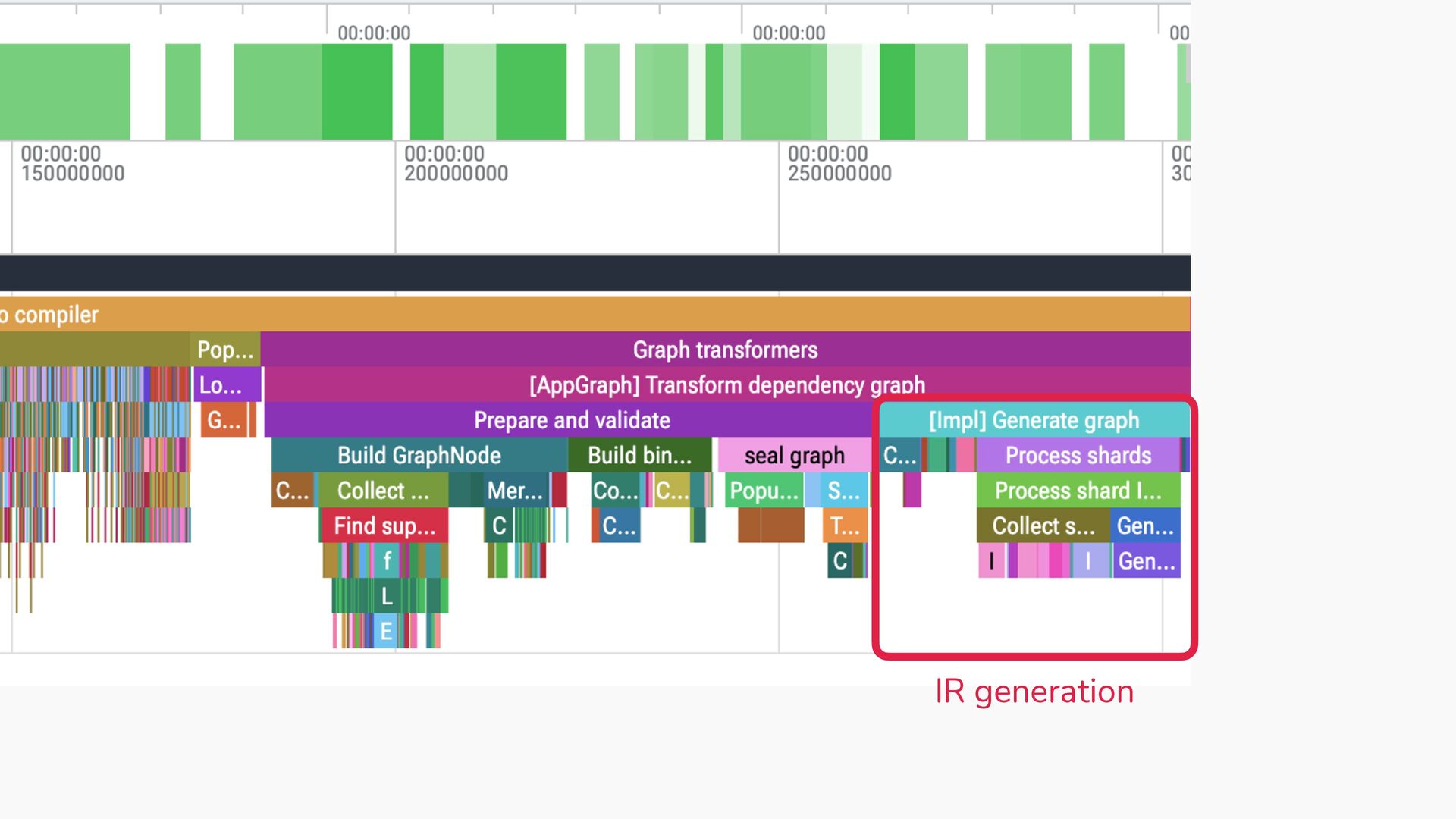

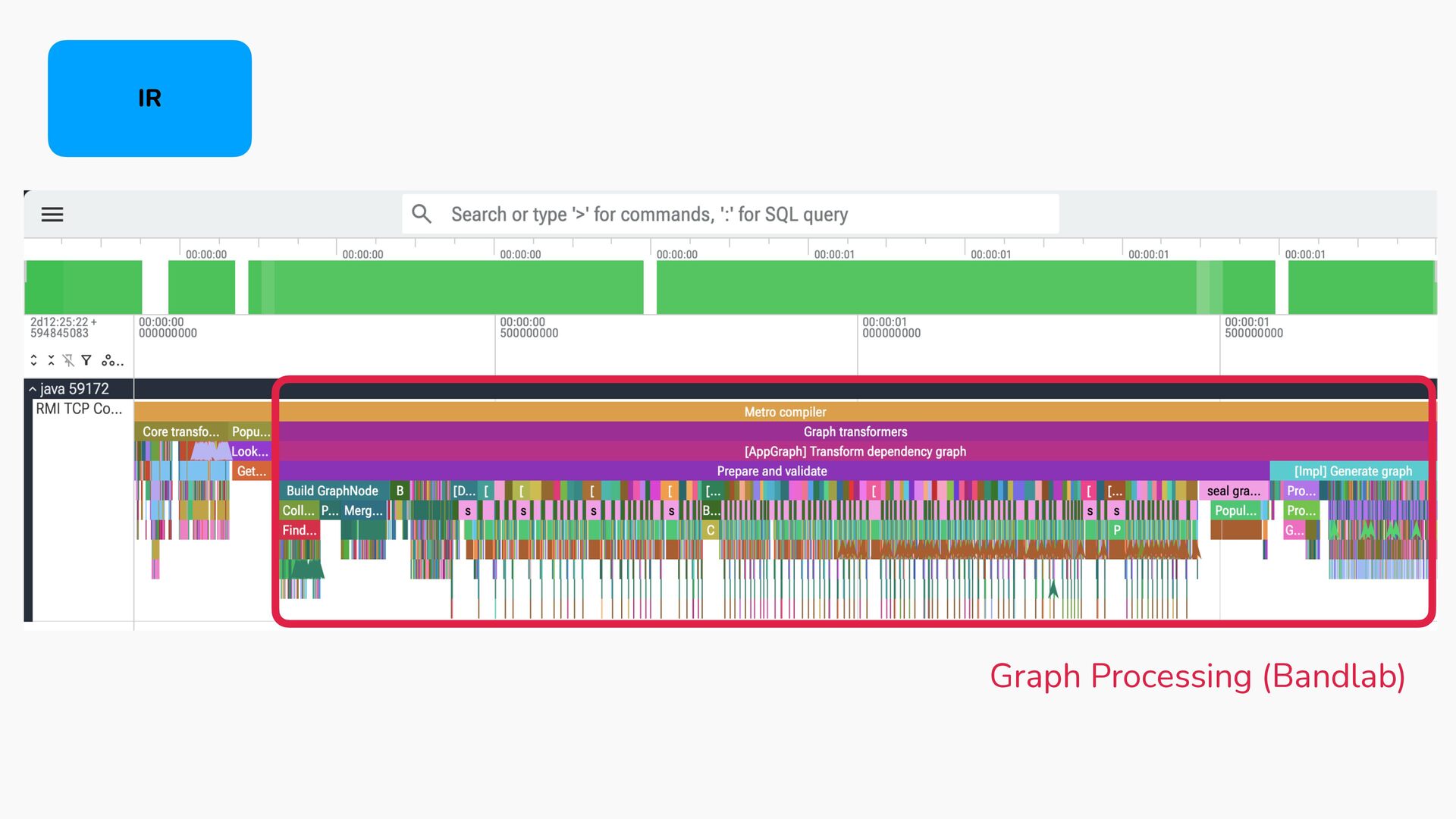

IR Graph Processing (Bandlab)

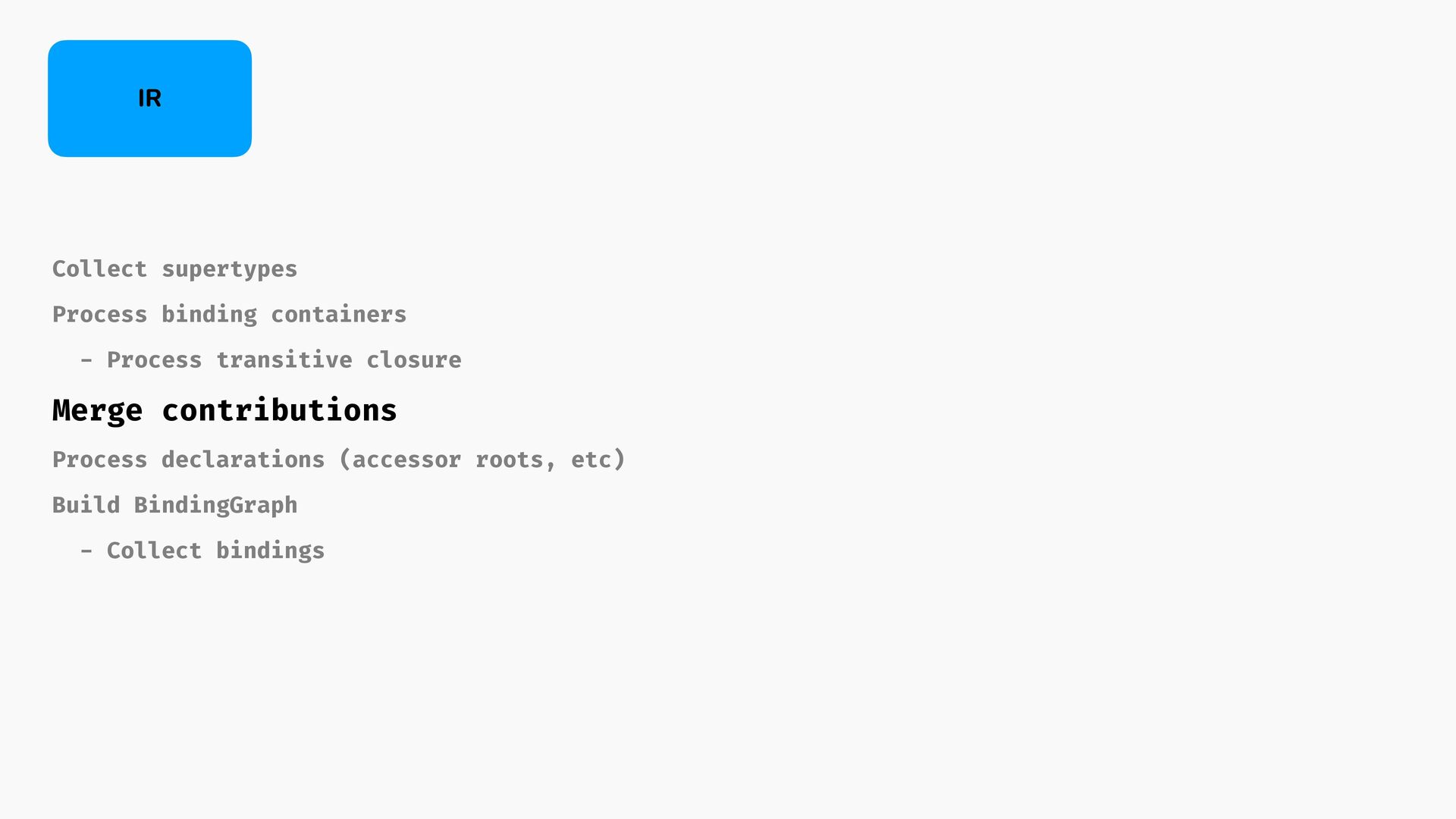

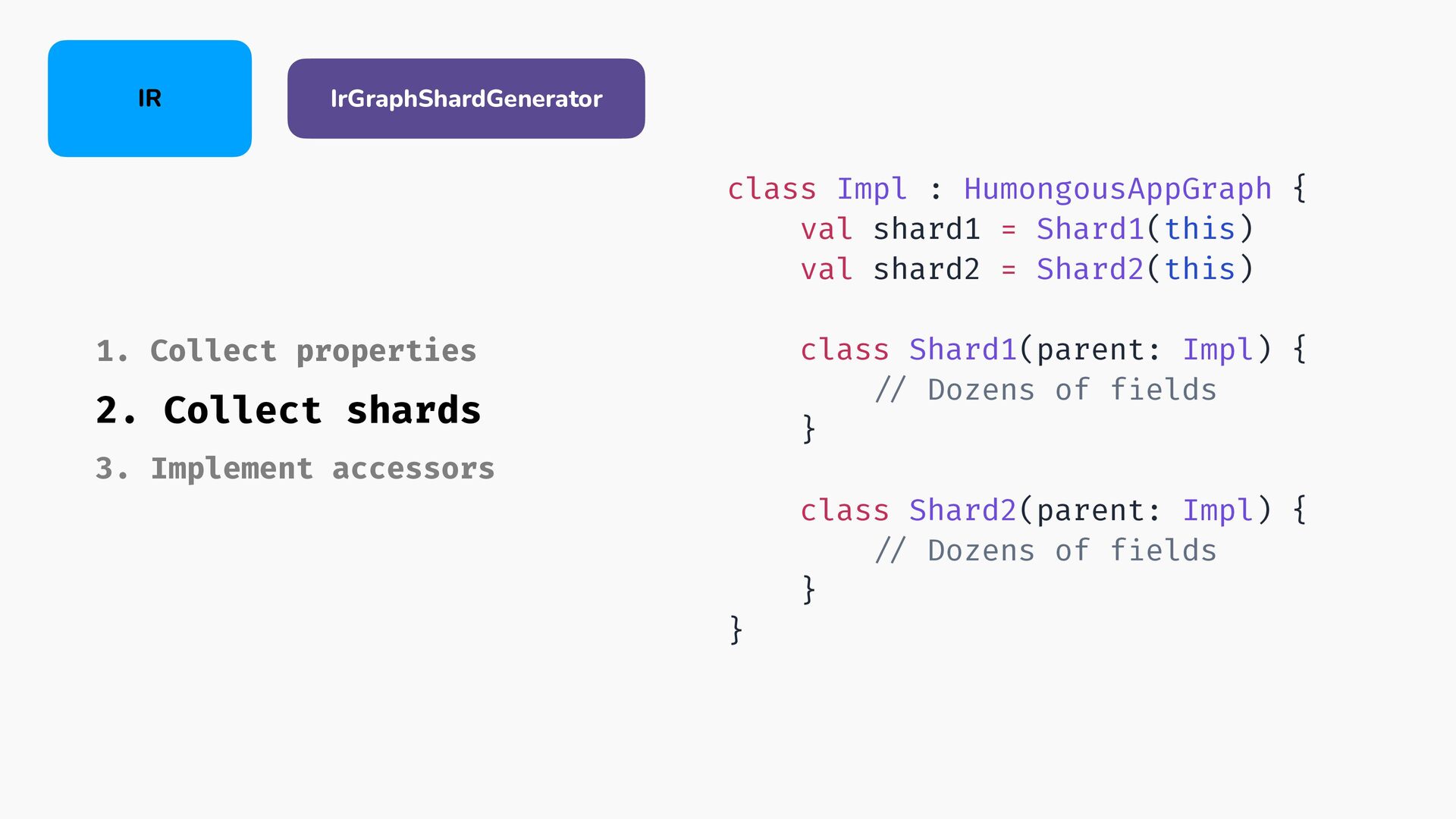

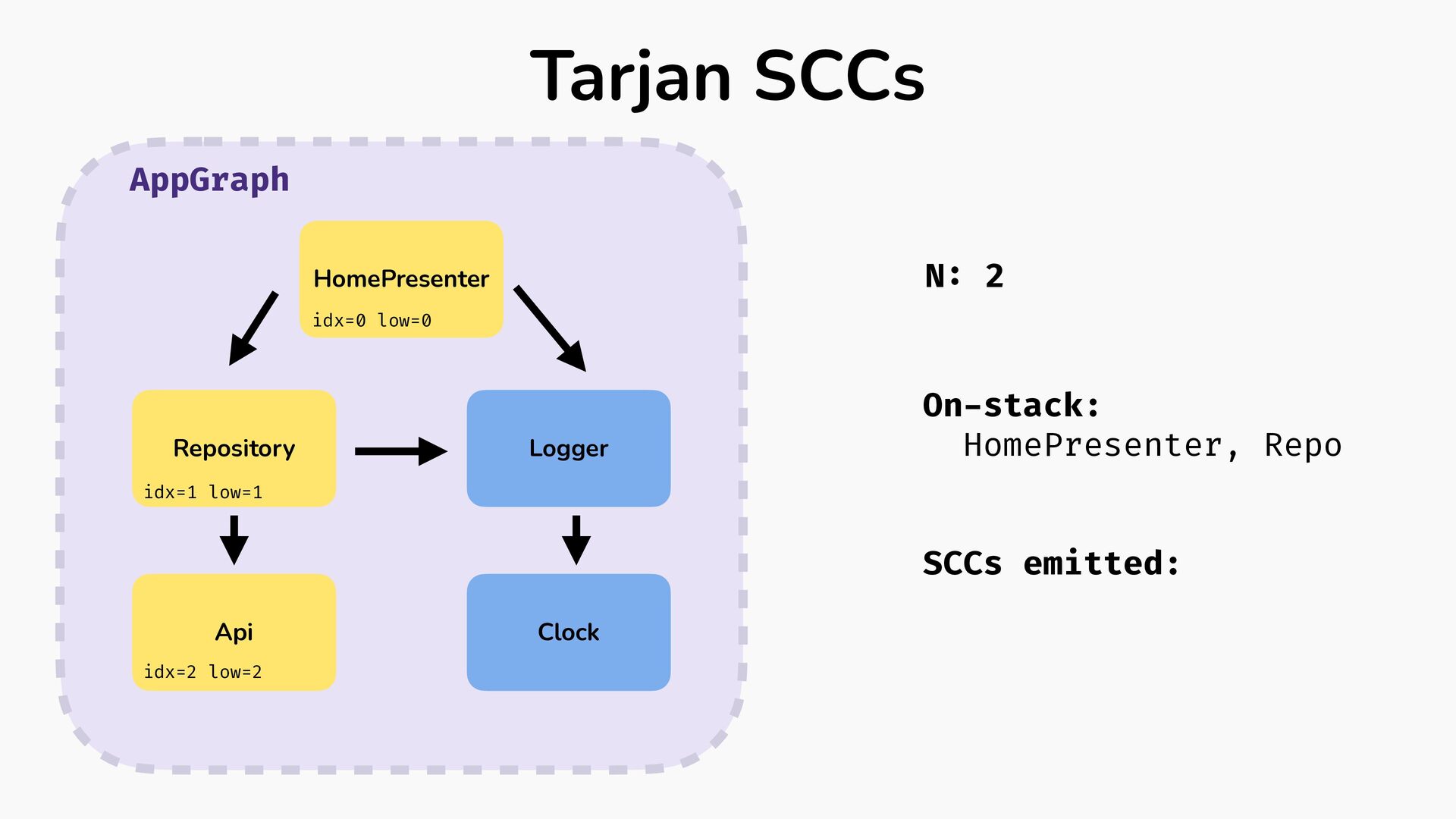

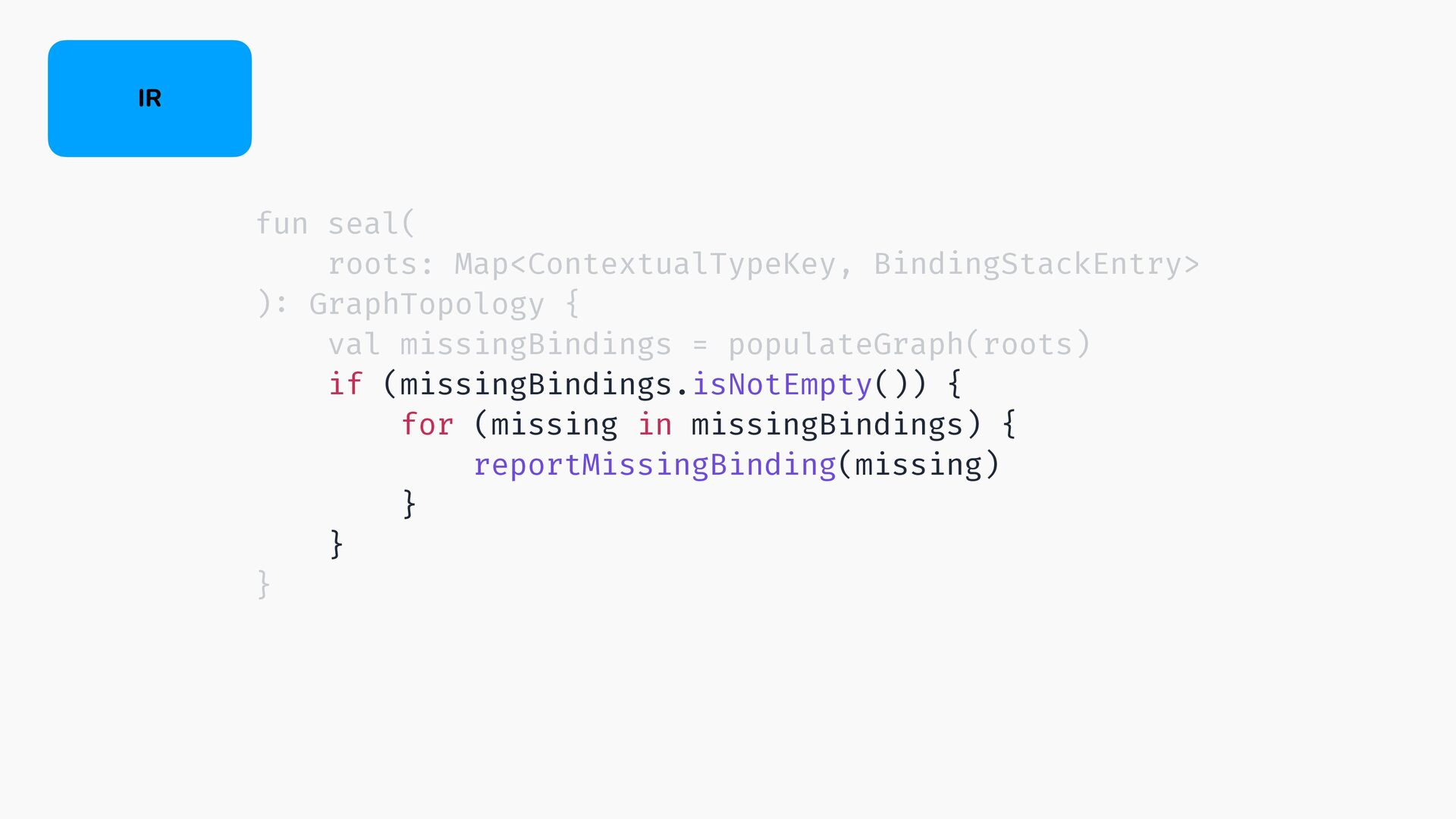

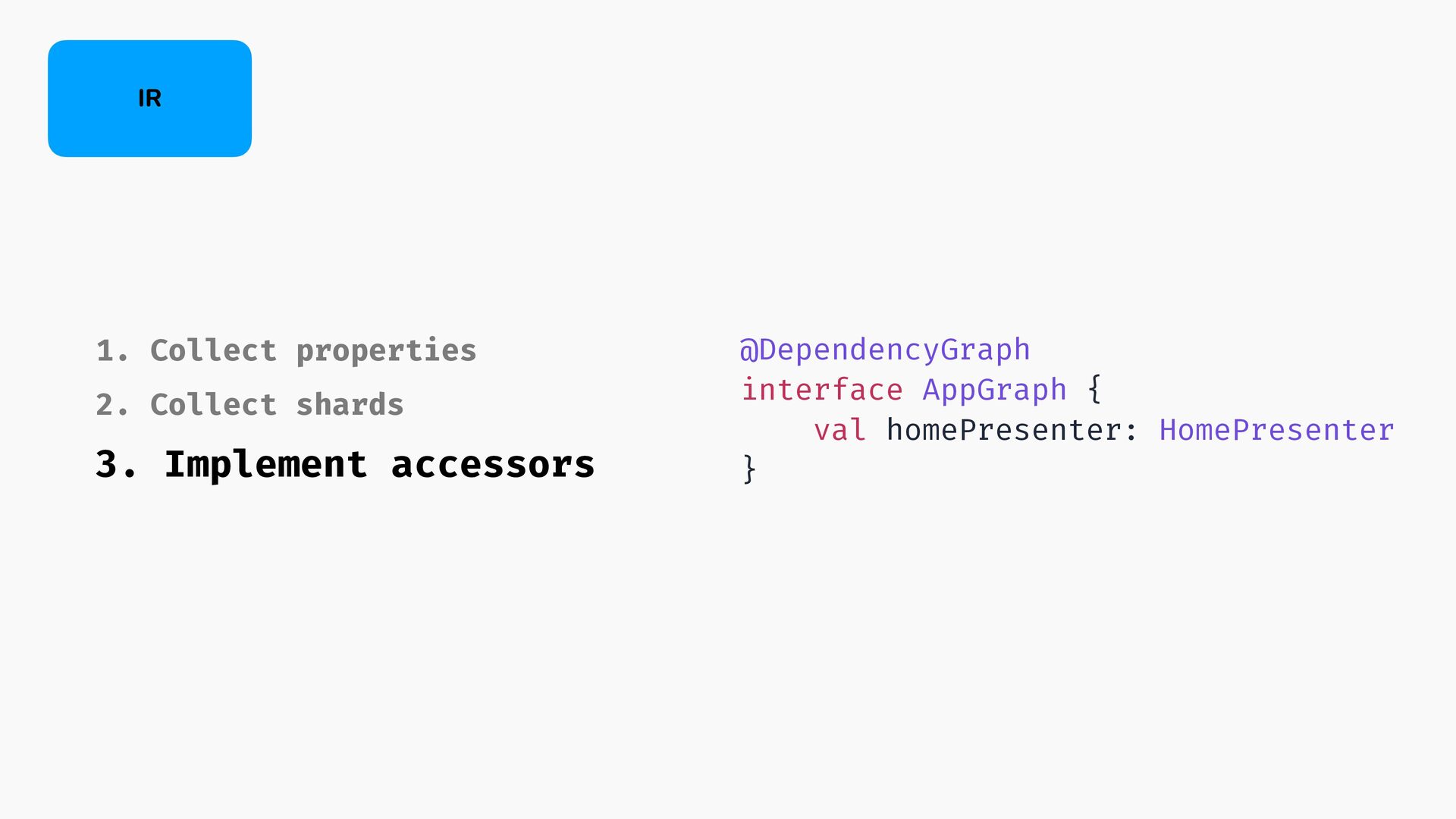

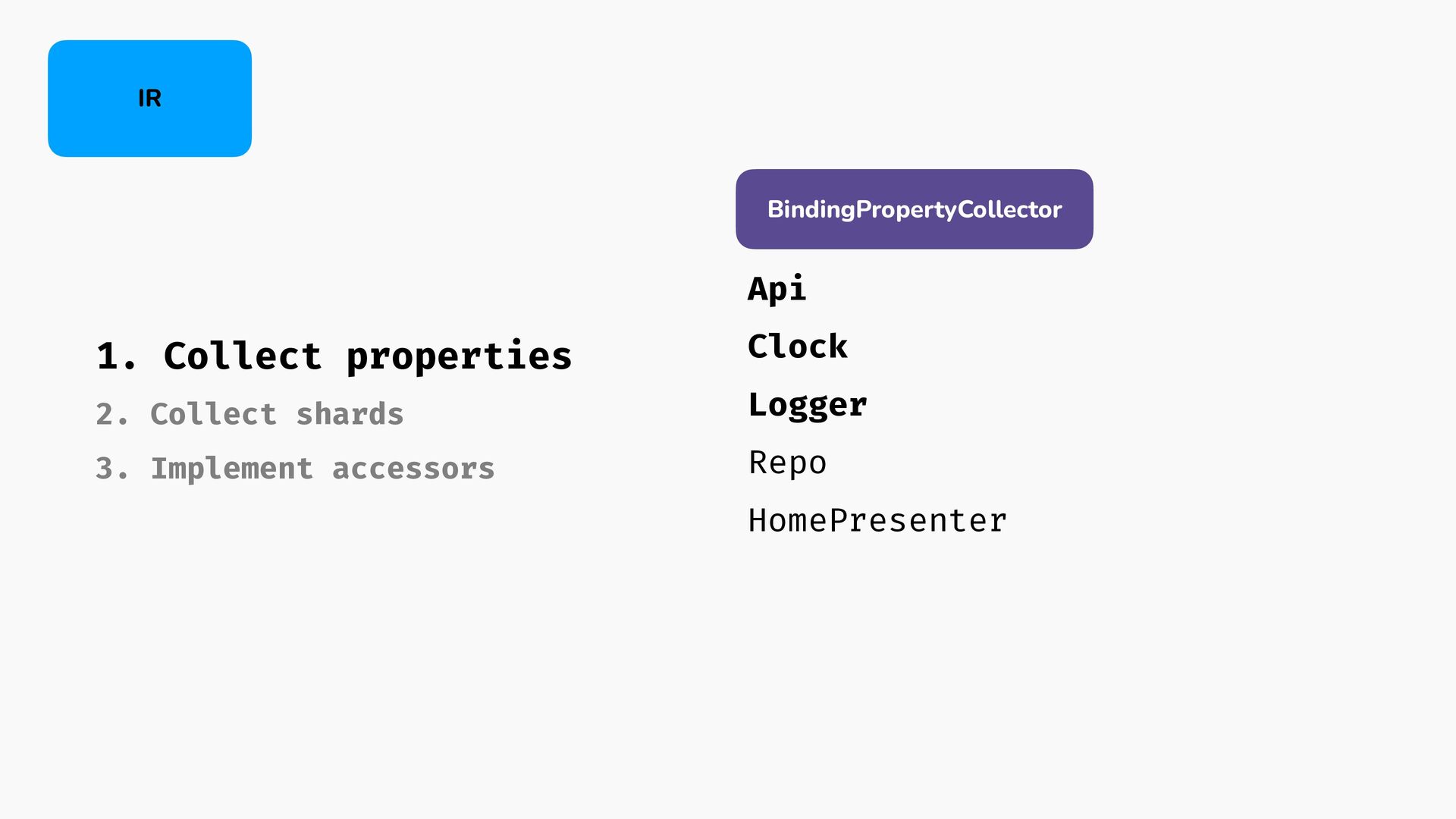

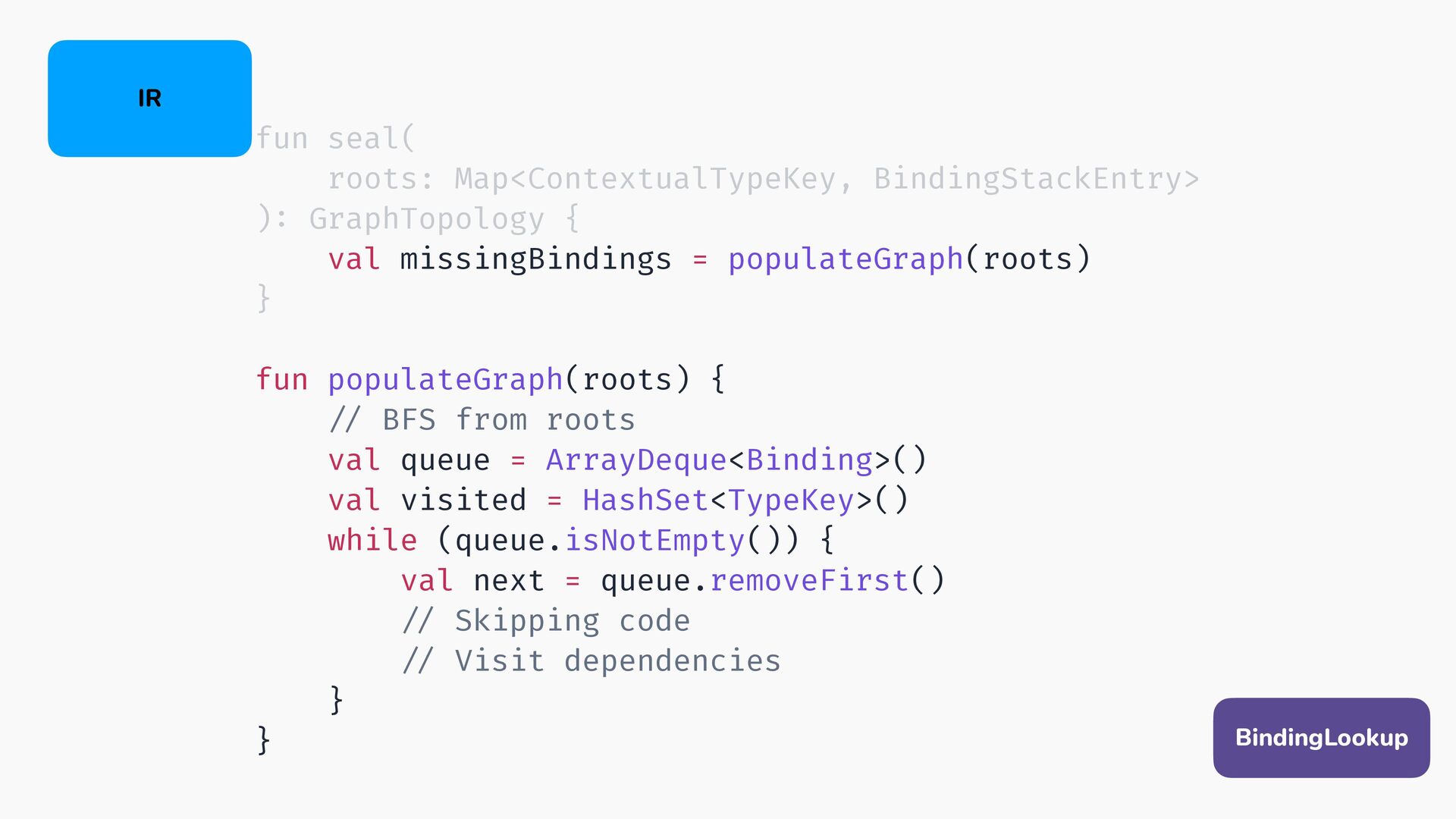

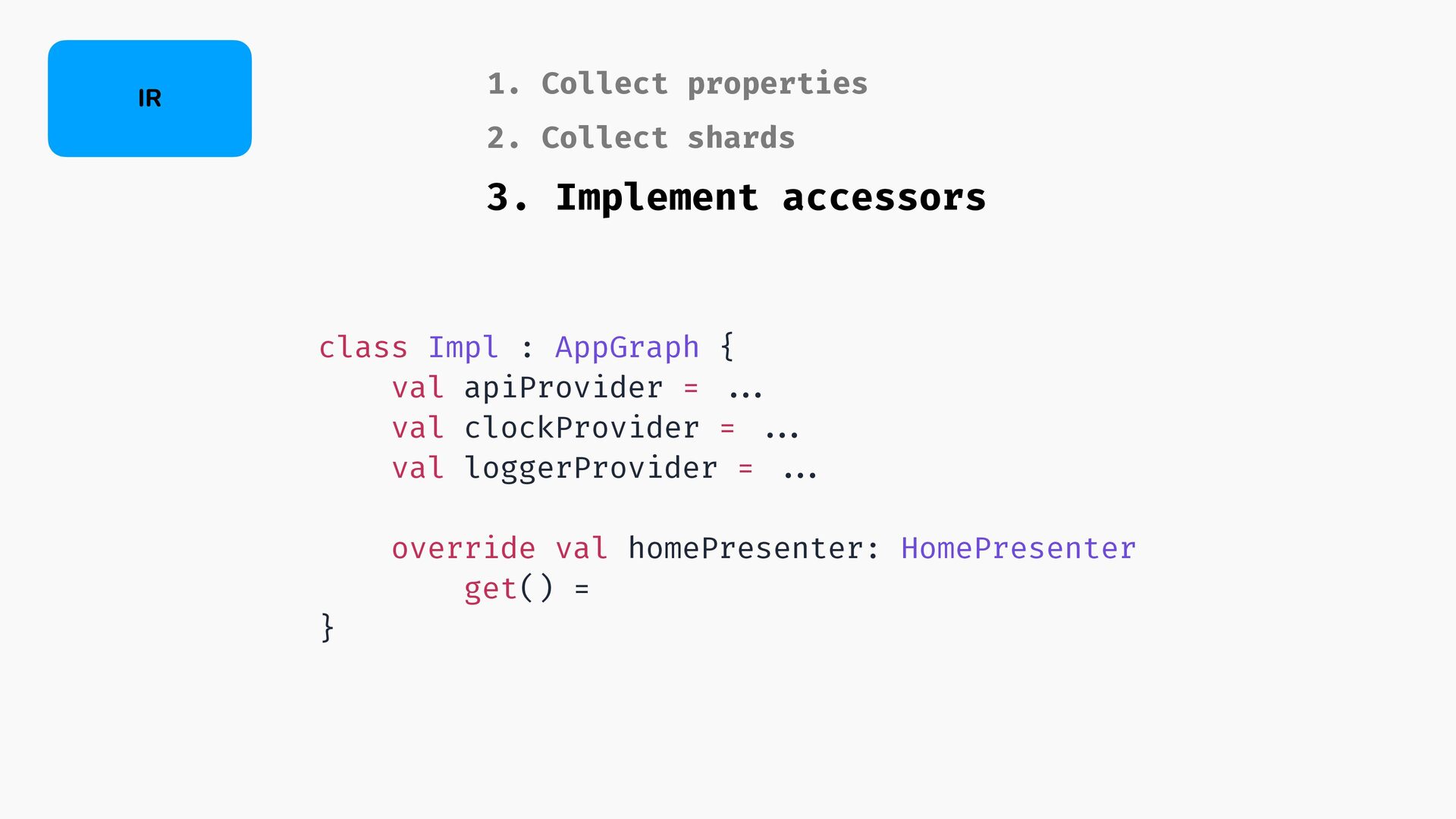

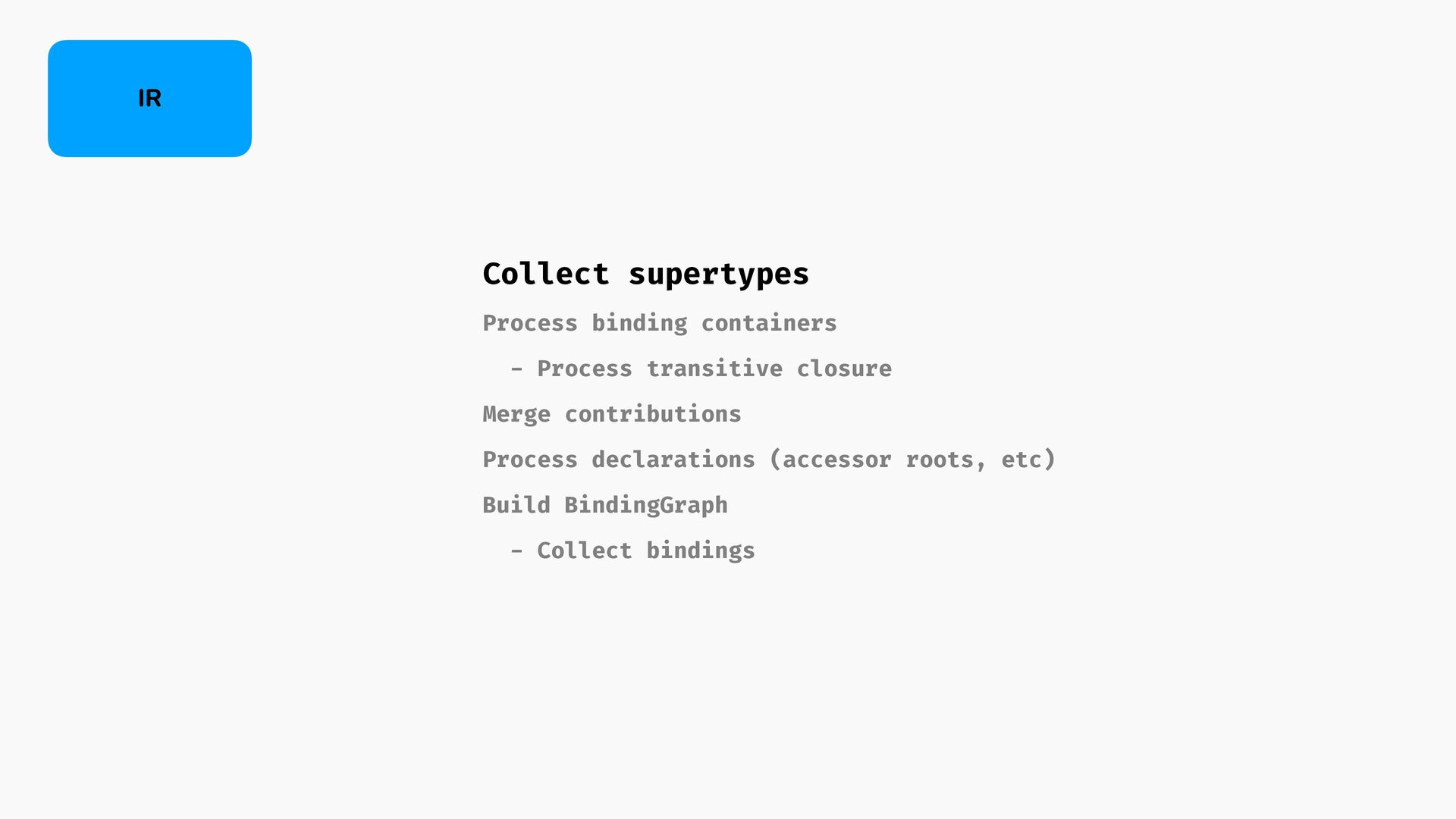

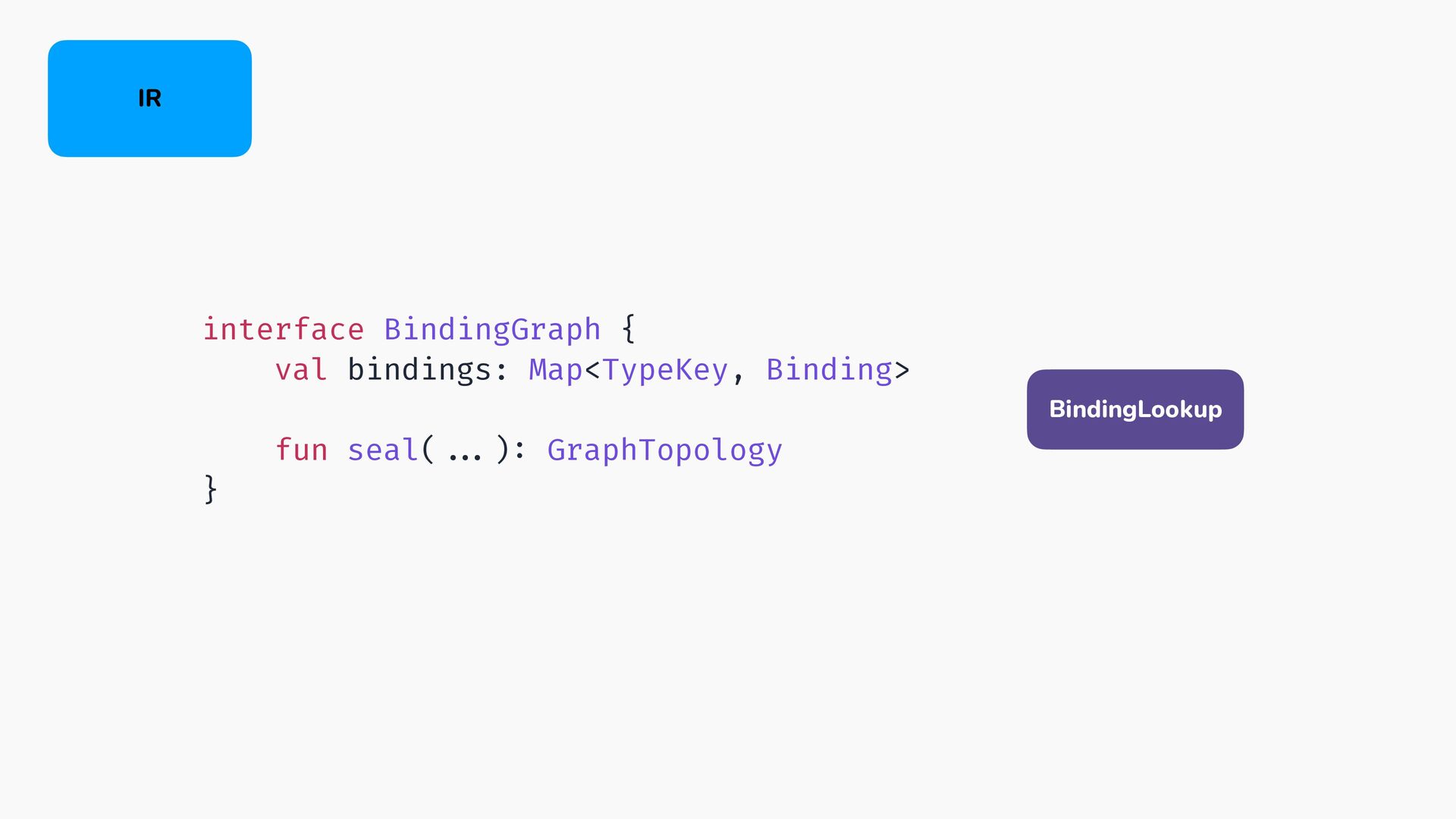

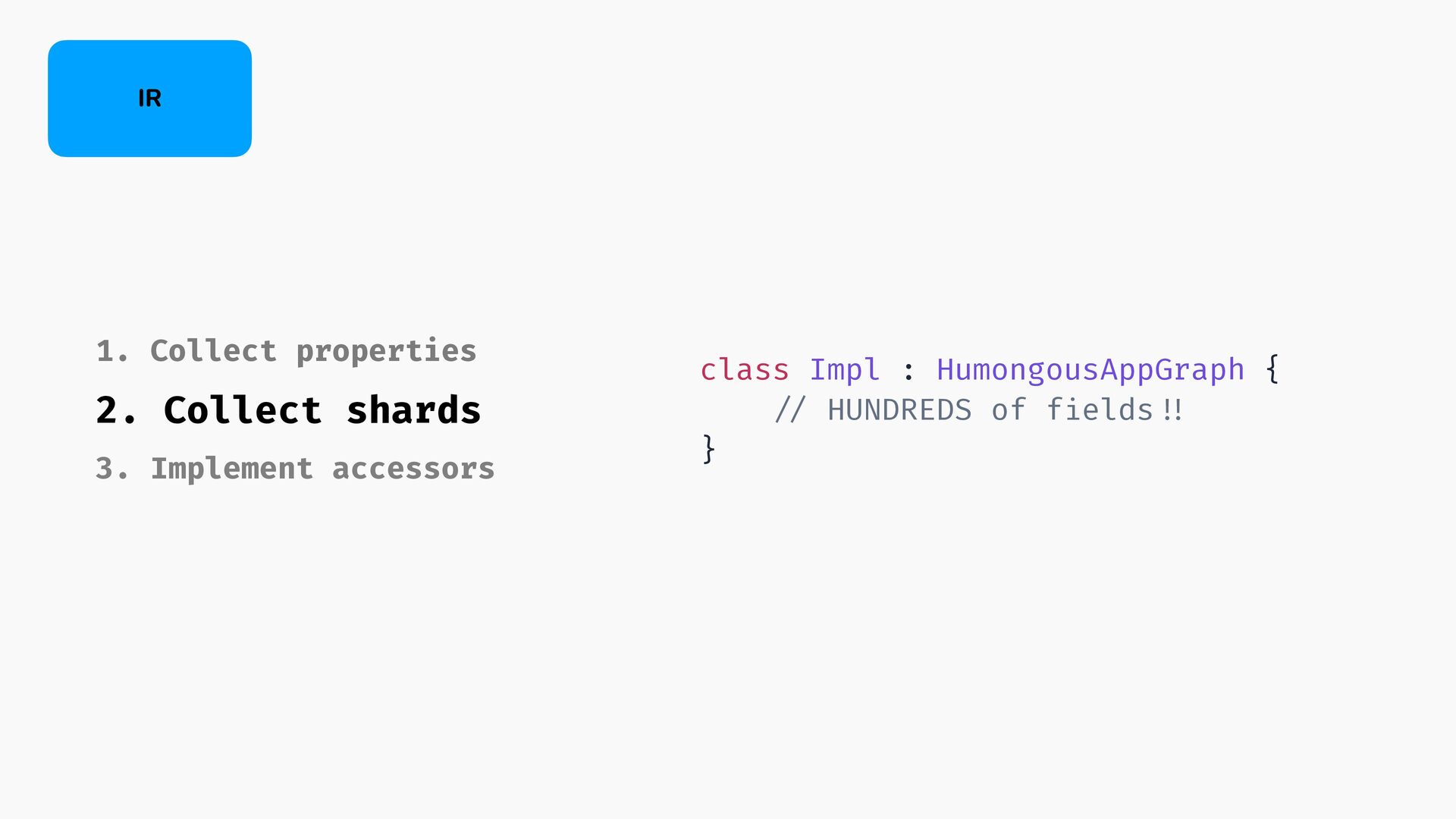

IR Graph Processing

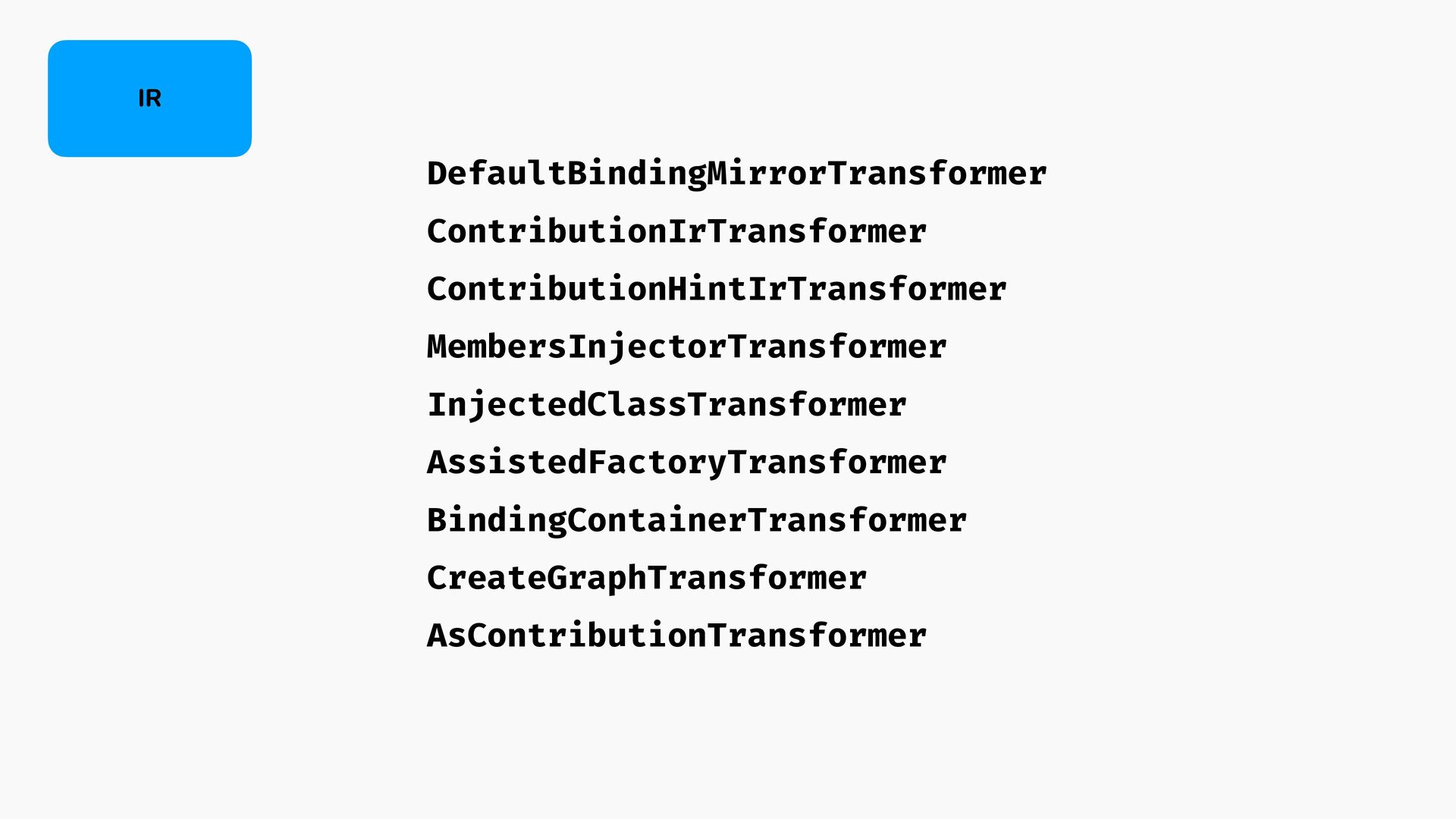

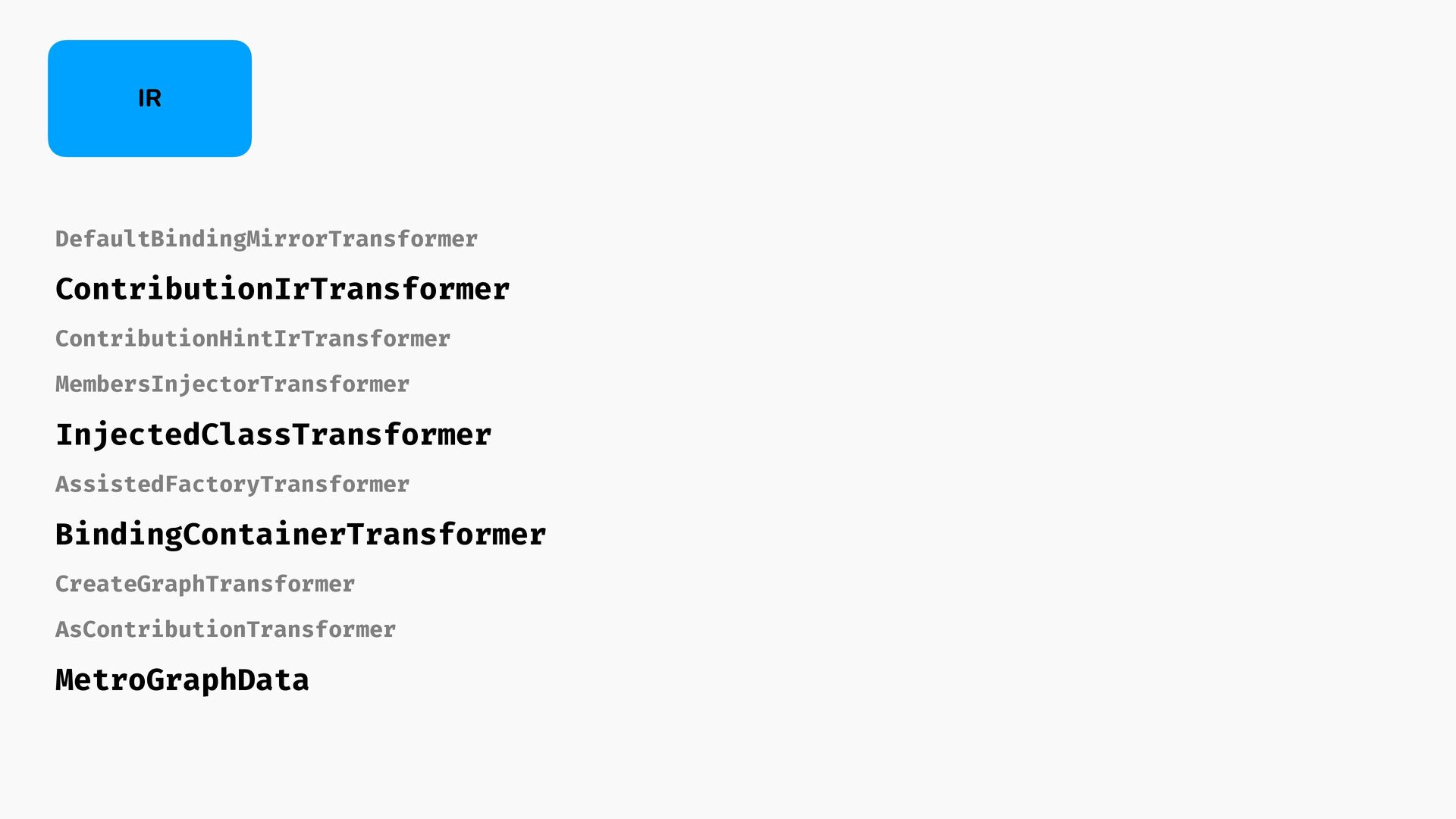

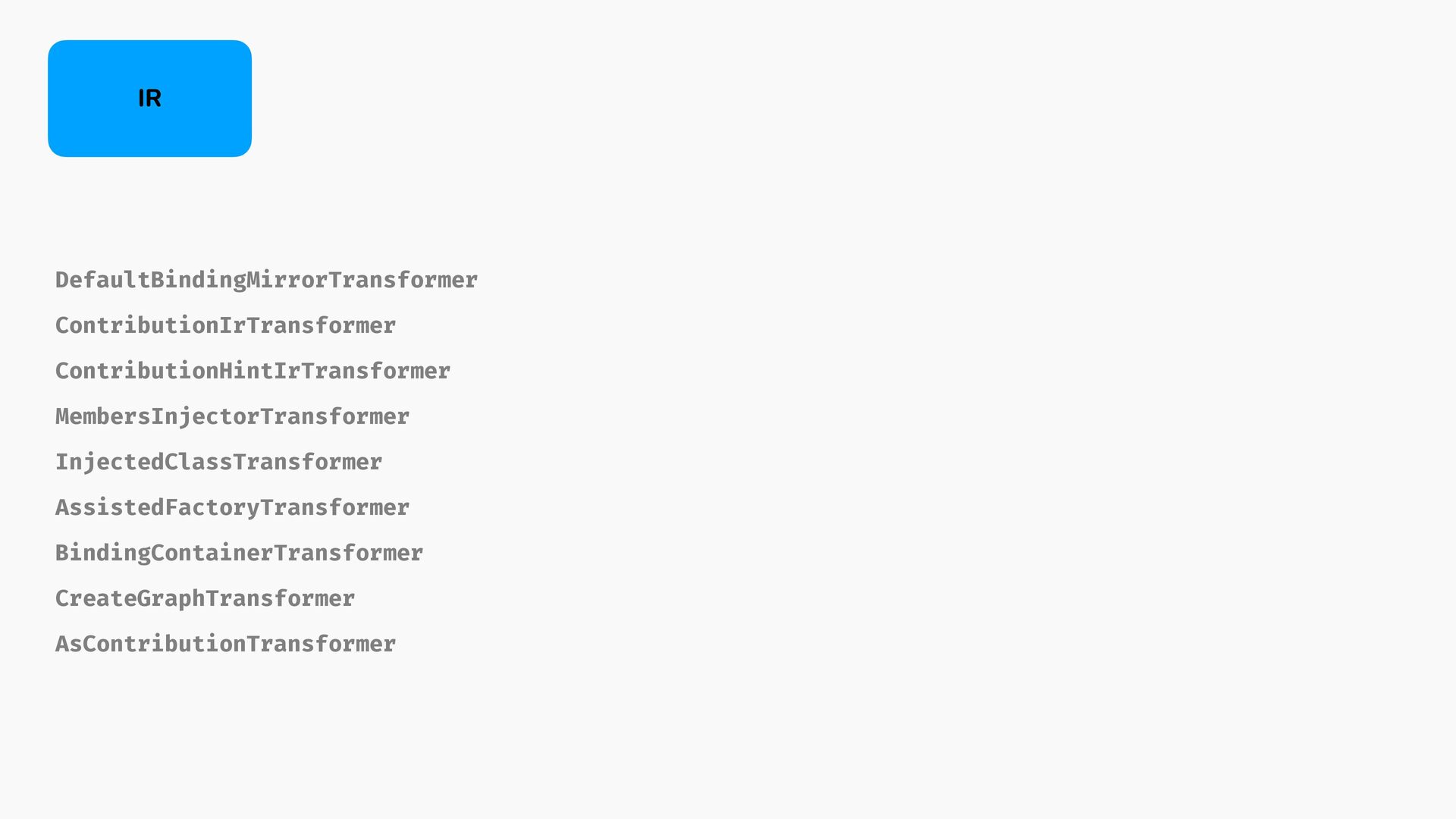

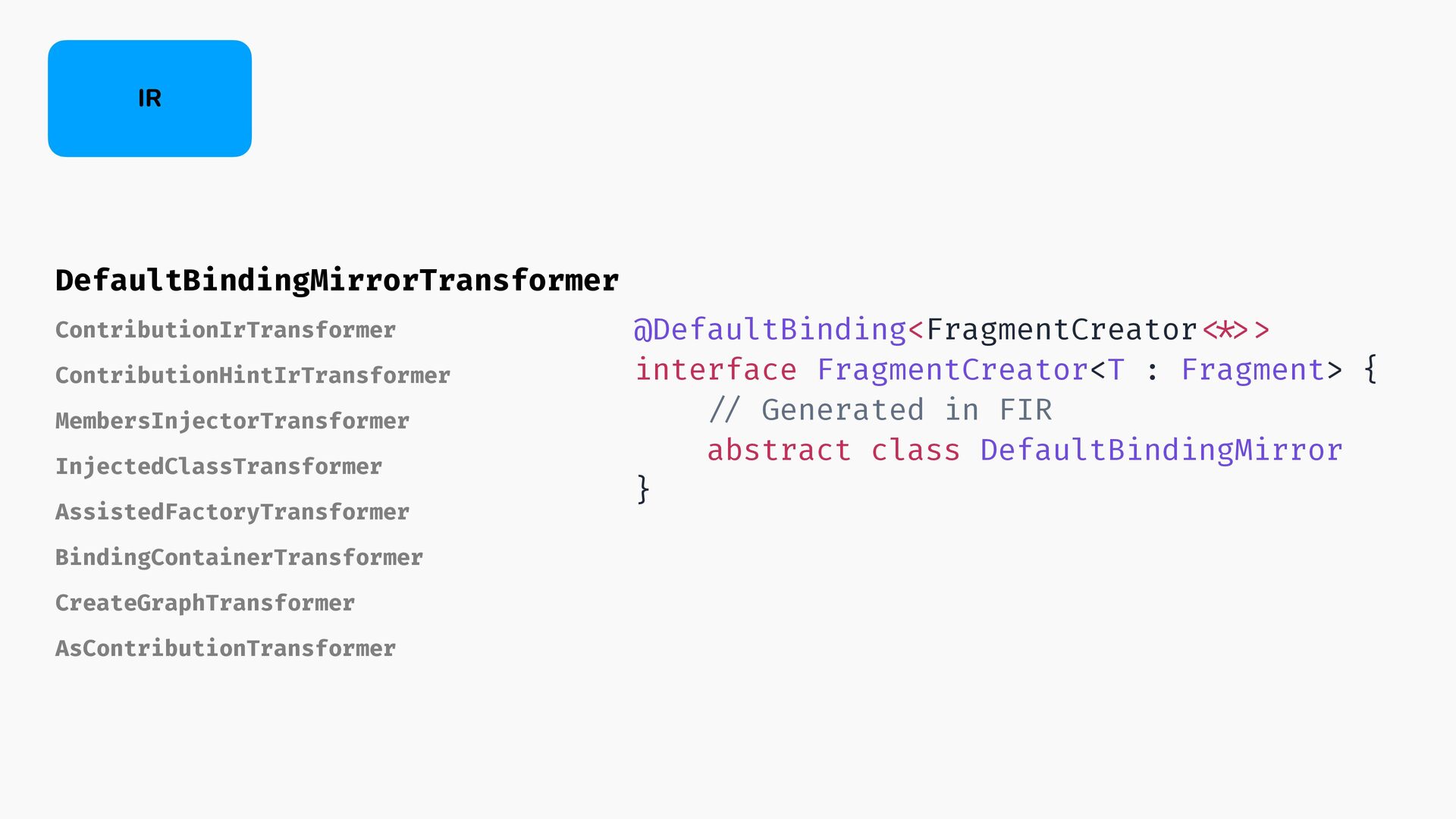

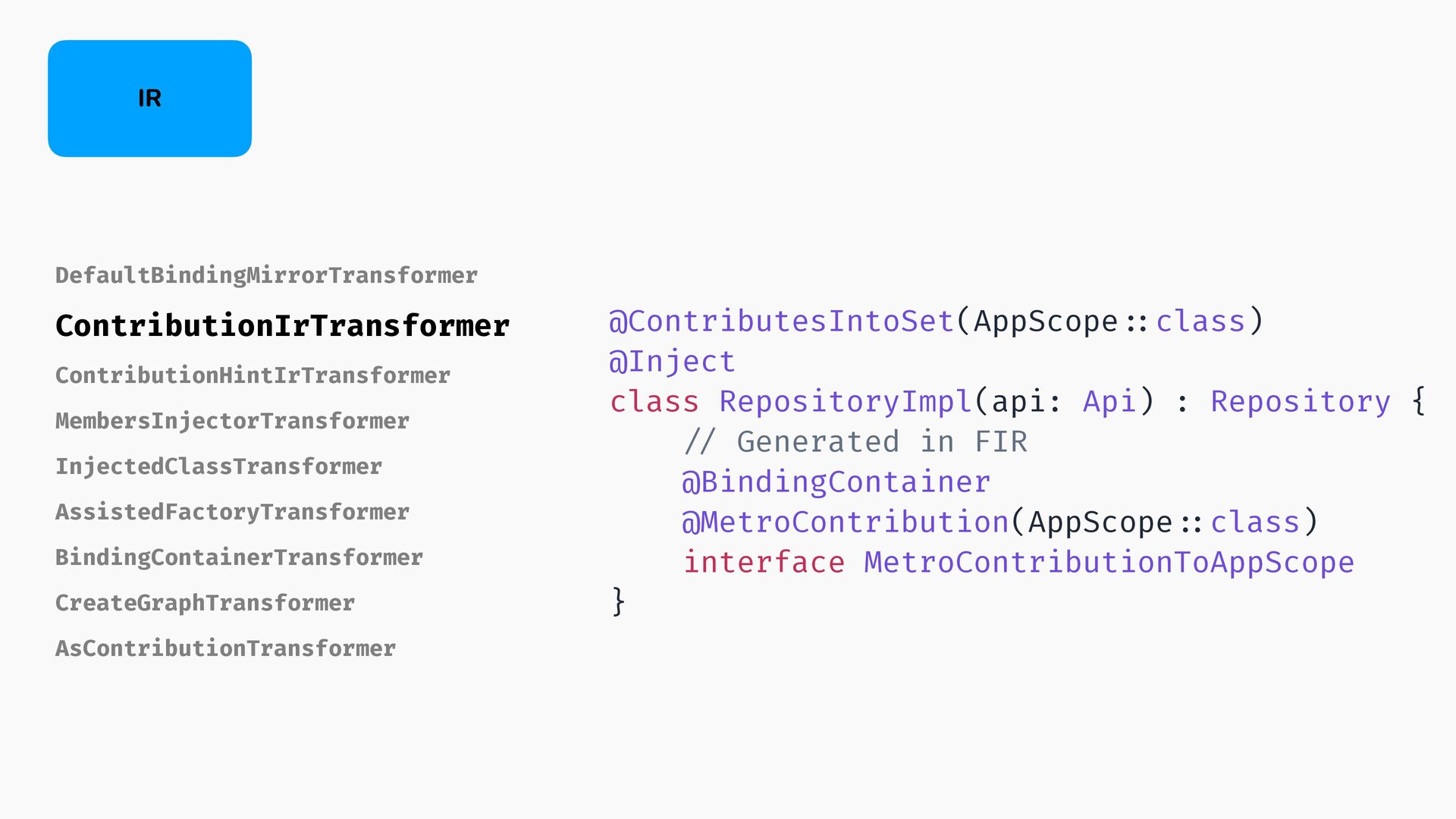

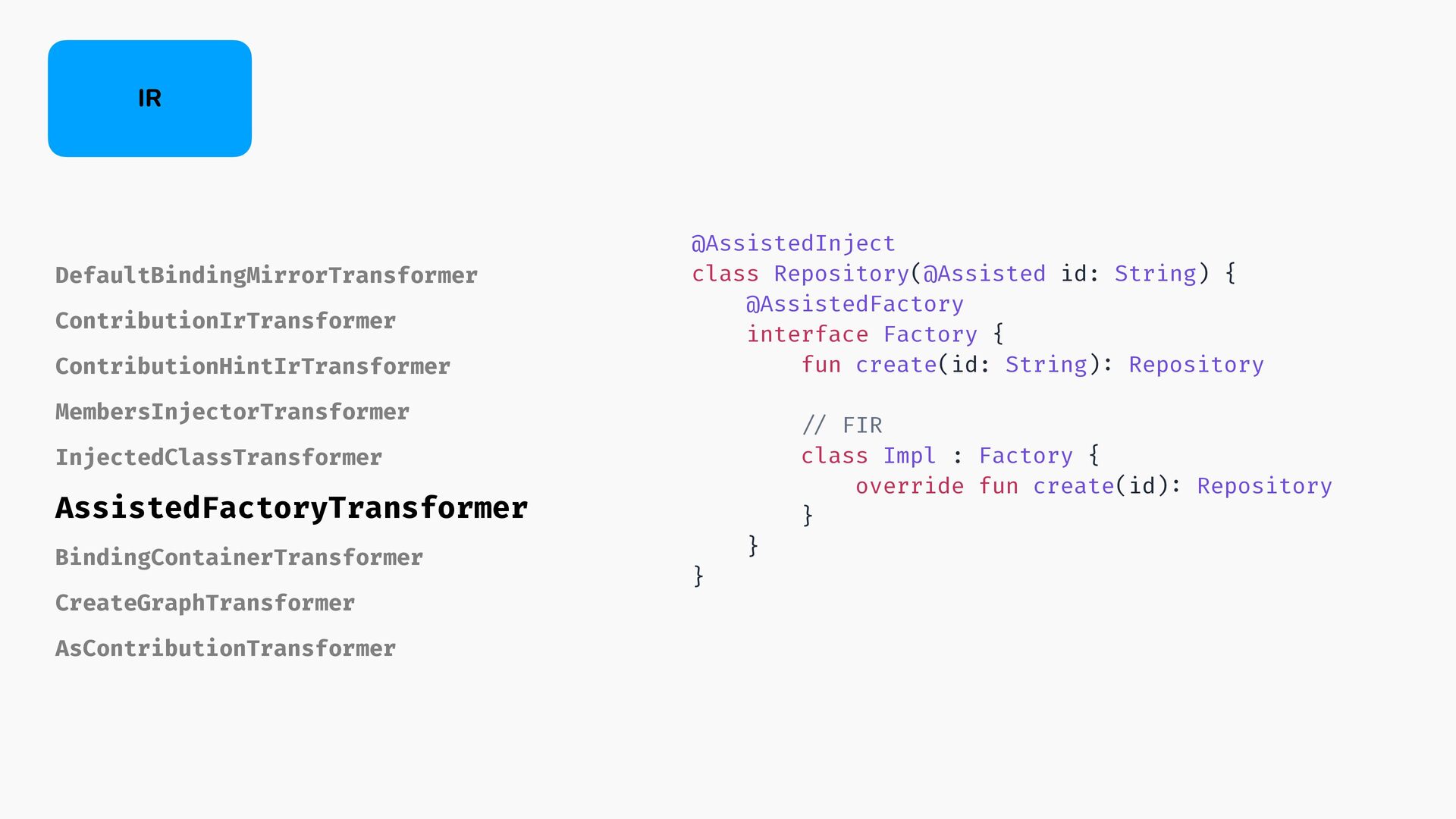

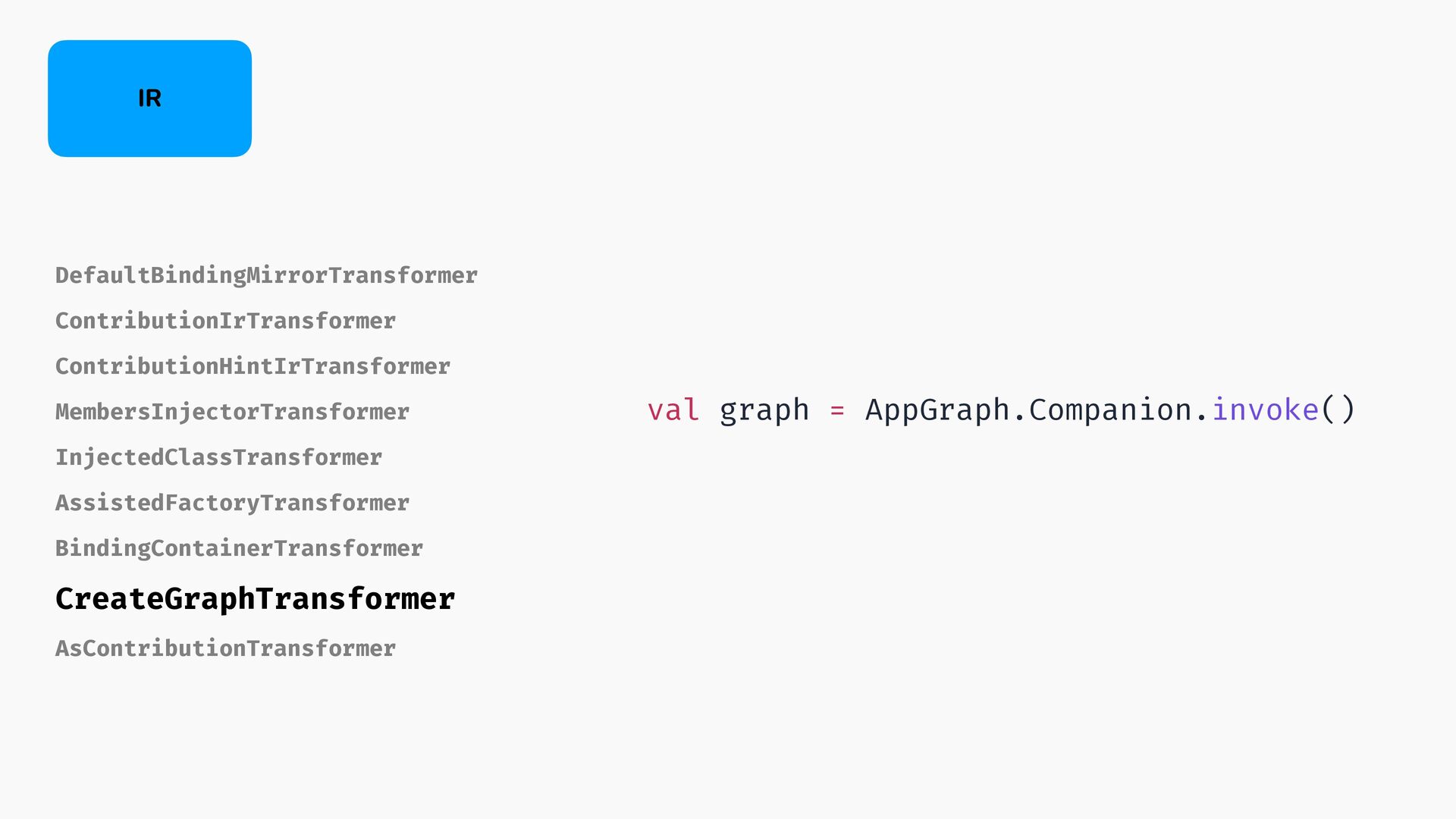

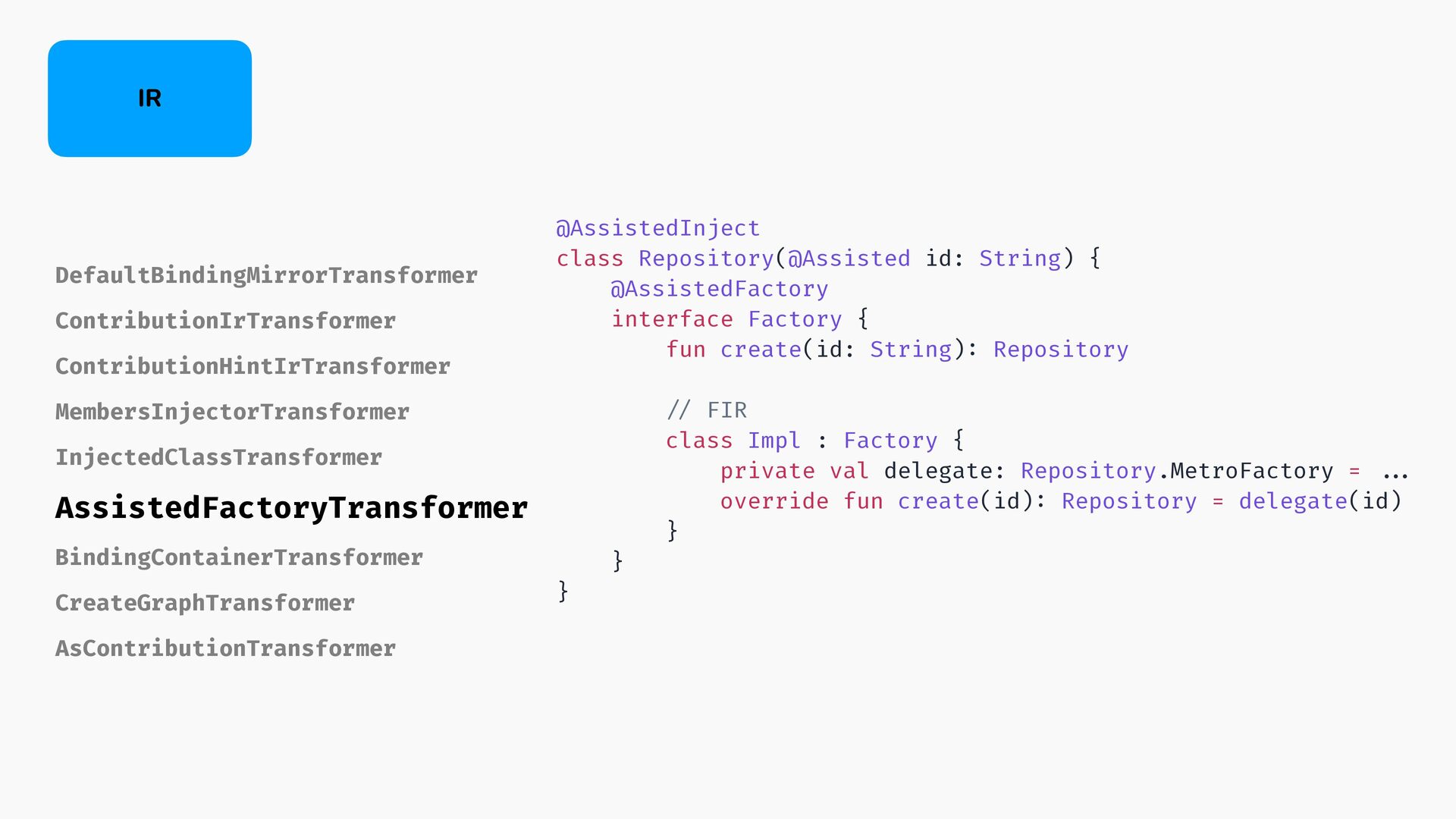

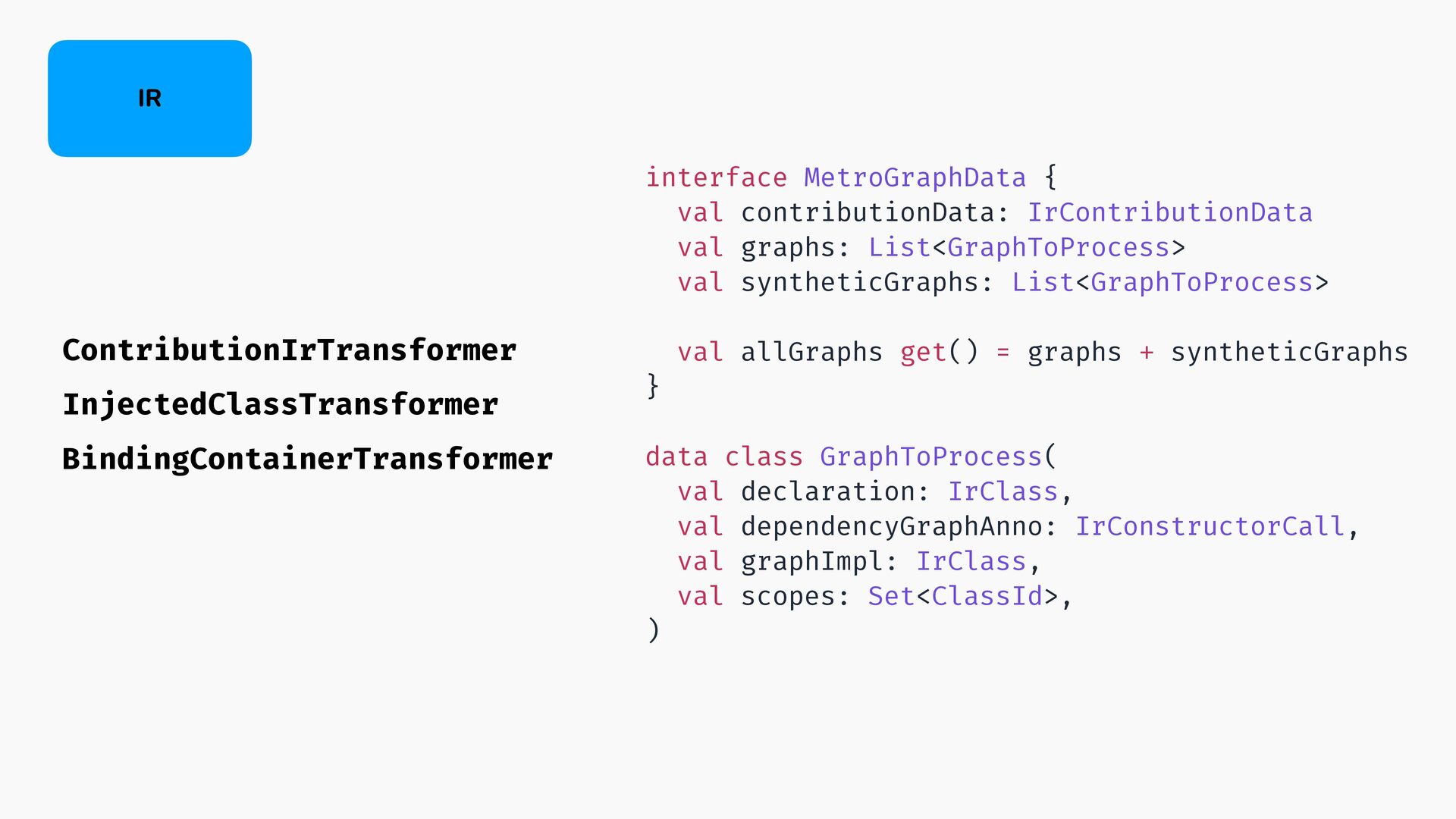

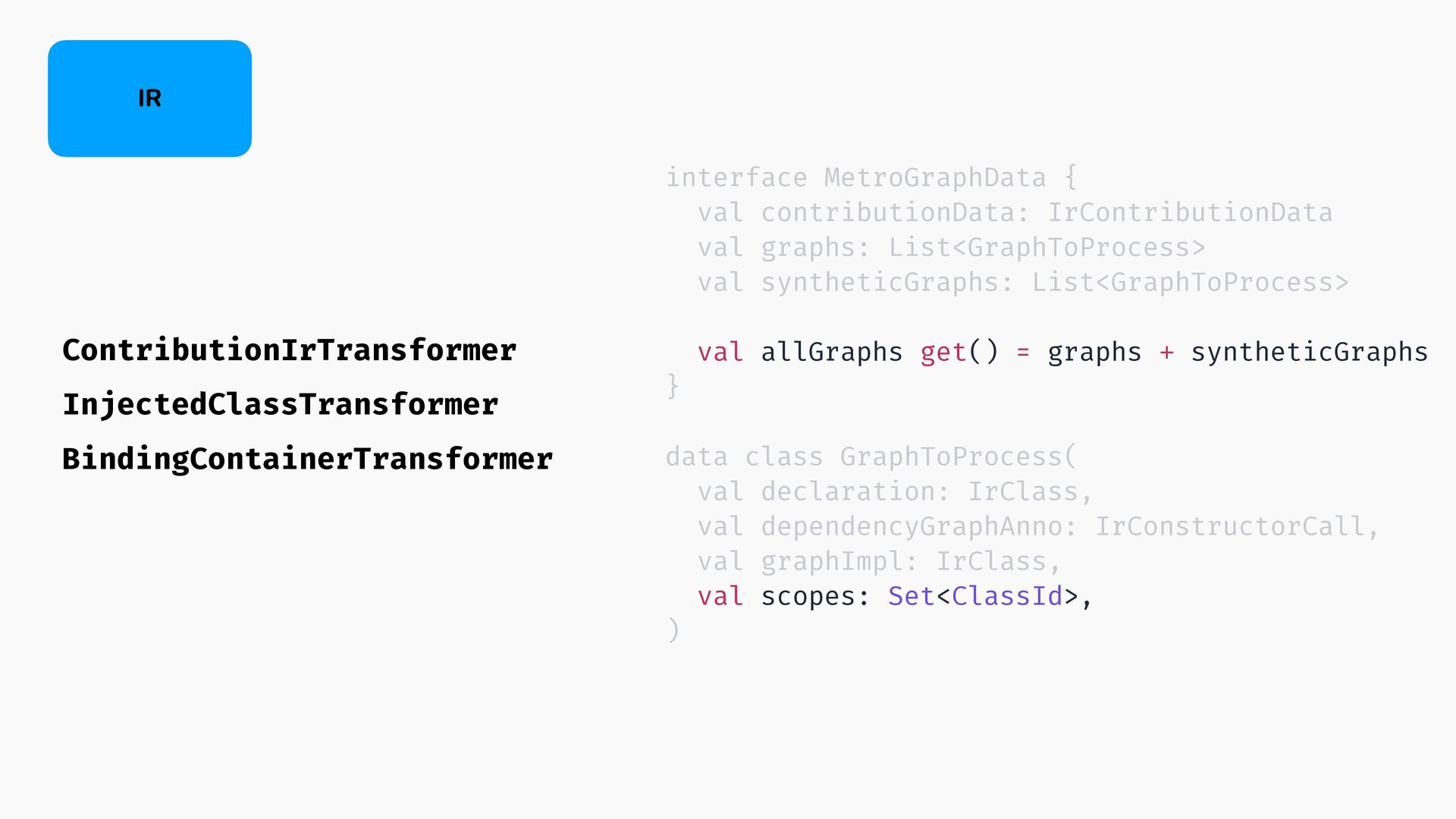

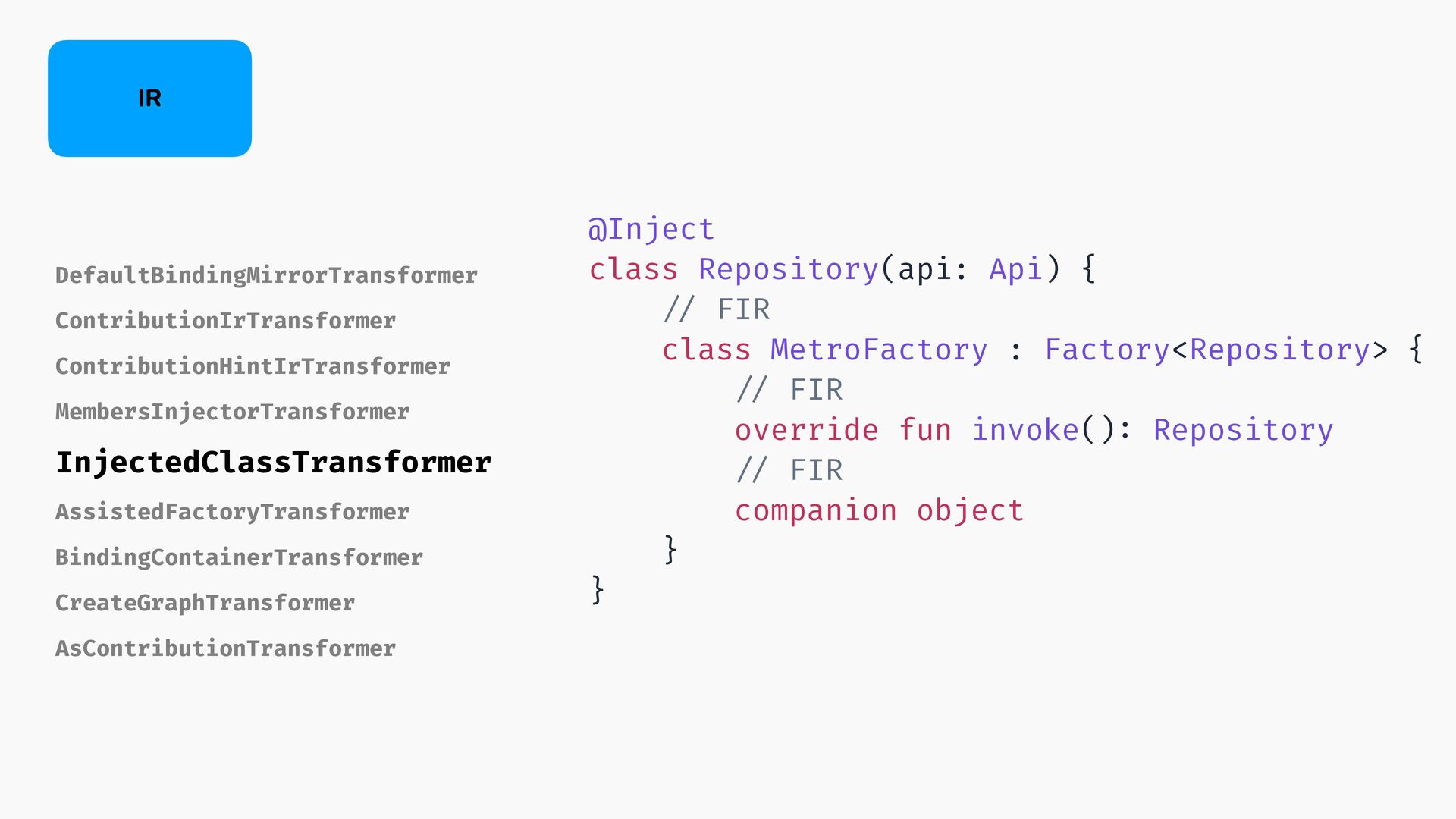

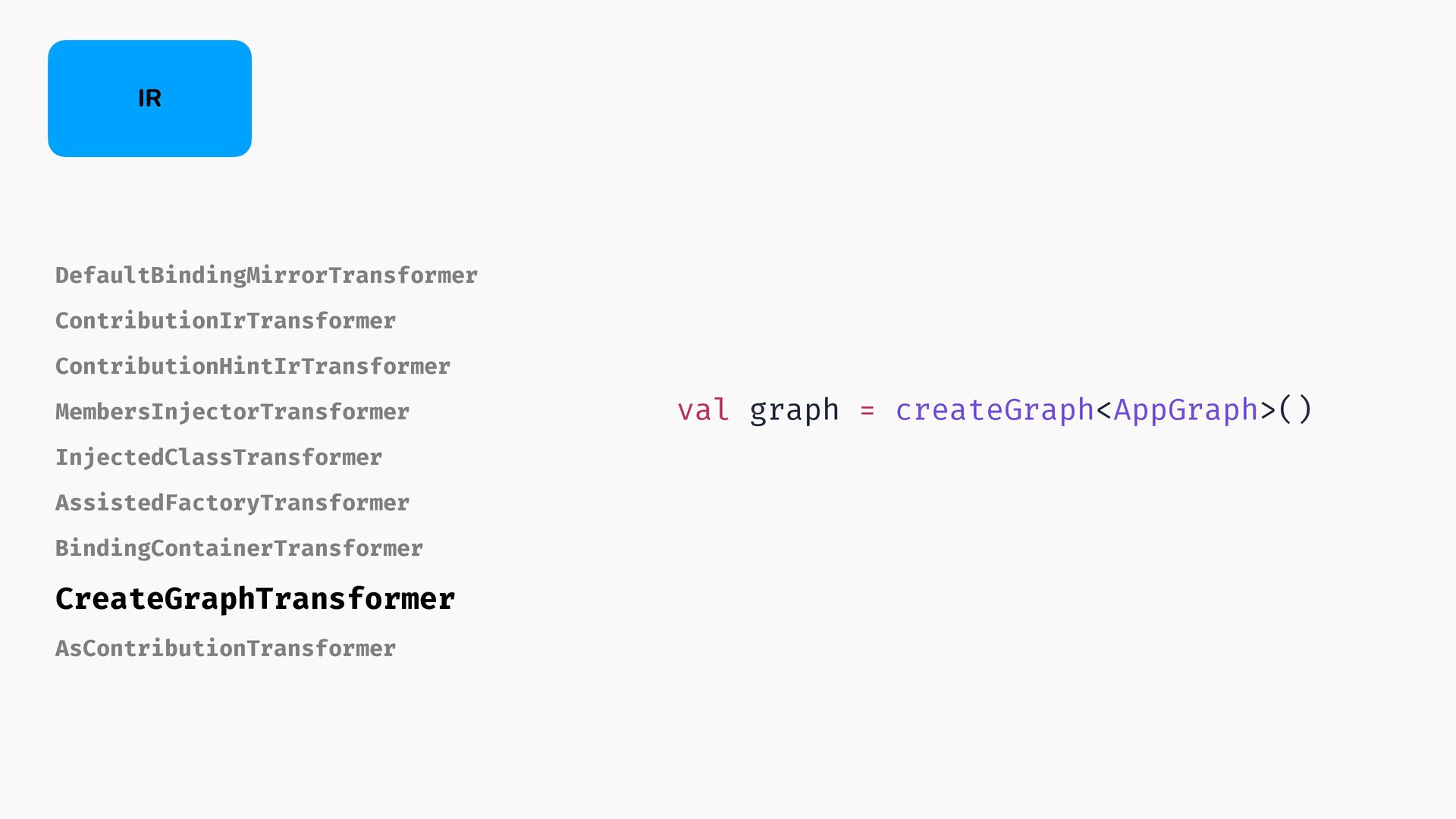

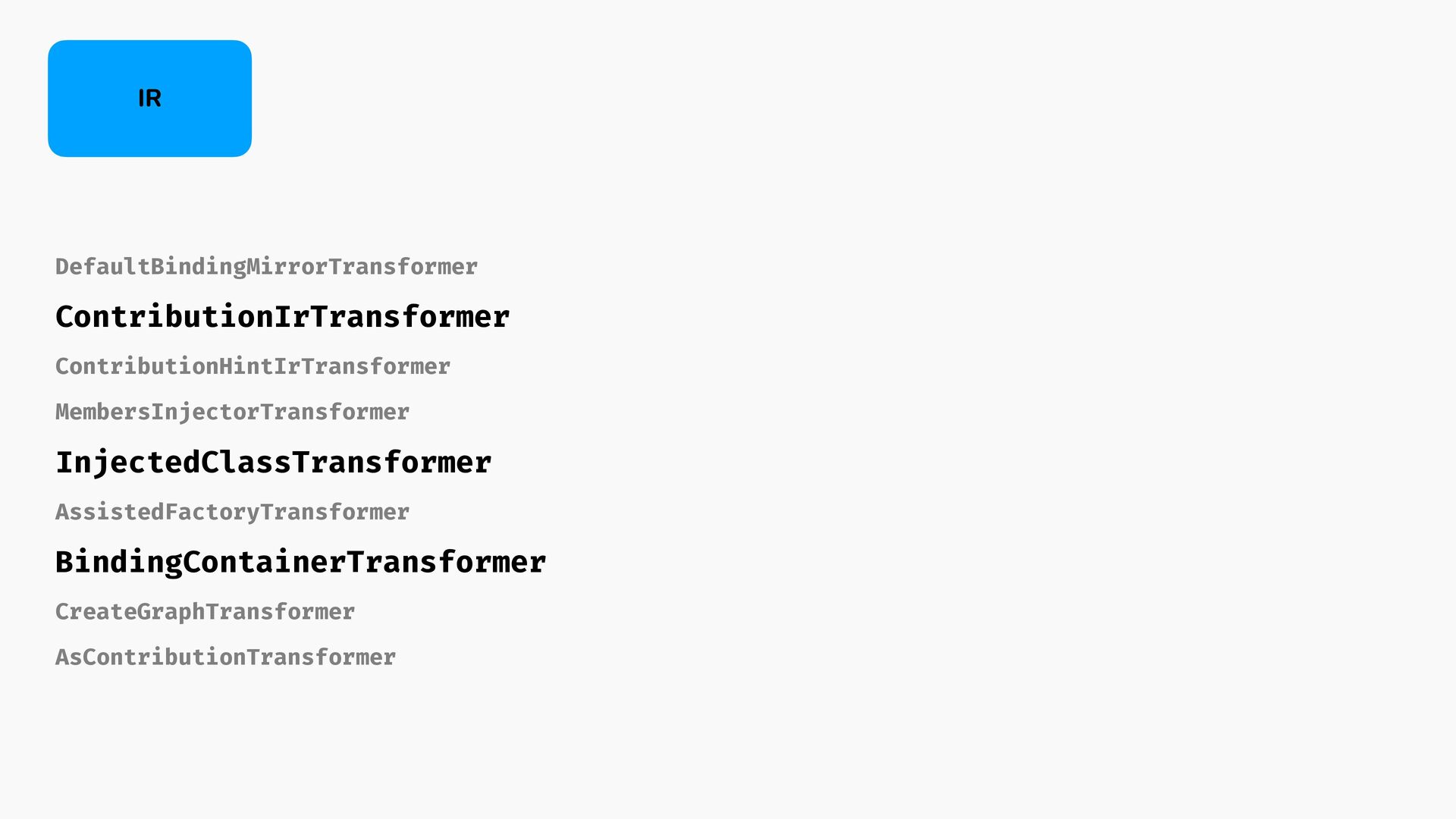

IR DefaultBindingMirrorTransformer ContributionIrTransformer ContributionHintIrTransformer MembersInjectorTransformer InjectedClassTransformer AssistedFactoryTransformer BindingContainerTransformer CreateGraphTransformer AsContributionTransformer

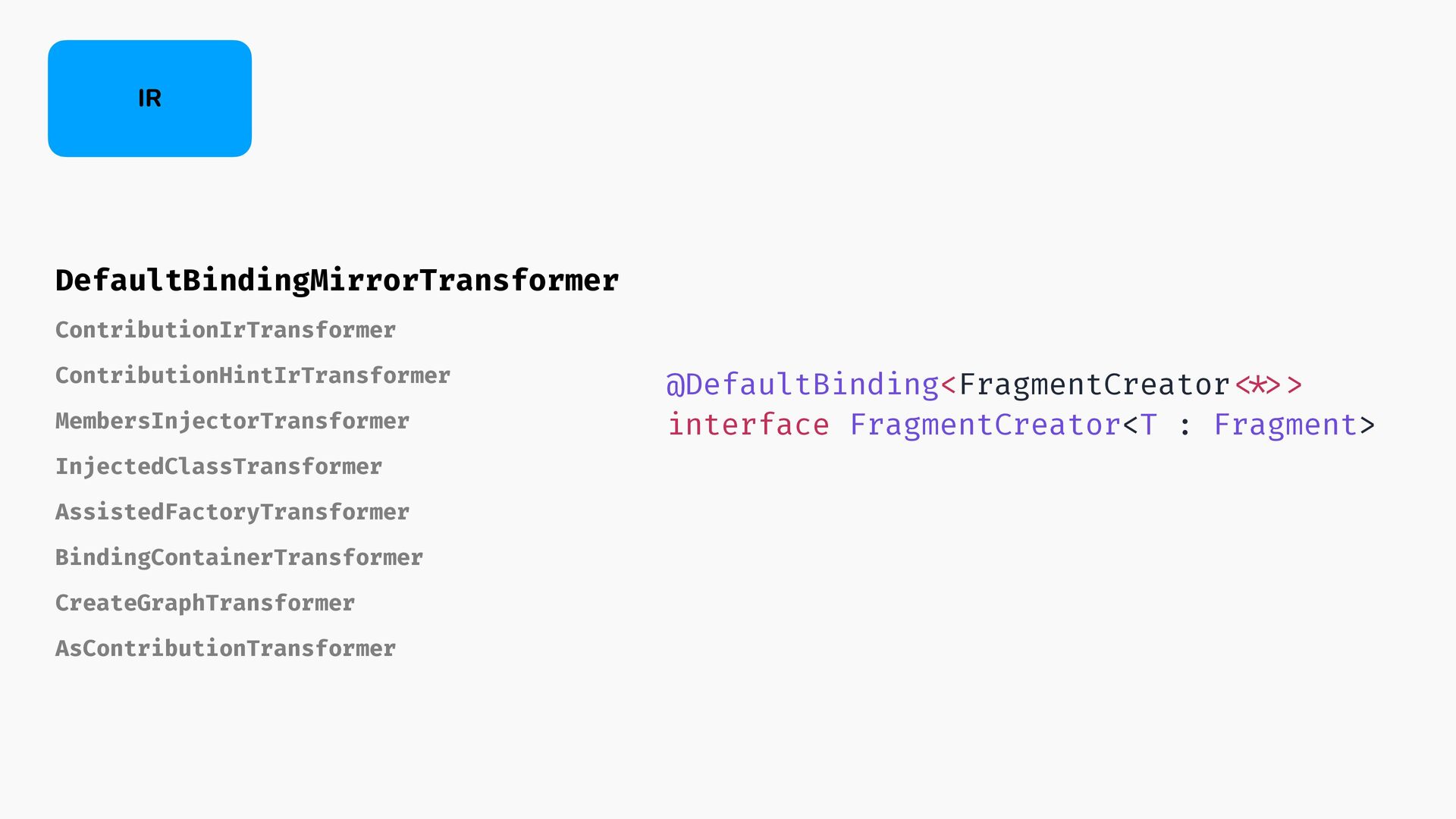

@DefaultBinding<FragmentCreator <*> > interface FragmentCreator<T : Fragment>

@DefaultBinding<FragmentCreator <*> > interface FragmentCreator<T : Fragment> { // Generated in FIR abstract class DefaultBindingMirror }

@DefaultBinding<FragmentCreator <*> > interface FragmentCreator<T : Fragment> { // Generated in FIR abstract class DefaultBindingMirror { // Generated in IR abstract fun defaultBinding() : FragmentCreator <*> } }

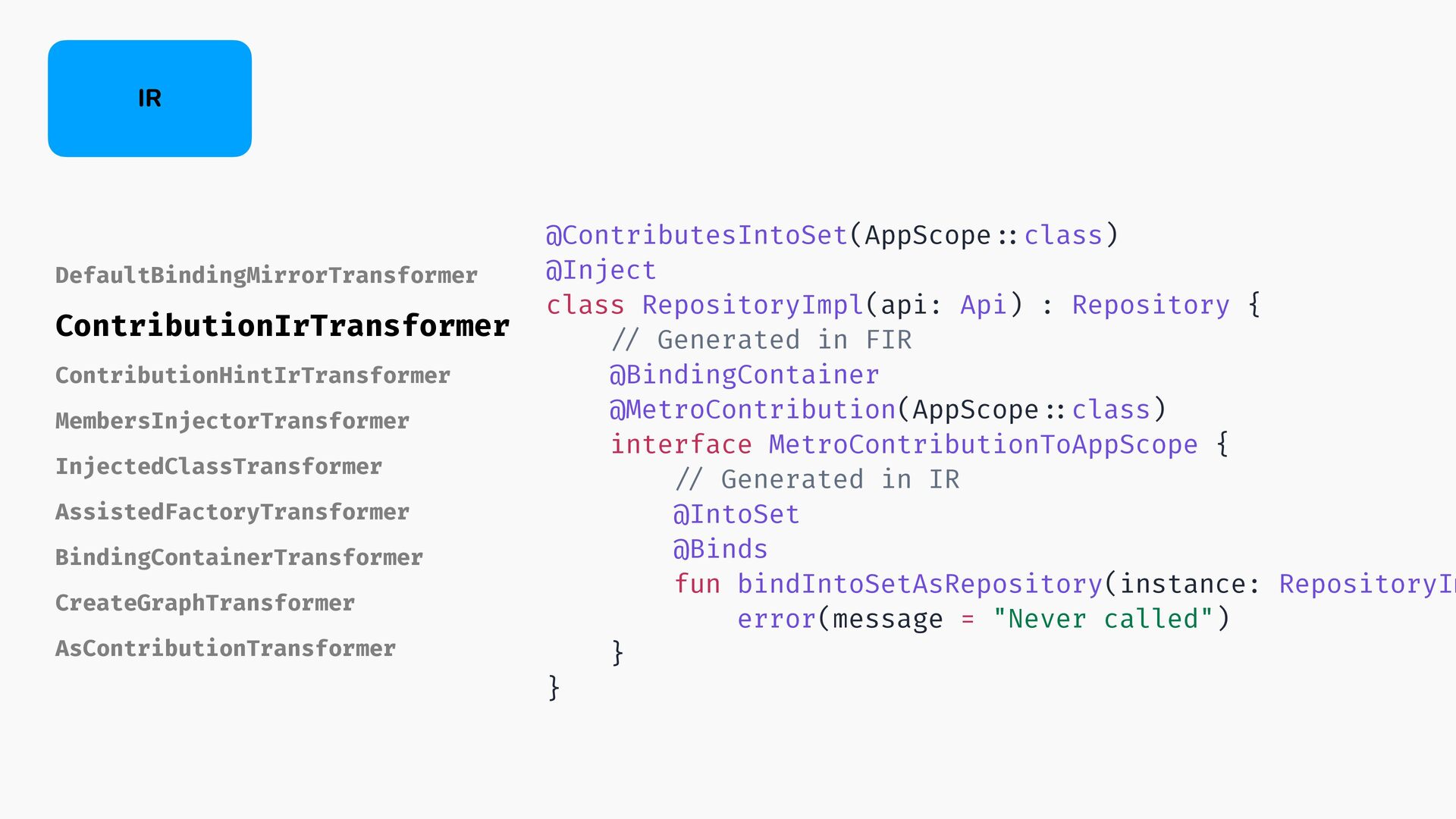

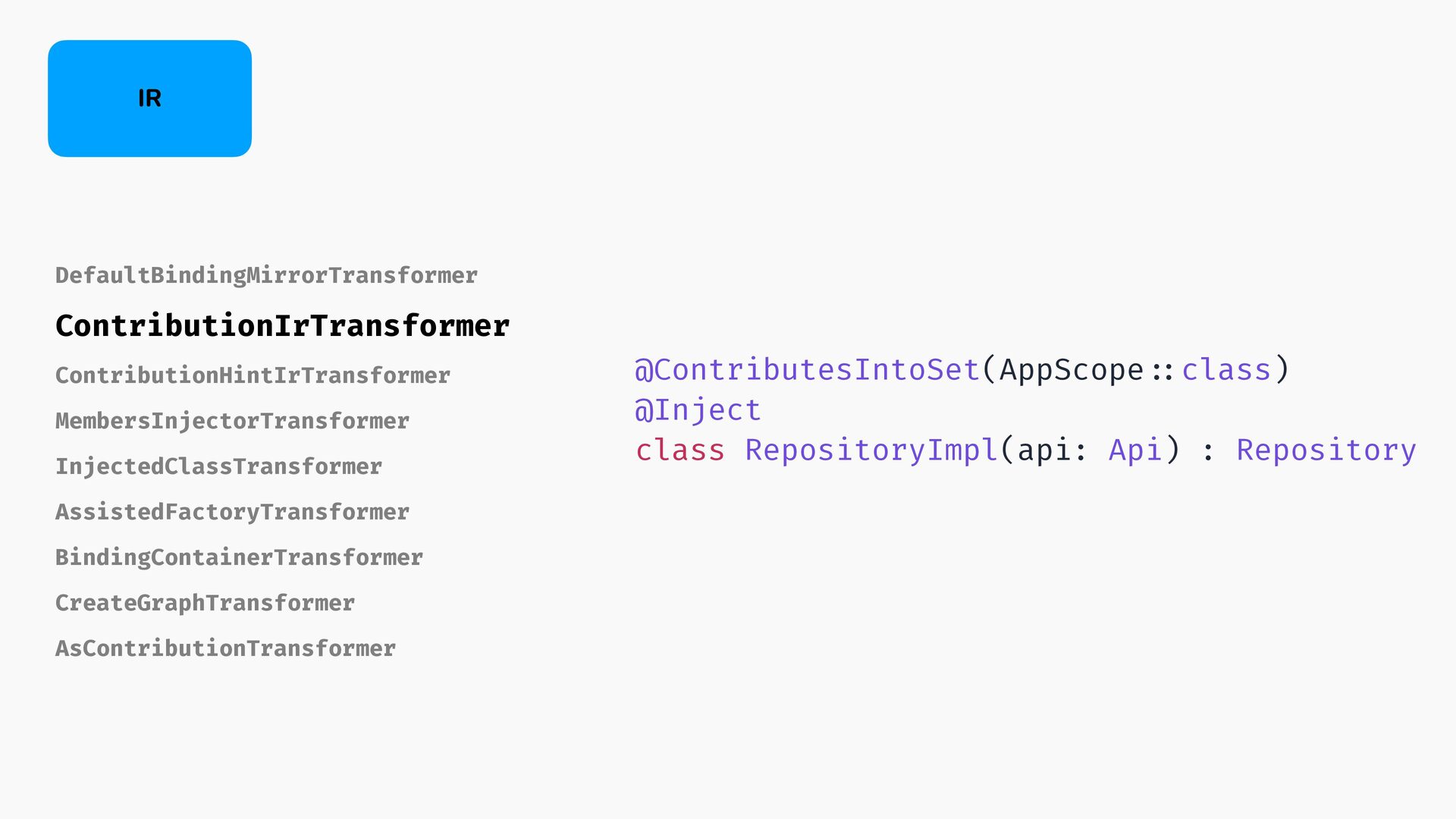

@ContributesIntoSet(AppScope :: class) @Inject class RepositoryImpl(api: Api) : Repository

@ContributesIntoSet(AppScope :: class) @Inject class RepositoryImpl(api: Api) : Repository { // Generated in FIR @BindingContainer @MetroContribution(AppScope :: class) interface MetroContributionToAppScope }

@ContributesIntoSet(AppScope :: class) @Inject class RepositoryImpl(api: Api) : Repository { // Generated in FIR @BindingContainer @MetroContribution(AppScope :: class) interface MetroContributionToAppScope { // Generated in IR @IntoSet @Binds fun bindIntoSetAsRepository(instance: RepositoryIm : error(message = "Never called") } }

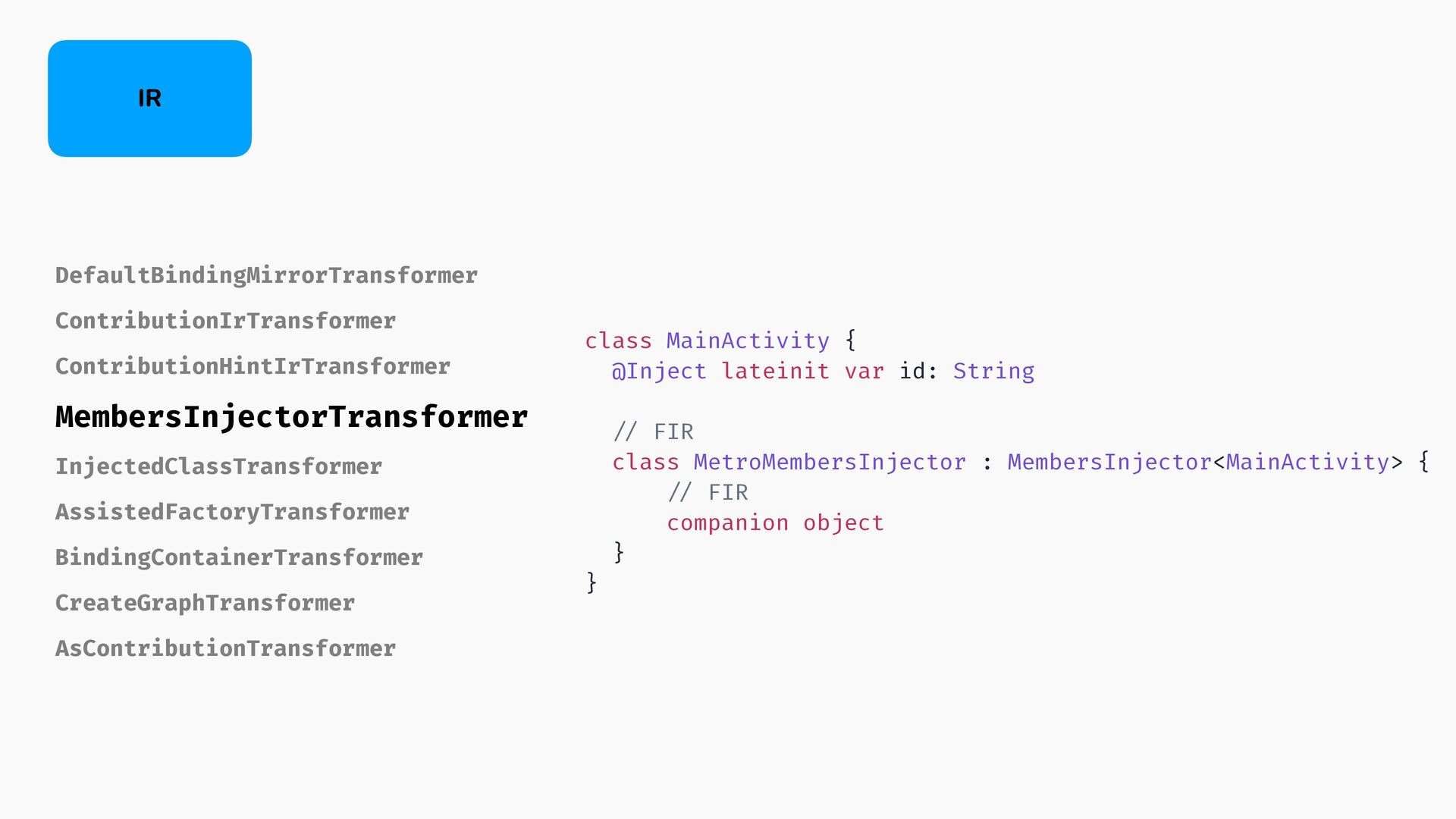

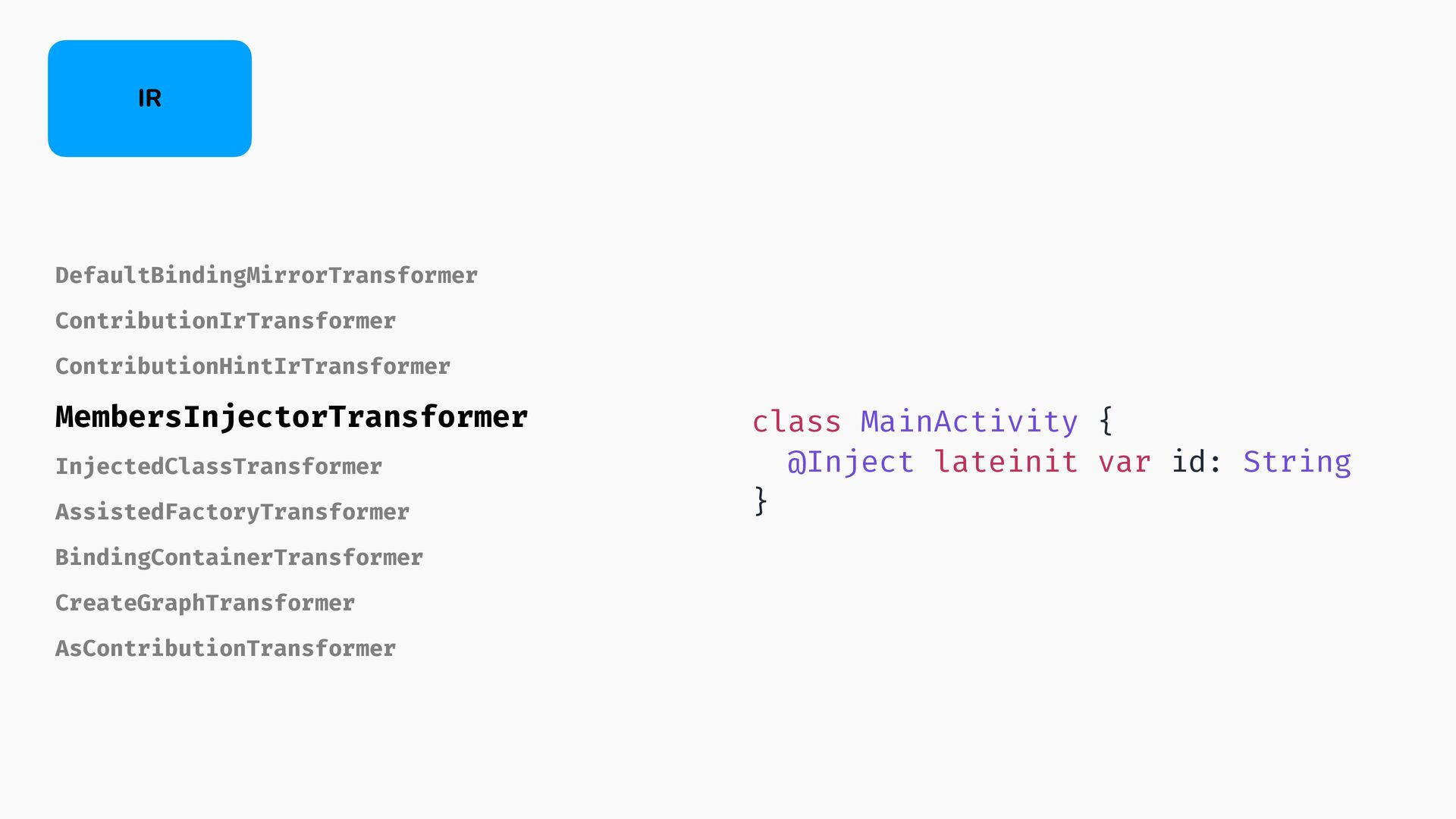

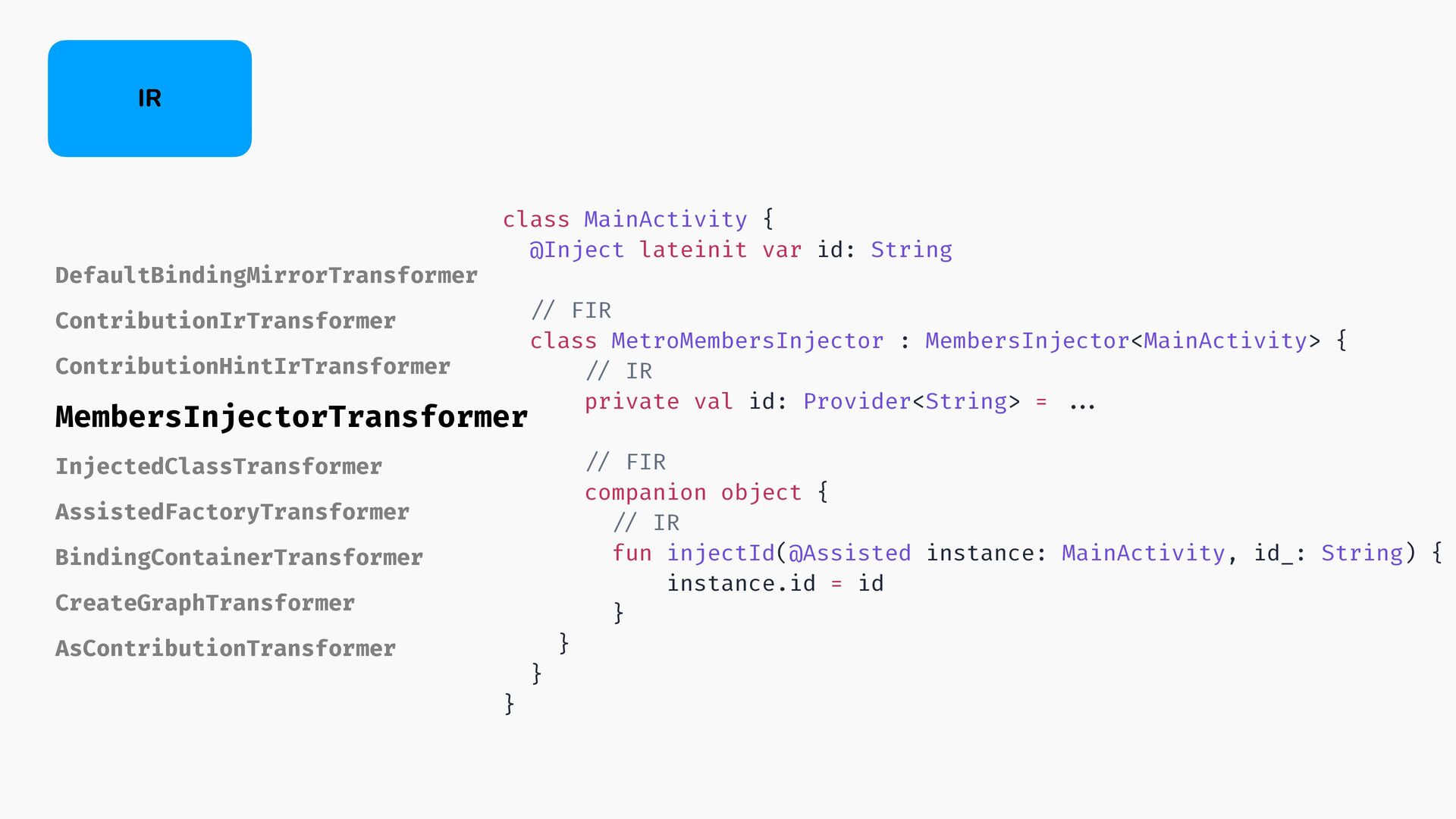

class MainActivity { @Inject lateinit var id: String }

class MainActivity { @Inject lateinit var id: String // FIR class MetroMembersInjector : MembersInjector<MainActivity> { // FIR companion object } }

class MainActivity { @Inject lateinit var id: String // FIR class MetroMembersInjector : MembersInjector<MainActivity> { // IR private val id: Provider<String> = ... // FIR companion object { // IR fun injectId(@Assisted instance: MainActivity, id_: String) { instance.id = id } } } }

@Inject class Repository(api: Api)

@Inject class Repository(api: Api) { // FIR class MetroFactory : Factory<Repository> { // FIR override fun invoke() : Repository // FIR companion object } }

@Inject class Repository(api: Api) { // FIR class MetroFactory : Factory<Repository> { // IR private val api = ... // FIR override fun invoke() : Repository { // IR return Repository(api()) } // FIR companion object { // IR fun create( ... ) = ... // IR fun newInstance( ... ) = ... } } }

@AssistedInject class Repository(@Assisted id: String) { @AssistedFactory interface Factory { fun create(id: String) : Repository // FIR class Impl : Factory { override fun create(id) : Repository } } }

@AssistedInject class Repository(@Assisted id: String) { @AssistedFactory interface Factory { fun create(id: String) : Repository // FIR class Impl : Factory { private val delegate: Repository.MetroFactory = ... override fun create(id) : Repository = delegate(id) } } }

val graph = createGraph<AppGraph>()

val graph = AppGraph.Companion.invoke()

val contributedType = appGraph.asContribution<ContributedType>() val contributedType: ContributedType = appGraph

MetroGraphData

IR ContributionIrTransformer InjectedClassTransformer BindingContainerTransformer interface MetroGraphData { val contributionData: IrContributionData
val graphs: List<GraphToProcess> val syntheticGraphs: List<GraphToProcess> val allGraphs get() = graphs + syntheticGraphs } data class GraphToProcess( val declaration: IrClass, val dependencyGraphAnno: IrConstructorCall, val graphImpl: IrClass, val scopes: Set<ClassId>, )

IR ContributionIrTransformer InjectedClassTransformer BindingContainerTransformer val scopes: Set<ClassId> = graphData.allGraphs.flatMapToSet {
it.scopes }

IR ContributionIrTransformer InjectedClassTransformer BindingContainerTransformer val scopes: Set<ClassId> = graphData.allGraphs.flatMapToSet {
it.scopes } // FILE : apiBindingsAppScope.kt package metro.hints fun AppScope(contributed: ApiBindings) { return error(message = "Never called") } // FILE : repositoryImplAppScope.kt package metro.hints fun AppScope(contributed: RepositoryImpl) { return error(message = "Never called") }

IR Graph Processing

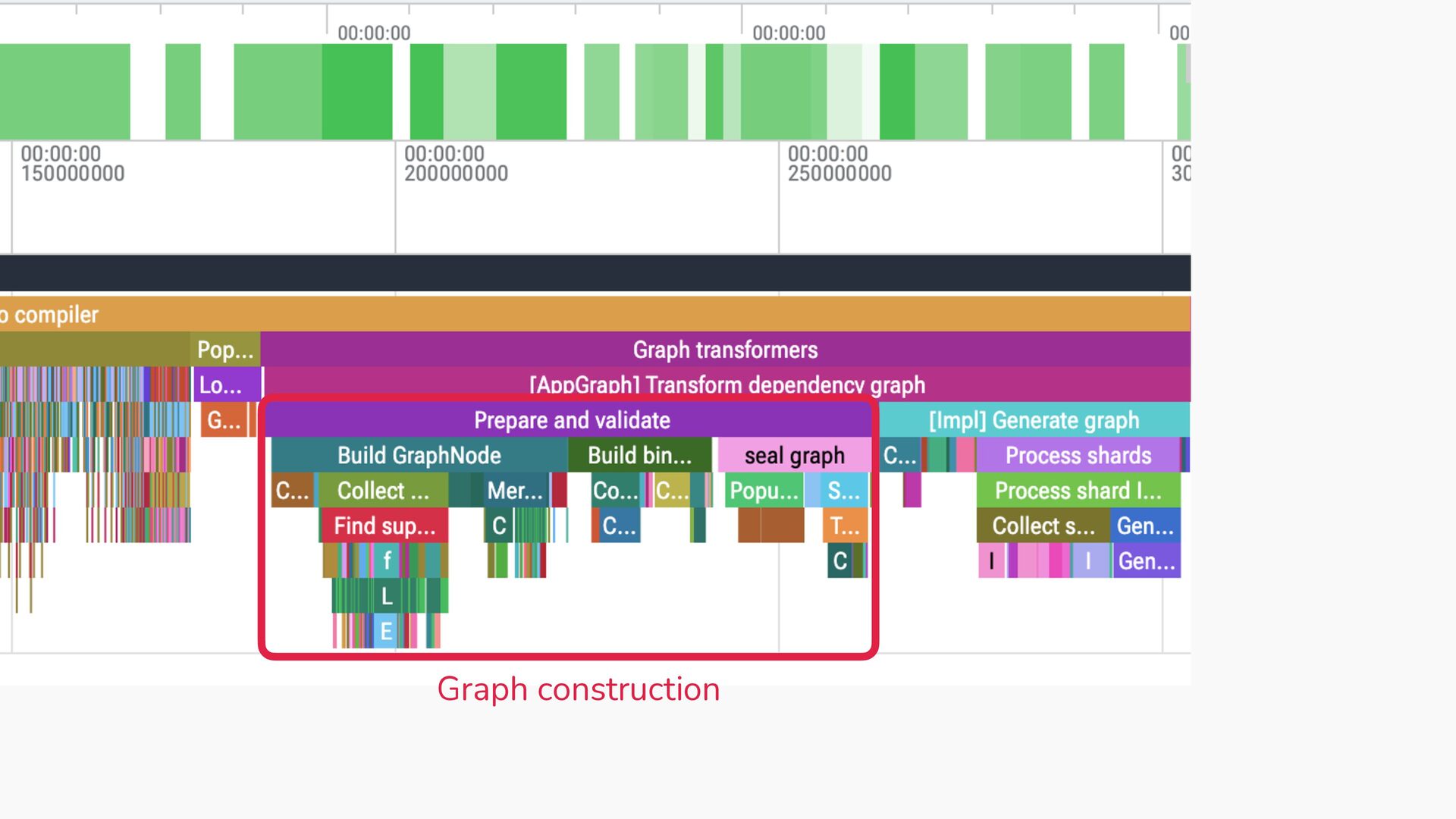

IR Graph construction

IR IR generation

IR Graph construction

IR Build the graph node

IR Validation

IR Collect supertypes Process binding containers - Process transitive closure
Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings

Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings @DependencyGraph interface AppGraph : ApiBindings, RepositoryImpl.MetroContributionToAppScope

Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings @DependencyGraph( bindingContainers = [ApiBindings :: class] ) interface AppGraph

Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings @DependencyGraph( bindingContainers = [ApiBindings :: class] ) interface AppGraph @BindingContainer(includes = [NetworkBindings :: class]) object ApiBindings { //... }

Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings

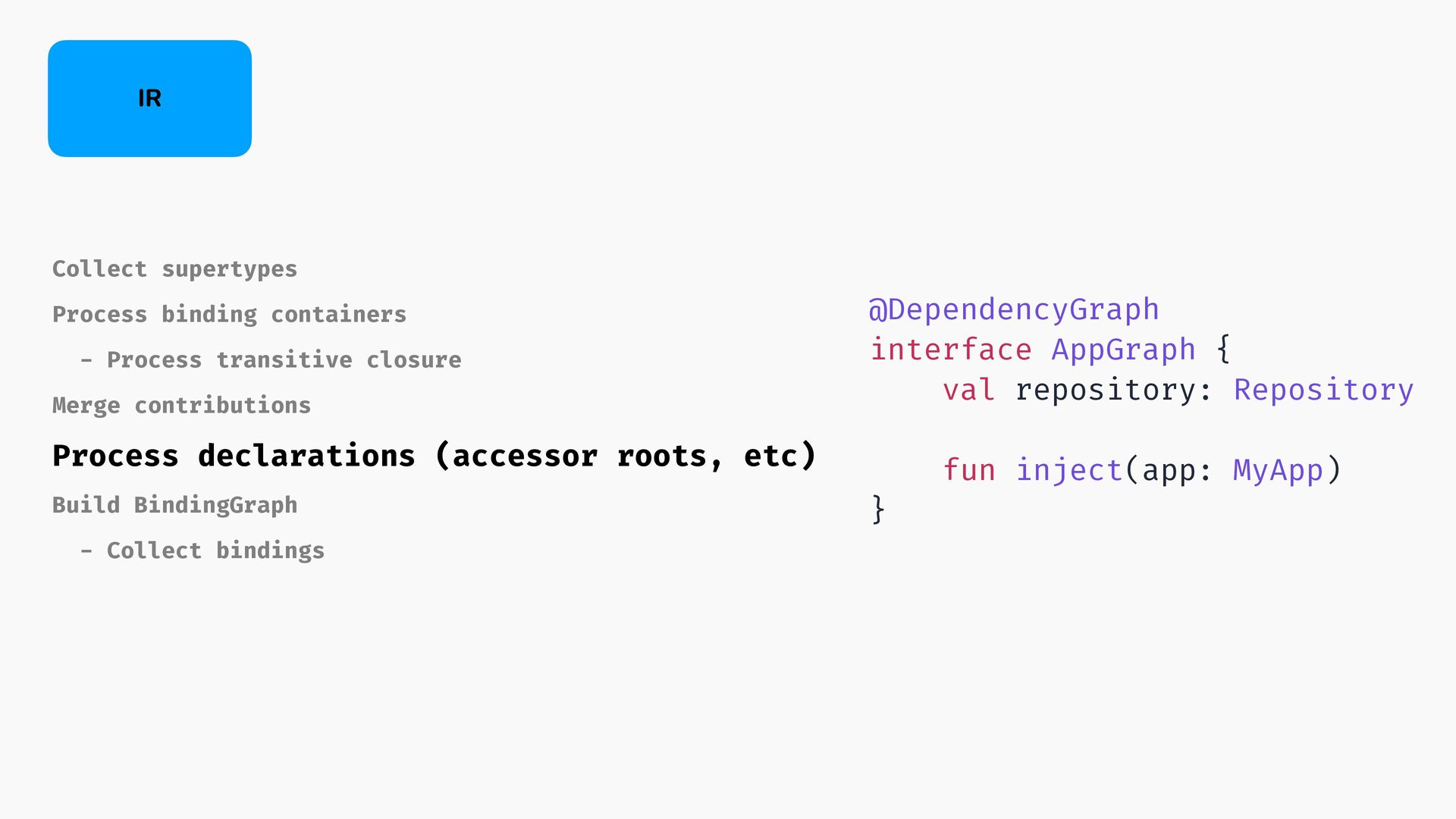

Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings @DependencyGraph interface AppGraph { val repository: Repository fun inject(app: MyApp) }

Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings sealed interface IrBinding { val typeKey: IrTypeKey val scope: IrAnnotation? val dependencies: List<IrContextualTypeKey> // ... }

Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings class ConstructorInjected class ObjectClass // @Provides class Provided // @Binds class Alias class AssistedFactory class BoundInstance // For default values class Absent // For @Includes class GraphDependency class Multibinding class MembersInjected class GraphExtension class GraphExtensionFactory // j.u.Optional interop, etc. class CustomWrapper

Merge contributions Process declarations (accessor roots, etc) Build BindingGraph - Collect bindings sealed interface IrBinding { val typeKey: IrTypeKey val scope: IrAnnotation? val dependencies: List<IrContextualTypeKey> // ... }

IR sealed interface IrBinding : BaseBinding<IrType, IrTypeKey, IrContextualTypeKey> class IrTypeKey
: BaseTypeKey<IrType, IrAnnotation, IrTypeKey> class IrContextualTypeKey : BaseContextualTypeKey<IrType, IrTypeKey, IrContextualTypeKey>

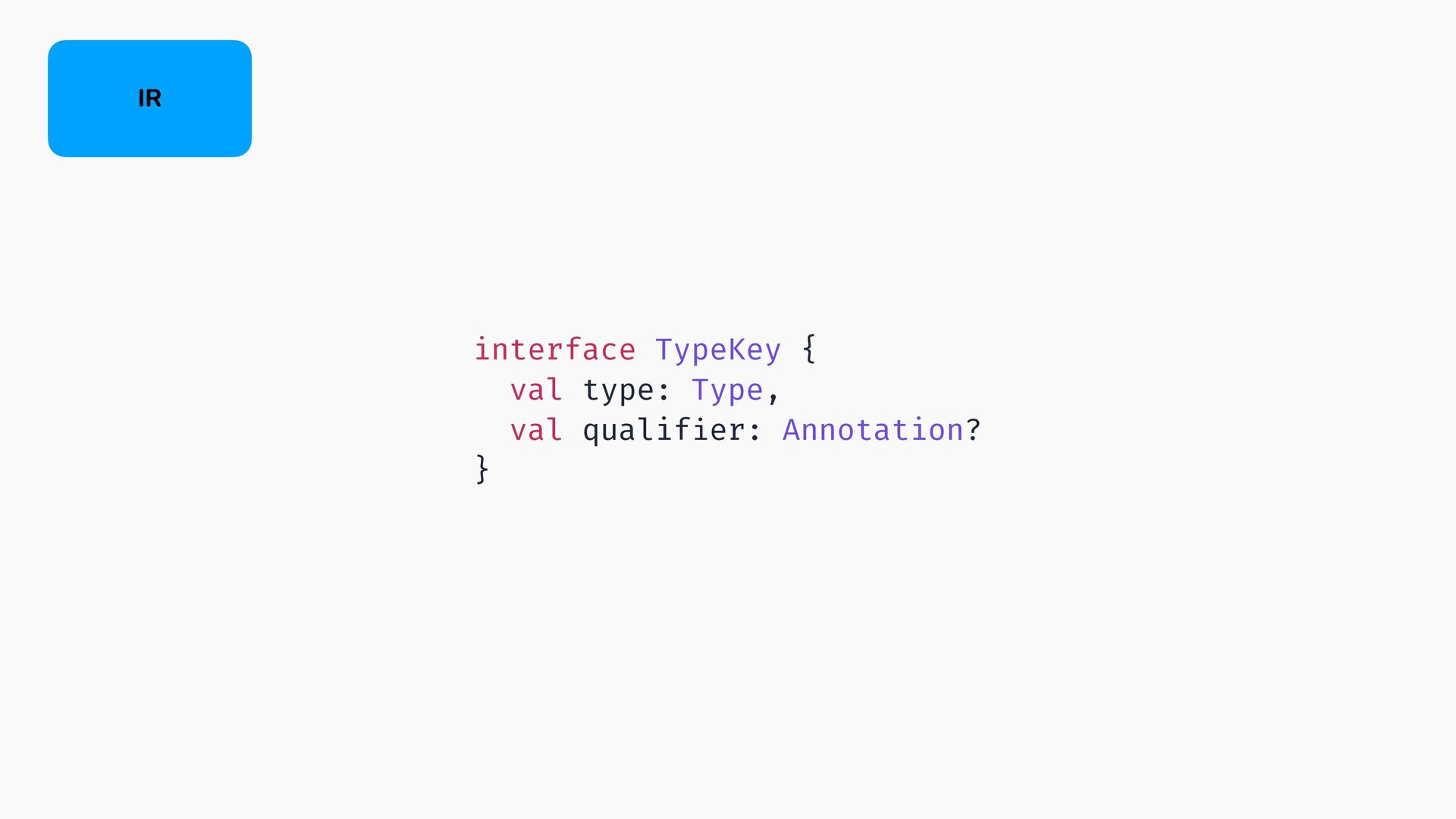

IR interface TypeKey { val type: Type, val qualif i
er: Annotation? }

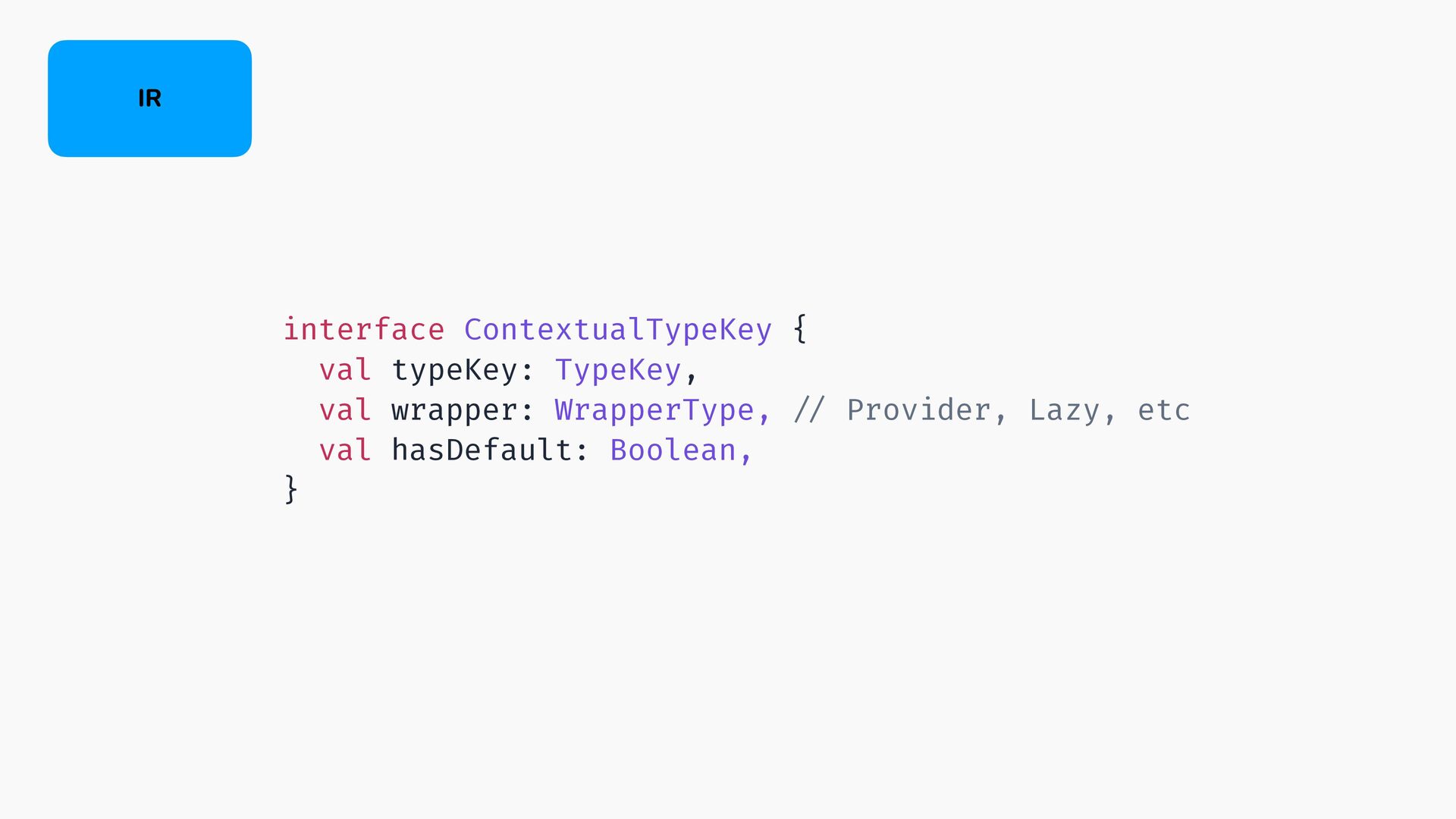

IR interface ContextualTypeKey { val typeKey: TypeKey, val wrapper: WrapperType,
// Provider, Lazy, etc val hasDefault: Boolean, }

IR interface Binding { val typeKey: TypeKey val scope: Annotation?
val dependencies: List<ContextualTypeKey> // ... }

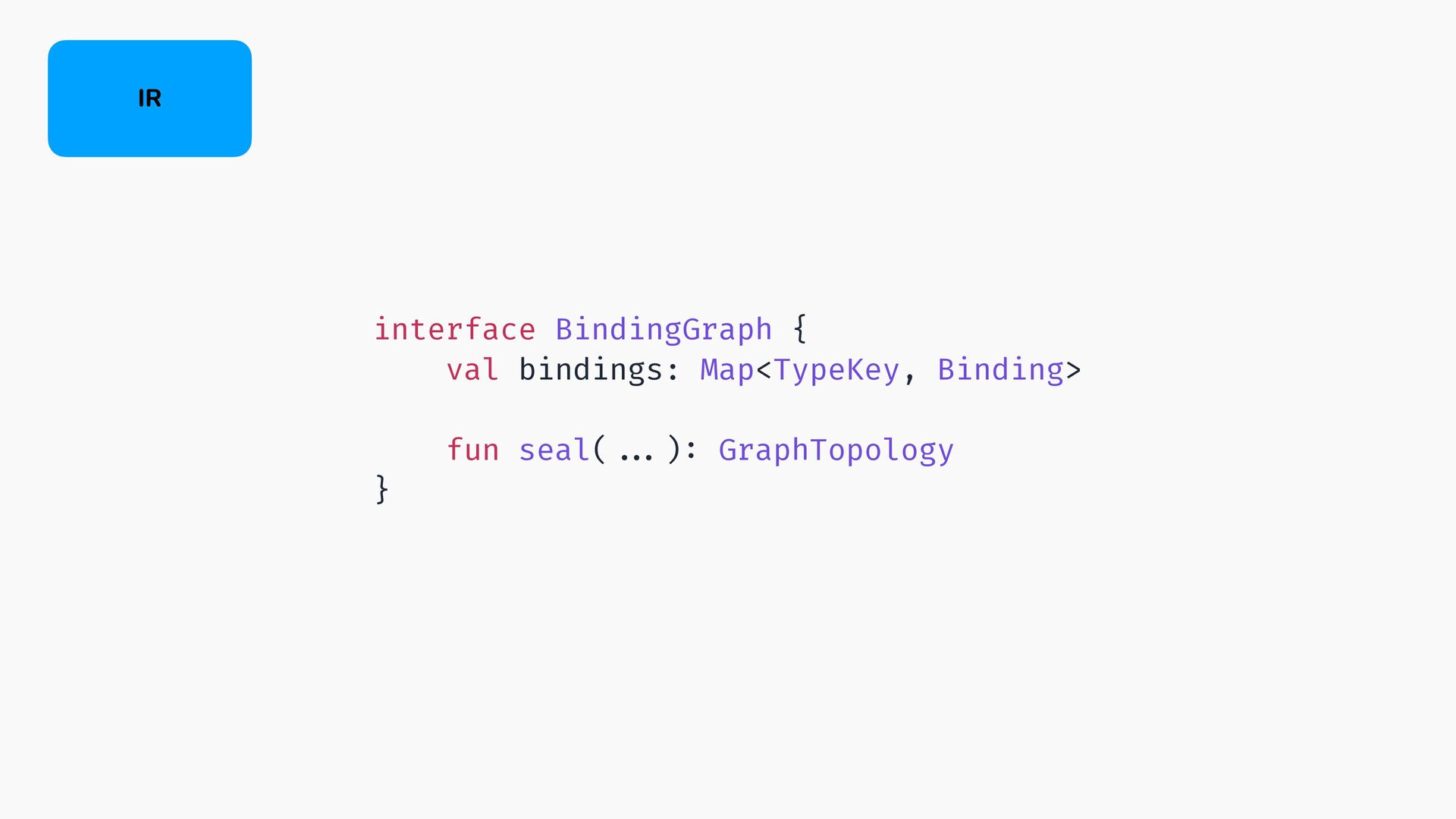

IR interface BindingGraph { val bindings: Map<TypeKey, Binding> fun seal(
... ) : GraphTopology }

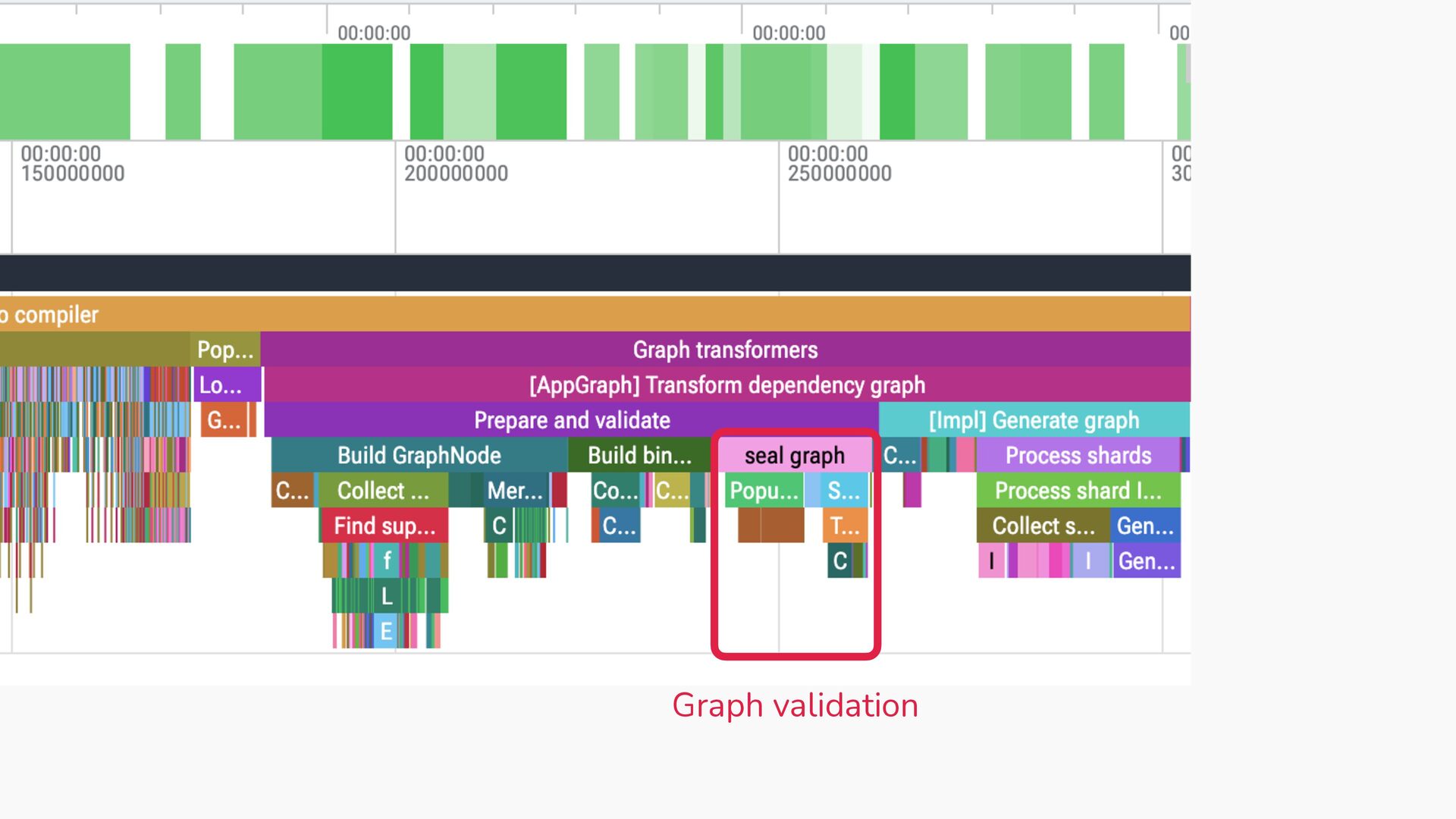

IR Graph validation

... ) : GraphTopology }

... ) : GraphTopology } BindingLookup

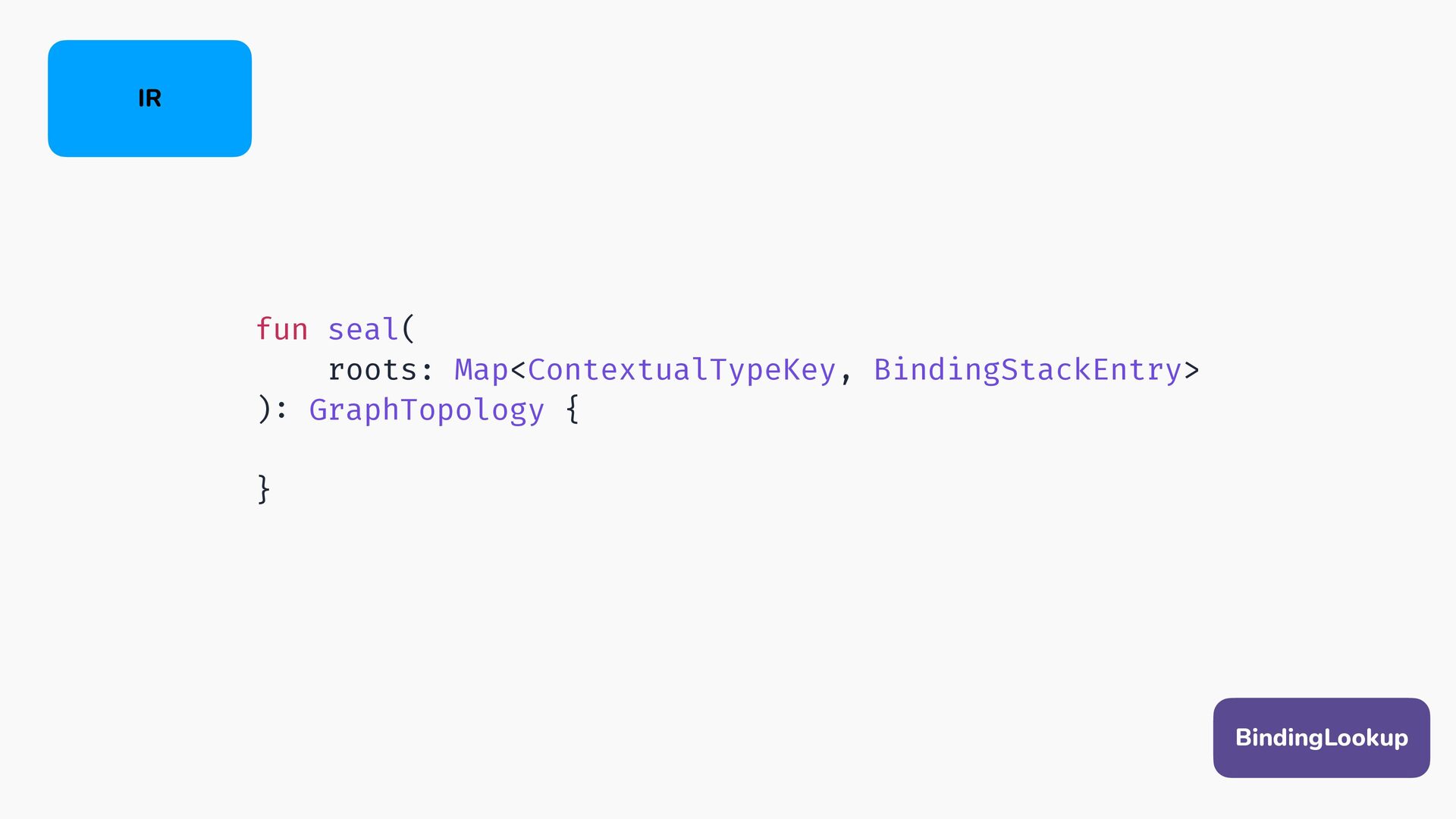

IR fun seal( roots: Map<ContextualTypeKey, BindingStackEntry> ) : GraphTopology {
} BindingLookup

val missingBindings = populateGraph(roots) } fun populateGraph(roots) { // BFS from roots val queue = ArrayDeque<Binding>() val visited = HashSet<TypeKey>() while (queue.isNotEmpty()) { val next = queue.removeFirst() // Skipping code // Visit dependencies } } BindingLookup

val missingBindings = populateGraph(roots) } fun populateGraph(roots) { // BFS from roots val queue = ArrayDeque<Binding>() val visited = HashSet<TypeKey>() while (queue.isNotEmpty()) { val next = queue.removeFirst() // Skipping code // Visit dependencies } } BindingLookup Absent(MissingKey)

val missingBindings = populateGraph(roots) } fun populateGraph(roots) { // BFS from roots val queue = ArrayDeque<Binding>() val visited = HashSet<TypeKey>() while (queue.isNotEmpty()) { val next = queue.removeFirst() // Skipping code // Visit dependencies } } BindingLookup

val missingBindings = populateGraph(roots) }

val missingBindings = populateGraph(roots) if (missingBindings.isNotEmpty()) { for (missing in missingBindings) { reportMissingBinding(missing) } } }

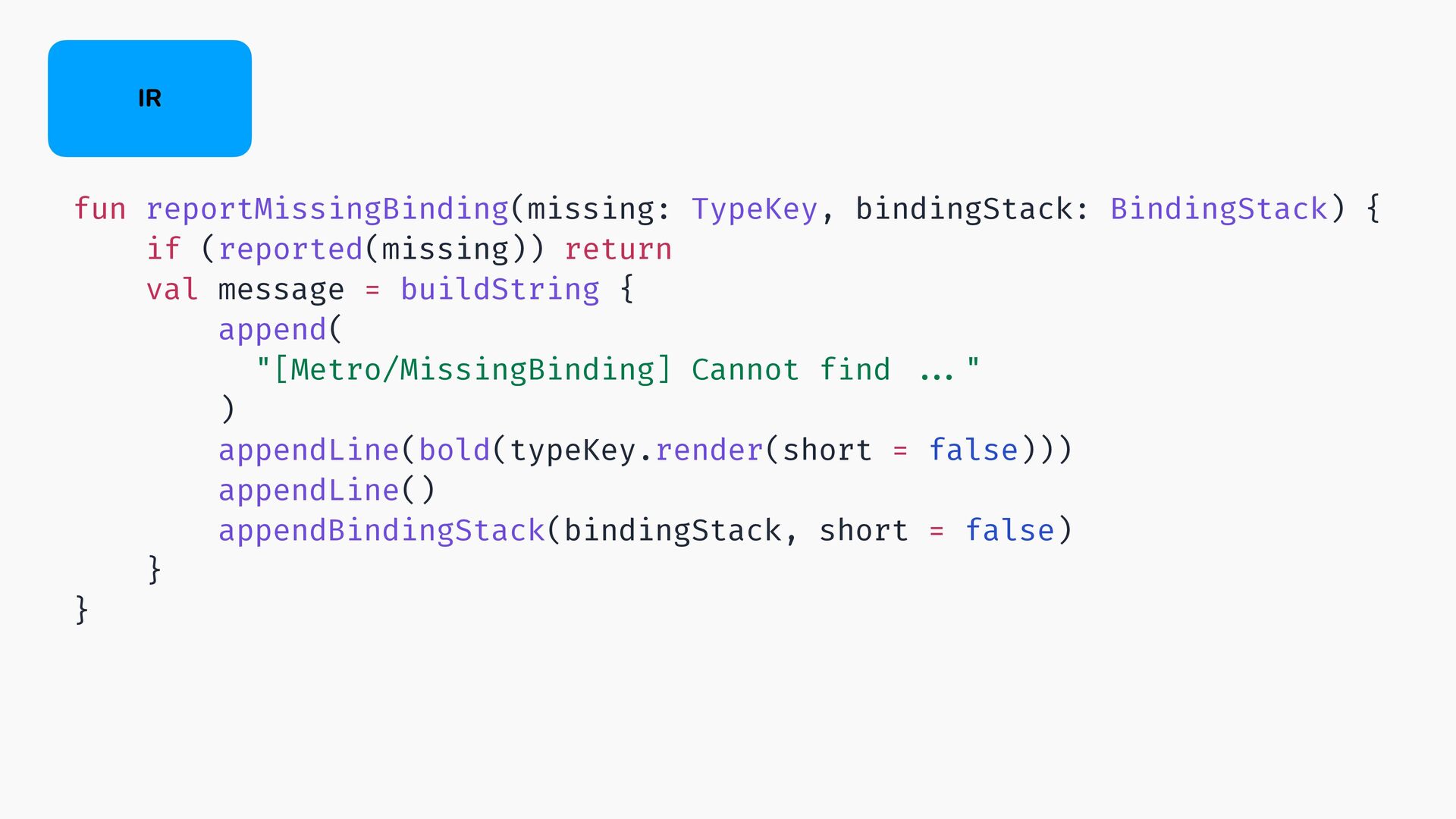

IR fun reportMissingBinding(missing: TypeKey, bindingStack: BindingStack) { if (reported(missing)) return
val message = buildString { append( "[Metro/MissingBinding] Cannot f i nd ... " ) appendLine(bold(typeKey.render(short = false))) appendLine() appendBindingStack(bindingStack, short = false) } }

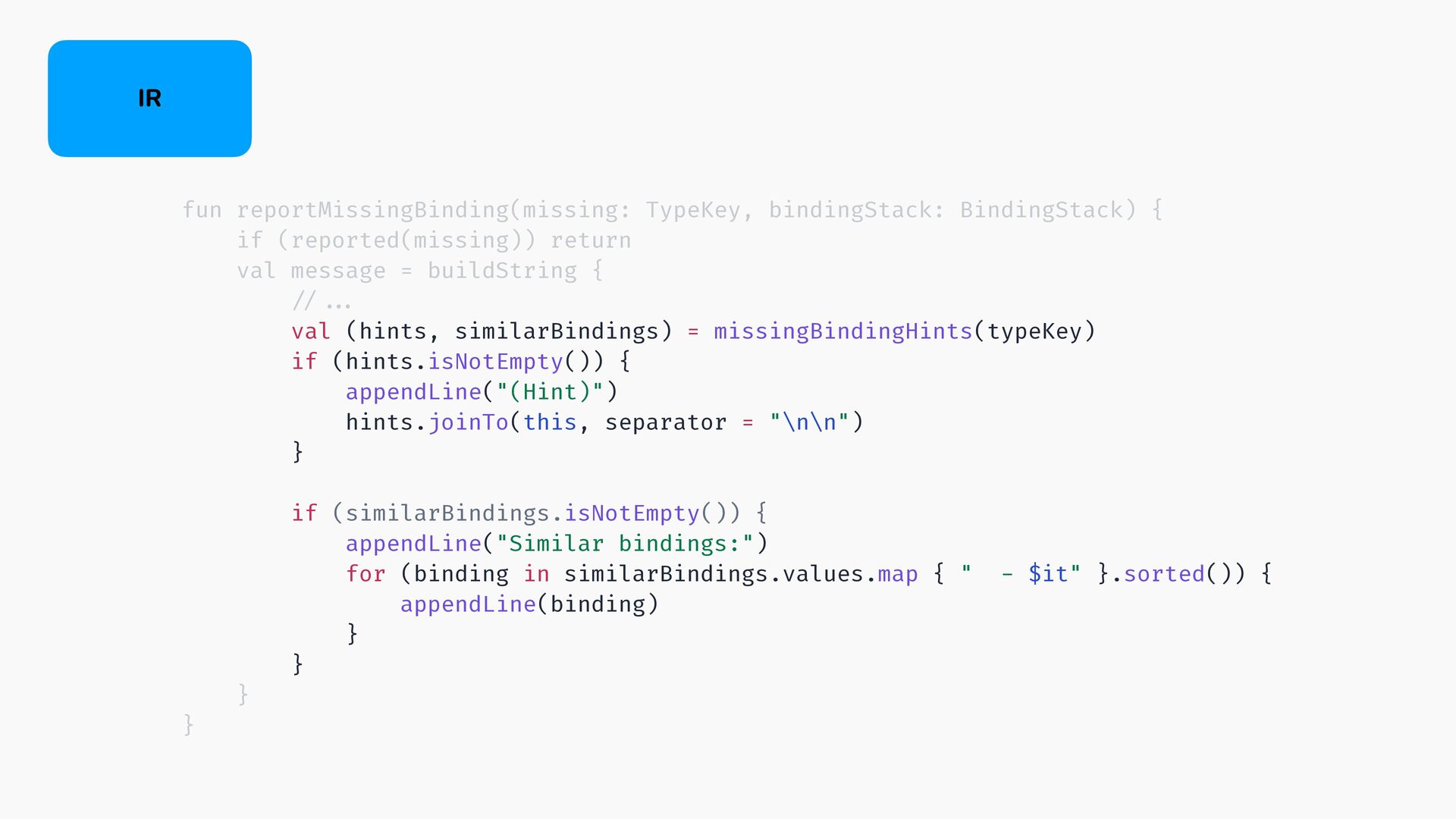

IR fun reportMissingBinding(missing: TypeKey, bindingStack: BindingStack) { if (reported(missing)) return
val message = buildString { //... val (hints, similarBindings) = missingBindingHints(typeKey) if (hints.isNotEmpty()) { appendLine("(Hint)") hints.joinTo(this, separator = "\n\n") } if (similarBindings.isNotEmpty()) { appendLine("Similar bindings:") for (binding in similarBindings.values.map { " - $it" }.sorted()) { appendLine(binding) } } } }

val missingBindings = populateGraph(roots) }

val fullAdjacency = buildFullAdjacency(bindings) metroSort(fullAdjacency, roots, ... ) }

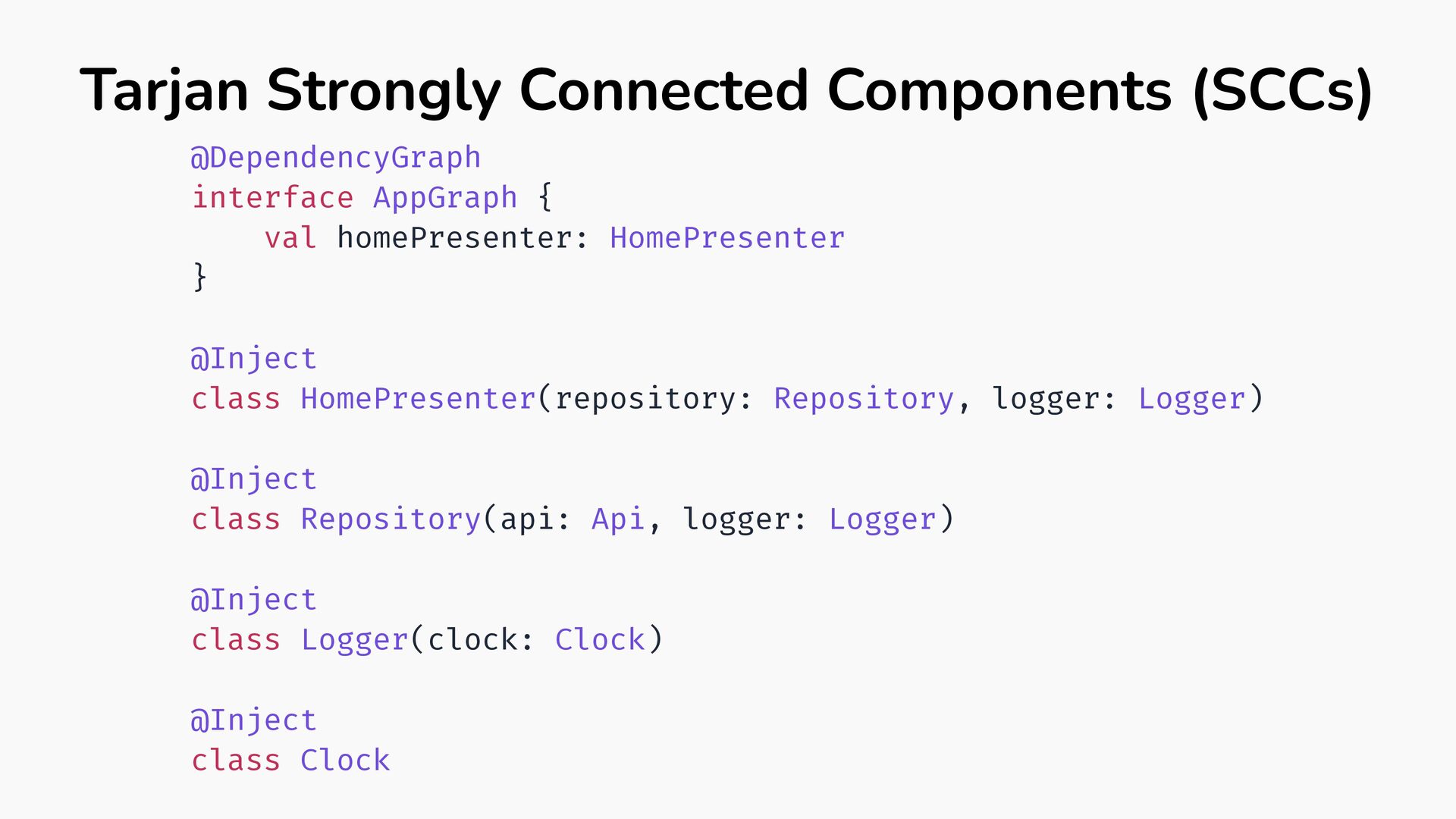

Tarjan Strongly Connected Components (SCCs) @DependencyGraph interface AppGraph { val
homePresenter: HomePresenter } @Inject class HomePresenter(repository: Repository, logger: Logger) @Inject class Repository(api: Api, logger: Logger) @Inject class Logger(clock: Clock) @Inject class Clock

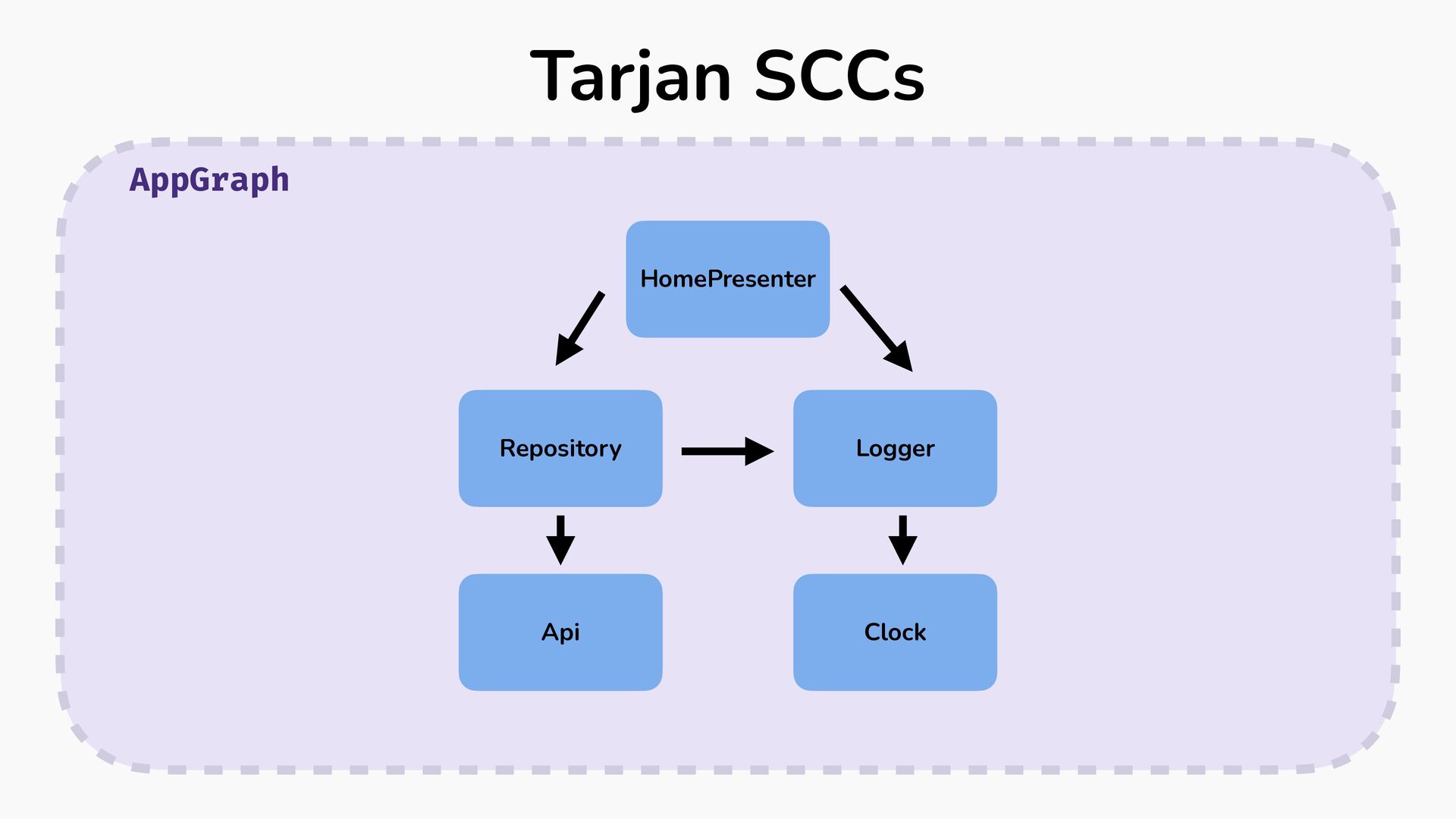

HomePresenter Tarjan SCCs Repository Logger Api Clock AppGraph

HomePresenter Tarjan SCCs Repository Logger Api Clock AppGraph On -
stack: SCCs emitted: N :

HomePresenter Tarjan SCCs Repository Logger Api Clock AppGraph idx=0 low=0
On - stack: SCCs emitted: N : 0

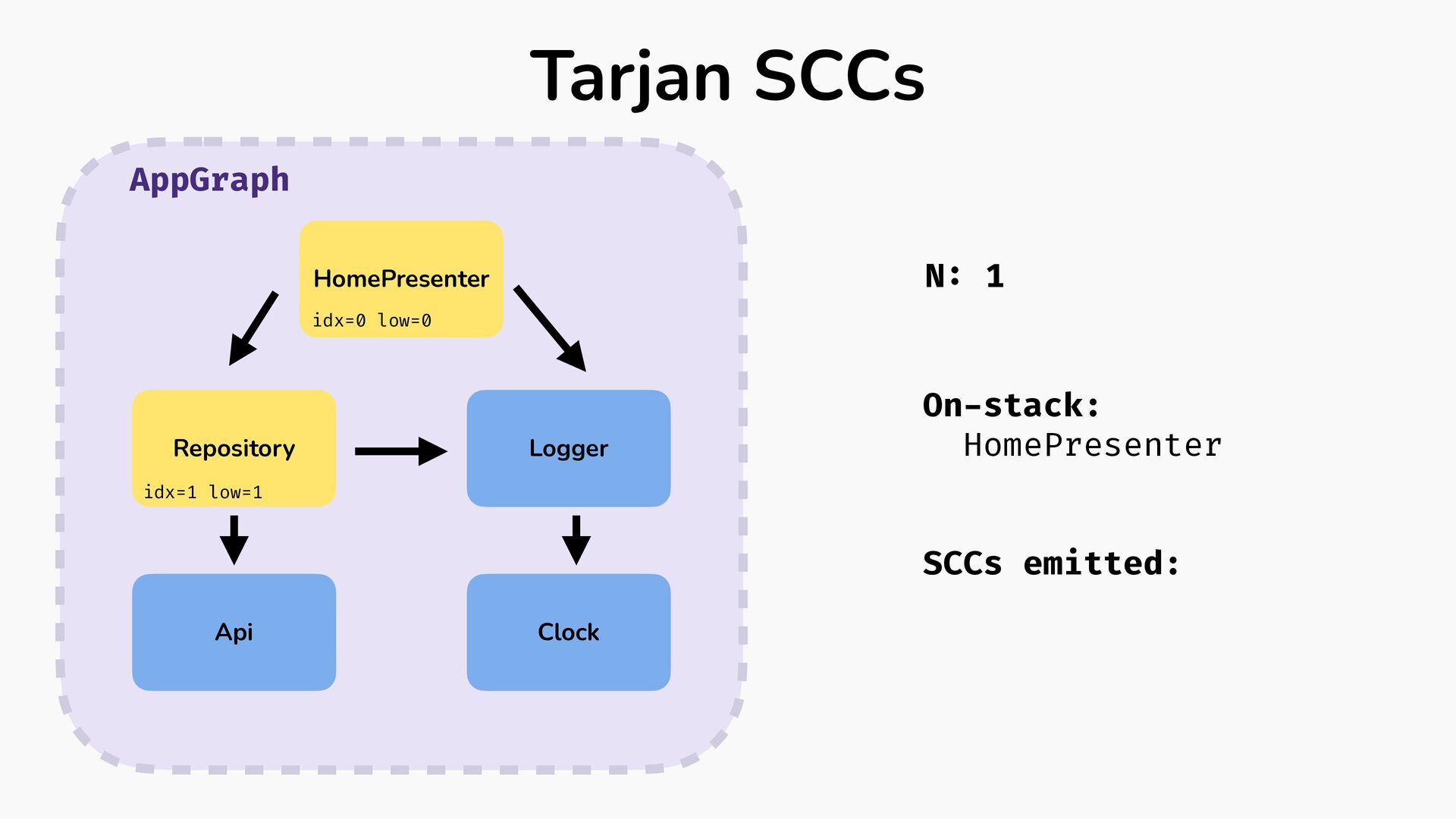

On - stack: HomePresenter SCCs emitted: N : 1 idx=1 low=1

On - stack: HomePresenter, Repo SCCs emitted: N : 2 idx=1 low=1 idx=2 low=2

On - stack: HomePresenter, Repo, Api SCCs emitted: N : 3 idx=1 low=1 idx=2 low=2

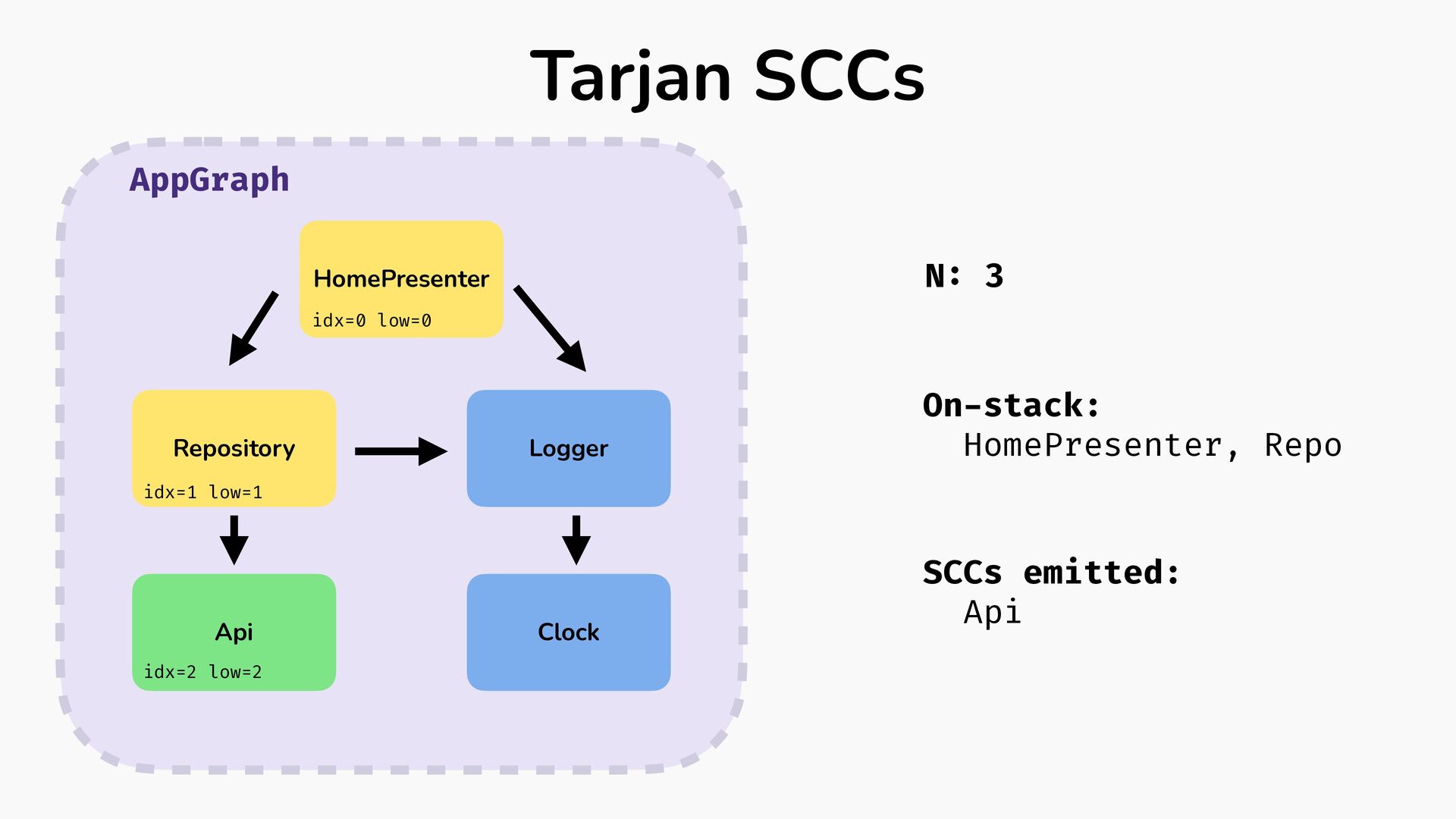

On - stack: HomePresenter, Repo SCCs emitted: Api N : 3 idx=1 low=1 idx=2 low=2

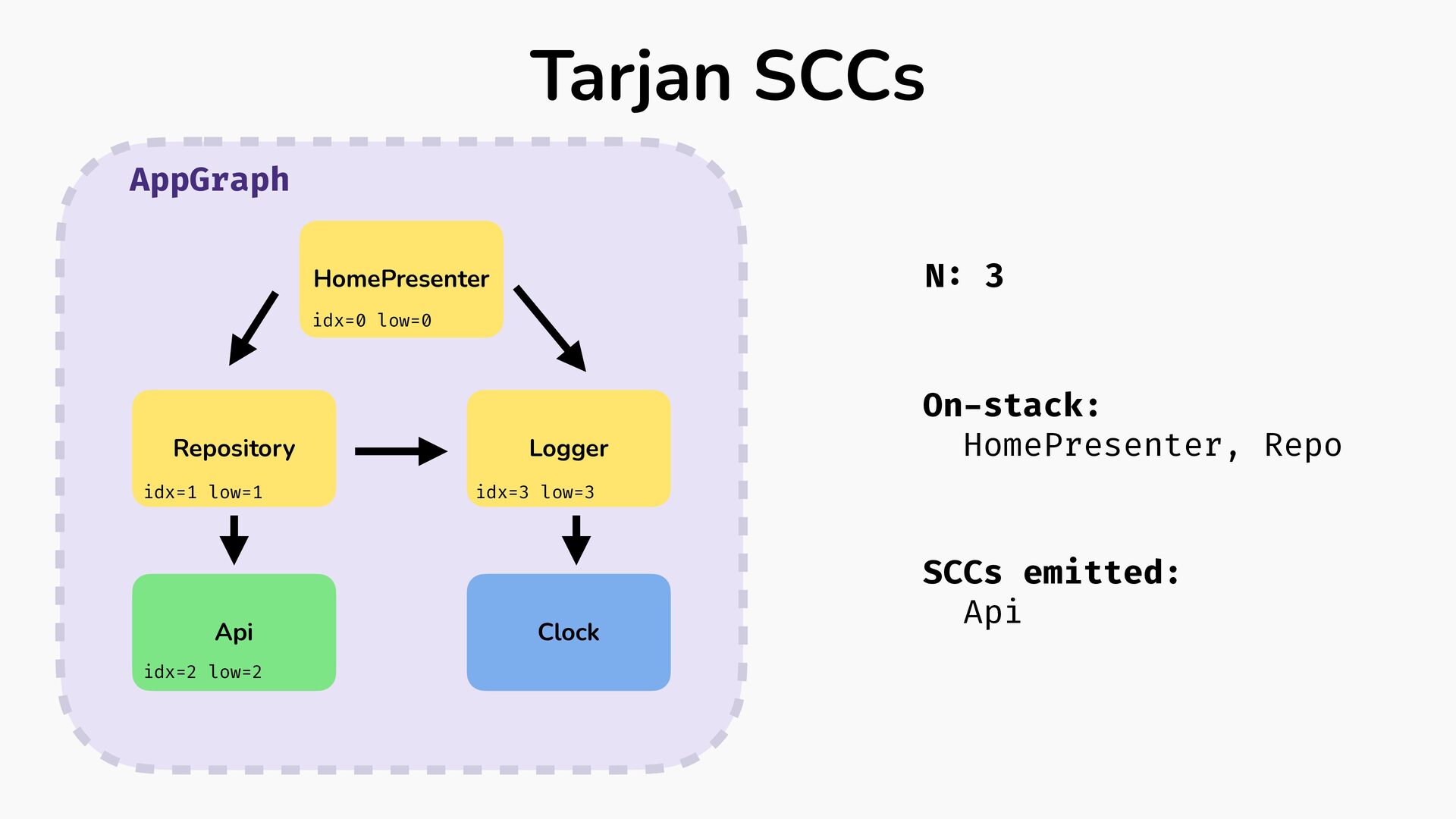

On - stack: HomePresenter, Repo SCCs emitted: Api N : 3 idx=1 low=1 idx=2 low=2 idx=3 low=3

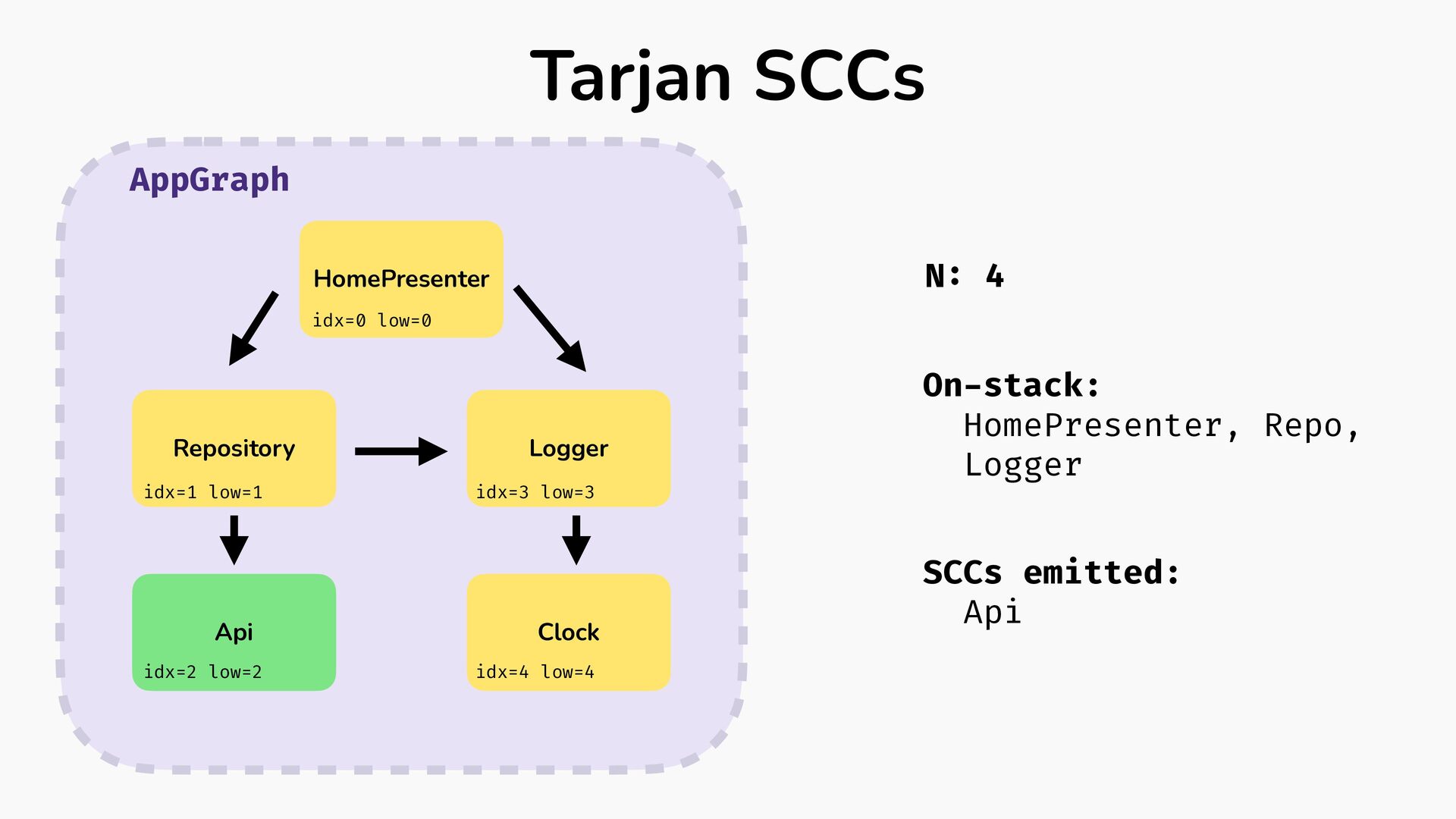

On - stack: HomePresenter, Repo, Logger SCCs emitted: Api N : 4 idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=4

On - stack: HomePresenter, Repo, Logger, Clock SCCs emitted: Api N : 5 idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=4

On - stack: HomePresenter, Repo, Logger SCCs emitted: Api, Clock N : 5 idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=4

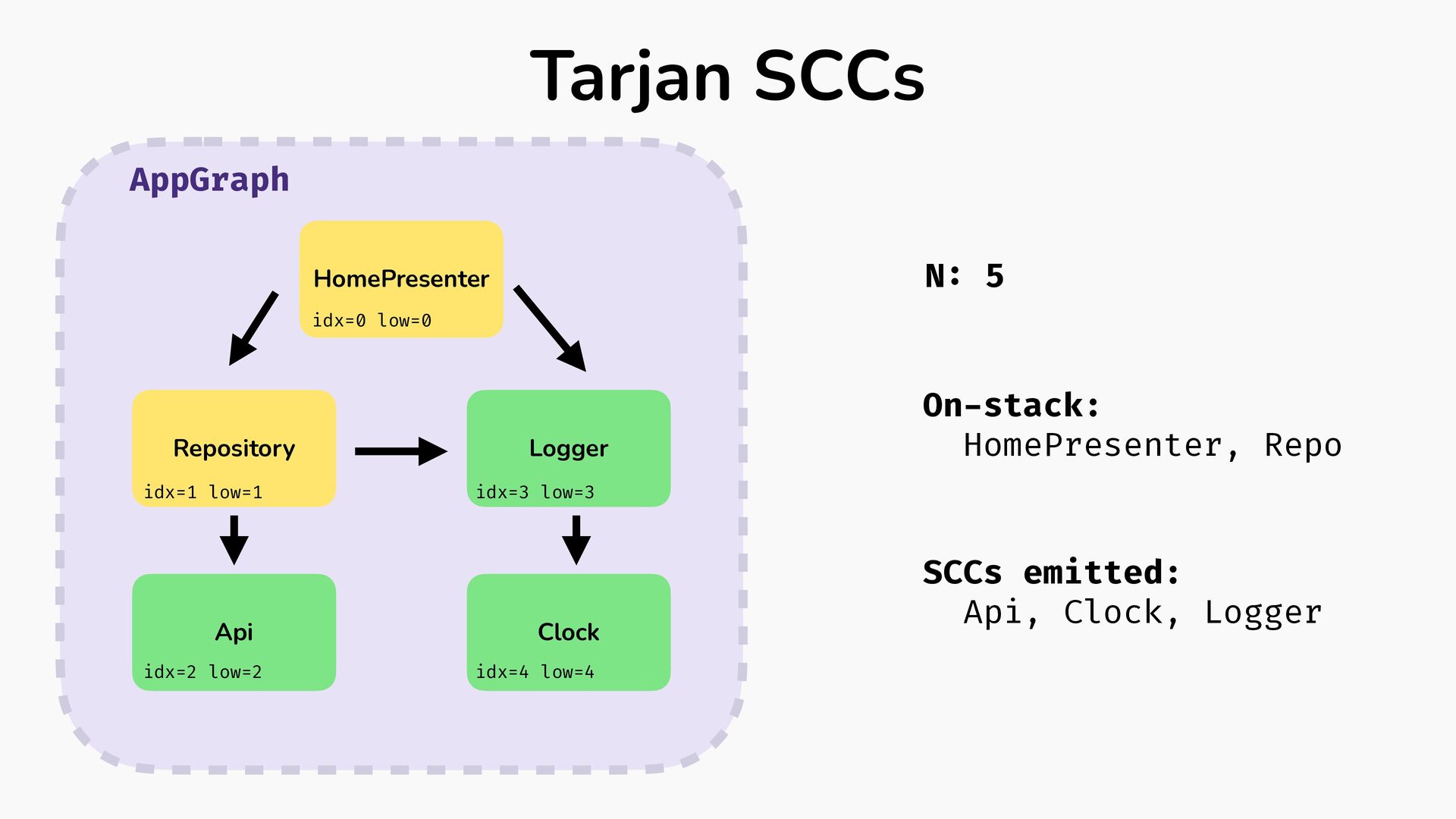

On - stack: HomePresenter, Repo SCCs emitted: Api, Clock, Logger N : 5 idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=4

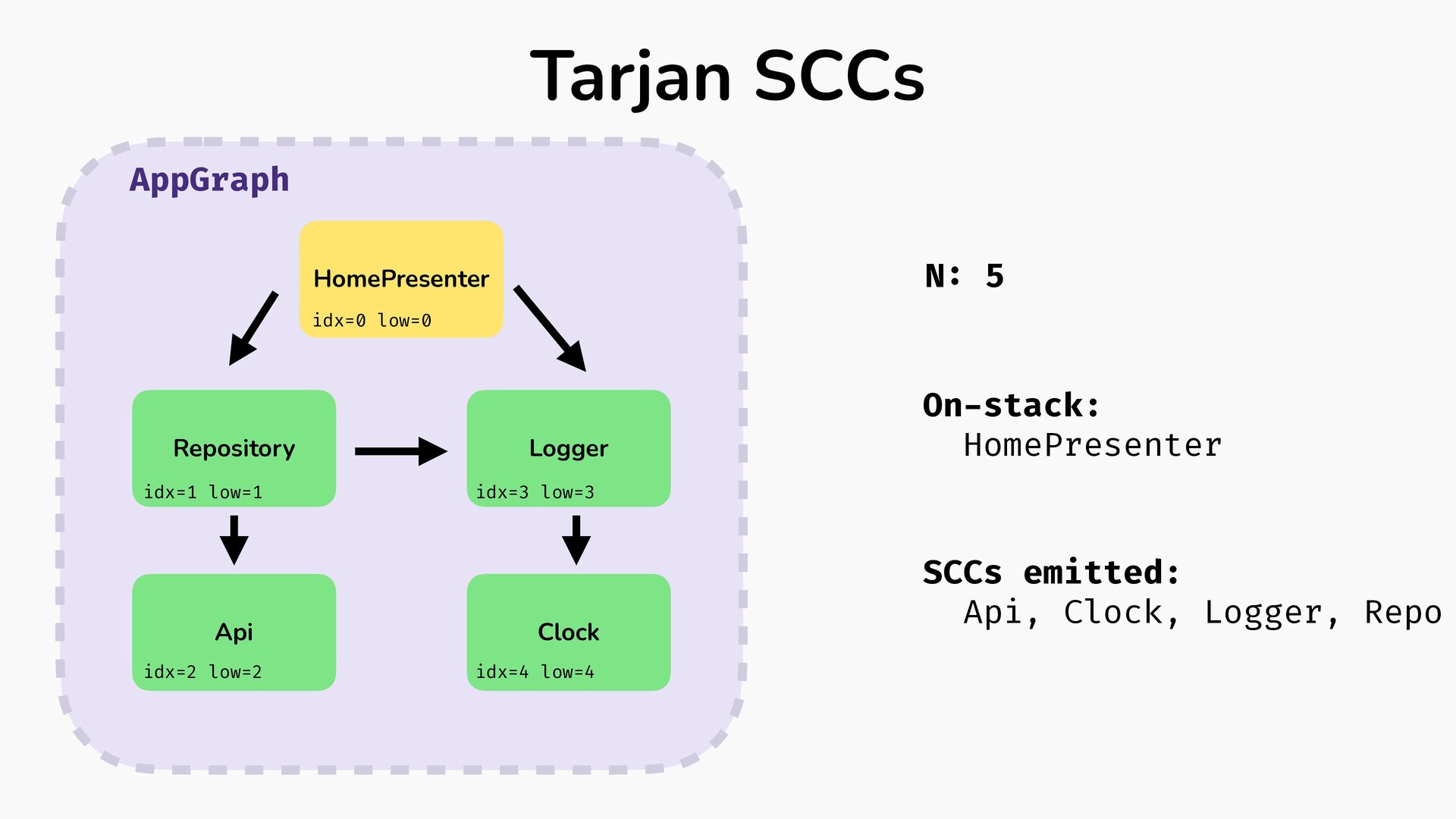

On - stack: HomePresenter SCCs emitted: Api, Clock, Logger, Repo N : 5 idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=4

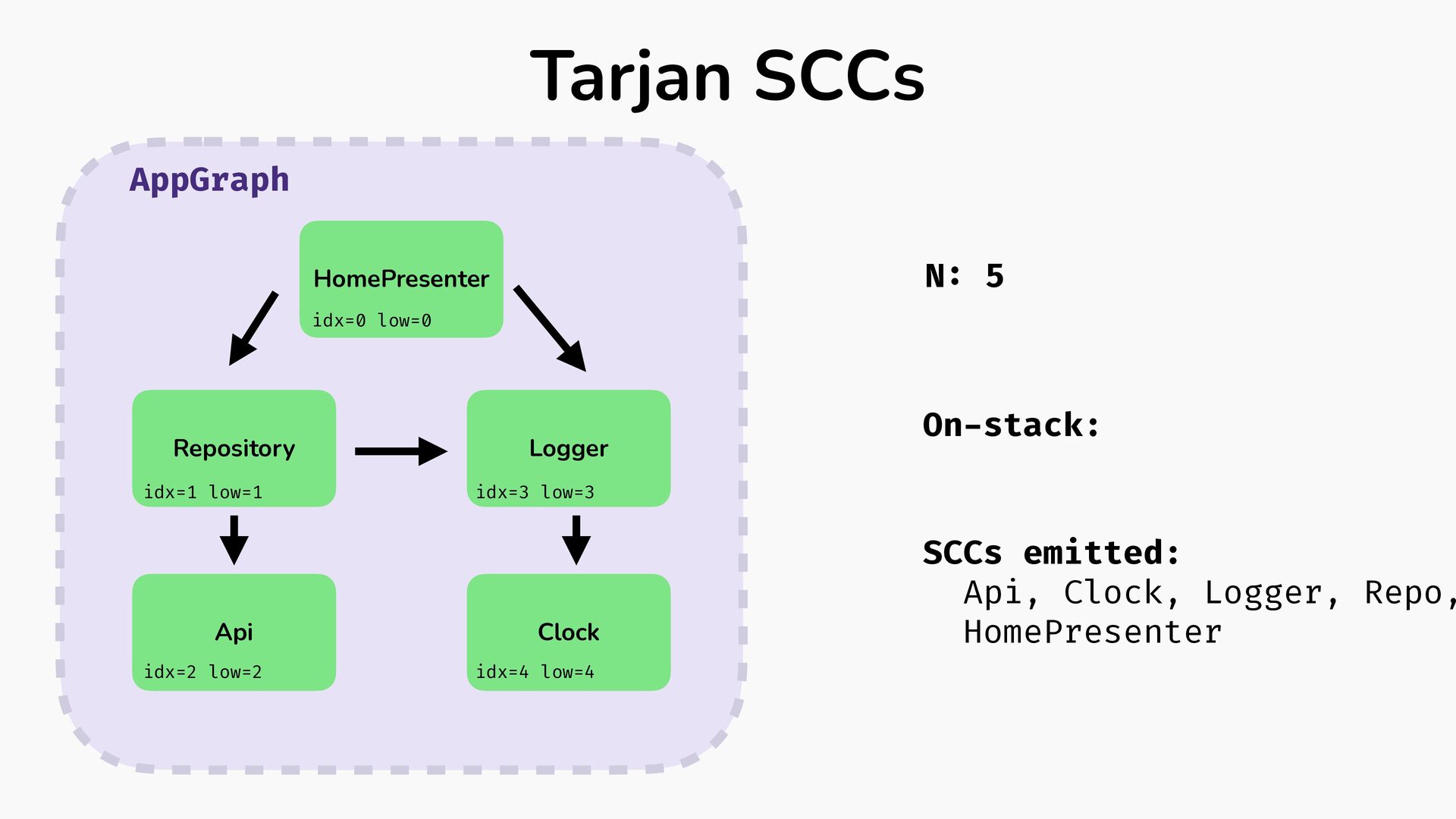

On - stack: SCCs emitted: Api, Clock, Logger, Repo, HomePresenter N : 5 idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=4

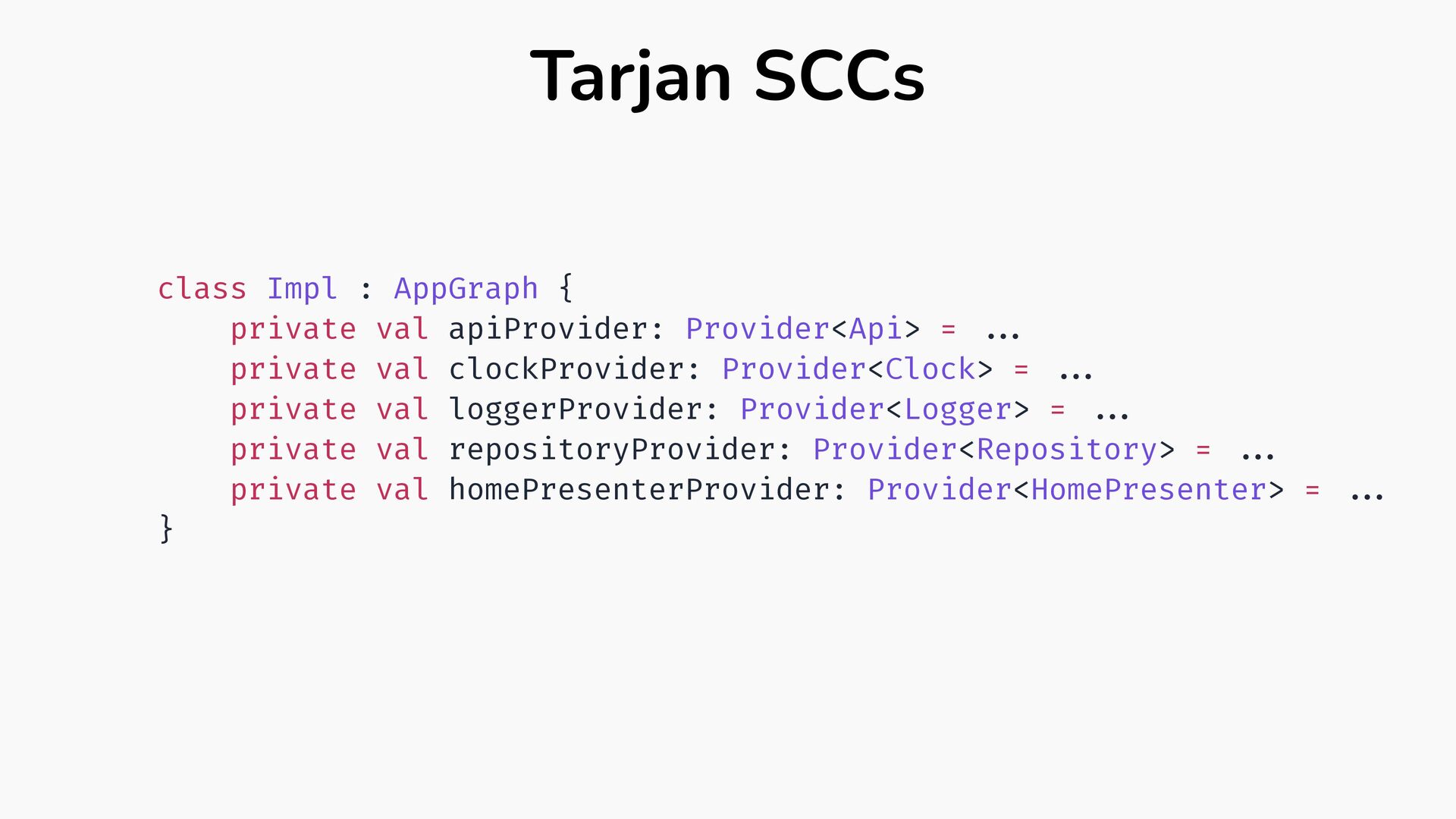

Tarjan SCCs class Impl : AppGraph { private val apiProvider:
Provider<Api> = ... private val clockProvider: Provider<Clock> = ... private val loggerProvider: Provider<Logger> = ... private val repositoryProvider: Provider<Repository> = ... private val homePresenterProvider: Provider<HomePresenter> = ... }

Tarjan SCCs HomePresenter Repository Logger Api Clock AppGraph idx=0 low=0
idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=4 On - stack: HomePresenter, Repo, Logger, Clock SCCs emitted: Api N : 4

idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=3 On - stack: HomePresenter, Repo SCCs emitted: Api, [Logger, Clock] N : 5

idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=3 On - stack: HomePresenter, Repo SCCs emitted: Api, [Logger, Clock] N : 5 Lazy<Logger>

idx=1 low=1 idx=2 low=2 idx=3 low=3 idx=4 low=3 On - stack: HomePresenter, Repo SCCs emitted: Api, [Logger, Clock] N : 5 Lazy<Logger> Deferred types: Clock

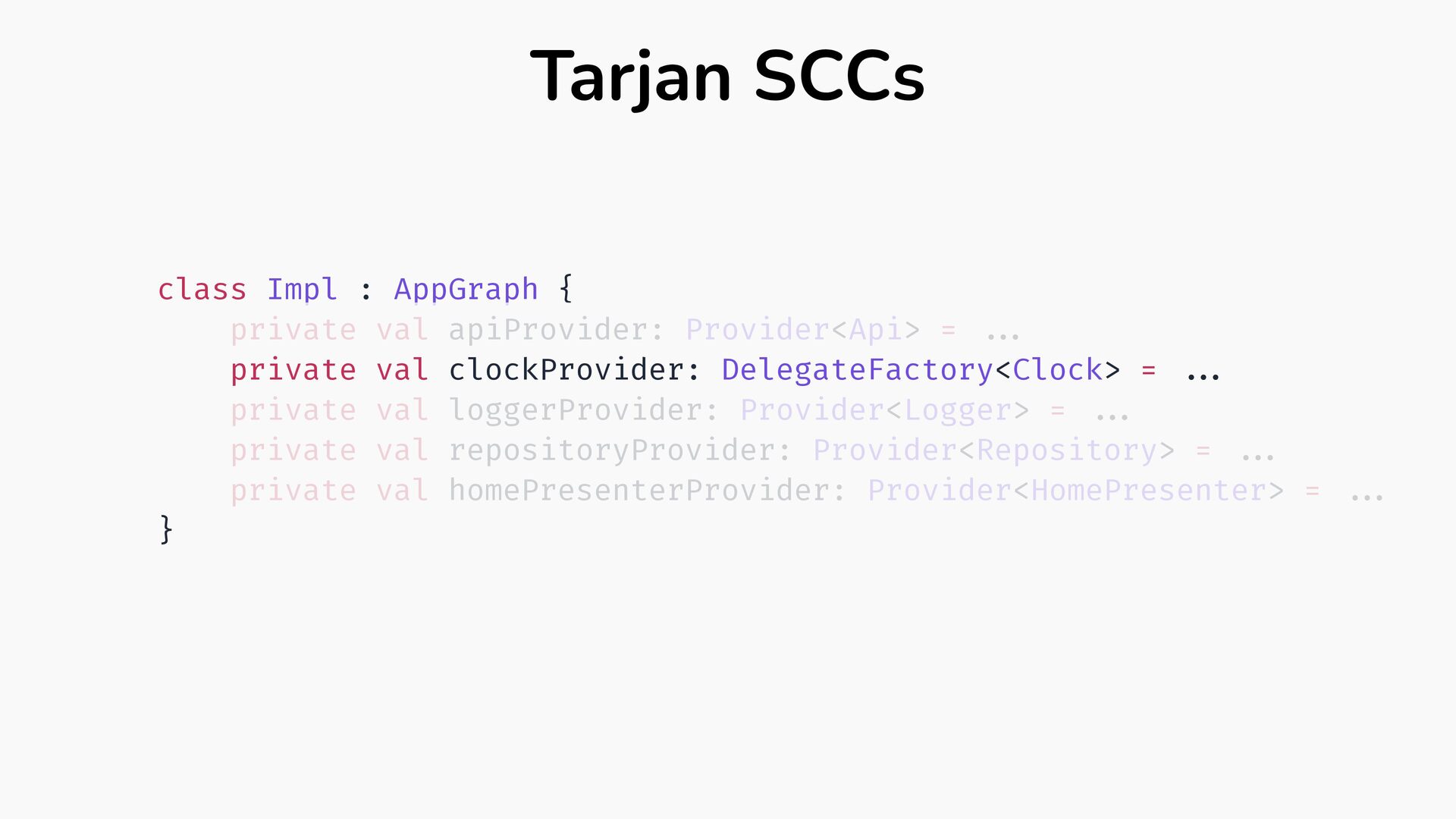

Tarjan SCCs class Impl : AppGraph { private val apiProvider:
Provider<Api> = ... private val clockProvider: DelegateFactory<Clock> = ... private val loggerProvider: Provider<Logger> = ... private val repositoryProvider: Provider<Repository> = ... private val homePresenterProvider: Provider<HomePresenter> = ... }

val fullAdjacency = buildFullAdjacency(bindings) metroSort(fullAdjacency, roots, ... ) }

val fullAdjacency = buildFullAdjacency(bindings) val topology = metroSort(fullAdjacency, roots, ... ) return topology }

IR data class GraphTopology<T>( val sortedKeys: List<T>, val deferredTypes: Set<T>,
val reachableKeys: Set<T>, // ... )

IR Graph validation

IR Graph generation

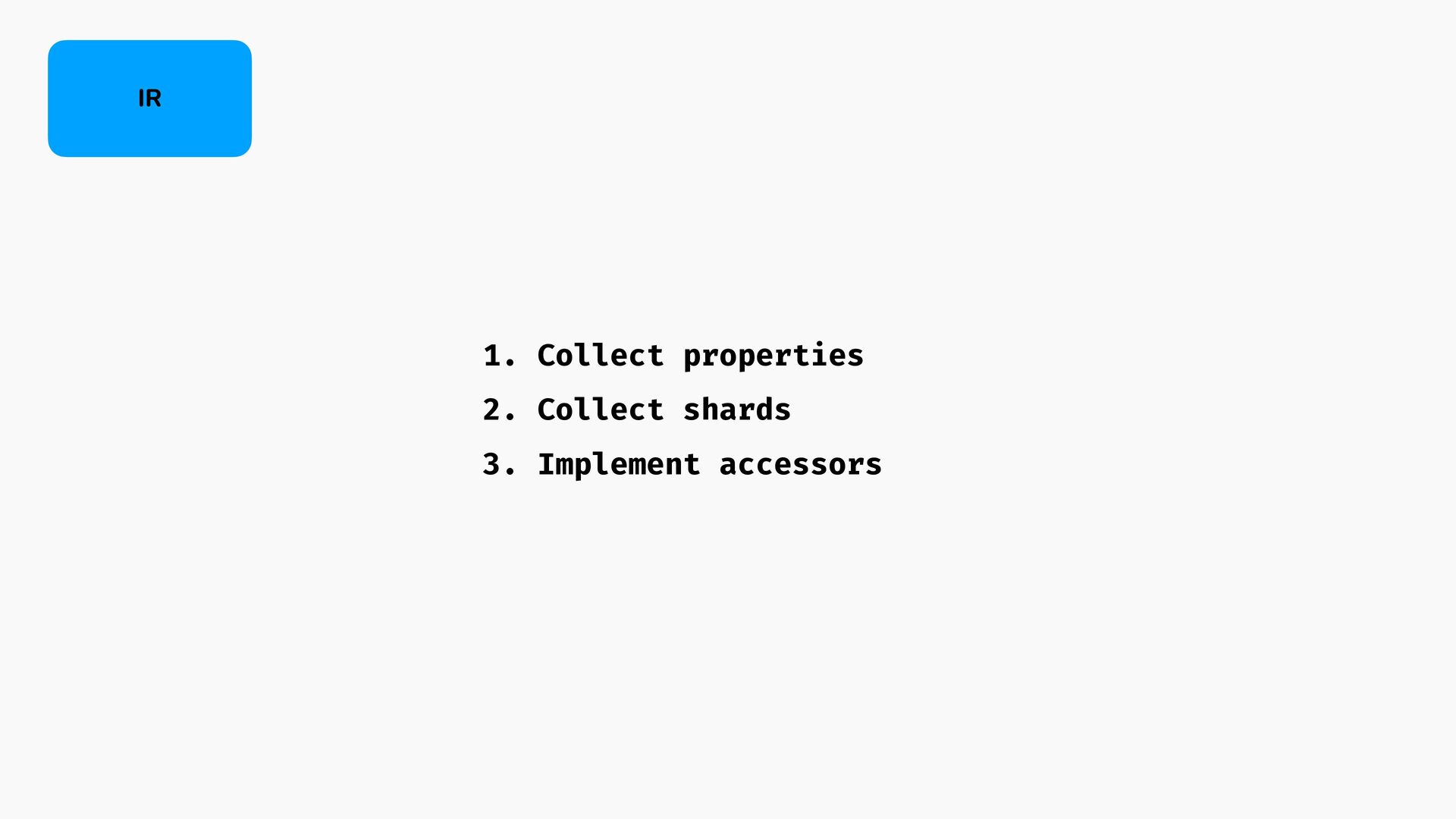

IR 1. Collect properties 2. Collect shards 3. Implement accessors

Api Clock Logger Repo HomePresenter

Api Clock Logger Repo HomePresenter BindingPropertyCollector

class Impl : HumongousAppGraph { // HUNDREDS of f i elds !! }

IrGraphShardGenerator class Impl : HumongousAppGraph { val shard1 = Shard1(this) val shard2 = Shard2(this) class Shard1(parent: Impl) { // Dozens of f i elds } class Shard2(parent: Impl) { // Dozens of f i elds } }

@DependencyGraph interface AppGraph { val homePresenter: HomePresenter }

class Impl : AppGraph { }

class Impl : AppGraph { val apiProvider = DoubleCheck.provider(Api.MetroFactory.create()) val clockProvider = DoubleCheck.provider(Clock.MetroFactory.create()) val loggerProvider = DoubleCheck.provider(Logger.MetroFactory.create(clockProvider)) }

class Impl : AppGraph { val apiProvider = DoubleCheck.provider(Api.MetroFactory.create()) val clockProvider = DelegateFactory.create<Clock>() val loggerProvider = DoubleCheck.provider(Logger.MetroFactory.create(clockProvider)) init { clockProvider.setDelegate( DoubleCheck.provider(Clock.MetroFactory.create(loggerProvider))) } }

class Impl : AppGraph { val apiProvider = ... val clockProvider = ... val loggerProvider = ... override val homePresenter: HomePresenter get() = }

class Impl : AppGraph { val apiProvider = ... val clockProvider = ... val loggerProvider = ... override val homePresenter: HomePresenter get() = HomePresenter( Repository(apiProvider(), loggerProvider()) ) }

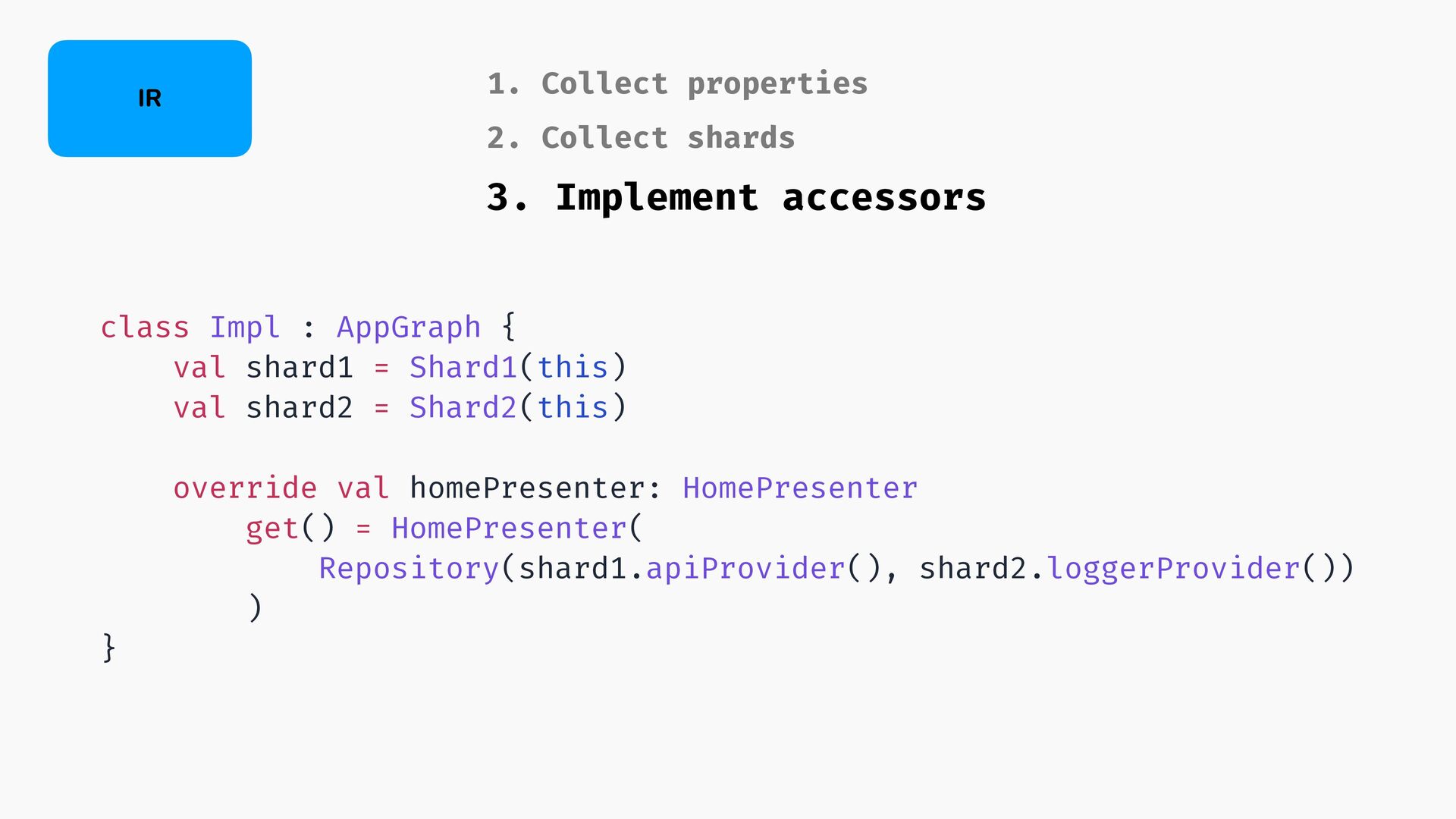

class Impl : AppGraph { val shard1 = Shard1(this) val shard2 = Shard2(this) override val homePresenter: HomePresenter get() = HomePresenter( Repository(shard1.apiProvider(), shard2.loggerProvider()) ) }

Bits and Bobs

SwitchingProviders class Impl : AppGraph { val clockProvider = DoubleCheck.provider(Clock.MetroFactory.create())
val loggerProvider = DoubleCheck.provider(Logger.MetroFactory.create(clockProvider)) override val logger: Logger get() = loggerProvider() }

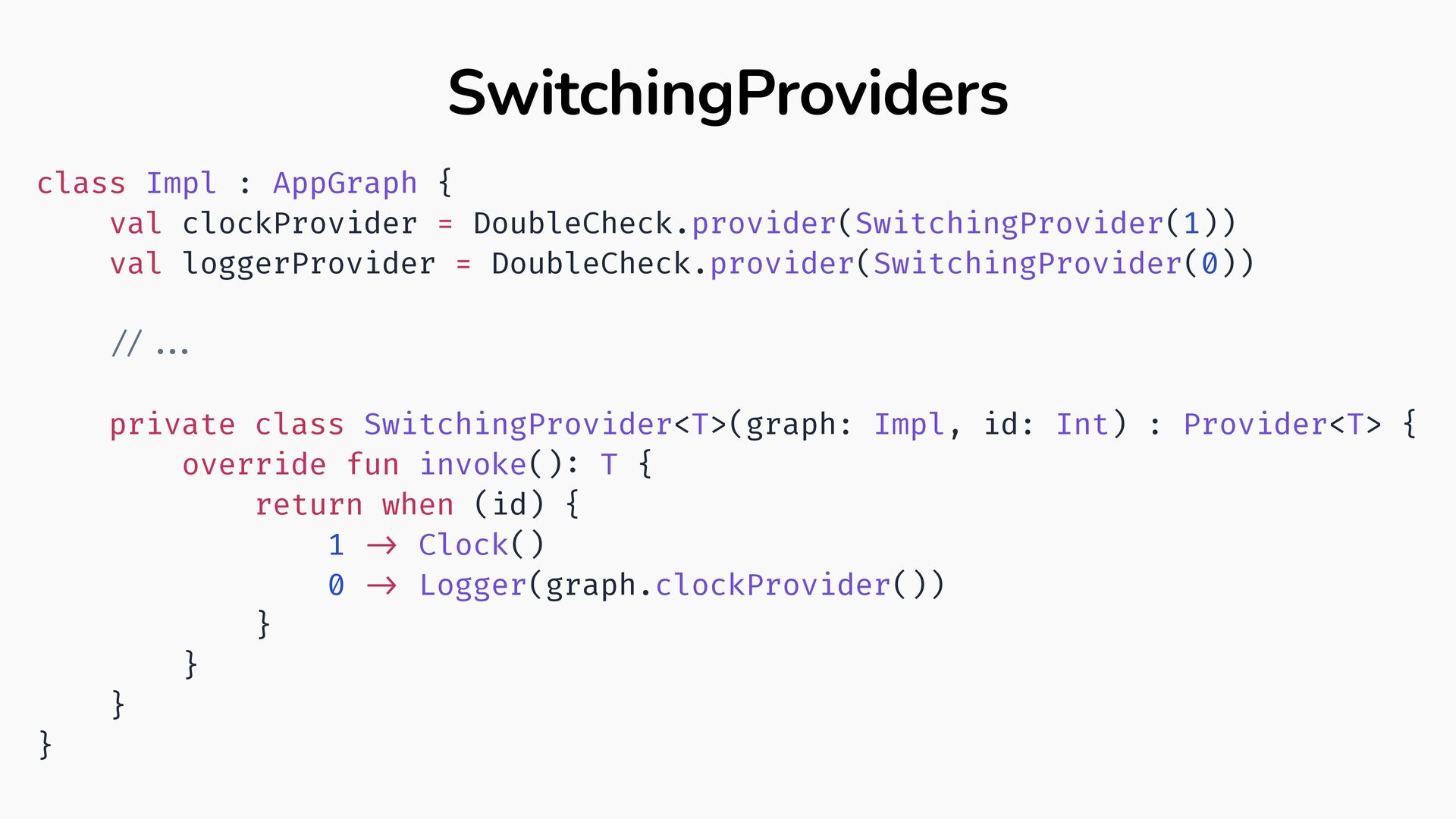

SwitchingProviders class Impl : AppGraph { val clockProvider = DoubleCheck.provider(SwitchingProvider(1))
val loggerProvider = DoubleCheck.provider(SwitchingProvider(0)) //... private class SwitchingProvider<T>(graph: Impl, id: Int) : Provider<T> { override fun invoke() : T { return when (id) { 1 -> Clock() 0 -> Logger(graph.clockProvider()) } } } }

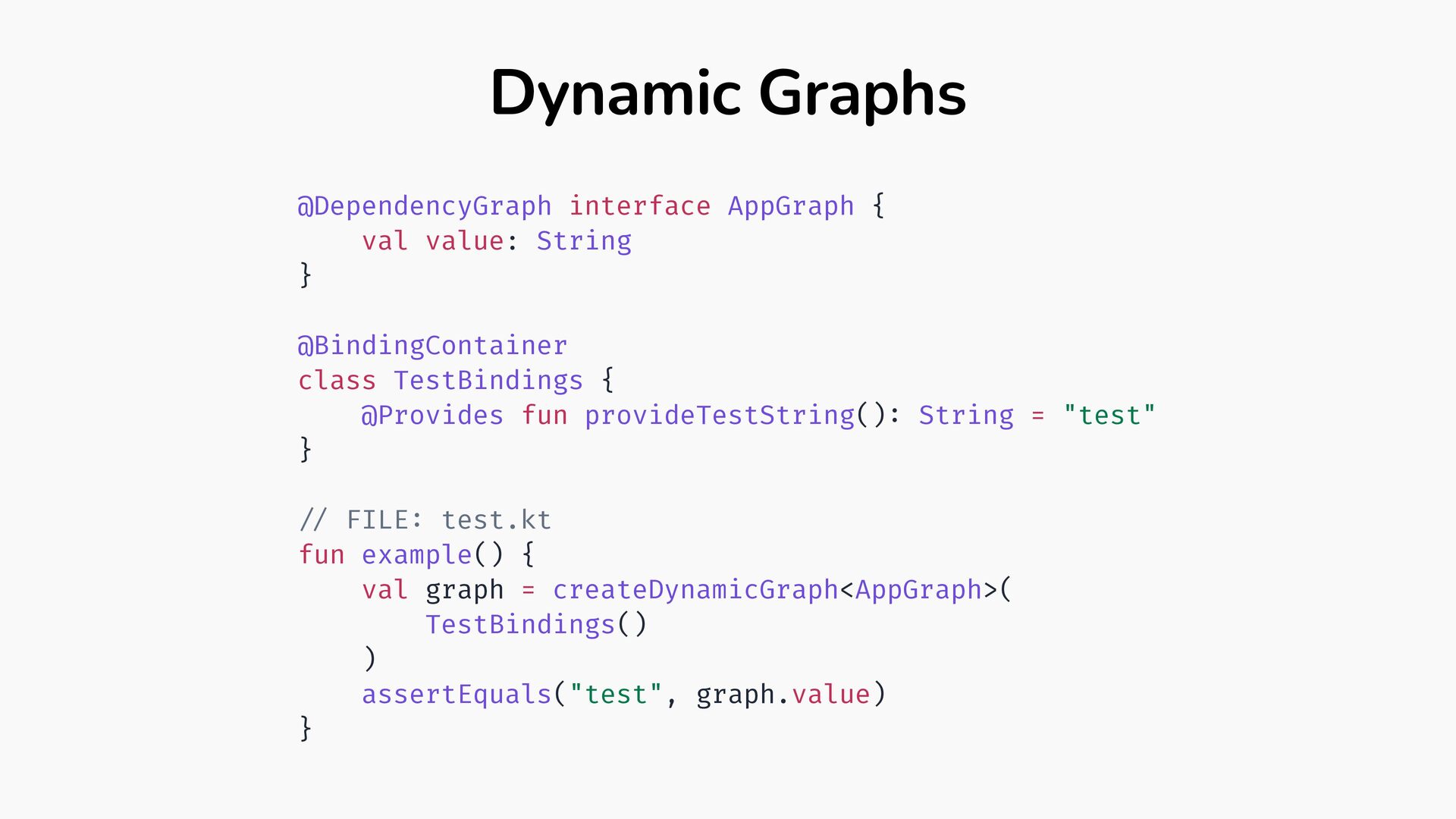

Dynamic Graphs @DependencyGraph interface AppGraph { val value: String }
@BindingContainer class TestBindings { @Provides fun provideTestString() : String = "test" } // FILE : test.kt fun example() { val graph = createDynamicGraph<AppGraph>( TestBindings() ) assertEquals("test", graph.value) }

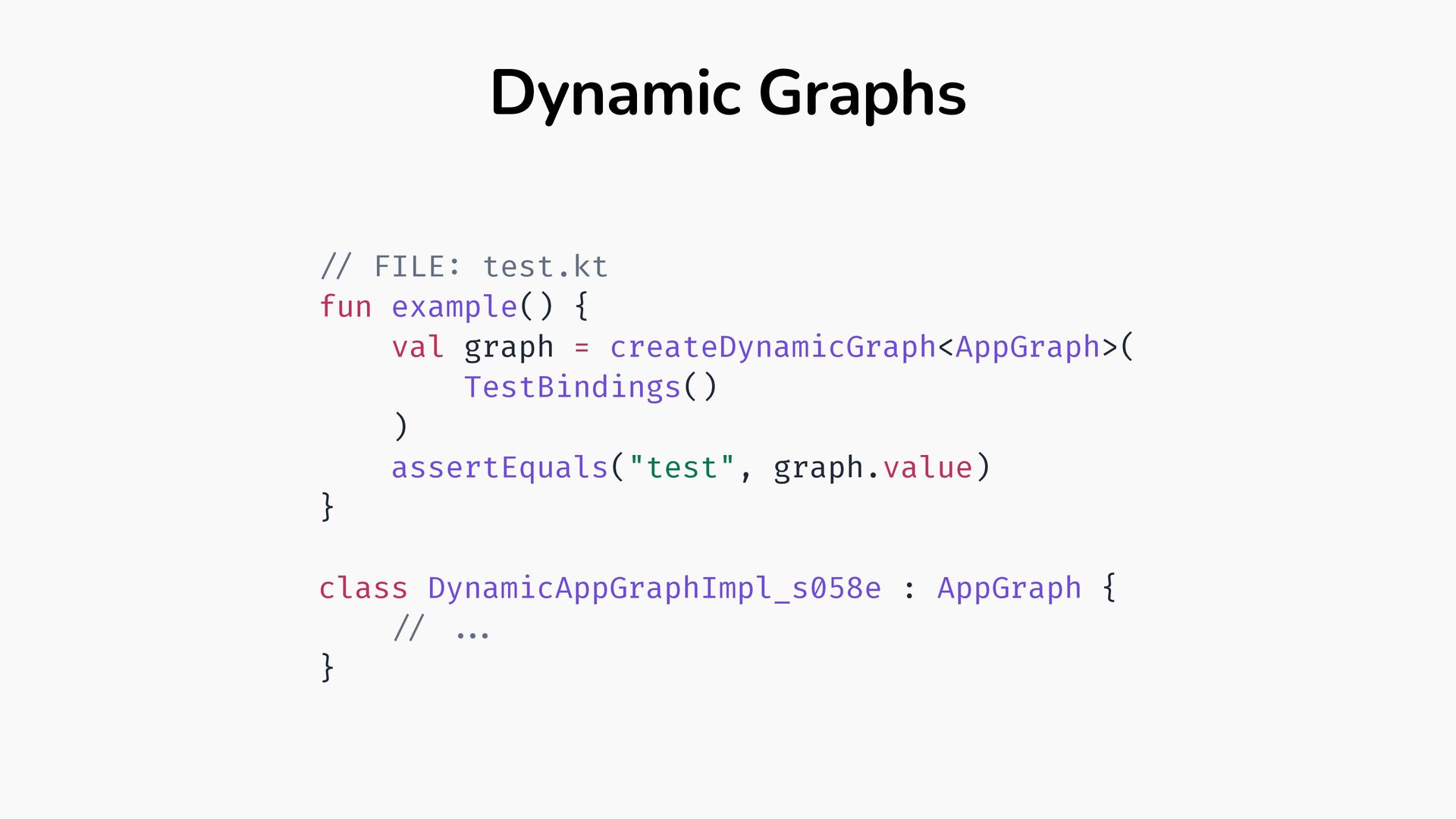

Dynamic Graphs // FILE : test.kt fun example() { val
graph = createDynamicGraph<AppGraph>( TestBindings() ) assertEquals("test", graph.value) } class DynamicAppGraphImpl_s058e : AppGraph { // ... }

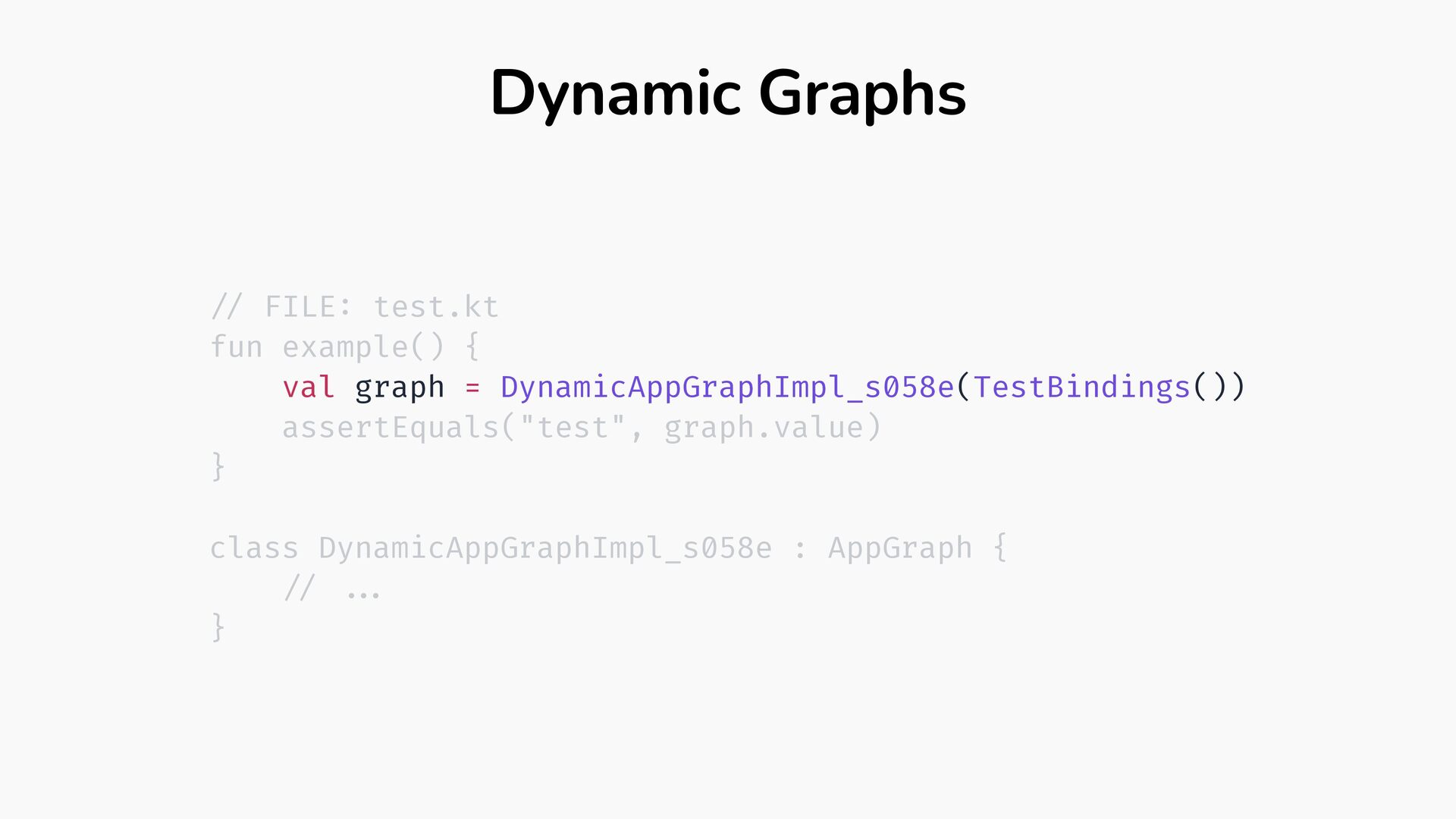

Dynamic Graphs // FILE : test.kt fun example() { val
graph = DynamicAppGraphImpl_s058e(TestBindings()) assertEquals("test", graph.value) } class DynamicAppGraphImpl_s058e : AppGraph { // ... }

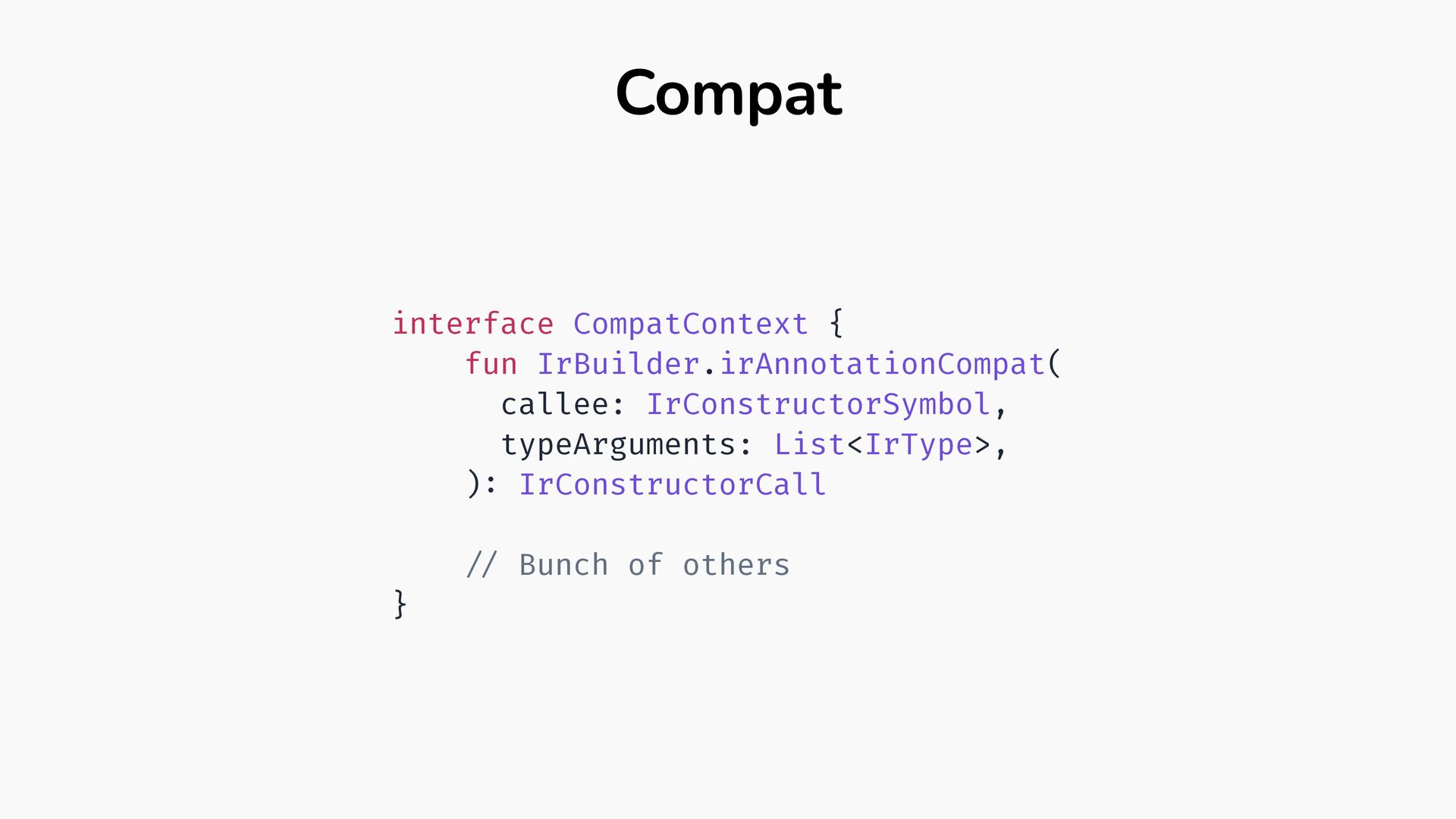

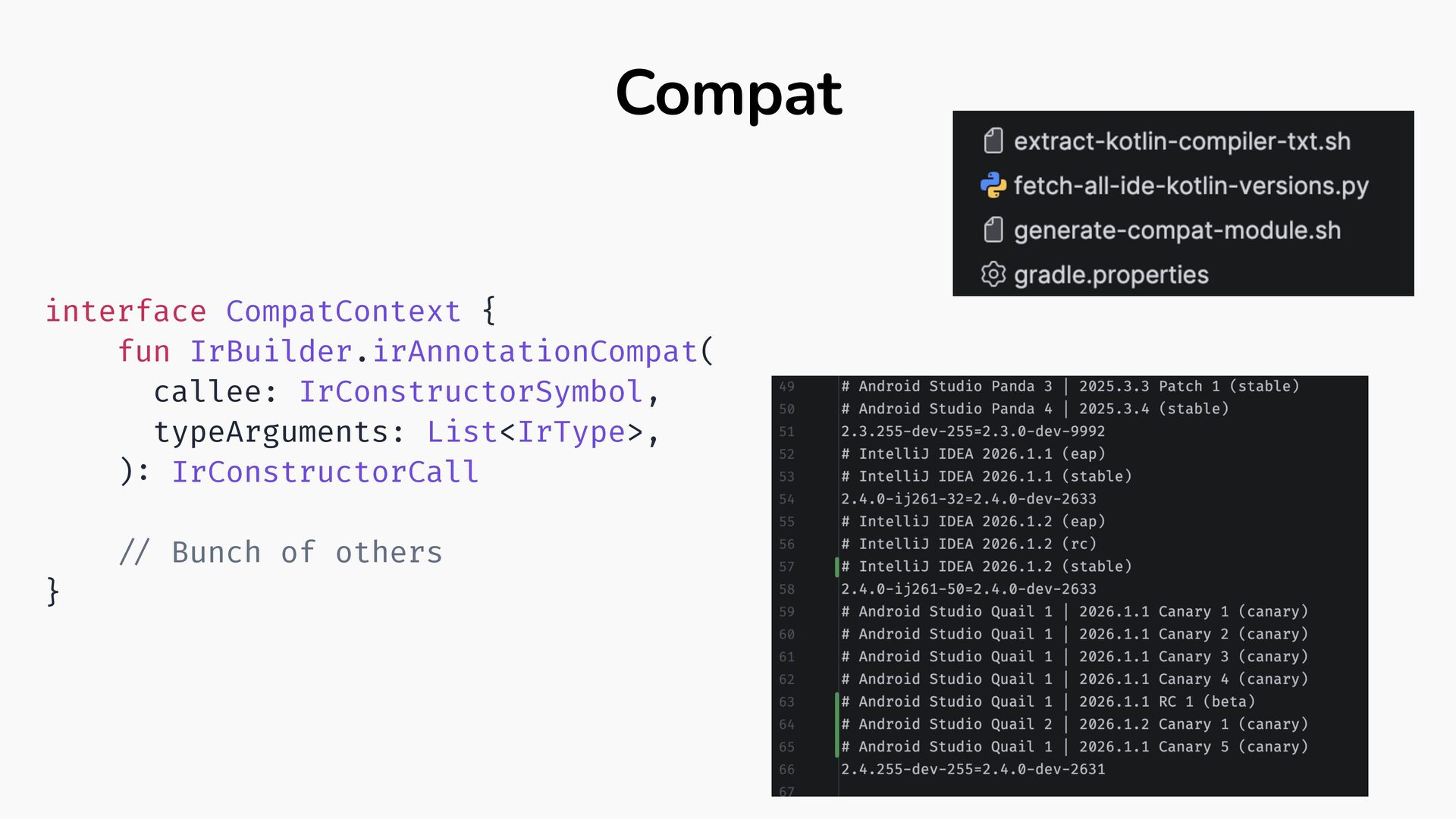

Compat interface CompatContext { fun IrBuilder.irAnnotationCompat( callee: IrConstructorSymbol, typeArguments: List<IrType>,
) : IrConstructorCall // Bunch of others }

Future

    Thank You, and Don’t Forget to Vote @ZacSweers

Metro Under the Hood

Metro Under the Hood

More Decks by Zac Sweers

Featured

Transcript
