Storm 101

An introduction to Storm (http://storm-project.net) presented at the Data and Visualization Toronto meetup (http://www.meetup.com/Data-Visualization-Toronto/) in Dec 2012.

Transcript

1. Storm 101 Abhinav Ajgaonkar @abh1nv http://github.com/abh1nav Wifi SSID: Crowd Riff Pwd: meetupdvto

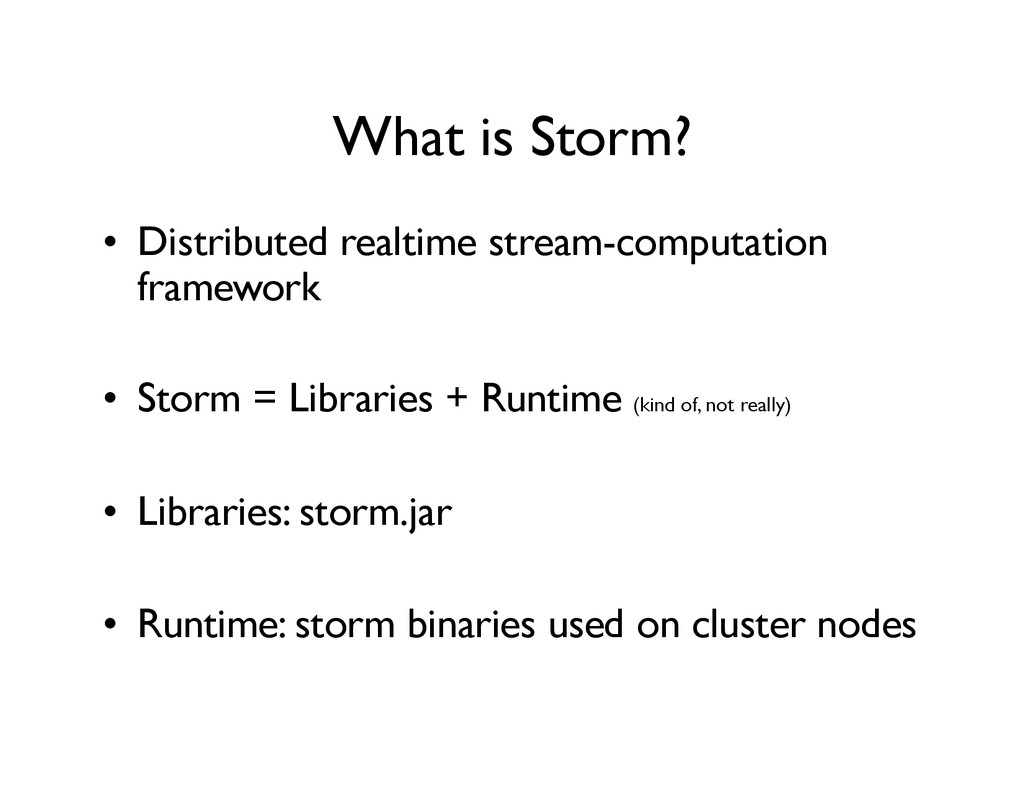

2. What is Storm? •  Distributed realtime stream-computation framework •  Storm = Libraries + Runtime (kind of, not really) •  Libraries: storm.jar •  Runtime: storm binaries used on cluster nodes

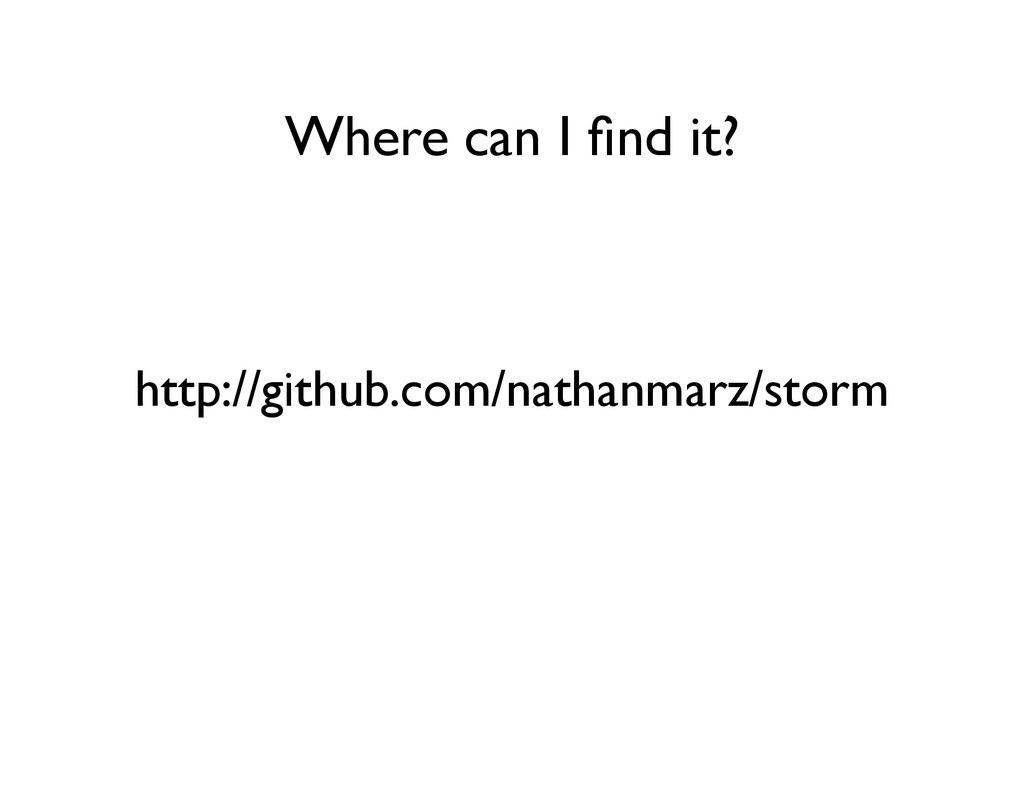

3. http://github.com/nathanmarz/storm Where can I find it?
4. Who uses it and why? “We use several Storm topologies to ingest and persist weather data. Each topology is responsible for fetching one dataset from an internal or external network (the Internet), reshaping records for use by our company and persisting the records to a relational database” – The Weather Channel Source:  h*ps://github.com/nathanmarz/storm/wiki/Powered-­‐By

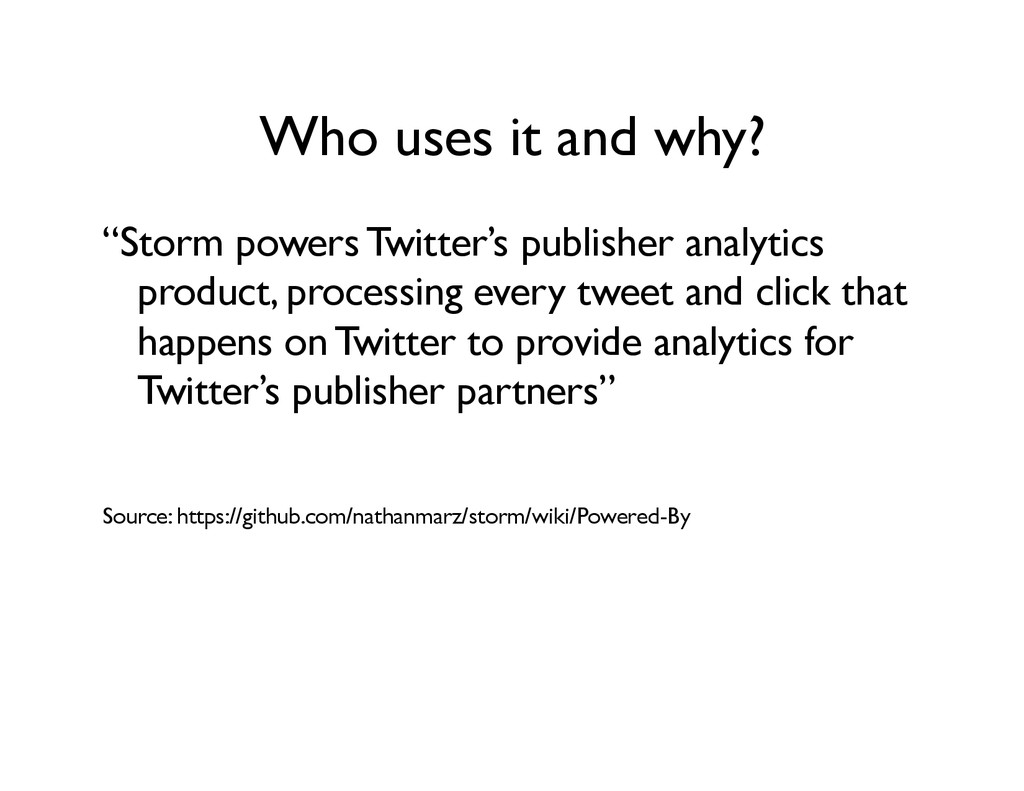

5. Who uses it and why? “Storm powers Twitter’s publisher analytics product, processing every tweet and click that happens on Twitter to provide analytics for Twitter’s publisher partners” Source: https://github.com/nathanmarz/storm/wiki/Powered-By

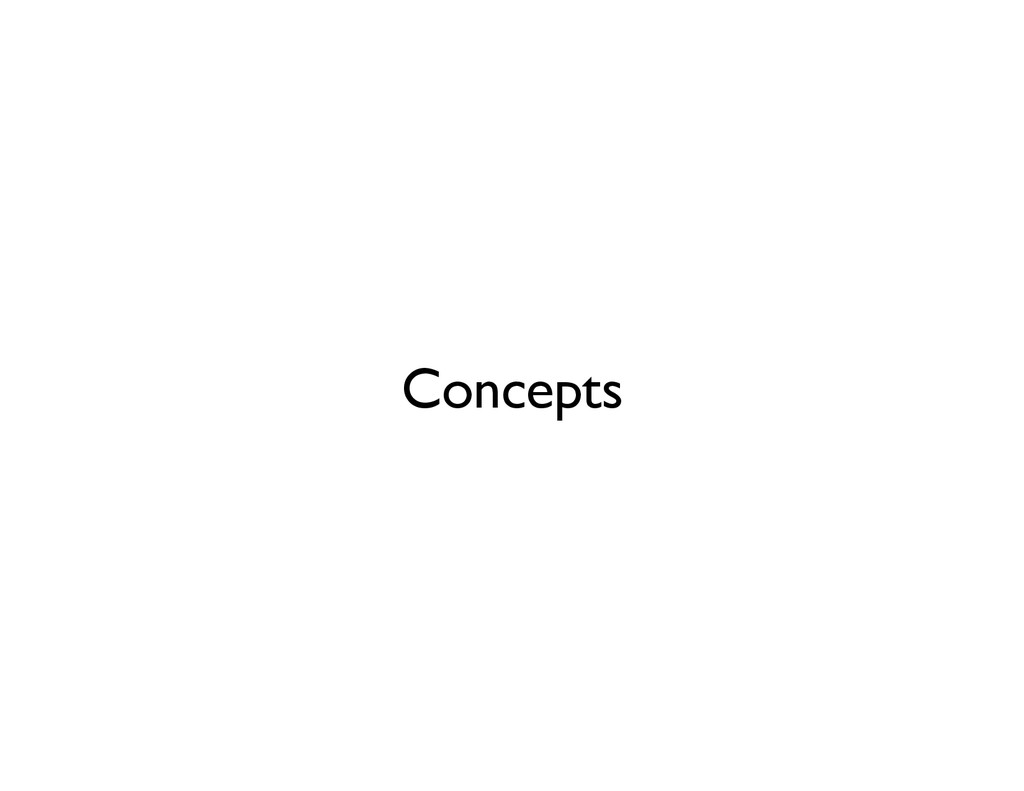

6. Concepts

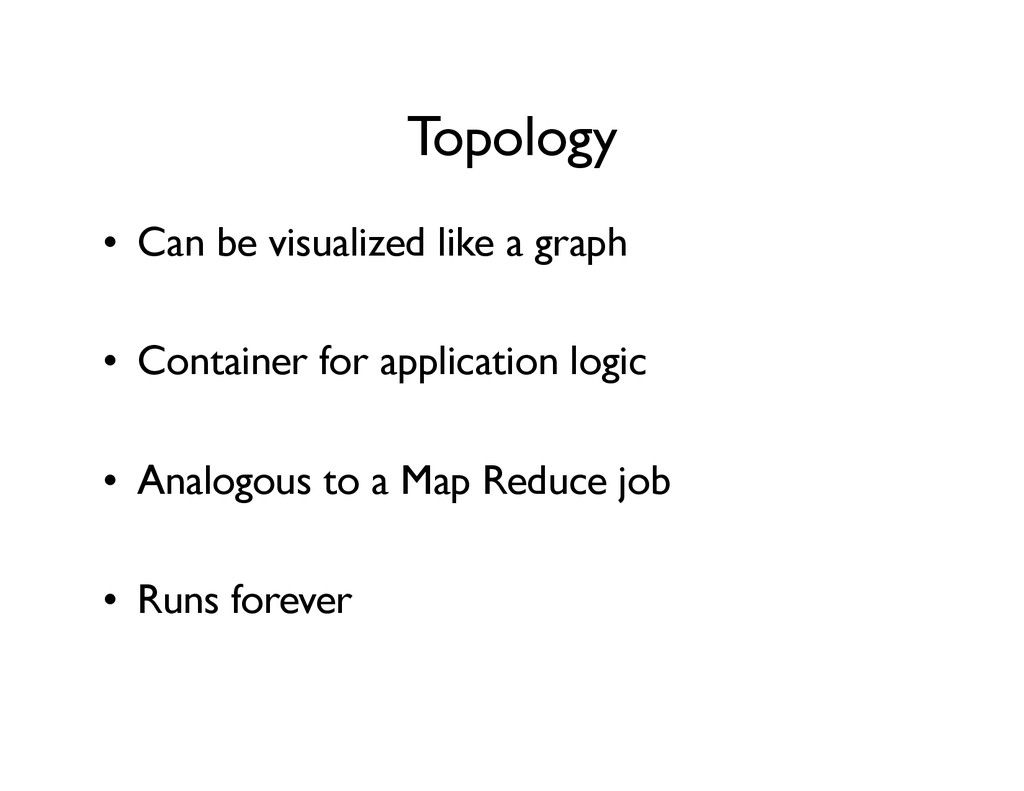

7. Topology •  Can be visualized like a graph •  Container for application logic •  Analogous to a Map Reduce job •  Runs forever

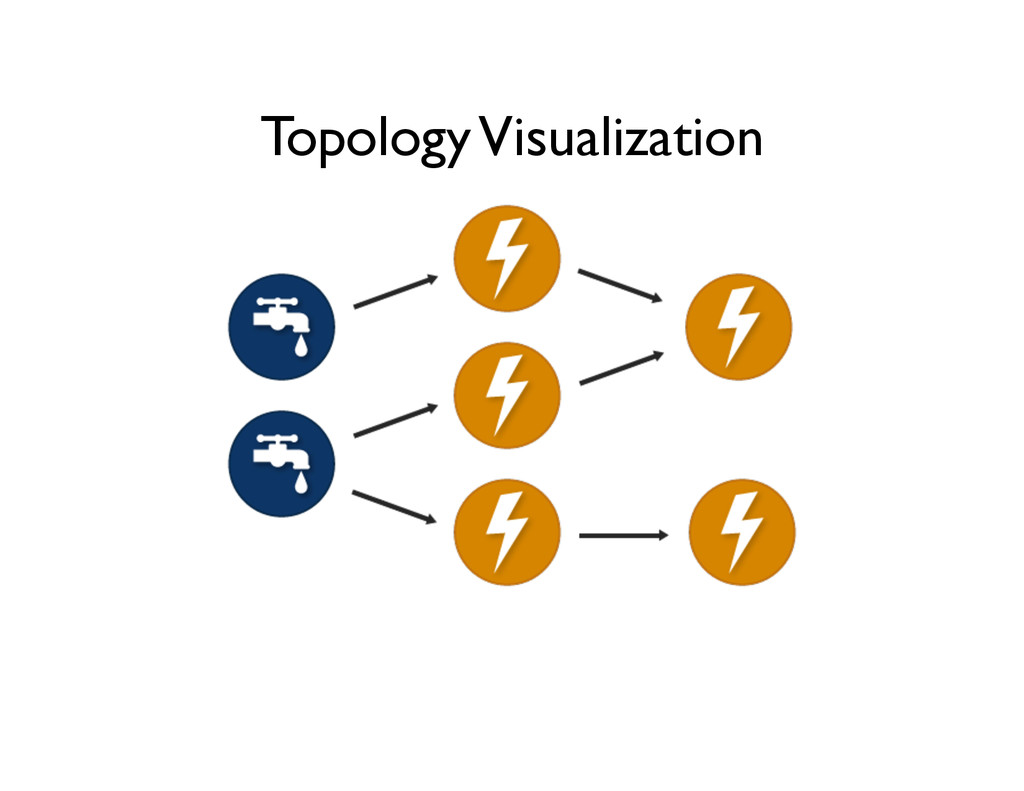

8. Topology Visualization

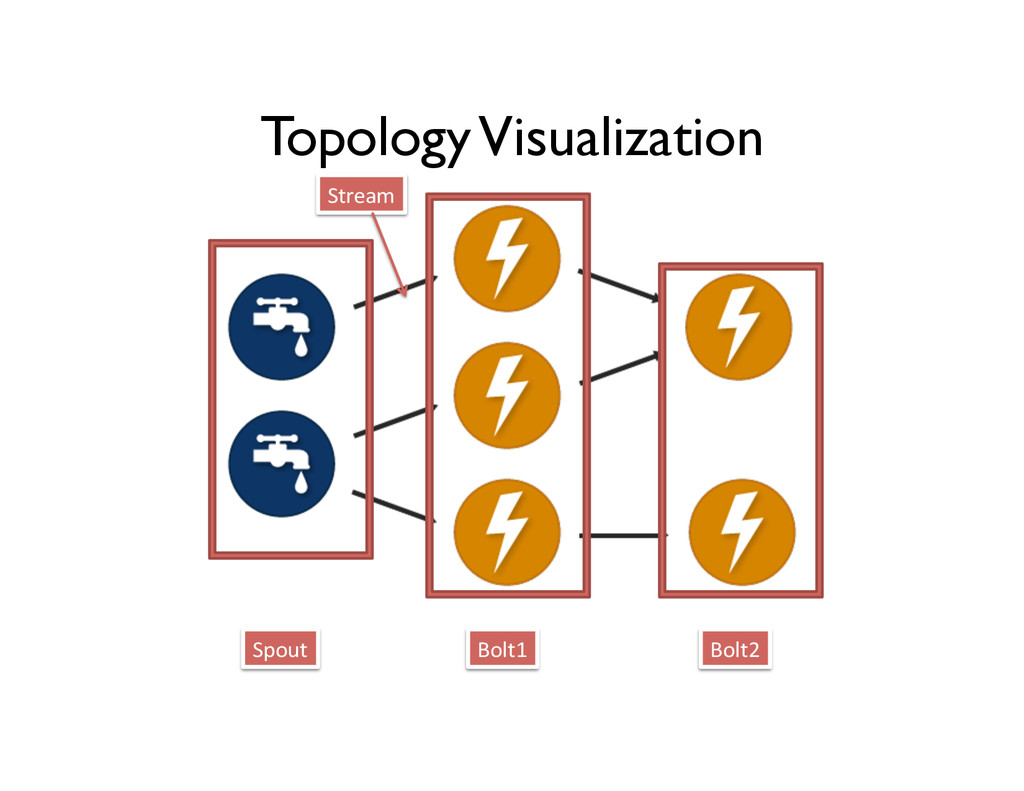

9. Topology Visualization Spout   Bolt1   Bolt2   Stream

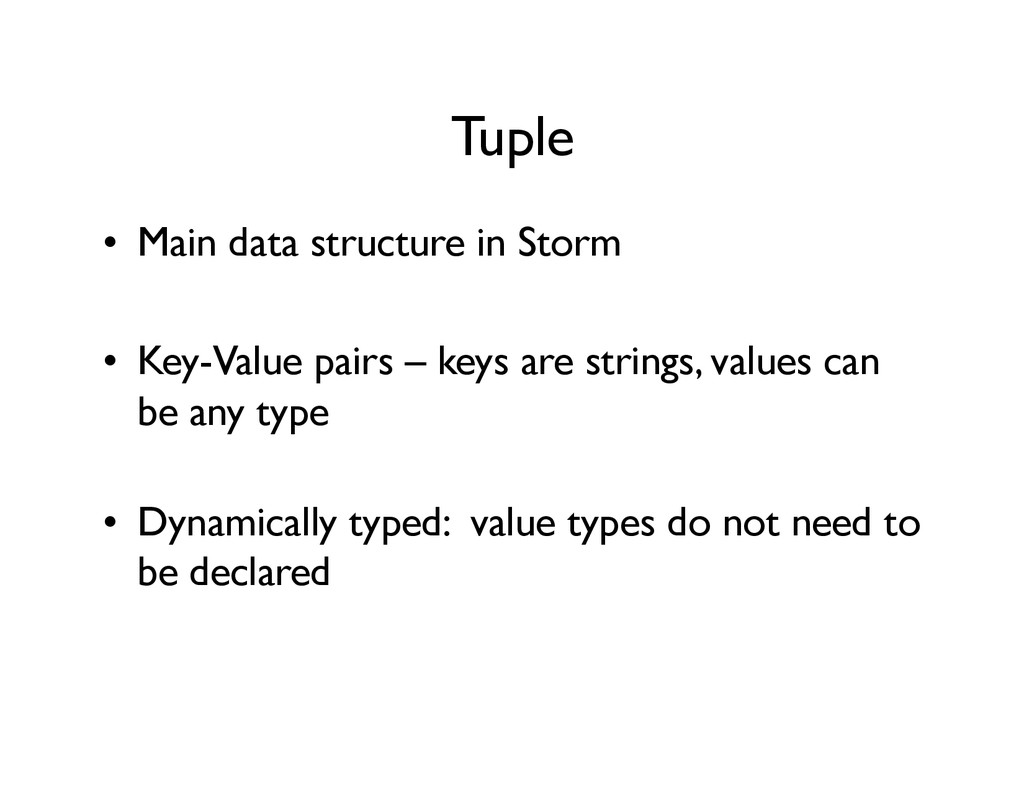

10. Tuple •  Main data structure in Storm •  Key-Value pairs – keys are strings, values can be any type •  Dynamically typed: value types do not need to be declared
11. Streams •  Edges in the topology •  Unbounded sequence of tuples •  Defined with a schema –  Names of “fields” in the tuples being transported by the stream –  Values are dynamically typed •  Serializers for primitive types are provided •  Complex types require custom serializers

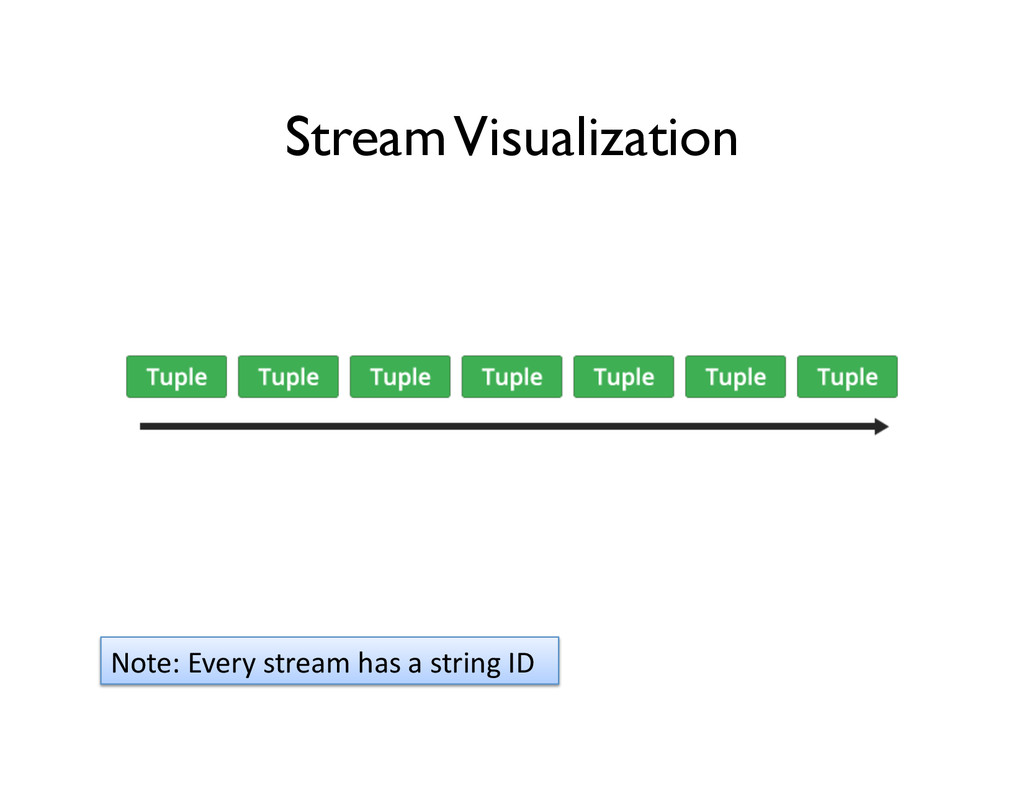

12. Stream Visualization Note:  Every  stream  has  a  string  ID

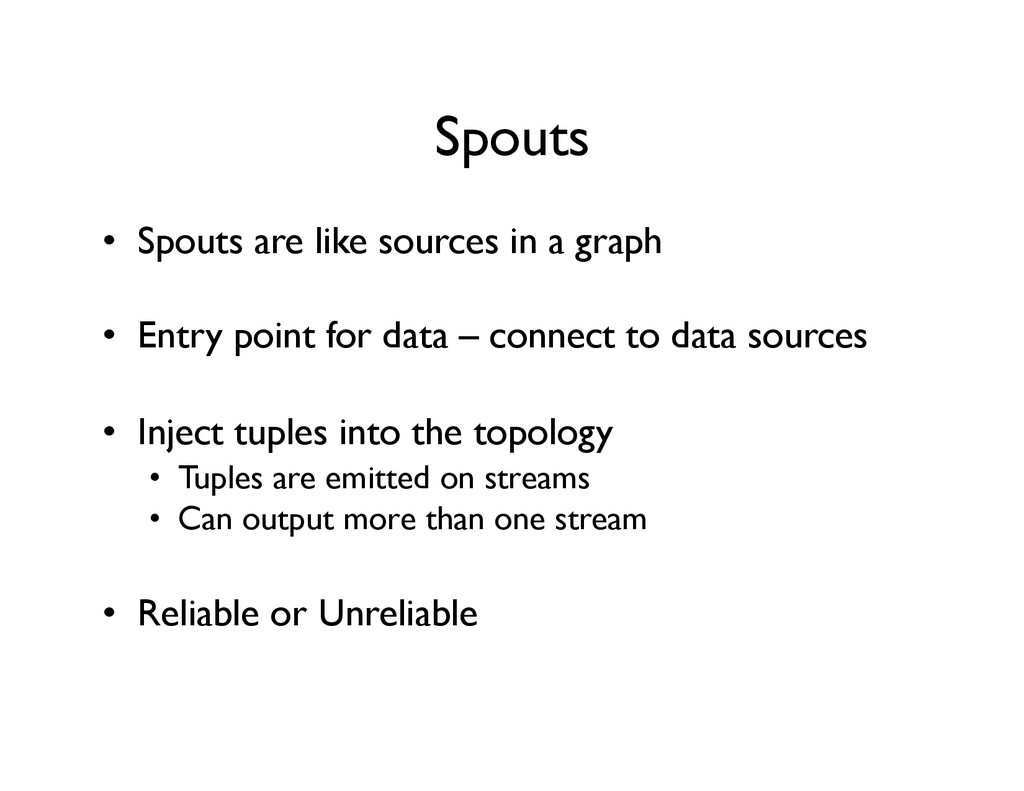

13. Spouts •  Spouts are like sources in a graph •  Entry point for data – connect to data sources •  Inject tuples into the topology •  Tuples are emitted on streams •  Can output more than one stream •  Reliable or Unreliable

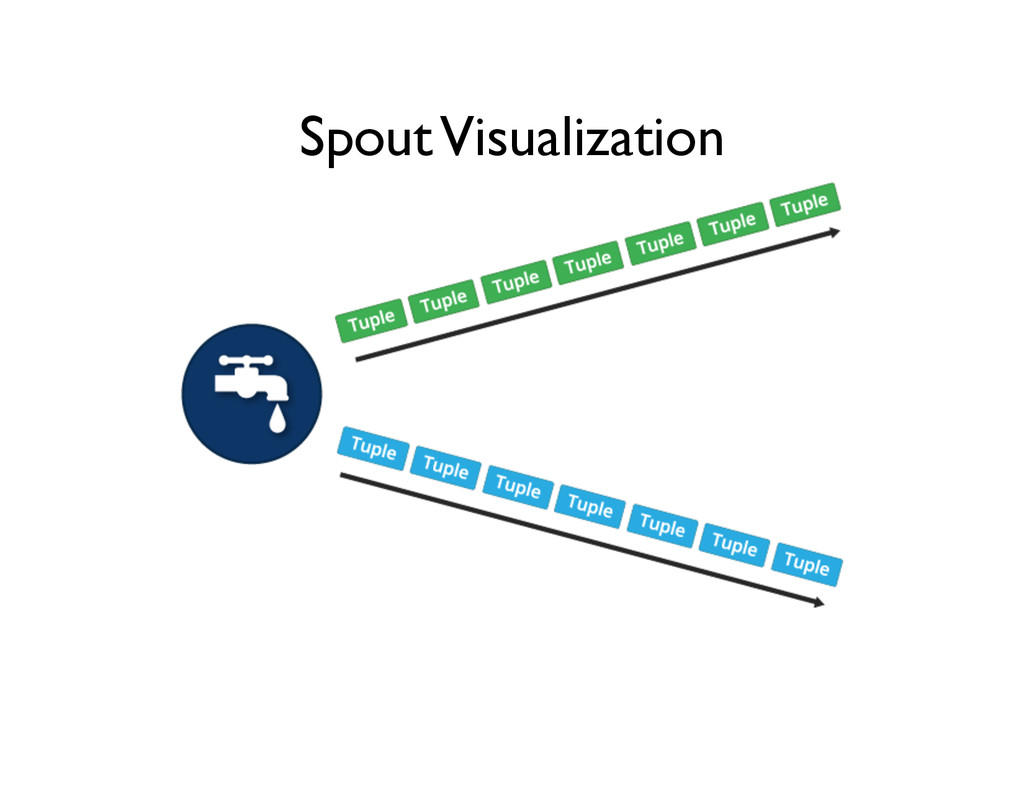

14. Spout Visualization

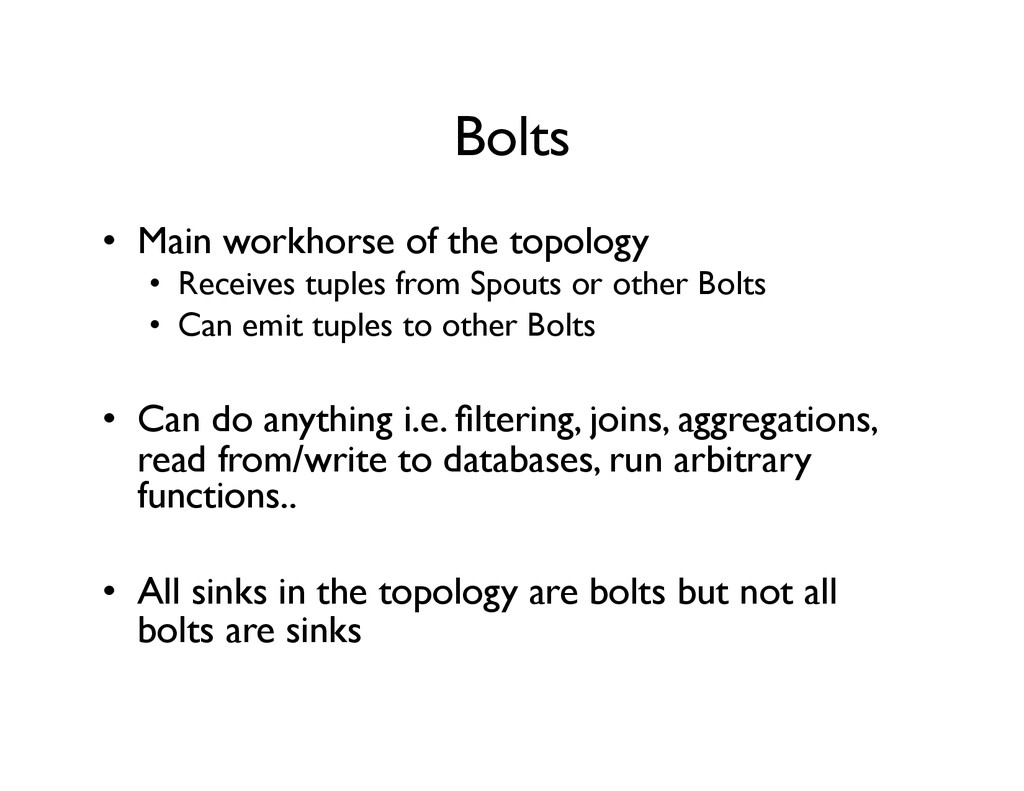

15. Bolts •  Main workhorse of the topology •  Receives tuples from Spouts or other Bolts •  Can emit tuples to other Bolts •  Can do anything i.e. filtering, joins, aggregations, read from/write to databases, run arbitrary functions.. •  All sinks in the topology are bolts but not all bolts are sinks

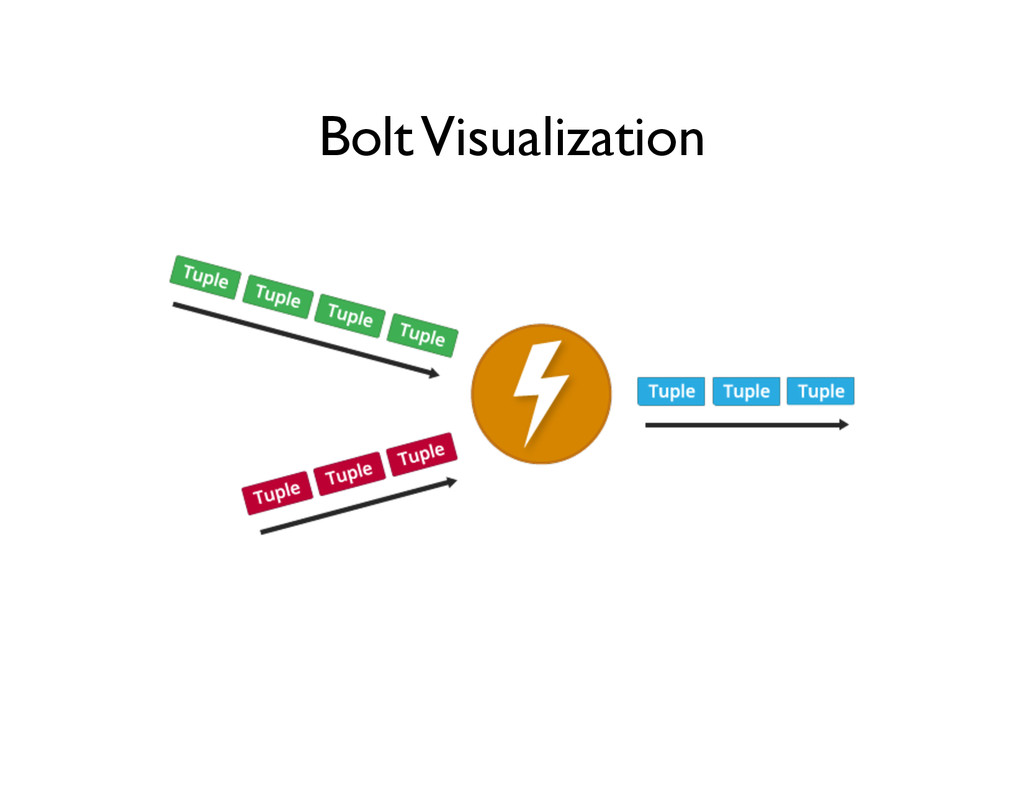

16. Bolt Visualization

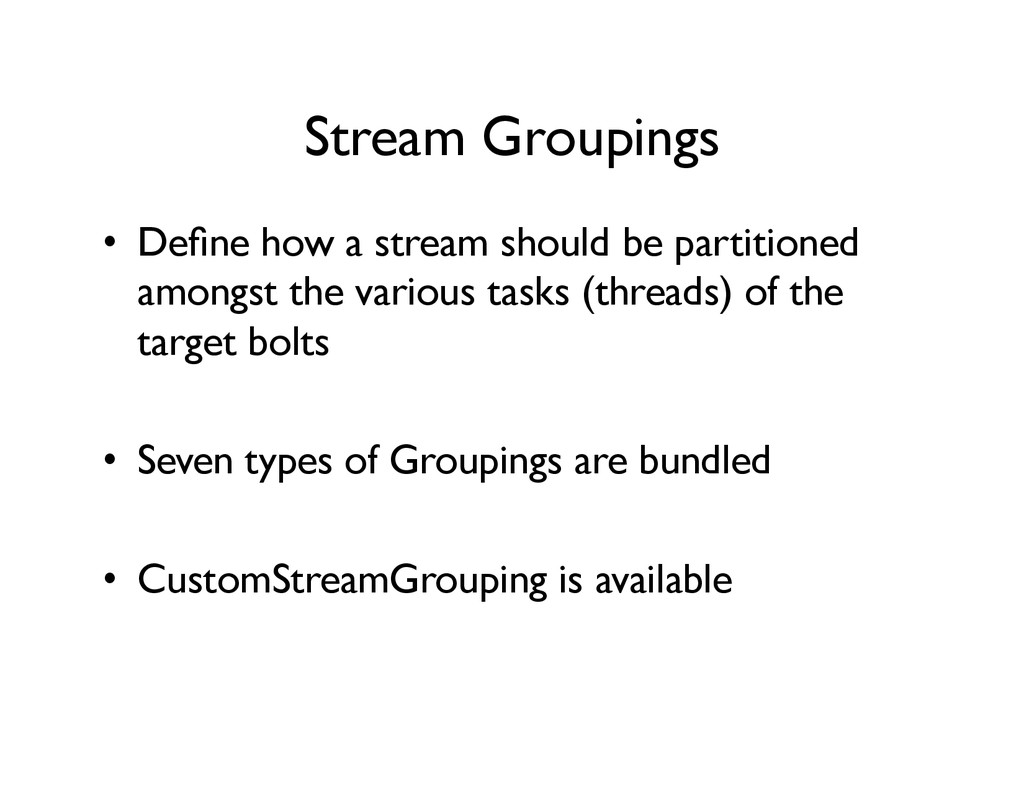

17. Stream Groupings •  Define how a stream should be partitioned amongst the various tasks (threads) of the target bolts •  Seven types of Groupings are bundled •  CustomStreamGrouping is available

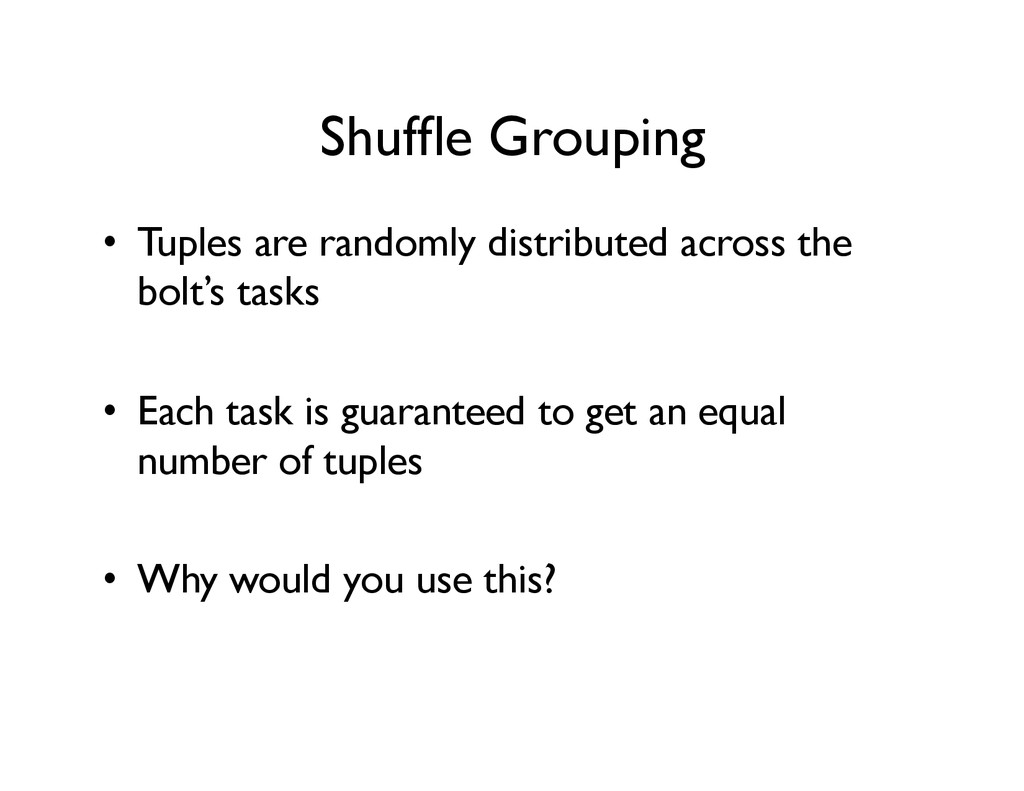

18. Shuffle Grouping •  Tuples are randomly distributed across the bolt’s tasks •  Each task is guaranteed to get an equal number of tuples •  Why would you use this?

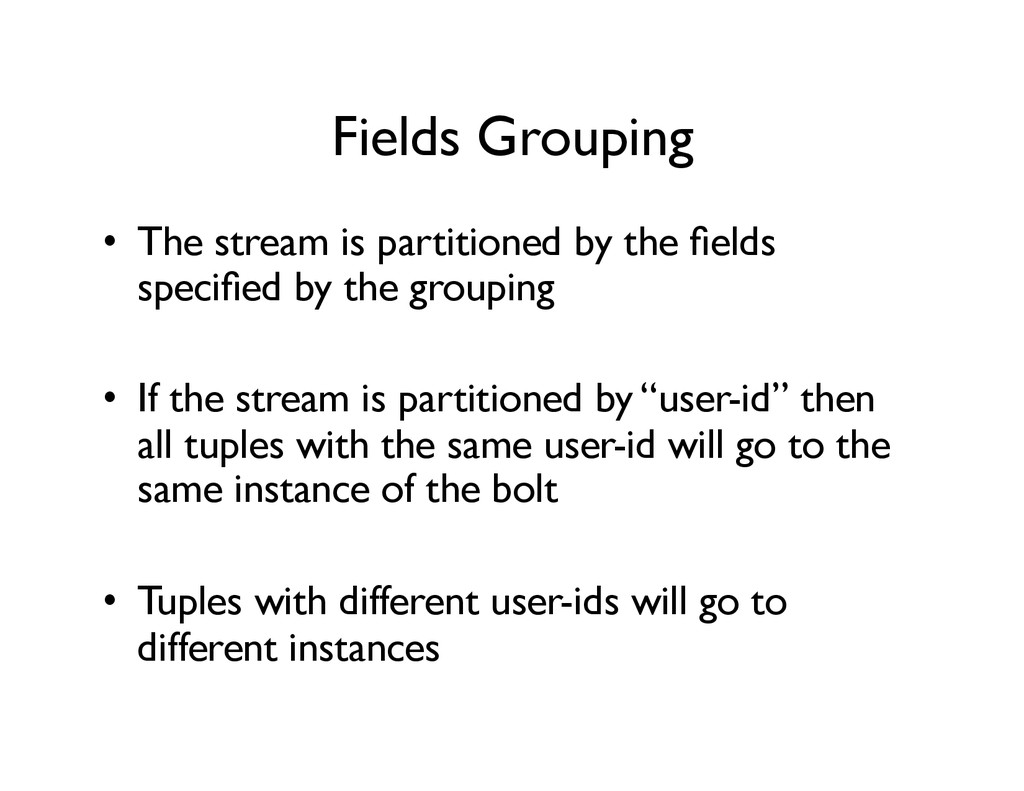

19. Fields Grouping •  The stream is partitioned by the fields specified by the grouping •  If the stream is partitioned by “user-id” then all tuples with the same user-id will go to the same instance of the bolt •  Tuples with different user-ids will go to different instances

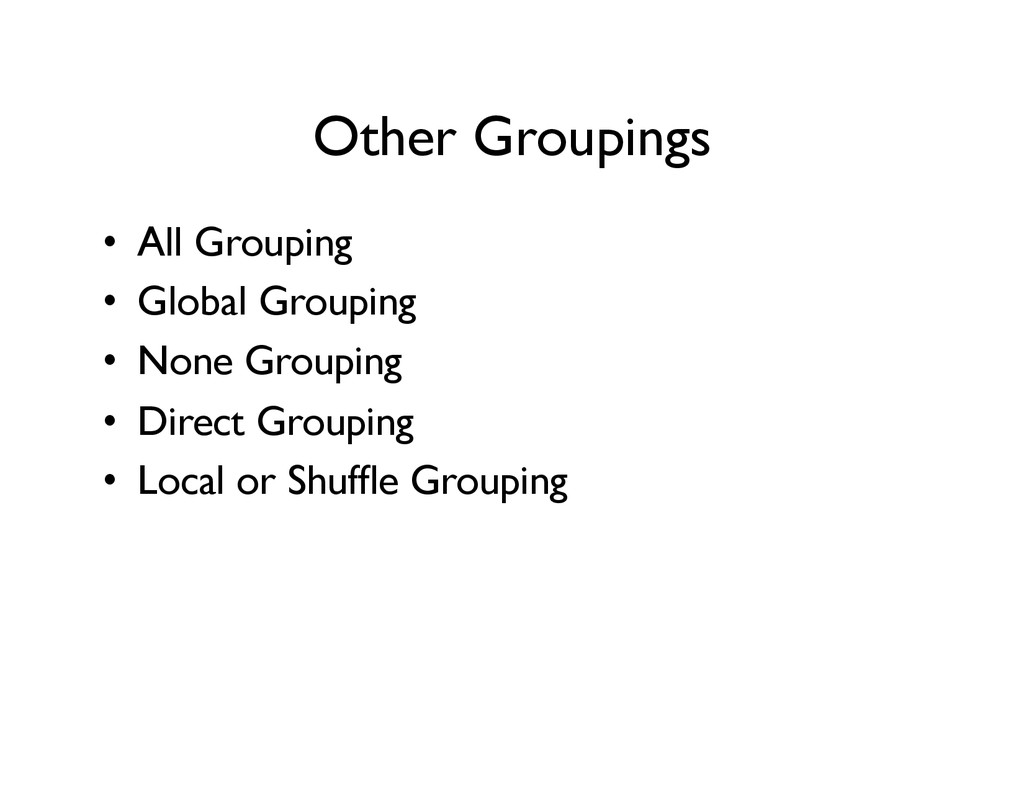

20. Other Groupings •  All Grouping •  Global Grouping •  None Grouping •  Direct Grouping •  Local or Shuffle Grouping

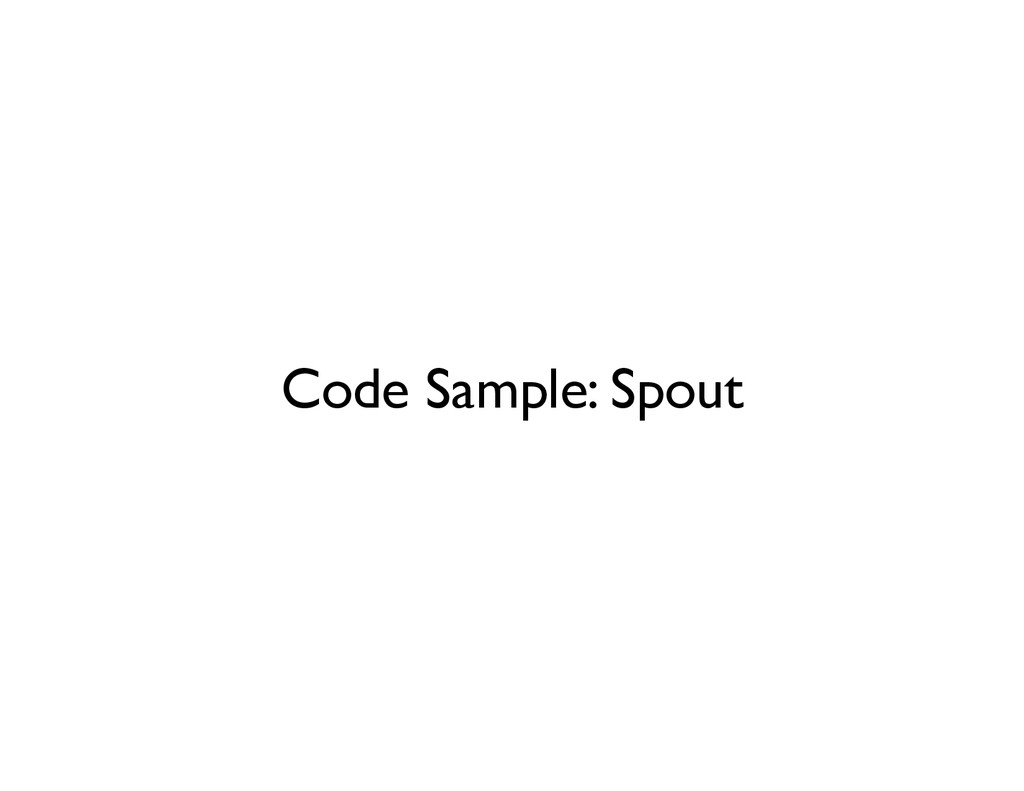

21. Code Sample: Spout

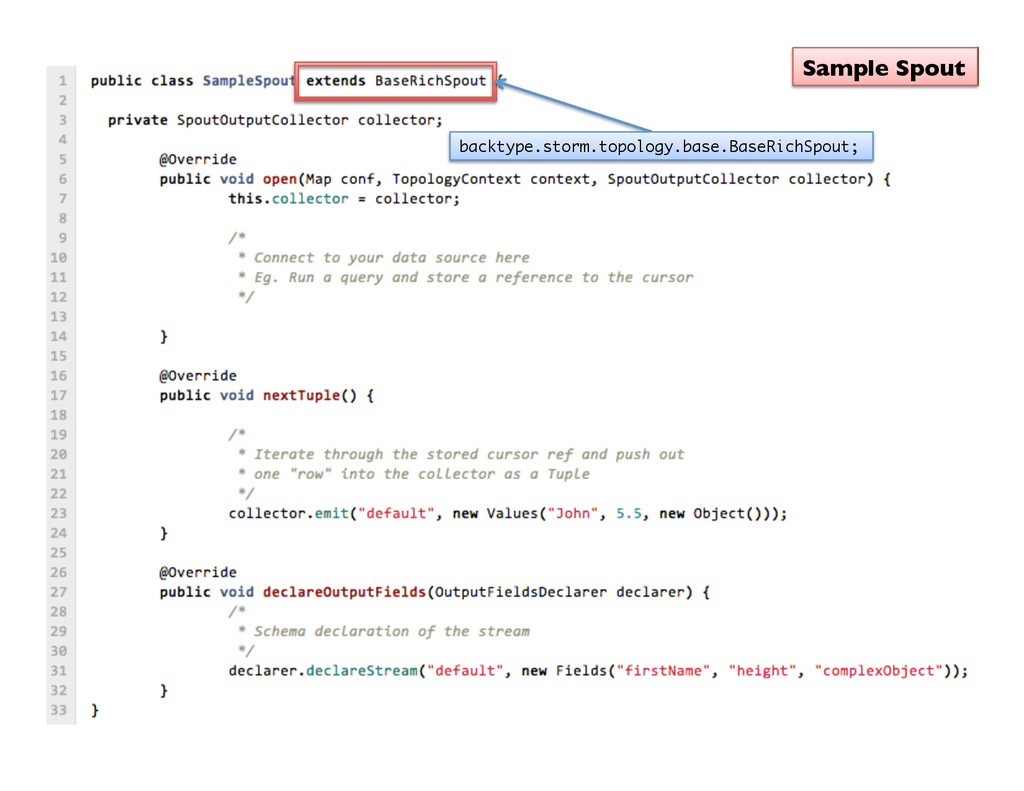

22. backtype.storm.topology.base.BaseRichSpout; Sample Spout

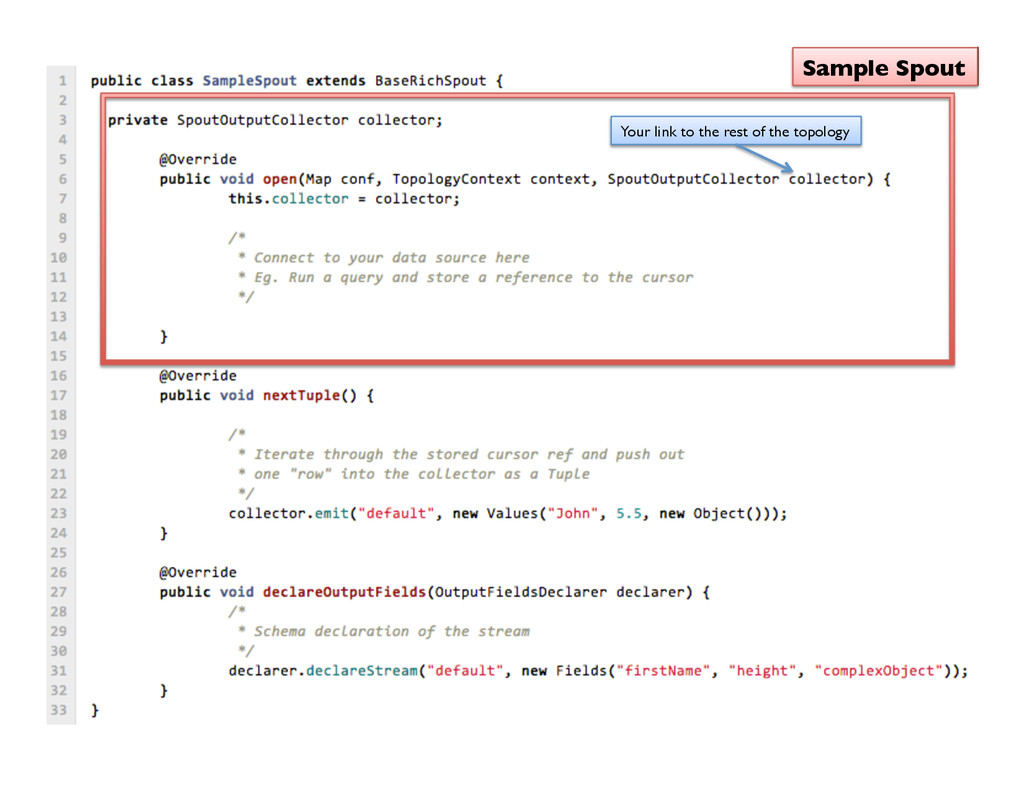

23. Your link to the rest of the topology Sample Spout

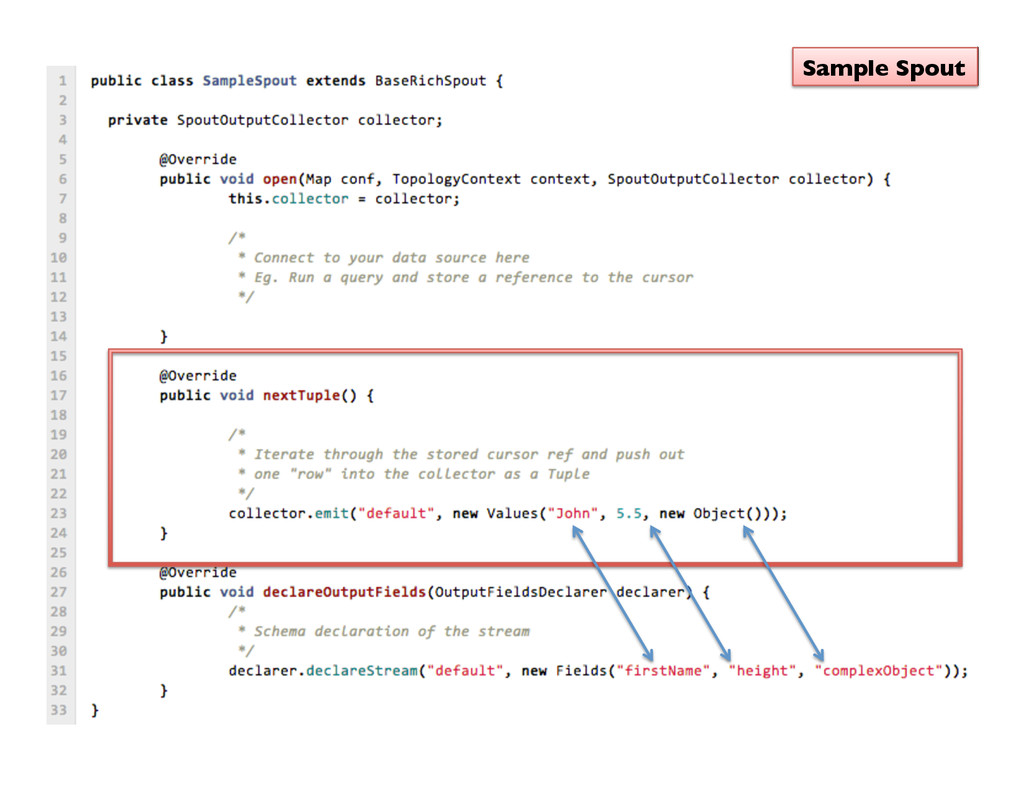

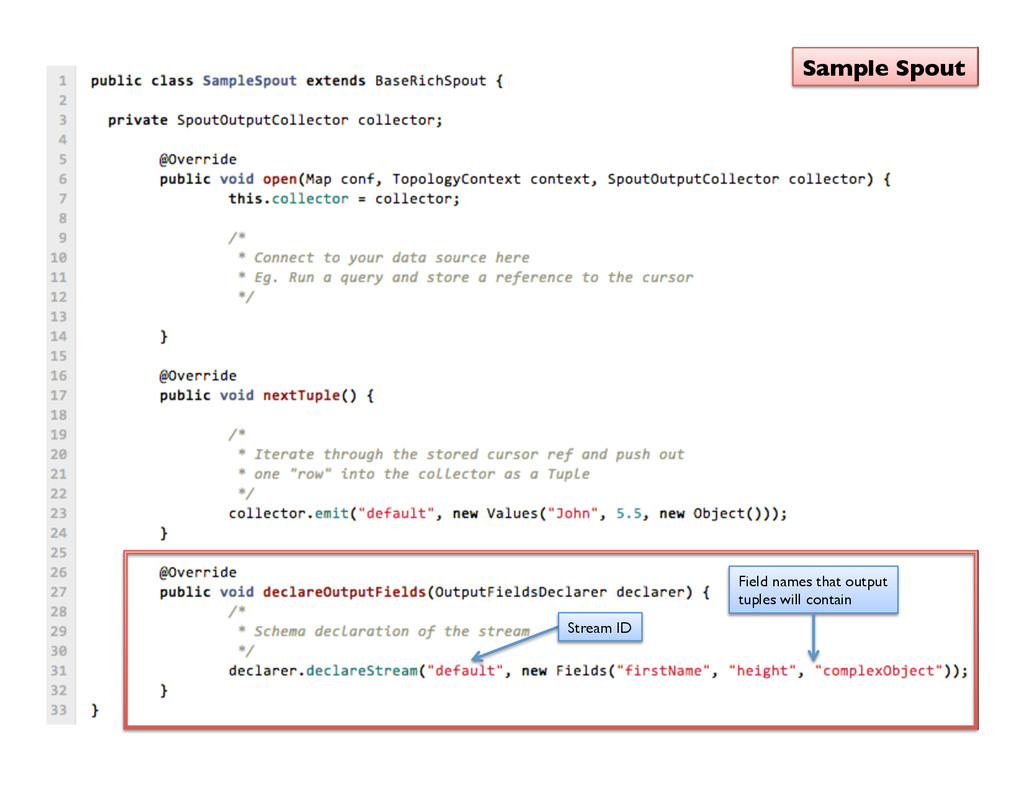

24. Stream ID Field names that output tuples will contain Sample Spout
25. Sample Spout
26. Code Sample: Bolt

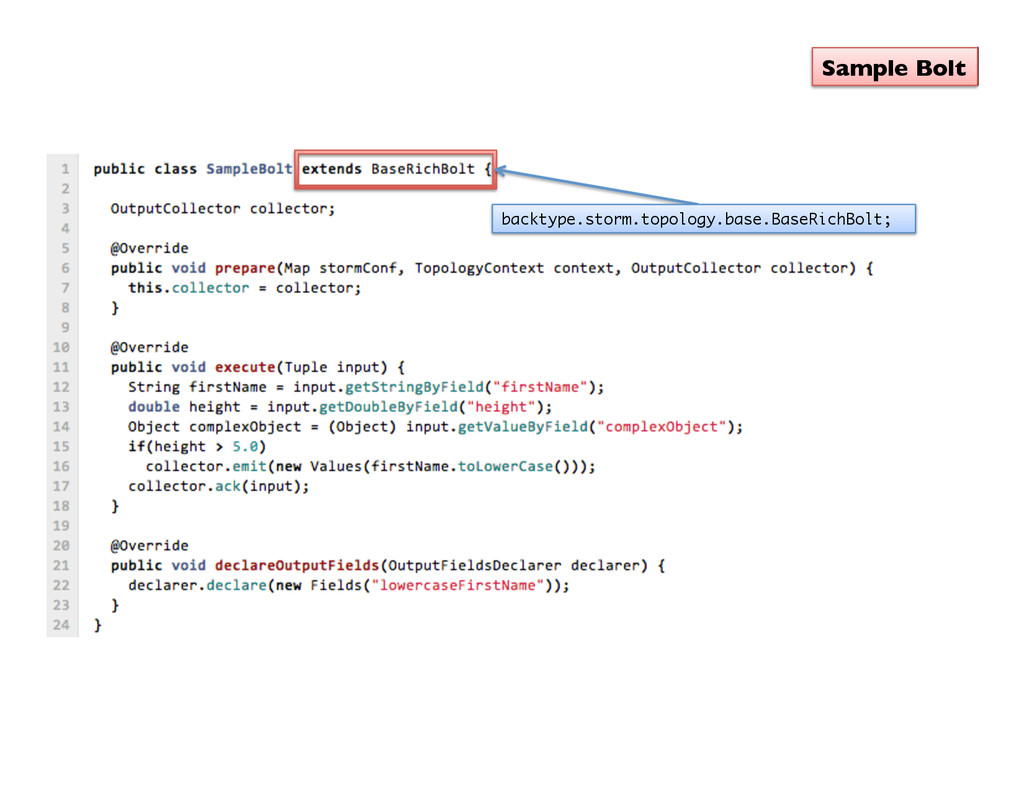

27. backtype.storm.topology.base.BaseRichBolt; Sample Bolt

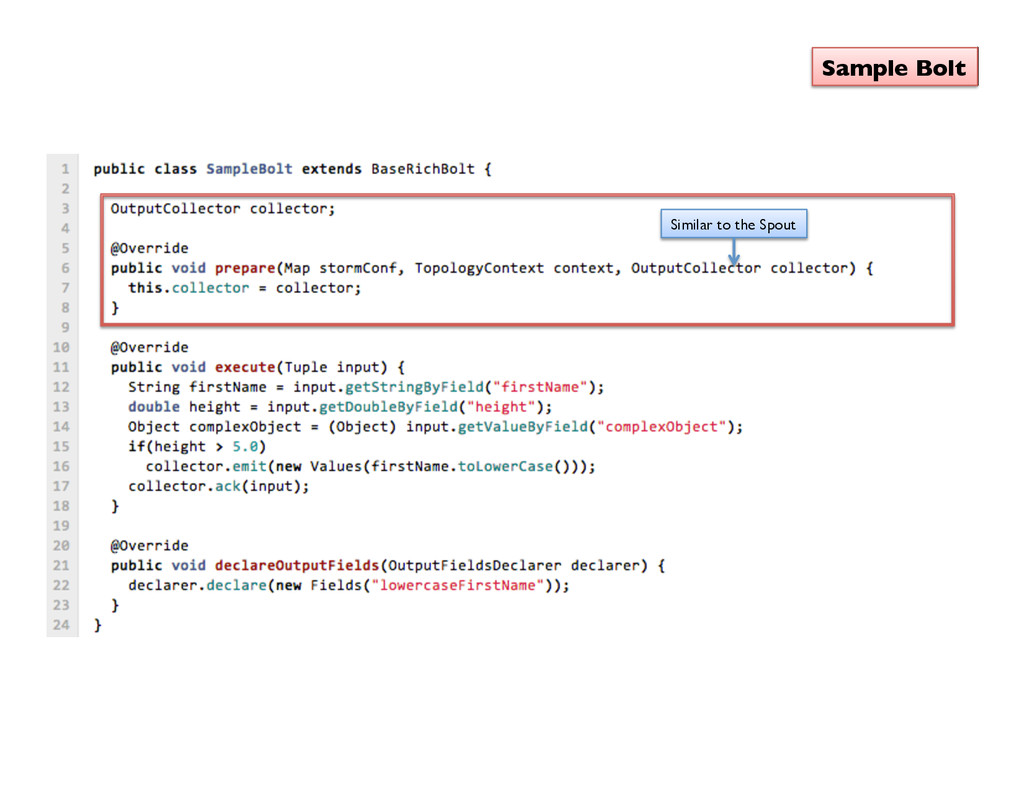

28. Similar to the Spout Sample Bolt

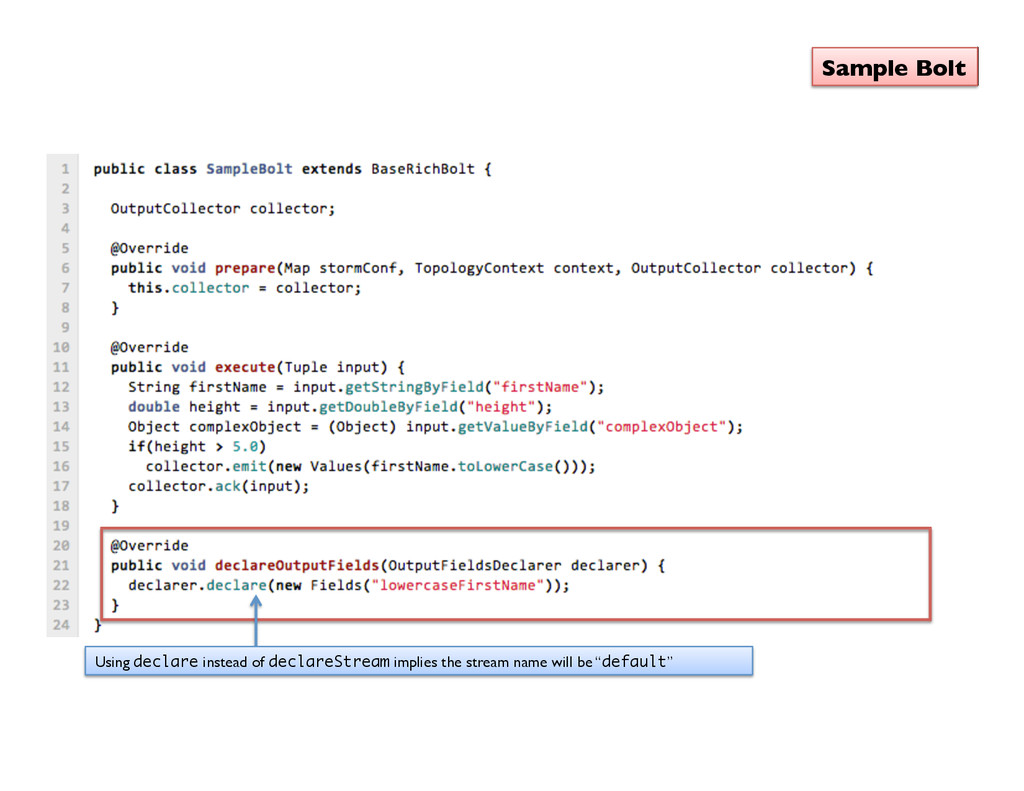

29. Using declare instead of declareStream implies the stream name will be “default” Sample Bolt

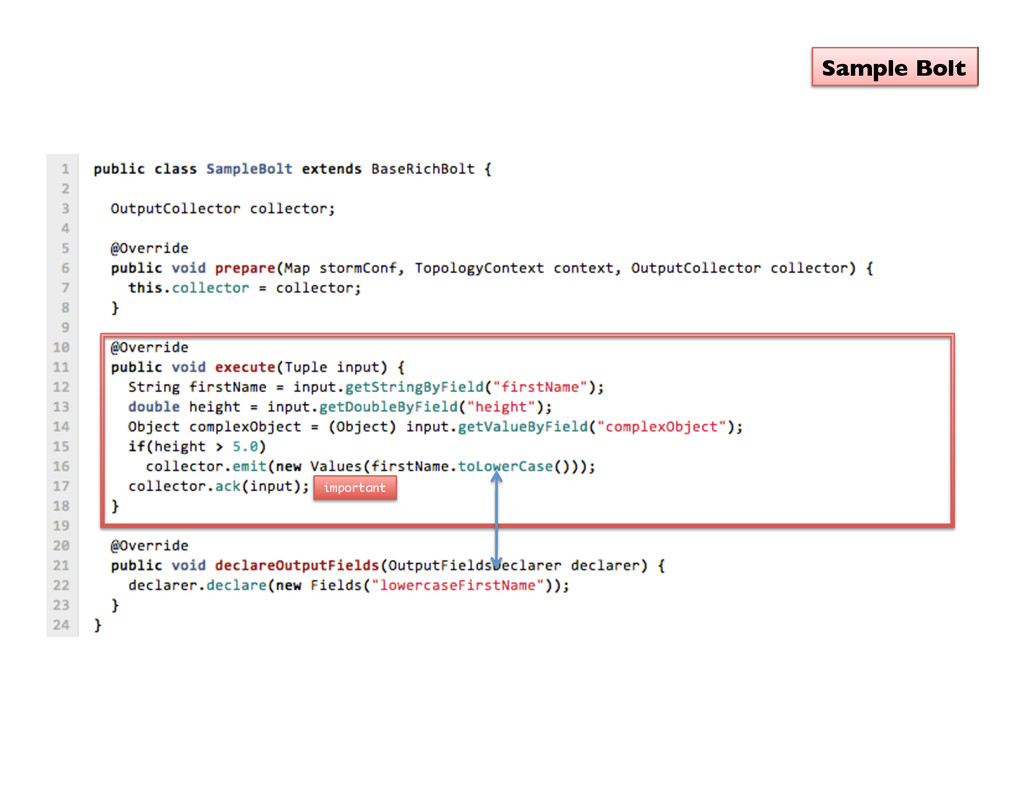

30. Sample Bolt important
31. Code Sample: Topology

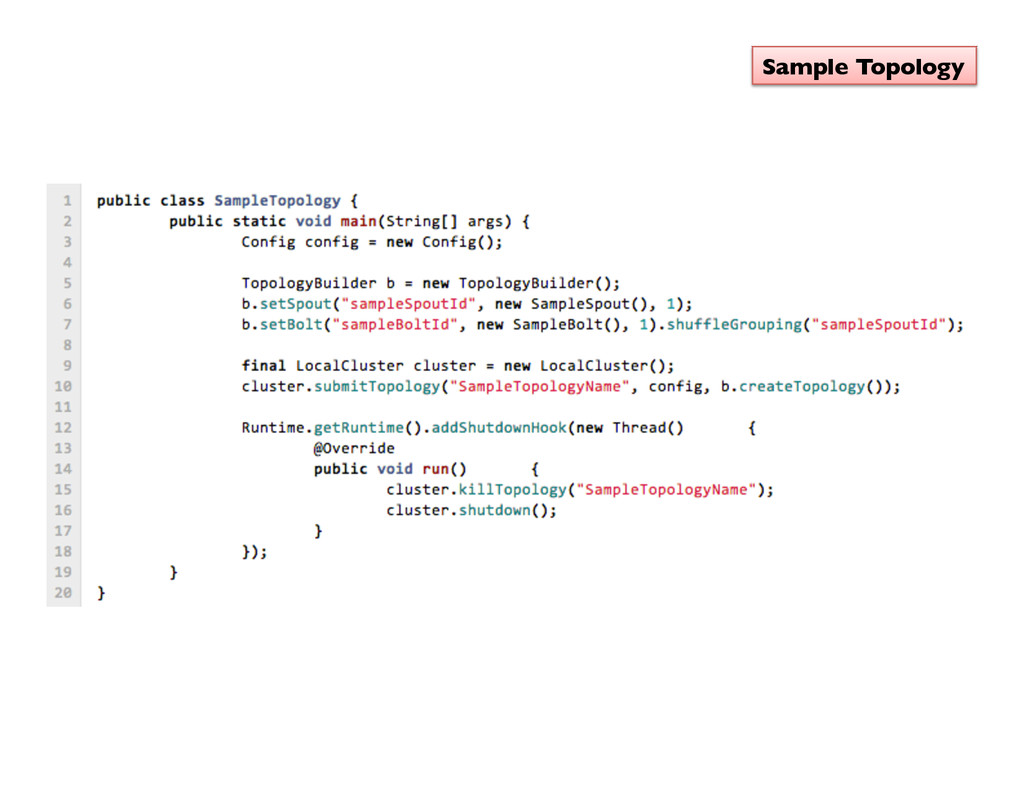

32. Sample Topology

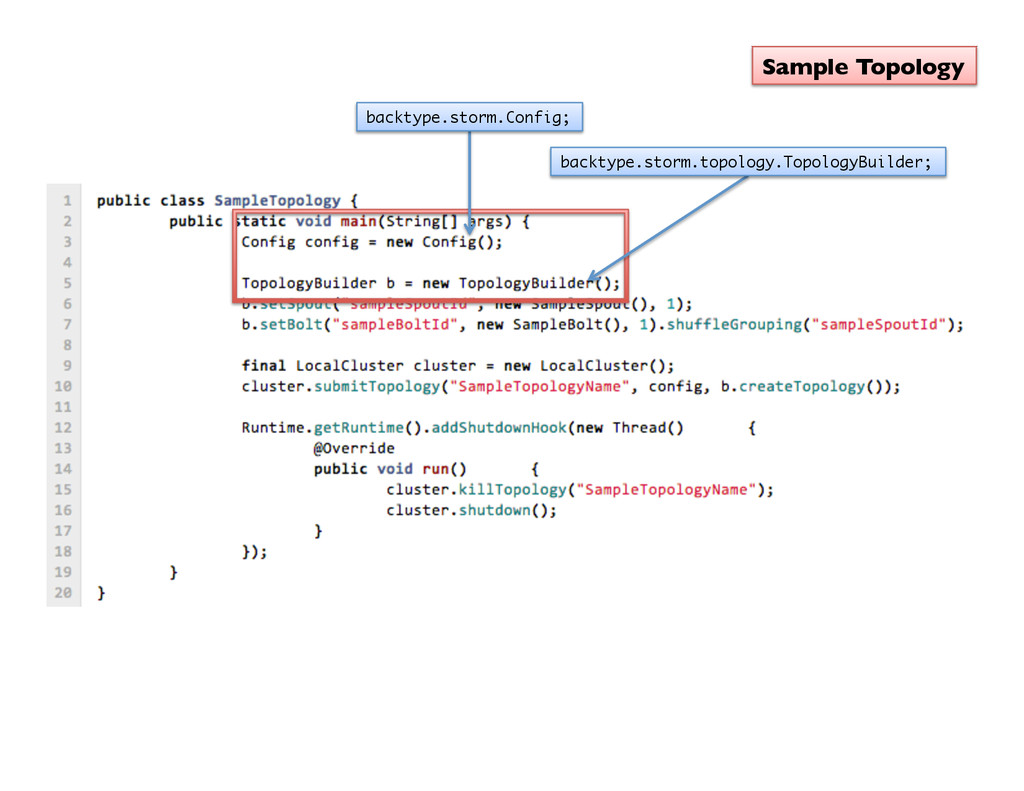

33. backtype.storm.Config; backtype.storm.topology.TopologyBuilder; Sample Topology

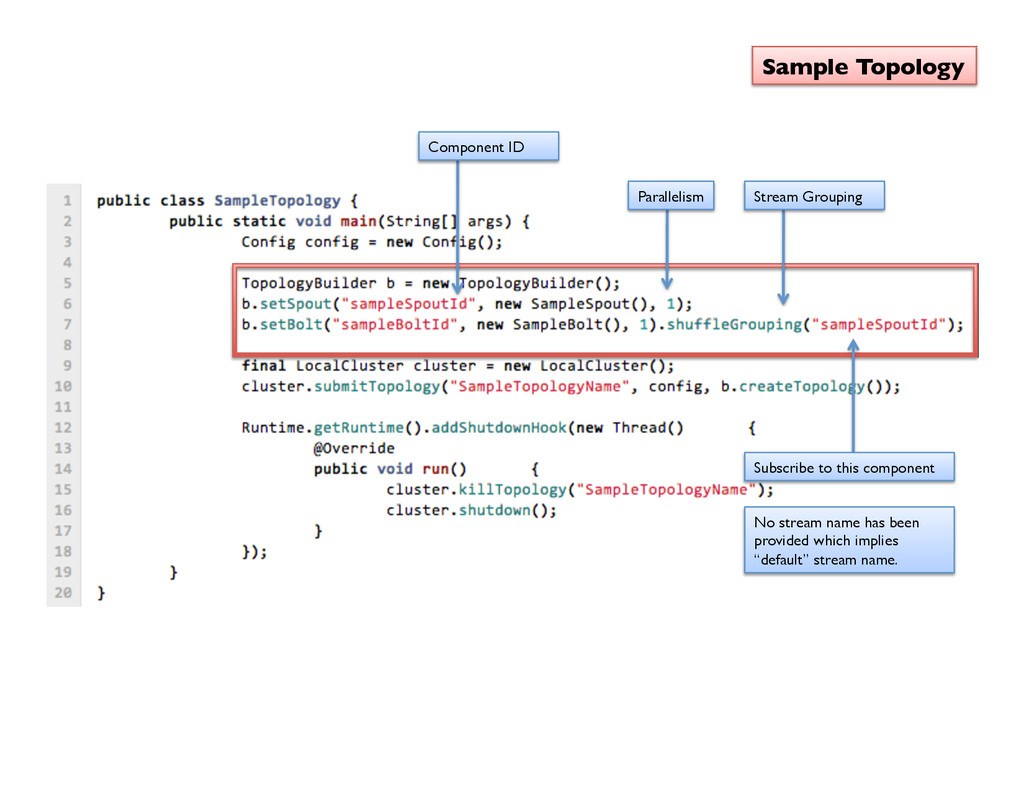

34. Parallelism Stream Grouping Subscribe to this component Component ID No stream name has been provided which implies “default” stream name. Sample Topology

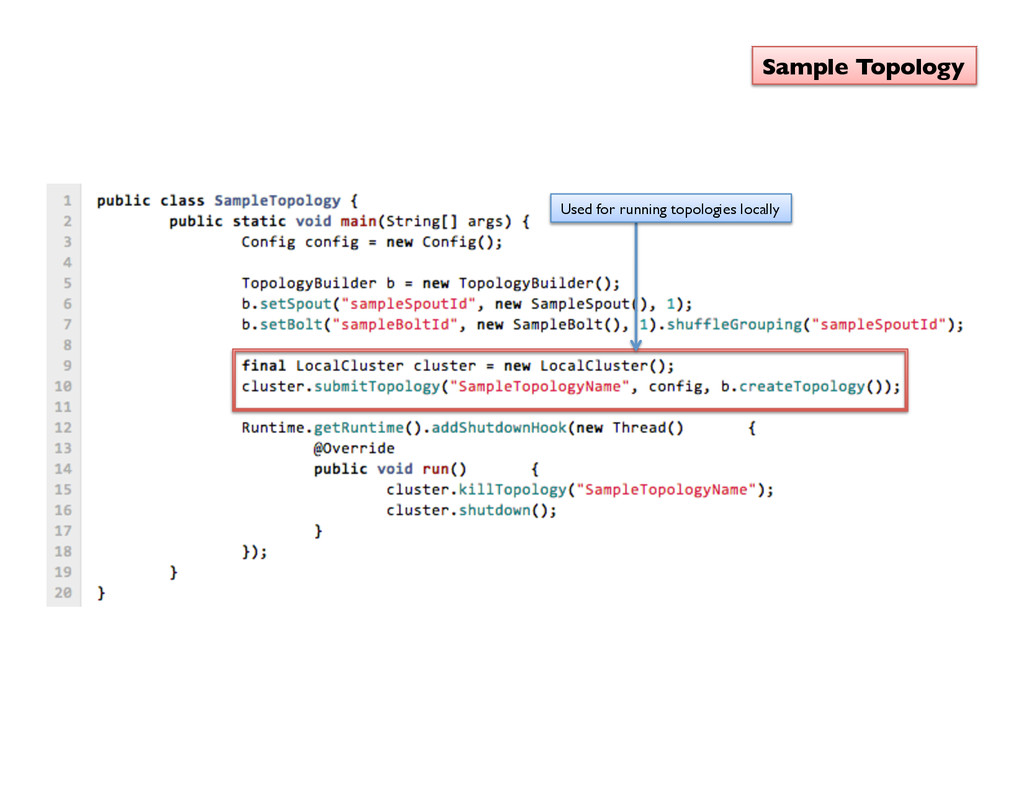

35. Used for running topologies locally Sample Topology
36. </storm101>

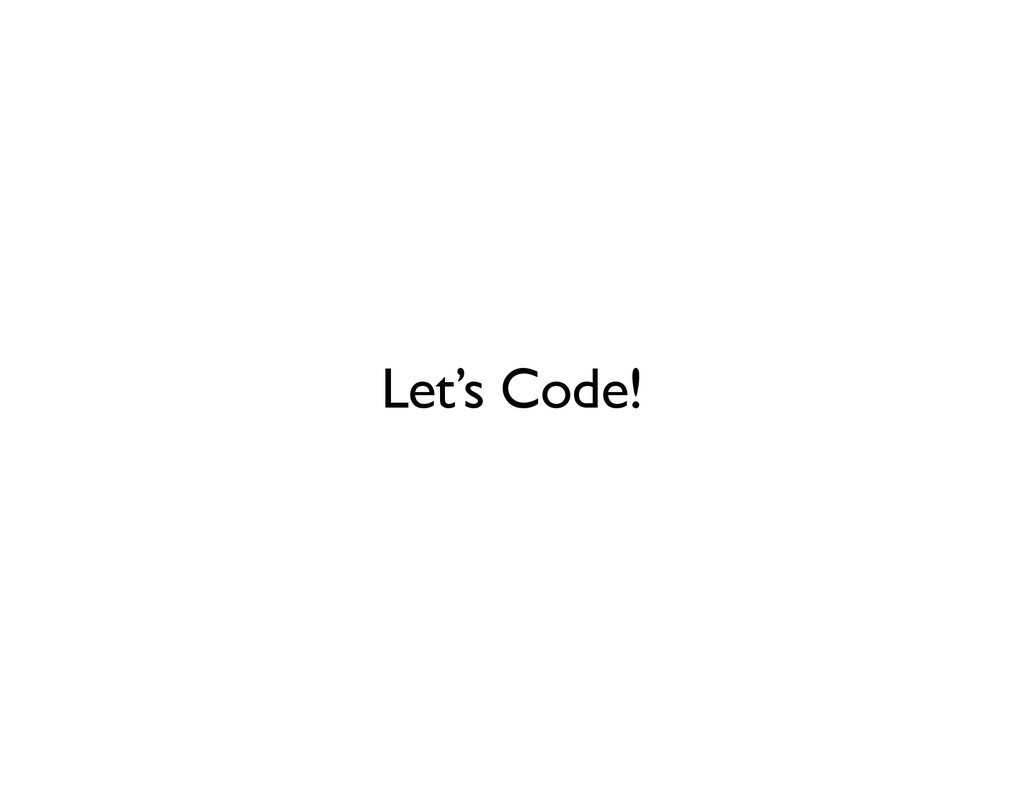

37. Let’s Code!

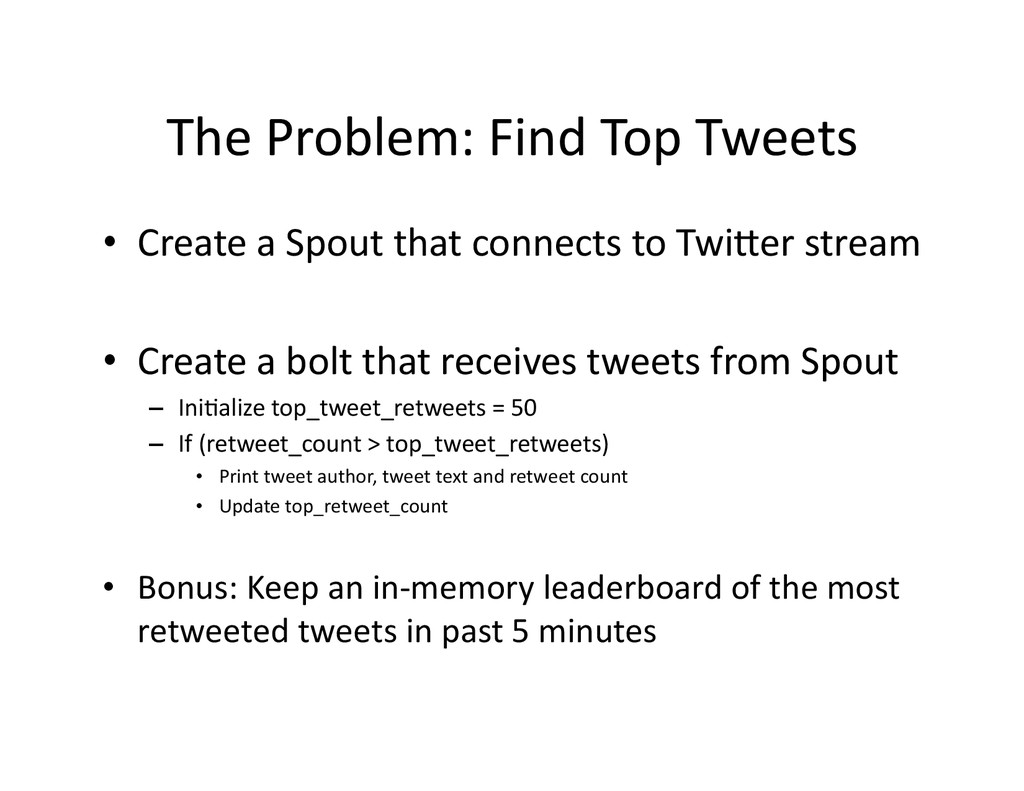

38. The  Problem:  Find  Top  Tweets   •  Create  a  Spout  that  connects  to  Twi*er  stream   •  Create  a  bolt  that  receives  tweets  from  Spout   –  IniJalize  top_tweet_retweets  =  50   –  If  (retweet_count  >  top_tweet_retweets)   •  Print  tweet  author,  tweet  text  and  retweet  count   •  Update  top_retweet_count   •  Bonus:  Keep  an  in-­‐memory  leaderboard  of  the  most   retweeted  tweets  in  past  5  minutes

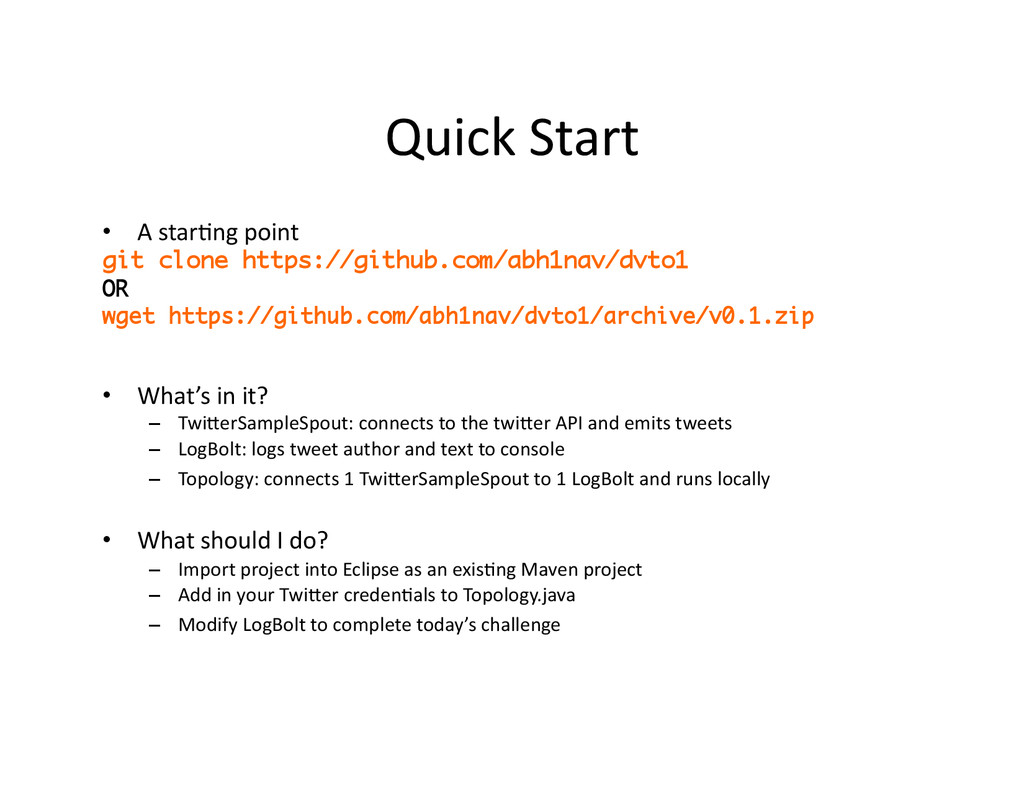

39. Quick  Start   •  A  starJng  point   git clone https://github.com/abh1nav/dvto1 OR wget https://github.com/abh1nav/dvto1/archive/v0.1.zip •  What’s  in  it?   –  Twi*erSampleSpout:  connects  to  the  twi*er  API  and  emits  tweets   –  LogBolt:  logs  tweet  author  and  text  to  console   –  Topology:  connects  1  Twi*erSampleSpout  to  1  LogBolt  and  runs  locally     •  What  should  I  do?   –  Import  project  into  Eclipse  as  an  exisJng  Maven  project   –  Add  in  your  Twi*er  credenJals  to  Topology.java   –  Modify  LogBolt  to  complete  today’s  challenge
