This is the presentation for the talk on Onyx which I presented in Pune Data Conference 2019.

Transcript

1. Onyx Distributed Computation for the Cloud

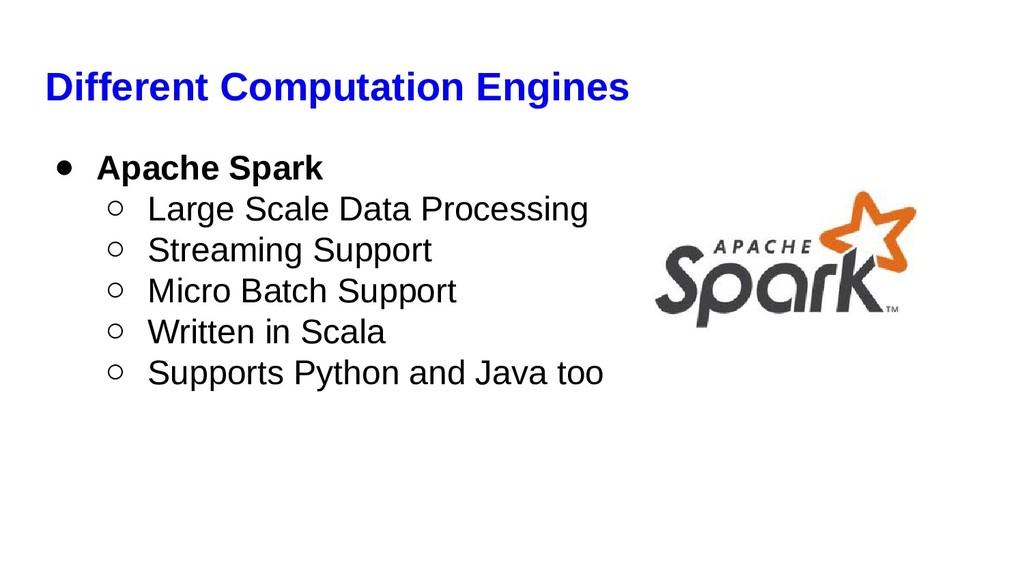

2. Different Computation Engines • Apache Spark ◦ Large Scale Data Processing ◦ Streaming Support ◦ Micro Batch Support ◦ Written in Scala ◦ Supports Python and Java too

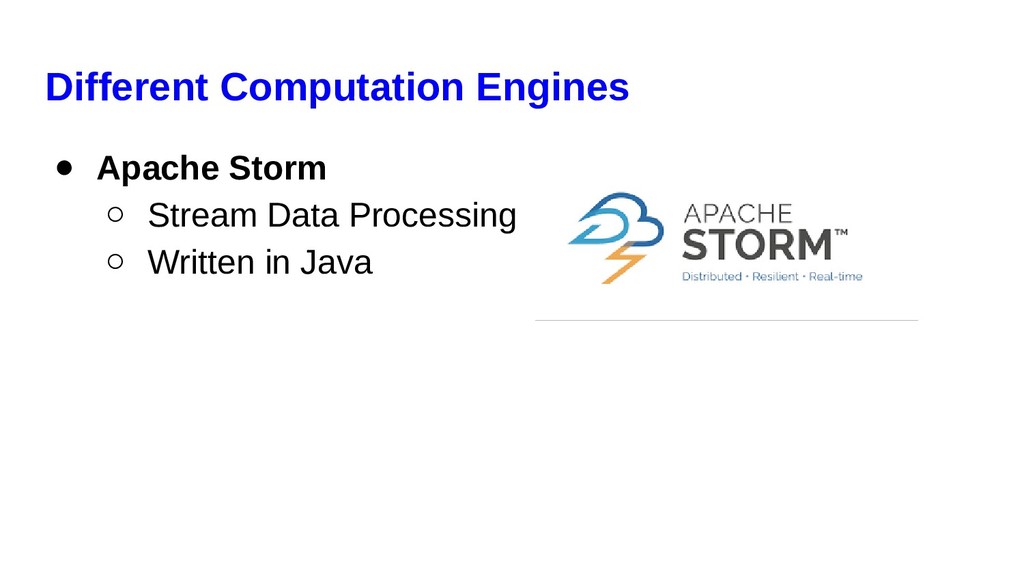

3. Different Computation Engines • Apache Storm ◦ Stream Data Processing ◦ Written in Java

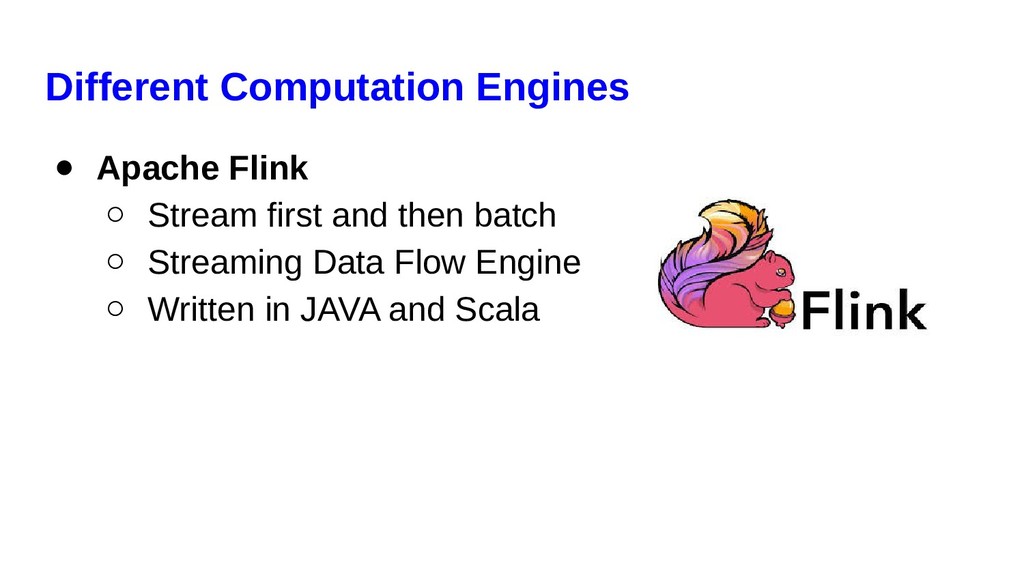

4. Different Computation Engines • Apache Flink ◦ Stream first and then batch ◦ Streaming Data Flow Engine ◦ Written in JAVA and Scala

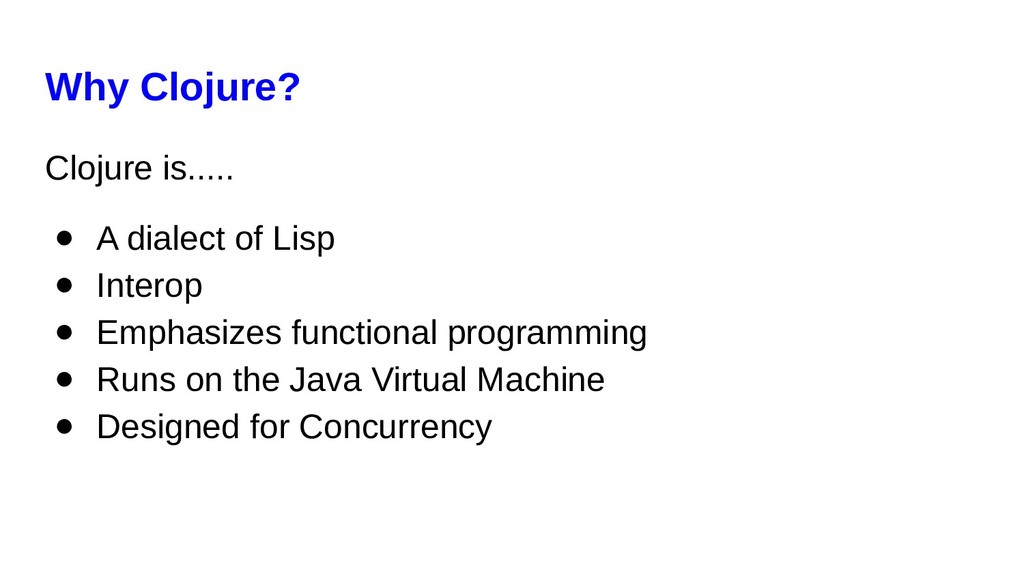

5. Why Clojure? Clojure is..... • A dialect of Lisp • Interop • Emphasizes functional programming • Runs on the Java Virtual Machine • Designed for Concurrency

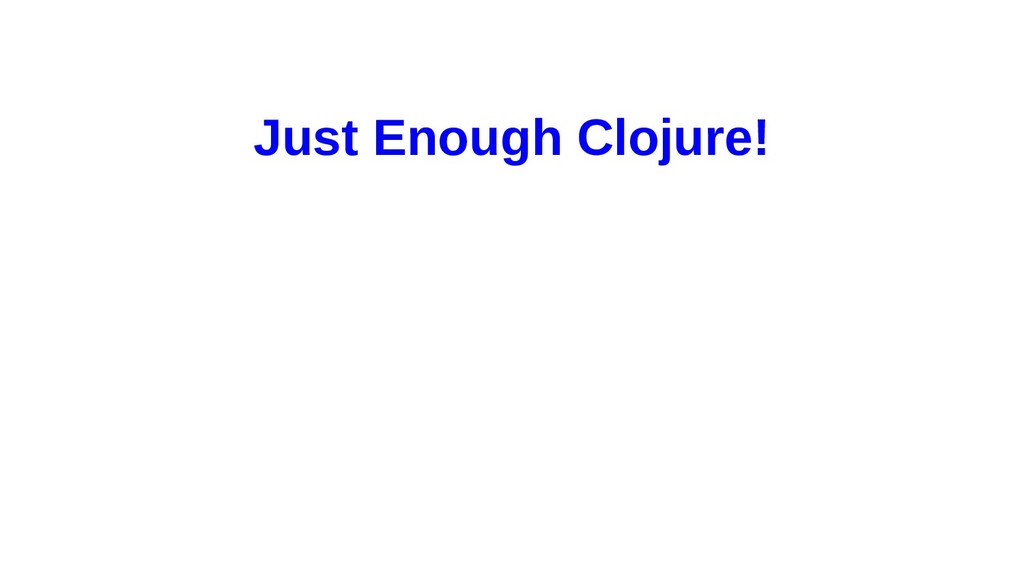

6. Just Enough Clojure!

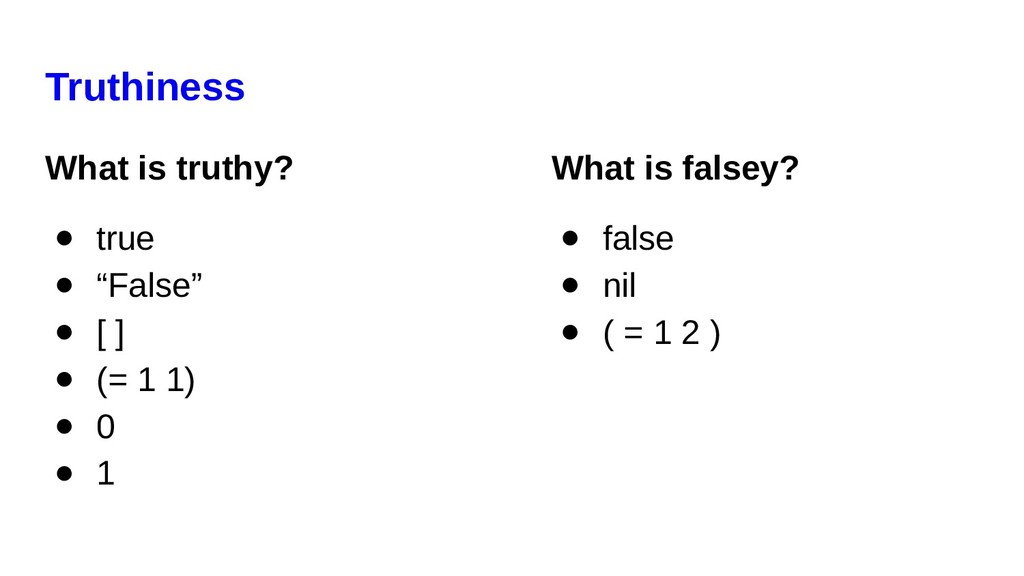

7. Truthiness What is truthy? • true • “False” • [ ] • (= 1 1) • 0 • 1 What is falsey? • false • nil • ( = 1 2 )

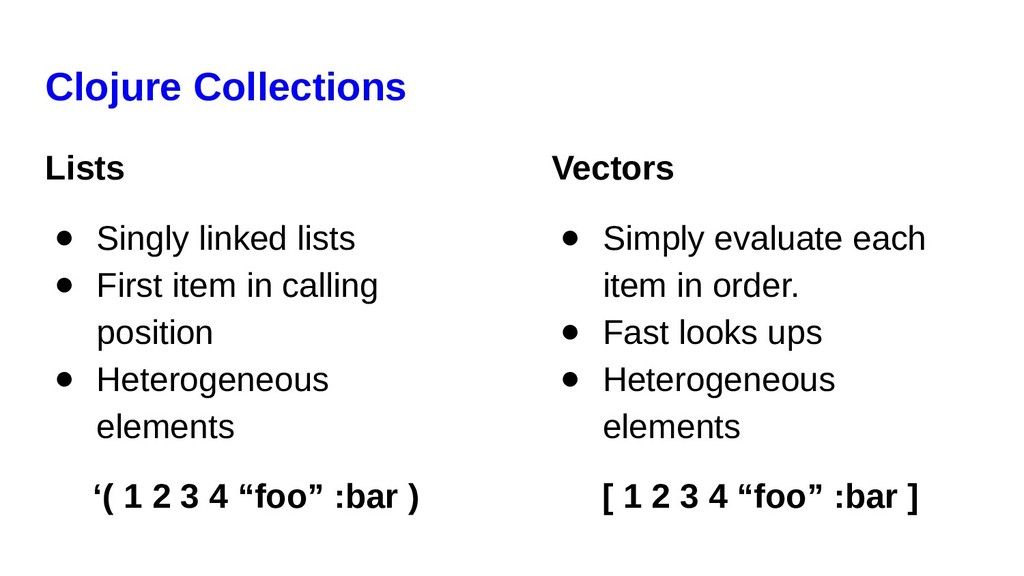

8. Clojure Collections Lists • Singly linked lists • First item in calling position • Heterogeneous elements ‘( 1 2 3 4 “foo” :bar ) Vectors • Simply evaluate each item in order. • Fast looks ups • Heterogeneous elements [ 1 2 3 4 “foo” :bar ]

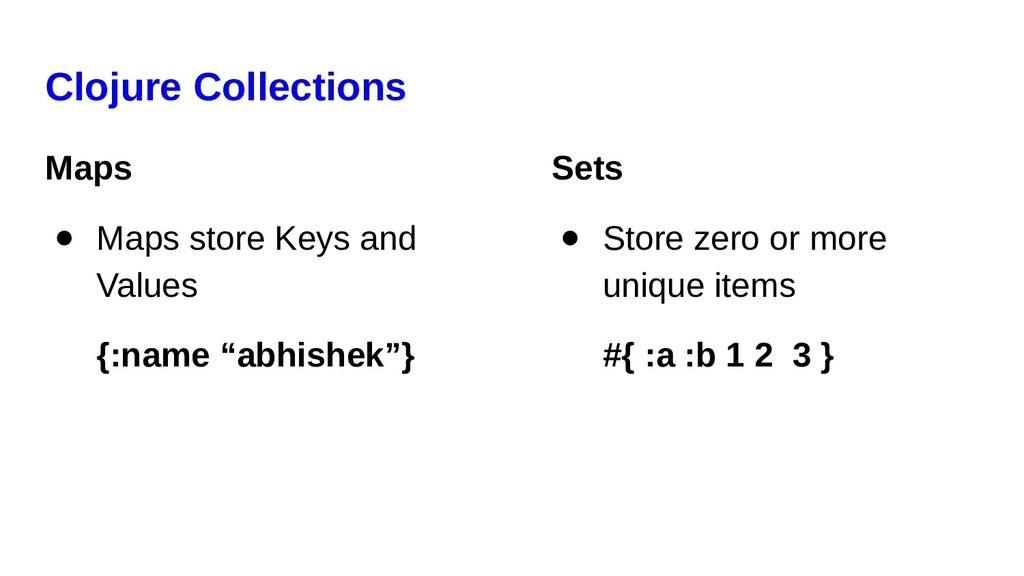

9. Clojure Collections Maps • Maps store Keys and Values {:name “abhishek”} Sets • Store zero or more unique items #{ :a :b 1 2 3 }

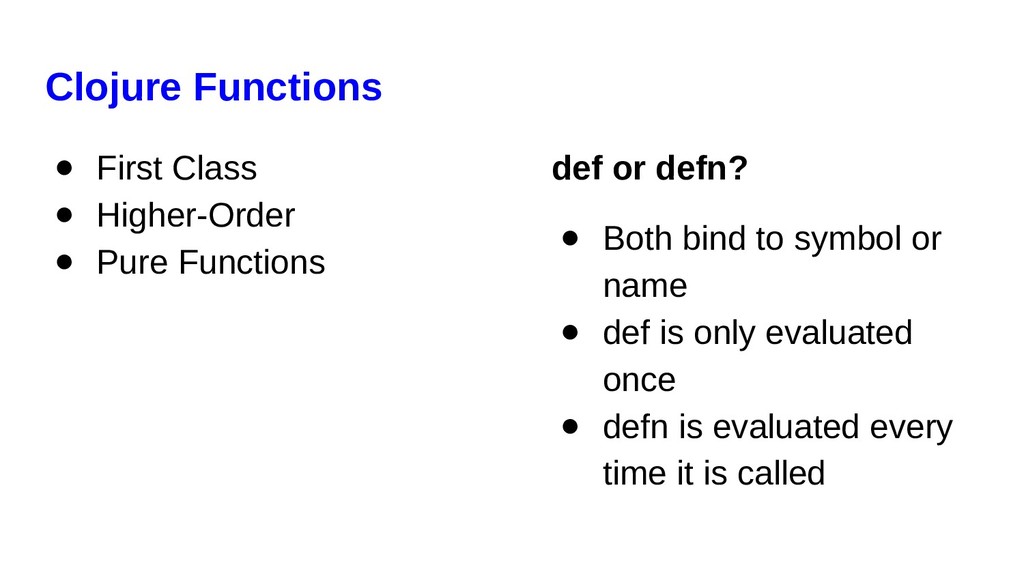

10. Clojure Functions • First Class • Higher-Order • Pure Functions def or defn? • Both bind to symbol or name • def is only evaluated once • defn is evaluated every time it is called
11. Hello Onyx!

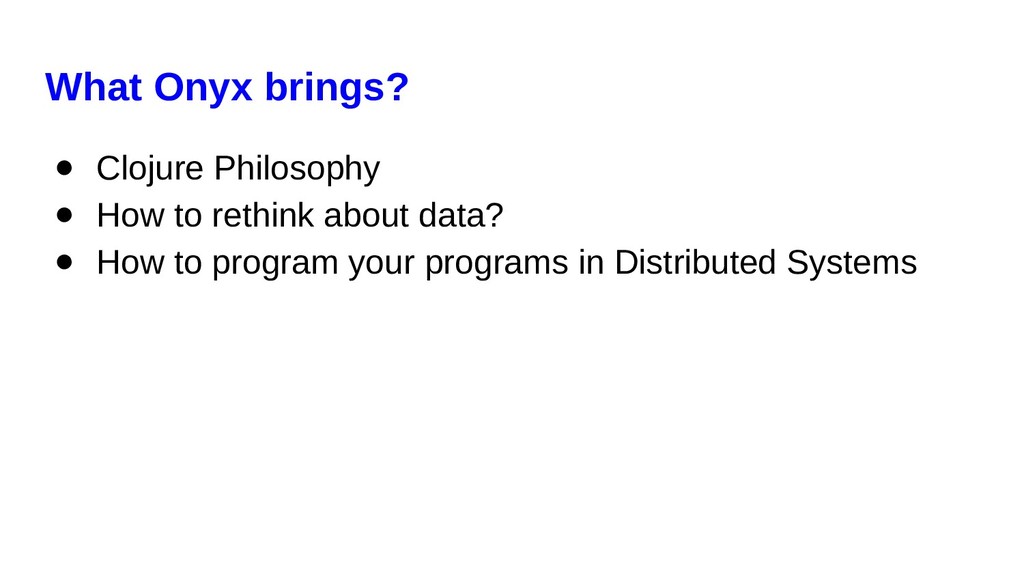

12. What Onyx brings? • Clojure Philosophy • How to rethink about data? • How to program your programs in Distributed Systems

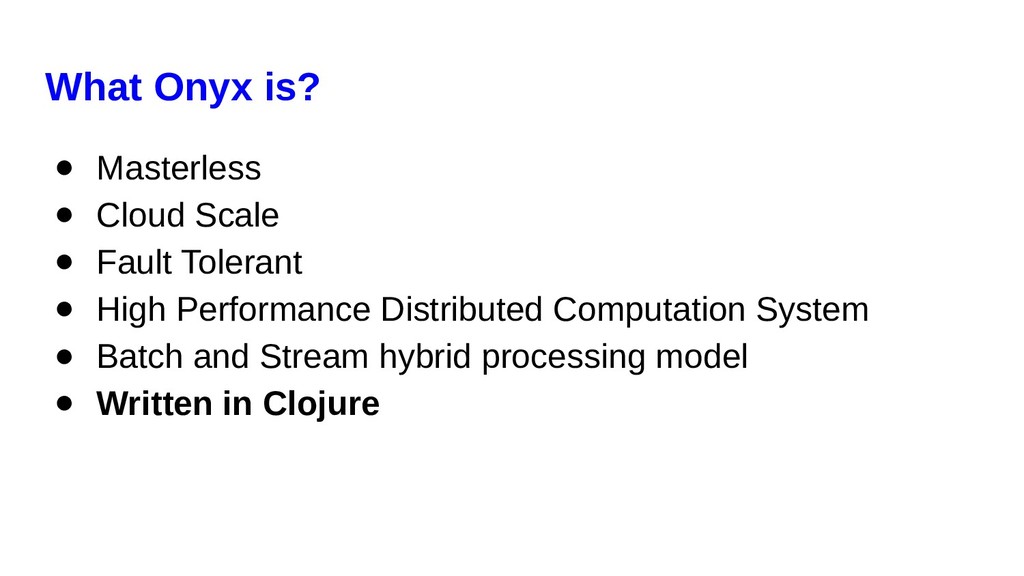

13. What Onyx is? • Masterless • Cloud Scale • Fault Tolerant • High Performance Distributed Computation System • Batch and Stream hybrid processing model • Written in Clojure

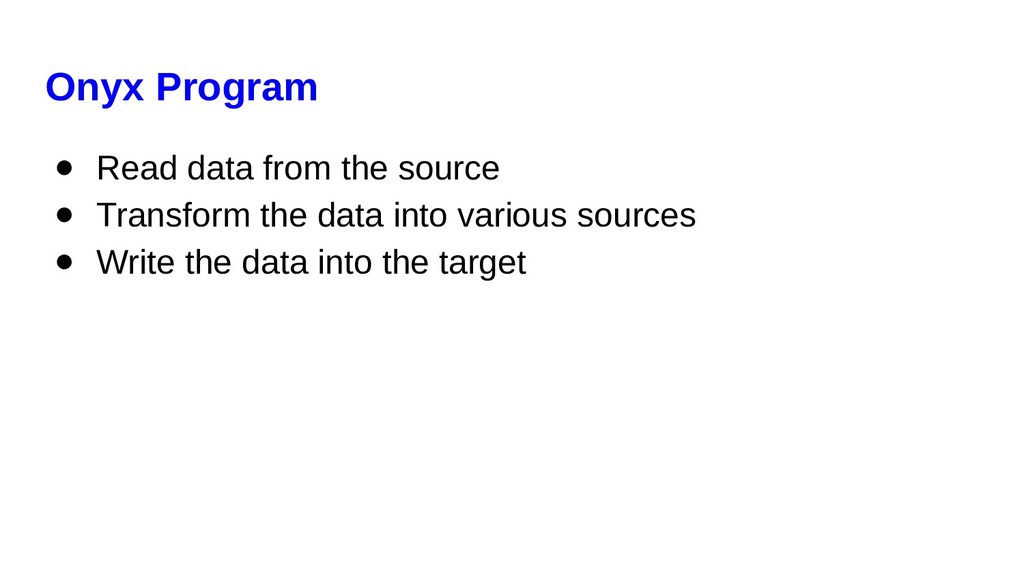

14. Onyx Program • Read data from the source • Transform the data into various sources • Write the data into the target

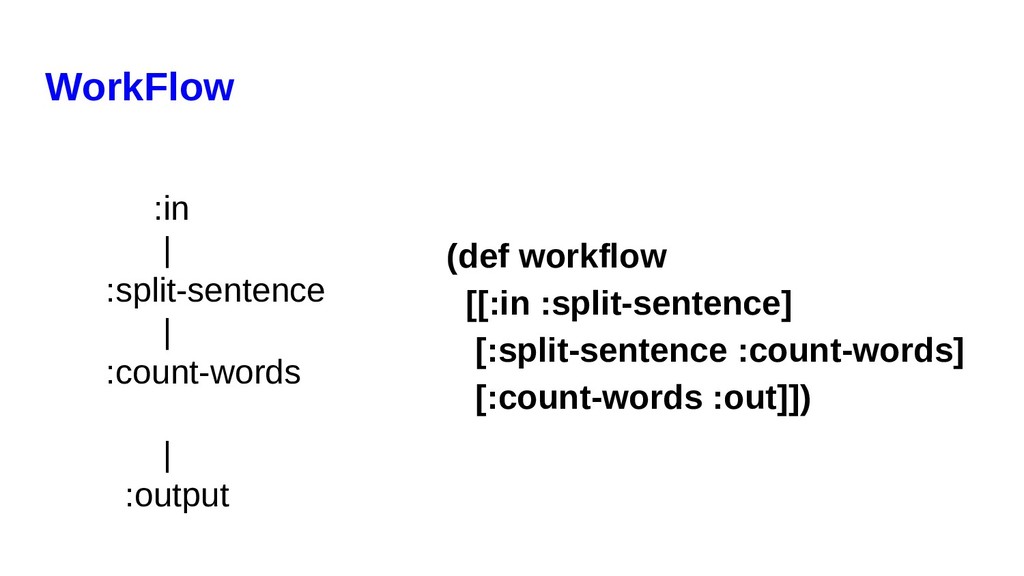

15. WorkFlow :in | :split-sentence | :count-words | :output (def workflow [[:in :split-sentence] [:split-sentence :count-words] [:count-words :out]])

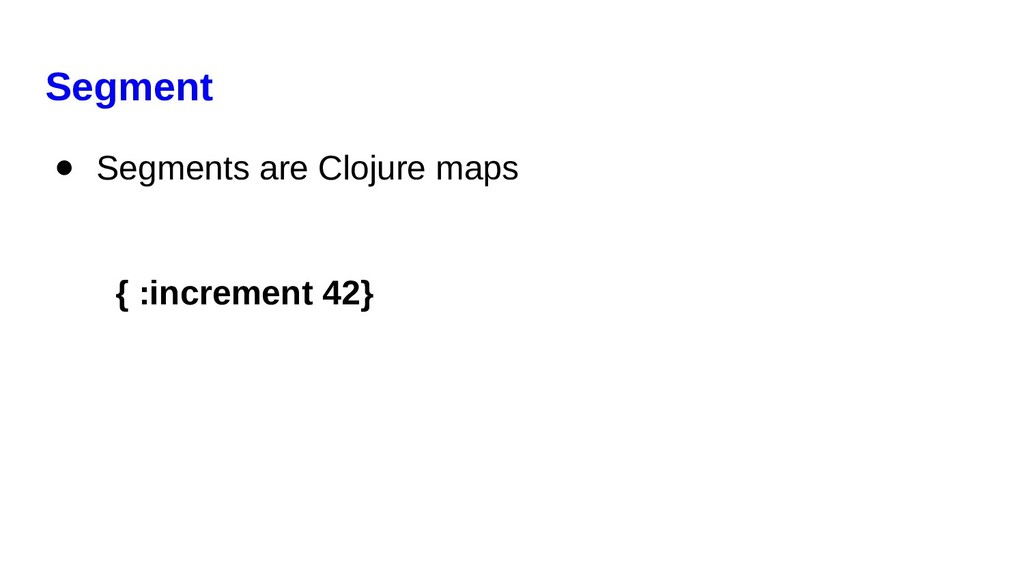

16. Segment • Segments are Clojure maps { :increment 42}

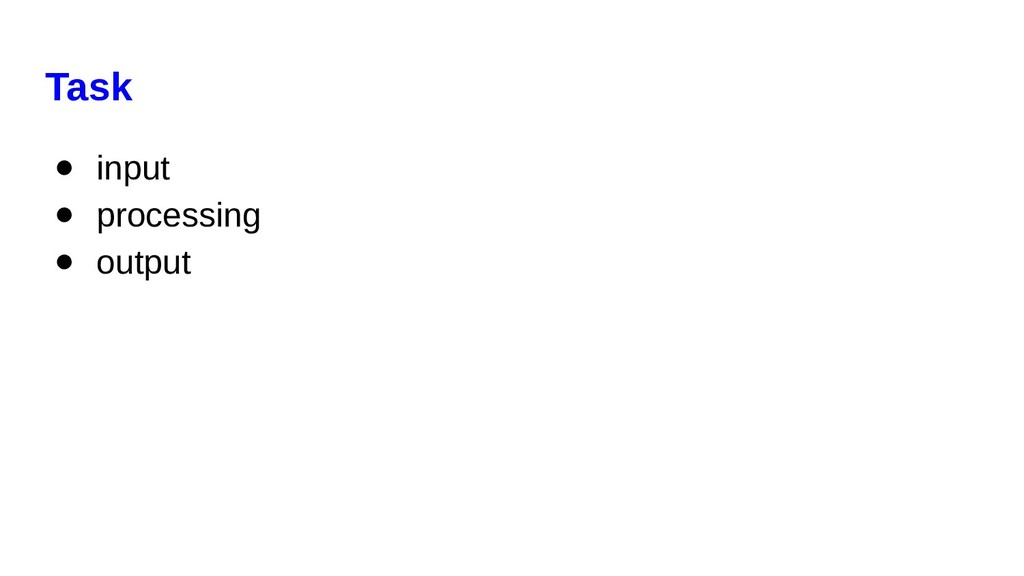

17. Task • input • processing • output

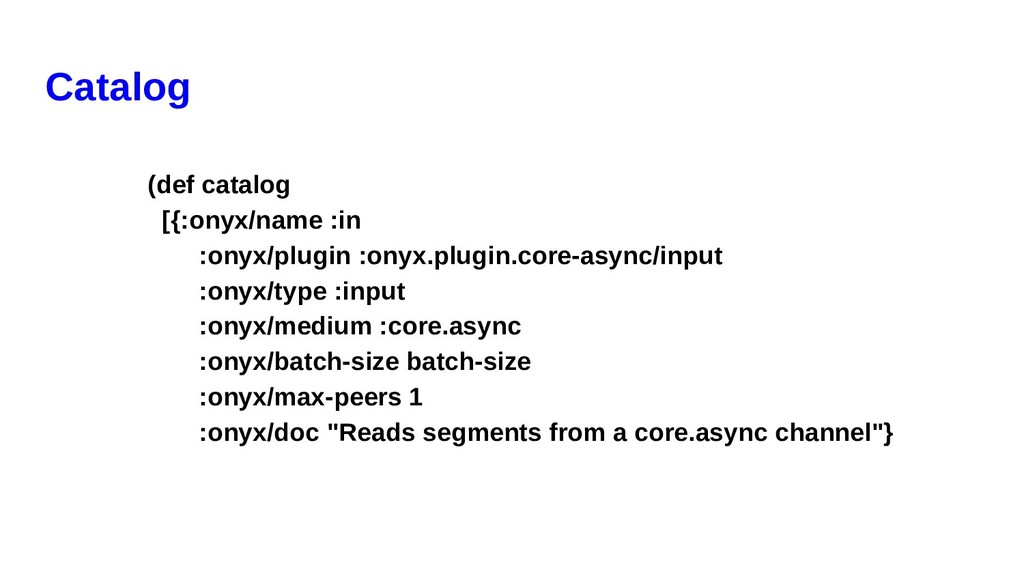

18. Catalog (def catalog [{:onyx/name :in :onyx/plugin :onyx.plugin.core-async/input :onyx/type :input :onyx/medium :core.async :onyx/batch-size batch-size :onyx/max-peers 1 :onyx/doc "Reads segments from a core.async channel"}

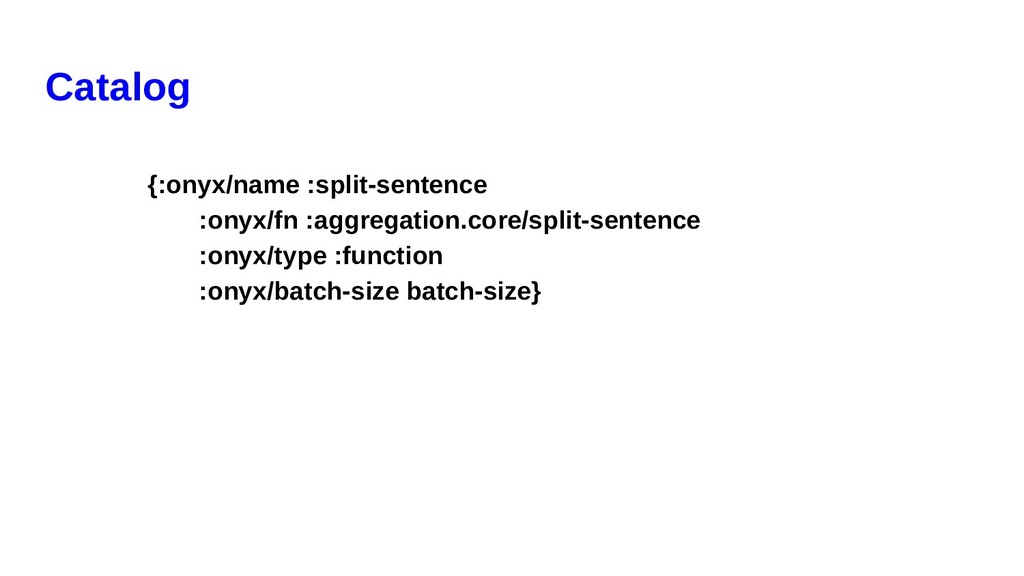

19. Catalog {:onyx/name :split-sentence :onyx/fn :aggregation.core/split-sentence :onyx/type :function :onyx/batch-size batch-size}

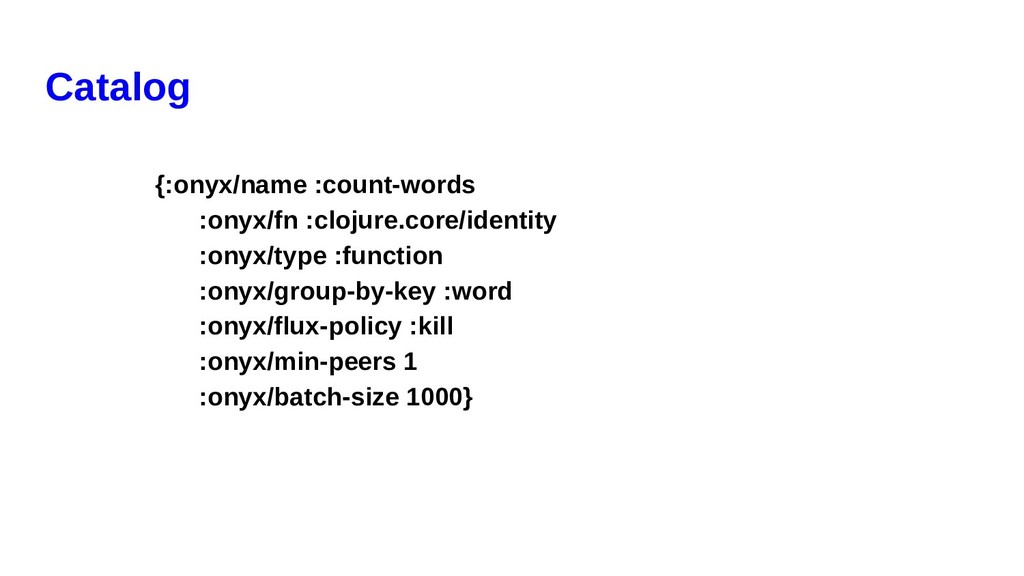

20. Catalog {:onyx/name :count-words :onyx/fn :clojure.core/identity :onyx/type :function :onyx/group-by-key :word :onyx/flux-policy :kill :onyx/min-peers 1 :onyx/batch-size 1000}

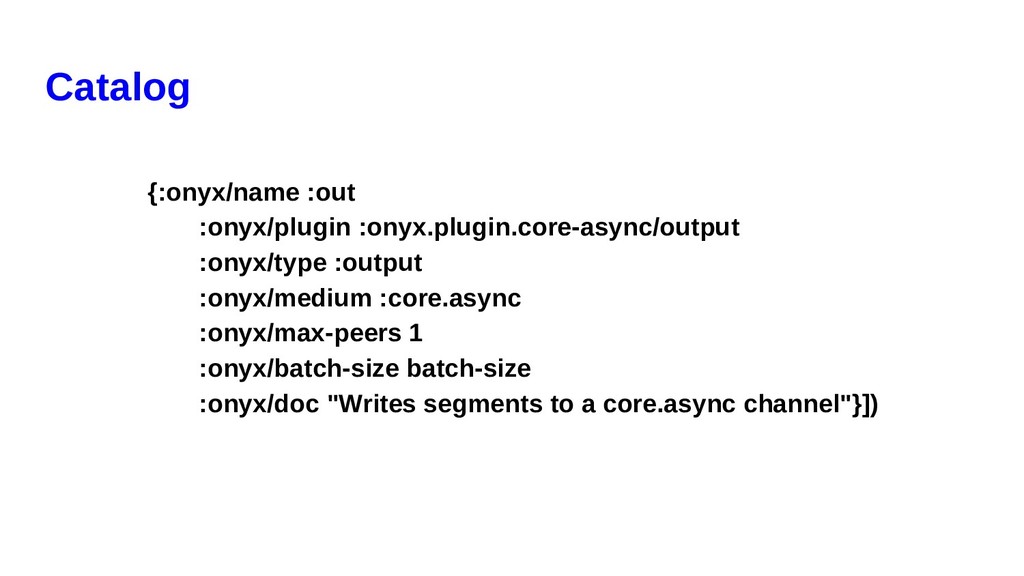

21. Catalog {:onyx/name :out :onyx/plugin :onyx.plugin.core-async/output :onyx/type :output :onyx/medium :core.async :onyx/max-peers 1 :onyx/batch-size batch-size :onyx/doc "Writes segments to a core.async channel"}])

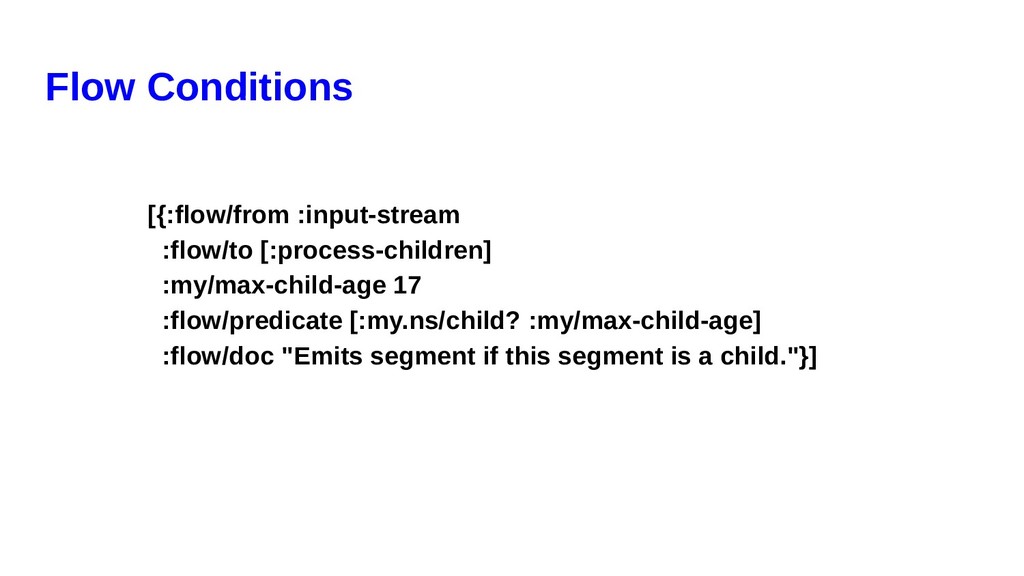

22. Flow Conditions [{:flow/from :input-stream :flow/to [:process-children] :my/max-child-age 17 :flow/predicate [:my.ns/child? :my/max-child-age] :flow/doc "Emits segment if this segment is a child."}]

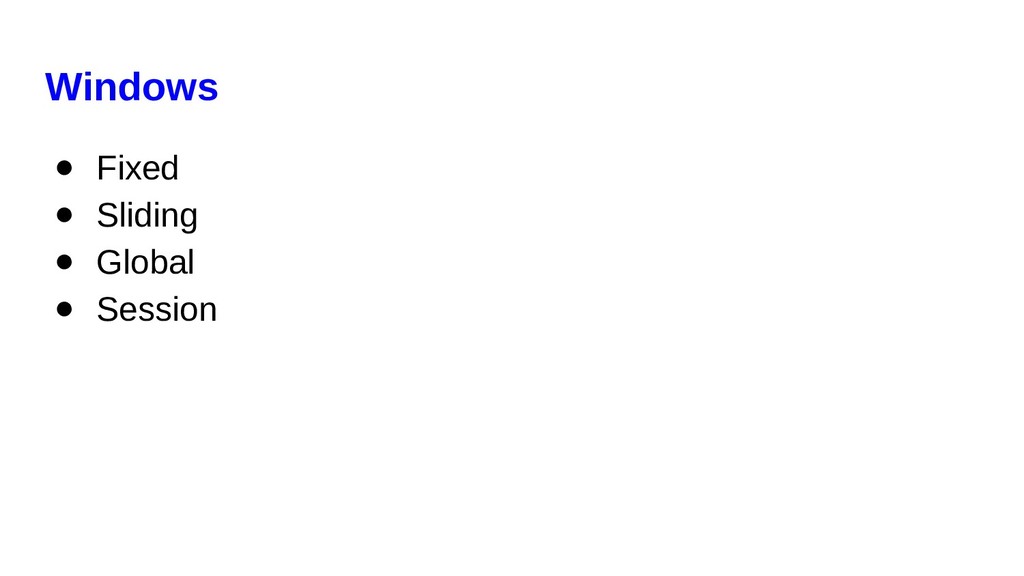

23. Windows • Fixed • Sliding • Global • Session

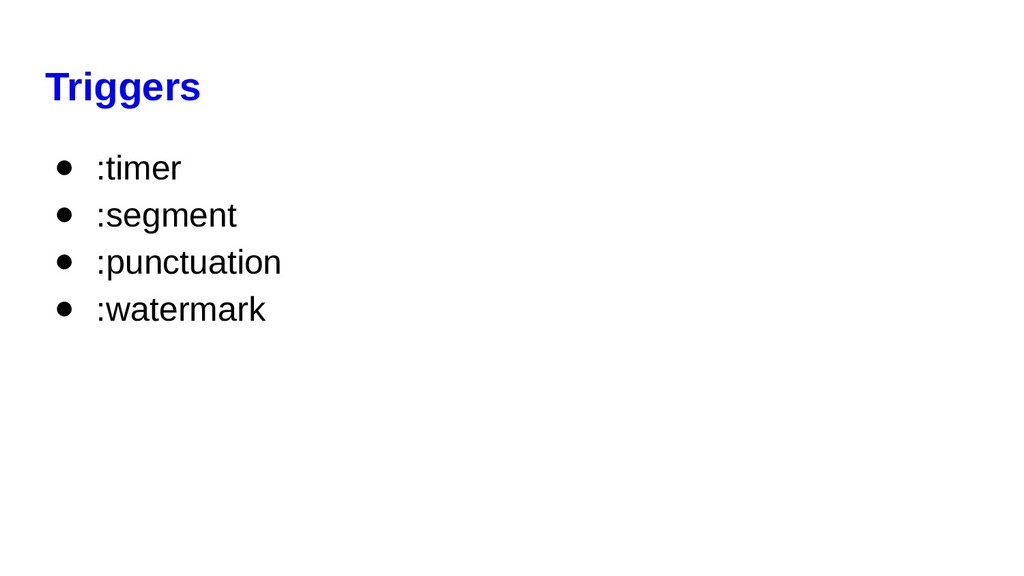

24. Triggers • :timer • :segment • :punctuation • :watermark

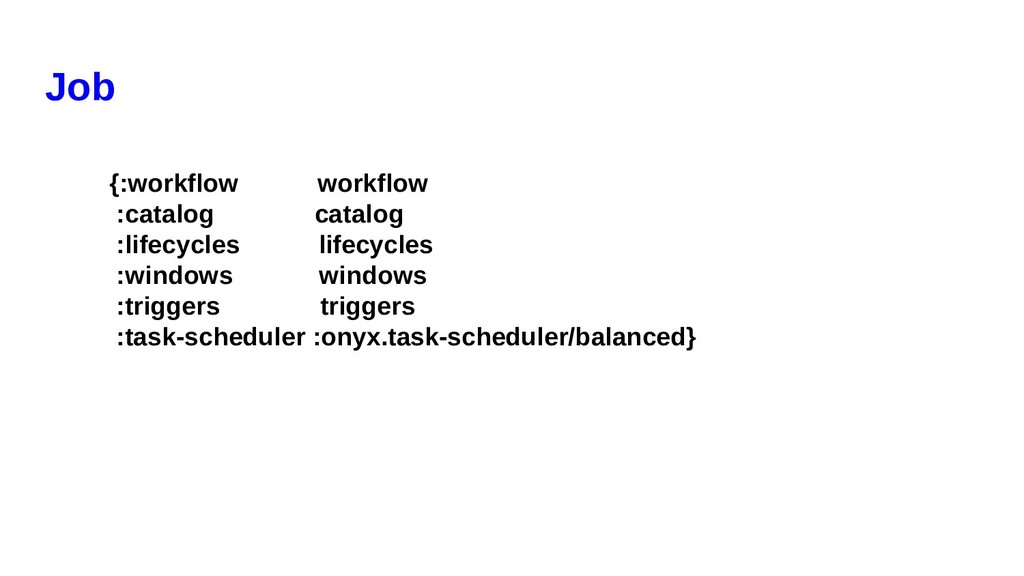

25. Job {:workflow workflow :catalog catalog :lifecycles lifecycles :windows windows :triggers triggers :task-scheduler :onyx.task-scheduler/balanced}

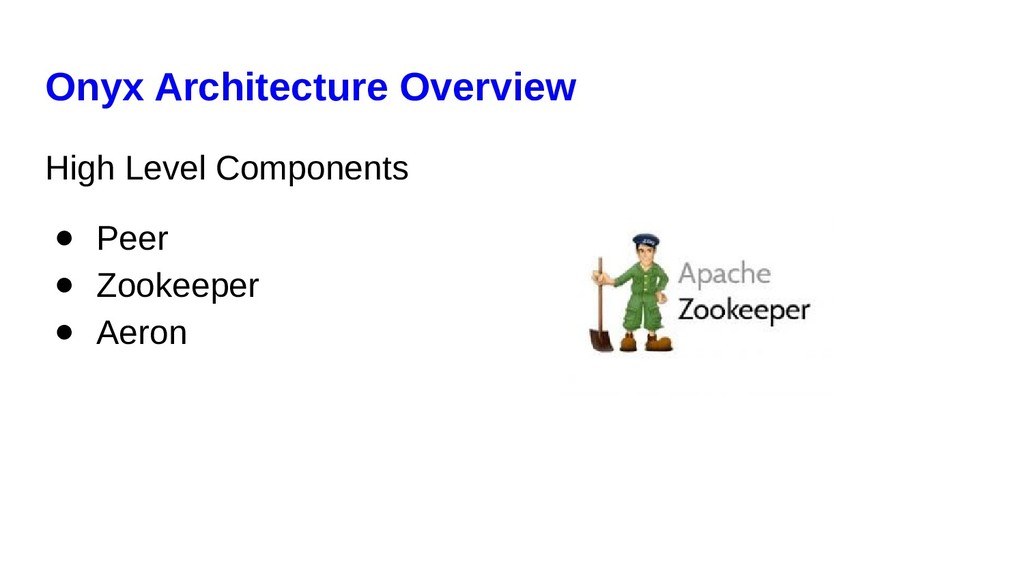

26. Onyx Architecture Overview High Level Components • Peer • Zookeeper • Aeron

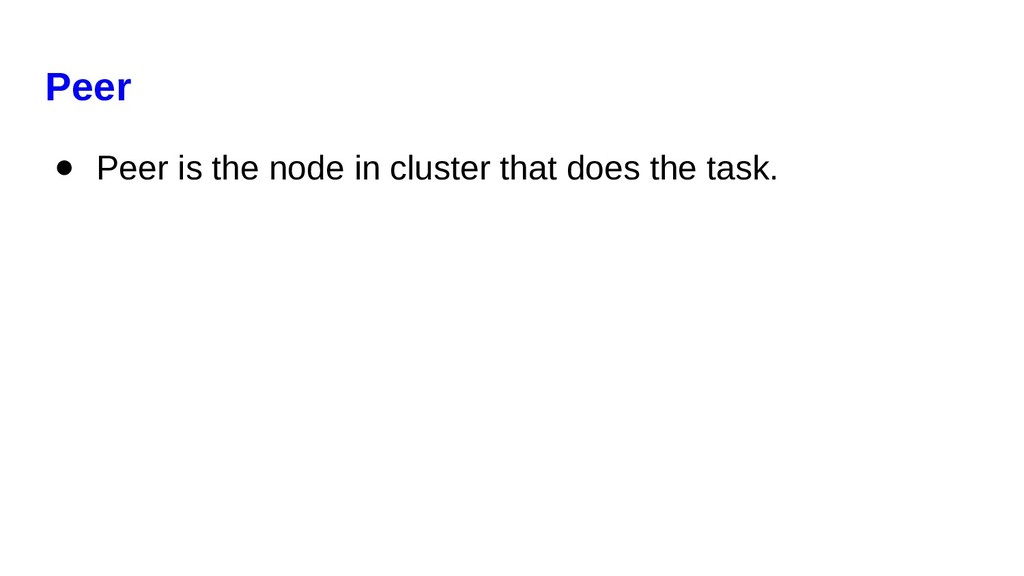

27. Peer • Peer is the node in cluster that does the task.

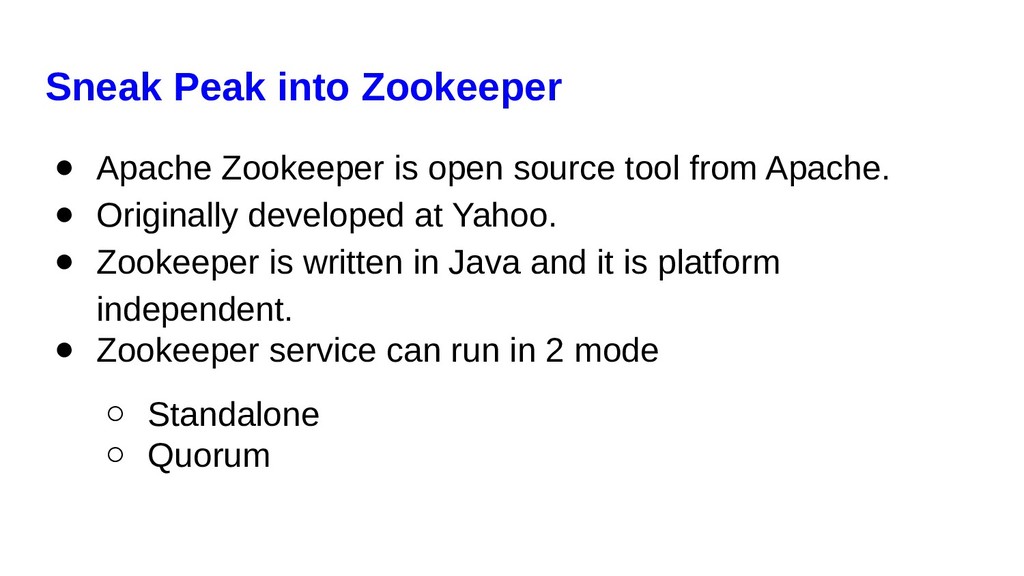

29. Sneak Peak into Zookeeper • Apache Zookeeper is open source tool from Apache. • Originally developed at Yahoo. • Zookeeper is written in Java and it is platform independent. • Zookeeper service can run in 2 mode ◦ Standalone ◦ Quorum

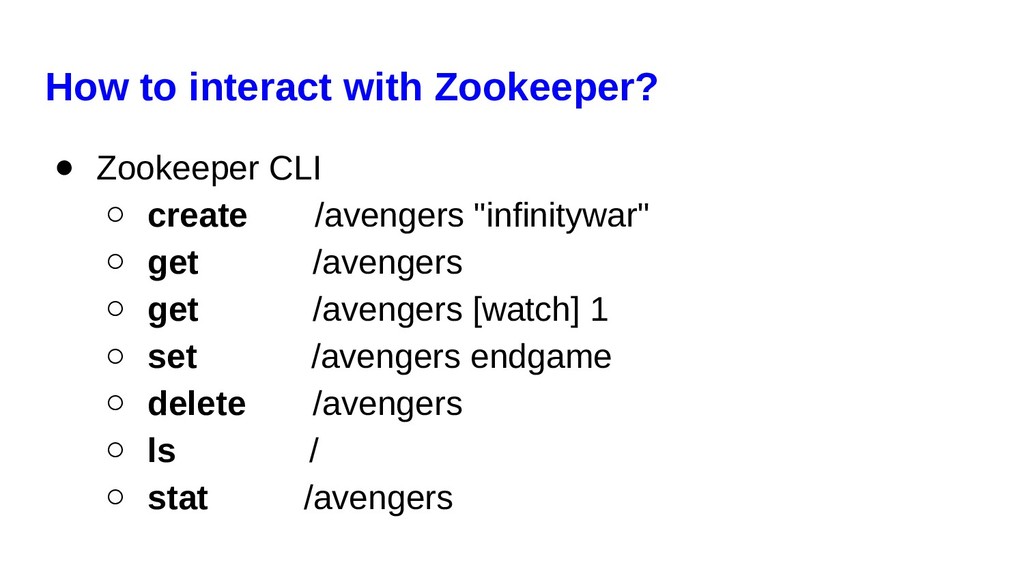

30. How to interact with Zookeeper? • Zookeeper CLI ◦ create /avengers "infinitywar" ◦ get /avengers ◦ get /avengers [watch] 1 ◦ set /avengers endgame ◦ delete /avengers ◦ ls / ◦ stat /avengers

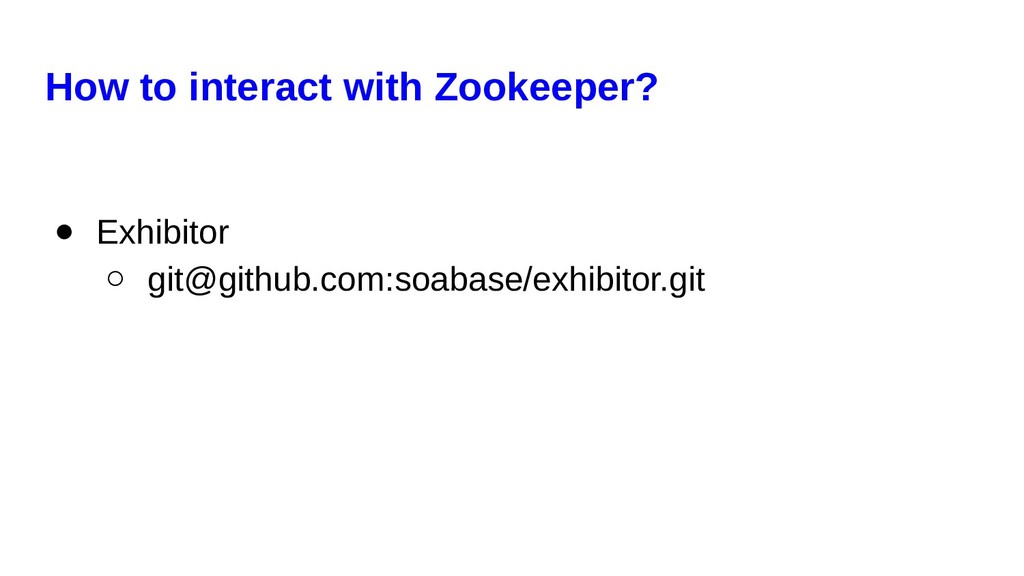

31. How to interact with Zookeeper? • Exhibitor ◦ git@github.com:soabase/exhibitor.git

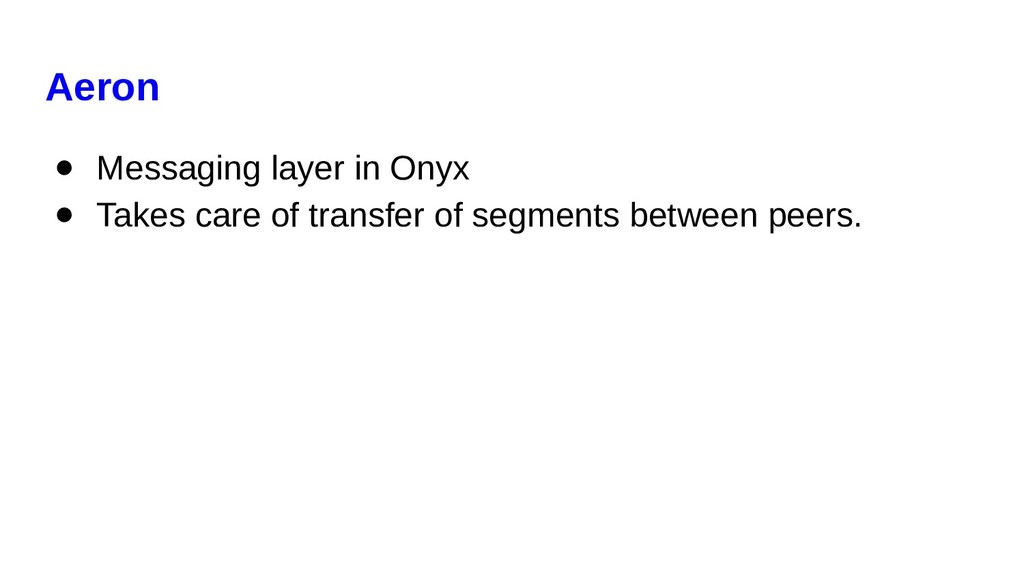

32. Aeron • Messaging layer in Onyx • Takes care of transfer of segments between peers.

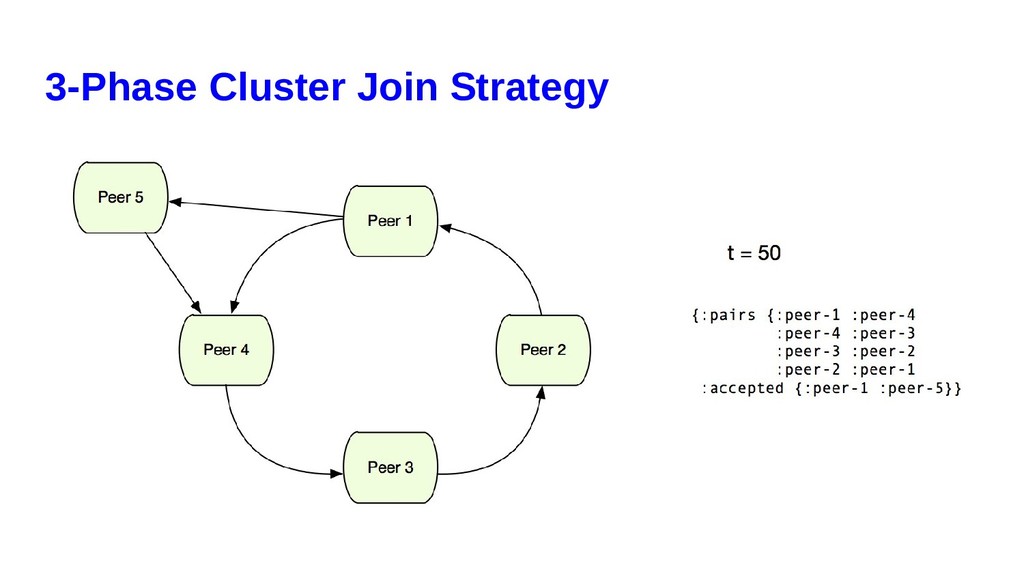

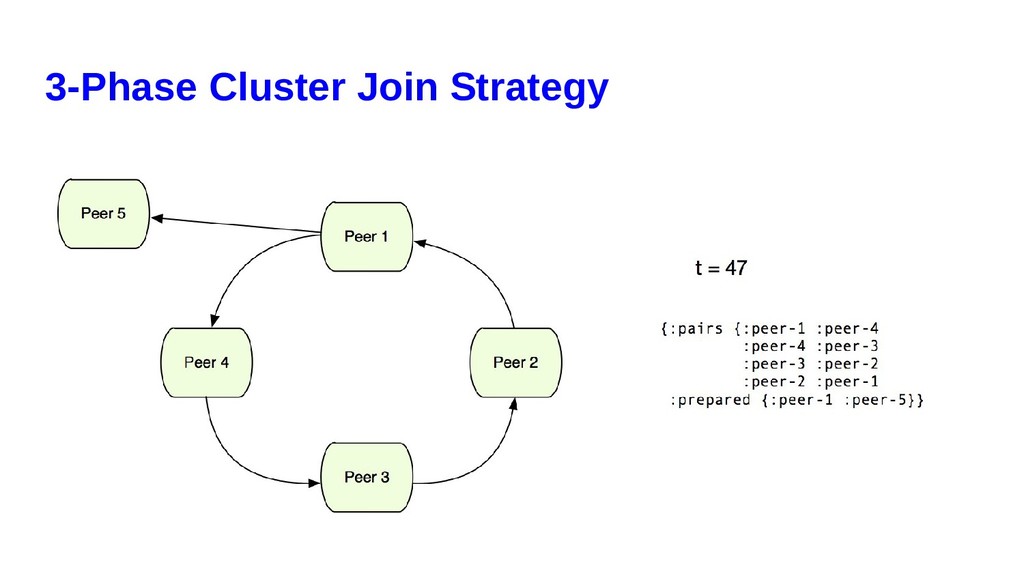

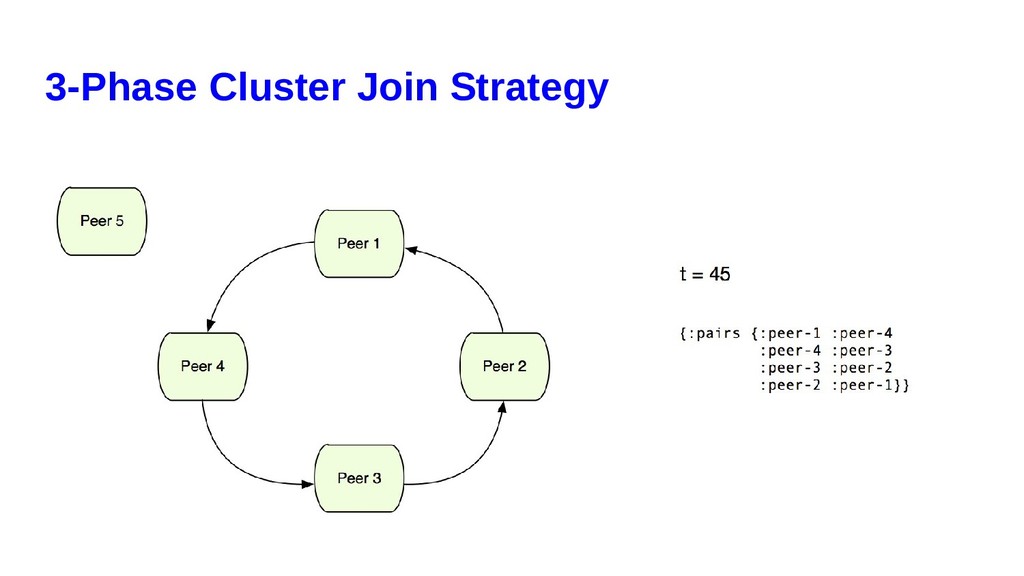

33. 3-Phase Cluster Join Strategy
34. 3-Phase Cluster Join Strategy

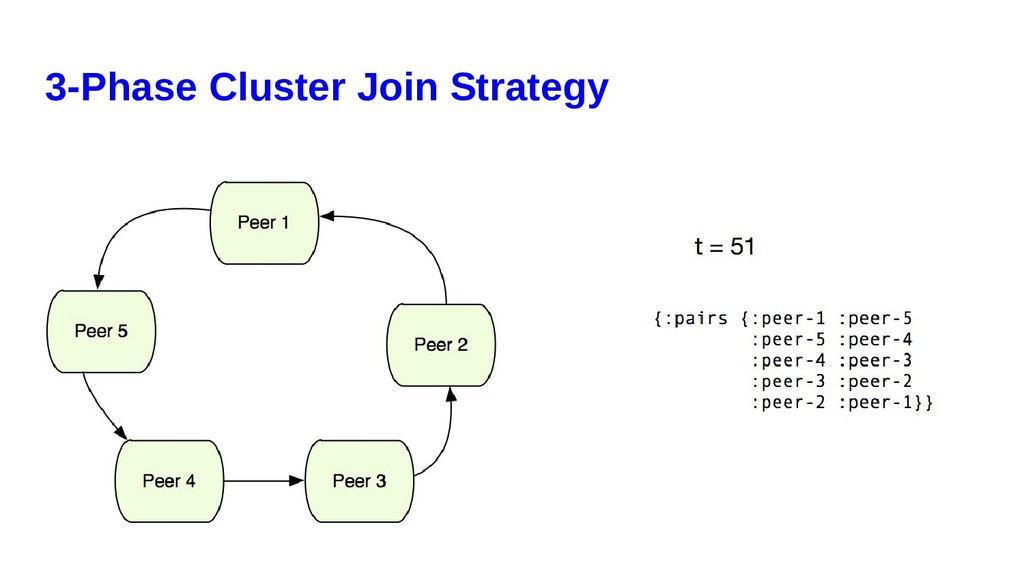

35. 3-Phase Cluster Join Strategy
36. 3-Phase Cluster Join Strategy

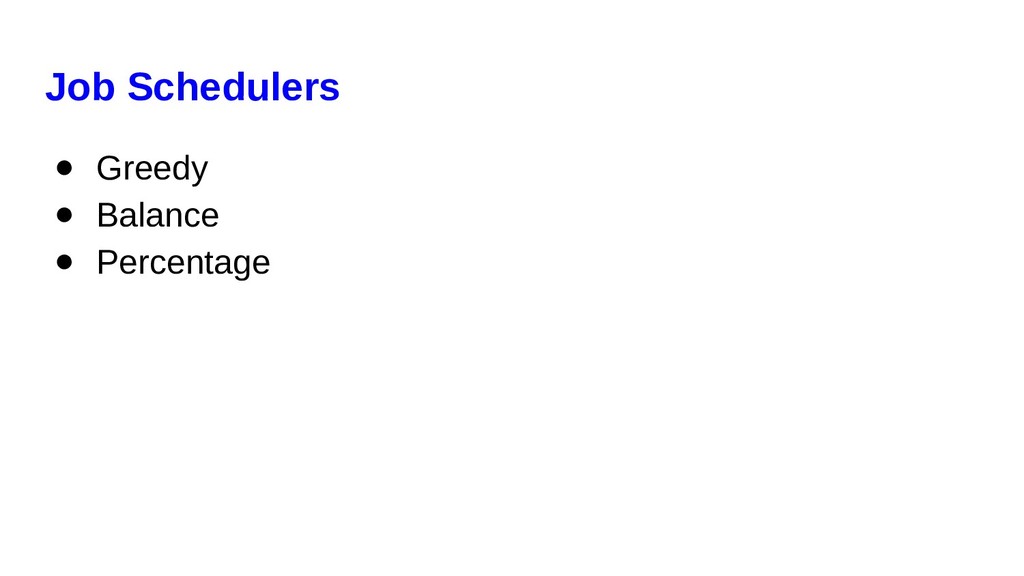

37. Job Schedulers • Greedy • Balance • Percentage

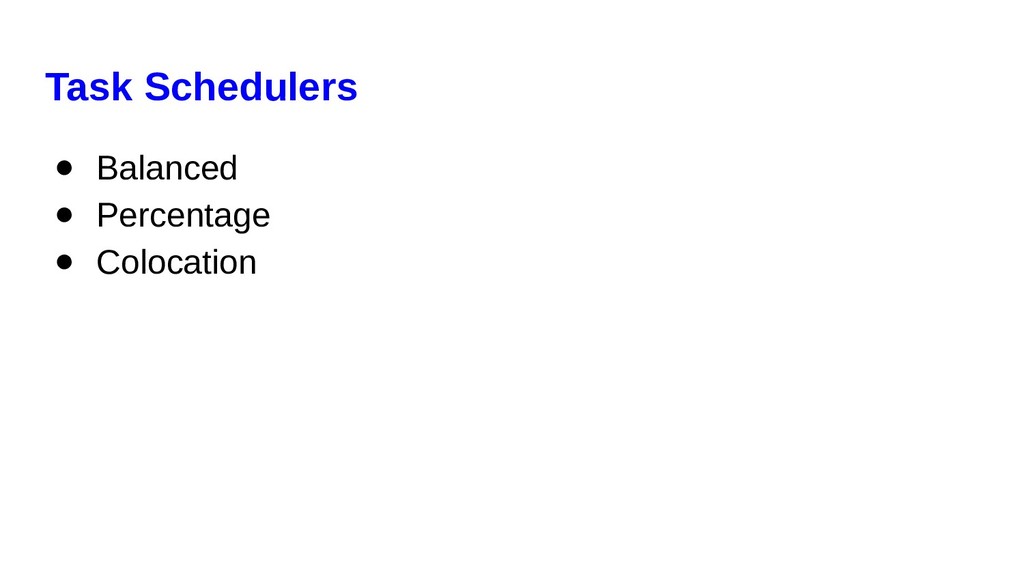

38. Task Schedulers • Balanced • Percentage • Colocation

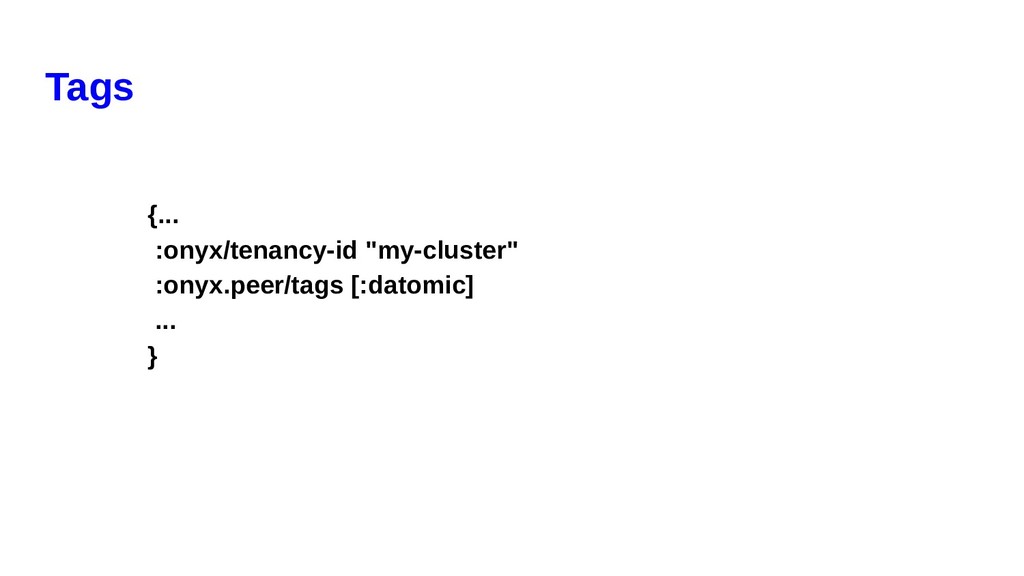

39. Tags {... :onyx/tenancy-id "my-cluster" :onyx.peer/tags [:datomic] ... }

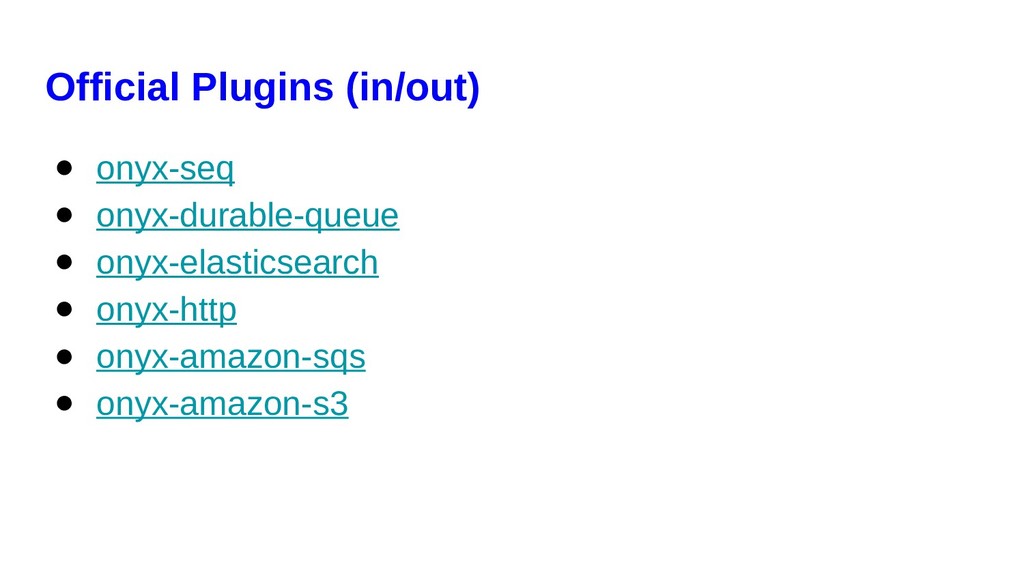

40. Official Plugins (in/out) • onyx-seq • onyx-durable-queue • onyx-elasticsearch • onyx-http • onyx-amazon-sqs • onyx-amazon-s3

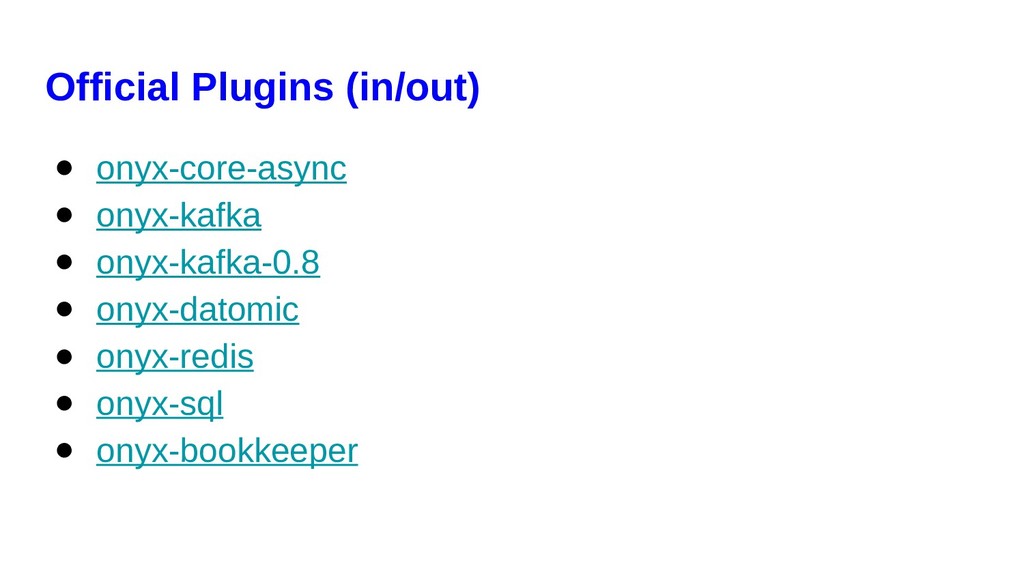

41. Official Plugins (in/out) • onyx-core-async • onyx-kafka • onyx-kafka-0.8 • onyx-datomic • onyx-redis • onyx-sql • onyx-bookkeeper

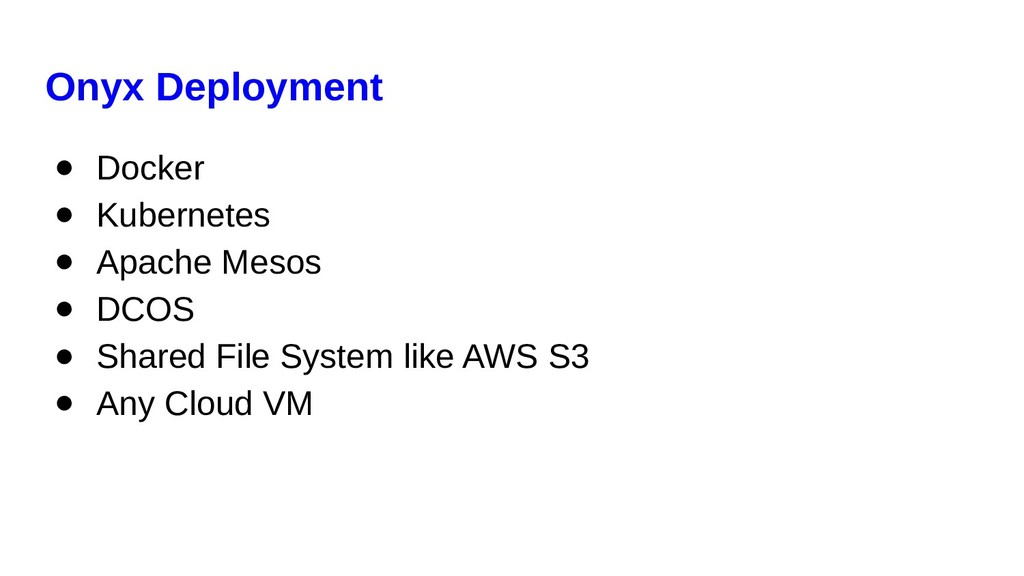

42. Onyx Deployment • Docker • Kubernetes • Apache Mesos • DCOS • Shared File System like AWS S3 • Any Cloud VM

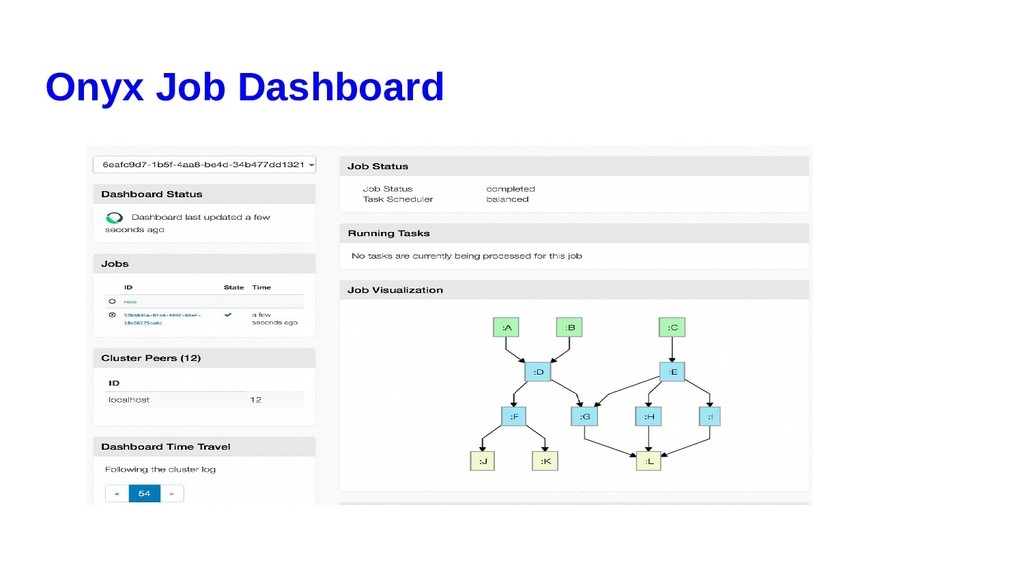

43. Onyx Job Dashboard
44. Thank You
45. About Me (def about-me {:name “Abhishek Anand Amralkar” :shortname “@aaa” :from “Talentica Software Pvt. Ltd” :social { :blog “https://medium.com/@aamralkar” :twitter “https://twitter.com/aamralkar” :github “https://github.com/abhishekamralkar”} })
