Mysteries of MaterialContainerTransform

Presentation about MaterialContainerTransform at Android Developers
Global Summit '22

Transcript

1. Mysteries of MaterialContainerTransform Afzal Najam
2. What is Material Container Transform?
3. What is Material Container Transform? A shared element Transition that transforms one container to another.
4. What is Material Container Transform? • Activities • Fragments • Views • View <-> Fragment A shared element Transition that transforms one container to another. It can be used to transition between
5. Customizing MaterialContainerTransform • Start/End ShapeAppearance • Scrim and container colors • Fade and Fit modes • Path Motion • Fade Progress thresholds • Scale Mask Progress thresholds • Scale Progress thresholds • Shape Mask Progress thresholds
6. Fade Progress Threshold sharedElementEnterTransition = MaterialContainerTransform().apply {
7. Controls when in the transition the start (outgoing) view fades to the end (incoming) view. Fade Progress Threshold sharedElementEnterTransition = MaterialContainerTransform().apply { fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.25f) scaleMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) scaleProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) shapeMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) / / Other options . . . }
8. Scale Mask Progress Threshold sharedElementEnterTransition = MaterialContainerTransform().apply {

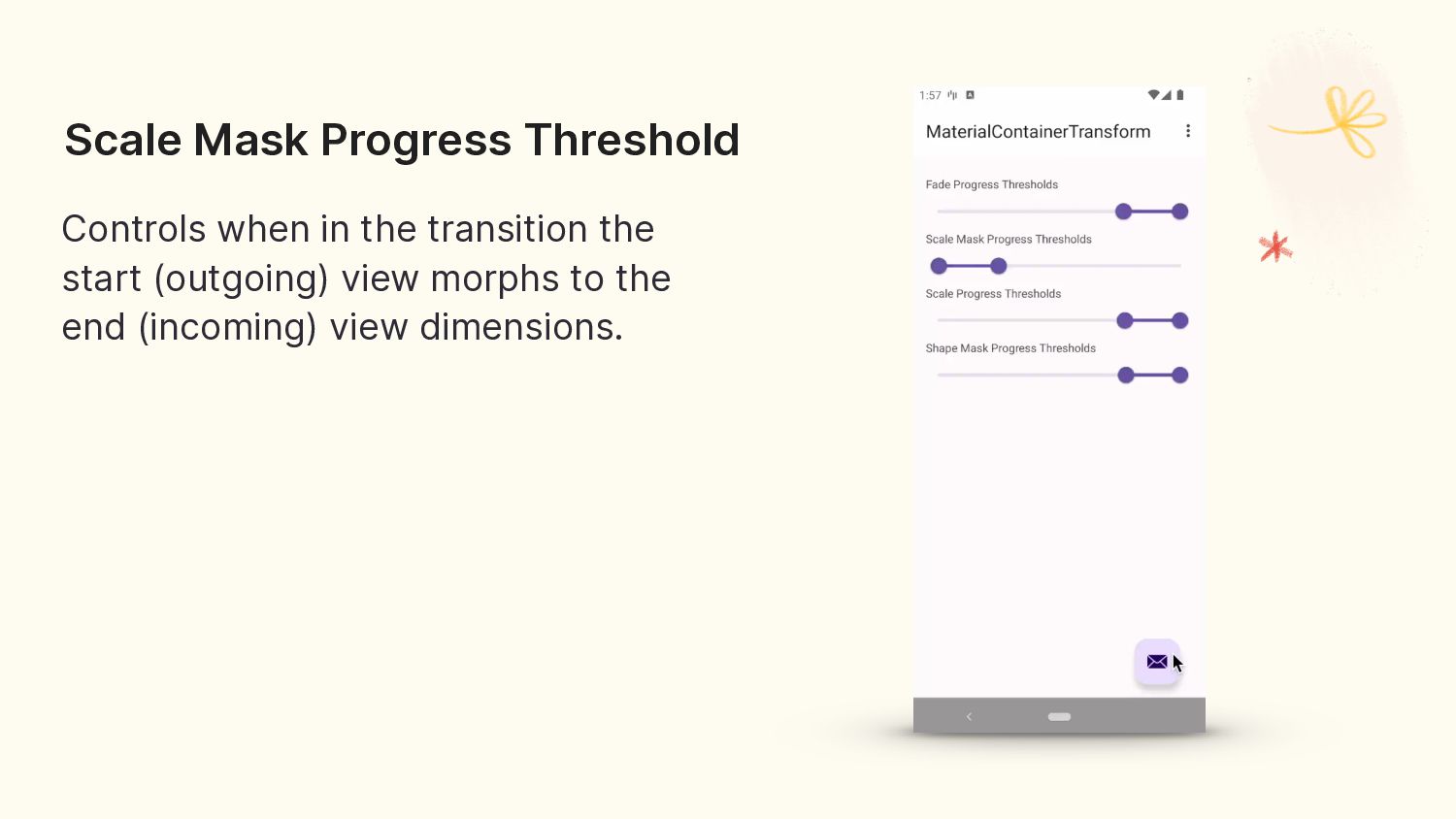

9. Controls when in the transition the start (outgoing) view morphs to the end (incoming) view dimensions. Scale Mask Progress Threshold sharedElementEnterTransition = MaterialContainerTransform().apply { fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) scaleMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.25f) scaleProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) shapeMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) / / Other options . . . }
10. Controls when in the transition the contents will scale to the dimensions of the end (incoming) view. Scale Progress Threshold sharedElementEnterTransition = MaterialContainerTransform().apply { fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) scaleMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) scaleProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.25f) shapeMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) / / Other options . . . }
11. sharedElementEnterTransition = MaterialContainerTransform().apply { fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) scaleMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) scaleProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.25f) shapeMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) / / Other options . . . } Controls when in the transition the contents will scale to the dimensions of the end (incoming) view. Scale Progress Threshold
12. Shape Mask Progress Threshold Controls when in the transition the shape of the start (outgoing) view will morph into the shape of the end (incoming) view. sharedElementEnterTransition = MaterialContainerTransform().apply { fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) scaleMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.75f, 1f) scaleProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 1f) shapeMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.75f) / / Other options . . . }
13. From prototype to implementation

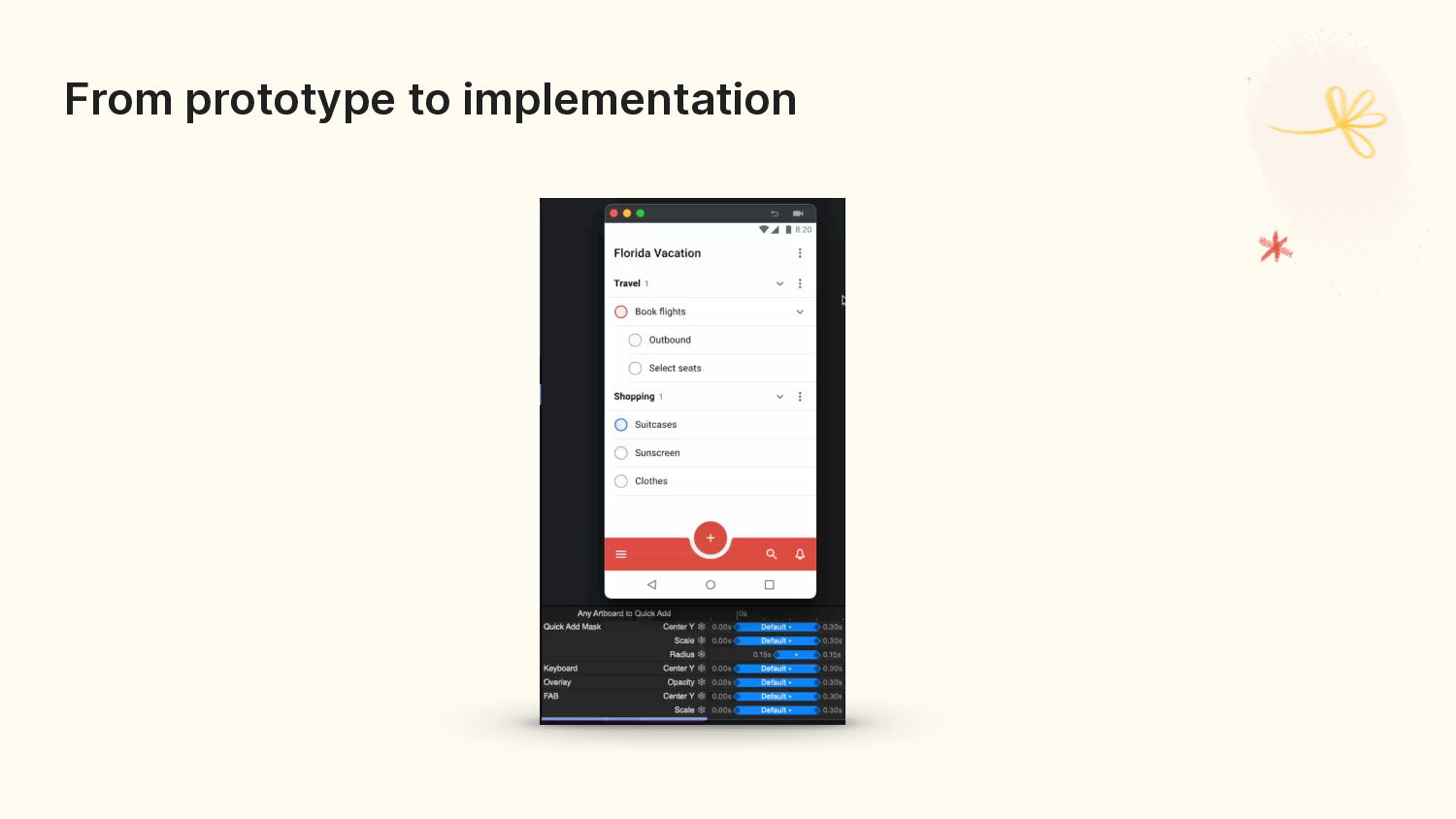

14. From prototype to implementation
15. Adjust the views The FAB needs to be centred and the end view is positioned above the keyboard. The FAB needs to be centred and round.
16. Adjust the views The FAB needs to be centred and round. <com.google.android.material.floatingactionbutton.FloatingActionButton android:id="@+id/fab" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="bottom|center_horizontal" android:layout_marginBottom="16dp" android:transitionName="@string/main_activity_fab" app:shapeAppearanceOverlay="@style/ShapeAppearanceOverlay.Material3.Button" app:srcCompat="@android:drawable/ic_dialog_email" / >
17. Adjust the views The end view should be positioned above the keyboard and is smaller. <?xml version="1.0" encoding="utf-8"?> /
18. Adjust the views <?xml version="1.0" encoding="utf-8"?> <FrameLayout xmlns:android="http : / / schemas.android.com/apk/res/android" xmlns:tools="http : / / schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".SecondFragment"> <FrameLayout android:id="@+id/second_container" android:layout_width="match_parent" android:layout_height="320dp" android:layout_gravity=“bottom" android:layout_marginBottom=“220dp” android:background="@drawable/rounded_background" android:padding="16dp" android:transitionName="@string/second_transition_name"> <TextView android:layout_width="match_parent" android:layout_height="match_parent" android:text="@string/lorem_ipsum" / > < / FrameLayout> < / FrameLayout> The end view should be positioned above the keyboard and is smaller.
19. Set fade progress thresholds Prototype doesn’t show true cross- fading but we see that the incoming view completely overlaps the FAB around 60ms, which is 20% of the overall transition.
20. Set fade progress thresholds Prototype doesn’t show true cross- fading but we see that the incoming view completely overlaps the FAB around 60ms, which is 20% of the overall transition. sharedElementEnterTransition = MaterialContainerTransform().apply { fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.2f) / / Other options and thresholds … }
21. Set fade progress thresholds Prototype doesn’t show true cross- fading but we see that the incoming view completely overlaps the FAB around 60ms, about 20% of the overall transition. sharedElementEnterTransition = MaterialContainerTransform().apply { fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.2f) / / Other options and thresholds … }
22. The ProgressThresholds are wrong! 😱
23. The ProgressThresholds are wrong! 😱
24. Set custom interpolator (if needed) Prototype doesn’t show true cross- fading but we see that the incoming view completely overlaps the FAB around 0.06s, which is 20% of the overall transition. This prototype uses a custom Path Interpolator. Since ProgressThresholds are dependent on interpolator, it’s better to set it now than later. sharedElementEnterTransition = MaterialContainerTransform().apply { interpolator = PathInterpolator(0.25f, 0.1f, 0.25f, 1f) / / Other options and thresholds … }
25. Recalculate ProgressThreshold

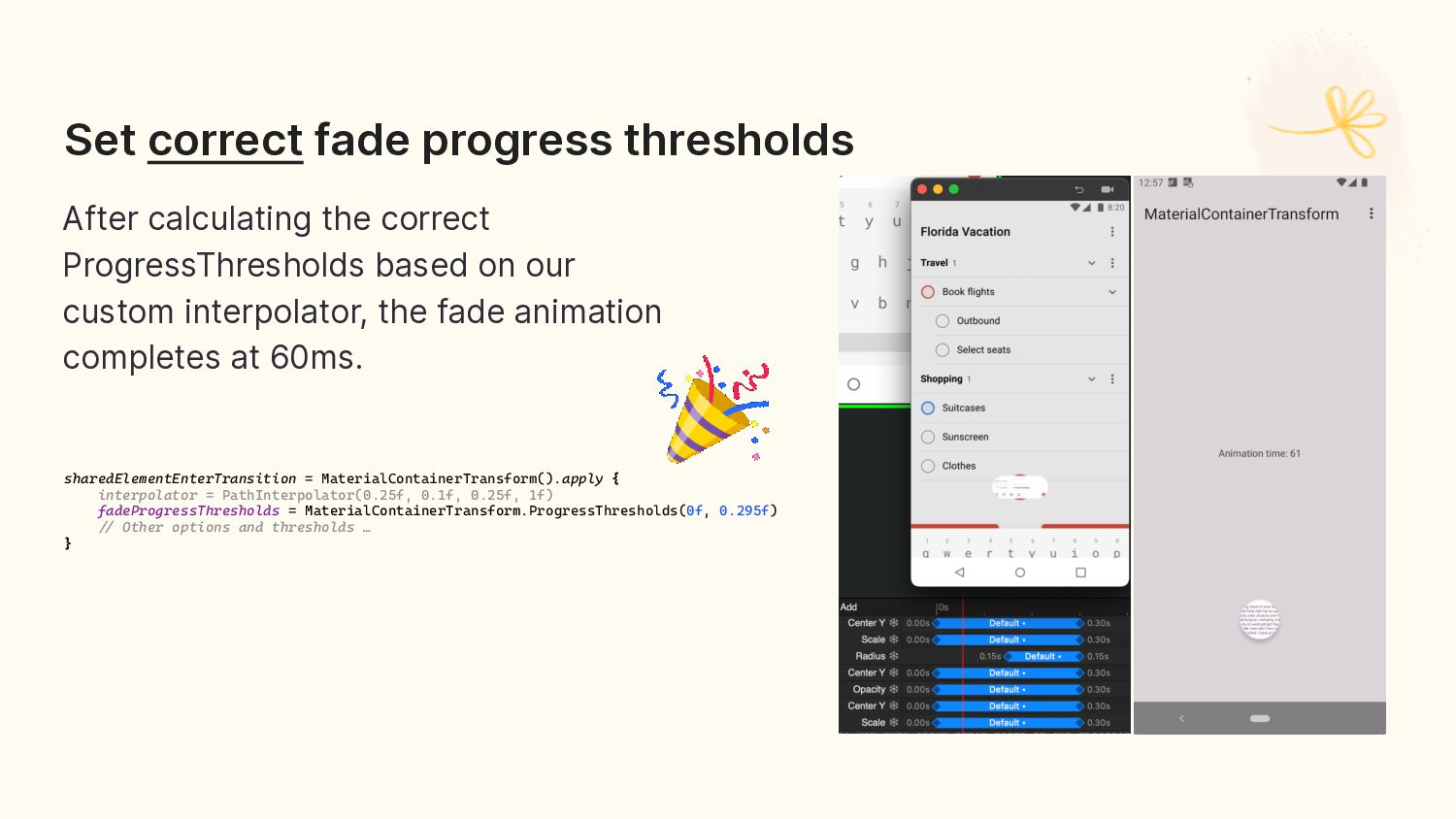

26. Set correct fade progress thresholds After calculating the correct ProgressThresholds based on our custom interpolator, the fade animation completes at 60ms. sharedElementEnterTransition = MaterialContainerTransform().apply { interpolator = PathInterpolator(0.25f, 0.1f, 0.25f, 1f) fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.295f) / / Other options and thresholds … }
27. Set correct fade progress thresholds After calculating the correct ProgressThresholds based on our custom interpolator, the fade animation completes at 60ms. sharedElementEnterTransition = MaterialContainerTransform().apply { interpolator = PathInterpolator(0.25f, 0.1f, 0.25f, 1f) fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.295f) / / Other options and thresholds … }
28. Set scale mask progress thresholds Prototype doesn’t actually scale the FAB so we infer when to start it. Around 40ms, about 13.33% of the overall transition. 0.154 according to our interpolator. sharedElementEnterTransition = MaterialContainerTransform().apply { interpolator = PathInterpolator(0.25f, 0.1f, 0.25f, 1f) fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.295f) scaleMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.154f, 1f) / / Other options and thresholds … }
29. Set scale progress thresholds In the prototype, scaling starts at the same time as scale mask so let’s use the same progress thresholds for it. sharedElementEnterTransition = MaterialContainerTransform().apply { interpolator = PathInterpolator(0.25f, 0.1f, 0.25f, 1f) fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.295f) scaleMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.154f, 1f) scaleProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.154f, 1f) / / Other options and thresholds … }
30. Set shape mask progress thresholds The radius animation starts at 50% in the prototype. For our interpolator, that’s 0.8. sharedElementEnterTransition = MaterialContainerTransform().apply { interpolator = PathInterpolator(0.25f, 0.1f, 0.25f, 1f) fadeProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0f, 0.295f) scaleMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.154f, 1f) scaleProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.154f, 1f) shapeMaskProgressT h resholds = MaterialContainerTransform.ProgressThresholds(0.8f, 1f) / / Other options … }
31. Enter transition is done, now what? 🤔 Let’s see the full transition.
32. Return Transition! Recall enter transition thresholds • Fade – 0 to 0.295 • Scale – 0.154 to 1 • Scale Mask – 0.154 to 1 • Shape Mask – 0.8 to 1 Return transition thresholds
33. Return Transition! Recall enter transition thresholds • Fade – 0 to 0.295 • Scale – 0.154 to 1 • Scale Mask – 0.154 to 1 • Shape Mask – 0.8 to 1 Return transition thresholds • Fade – 0.705 to 1 • Scale – 0 to 0.846 • Scale Mask – 0 to 0.846 • Shape Mask – 0 to 0.2
34. Synchronizing IME animation with the container transform animation
35. Troubleshooting issues When transition isn't seamless
36. Troubleshooting issues When transition isn't seamless 🤔 If colors aren’t fading correctly 💡 Are the container colors correctly set?
37. Troubleshooting issues When transition isn't seamless 🤔 If colors aren’t fading correctly 💡 Are the container colors correctly set? 🤔 If shapes aren’t transitioning correctly 💡 Are start or end ShapeAppearanceModels set?
38. Troubleshooting issues 🤔 Animation looks perfect in slow-motion but not in real-time
39. Troubleshooting issues 🤔 Animation looks perfect in slow-motion but not in real-time
40. Troubleshooting issues 🤔 When the return transform doesn't work in some cases 💡 Do you need to add a target view?
41. Troubleshooting issues 🤔 Dark themes might make the fade part of the transition "more sudden"
42. What about Jetpack Compose?
43. Links and resources https://github.com/AfzalivE Repo for this talk: https://github.com/AfzalivE/MaterialContainerTransform https://twitter.com/AfzalivE • Choosing the Right Transitions by the Material Design team • Animating your keyboard (part 1 ) by Chris Banes • Animating your keyboard (part 2 ) : reacting to WindowInset animations by Chris Banes • WindowInsetsAnimation Sample
44. Questions?
