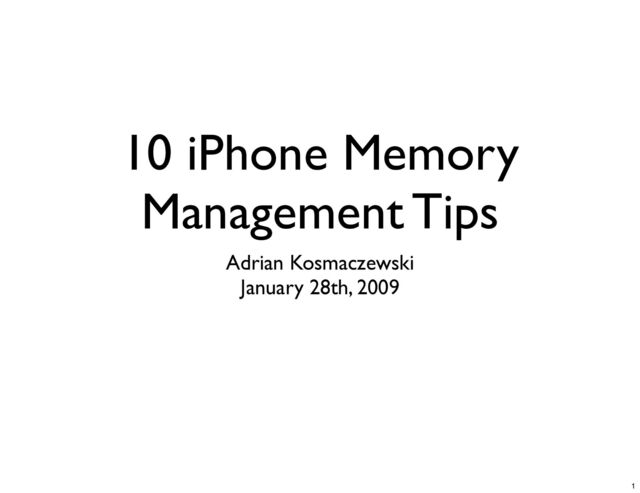

  1. 10 iPhone Memory Management Tips Adrian Kosmaczewski January 28th, 2009

    1
  2. http://kosmaczewski.net/ 2009/01/28/ 10-iphone-memory-management-tips/ 2

  3. 3

  4. Facts 4

  5. 5

  6. 128 MB RAM 6

  7. 128 MB RAM 6

  8. 128 MB RAM ~ 40 MB for you! 6

  9. Garbage Collection 7

  10. Garbage Collection 7

  11. [ alloc | copy | retain] [ release ] 8

  12. [ alloc | copy | retain] [ release ] 8

  13. 9

  14. http://cocoadevcentral.com/d/learn_objectivec/ 9

  15. Objects on the heap 10

  16. // C++ automatic object on the stack // Memory freed

    when out of scope std::string name(“Adrian”); // C++ object on the heap std::string *name = NULL; name = new std::string(“Adrian”); delete name; 11
  17. ... autorelease]; 12

  18. Virtual Memory 13

  19. Virtual Memory 13

  20. 14

  21. Tips 15

  22. 16

  23. 1) Respond to Memory Warnings 17

  24. - (void)didReceiveMemoryWarning { [super didReceiveMemoryWarning]; } 18

  25. - (void)applicationDidReceiveMemoryWarning:(UIApplication *)app { [[ImageCache sharedImageCache] removeAllImagesInMemory]; } 19

  26. NSNotificationCenter *center = [NSNotificationCenter defaultCenter]; [center addObserver:self selector:@selector(whatever:) name:UIApplicationDidReceiveMemoryWarningNotification object:nil];

    20
  27. 21

  28. 2) Avoid Autoreleased Objects 22

  29. (when possible) 23

  30. // Instead of NSString *string = [NSString stringWithFormat:@"value = %d",

    var]; // use NSString *string = [[NSString alloc] initWithFormat:@"value = %d", var]; ... [string release]; 24
  31. NSAutoreleasePool *pool = [[NSAutoreleasePool alloc] init]; for (id item in

    array) { id anotherItem = [item create]; [anotherItem doSomethingWithIt]; } [pool release]; 25
  32. 26

  33. 3) Load Lazily and Reuse 27

  34. - (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath { Item *item = [items

    objectAtIndex:indexPath.row]; if (detailController == nil) { detailController = [[DetailController alloc] init]; } detailController.item = item; [self.navigationController pushViewController:detailController animated:YES]; } 28
  35. viewWillAppear: viewDidDisappear: 29

  36. tabBarController:didSelectViewController: 30

  37. 31

  38. 4) Avoid UIImage’s imageNamed: 32

  39. http://www.alexcurylo.com/blog/2009/01/13/ imagenamed-is-evil/ 33

  40. @implementation UIImage (AKLoadingExtension) + (UIImage *)newImageFromResource:(NSString *)filename { NSString *imageFile

    = [[NSString alloc] initWithFormat:@"%@/%@", [[NSBundle mainBundle] resourcePath], filename]; UIImage *image = nil; image = [[UIImage alloc] initWithContentsOfFile:imageFile]; [imageFile release]; return image; } @end 34
  41. #import <Foundation/Foundation.h> @interface ImageCache : NSObject { @private NSMutableArray *keyArray;

    NSMutableDictionary *memoryCache; NSFileManager *fileManager; } + (ImageCache *)sharedImageCache; - (UIImage *)imageForKey:(NSString *)key; - (BOOL)hasImageWithKey:(NSString *)key; - (void)storeImage:(UIImage *)image withKey:(NSString *)key; - (BOOL)imageExistsInMemory:(NSString *)key; - (BOOL)imageExistsInDisk:(NSString *)key; - (NSUInteger)countImagesInMemory; - (NSUInteger)countImagesInDisk; - (void)removeImageWithKey:(NSString *)key; - (void)removeAllImages; - (void)removeAllImagesInMemory; - (void)removeOldImages; @end 35
  42. - (void)applicationDidReceiveMemoryWarning:(UIApplication *)app { [[ImageCache sharedImageCache] removeAllImagesInMemory]; } 36

  43. http://kosmaczewski.net/projects/iphone-image-cache/ 37

  44. 38

  45. 5) Build Custom Table Cells and Reuse Them Properly 39

  46. - (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath { Item *item =

    [items objectAtIndex:indexPath.row]; static NSString *identifier = @"ItemCell"; ItemCell *cell = (ItemCell *)[tableView dequeueReusableCellWithIdentifier:identifier]; if (cell == nil) { cell = [[[ItemCell alloc] initWithIdentifier:identifier] autorelease]; } cell.item = item; return cell; } 40
  47. 41

  48. 6) Override Setters Properly 42

  49. @interface SomeClass { @private NSArray *items; NSString *name; id<SomeProtocol> delegate;

    } @property (nonatomic, retain) NSArray *items; @property (nonatomic, copy) NSString *name; @property (nonatomic, assign) id<SomeProtocol> delegate; @end 43
  50. - (void)setItems:(NSArray *)obj { if (obj == items) { return;

    // (merci Marco! :) } [items release]; items = nil; items = [obj retain]; if (items != nil) { // create the internal // structure of the cell // if not present, // and change the // widget values } } 44
  51. - (void)setName:(NSString *)obj { [name release]; name = nil; //

    I always copy NSStrings! name = [obj copy]; if (name != nil) { // create the internal // structure of the cell // if not present, // and change the // widget values } } 45
  52. - (void)setDelegate:(id<SomeProtocol>)obj { // do not retain! // This is

    an "assign" property delegate = obj; if (delegate != nil) { // create the internal // structure of the cell // if not present, // and change the // widget values } } 46
  53. 47

  54. 7) Beware of Delegation 48

  55. @interface SomeClass <WidgetDelegate> { @private Widget *widget; } @end 49

  56. @implementation SomeClass - (id)init { if (id = [super init])

    { widget = [[Widget alloc] init]; widget.delegate = self; } return self; } 50
  57. - (void)dealloc { // widget might be retained by someone

    else! widget.delegate = nil; [widget release]; widget = nil; } #pragma mark - #pragma mark WidgetDelegate methods - (void)widget:(Widget *)obj method:(BOOL)value { // and here something happens... } @end 51
  58. 52

  59. 8) Use Instruments 53

  60. 54

  61. 55

  62. 9) Use a Static Analysis Tool 56

  63. http://clang.llvm.org/StaticAnalysis.html 57

  64. scan-build -k -V xcodebuild -configuration Debug 58

  65. 59

  66. 60

  67. 61

  68. 62

  69. 10) Use NSZombieEnabled 63

  70. 64

  71. 65

  72. 66

  73. Thanks! 67

  74. Questions? 68
