End-to-End Network Delay Guarantees for Real-Time Systems using SDN

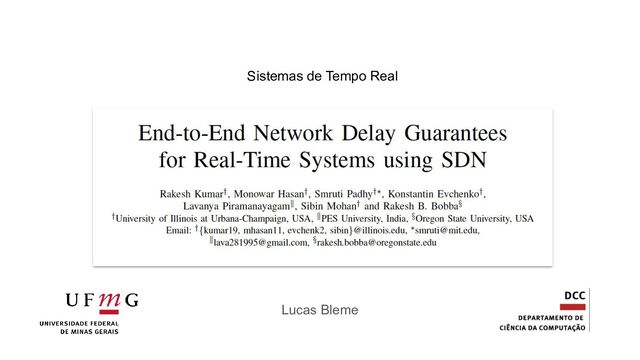

Presentation of the paper "End-to-End Network Delay Guarantees for Real-Time Systems using SDN", presented at the Real-Time Systems discipline's seminar at DCC/UFMG 2022/02.

Original paper published by RTSS 17: https://ieeexplore.ieee.org/document/8277296

Transcript

1. Sistemas de Tempo Real
   Lucas Bleme


   View Slide

2. Agenda
   Problem
   (motivation)
   Software Defined
   Networks
   Path Finder
   Algo
   Performance
   and
   effectiveness
   Limitations Final Evaluation


   View Slide

3. Challenges running RTS on Networks
   ● Lack of Flexibility
   Changes on flow characteristics might require serious system redesign.
   ● Poor Isolation
   Non-critical flows could impact on safety-critical system flows delays.
   Isolation often require hardware redundancy.
   ● Expensive and Complex to manage
   Existing solutions are mostly proprietary, expensive, requiring dedicated hardware (AFDX and CAN).


   View Slide

4. Proposed Solution
   An efficient Algorithm to find the best path-layout in any network that meets a given
   Delay and Bandwidth requirement.
   Take leverage of SDN global view of the entire network to guarantee end-to-end delays
   for high-criticality flows (Class I).


   View Slide

5. Software Defined Networks (SDN)


   View Slide

6. Software Defined Networks (SDN)
   ● Network is controlled by software
   ● Vendor agnostic solutions for managing Commodities Switches
   ● Holistically programmable from the controller
   ● Logically centralized intelligence and control
   https://homepages.dcc.ufmg.br/~mmvieira/cc/papers/minicurso-sdn.pdf


   View Slide

7. Proposed Variation for solving MCP (multi-constrained paths)
   "Find paths for the flows such that the flow requirements (end-to-end delays and bandwidth)
   can be guaranteed for the maximum number of critical flows."


   View Slide

8. Proposed Variation for solving MCP (multi-constrained paths)
   Since MCP is NP-complete, a solution in polynomial-time is proposed:
   The key idea is relax one constraint at time (delay or bandwidth) and try to obtain a solution.


   View Slide

9. Proposed Variation for solving MCP (multi-constrained paths)
   Since MCP is NP-complete, a solution in polynomial-time is proposed:
   The key idea is relax one constraint at time (delay or bandwidth) and try to obtain a solution.


   View Slide

10. Proposed Variation for solving MCP (multi-constrained paths)
    1. For each flow starting from the highest priority (delay monotonic), relax the
    bandwidth requirement.
    2. Solves the MCP_HEURISTIC.
    3. If a solution exists, assign the corresponding path to the flow
    4. If not, relax the delay requirement.
    5. If the path is not found after both relaxation steps, return False.


    View Slide

11. Performance of the path finder Algo
    A topology is schedulable if all the RT flows meet their delay and bandwidth requirements.
    For each pair (delay and number of flows), 250 topologies are generated and the acceptance ratio is
    evaluated.
    8 x 7 x 250 = 14,000
    different topology were tested.


    View Slide

12. Performance of the path finder Algo


    View Slide

13. Effectiveness of the delay guarantees
    Delay guarantees should be insured even when there are non-critical flows in the network.
    Enabled 1-3 non-critical flows in the network randomly, during a UDP flow bursting 5 packets per 1ms.
    Non-critical flows use a separate queue from OVS.


    View Slide

14. Effectiveness of the delay guarantees


    View Slide

15. Limitations
    ● One queue per critical flow, means that better multiplex flow techniques should be used
    (Open vSwitch limitation).
    ● Enforcing flow priority is not straightforward (delay monotonic),
    mainly when resources has to be shared.
    ● No admission control for non-schedulable flows.


    View Slide

16. Conclusion
    RTS can be better managed in a less complex, and more cost effective manner with an SDN
    approach.
    Hard Real-Time guarantees (delay and bandwidth) can be insured and isolated on deterministic RTS.
    The proliferation of commercial-off-the-shelf (COTS) could also benefit critical systems.
    Innovation in RTS happens when we mix disciplines (Algorithms + Networks).


    View Slide
