SSH Deep Dive

Most of us use SSH to connect or deploy code to remote machines in one way or another. But did you know that there are countless features to simplify daily task? In this session, we'll talk about different options such as public key authentication and forwarding, intermediate jumpservers to reach internal hosts, things to consider regarding security, and how to configure all those options globally, per group oder individual host without having to remember each and every commandline option.

Transcript

1. SSH DEEP DIVE
2. SCHEDULE overview & features user authentication & key forwarding client & server configuration security considerations some examples algorithms, ciphers & encryption details

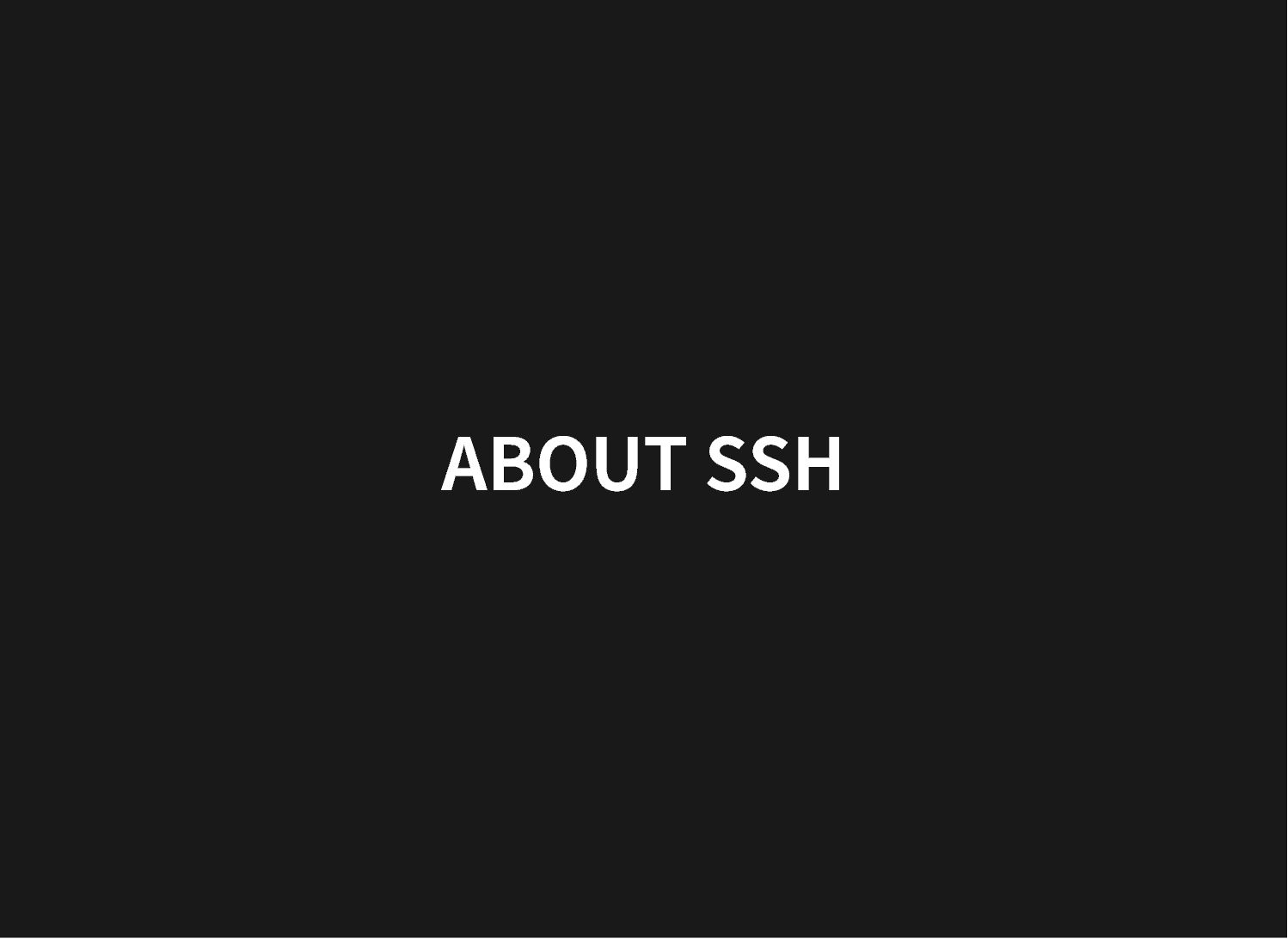

3. ABOUT SSH
4. WHAT IS IT? Secure SHell protocol remote login and command execution encrypted transport and authentication open architecture cross-platform
5. (SOME) FEATURES remote login/command execution public key authentication file copy/sync port forwarding socks proxy SSHFS
6. USER AUTHENTICATION

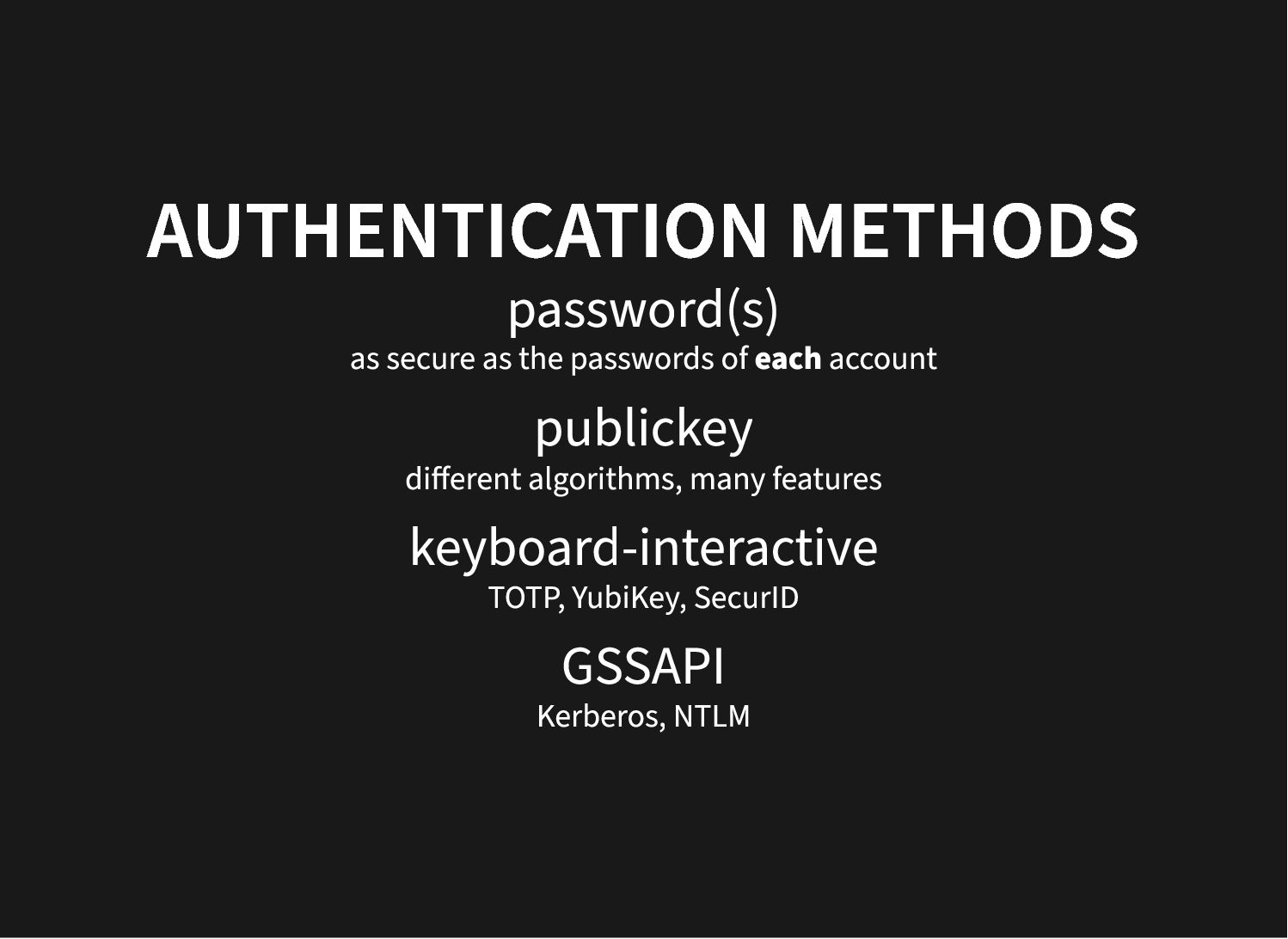

7. AUTHENTICATION METHODS password(s) as secure as the passwords of each account publickey different algorithms, many features keyboard-interactive TOTP, YubiKey, SecurID GSSAPI Kerberos, NTLM

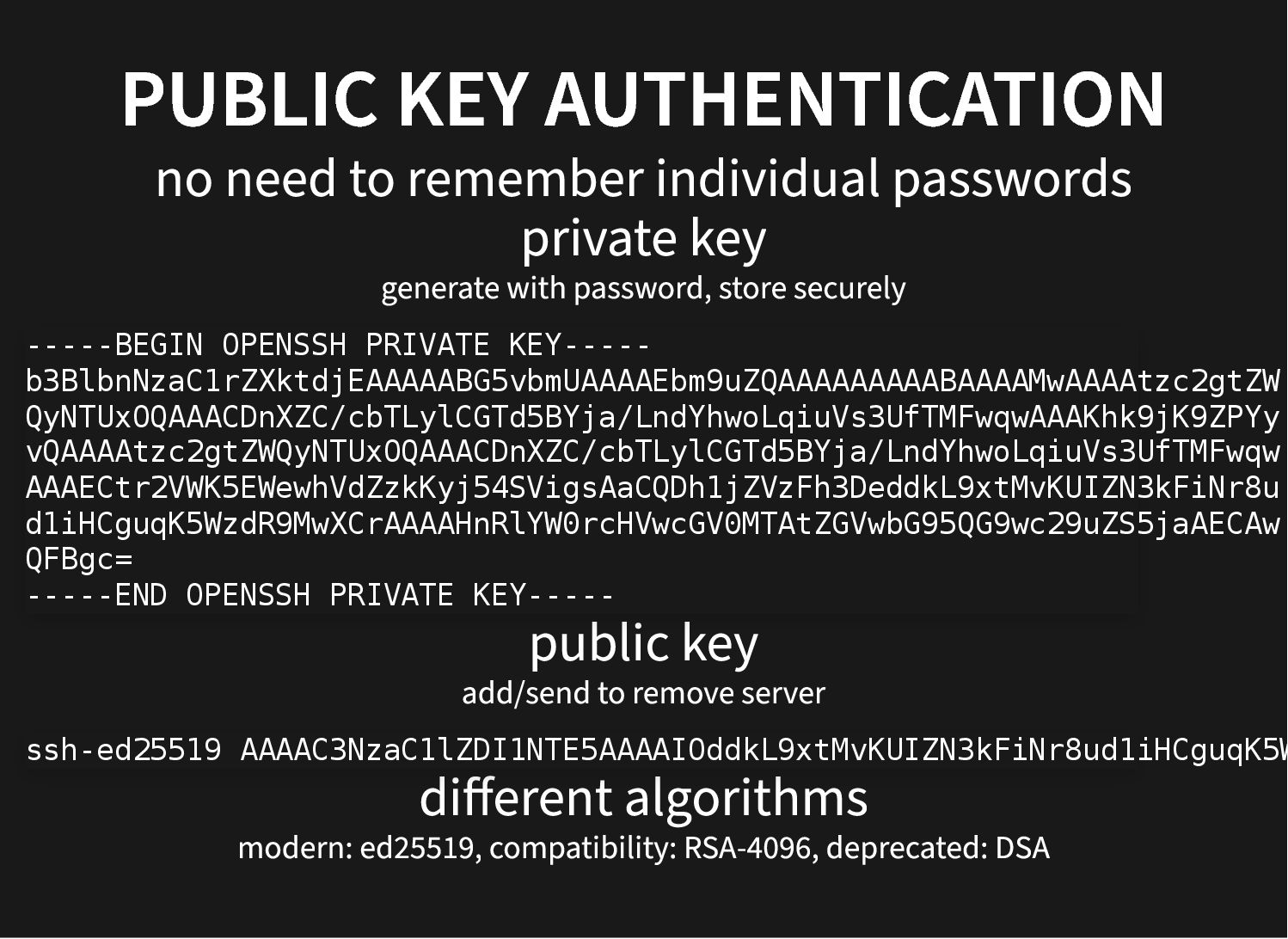

8. PUBLIC KEY AUTHENTICATION no need to remember individual passwords private key generate with password, store securely public key add/send to remove server different algorithms modern: ed25519, compatibility: RSA-4096, deprecated: DSA -----BEGIN OPENSSH PRIVATE KEY----- b3BlbnNzaC1rZXktdjEAAAAABG5vbmUAAAAEbm9uZQAAAAAAAAABAAAAMwAAAAtzc2gtZW QyNTUxOQAAACDnXZC/cbTLylCGTd5BYja/LndYhwoLqiuVs3UfTMFwqwAAAKhk9jK9ZPYy vQAAAAtzc2gtZWQyNTUxOQAAACDnXZC/cbTLylCGTd5BYja/LndYhwoLqiuVs3UfTMFwqw AAAECtr2VWK5EWewhVdZzkKyj54SVigsAaCQDh1jZVzFh3DeddkL9xtMvKUIZN3kFiNr8u d1iHCguqK5WzdR9MwXCrAAAAHnRlYW0rcHVwcGV0MTAtZGVwbG95QG9wc29uZS5jaAECAw QFBgc= -----END OPENSSH PRIVATE KEY----- ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIOddkL9xtMvKUIZN3kFiNr8ud1iHCguqK5W

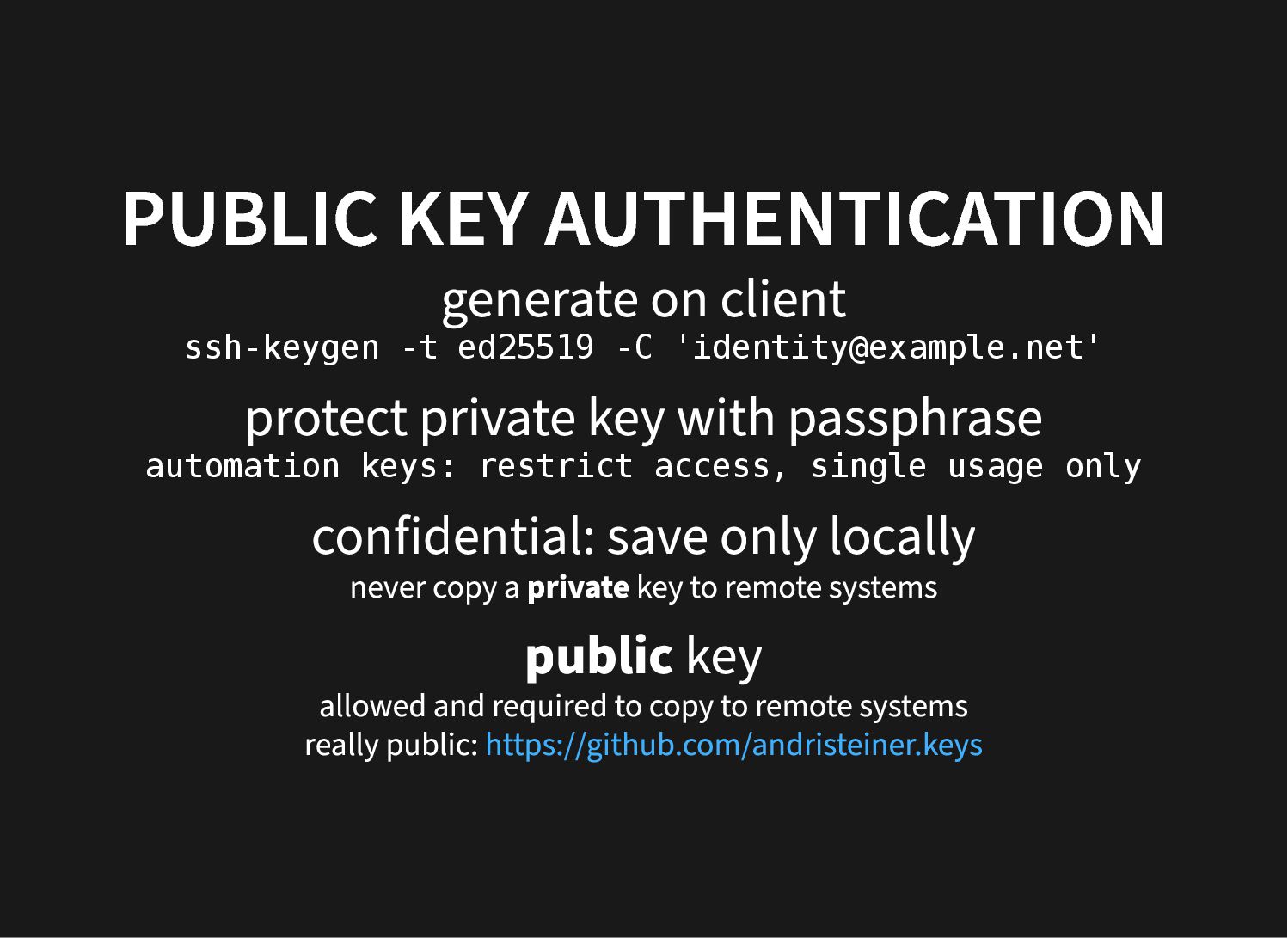

9. PUBLIC KEY AUTHENTICATION generate on client ssh-keygen -t ed25519 -C 'identity@example.net' protect private key with passphrase automation keys: restrict access, single usage only confidential: save only locally never copy a private key to remote systems public key allowed and required to copy to remote systems really public: https://github.com/andristeiner.keys

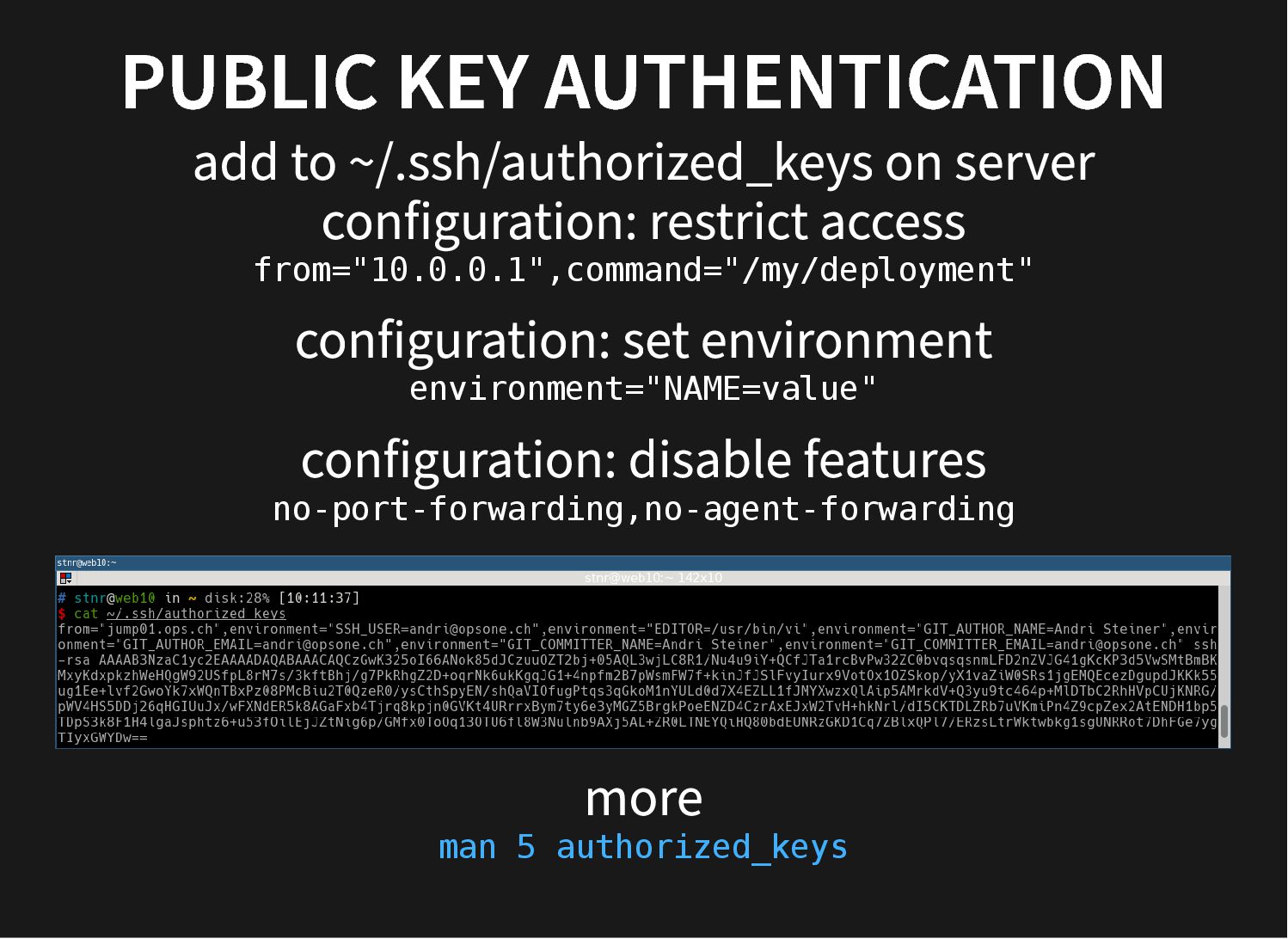

10. PUBLIC KEY AUTHENTICATION add to ~/.ssh/authorized_keys on server configuration: restrict access from="10.0.0.1",command="/my/deployment" configuration: set environment environment="NAME=value" configuration: disable features no-port-forwarding,no-agent-forwarding more man 5 authorized_keys

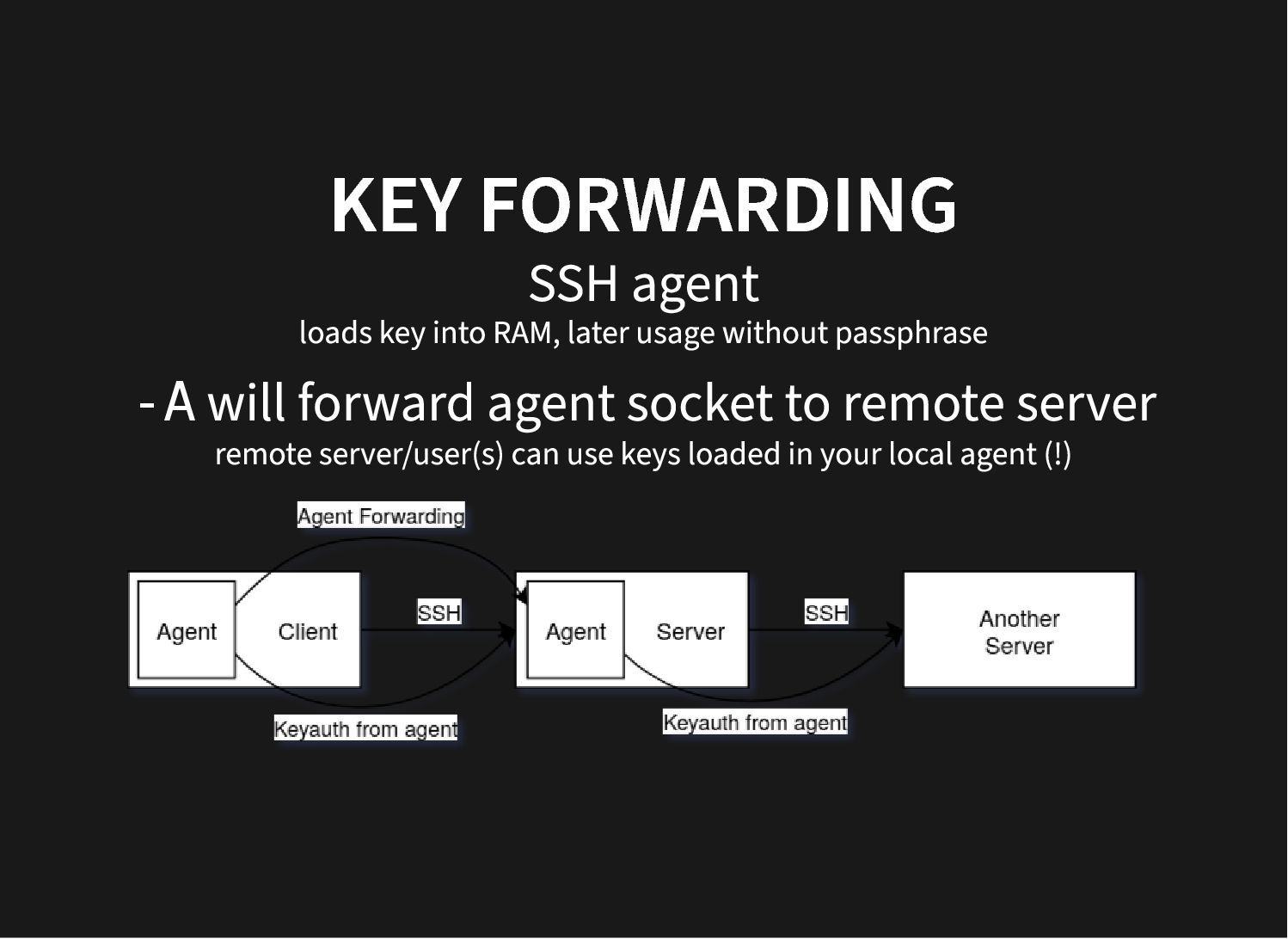

11. KEY FORWARDING SSH agent loads key into RAM, later usage without passphrase -A will forward agent socket to remote server remote server/user(s) can use keys loaded in your local agent (!)

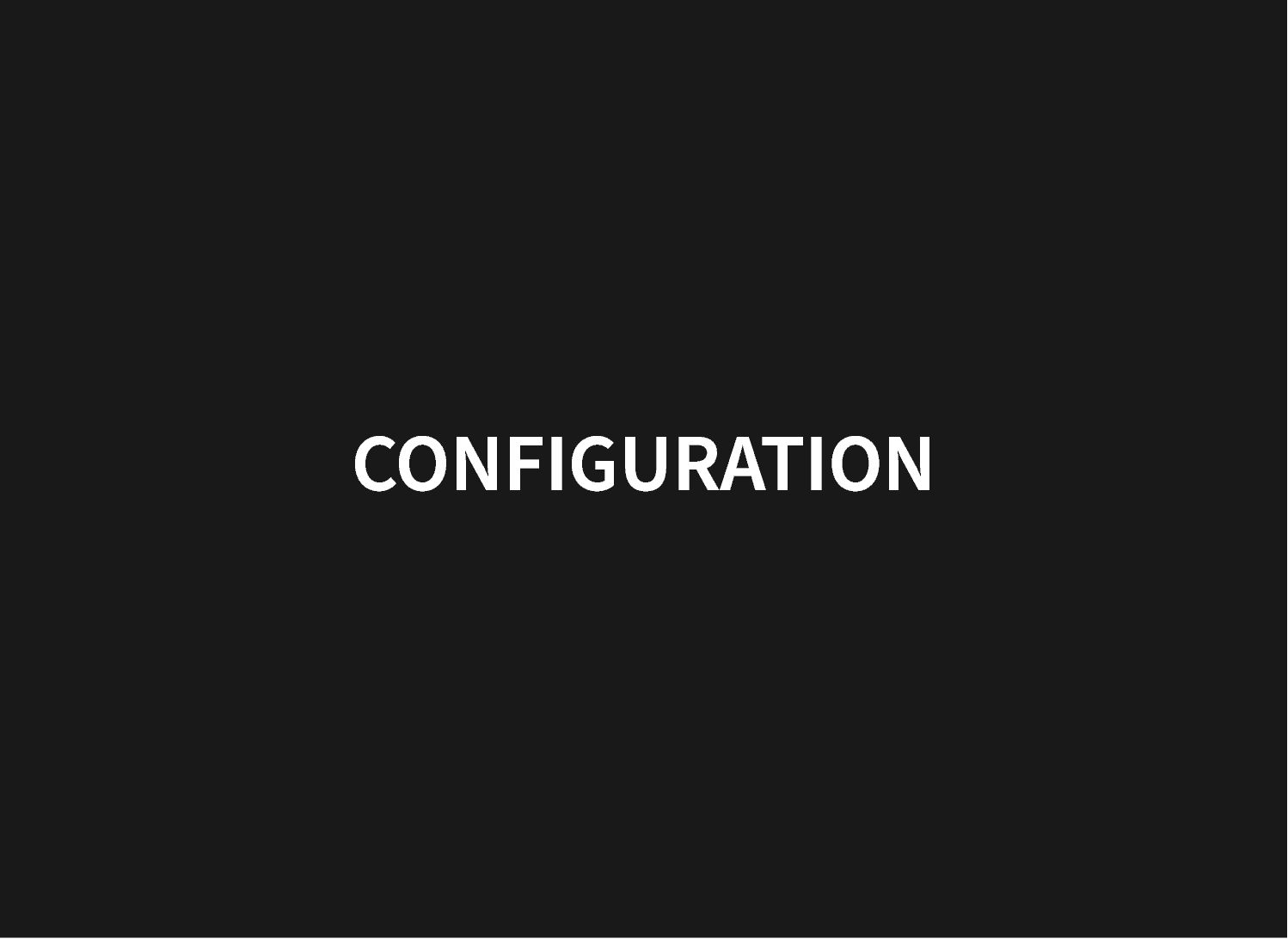

12. CONFIGURATION

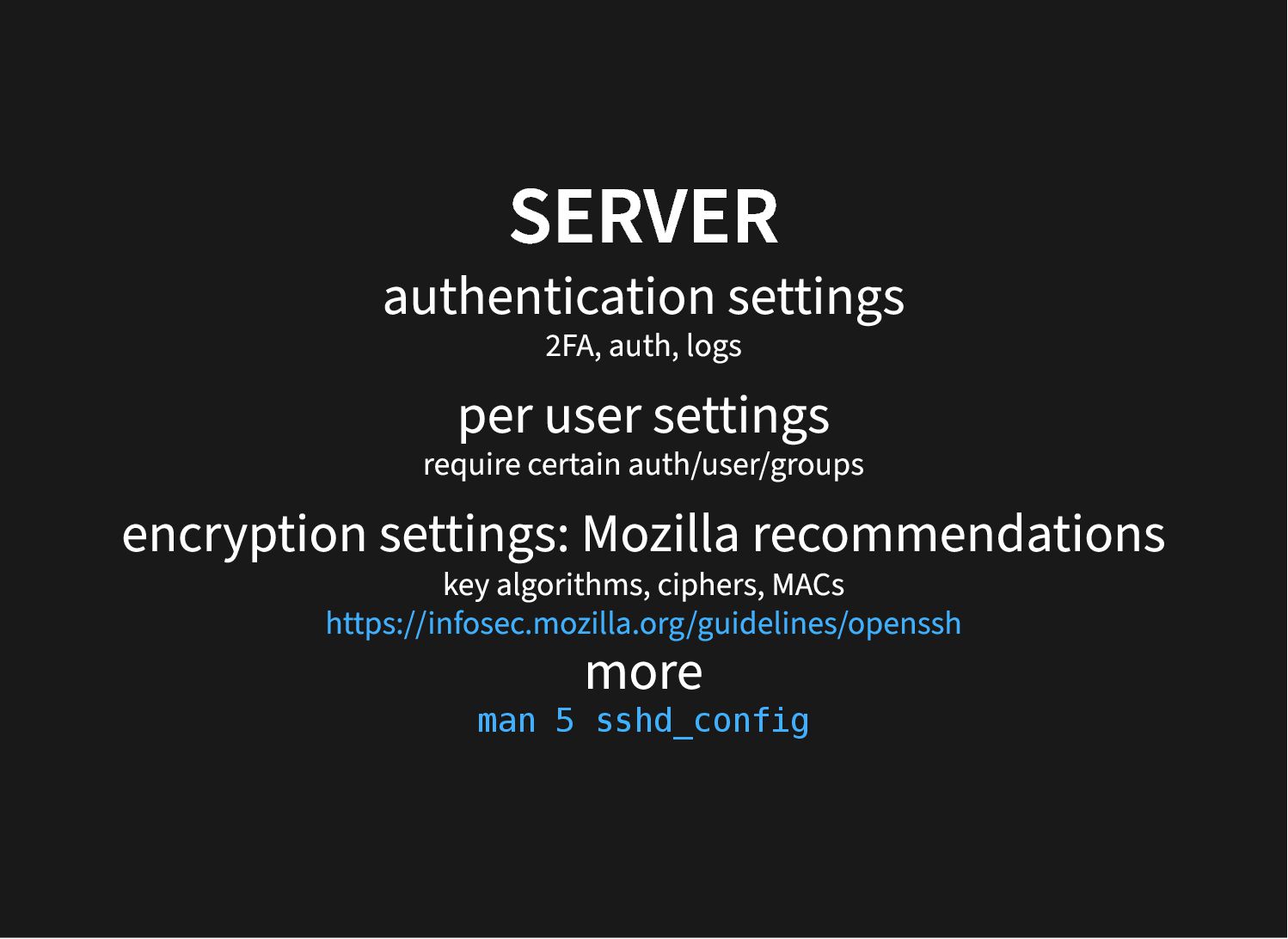

13. SERVER authentication settings 2FA, auth, logs per user settings require certain auth/user/groups encryption settings: Mozilla recommendations key algorithms, ciphers, MACs more https://infosec.mozilla.org/guidelines/openssh man 5 sshd_config

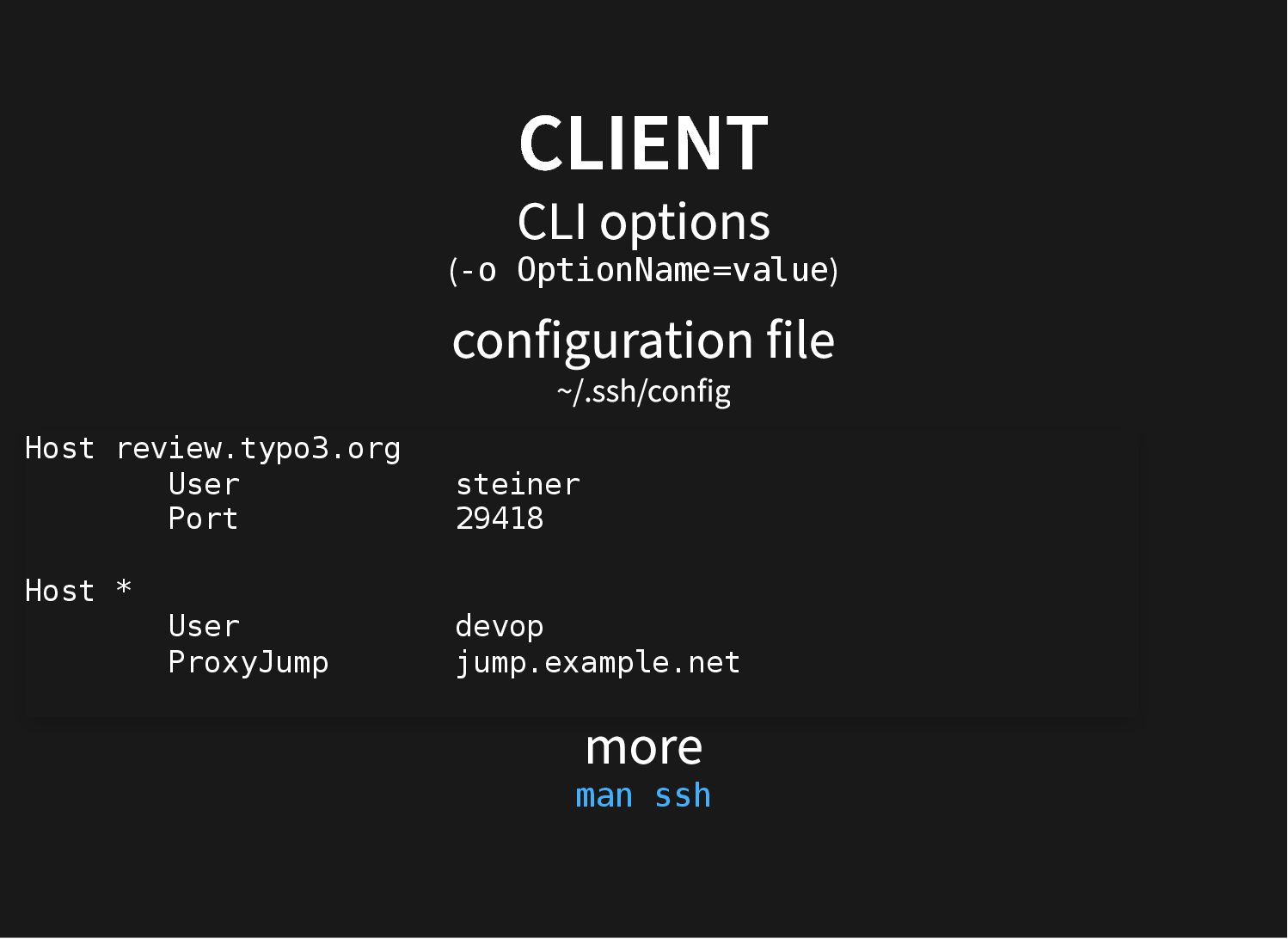

14. CLIENT CLI options (-o OptionName=value ) configuration file ~/.ssh/config more Host review.typo3.org User steiner Port 29418 Host * User devop ProxyJump jump.example.net man ssh
15. SECURITY CONSIDERATIONS

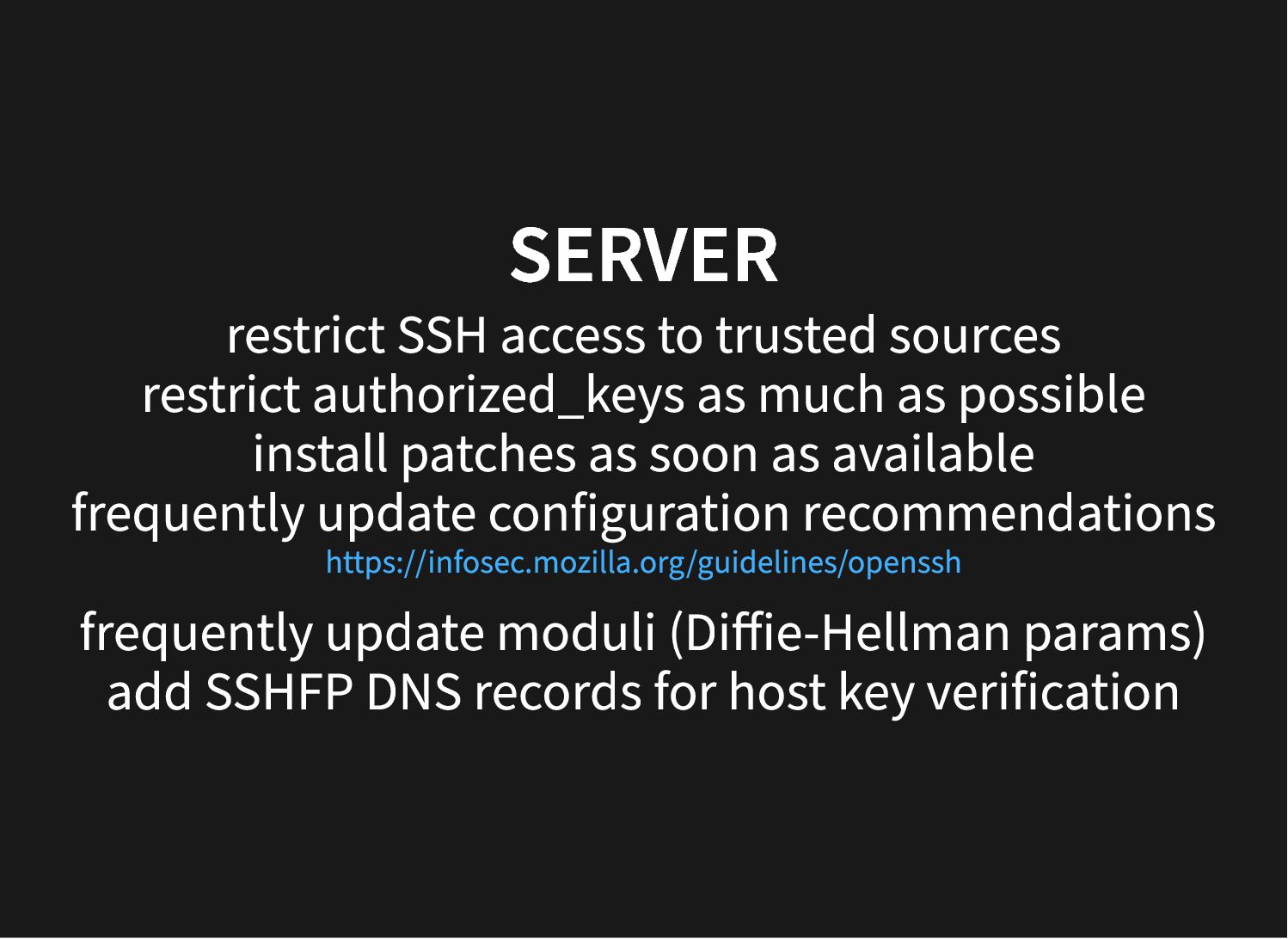

16. SERVER restrict SSH access to trusted sources restrict authorized_keys as much as possible install patches as soon as available frequently update configuration recommendations frequently update moduli (Diffie-Hellman params) add SSHFP DNS records for host key verification https://infosec.mozilla.org/guidelines/openssh

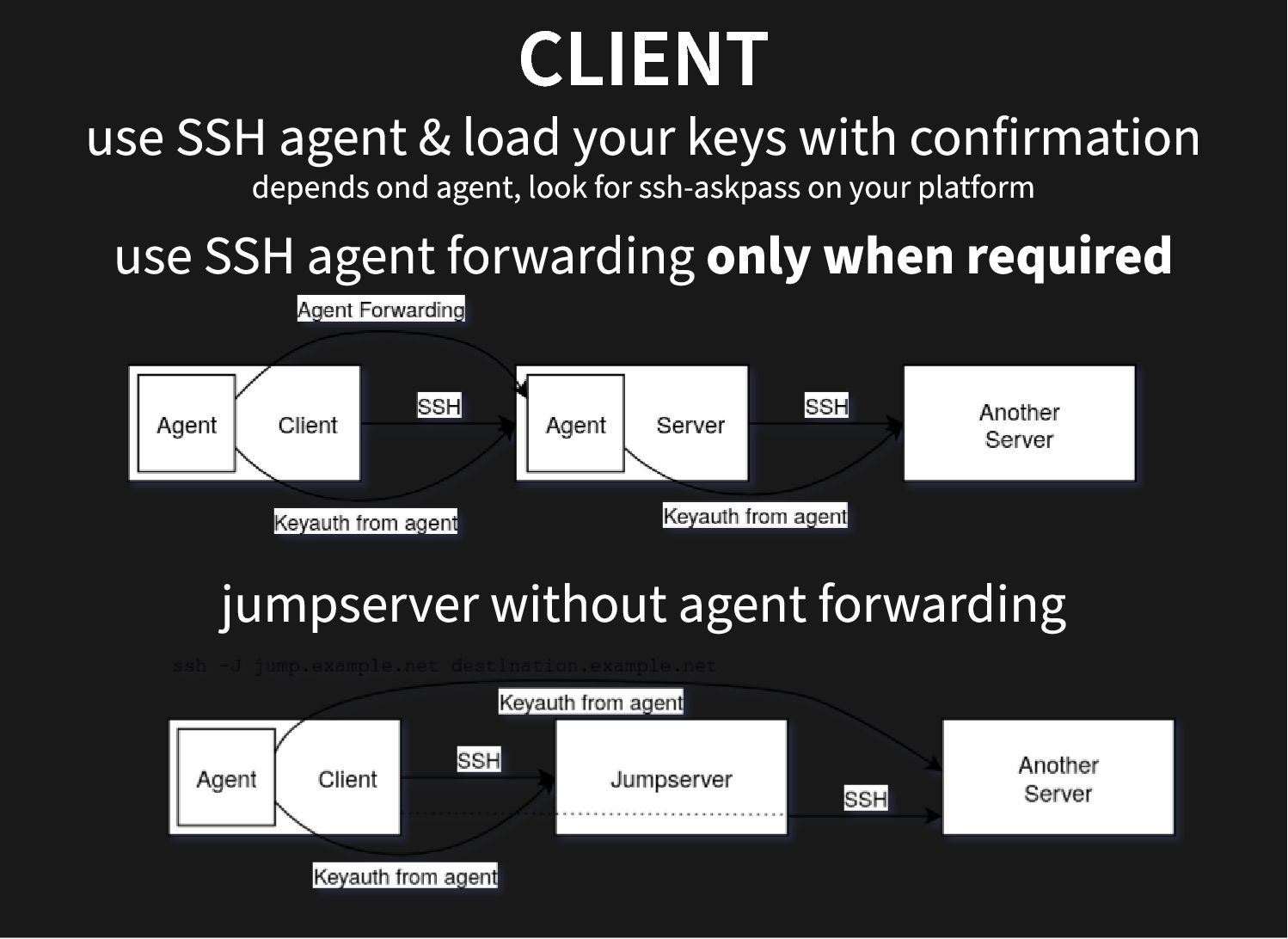

17. CLIENT use SSH agent & load your keys with confirmation depends ond agent, look for ssh-askpass on your platform use SSH agent forwarding only when required jumpserver without agent forwarding
18. SOME EXAMPLES

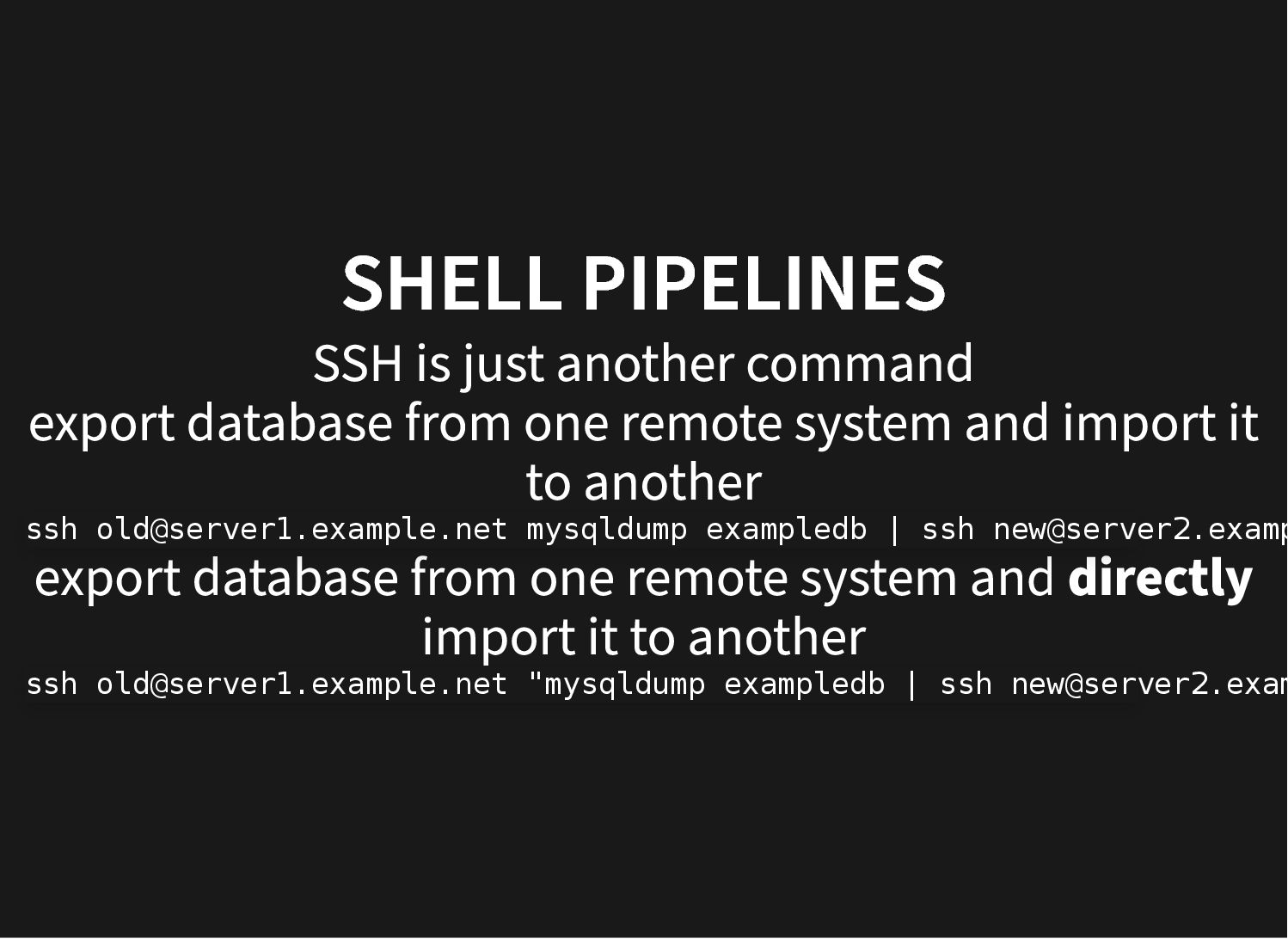

19. SHELL PIPELINES SSH is just another command export database from one remote system and import it to another export database from one remote system and directly import it to another ssh old@server1.example.net mysqldump exampledb | ssh new@server2.examp ssh old@server1.example.net "mysqldump exampledb | ssh new@server2.exam

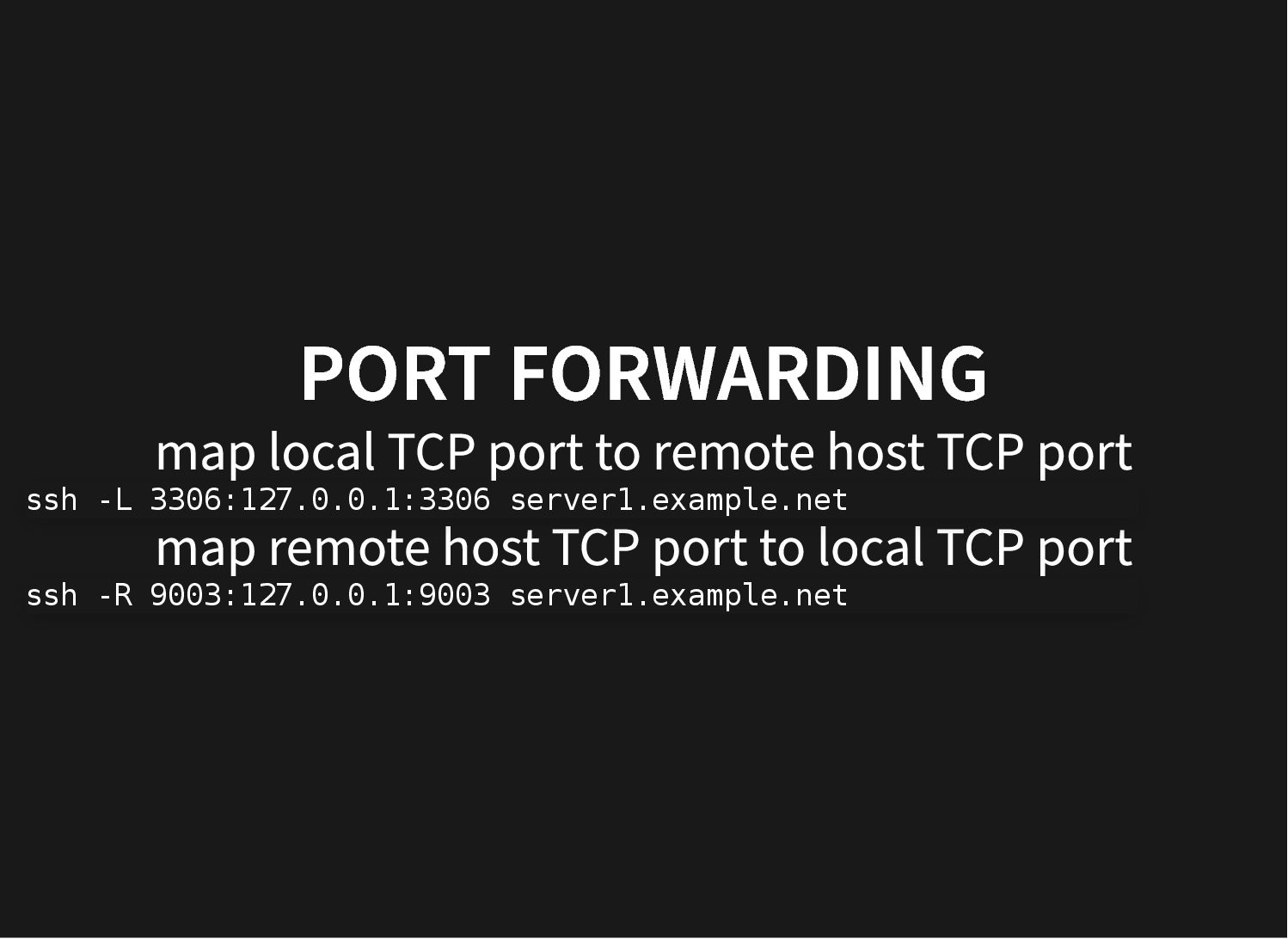

20. PORT FORWARDING map local TCP port to remote host TCP port map remote host TCP port to local TCP port ssh -L 3306:127.0.0.1:3306 server1.example.net ssh -R 9003:127.0.0.1:9003 server1.example.net

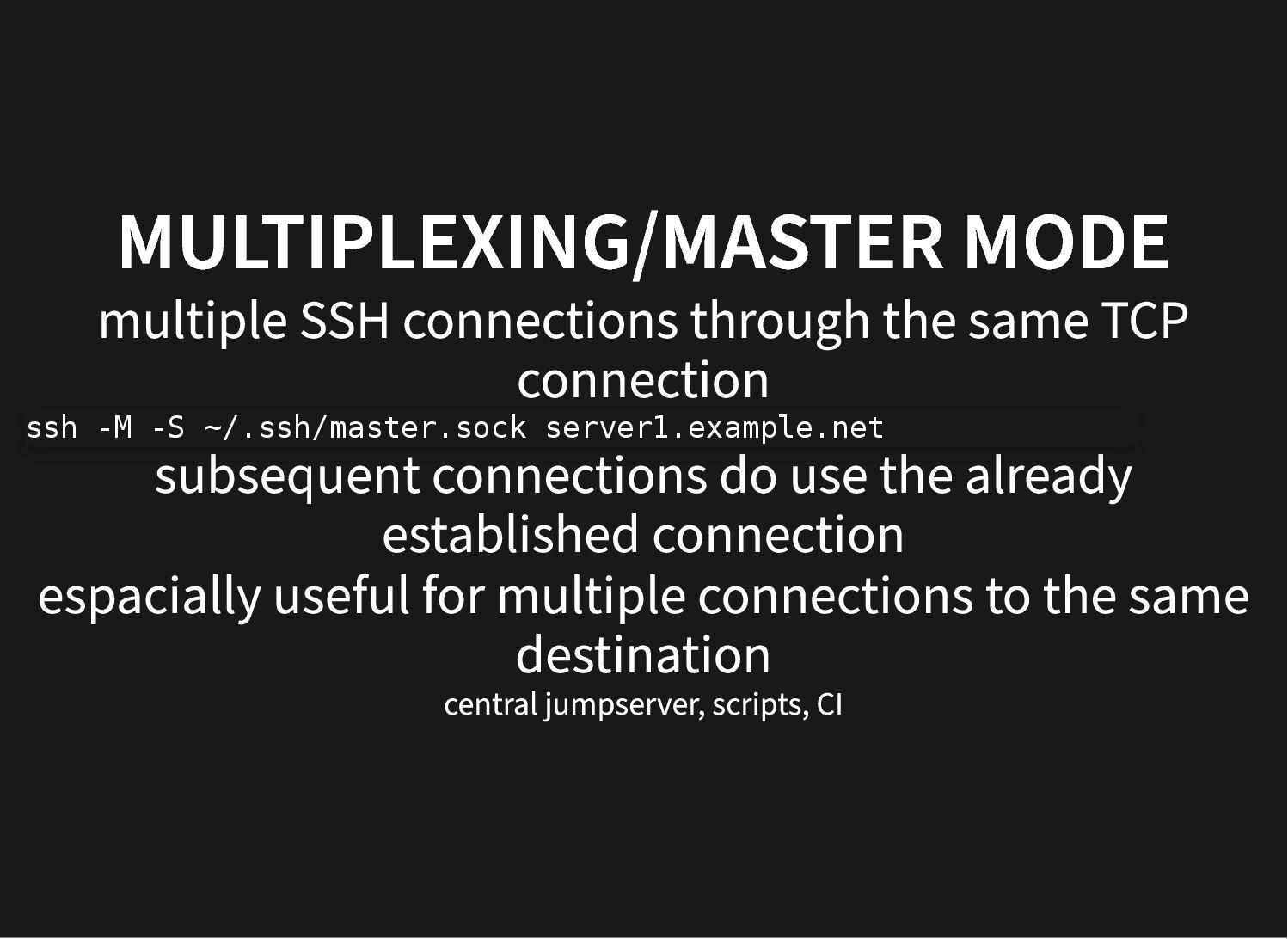

21. MULTIPLEXING/MASTER MODE multiple SSH connections through the same TCP connection subsequent connections do use the already established connection espacially useful for multiple connections to the same destination central jumpserver, scripts, CI ssh -M -S ~/.ssh/master.sock server1.example.net

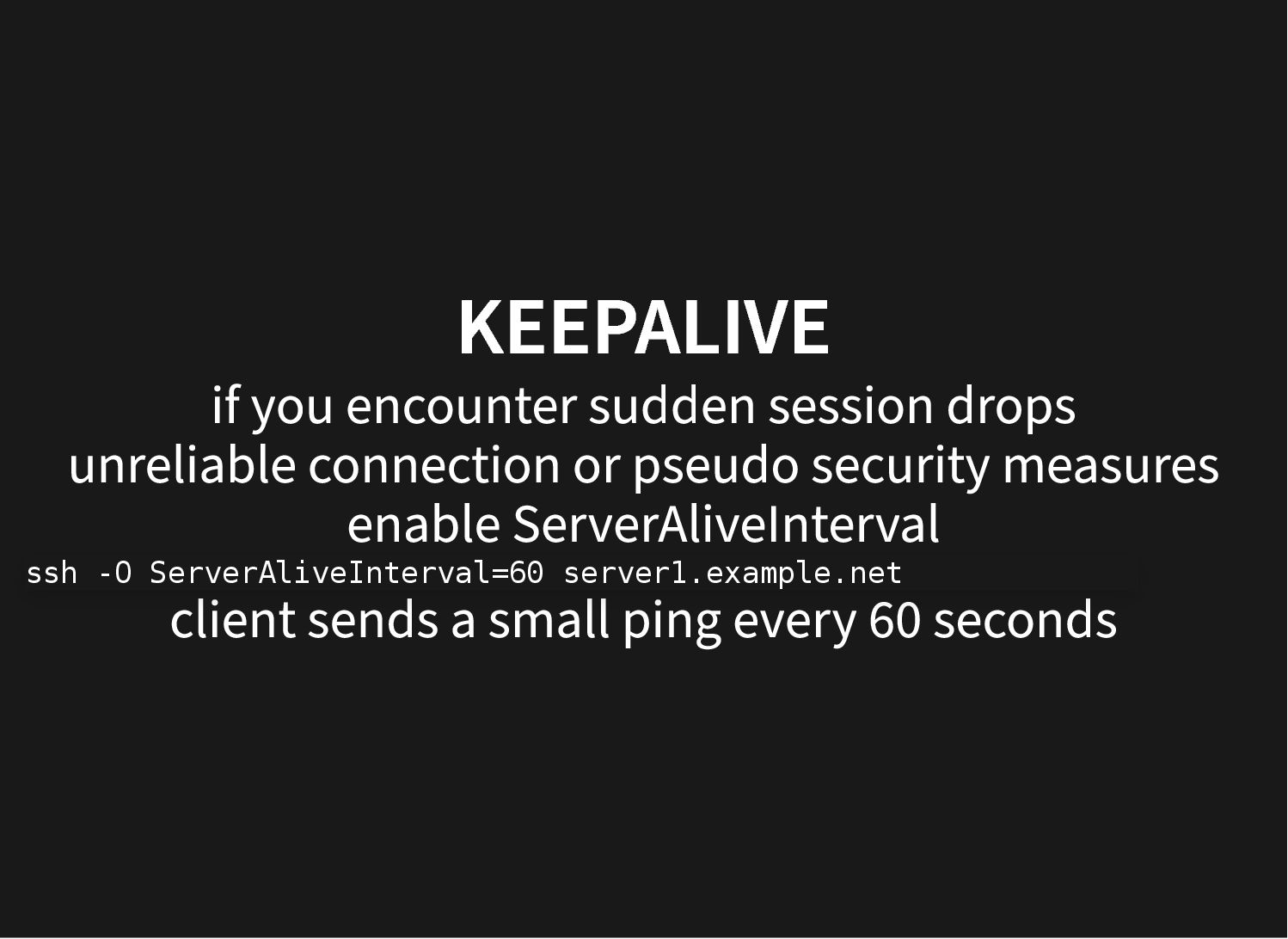

22. KEEPALIVE if you encounter sudden session drops unreliable connection or pseudo security measures enable ServerAliveInterval client sends a small ping every 60 seconds ssh -O ServerAliveInterval=60 server1.example.net

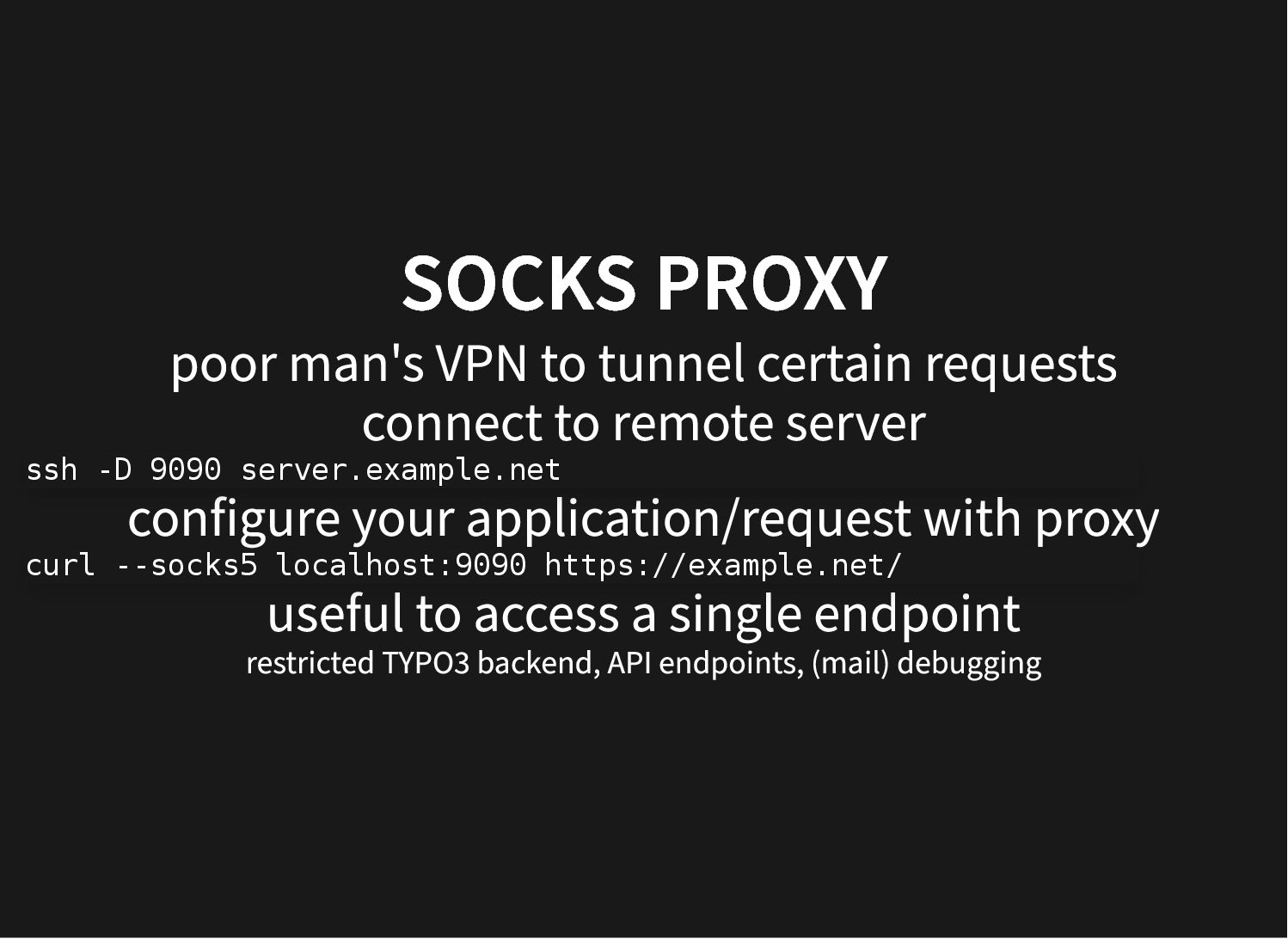

23. SOCKS PROXY poor man's VPN to tunnel certain requests connect to remote server configure your application/request with proxy useful to access a single endpoint restricted TYPO3 backend, API endpoints, (mail) debugging ssh -D 9090 server.example.net curl --socks5 localhost:9090 https://example.net/

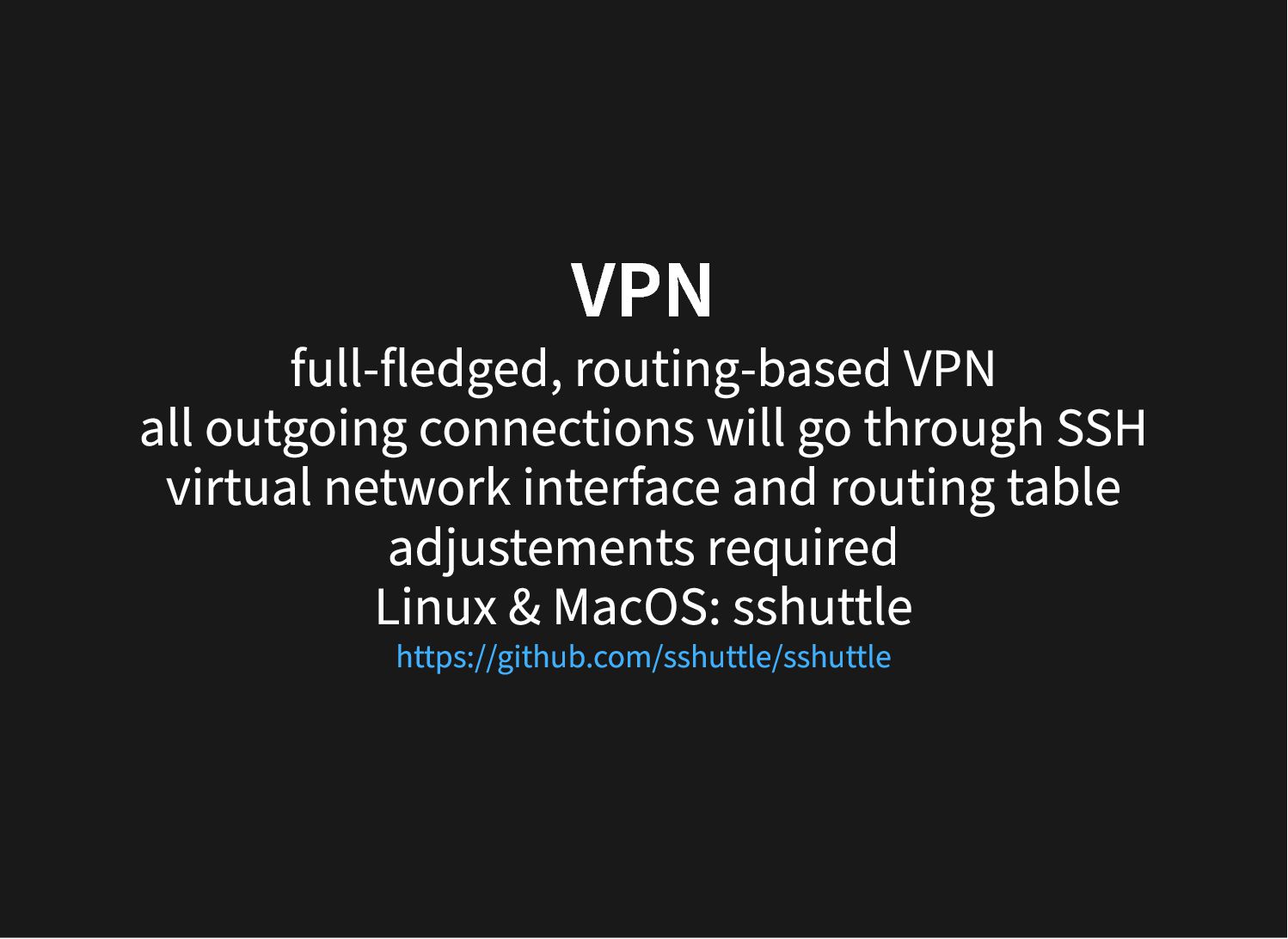

24. VPN full-fledged, routing-based VPN all outgoing connections will go through SSH virtual network interface and routing table adjustements required Linux & MacOS: sshuttle https://github.com/sshuttle/sshuttle

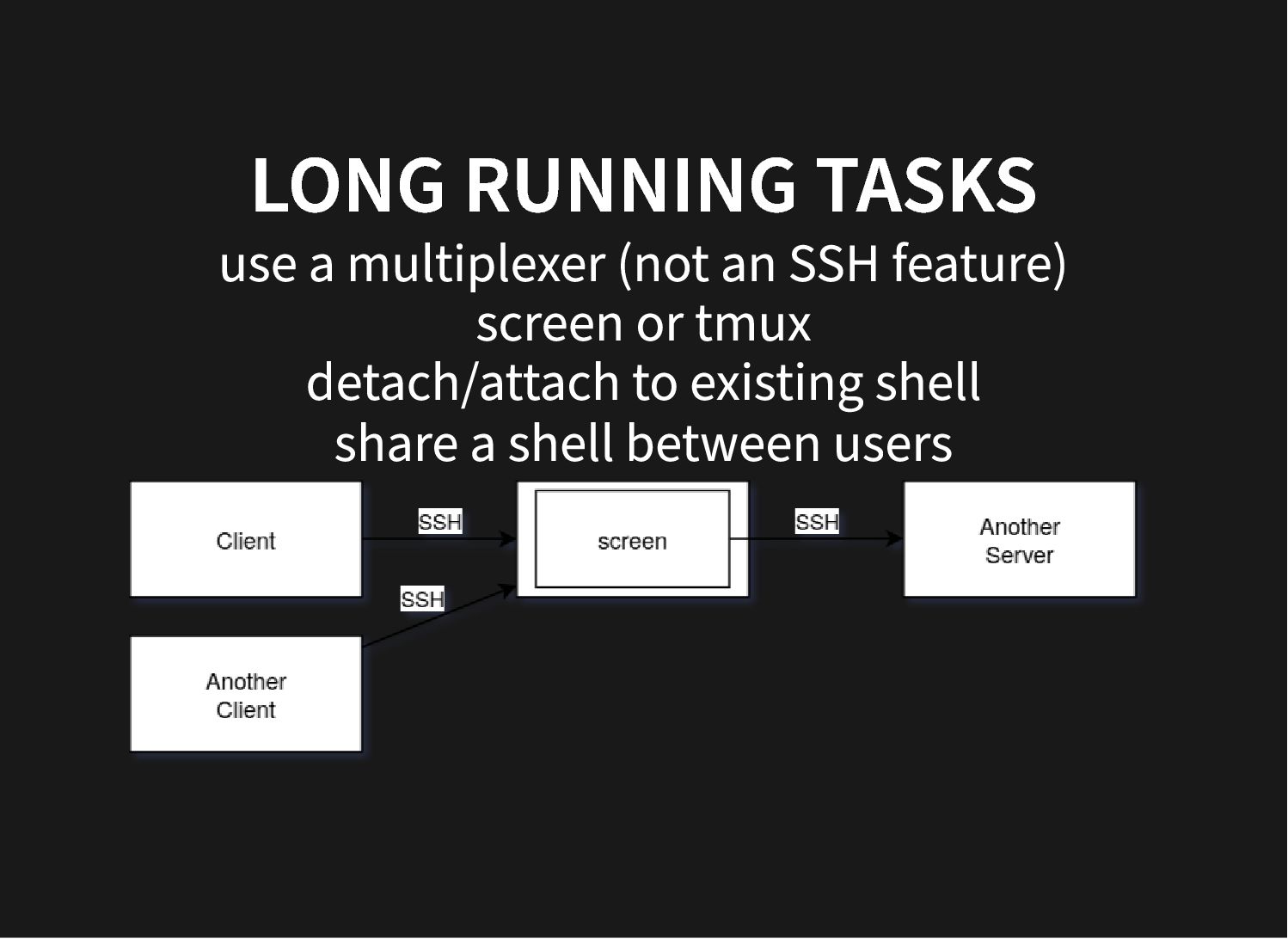

25. LONG RUNNING TASKS use a multiplexer (not an SSH feature) screen or tmux detach/attach to existing shell share a shell between users

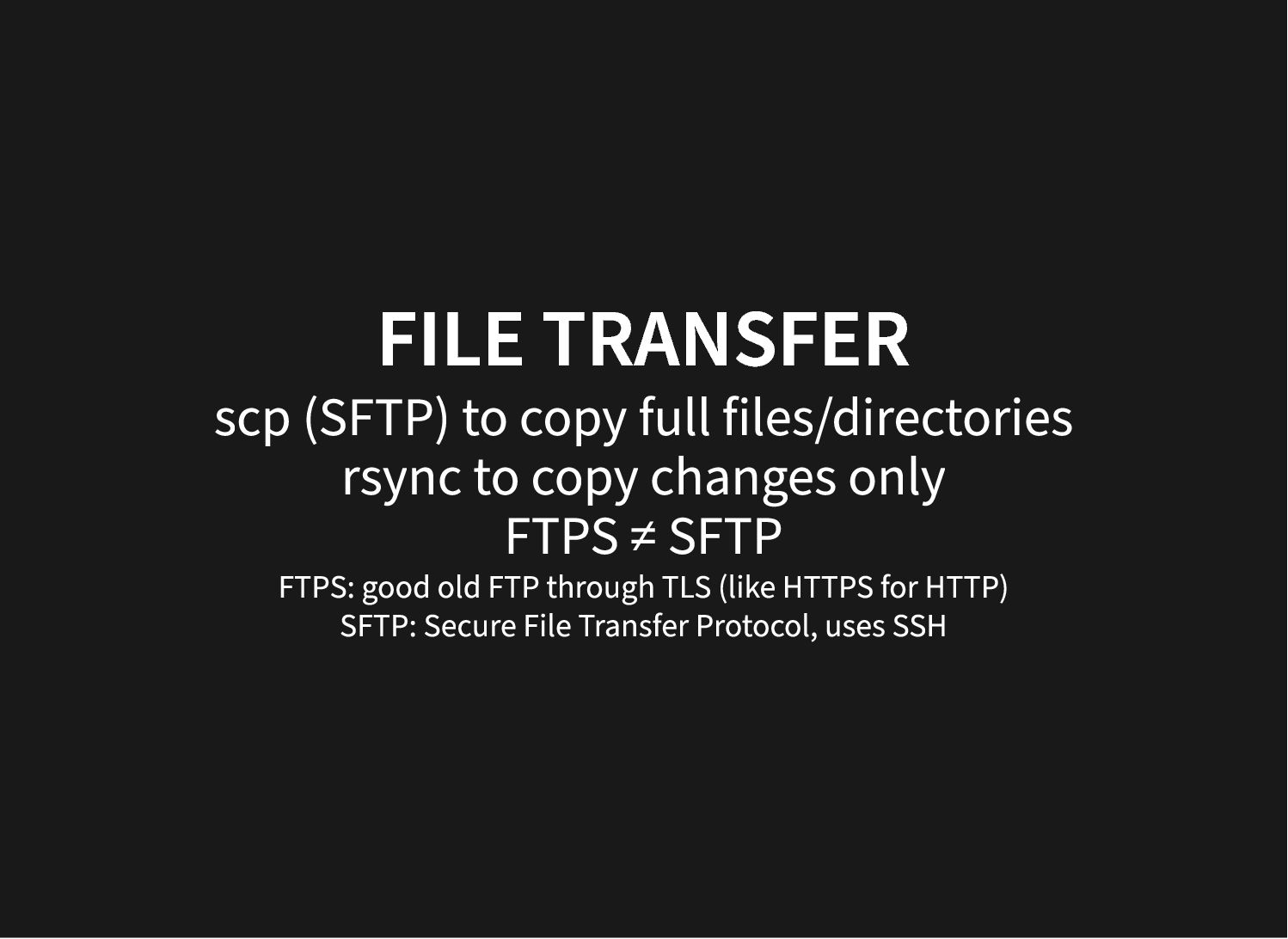

26. FILE TRANSFER scp (SFTP) to copy full files/directories rsync to copy changes only FTPS ≠ SFTP FTPS: good old FTP through TLS (like HTTPS for HTTP) SFTP: Secure File Transfer Protocol, uses SSH

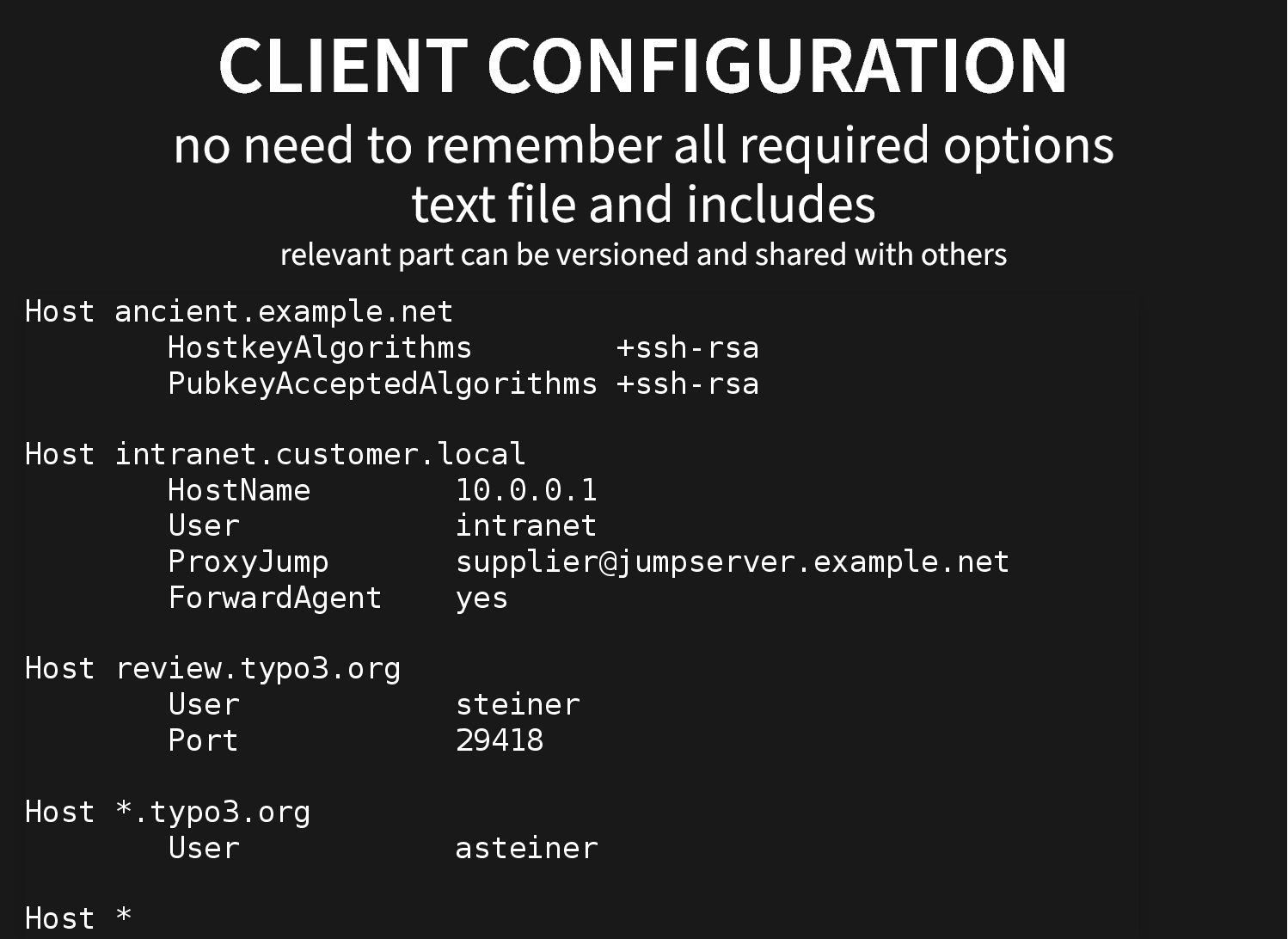

27. CLIENT CONFIGURATION no need to remember all required options text file and includes relevant part can be versioned and shared with others Host ancient.example.net HostkeyAlgorithms +ssh-rsa PubkeyAcceptedAlgorithms +ssh-rsa Host intranet.customer.local HostName 10.0.0.1 User intranet ProxyJump supplier@jumpserver.example.net ForwardAgent yes Host review.typo3.org User steiner Port 29418 Host *.typo3.org User asteiner Host *

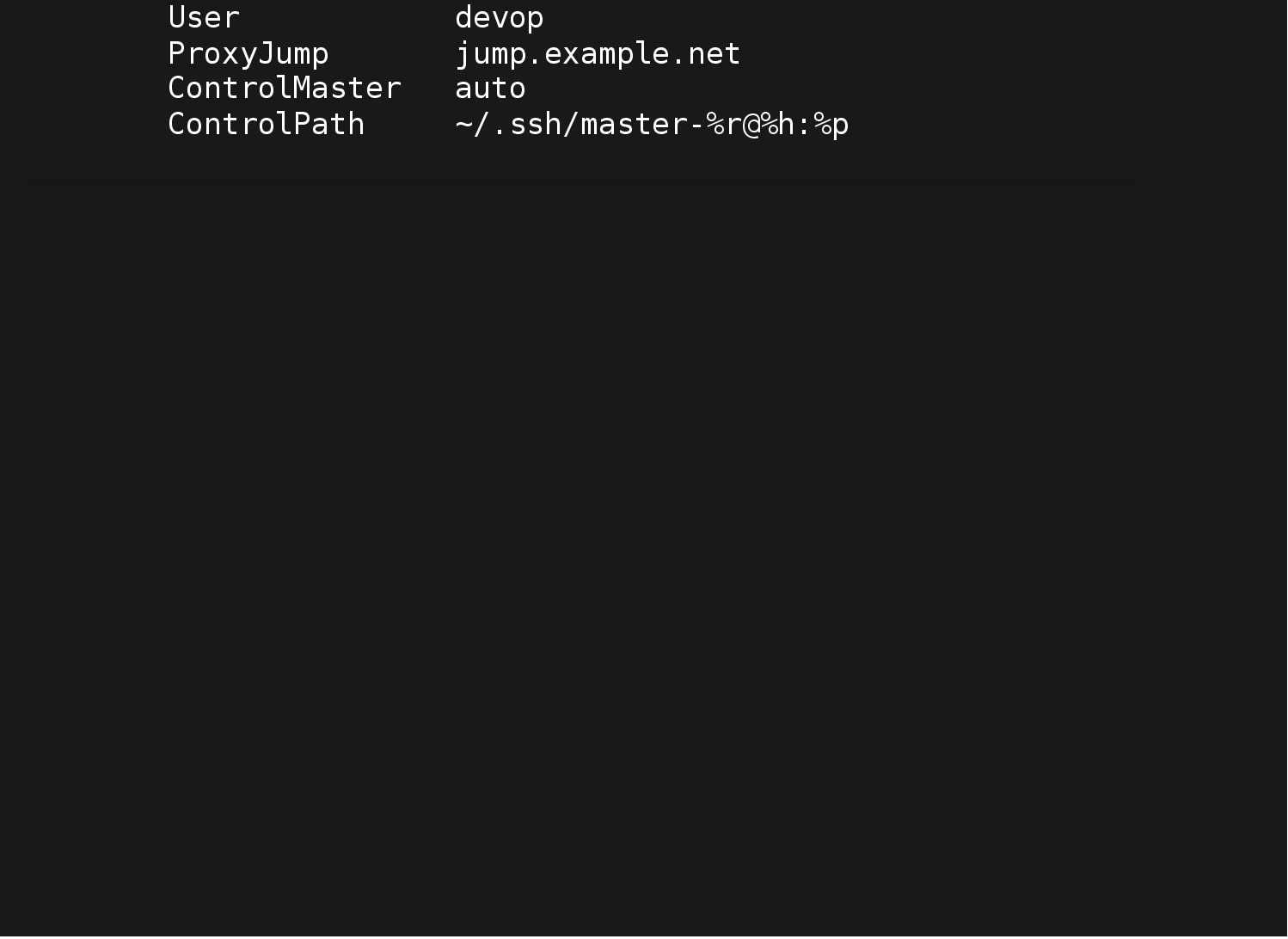

28. User devop ProxyJump jump.example.net ControlMaster auto ControlPath ~/.ssh/master-%r@%h:%p
29. THANK YOU! Slides https://my.typo3.org/u/steiner https://speakerdeck.com/andristeiner
