1. A Docker tale Pedro Dias Codebits - April 2014
2. Who am I • Pedro Dias • Lecturer at Polytechnic Institute of Tomar • Fullstack Engineer at ptisp.pt • Freelancer/consultant • @pedromdias • github.com/apocas • petermdias@gmail.com
3. Hey it’s a tale…
4. In a July night I had an idea…

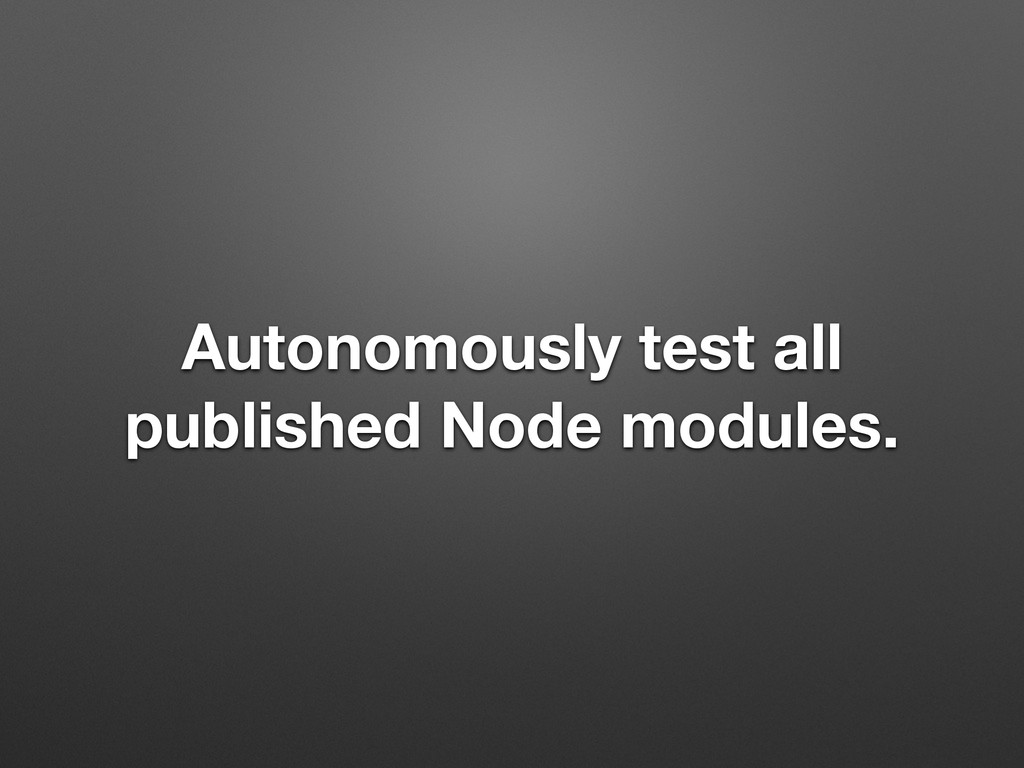

5. Autonomously test all published Node modules.

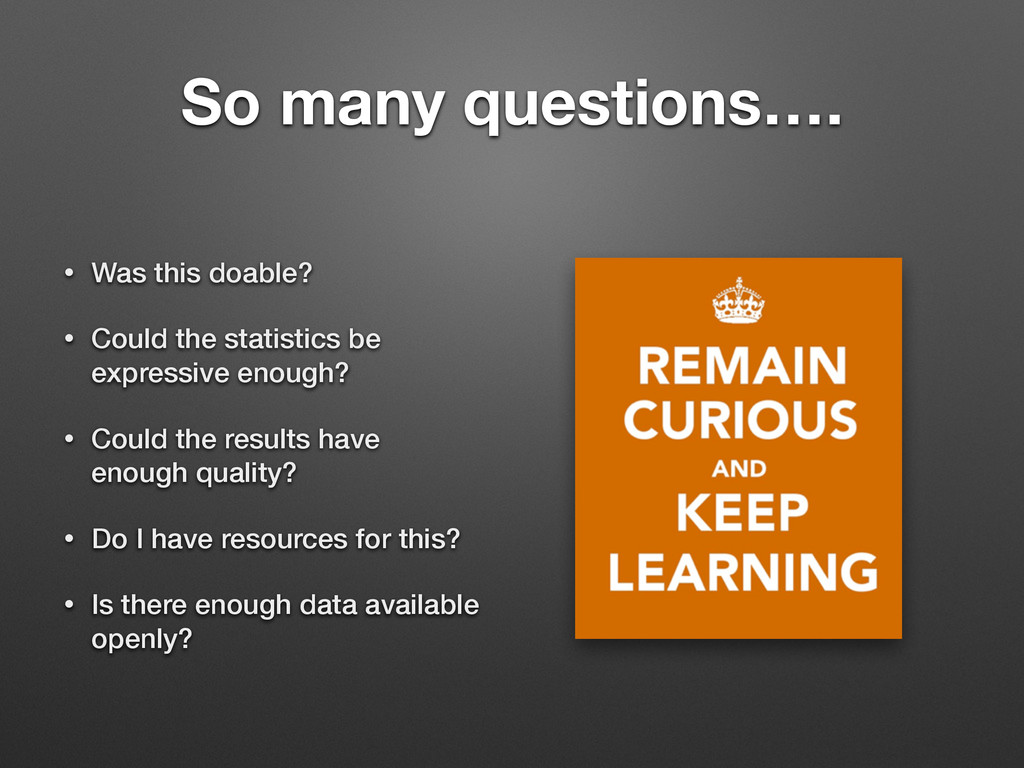

6. So many questions…. • Was this doable? • Could the statistics be expressive enough? • Could the results have enough quality? • Do I have resources for this? • Is there enough data available openly?

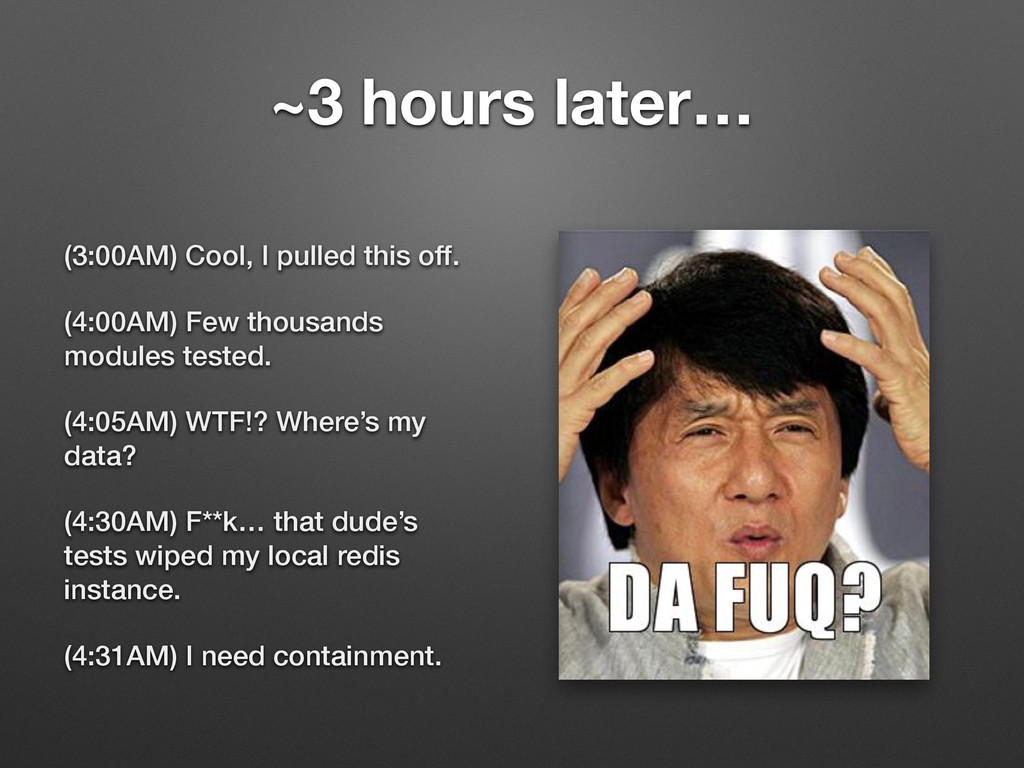

7. ~3 hours later… (3:00AM) Cool, I pulled this off. (4:00AM) Few thousands modules tested. (4:05AM) WTF!? Where’s my data? (4:30AM) F**k… that dude’s tests wiped my local redis instance. (4:31AM) I need containment.

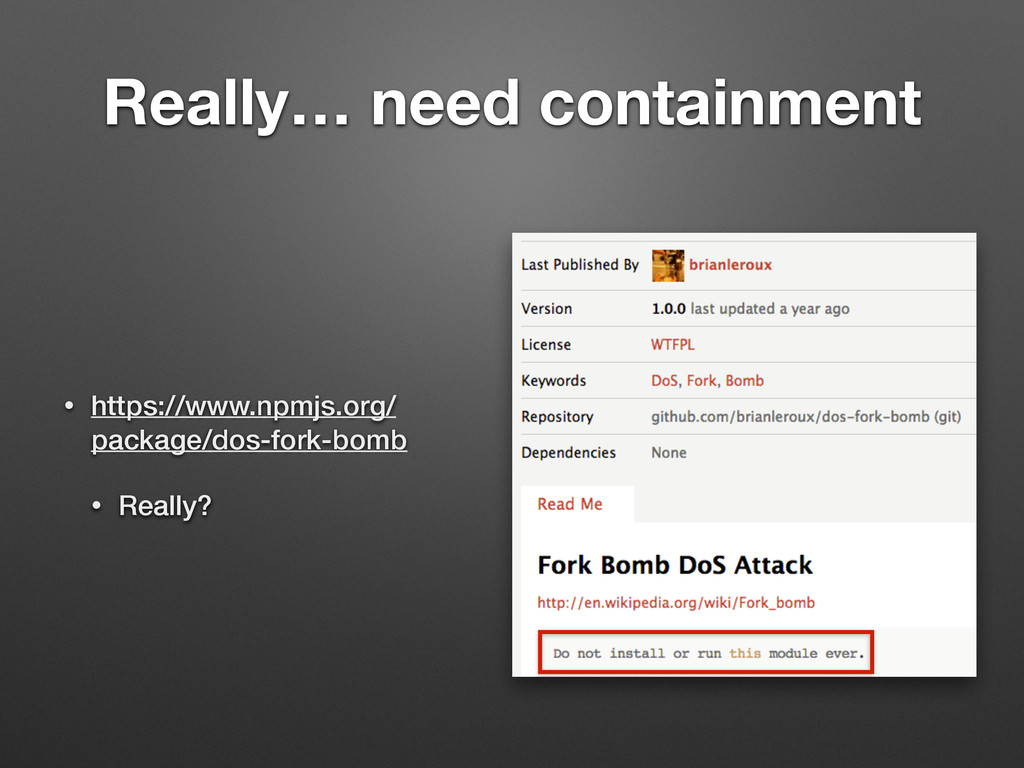

8. Really… need containment • https://www.npmjs.org/ package/dos-fork-bomb • Really?
9. Containment?
10. Not this kind… but not far from truth.
11. Environment containment VMs Contai ners

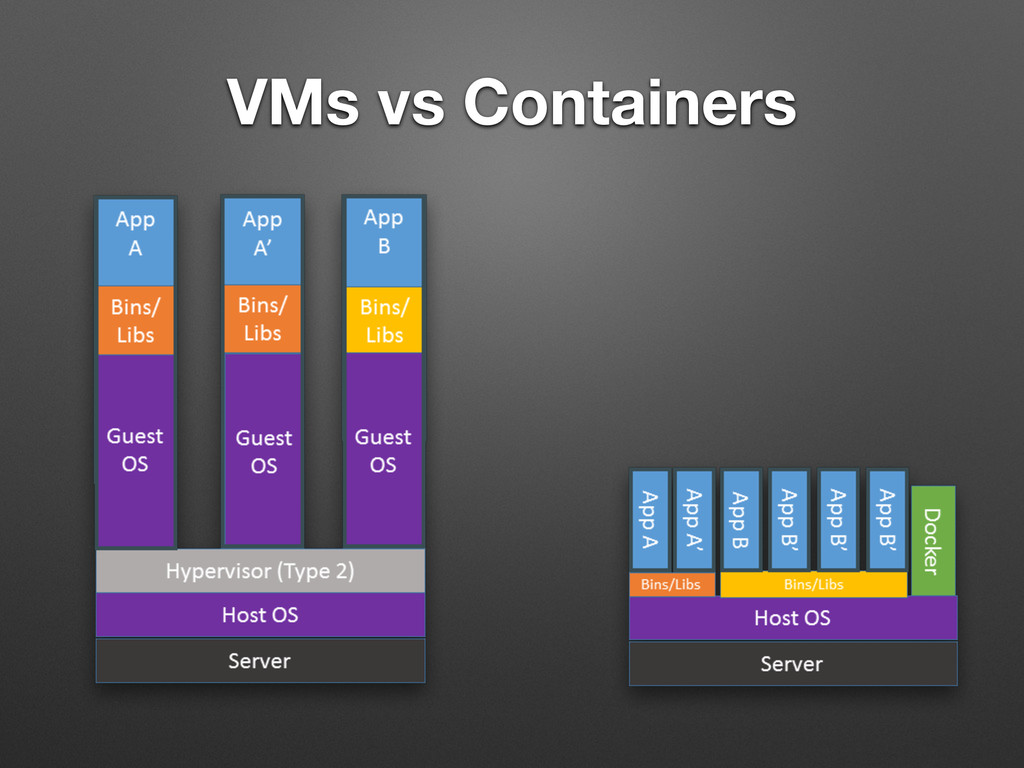

12. VMs vs Containers

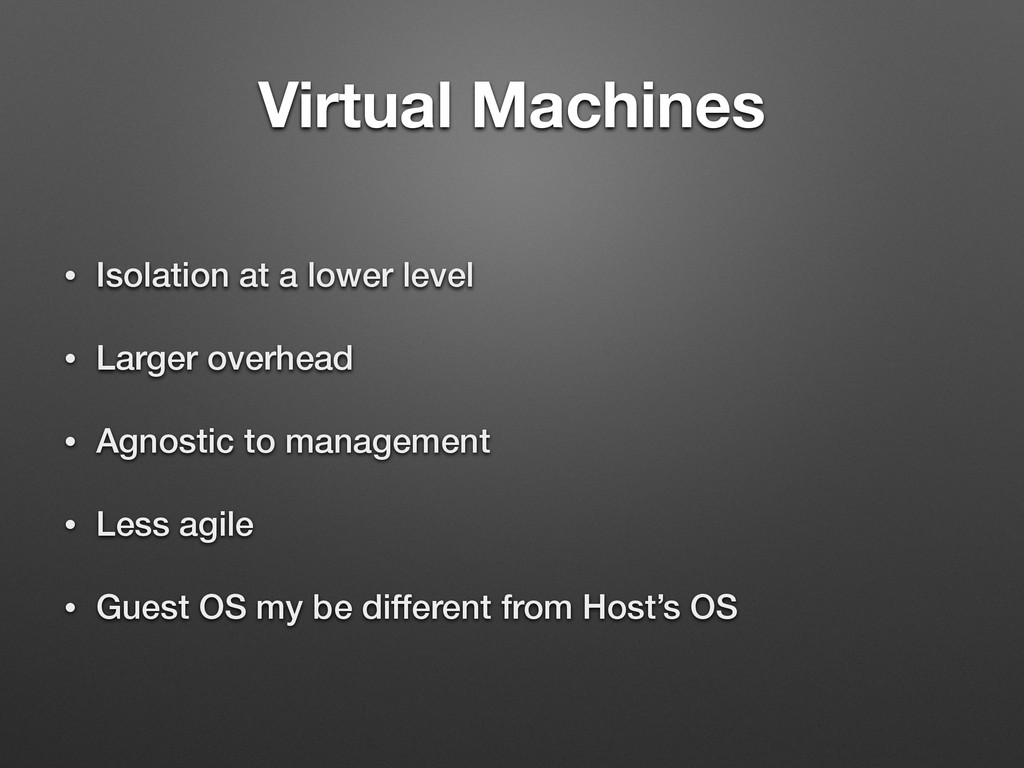

13. Virtual Machines • Isolation at a lower level • Larger overhead • Agnostic to management • Less agile • Guest OS my be different from Host’s OS

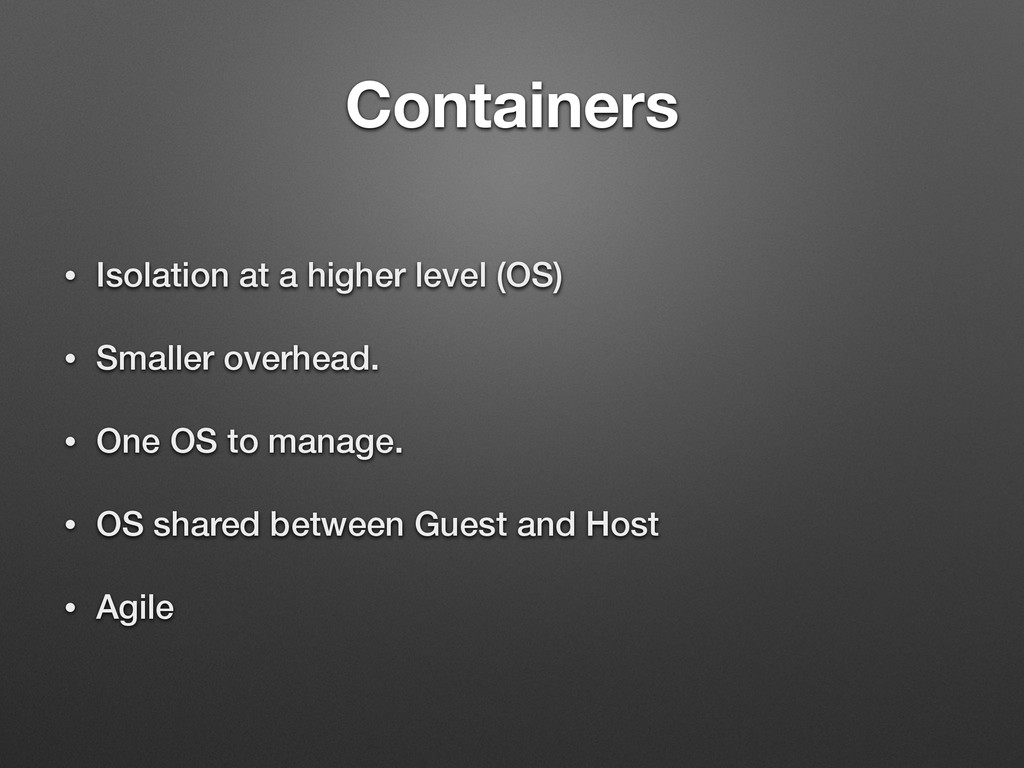

14. Containers • Isolation at a higher level (OS) • Smaller overhead. • One OS to manage. • OS shared between Guest and Host • Agile
15. What about Docker?

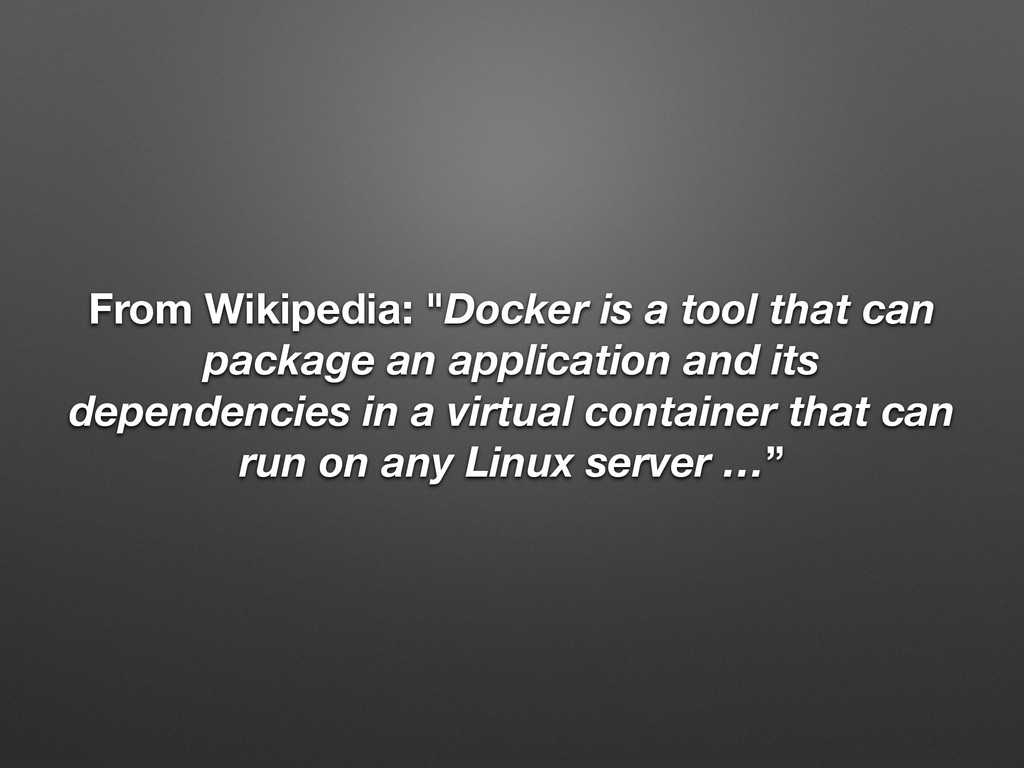

16. From Wikipedia: "Docker is a tool that can package an application and its dependencies in a virtual container that can run on any Linux server …”

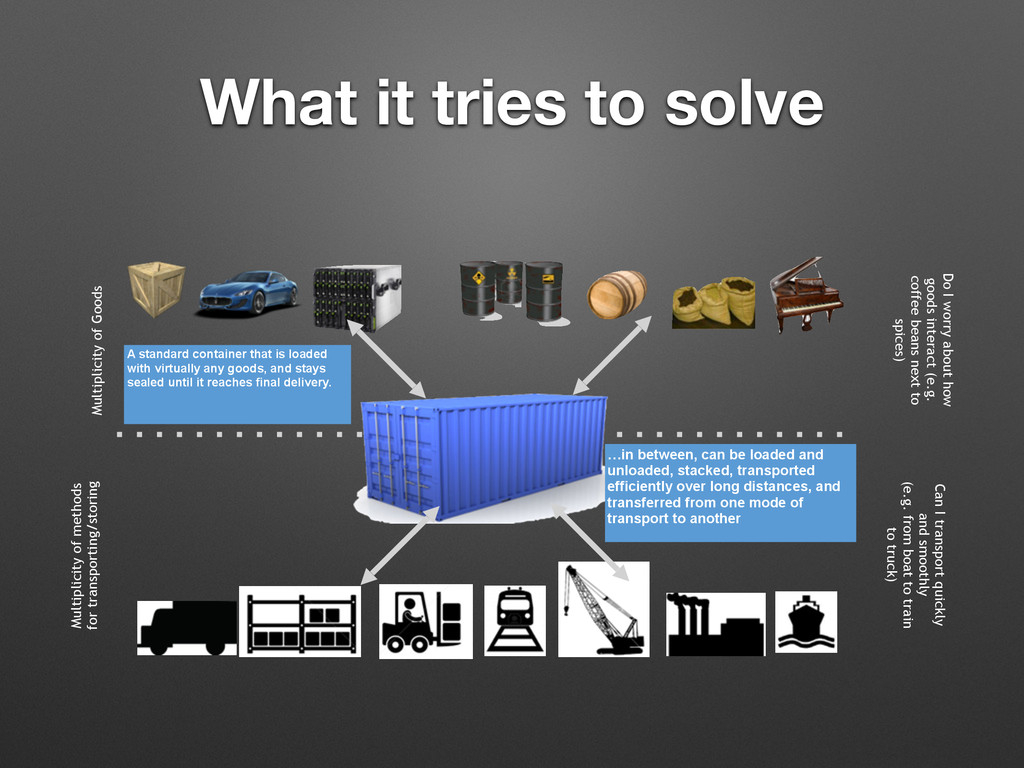

17. What it tries to solve Multiplicity of Goods Multiplicity of methods for transporting/storing Do I worry about how goods interact (e.g. coffee beans next to spices) Can I transport quickly and smoothly (e.g. from boat to train to truck) …in between, can be loaded and unloaded, stacked, transported efficiently over long distances, and transferred from one mode of transport to another A standard container that is loaded with virtually any goods, and stays sealed until it reaches final delivery.

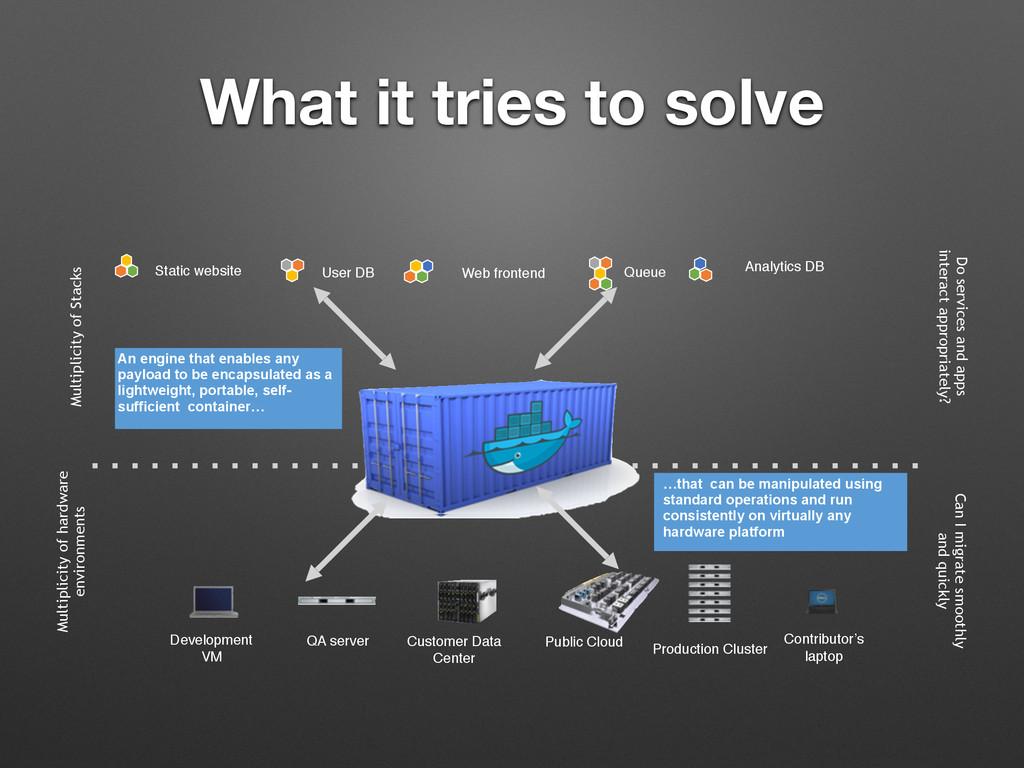

18. What it tries to solve Static website Web frontend User DB Queue Analytics DB Development VM QA server Public Cloud Contributor’s laptop Multiplicity of Stacks Multiplicity of hardware environments Production Cluster Customer Data Center Do services and apps interact appropriately? Can I migrate smoothly and quickly …that can be manipulated using standard operations and run consistently on virtually any hardware platform An engine that enables any payload to be encapsulated as a lightweight, portable, self- sufficient container…

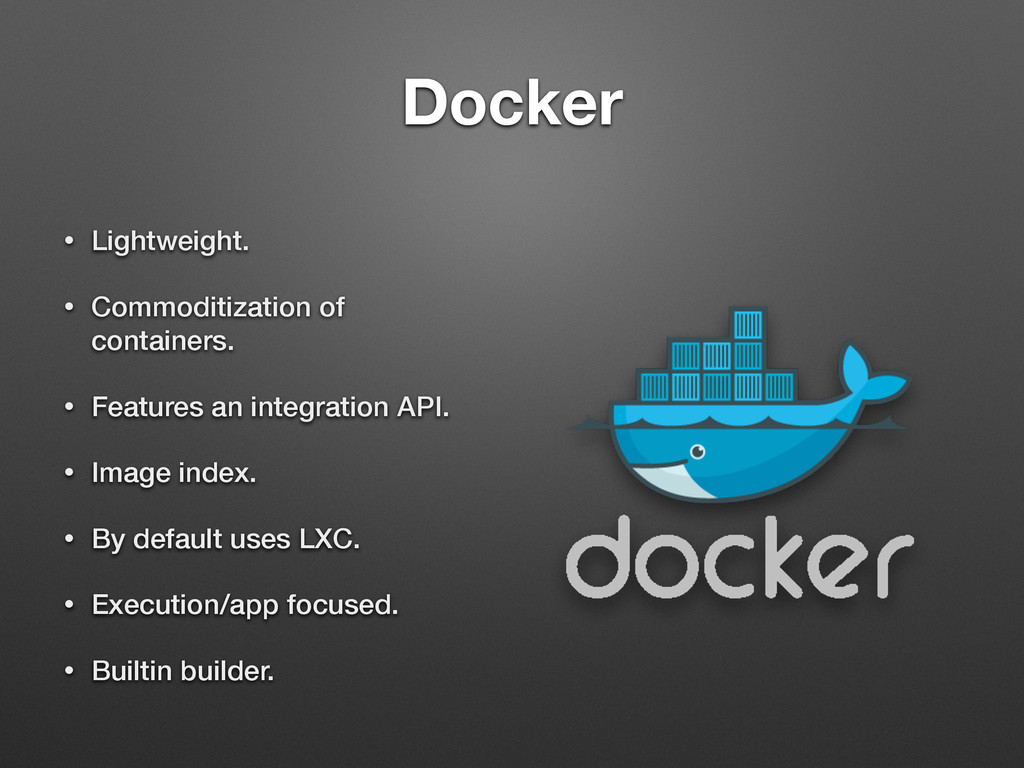

19. Docker • Lightweight. • Commoditization of containers. • Features an integration API. • Image index. • By default uses LXC. • Execution/app focused. • Builtin builder.

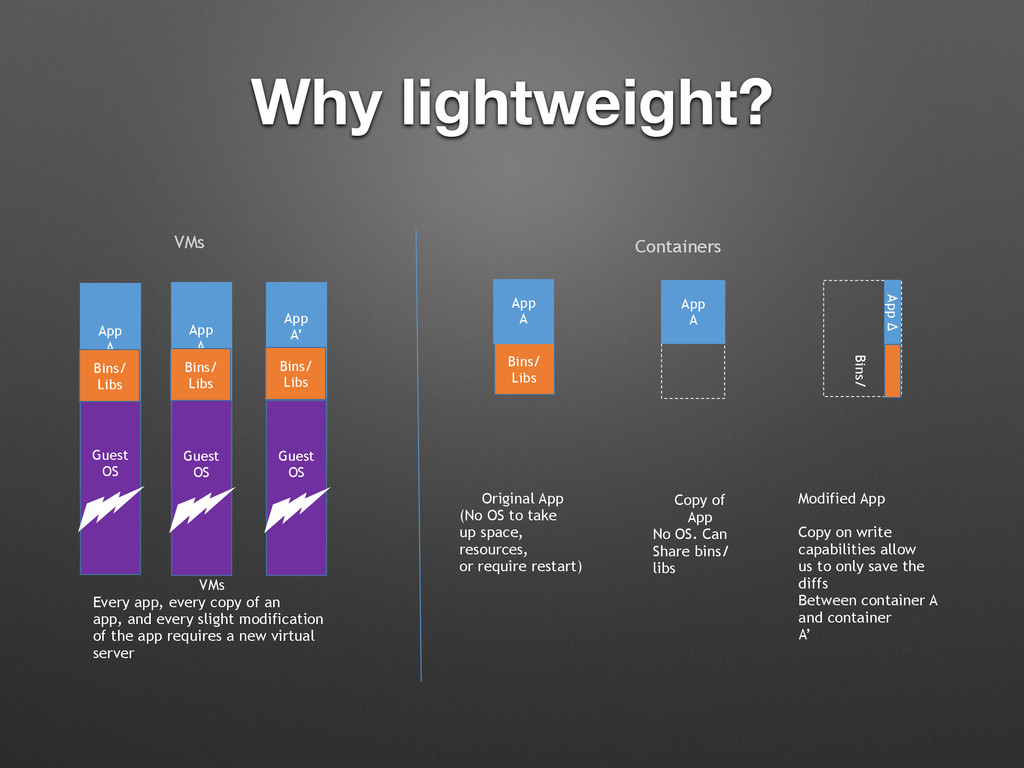

20. Why lightweight? App A ! ! ! ! ! ! ! ! ! Bins/ Libs ! ! ! App A’ ! ! ! ! ! ! ! ! ! Guest OS ! ! ! ! ! ! ! Bins/ Libs ! ! ! VMs Every app, every copy of an app, and every slight modification of the app requires a new virtual server App A ! ! ! ! ! ! ! ! ! Guest OS ! ! ! ! ! ! ! ! ! ! Bins/ Libs ! ! ! ! ! ! ! Guest OS ! ! ! ! ! ! ! ! ! ! Guest OS ! ! ! ! ! ! VMs ! ! ! ! Bins/ Libs ! ! ! App A Original App (No OS to take up space, resources, or require restart) App Δ ! ! ! ! Bins/ Modified App ! Copy on write capabilities allow us to only save the diffs Between container A and container A’ Copy of App No OS. Can Share bins/ libs App A Containers

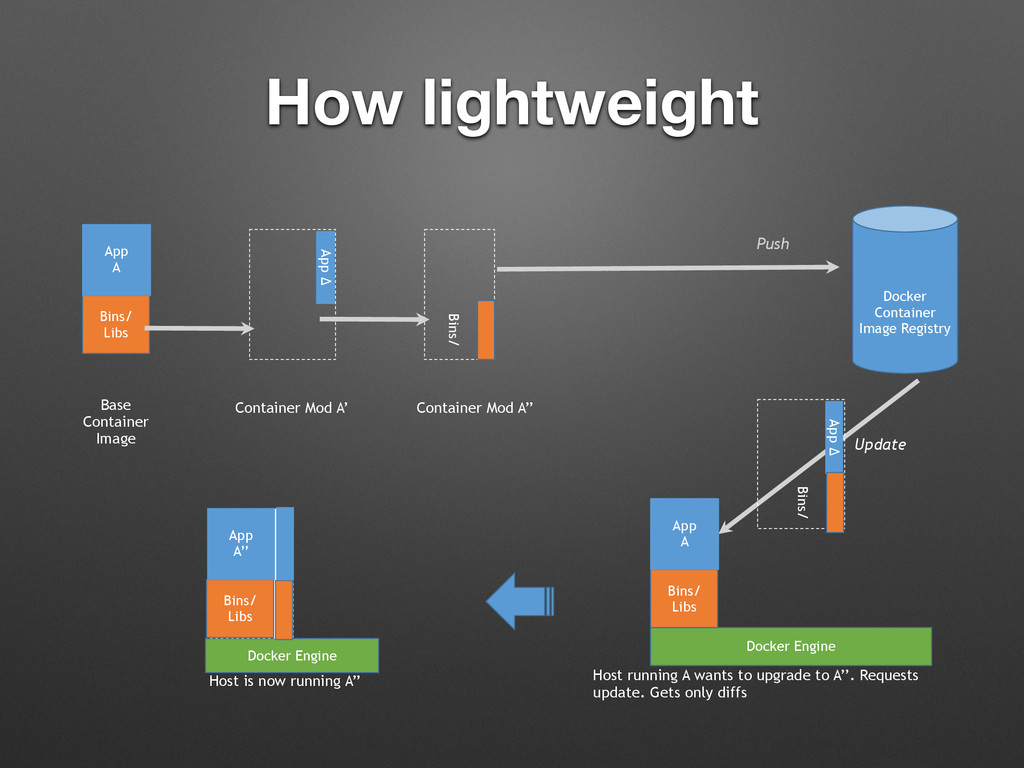

21. How lightweight Docker Engine ! ! Docker Container Image Registry Docker Engine Push Update ! ! ! ! Bins/ Libs ! ! ! App A App Δ ! ! ! ! Bins/ Base Container Image Host is now running A’’ Container Mod A’’ App Δ ! ! ! ! Bins/ ! ! ! ! Bins/ Libs ! ! ! App A ! ! ! ! Bins/ ! ! ! ! Bins/ Libs ! ! ! App A’’ Host running A wants to upgrade to A’’. Requests update. Gets only diffs Container Mod A’

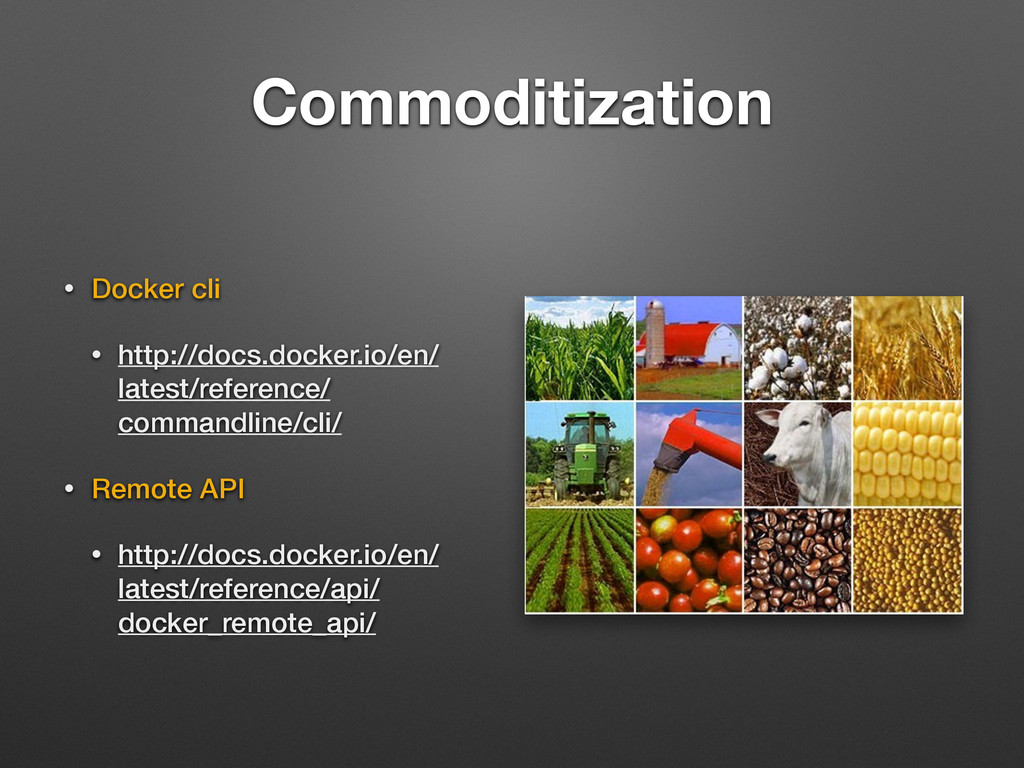

22. Commoditization • Docker cli • http://docs.docker.io/en/ latest/reference/ commandline/cli/ • Remote API • http://docs.docker.io/en/ latest/reference/api/ docker_remote_api/

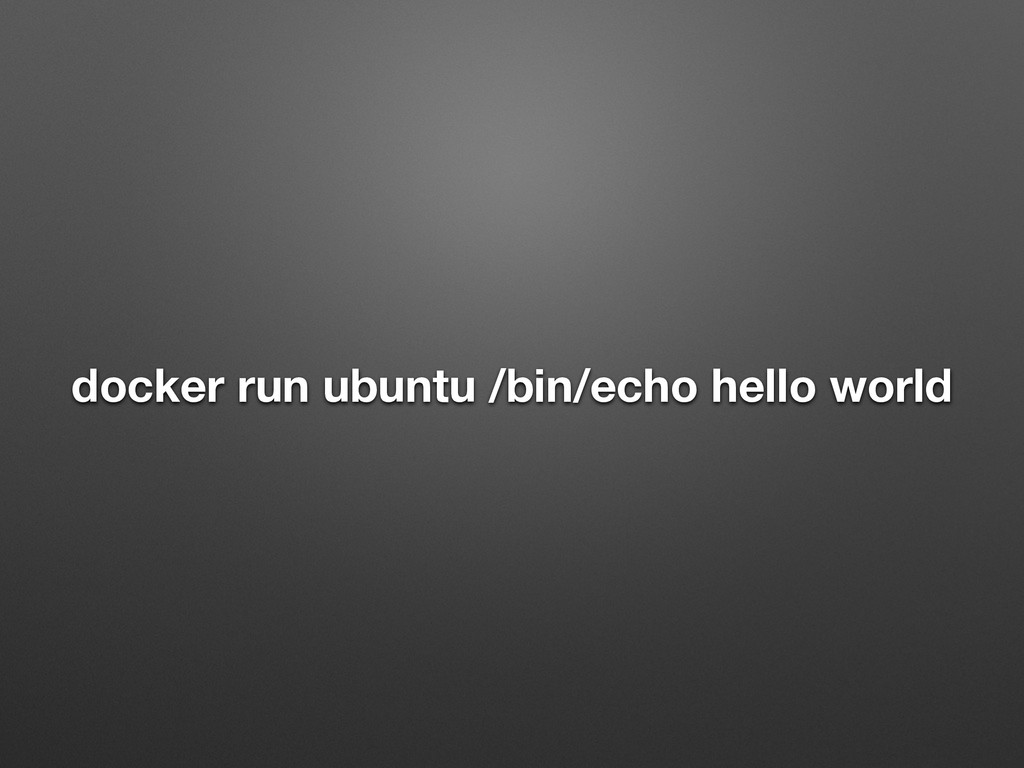

23. docker run ubuntu /bin/echo hello world

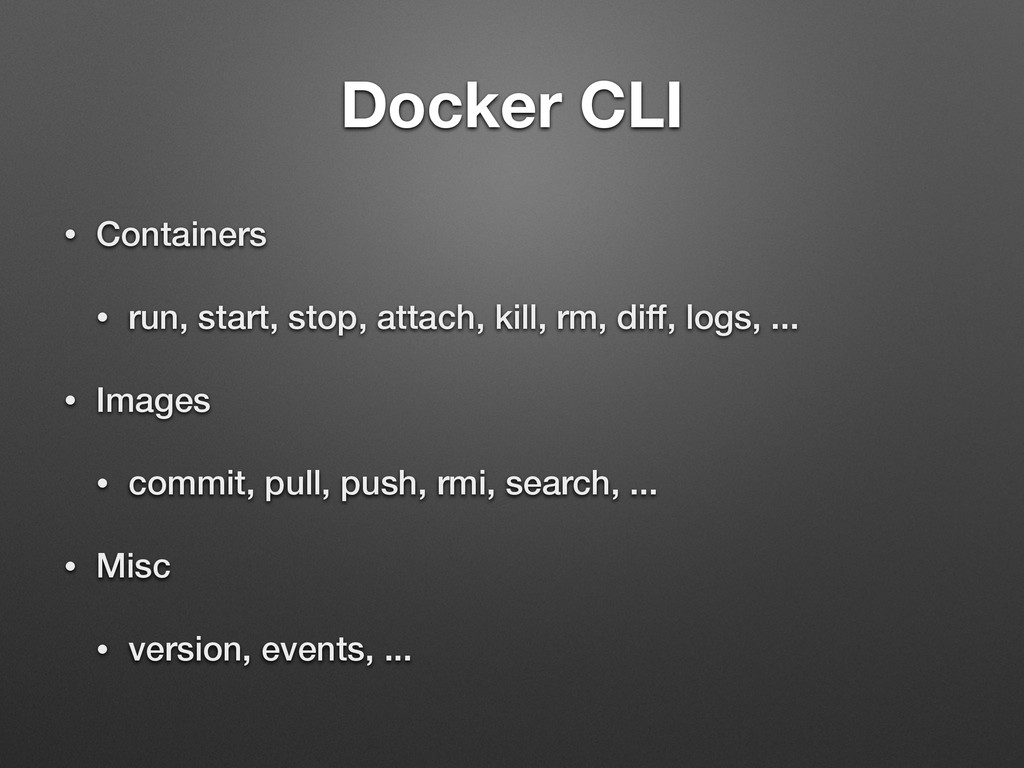

24. Docker CLI • Containers • run, start, stop, attach, kill, rm, diff, logs, ... • Images • commit, pull, push, rmi, search, ... • Misc • version, events, ...

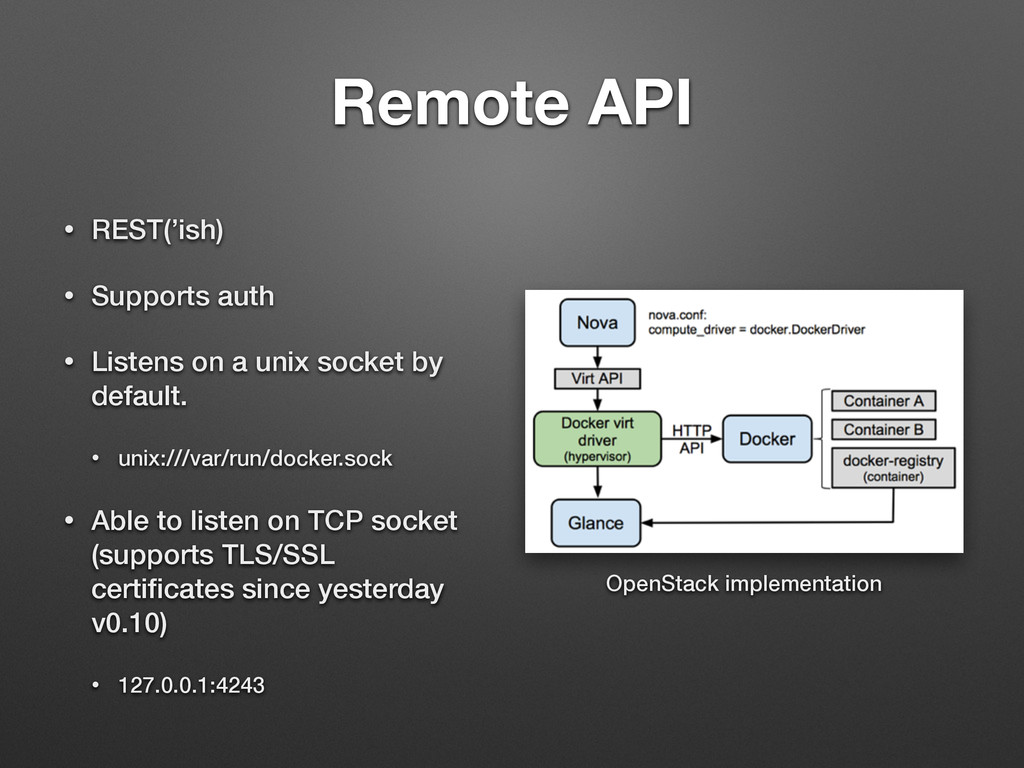

25. Remote API • REST(’ish) • Supports auth • Listens on a unix socket by default. • unix:///var/run/docker.sock • Able to listen on TCP socket (supports TLS/SSL certificates since yesterday v0.10) • 127.0.0.1:4243 OpenStack implementation

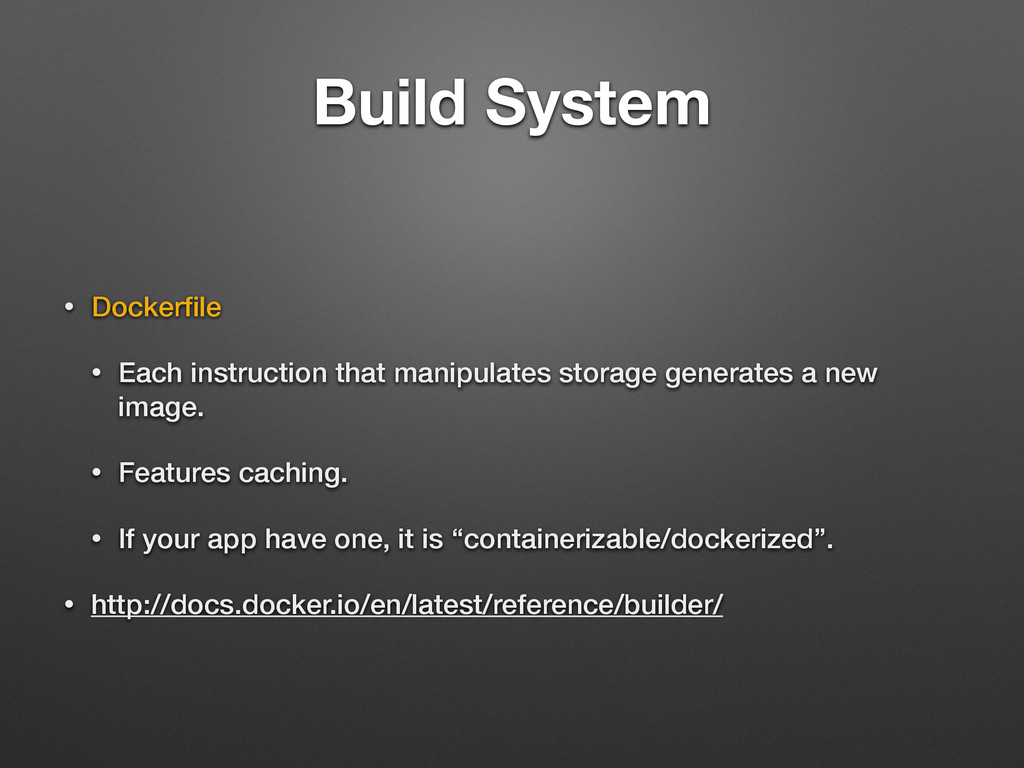

26. Build System • Dockerfile • Each instruction that manipulates storage generates a new image. • Features caching. • If your app have one, it is “containerizable/dockerized”. • http://docs.docker.io/en/latest/reference/builder/

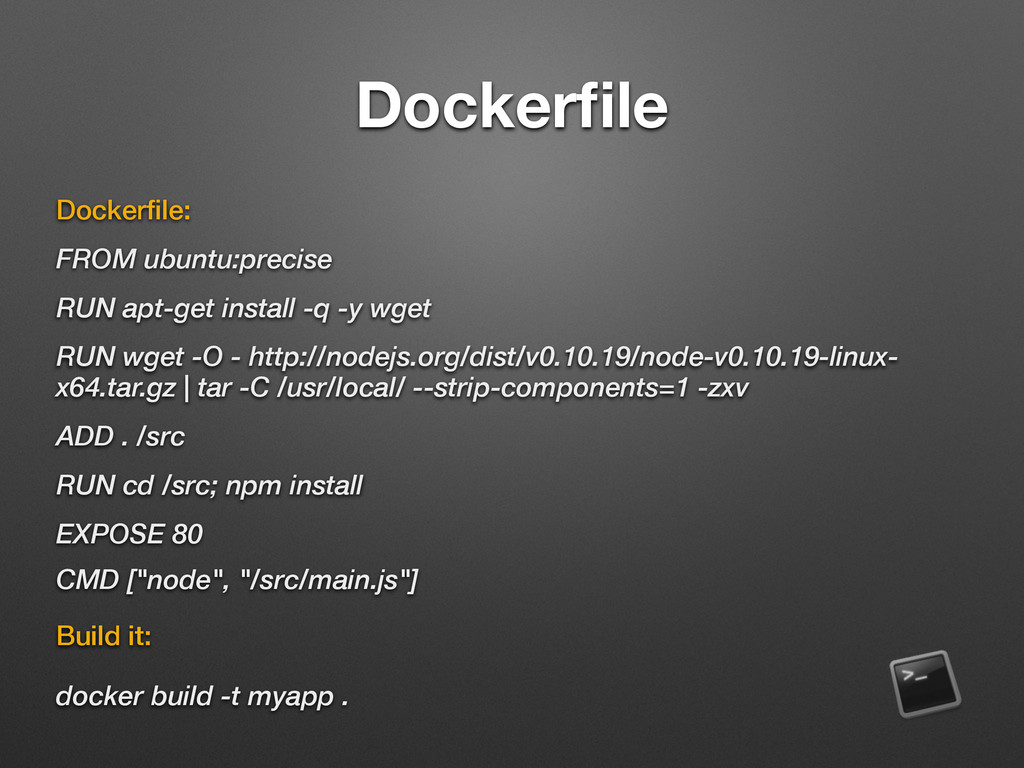

27. Dockerfile Dockerfile: FROM ubuntu:precise RUN apt-get install -q -y wget RUN wget -O - http://nodejs.org/dist/v0.10.19/node-v0.10.19-linux- x64.tar.gz | tar -C /usr/local/ --strip-components=1 -zxv ADD . /src RUN cd /src; npm install EXPOSE 80 CMD ["node", "/src/main.js"] Build it: docker build -t myapp .

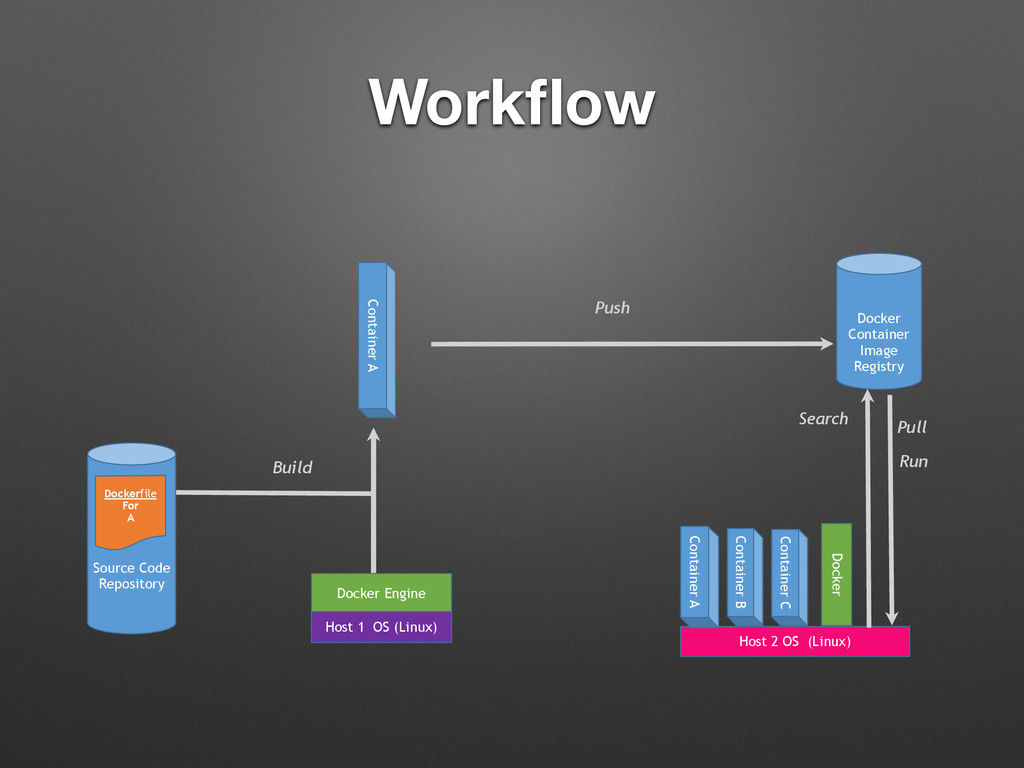

28. Workflow ! ! ! ! Source Code Repository Dockerfile For A Docker Engine ! ! Docker Container Image Registry Build Docker Host 2 OS (Linux) Container A Container B Container C Container A Push Search Pull Run Host 1 OS (Linux)

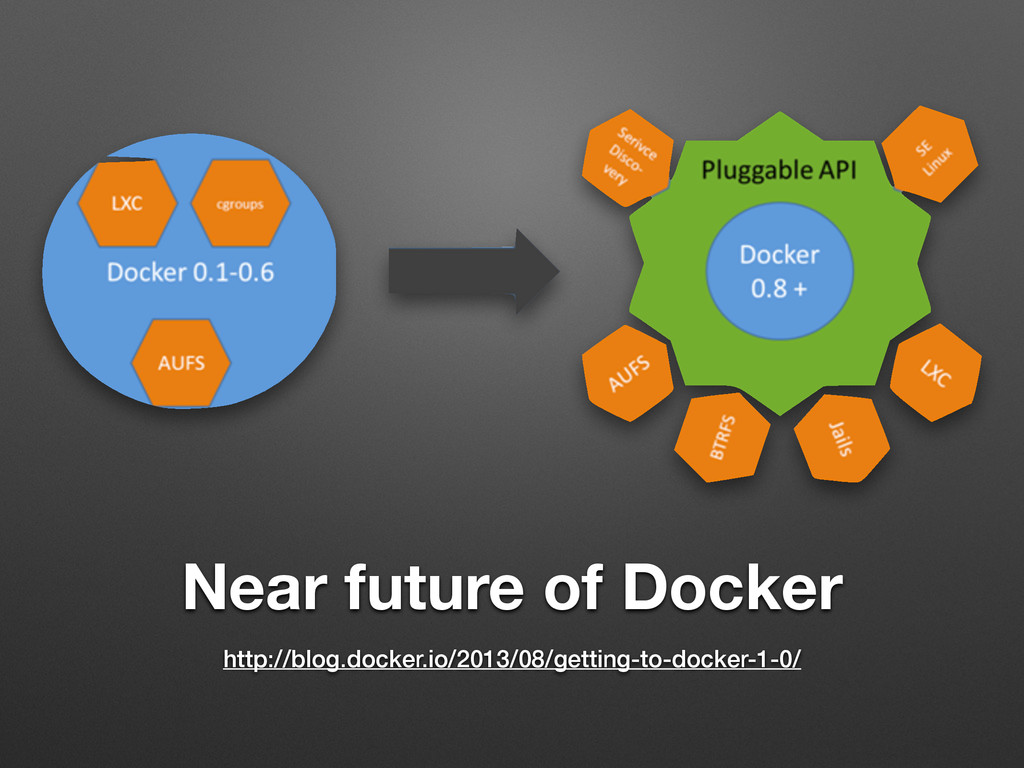

29. Near future of Docker http://blog.docker.io/2013/08/getting-to-docker-1-0/

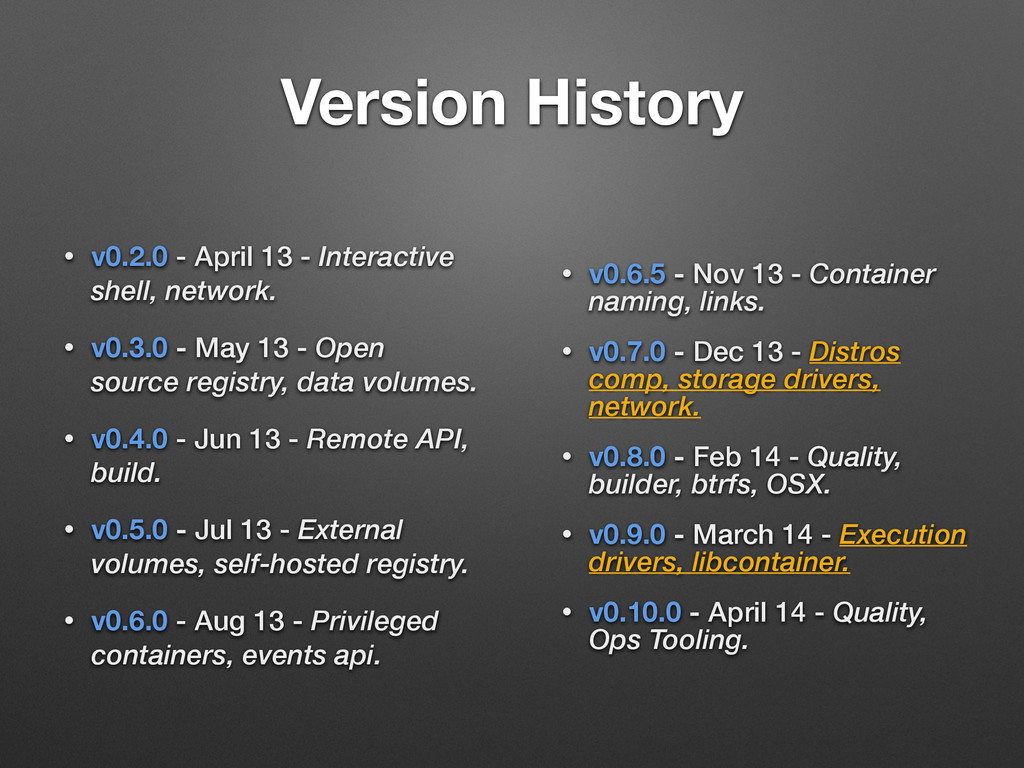

30. Version History • v0.2.0 - April 13 - Interactive shell, network. • v0.3.0 - May 13 - Open source registry, data volumes. • v0.4.0 - Jun 13 - Remote API, build. • v0.5.0 - Jul 13 - External volumes, self-hosted registry. • v0.6.0 - Aug 13 - Privileged containers, events api. • v0.6.5 - Nov 13 - Container naming, links. • v0.7.0 - Dec 13 - Distros comp, storage drivers, network. • v0.8.0 - Feb 14 - Quality, builder, btrfs, OSX. • v0.9.0 - March 14 - Execution drivers, libcontainer. • v0.10.0 - April 14 - Quality, Ops Tooling.

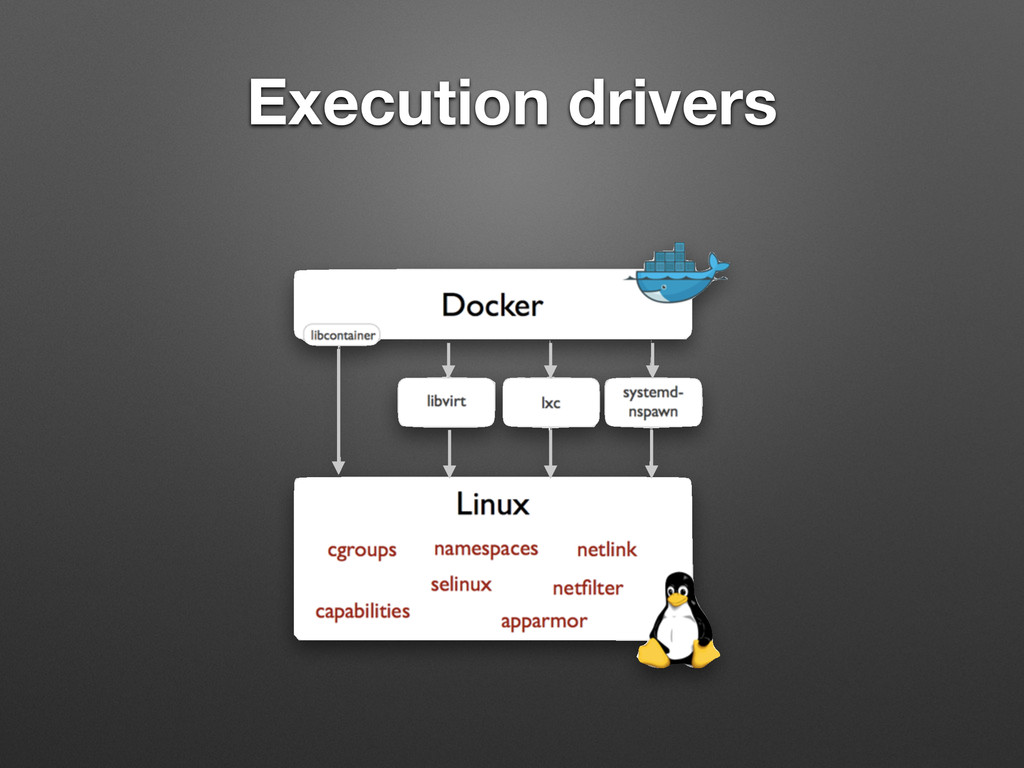

31. Execution drivers
32. Back to our tale… Meanwhile in the wonderland… we needed containment.

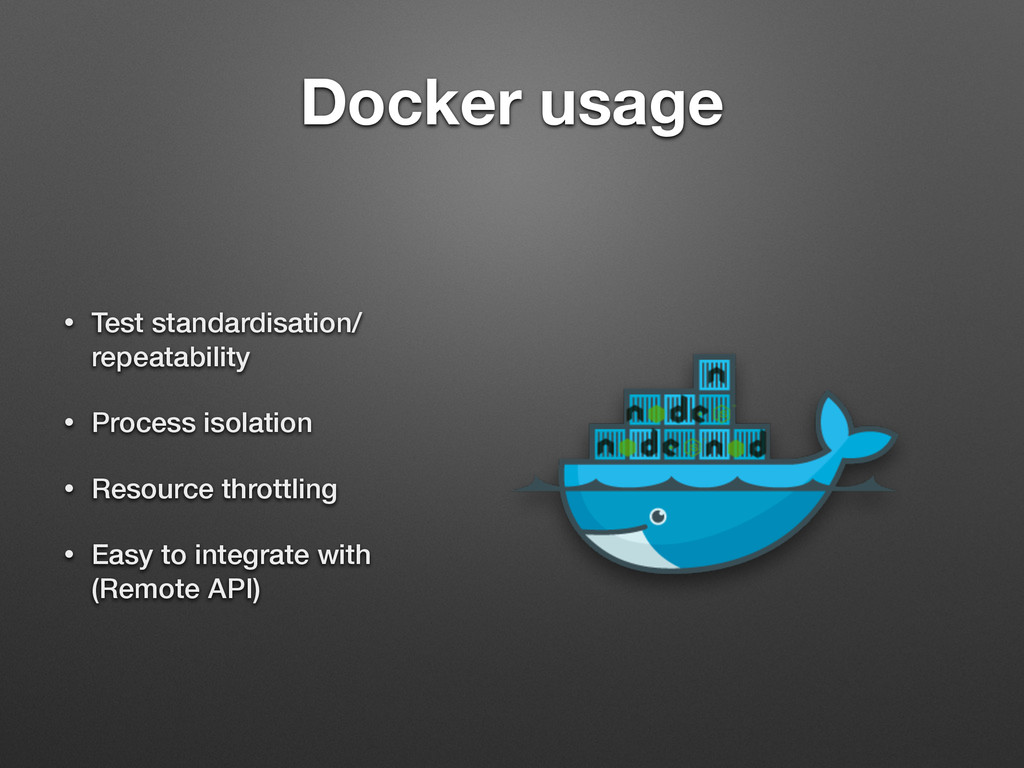

33. Docker usage • Test standardisation/ repeatability • Process isolation • Resource throttling • Easy to integrate with (Remote API)

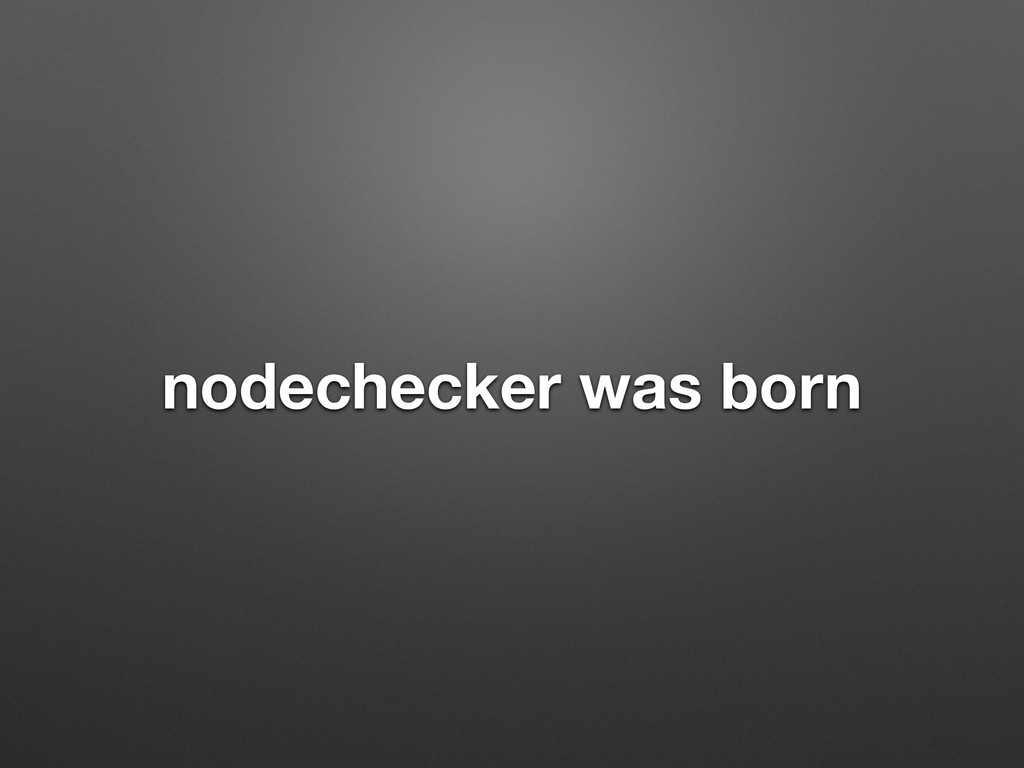

34. nodechecker was born

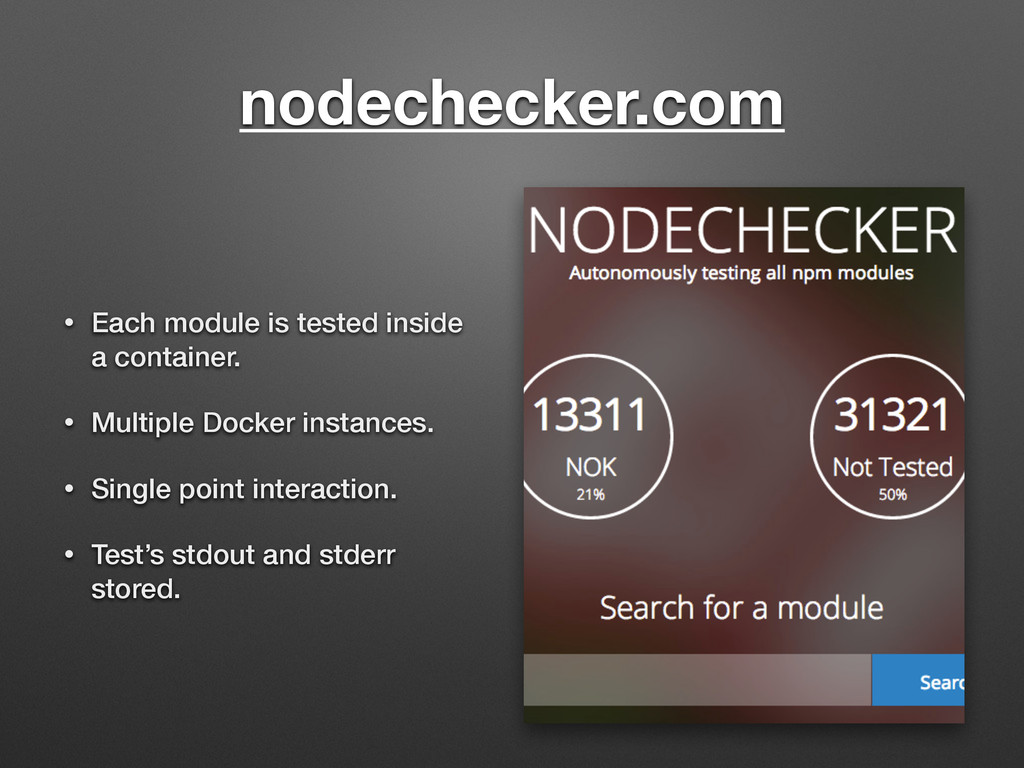

35. nodechecker.com • Each module is tested inside a container. • Multiple Docker instances. • Single point interaction. • Test’s stdout and stderr stored.
36. Architecture Balancer Engine (runs Docker) … Processor Crawler (npm crawler) API MongoDB … Site

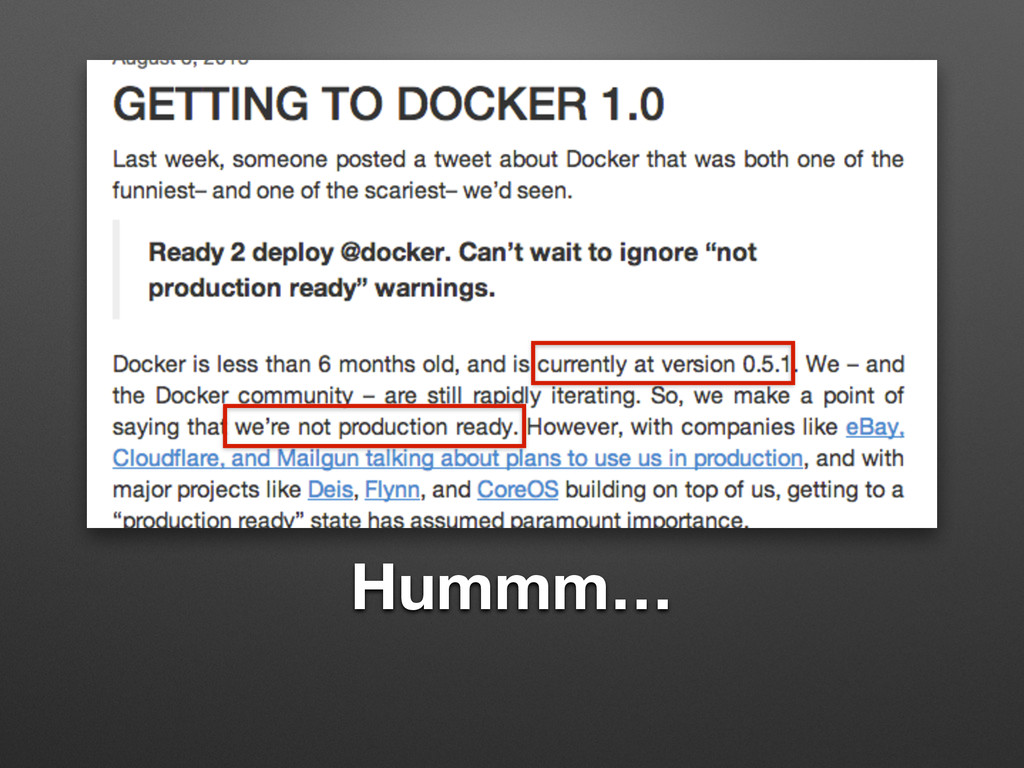

37. Hummm…
38. Issues at the time • Time = Docker v0.5.0 • High load scenarios were tricky. • “Container not found” locks. • Stuck containers. ! Keep in mind it was spawning ~40k containers daily.

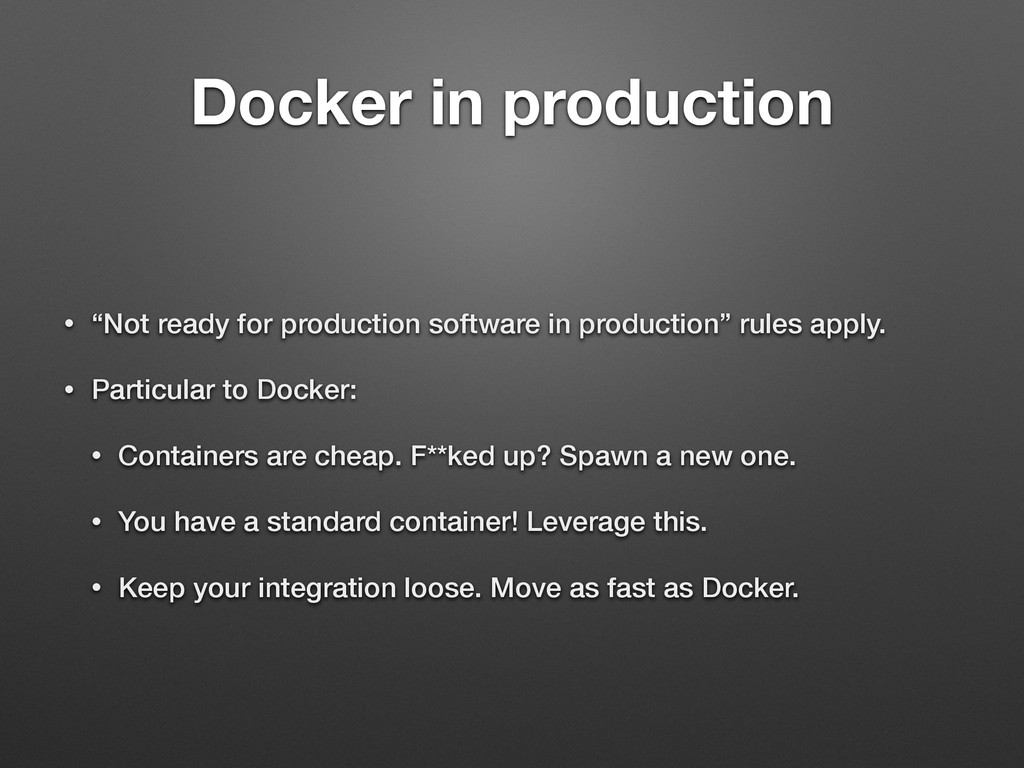

39. Docker in production • “Not ready for production software in production” rules apply. • Particular to Docker: • Containers are cheap. F**ked up? Spawn a new one. • You have a standard container! Leverage this. • Keep your integration loose. Move as fast as Docker.

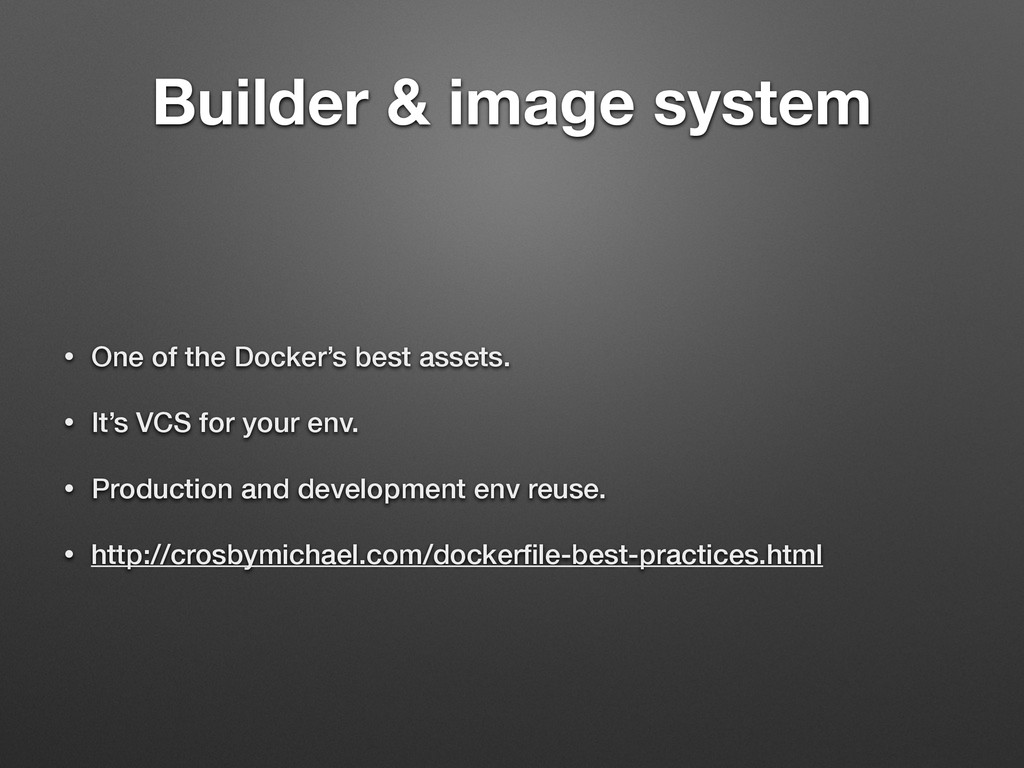

40. Builder & image system • One of the Docker’s best assets. • It’s VCS for your env. • Production and development env reuse. • http://crosbymichael.com/dockerfile-best-practices.html

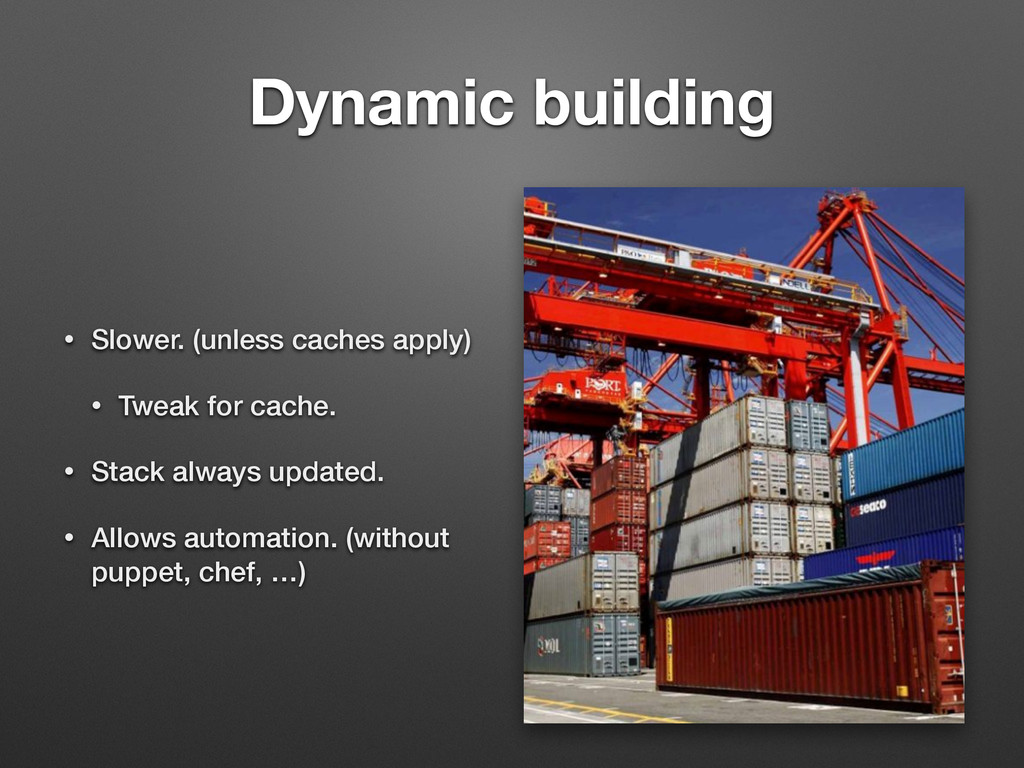

41. Dynamic building • Slower. (unless caches apply) • Tweak for cache. • Stack always updated. • Allows automation. (without puppet, chef, …)

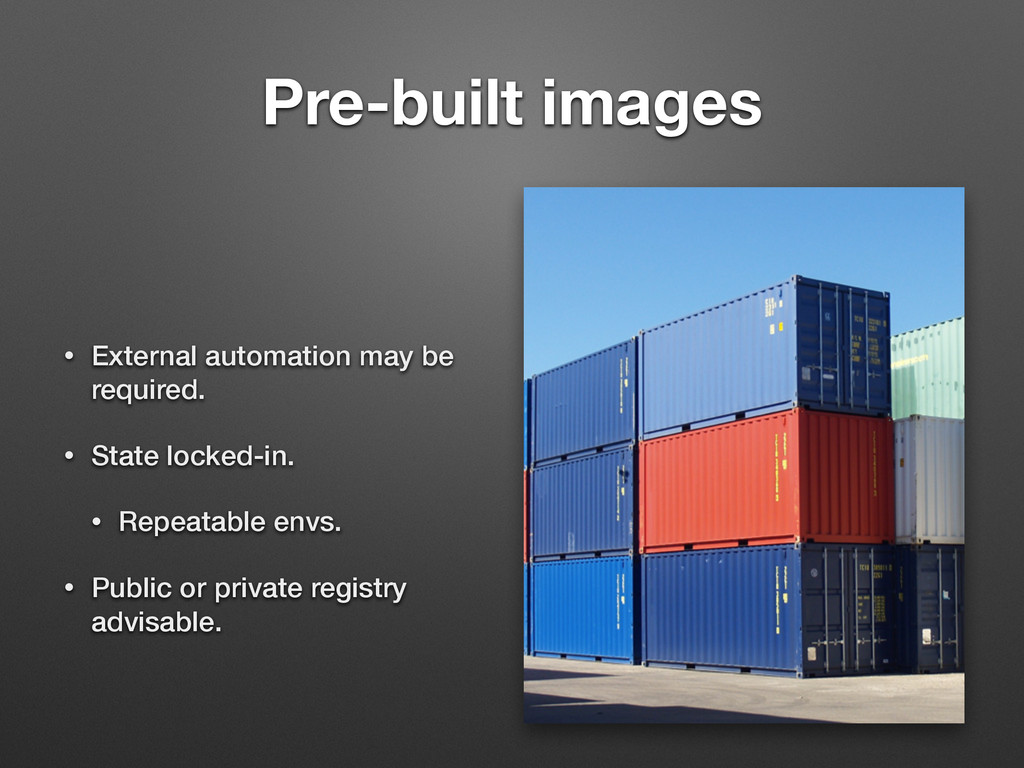

42. Pre-built images ! • External automation may be required. • State locked-in. • Repeatable envs. • Public or private registry advisable.

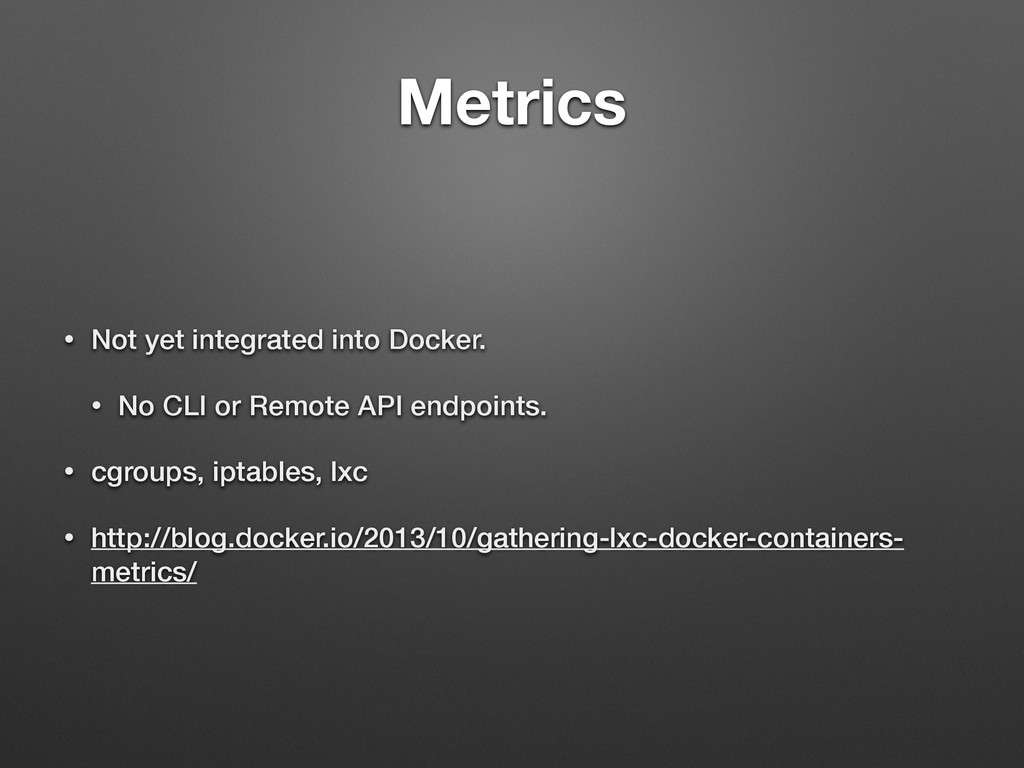

43. Metrics • Not yet integrated into Docker. • No CLI or Remote API endpoints. • cgroups, iptables, lxc • http://blog.docker.io/2013/10/gathering-lxc-docker-containers- metrics/

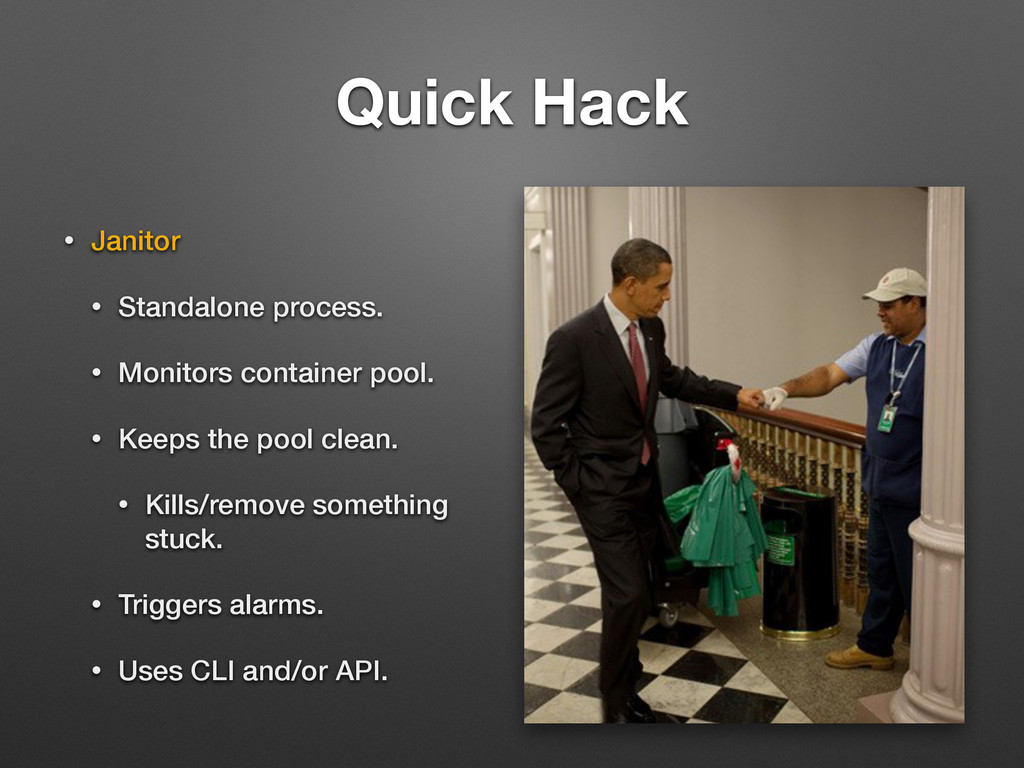

44. Quick Hack • Janitor • Standalone process. • Monitors container pool. • Keeps the pool clean. • Kills/remove something stuck. • Triggers alarms. • Uses CLI and/or API.

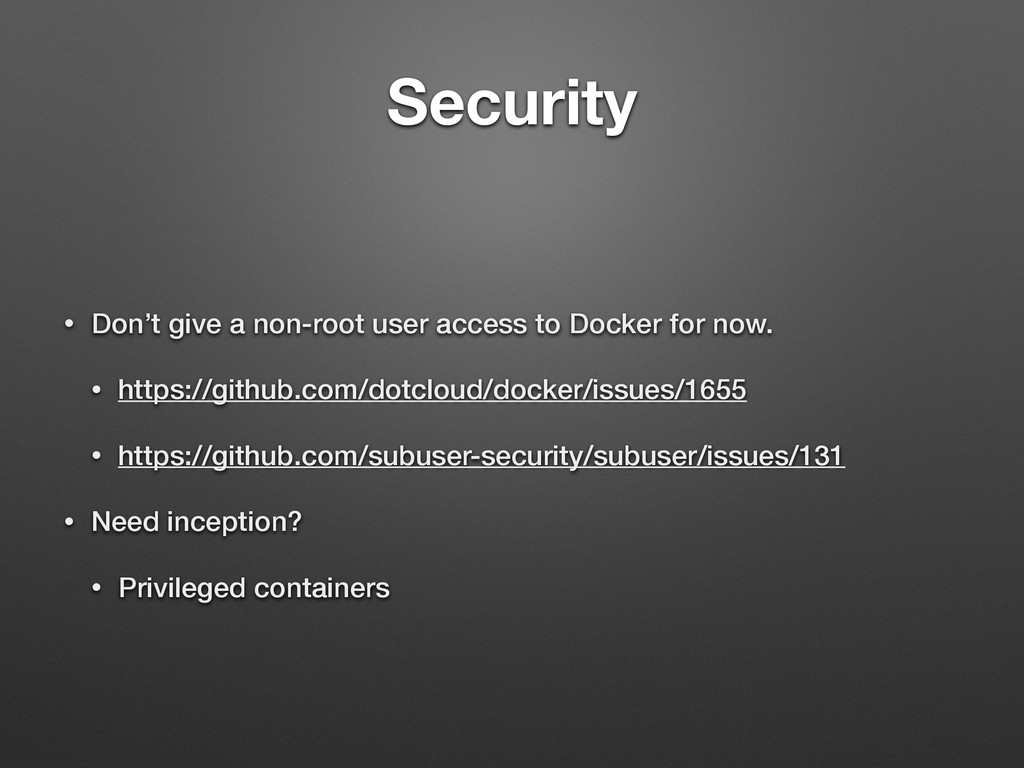

45. Security • Don’t give a non-root user access to Docker for now. • https://github.com/dotcloud/docker/issues/1655 • https://github.com/subuser-security/subuser/issues/131 • Need inception? • Privileged containers

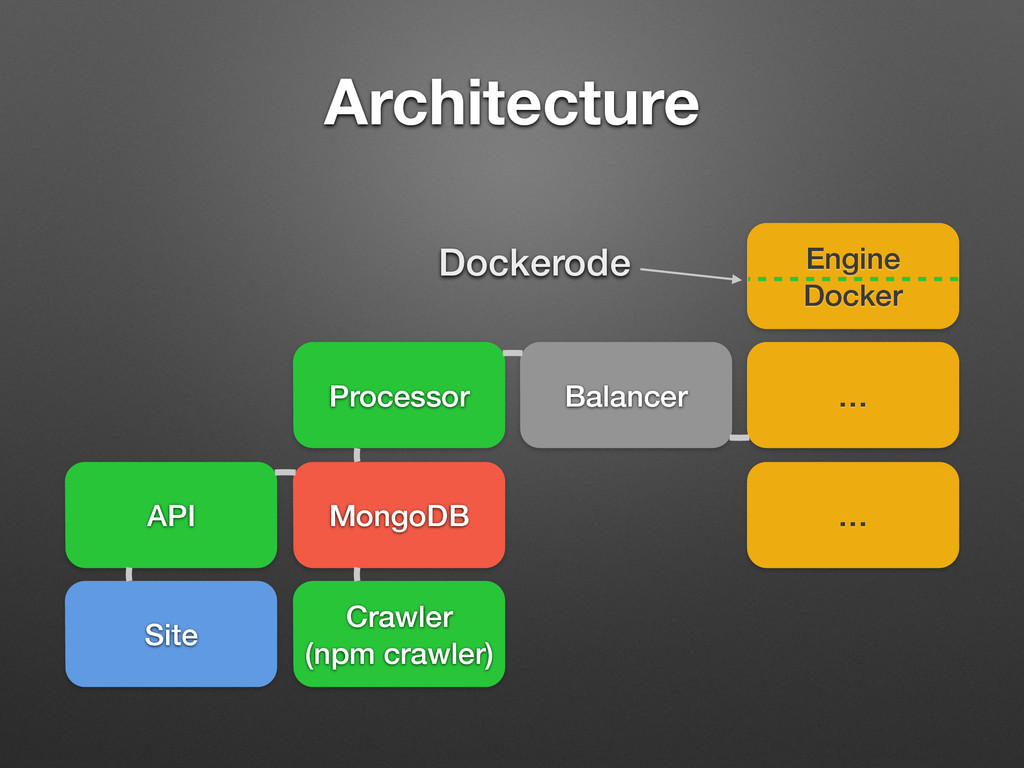

46. Architecture Balancer Engine Docker … Processor Crawler (npm crawler) API MongoDB … Site Dockerode

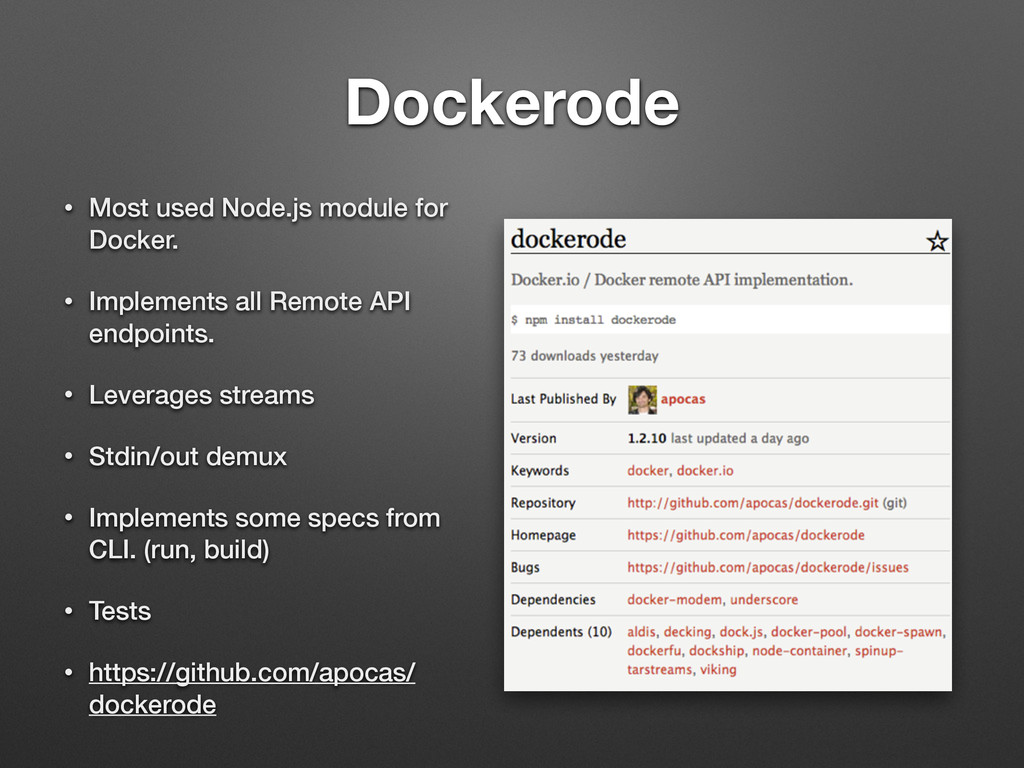

47. Dockerode • Most used Node.js module for Docker. • Implements all Remote API endpoints. • Leverages streams • Stdin/out demux • Implements some specs from CLI. (run, build) • Tests • https://github.com/apocas/ dockerode

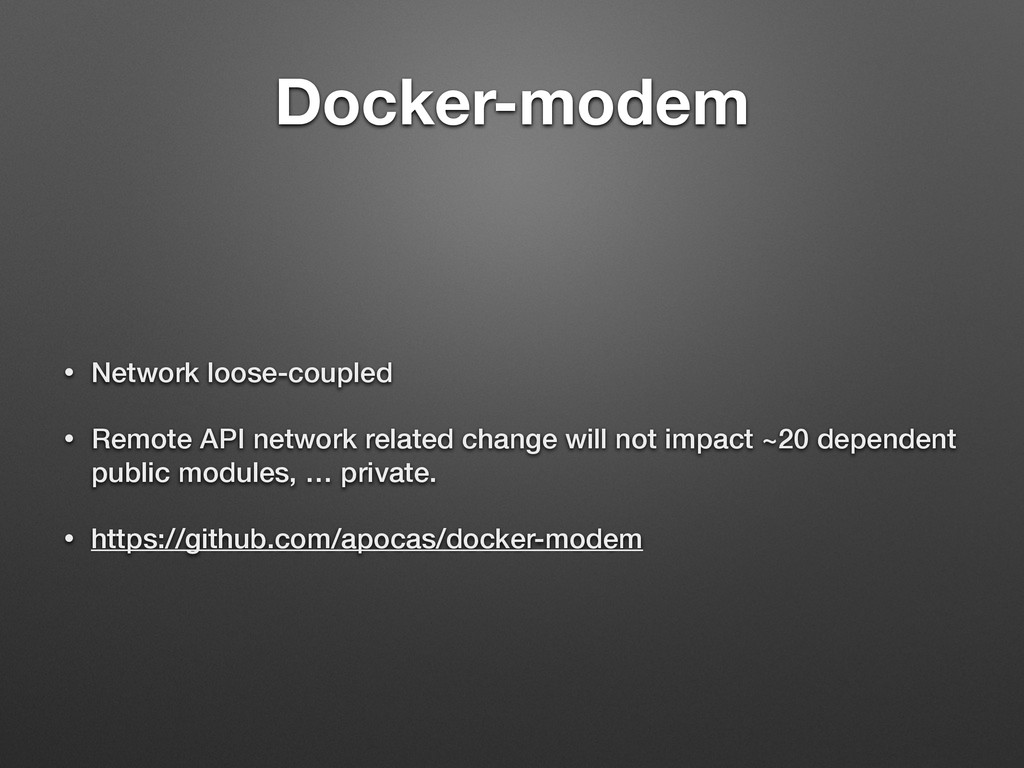

48. Docker-modem • Network loose-coupled • Remote API network related change will not impact ~20 dependent public modules, … private. • https://github.com/apocas/docker-modem
49. Docker Lisbon Meetups • meetup.com/Docker-Lisbon/ • https://github.com/ dockerlisbon • https://gitter.im/dockerlisbon/ group ! • Join us and bring your Docker stuff!
50. The End Questions?
