Practical GraphQL with speaker notes

Transcript

1. PRACTIQL GRAPHQL Test

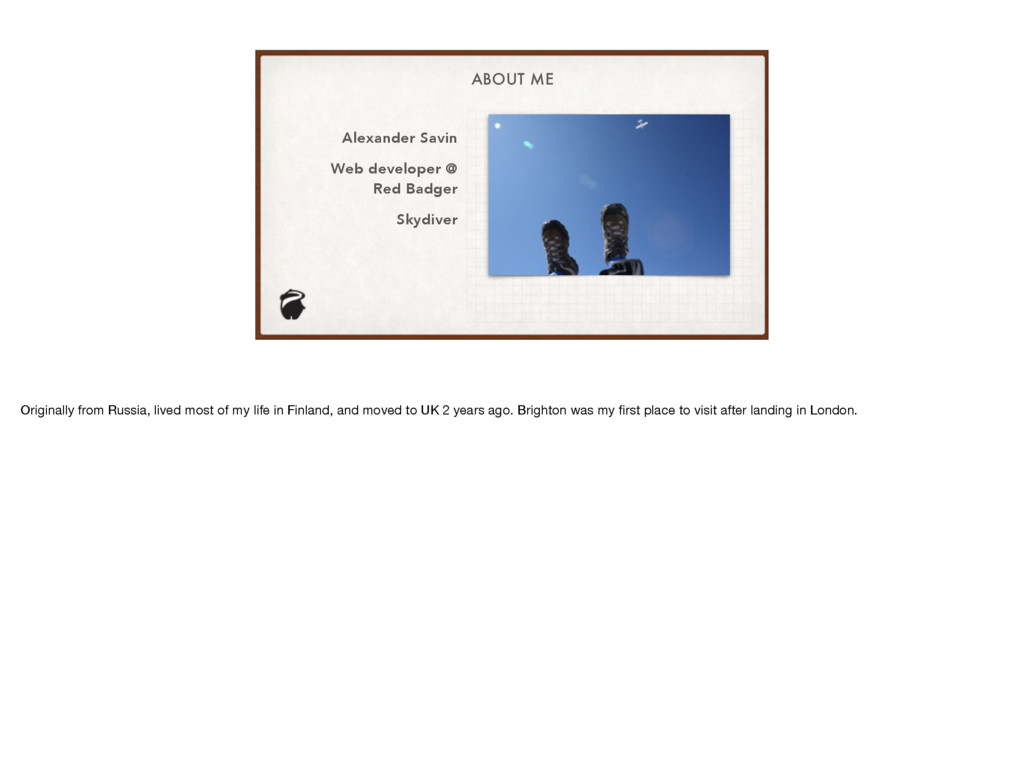

2. ABOUT ME Alexander Savin Web developer @
 Red Badger Skydiver Originally from Russia, lived most of my life in Finland, and moved to UK 2 years ago. Brighton was my first place to visit after landing in London.
3. REACT LONDON MEETUP > 2000 members Started in summer 2014 with a small meetup at RB HQ By December 2014 we’ve noticed that we need more space for this meetup.
4. Nick Schrock - co-creator of GraphQL
5. GRAPHQL GraphQL as a conversation opener. A bit misleading title for this talk - we’re going to touch on Relay, REST and even React Native. Keep it practical. How many of you are using Node, React, GraphQL?
6. REAL LIFE STORY and i want to start with a real life story
7. FRONT END APP SERVICE A SERVICE C SERVICE B SERVICE D Service A implements an alternative version of REST Service B implements an endpoint that tries to drive the UI Service C haven't implemented anything yet Service D implemented a service which is only available on a specific internal WIFI network. When you connect to it, none of the other endpoints are available. You mission, should you choose to accept it, is to consume all of the mentioned endpoints while providing great user experience.

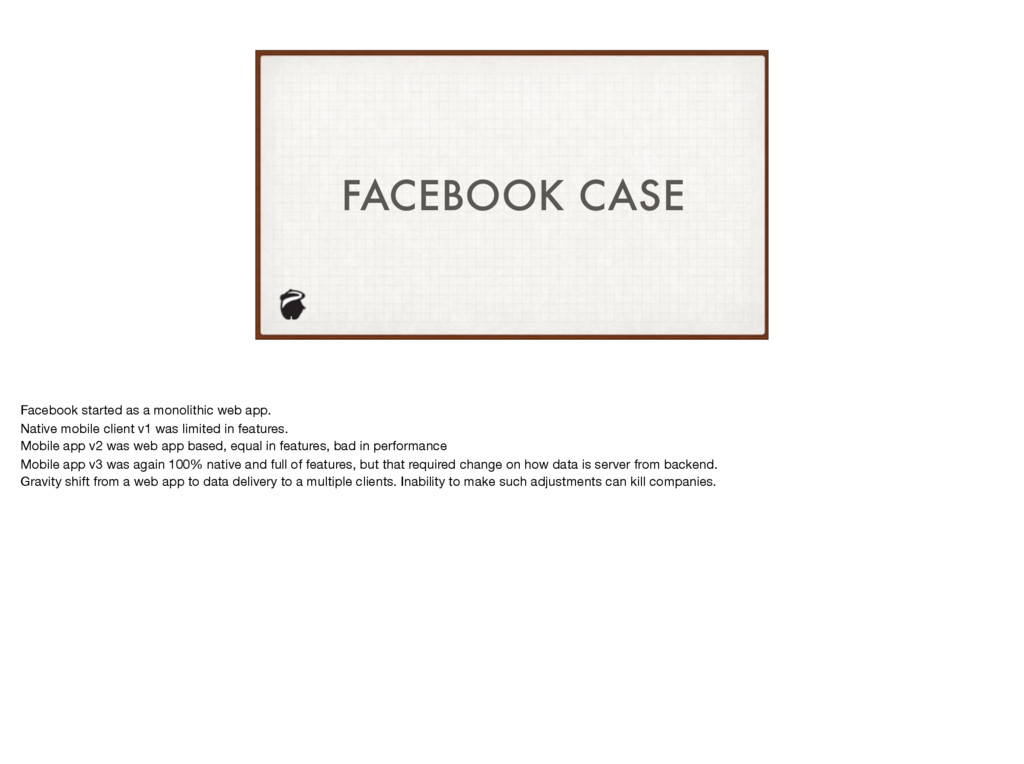

8. FACEBOOK CASE Facebook started as a monolithic web app. Native mobile client v1 was limited in features. Mobile app v2 was web app based, equal in features, bad in performance Mobile app v3 was again 100% native and full of features, but that required change on how data is server from backend. Gravity shift from a web app to data delivery to a multiple clients. Inability to make such adjustments can kill companies.

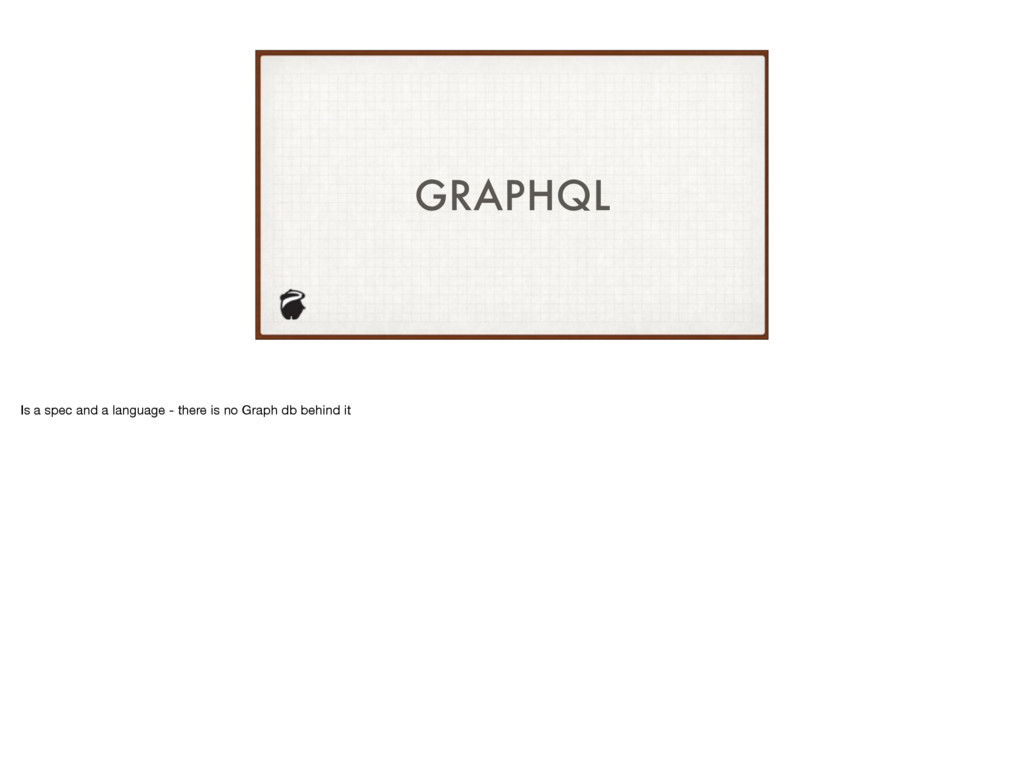

9. GRAPHQL Is a spec and a language - there is no Graph db behind it
10. GRAPHQL SERVER So what is it and how it works? You would have a server, and a client
11. GRAPHQL SERVER GRAPHQL CLIENT What do you think are responsibilities of server and client in this picture?

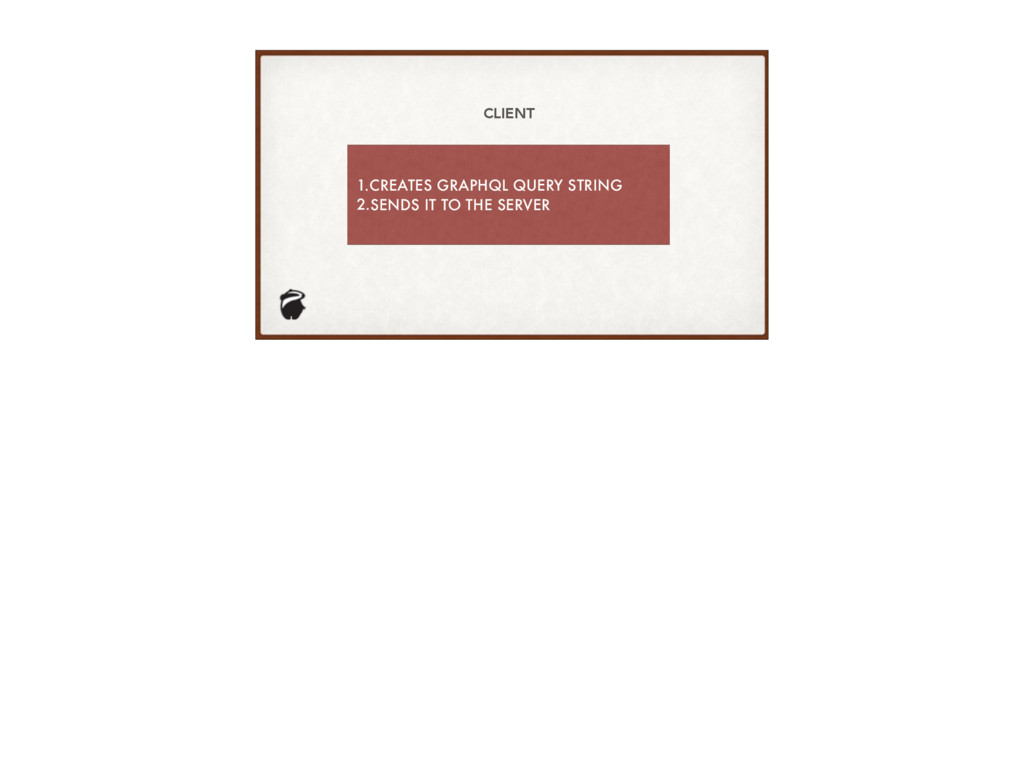

12. CLIENT 1.CREATES GRAPHQL QUERY STRING 2.SENDS IT TO THE SERVER

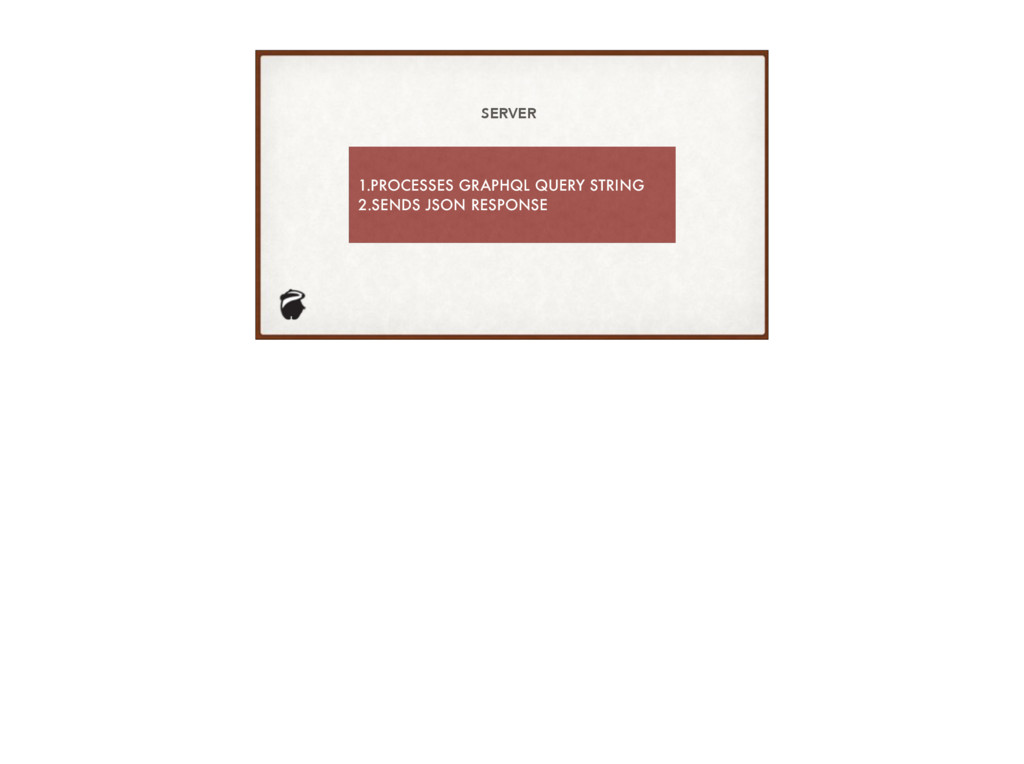

13. SERVER 1.PROCESSES GRAPHQL QUERY STRING 2.SENDS JSON RESPONSE
14. LANGUAGE FOR READ / WRITE ACTIONS GraphQL is in essential ^^
15. QUERIES Let’s start with the way you request data from server

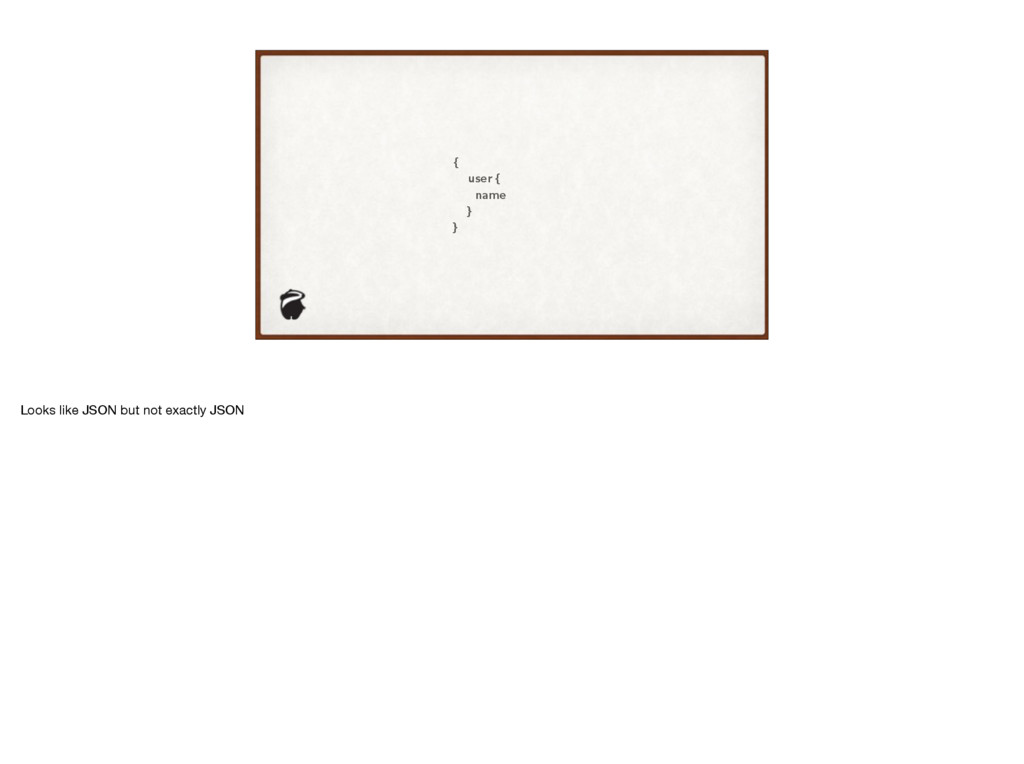

16. { user { name } } Looks like JSON but not exactly JSON

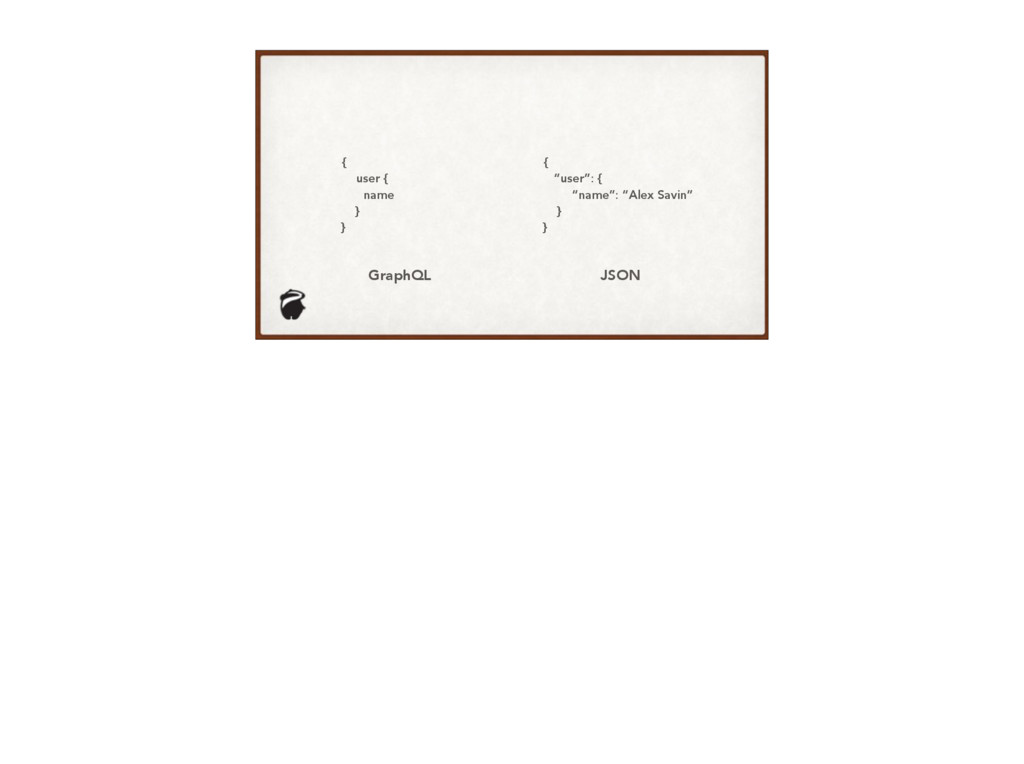

17. { user { name } } { “user”: { “name”: “Alex Savin” } } GraphQL JSON
18. MUTATIONS GraphQL is a read / write language, mutations are a different kind of query

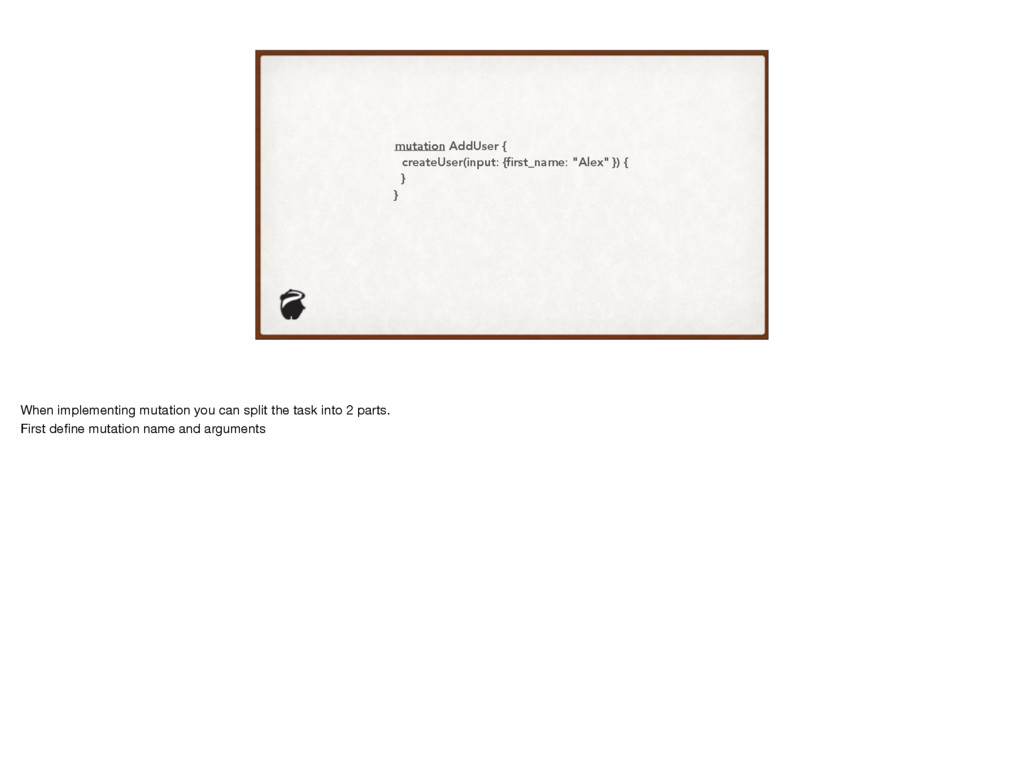

19. mutation AddUser { createUser(input: {first_name: "Alex" }) { } } When implementing mutation you can split the task into 2 parts. First define mutation name and arguments

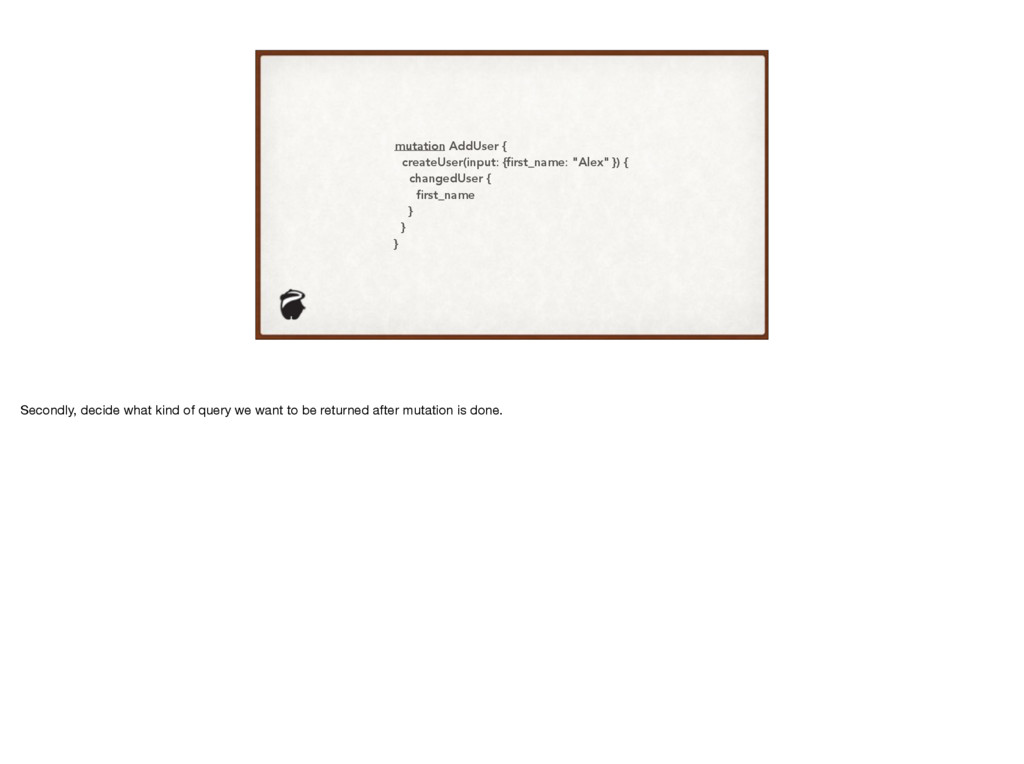

20. mutation AddUser { createUser(input: {first_name: "Alex" }) { changedUser { first_name } } } Secondly, decide what kind of query we want to be returned after mutation is done.
21. QUERY ARGUMENTS
22. { user { name } }
23. { user(id: 123456) { name } }

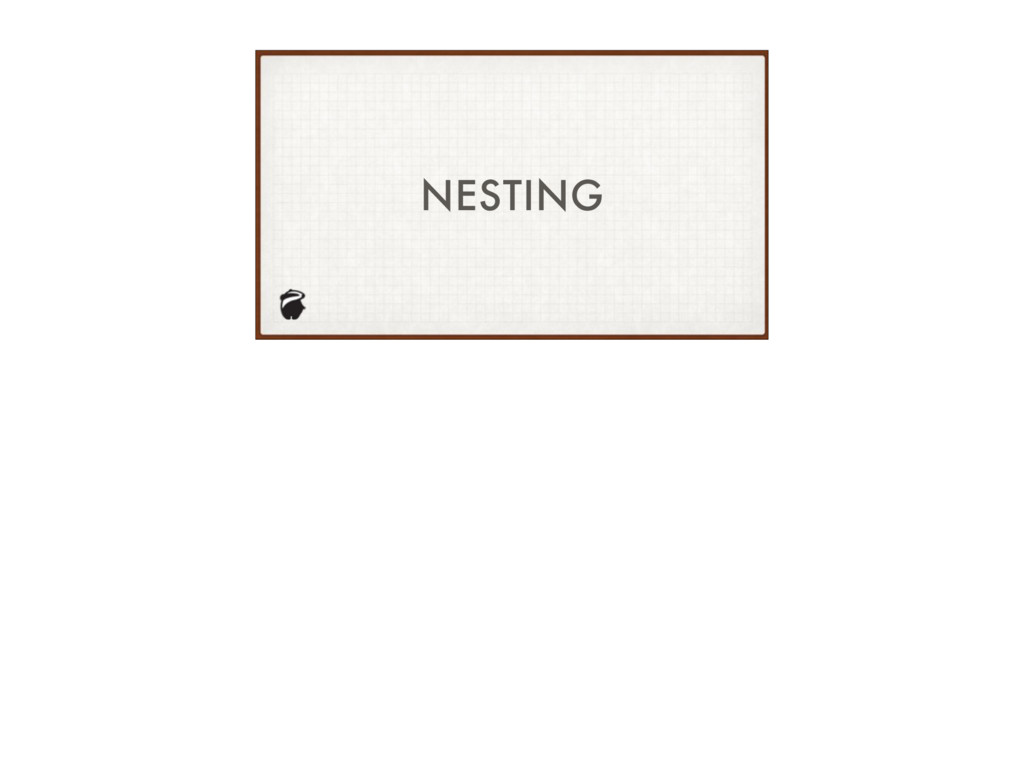

24. NESTING

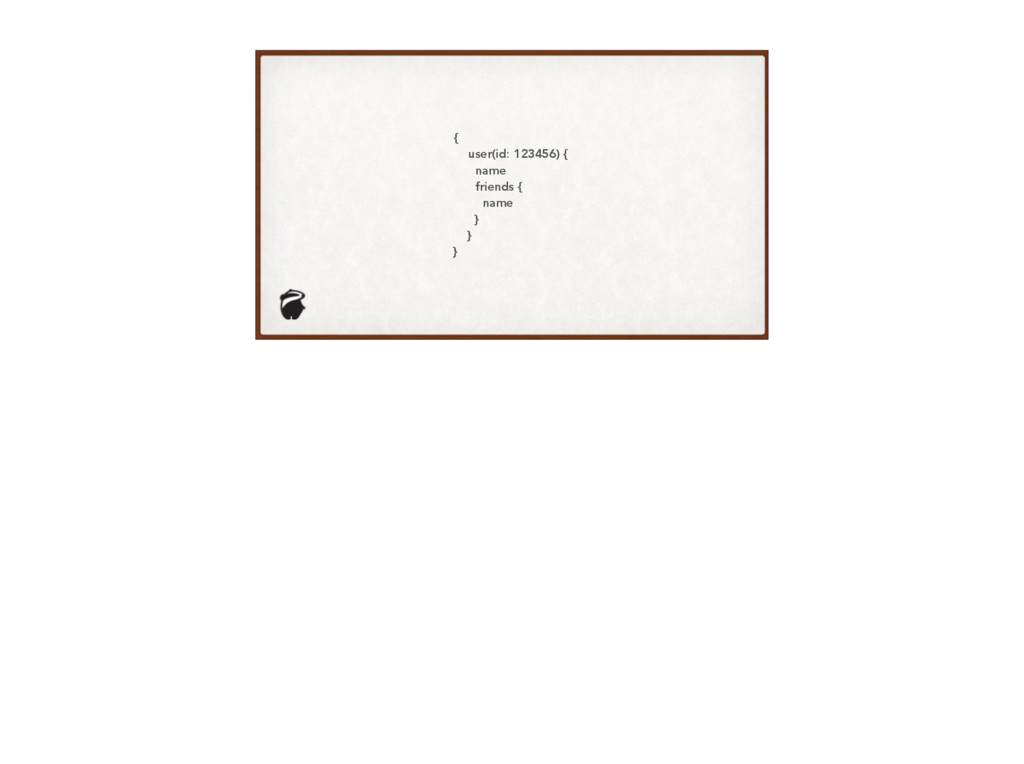

25. { user(id: 123456) { name friends { name } } }
26. { user(id: 123456) { name friends { name friends { name friends {…} } } } }
27. COMPOSITION
28. { user(id: 123456) { first_name last_name email twitter town homepage } }
29. { user(id: 123456) { …UserDetails } } fragment UserDetails on User { first_name last_name email twitter town homepage }

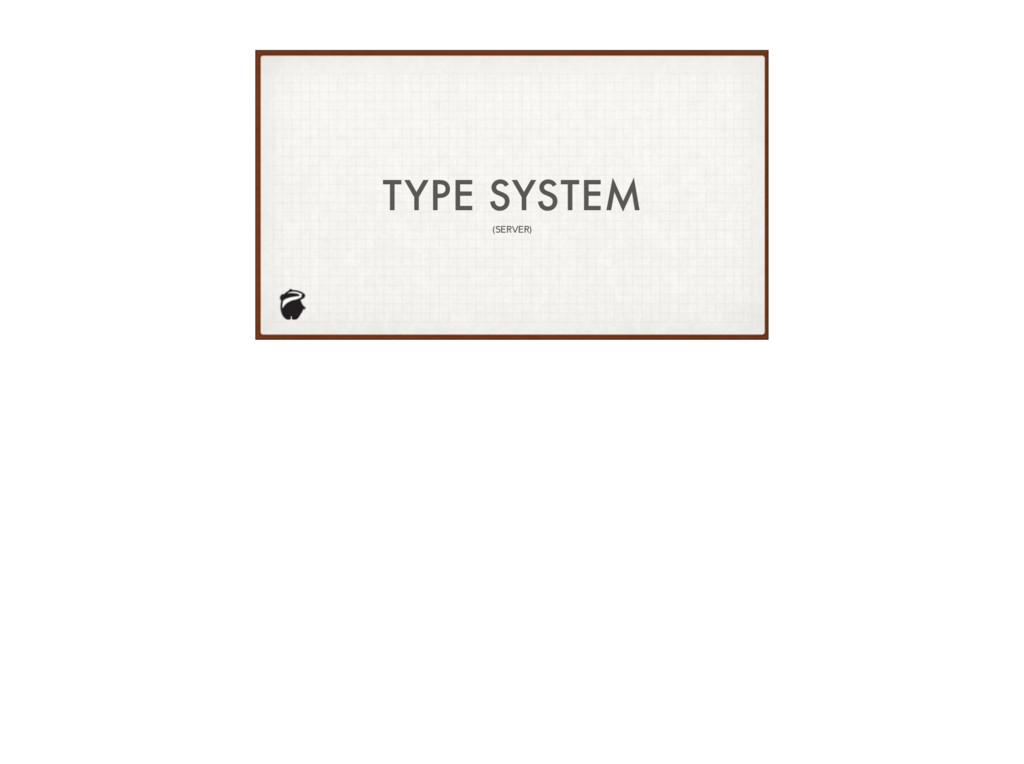

30. TYPE SYSTEM (SERVER)
31. type User { name: String id: String! }

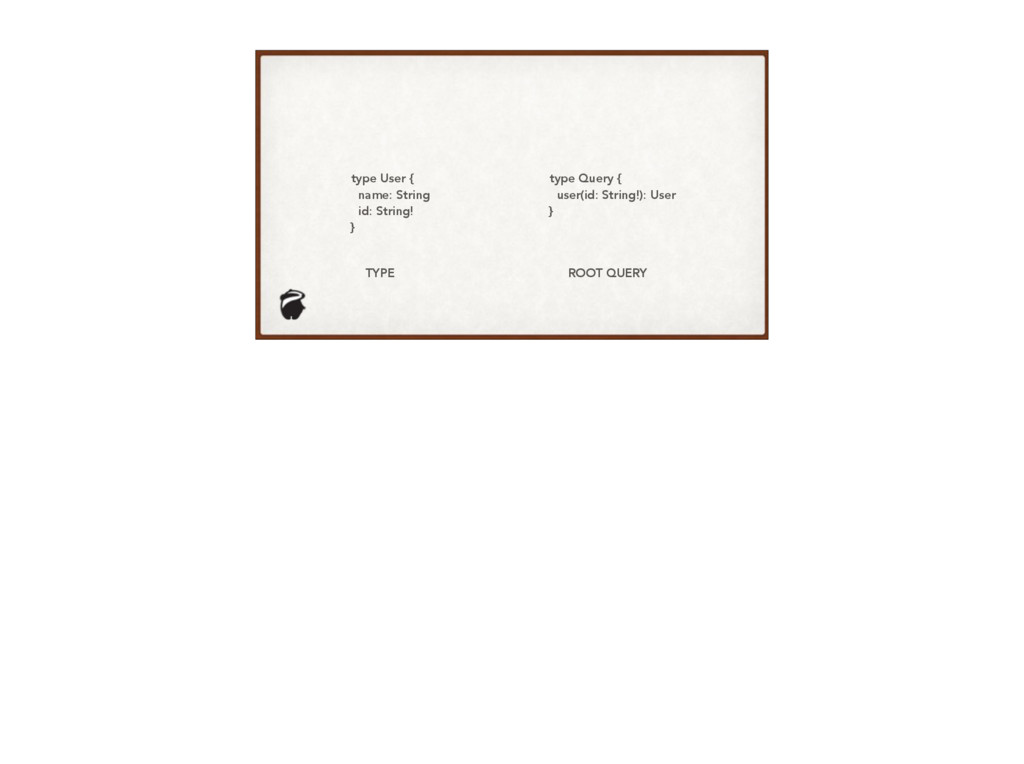

32. type User { name: String id: String! } TYPE ROOT QUERY type Query { user(id: String!): User }
33. THAT’S ALL YOU NEED (time for live demo) Enter reindex.io
34. If you never used GraphiQL before, right now you should be like.. hmm. The way GraphiQL works is INTROSPECTION Introspection can be used also for generating documentation. Tool for exploring schema and building tools Way of selling GraphQL to anyone (Introspection - the way GraphiQL works, and other tools could too)

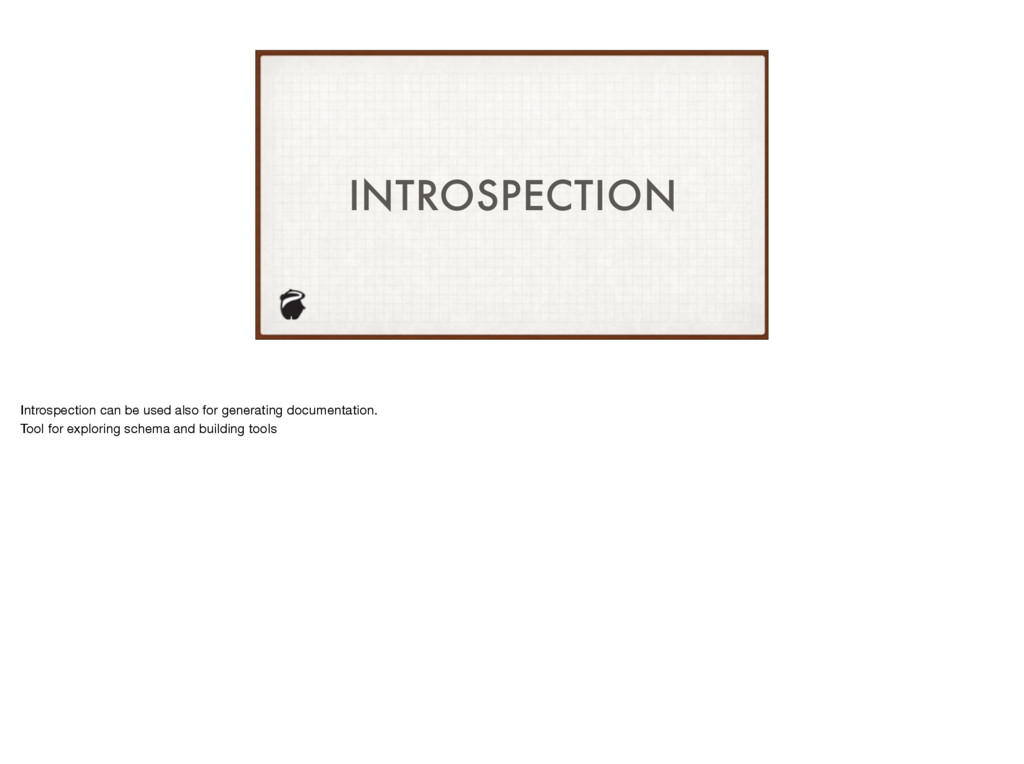

35. INTROSPECTION Introspection can be used also for generating documentation. Tool for exploring schema and building tools
36. { __schema { types { fields { name description } } } } Introspection can be used for generating documentation
37. FEW IMPORTANT TAKEOUTS
38. DATA SHAPE EQUALITY What you request is what you get WYRIWYG No more data massaging - client request data in a shape it prepared to consume
39. NO OVERFETCHING

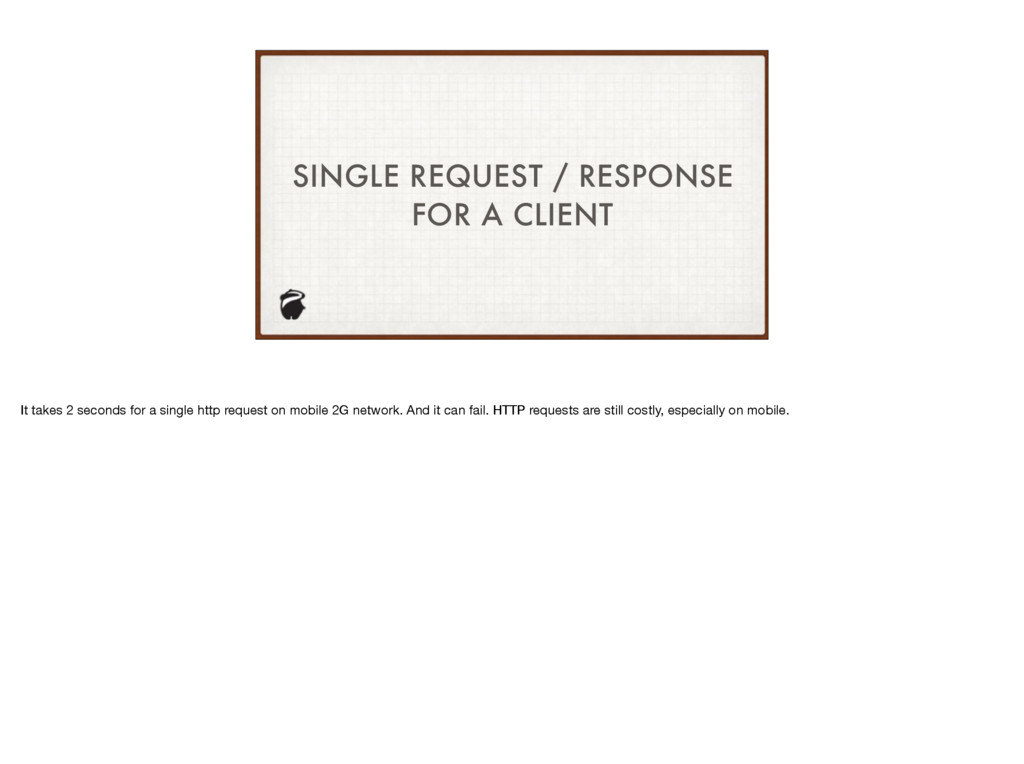

40. SINGLE REQUEST / RESPONSE FOR A CLIENT It takes 2 seconds for a single http request on mobile 2G network. And it can fail. HTTP requests are still costly, especially on mobile.
41. BACK TO REST Let’s come back to REST for a moment.
42. { "created_at": "2015-08-30T00:50:25.000+00:00", "genres": [], "id": "e66637db-13f9-4056-abef-f731f8b1a3c7", "like_count": 3, "liked_count": 3, "name": "Excuse me while I kiss these frets", "owner": { "avatar_url": "https://secure.gravatar.com/avatar/ 4ede0ad35bb796ea8f78861acc4372ca?s=300", "bio": null, "id": "b06e671a-b169-45e6-a645-74c31abca910", "login": "playlistrock", "name": "Playlist Rock", RESTful responses tend to grow to accomodate different clients and use cases Overfetching Data massaging on clients Specifications and documentations is usually awful for REST endpoints
43. { "created_at": "2015-08-30T00:50:25.000+00:00", "genres": [], "id": "e66637db-13f9-4056-abef-f731f8b1a3c7", "like_count": 3, "liked_count": 3, "name": "Excuse me while I kiss these frets", "owner": { "avatar_url": "https://secure.gravatar.com/avatar/4ede0ad35bb796ea8f78861acc4372ca?s=300", "bio": null, "id": "b06e671a-b169-45e6-a645-74c31abca910", "login": "playlistrock", "name": "Playlist Rock", "site_admin": false }, "published": false, "saved_count": 3, "tags": [ { "name": "Jimi Hendrix" }, { "name": "Jimmy Page" }, { "name": "Eric Clapton" }, … https://blog.jacobwgillespie.com/from-rest-to-graphql-b4e95e94c26b RESTful responses tend to grow to accommodate different clients and use cases Overfetching Data massaging on clients
44. GRAPHQL IS A SPEC http://facebook.github.io/graphql/ GraphQL is a language. There are multiple implementations, including reference JS one by Facebook, .NET, Ruby, Scala. GraphQL server can be implemented using any language. You can use any database with that implementation. Clients can use any protocol to relay data.
45. EXPRESS GRAPHQL DEMO In addition to language spec, FB provided reference implementation of it in JavaScript, as well as Node middleware for easy integration. Let’s see this in action. We will also now venture on the server side and see how things are working there - in particular how request being received and resolved into response. We cheated a bit with reindex.io in the beginning, which takes this complexity away. Express middleware uses RESTful GET / POST requests.

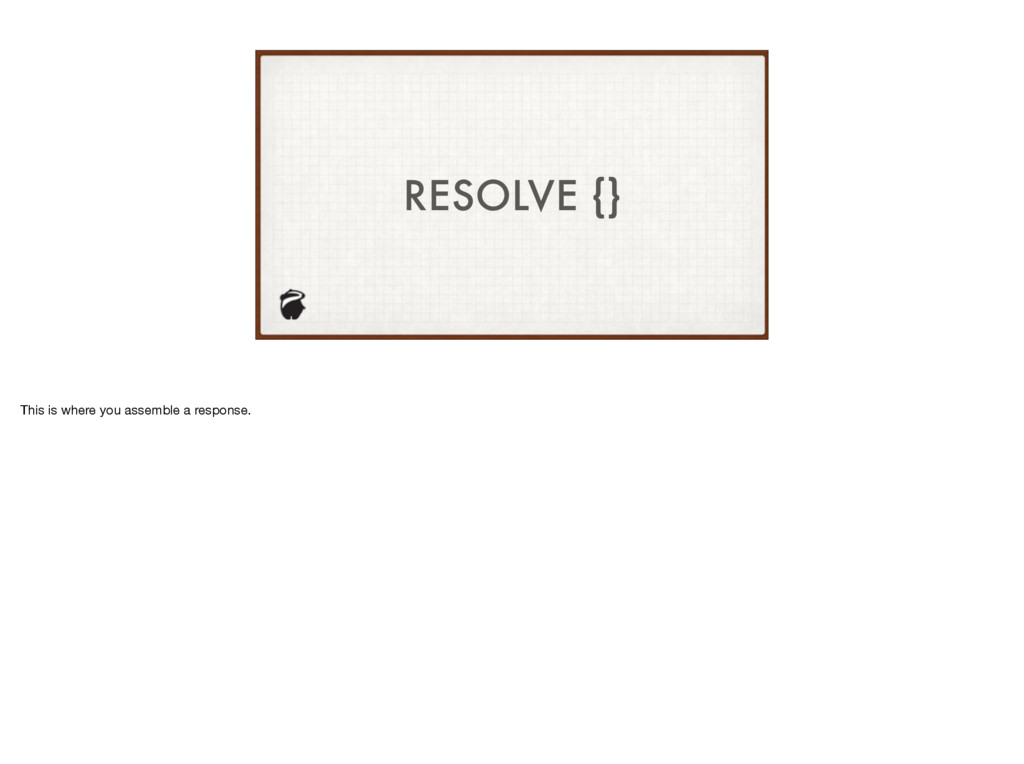

46. RESOLVE {} This is where you assemble a response.

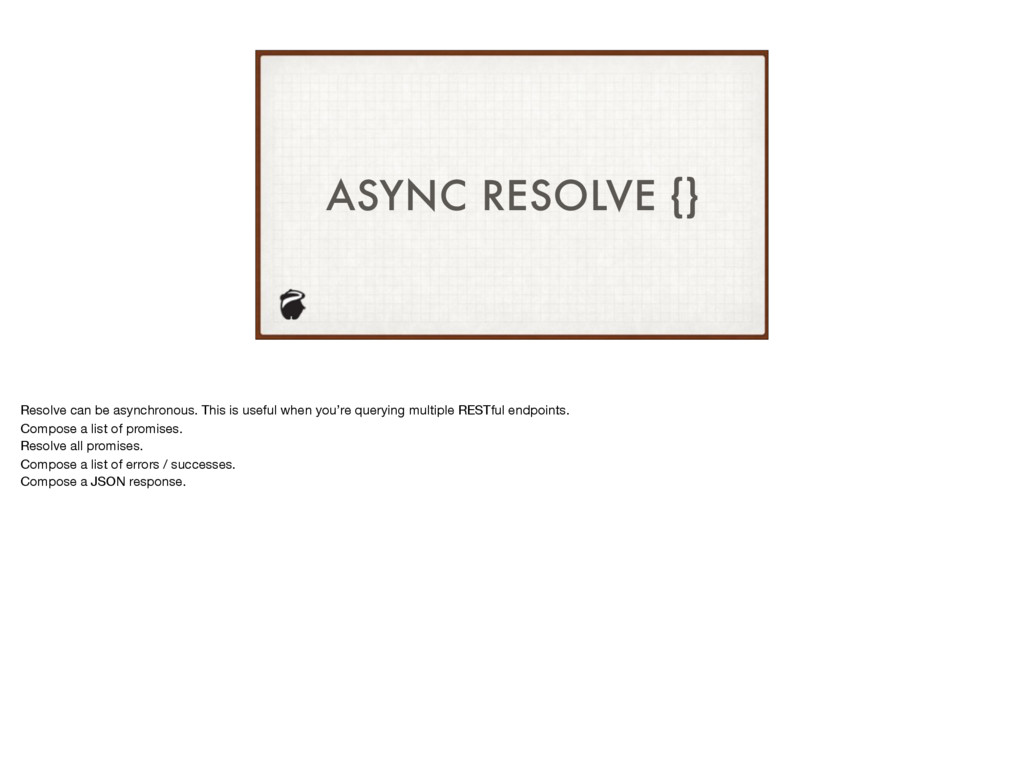

47. ASYNC RESOLVE {} Resolve can be asynchronous. This is useful when you’re querying multiple RESTful endpoints. Compose a list of promises. Resolve all promises. Compose a list of errors / successes. Compose a JSON response.
48. async resolve(obj, {...}) { const endpoints = [ { endpoint: 'voiceNumber', data: contactNumber }, { endpoint: 'smsNumber', data: contactNumber }, { endpoint: 'email', data: email }, ]; const processEndpoint = async ({endpoint, data}) => { try { return await contactService[endpoint](data); } catch (error) { return error; } }; const processes = [ for (process of endpoints)
49. const processes = [ for (process of endpoints) processEndpoint(process) ]; const responses = await* processes; const errors = responses.filter(response => response instanceof Error); if (errors.length) { throw errors; } return { accessToken, refreshToken, }; }
50. RELAY Relay is a framework connecting React application with the GraphQL server EXTENDING SELF-CONTAINER COMPONENT, DEMO
51. Tried many times to different degree of success Facebook approaches this by providing great tools for developing things from scratch There are some ways to success

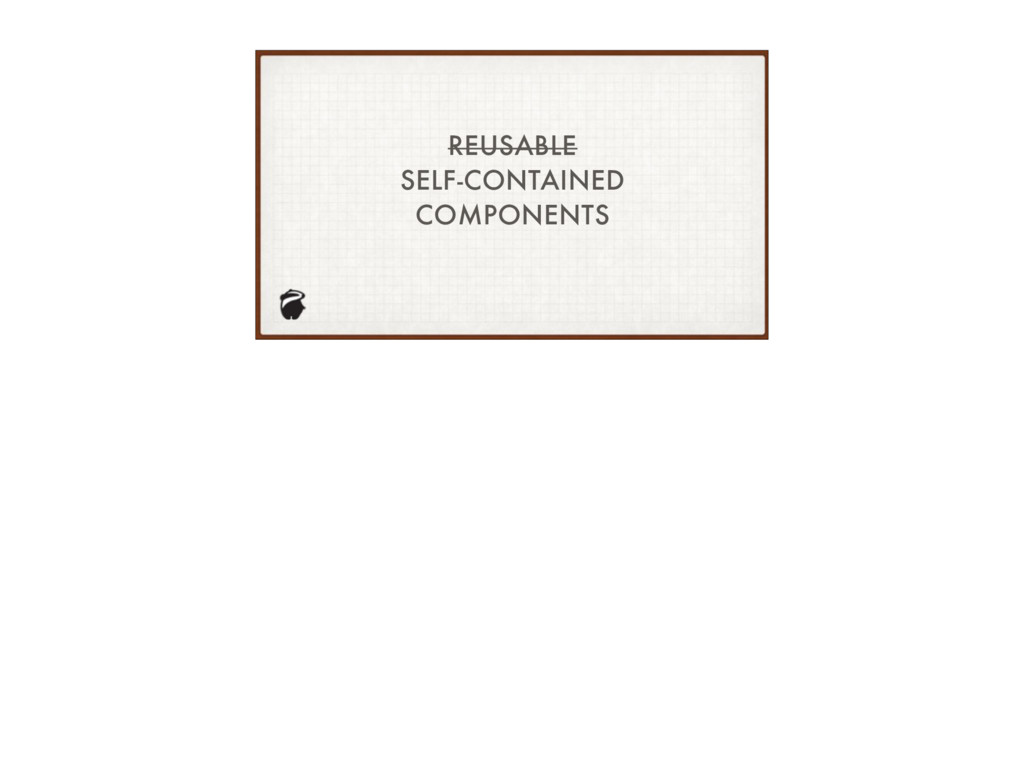

52. REUSABLE SELF-CONTAINED COMPONENTS
53. myComponent\ index.js style.css test.js data?
54. OPTIMISTIC UPDATES ERROR HANDLING OPTIMAL DATA FETCHING Optimistic updates are generally tricky to implement. Relay handles this via central app state. There is also temporary state where all mutations are initially live. If server response is successful, temporary state is merged with the central state. Once data requirements are declared, Relay is smart enough to only request data that is not cached yet. It will do caching too. Expect support for offline mode and flaky networks soon. React was easy to start using in 5 min, Relay takes some time to get used to. Mutations are notoriously famous fir their complexity. Debugging Relay should become easier soon once new React dev tools are released - for now it is inspecting GET / POST requests in Chrome devtools.
55. COMPONENTS DECLARE WHAT DATA THEY NEED View components would be wrapped into Relay container component, which would declare what data is needed for this component. Live demo.

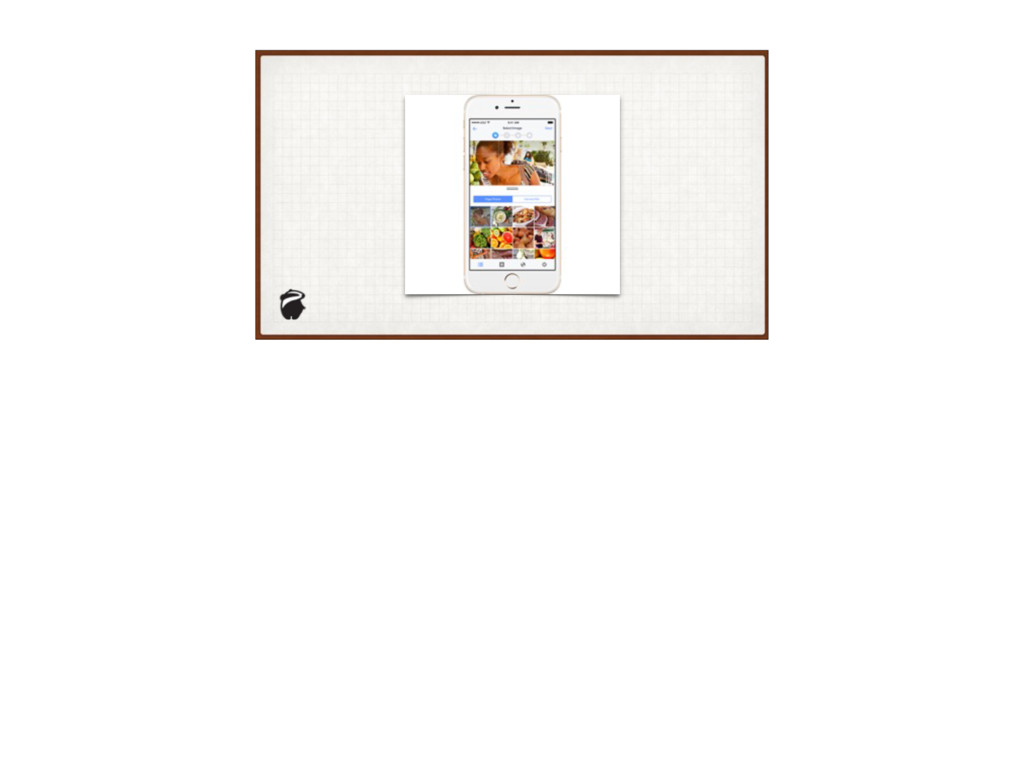

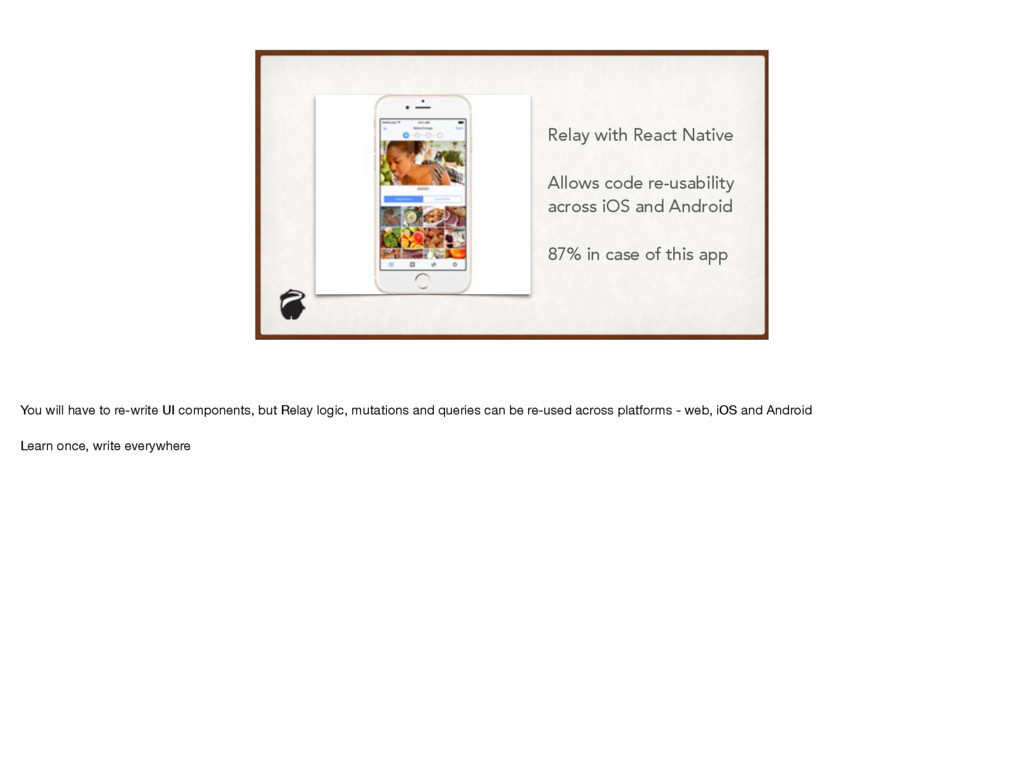

57. Relay with React Native Allows code re-usability across iOS and Android 87% in case of this app You will have to re-write UI components, but Relay logic, mutations and queries can be re-used across platforms - web, iOS and Android Learn once, write everywhere

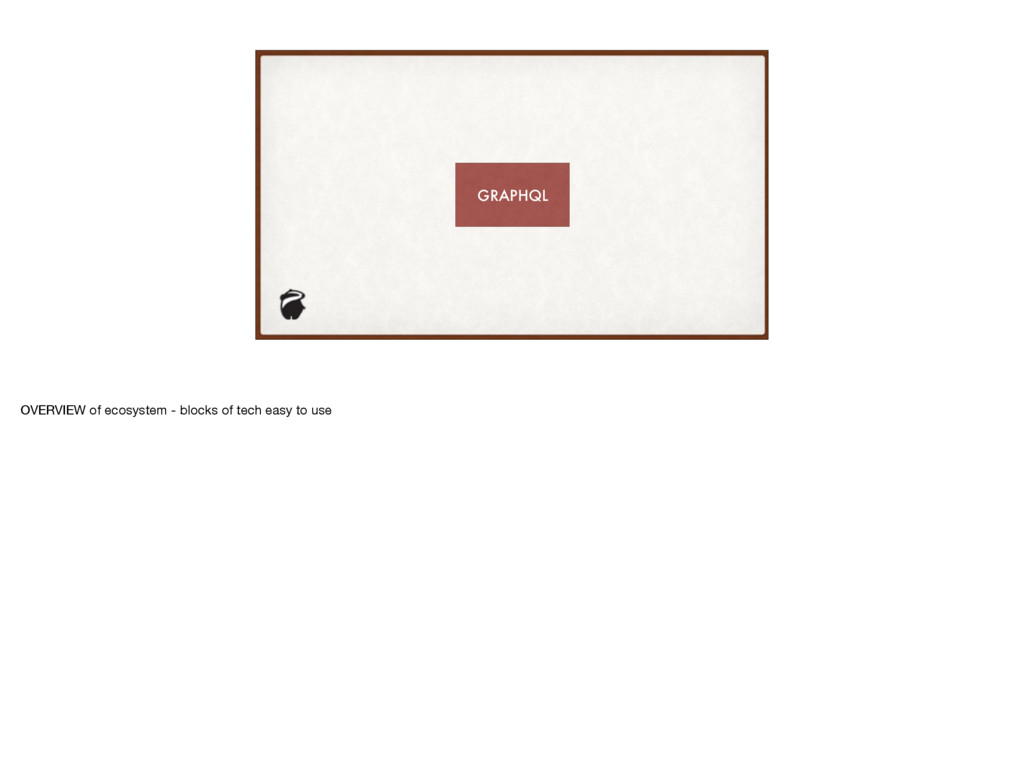

58. GRAPHQL OVERVIEW of ecosystem - blocks of tech easy to use

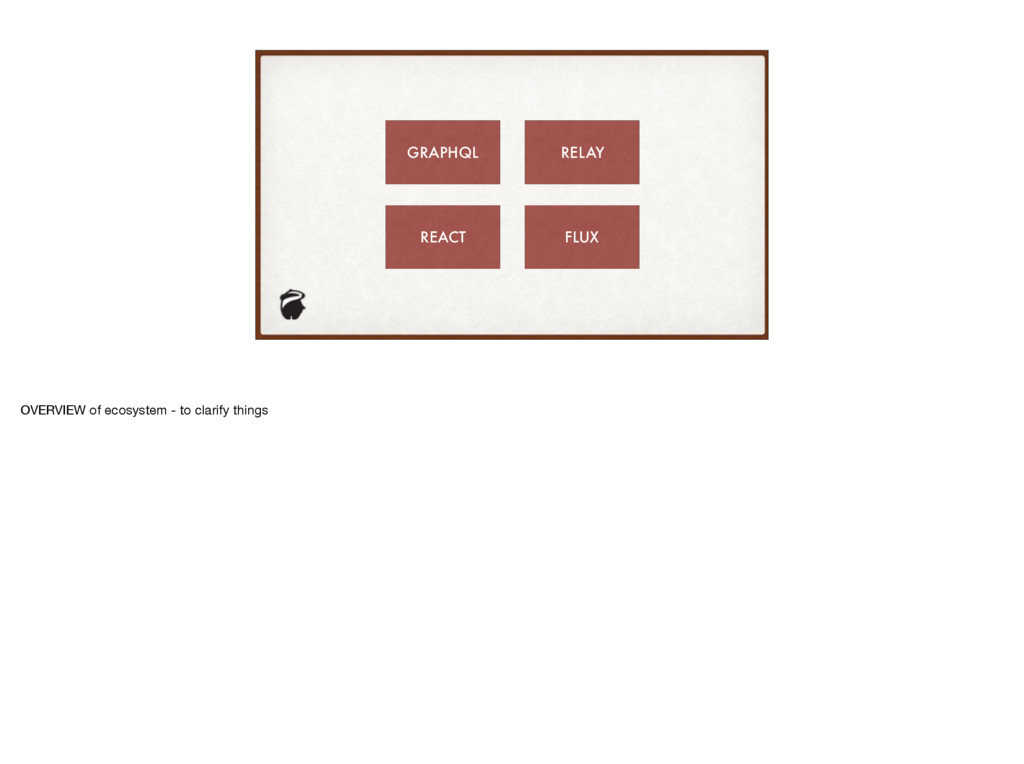

59. GRAPHQL RELAY REACT FLUX OVERVIEW of ecosystem - to clarify things
60. BACK TO OUR STORY
61. FRONT END APP SERVICE A SERVICE C SERVICE B SERVICE D

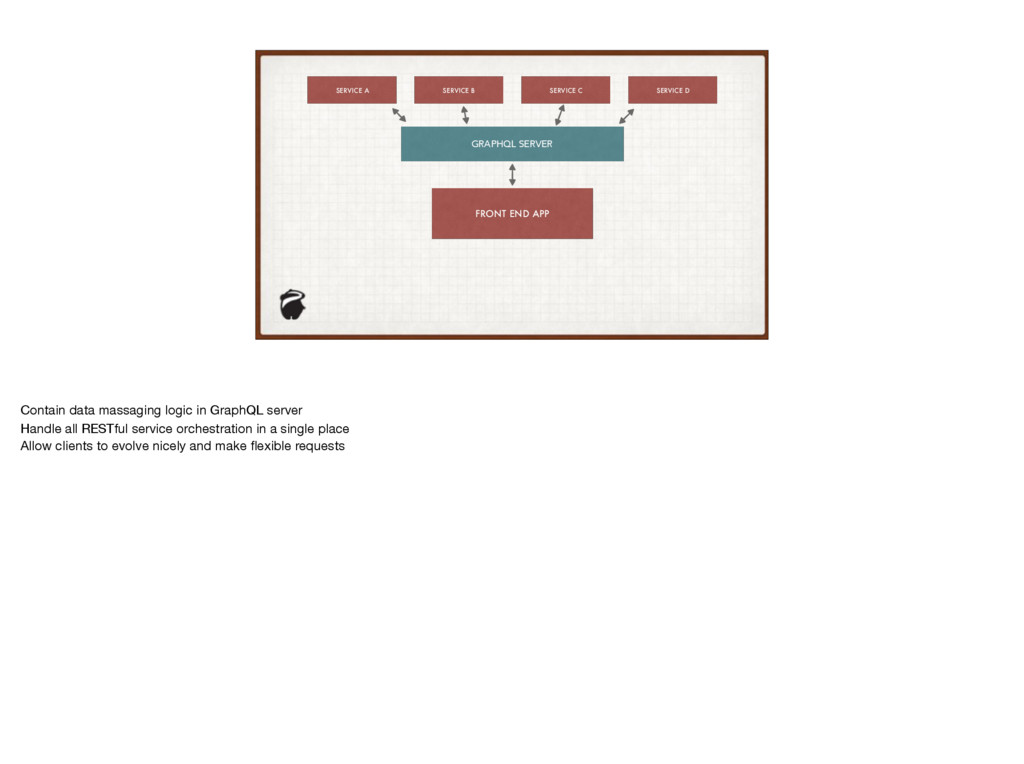

62. FRONT END APP SERVICE A SERVICE C SERVICE B SERVICE D GRAPHQL SERVER Contain data massaging logic in GraphQL server Handle all RESTful service orchestration in a single place Allow clients to evolve nicely and make flexible requests
63. FRONT END APP SERVICE A SERVICE C SERVICE B SERVICE D GRAPHQL SERVER IOS ANDROID TODO: versions of the apps feeding from the same GraphQL server Give yourself space to evolve Also allows you easily mock external services You just mock responses in resolve() And easy to test Can develop in isolation
64. FRONT END APP SERVICE A SERVICE C SERVICE B SERVICE D GRAPHQL SERVER IOS ANDROID FRONT END APP V2 IOS V2 ANDROID V2 TODO: versions of the apps feeding from the same GraphQL server Give yourself space to evolve Also allows you easily mock external services You just mock responses in resolve() And easy to test Can develop in isolation
65. FRONT END APP GRAPHQL SERVER IOS ANDROID FRONT END APP V2 IOS V2 ANDROID V2 TODO: versions of the apps feeding from the same GraphQL server Give yourself space to evolve Also allows you easily mock external services You just mock responses in resolve() And easy to test Can develop in isolation
66. THANKS
67. Alexander Savin @karismafilms Red Badger @redbadgerteam

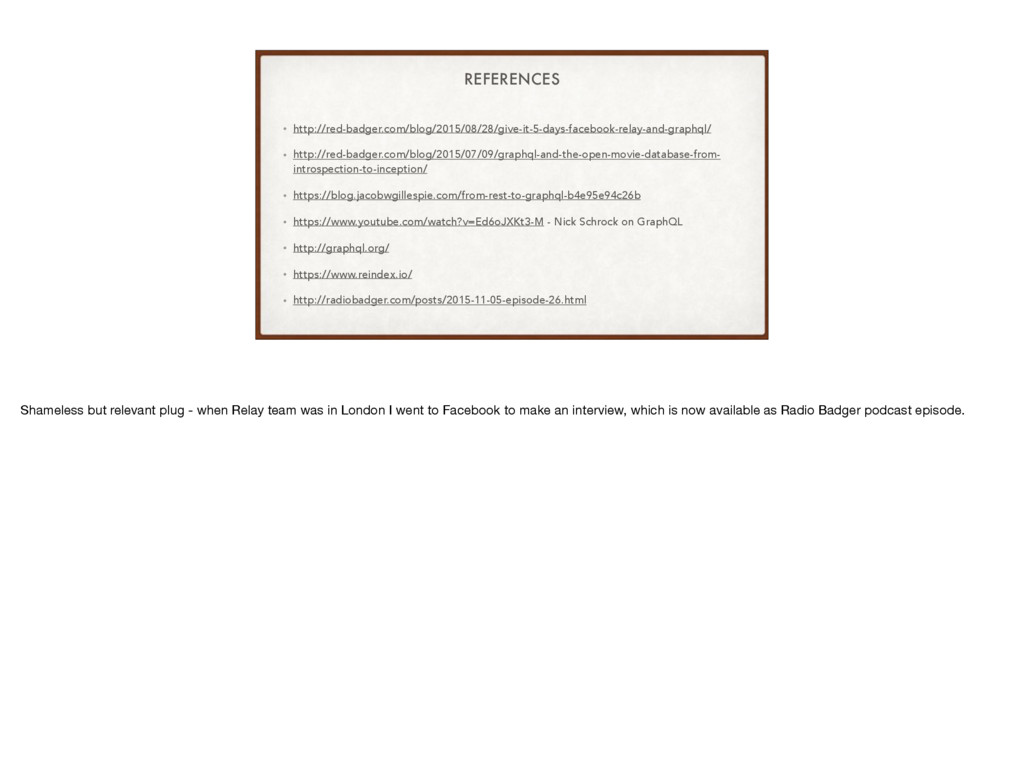

68. REFERENCES • http://red-badger.com/blog/2015/08/28/give-it-5-days-facebook-relay-and-graphql/ • http://red-badger.com/blog/2015/07/09/graphql-and-the-open-movie-database-from- introspection-to-inception/ • https://blog.jacobwgillespie.com/from-rest-to-graphql-b4e95e94c26b • https://www.youtube.com/watch?v=Ed6oJXKt3-M - Nick Schrock on GraphQL • http://graphql.org/ • https://www.reindex.io/ • http://radiobadger.com/posts/2015-11-05-episode-26.html Shameless but relevant plug - when Relay team was in London I went to Facebook to make an interview, which is now available as Radio Badger podcast episode.
