1. Andrey Vagin <avagin@openvz.org> CRIU - Checkpoint/Restore in User-space FOSDEM 2015

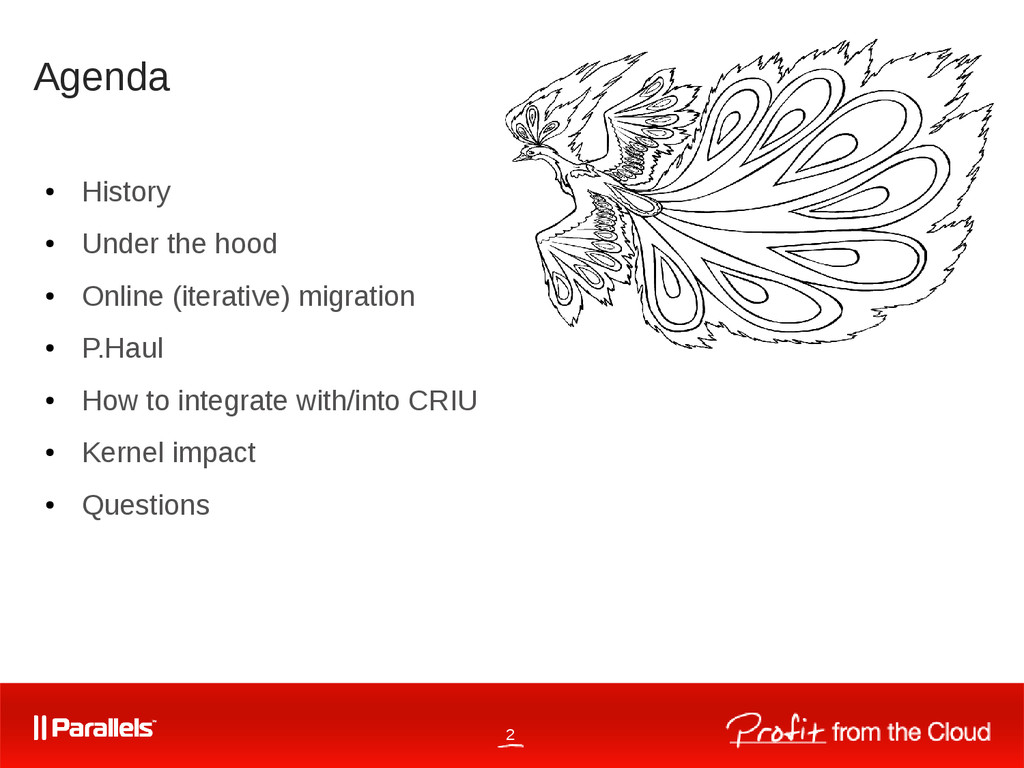

2. 2 Agenda • History • Under the hood • Online (iterative) migration • P.Haul • How to integrate with/into CRIU • Kernel impact • Questions

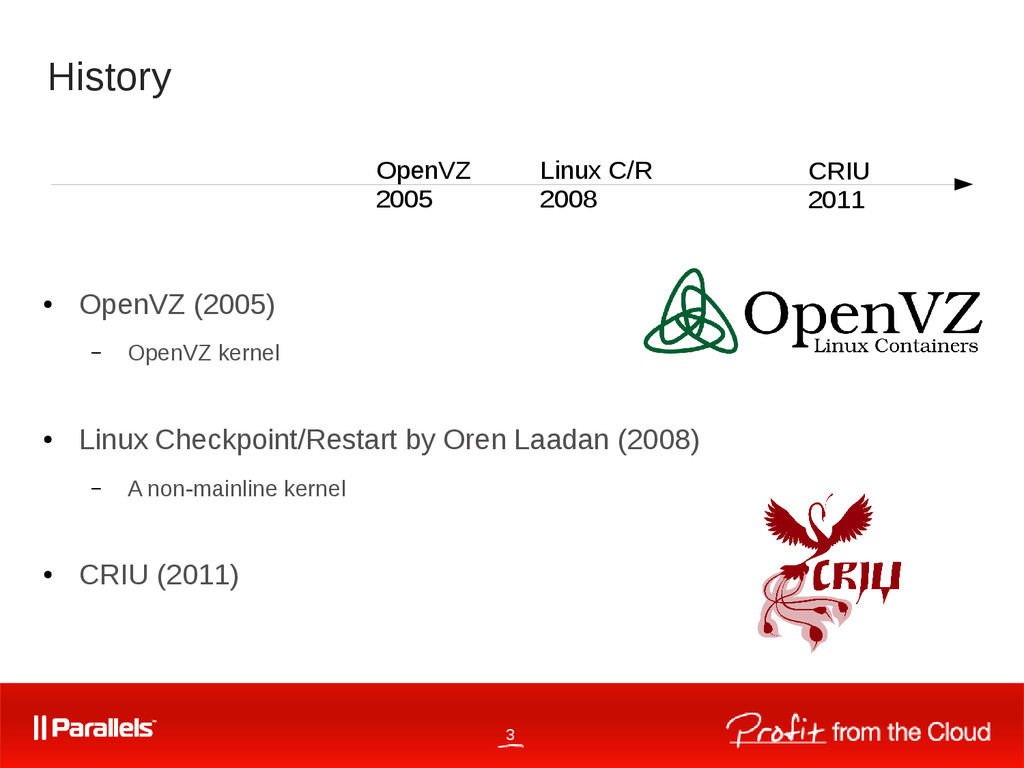

3. 3 History • OpenVZ (2005) – OpenVZ kernel • Linux Checkpoint/Restart by Oren Laadan (2008) – A non-mainline kernel • CRIU (2011) OpenVZ 2005 Linux C/R 2008 CRIU 2011

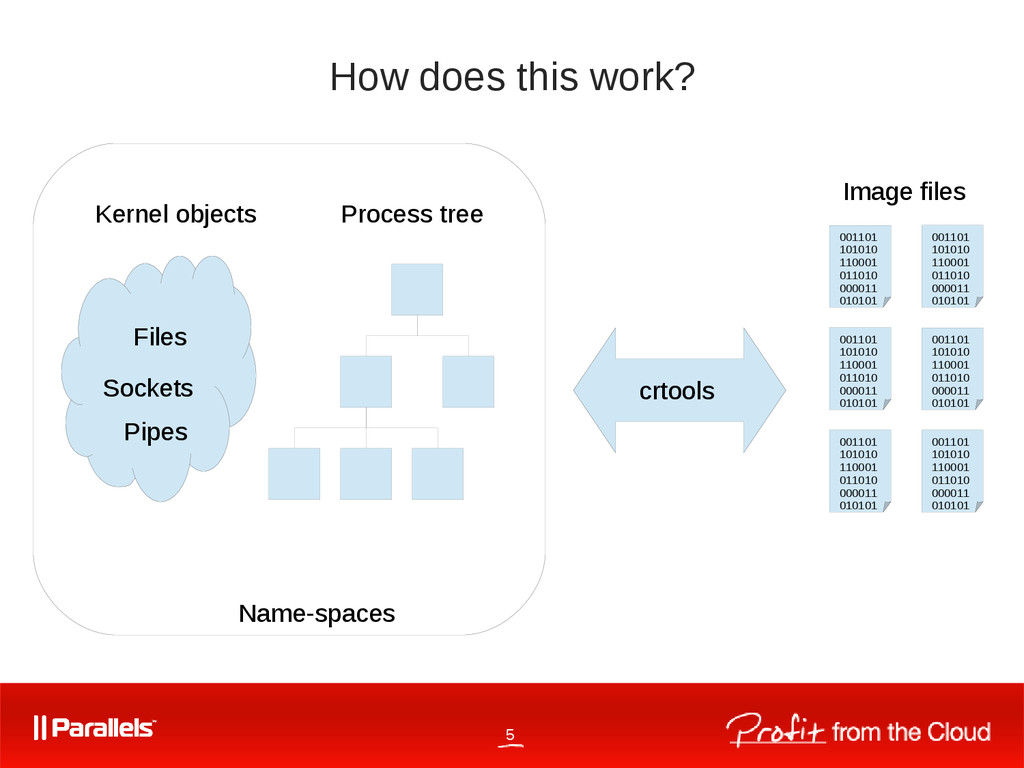

4. 5 How does this work? Kernel objects Process tree crtools Image files Name-spaces Files Sockets Pipes 001101 101010 110001 011010 000011 010101 001101 101010 110001 011010 000011 010101 001101 101010 110001 011010 000011 010101 001101 101010 110001 011010 000011 010101 001101 101010 110001 011010 000011 010101 001101 101010 110001 011010 000011 010101

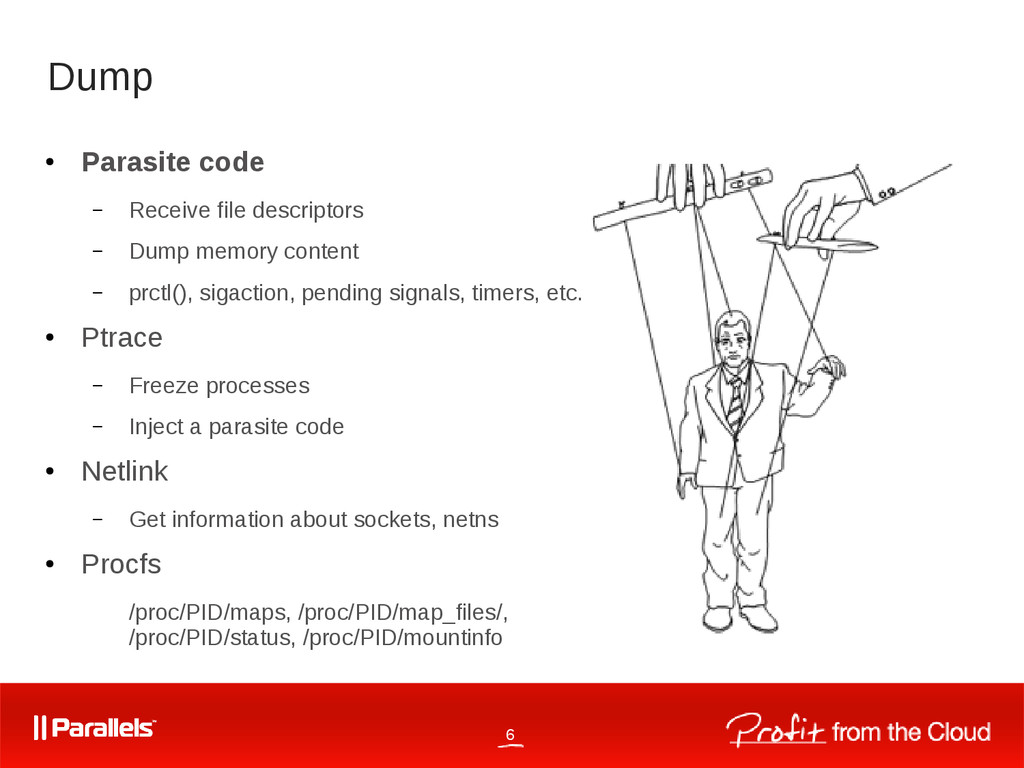

5. 6 Dump • Parasite code – Receive file descriptors – Dump memory content – prctl(), sigaction, pending signals, timers, etc. • Ptrace – Freeze processes – Inject a parasite code • Netlink – Get information about sockets, netns • Procfs /proc/PID/maps, /proc/PID/map_files/, /proc/PID/status, /proc/PID/mountinfo

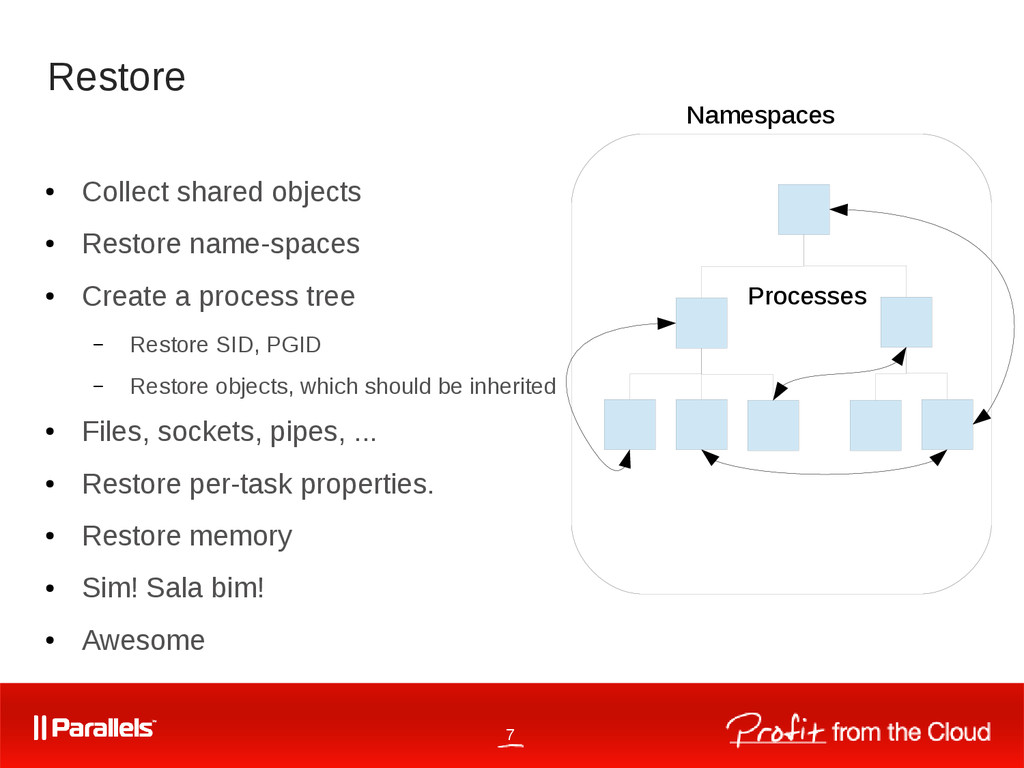

6. 7 Restore • Collect shared objects • Restore name-spaces • Create a process tree – Restore SID, PGID – Restore objects, which should be inherited • Files, sockets, pipes, ... • Restore per-task properties. • Restore memory • Sim! Sala bim! • Awesome Namespaces Processes

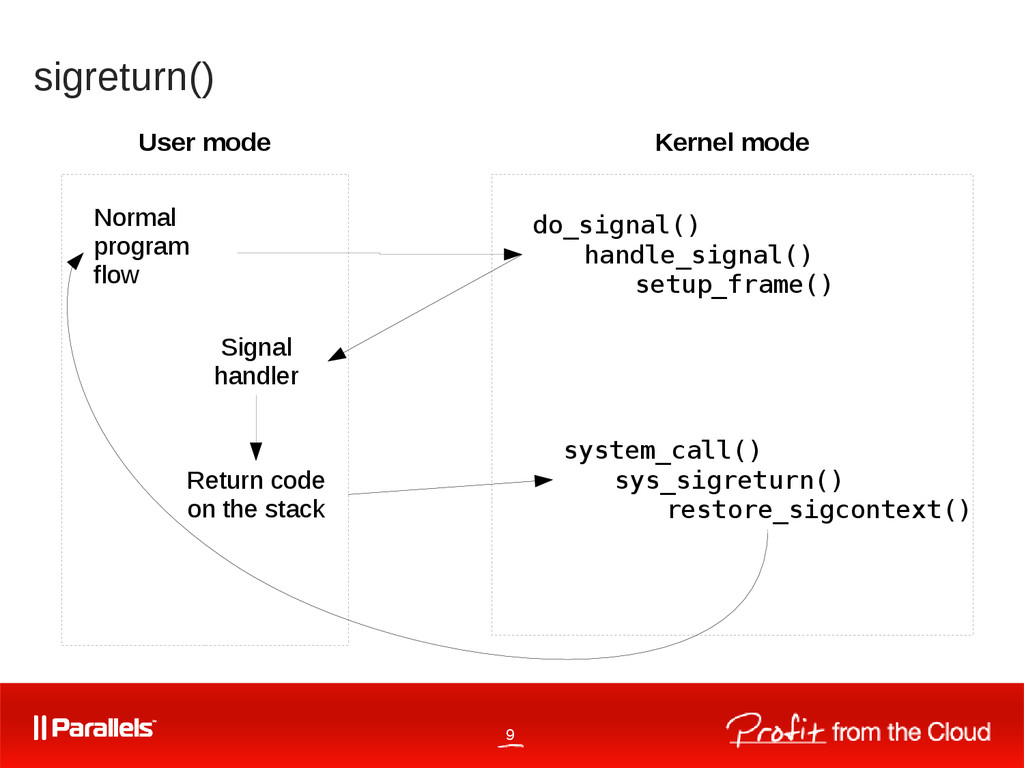

7. 9 sigreturn() User mode Kernel mode Normal program flow do_signal() handle_signal() setup_frame() Signal handler Return code on the stack system_call() sys_sigreturn() restore_sigcontext()

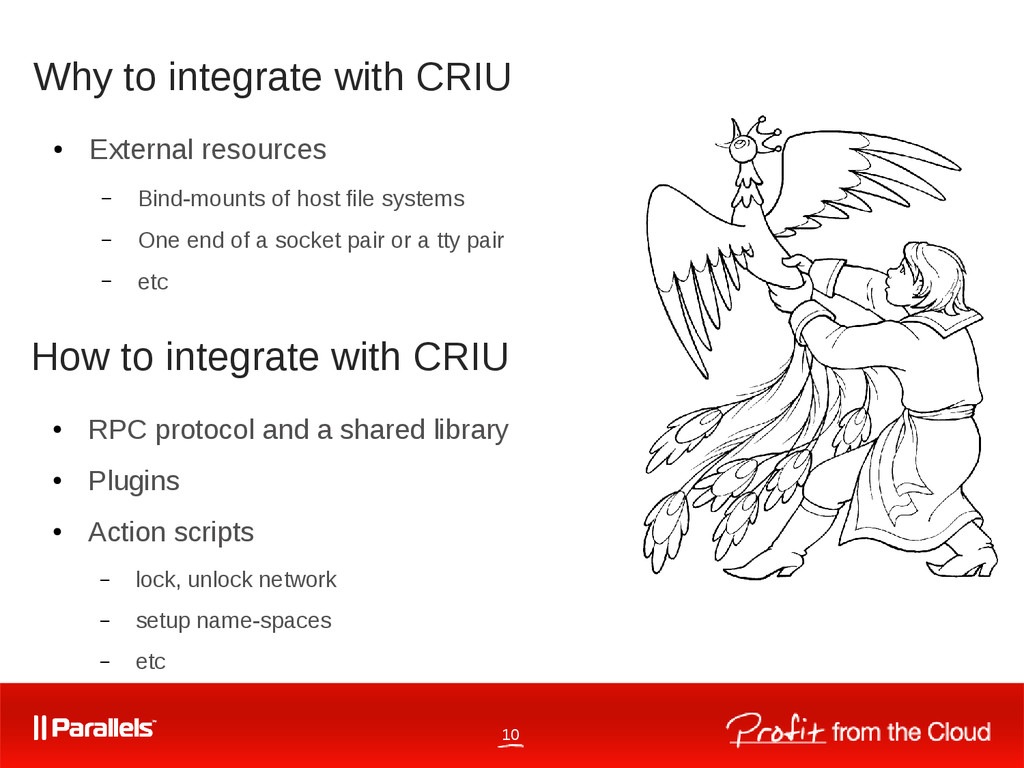

8. 10 Why to integrate with CRIU • RPC protocol and a shared library • Plugins • Action scripts – lock, unlock network – setup name-spaces – etc • External resources – Bind-mounts of host file systems – One end of a socket pair or a tty pair – etc How to integrate with CRIU
9. 11 Who is CRIU user?

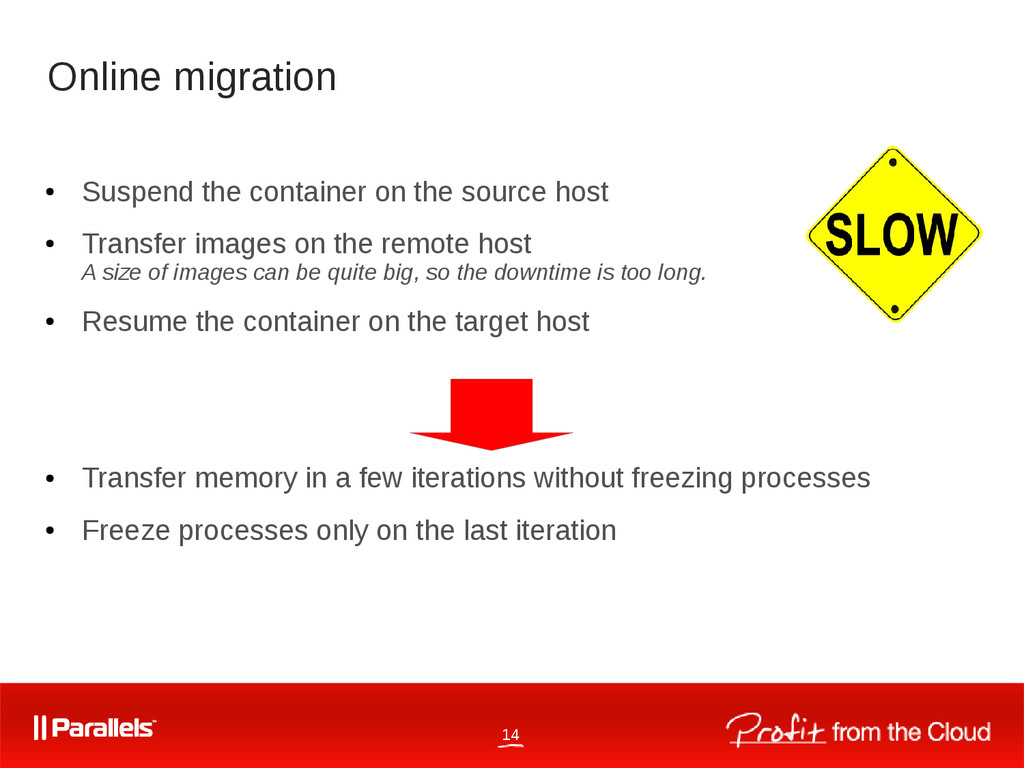

10. 14 Online migration • Suspend the container on the source host • Transfer images on the remote host A size of images can be quite big, so the downtime is too long. • Resume the container on the target host • Transfer memory in a few iterations without freezing processes • Freeze processes only on the last iteration

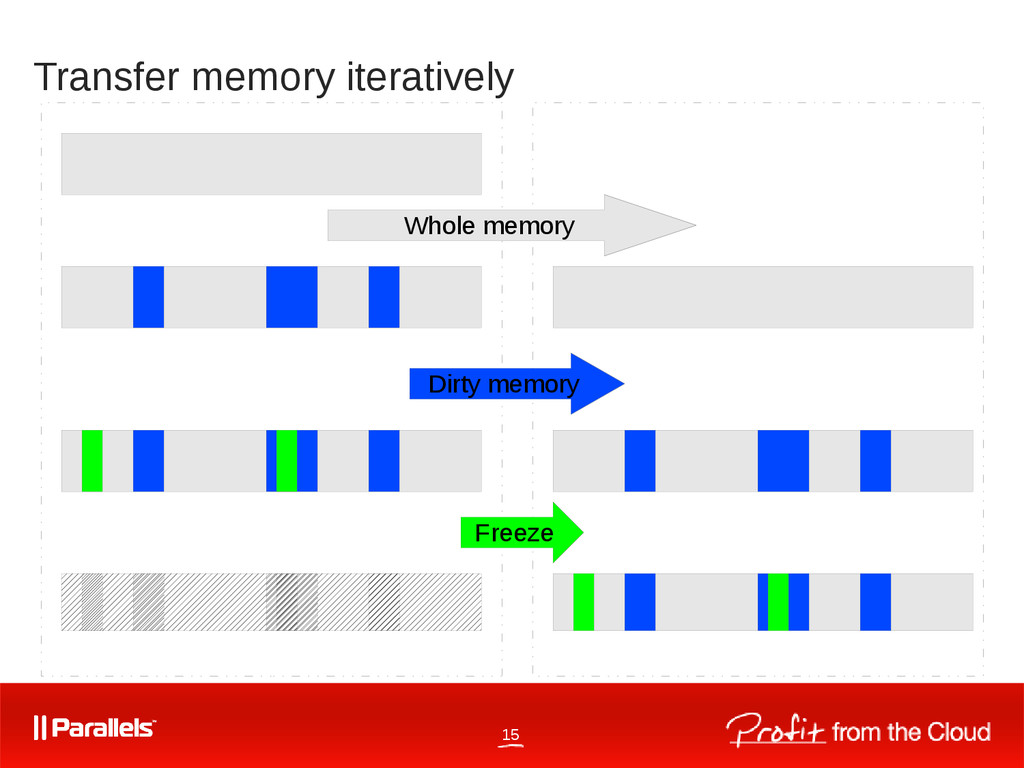

11. 15 Transfer memory iteratively Whole memory Dirty memory Freeze

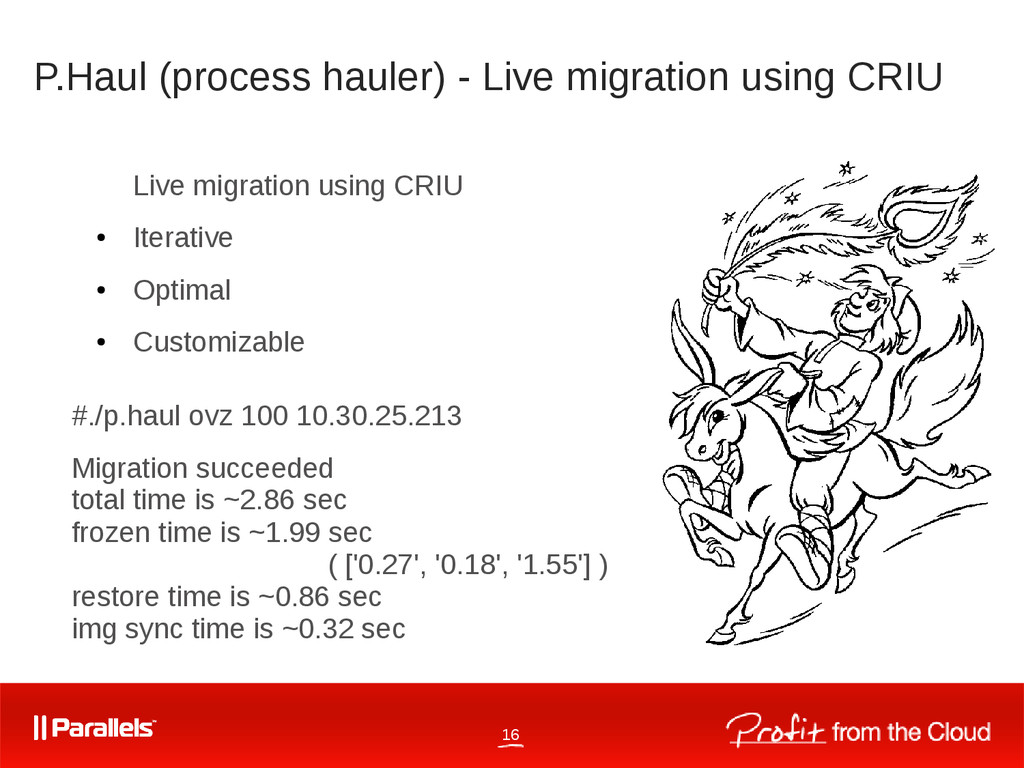

12. 16 P.Haul (process hauler) - Live migration using CRIU Live migration using CRIU • Iterative • Optimal • Customizable #./p.haul ovz 100 10.30.25.213 Migration succeeded total time is ~2.86 sec frozen time is ~1.99 sec ( ['0.27', '0.18', '1.55'] ) restore time is ~0.86 sec img sync time is ~0.32 sec

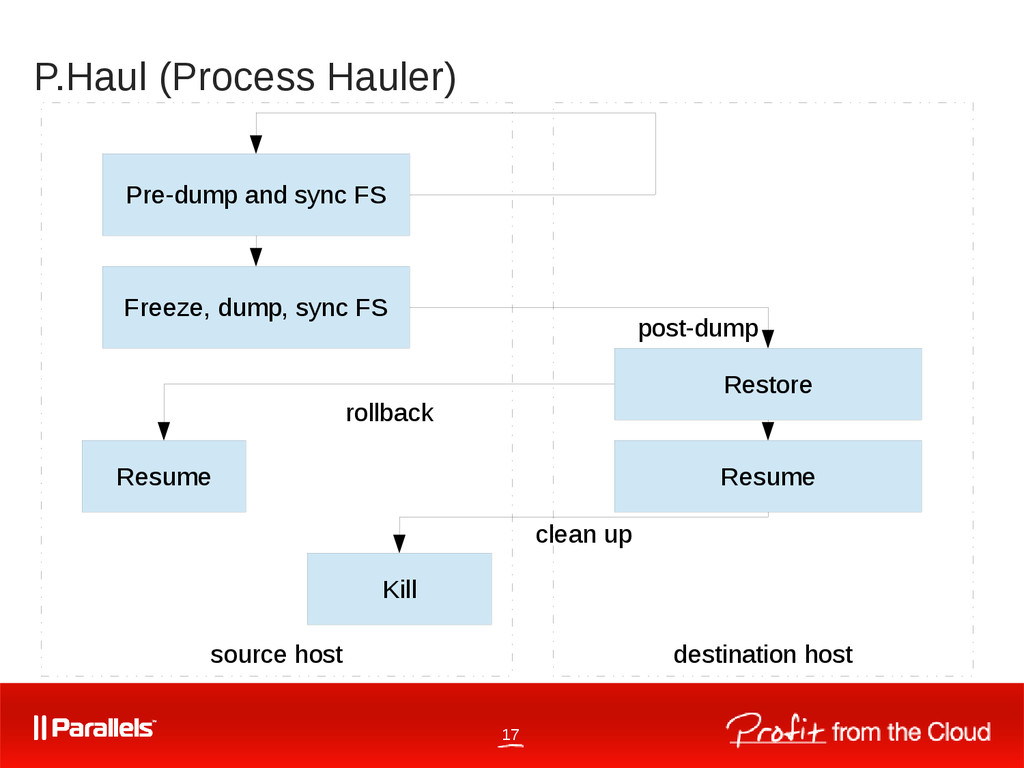

13. 17 P.Haul (Process Hauler) Pre-dump and sync FS Freeze, dump, sync FS Restore Kill Resume post-dump Resume rollback clean up source host destination host

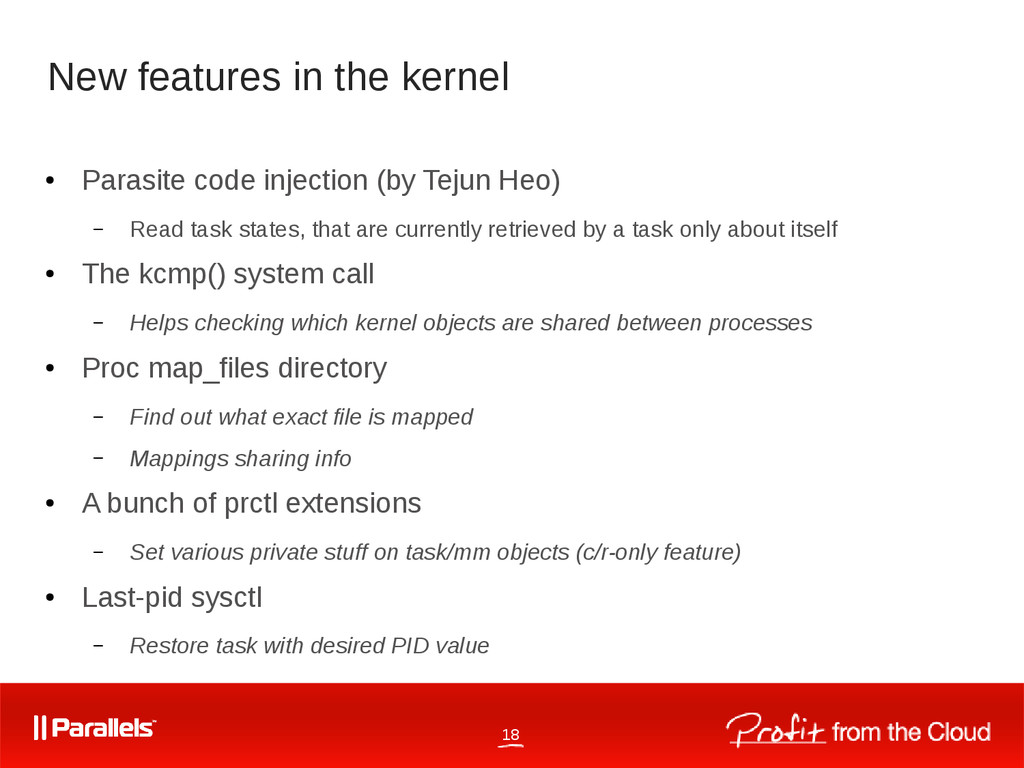

14. 18 New features in the kernel • Parasite code injection (by Tejun Heo) – Read task states, that are currently retrieved by a task only about itself • The kcmp() system call – Helps checking which kernel objects are shared between processes • Proc map_files directory – Find out what exact file is mapped – Mappings sharing info • A bunch of prctl extensions – Set various private stuff on task/mm objects (c/r-only feature) • Last-pid sysctl – Restore task with desired PID value

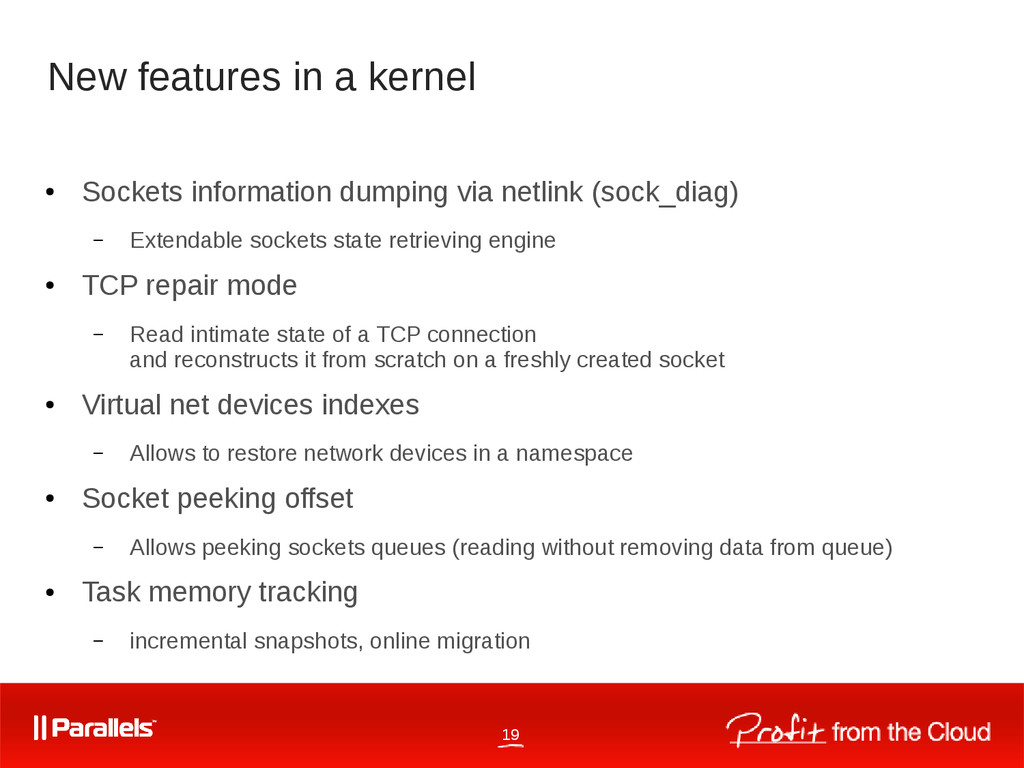

15. 19 New features in a kernel • Sockets information dumping via netlink (sock_diag) – Extendable sockets state retrieving engine • TCP repair mode – Read intimate state of a TCP connection and reconstructs it from scratch on a freshly created socket • Virtual net devices indexes – Allows to restore network devices in a namespace • Socket peeking offset – Allows peeking sockets queues (reading without removing data from queue) • Task memory tracking – incremental snapshots, online migration
16. 20 Community

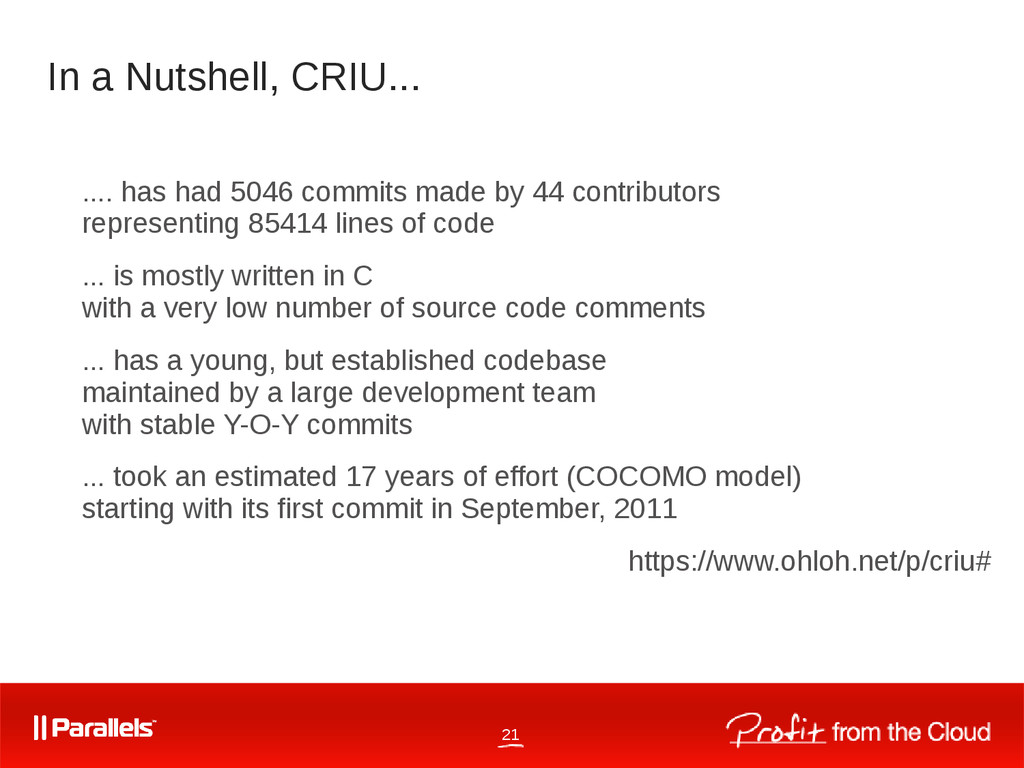

17. 21 In a Nutshell, CRIU... .... has had 5046 commits made by 44 contributors representing 85414 lines of code ... is mostly written in C with a very low number of source code comments ... has a young, but established codebase maintained by a large development team with stable Y-O-Y commits ... took an estimated 17 years of effort (COCOMO model) starting with its first commit in September, 2011 https://www.ohloh.net/p/criu#
18. Thank you http://criu.org https://plus.google.com/+CriuOrg criu@openvz.org
