Elasticsearch Presentation
Alex Boklin
August 31, 2016
Transcript
23 slides
-

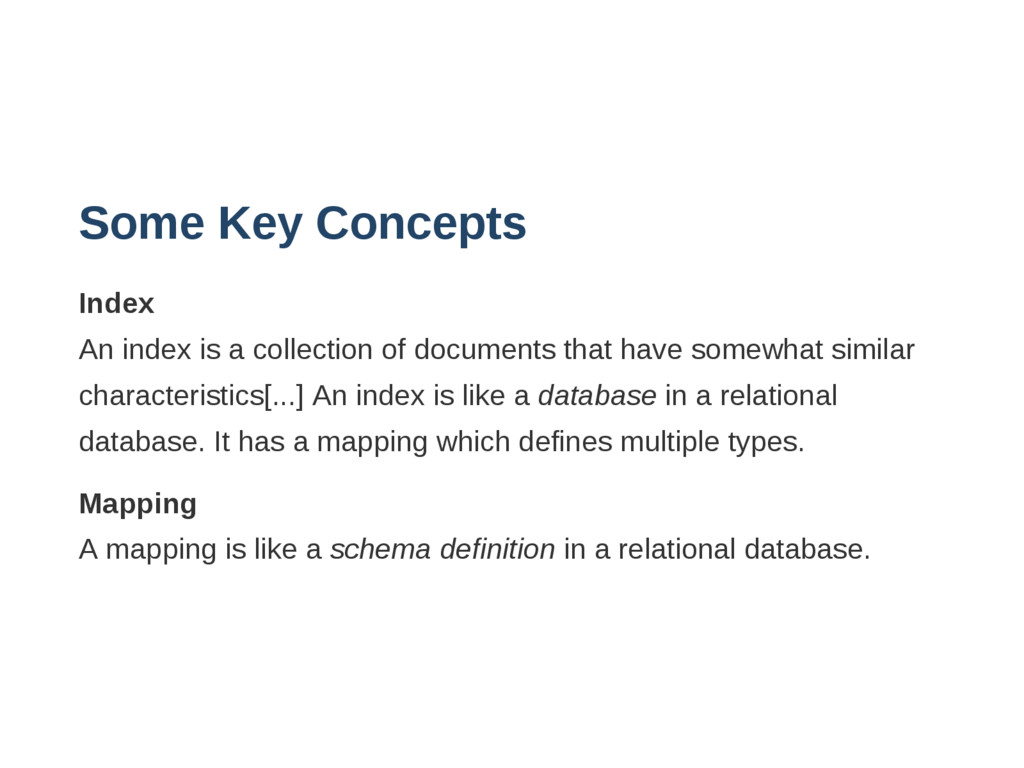

Some Key Concepts Index An index is a collection of
documents that have somewhat similar characteristics[...] An index is like a database in a relational database. It has a mapping which defines multiple types. Mapping A mapping is like a schema definition in a relational database. -

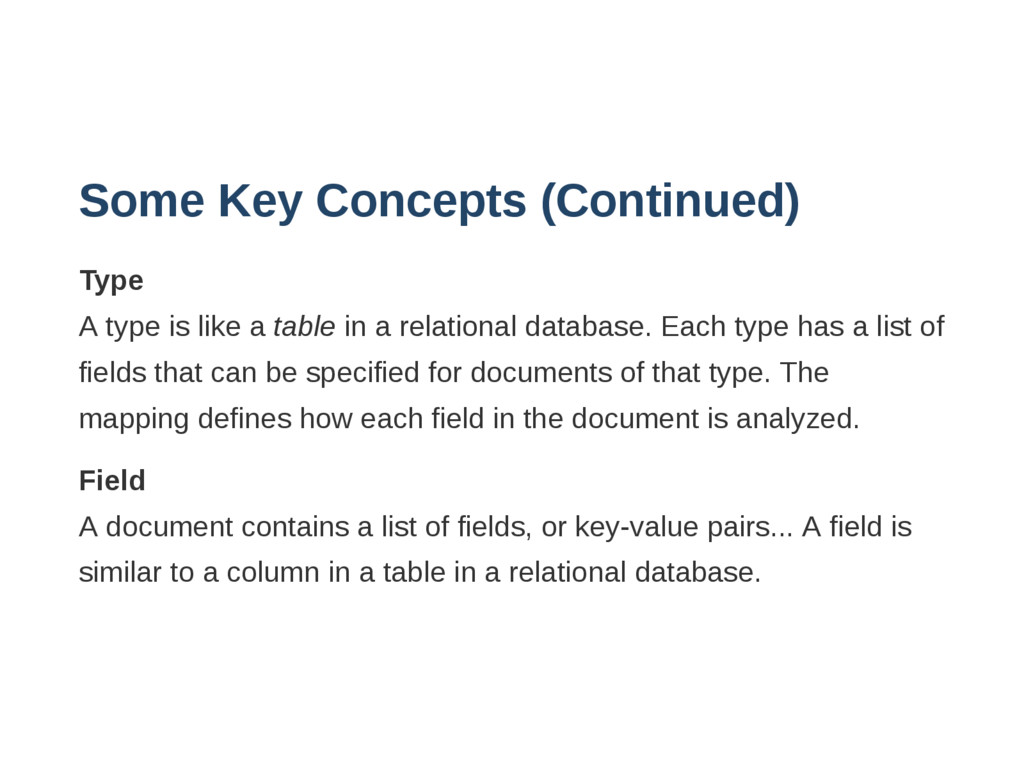

Some Key Concepts (Continued) Type A type is like a
table in a relational database. Each type has a list of fields that can be specified for documents of that type. The mapping defines how each field in the document is analyzed. Field A document contains a list of fields, or keyvalue pairs... A field is similar to a column in a table in a relational database. -

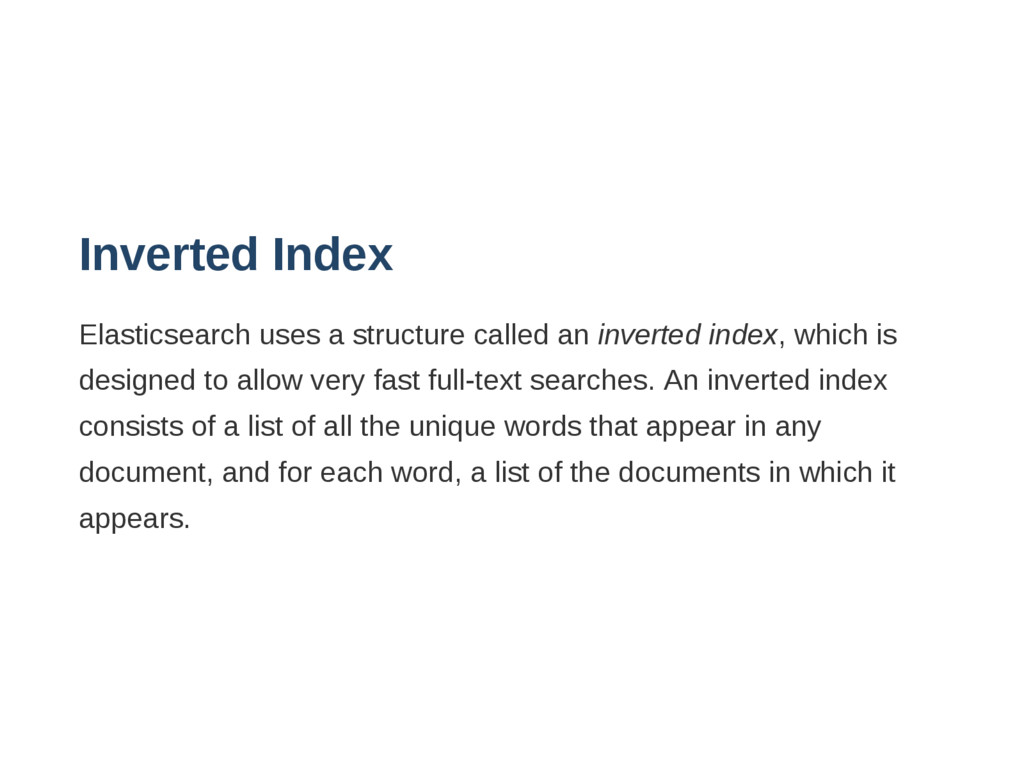

Inverted Index Elasticsearch uses a structure called an inverted index,
which is designed to allow very fast fulltext searches. An inverted index consists of a list of all the unique words that appear in any document, and for each word, a list of the documents in which it appears. -

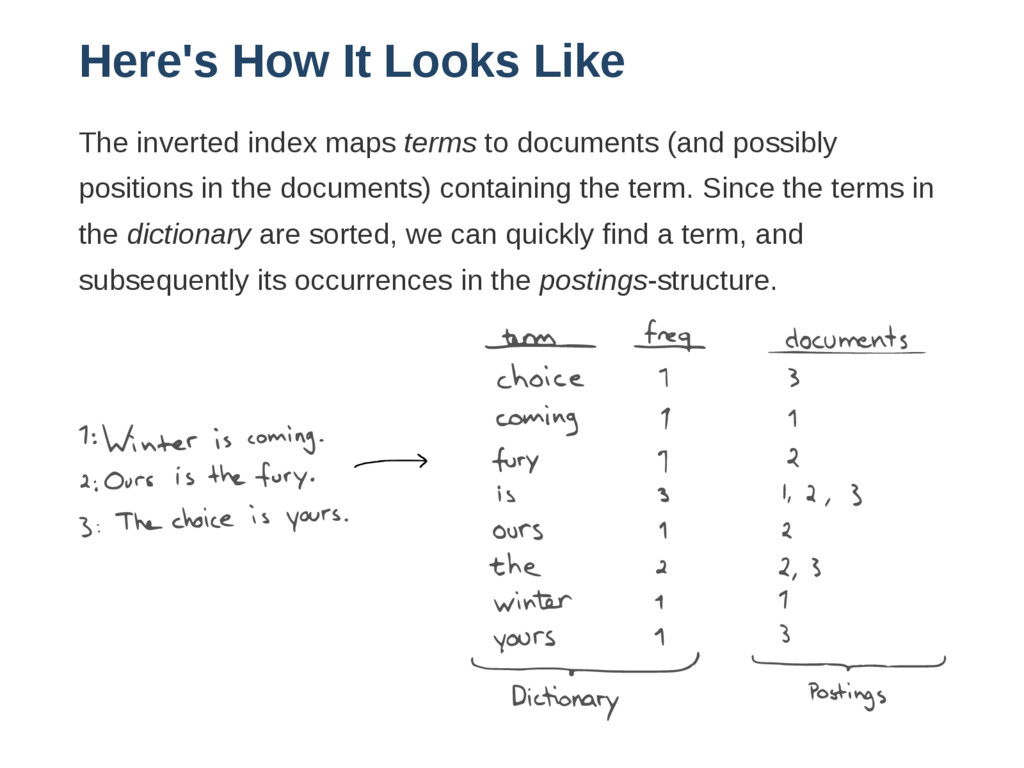

Here's How It Looks Like The inverted index maps terms
to documents (and possibly positions in the documents) containing the term. Since the terms in the dictionary are sorted, we can quickly find a term, and subsequently its occurrences in the postingsstructure. -
... but Sorting, aggregations, and access to field values in
scripts requires a different data access pattern. Instead of looking up the term and finding documents, we need to be able to look up the document and find the terms that it has in a field. -

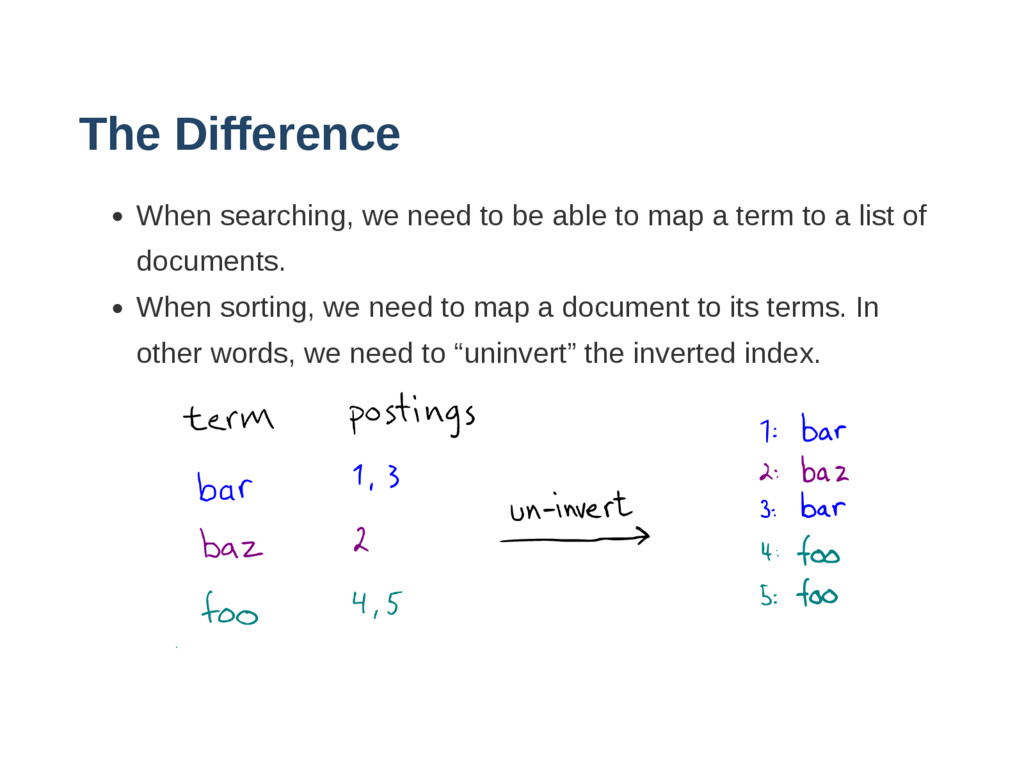

The Difference When searching, we need to be able to
map a term to a list of documents. When sorting, we need to map a document to its terms. In other words, we need to “uninvert” the inverted index. -

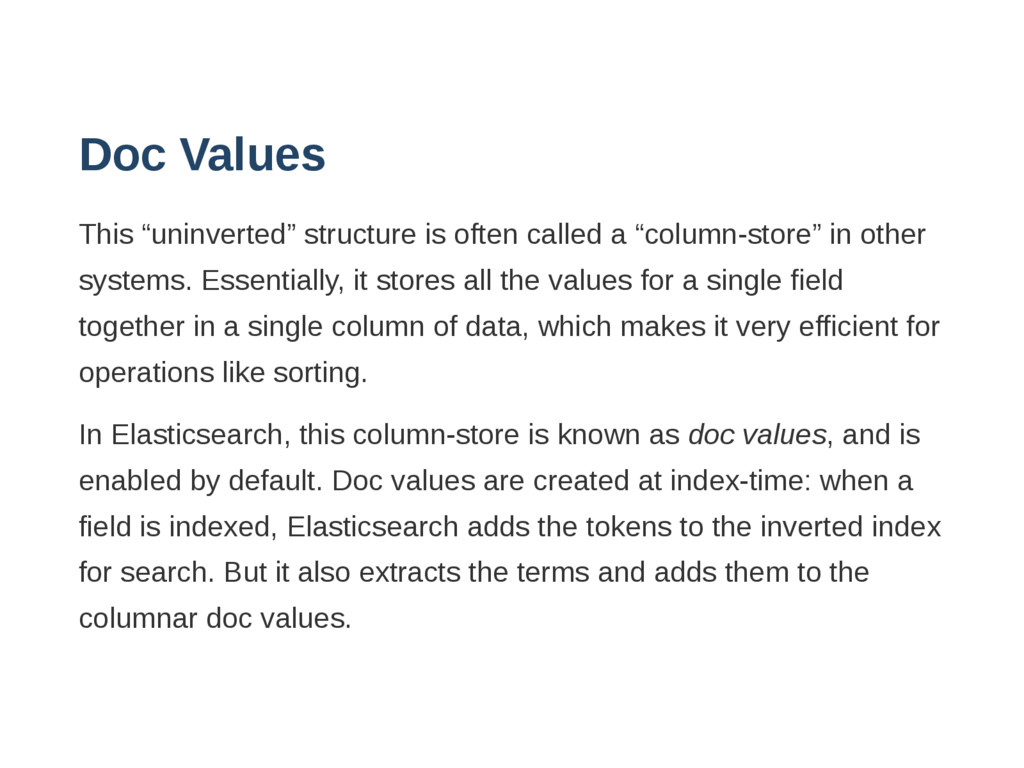

Doc Values This “uninverted” structure is often called a “columnstore”
in other systems. Essentially, it stores all the values for a single field together in a single column of data, which makes it very efficient for operations like sorting. In Elasticsearch, this columnstore is known as doc values, and is enabled by default. Doc values are created at indextime: when a field is indexed, Elasticsearch adds the tokens to the inverted index for search. But it also extracts the terms and adds them to the columnar doc values. -

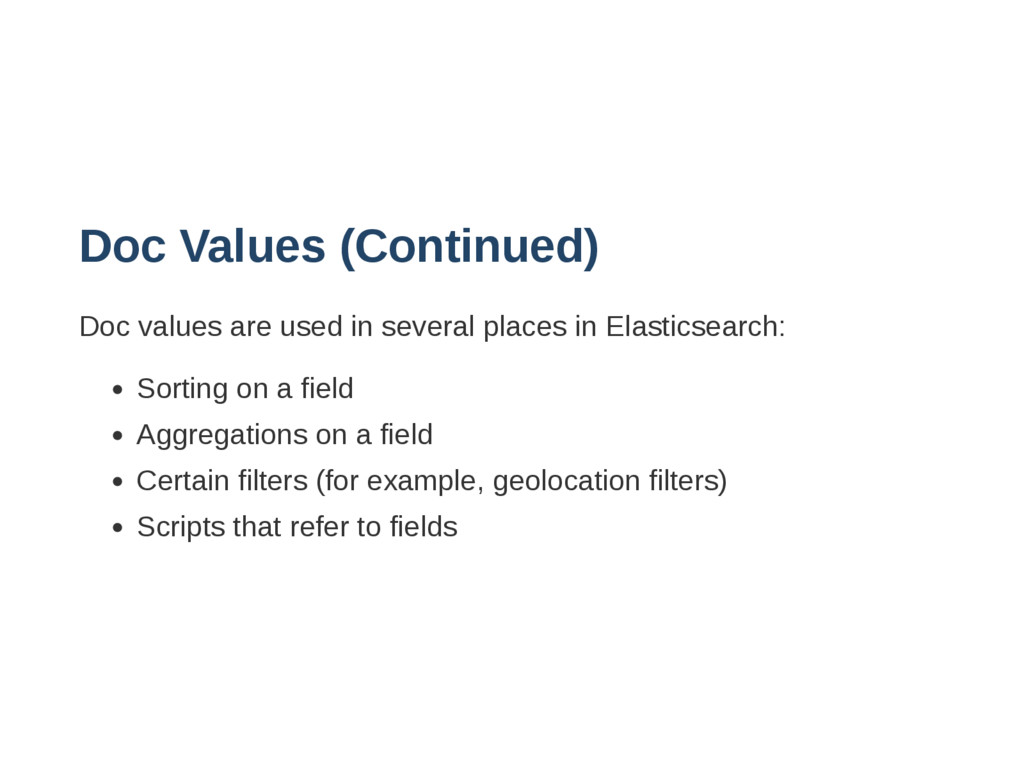

Doc Values (Continued) Doc values are used in several places
in Elasticsearch: Sorting on a field Aggregations on a field Certain filters (for example, geolocation filters) Scripts that refer to fields -

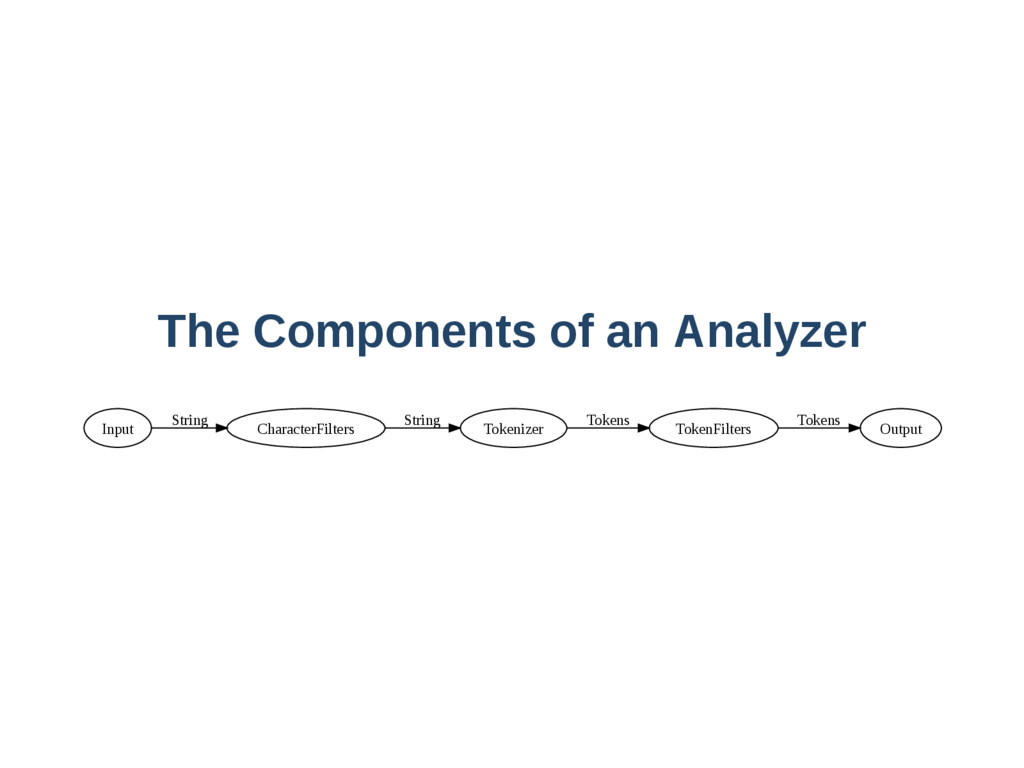

The Components of an Analyzer Input CharacterFilters String Tokenizer String
TokenFilters Tokens Output Tokens -

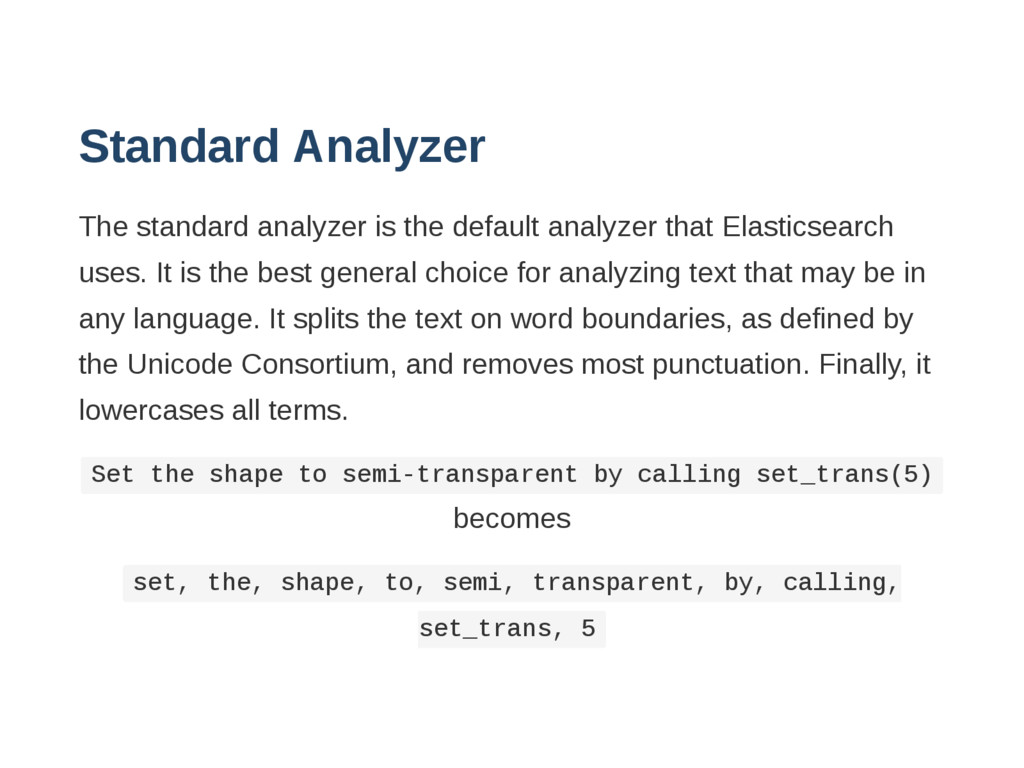

Standard Analyzer The standard analyzer is the default analyzer that
Elasticsearch uses. It is the best general choice for analyzing text that may be in any language. It splits the text on word boundaries, as defined by the Unicode Consortium, and removes most punctuation. Finally, it lowercases all terms. S e t t h e s h a p e t o s e m i t r a n s p a r e n t b y c a l l i n g s e t _ t r a n s ( 5 ) becomes s e t , t h e , s h a p e , t o , s e m i , t r a n s p a r e n t , b y , c a l l i n g , s e t _ t r a n s , 5 -

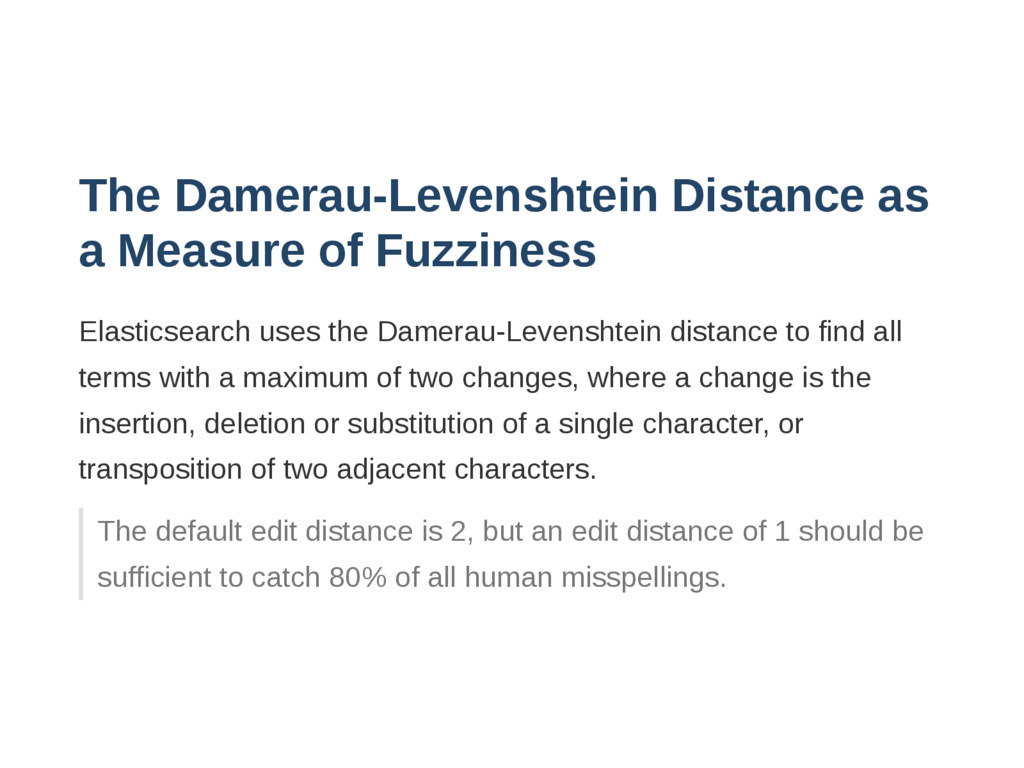

The DamerauLevenshtein Distance as a Measure of Fuzziness Elasticsearch uses
the DamerauLevenshtein distance to find all terms with a maximum of two changes, where a change is the insertion, deletion or substitution of a single character, or transposition of two adjacent characters. The default edit distance is 2, but an edit distance of 1 should be sufficient to catch 80% of all human misspellings. -

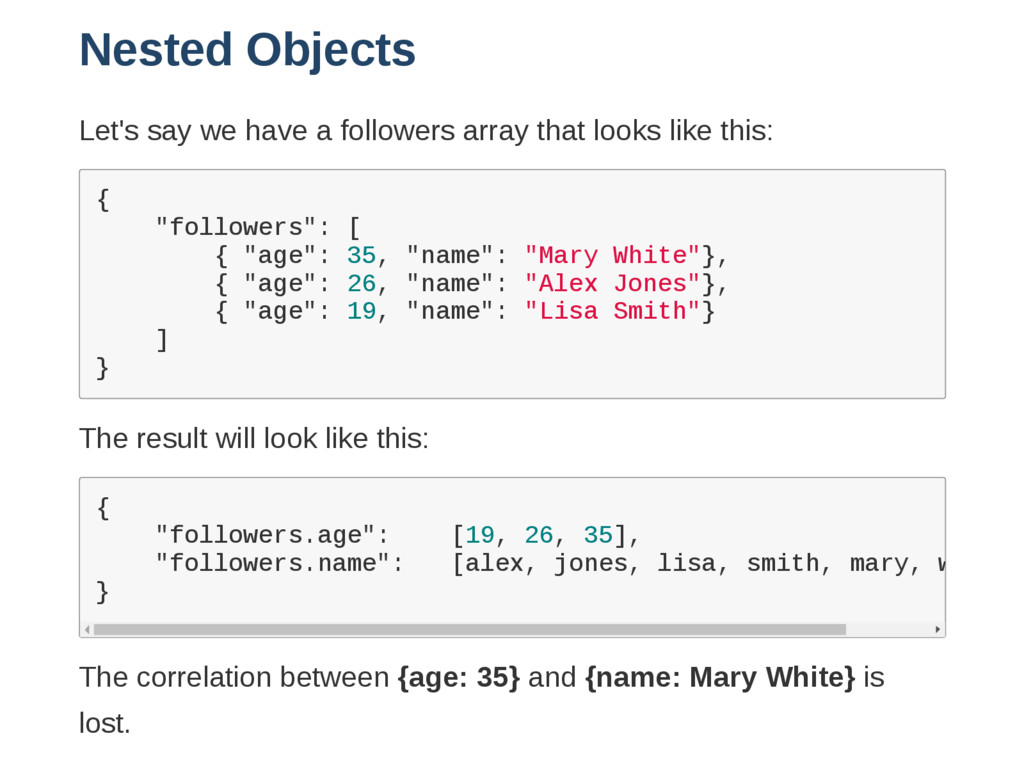

Nested Objects Let's say we have a followers array that
looks like this: { " f o l l o w e r s " : [ { " a g e " : 3 5 , " n a m e " : " M a r y W h i t e " } , { " a g e " : 2 6 , " n a m e " : " A l e x J o n e s " } , { " a g e " : 1 9 , " n a m e " : " L i s a S m i t h " } ] } The result will look like this: { " f o l l o w e r s . a g e " : [ 1 9 , 2 6 , 3 5 ] , " f o l l o w e r s . n a m e " : [ a l e x , j o n e s , l i s a , s m i t h , m a r y , w h i t e ] } The correlation between {age: 35} and {name: Mary White} is lost. -

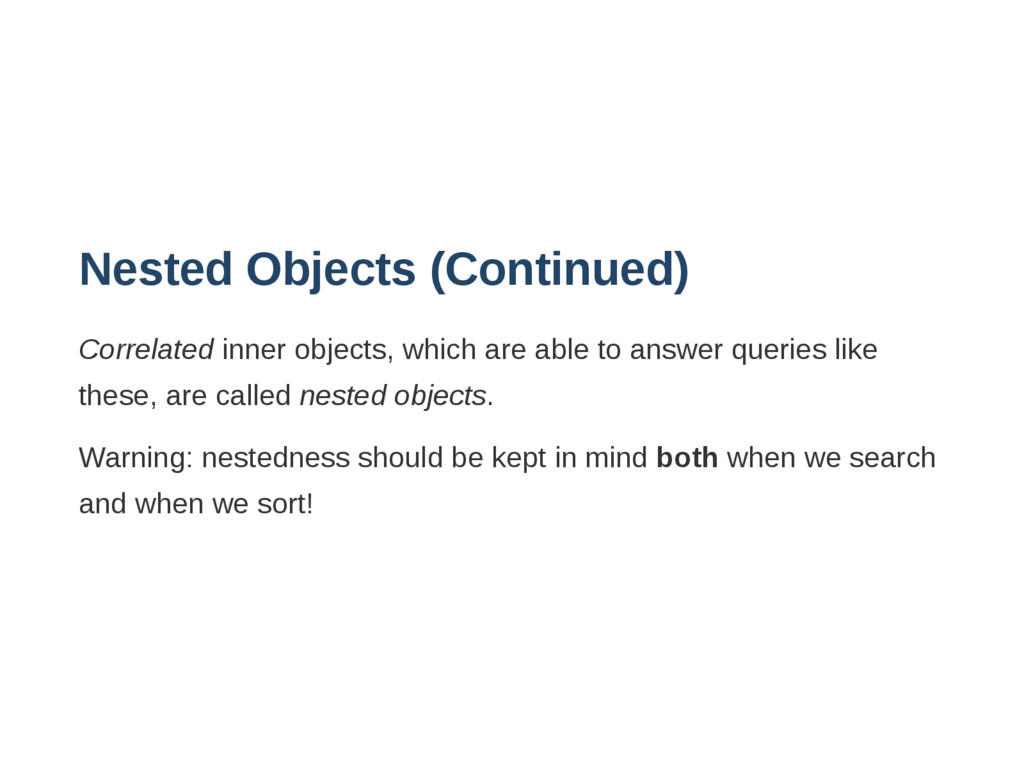

Nested Objects (Continued) Correlated inner objects, which are able to
answer queries like these, are called nested objects. Warning: nestedness should be kept in mind both when we search and when we sort! -

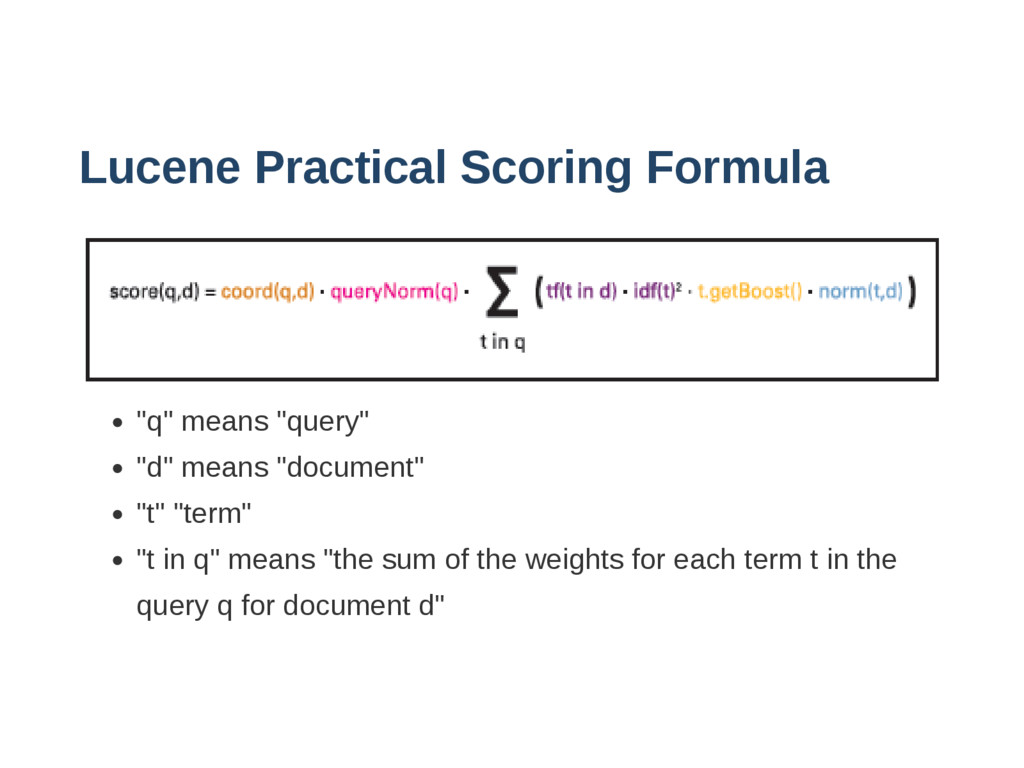

Lucene Practical Scoring Formula "q" means "query" "d" means "document"
"t" "term" "t in q" means "the sum of the weights for each term t in the query q for document d" -

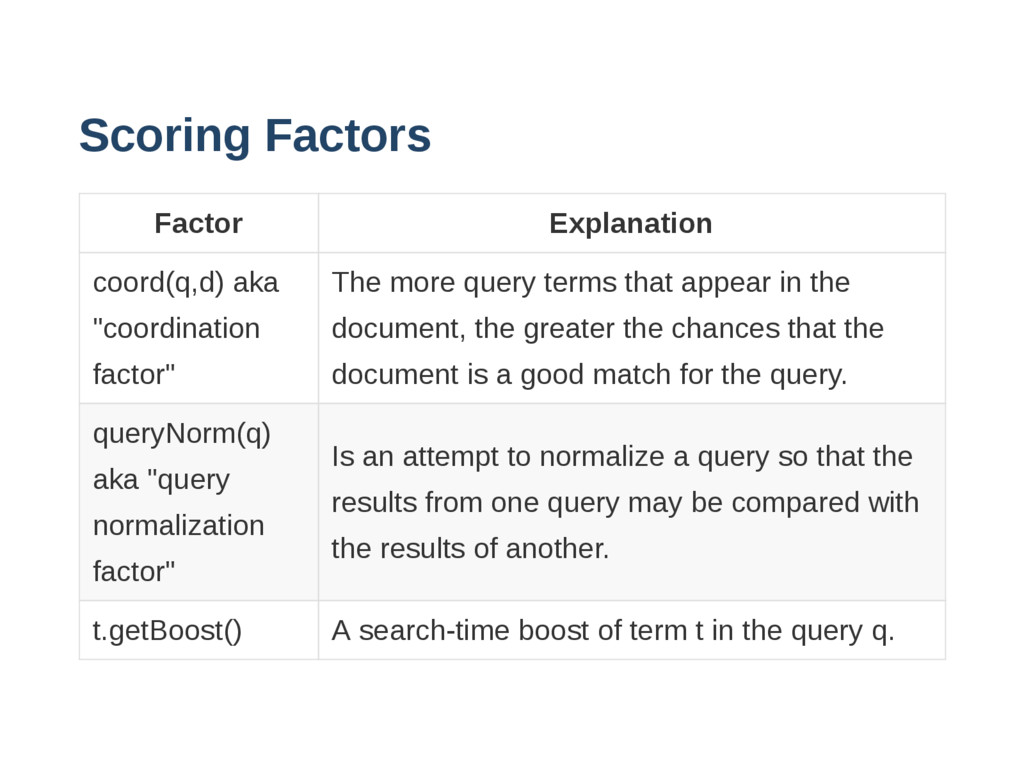

Scoring Factors Factor Explanation coord(q,d) aka "coordination factor" The more
query terms that appear in the document, the greater the chances that the document is a good match for the query. queryNorm(q) aka "query normalization factor" Is an attempt to normalize a query so that the results from one query may be compared with the results of another. t.getBoost() A searchtime boost of term t in the query q. -

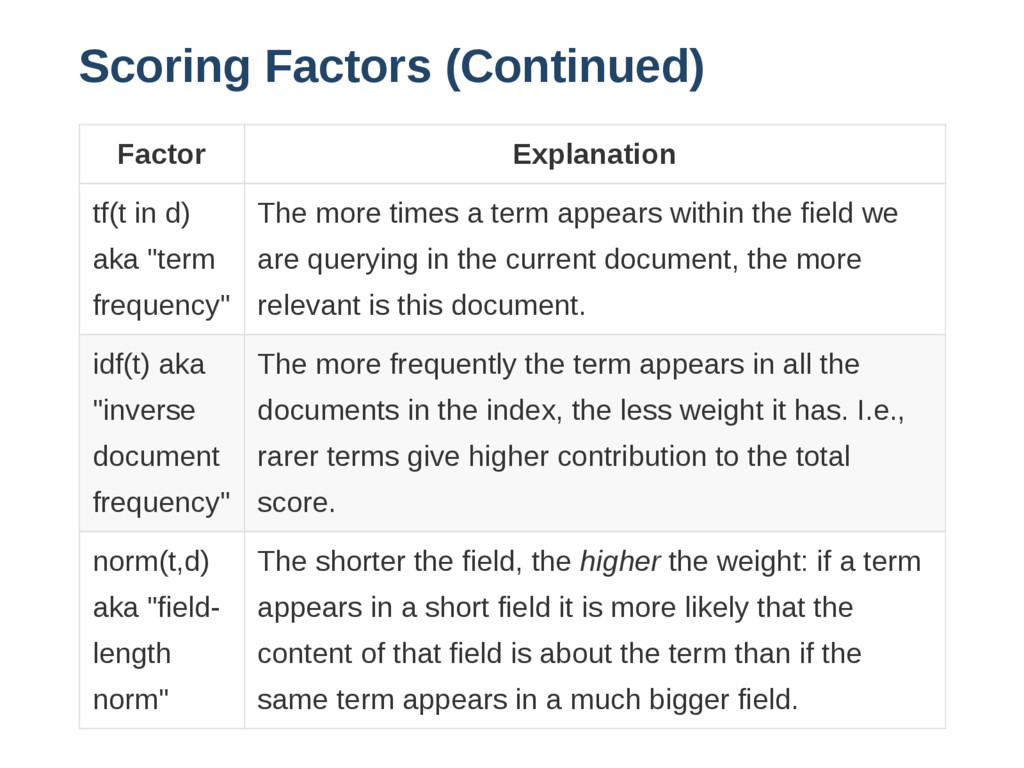

Scoring Factors (Continued) Factor Explanation tf(t in d) aka "term
frequency" The more times a term appears within the field we are querying in the current document, the more relevant is this document. idf(t) aka "inverse document frequency" The more frequently the term appears in all the documents in the index, the less weight it has. I.e., rarer terms give higher contribution to the total score. norm(t,d) aka "field length norm" The shorter the field, the higher the weight: if a term appears in a short field it is more likely that the content of that field is about the term than if the same term appears in a much bigger field.
