  1. Analyzing neonatal ven.lator data with Python Gusztav Belteki Giles Weaver,

    Ian Ozsvald Pydata – 30th Meetup, London, 10/07/2017

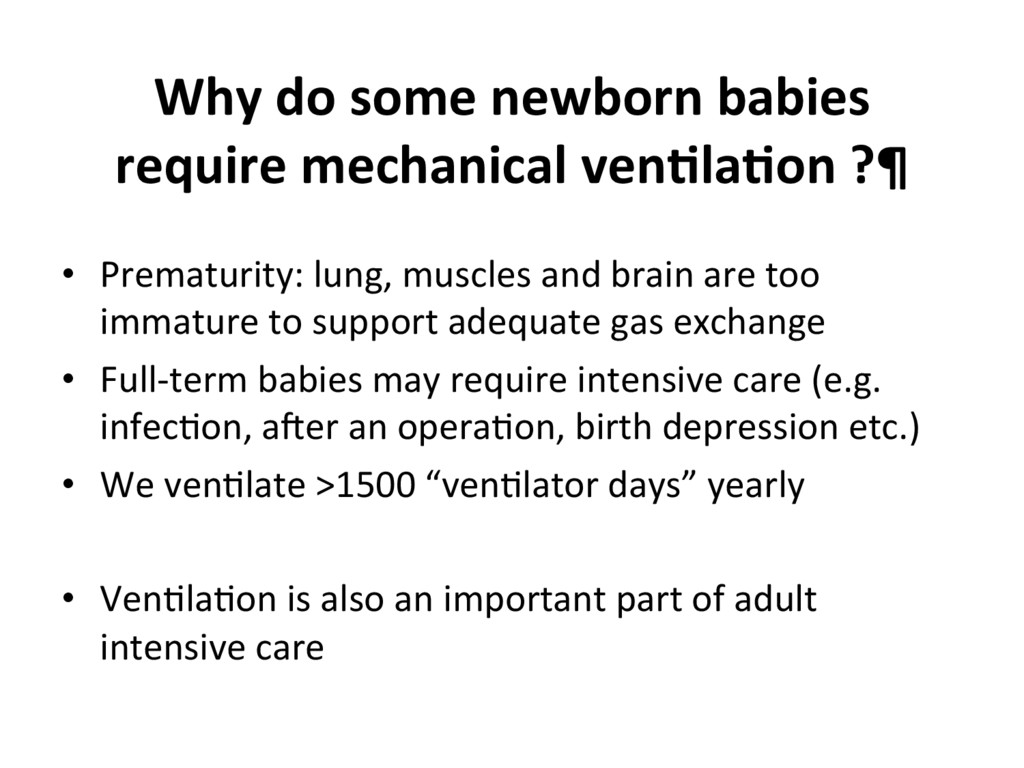

  2. Why do some newborn babies require mechanical ven.la.on ?¶ • 

    Prematurity: lung, muscles and brain are too immature to support adequate gas exchange •  Full-term babies may require intensive care (e.g. infec;on, aJer an opera;on, birth depression etc.) •  We ven;late >1500 “ven;lator days” yearly •  Ven;la;on is also an important part of adult intensive care

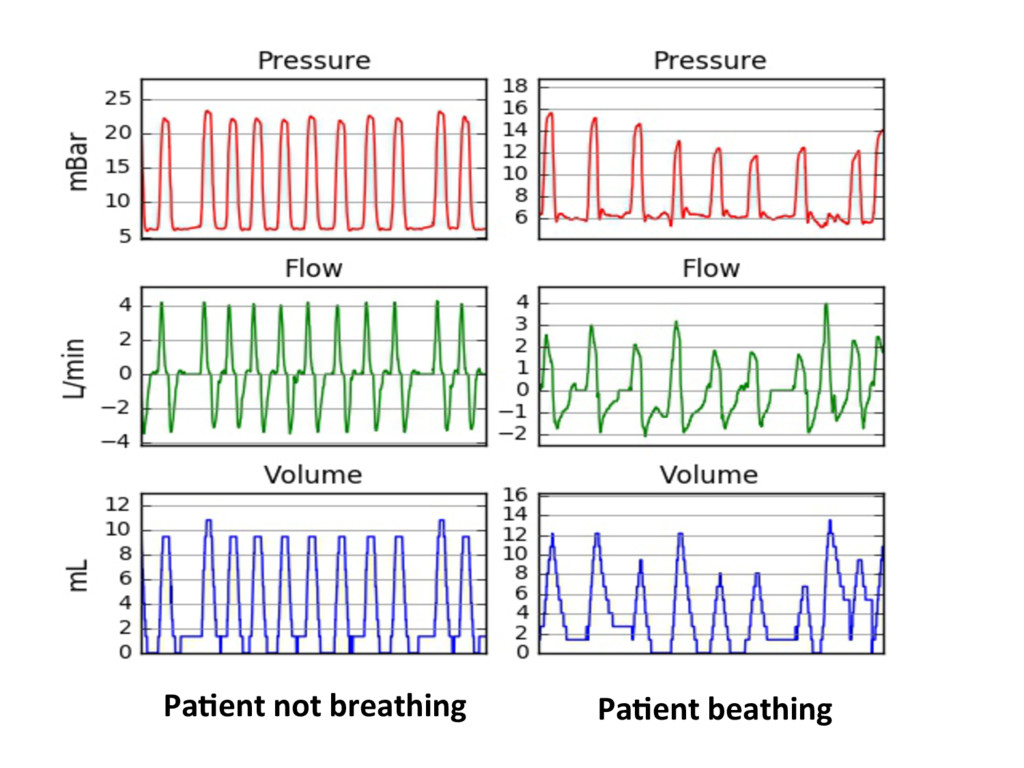

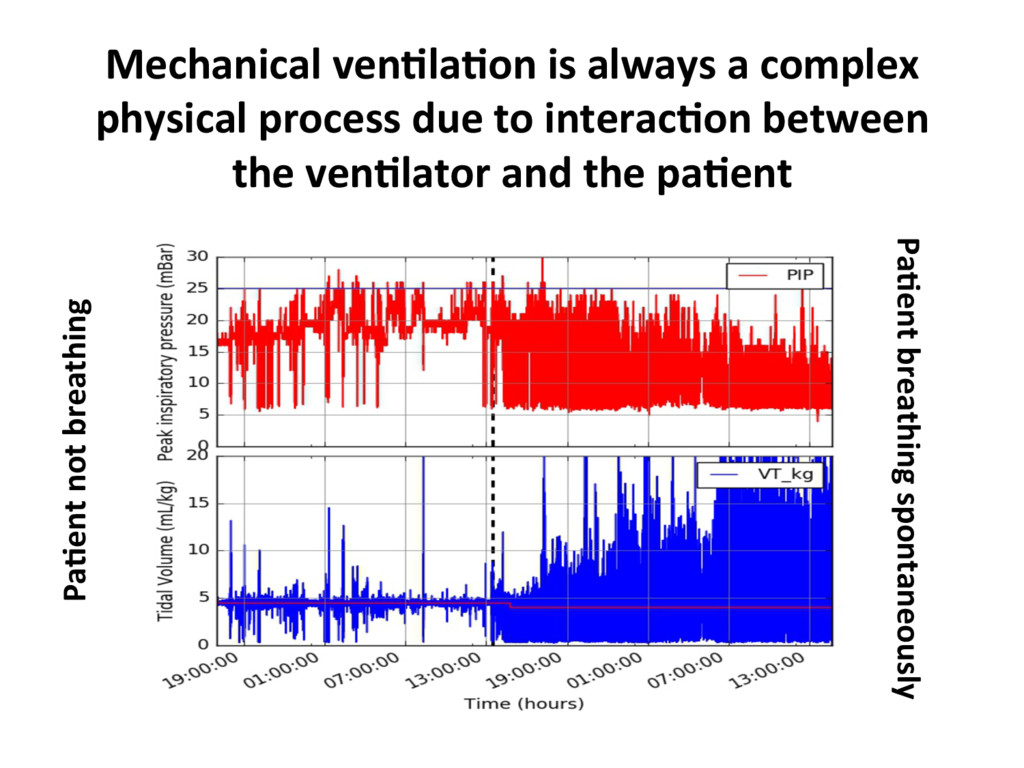

  3. Mechanical ven.la.on is always a complex physical process due to

    interac.on between the ven.lator and the pa.ent Pa.ent not breathing Pa.ent breathing spontaneously

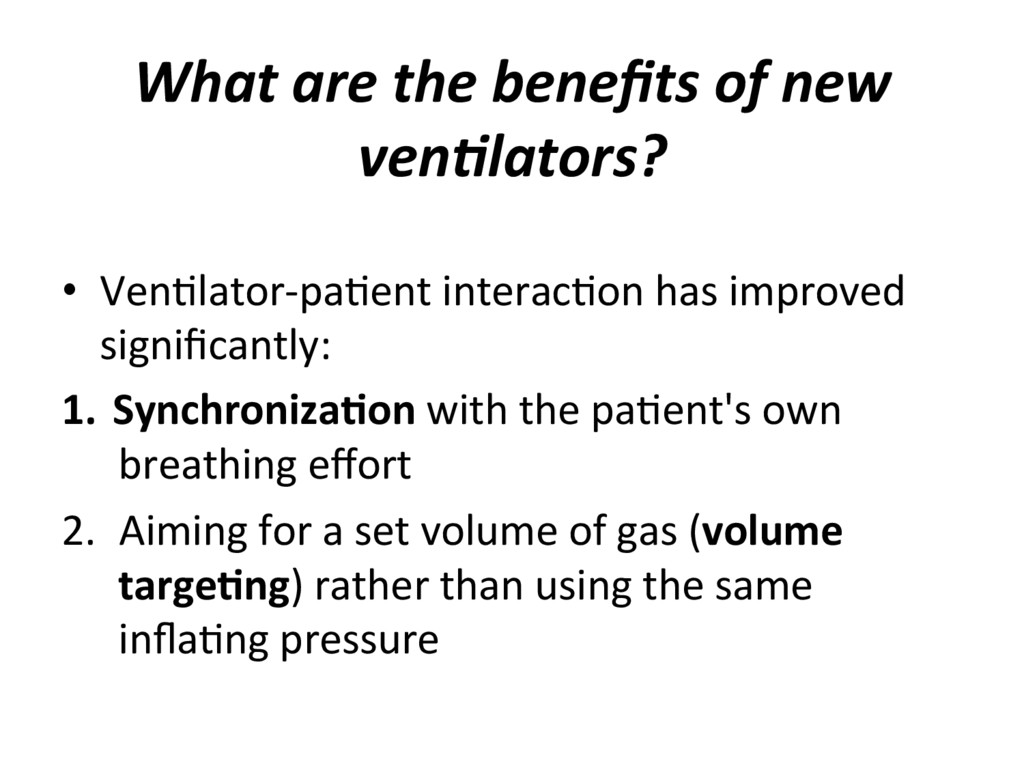

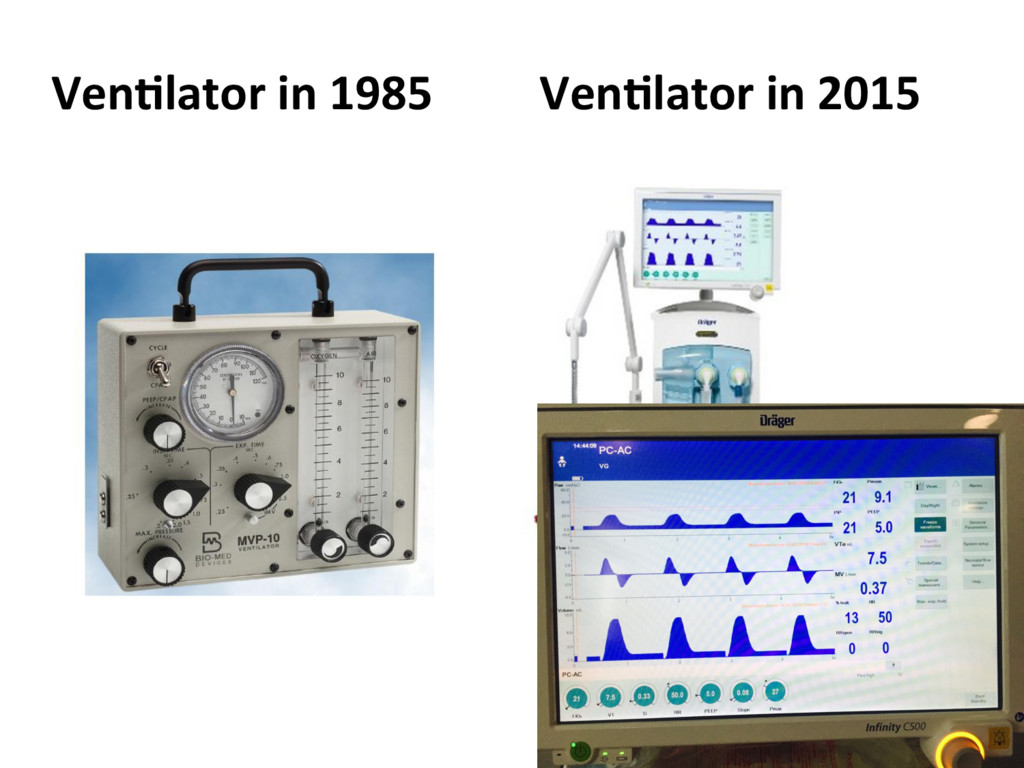

  4. What are the benefits of new ven0lators? •  Ven;lator-pa;ent interac;on

    has improved significantly: 1.  Synchroniza.on with the pa;ent's own breathing effort 2.  Aiming for a set volume of gas (volume targe.ng) rather than using the same infla;ng pressure

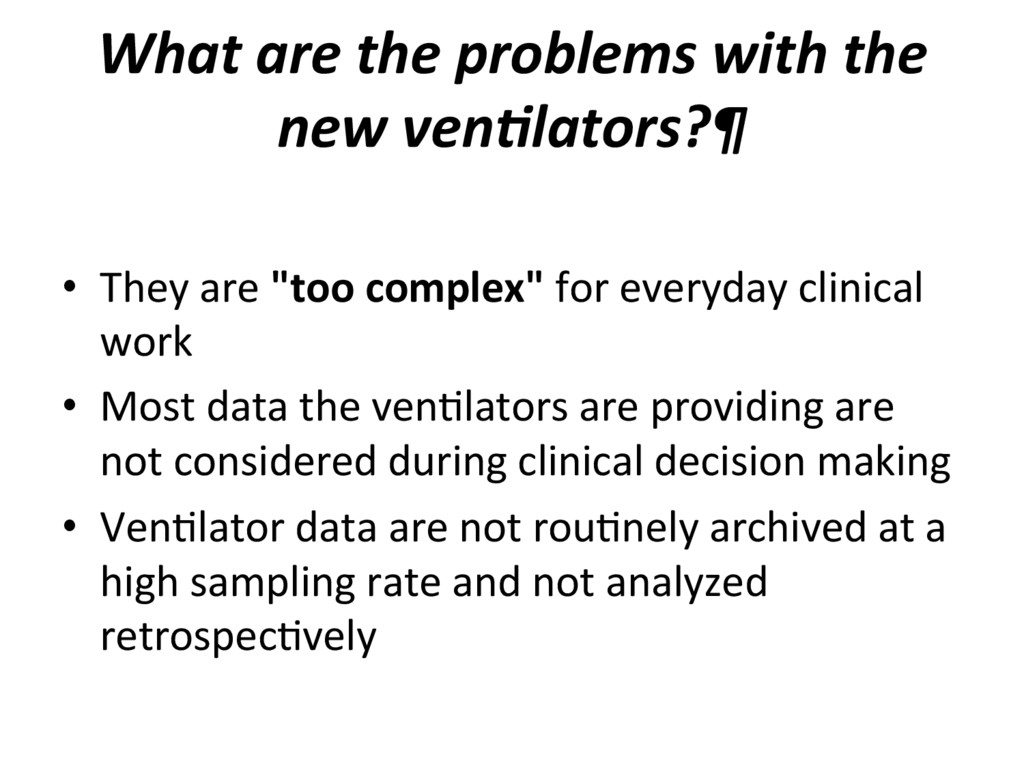

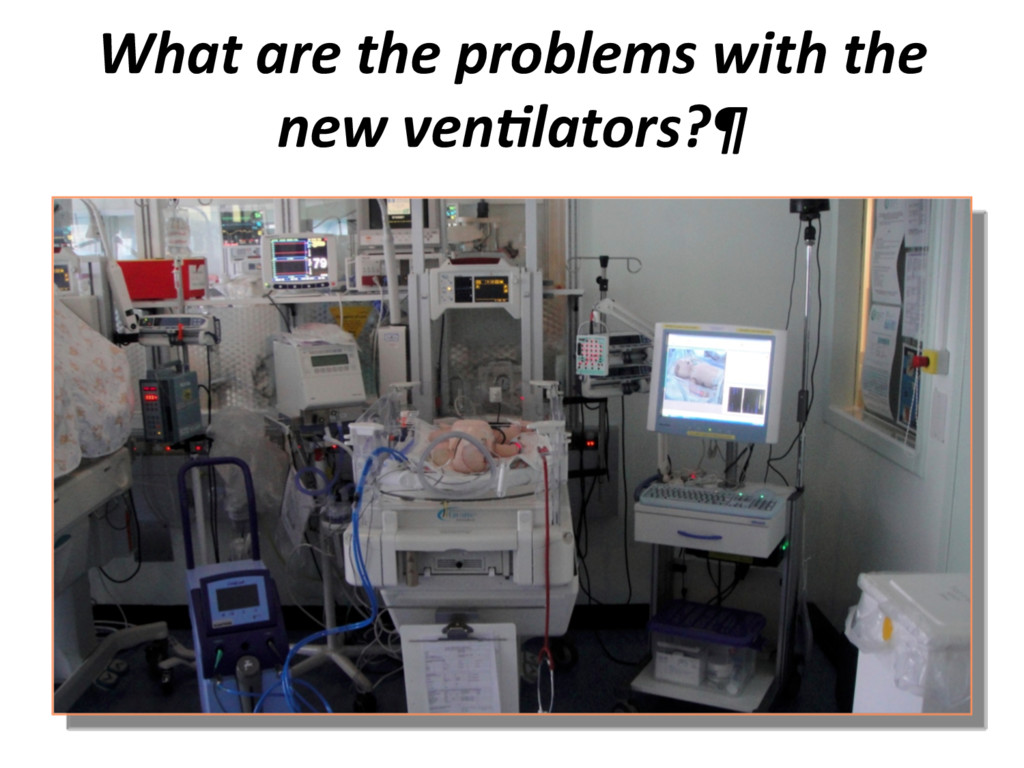

  5. What are the problems with the new ven0lators?¶ •  They

    are "too complex" for everyday clinical work •  Most data the ven;lators are providing are not considered during clinical decision making •  Ven;lator data are not rou;nely archived at a high sampling rate and not analyzed retrospec;vely

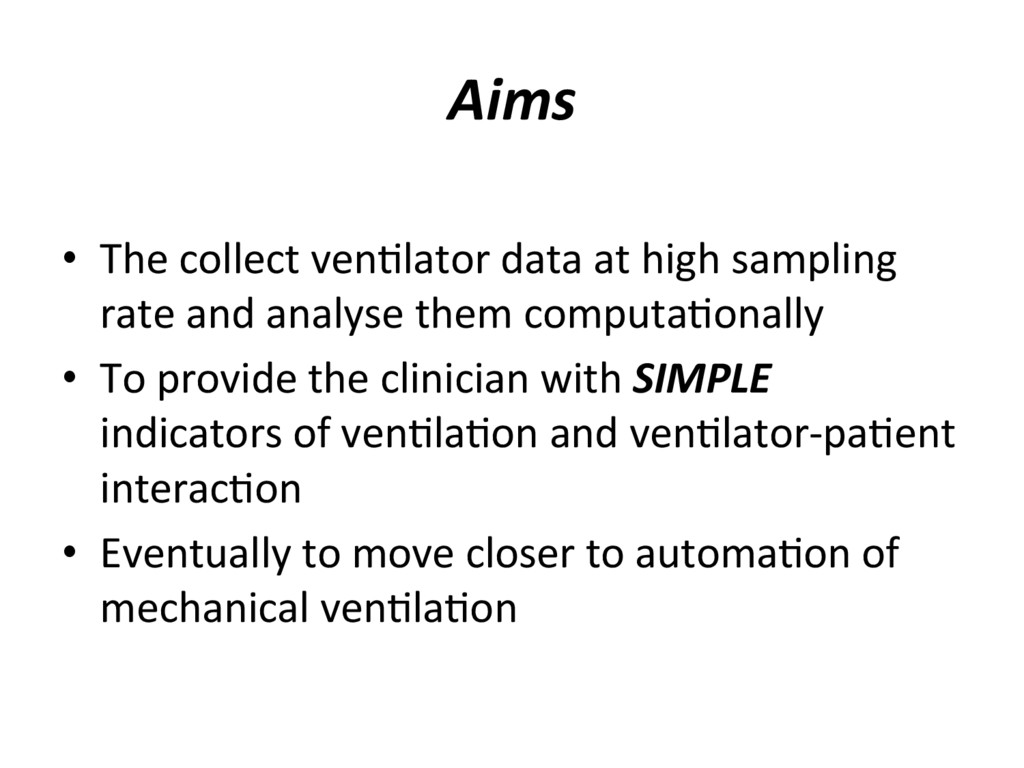

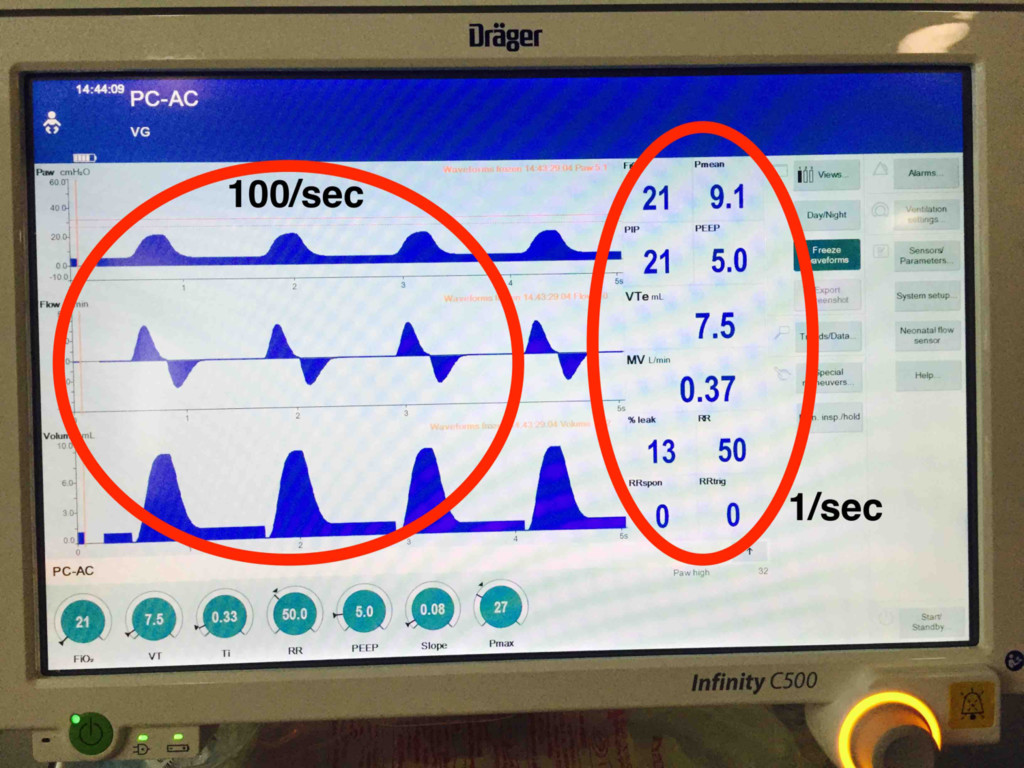

  6. Aims •  The collect ven;lator data at high sampling rate

    and analyse them computa;onally •  To provide the clinician with SIMPLE indicators of ven;la;on and ven;lator-pa;ent interac;on •  Eventually to move closer to automa;on of mechanical ven;la;on

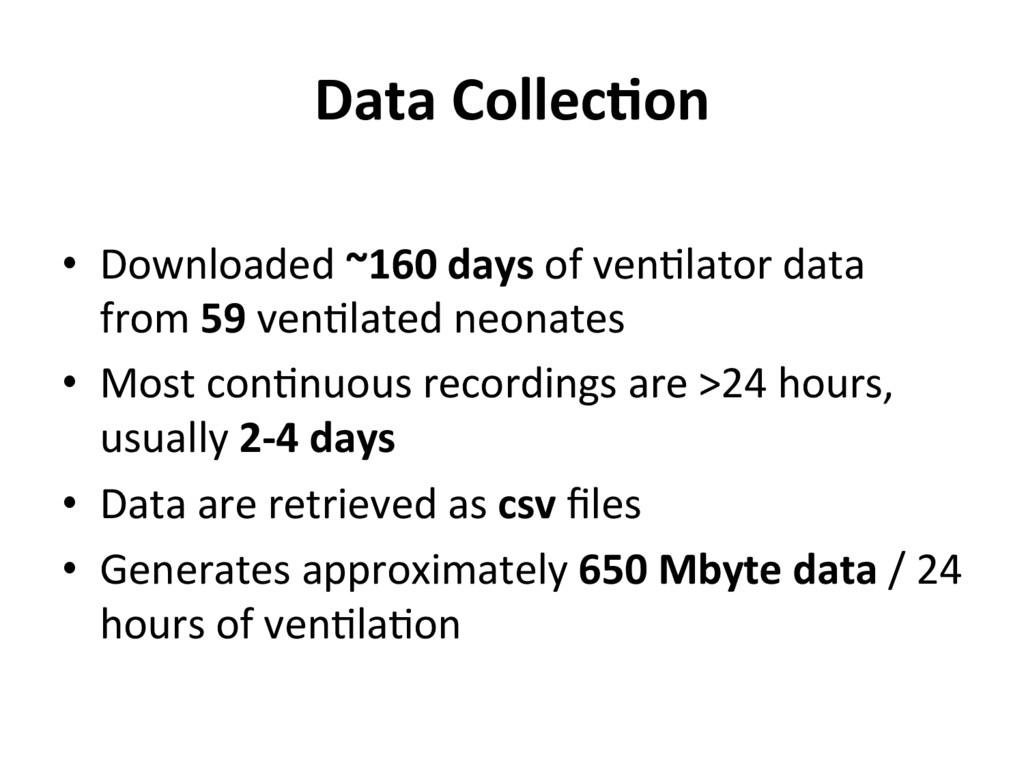

  7. Data Collec.on •  Downloaded ~160 days of ven;lator data from

    59 ven;lated neonates •  Most con;nuous recordings are >24 hours, usually 2-4 days •  Data are retrieved as csv files •  Generates approximately 650 Mbyte data / 24 hours of ven;la;on

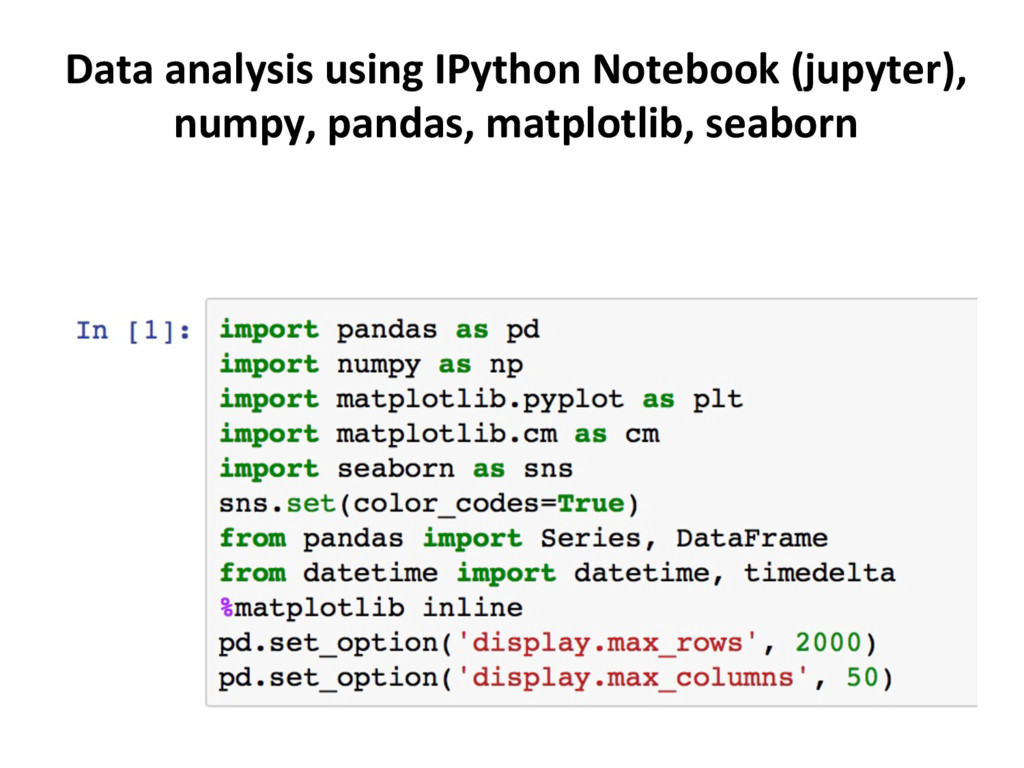

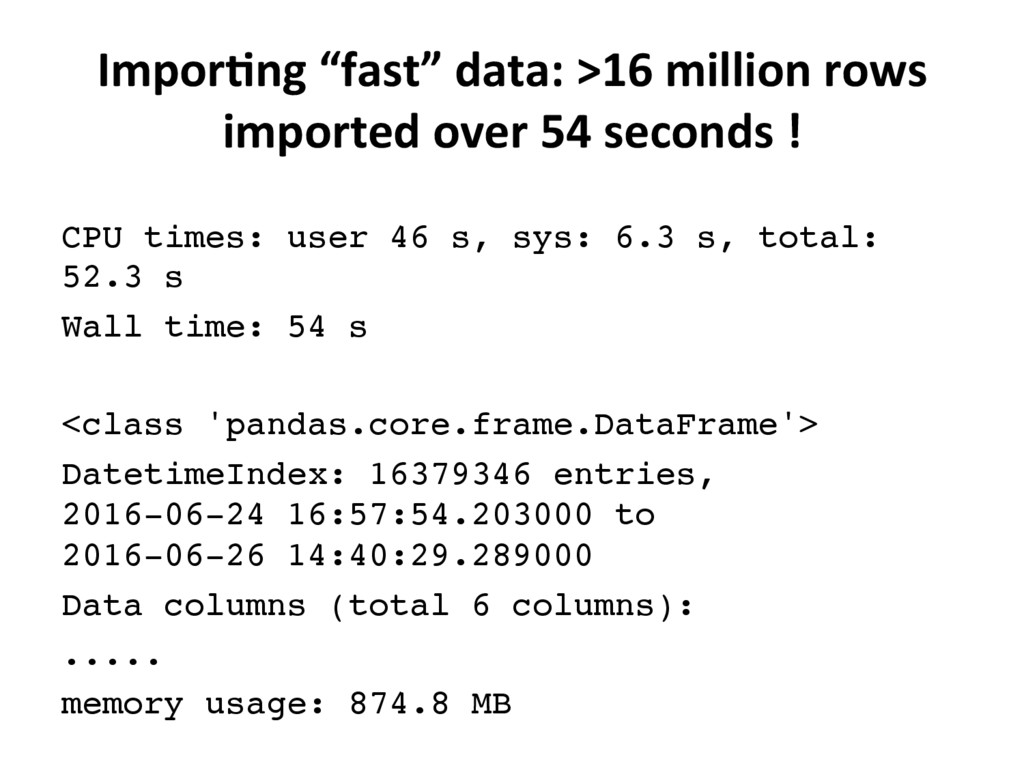

  8. CPU times: user 46 s, sys: 6.3 s, total: 52.3

    s Wall time: 54 s <class 'pandas.core.frame.DataFrame'> DatetimeIndex: 16379346 entries,
 2016-06-24 16:57:54.203000 to
 2016-06-26 14:40:29.289000 Data columns (total 6 columns): ..... memory usage: 874.8 MB Impor.ng “fast” data: >16 million rows imported over 54 seconds !

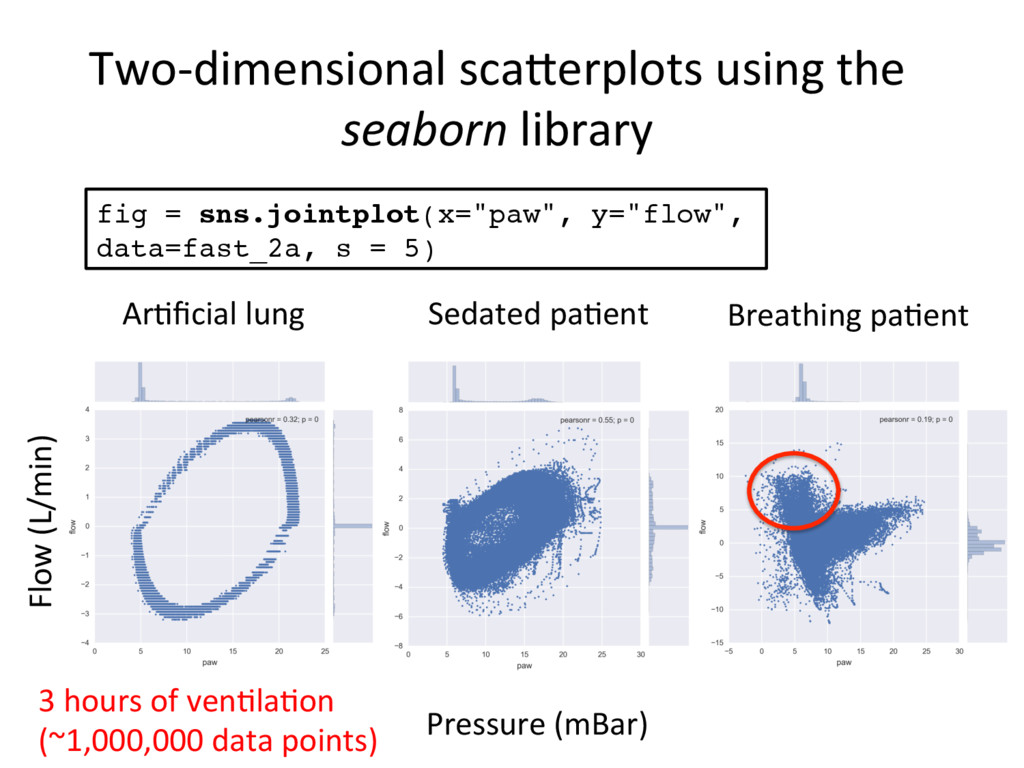

  9. Flow (L/min) Pressure (mBar) Ar;ficial lung Sedated pa;ent Breathing pa;ent

    fig = sns.jointplot(x="paw", y="flow", data=fast_2a, s = 5) Two-dimensional scaberplots using the seaborn library 3 hours of ven;la;on (~1,000,000 data points)

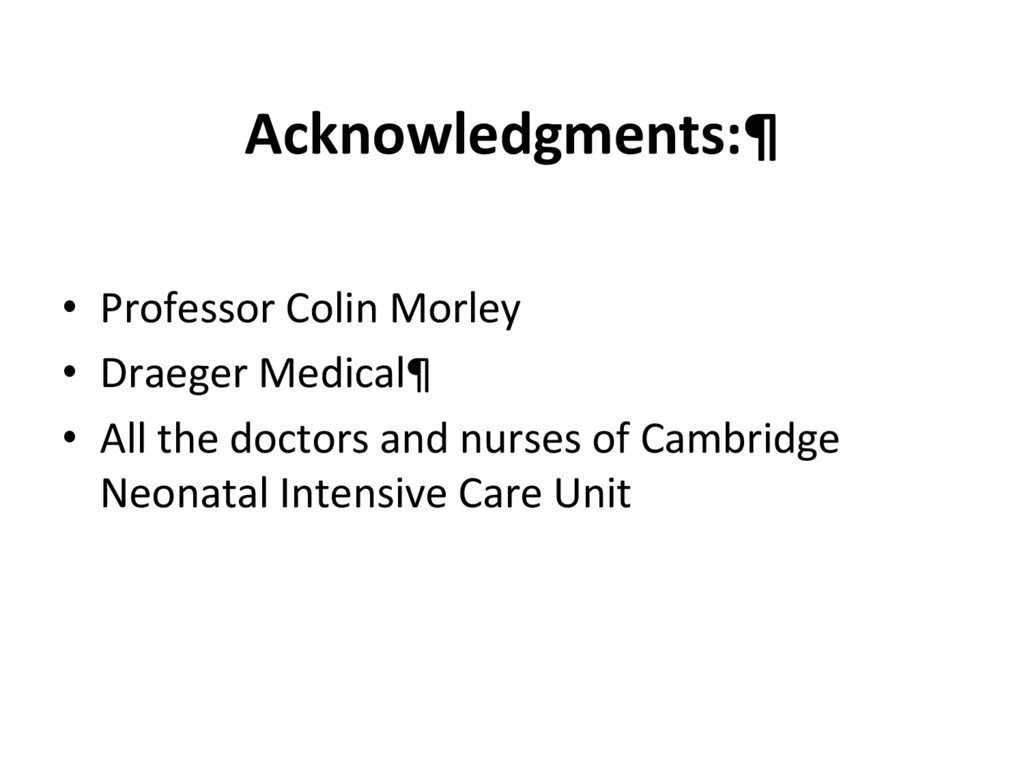

  10. Acknowledgments:¶ •  Professor Colin Morley •  Draeger Medical¶ •  All

    the doctors and nurses of Cambridge Neonatal Intensive Care Unit
