websocket 簡介
20160923 前端例會分享
ChiaChiaTsao
September 30, 2016
Transcript
9 slides
Websocket 簡介 20160923 報告人:曹家嘉

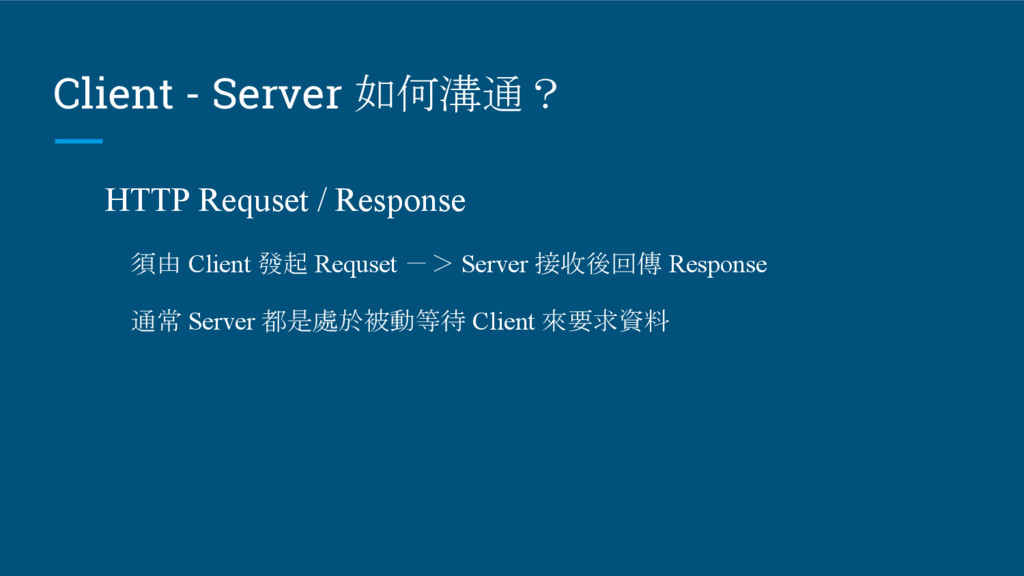

Client - Server 如何溝通? HTTP Requset / Response 須由 Client
發起 Requset -> Server 接收後回傳 Response 通常 Server 都是處於被動等待 Client 來要求資料

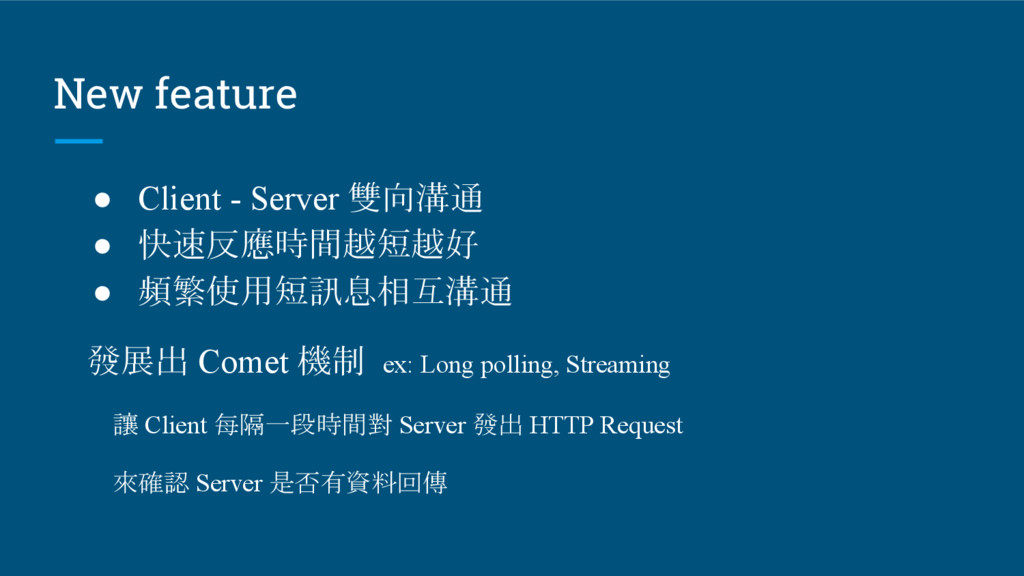

New feature • Client - Server 雙向溝通 • 快速反應時間越短越好 •
頻繁使用短訊息相互溝通 發展出 Comet 機制 ex: Long polling, Streaming 讓 Client 每隔一段時間對 Server 發出 HTTP Request 來確認 Server 是否有資料回傳

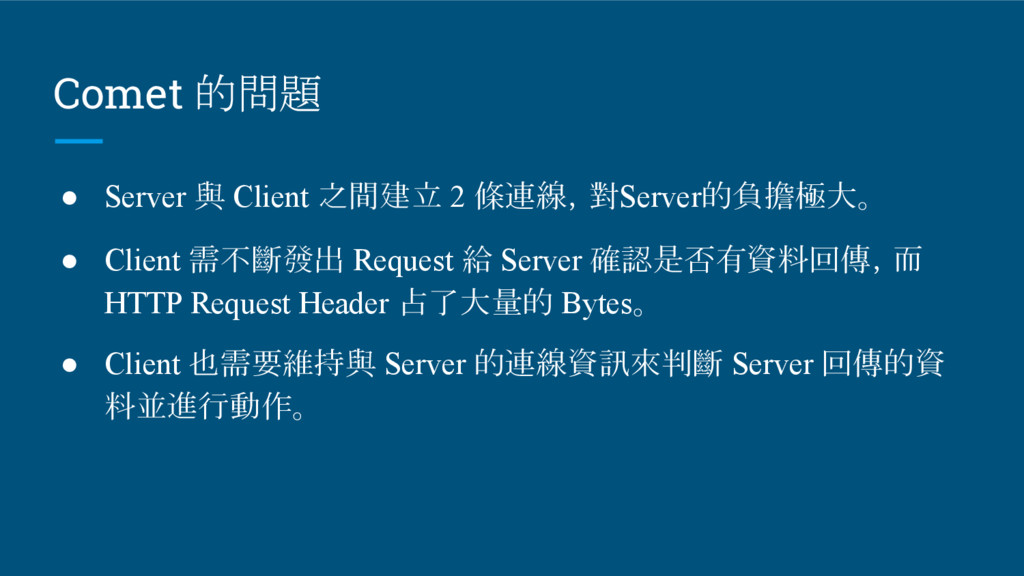

Comet 的問題 • Server 與 Client 之間建立 2 條連線,對Server的負擔極大。 •
Client 需不斷發出 Request 給 Server 確認是否有資料回傳,而 HTTP Request Header 占了大量的 Bytes。 • Client 也需要維持與 Server 的連線資訊來判斷 Server 回傳的資 料並進行動作。

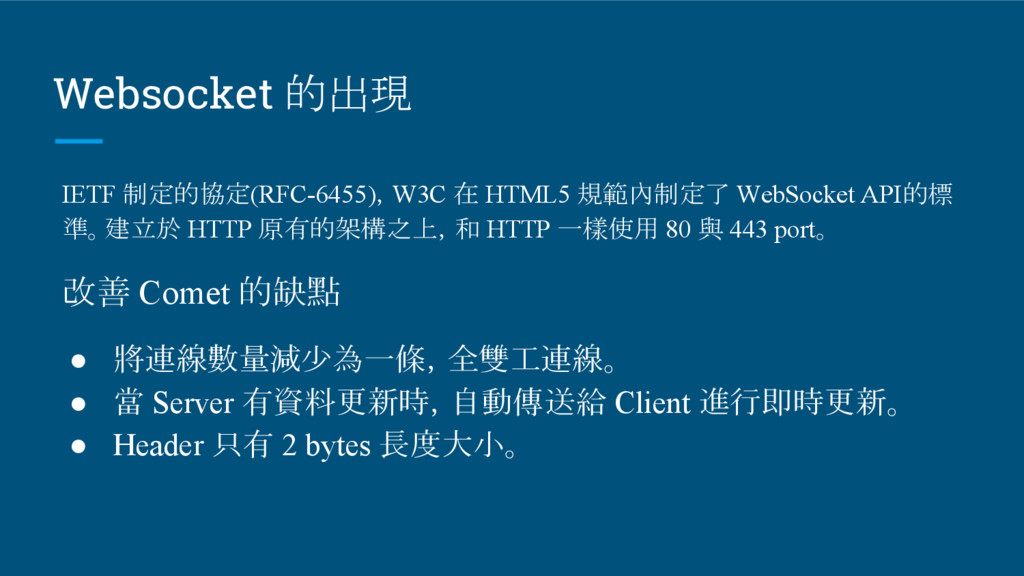

Websocket 的出現 IETF 制定的協定(RFC-6455),W3C 在 HTML5 規範內制定了 WebSocket API的標 準。建立於
HTTP 原有的架構之上,和 HTTP 一樣使用 80 與 443 port。 改善 Comet 的缺點 • 將連線數量減少為一條,全雙工連線。 • 當 Server 有資料更新時,自動傳送給 Client 進行即時更新。 • Header 只有 2 bytes 長度大小。

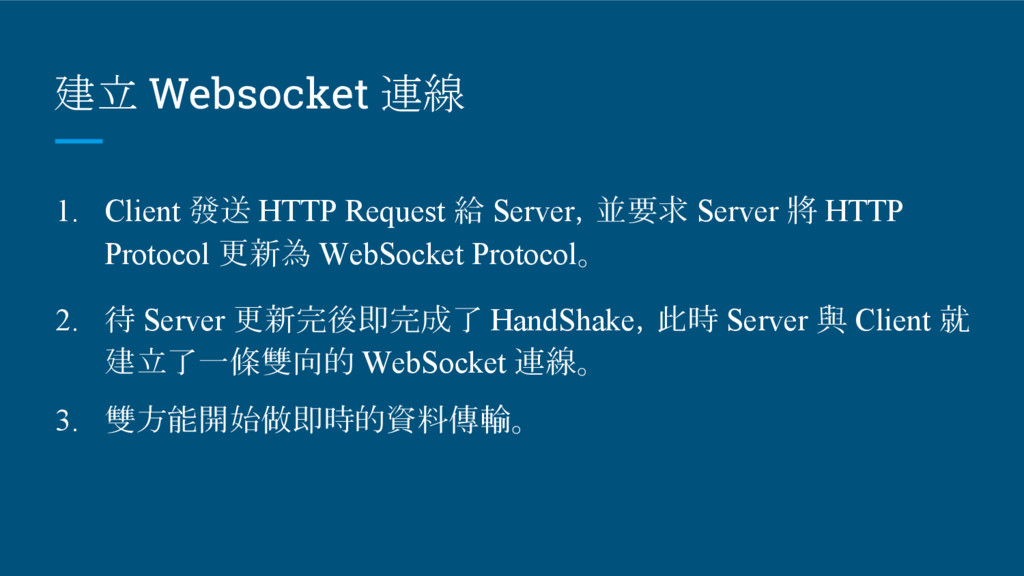

建立 Websocket 連線 1. Client 發送 HTTP Request 給 Server,並要求
Server 將 HTTP Protocol 更新為 WebSocket Protocol。 2. 待 Server 更新完後即完成了 HandShake,此時 Server 與 Client 就 建立了一條雙向的 WebSocket 連線。 3. 雙方能開始做即時的資料傳輸。

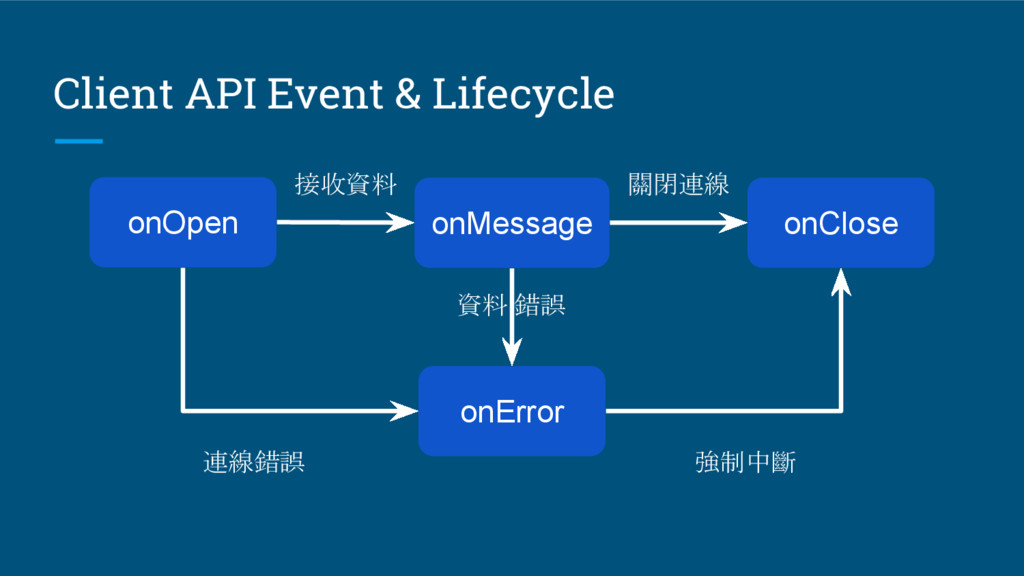

Client API Event & Lifecycle onOpen onClose onError onMessage 連線錯誤
強制中斷 接收資料 關閉連線 資料 錯誤

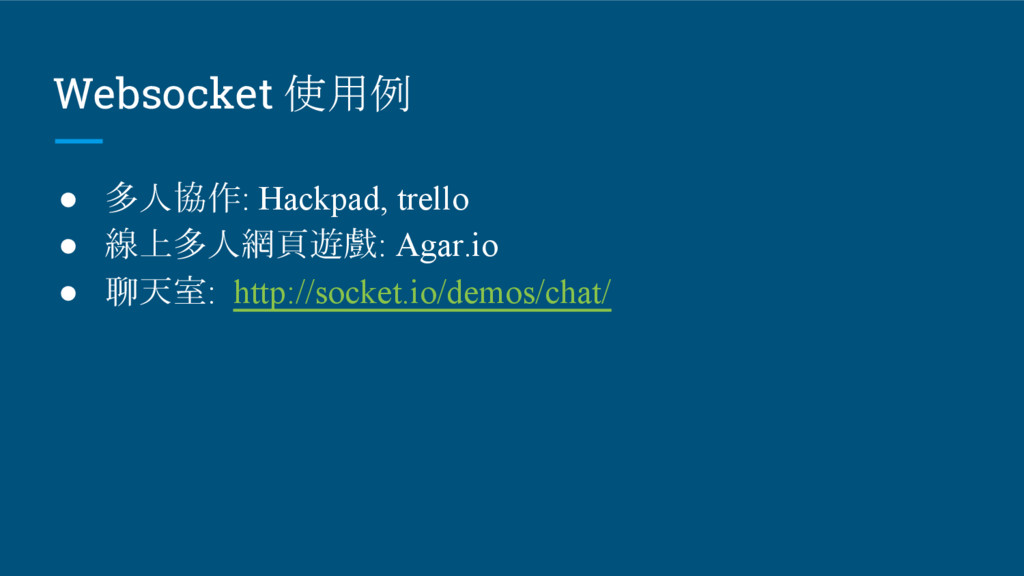

Websocket 使用例 • 多人協作: Hackpad, trello • 線上多人網頁遊戲: Agar.io •
聊天室: http://socket.io/demos/chat/

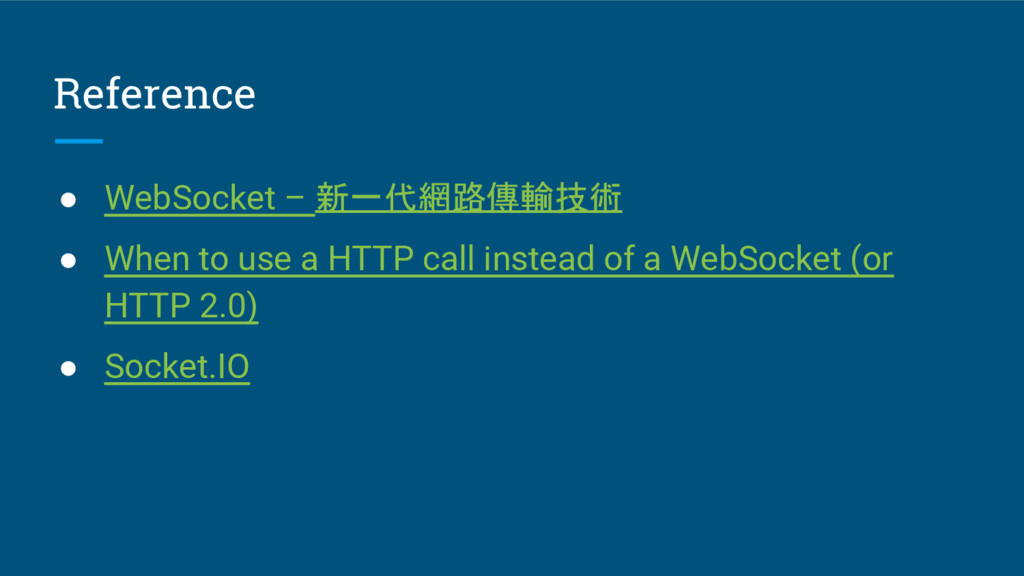

Reference • WebSocket – 新一代網路傳輸技術 • When to use a
HTTP call instead of a WebSocket (or HTTP 2.0) • Socket.IO
