1. Kubernetes, It’s Automation Not Automagic
2. Cody Moss Twitter: @codayblue Email: codayblue@gmail.com Github: github.com/codayblue Discord: codayblue#1067
3. What is Kubernetes?

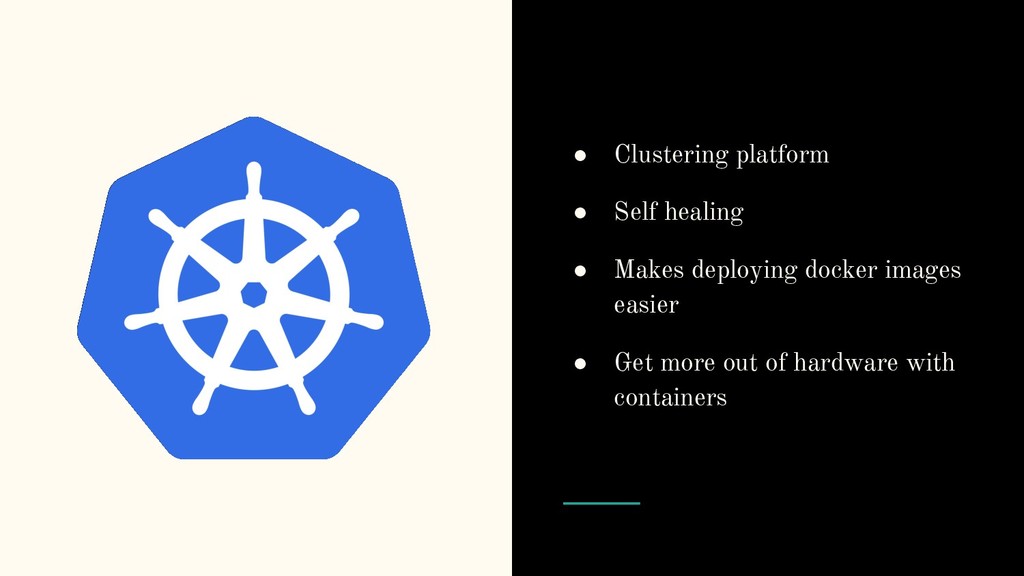

4. • Clustering platform • Self healing • Makes deploying docker images easier • Get more out of hardware with containers

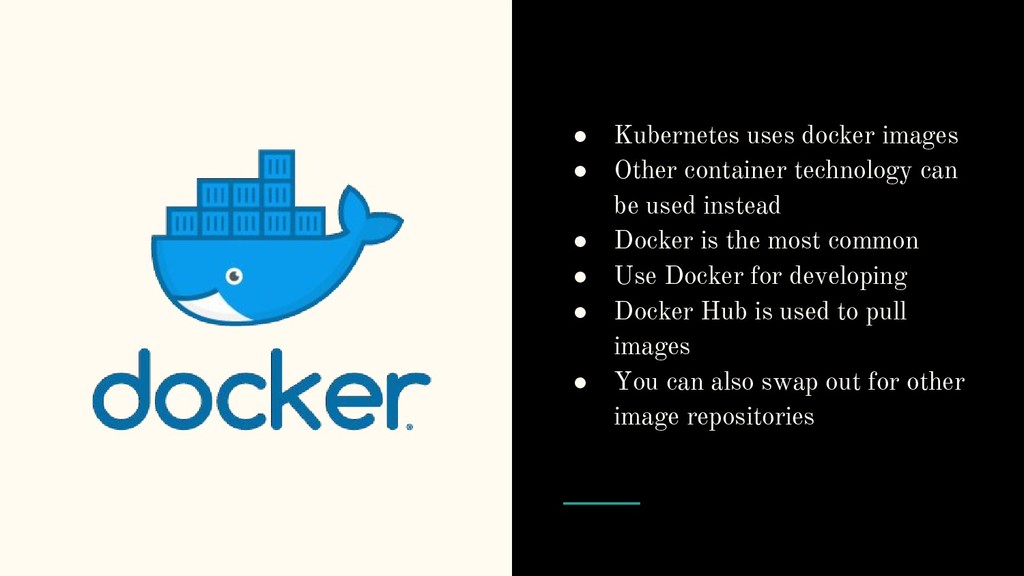

5. • Kubernetes uses docker images • Other container technology can be used instead • Docker is the most common • Use Docker for developing • Docker Hub is used to pull images • You can also swap out for other image repositories
6. The building blocks of K8S

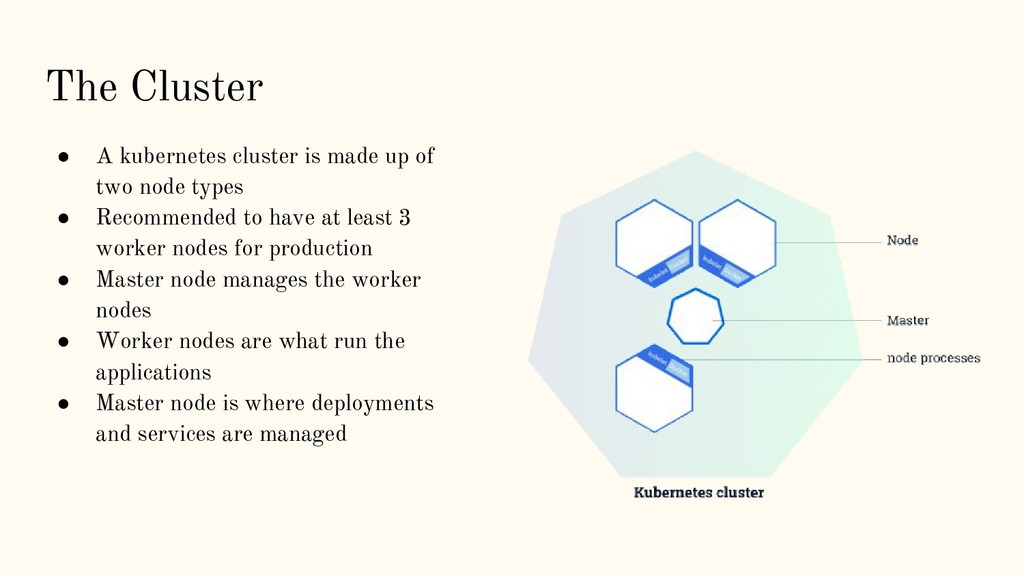

7. The Cluster • A kubernetes cluster is made up of two node types • Recommended to have at least 3 worker nodes for production • Master node manages the worker nodes • Worker nodes are what run the applications • Master node is where deployments and services are managed

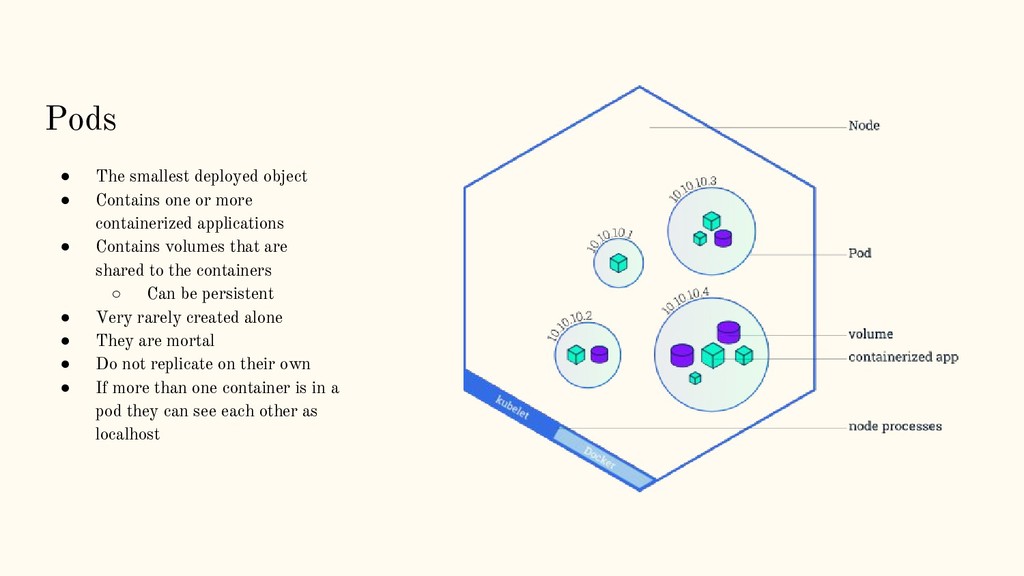

8. Pods • The smallest deployed object • Contains one or more containerized applications • Contains volumes that are shared to the containers ◦ Can be persistent • Very rarely created alone • They are mortal • Do not replicate on their own • If more than one container is in a pod they can see each other as localhost

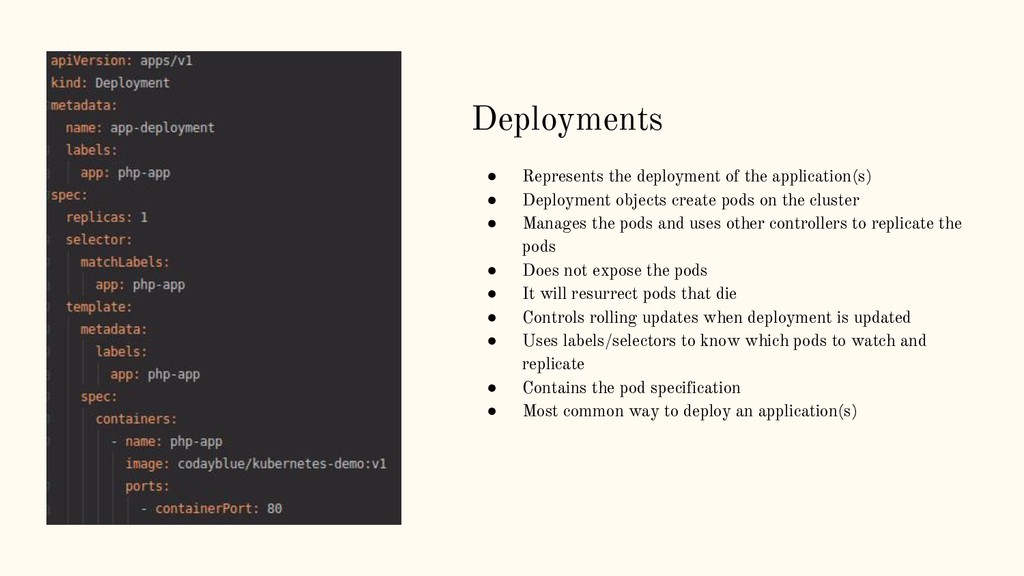

9. Deployments • Represents the deployment of the application(s) • Deployment objects create pods on the cluster • Manages the pods and uses other controllers to replicate the pods • Does not expose the pods • It will resurrect pods that die • Controls rolling updates when deployment is updated • Uses labels/selectors to know which pods to watch and replicate • Contains the pod specification • Most common way to deploy an application(s)

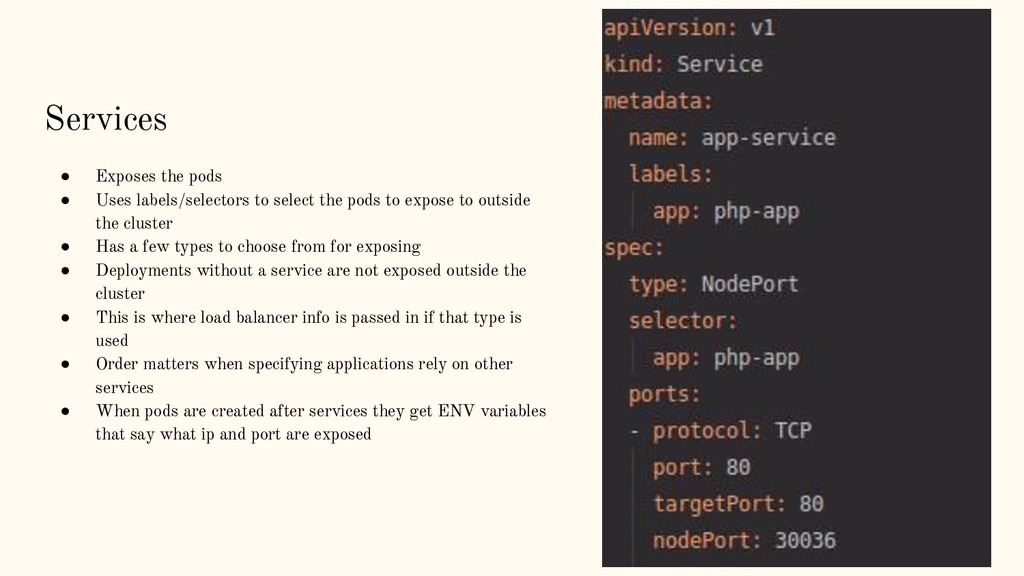

10. Services • Exposes the pods • Uses labels/selectors to select the pods to expose to outside the cluster • Has a few types to choose from for exposing • Deployments without a service are not exposed outside the cluster • This is where load balancer info is passed in if that type is used • Order matters when specifying applications rely on other services • When pods are created after services they get ENV variables that say what ip and port are exposed

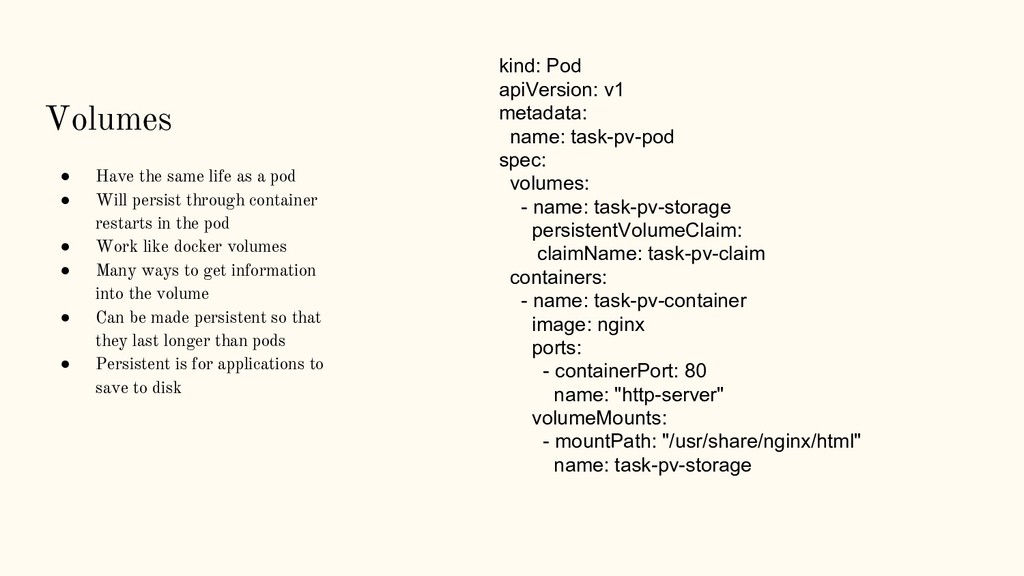

11. Volumes • Have the same life as a pod • Will persist through container restarts in the pod • Work like docker volumes • Many ways to get information into the volume • Can be made persistent so that they last longer than pods • Persistent is for applications to save to disk kind: Pod apiVersion: v1 metadata: name: task-pv-pod spec: volumes: - name: task-pv-storage persistentVolumeClaim: claimName: task-pv-claim containers: - name: task-pv-container image: nginx ports: - containerPort: 80 name: "http-server" volumeMounts: - mountPath: "/usr/share/nginx/html" name: task-pv-storage
12. The Cool Stuff

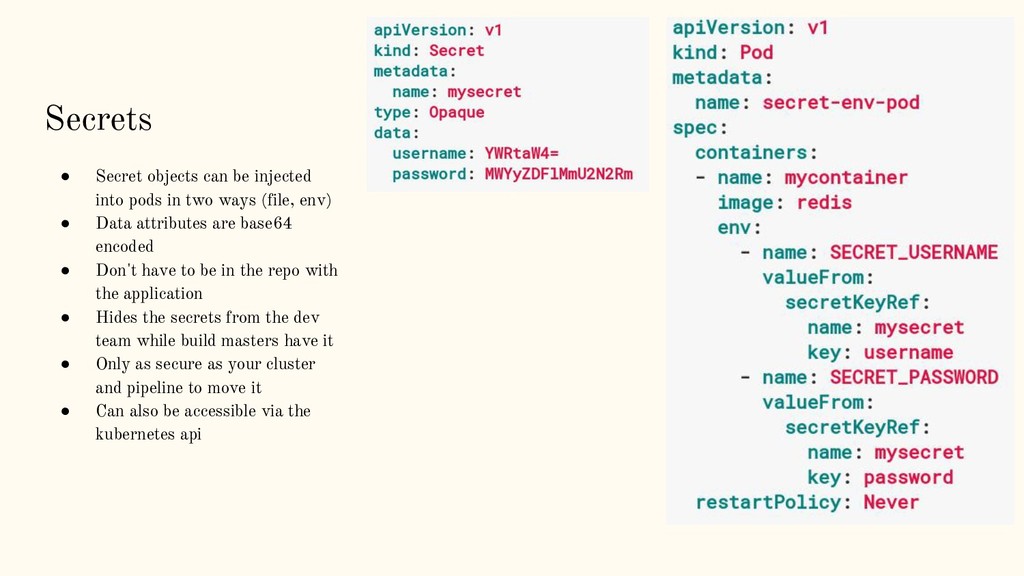

13. Secrets • Secret objects can be injected into pods in two ways (file, env) • Data attributes are base64 encoded • Don't have to be in the repo with the application • Hides the secrets from the dev team while build masters have it • Only as secure as your cluster and pipeline to move it • Can also be accessible via the kubernetes api

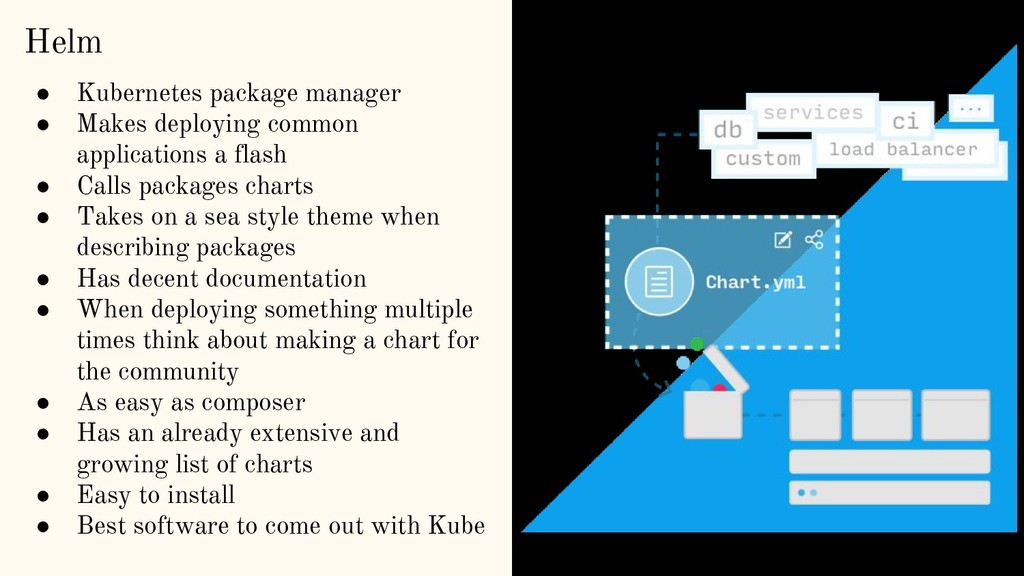

14. Helm • Kubernetes package manager • Makes deploying common applications a flash • Calls packages charts • Takes on a sea style theme when describing packages • Has decent documentation • When deploying something multiple times think about making a chart for the community • As easy as composer • Has an already extensive and growing list of charts • Easy to install • Best software to come out with Kube
15. Thank you Documentation Links: https://kubernetes.io/docs/home/ https://docs.helm.sh/ https://docs.docker.com/ Thank you to Kubernetes, Docker, and Helm for letting me use the assets for these slides!
