Jetpack Compose animations playground | DevFest Pescara 2023 🇮🇹

Animations make our apps nicer! Let's see how easy it is to use them. In this talk, you will have an overview of how to orchestrate multiple animation states, different ways of triggering them, and measure your app performance.

Transcript

1. November 2023
   Jetpack Compose

   animations playground
   Daniele Favaro

   Android Dev @

   GDG Android Stockholm


   View Slide

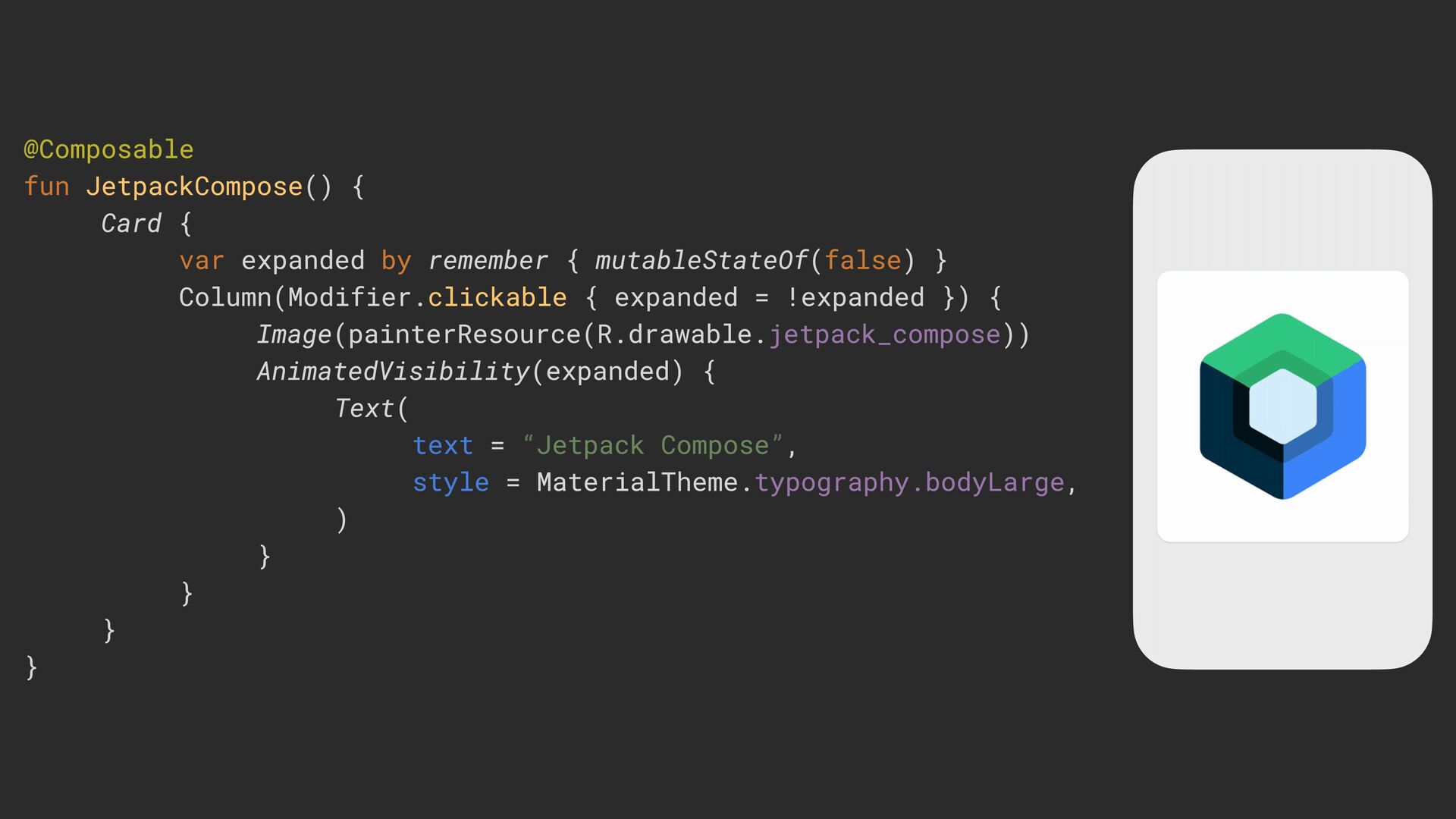

2. Jetpack Compose
   quick overview


   View Slide

3. View Slide

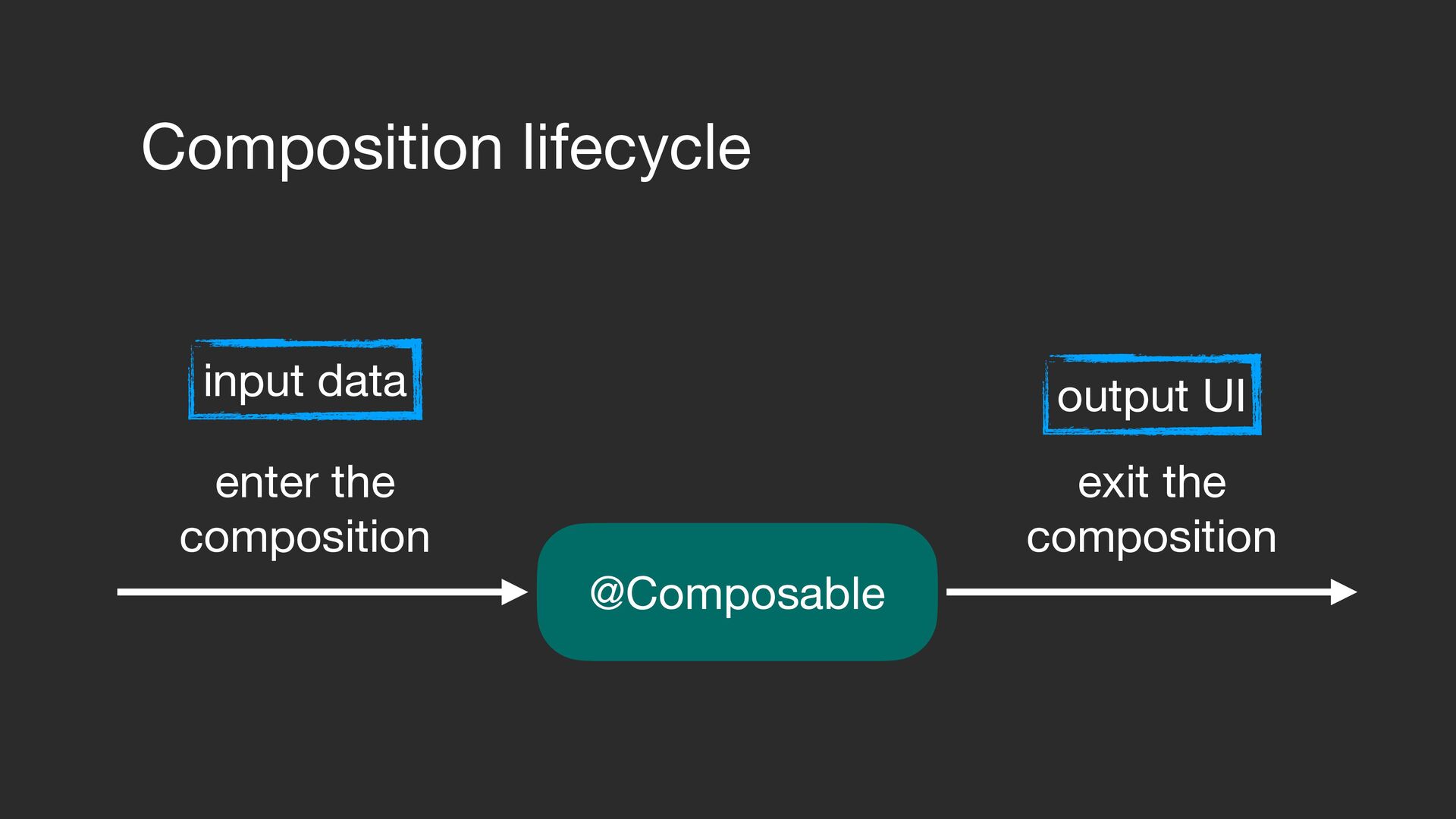

4. Composition lifecycle
   enter the

   composition
   exit the

   composition
   @Composable
   input data output UI


   View Slide

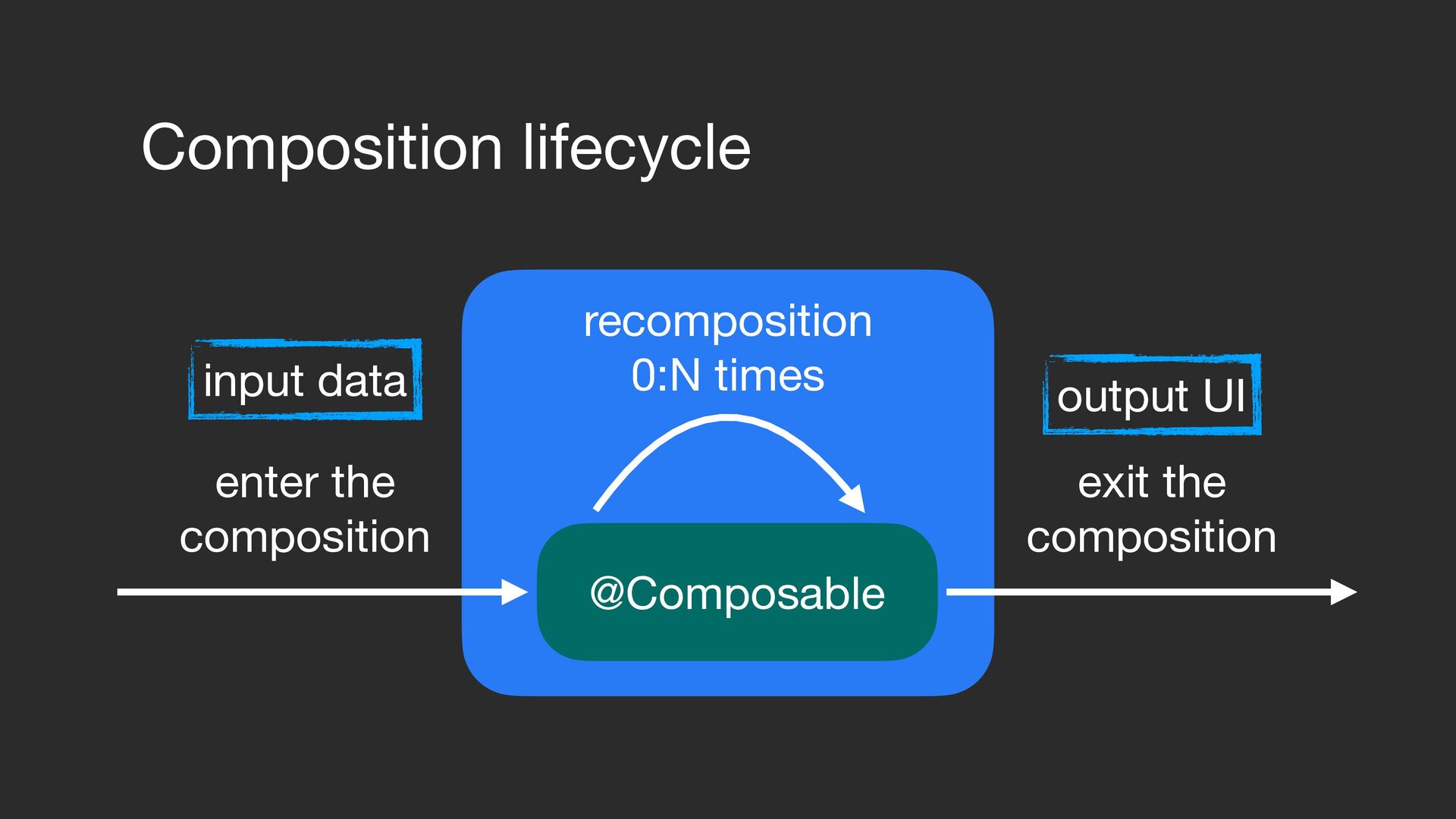

5. Composition lifecycle
   enter the

   composition
   exit the

   composition
   @Composable
   recomposition

   0:N times
   input data output UI


   View Slide

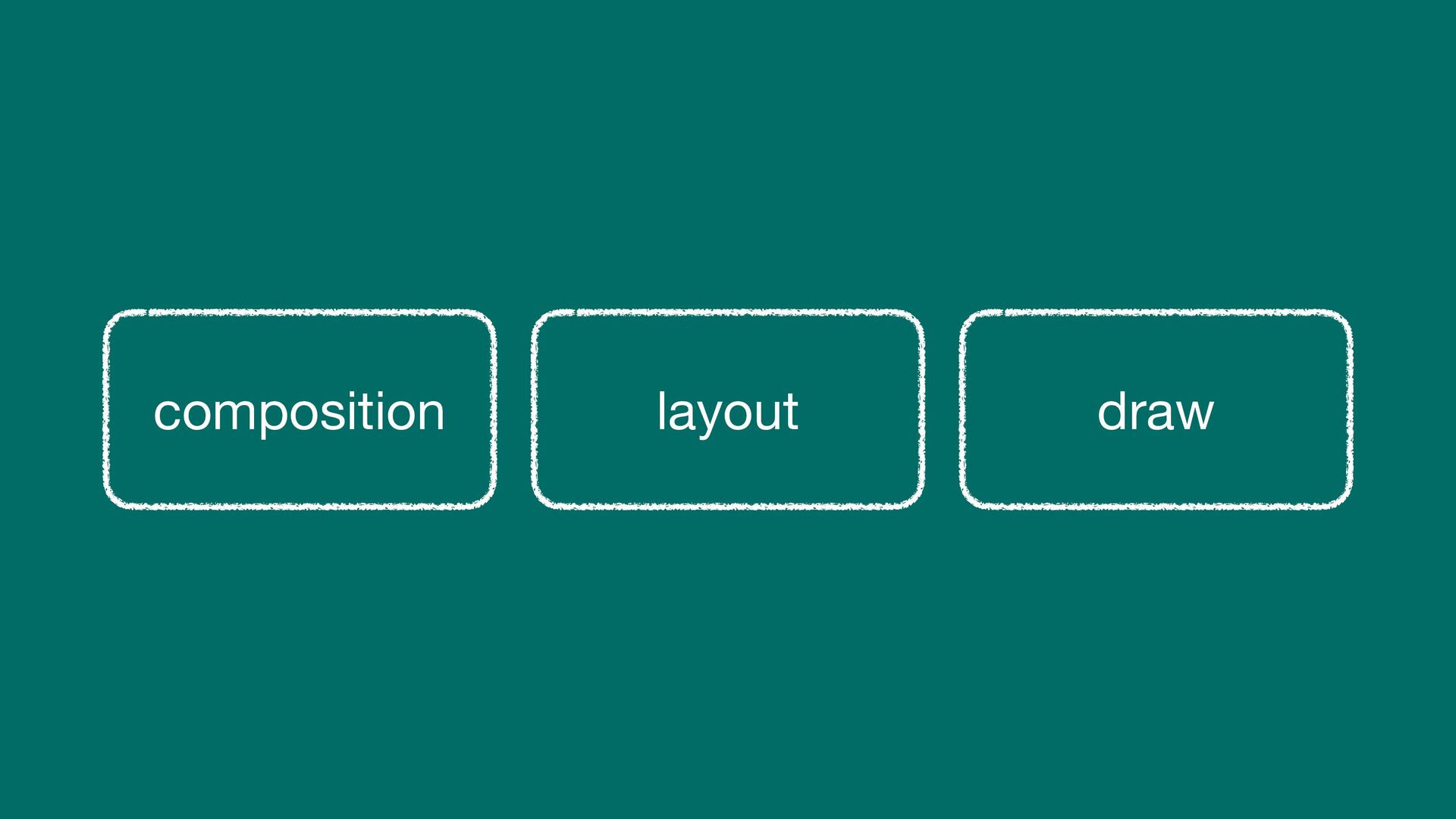

6. composition layout draw

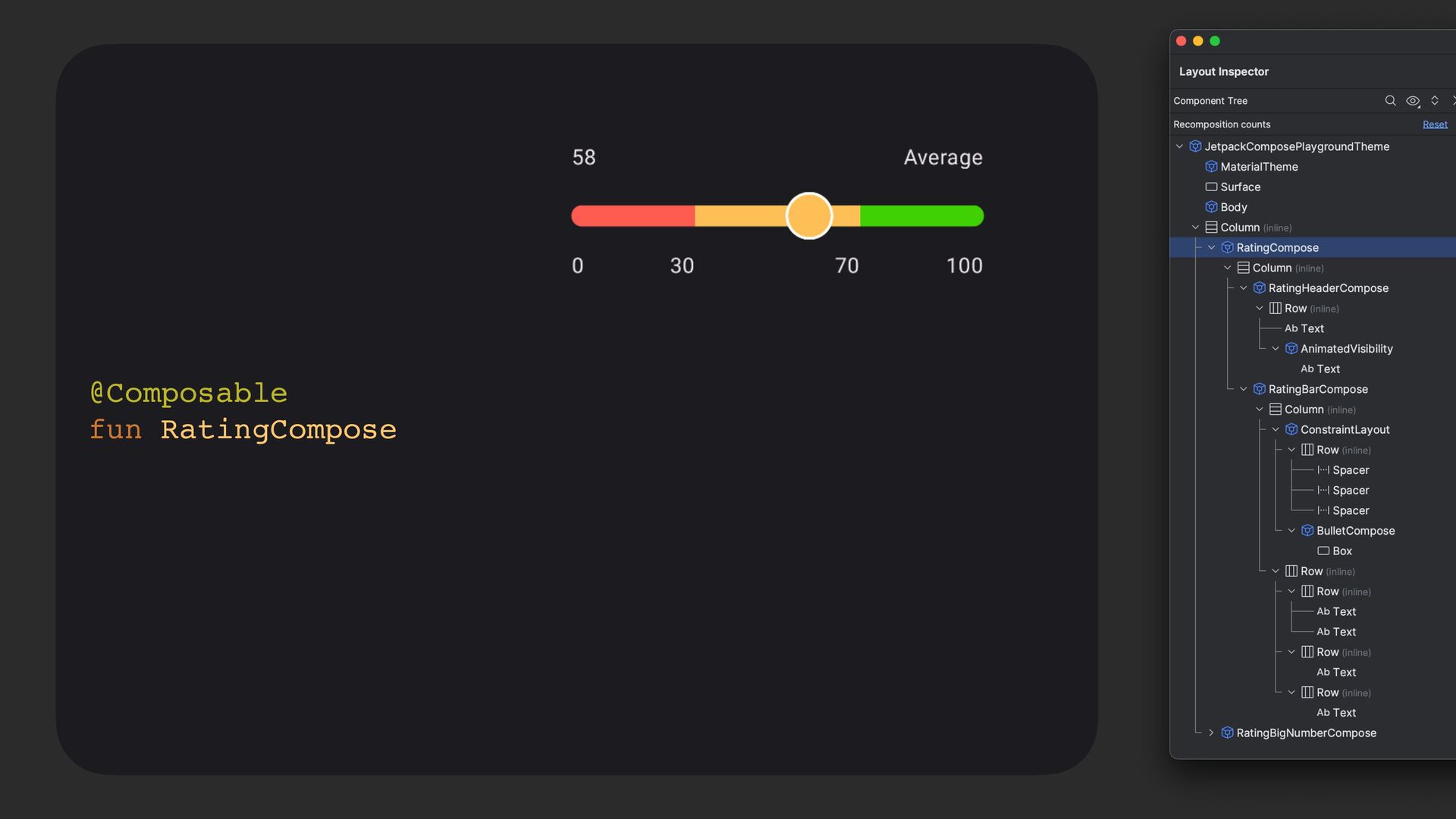

   View Slide

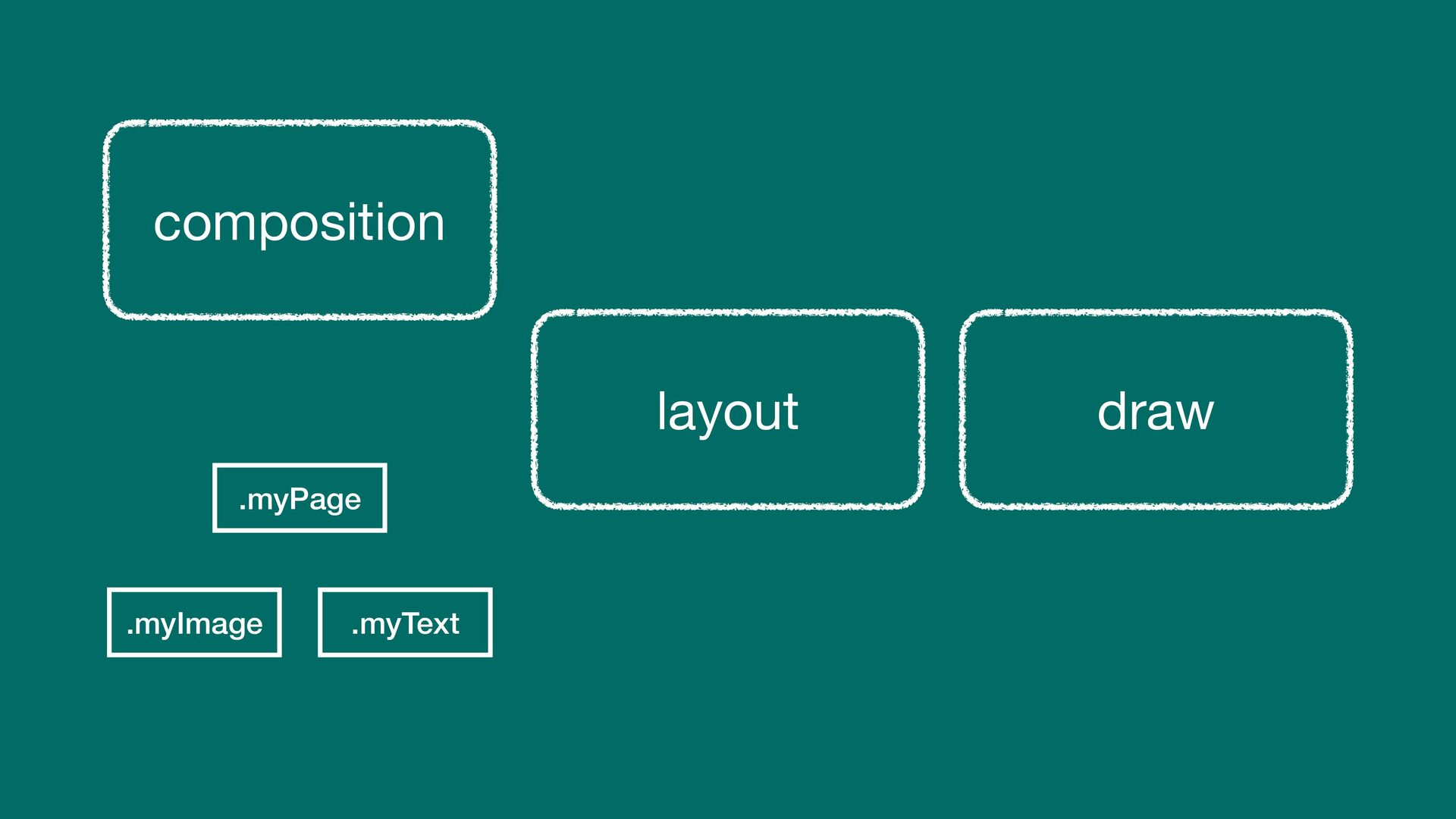

7. composition
   layout draw
   .myPage
   .myImage .myText


   View Slide

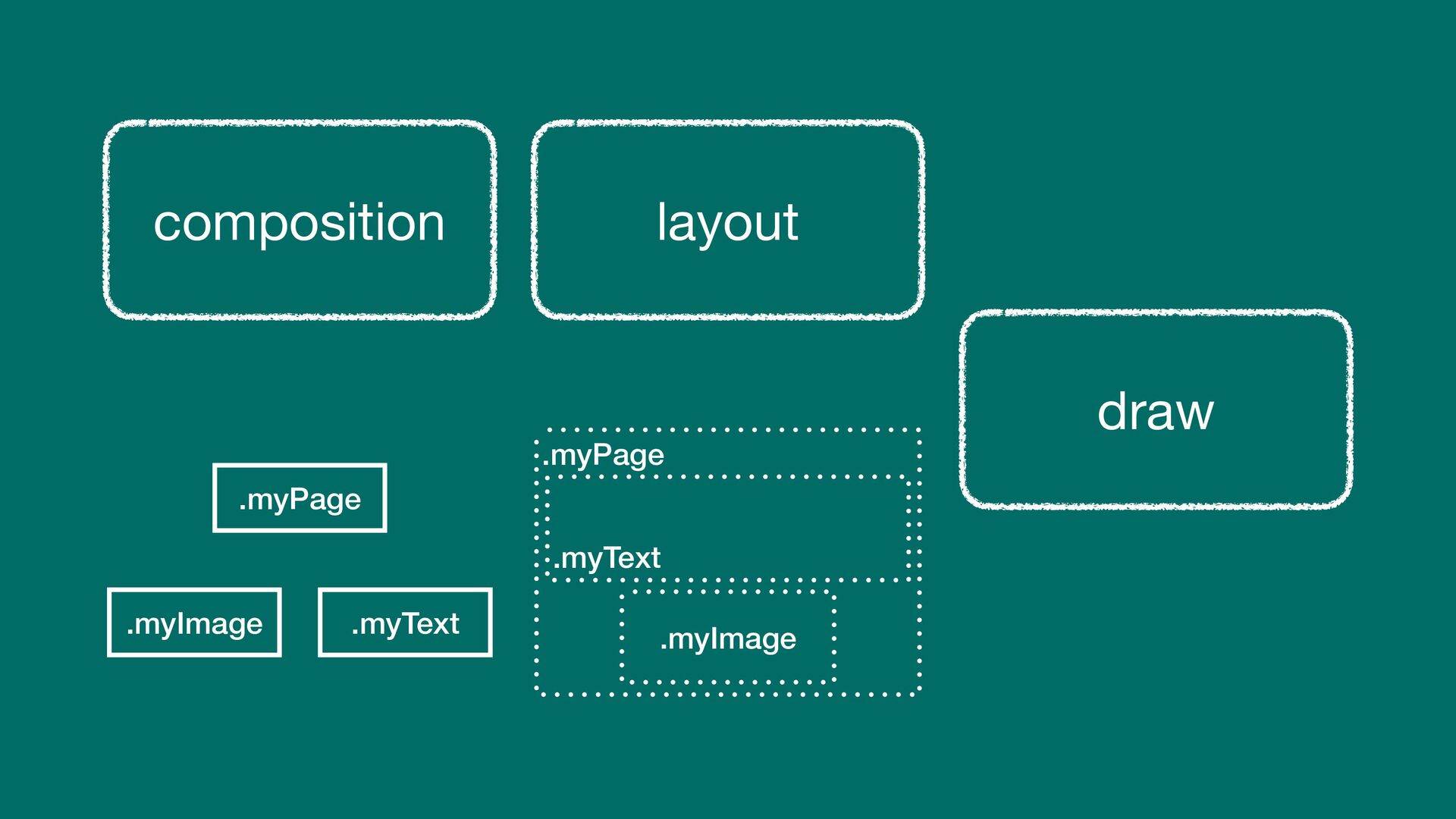

8. composition layout

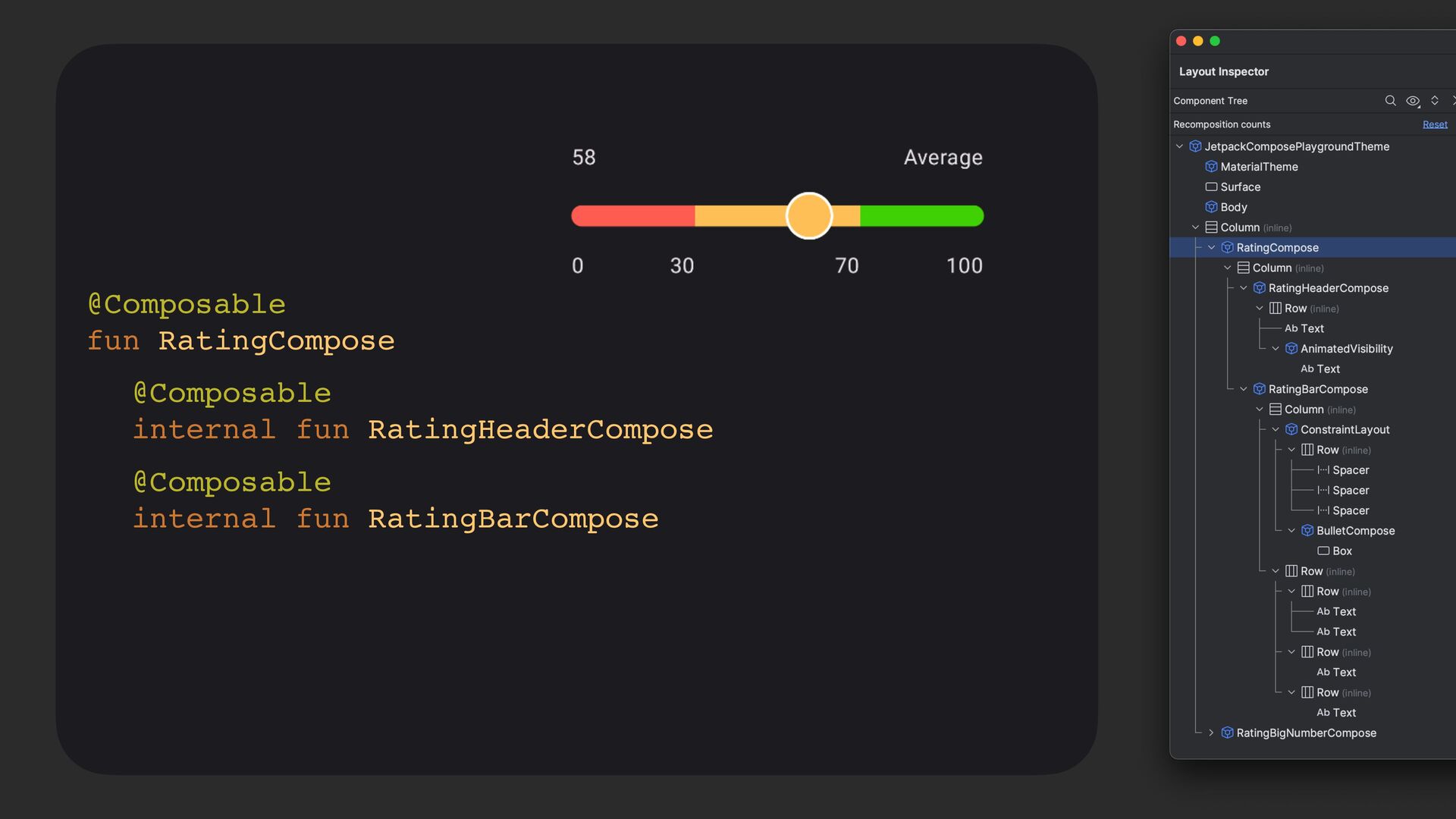

   draw
   .myPage
   .myImage .myText
   .myPage
   .myText
   .myImage


   View Slide

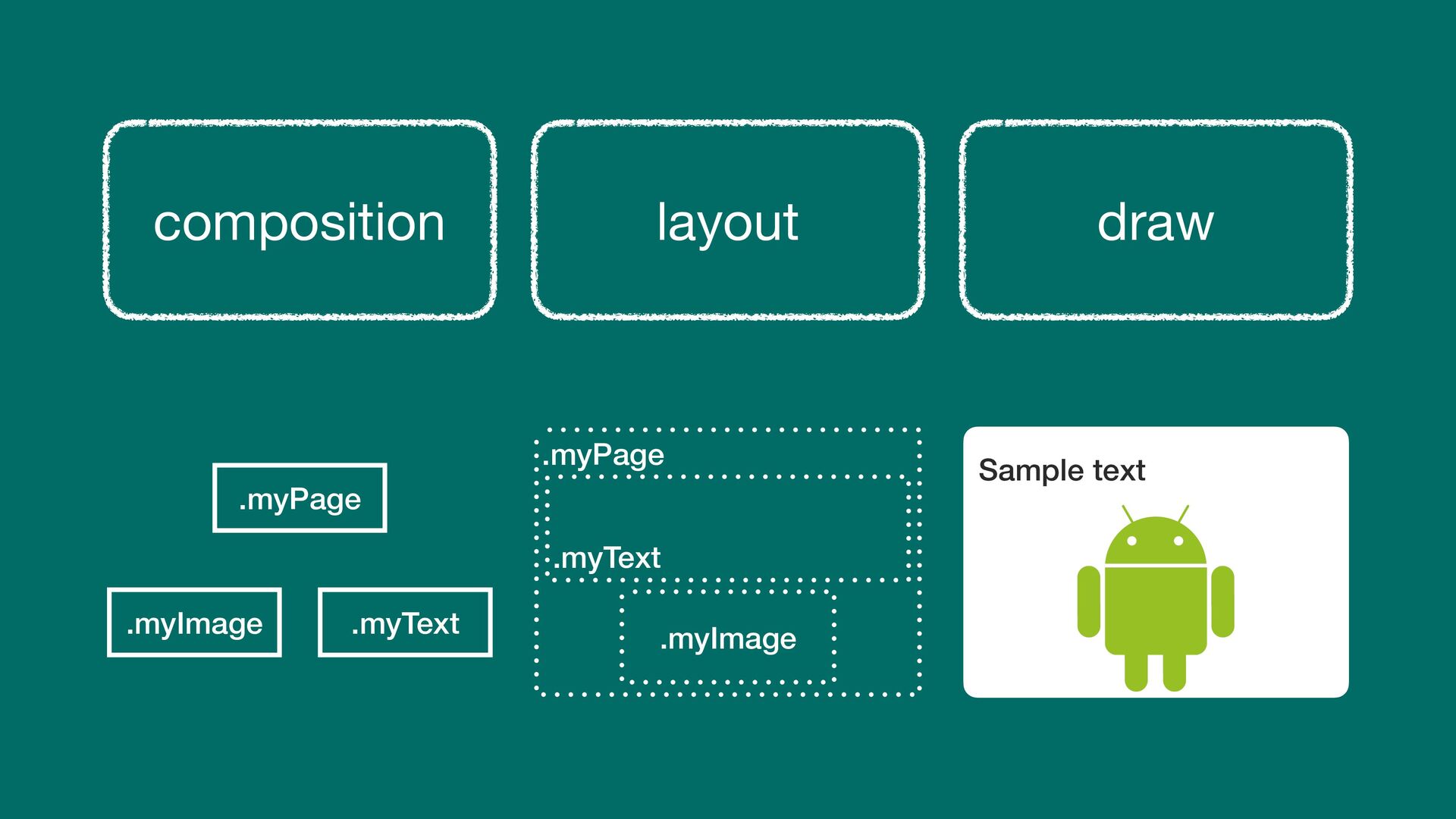

9. composition layout draw
   .myPage

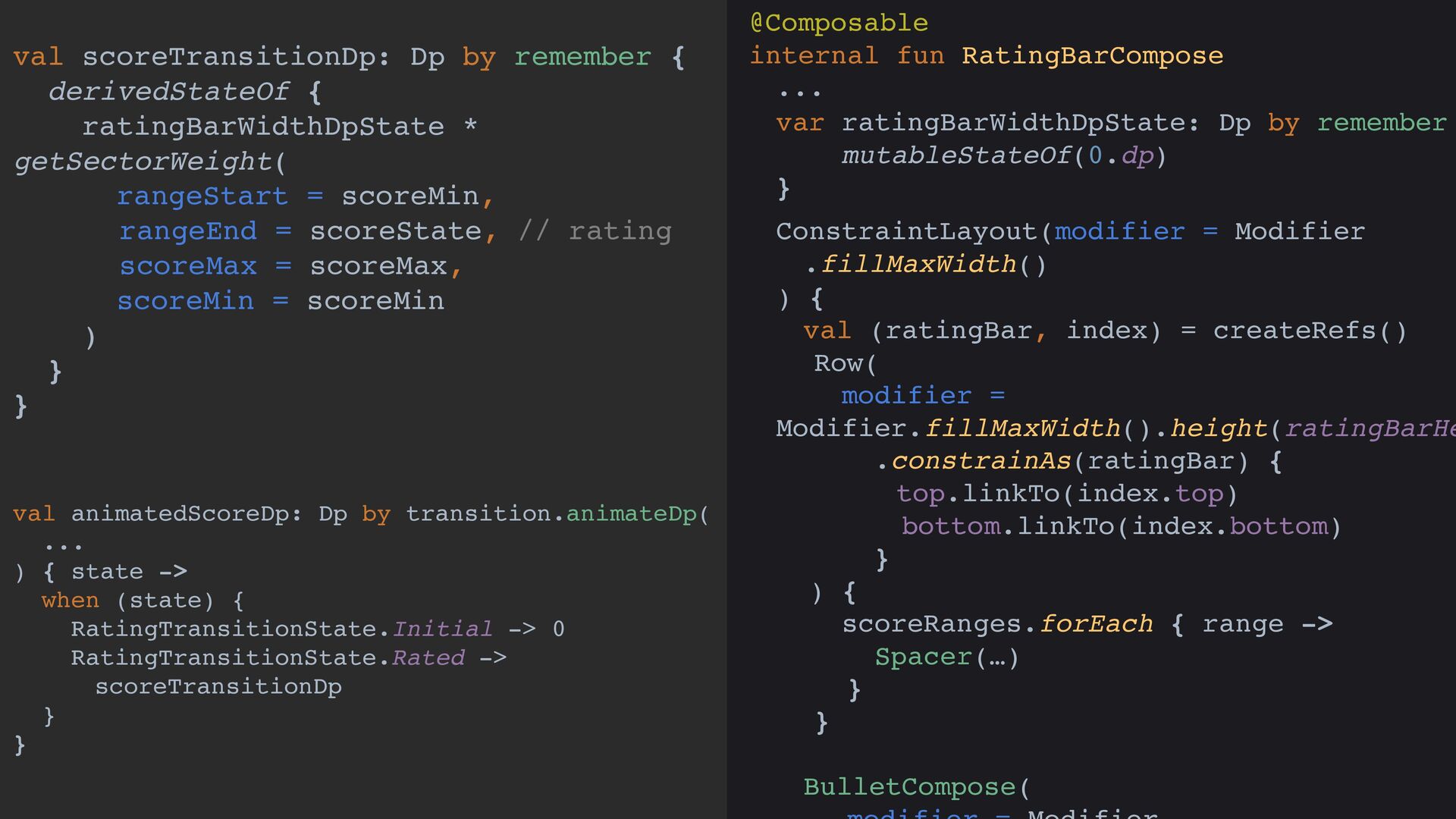

   .myImage .myText
   .myPage
   .myText
   .myImage
   Sample text


   View Slide

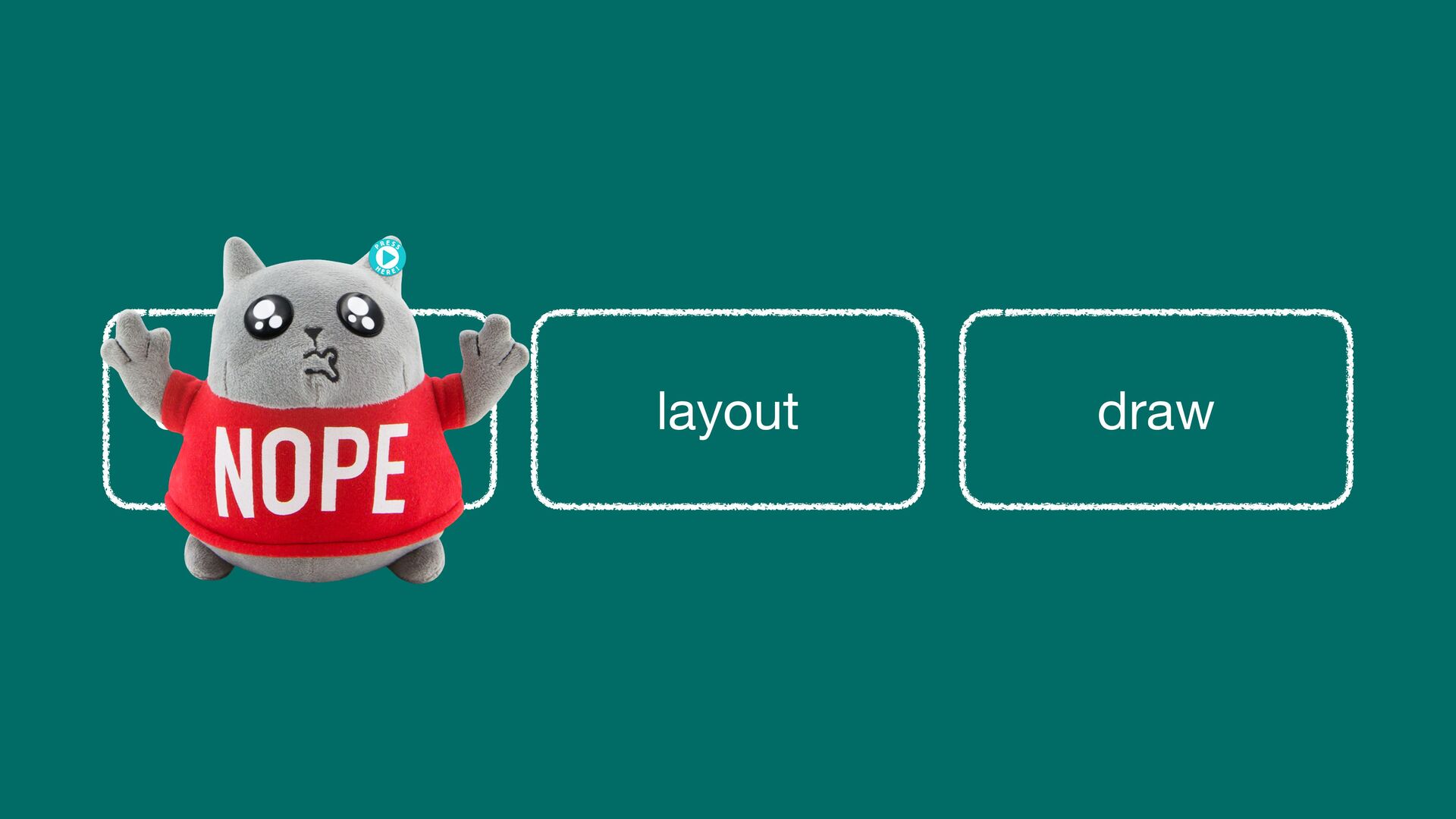

10. composition layout draw


    View Slide

11. () -> Unit


    View Slide

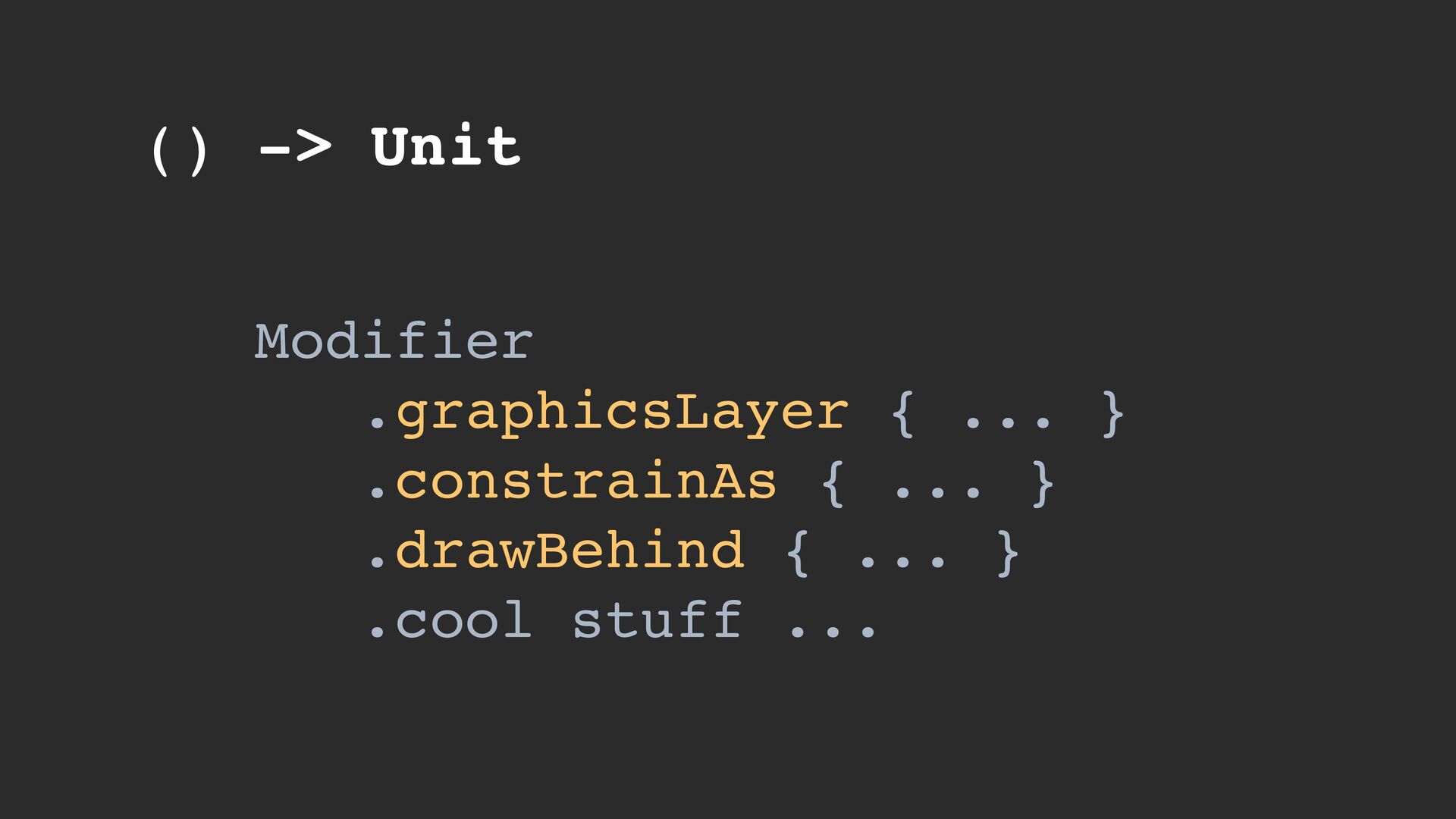

12. () -> Unit
    Modifier
    .graphicsLayer { ... }
    .constrainAs { ... }
    .drawBehind { ... }
    .cool stuff ...


    View Slide

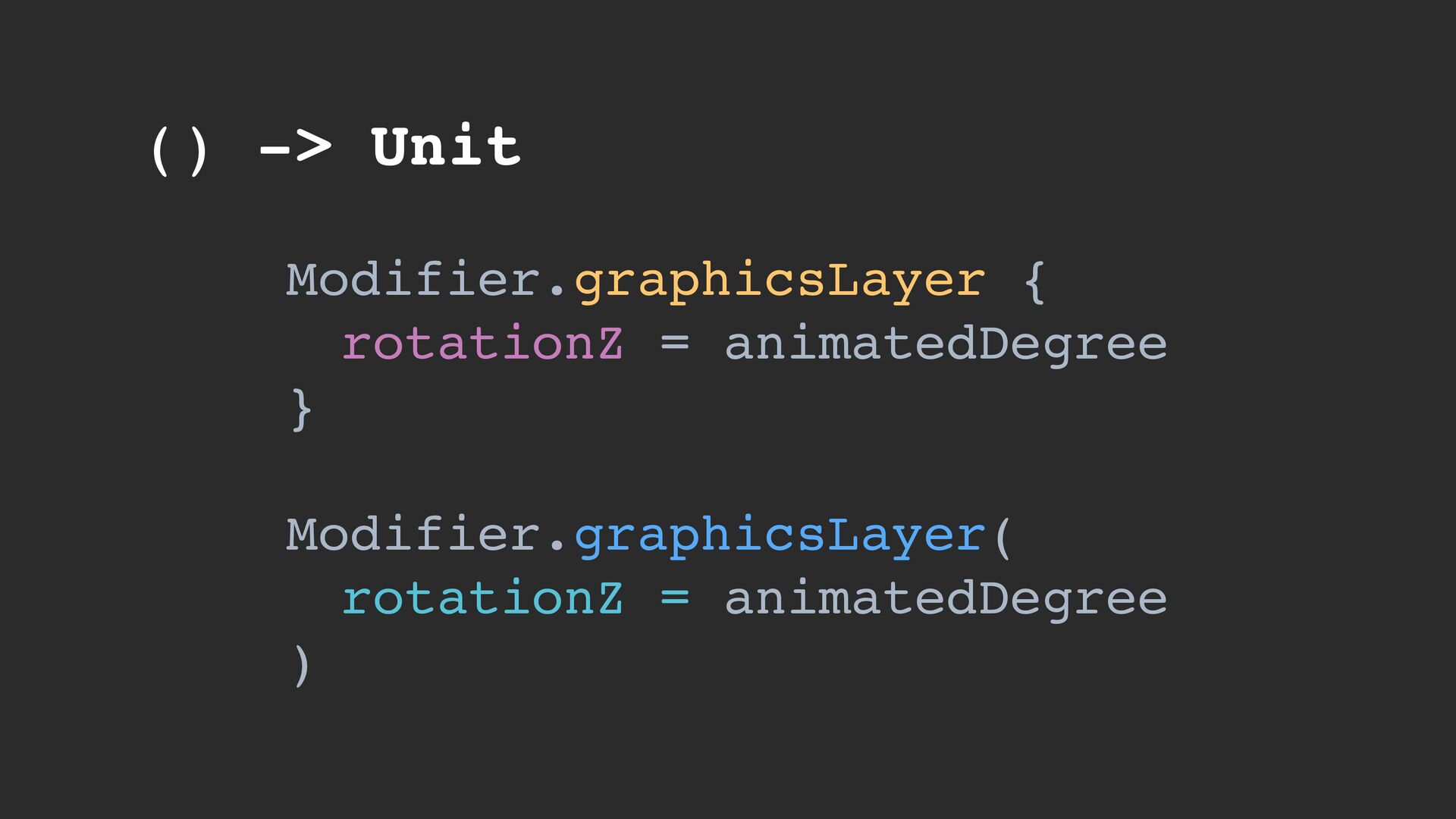

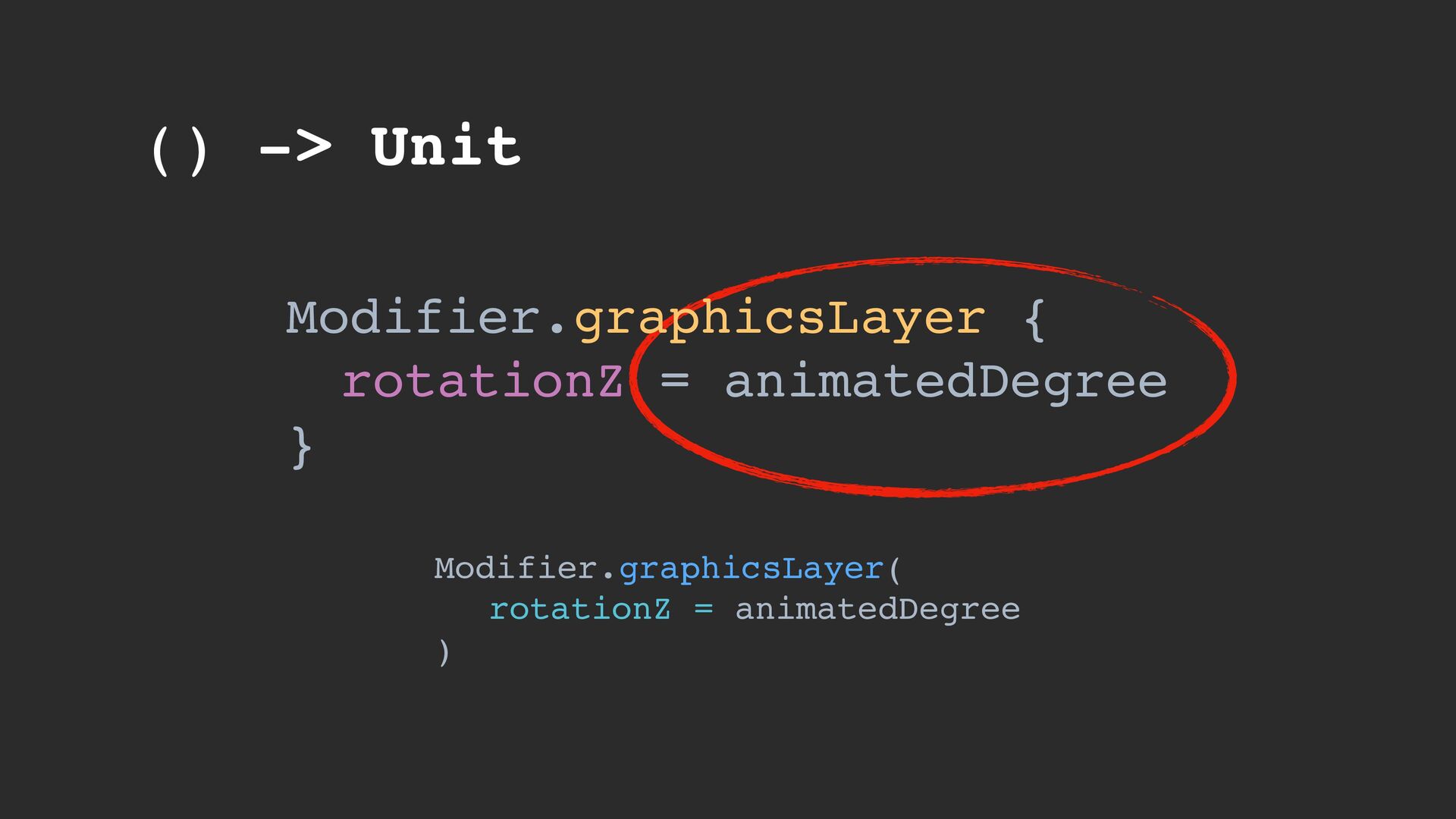

13. Modifier.graphicsLayer(
    rotationZ = animatedDegree
    )
    () -> Unit
    Modifier.graphicsLayer {
    rotationZ = animatedDegree
    }


    View Slide

14. () -> Unit
    Modifier.graphicsLayer {
    rotationZ = animatedDegree
    }
    Modifier.graphicsLayer(
    rotationZ = animatedDegree
    )


    View Slide

15. () -> Unit
    @Composable
    fun SampleWheel(
    animatedDegree: Float
    ) {
    Box(
    Modifier.graphicsLayer {
    rotationZ = animatedDegree
    }
    )
    }
    Modifier.graphicsLayer {
    rotationZ = animatedDegree
    }


    View Slide

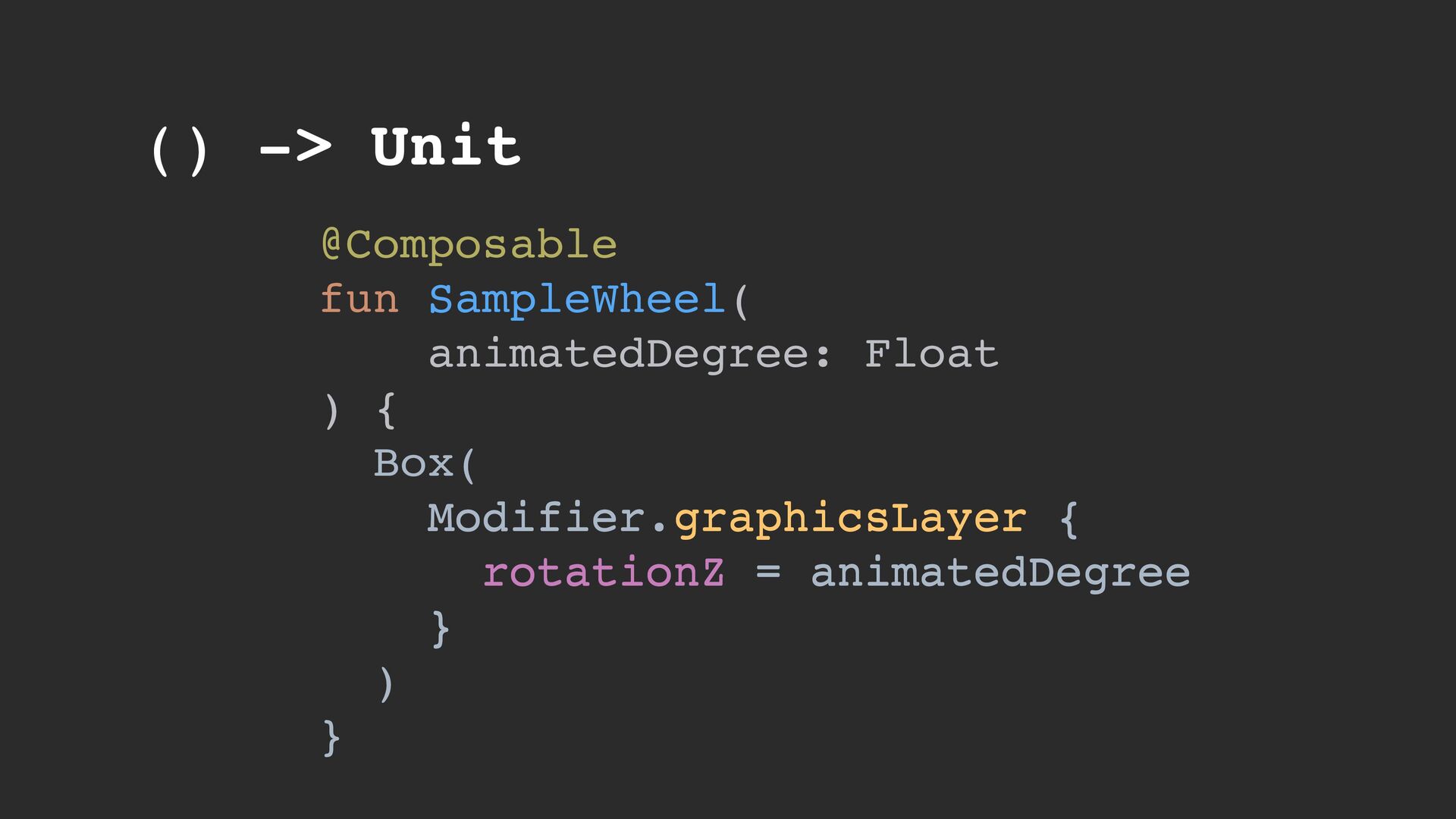

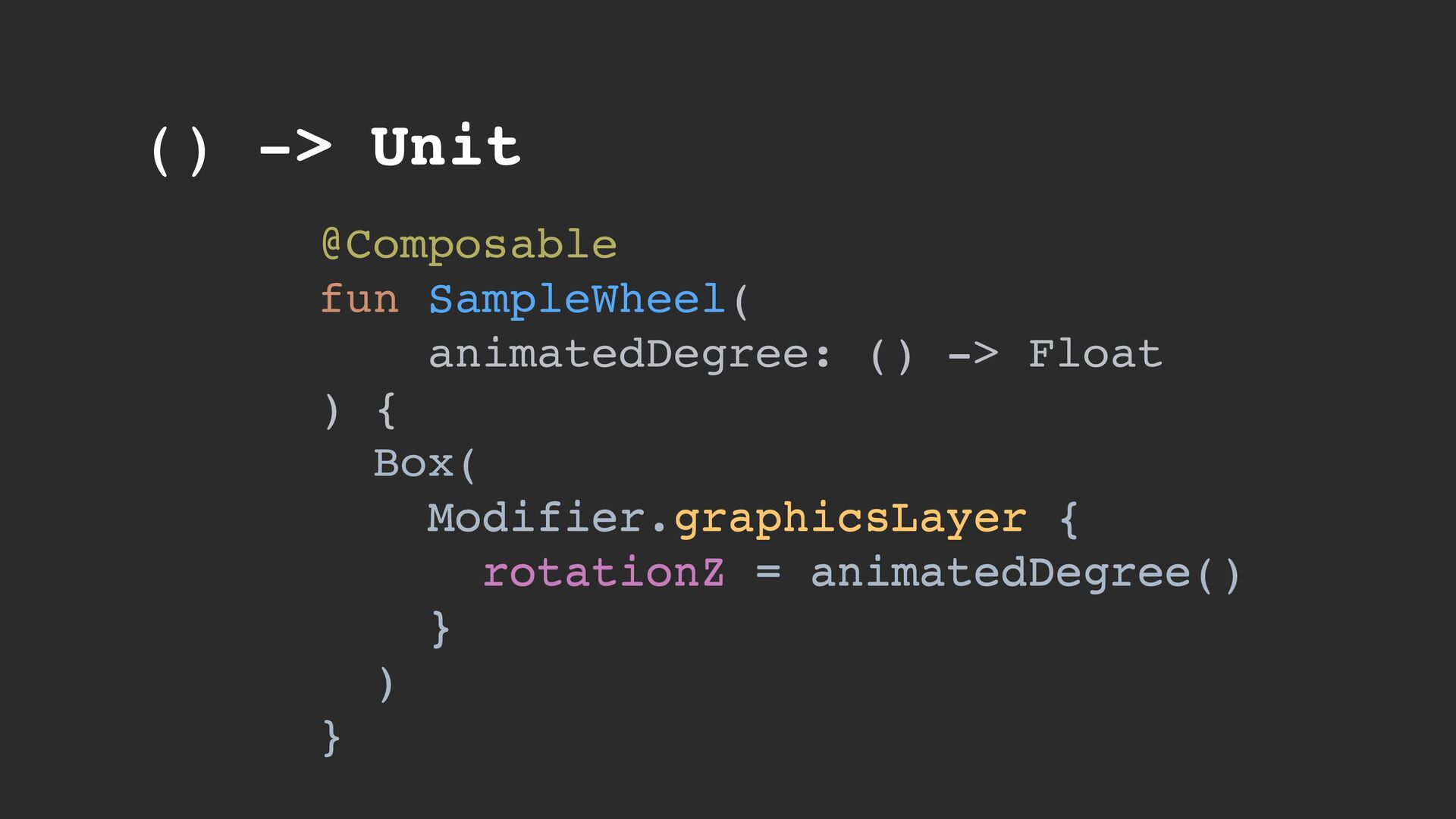

16. () -> Unit
    @Composable
    fun SampleWheel(
    animatedDegree: () -> Float
    ) {
    Box(
    Modifier.graphicsLayer {
    rotationZ = animatedDegree
    }
    )
    }
    Modifier.graphicsLayer {
    rotationZ = animatedDegree()
    }


    View Slide

17. () -> Unit


    View Slide

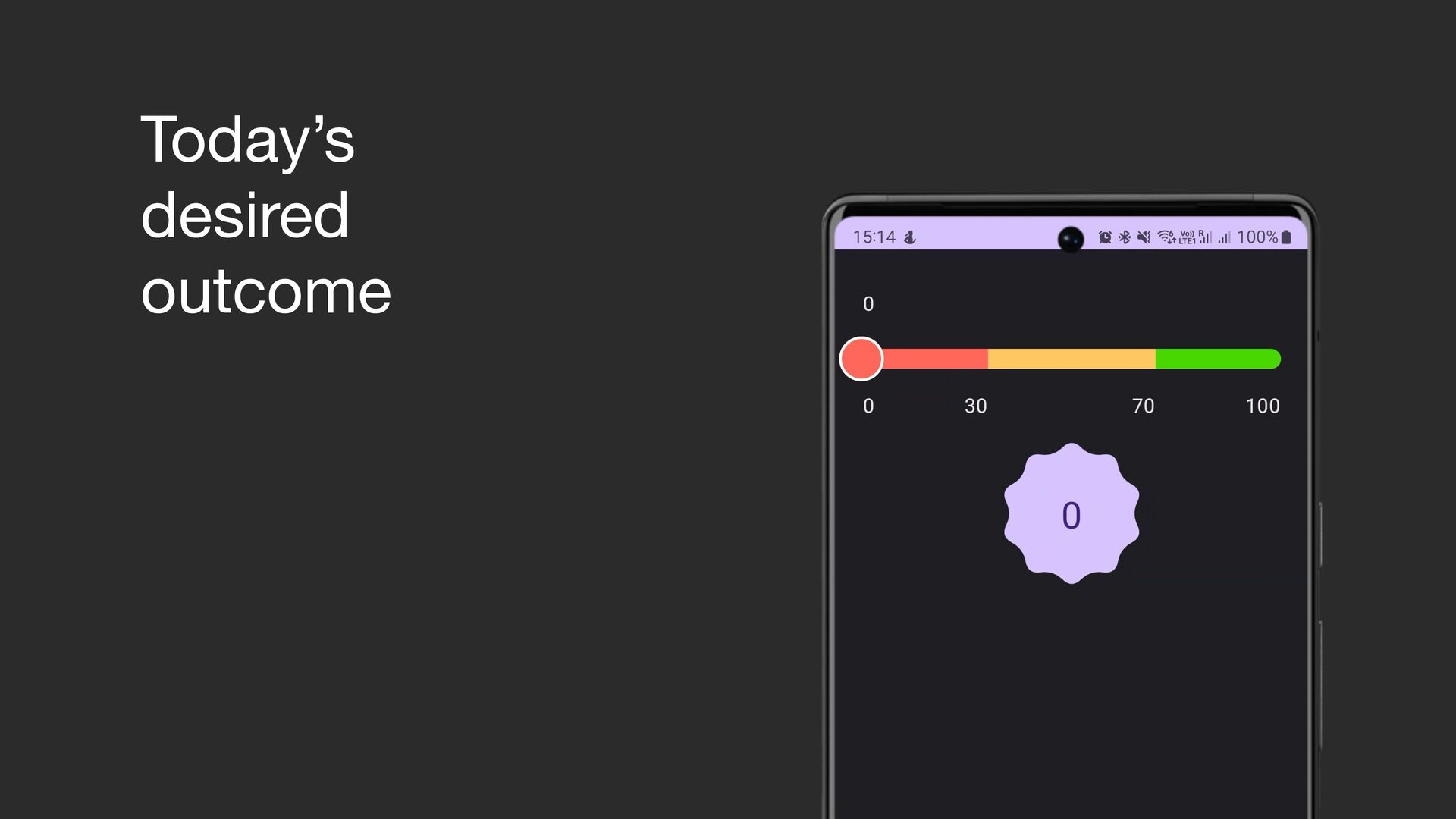

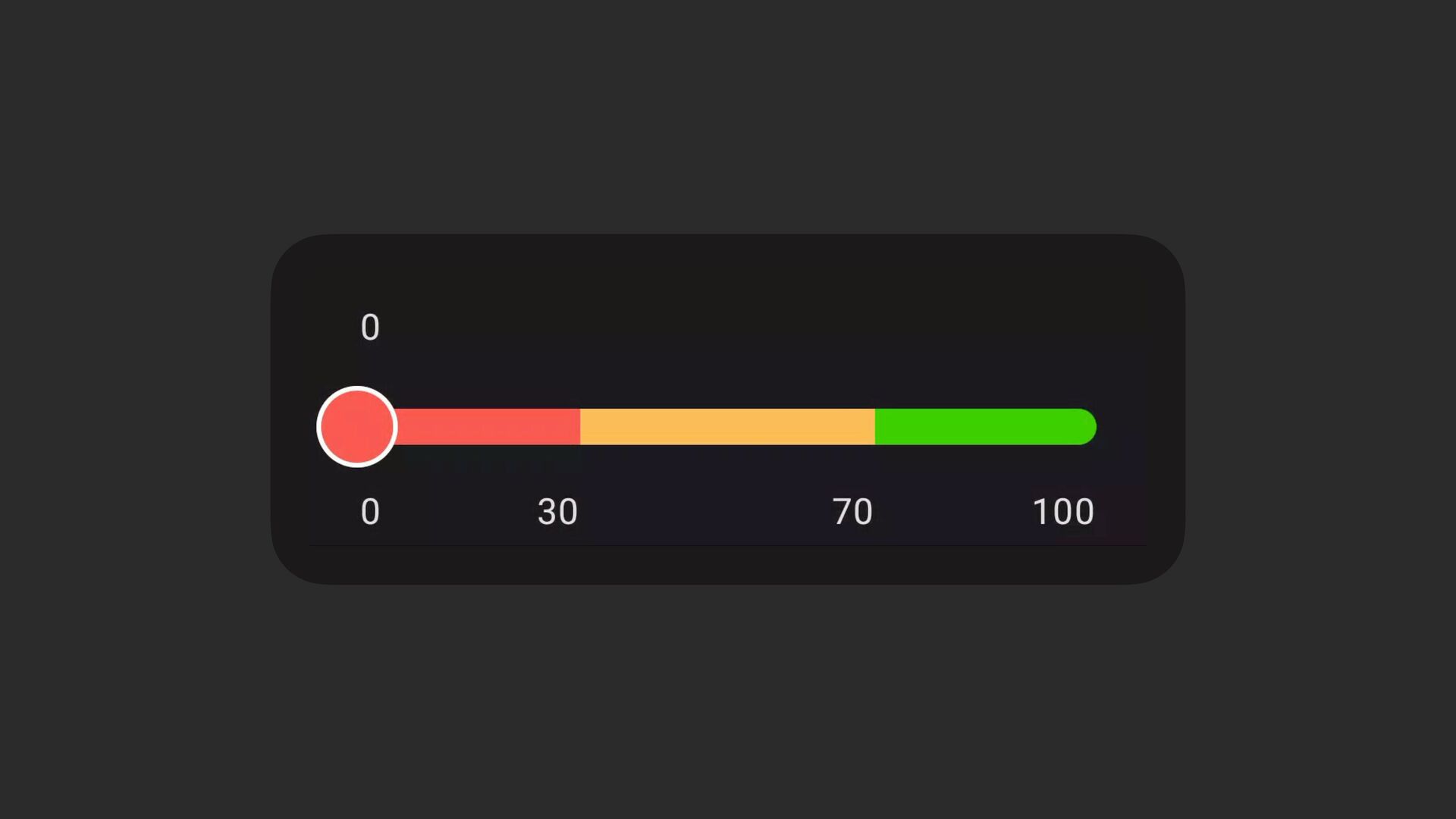

18. Today’s

    desired

    outcome


    View Slide

19. View Slide

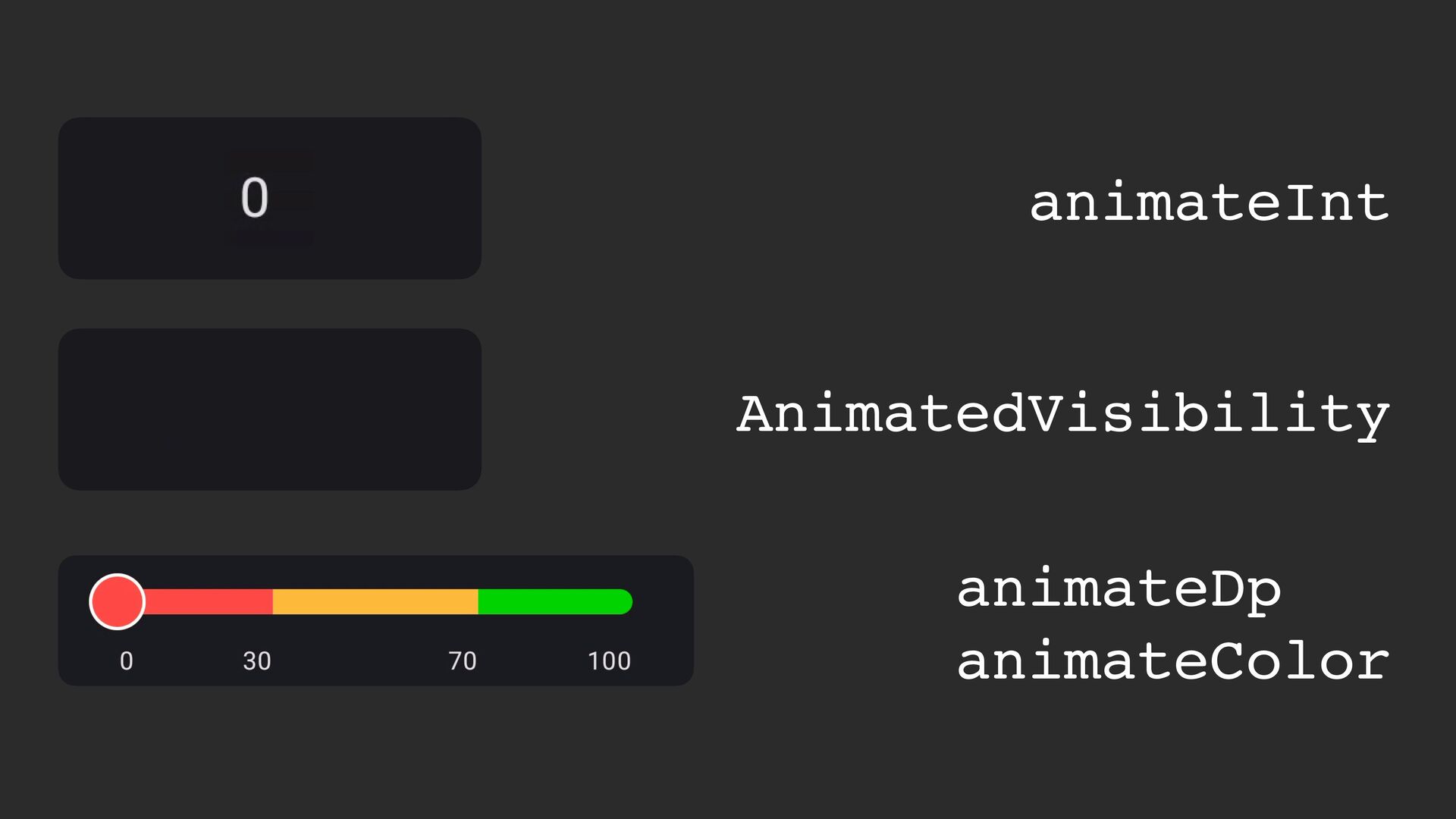

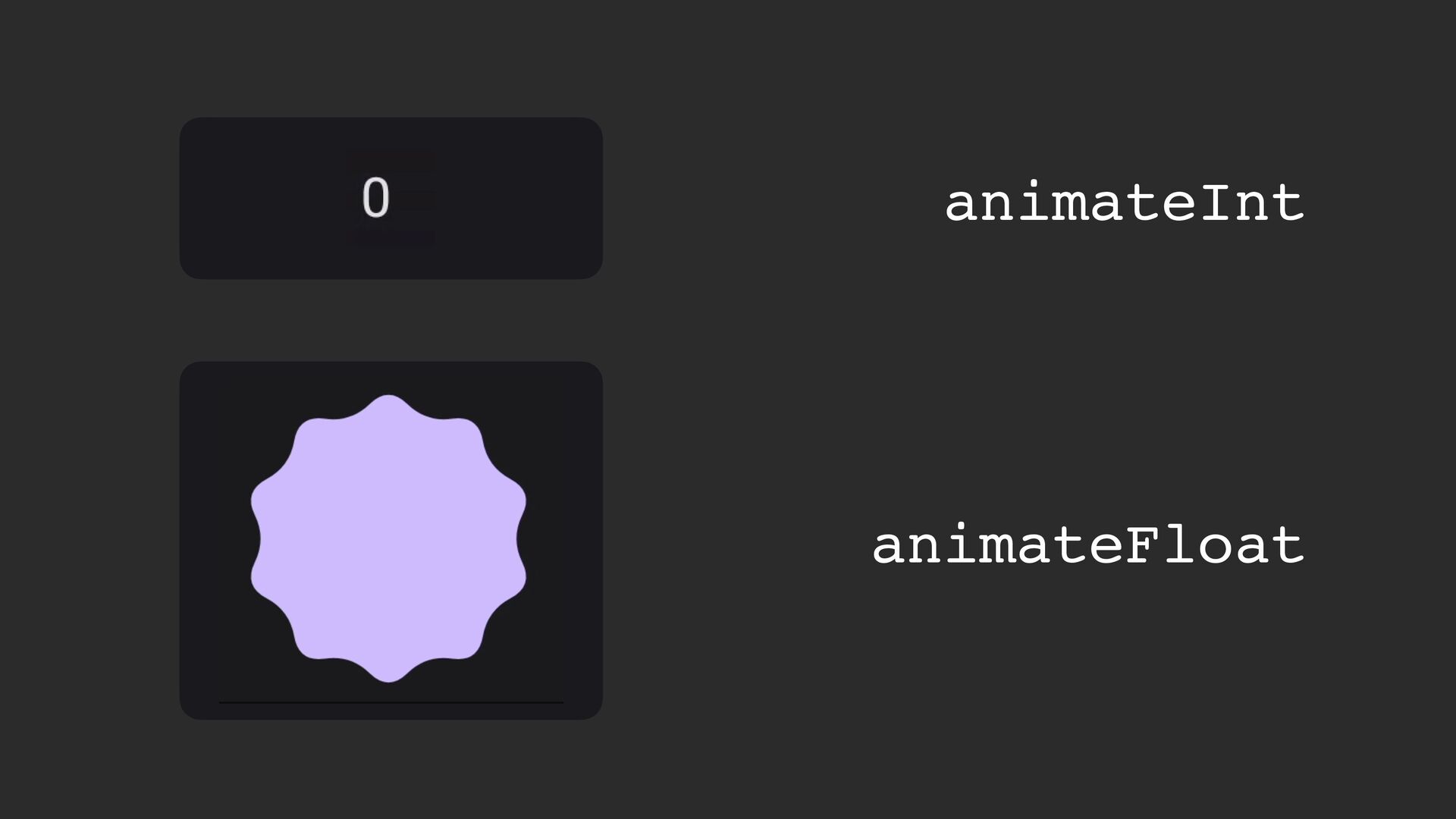

20. animateInt
    AnimatedVisibility
    animateDp
    animateColor


    View Slide

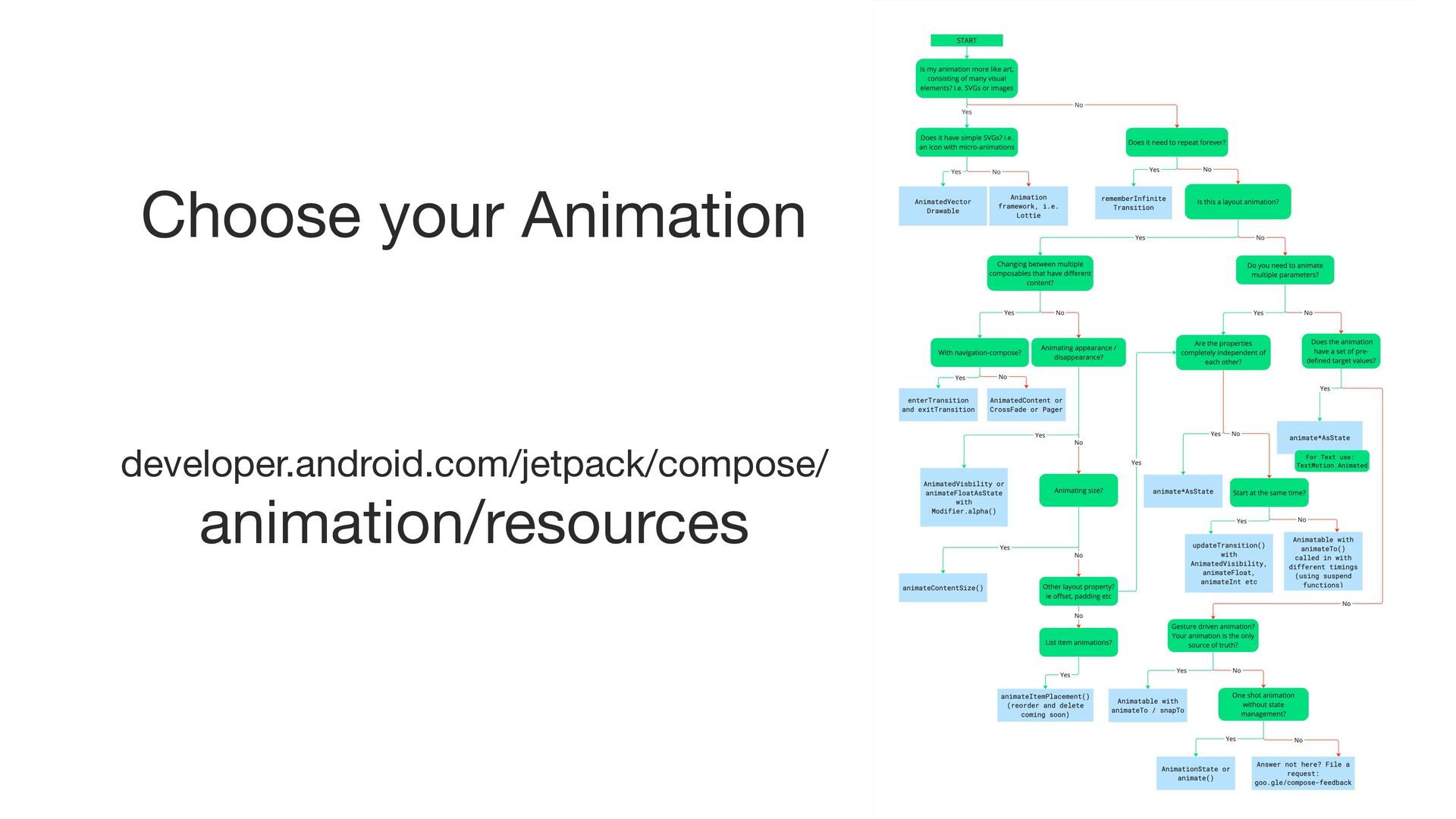

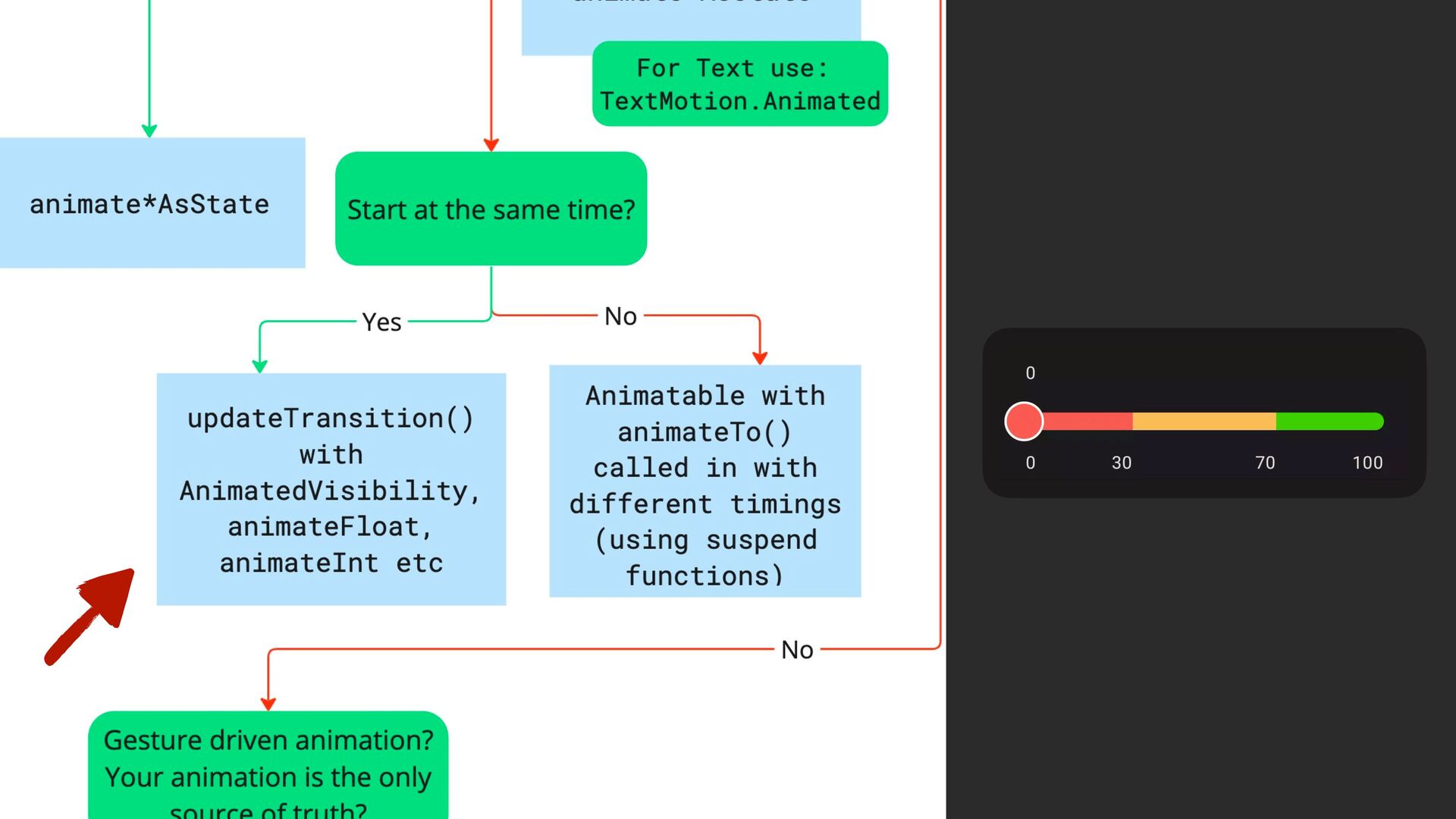

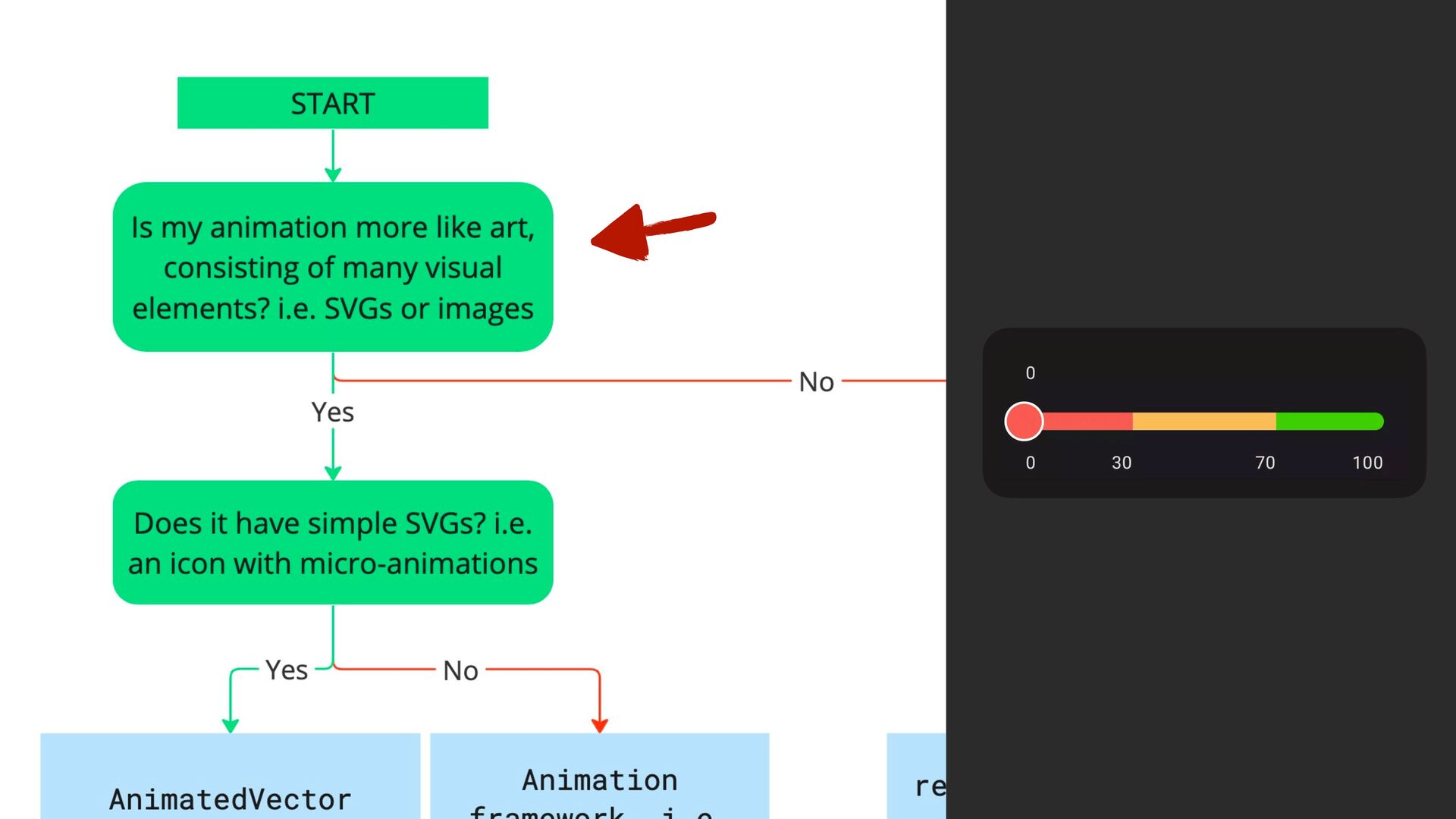

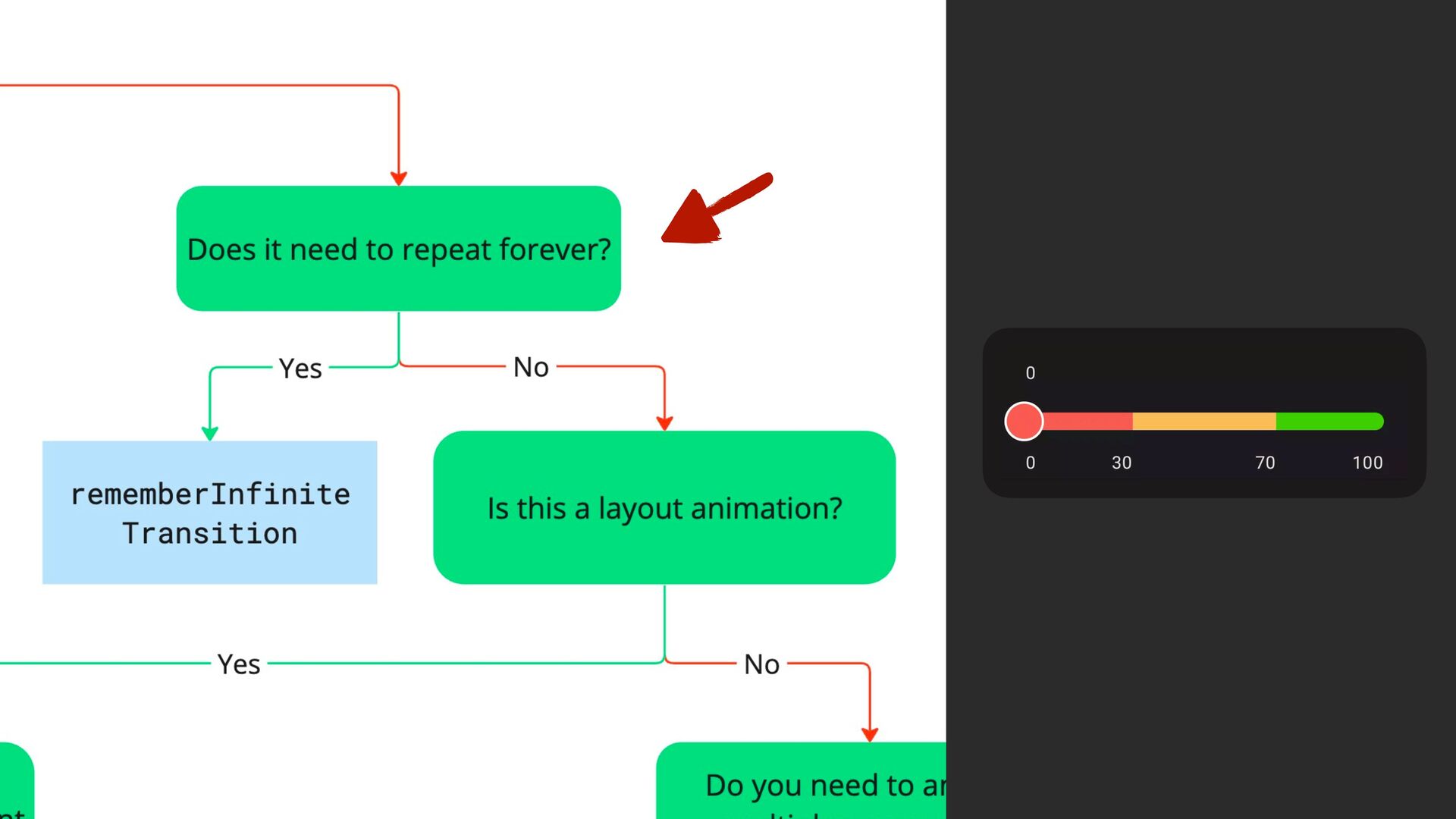

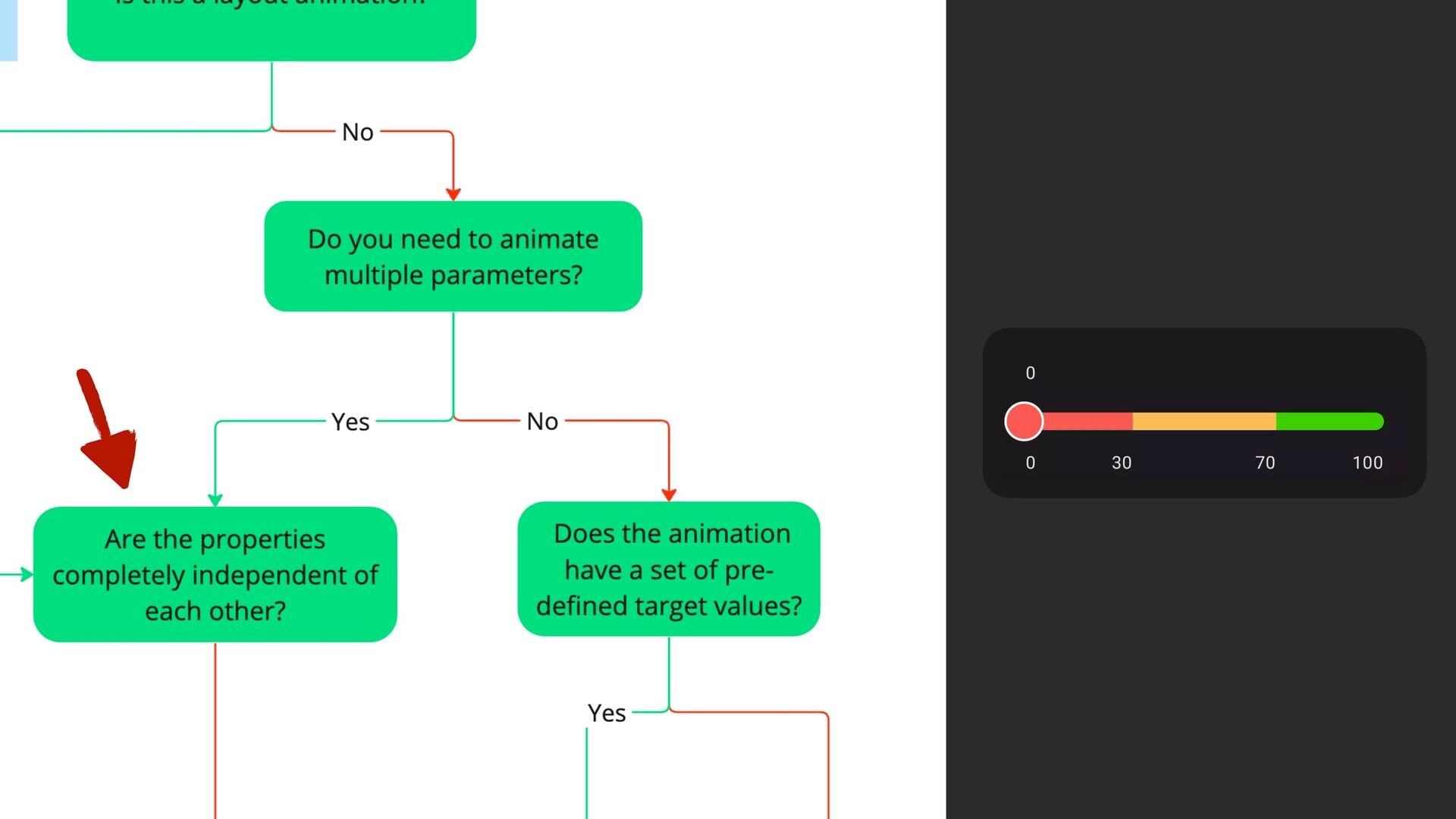

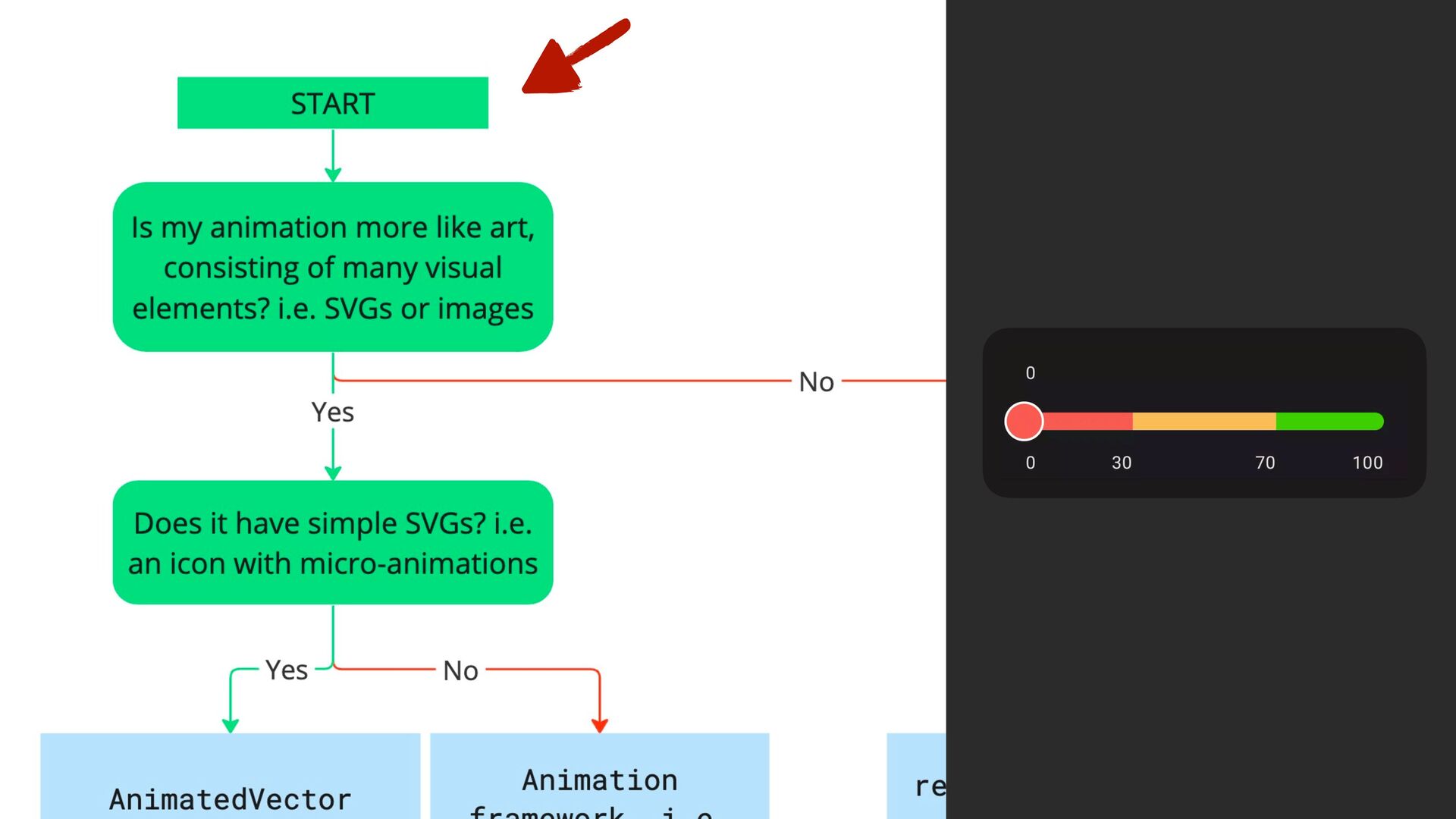

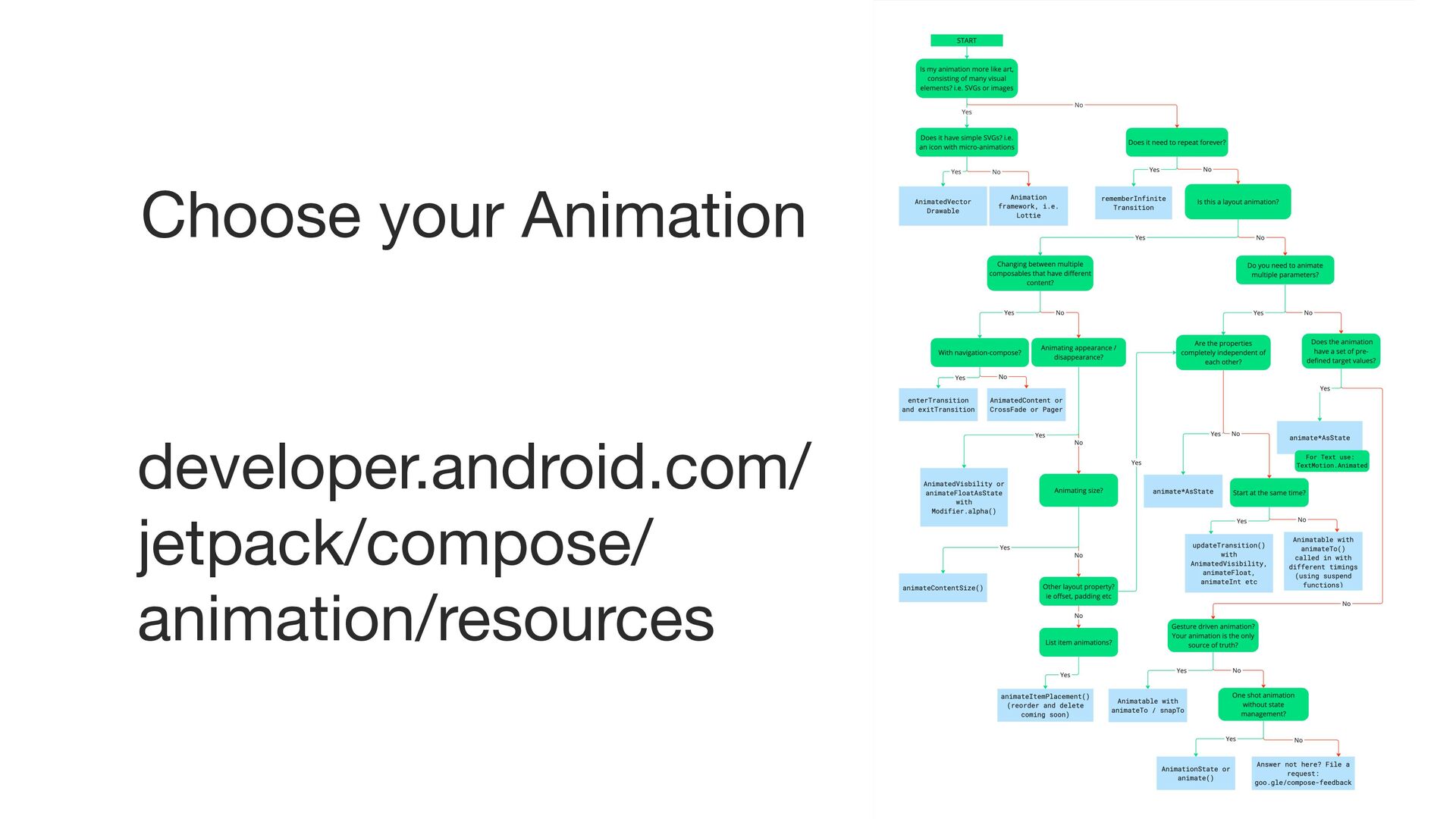

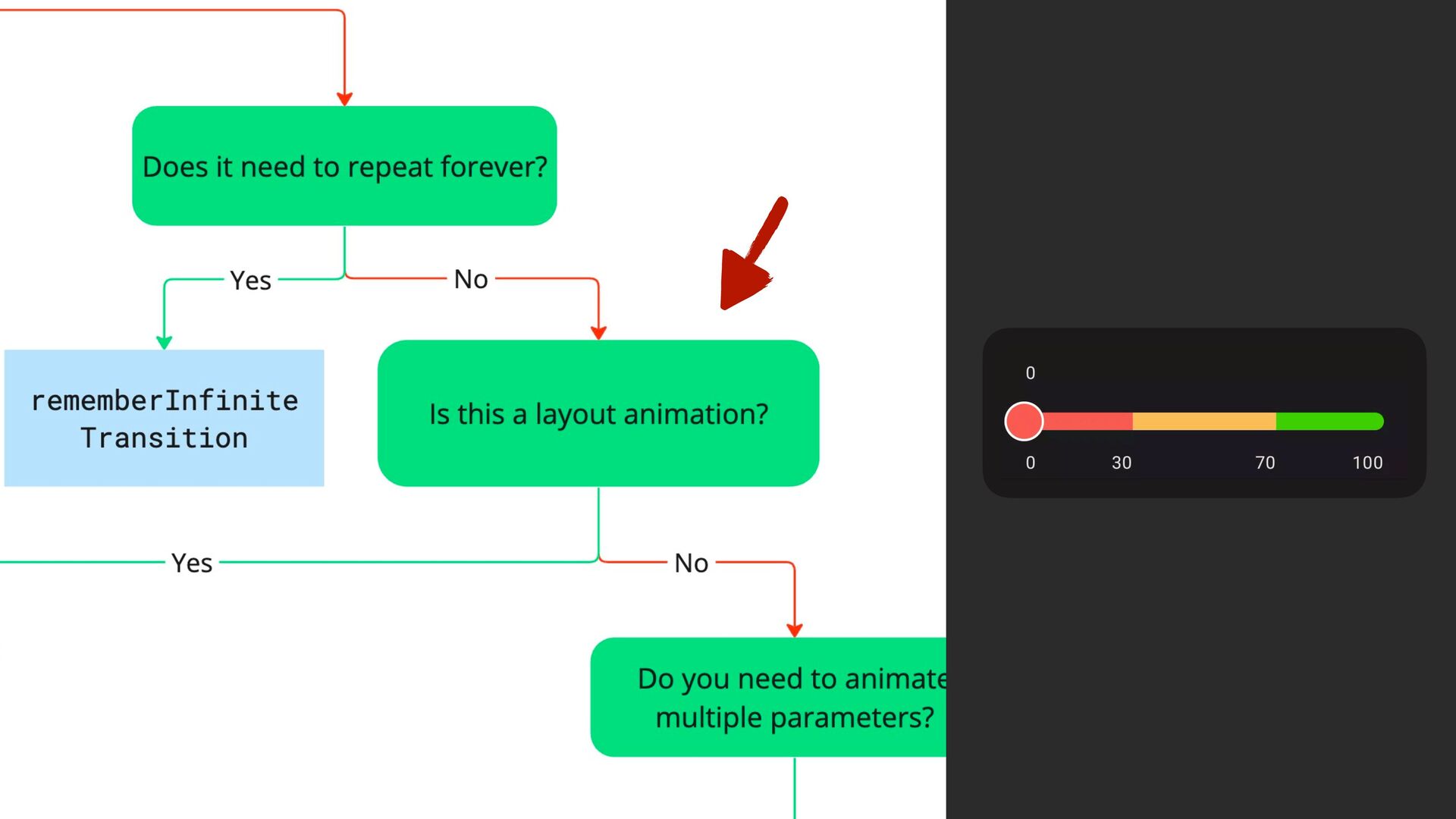

21. Choose your Animation
    developer.android.com/jetpack/compose/

    animation/resources


    View Slide

22. View Slide

23. View Slide

24. View Slide

25. View Slide

26. View Slide

27. View Slide

28. View Slide

29. View Slide

30. View Slide

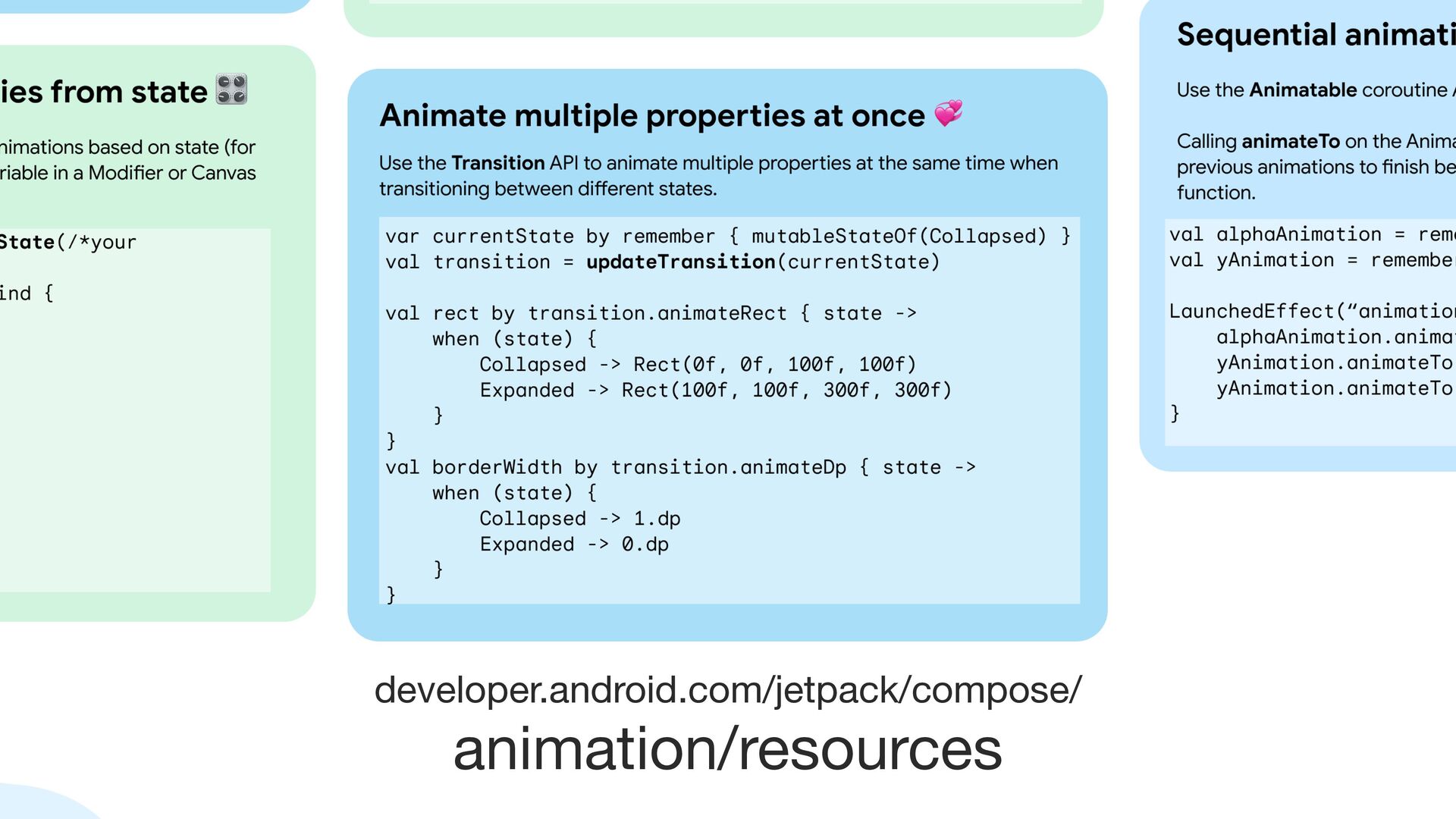

31. developer.android.com/jetpack/compose/

    animation/resources


    View Slide

32. View Slide

33. View Slide

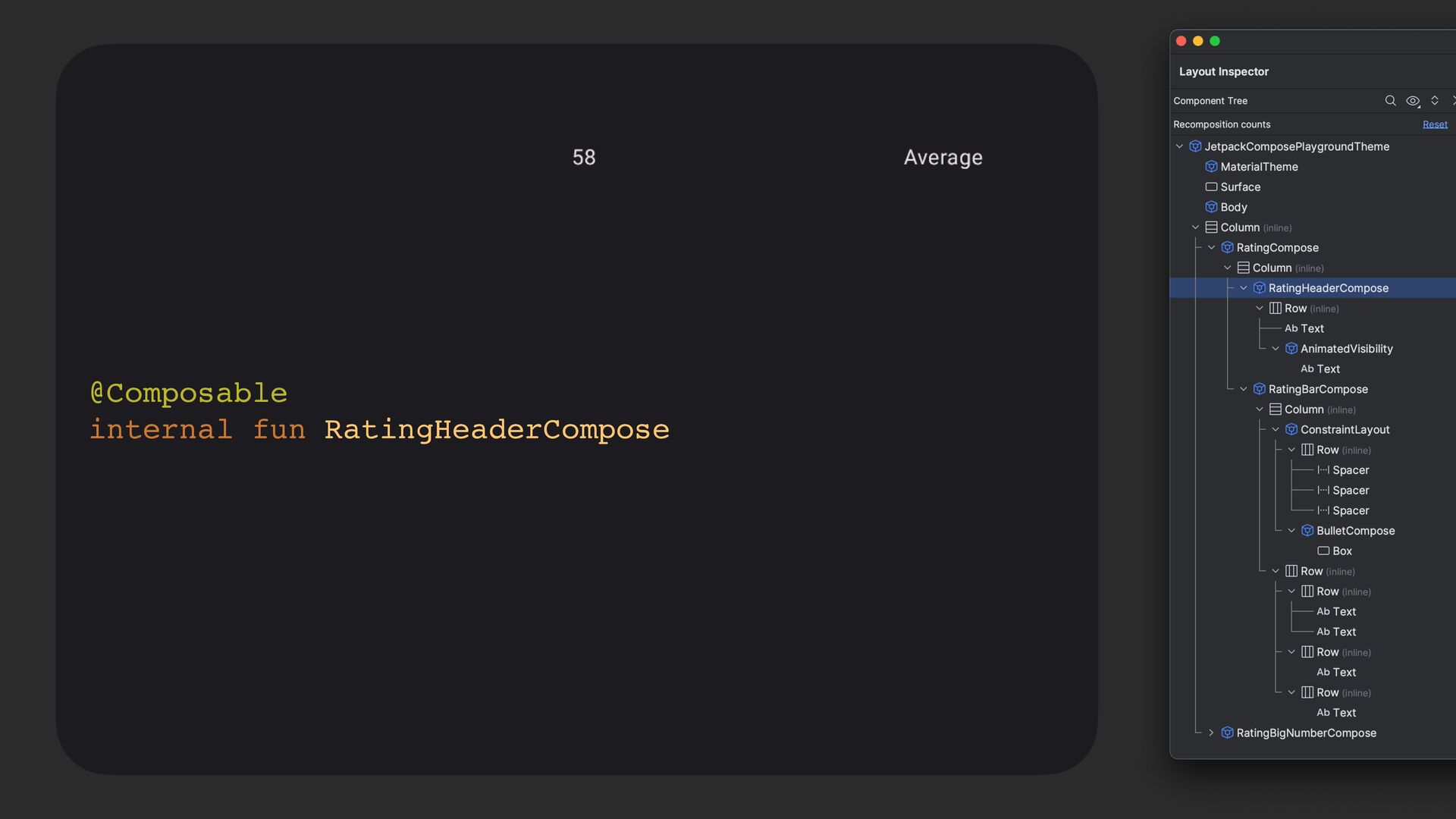

34. @Composable
    fun RatingCompose
    @Composable
    internal fun RatingHeaderCompose
    @Composable
    internal fun RatingBarCompose


    View Slide

35. @Composable
    internal fun RatingHeaderCompose


    View Slide

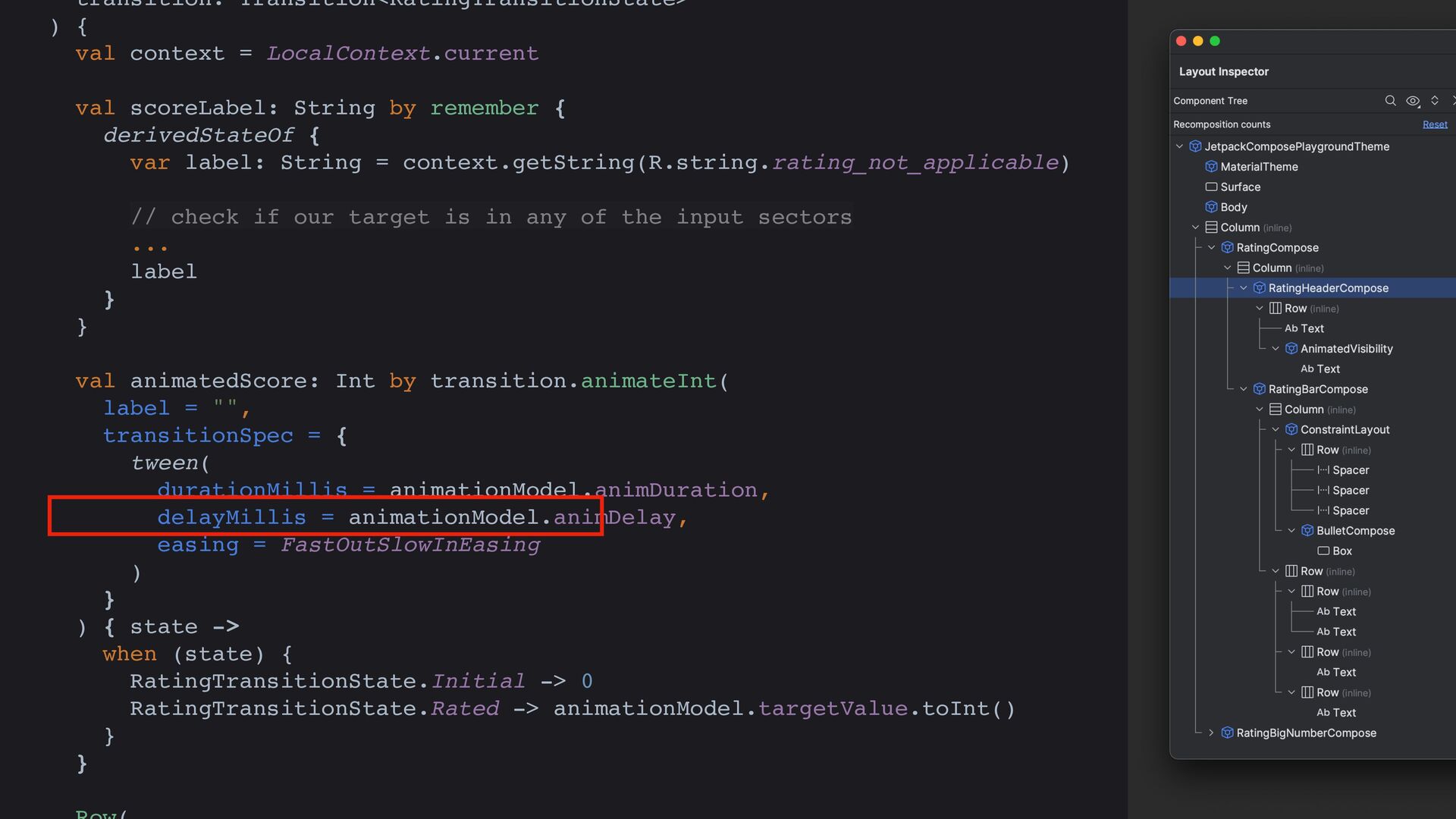

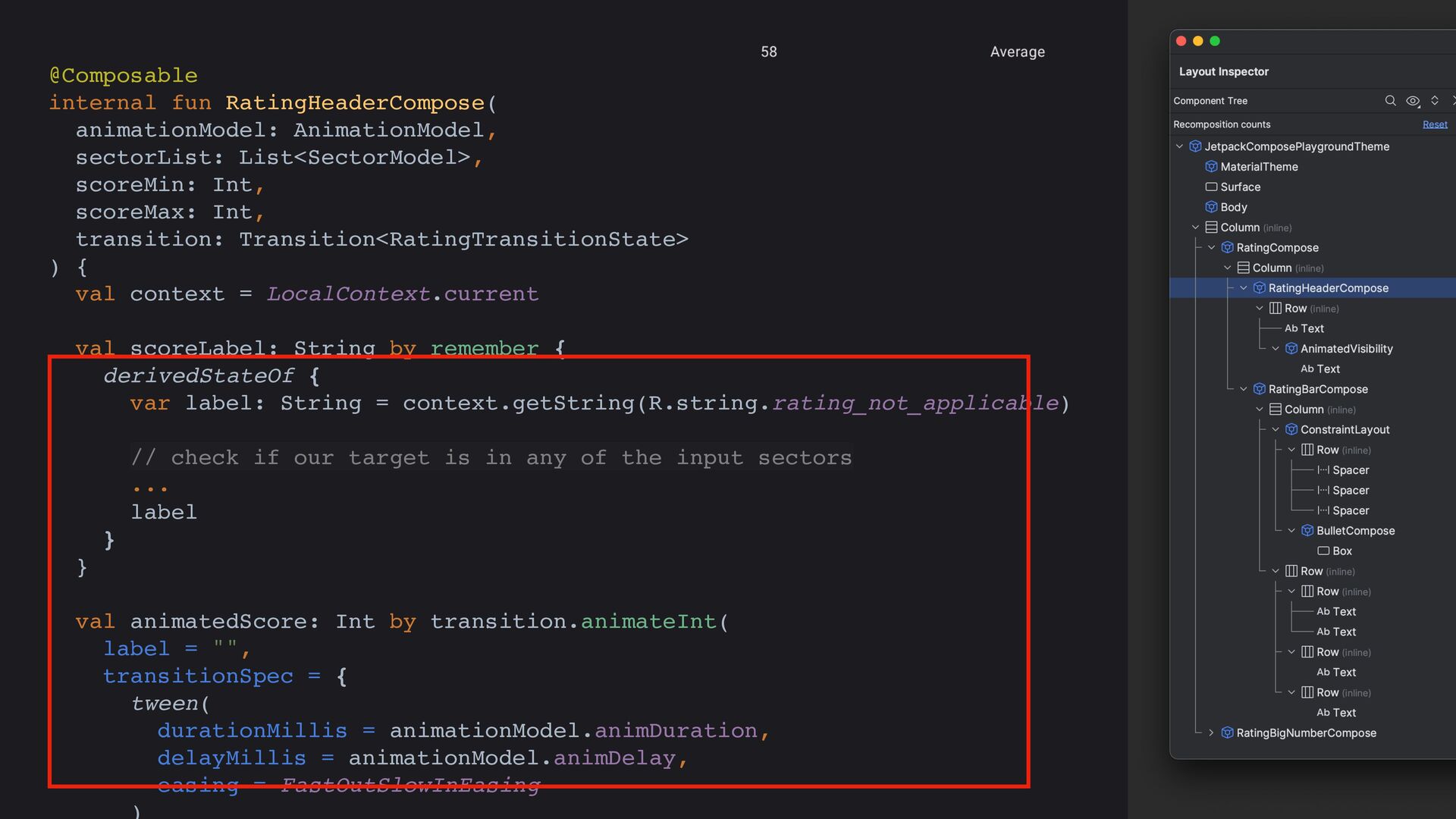

36. @Composable
    internal fun RatingHeaderCompose(
    animationModel: AnimationModel,
    sectorList: List,
    scoreMin: Int,
    scoreMax: Int,
    transition: Transition
    ) {
    val context = LocalContext.current
    val scoreLabel: String by remember {
    derivedStateOf {
    var label: String = context.getString(R.string.rating_not_applicable)
    // check if our target is in any of the input sectors
    ...
    label
    }
    }
    val animatedScore: Int by transition.animateInt(
    label = "",
    transitionSpec = {
    tween(
    durationMillis = animationModel.animDuration,
    delayMillis = animationModel.animDelay,
    easing = FastOutSlowInEasing
    )


    View Slide

37. transition: Transition
    ) {
    val context = LocalContext.current
    val scoreLabel: String by remember {
    derivedStateOf {
    var label: String = context.getString(R.string.rating_not_applicable)
    // check if our target is in any of the input sectors
    ...
    label
    }
    }
    val animatedScore: Int by transition.animateInt(
    label = "",
    transitionSpec = {
    tween(
    durationMillis = animationModel.animDuration,
    delayMillis = animationModel.animDelay,
    easing = FastOutSlowInEasing
    )
    }
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated -> animationModel.targetValue.toInt()
    }
    }


    View Slide

38. transitionSpec = {
    tween(
    durationMillis = animationModel.animDuration,
    delayMillis = animationModel.animDelay,
    easing = FastOutSlowInEasing
    )
    }
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated -> animationModel.targetValue.toInt()
    }
    }
    Row(
    modifier = Modifier.fillMaxWidth(),
    horizontalArrangement = Arrangement.SpaceBetween,
    verticalAlignment = Alignment.Bottom
    ) {
    Text(text = "$animatedScore")
    AnimatedVisibility(
    visible = transition.currentState == transition.targetState, // signal
    for animation end
    enter = slideInVertically { height -> -height } + fadeIn()
    ) {
    Text(text = scoreLabel)
    }
    }
    }


    View Slide

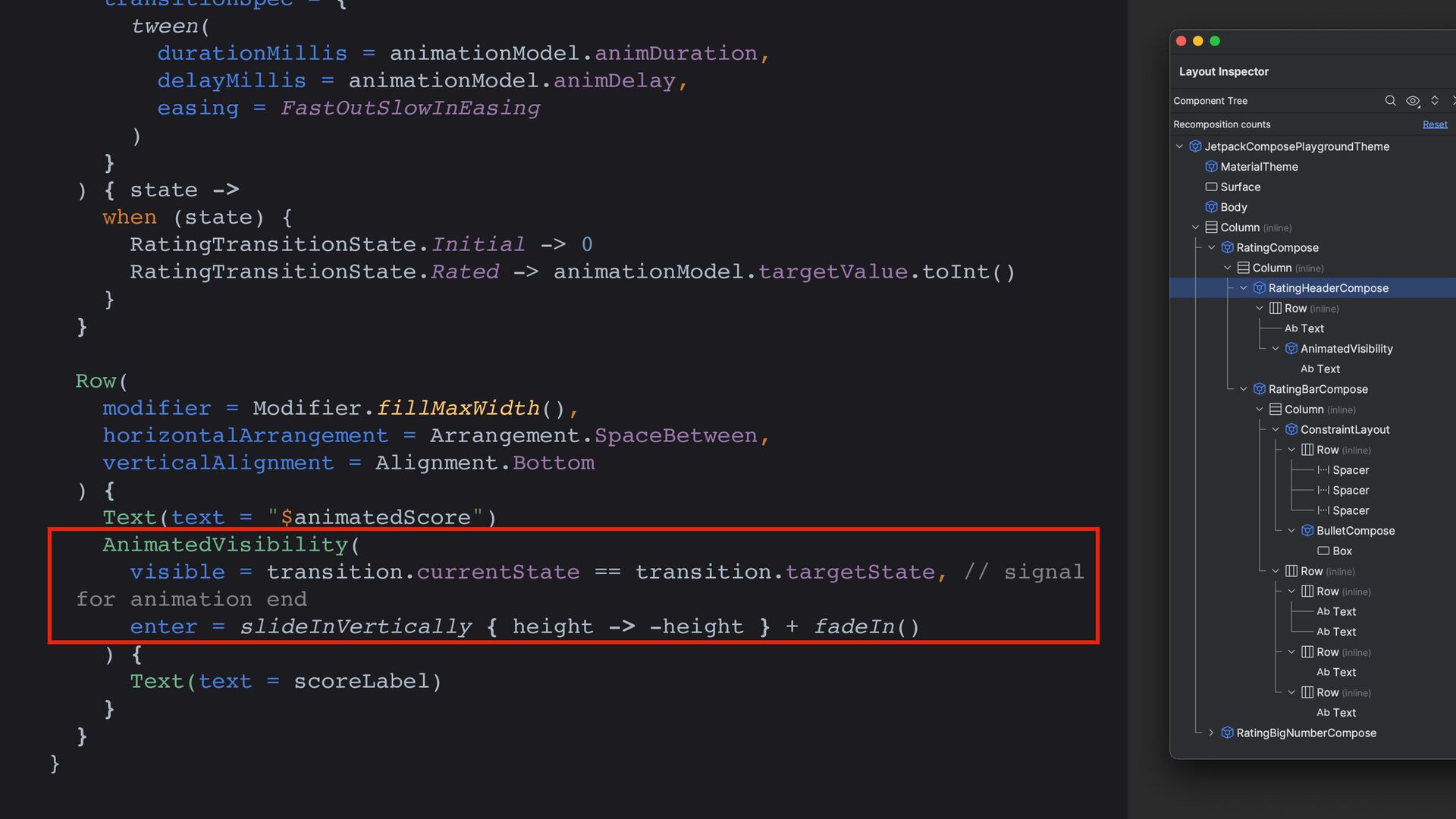

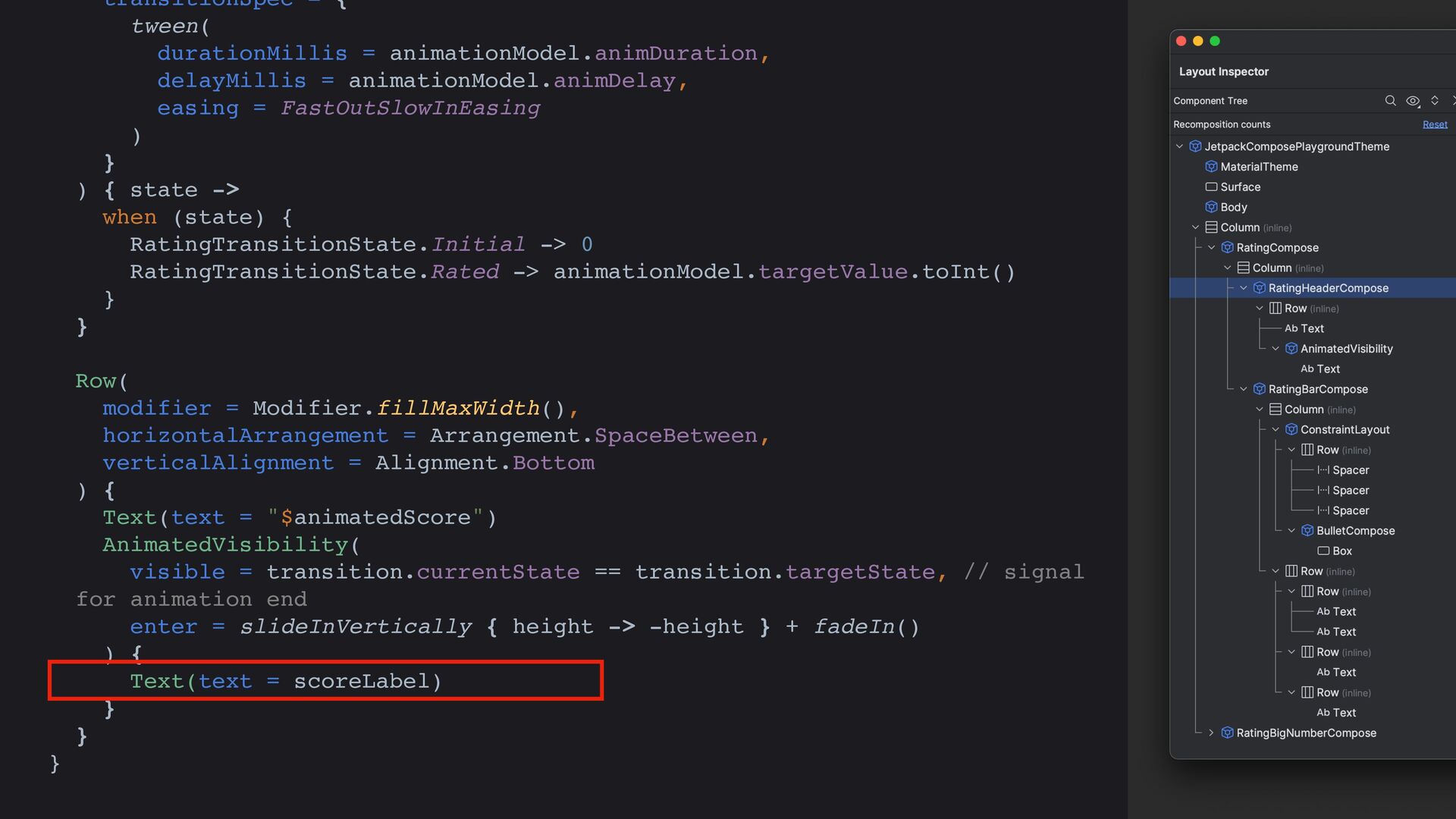

39. transitionSpec = {
    tween(
    durationMillis = animationModel.animDuration,
    delayMillis = animationModel.animDelay,
    easing = FastOutSlowInEasing
    )
    }
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated -> animationModel.targetValue.toInt()
    }
    }
    Row(
    modifier = Modifier.fillMaxWidth(),
    horizontalArrangement = Arrangement.SpaceBetween,
    verticalAlignment = Alignment.Bottom
    ) {
    Text(text = "$animatedScore")
    AnimatedVisibility(
    visible = transition.currentState == transition.targetState, // signal
    for animation end
    enter = slideInVertically { height -> -height } + fadeIn()
    ) {
    Text(text = scoreLabel)
    }
    }
    }


    View Slide

40. @Composable
    internal fun RatingHeaderCompose


    View Slide

41. @Composable
    fun RatingCompose
    @Composable
    internal fun RatingHeaderCompose
    @Composable
    internal fun RatingBarCompose


    View Slide

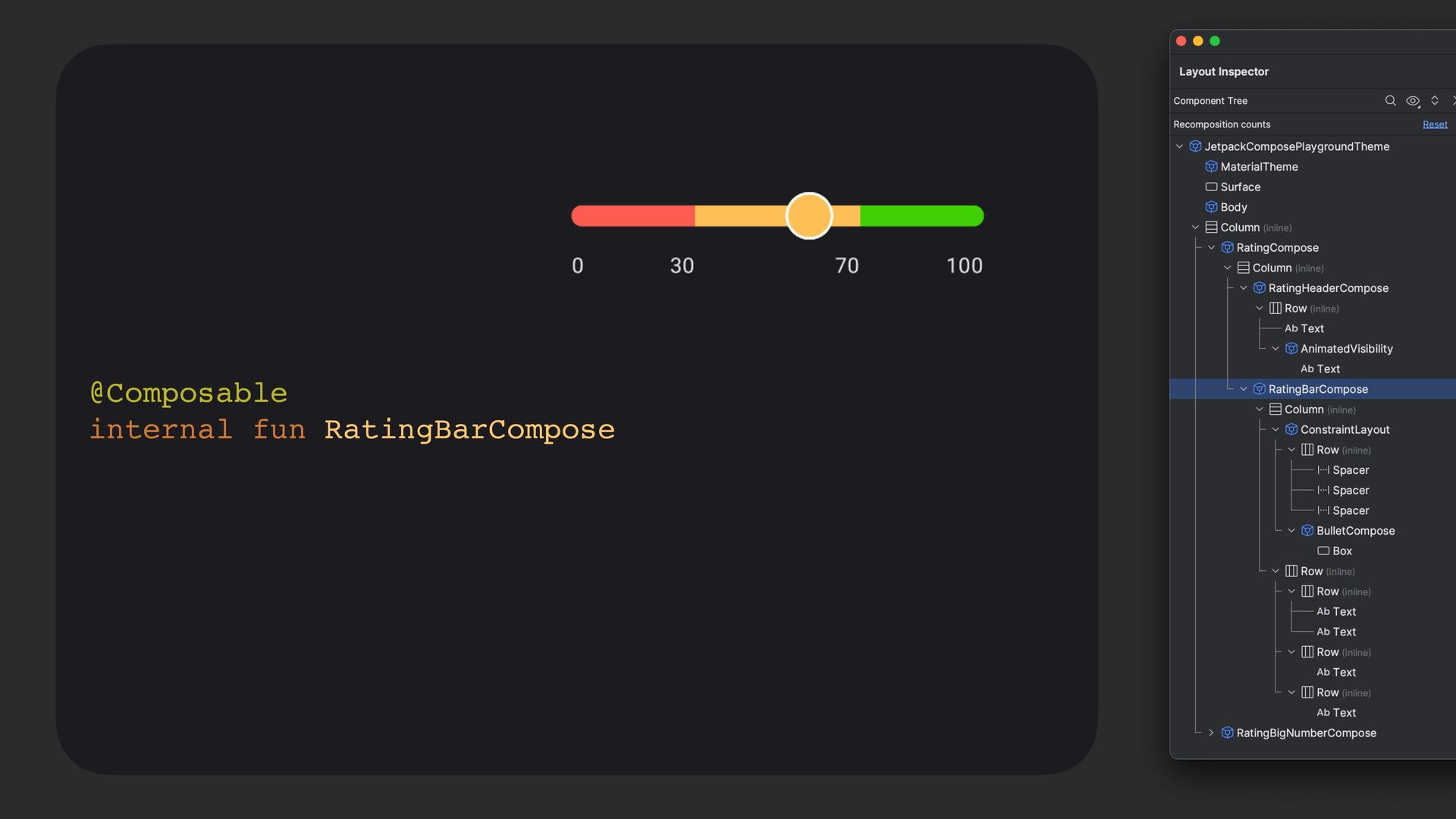

42. @Composable
    internal fun RatingBarCompose


    View Slide

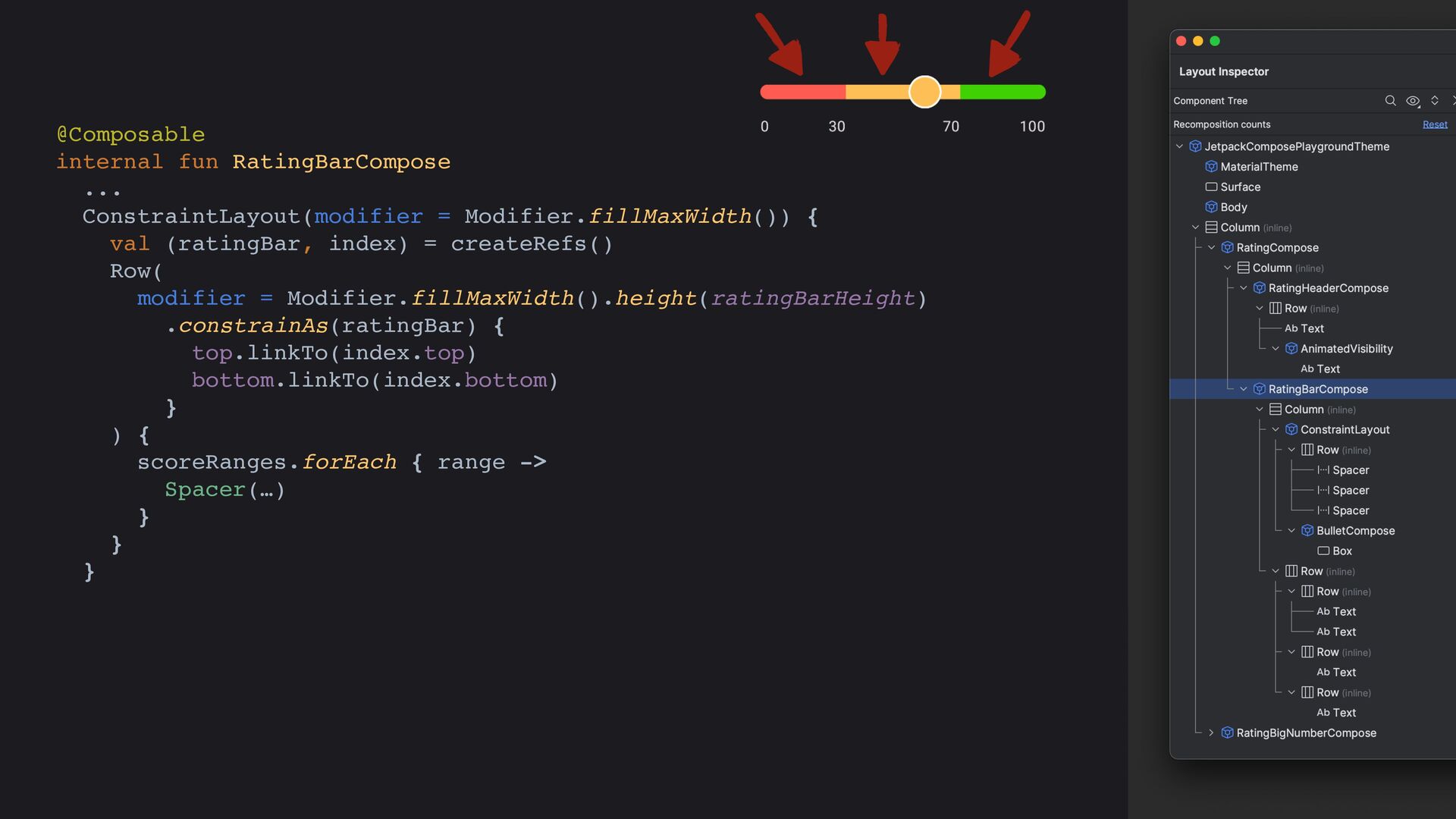

43. @Composable
    internal fun RatingBarCompose
    ...
    ConstraintLayout(modifier = Modifier.fillMaxWidth()) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier = Modifier.fillMaxWidth().height(ratingBarHeight)
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    scoreRanges.forEach { range ->
    Spacer(…)
    }
    }
    }
    Row(modifier = Modifier.fillMaxWidth().padding(top = defaultMarginS)) {
    scoreRanges.forEachIndexed { index, range ->
    Row(
    modifier = Modifier.weight(...),
    horizontalArrangement = if (index == 0) Arrangement.SpaceBetween else
    Arrangement.End
    ) {


    View Slide

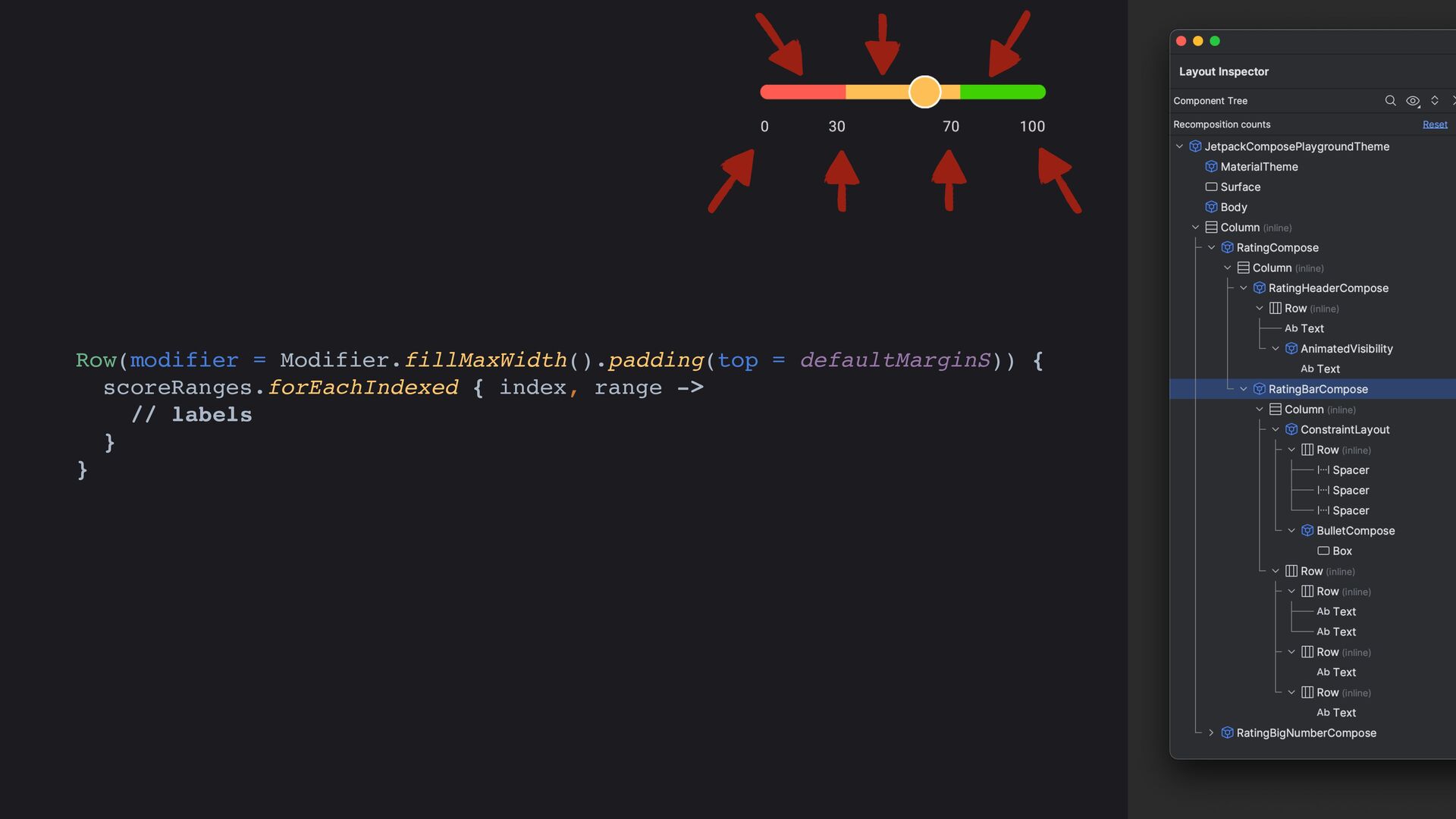

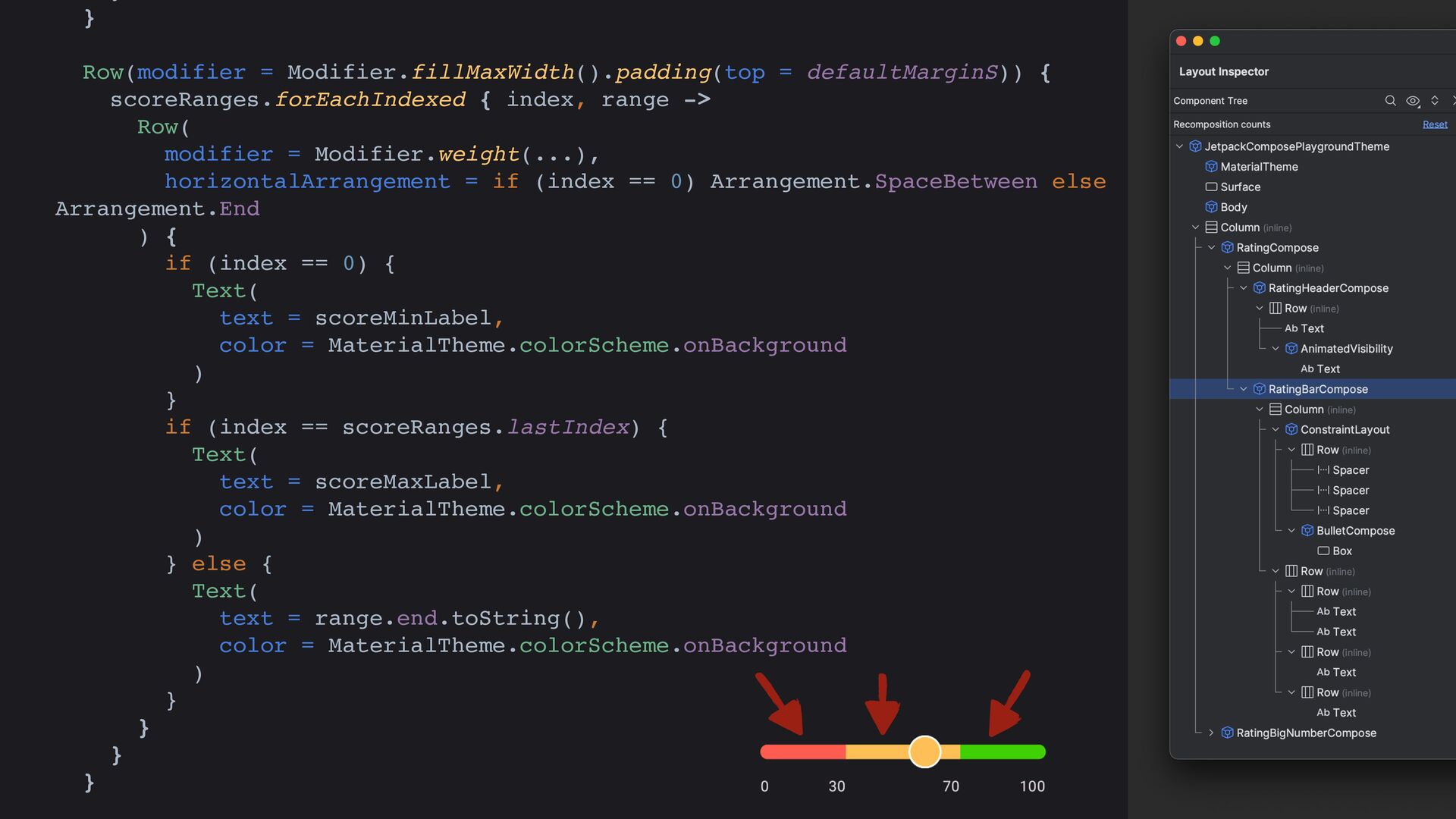

44. }
    Row(modifier = Modifier.fillMaxWidth().padding(top = defaultMarginS)) {
    scoreRanges.forEachIndexed { index, range ->
    Row(
    modifier = Modifier.weight(...),
    horizontalArrangement = if (index == 0) Arrangement.SpaceBetween else
    Arrangement.End
    ) {
    if (index == 0) {
    Text(
    text = scoreMinLabel,
    color = MaterialTheme.colorScheme.onBackground
    )
    }
    if (index == scoreRanges.lastIndex) {
    Text(
    text = scoreMaxLabel,
    color = MaterialTheme.colorScheme.onBackground
    )
    } else {
    Text(
    text = range.end.toString(),
    color = MaterialTheme.colorScheme.onBackground
    )
    }
    }
    }
    }


    View Slide

45. Row(modifier = Modifier.fillMaxWidth().padding(top = defaultMarginS)) {
    scoreRanges.forEachIndexed { index, range ->
    // labels
    }
    }


    View Slide

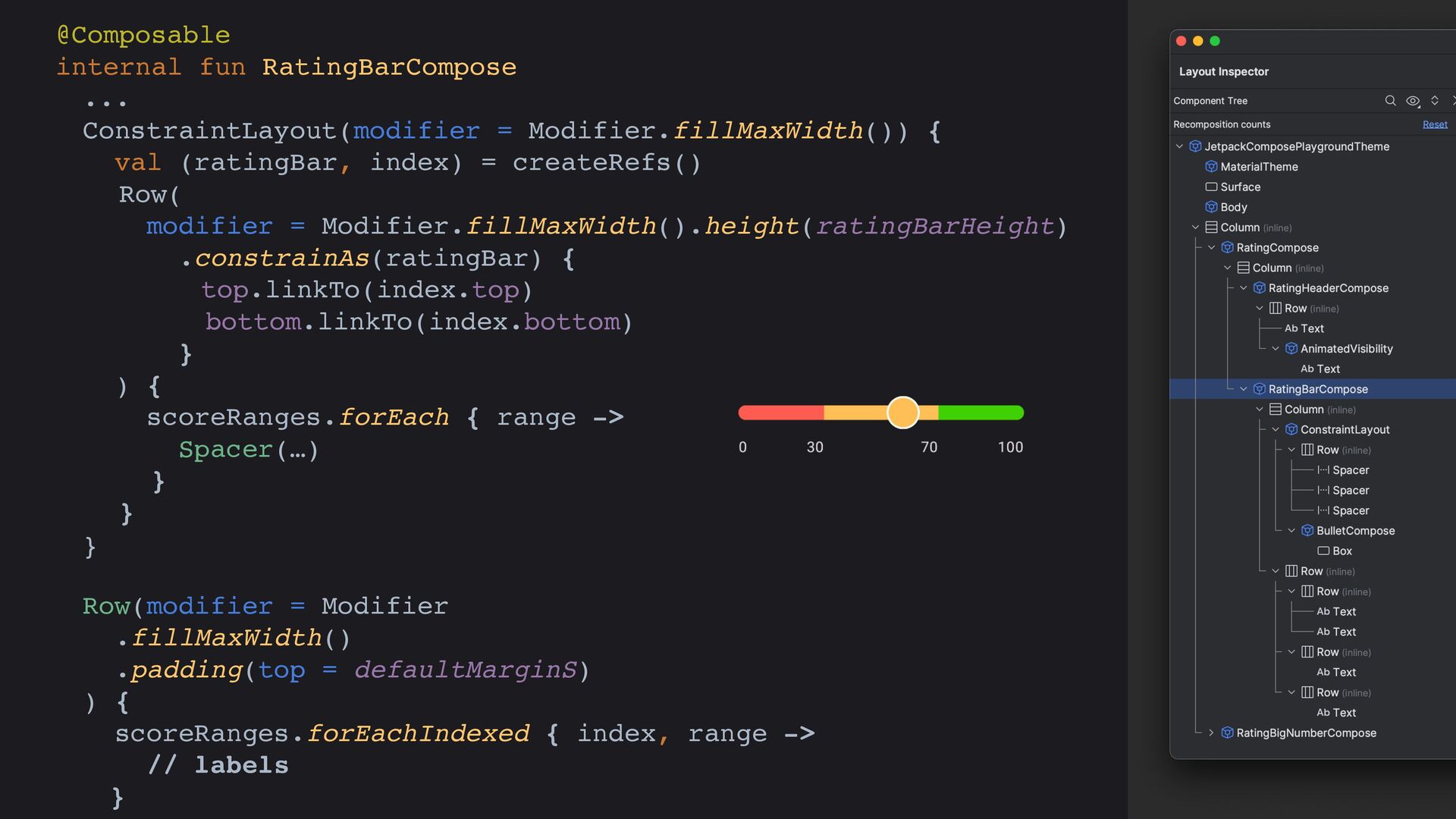

46. Row(modifier = Modifier
    .fillMaxWidth()
    .padding(top = defaultMarginS)
    ) {
    scoreRanges.forEachIndexed { index, range ->
    // labels
    }
    @Composable
    internal fun RatingBarCompose
    ...
    ConstraintLayout(modifier = Modifier.fillMaxWidth()) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier = Modifier.fillMaxWidth().height(ratingBarHeight)
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    scoreRanges.forEach { range ->
    Spacer(…)
    }
    }
    }


    View Slide

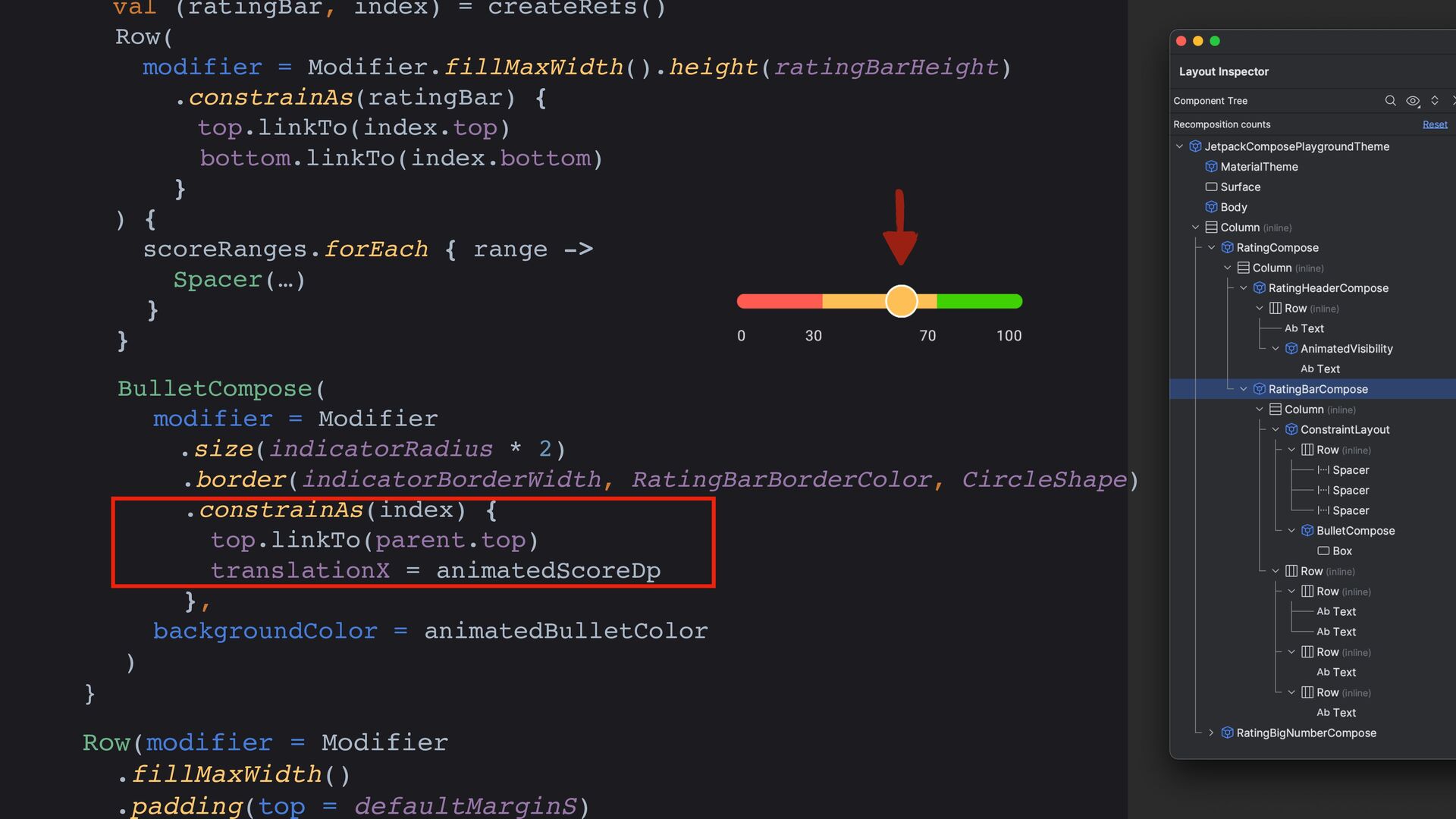

47. BulletCompose(
    modifier = Modifier
    .size(indicatorRadius * 2)
    .border(indicatorBorderWidth, RatingBarBorderColor, CircleShape)
    .constrainAs(index) {
    top.linkTo(parent.top)
    translationX = animatedScoreDp
    },
    backgroundColor = animatedBulletColor
    )
    val (ratingBar, index) = createRefs()
    Row(
    modifier = Modifier.fillMaxWidth().height(ratingBarHeight)
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    scoreRanges.forEach { range ->
    Spacer(…)
    }
    }
    }
    Row(modifier = Modifier
    .fillMaxWidth()
    .padding(top = defaultMarginS)


    View Slide

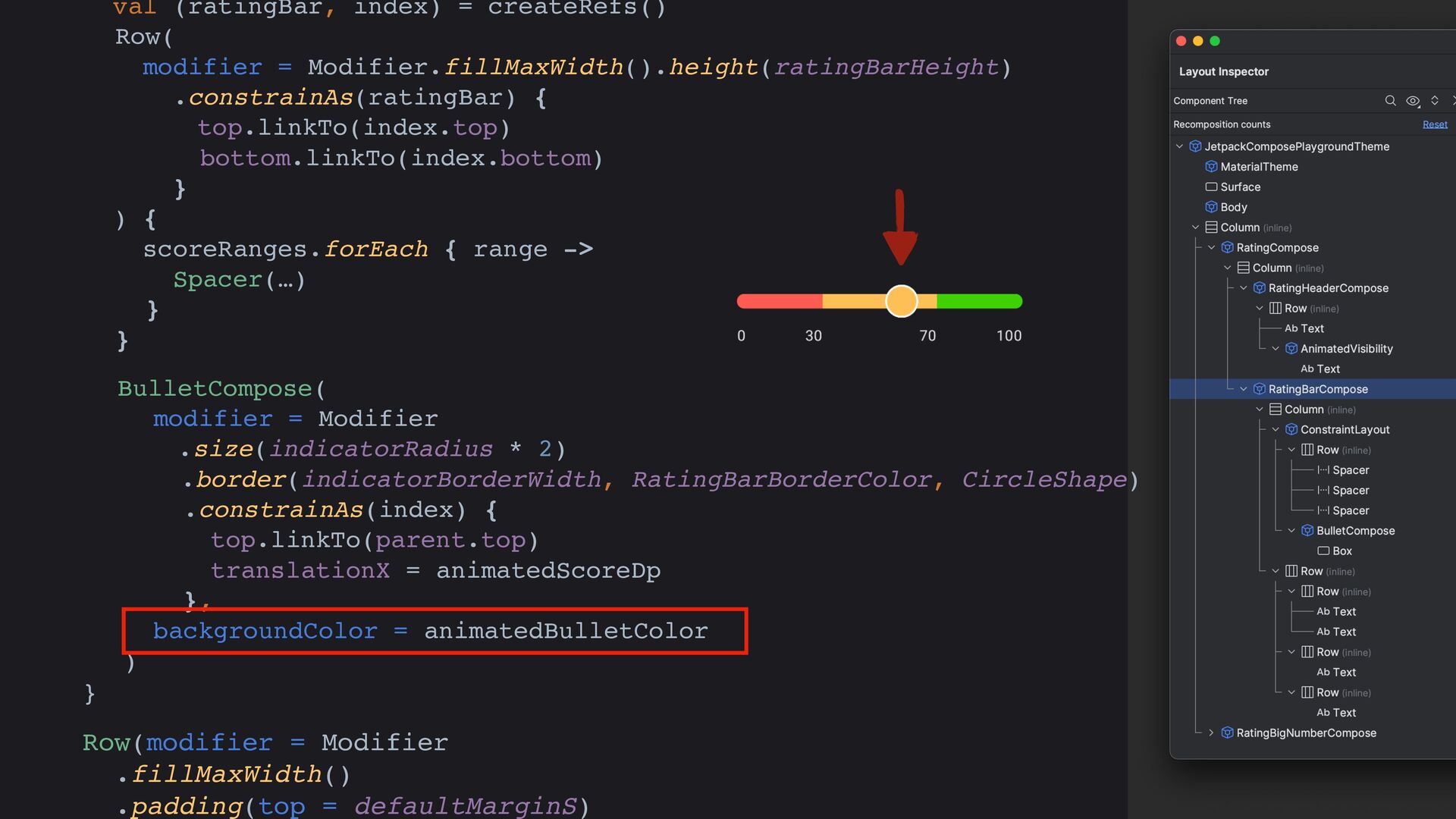

48. BulletCompose(
    modifier = Modifier
    .size(indicatorRadius * 2)
    .border(indicatorBorderWidth, RatingBarBorderColor, CircleShape)
    .constrainAs(index) {
    top.linkTo(parent.top)
    translationX = animatedScoreDp
    },
    backgroundColor = animatedBulletColor
    )
    val (ratingBar, index) = createRefs()
    Row(
    modifier = Modifier.fillMaxWidth().height(ratingBarHeight)
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    scoreRanges.forEach { range ->
    Spacer(…)
    }
    }
    }
    Row(modifier = Modifier
    .fillMaxWidth()
    .padding(top = defaultMarginS)


    View Slide

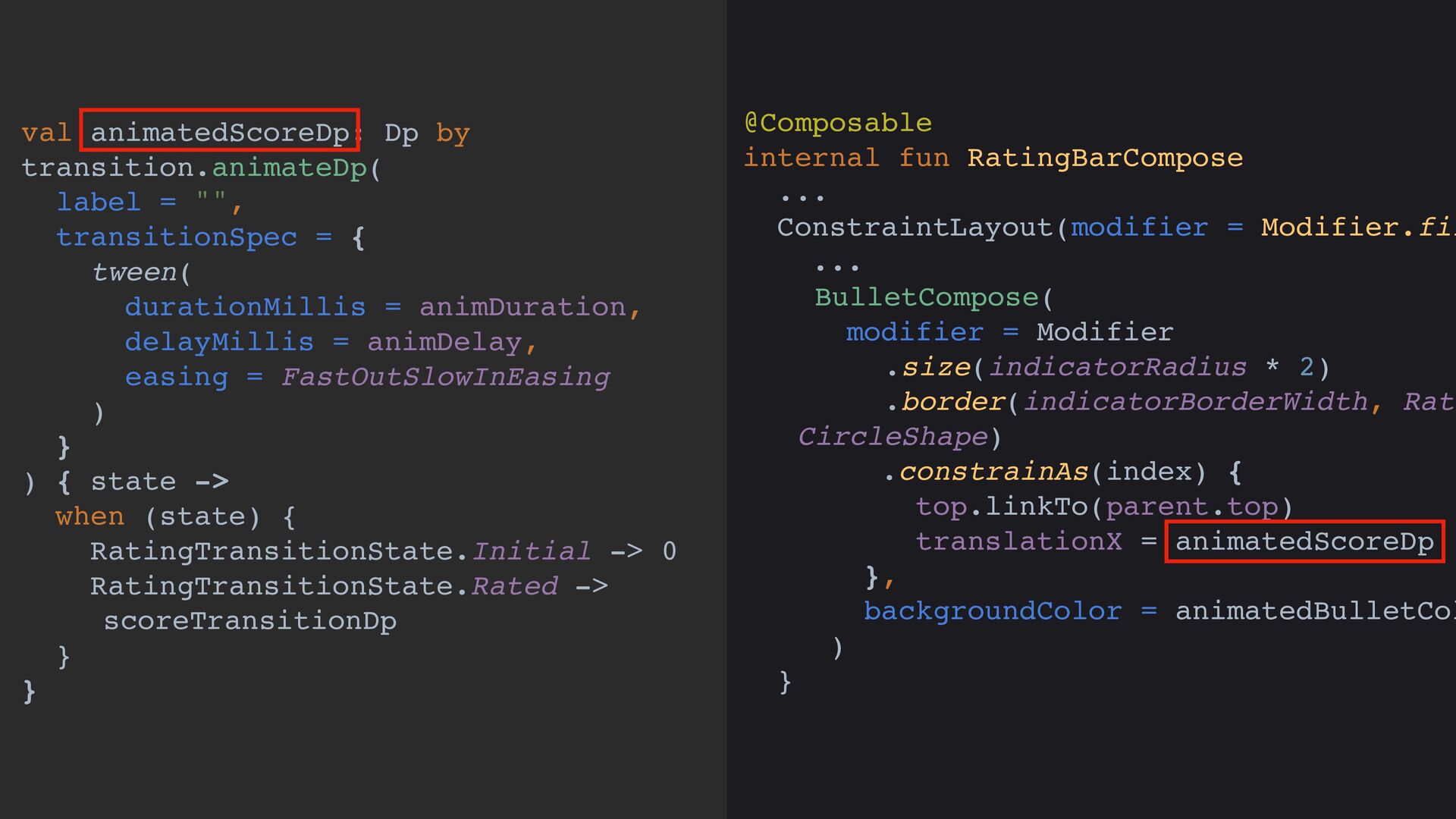

49. val animatedScoreDp: Dp by
    transition.animateDp(
    label = "",
    transitionSpec = {
    tween(
    durationMillis = animDuration,
    delayMillis = animDelay,
    easing = FastOutSlowInEasing
    )
    }
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    @Composable
    internal fun RatingBarCompose
    ...
    ConstraintLayout(modifier = Modifier.fil
    ...
    BulletCompose(
    modifier = Modifier
    .size(indicatorRadius * 2)
    .border(indicatorBorderWidth, Rati
    CircleShape)
    .constrainAs(index) {
    top.linkTo(parent.top)
    translationX = animatedScoreDp
    },
    backgroundColor = animatedBulletCol
    )
    }


    View Slide

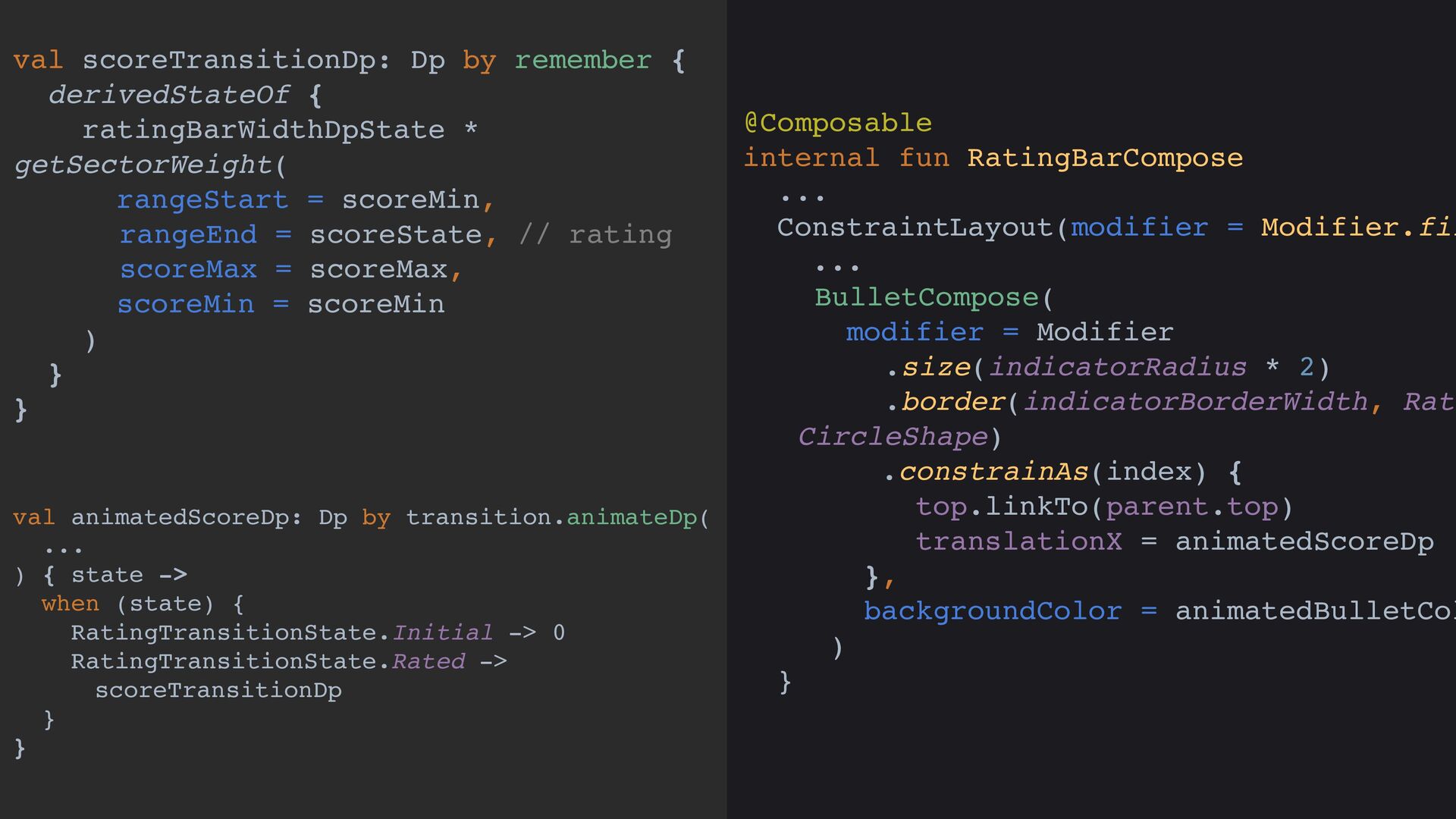

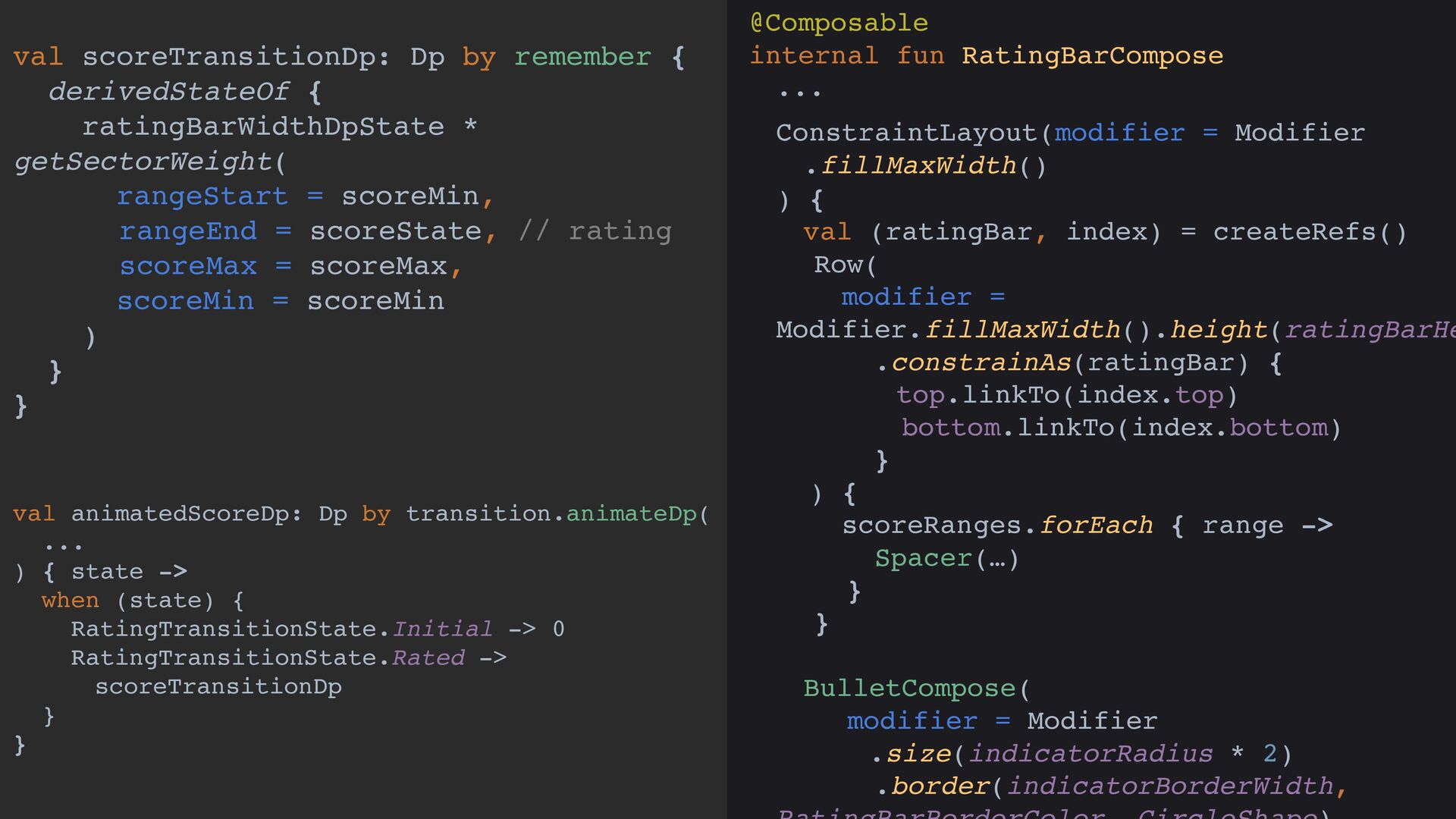

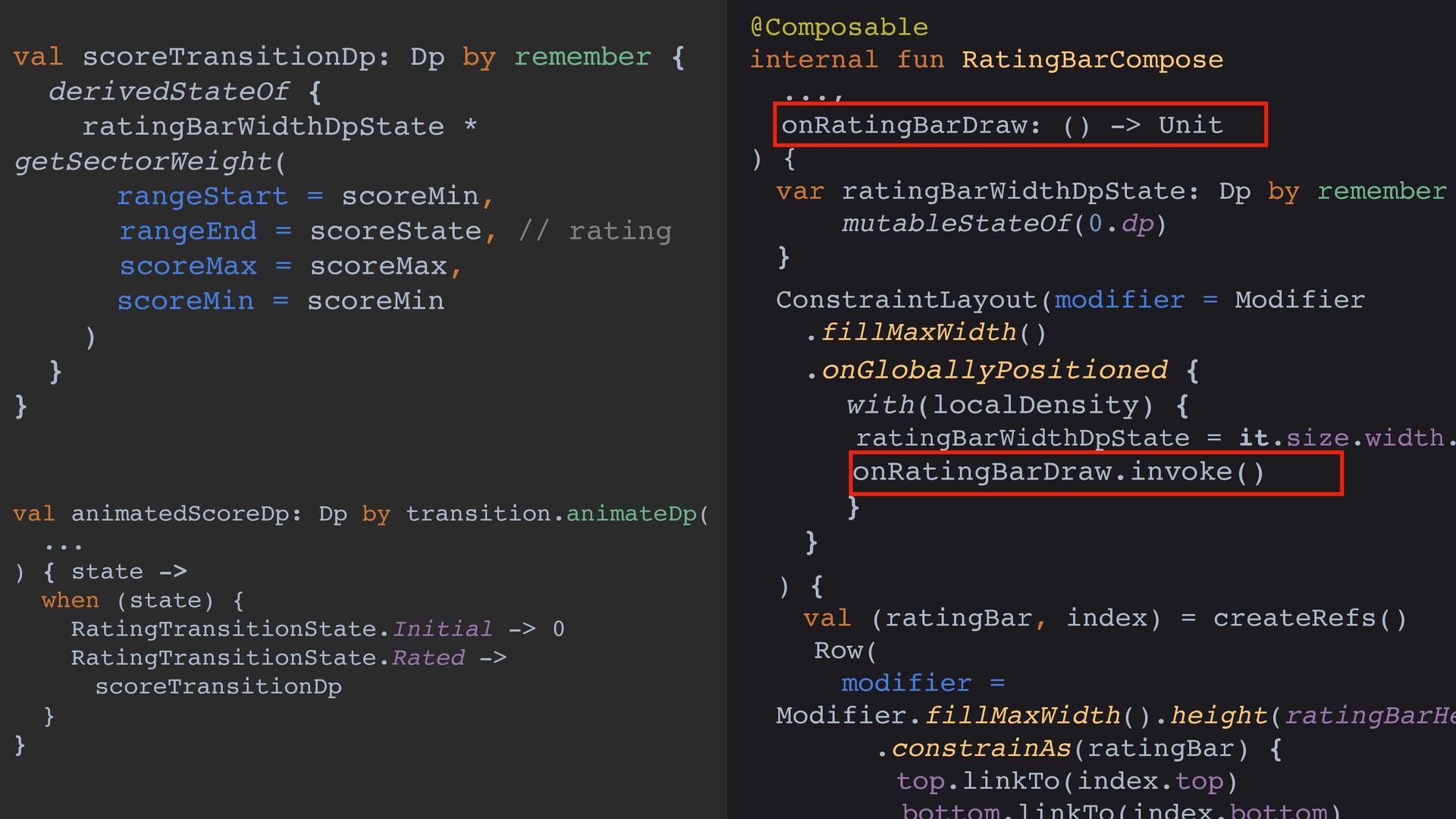

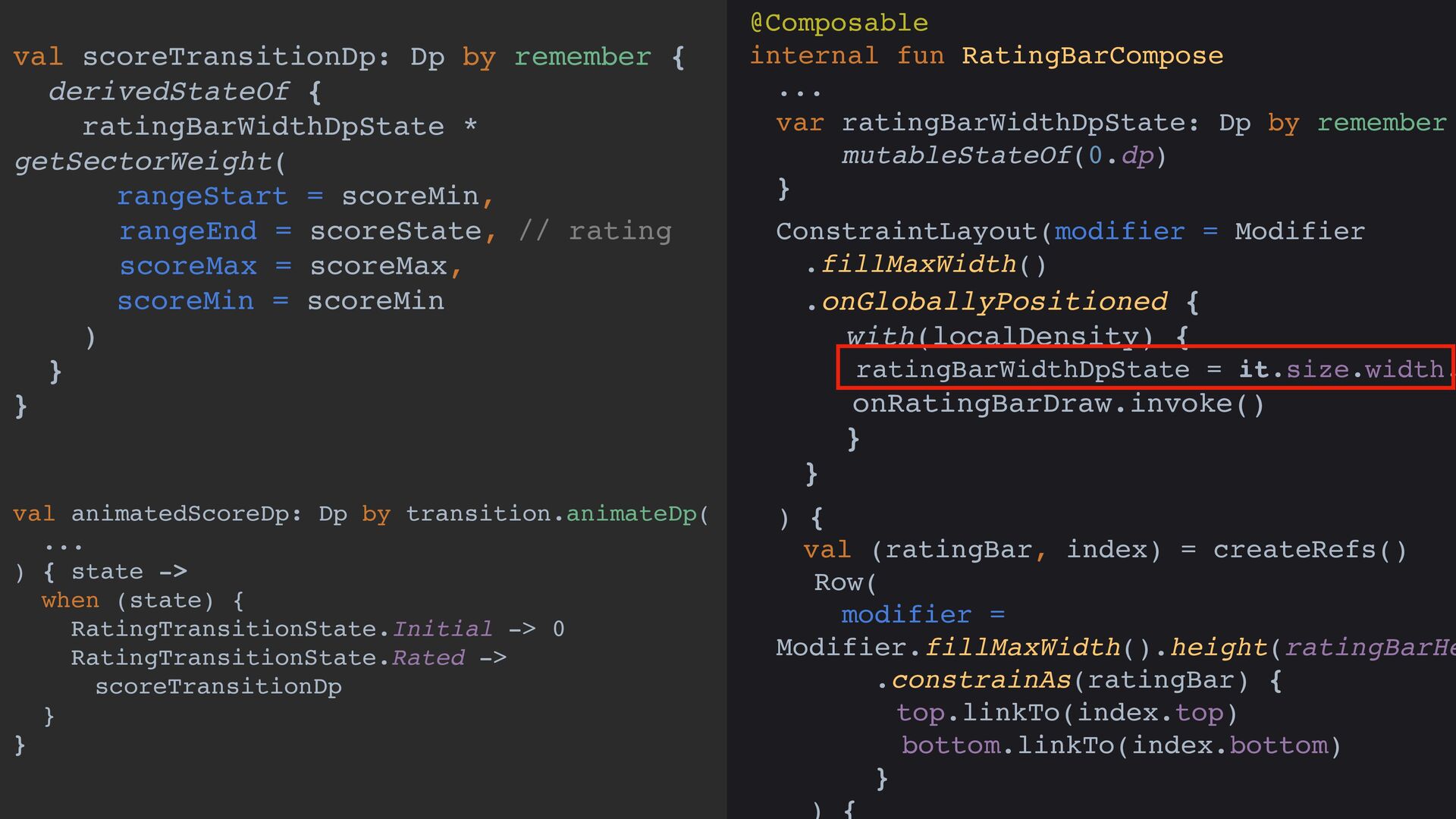

50. val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    @Composable
    internal fun RatingBarCompose
    ...
    ConstraintLayout(modifier = Modifier.fil
    ...
    BulletCompose(
    modifier = Modifier
    .size(indicatorRadius * 2)
    .border(indicatorBorderWidth, Rati
    CircleShape)
    .constrainAs(index) {
    top.linkTo(parent.top)
    translationX = animatedScoreDp
    },
    backgroundColor = animatedBulletCol
    )
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }


    View Slide

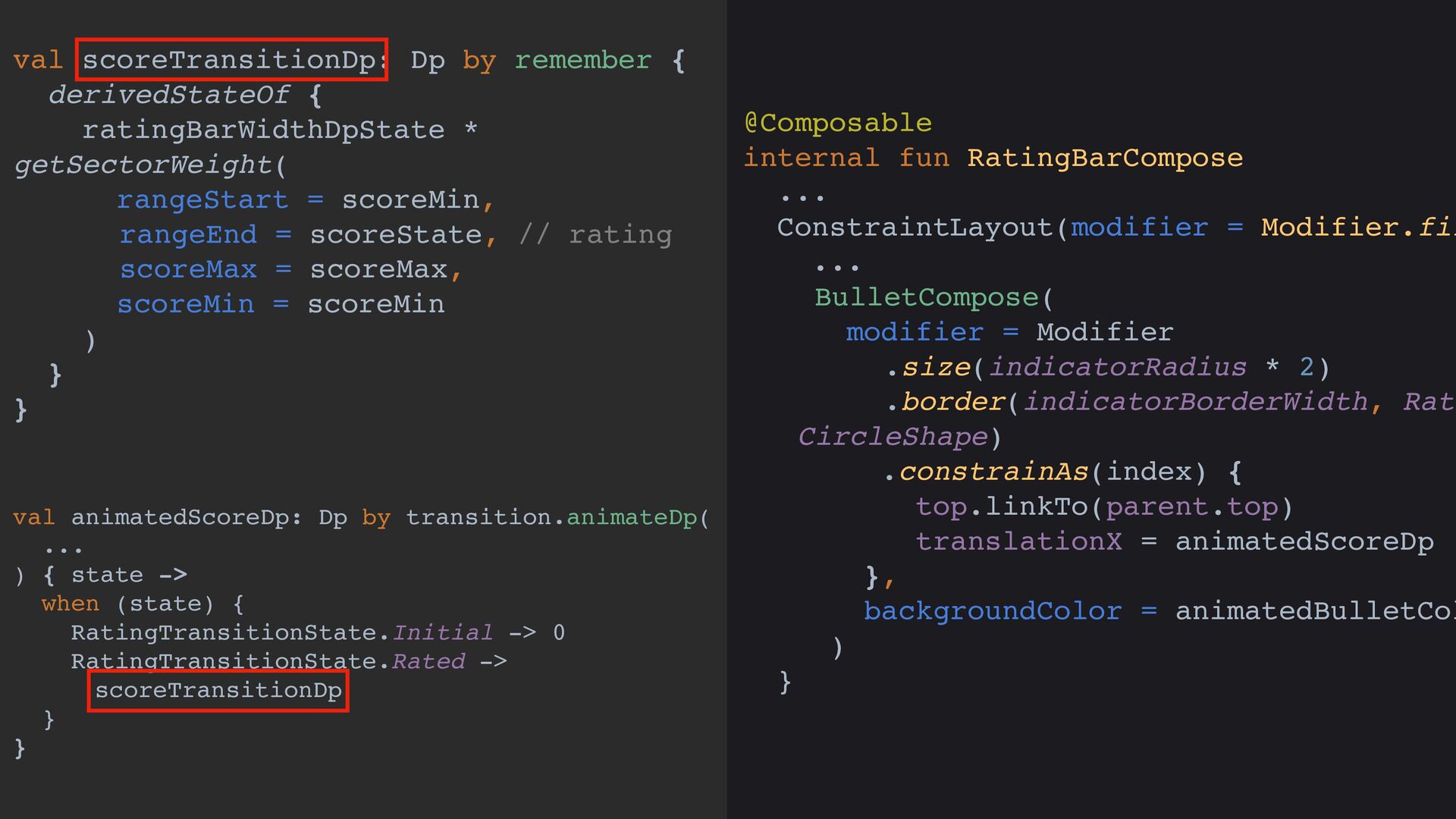

51. @Composable
    internal fun RatingBarCompose
    ...
    ConstraintLayout(modifier = Modifier.fil
    ...
    BulletCompose(
    modifier = Modifier
    .size(indicatorRadius * 2)
    .border(indicatorBorderWidth, Rati
    CircleShape)
    .constrainAs(index) {
    top.linkTo(parent.top)
    translationX = animatedScoreDp
    },
    backgroundColor = animatedBulletCol
    )
    }
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }


    View Slide

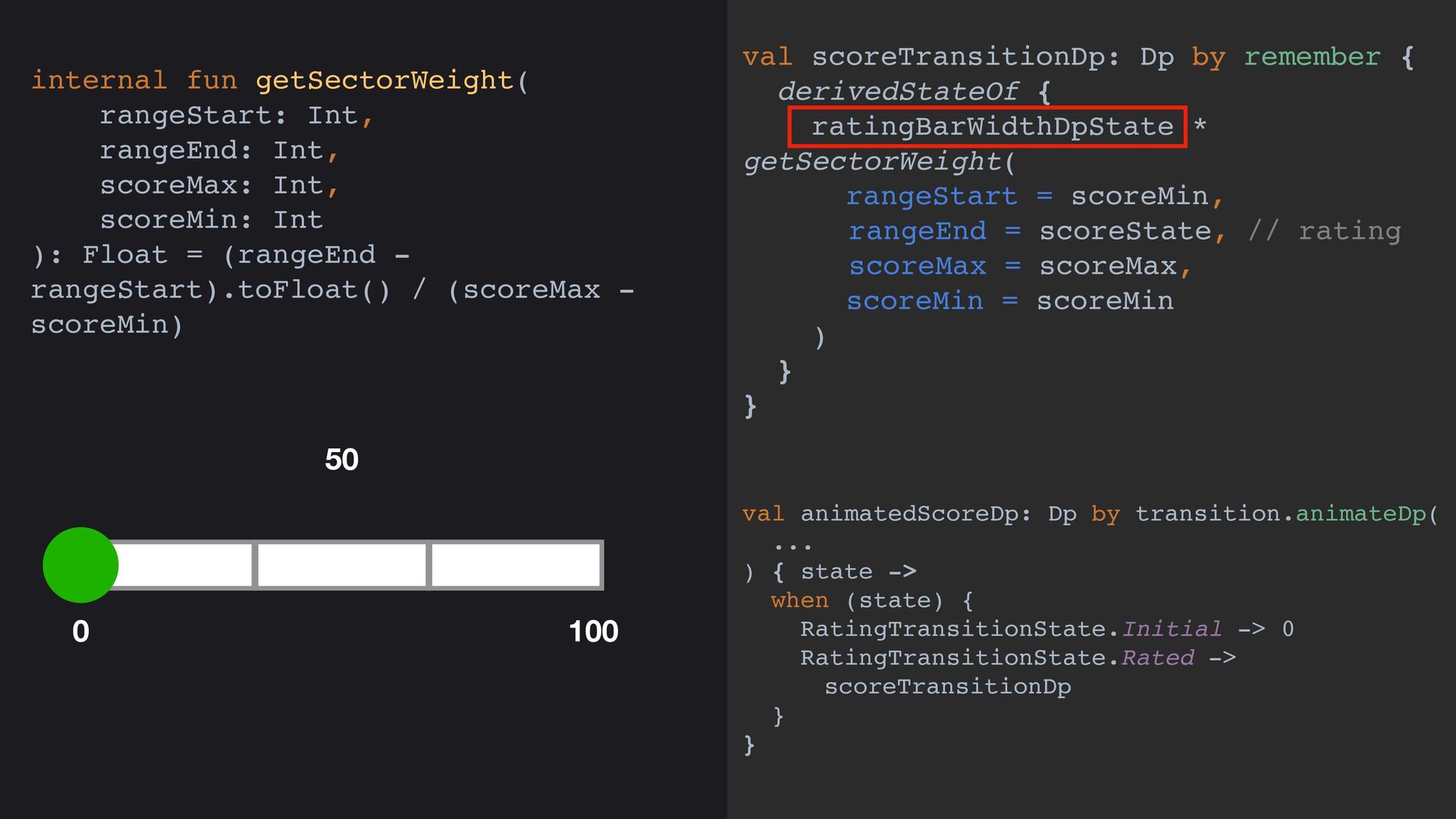

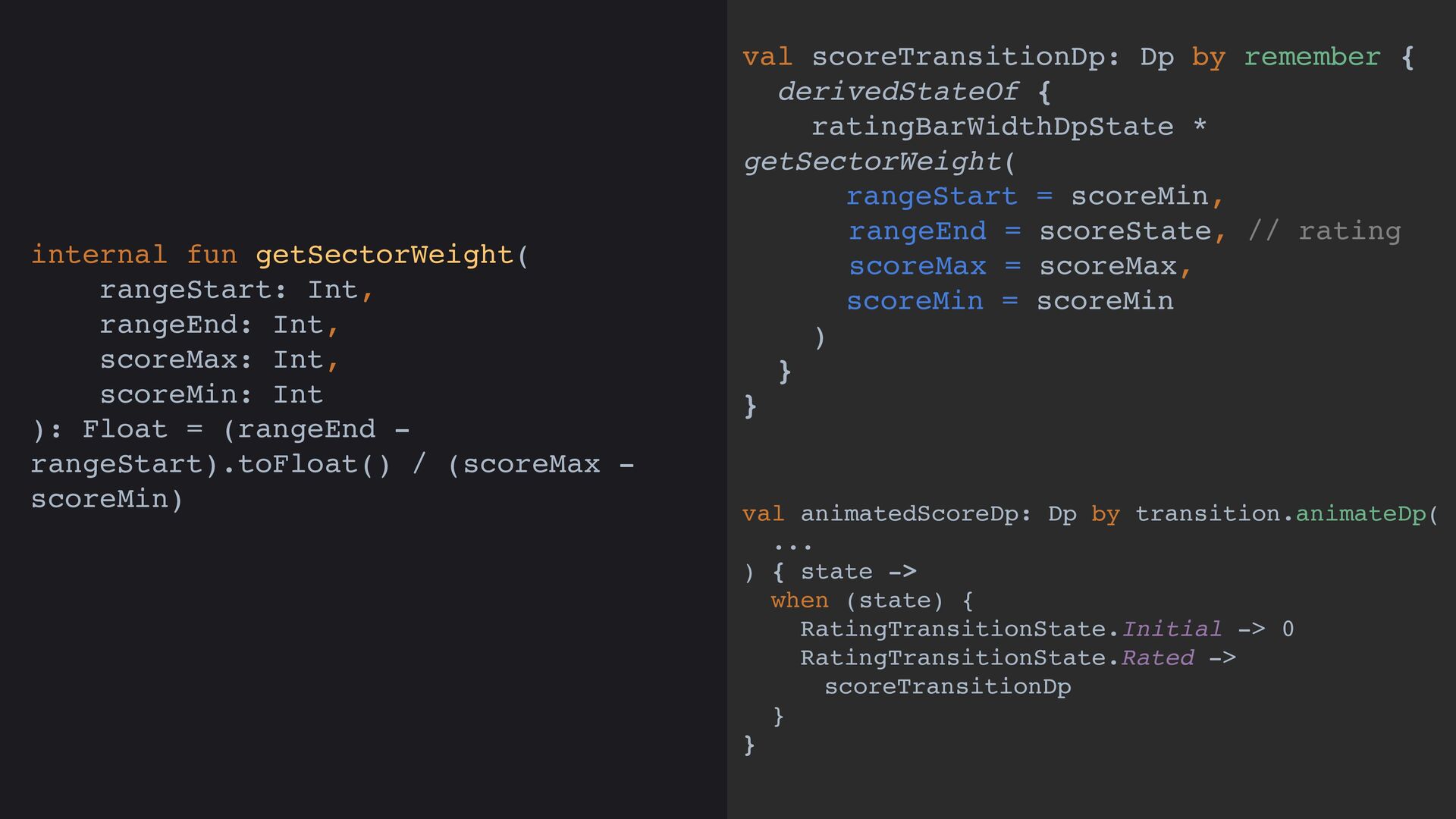

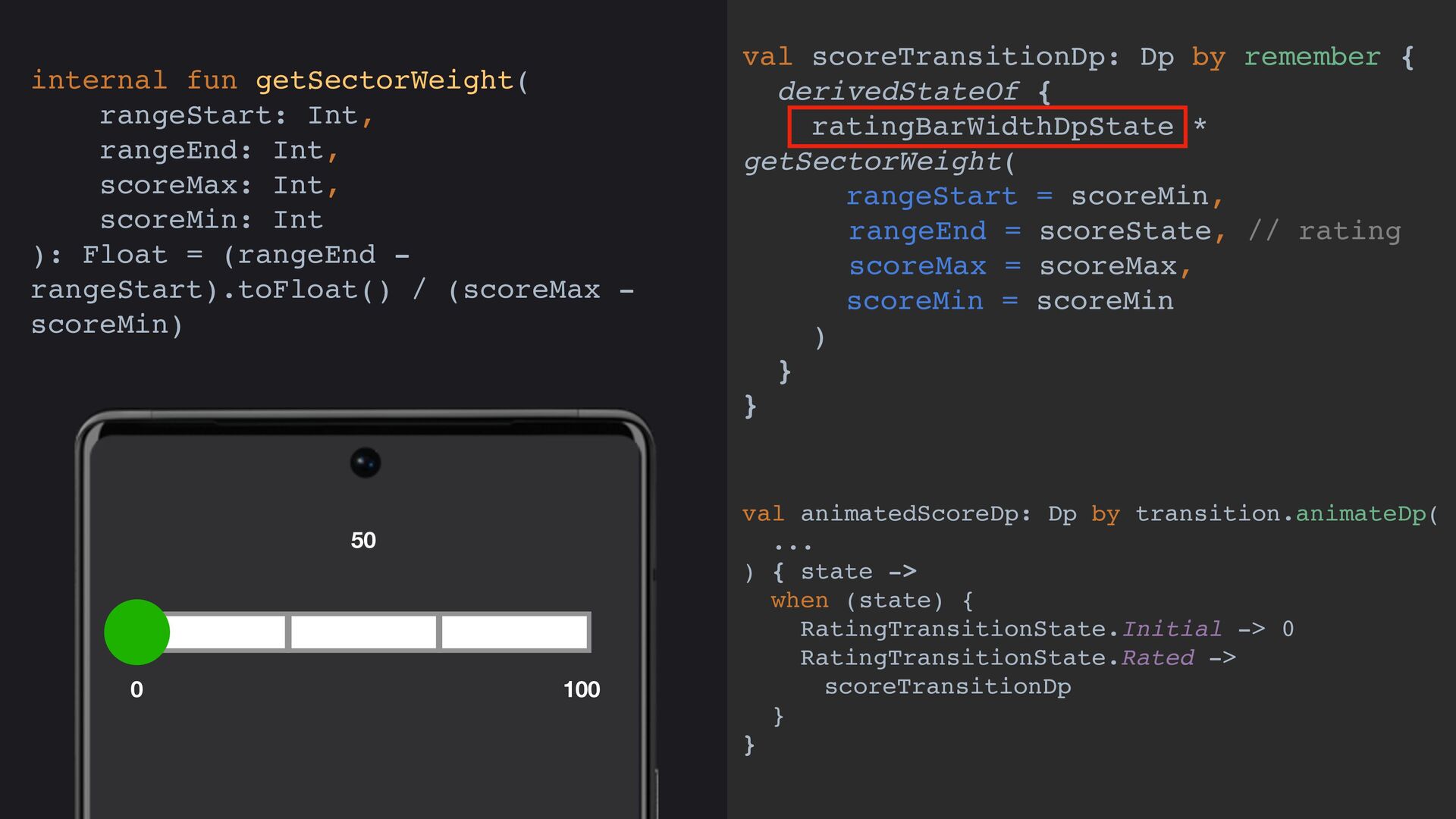

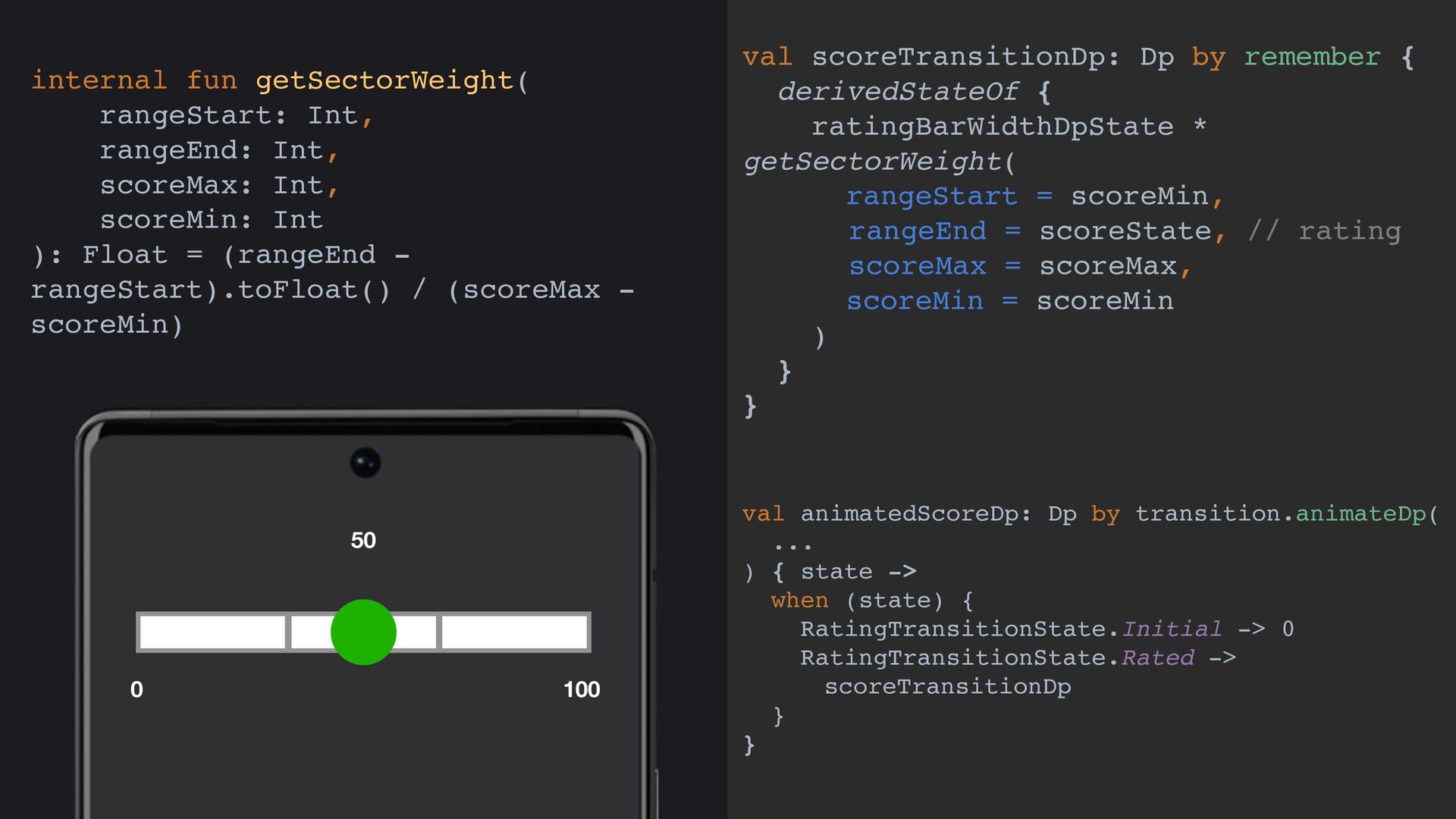

52. internal fun getSectorWeight(
    rangeStart: Int,
    rangeEnd: Int,
    scoreMax: Int,
    scoreMin: Int
    ): Float = (rangeEnd -
    rangeStart).toFloat() / (scoreMax -
    scoreMin)
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }


    View Slide

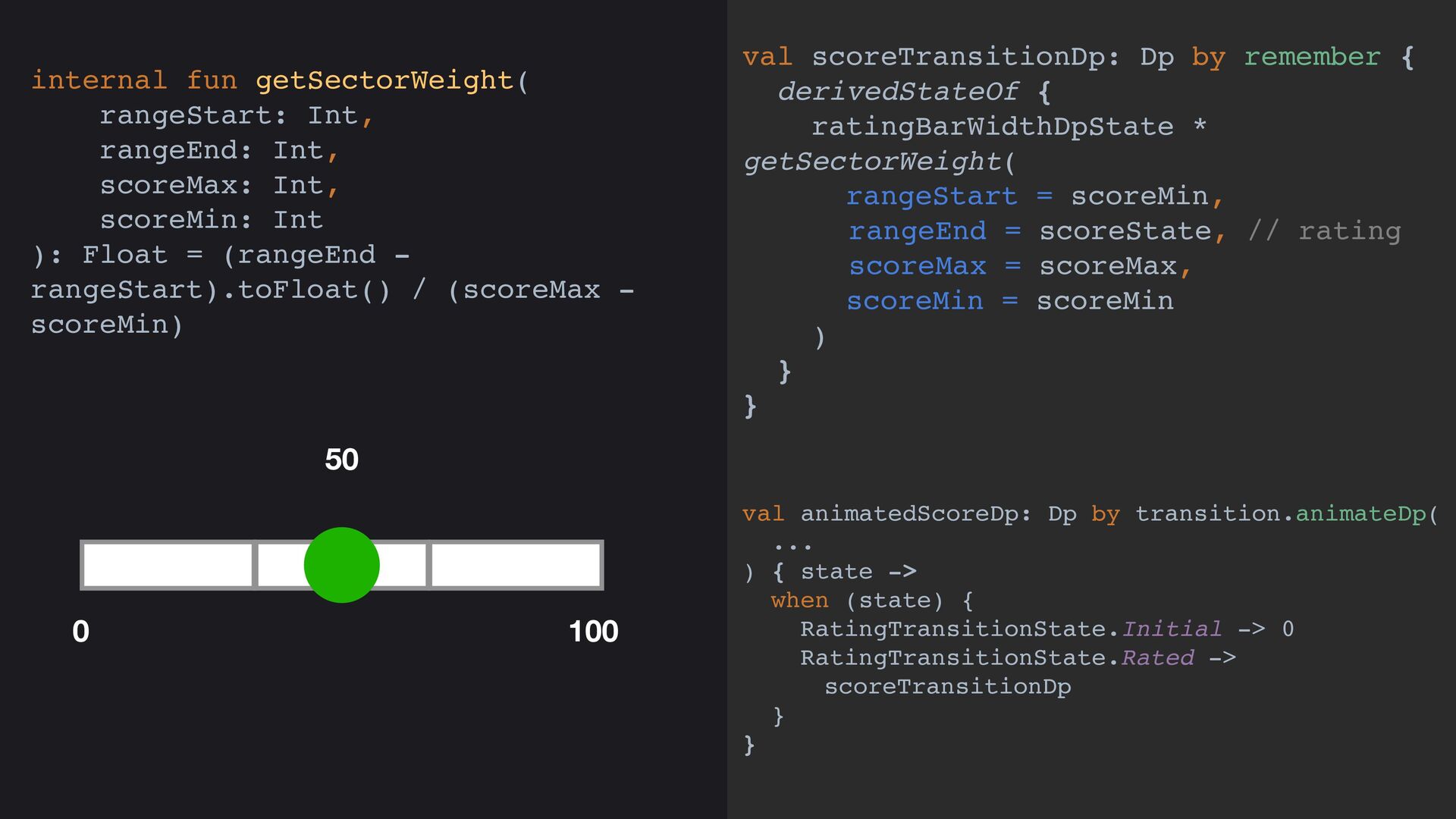

53. 0 100
    50
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    internal fun getSectorWeight(
    rangeStart: Int,
    rangeEnd: Int,
    scoreMax: Int,
    scoreMin: Int
    ): Float = (rangeEnd -
    rangeStart).toFloat() / (scoreMax -
    scoreMin)


    View Slide

54. 0 100
    50
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    internal fun getSectorWeight(
    rangeStart: Int,
    rangeEnd: Int,
    scoreMax: Int,
    scoreMin: Int
    ): Float = (rangeEnd -
    rangeStart).toFloat() / (scoreMax -
    scoreMin)


    View Slide

55. val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    0 100
    50
    internal fun getSectorWeight(
    rangeStart: Int,
    rangeEnd: Int,
    scoreMax: Int,
    scoreMin: Int
    ): Float = (rangeEnd -
    rangeStart).toFloat() / (scoreMax -
    scoreMin)


    View Slide

56. 0 100
    50
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    internal fun getSectorWeight(
    rangeStart: Int,
    rangeEnd: Int,
    scoreMax: Int,
    scoreMin: Int
    ): Float = (rangeEnd -
    rangeStart).toFloat() / (scoreMax -
    scoreMin)


    View Slide

57. 0 100
    50
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    internal fun getSectorWeight(
    rangeStart: Int,
    rangeEnd: Int,
    scoreMax: Int,
    scoreMin: Int
    ): Float = (rangeEnd -
    rangeStart).toFloat() / (scoreMax -
    scoreMin)


    View Slide

58. @Composable
    internal fun RatingBarCompose
    ...
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    ) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier =
    Modifier.fillMaxWidth().height(ratingBarHe
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    scoreRanges.forEach { range ->
    Spacer(…)
    }
    }
    BulletCompose(
    modifier = Modifier
    .size(indicatorRadius * 2)
    .border(indicatorBorderWidth,
    ConstraintLayout(modifier = Modifier
    .fillMaxWidth()


    View Slide

59. var ratingBarWidthDpState: Dp by remember
    mutableStateOf(0.dp)
    }
    ) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier =
    Modifier.fillMaxWidth().height(ratingBarHe
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    scoreRanges.forEach { range ->
    Spacer(…)
    }
    }
    BulletCompose(
    @Composable
    internal fun RatingBarCompose
    ...
    ConstraintLayout(modifier = Modifier
    .fillMaxWidth()
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }


    View Slide

60. .onGloballyPositioned {
    with(localDensity) {
    ratingBarWidthDpState = it.size.width.
    onRatingBarDraw.invoke()
    }
    }
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    var ratingBarWidthDpState: Dp by remember
    mutableStateOf(0.dp)
    }
    @Composable
    internal fun RatingBarCompose
    ...
    ConstraintLayout(modifier = Modifier
    .fillMaxWidth()
    ) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier =
    Modifier.fillMaxWidth().height(ratingBarHe
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {


    View Slide

61. val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    var ratingBarWidthDpState: Dp by remember
    mutableStateOf(0.dp)
    }
    @Composable
    internal fun RatingBarCompose
    ...
    ConstraintLayout(modifier = Modifier
    .fillMaxWidth()
    ) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier =
    Modifier.fillMaxWidth().height(ratingBarHe
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    .onGloballyPositioned {
    with(localDensity) {
    ratingBarWidthDpState = it.size.width.
    onRatingBarDraw.invoke()
    }
    }


    View Slide

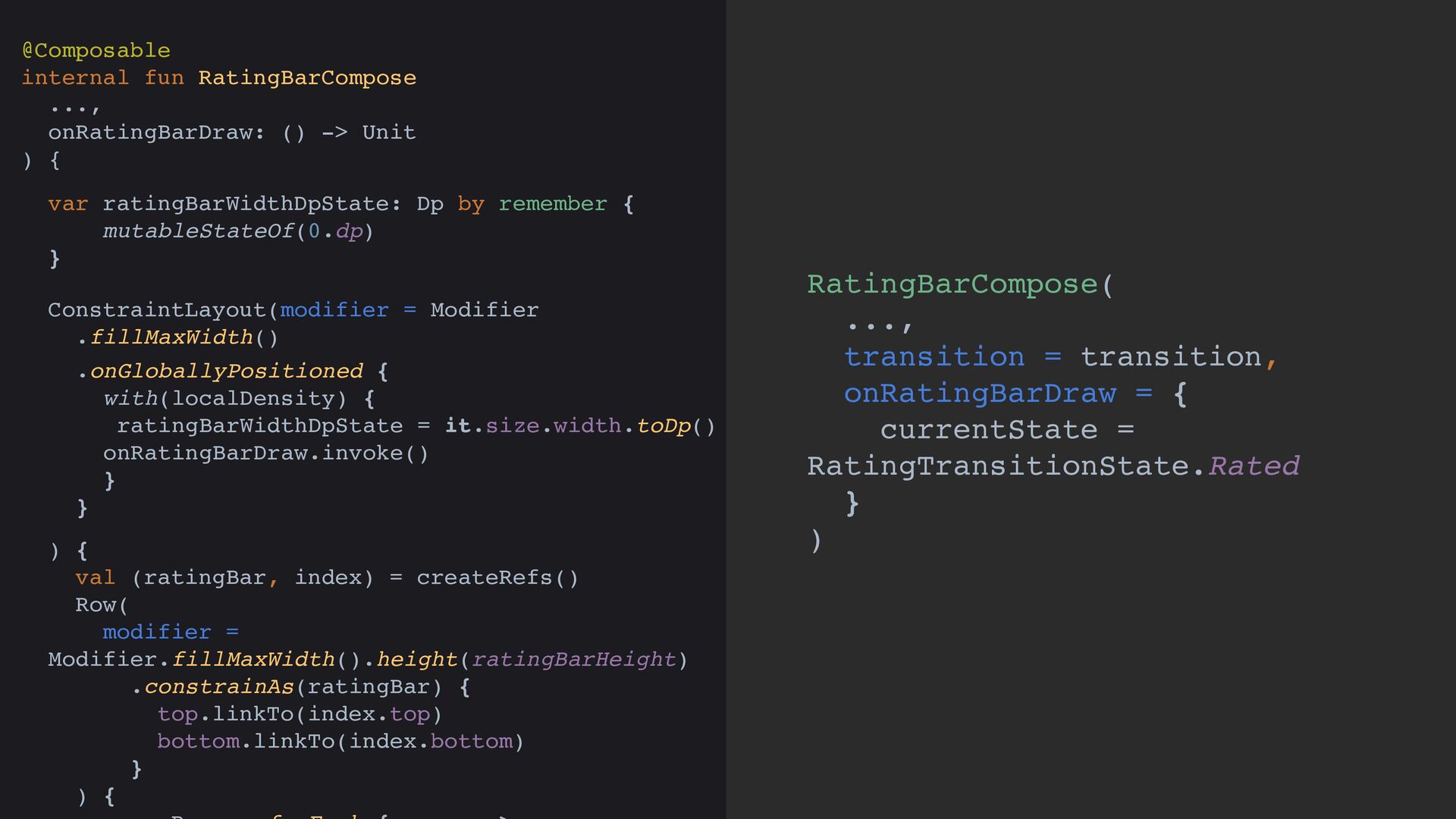

62. @Composable
    internal fun RatingBarCompose
    ...,
    onRatingBarDraw: () -> Unit
    ) {
    var ratingBarWidthDpState: Dp by remember
    mutableStateOf(0.dp)
    }
    ConstraintLayout(modifier = Modifier
    .fillMaxWidth()
    ) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier =
    Modifier.fillMaxWidth().height(ratingBarHe
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    val scoreTransitionDp: Dp by remember {
    derivedStateOf {
    ratingBarWidthDpState *
    getSectorWeight(
    rangeStart = scoreMin,
    rangeEnd = scoreState, // rating
    scoreMax = scoreMax,
    scoreMin = scoreMin
    )
    }
    }
    val animatedScoreDp: Dp by transition.animateDp(
    ...
    ) { state ->
    when (state) {
    RatingTransitionState.Initial -> 0
    RatingTransitionState.Rated ->
    scoreTransitionDp
    }
    }
    .onGloballyPositioned {
    with(localDensity) {
    ratingBarWidthDpState = it.size.width.
    onRatingBarDraw.invoke()
    }
    }


    View Slide

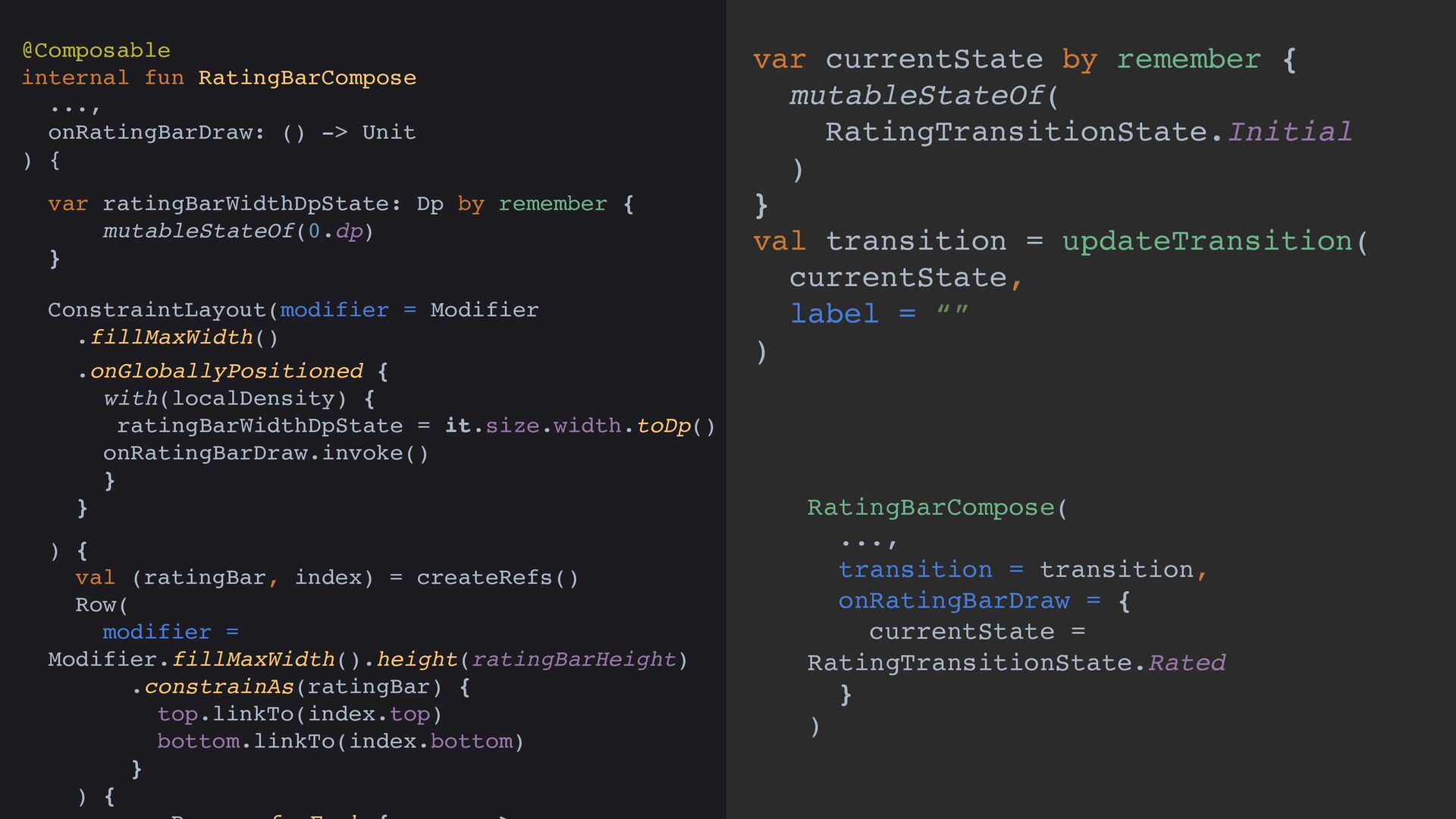

63. RatingBarCompose(
    ...,
    transition = transition,
    onRatingBarDraw = {
    currentState =
    RatingTransitionState.Rated
    }
    )
    @Composable
    internal fun RatingBarCompose
    ...,
    onRatingBarDraw: () -> Unit
    ) {
    var ratingBarWidthDpState: Dp by remember {
    mutableStateOf(0.dp)
    }
    ConstraintLayout(modifier = Modifier
    .fillMaxWidth()
    ) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier =
    Modifier.fillMaxWidth().height(ratingBarHeight)
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    .onGloballyPositioned {
    with(localDensity) {
    ratingBarWidthDpState = it.size.width.toDp()
    onRatingBarDraw.invoke()
    }
    }


    View Slide

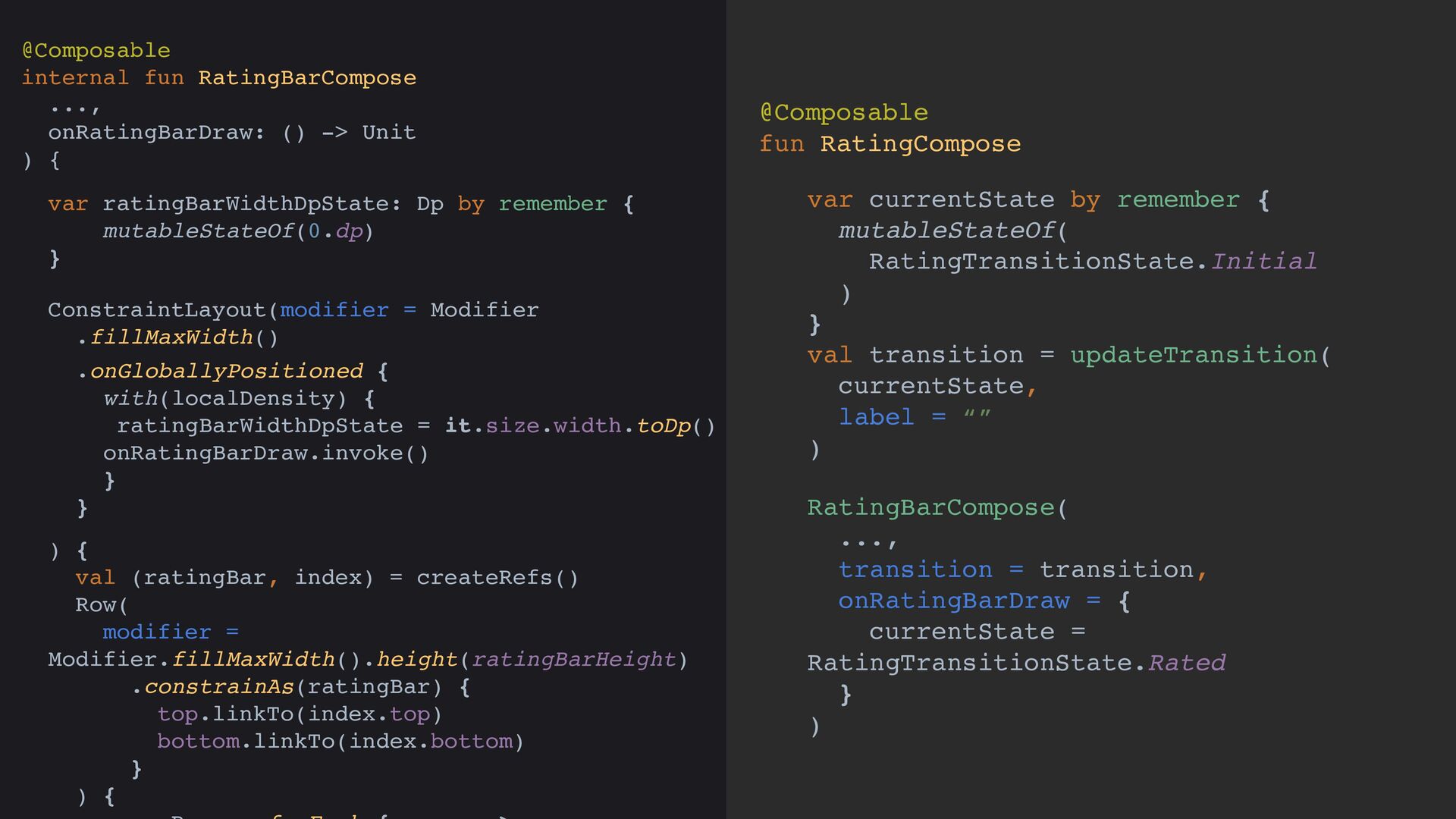

64. var currentState by remember {
    mutableStateOf(
    RatingTransitionState.Initial
    )
    }
    val transition = updateTransition(
    currentState,
    label = “”
    )
    RatingBarCompose(
    ...,
    transition = transition,
    onRatingBarDraw = {
    currentState =
    RatingTransitionState.Rated
    }
    )
    @Composable
    internal fun RatingBarCompose
    ...,
    onRatingBarDraw: () -> Unit
    ) {
    var ratingBarWidthDpState: Dp by remember {
    mutableStateOf(0.dp)
    }
    ConstraintLayout(modifier = Modifier
    .fillMaxWidth()
    ) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier =
    Modifier.fillMaxWidth().height(ratingBarHeight)
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    .onGloballyPositioned {
    with(localDensity) {
    ratingBarWidthDpState = it.size.width.toDp()
    onRatingBarDraw.invoke()
    }
    }


    View Slide

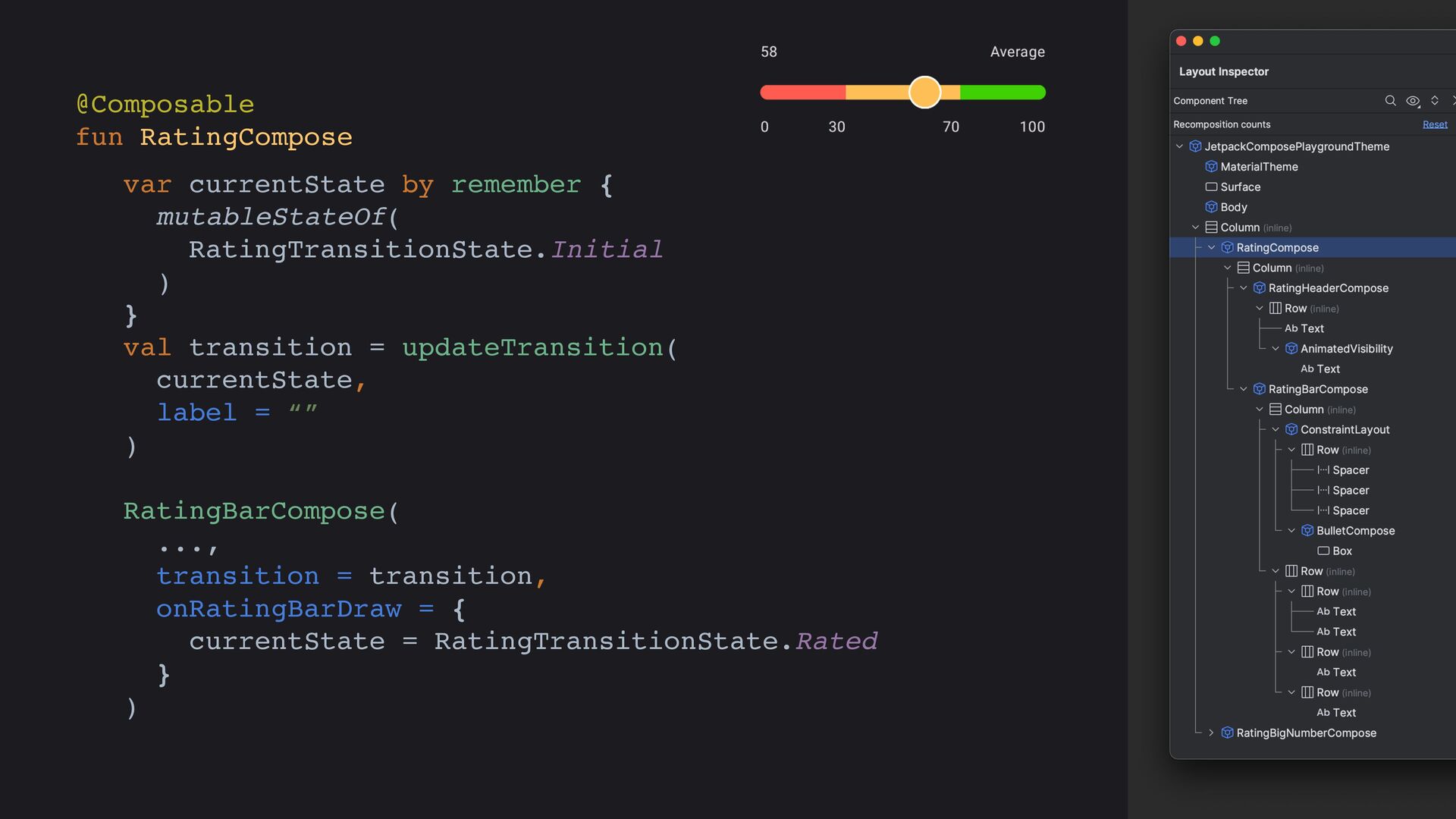

65. @Composable
    fun RatingCompose
    @Composable
    internal fun RatingBarCompose
    ...,
    onRatingBarDraw: () -> Unit
    ) {
    var ratingBarWidthDpState: Dp by remember {
    mutableStateOf(0.dp)
    }
    ConstraintLayout(modifier = Modifier
    .fillMaxWidth()
    ) {
    val (ratingBar, index) = createRefs()
    Row(
    modifier =
    Modifier.fillMaxWidth().height(ratingBarHeight)
    .constrainAs(ratingBar) {
    top.linkTo(index.top)
    bottom.linkTo(index.bottom)
    }
    ) {
    var currentState by remember {
    mutableStateOf(
    RatingTransitionState.Initial
    )
    }
    val transition = updateTransition(
    currentState,
    label = “”
    )
    RatingBarCompose(
    ...,
    transition = transition,
    onRatingBarDraw = {
    currentState =
    RatingTransitionState.Rated
    }
    )
    .onGloballyPositioned {
    with(localDensity) {
    ratingBarWidthDpState = it.size.width.toDp()
    onRatingBarDraw.invoke()
    }
    }


    View Slide

66. @Composable
    fun RatingCompose
    var currentState by remember {
    mutableStateOf(
    RatingTransitionState.Initial
    )
    }
    val transition = updateTransition(
    currentState,
    label = “”
    )
    RatingBarCompose(
    ...,
    transition = transition,
    onRatingBarDraw = {
    currentState = RatingTransitionState.Rated
    }
    )


    View Slide

67. @Composable
    fun RatingCompose


    View Slide

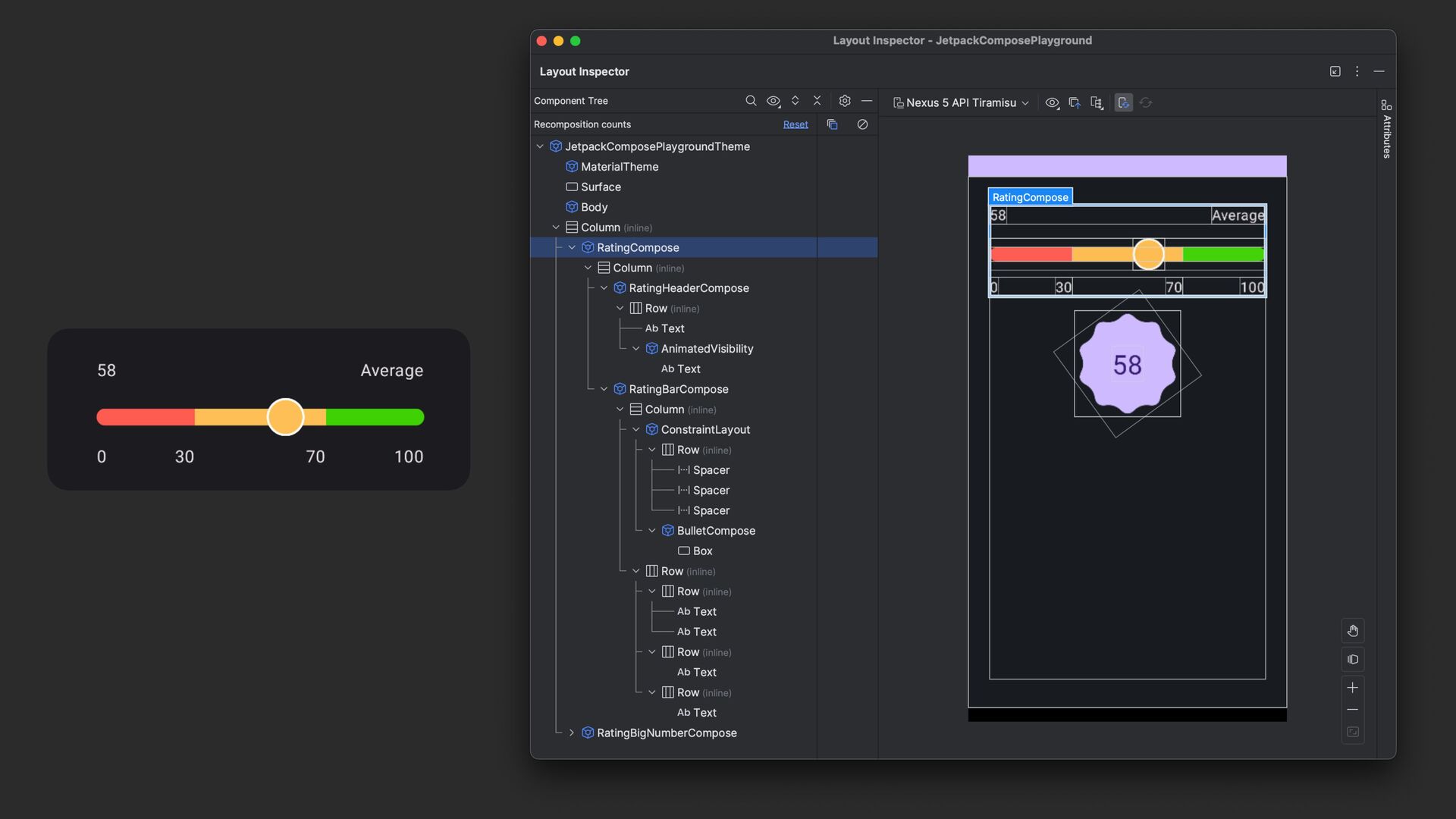

68. @Composable
    fun RatingCompose
    @Composable
    internal fun RatingHeaderCompose
    @Composable
    internal fun RatingBarCompose


    View Slide

69. View Slide

70. Today’s

    desired

    outcome


    View Slide

71. View Slide

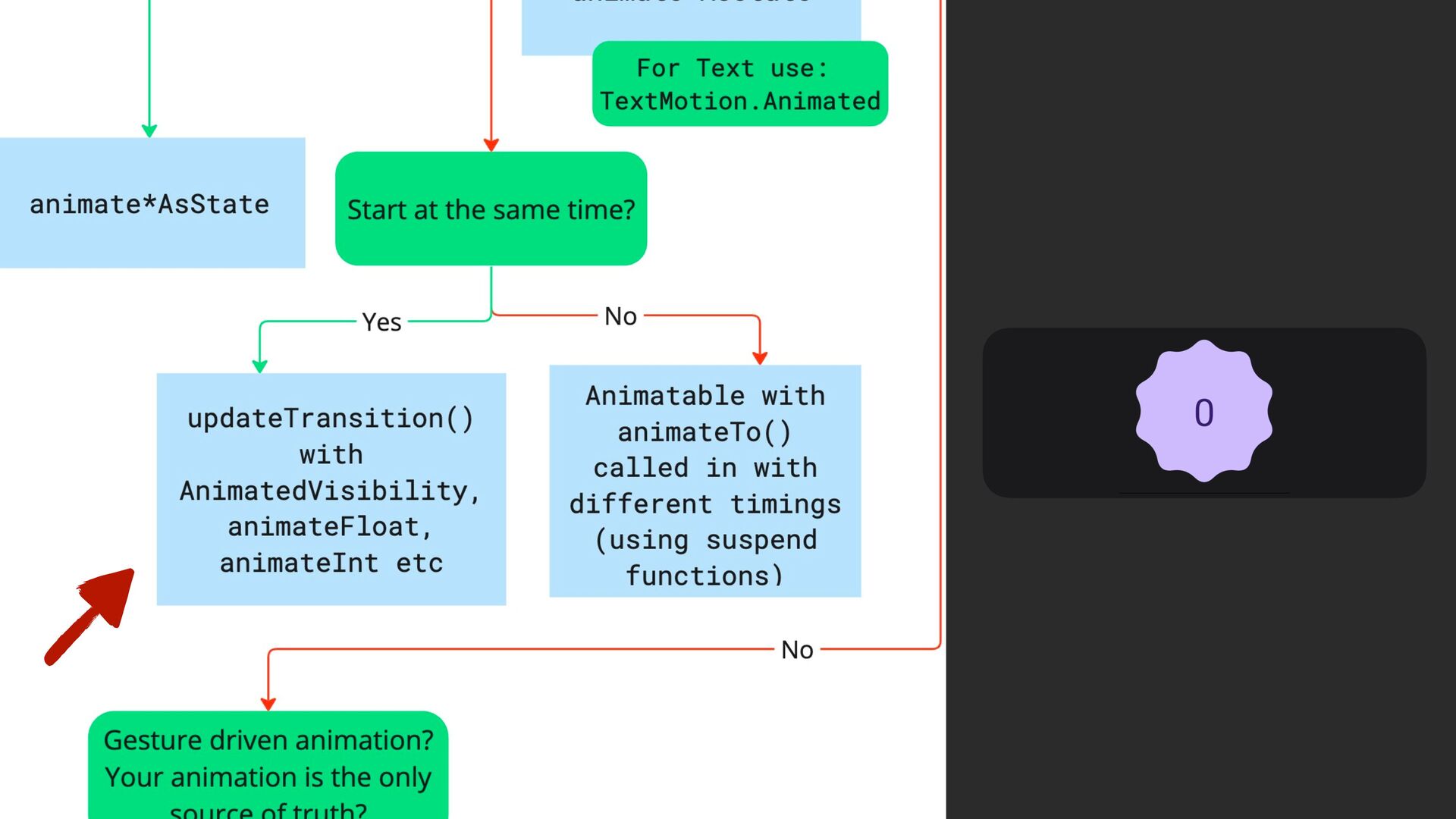

72. animateInt
    animateFloat


    View Slide

73. Choose your Animation
    developer.android.com/
    jetpack/compose/
    animation/resources


    View Slide

74. View Slide

75. View Slide

76. @Composable
    fun RatingBigNumberCompose
    @Composable
    internal fun BigNumberCanvas


    View Slide

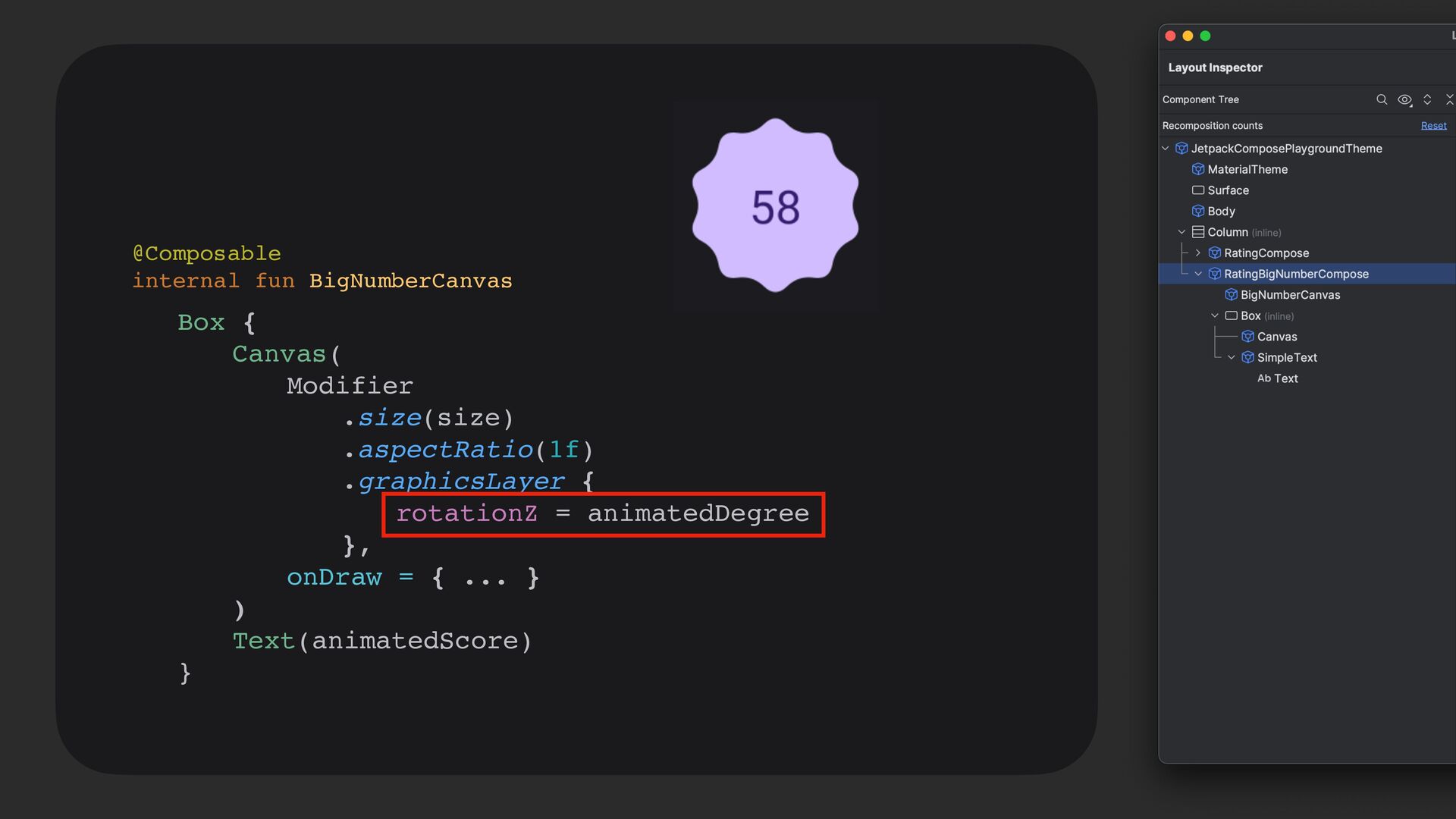

77. @Composable
    internal fun BigNumberCanvas
    Box {
    Canvas(
    Modifier
    .size(size)
    .aspectRatio(1f)
    .graphicsLayer {
    rotationZ = animatedDegree
    },
    onDraw = { ... }
    )
    Text(animatedScore)
    }


    View Slide

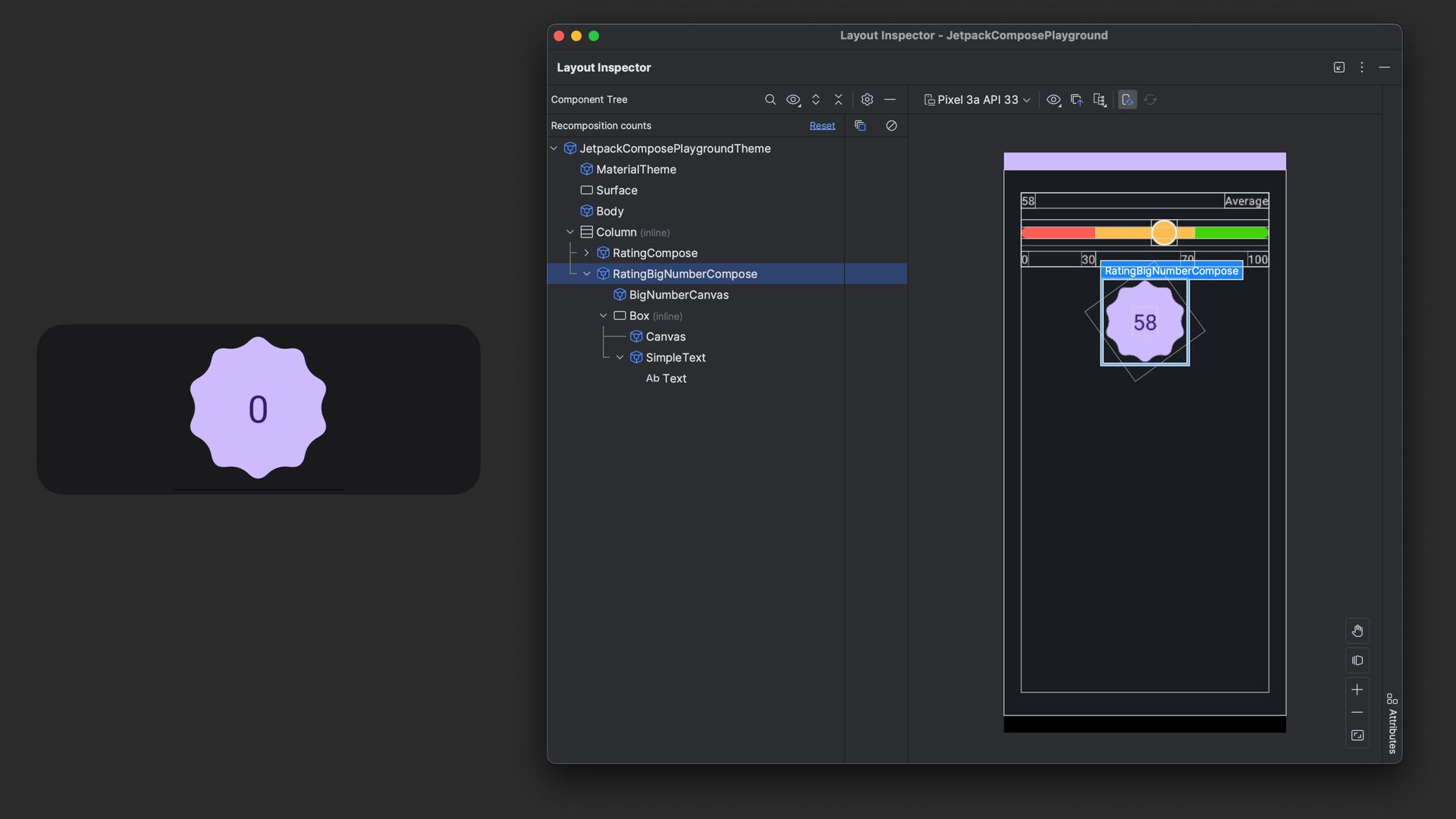

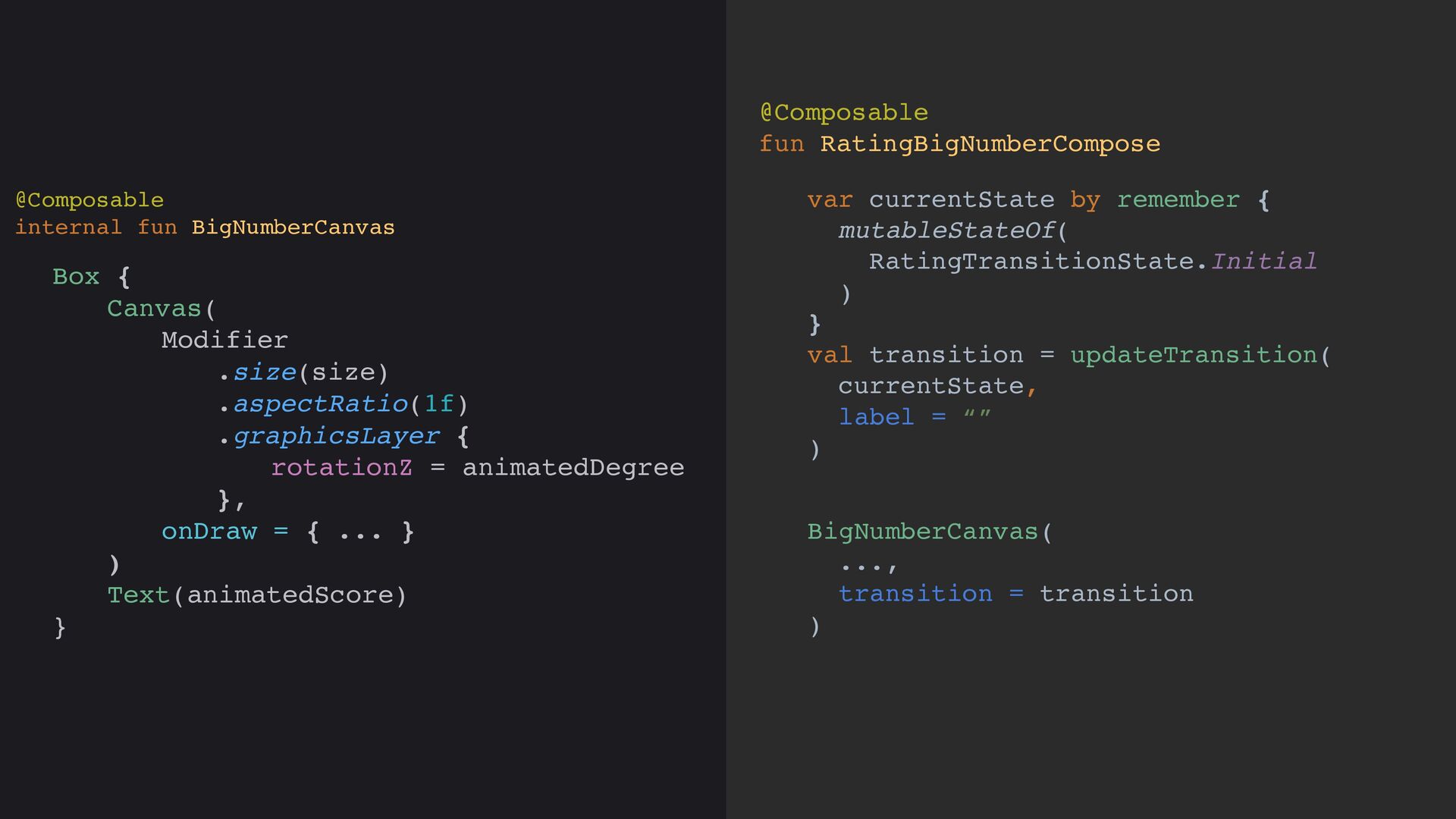

78. @Composable
    fun RatingBigNumberCompose
    var currentState by remember {
    mutableStateOf(
    RatingTransitionState.Initial
    )
    }
    val transition = updateTransition(
    currentState,
    label = “”
    )
    BigNumberCanvas(
    ...,
    transition = transition
    )
    @Composable
    internal fun BigNumberCanvas
    Box {
    Canvas(
    Modifier
    .size(size)
    .aspectRatio(1f)
    .graphicsLayer {
    rotationZ = animatedDegree
    },
    onDraw = { ... }
    )
    Text(animatedScore)
    }


    View Slide

79. View Slide

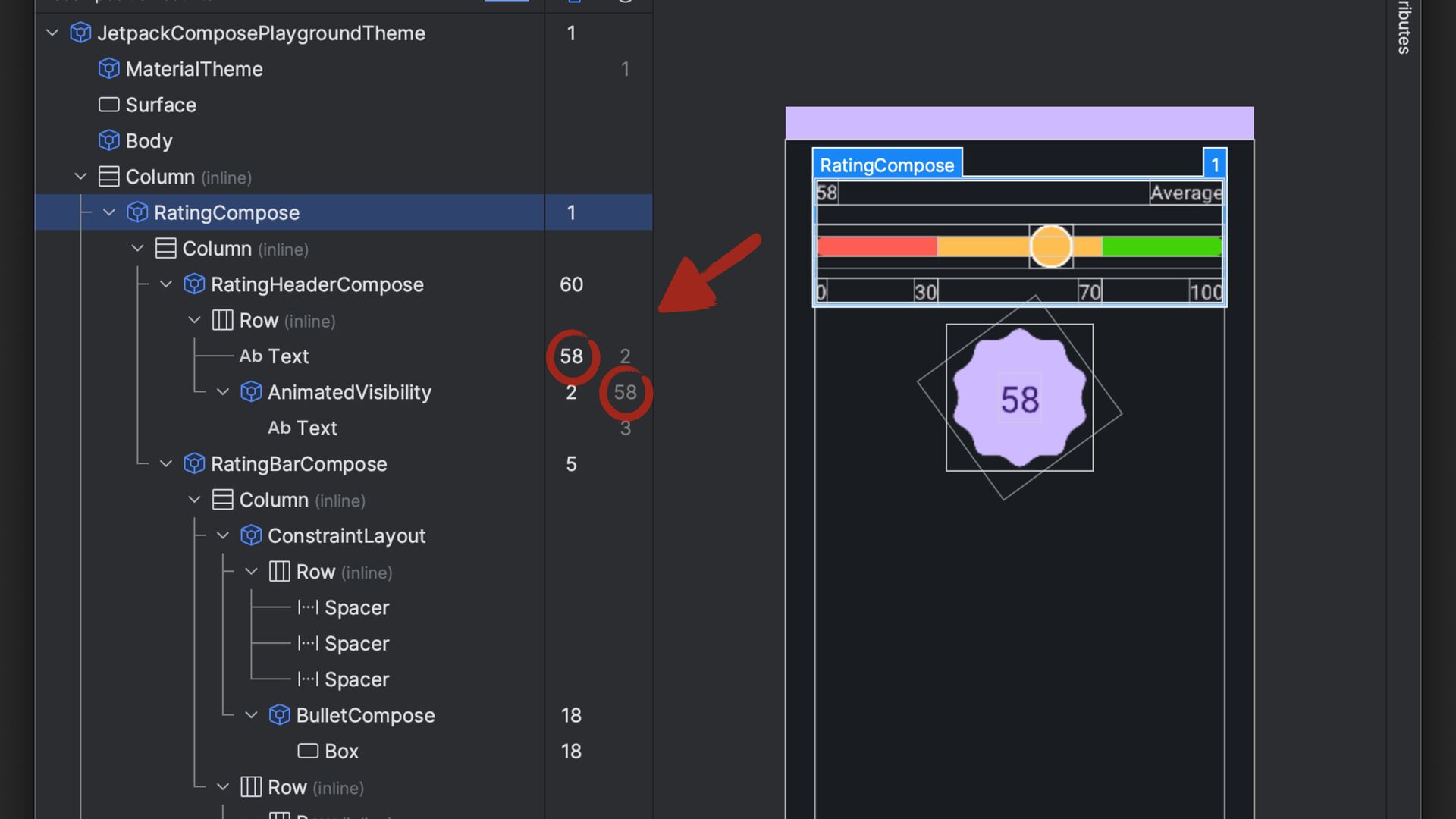

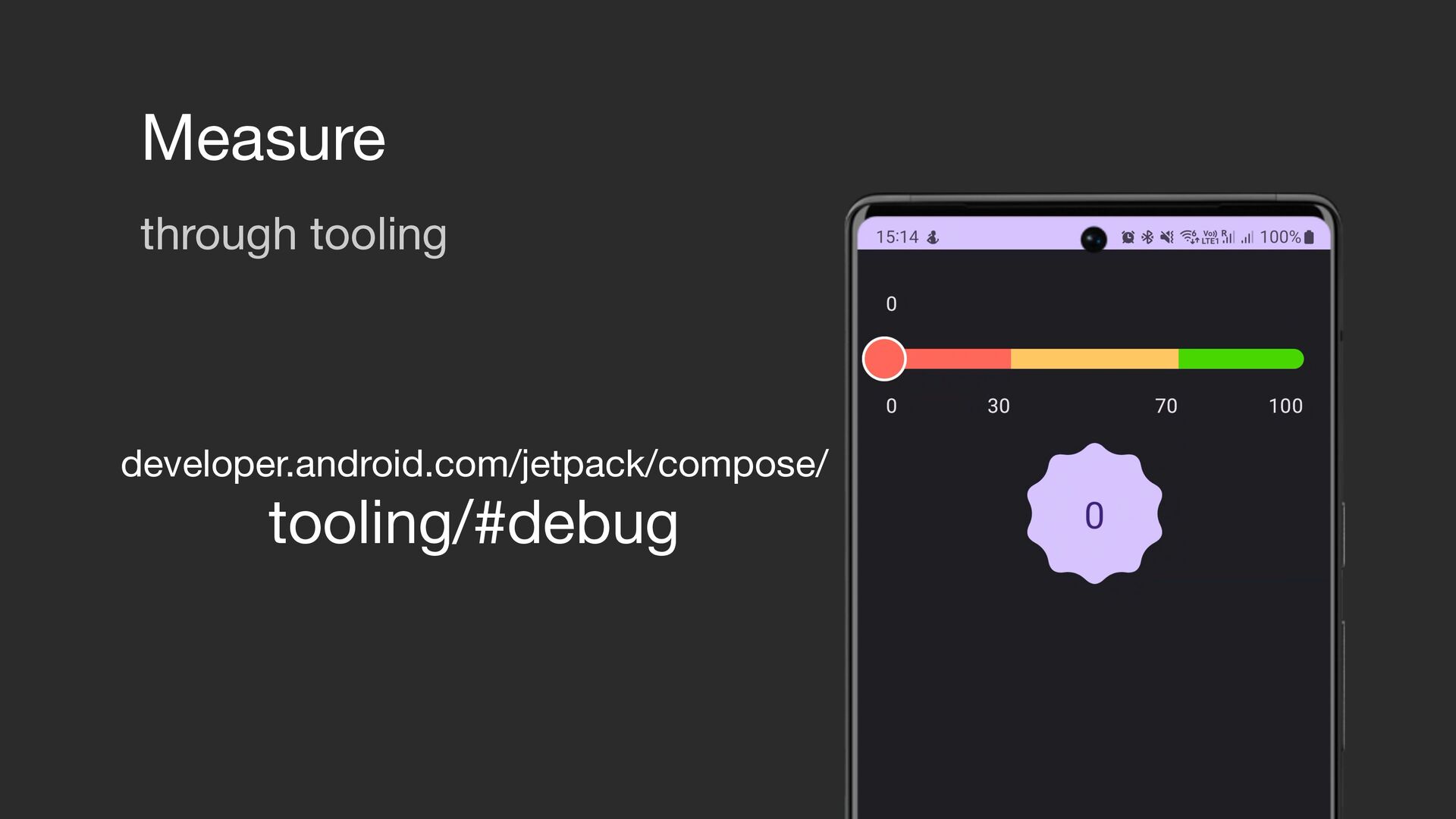

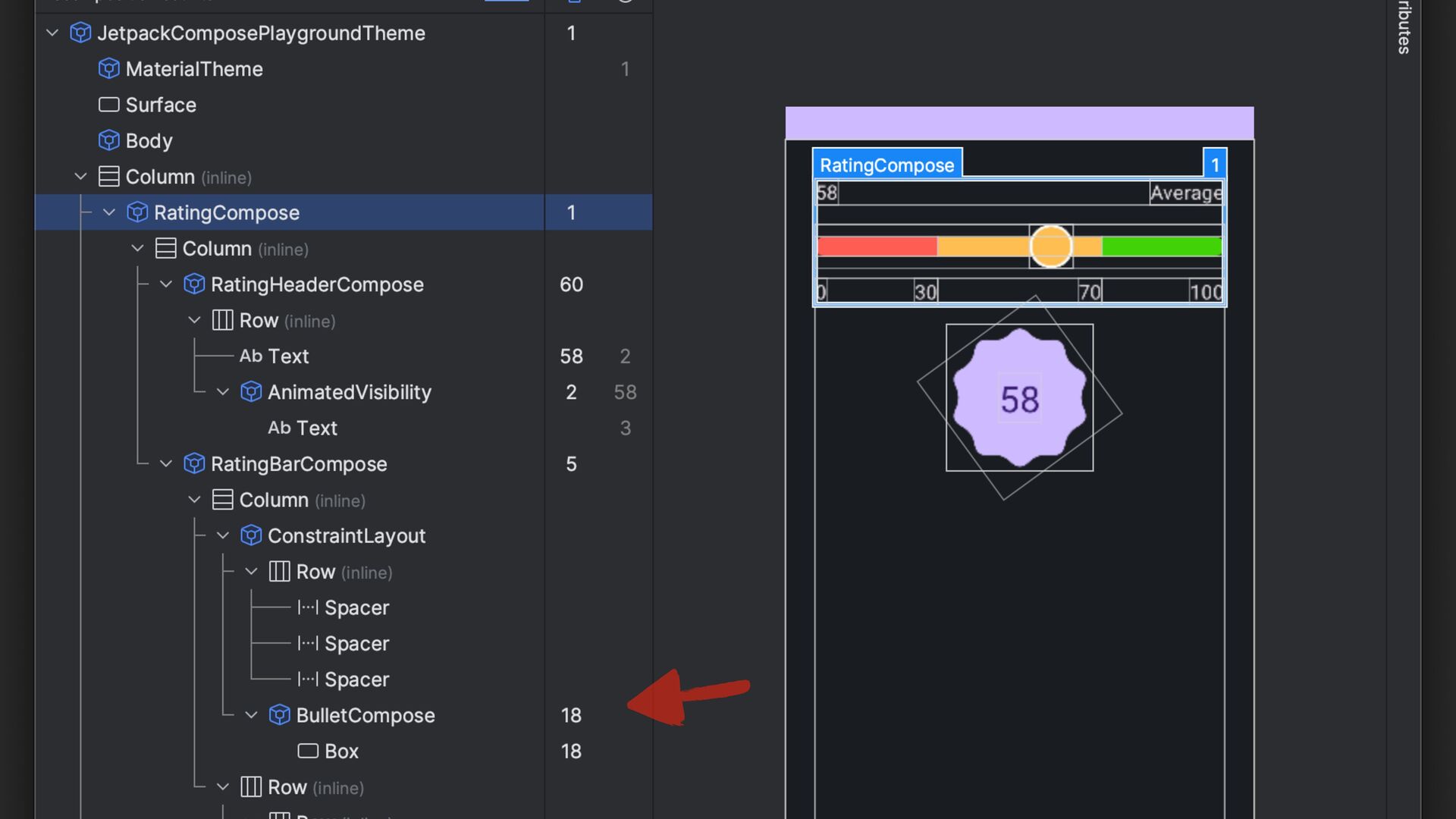

80. Measure
    through tooling
    developer.android.com/jetpack/compose/

    tooling/#debug


    View Slide

81. Composition Tracing
    Layout Inspector


    View Slide

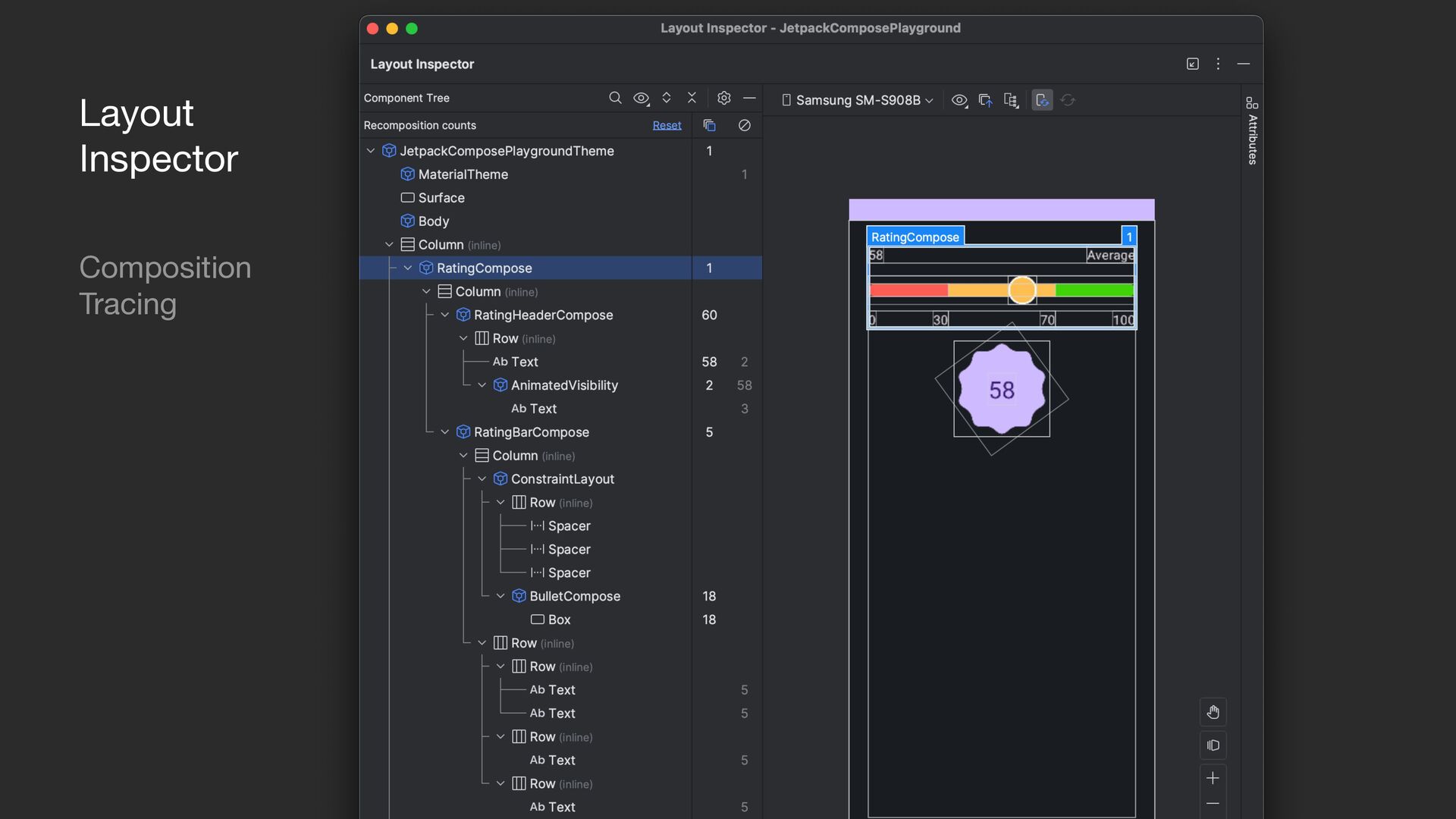

82. Layout

    Inspector
    Composition

    Tracing


    View Slide

83. View Slide

84. View Slide

85. View Slide

86. View Slide

87. View Slide

88. Layout

    Inspector
    Composition

    Tracing


    View Slide

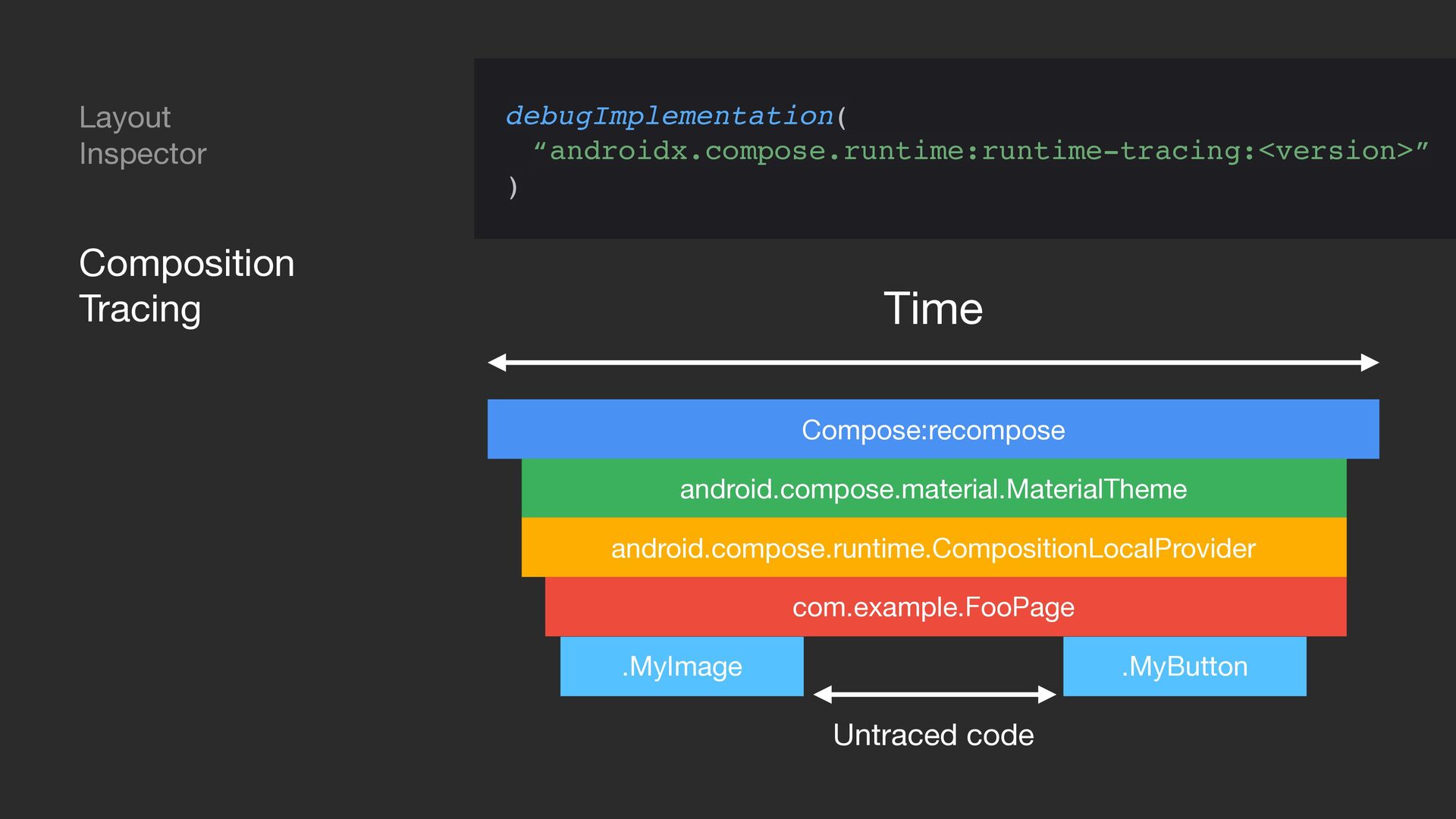

89. Layout

    Inspector
    Composition

    Tracing Time
    Compose:recompose
    android.compose.material.MaterialTheme
    android.compose.runtime.CompositionLocalProvider
    com.example.FooPage
    .MyImage .MyButton
    Untraced code
    debugImplementation(
    “androidx.compose.runtime:runtime-tracing:”
    )


    View Slide

90. Layout

    Inspector
    Composition

    Tracing
    trace(“possible cause”) {
    // heavy operation into a composition scope
    }
    Time
    Compose:recompose
    android.compose.material.MaterialTheme
    android.compose.runtime.CompositionLocalProvider
    com.example.FooPage
    .MyImage .MyButton
    Untraced code


    View Slide

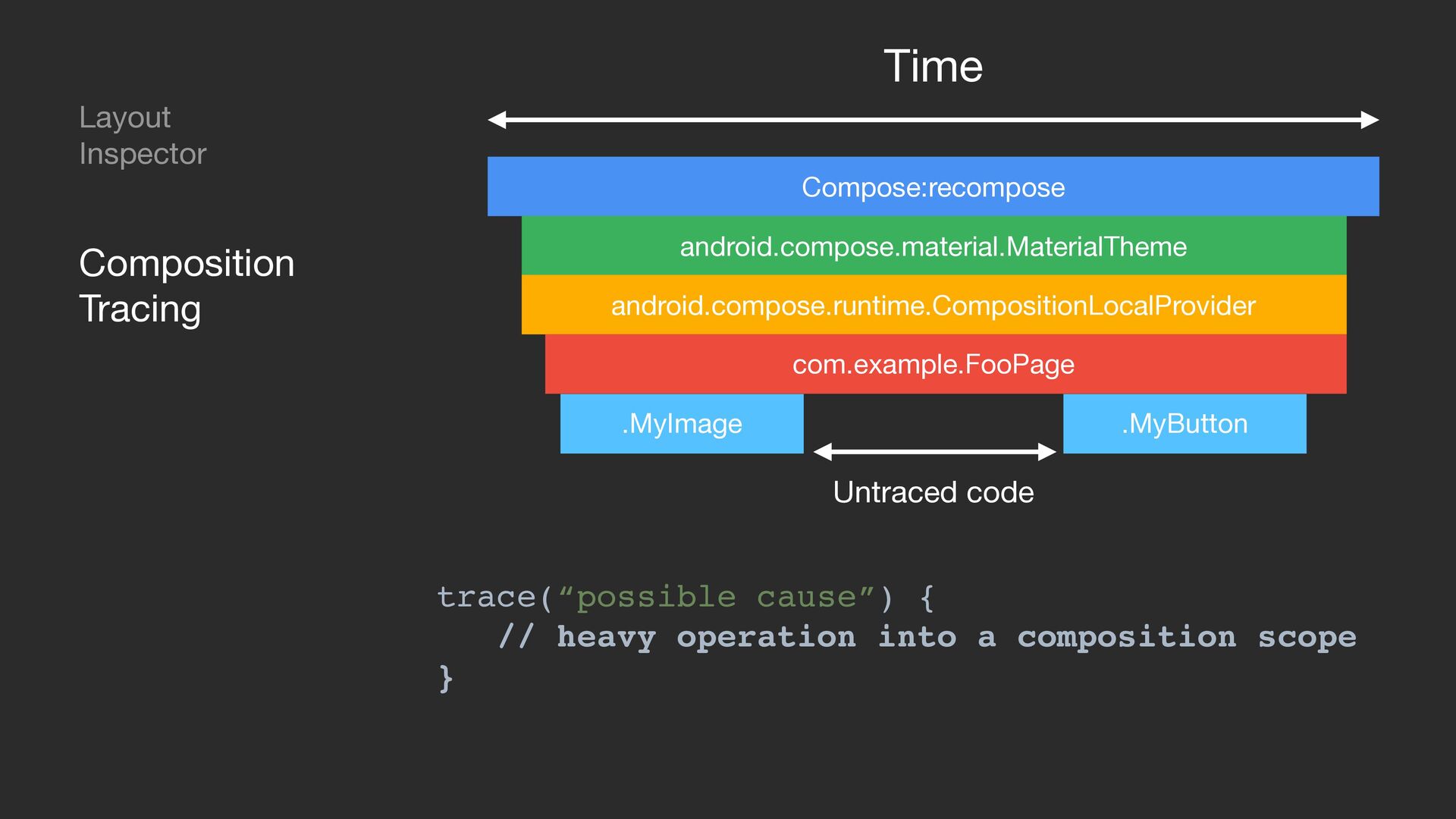

91. Layout

    Inspector
    Composition

    Tracing
    trace(“possible cause”) {
    // heavy operation into a composition scope
    }
    Time
    Compose:recompose
    android.compose.material.MaterialTheme
    android.compose.runtime.CompositionLocalProvider
    com.example.FooPage
    .MyImage .MyButton
    possible cause


    View Slide

92. Composition Tracing
    Layout Inspector


    View Slide

93. Mindset takeaways
    • think simple
    • and combine for the complex


    View Slide

94. ‘test and run’ takeaways
    • test with real devices
    • and tooling (might need to delay anim)
    • and eventually
    release buildType


    View Slide

95. Practicalities takeaways
    • avoid plenty of animations all over
    • micro-interactions are cool
    • defer reads by using
    lambda functions


    View Slide

96. pull request
    have fun
    fork


    View Slide

97. Jetpack Compose

    animations playground
    November 2023
    Thank you for listening
    !


    View Slide
