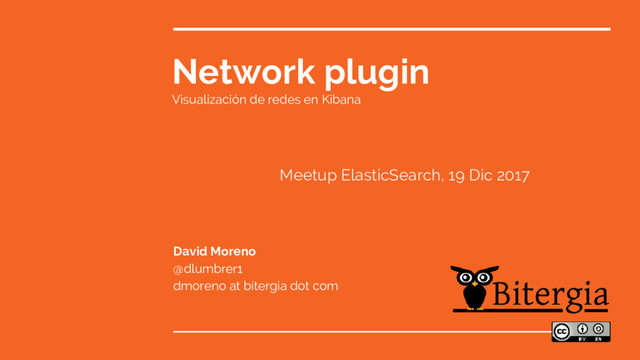

Network plugin Visualización de redes en Kibana David Moreno @dlumbrer1
dmoreno at bitergia dot com Meetup ElasticSearch, 19 Dic 2017
Introducción Un poco sobre mi Network plugin
/network_plugin Tartas, Líneas, Barras, Tablas… ¿Por qué no también Redes/Grafos?
/network_plugin Tartas, Líneas, Barras, Tablas… ¿Por qué no también Redes/Grafos?
/donde Web del plugin: https://dlumbrer.github.io/kbn_network/ Repositorio GitHub: https://github.com/dlumbrer/kbn_network Plugins conocidos
de Kibana: https://www.elastic.co/guide/en/kibana/current/kno wn-plugins.html
Instalación Compatibilidad Desde “releases” Desde código fuente Estructura del plugin
/compatibilidad El plugin tiene versiones para:
/compatibilidad El plugin tiene versiones para: Kibana 4 (deprecated)
/compatibilidad El plugin tiene versiones para: Kibana 4 (deprecated) Kibana
5
/compatibilidad Kibana 6!
/releases Ir a https://github.com/dlumbrer/kbn_network/releases Descargar la versión para tu Kibana
Descomprimir en tu KIBANA_HOME/plugins Listo!
/source_code Siguiendo los pasos dentro de README.md
/instalación IMPORTANTE: Antes de iniciar Kibana, comprobar que dentro el
archivo network_vis/package.json el valor del tag “version” coincide con tu versión de Kibana. = 5.6.0
/instalación
/estructura
Tipos de redes Node - Node Node - Relation Ajustar
tamaños con métricas Customización Casos de uso
/demo
/node-node 2 tipos distintos de nodos relacionados entre si: Seleccionar
Node (x2)
/node-node 2 tipos distintos de nodos relacionados entre si: Seleccionar
Node (x2)
/node-node 2 tipos distintos de nodos relacionados entre si: Seleccionar
Node (x2)
/node-relation Un único tipo de nodo, pero su relación la
determina otro campo: Seleccionar Node
/node-relation Un único tipo de nodo, pero su relación la
determina otro campo: Seleccionar Node Seleccionar Relation
/node-relation Un único tipo de nodo, pero su relación la
determina otro campo: Seleccionar Node Seleccionar Relation
/node-relation Un único tipo de nodo, pero su relación la
determina otro campo: Seleccionar Node Seleccionar Relation
/metrics Permite configurar el tamaño del nodo como del enlace:
/metrics Permite configurar el tamaño del nodo como del enlace:
/metrics Permite configurar el tamaño del nodo como del enlace:
/metrics Permite configurar el tamaño del nodo como del enlace:
/metrics
/customización Múltiples opciones (importantes) para hacer la red escalable y
ponerla al gusto: Color del nodo (bucket) Pestaña “options”
/customización
Bonus Searchtables plugin Dotplot plugin Dropdown plugin
/searchtables https://github.com/dlumbrer/kbn_searchtables Búsqueda en tablas
/dotplot https://github.com/dlumbrer/kbn_dotplot Visualización de puntos con métricas en ambos ejes
/dropdown Filtros mediante un “dropdown” que permite seleccionar valores de
un campo previamente elegido Origen: https://github.com/AnnaGerber/kibana_dropdown Adaptado Kibana 5.6: https://github.com/dlumbrer/kibana_dropdown
/preguntas !Muchas gracias! ¿Preguntas?
Software Development Analytics for your peace of mind bitergia.com David
Moreno Lumbreras Front-end Developer at Bitergia
[email protected]
-
[email protected]
