RxPM — реактивная реализация паттерна Presentation Model Дмитрий Горбунов Senior
Android Developer

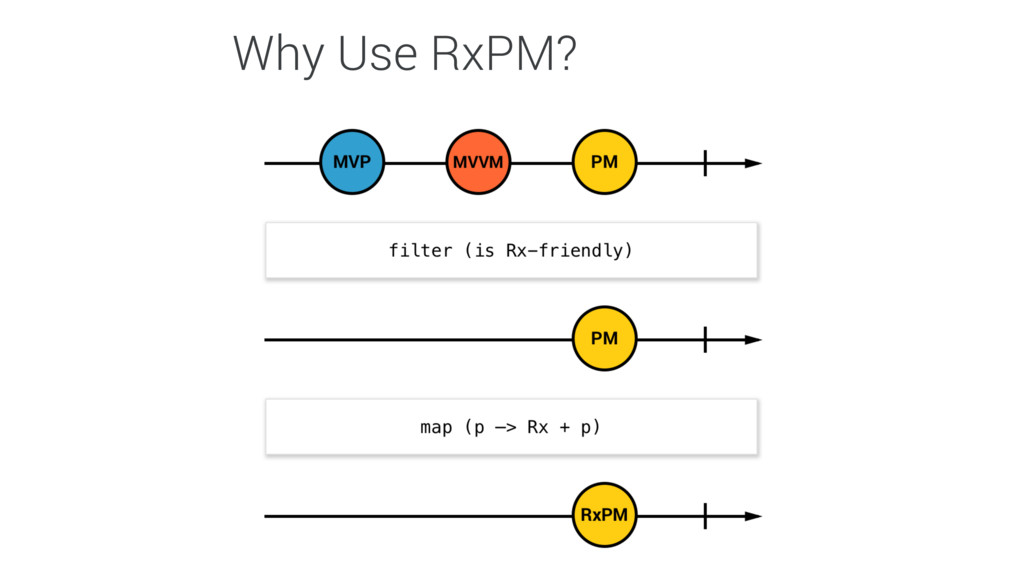

Why Use RxPM?

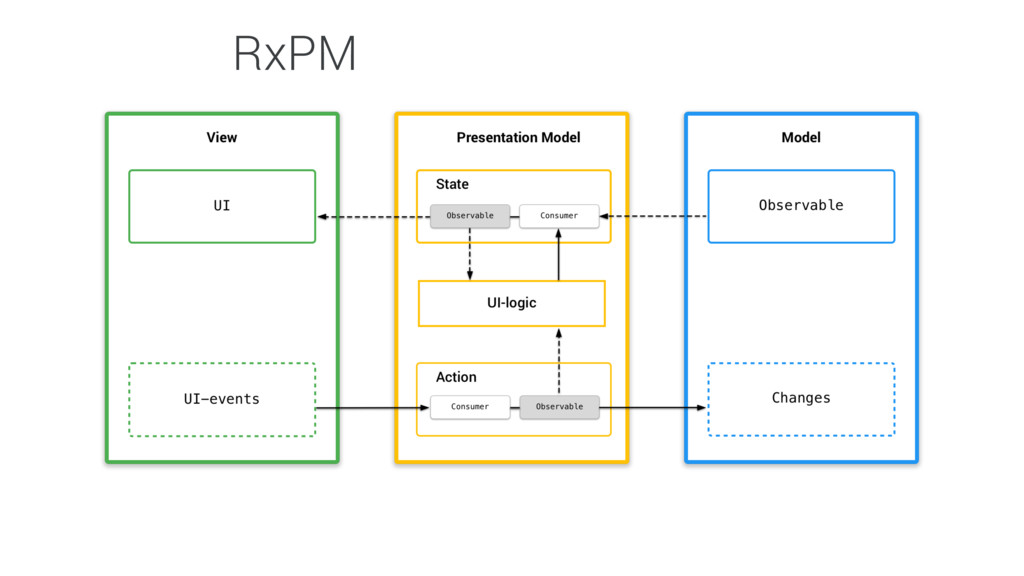

RxPM

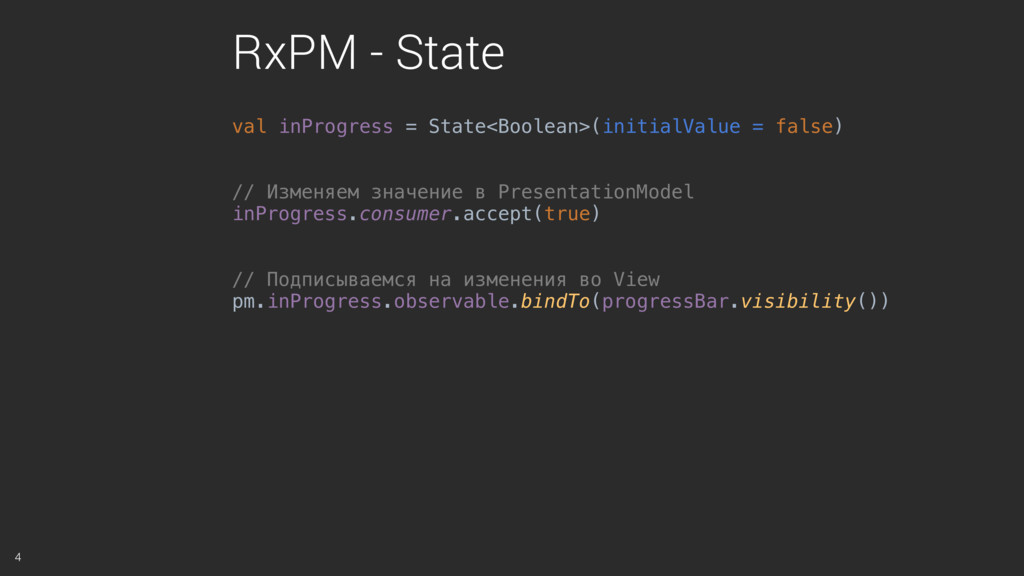

val inProgress = State<Boolean>(initialValue = false) // Изменяем значение в
PresentationModel inProgress.consumer.accept(true) // Подписываемся на изменения во View pm.inProgress.observable.bindTo(progressBar.visibility()) RxPM - State 4
val buttonClicks = Action<Unit>() // Слушаем клики в PresentationModel buttonClicks.observable
.subscribe { // handle click } .untilDestroy() // Привязываемся во View button.clicks().bindTo(pm.buttonClicks.consumer) RxPM - Action 5

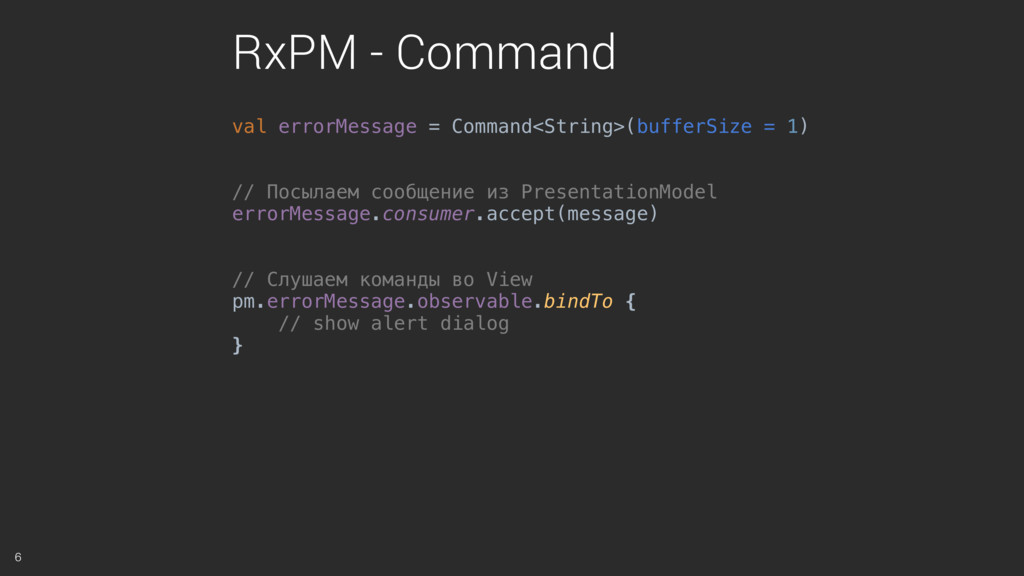

val errorMessage = Command<String>(bufferSize = 1) // Посылаем сообщение из
PresentationModel errorMessage.consumer.accept(message) // Слушаем команды во View pm.errorMessage.observable.bindTo { // show alert dialog } RxPM - Command 6

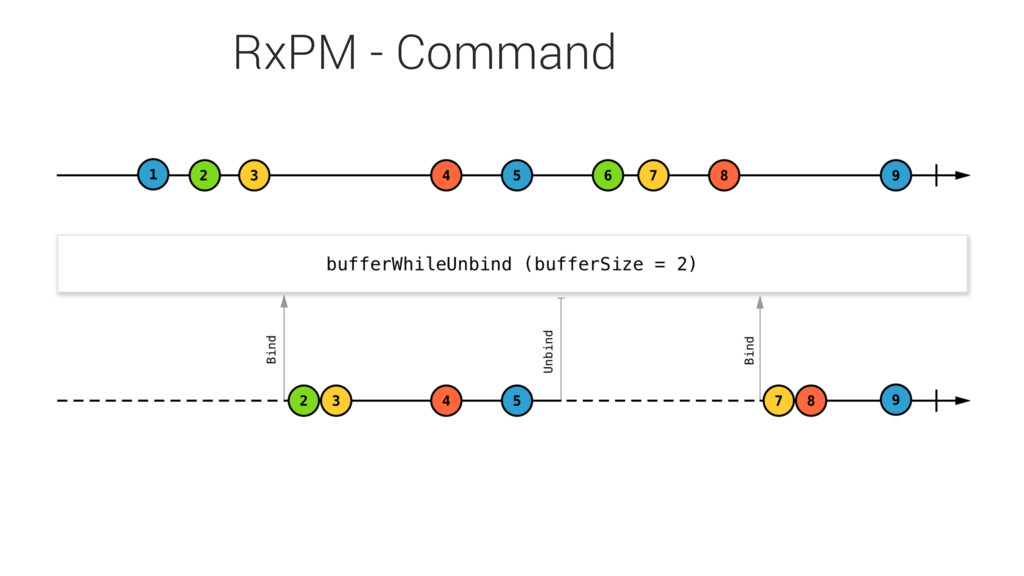

RxPM - Command 7

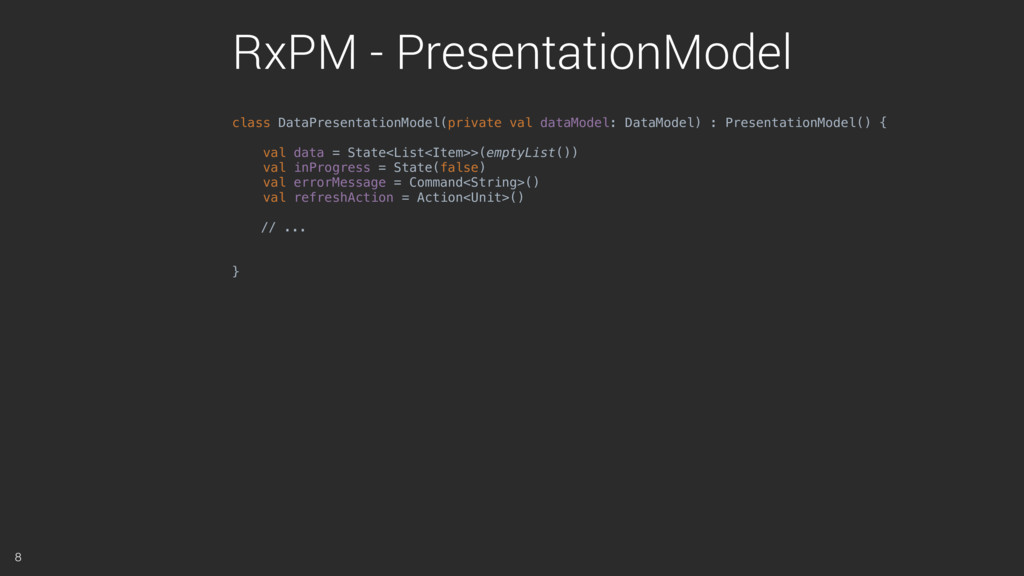

class DataPresentationModel(private val dataModel: DataModel) : PresentationModel() { val data
= State<List<Item>>(emptyList()) val inProgress = State(false) val errorMessage = Command<String>() val refreshAction = Action<Unit>() // ... } RxPM - PresentationModel 8

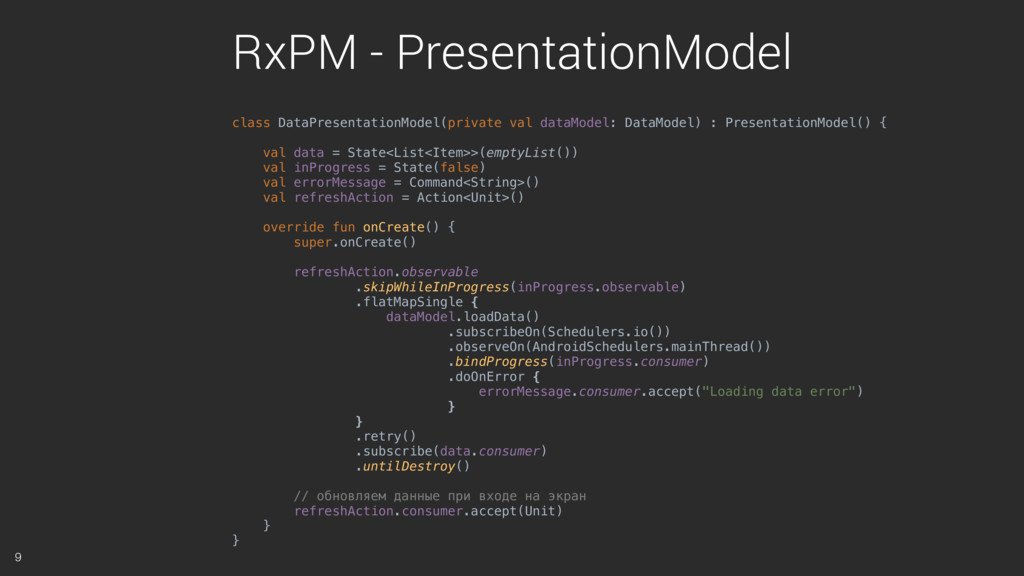

class DataPresentationModel(private val dataModel: DataModel) : PresentationModel() { val data
= State<List<Item>>(emptyList()) val inProgress = State(false) val errorMessage = Command<String>() val refreshAction = Action<Unit>() override fun onCreate() { super.onCreate() refreshAction.observable .skipWhileInProgress(inProgress.observable) .flatMapSingle { dataModel.loadData() .subscribeOn(Schedulers.io()) .observeOn(AndroidSchedulers.mainThread()) .bindProgress(inProgress.consumer) .doOnError { errorMessage.consumer.accept("Loading data error") } } .retry() .subscribe(data.consumer) .untilDestroy() // обновляем данные при входе на экран refreshAction.consumer.accept(Unit) } } RxPM - PresentationModel 9

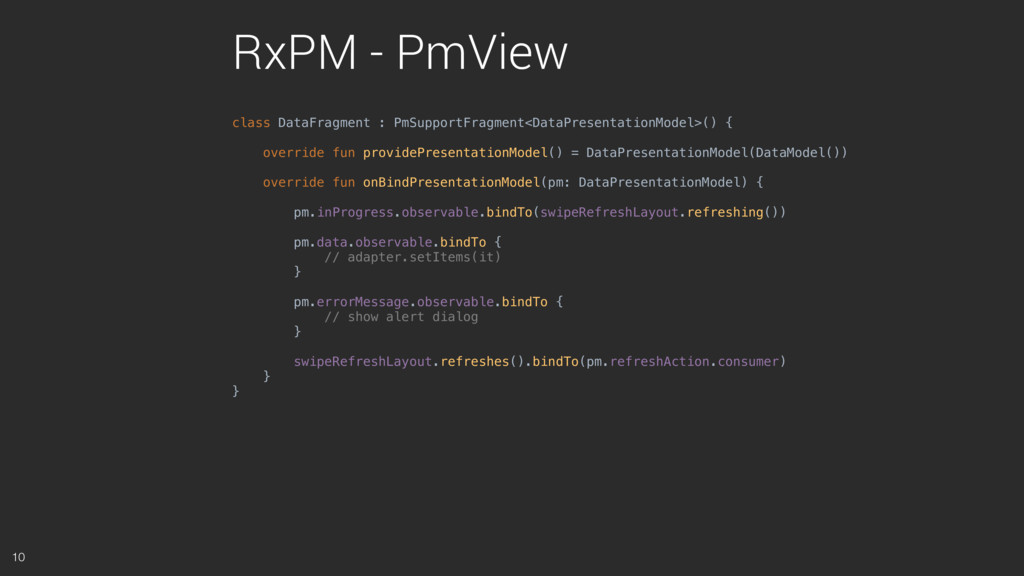

class DataFragment : PmSupportFragment<DataPresentationModel>() { override fun providePresentationModel() = DataPresentationModel(DataModel())
override fun onBindPresentationModel(pm: DataPresentationModel) { pm.inProgress.observable.bindTo(swipeRefreshLayout.refreshing()) pm.data.observable.bindTo { // adapter.setItems(it) } pm.errorMessage.observable.bindTo { // show alert dialog } swipeRefreshLayout.refreshes().bindTo(pm.refreshAction.consumer) } } RxPM - PmView 10

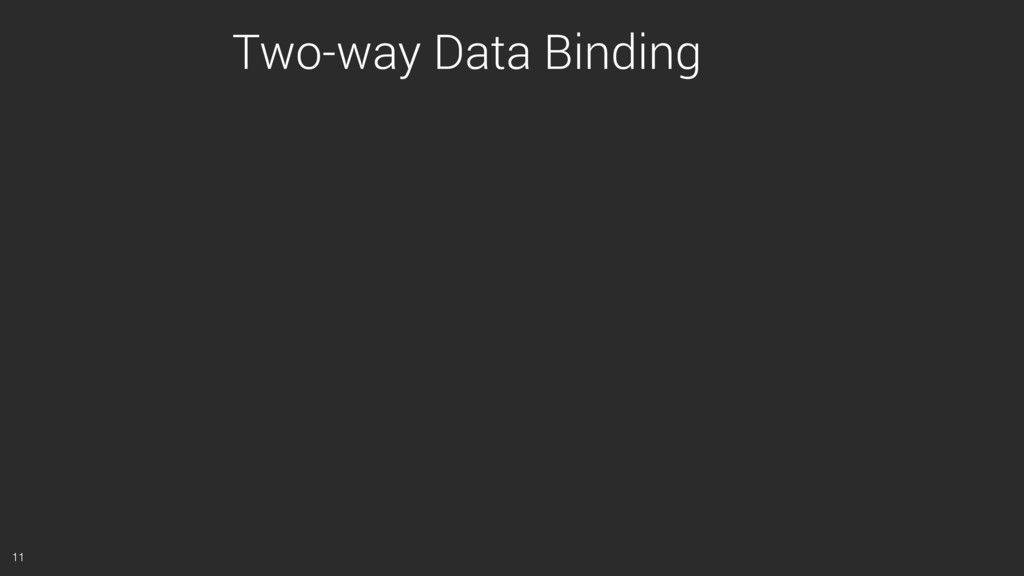

Two-way Data Binding 11

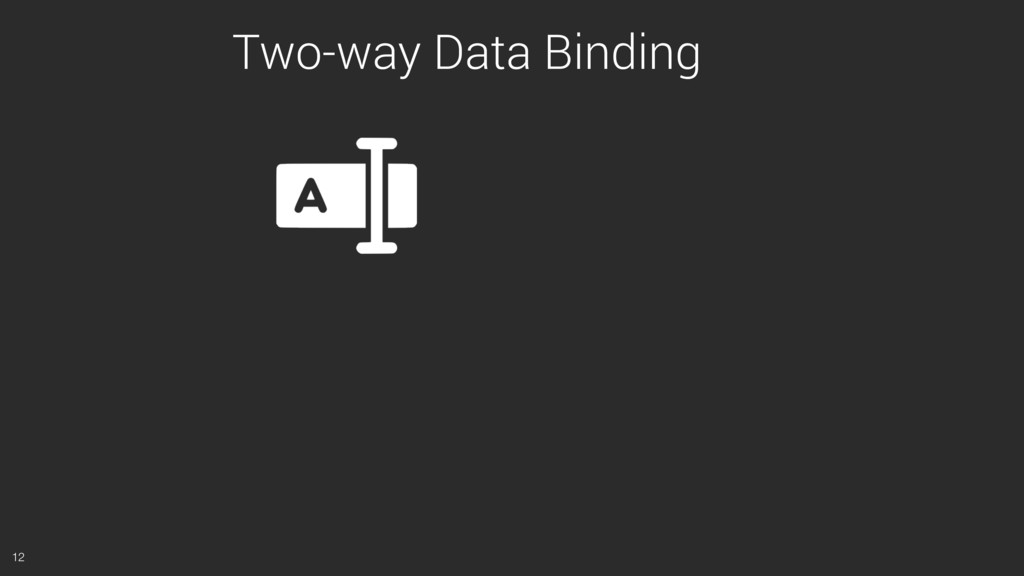

Two-way Data Binding 12

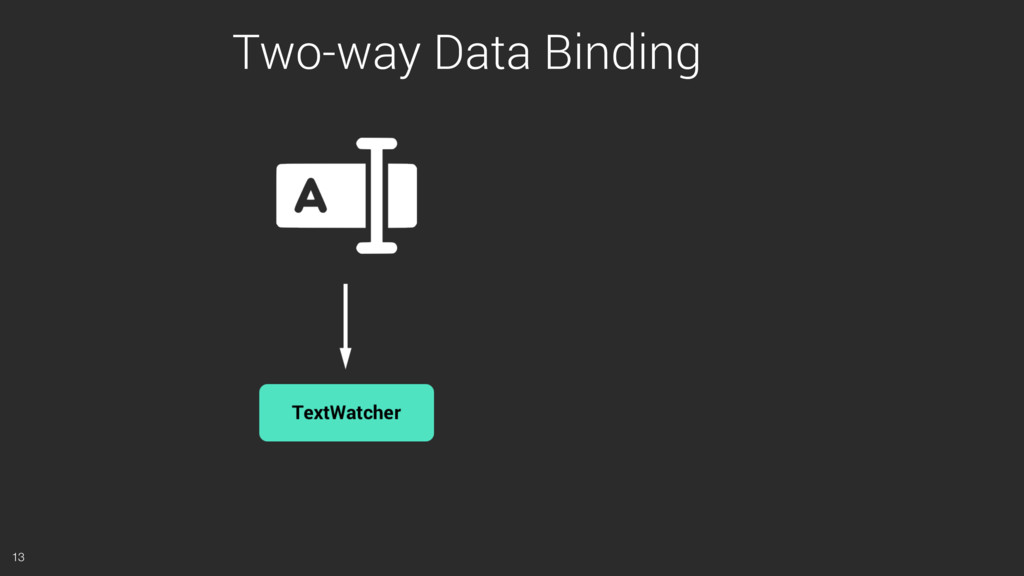

Two-way Data Binding 13

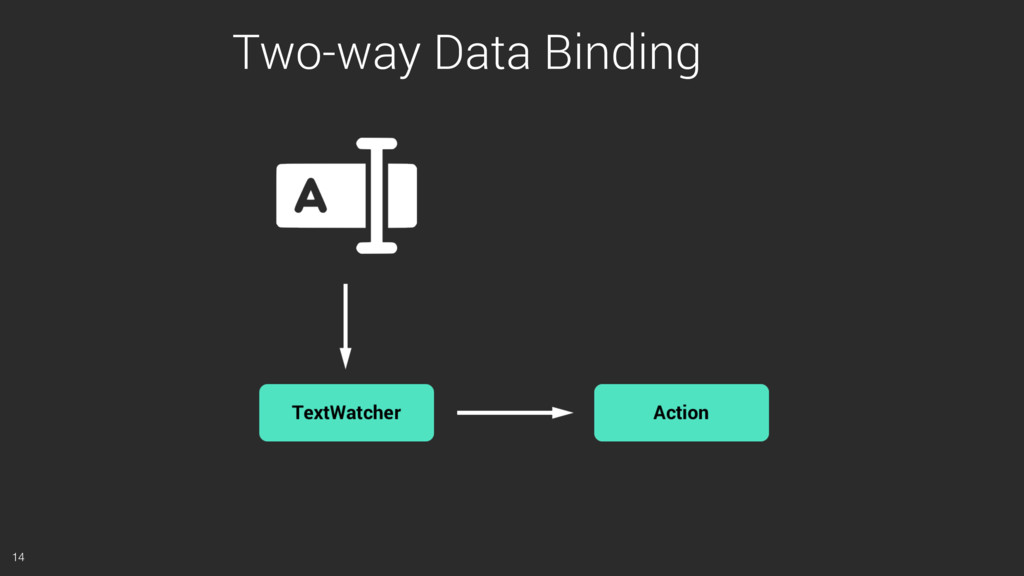

Two-way Data Binding 14

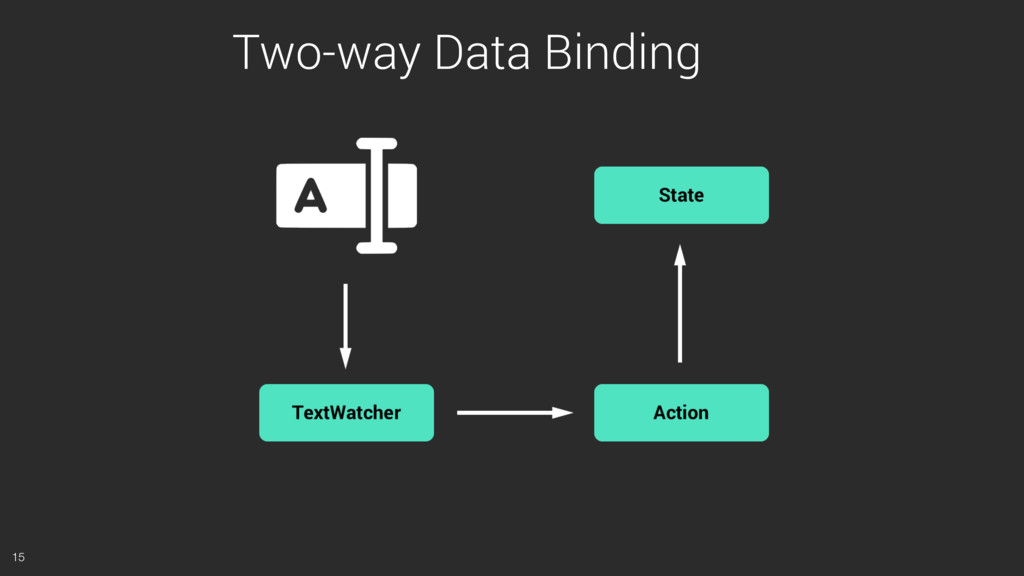

Two-way Data Binding 15

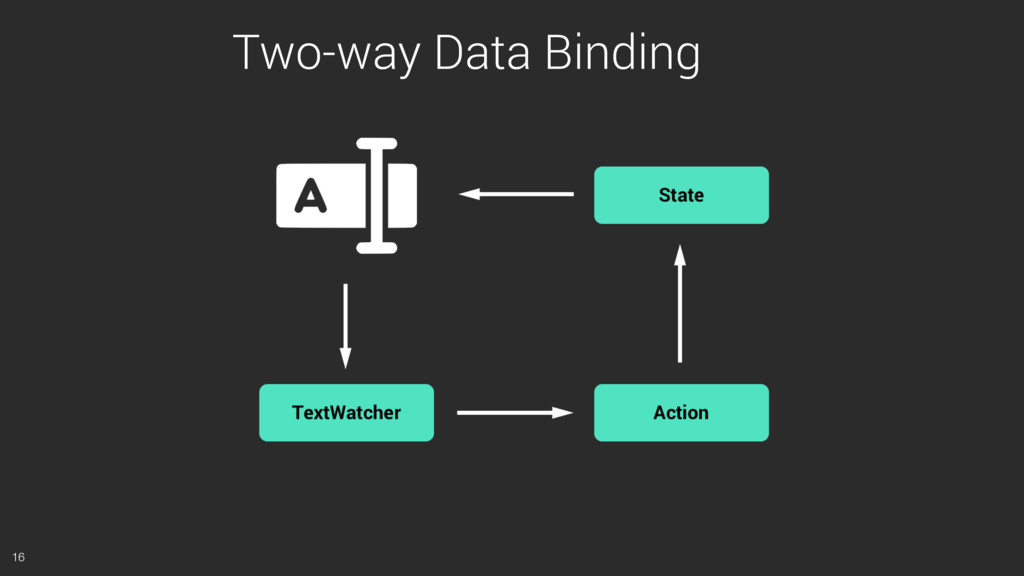

Two-way Data Binding 16
Two-way Data Binding 17

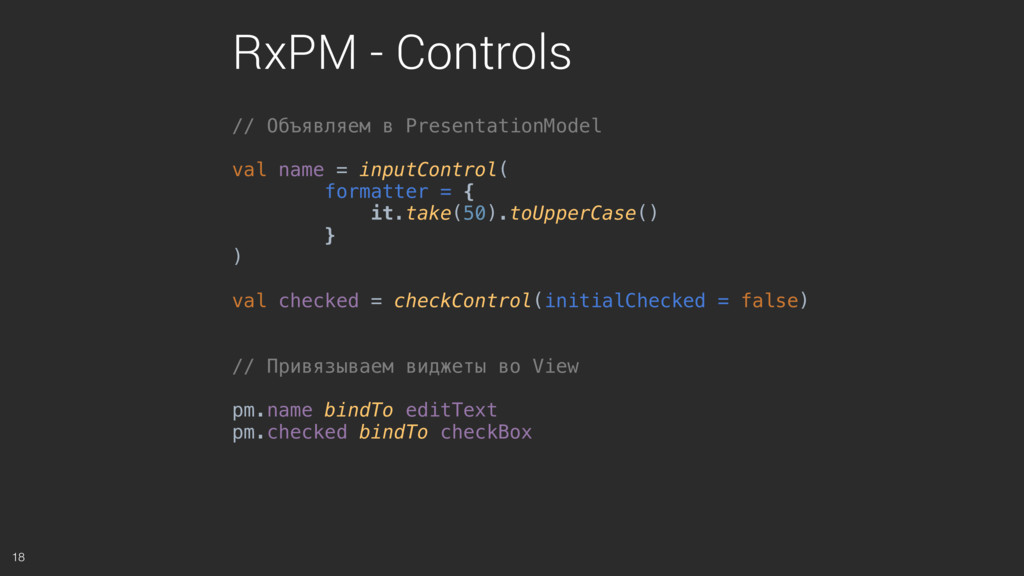

RxPM - Controls 18 // Объявляем в PresentationModel val name
= inputControl( formatter = { it.take(50).toUpperCase() } ) val checked = checkControl(initialChecked = false) // Привязываем виджеты во View pm.name bindTo editText pm.checked bindTo checkBox
Спасибо за внимание! /** * @author Dmitriy Gorbunov (dmdev) *
@author Vasili Chyrvon (Jeevuz) */ Telegram : https://t.me/Rx_PM GitHub : https://github.com/dmdevgo/RxPM Habrahabr : https://habrahabr.ru/company/mobileup/blog/326962/ https://habrahabr.ru/company/mobileup/blog/342850/ Дмитрий Горбунов:
[email protected]
