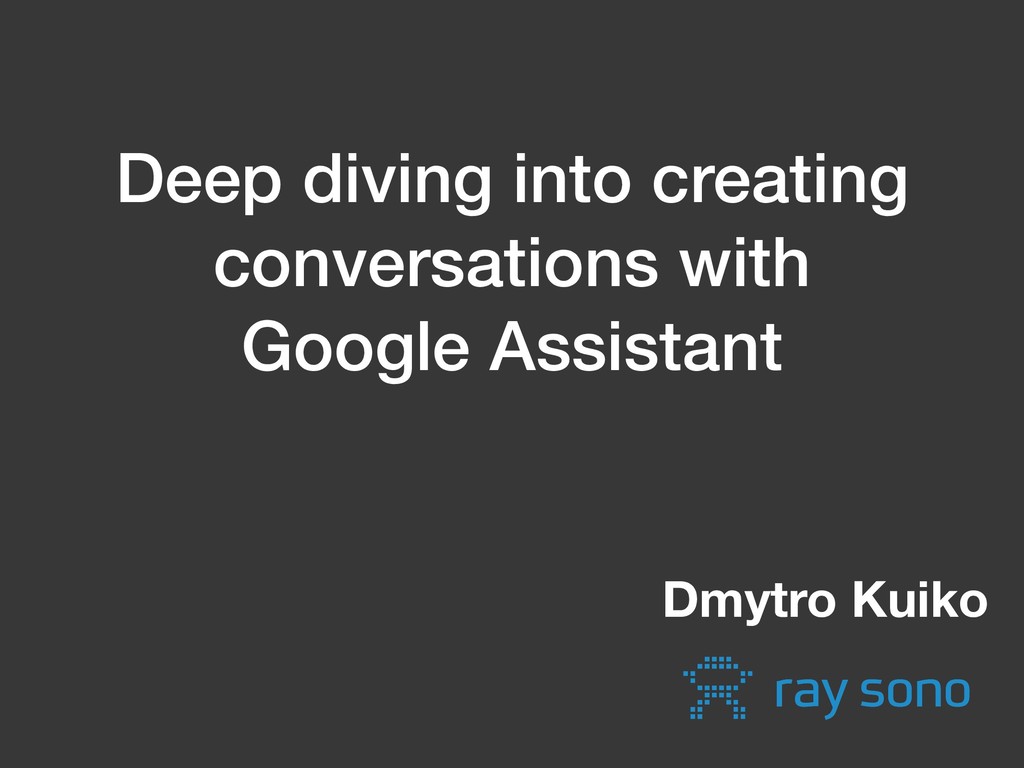

1. Deep diving into creating conversations with Google Assistant Dmytro Kuiko

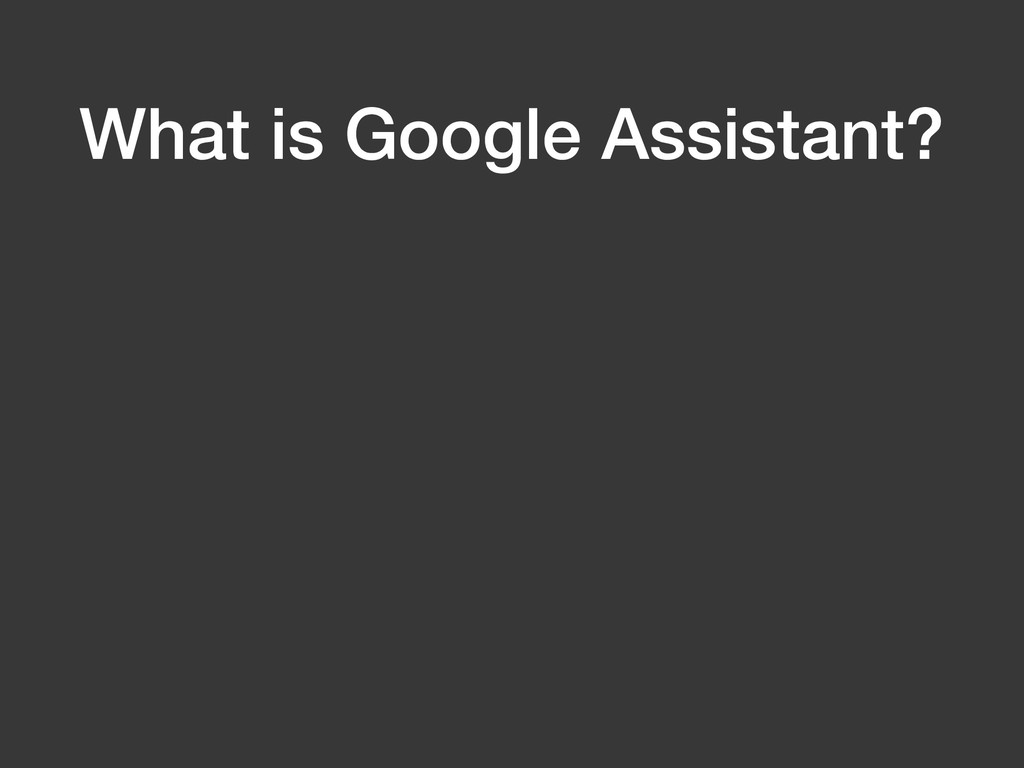

2. What is Google Assistant?

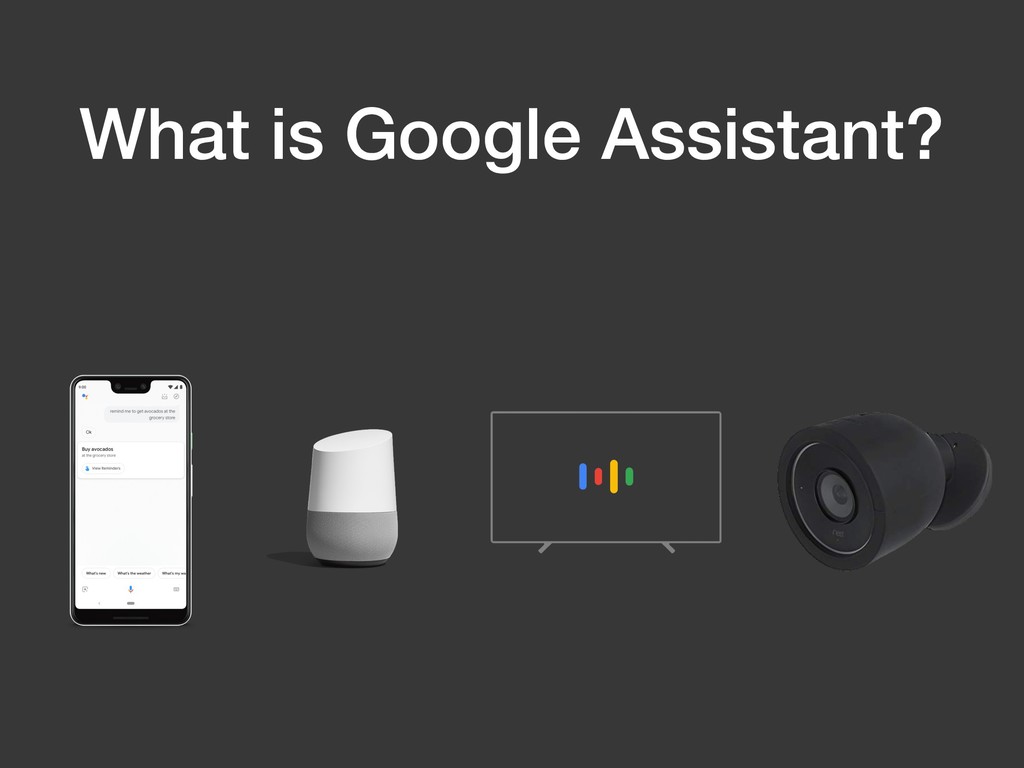

3. What is Google Assistant?
4. Why should I care about it?
5. Actions

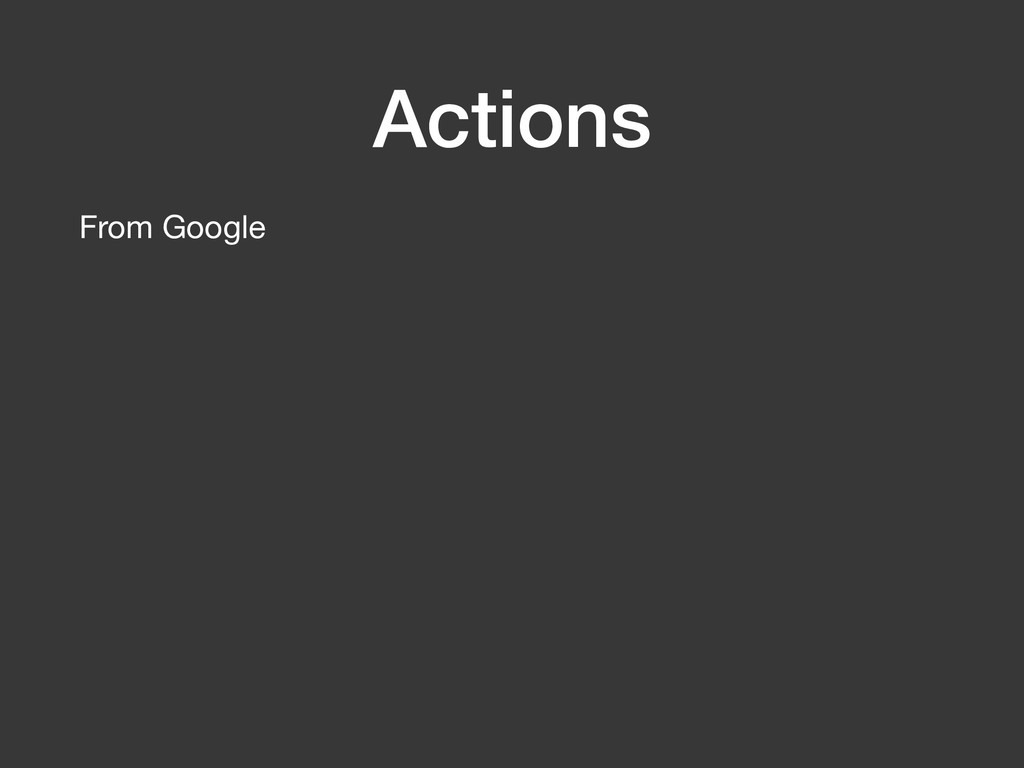

6. Actions From Google

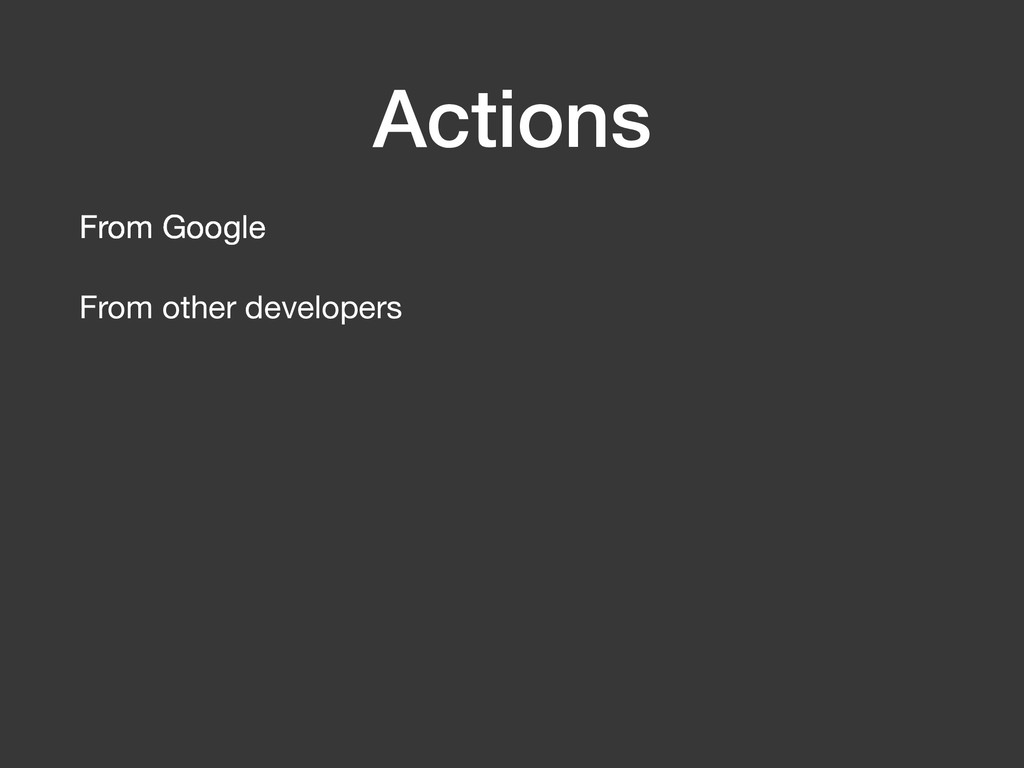

7. Actions From Google From other developers

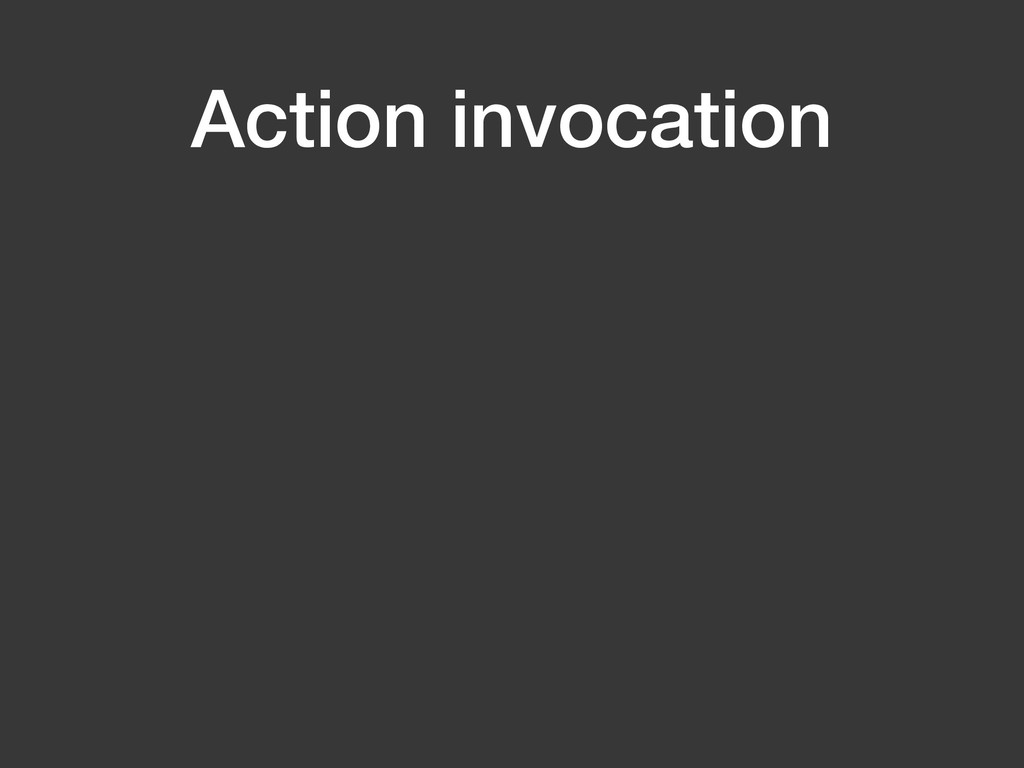

8. Action invocation

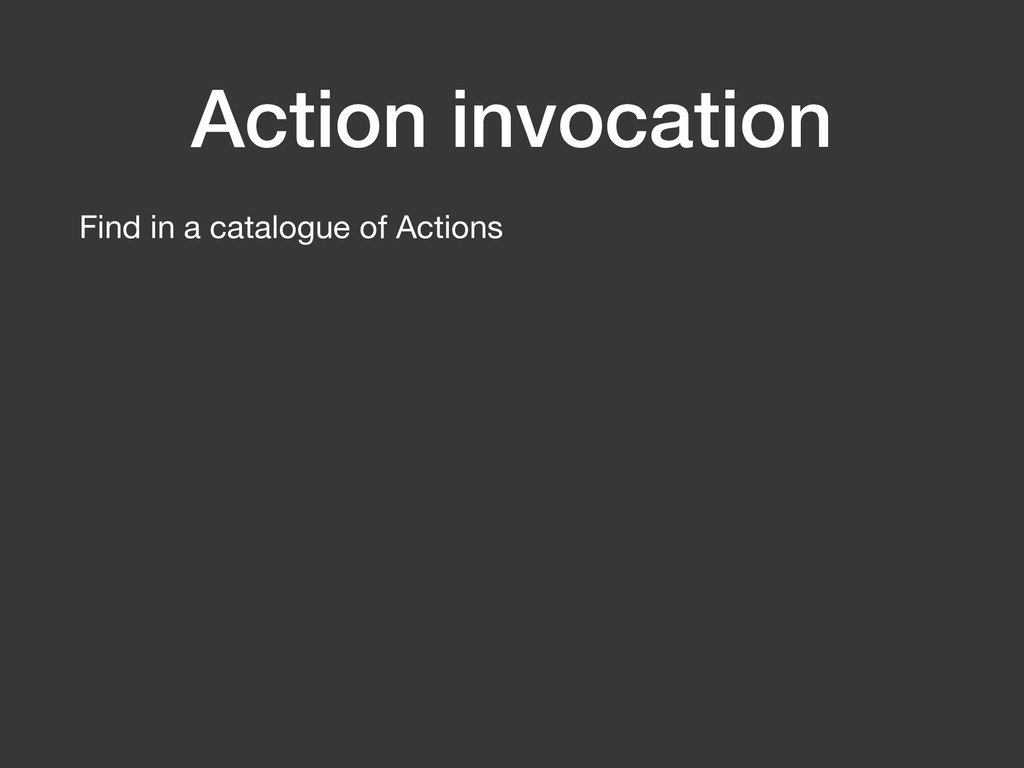

9. Action invocation Find in a catalogue of Actions

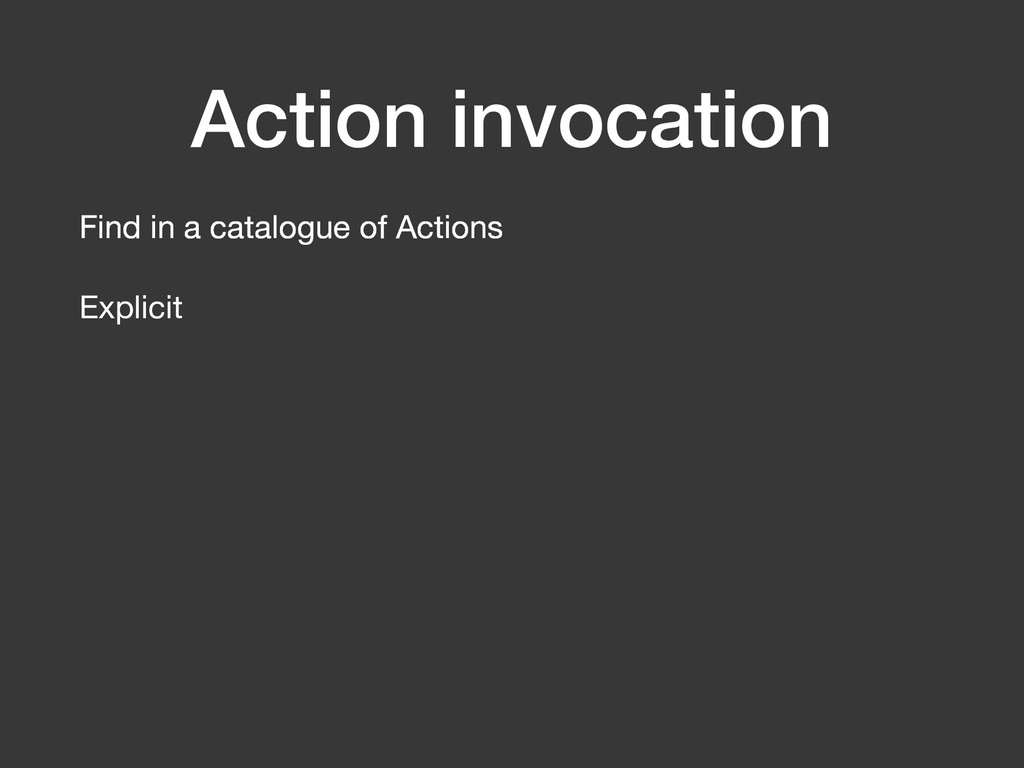

10. Action invocation Find in a catalogue of Actions Explicit

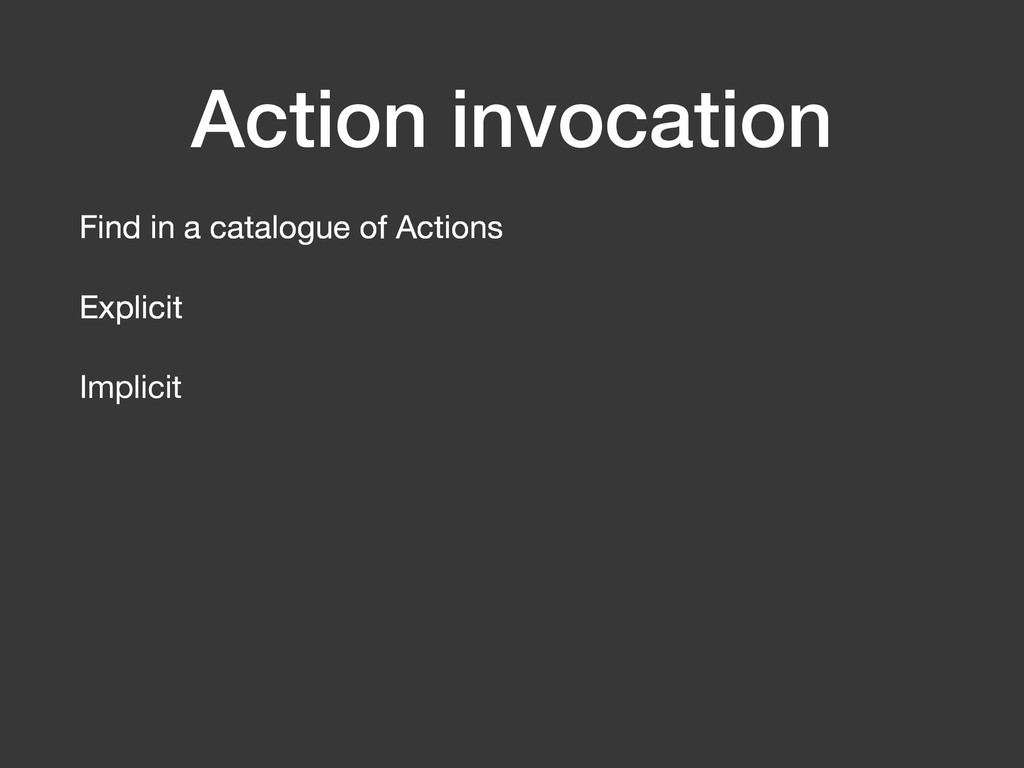

11. Action invocation Find in a catalogue of Actions Explicit Implicit

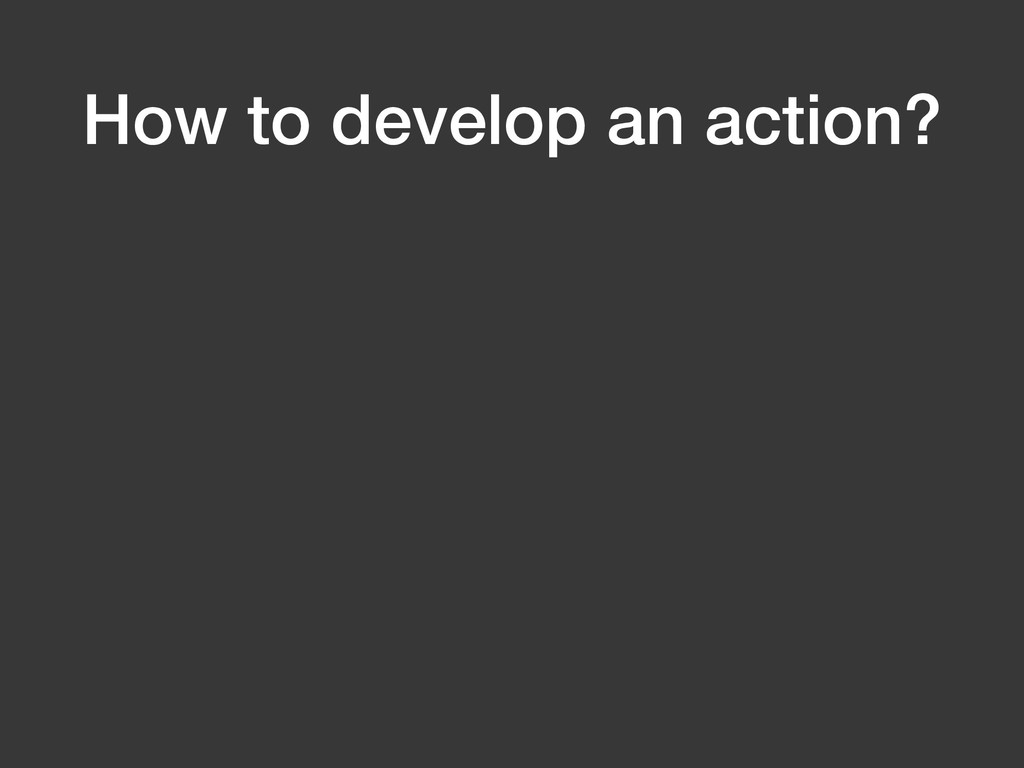

12. How to develop an action?

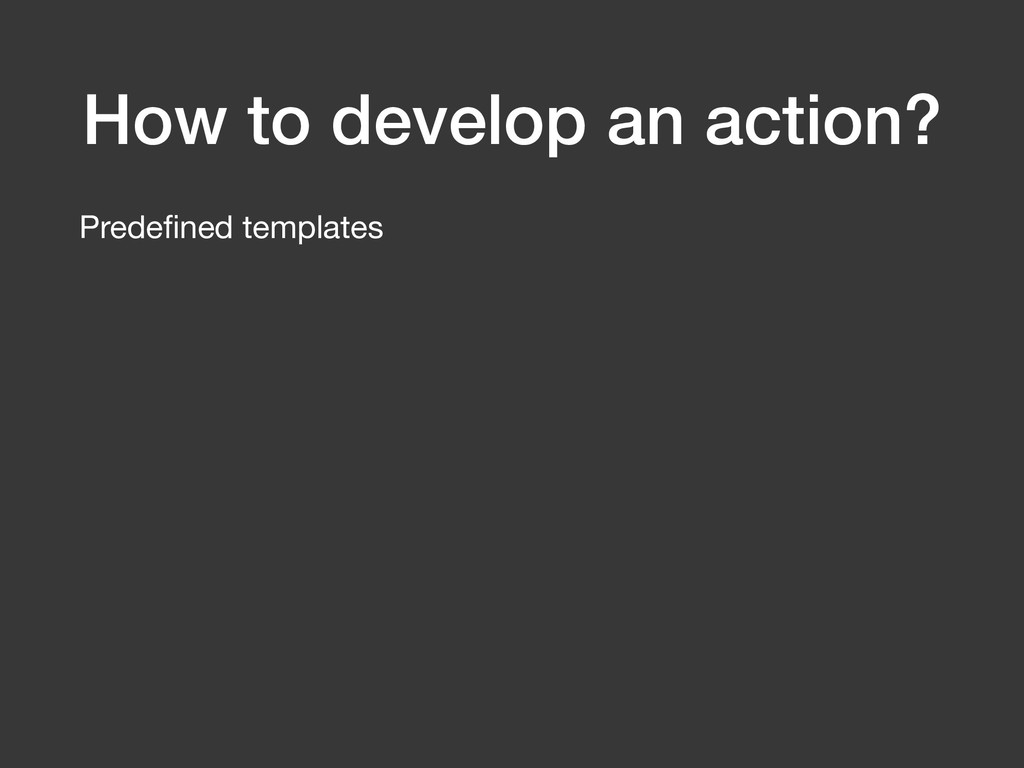

13. How to develop an action? Predefined templates

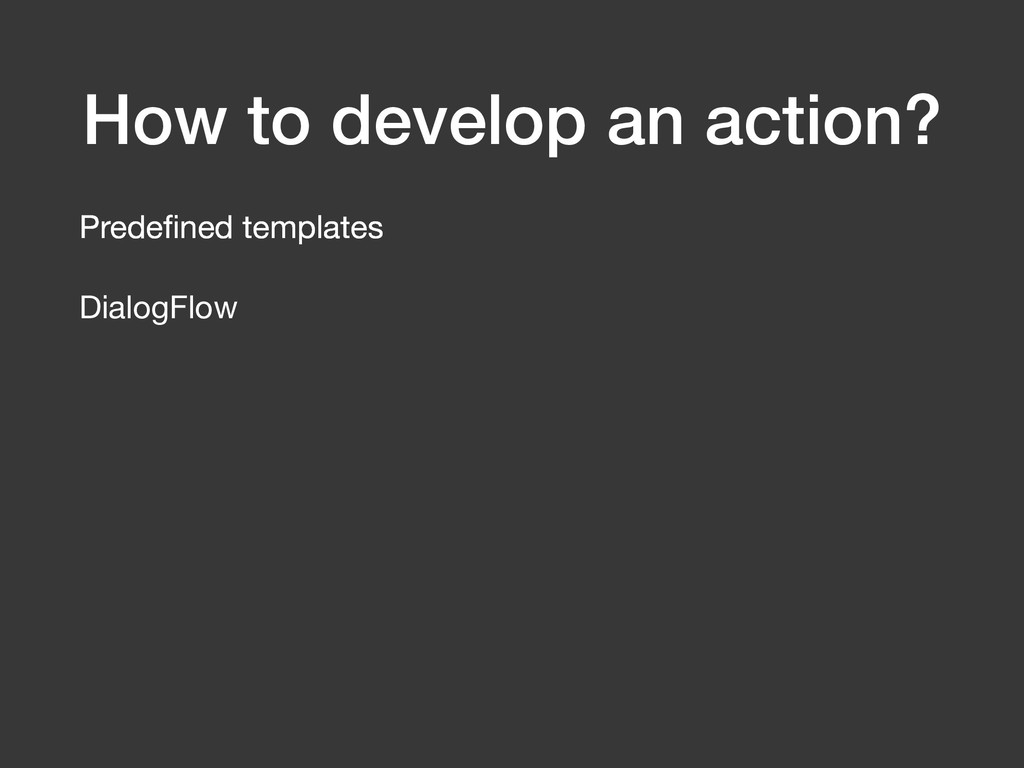

14. How to develop an action? Predefined templates DialogFlow
15. How to develop an action? Predefined templates DialogFlow SDK
16. DialogFlow
17. Intent

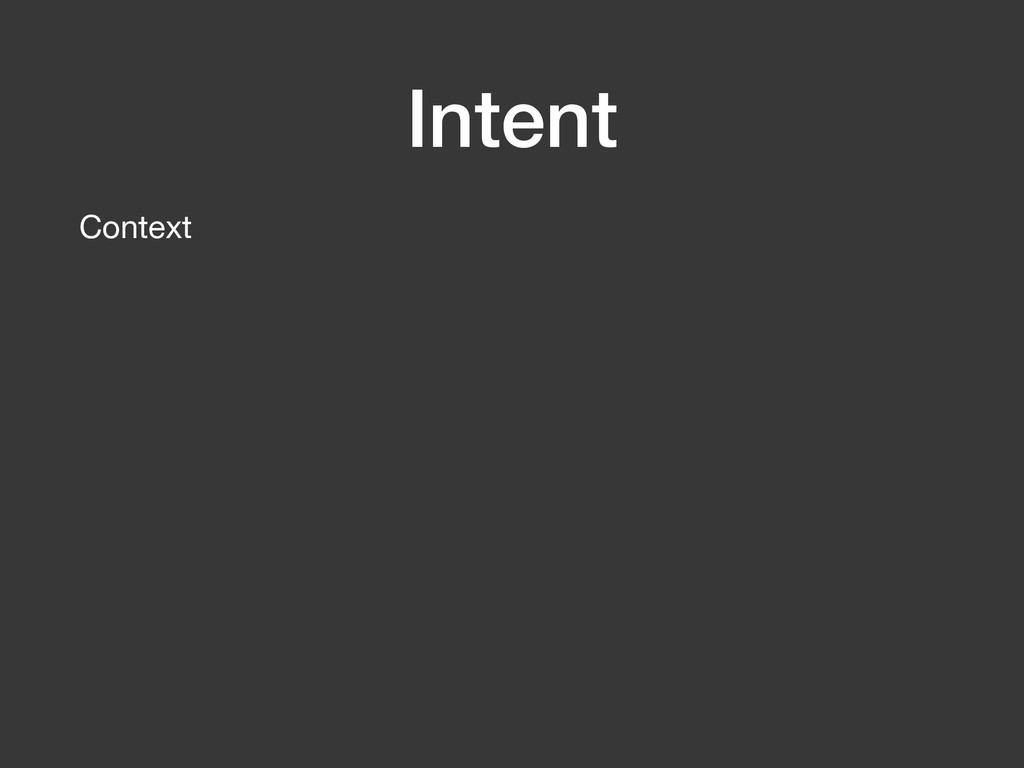

18. Intent Context

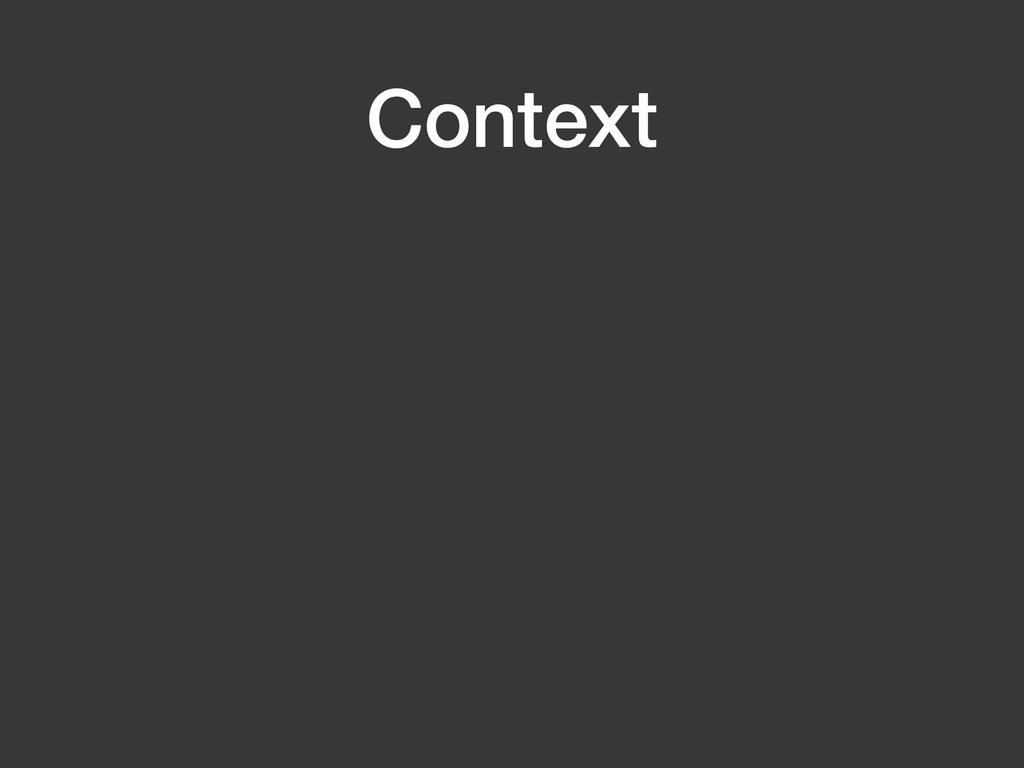

19. Context

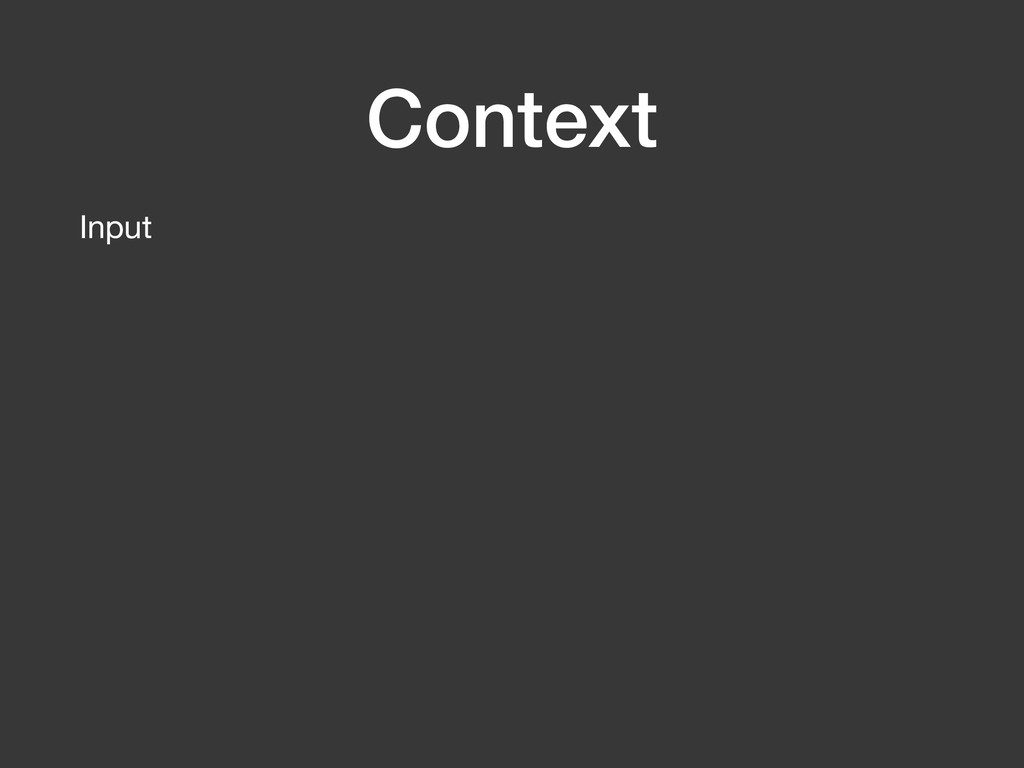

20. Context Input

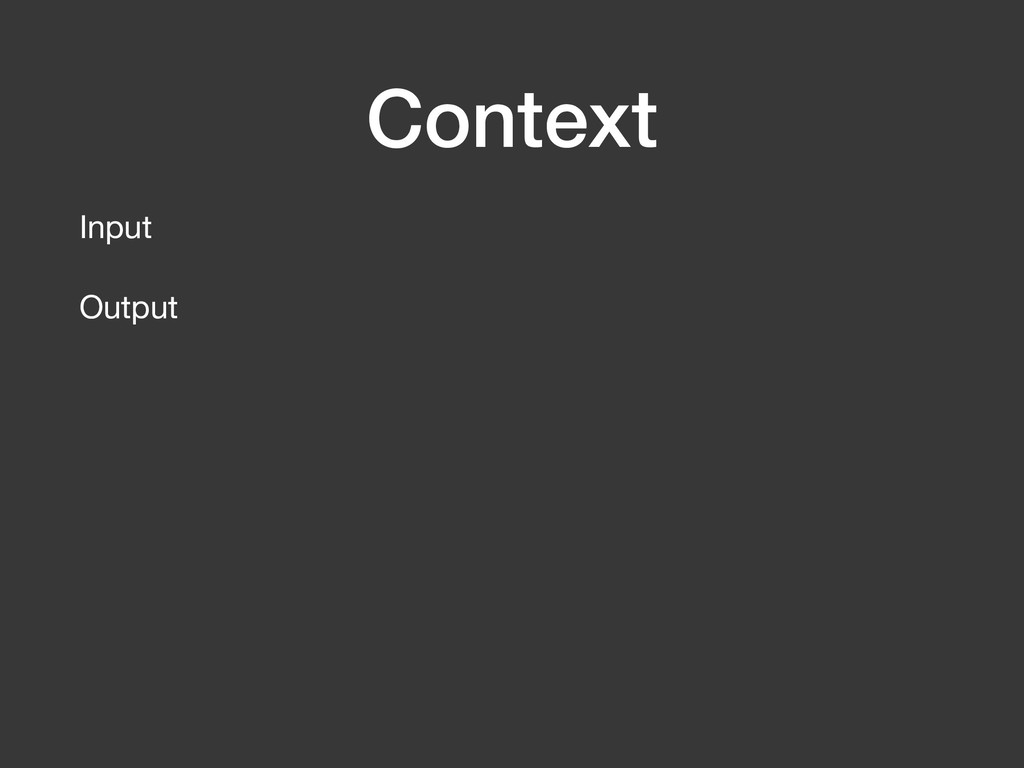

21. Context Input Output C C

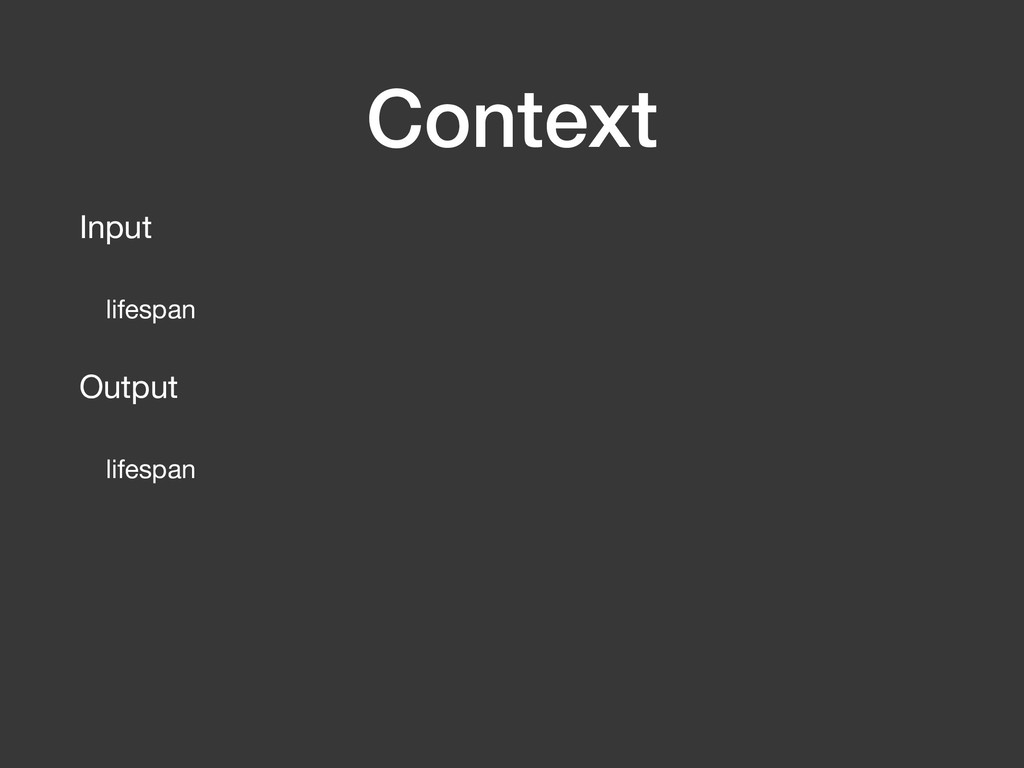

22. Context Input lifespan Output C lifespan C

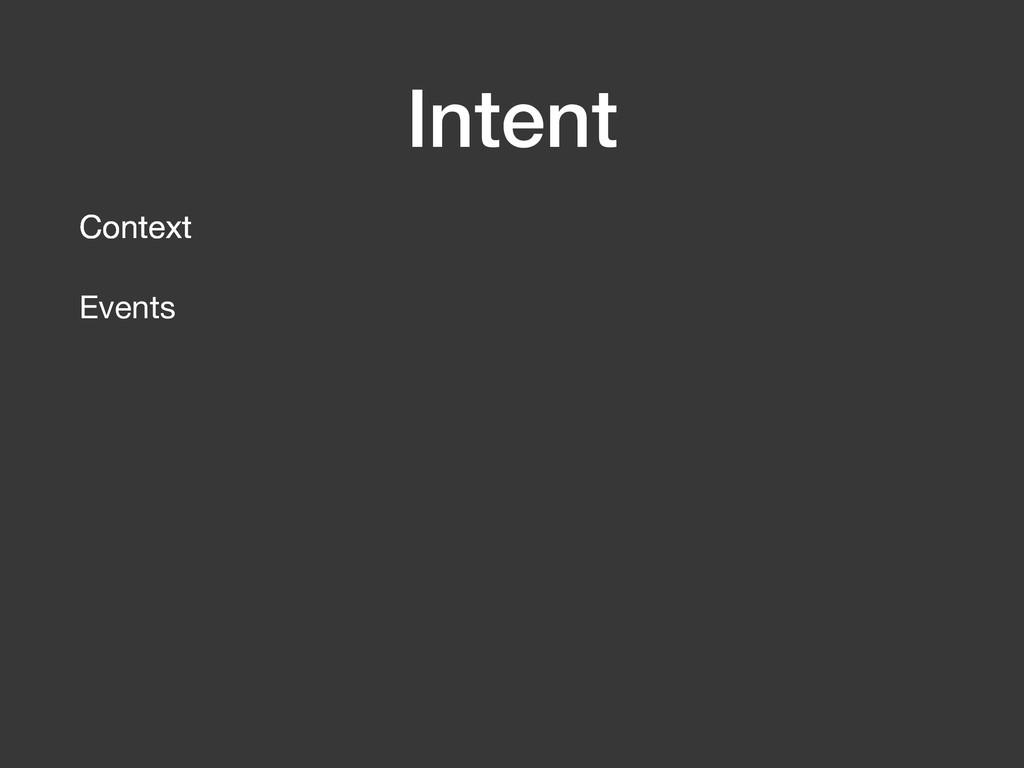

23. Intent Context Events

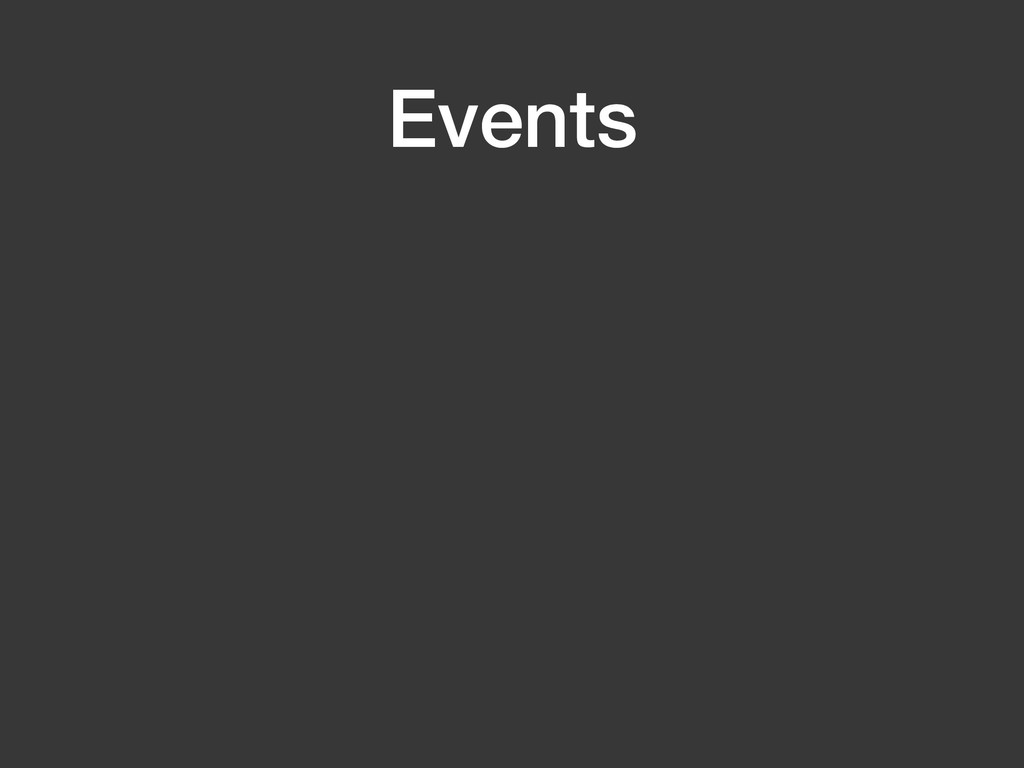

24. Events

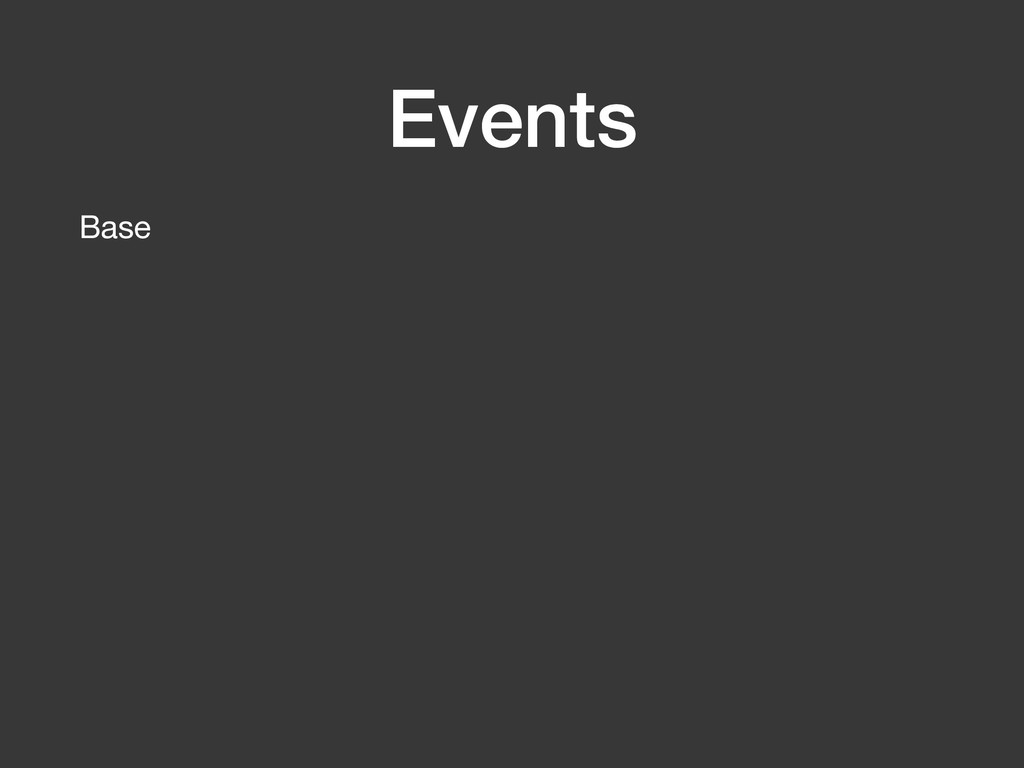

25. Events Base

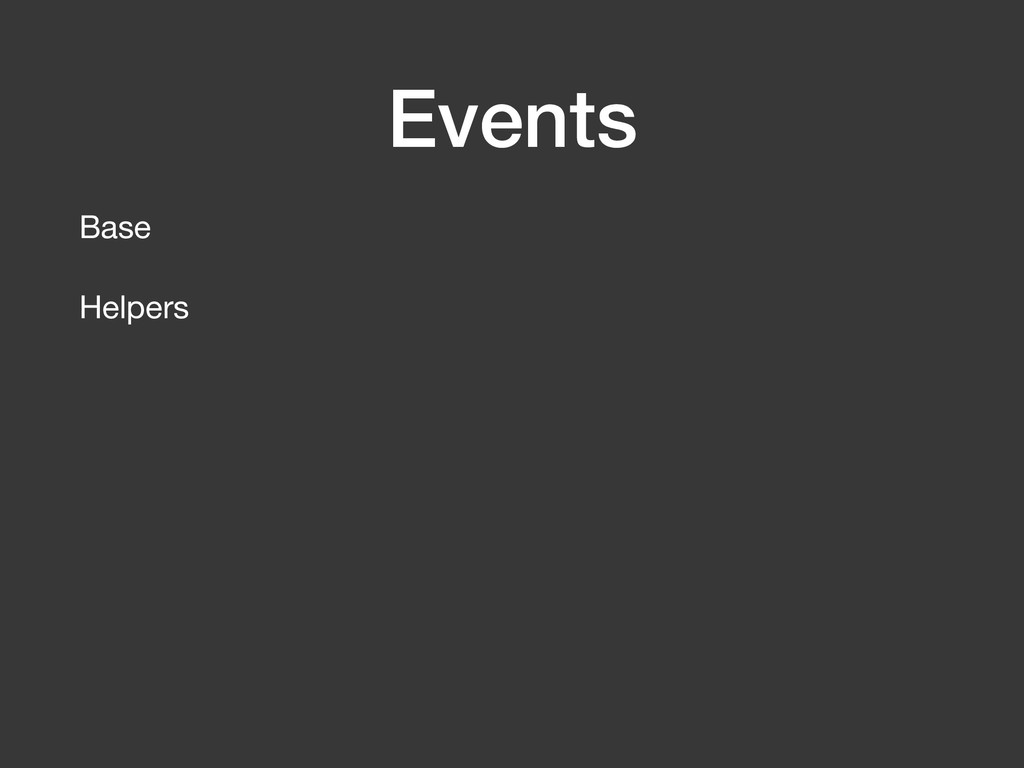

26. Events Base HelpersC

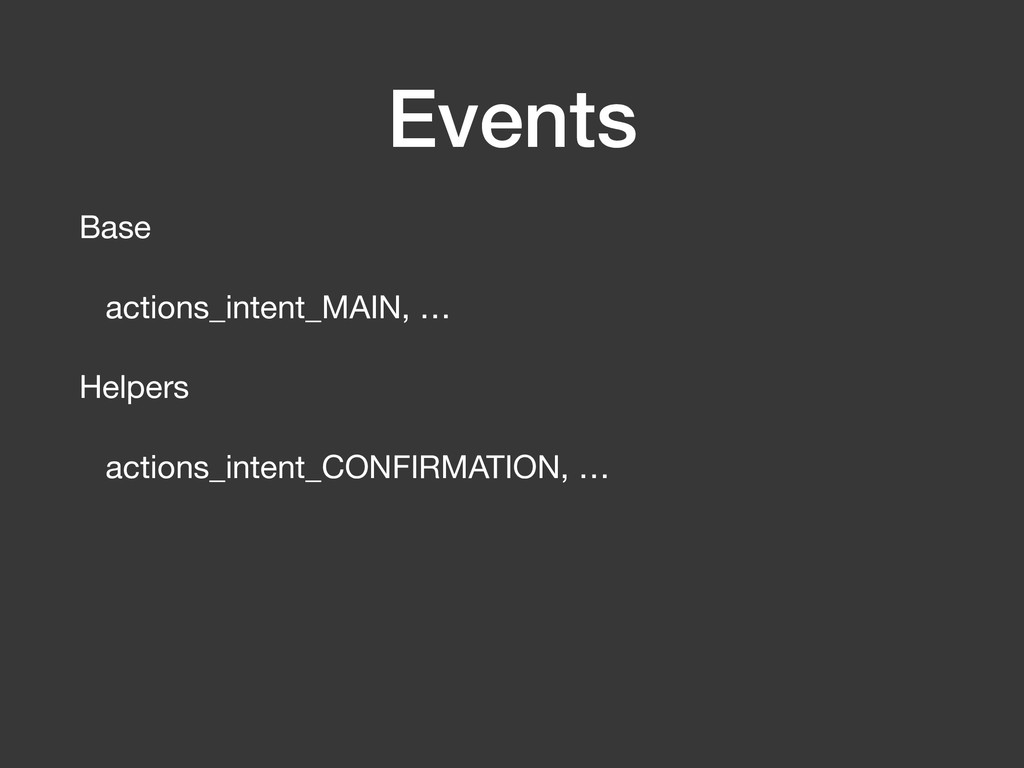

27. Events Base actions_intent_MAIN, … HelpersC actions_intent_CONFIRMATION, …C

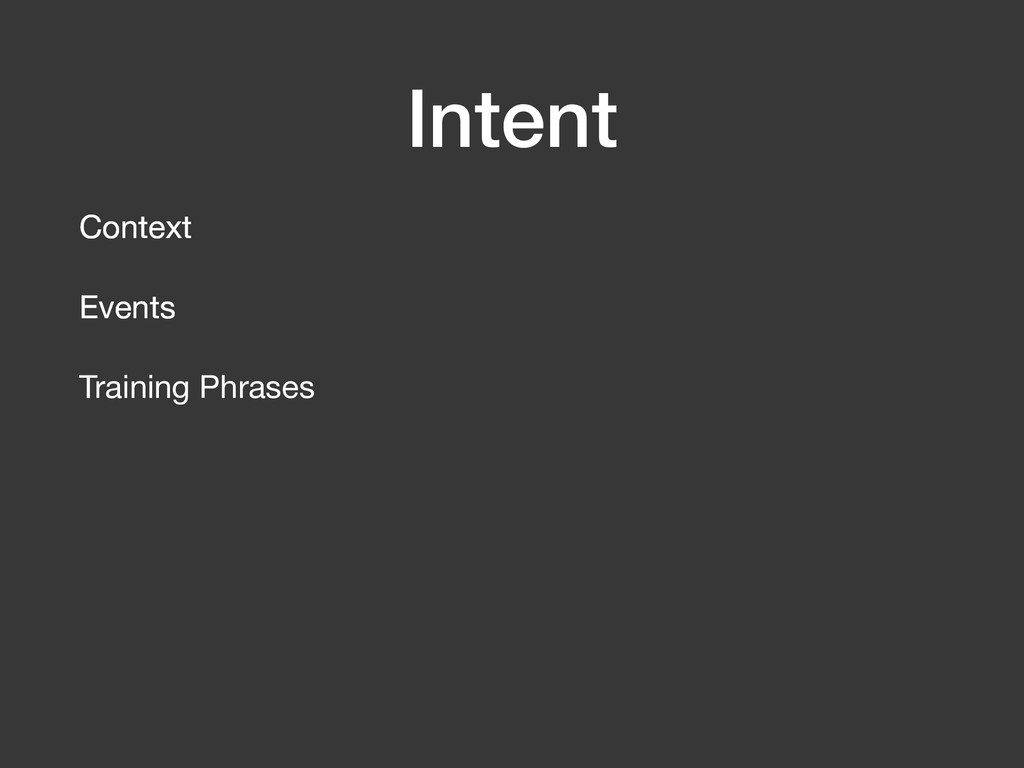

28. Intent Context Events Training Phrases

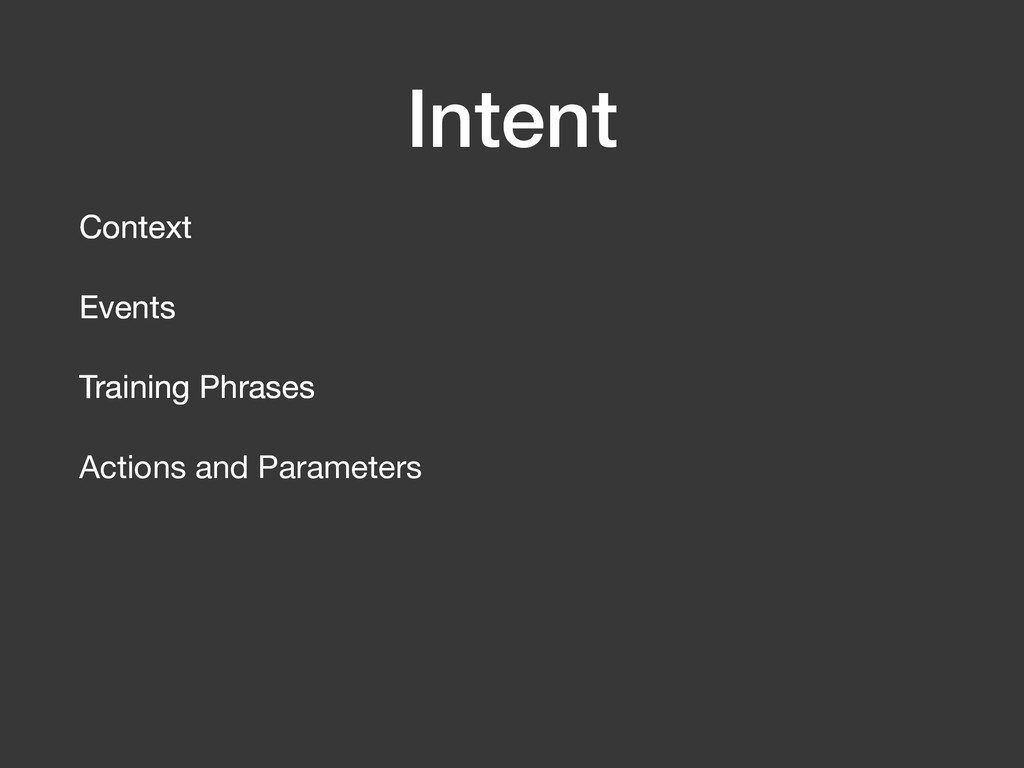

29. Intent Context Events Training Phrases Actions and Parameters

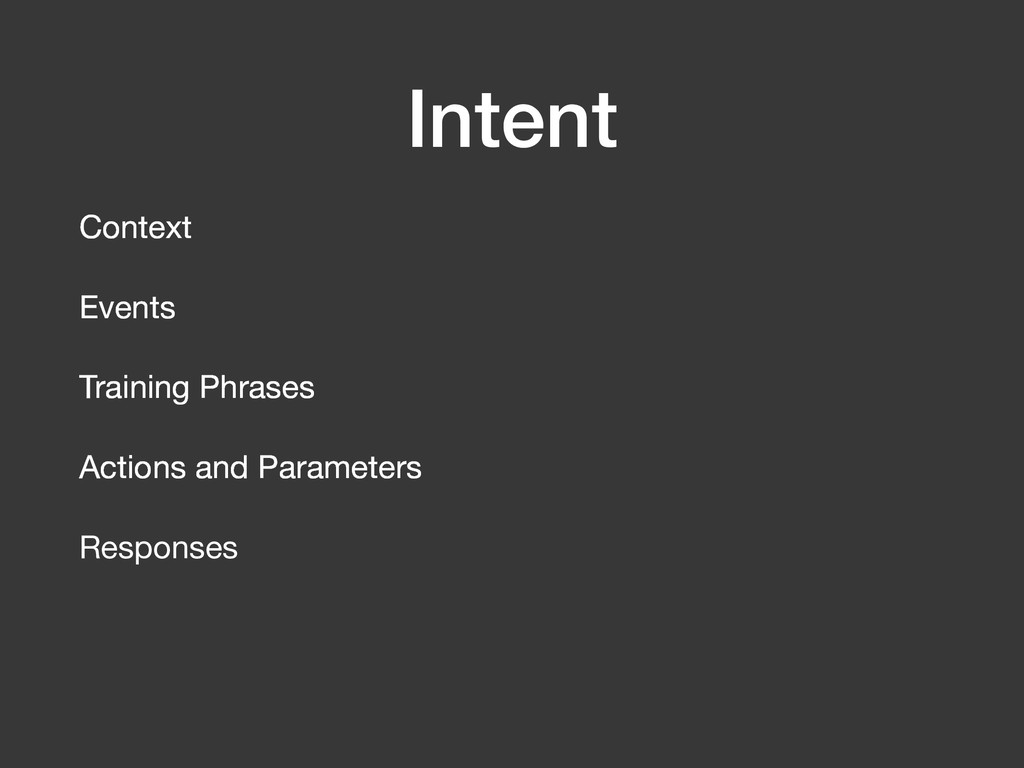

30. Intent Context Events Training Phrases Actions and Parameters Responses

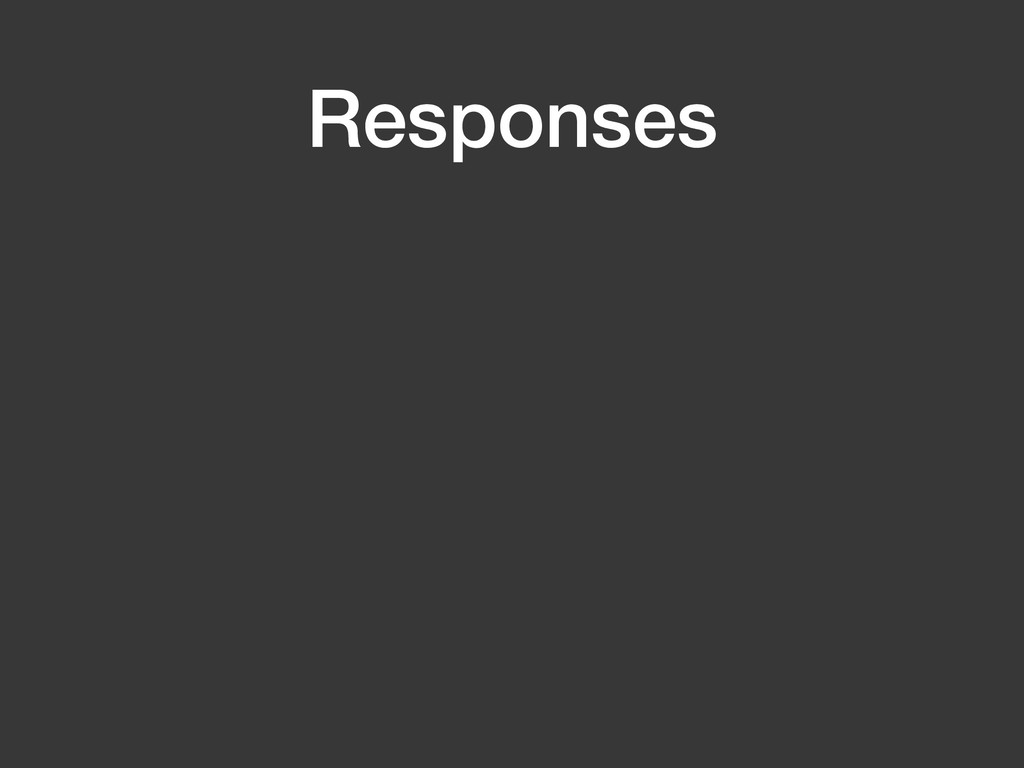

31. Responses

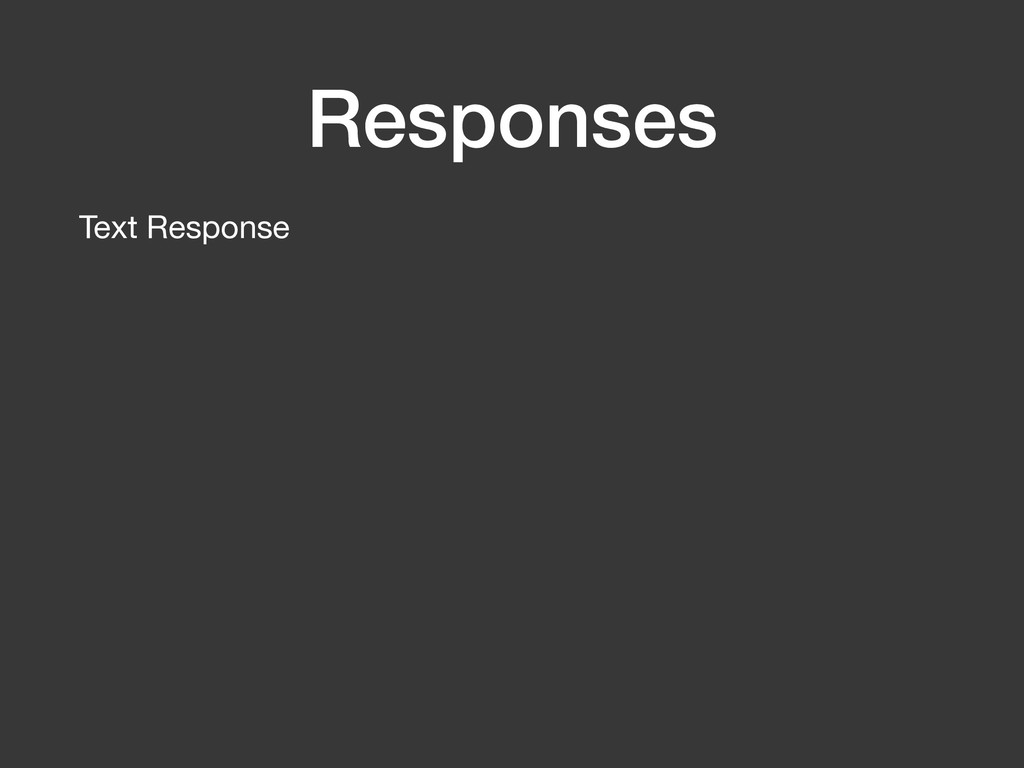

32. Responses Text Response

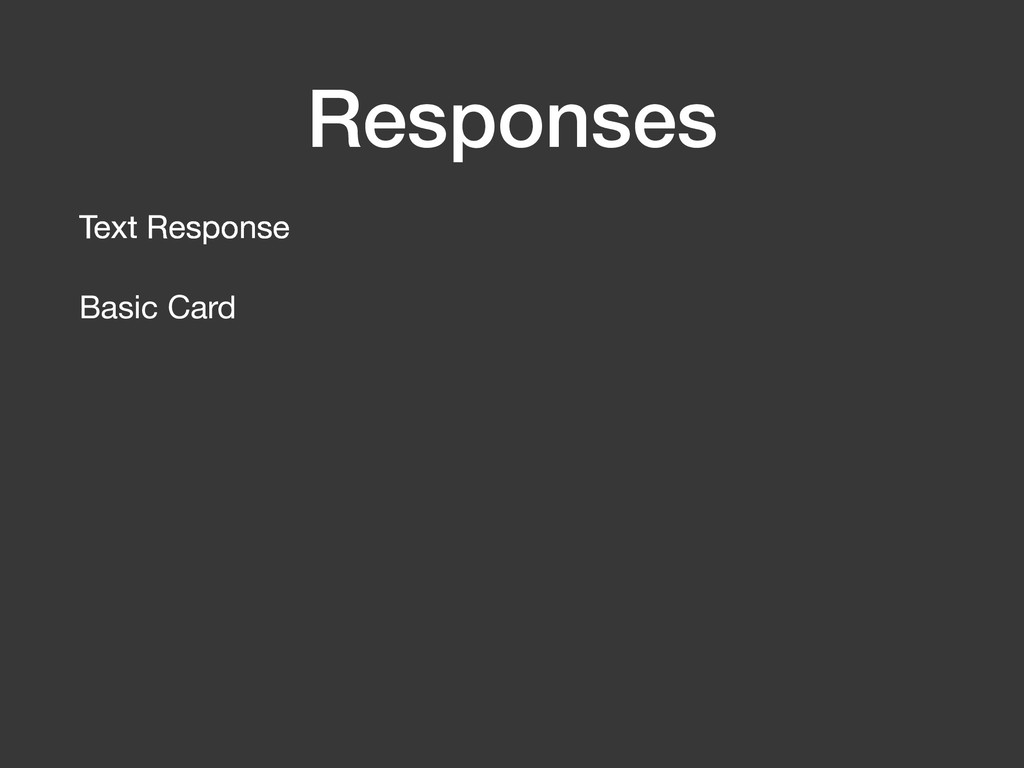

33. Responses Text Response Basic Card

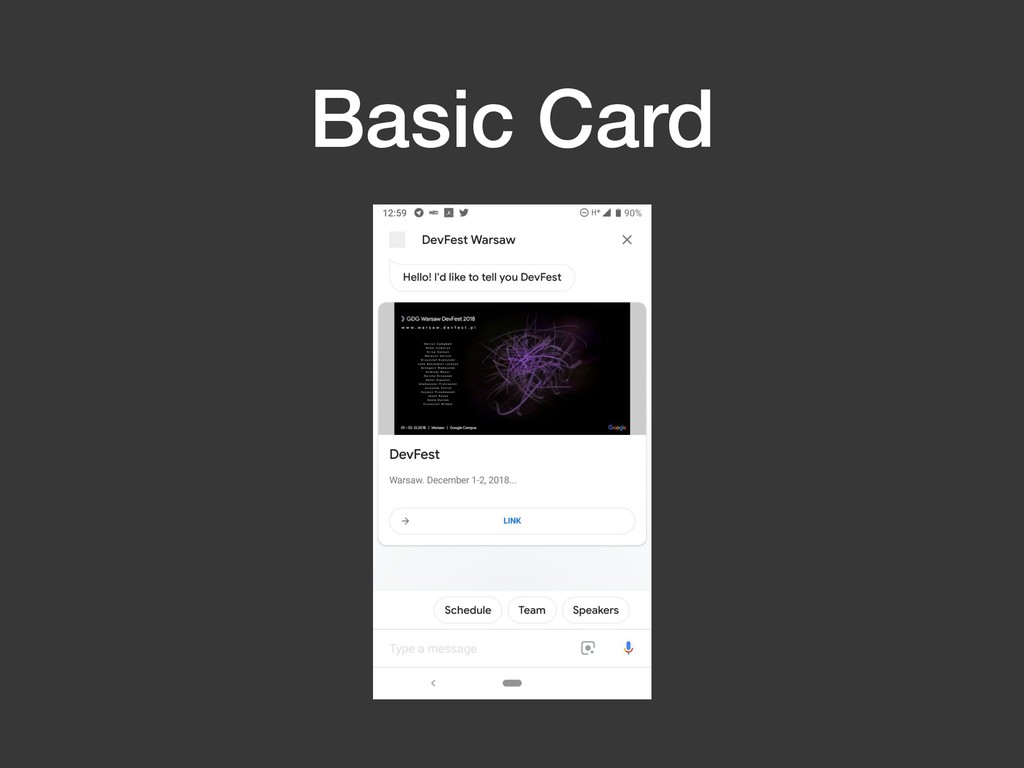

34. Basic Card

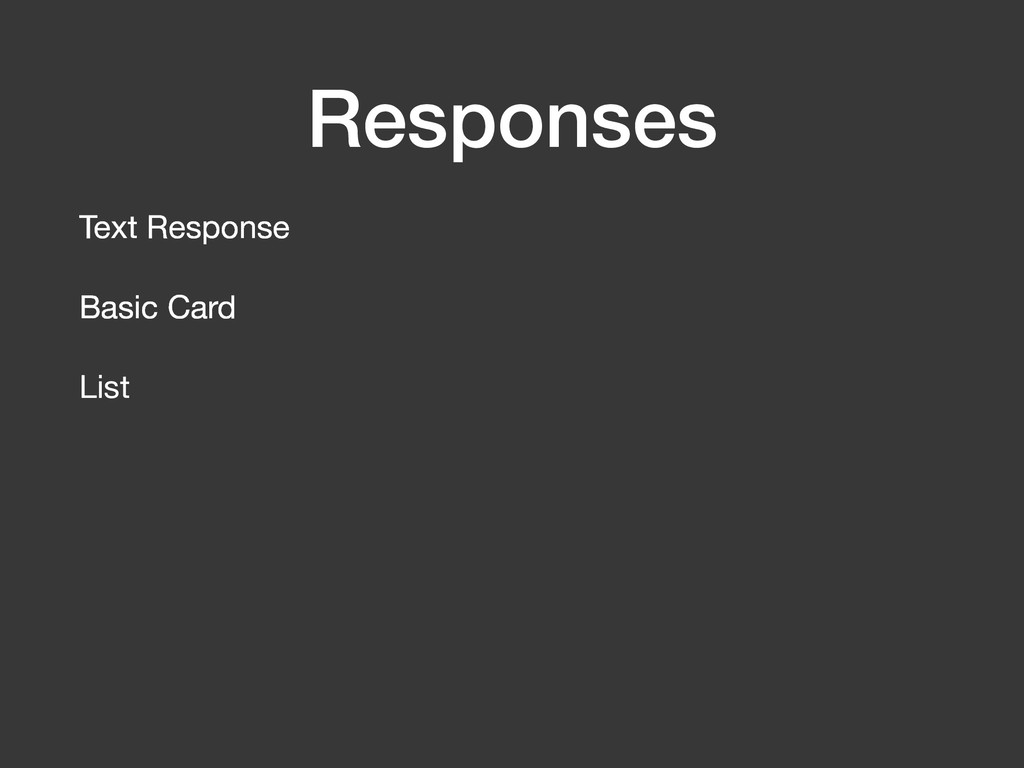

35. Responses Text Response Basic Card List

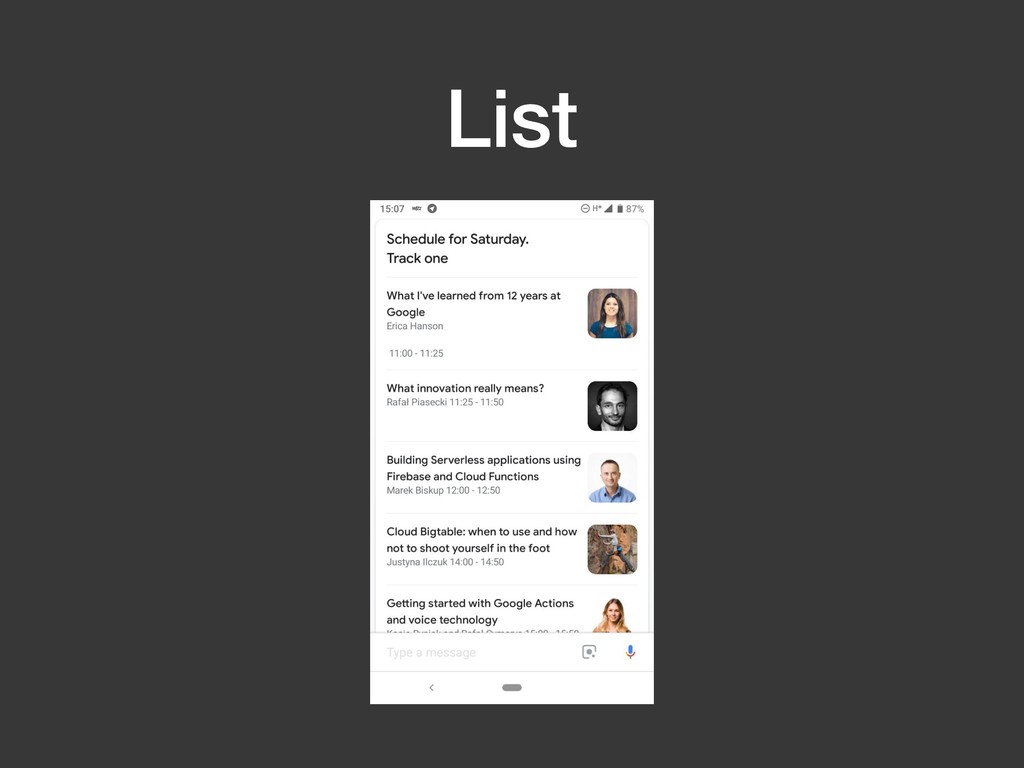

36. List

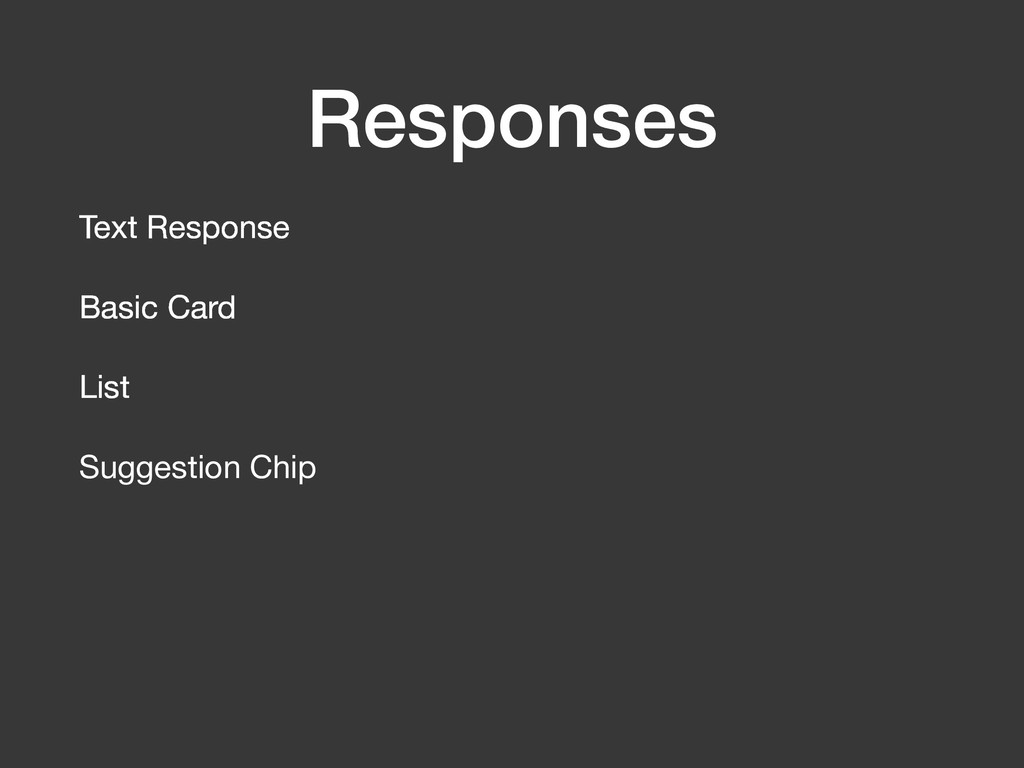

37. Responses Text Response Basic Card List Suggestion Chip

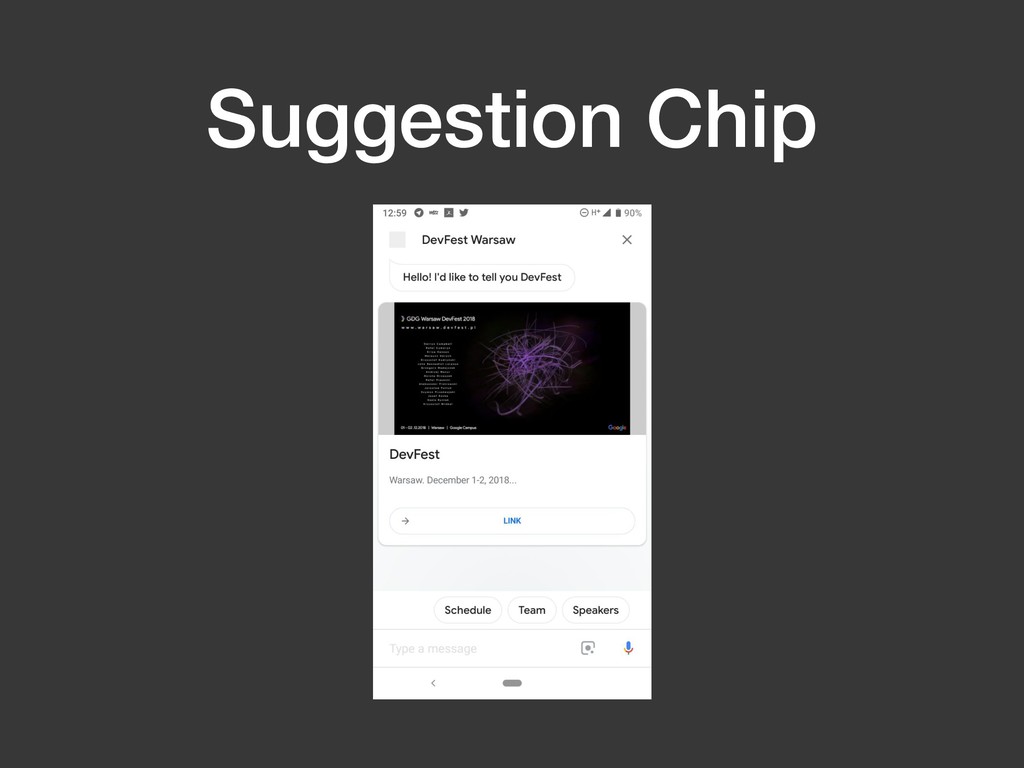

38. Suggestion Chip

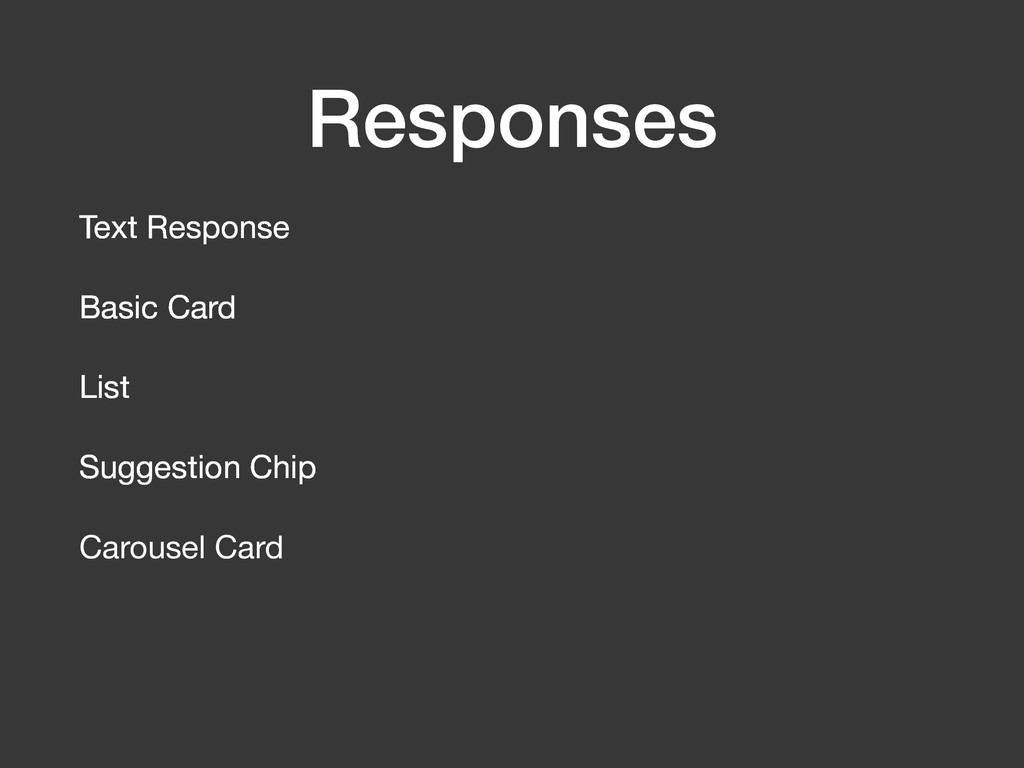

39. Responses Text Response Basic Card List Suggestion Chip Carousel Card

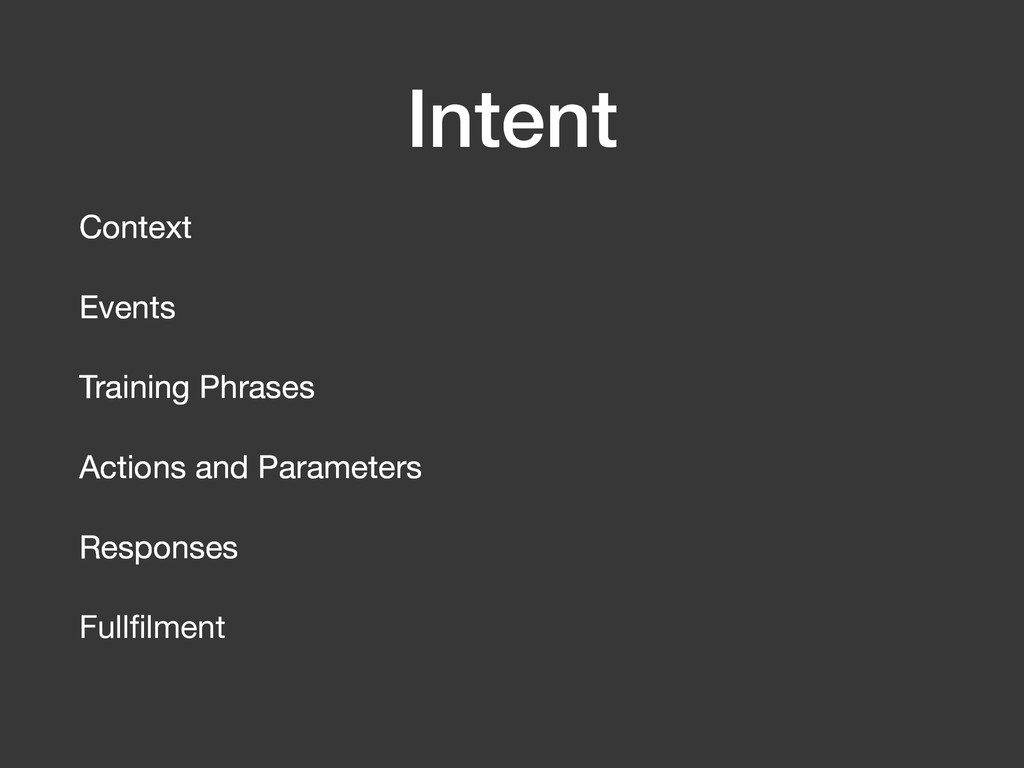

40. Intent Context Events Training Phrases Actions and Parameters Responses Fullfilment

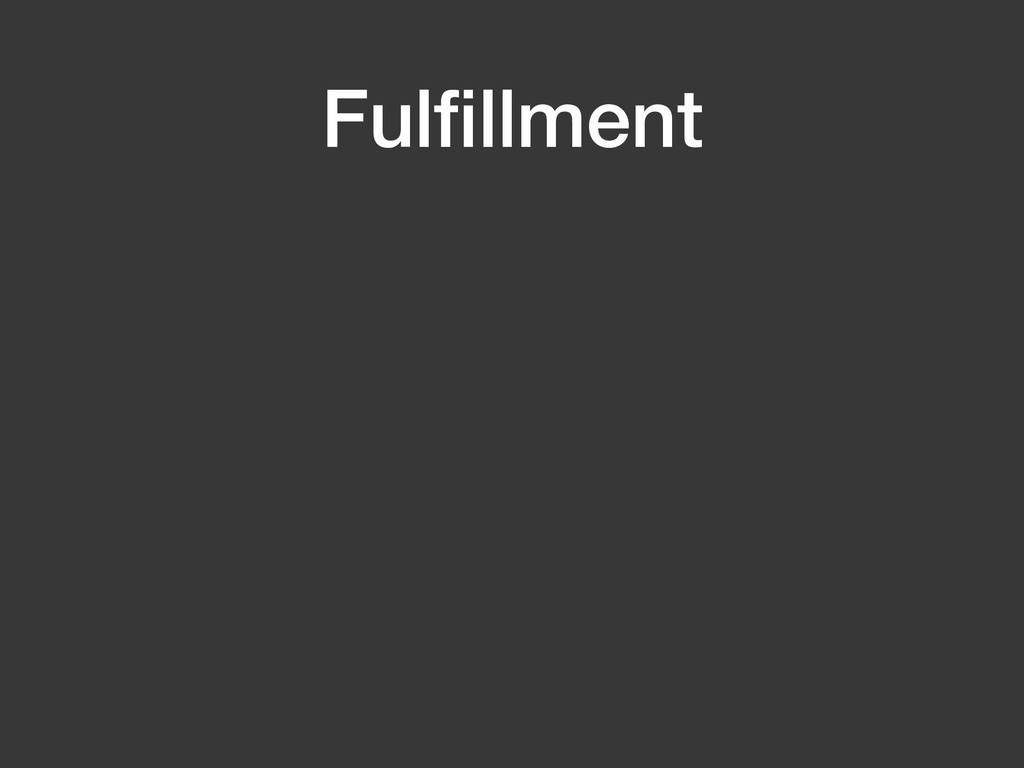

41. Fulfillment

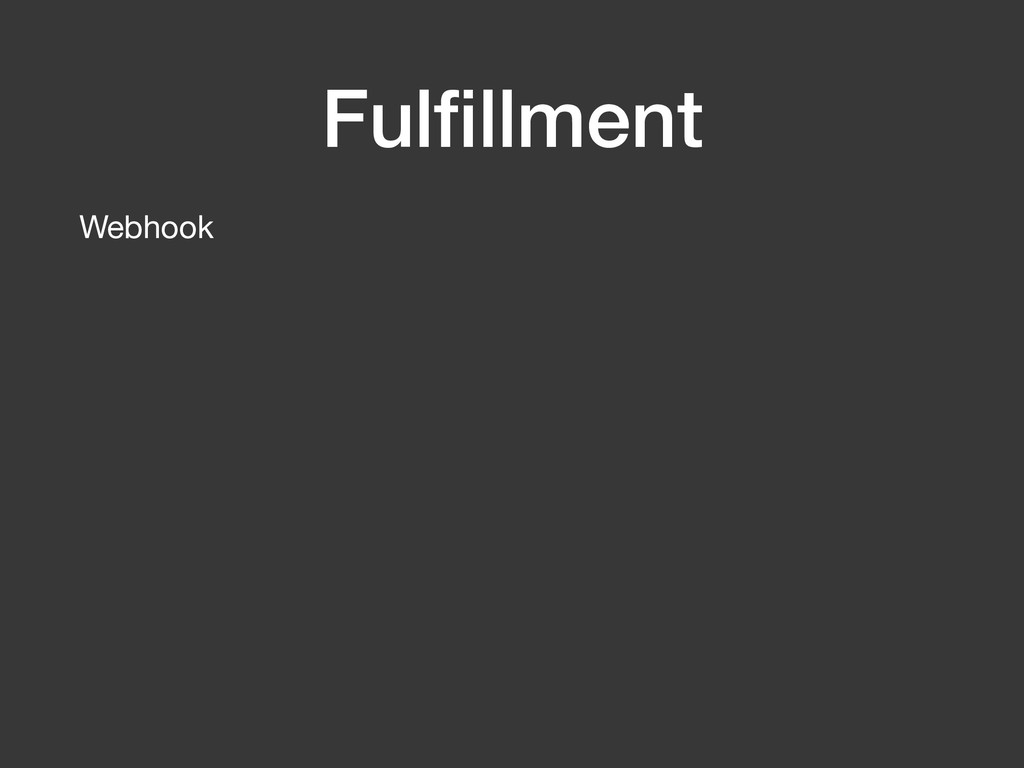

42. Fulfillment Webhook

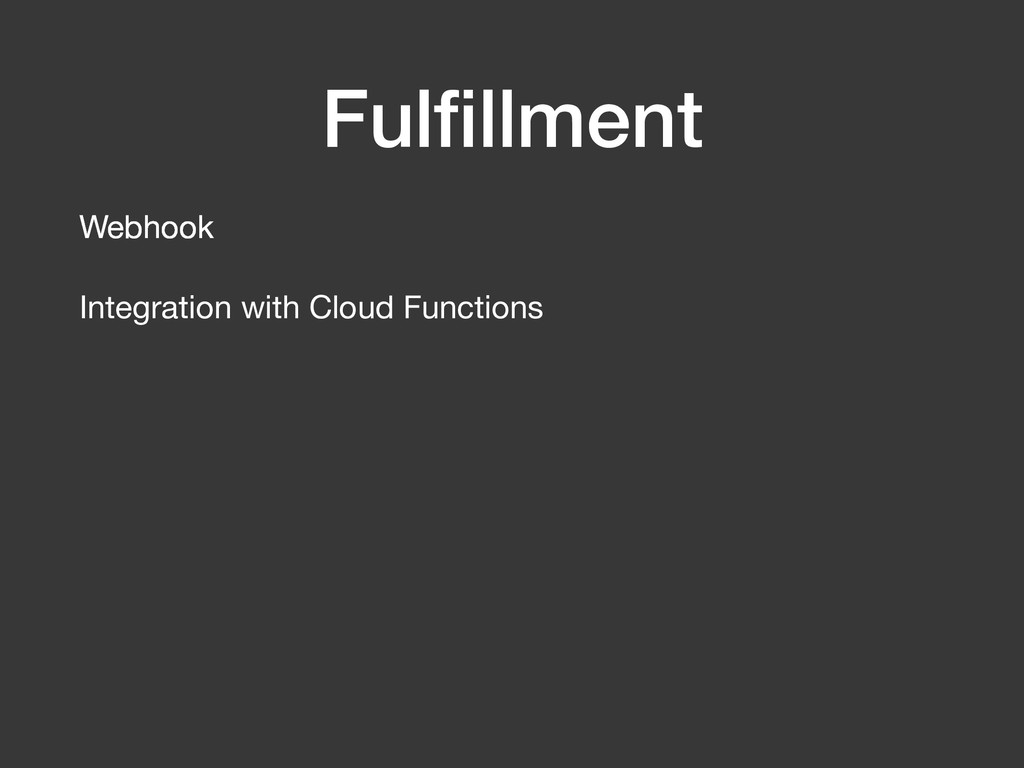

43. Fulfillment Webhook Integration with Cloud Functions

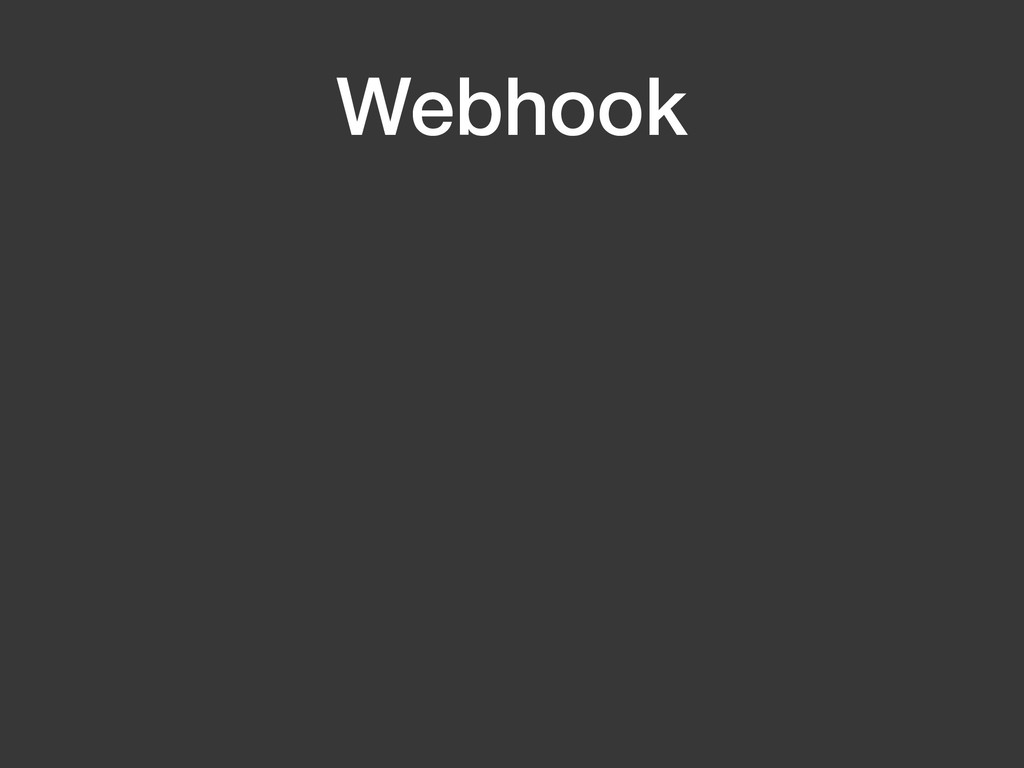

44. Webhook

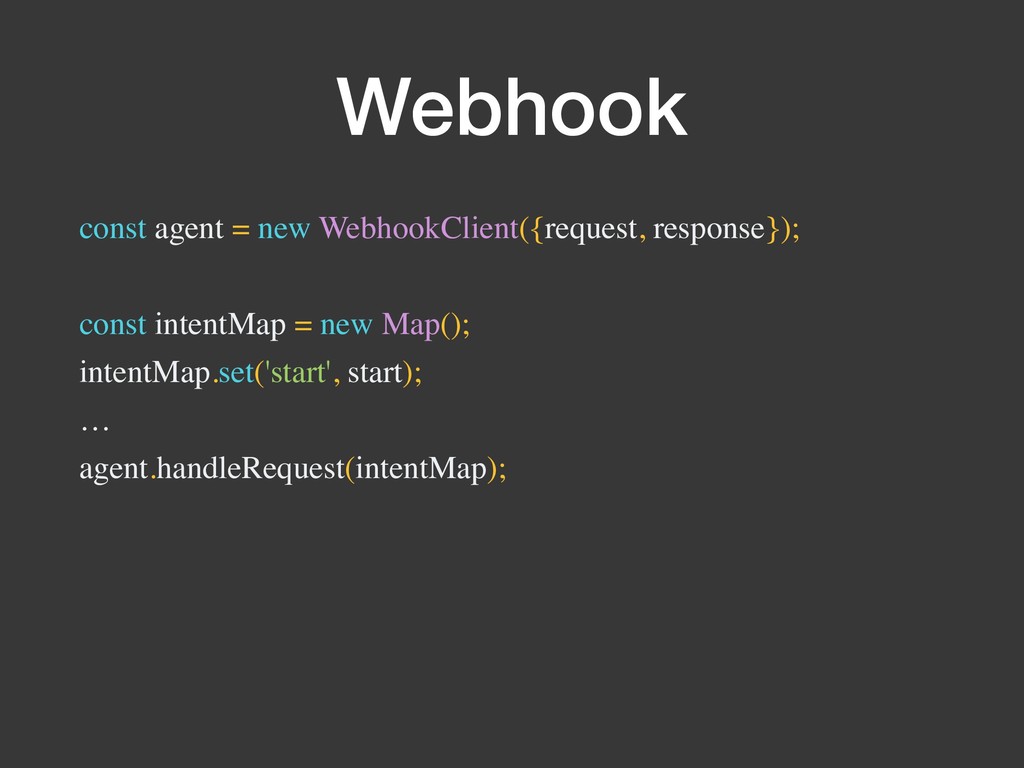

45. Webhook const agent = new WebhookClient({request, response}); const intentMap = new Map(); intentMap.set('start', start); … agent.handleRequest(intentMap);

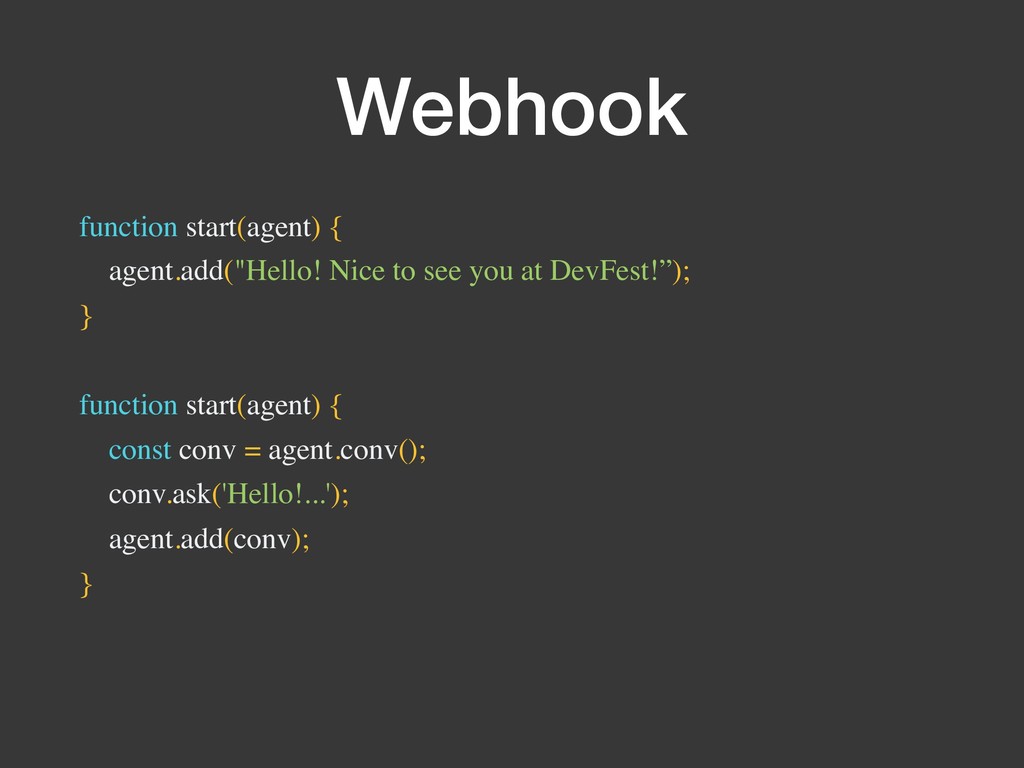

46. Webhook function start(agent) { agent.add("Hello! Nice to see you at DevFest!”); } function start(agent) { const conv = agent.conv(); conv.ask('Hello!...'); agent.add(conv); }

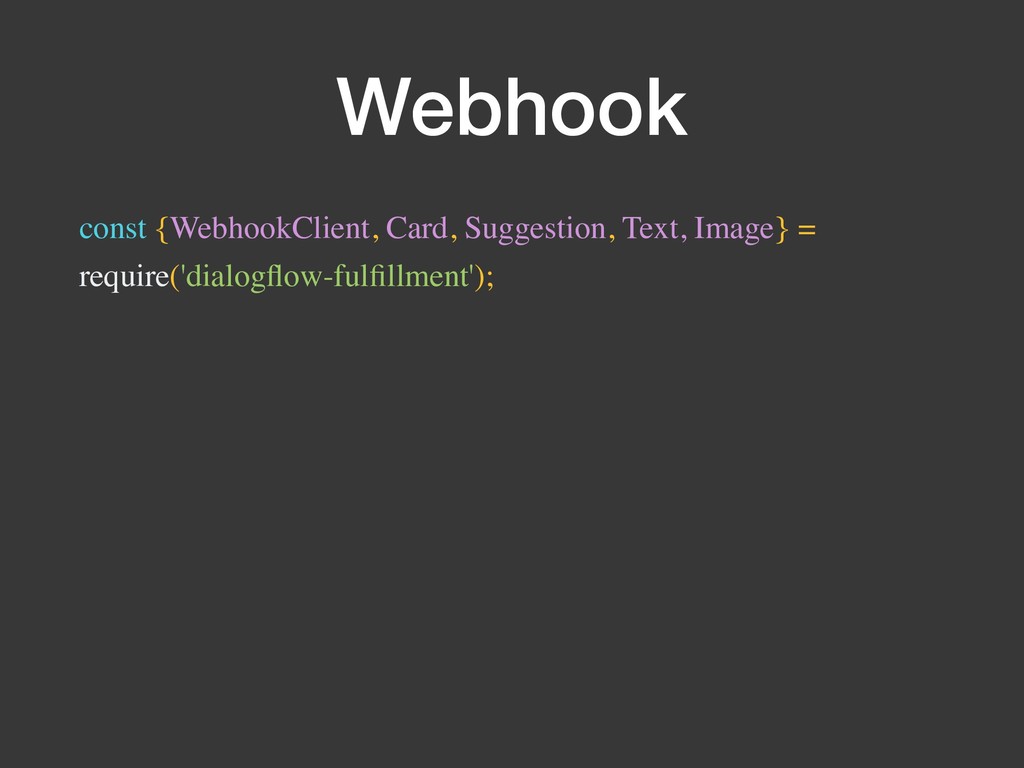

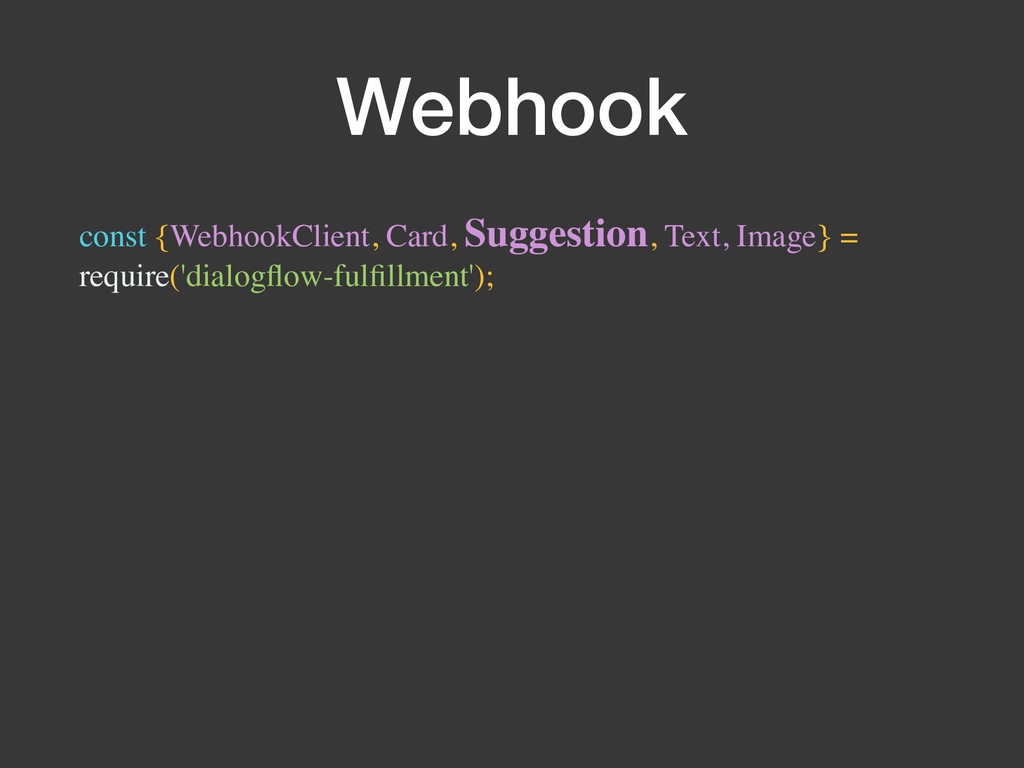

47. Webhook const {WebhookClient, Card, Suggestion, Text, Image} = require('dialogflow-fulfillment');
48. Webhook const {WebhookClient, Card, Suggestion, Text, Image} = require('dialogflow-fulfillment');

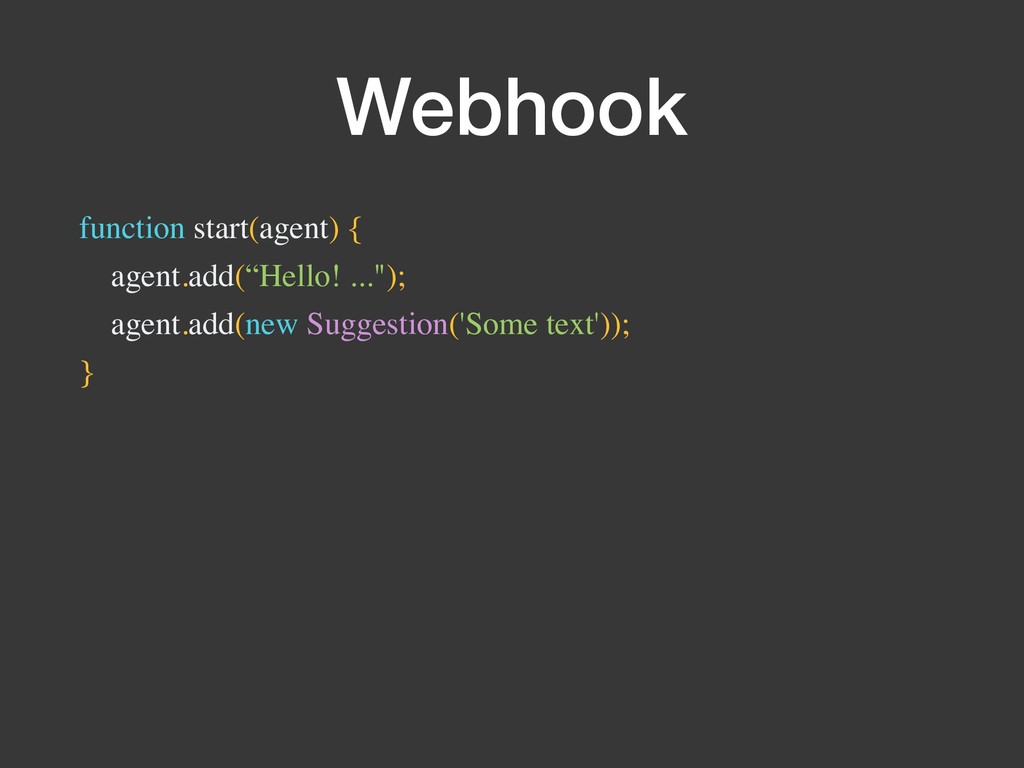

49. Webhook function start(agent) { agent.add(“Hello! ..."); agent.add(new Suggestion('Some text')); }

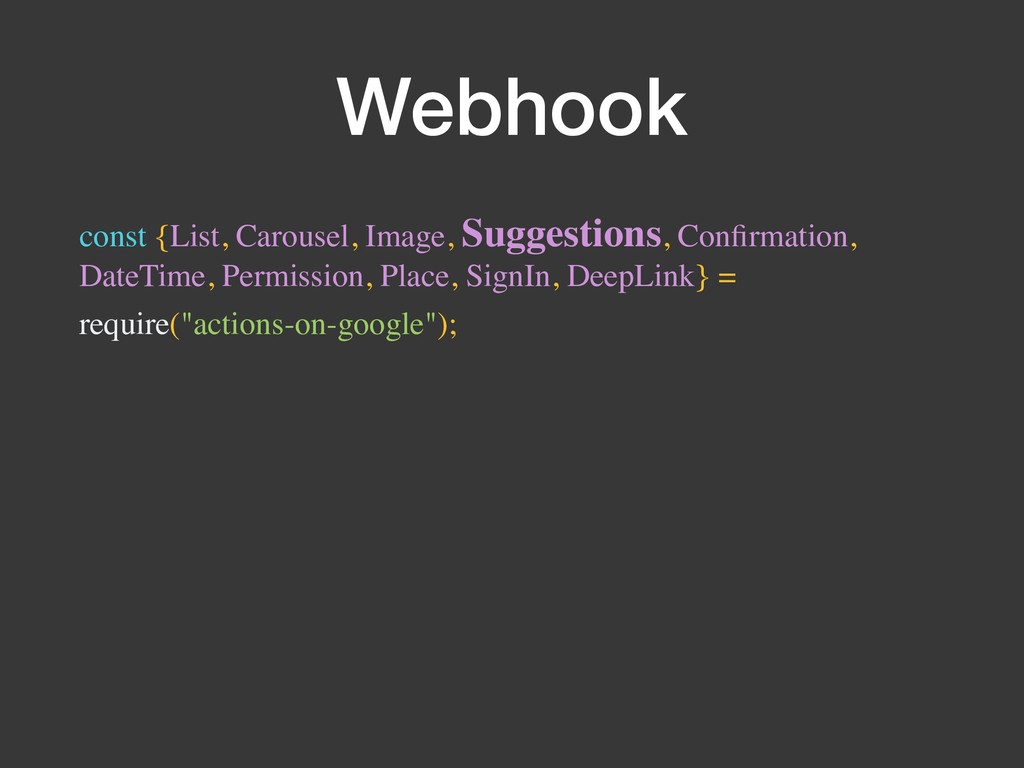

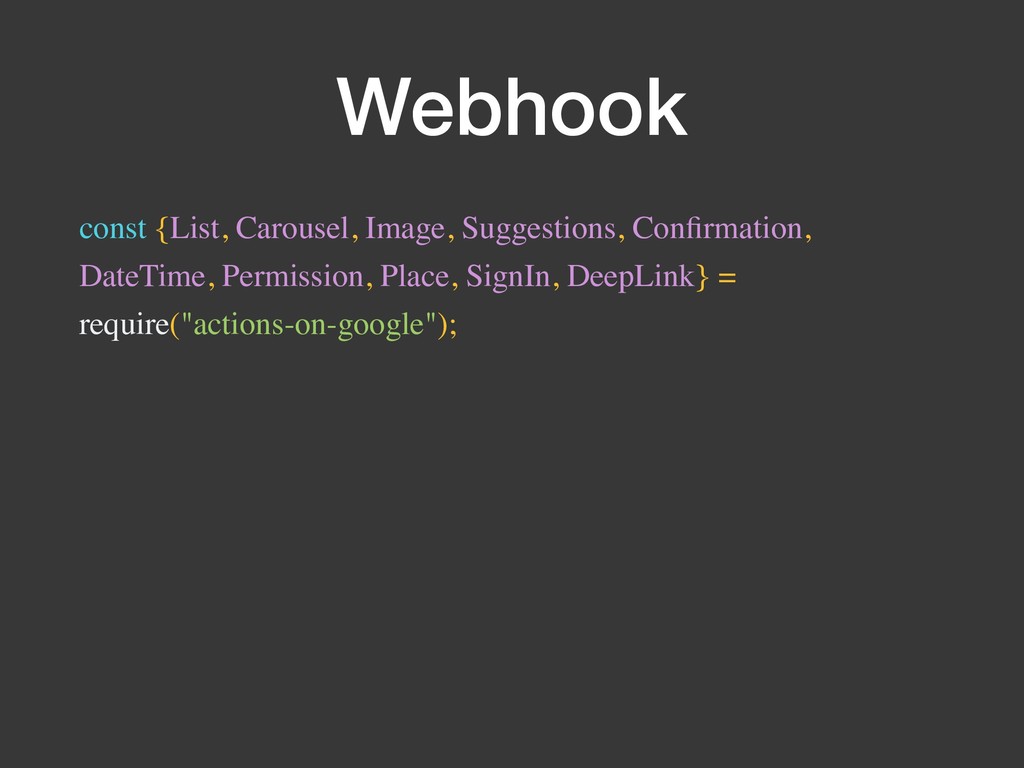

50. Webhook const {List, Carousel, Image, Suggestions, Confirmation, DateTime, Permission, Place, SignIn, DeepLink} = require("actions-on-google");
51. Webhook const {List, Carousel, Image, Suggestions, Confirmation, DateTime, Permission, Place, SignIn, DeepLink} = require("actions-on-google");

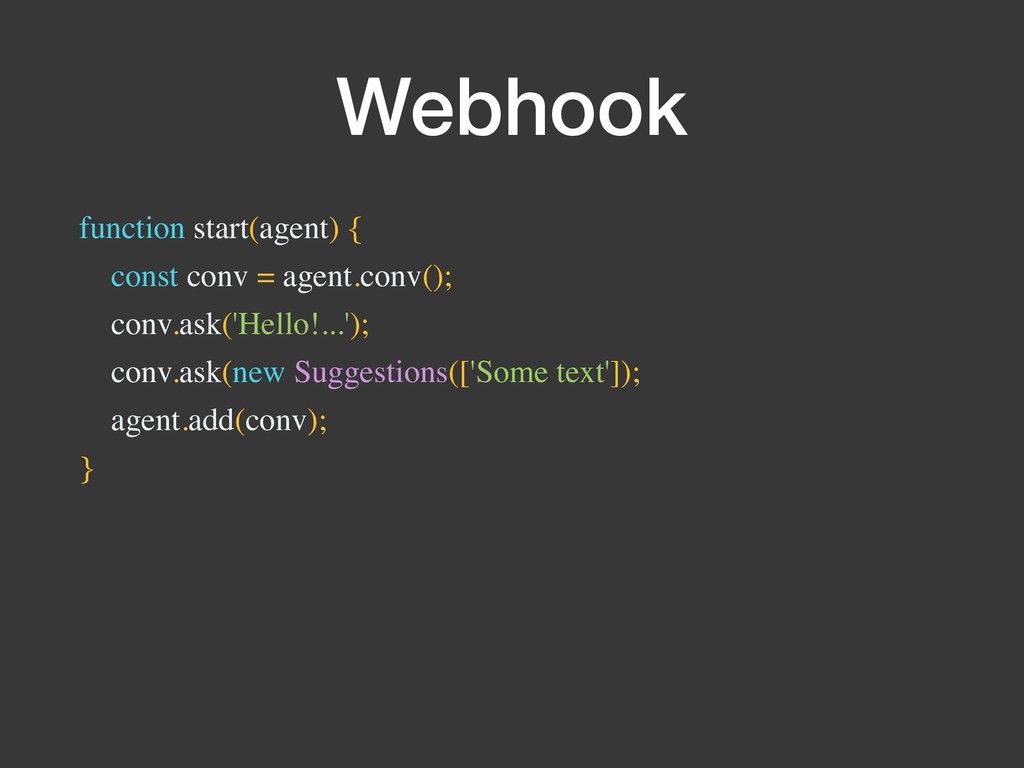

52. Webhook function start(agent) { const conv = agent.conv(); conv.ask('Hello!...'); conv.ask(new Suggestions(['Some text']); agent.add(conv); }

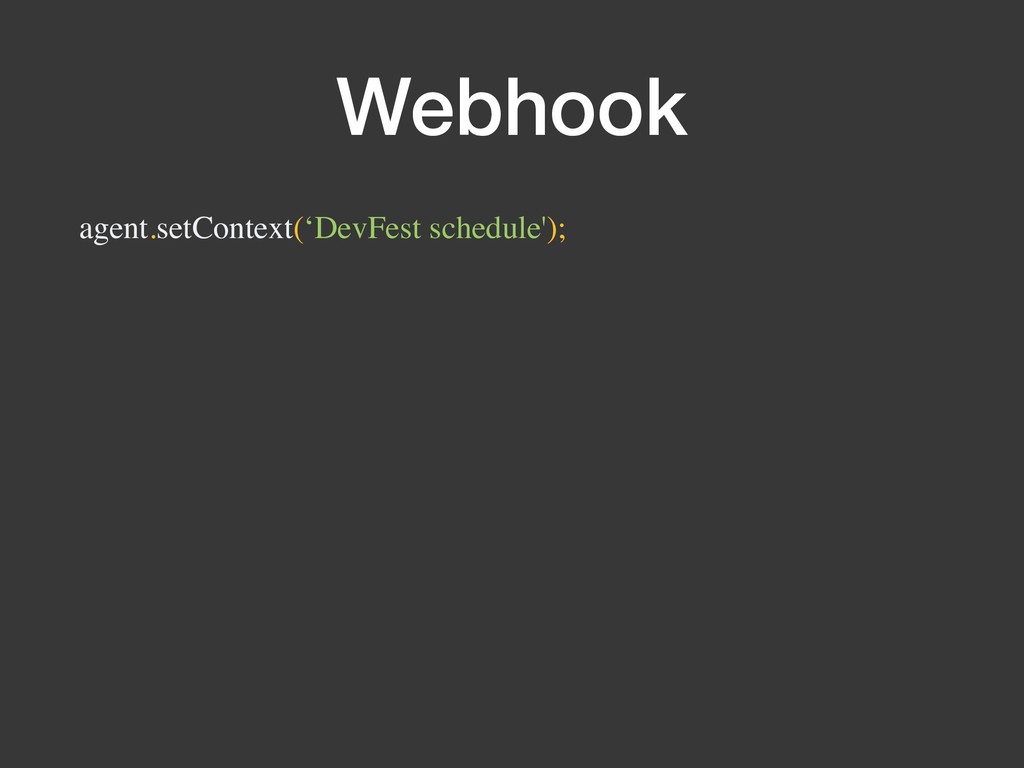

53. Webhook agent.setContext(‘DevFest schedule');

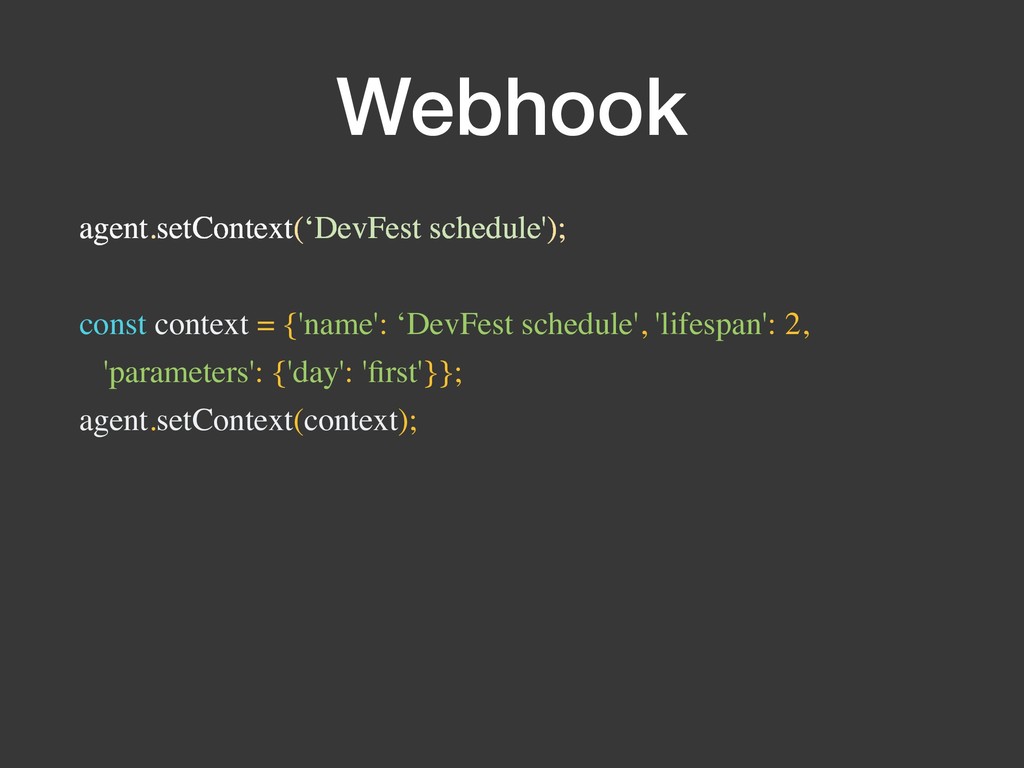

54. Webhook agent.setContext(‘DevFest schedule'); const context = {'name': ‘DevFest schedule', 'lifespan': 2, 'parameters': {'day': 'first'}}; agent.setContext(context);
55. Webhook agent.setFollowupEvent('scheduleChosen')

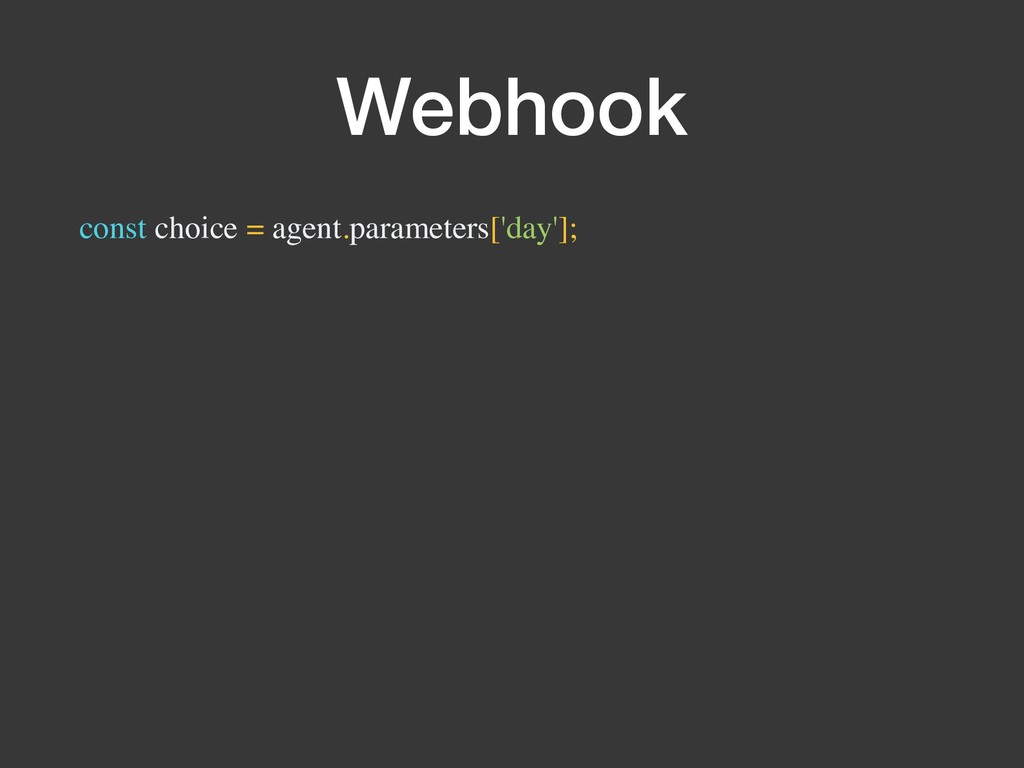

56. Webhook const choice = agent.parameters['day'];

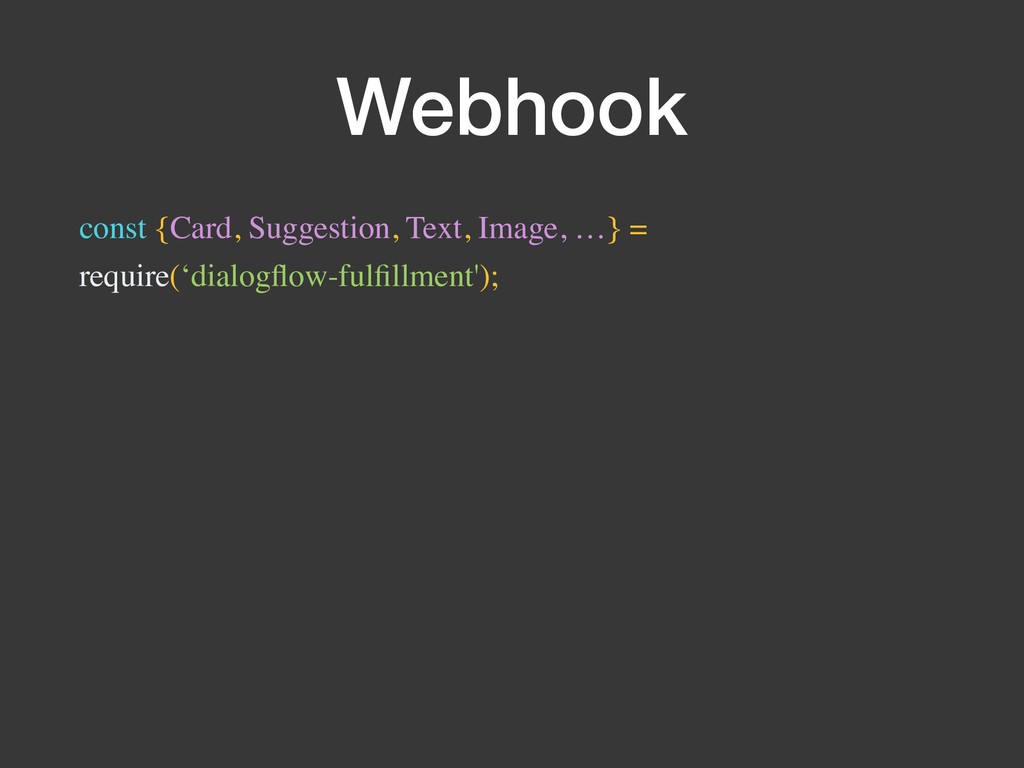

57. Webhook const {Card, Suggestion, Text, Image, …} = require(‘dialogflow-fulfillment');

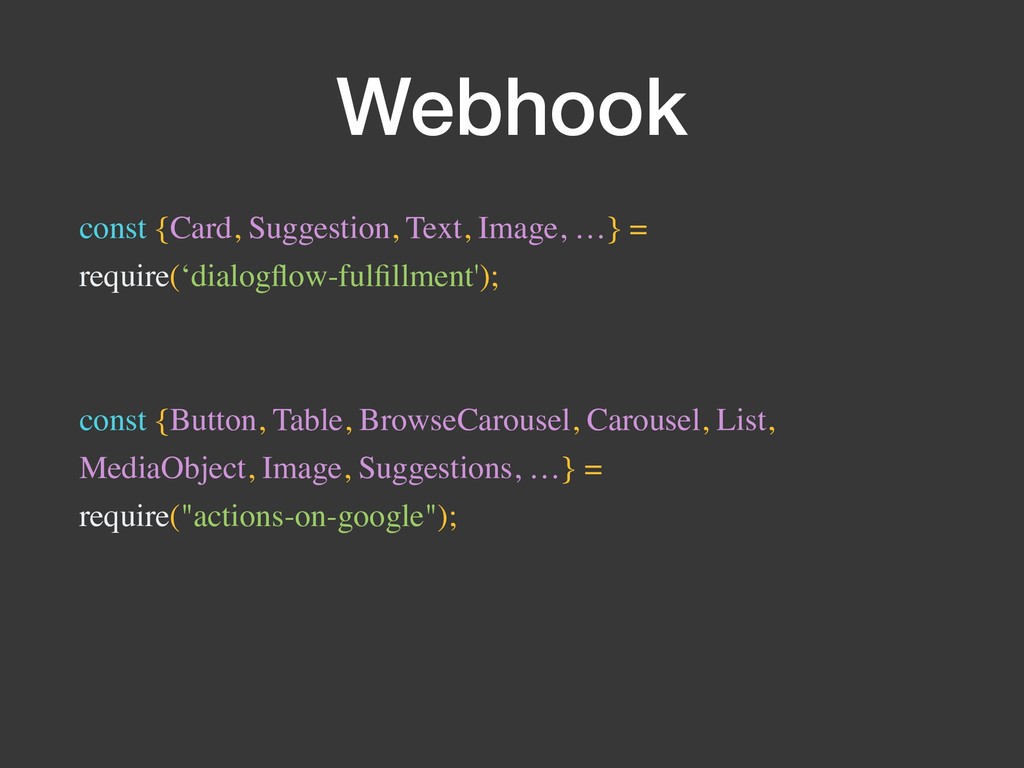

58. Webhook const {Card, Suggestion, Text, Image, …} = require(‘dialogflow-fulfillment'); const {Button, Table, BrowseCarousel, Carousel, List, MediaObject, Image, Suggestions, …} = require("actions-on-google");

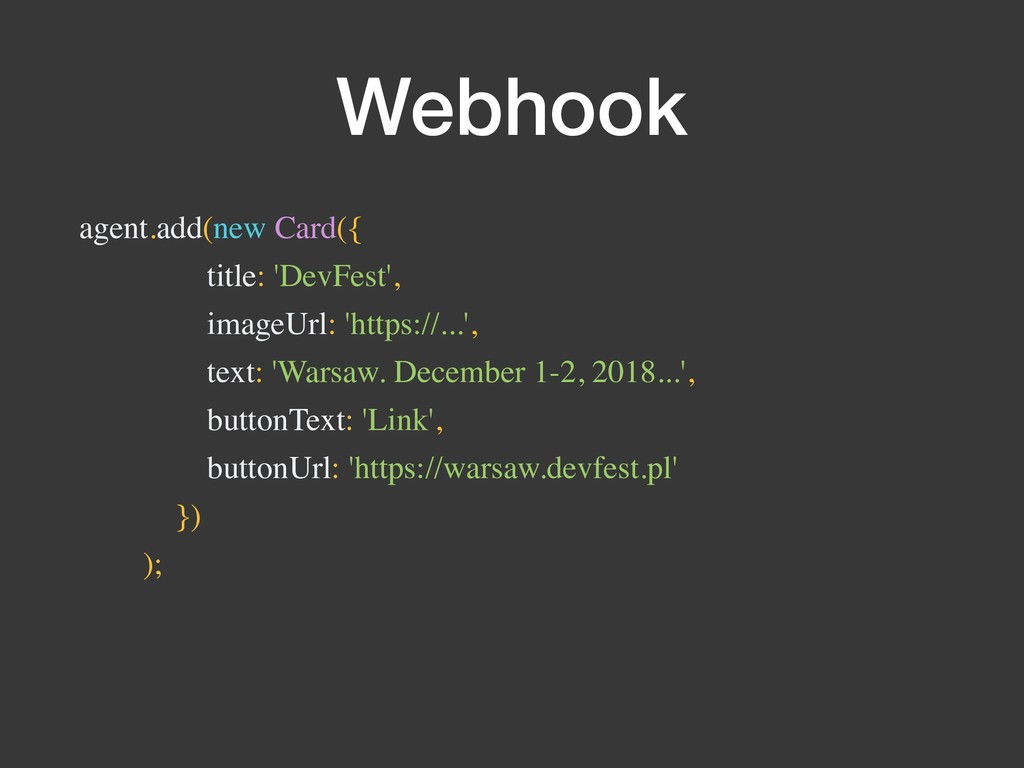

59. Webhook agent.add(new Card({ title: 'DevFest', imageUrl: 'https://...', text: 'Warsaw. December 1-2, 2018...', buttonText: 'Link', buttonUrl: 'https://warsaw.devfest.pl' }) );

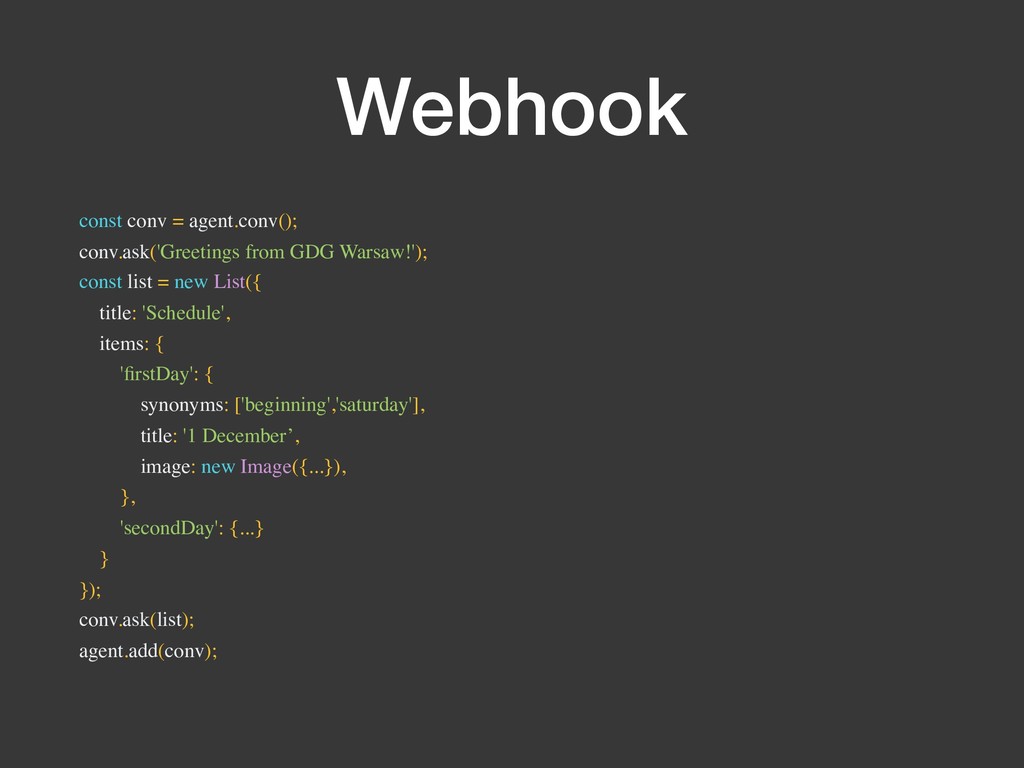

60. Webhook const conv = agent.conv(); conv.ask('Greetings from GDG Warsaw!'); const list = new List({ title: 'Schedule', items: { 'firstDay': { synonyms: ['beginning','saturday'], title: '1 December’, image: new Image({...}), }, 'secondDay': {...} } }); conv.ask(list); agent.add(conv);
61. Webhook

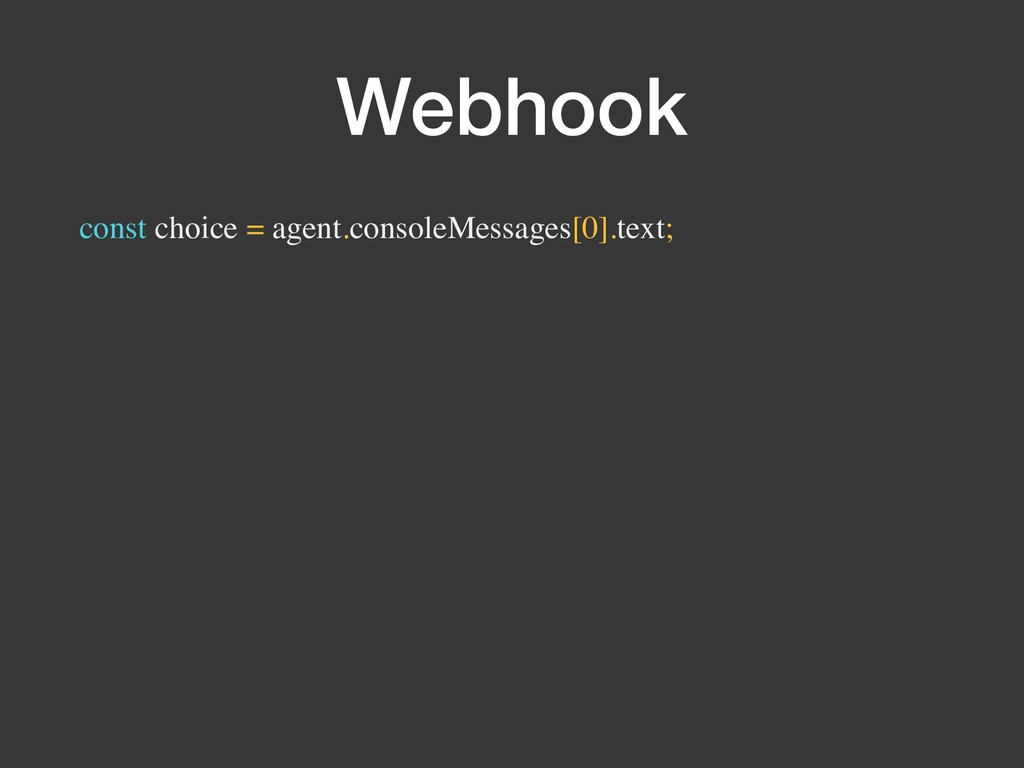

62. Webhook const choice = agent.consoleMessages[0].text;
64. Helpers

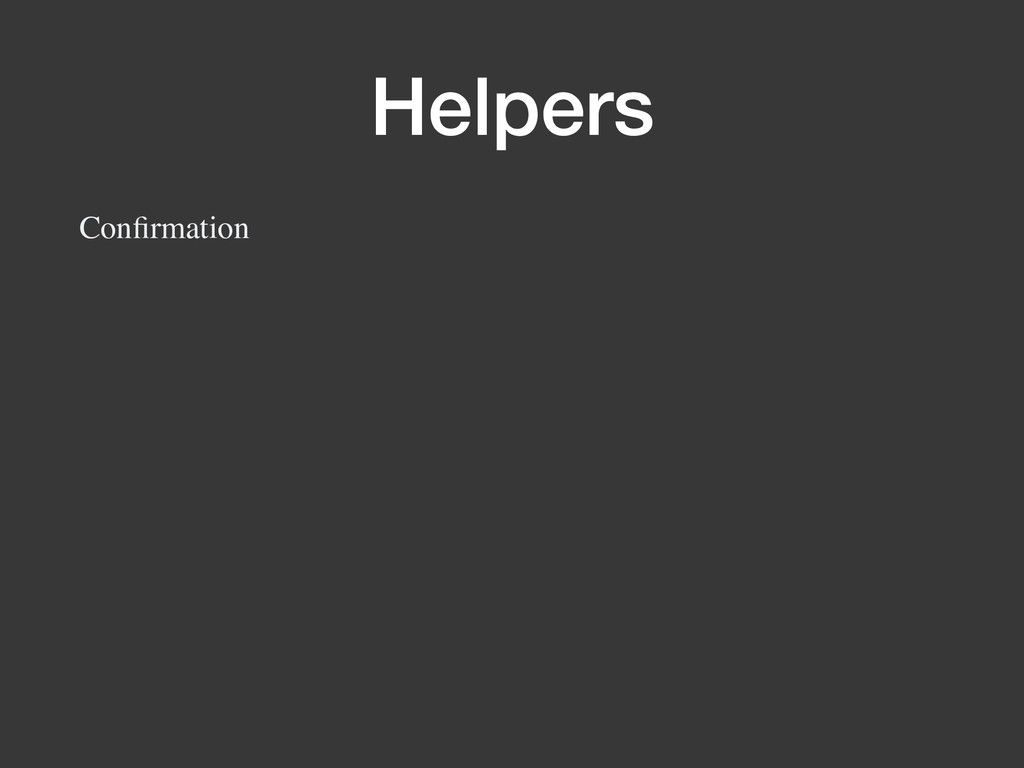

65. Helpers Confirmation

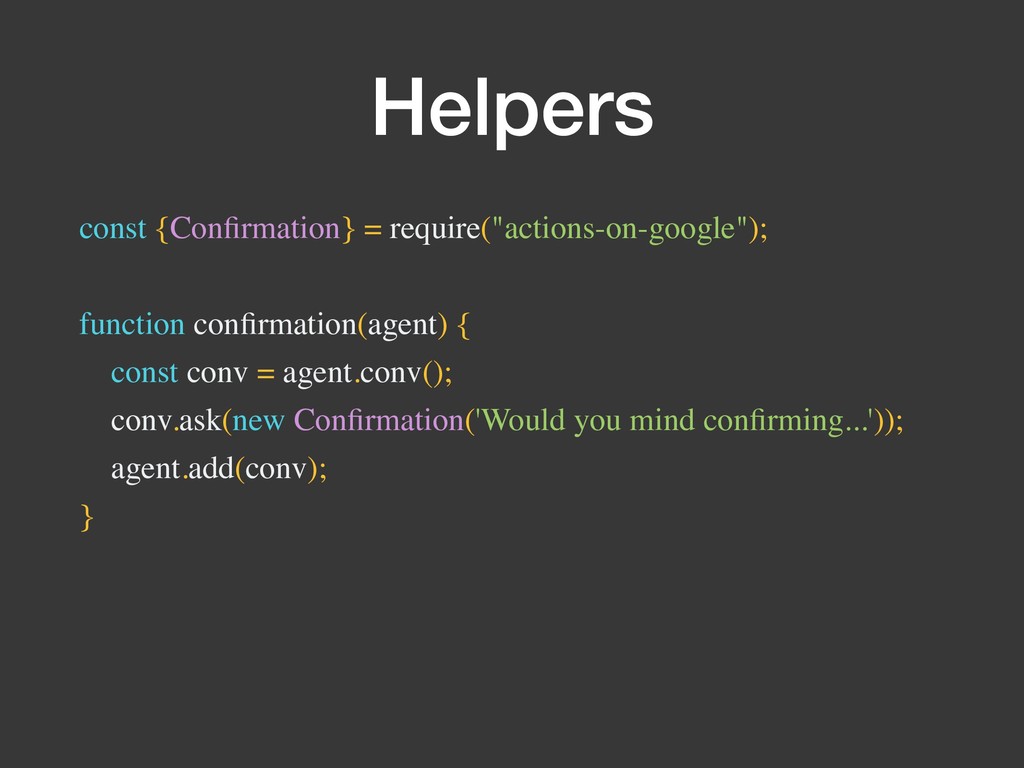

66. Helpers const {Confirmation} = require("actions-on-google"); function confirmation(agent) { const conv = agent.conv(); conv.ask(new Confirmation('Would you mind confirming...')); agent.add(conv); }

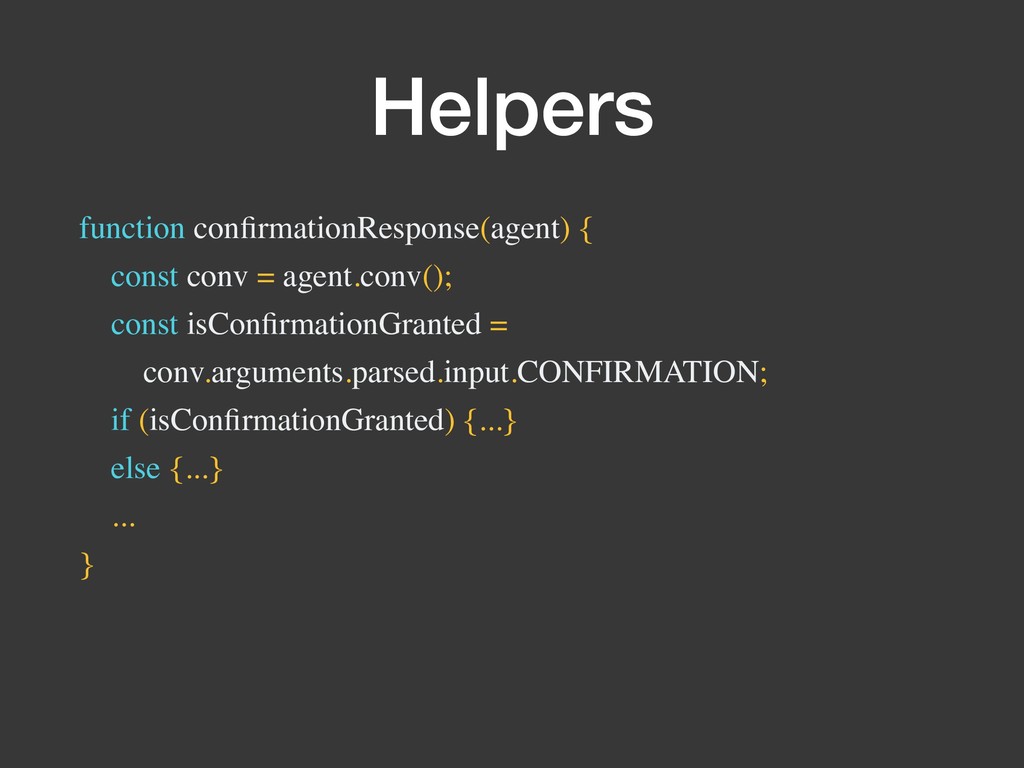

67. Helpers function confirmationResponse(agent) { const conv = agent.conv(); const isConfirmationGranted = conv.arguments.parsed.input.CONFIRMATION; if (isConfirmationGranted) {...} else {...} ... }

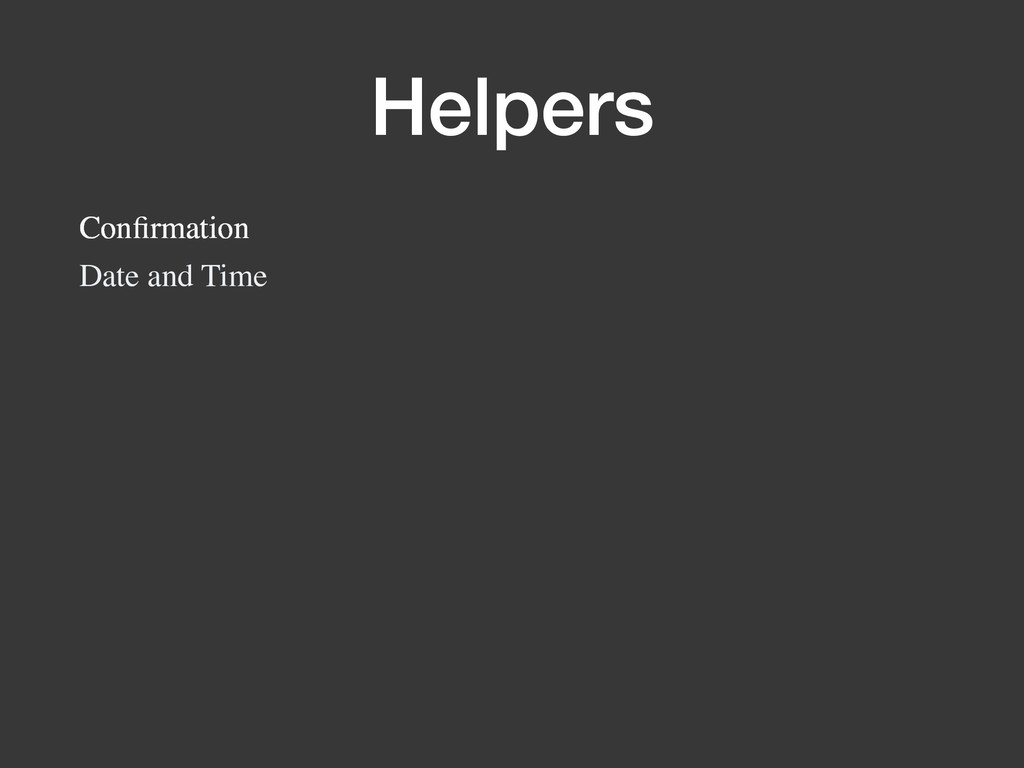

68. Helpers Confirmation Date and Time

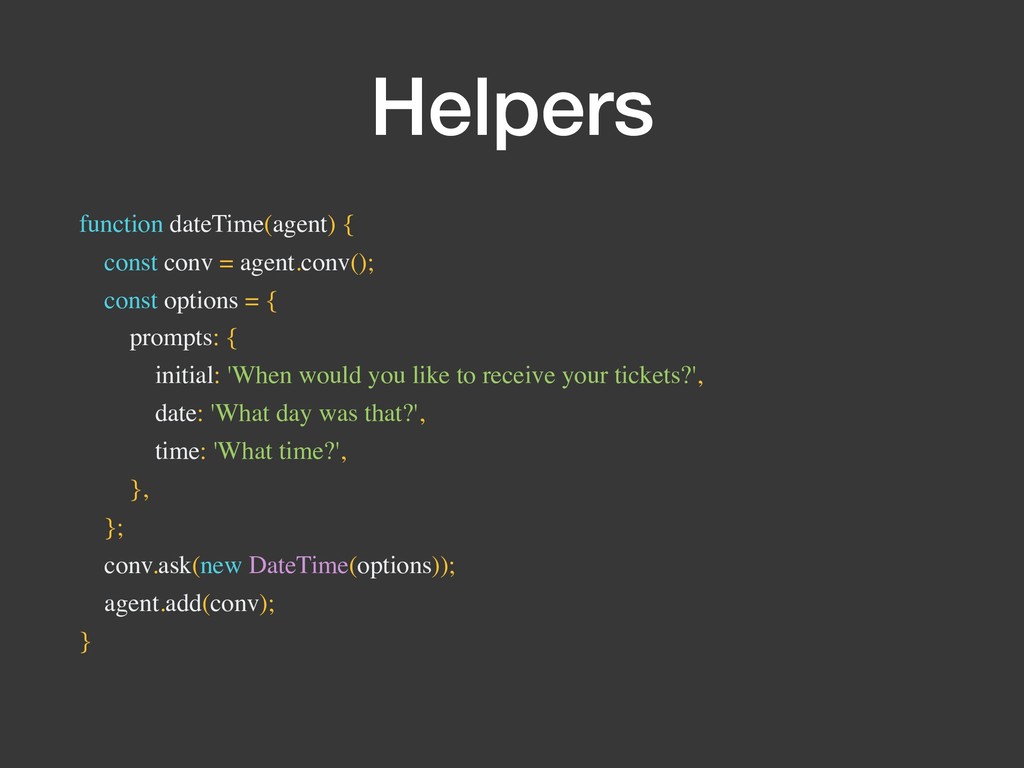

69. Helpers function dateTime(agent) { const conv = agent.conv(); const options = { prompts: { initial: 'When would you like to receive your tickets?', date: 'What day was that?', time: 'What time?', }, }; conv.ask(new DateTime(options)); agent.add(conv); }

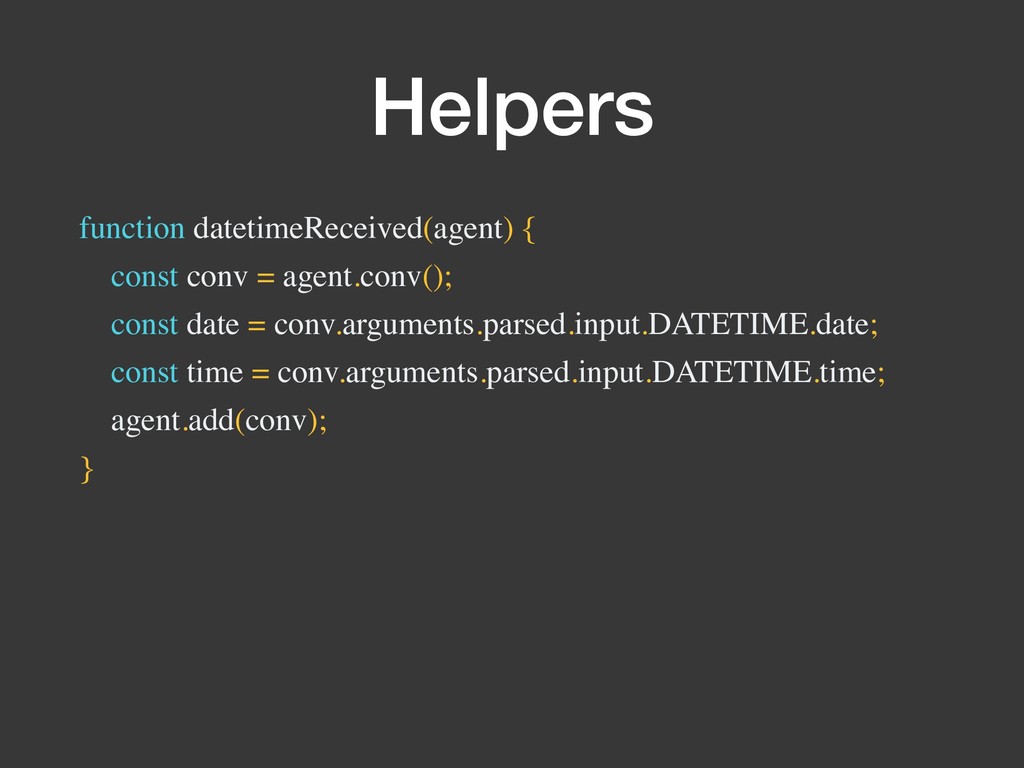

70. Helpers function datetimeReceived(agent) { const conv = agent.conv(); const date = conv.arguments.parsed.input.DATETIME.date; const time = conv.arguments.parsed.input.DATETIME.time; agent.add(conv); }

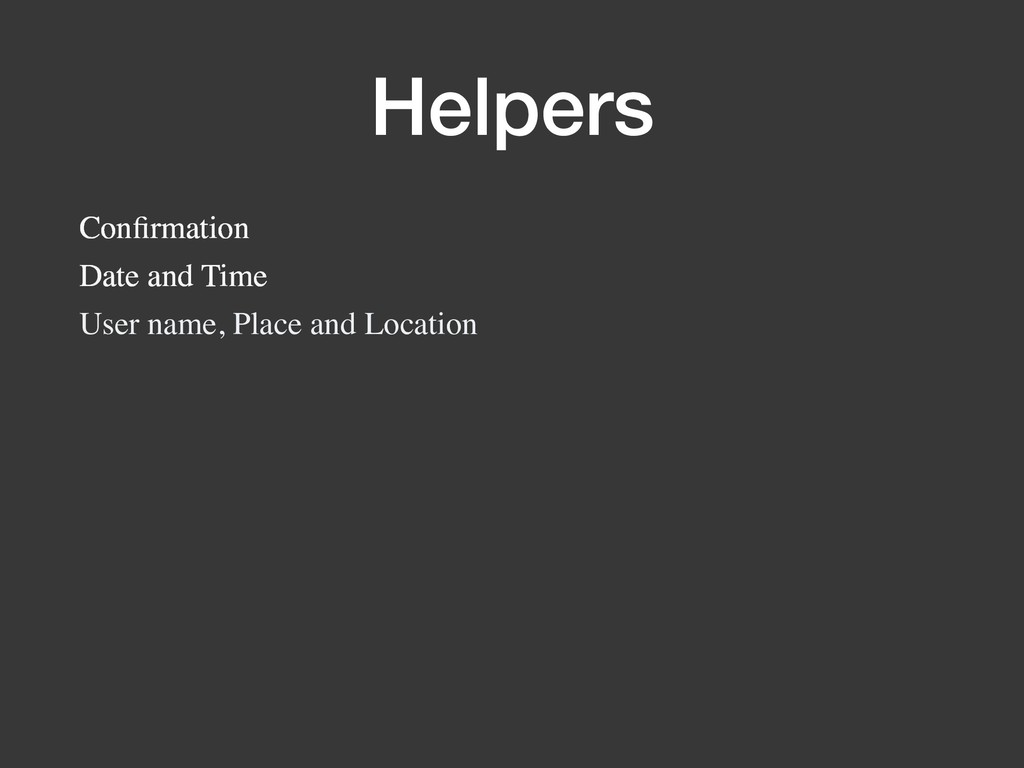

71. Helpers Confirmation Date and Time User name, Place and Location

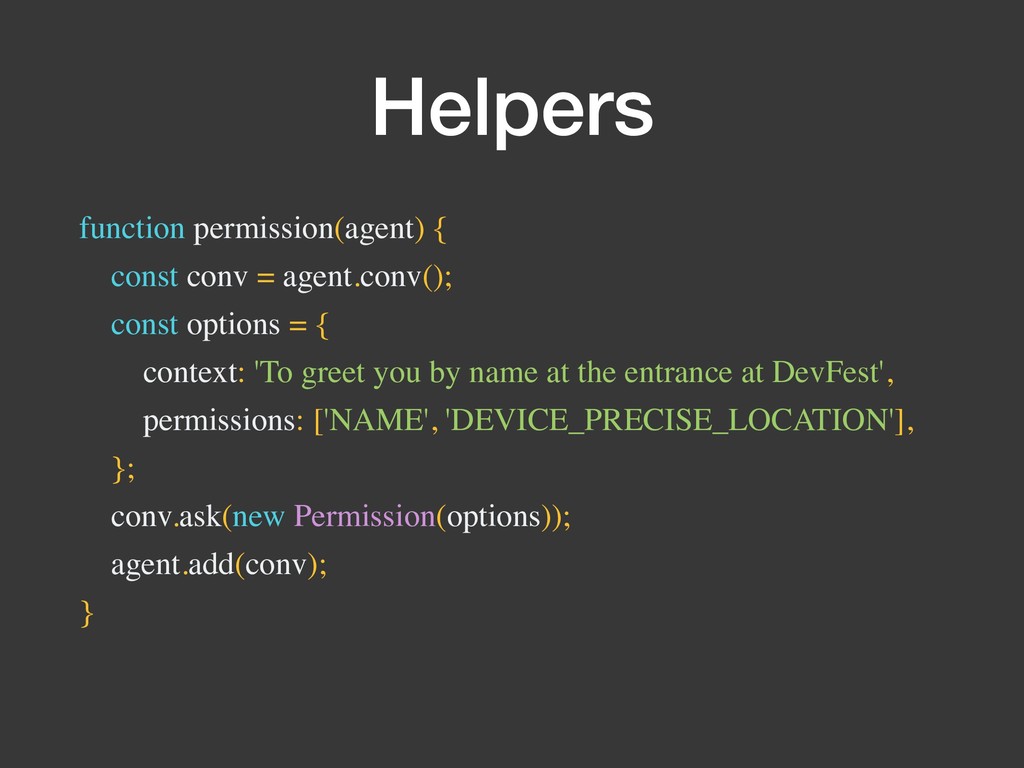

72. Helpers function permission(agent) { const conv = agent.conv(); const options = { context: 'To greet you by name at the entrance at DevFest', permissions: ['NAME', 'DEVICE_PRECISE_LOCATION'], }; conv.ask(new Permission(options)); agent.add(conv); }

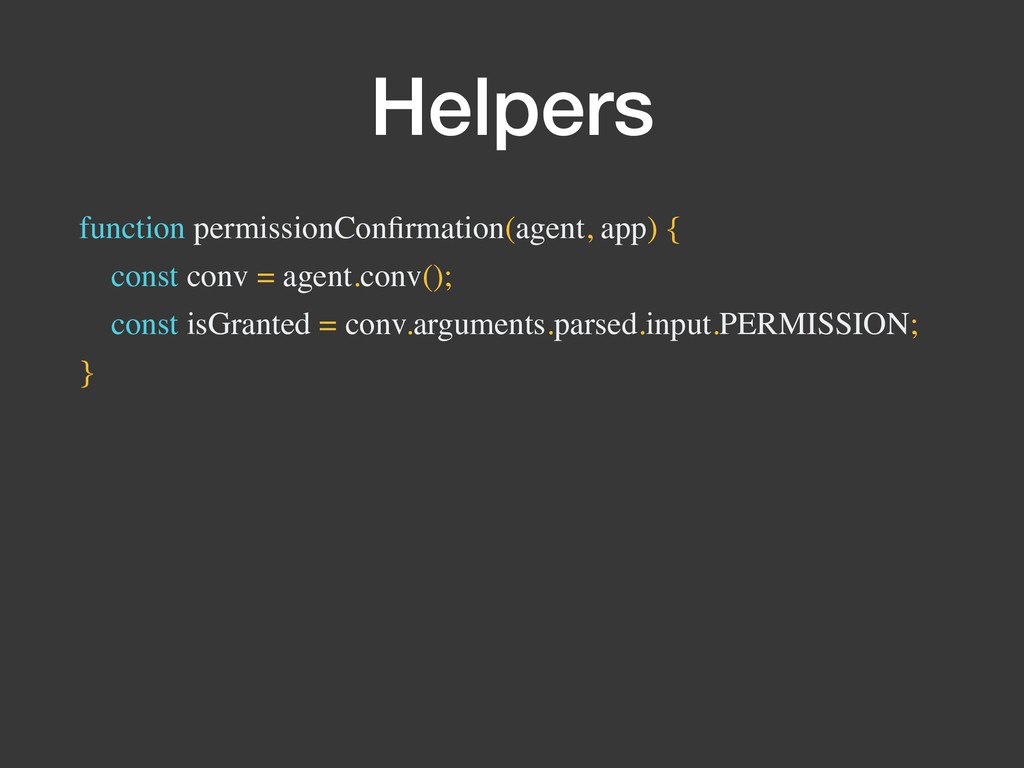

73. Helpers function permissionConfirmation(agent, app) { const conv = agent.conv(); const isGranted = conv.arguments.parsed.input.PERMISSION; }C

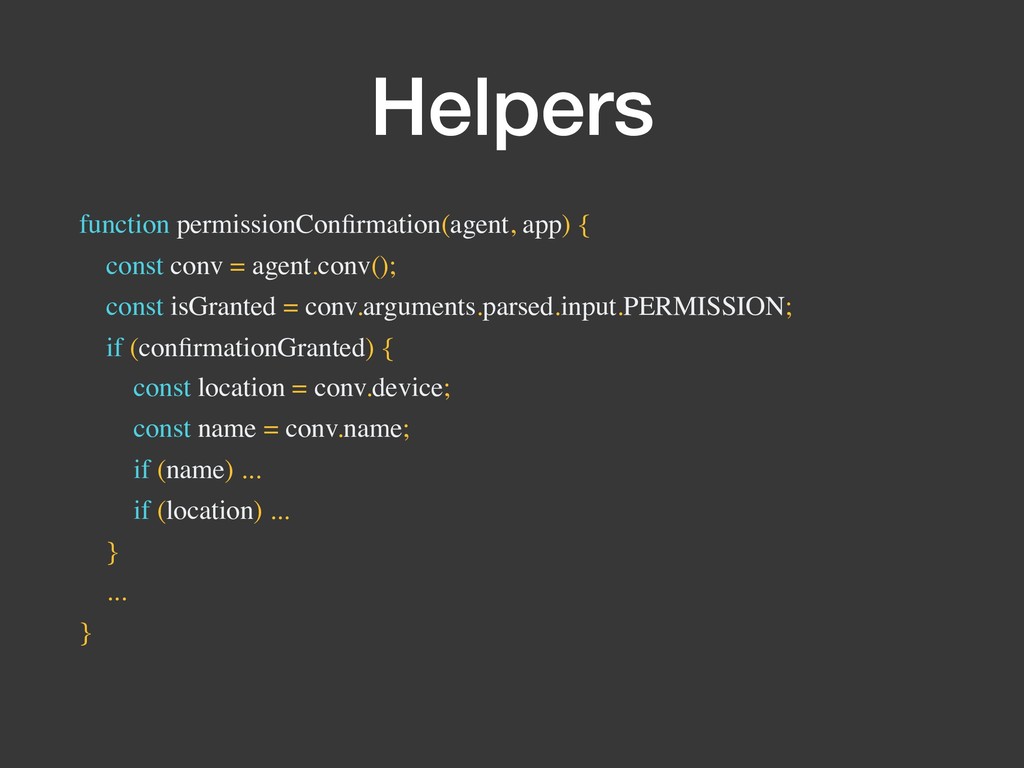

74. Helpers function permissionConfirmation(agent, app) { const conv = agent.conv(); const isGranted = conv.arguments.parsed.input.PERMISSION; if (confirmationGranted) { const location = conv.device; const name = conv.name; if (name) ... if (location) ... } ... }C

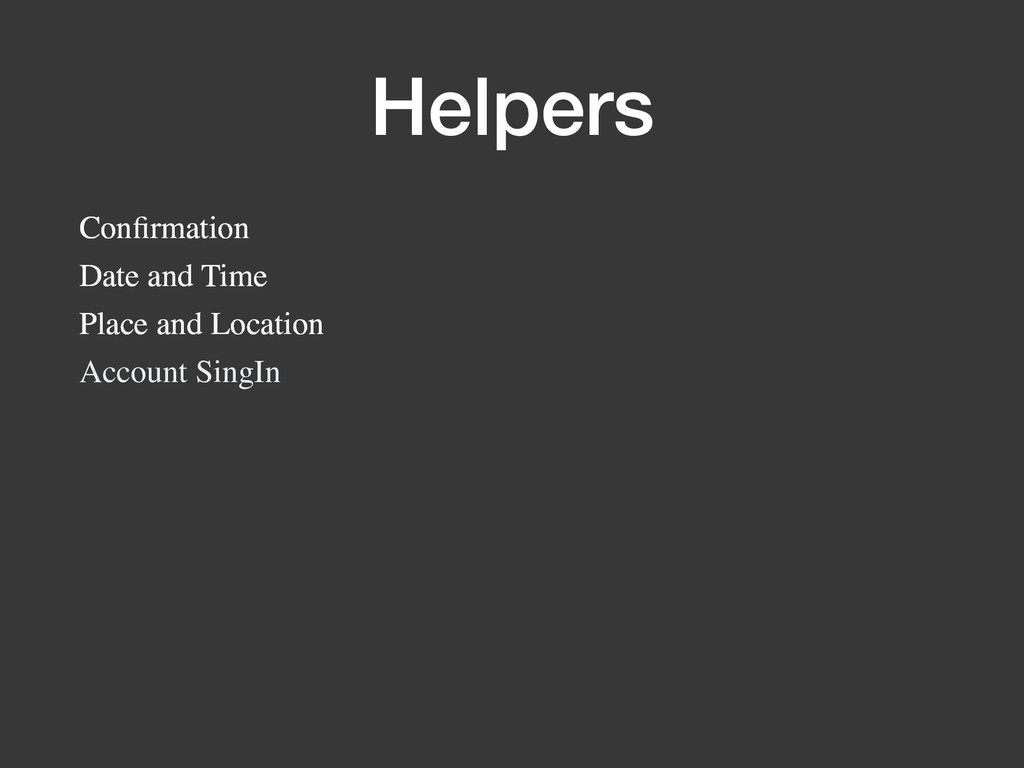

75. Helpers Confirmation Date and Time Place and Location Account SingIn

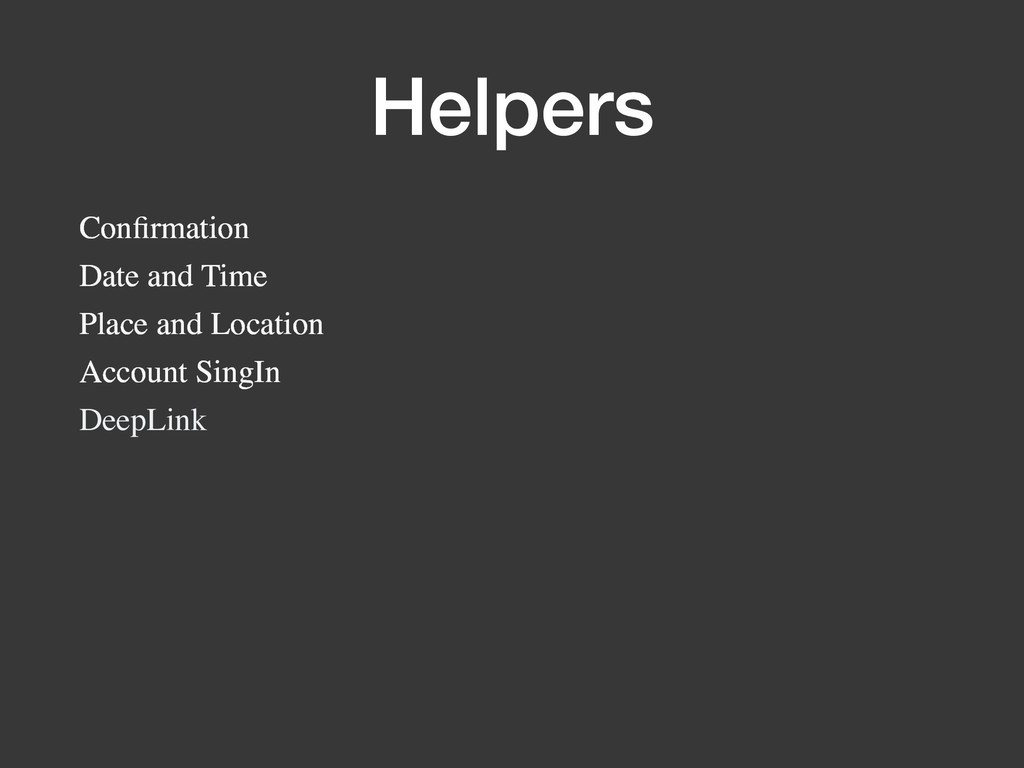

76. Helpers Confirmation Date and Time Place and Location Account SingIn DeepLink

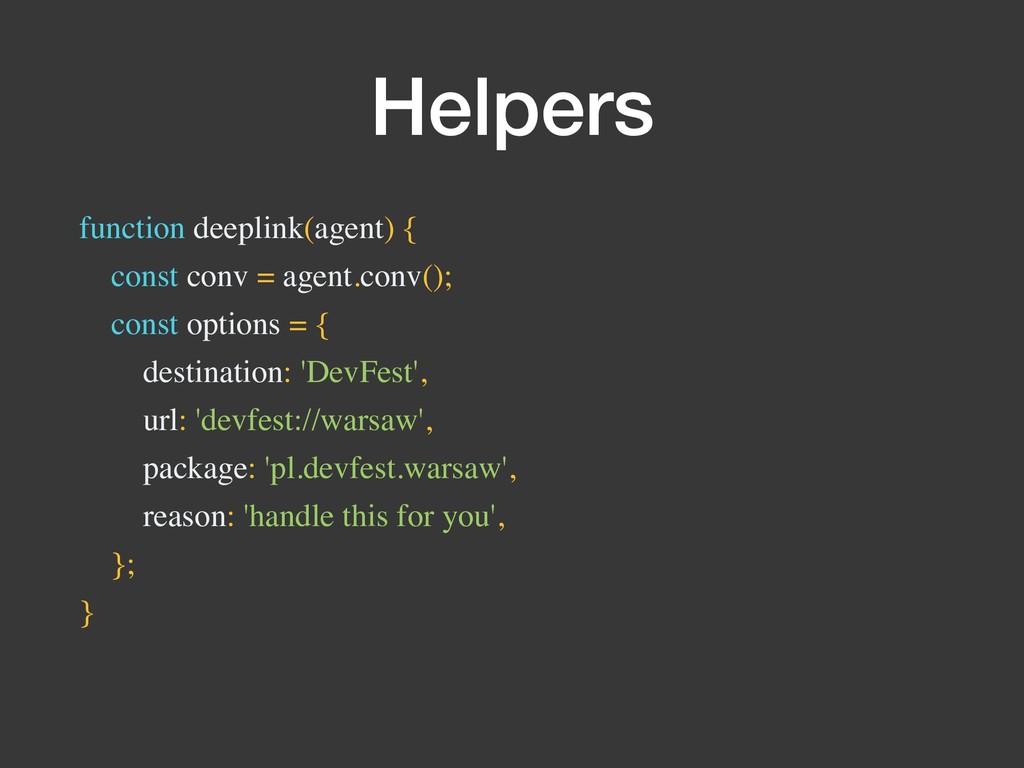

77. Helpers function deeplink(agent) { const conv = agent.conv(); const options = { destination: 'DevFest', url: 'devfest://warsaw', package: 'pl.devfest.warsaw', reason: 'handle this for you', }; }C

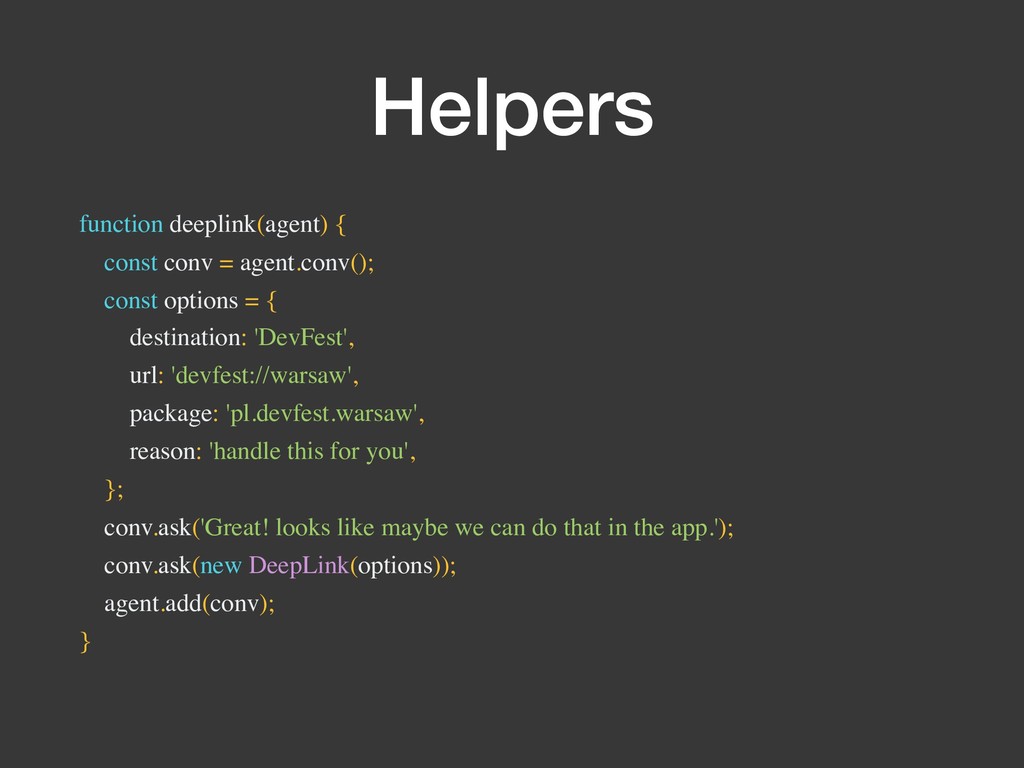

78. Helpers function deeplink(agent) { const conv = agent.conv(); const options = { destination: 'DevFest', url: 'devfest://warsaw', package: 'pl.devfest.warsaw', reason: 'handle this for you', }; conv.ask('Great! looks like maybe we can do that in the app.'); conv.ask(new DeepLink(options)); agent.add(conv); }C

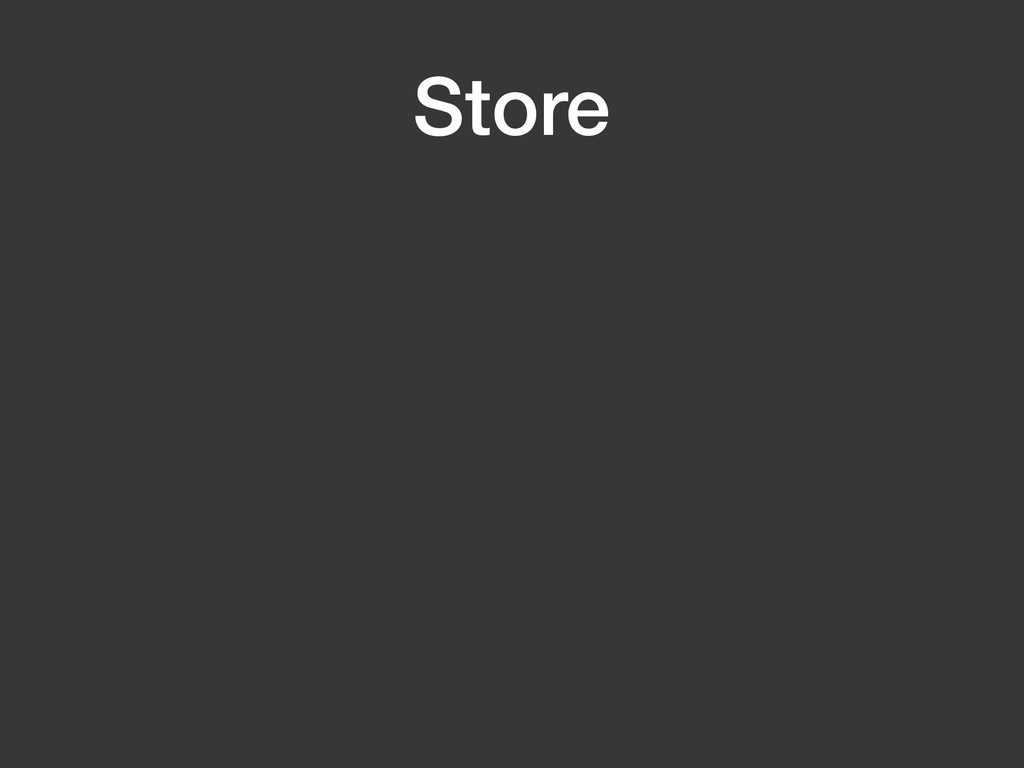

79. Store

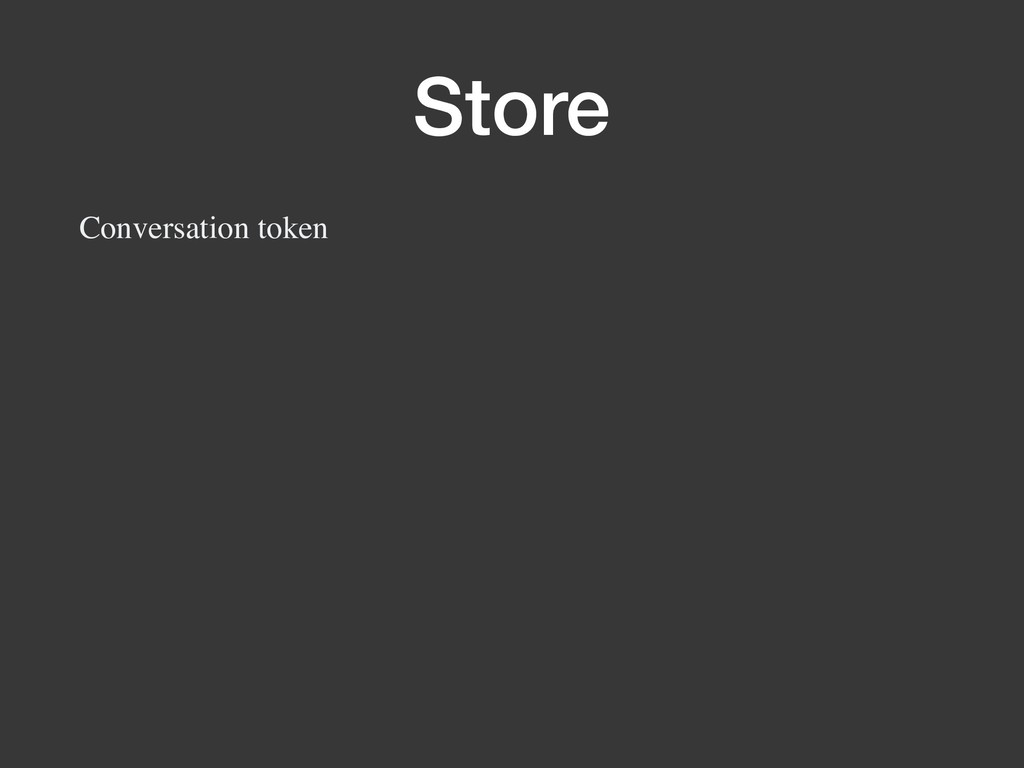

80. Store Conversation token

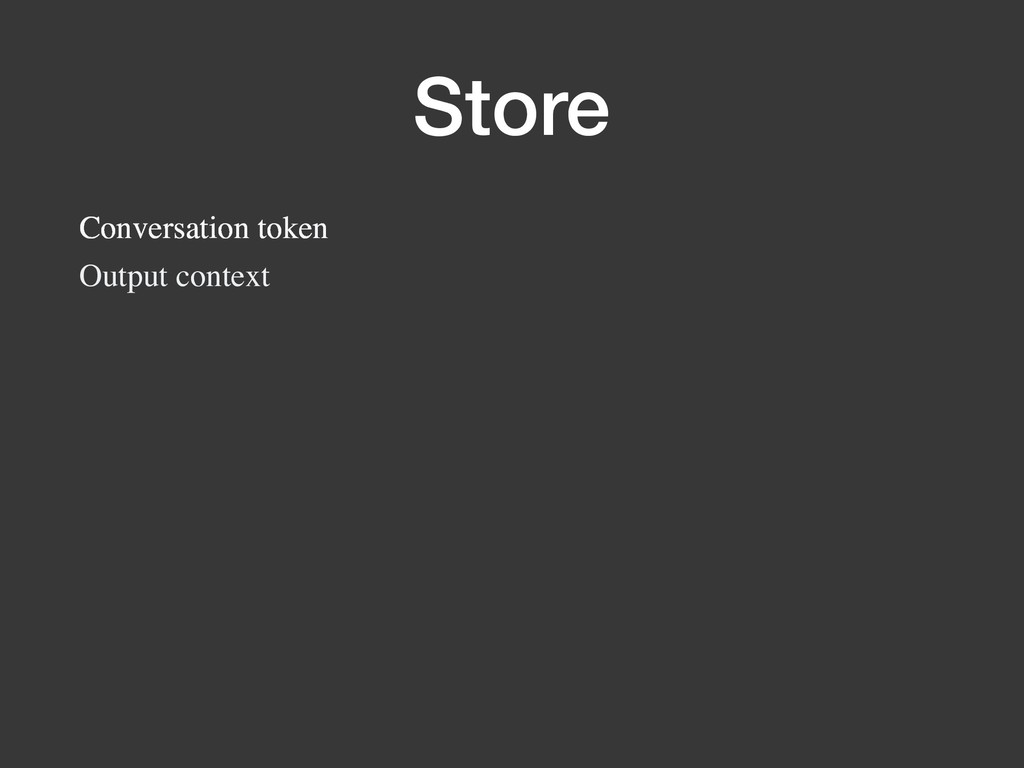

81. Store Conversation token Output context

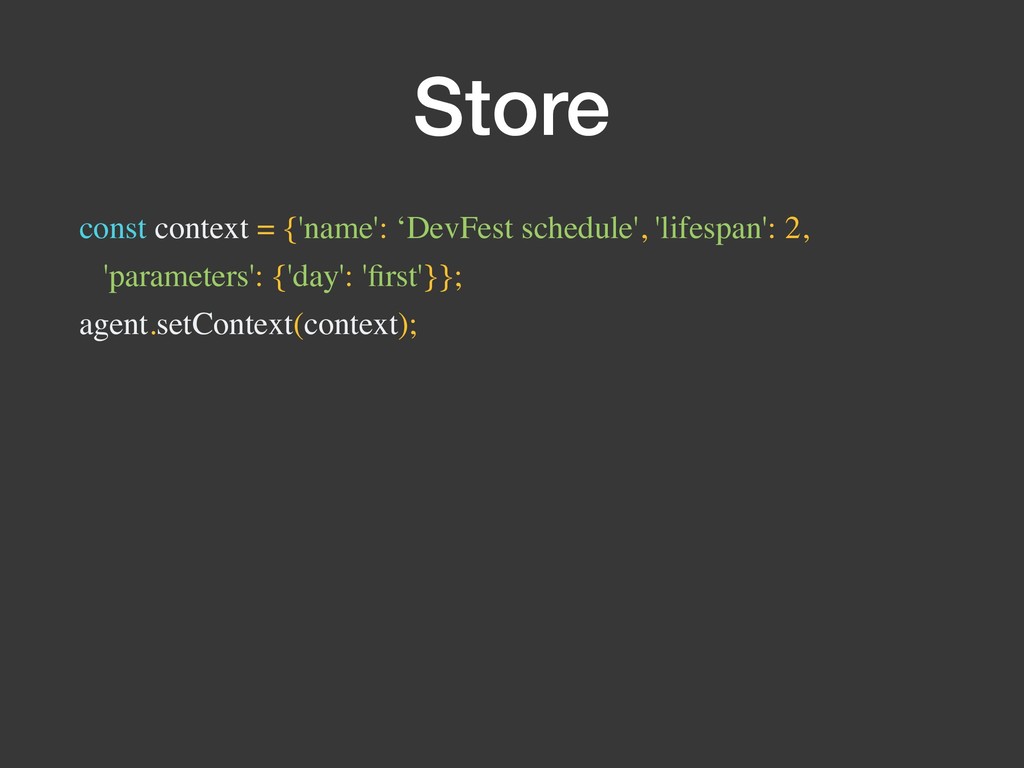

82. Store const context = {'name': ‘DevFest schedule', 'lifespan': 2, 'parameters': {'day': 'first'}}; agent.setContext(context);

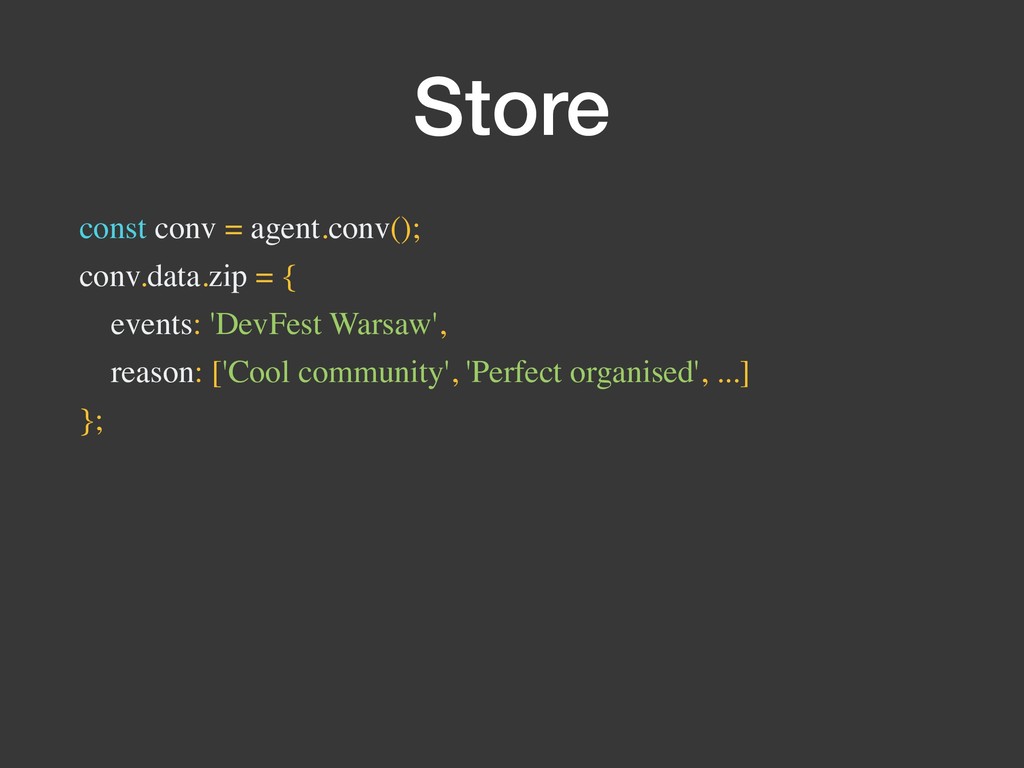

83. Store const conv = agent.conv(); conv.data.zip = { events: 'DevFest Warsaw', reason: ['Cool community', 'Perfect organised', ...] };

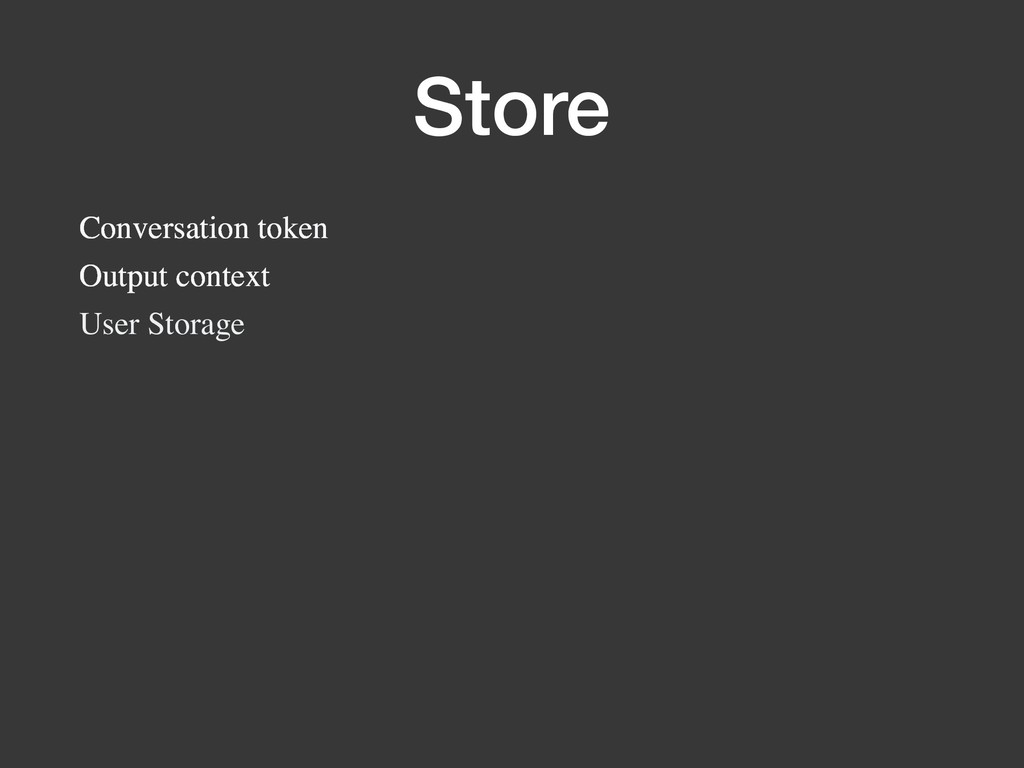

84. Store Conversation token Output context User Storage

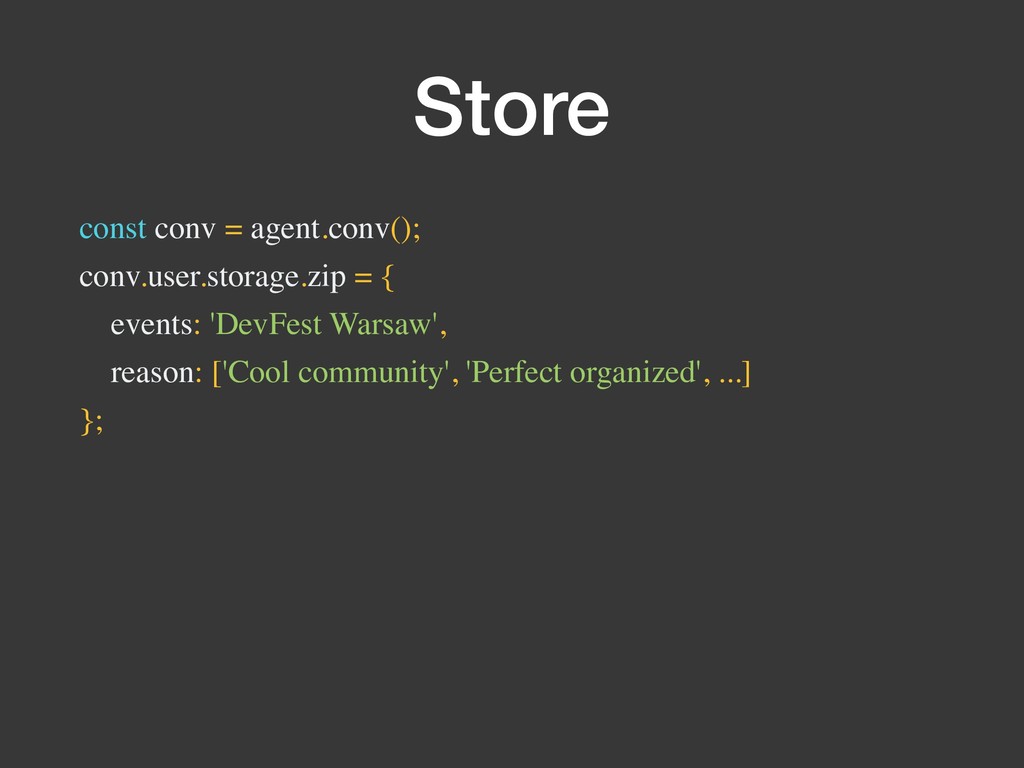

85. Store const conv = agent.conv(); conv.user.storage.zip = { events: 'DevFest Warsaw', reason: ['Cool community', 'Perfect organized', ...] };

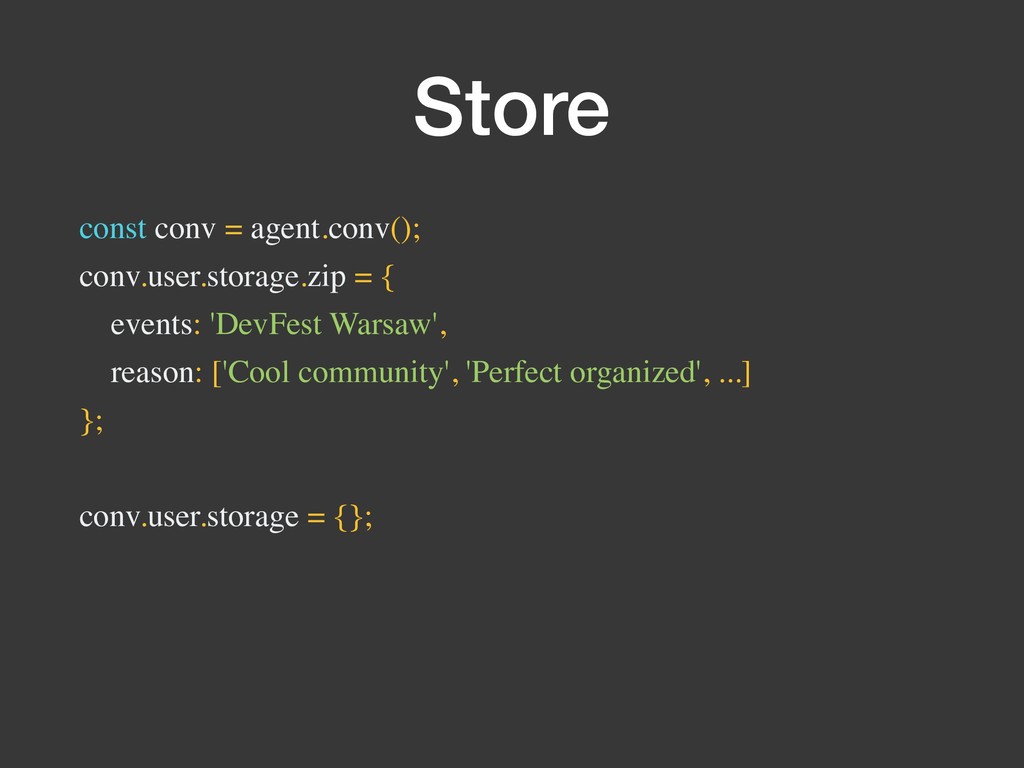

86. Store const conv = agent.conv(); conv.user.storage.zip = { events: 'DevFest Warsaw', reason: ['Cool community', 'Perfect organized', ...] }; conv.user.storage = {};

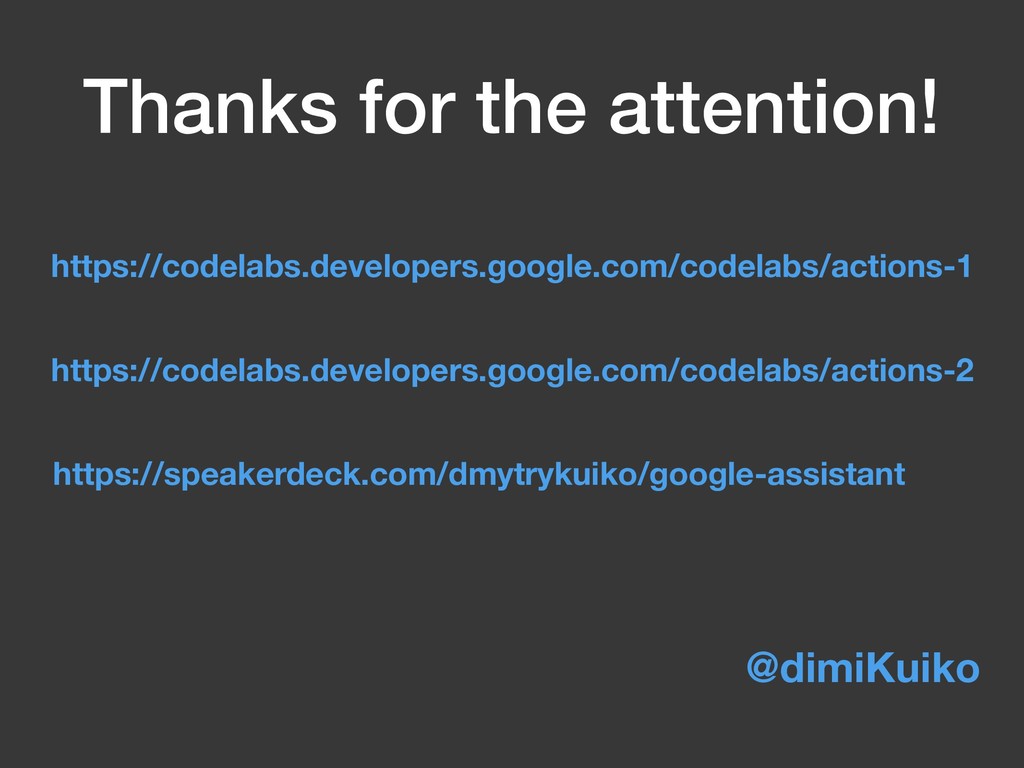

87. Thanks for the attention! @dimiKuiko https://speakerdeck.com/dmytrykuiko/google-assistant https://codelabs.developers.google.com/codelabs/actions-1 https://codelabs.developers.google.com/codelabs/actions-2

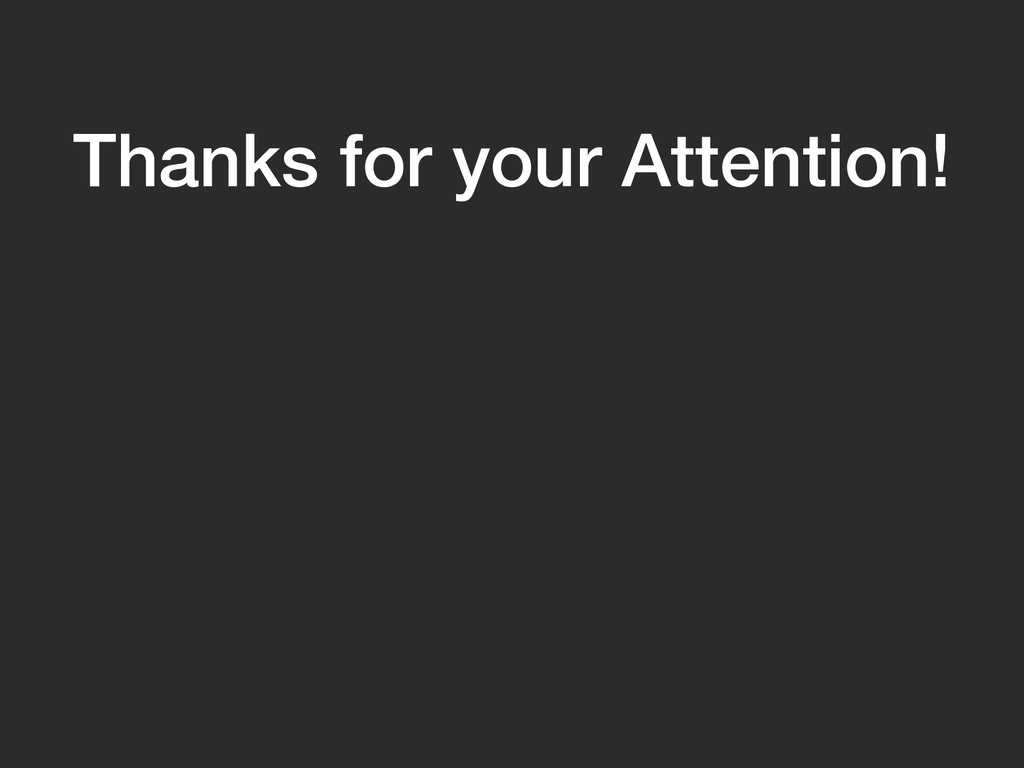

88. Thanks for your Attention!
