1. Simplify the life while developing in Kotlin Dmytro Kuiko

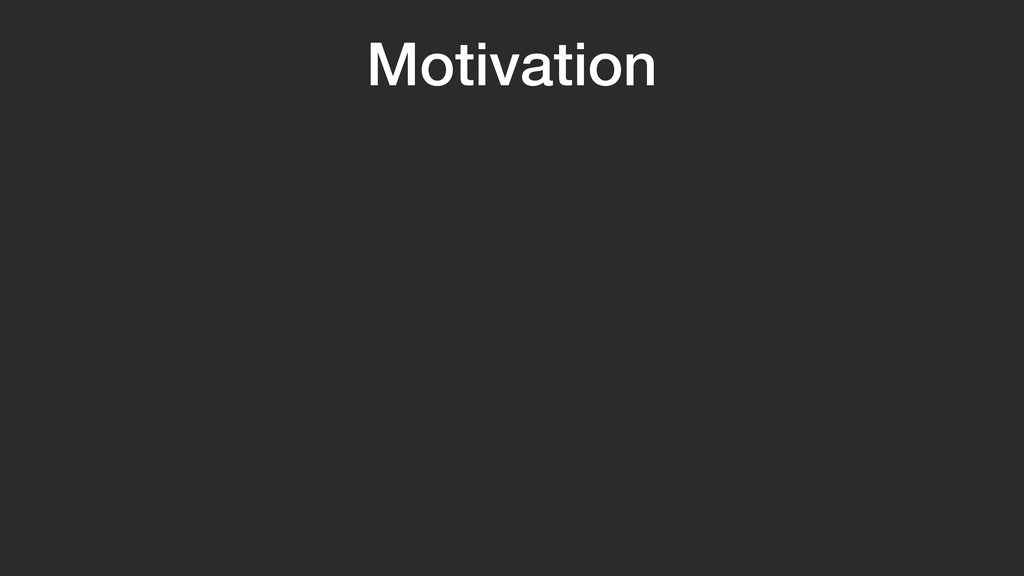

2. Motivation
3. Motivation Repeatability

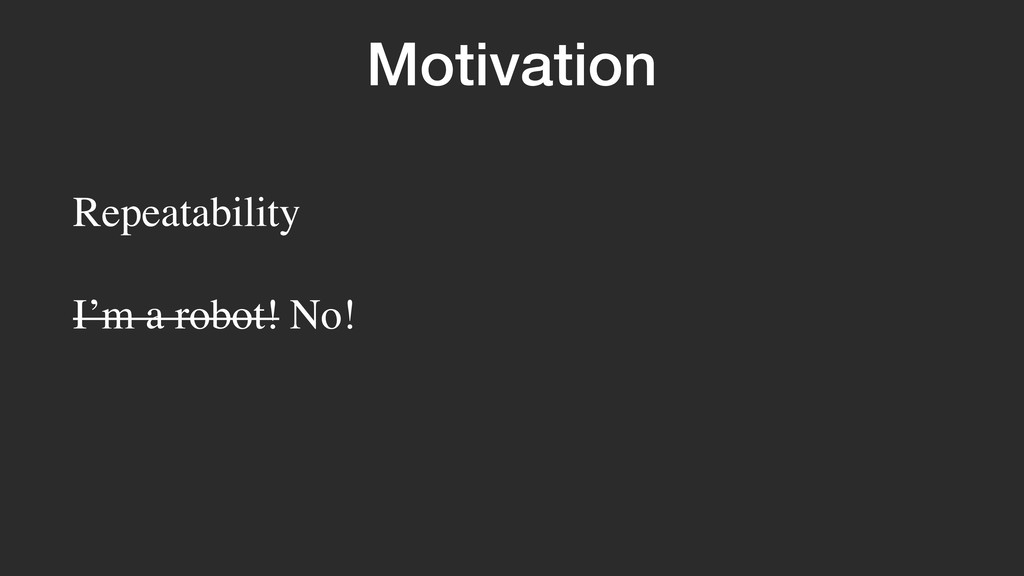

4. Motivation Repeatability I’m a robot! No!

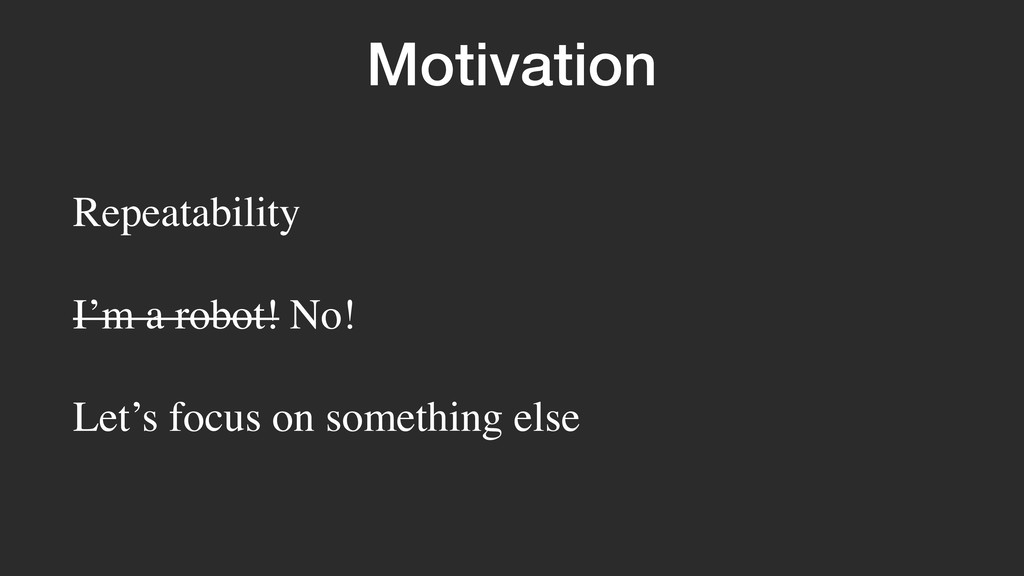

5. Motivation Repeatability I’m a robot! No! Let’s focus on something else

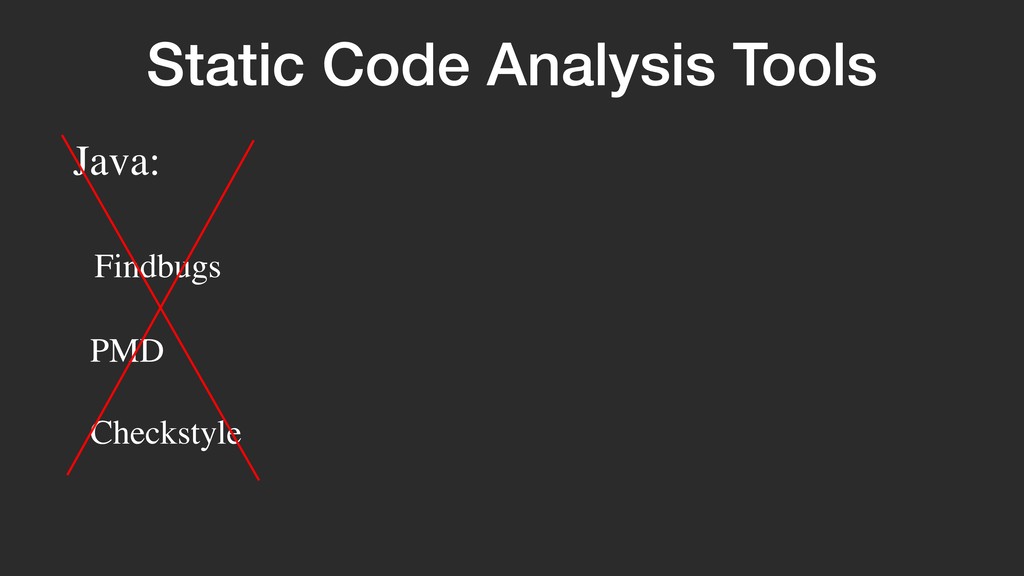

7. Static Code Analysis Tools Java: Findbugs PMD Checkstyle
8. Static Code Analysis Tools Java: Findbugs PMD Checkstyle
9. Static Code Analysis Tools Kotlin: ktlint detekt

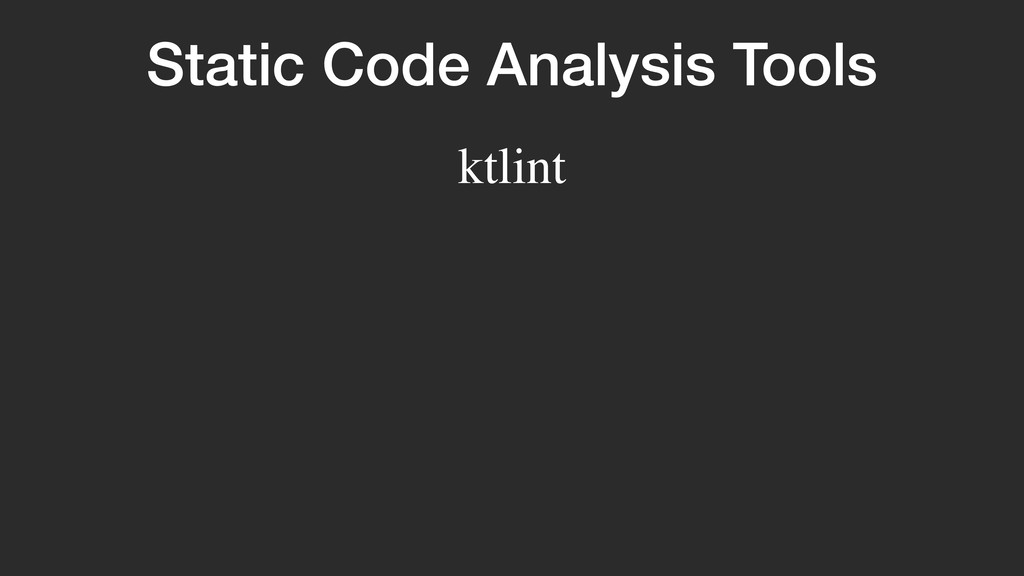

10. Static Code Analysis Tools ktlint

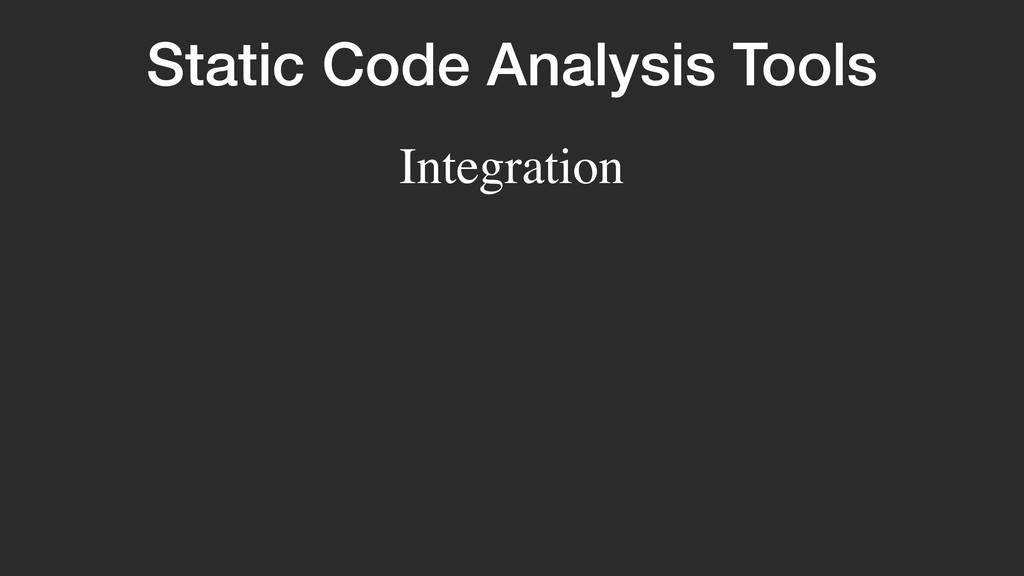

11. Static Code Analysis Tools Integration

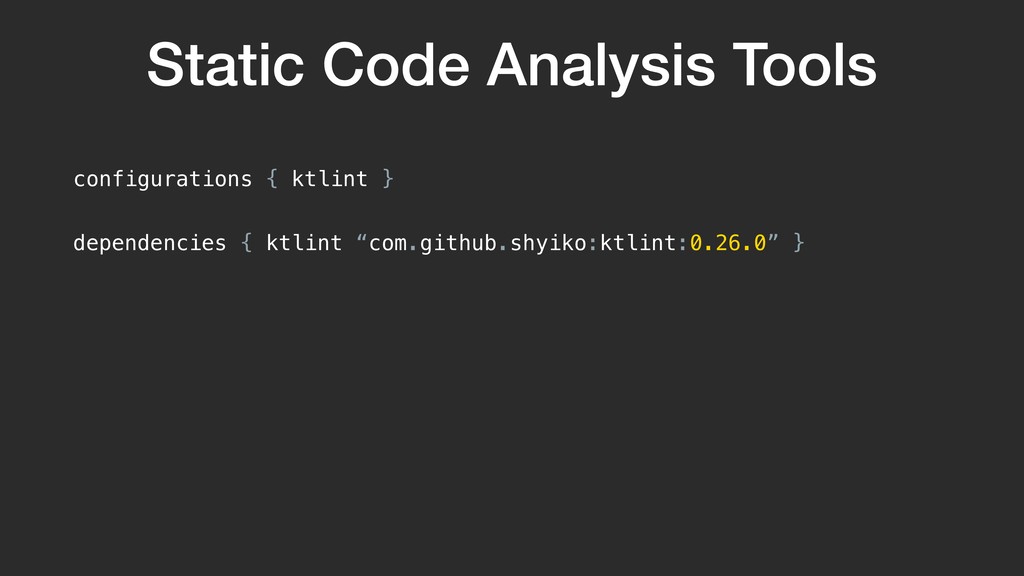

12. Static Code Analysis Tools configurations { ktlint } dependencies { ktlint “com.github.shyiko:ktlint:0.26.0” }

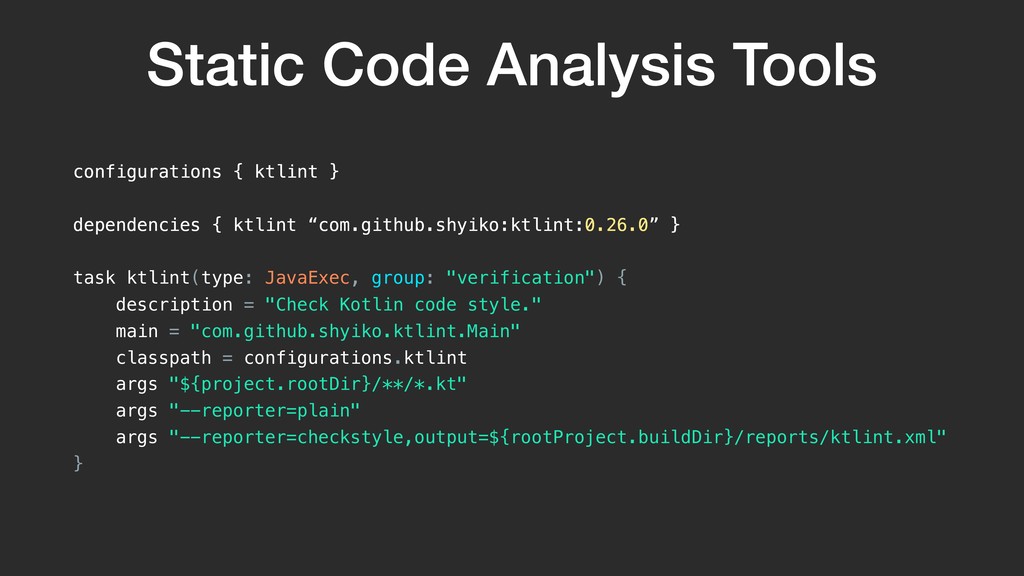

13. Static Code Analysis Tools configurations { ktlint } dependencies { ktlint “com.github.shyiko:ktlint:0.26.0” } task ktlint(type: JavaExec, group: "verification") { description = "Check Kotlin code style." main = "com.github.shyiko.ktlint.Main" classpath = configurations.ktlint args "${project.rootDir}/**/*.kt" args "--reporter=plain" args "--reporter=checkstyle,output=${rootProject.buildDir}/reports/ktlint.xml" }

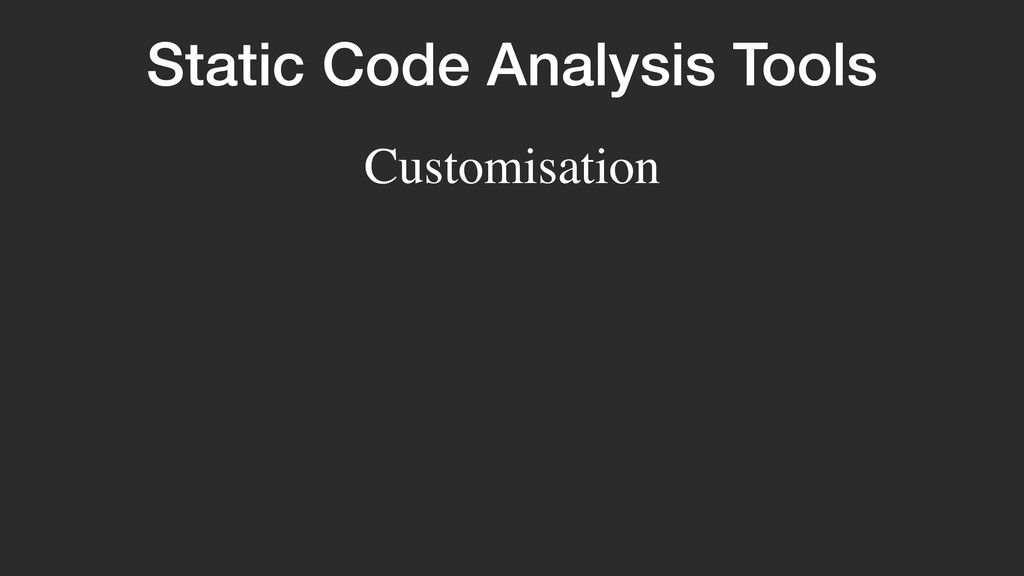

14. Static Code Analysis Tools Customisation

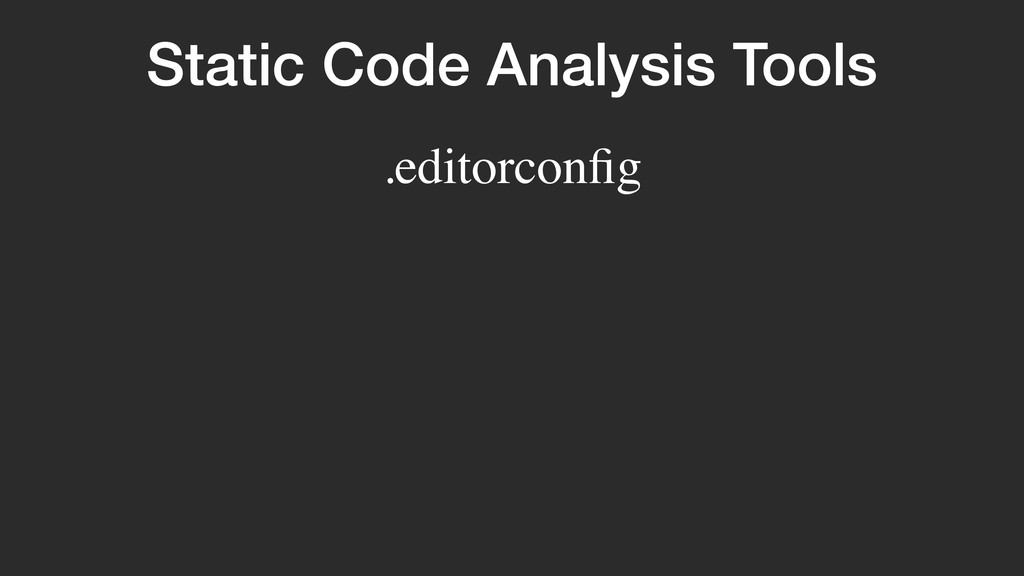

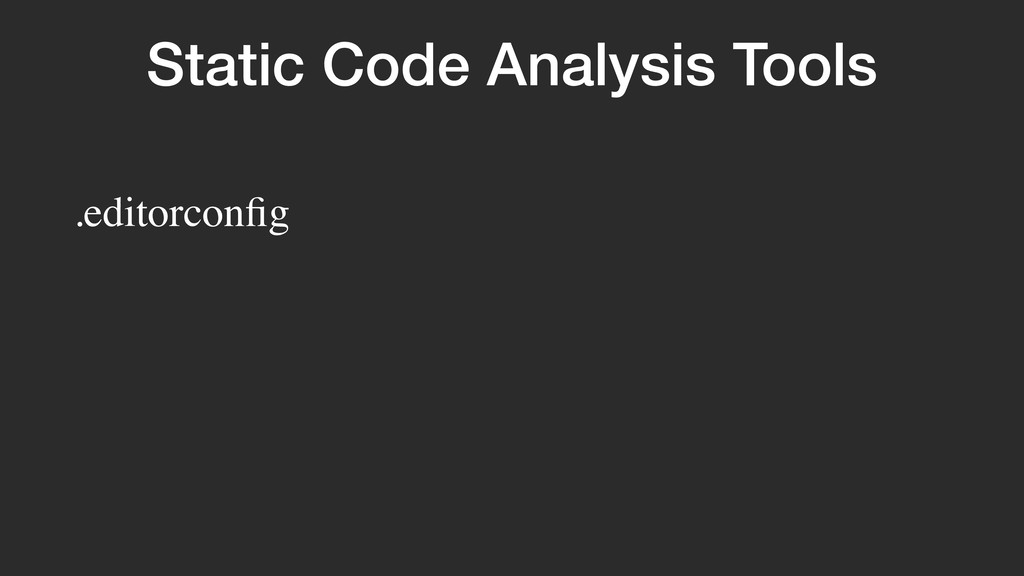

15. Static Code Analysis Tools .editorconfig
16. Static Code Analysis Tools .editorconfig custom rule set
17. Static Code Analysis Tools .editorconfig

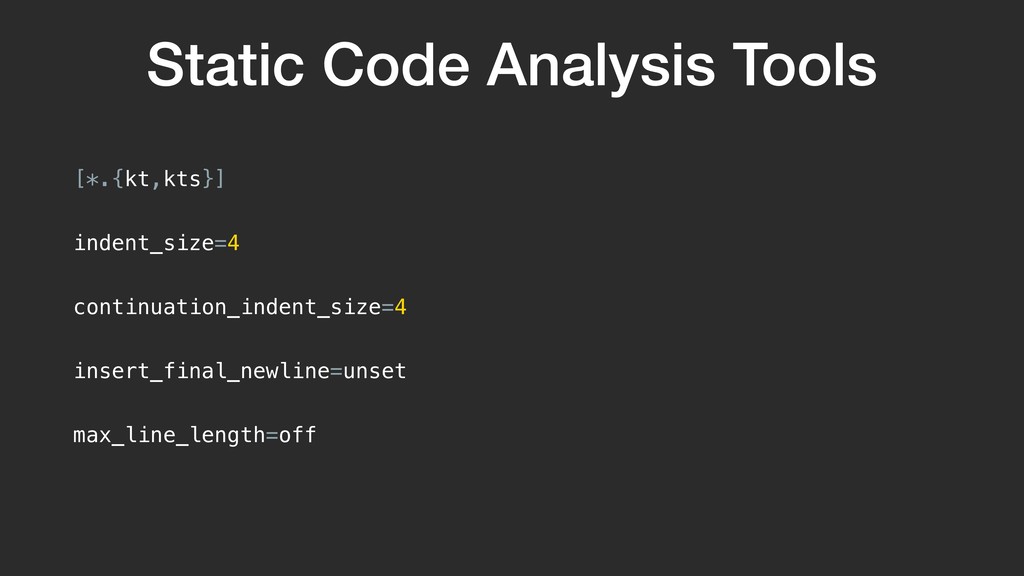

18. Static Code Analysis Tools [*.{kt,kts}] indent_size=4 continuation_indent_size=4 insert_final_newline=unset max_line_length=off

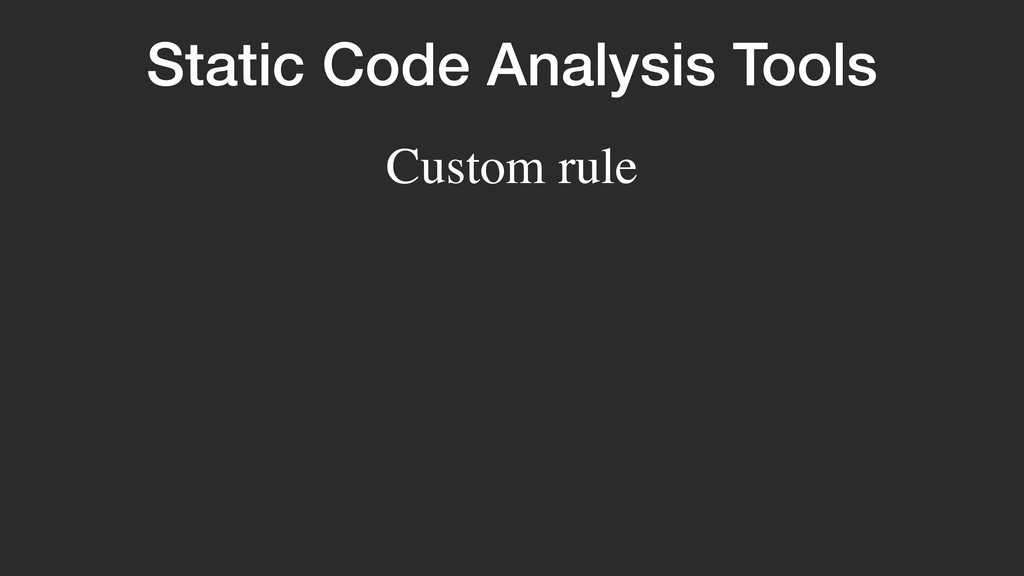

19. Static Code Analysis Tools Custom rule

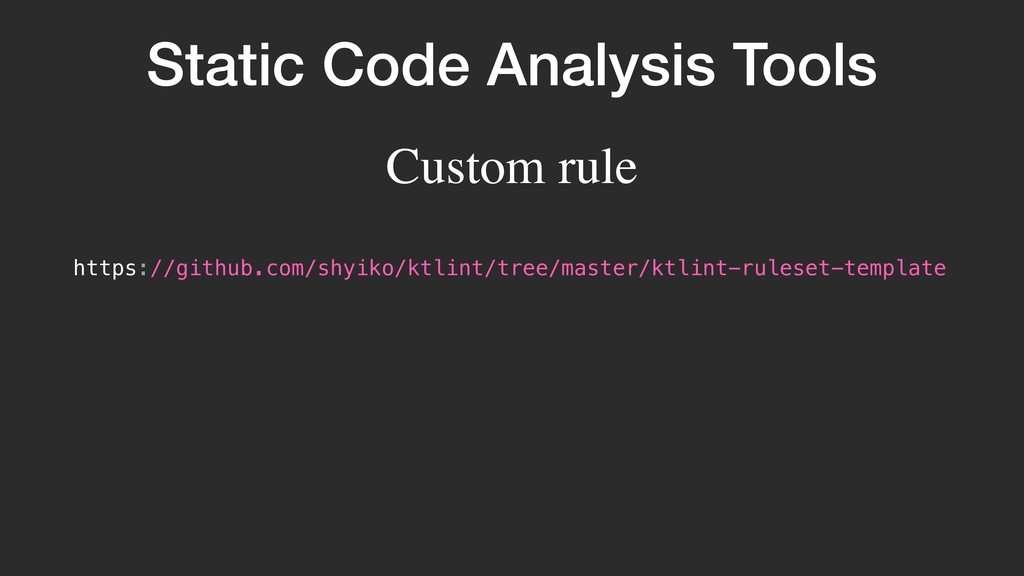

20. Static Code Analysis Tools Custom rule https://github.com/shyiko/ktlint/tree/master/ktlint-ruleset-template

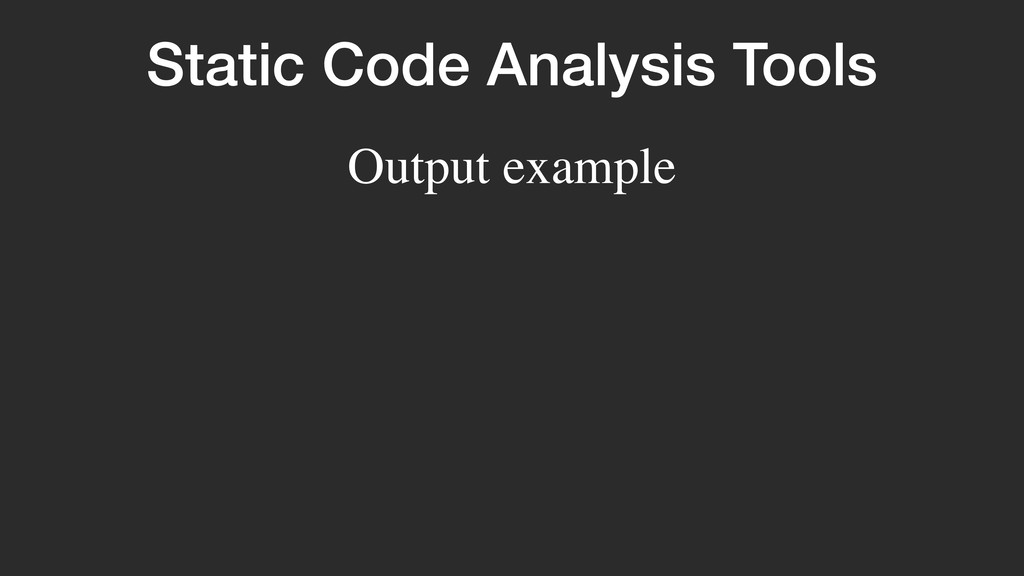

21. Static Code Analysis Tools Output example

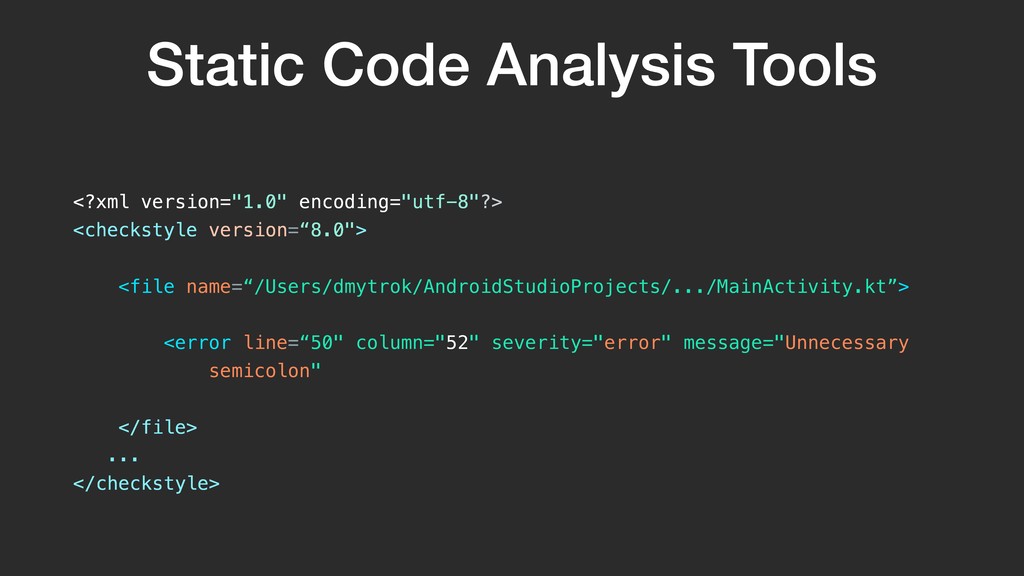

22. Static Code Analysis Tools <?xml version="1.0" encoding="utf-8"?> <checkstyle version=“8.0"> <file name=“/Users/dmytrok/AndroidStudioProjects/.../MainActivity.kt”> <error line=“50" column="52" severity="error" message="Unnecessary semicolon" </file> ... </checkstyle>

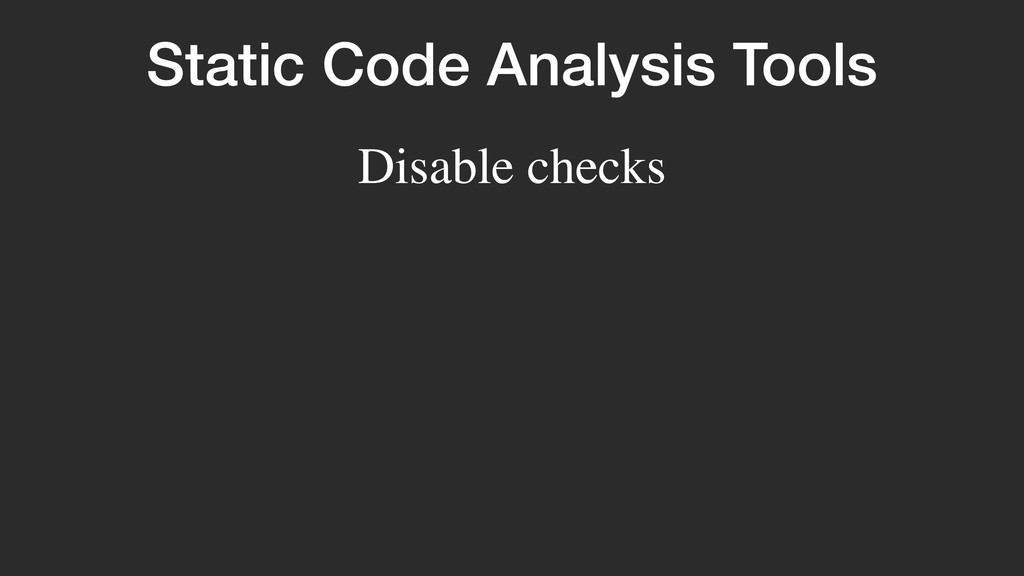

23. Static Code Analysis Tools Disable checks

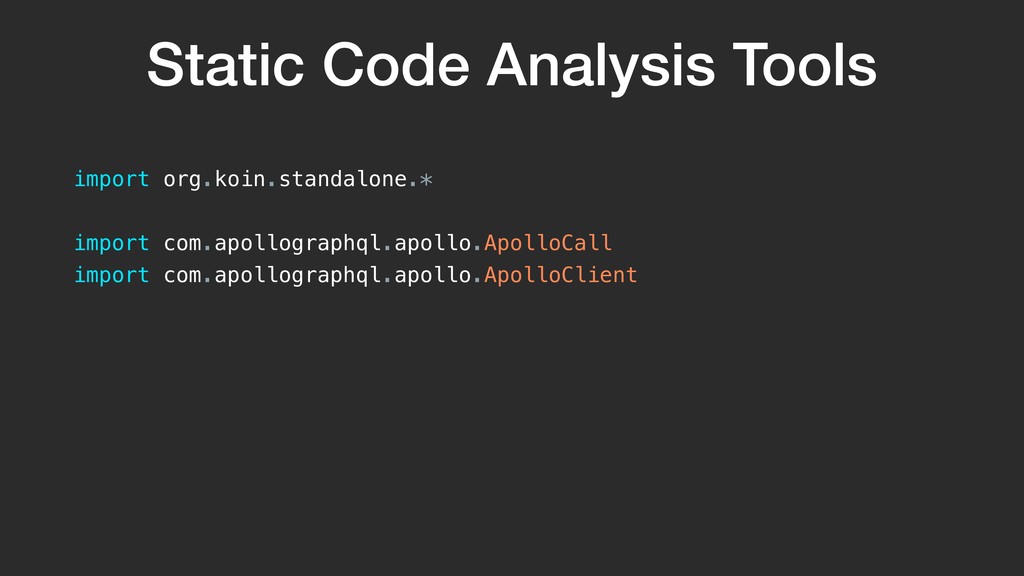

24. Static Code Analysis Tools
 import org.koin.standalone.* import com.apollographql.apollo.ApolloCall
 import com.apollographql.apollo.ApolloClient

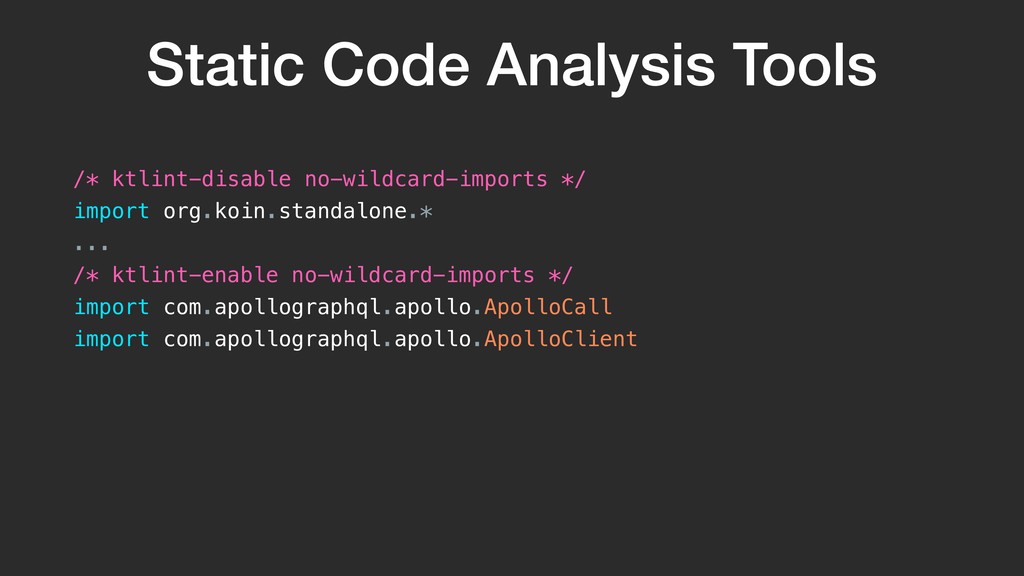

25. Static Code Analysis Tools /* ktlint-disable no-wildcard-imports */ import org.koin.standalone.* ... /* ktlint-enable no-wildcard-imports */ import com.apollographql.apollo.ApolloCall import com.apollographql.apollo.ApolloClient

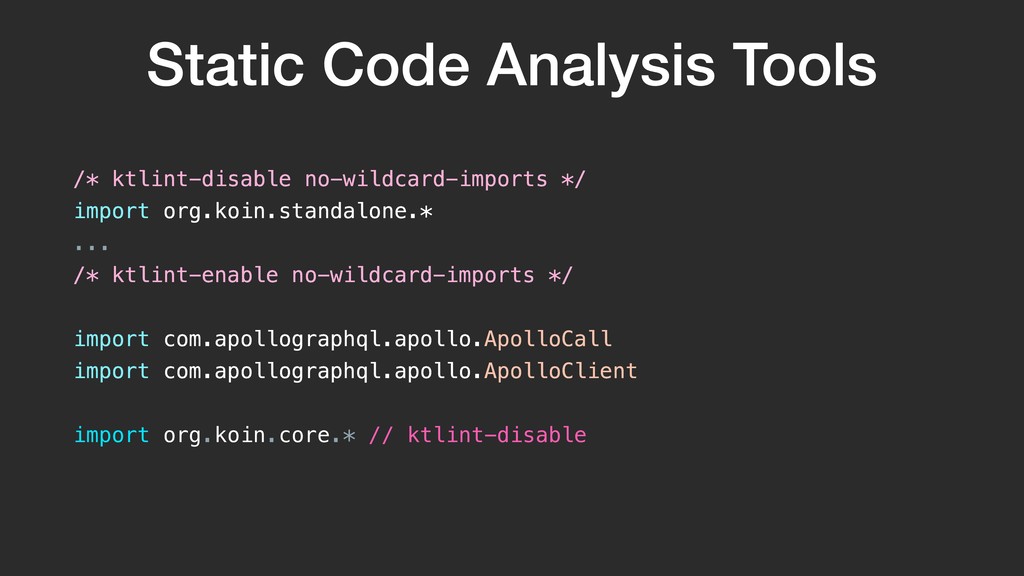

26. Static Code Analysis Tools /* ktlint-disable no-wildcard-imports */ import org.koin.standalone.* ... /* ktlint-enable no-wildcard-imports */ import com.apollographql.apollo.ApolloCall import com.apollographql.apollo.ApolloClient import org.koin.core.* // ktlint-disable
27. Static Code Analysis Tools detekt
28. Static Code Analysis Tools Integration

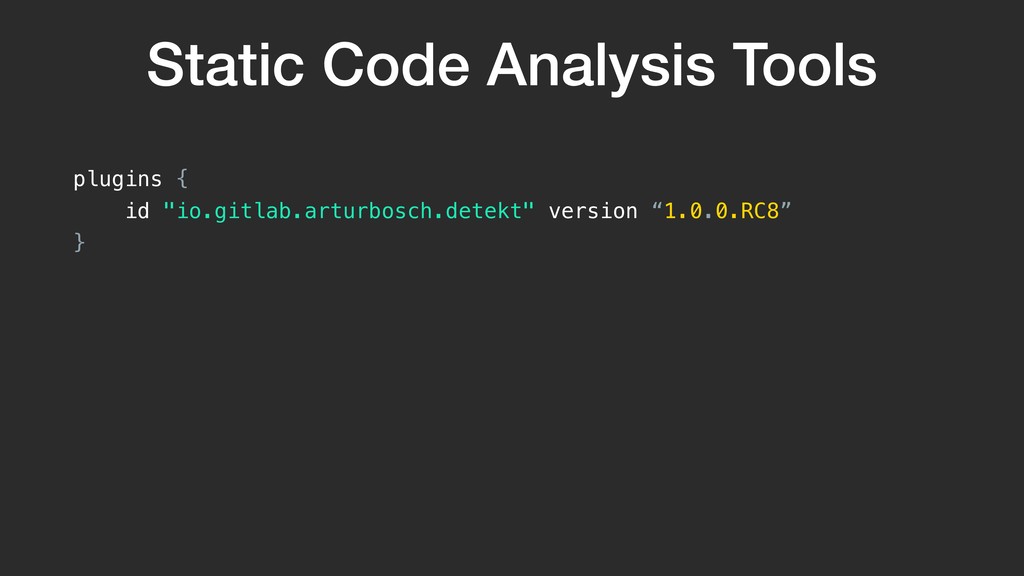

29. Static Code Analysis Tools plugins { id "io.gitlab.arturbosch.detekt" version “1.0.0.RC8” }
30. Static Code Analysis Tools plugins { id "io.gitlab.arturbosch.detekt" version “1.0.0.RC8” } detekt { version = "1.0.0.RC8" defaultProfile { input = "$projectDir" config = "$rootDir/detekt-config.yml" filters = ".*/resources/.*,.*/build/.*" output = "${project.buildDir}/reports/detekt" parallel = true } }
31. Static Code Analysis Tools Customisation

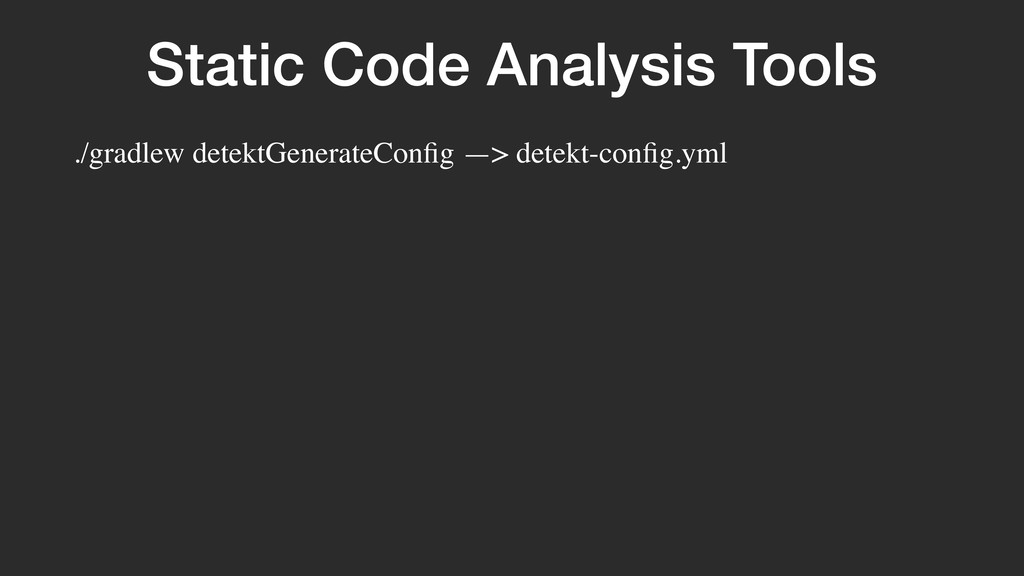

32. Static Code Analysis Tools ./gradlew detektGenerateConfig —> detekt-config.yml

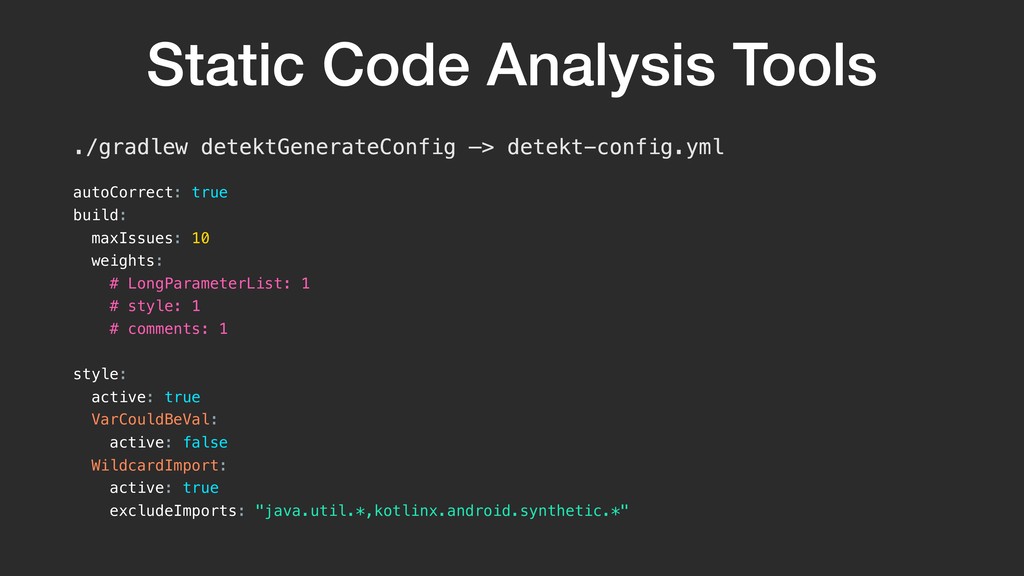

33. Static Code Analysis Tools ./gradlew detektGenerateConfig —> detekt-config.yml
 autoCorrect: true build: maxIssues: 10 weights: # LongParameterList: 1 # style: 1 # comments: 1 style: active: true VarCouldBeVal: active: false WildcardImport: active: true excludeImports: "java.util.*,kotlinx.android.synthetic.*"
34. Static Code Analysis Tools Output

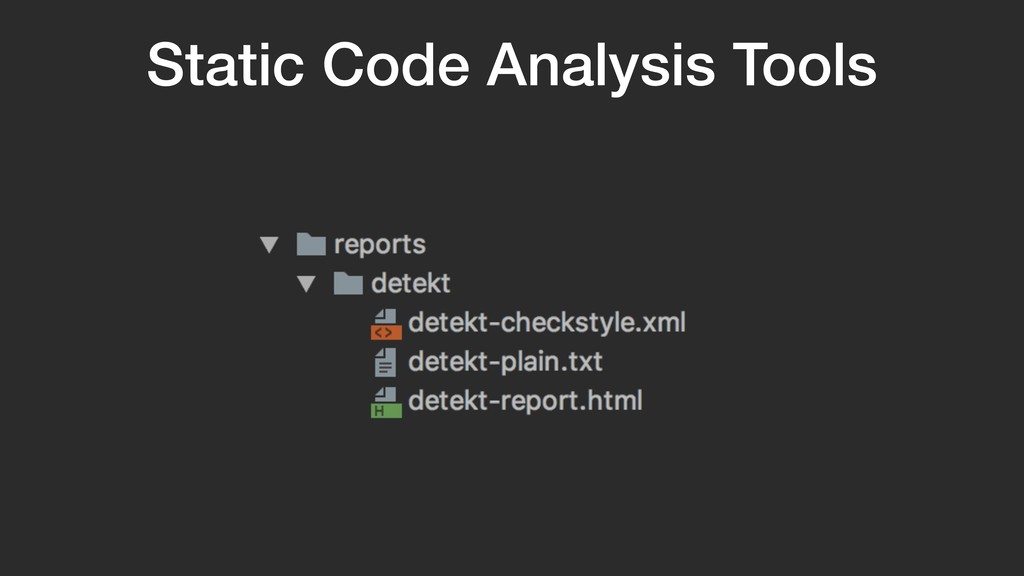

35. Static Code Analysis Tools

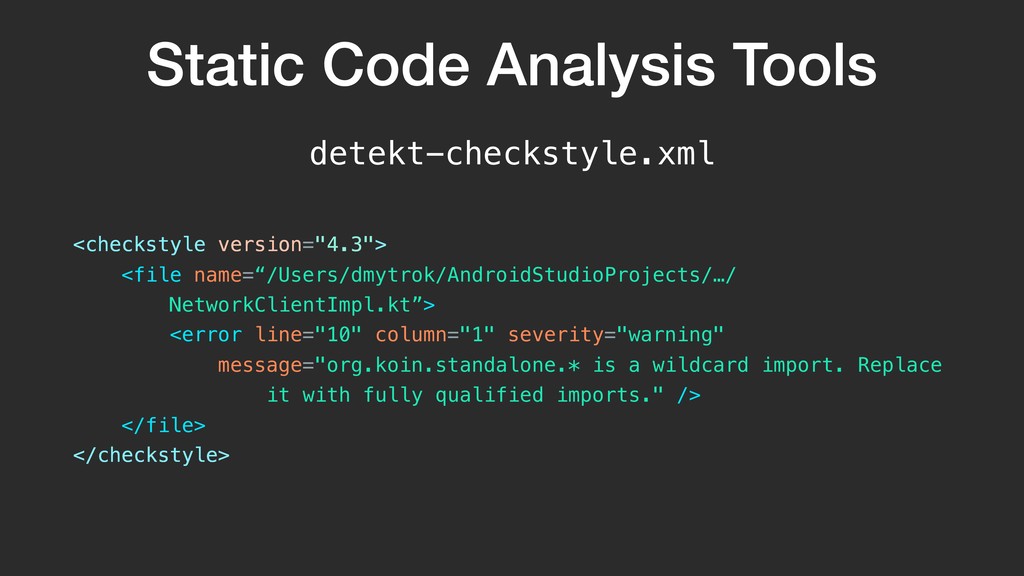

36. Static Code Analysis Tools detekt-checkstyle.xml <checkstyle version="4.3"> <file name=“/Users/dmytrok/AndroidStudioProjects/…/ NetworkClientImpl.kt”> <error line="10" column="1" severity="warning" message="org.koin.standalone.* is a wildcard import. Replace it with fully qualified imports." /> </file> </checkstyle>

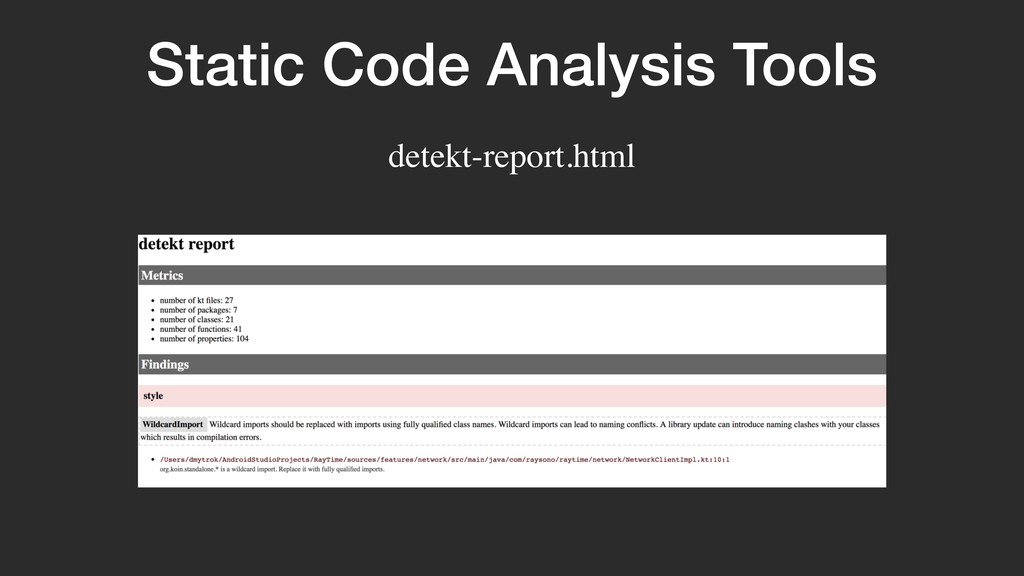

37. Static Code Analysis Tools detekt-report.html

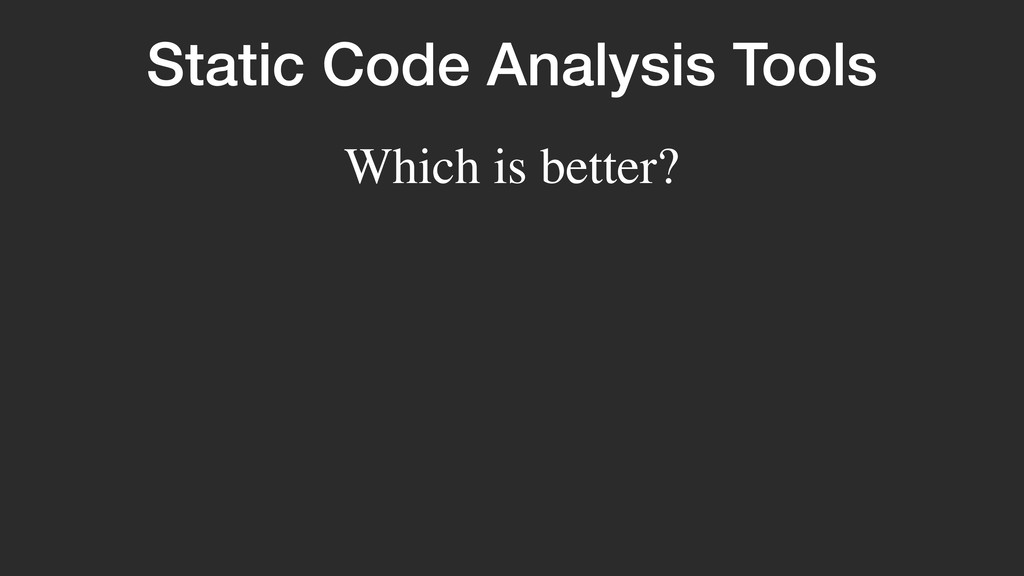

38. Static Code Analysis Tools Which is better?

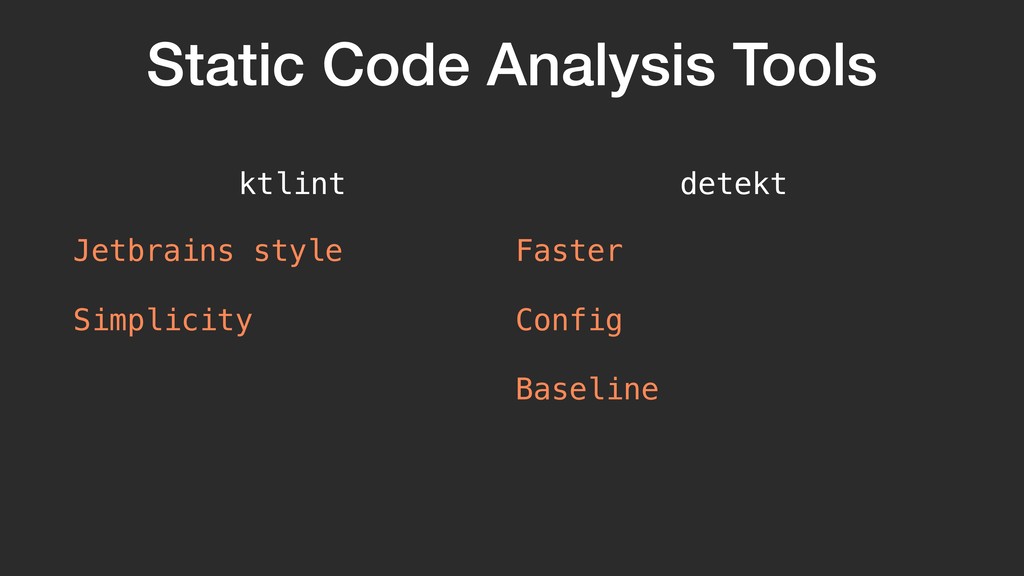

39. Static Code Analysis Tools ktlint Jetbrains style Simplicity detekt Faster Config Baseline

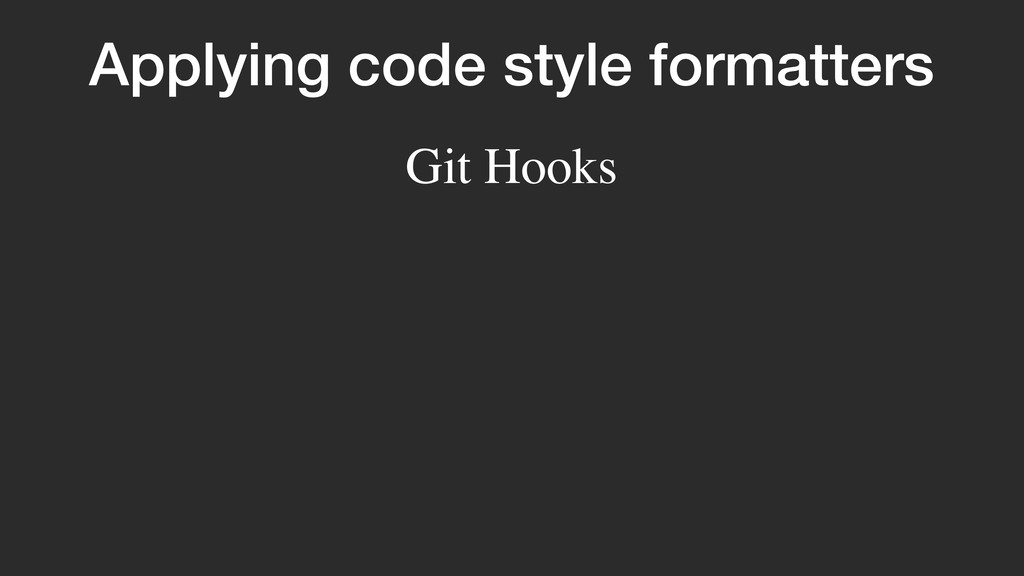

40. Applying code style formatters Git Hooks

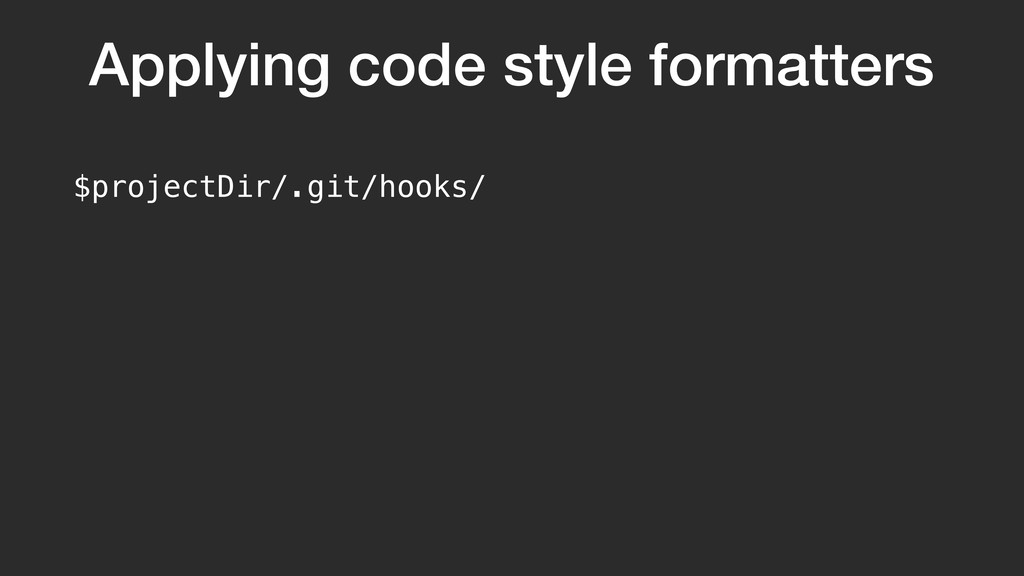

41. Applying code style formatters $projectDir/.git/hooks/

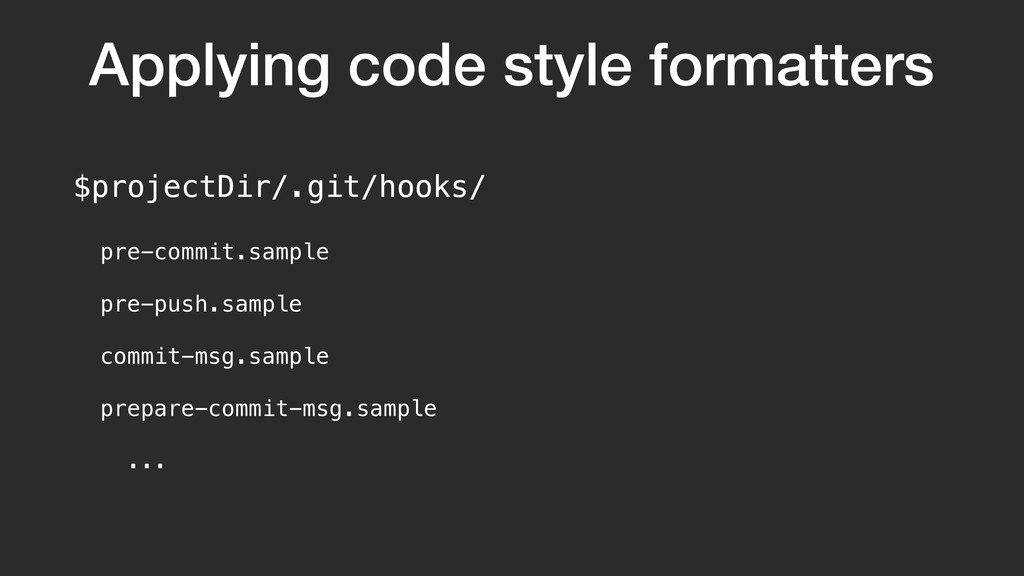

42. Applying code style formatters $projectDir/.git/hooks/ pre-commit.sample

 pre-push.sample

 commit-msg.sample

 prepare-commit-msg.sample

 ...

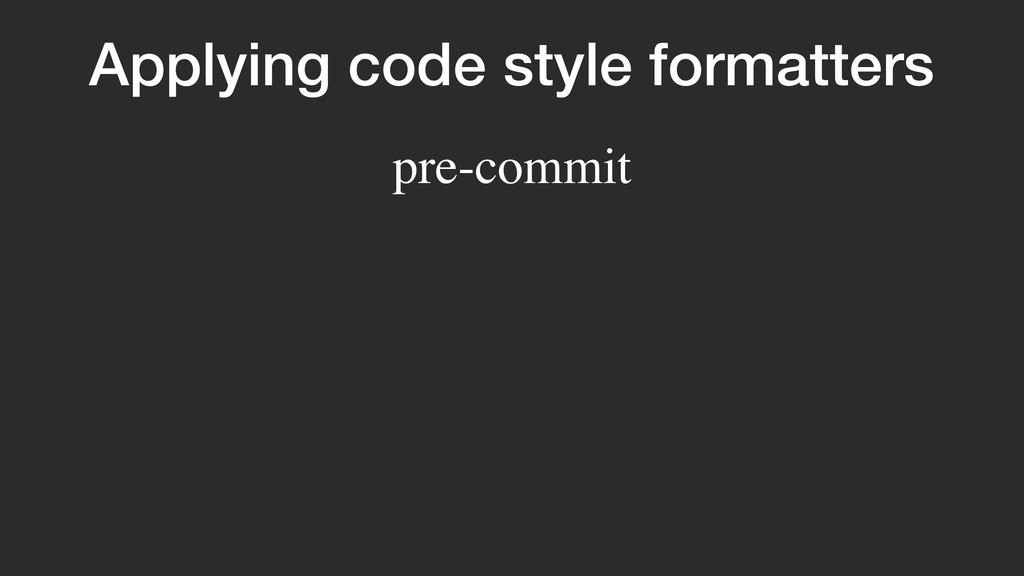

43. Applying code style formatters pre-commit

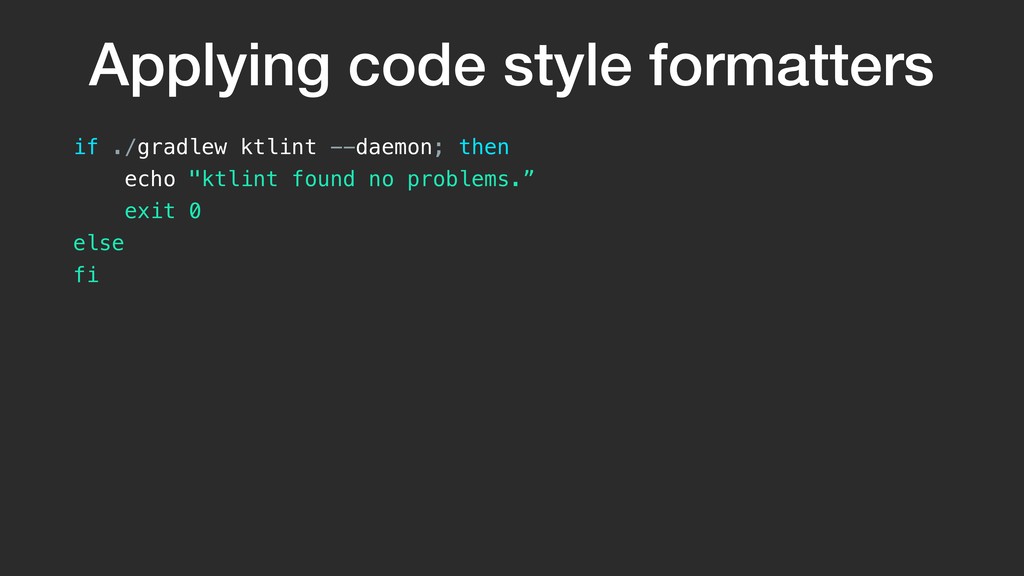

44. Applying code style formatters if ./gradlew ktlint --daemon; then echo "ktlint found no problems.” exit 0 else fiB

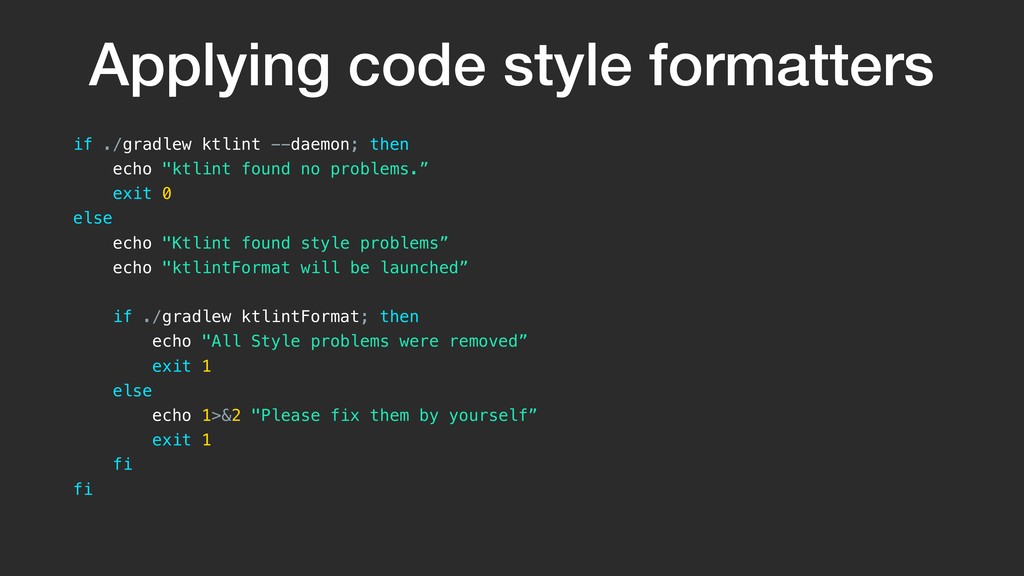

45. Applying code style formatters if ./gradlew ktlint --daemon; then echo "ktlint found no problems.” exit 0 else echo "Ktlint found style problems” echo "ktlintFormat will be launched” if ./gradlew ktlintFormat; then echo "All Style problems were removed” exit 1 else echo 1>&2 "Please fix them by yourself” exit 1 fi fiB
46. Visualising Sonarqube

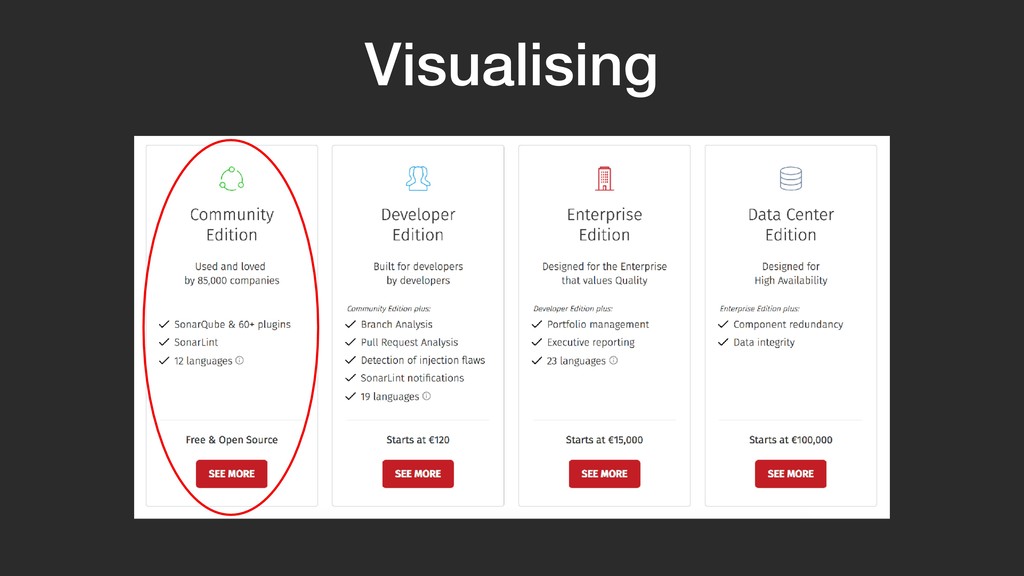

47. Visualising

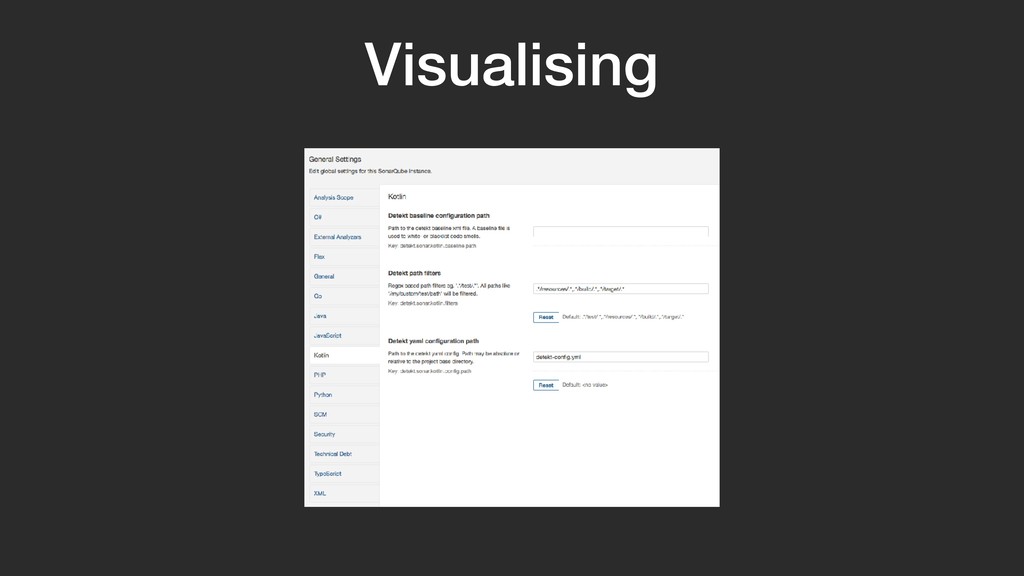

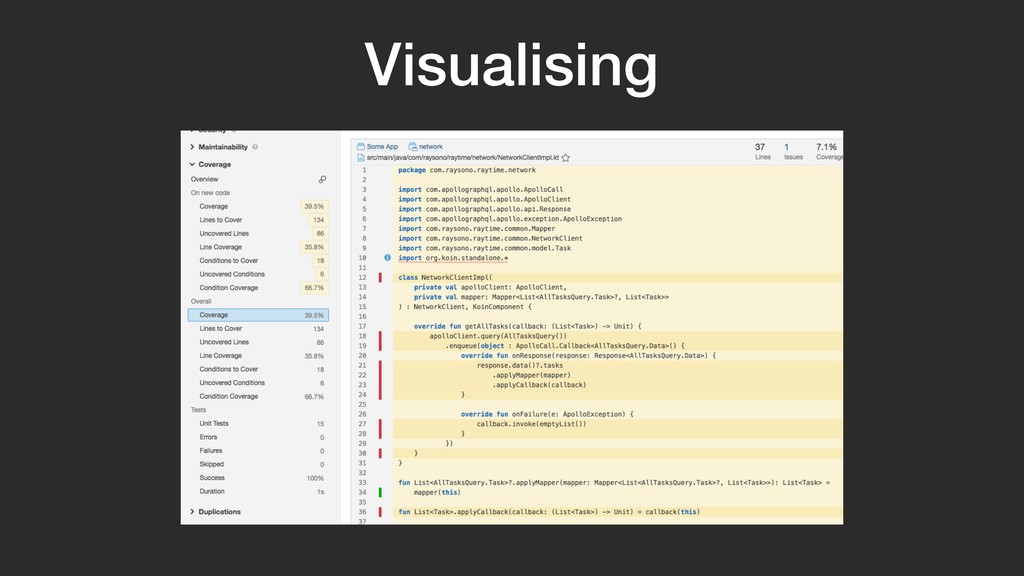

48. Visualising

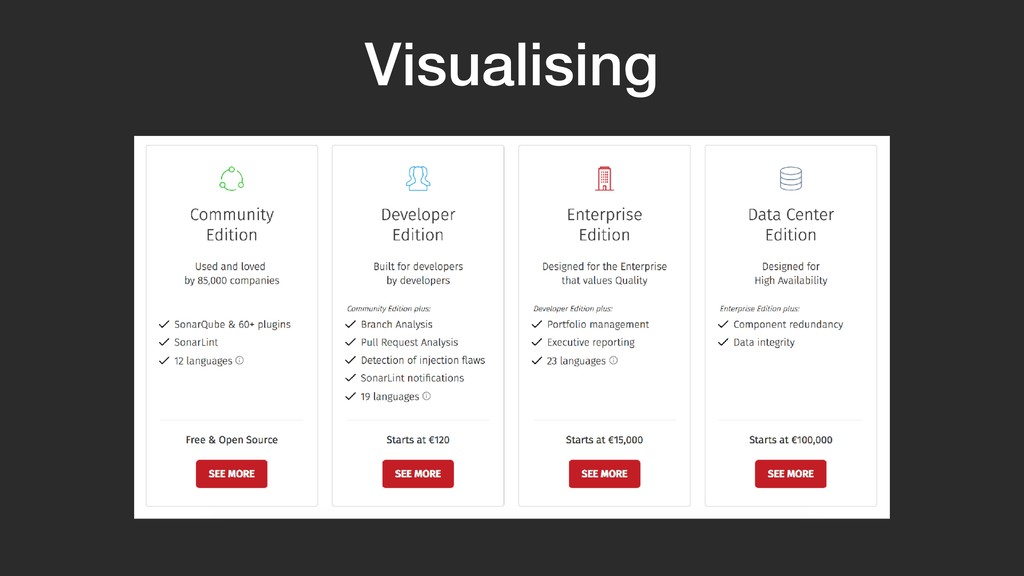

49. Visualising

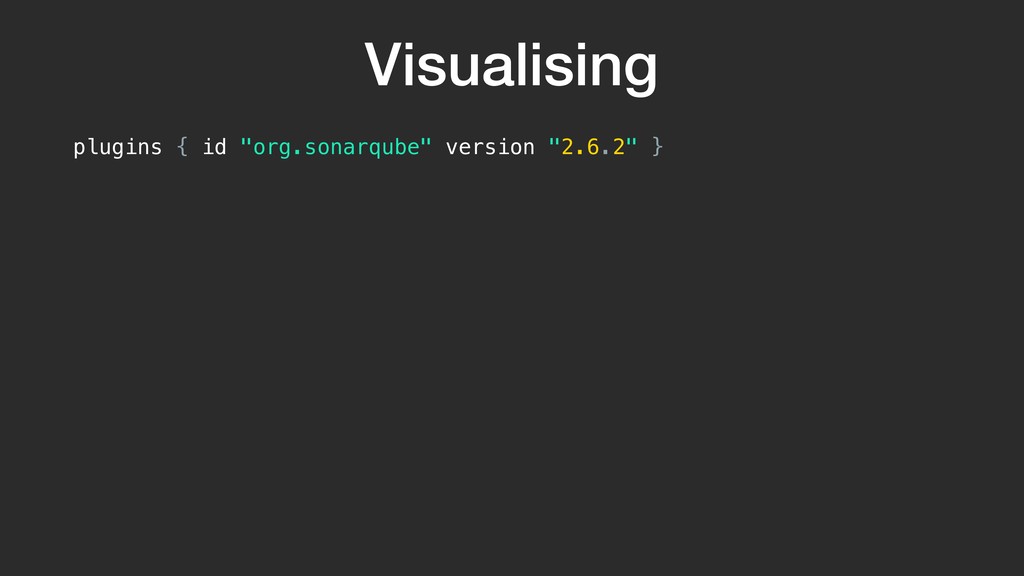

50. Visualising plugins { id "org.sonarqube" version "2.6.2" }

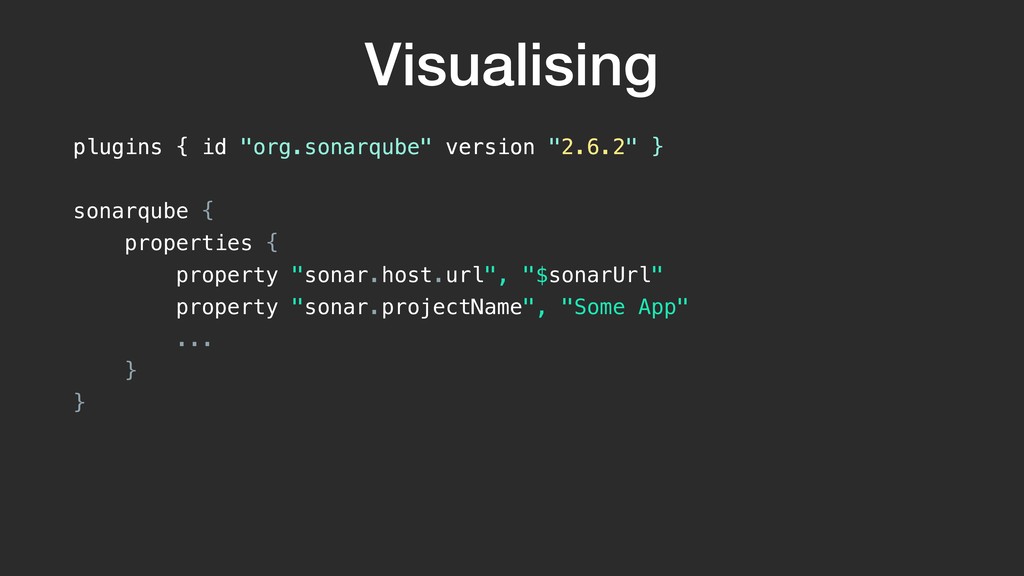

51. Visualising plugins { id "org.sonarqube" version "2.6.2" } sonarqube { properties { property "sonar.host.url", "$sonarUrl" property "sonar.projectName", "Some App" ... } }

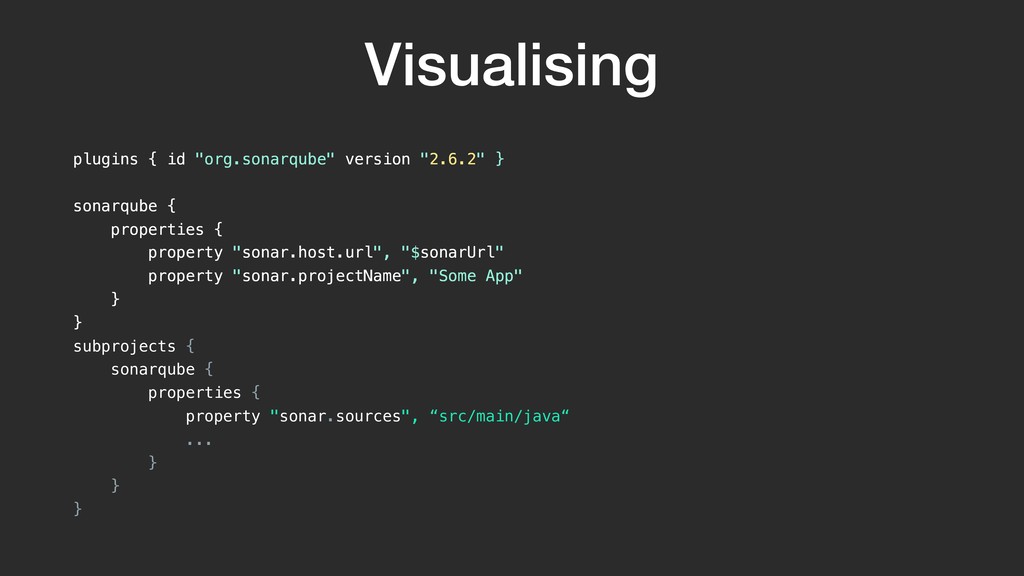

52. Visualising plugins { id "org.sonarqube" version "2.6.2" } sonarqube { properties { property "sonar.host.url", "$sonarUrl" property "sonar.projectName", "Some App" } } subprojects { sonarqube { properties { property "sonar.sources", “src/main/java“ ... } } }

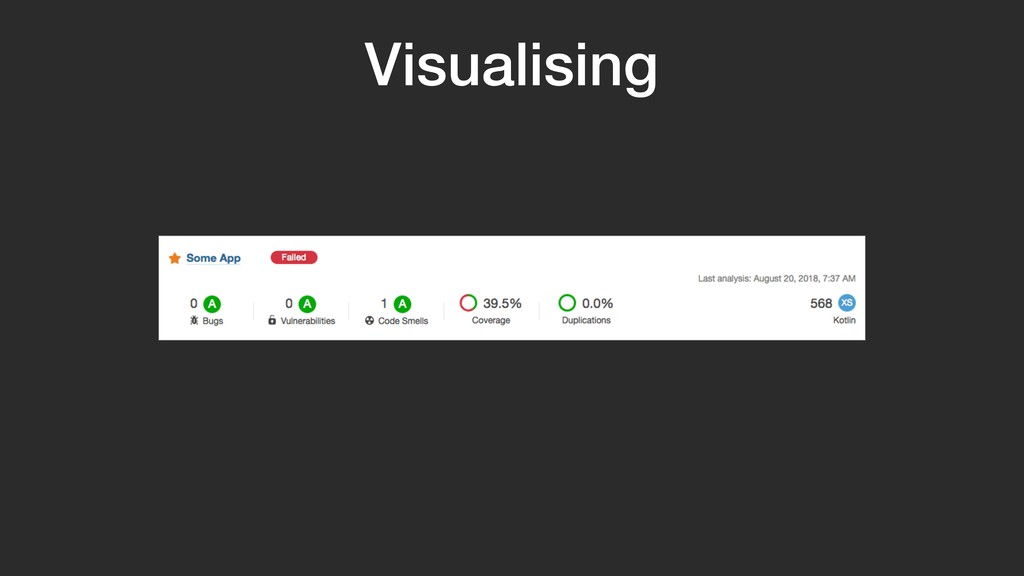

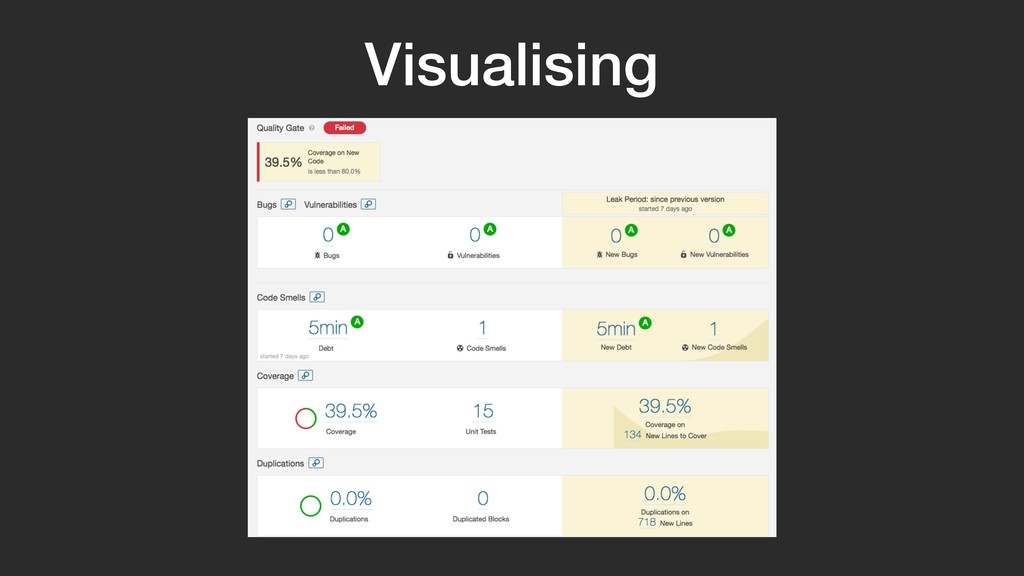

53. Visualising
54. Visualising
55. Visualising

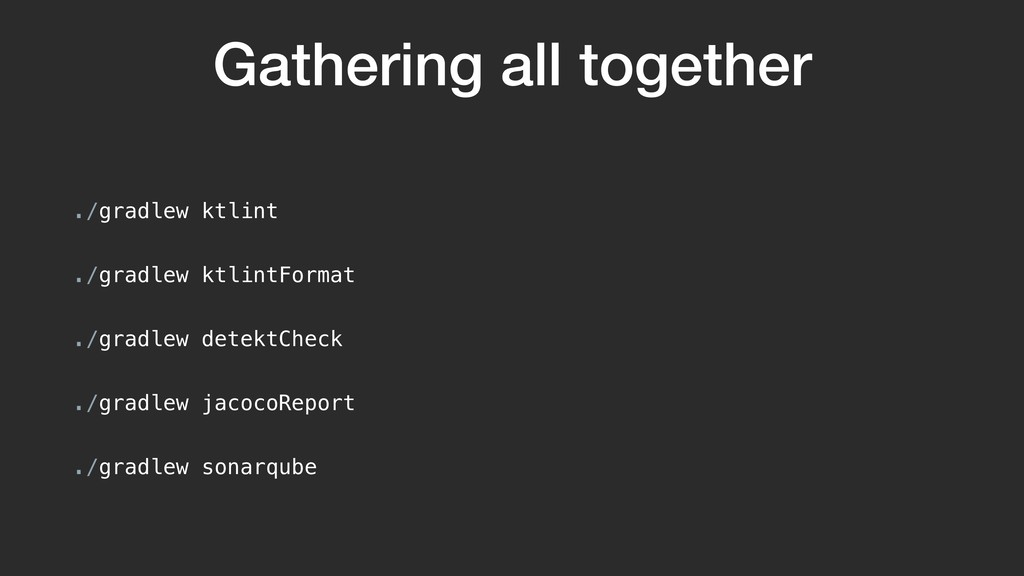

56. Gathering all together ./gradlew ktlint ./gradlew ktlintFormat ./gradlew detektCheck ./gradlew jacocoReport ./gradlew sonarqube
57. Thanks for your Attention! ktlint detekt @dimiKuiko https://speakerdeck.com/dmytrykuiko/static-code-analysis-tools/
