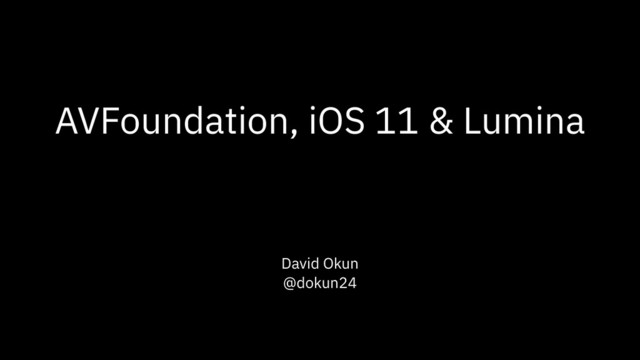

  1. AVFoundation, iOS 11 & Lumina
    David Okun
    @dokun24

    View full-size slide

  2. WEIRD SWIFT ATX
    @dokun24

    View full-size slide

  3. WEIRD SWIFT ATX
    •Meets every Thursday
    @dokun24

    View full-size slide

  4. WEIRD SWIFT ATX
    •Meets every Thursday
    •6-10 pm
    @dokun24

    View full-size slide

  5. WEIRD SWIFT ATX
    •Meets every Thursday
    •6-10 pm
    •Been at BennU coffee so far but…
    @dokun24

    View full-size slide

  6. WEIRD SWIFT ATX
    •Meets every Thursday
    •6-10 pm
    •Been at BennU coffee so far but…
    •…next week is at Galvanize!!!
    @dokun24

    View full-size slide

  7. What We’ll Cover
    @dokun24

    View full-size slide

  8. What We’ll Cover
    • A history of AVFoundation’s input and output
    @dokun24

    View full-size slide

  9. What We’ll Cover
    • A history of AVFoundation’s input and output
    • What changed in iOS 10
    @dokun24

    View full-size slide

  10. What We’ll Cover
    • A history of AVFoundation’s input and output
    • What changed in iOS 10
    • New methods in iOS 11
    @dokun24

    View full-size slide

  11. What We’ll Cover
    • A history of AVFoundation’s input and output
    • What changed in iOS 10
    • New methods in iOS 11
    • Capturing Depth Data
    @dokun24

    View full-size slide

  12. What We’ll Cover
    • A history of AVFoundation’s input and output
    • What changed in iOS 10
    • New methods in iOS 11
    • Capturing Depth Data
    • Lumina
    @dokun24

    View full-size slide

  13. What We’ll Cover
    • A history of AVFoundation’s input and output
    • What changed in iOS 10
    • New methods in iOS 11
    • Capturing Depth Data
    • Lumina
    • Synchronizing Asynchronously Streaming Data
    @dokun24

    View full-size slide

  14. What We Won’t Cover
    @dokun24

    View full-size slide

  15. What We Won’t Cover
    • High Efficiency Image File Format (HEIF)
    @dokun24

    View full-size slide

  16. What We Won’t Cover
    • High Efficiency Image File Format (HEIF)
    • High Efficiency Video Coding (HEVC)
    @dokun24

    View full-size slide

  17. What We Won’t Cover
    • High Efficiency Image File Format (HEIF)
    • High Efficiency Video Coding (HEVC)
    • AVCaptureDepthDataOutput
    @dokun24

    View full-size slide

  18. Reference Material
    @dokun24

    View full-size slide

  19. Reference Material
    • WWDC 2016, Session 501
    @dokun24

    View full-size slide

  20. Reference Material
    • WWDC 2016, Session 501
    • WWDC 2017, Session 507
    @dokun24

    View full-size slide

  21. Reference Material
    • WWDC 2016, Session 501
    • WWDC 2017, Session 507
    • https://github.com/dokun1/lumina
    @dokun24

    View full-size slide

  22. AVCaptureDevice
    @dokun24

    View full-size slide

  23. AVCaptureDevice
    AVCaptureDeviceInput
    @dokun24

    View full-size slide

  24. AVCaptureDevice
    AVCaptureDeviceInput
    AVCaptureSession
    @dokun24

    View full-size slide

  25. AVCaptureDevice
    AVCaptureDeviceInput
    AVCaptureConnection
    AVCaptureSession
    AVCapturePhotoOutput
    @dokun24

    View full-size slide

  26. AVCaptureDevice
    AVCaptureDeviceInput
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureSession
    AVCapturePhotoOutput
    AVCaptureMovieFileOutput
    @dokun24

    View full-size slide

  27. AVCaptureDevice
    AVCaptureDeviceInput
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureSession
    AVCapturePhotoOutput
    AVCaptureMovieFileOutput
    AVCaptureMetadataOutput
    @dokun24

    View full-size slide

  28. AVCaptureDevice
    AVCaptureDeviceInput
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureSession
    AVCapturePhotoOutput
    AVCaptureMovieFileOutput
    AVCaptureMetadataOutput
    AVCaptureVideoDataOutput
    @dokun24

    View full-size slide

  29. AVCaptureDevice
    AVCaptureDeviceInput
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureConnection
    AVCaptureSession
    AVCapturePhotoOutput
    AVCaptureMovieFileOutput
    AVCaptureMetadataOutput
    AVCaptureVideoDataOutput
    AVCaptureVideoPreviewLayer
    @dokun24

    View full-size slide

  30. Before iOS 10
    @dokun24

    View full-size slide

  31. Before iOS 10
    AVCaptureStillImageOutput
    @dokun24

    View full-size slide

  32. Before iOS 10
    AVCaptureStillImageOutput
    func captureStillImageAsynchronously(from connection:
    AVCaptureConnection, completionHandler handler: @escaping
    (CMSampleBuffer?, Error?) -> Swift.Void)
    @dokun24

    View full-size slide

  33. Since iOS 10
    @dokun24

    View full-size slide

  34. Since iOS 10
    AVCapturePhotoOutput
    @dokun24

    View full-size slide

  35. Since iOS 10
    AVCapturePhotoOutput
    var settings = AVCapturePhotoSettings()
    self.photoOutput.capturePhoto(with: settings, delegate: self)
    @dokun24

    View full-size slide

  36. Since iOS 10
    @dokun24

    View full-size slide

  37. Since iOS 10
    AVCapturePhotoSettings
    @dokun24

    View full-size slide

  38. Since iOS 10
    AVCapturePhotoSettings
    var uniqueID: Int64 // generated on init
    @dokun24

    View full-size slide

  39. Since iOS 10
    AVCapturePhotoSettings
    var uniqueID: Int64 // generated on init
    var flashMode: AVCaptureDevice.FlashMode
    @dokun24

    View full-size slide

  40. Since iOS 10
    AVCapturePhotoSettings
    var uniqueID: Int64 // generated on init
    var flashMode: AVCaptureDevice.FlashMode
    var isAutoStillImageStabilizationEnabled: Bool
    @dokun24

    View full-size slide

  41. Since iOS 10
    AVCapturePhotoSettings
    var uniqueID: Int64 // generated on init
    var flashMode: AVCaptureDevice.FlashMode
    var isAutoStillImageStabilizationEnabled: Bool
    var isHighResolutionPhotoEnabled: Bool
    @dokun24

    View full-size slide

  42. Since iOS 10
    AVCapturePhotoSettings
    var uniqueID: Int64 // generated on init
    var flashMode: AVCaptureDevice.FlashMode
    var isAutoStillImageStabilizationEnabled: Bool
    var isHighResolutionPhotoEnabled: Bool
    var isAutoDualCameraFusionEnabled: Bool // iOS 10.2+
    @dokun24

    View full-size slide

  43. Since iOS 10
    @dokun24

    View full-size slide

  44. Since iOS 10
    AVCapturePhotoOutputDelegate
    @dokun24

    View full-size slide

  45. Since iOS 10
    AVCapturePhotoOutputDelegate
    func photoOutput(_ output: AVCapturePhotoOutput, willBeginCaptureFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    @dokun24

    View full-size slide

  46. Since iOS 10
    AVCapturePhotoOutputDelegate
    func photoOutput(_ output: AVCapturePhotoOutput, willBeginCaptureFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    func photoOutput(_ output: AVCapturePhotoOutput, willCapturePhotoFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    @dokun24

    View full-size slide

  47. Since iOS 10
    AVCapturePhotoOutputDelegate
    func photoOutput(_ output: AVCapturePhotoOutput, willBeginCaptureFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    func photoOutput(_ output: AVCapturePhotoOutput, willCapturePhotoFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    func photoOutput(_ output: AVCapturePhotoOutput, didCapturePhotoFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    @dokun24

    View full-size slide

  48. Since iOS 10
    AVCapturePhotoOutputDelegate
    func photoOutput(_ output: AVCapturePhotoOutput, didFinishProcessingPhoto photoSampleBuffer:
    CMSampleBuffer?, previewPhoto previewPhotoSampleBuffer: CMSampleBuffer?, resolvedSettings:
    AVCaptureResolvedPhotoSettings, bracketSettings: AVCaptureBracketedStillImageSettings?, error: Error?)
    func photoOutput(_ output: AVCapturePhotoOutput, willBeginCaptureFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    func photoOutput(_ output: AVCapturePhotoOutput, willCapturePhotoFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    func photoOutput(_ output: AVCapturePhotoOutput, didCapturePhotoFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    @dokun24

    View full-size slide

  49. Since iOS 10
    AVCapturePhotoOutputDelegate
    func photoOutput(_ output: AVCapturePhotoOutput, didFinishProcessingPhoto photoSampleBuffer:
    CMSampleBuffer?, previewPhoto previewPhotoSampleBuffer: CMSampleBuffer?, resolvedSettings:
    AVCaptureResolvedPhotoSettings, bracketSettings: AVCaptureBracketedStillImageSettings?, error: Error?)
    func photoOutput(_ output: AVCapturePhotoOutput, willBeginCaptureFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    func photoOutput(_ output: AVCapturePhotoOutput, willCapturePhotoFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    func photoOutput(_ output: AVCapturePhotoOutput, didCapturePhotoFor resolvedSettings:
    AVCaptureResolvedPhotoSettings)
    func photoOutput(_ output: AVCapturePhotoOutput, didFinishCaptureFor resolvedSettings:
    AVCaptureResolvedPhotoSettings, error: Error?)
    @dokun24

    View full-size slide

  50. Since iOS 10
    @dokun24

    View full-size slide

  51. Since iOS 10
    AVCaptureResolvedPhotoSettings
    @dokun24

    View full-size slide

  52. Since iOS 10
    AVCaptureResolvedPhotoSettings
    var uniqueID: Int64
    @dokun24

    View full-size slide

  53. Since iOS 10
    AVCaptureResolvedPhotoSettings
    var uniqueID: Int64
    var photoDimensions: CMVideoDimensions
    @dokun24

    View full-size slide

  54. Since iOS 10
    AVCaptureResolvedPhotoSettings
    var uniqueID: Int64
    var photoDimensions: CMVideoDimensions
    var livePhotoMovieDimensions: CMVideoDimensions
    @dokun24

    View full-size slide

  55. Since iOS 10
    AVCaptureResolvedPhotoSettings
    var uniqueID: Int64
    var photoDimensions: CMVideoDimensions
    var livePhotoMovieDimensions: CMVideoDimensions
    var isFlashEnabled: Bool
    @dokun24

    View full-size slide

  56. Since iOS 10
    AVCaptureResolvedPhotoSettings
    var uniqueID: Int64
    var photoDimensions: CMVideoDimensions
    var livePhotoMovieDimensions: CMVideoDimensions
    var isFlashEnabled: Bool
    var isStillImageStabilizationEnabled: Bool
    @dokun24

    View full-size slide

  57. Since iOS 10
    AVCaptureResolvedPhotoSettings
    var uniqueID: Int64
    var photoDimensions: CMVideoDimensions
    var livePhotoMovieDimensions: CMVideoDimensions
    var isFlashEnabled: Bool
    var isStillImageStabilizationEnabled: Bool
    var isDualCameraFusionEnabled: Bool // iOS 10.2+
    @dokun24

    View full-size slide

  58. New in iOS 11
    @dokun24

    View full-size slide

  59. New in iOS 11
    AVCapturePhotoOutputDelegate
    @dokun24

    View full-size slide

  60. New in iOS 11
    AVCapturePhotoOutputDelegate
    func photoOutput(_ output: AVCapturePhotoOutput, didFinishProcessingPhoto
    photo: AVCapturePhoto, error: Error?)
    @dokun24

    View full-size slide

  61. New in iOS 11
    @dokun24

    View full-size slide

  62. New in iOS 11
    AVCapturePhoto
    @dokun24

    View full-size slide

  63. New in iOS 11
    AVCapturePhoto
    var pixelBuffer: CVPixelBuffer?
    @dokun24

    View full-size slide

  64. New in iOS 11
    AVCapturePhoto
    var pixelBuffer: CVPixelBuffer?
    var previewPixelBuffer: CVPixelBuffer?
    @dokun24

    View full-size slide

  65. New in iOS 11
    AVCapturePhoto
    var pixelBuffer: CVPixelBuffer?
    var previewPixelBuffer: CVPixelBuffer?
    var metadata: [String : Any]
    @dokun24

    View full-size slide

  66. New in iOS 11
    AVCapturePhoto
    var pixelBuffer: CVPixelBuffer?
    var previewPixelBuffer: CVPixelBuffer?
    var metadata: [String : Any]
    var resolvedSettings: AVCaptureResolvedPhotoSettings
    @dokun24

    View full-size slide

  67. New in iOS 11
    AVCapturePhoto
    var pixelBuffer: CVPixelBuffer?
    var previewPixelBuffer: CVPixelBuffer?
    var metadata: [String : Any]
    var resolvedSettings: AVCaptureResolvedPhotoSettings
    var photoCount: Int
    @dokun24

    View full-size slide

  68. New in iOS 11
    AVCapturePhoto
    var pixelBuffer: CVPixelBuffer?
    var previewPixelBuffer: CVPixelBuffer?
    var metadata: [String : Any]
    var resolvedSettings: AVCaptureResolvedPhotoSettings
    var photoCount: Int
    var depthData: AVDepthData?
    @dokun24

    View full-size slide

  69. New in iOS 11
    AVCapturePhoto
    @dokun24

    View full-size slide

  70. New in iOS 11
    AVCapturePhoto
    @dokun24

    View full-size slide

  71. New in iOS 11
    AVCapturePhoto
    func cgImageRepresentation() -> Unmanaged?
    @dokun24

    View full-size slide

  72. New in iOS 11
    AVCapturePhoto
    func cgImageRepresentation() -> Unmanaged?
    func takeRetainedValue() -> Instance
    @dokun24

    View full-size slide

  73. New in iOS 11
    AVCapturePhoto
    func cgImageRepresentation() -> Unmanaged?
    func takeRetainedValue() -> Instance
    func takeUnretainedValue() -> Instance
    @dokun24

    View full-size slide

  74. Back to iOS 10
    @dokun24

    View full-size slide

  75. Back to iOS 10
    AVCapturePhotoOutputDelegate -> CMSampleBuffer -> UIImage
    @dokun24

    View full-size slide

  76. Back to iOS 10
    AVCapturePhotoOutputDelegate -> CMSampleBuffer -> UIImage
    guard let imageData = AVCapturePhotoOutput.jpegPhotoDataRepresentation(forJPEGSampleBuffer:
    sampleBuffer, previewPhotoSampleBuffer: nil) else {
    return nil
    }
    guard let dataProvider = CGDataProvider(data: imageData as CFData) else {
    return nil
    }
    guard let cgImage = CGImage(jpegDataProviderSource: dataProvider, decode: nil,
    shouldInterpolate: true, intent: CGColorRenderingIntent.defaultIntent) else {
    return nil
    }
    return UIImage(cgImage: cgImage)
    @dokun24

    View full-size slide

  77. New in iOS 11
    @dokun24

    View full-size slide

  78. New in iOS 11
    AVCapturePhoto -> UIImage
    @dokun24

    View full-size slide

  79. New in iOS 11
    AVCapturePhoto -> UIImage
    guard let cgImage = photo.cgImageRepresentation() else {
    return nil
    }
    return UIImage(cgImage: cgImage.takeUnretainedValue())
    @dokun24

    View full-size slide

  80. Capturing Depth Data
    @dokun24

    View full-size slide

  81. Capturing Depth Data
    @dokun24

    View full-size slide

  82. Capturing Depth Data
    @dokun24

    View full-size slide

  83. New in iOS 11
    AVCapturePhoto
    @dokun24
    var pixelBuffer: CVPixelBuffer?
    var previewPixelBuffer: CVPixelBuffer?
    var metadata: [String : Any]
    var resolvedSettings: AVCaptureResolvedPhotoSettings
    var photoCount: Int
    var depthData: AVDepthData?

    View full-size slide

  84. New in iOS 11
    AVCapturePhoto
    @dokun24
    var pixelBuffer: CVPixelBuffer?
    var previewPixelBuffer: CVPixelBuffer?
    var metadata: [String : Any]
    var resolvedSettings: AVCaptureResolvedPhotoSettings
    var photoCount: Int
    var depthData: AVDepthData?

    View full-size slide

  85. Capturing Depth Data
    @dokun24

    View full-size slide

  86. Capturing Depth Data
    AVDepthData
    @dokun24

    View full-size slide

  87. Capturing Depth Data
    AVDepthData
    var depthDataAccuracy: AVDepthData.Accuracy
    @dokun24

    View full-size slide

  88. Capturing Depth Data
    AVDepthData
    var depthDataAccuracy: AVDepthData.Accuracy
    var isDepthDataFiltered: Bool
    @dokun24

    View full-size slide

  89. Capturing Depth Data
    AVDepthData
    var depthDataAccuracy: AVDepthData.Accuracy
    var isDepthDataFiltered: Bool
    var depthDataQuality: AVDepthData.Quality
    @dokun24

    View full-size slide

  90. Capturing Depth Data
    AVDepthData
    var depthDataAccuracy: AVDepthData.Accuracy
    var isDepthDataFiltered: Bool
    var depthDataQuality: AVDepthData.Quality
    var cameraCalibrationData: AVCameraCalibrationData?
    @dokun24

    View full-size slide

  91. Capturing Depth Data
    AVDepthData
    var depthDataAccuracy: AVDepthData.Accuracy
    var isDepthDataFiltered: Bool
    var depthDataQuality: AVDepthData.Quality
    var cameraCalibrationData: AVCameraCalibrationData?
    var depthDataMap: CVPixelBuffer
    @dokun24

    View full-size slide

  92. Capturing Depth Data
    @dokun24

    View full-size slide

  93. Capturing Depth Data
    // in your capture session configuration
    if self.photoOutput.isDepthDataDeliverySupported {
    self.photoOutput.isDepthDataDeliveryEnabled = true
    }
    @dokun24

    View full-size slide

  94. Capturing Depth Data
    // in your capture session configuration
    if self.photoOutput.isDepthDataDeliverySupported {
    self.photoOutput.isDepthDataDeliveryEnabled = true
    }
    // in your preparation for capturing a still image with AVCapturePhotoSettings
    if self.photoOutput.isDepthDataDeliverySupported {
    settings.isDepthDataDeliveryEnabled = true
    }
    @dokun24

    View full-size slide

  95. Lumina
    @dokun24

    View full-size slide

  96. Lumina
    • Gratuitous plugging!
    @dokun24

    View full-size slide

  97. Lumina
    • Gratuitous plugging!
    • A full service camera framework
    @dokun24

    View full-size slide

  98. Lumina
    • Gratuitous plugging!
    • A full service camera framework
    • QR codes, bar codes, live photos, the list
    goes on…
    @dokun24

    View full-size slide

  99. Lumina
    • Gratuitous plugging!
    • A full service camera framework
    • QR codes, bar codes, live photos, the list
    goes on…
    • …and the easiest CoreML integration you’ll
    see
    @dokun24

    View full-size slide

  100. Lumina
    • Gratuitous plugging!
    • A full service camera framework
    • QR codes, bar codes, live photos, the list
    goes on…
    • …and the easiest CoreML integration you’ll
    see
    @dokun24

    View full-size slide

  101. Live Demo Of Lumina
    @dokun24

    View full-size slide

  102. Synchronizing Asynchronously Streaming Data
    @dokun24

    View full-size slide

  103. Synchronizing Asynchronously Streaming Data
    • AVCaptureVideoDataOutput -> video frames
    @dokun24

    View full-size slide

  104. Synchronizing Asynchronously Streaming Data
    • AVCaptureVideoDataOutput -> video frames
    • AVCaptureMetadataOutput -> QR codes, barcodes, faces
    @dokun24

    View full-size slide

  105. Synchronizing Asynchronously Streaming Data
    • AVCaptureVideoDataOutput -> video frames
    • AVCaptureMetadataOutput -> QR codes, barcodes, faces
    • AVCapturePhotoOutput -> still photos
    @dokun24

    View full-size slide

  106. Synchronizing Asynchronously Streaming Data
    • AVCaptureVideoDataOutput -> video frames
    • AVCaptureMetadataOutput -> QR codes, barcodes, faces
    • AVCapturePhotoOutput -> still photos
    • AVCaptureDepthDataOutput -> depth data maps
    @dokun24

    View full-size slide

  107. Synchronizing Asynchronously Streaming Data
    • AVCaptureVideoDataOutput -> video frames
    • AVCaptureMetadataOutput -> QR codes, barcodes, faces
    • AVCapturePhotoOutput -> still photos
    • AVCaptureDepthDataOutput -> depth data maps
    • You see the problem here, right?
    @dokun24

    View full-size slide

  108. Synchronizing Asynchronously Streaming Data
    @dokun24

    View full-size slide

  109. Synchronizing Asynchronously Streaming Data
    AVCaptureDataOutputSynchronizer // iOS 11.0 +
    @dokun24

    View full-size slide

  110. Synchronizing Asynchronously Streaming Data
    AVCaptureDataOutputSynchronizer // iOS 11.0 +
    init(dataOutputs: [AVCaptureOutput])
    @dokun24

    View full-size slide

  111. Synchronizing Asynchronously Streaming Data
    AVCaptureDataOutputSynchronizer // iOS 11.0 +
    init(dataOutputs: [AVCaptureOutput])
    var delegate: AVCaptureDataOutputSynchronizerDelegate
    @dokun24

    View full-size slide

  112. Synchronizing Asynchronously Streaming Data
    AVCaptureDataOutputSynchronizer // iOS 11.0 +
    init(dataOutputs: [AVCaptureOutput])
    var delegate: AVCaptureDataOutputSynchronizerDelegate
    var delegateCallbackQueue: DispatchQueue?
    @dokun24

    View full-size slide

  113. Synchronizing Asynchronously Streaming Data
    @dokun24

    View full-size slide

  114. Synchronizing Asynchronously Streaming Data
    AVCaptureDataOutputSynchronizerDelegate
    @dokun24

    View full-size slide

  115. Synchronizing Asynchronously Streaming Data
    AVCaptureDataOutputSynchronizerDelegate
    func dataOutputSynchronizer(_ synchronizer:
    AVCaptureDataOutputSynchronizer, didOutput synchronizedDataCollection:
    AVCaptureSynchronizedDataCollection) {
    let collection = synchronizedDataCollection
    }
    @dokun24

    View full-size slide

  116. Synchronizing Asynchronously Streaming Data
    @dokun24

    View full-size slide

  117. Synchronizing Asynchronously Streaming Data
    AVCaptureSynchronizedDataCollection // iOS 11.0 +
    @dokun24

    View full-size slide

  118. Synchronizing Asynchronously Streaming Data
    AVCaptureSynchronizedDataCollection // iOS 11.0 +
    func synchronizedData(for captureOutput: AVCaptureOutput) ->
    AVCaptureSynchronizedData?
    @dokun24

    View full-size slide

  119. Synchronizing Asynchronously Streaming Data
    AVCaptureSynchronizedDataCollection // iOS 11.0 +
    func synchronizedData(for captureOutput: AVCaptureOutput) ->
    AVCaptureSynchronizedData?
    @dokun24
    var count: Int

    View full-size slide

  120. Questions?
    @dokun24

    View full-size slide
