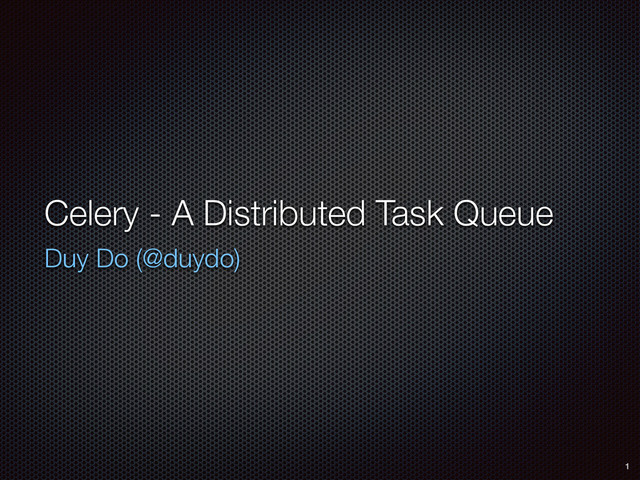

1. Celery - A Distributed Task Queue
   Duy Do (@duydo)
   1


   View Slide

2. Outline
   1. About
   2. What is Celery?
   3. Celery Architecture
   4. Broker, Task, Worker
   5. Monitoring
   6. Coding
   7. Q & A
   2


   View Slide

3. About
   A father, a husband and a software engineer
   Passionate in distributed systems, real-time data
   processing, search engine
   Work @sentifi as a backend engineer
   Follow me @duydo
   3


   View Slide

4. What is Celery?
   Distributed Task Queue
   Simple, fast, flexible, highly available, scalable
   Mature, feature rich
   Open source, BSD License
   Large community
   4


   View Slide

5. What is Task Queue?
   Task Queue is a system for parallel execution of tasks
   5
   Client Worker
   Broker
   send tasks distribute tasks
   Worker
   distribute tasks


   View Slide

6. Celery Architecture
   6
   Client 1
   Task Queue 2
   …
   Task Queue N
   Task Queue 1
   Broker
   Client 2
   Worker
   1
   Worker
   2
   Task Result
   Storage
   distribute tasks
   distribute tasks
   send tasks
   send tasks
   store task results
   store task results
   get task result
   get task result


   View Slide

7. Broker
   The middle man holds the tasks (messages)
   Celery supports:
   • RabbitMQ, Redis
   • MongoDB, CouchDB
   • ZeroMQ, Amazon SQS, IronMQ
   7


   View Slide

8. Task
   Task is a unit of work, building blocks in Celery apps
   Exists until it has been acknowledged
   Result of the tasks can be stored or ignored
   States: PENDING, STARTED, SUCCESS, FAILURE,
   RETRY, REVOKED
   Periodic task (cron jobs)
   8


   View Slide

9. Define Tasks
   #  function  style
   @app.task

   def  add(x,  y):

          return  x  *  y
   #  class  style
   class  AddTask(app.Task):

          def  run(self,  x,  y):

                  return  x  +  y
   9


   View Slide

10. Calling Tasks
    apply_async(args[,  kwargs[,  …]])
    delay(*args,  **kwargs)
    calling(__call__)
    e.g:
    • result  =  add.delay(1,  2)
    • result  =  add.apply_async((1,  2),
    countdown=10)
    10


    View Slide

11. Calling Task Options
    eta a specific date time that is the earliest time at which task
    will be executed
    countdown set eta by seconds into the future
    expires set task’s expire time
    serializer pickle (default), json, yaml and msgpack
    compression compress the messages using gzip or bzip2
    queue route the tasks to different queues
    11


    View Slide

12. Task Result
    result.ready() true if the task has been executed
    result.successful() true if the task executed successfully
    result.result the return value of the task or exception
    result.get() blocks until the task is complete, return
    result or exception
    12


    View Slide

13. Tasks Workflows
    Signatures: Partials, Immutability, Callbacks
    The Primitives: Chains, Groups, Chords, Map &
    Starmap, Chunks
    13


    View Slide

14. Signatures
    signature() wraps args, kwargs, options of a single task
    invocation in a way such that it can be:
    • passed to functions
    • serialized and sent across the wire
    like subtasks
    14


    View Slide

15. Create Signatures
    #  ws.tasks.add(1,  2)



    s  =  signature('ws.tasks.add',  args=(1,  2),  countdown=10)
    s  =  add.subtask((1,  2),  countdown=10)
    s  =  add.s(1,  2)
    s  =  add.s(1,  2,  debug=True)

    #  inspect  fields

    s.args    #  (1,  2)

    s.kwargs    #  {'debug':  True')

    s.options    #  {countdown=10}
    #  execute  as  task
    s.delay()
    s.apply_async()
    s()
    15


    View Slide

16. Partial Signatures
    16
    Specifying additional args, kwargs or options to
    apply_async/delay to create partial
    • partial  =  add.s(1)
    • partial.delay(2)  #  1  +  2
    • partial.apply_async((2,))  #  1  +  2


    View Slide

17. Immutable Signatures
    17
    A signature can only be set with options
    Using si() to create immutable signature
    • add.si(1,  2)


    View Slide

18. Callbacks Signatures
    18
    Use the link arg of apply_sync to add callbacks
    add.apply_async((1,  2),  link=add.s(3))


    View Slide

19. Group
    19
    A signature takes a list of tasks should be applied in
    parallel
    s  =  group(add.s(i,  i)  for  i  in  xrange(5))
    s().get()  =>  [0,  2,  4,  6,  8]


    View Slide

20. Chain
    20
    Chain of callbacks, think pipeline
    c  =  chain(add.s(1,  2),  add.s(3),  add.s(4))
    c  =  chain(add.s(1,  2)  |  add.s(3)  |  add.s(4))
    c().get()  =>  ((1  +  2)  +  3)  +  4


    View Slide

21. Chord
    21
    Like a group but with a callback
    c  =  chord((add.s(i,  i)  for  i  in  xrange(5)),
    xsum.s())
    c  =  chord(add.s(i,  i)  for  i  in  xrange(5))
    (xsum.s())
    c().get()  =>  20


    View Slide

22. Map
    22
    Like built-in map function
    c  =  task.map([1,  2,  3])
    c()  =>  [task(1),  task(2),  task(3)]


    View Slide

23. Starmap
    23
    Same map except the args are applied as *args
    c  =  add.map([(1,  2),  (3,  4)])
    c()  =>  [add(1,  2),  add(3,  4)]


    View Slide

24. Chunks
    24
    Chunking splits a long list of args to parts
    items  =  zip(xrange(10),  xrange(10))
    c  =  add.chunks(items,  5)
    c()  =>  [0,  2,  4,  6,  8],  [10,  12,  14,  16,  18]


    View Slide

25. Worker
    Auto reloading
    Auto scaling
    Time & Rate Limits
    Resource Leak Protection
    Scheduling
    User Components
    25


    View Slide

26. Autoloading
    Automatically reloading the worker source code as it
    changes
    celery  worker  —autoreload
    26


    View Slide

27. Autoscaling
    Dynamically resizing the worker pool depending on
    load or custom metrics defined by user
    celery  worker  —autoscale=8,2
    =>  min  processes:  2,  max  processes:8
    27


    View Slide

28. Time & Rate Limits
    number of tasks per second/minute/hour
    how long a task can be allowed to run
    28


    View Slide

29. Resource Leak Protection
    Limit number of tasks a pool worker process can
    execute before it’s replaced by a new one
    celery  worker  —maxtaskperchild=10
    29


    View Slide

30. Scheduling
    Specify the time to run a task
    in seconds, date time
    periodic tasks (interval, crontab expressions)
    30


    View Slide

31. User Components
    Celery uses a dependency graph enabling fire grained
    control of the workers internally, called “bootsteps”
    Customize the worker components, e.g:
    ConsumerStep
    Add new components
    Bootsteps http://celery.readthedocs.org/en/latest/
    userguide/extending.html
    31


    View Slide

32. Monitoring
    Flower - Real-time Celery web monitor
    • Task progress and history
    • Show task details (arguments, start time, runtime, and more)
    • Graphs and statistics
    • Shutdown, restart worker instances
    • Control worker pool size, autoscaling settings
    • …
    32


    View Slide

33. Coding…
    Get your hand dirty…
    33


    View Slide

34. –Duy Do (@duydo)
    Thank you
    34
