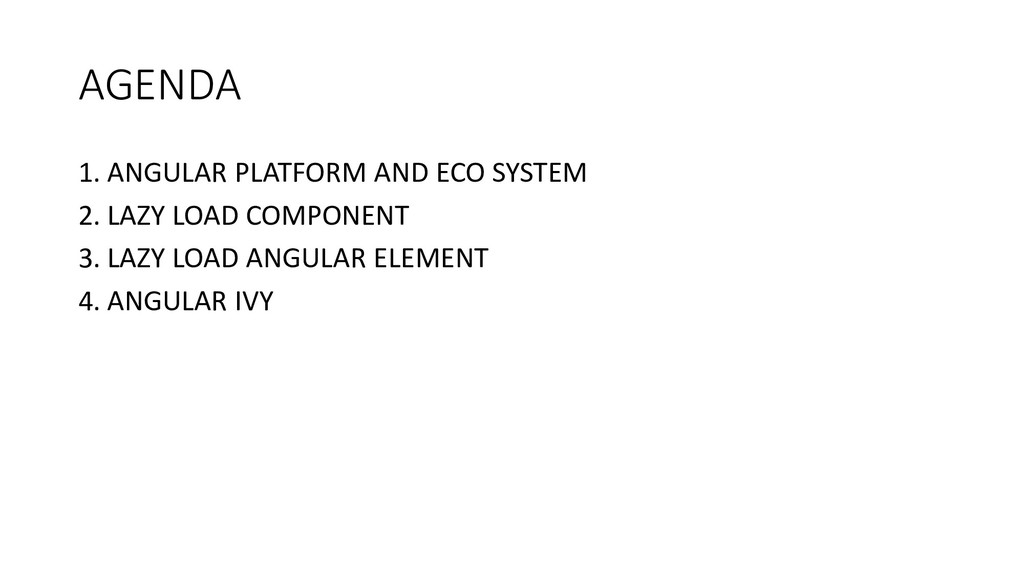

  1. AGENDA 1. ANGULAR PLATFORM AND ECO SYSTEM 2. LAZY LOAD

    COMPONENT 3. LAZY LOAD ANGULAR ELEMENT 4. ANGULAR IVY
  2. 2. LAZY LOADING Angular Routes • we specify the relative

    path to the module to load, in the form of a string value. • Why a string value? The reason is that we cannot use the component property as you do with non-lazy routes, because that implies importing the according component type from a file, thus “hard-wiring” it together 5 New syntax from angular 8 loadChildren: () => import('./search/search.module').then(mod => mod.SearchModule)

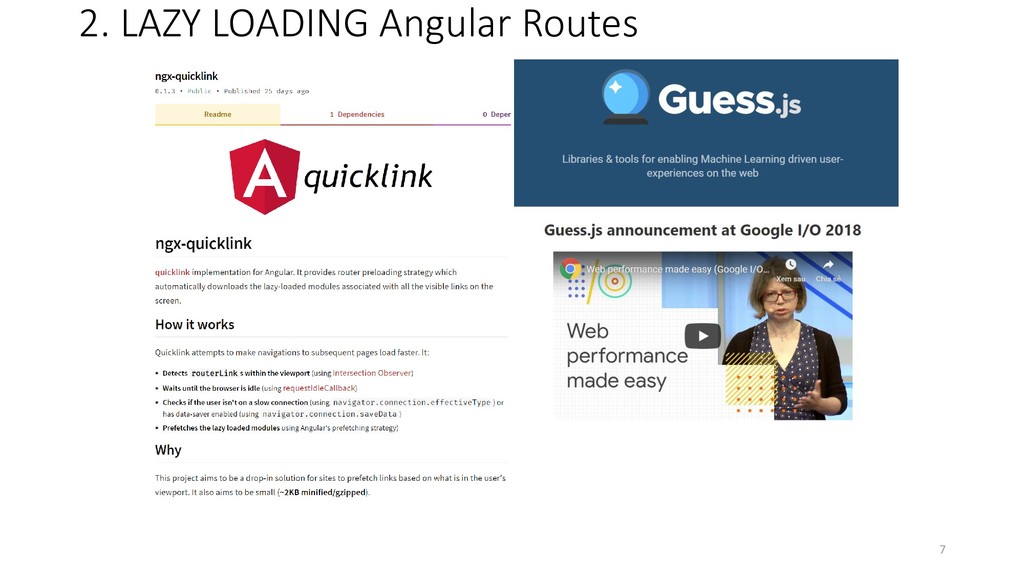

  3. 2. LAZY LOADING Angular Routes ▪Avoid delays for lazy modules

    by applying a preloading strategy with the Angular router ▪Define a custom preloading strategy for the Angular Router 6

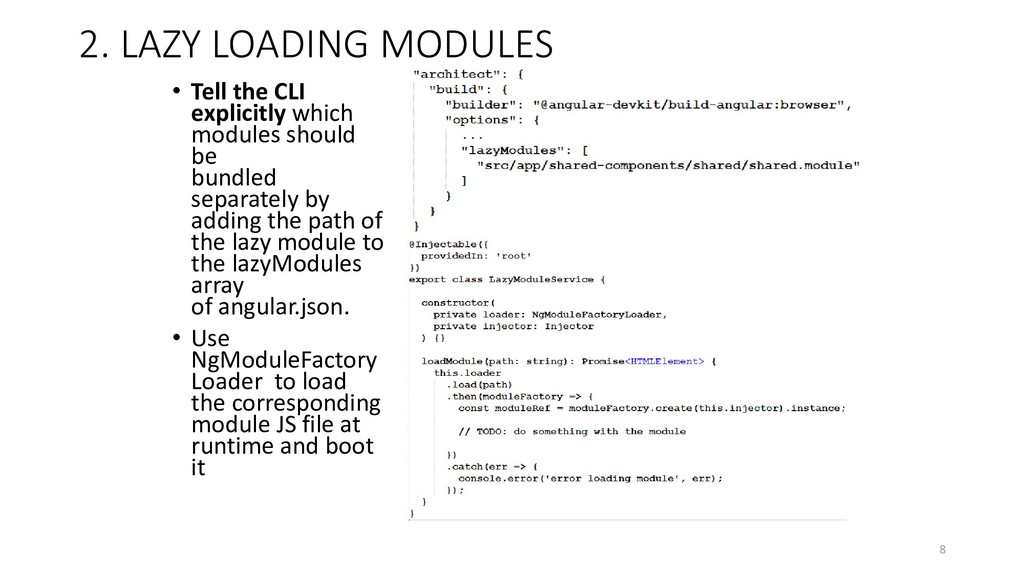

  4. 2. LAZY LOADING MODULES • Tell the CLI explicitly which

    modules should be bundled separately by adding the path of the lazy module to the lazyModules array of angular.json. • Use NgModuleFactory Loader to load the corresponding module JS file at runtime and boot it 8
  5. 2. LAZY LOADING COMPONENTS ▪ create a helper directive called

    Directive to mark valid insertion points in the template. ▪ use directive on template ▪ use ComponentFactoryResolver to add components dynamically. ▪ ensure that the compiler still generates a factory, add dynamically loaded components to the NgModule's entryComponents array

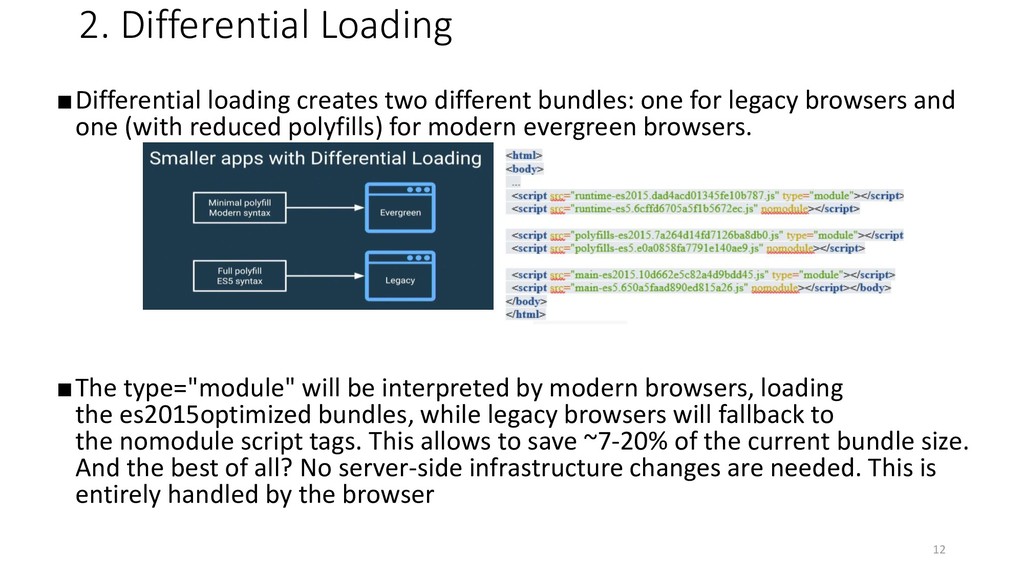

  6. 2. Differential Loading ▪Differential loading creates two different bundles: one

    for legacy browsers and one (with reduced polyfills) for modern evergreen browsers. ▪The type="module" will be interpreted by modern browsers, loading the es2015optimized bundles, while legacy browsers will fallback to the nomodule script tags. This allows to save ~7-20% of the current bundle size. And the best of all? No server-side infrastructure changes are needed. This is entirely handled by the browser 12
  7. 3. ANGULAR ELEMENT ▪Wrap existing angular components and create native

    custom elements from Angular components (web component) ▪Expose as web component so that you can use them everywhere every framework (i.e. expose custom elements) ▪To make it work with legacy browser, we must to install the polyfill. One of these polyfill which come from Polymer project from google ▪Angular Elements are not just about compiling them into standalone JS files to be used outside of Angular but also use for dynamically loading components. 13

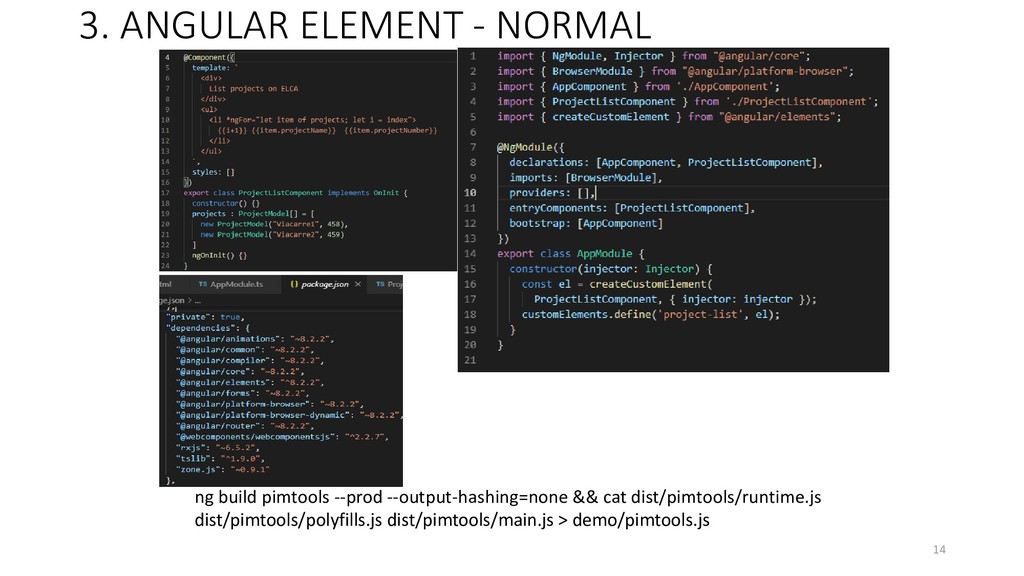

  8. 3. ANGULAR ELEMENT - NORMAL 14 ng build pimtools --prod

    --output-hashing=none && cat dist/pimtools/runtime.js dist/pimtools/polyfills.js dist/pimtools/main.js > demo/pimtools.js

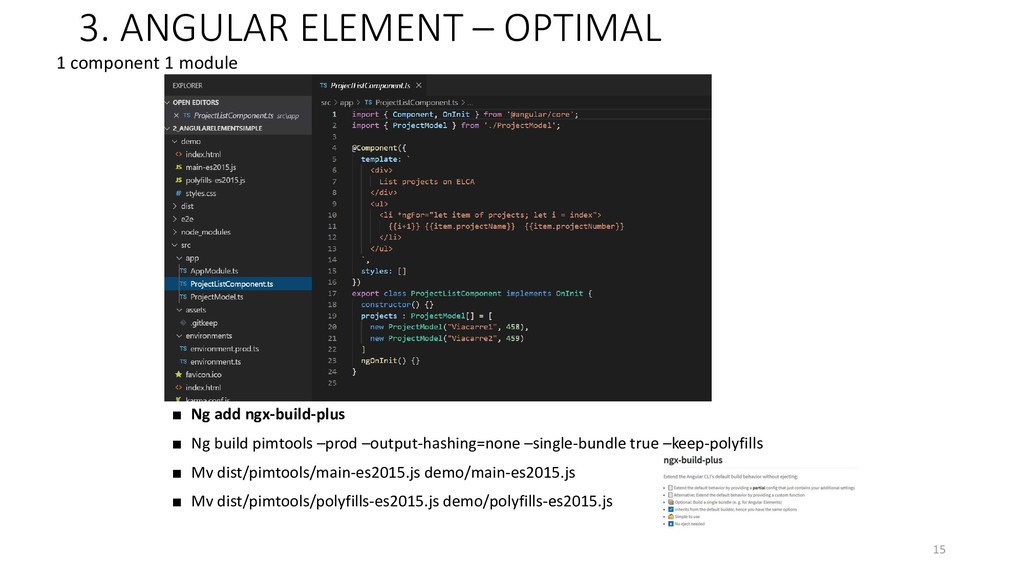

  9. 3. ANGULAR ELEMENT – OPTIMAL ▪ Ng add ngx-build-plus ▪

    Ng build pimtools –prod –output-hashing=none –single-bundle true –keep-polyfills ▪ Mv dist/pimtools/main-es2015.js demo/main-es2015.js ▪ Mv dist/pimtools/polyfills-es2015.js demo/polyfills-es2015.js 15 1 component 1 module

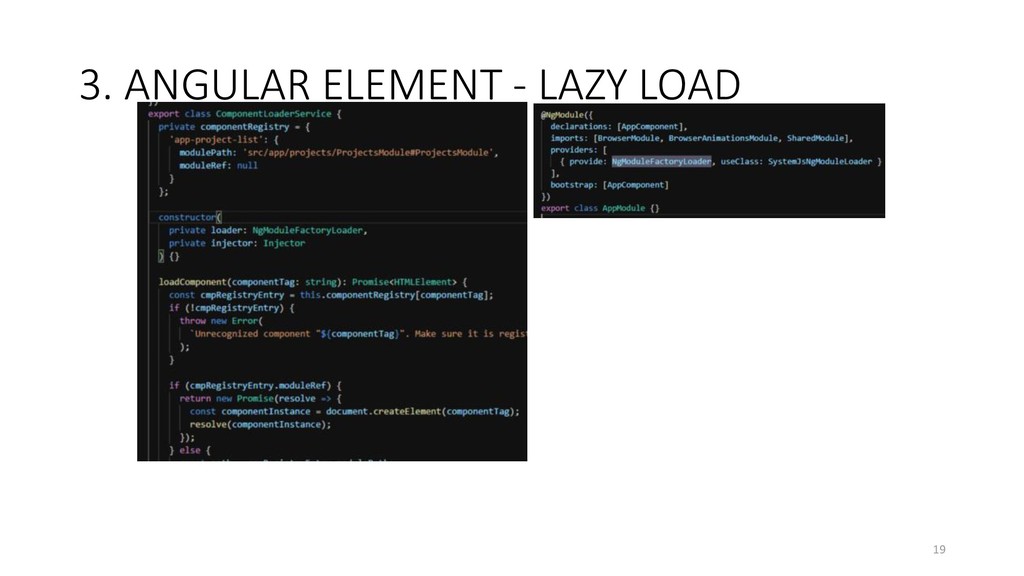

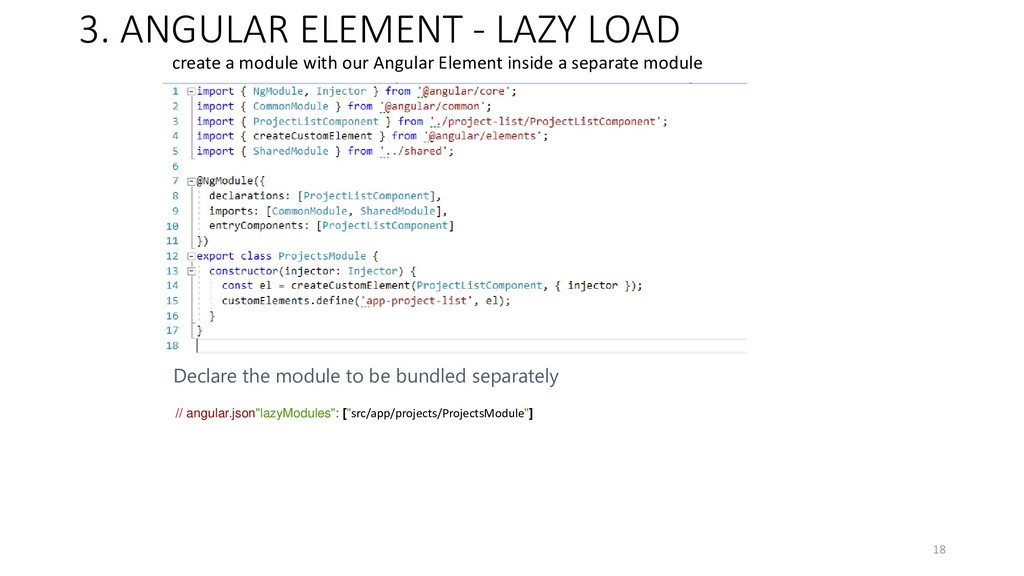

  10. 3. ANGULAR ELEMENT - LAZY LOAD 18 create a module

    with our Angular Element inside a separate module Declare the module to be bundled separately // angular.json"lazyModules": ["src/app/projects/ProjectsModule"]

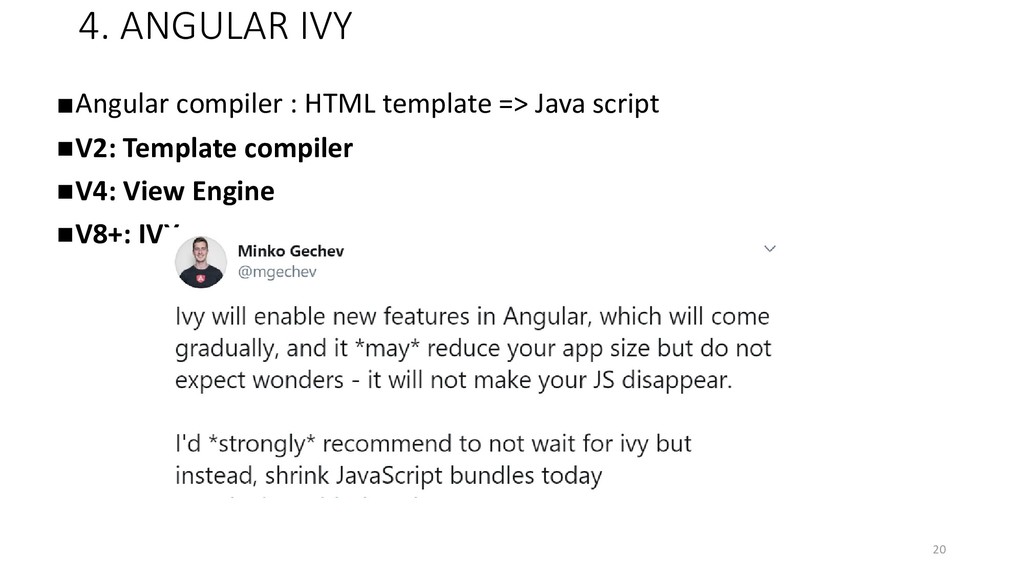

  11. 4. ANGULAR IVY ▪Angular compiler : HTML template => Java

    script ▪V2: Template compiler ▪V4: View Engine ▪V8+: IVY 20

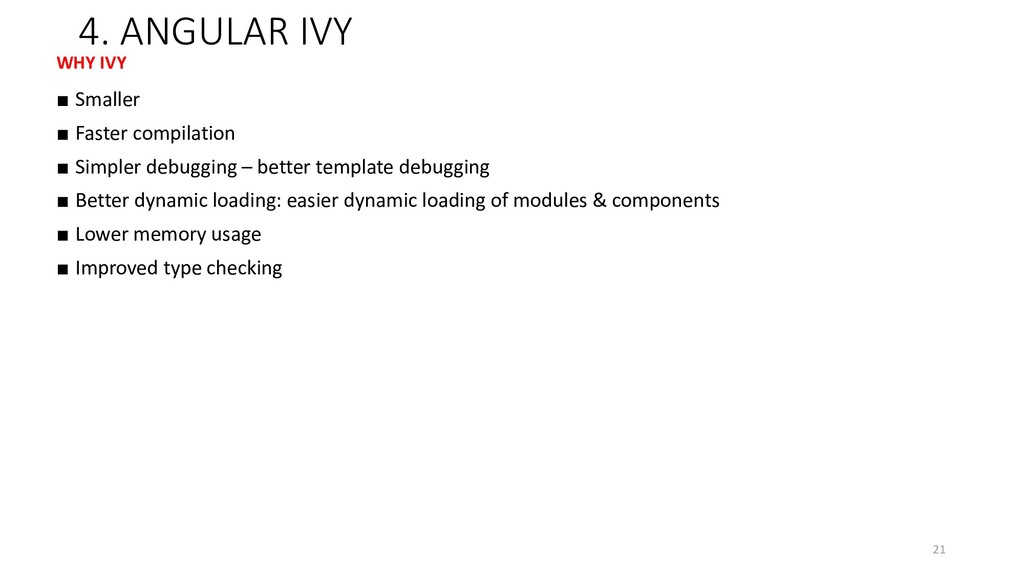

  12. WHY IVY 4. ANGULAR IVY ▪ Smaller ▪ Faster compilation

    ▪ Simpler debugging – better template debugging ▪ Better dynamic loading: easier dynamic loading of modules & components ▪ Lower memory usage ▪ Improved type checking 21

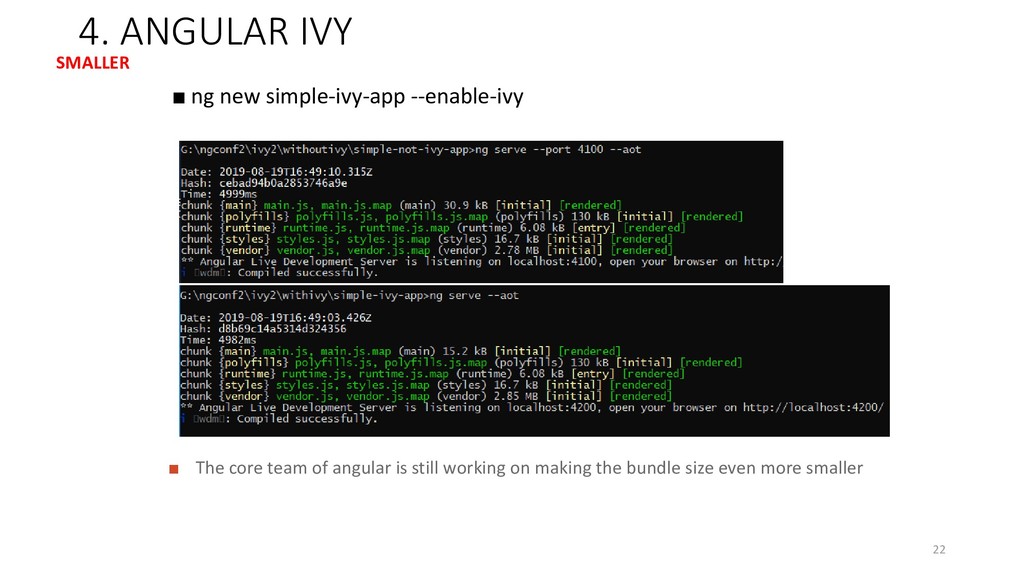

  13. SMALLER 4. ANGULAR IVY ▪ ng new simple-ivy-app --enable-ivy 22

    ▪ The core team of angular is still working on making the bundle size even more smaller
  14. SMALLER 4. ANGULAR IVY • Use the ngc command to

    generate the transpiled code 23

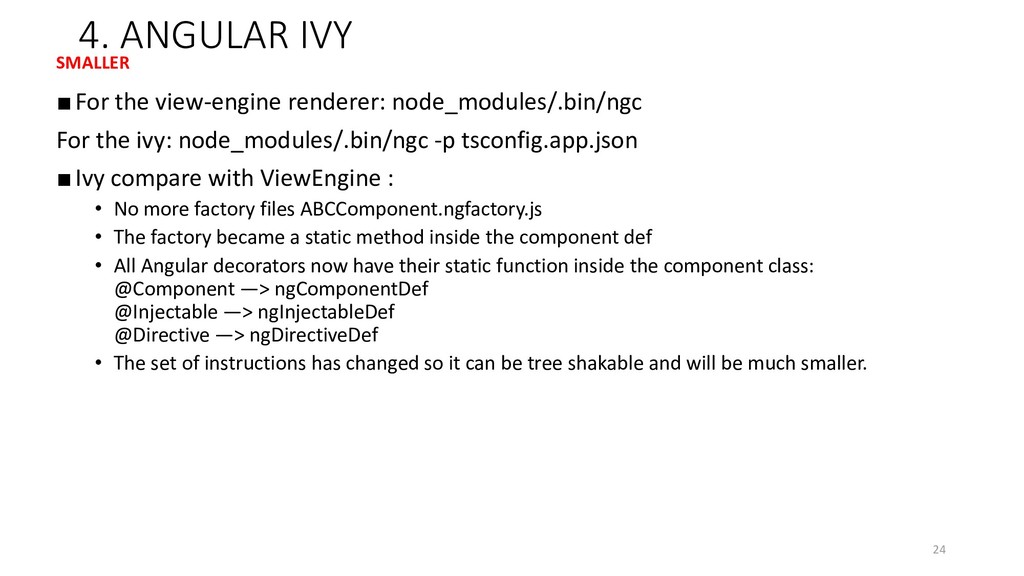

  15. SMALLER 4. ANGULAR IVY ▪For the view-engine renderer: node_modules/.bin/ngc For

    the ivy: node_modules/.bin/ngc -p tsconfig.app.json ▪Ivy compare with ViewEngine : • No more factory files ABCComponent.ngfactory.js • The factory became a static method inside the component def • All Angular decorators now have their static function inside the component class: @Component —> ngComponentDef @Injectable —> ngInjectableDef @Directive —> ngDirectiveDef • The set of instructions has changed so it can be tree shakable and will be much smaller. 24

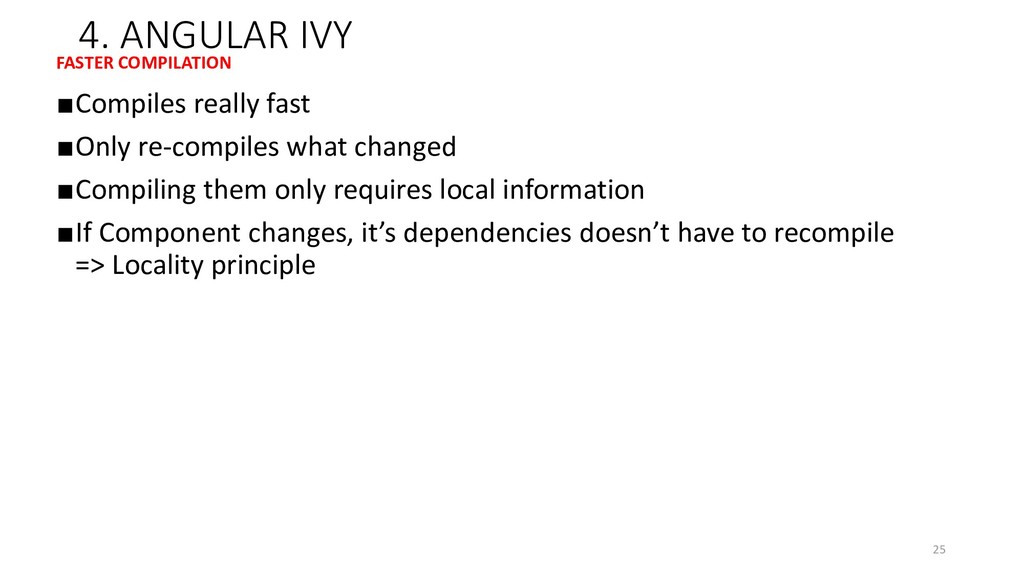

  16. FASTER COMPILATION 4. ANGULAR IVY ▪Compiles really fast ▪Only re-compiles

    what changed ▪Compiling them only requires local information ▪If Component changes, it’s dependencies doesn’t have to recompile => Locality principle 25

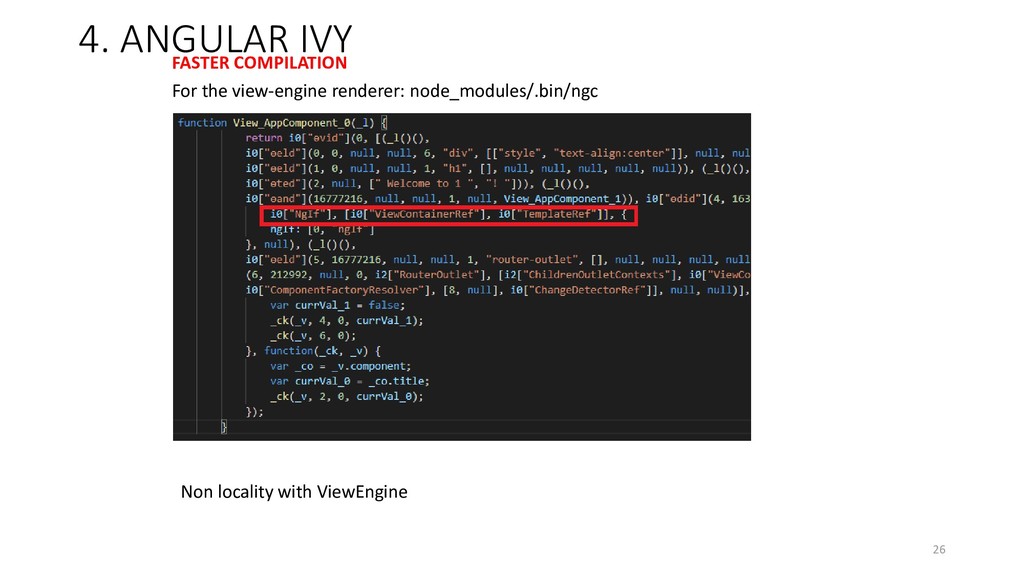

  17. Non locality with ViewEngine 4. ANGULAR IVY 26 For the

    view-engine renderer: node_modules/.bin/ngc FASTER COMPILATION

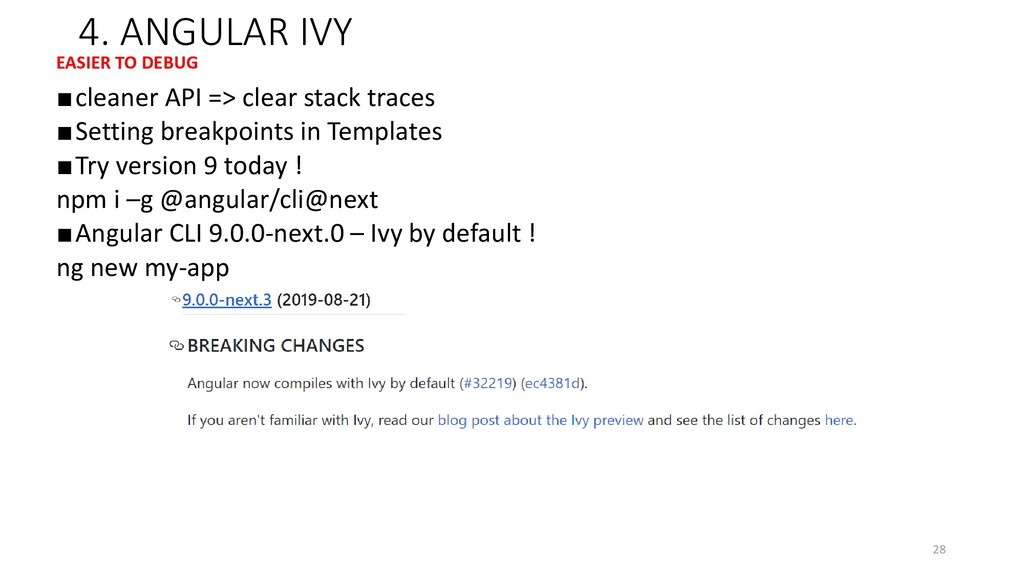

  18. EASIER TO DEBUG 4. ANGULAR IVY ▪cleaner API => clear

    stack traces ▪Setting breakpoints in Templates ▪Try version 9 today ! npm i –g @angular/cli@next ▪Angular CLI 9.0.0-next.0 – Ivy by default ! ng new my-app 28
  19. EASIER TO DEBUG 4. ANGULAR IVY 29 IVY stack trace

    View engine stack trace BETTER TEMPLATE DEBUGGING

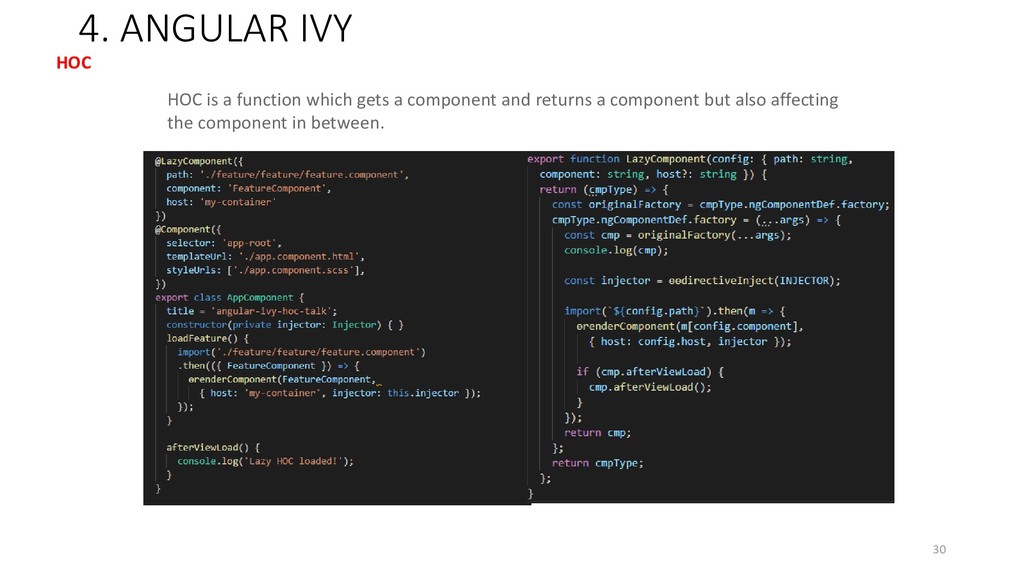

  20. HOC 4. ANGULAR IVY 30 HOC is a function which

    gets a component and returns a component but also affecting the component in between.

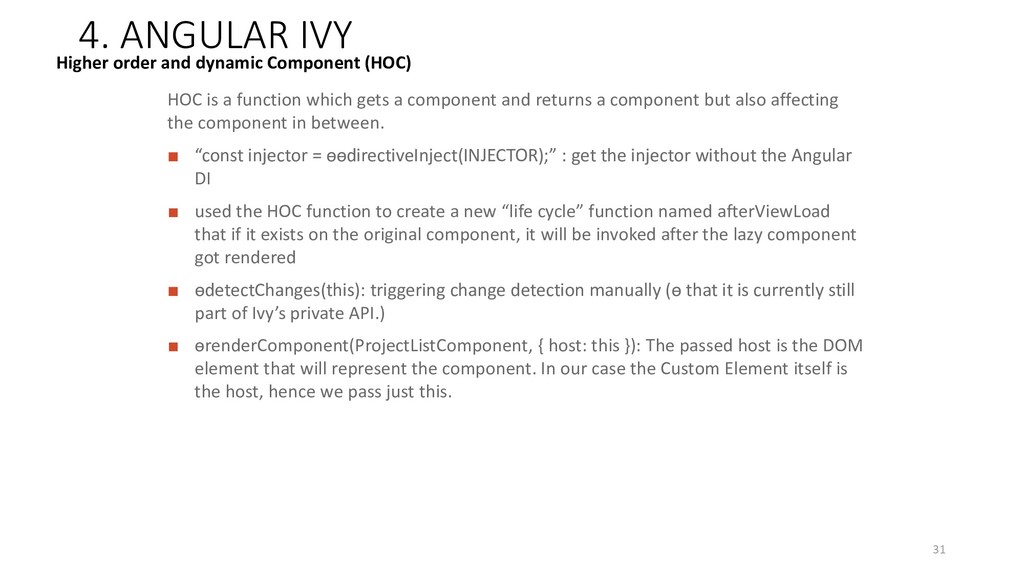

  21. Higher order and dynamic Component (HOC) 4. ANGULAR IVY 31

    HOC is a function which gets a component and returns a component but also affecting the component in between. ▪ “const injector = ɵɵdirectiveInject(INJECTOR);” : get the injector without the Angular DI ▪ used the HOC function to create a new “life cycle” function named afterViewLoad that if it exists on the original component, it will be invoked after the lazy component got rendered ▪ ɵdetectChanges(this): triggering change detection manually (ɵ that it is currently still part of Ivy’s private API.) ▪ ɵrenderComponent(ProjectListComponent, { host: this }): The passed host is the DOM element that will represent the component. In our case the Custom Element itself is the host, hence we pass just this.

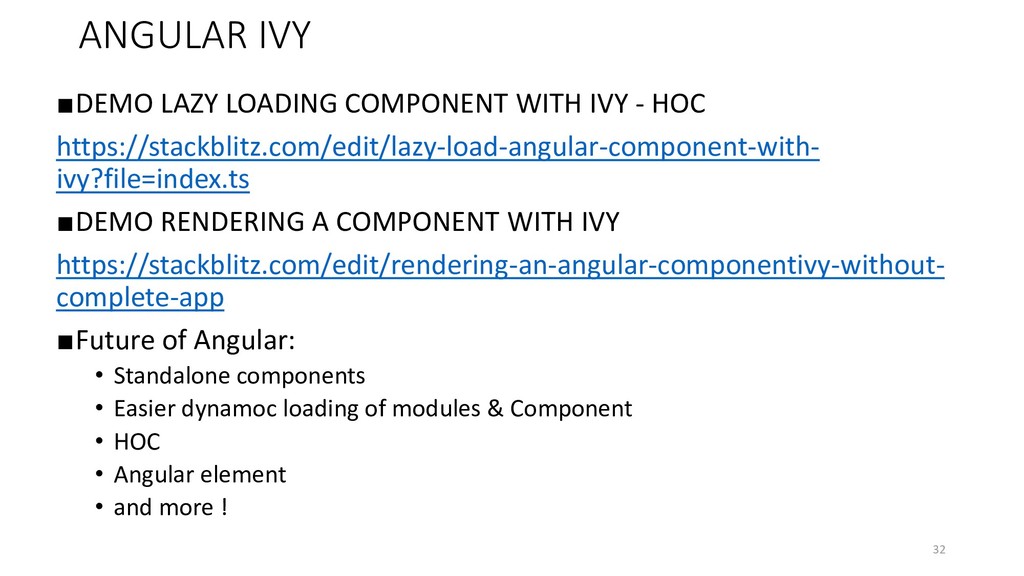

  22. ANGULAR IVY ▪DEMO LAZY LOADING COMPONENT WITH IVY - HOC

    https://stackblitz.com/edit/lazy-load-angular-component-with- ivy?file=index.ts ▪DEMO RENDERING A COMPONENT WITH IVY https://stackblitz.com/edit/rendering-an-angular-componentivy-without- complete-app ▪Future of Angular: • Standalone components • Easier dynamoc loading of modules & Component • HOC • Angular element • and more ! 32

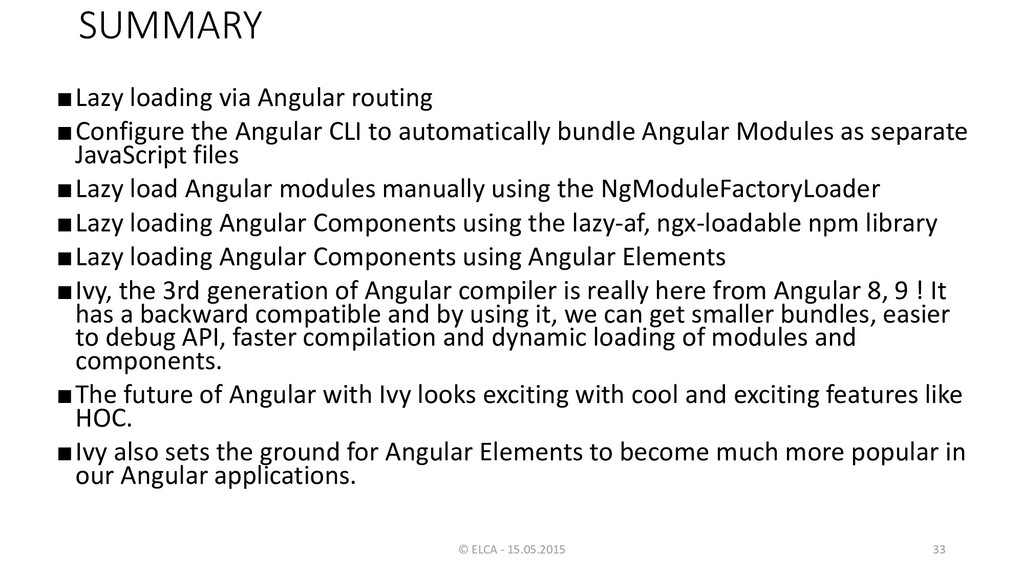

  23. SUMMARY ▪Lazy loading via Angular routing ▪Configure the Angular CLI

    to automatically bundle Angular Modules as separate JavaScript files ▪Lazy load Angular modules manually using the NgModuleFactoryLoader ▪Lazy loading Angular Components using the lazy-af, ngx-loadable npm library ▪Lazy loading Angular Components using Angular Elements ▪Ivy, the 3rd generation of Angular compiler is really here from Angular 8, 9 ! It has a backward compatible and by using it, we can get smaller bundles, easier to debug API, faster compilation and dynamic loading of modules and components. ▪The future of Angular with Ivy looks exciting with cool and exciting features like HOC. ▪Ivy also sets the ground for Angular Elements to become much more popular in our Angular applications. © ELCA - 15.05.2015 33
  24. REFERENCES ▪Google developer expert GDE : Manfred Steyer, Maximus Koretskyi,

    Juri Strumpflohner, Todd Motto, Jecelyn Yeen, Martina Kraus, John Papa, Michael Hladky, Deborah Kurata (Microsoft MVP) ▪Angular team: Stephen Fluin, Kara Erickson, Vikram Sybramanian, Minko Gechev, Brad Green, Igor Minar, Rob Wormald ▪Muthu Devendra: https://medium.com/@muthudevendra/angular- custom-preloading-strategy-32abe99944f8 ▪Eliran Eliassy: https://blog.angularindepth.com/all-you-need-to-know- about-ivy-the-new-angular-engine-9cde471f42cf 34
