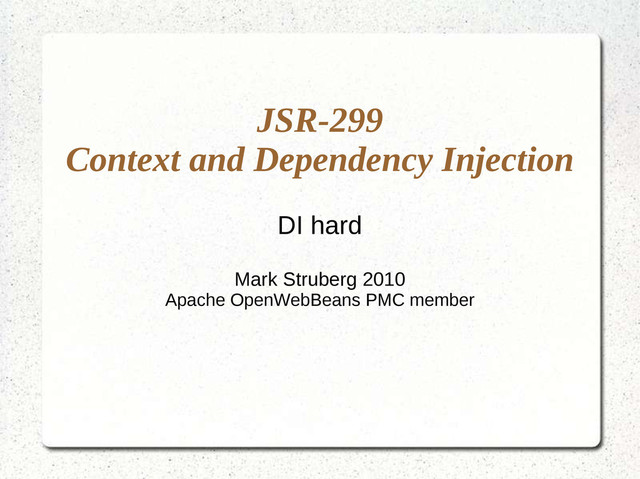

1. JSR-299 Context and Dependency Injection DI hard Mark Struberg 2010 Apache OpenWebBeans PMC member
2. What is Dependency Injection? • Inversion Of Control pattern used for object creation – Hollywood Principle: don't call us, we call you • No more hardcoded dependencies • Ease Object Oriented coding – Most times, the user only uses Interfaces, not real classes MyDbService dbS = new DbServiceForVerySpecialDatabase(specParam); MyDbService dbS = new DbServiceForVerySpecialDatabase(specParam);
3. Why using Dependendy Injection • Easy to change implementations • Encourage Separation of Concerns • Minimise dependencies • Dynamic Object retrieval • Makes Modularisation easy • Simplifies Reusability
4. How Dependency Injection works • Contextual Instance factory pattern – Someone has to trigger the instance creation - even in a DI environment – But the trigger has no control over the Implementation class nor Instance • 'Singletons', Scopes, Contexts, – Each created Contextual Instance is a 'Singleton' in a well specified Context – Session Singleton, ApplicationSingleton, ConversationSingleton, RequestSingleton, ...
5. XML based DI • Old DI frameworks only had XML based dependency configuration mechanisms • Newer frameworks allow to override dependencies in the code with XML configuration
6. Annotation based DI • Default dependencies via Java Annotations • @Resource • @Statefull • @Autowired • @Inject
7. JSR-299 • Current Name “Contexts and Dependency Injection” (CDI) • The spec formerly known as “WebBeans” • Started ~ 2007 • Originally designed for J2EE but also usable for standalone applications • Typesafe Dependency Injection
8. Injectable Objects • Legal Bean types – Almost all classes (nonfinal, nonabstract , default ct or annotated ct) – EJB classes – Objects returned by producer methods – JPA and JMS Resources – Web Service References • META-INF/beans.xml marker file
9. Lifecycle • Each Context has it's own lifecycle • Everyone may code his own Scopes and Context lifecycle • E.g. Builtin @RequestScoped – Created by the doFilter() – Destroyed after the request returns
10. Built In Scopes • @ApplicationScoped • @SessionScoped • @RequestScoped • @ConversationScoped
11. Special Scopes • @Dependent – Pseudo scope – If injected, the Contextual Instance will get/use the Context of it's parent • Qualifier @New (no scope!) – Annotation only valid at injection points! – For each injection, a new instance will be created
12. Managed Beans • The term Managed Bean means a Java Class and all it's rules to create contextual instances of that bean. • Interface Bean<T> • Managed Beans in the spec don't mean Java Beans!
13. Contextual Instances • The term 'Contextual Instance' means a Java instance created with the rules to of the Bean<T> • Contextual Instances usually don't get injected directly!
14. Contextual References • The term 'Contextual Reference' means a proxy for a Contextual Instance. • Proxies will automatically be created for injecting all @NormalScope beans.
15. Qualifiers • A Qualifier enables the application to lookup a specific Implementation at runtime • A class may define multiple Qualifiers • Qualifier connects 'creation info' with InjectionPoints.
16. Builtin Qualifiers • @Default – Assumed, if no other Qualifier (beside @Named) is specified • @New – For each managed bean (and session bean), a second Managed Bean with @New exists. • @Any – Always exists but not for @New beans
17. Own Qualifiers • Defining the Qualifier annotation @Qualifier @Retention(RUNTIME) @Target({TYPE, METHOD, FIELD, PARAMETER}) public @interface Favorit {} @Qualifier @Retention(RUNTIME) @Target({TYPE, METHOD, FIELD, PARAMETER}) public @interface Favorit {}
18. A small CDI example • Define a bean @ConversationScoped public class Playlist { private @Inject Country ctry; @Inject public setUser(@LoggedIn User usr) {..} public void addTrack(Track track) {..} public List<Track> getTracks() {..} } @ConversationScoped public class Playlist { private @Inject Country ctry; @Inject public setUser(@LoggedIn User usr) {..} public void addTrack(Track track) {..} public List<Track> getTracks() {..} }
19. A small CDI example • Inject the scoped object @SessionScoped public class PlaylistController { @Inject private Playlist pl; public void resortPlaylist() {..} } @SessionScoped public class PlaylistController { @Inject private Playlist pl; public void resortPlaylist() {..} }
20. Producers • Producer methods or fields if more logic is needed to create a Contextual Instance @ConversationScoped public class Playlist { public void addTrack(Track track) {..} public List<Track> getTracks() {..} @Produces @Favorit @RequestScoped public Track getFavTrack() { return new Track(favTitle);} public void dropFavT(@Disposes @Favorit Track t) { dosomecleanup();} } @ConversationScoped public class Playlist { public void addTrack(Track track) {..} public List<Track> getTracks() {..} @Produces @Favorit @RequestScoped public Track getFavTrack() { return new Track(favTitle);} public void dropFavT(@Disposes @Favorit Track t) { dosomecleanup();} }
21. Interceptors • An Interceptor decouples technical concerns from business logic • Applying cross cutting concerns to beans
22. Defining an InterceptorBindingType • InterceptorBindingTypes are used to uniquely identify which Interceptors should be applied to a bean @InterceptorBinding @Retention(RetentionPolicy.RUNTIME) @Target( { ElementType.TYPE, ElementType.METHOD }) public @interface Transactional { @Nonbinding boolean requiresNew() default false; } @InterceptorBinding @Retention(RetentionPolicy.RUNTIME) @Target( { ElementType.TYPE, ElementType.METHOD }) public @interface Transactional { @Nonbinding boolean requiresNew() default false; }
23. Implementing an Interceptor class @Interceptor @Transactional public class TransactionalInterceptor { private @Inject EntityManager em; @AroundInvoke public Object invoke(InvocationContext context) throws Exception { EntityTransaction t =em.getTransaction(); try { if(!t.isActive()) t.begin(); return context.proceed(); } catch(Exception e) { .. rollback and stuff } finally { if(t != null && t.isActive()) t.commit(); } } } @Interceptor @Transactional public class TransactionalInterceptor { private @Inject EntityManager em; @AroundInvoke public Object invoke(InvocationContext context) throws Exception { EntityTransaction t =em.getTransaction(); try { if(!t.isActive()) t.begin(); return context.proceed(); } catch(Exception e) { .. rollback and stuff } finally { if(t != null && t.isActive()) t.commit(); } } }
24. Using an Interceptor • Class level interceptor • Method level interceptor @RequestScoped @Named public class LoginController { private @Current EntityManager em; @Transactional public User checkLogin(String name, String pw) { Query qry = em.createQuery("select..); return qry.getSingleResult(); } @RequestScoped @Named public class LoginController { private @Current EntityManager em; @Transactional public User checkLogin(String name, String pw) { Query qry = em.createQuery("select..); return qry.getSingleResult(); }
25. Stacking of Interceptors • It's possible to assign more than 1 Interceptor to the same method • Interceptors have to be enabled in beans.xml or ejb.jar <beans> <interceptors> <class>org.mypkg.TransactionalInterceptor</class> <class>org.mypkg.OtherInterceptor</class> </interceptors> </beans> <beans> <interceptors> <class>org.mypkg.TransactionalInterceptor</class> <class>org.mypkg.OtherInterceptor</class> </interceptors> </beans>
26. Reusing InterceptorBindings • InterceptorBindings may be used as base for other InterceptorBindings public @Secure @Transactional @InterceptorBinding @Retention(RUNTIME) @Target(TYPE) @interface Action {} public @Secure @Transactional @InterceptorBinding @Retention(RUNTIME) @Target(TYPE) @interface Action {}
27. Decorators • Decorators uses the delegation pattern by proxying complete functions • A Decorator may implement business logic @Decorator class TimestampLogger implements Logger { @Inject @Delegate Logger logger; public TimestampLogger(@Decorates Logger logger) { this.logger=logger; } ... } @Decorator class TimestampLogger implements Logger { @Inject @Delegate Logger logger; public TimestampLogger(@Decorates Logger logger) { this.logger=logger; } ... }
28. Decorator enabling • Decorators have to be enabled in beans.xml <beans> <decorators> <class>org.mycompany.myfwk.TimestampLogger</class> <class>org.mycompany.myfwk.IdentityLogger</class> </decorators> </beans> <beans> <decorators> <class>org.mycompany.myfwk.TimestampLogger</class> <class>org.mycompany.myfwk.IdentityLogger</class> </decorators> </beans>
29. Events • Oberserver/Observable pattern • Event producer • Event consumer bitte keine private methods! private @Inject Event<UserLoggedIn> loggedInEvent; loggedInEvent.fire( new UserLoggedIn(user) ); private @Inject Event<UserLoggedIn> loggedInEvent; loggedInEvent.fire( new UserLoggedIn(user) ); public void onLogin(@Observes UserLoggedIn loggedIn) { // do something with loggedIn.getUser() } public void onLogin(@Observes UserLoggedIn loggedIn) { // do something with loggedIn.getUser() }
30. Stereotypes • Stereotypes are used to combine various attributes and roles – A default scope – A default naming scheme – Set of InterceptorBindings – May restrict allowed scopes – May restrict allowed Java Types
31. Named Beans • Names are mainly used for EL • @Named(”myName”) • @Named default name – unqualified class name in camelCase – camelCase producerMethod name (without 'get' or 'is') – camelCase producerField name
32. XML • JSR-299 currently only defines a few criterias for beans.xml • Bean configuration via XML can easily be applied via a portable extension.
33. Annotation howto • JSR-299 is heavily based on Annotations • Defining your own Annotations is daily business • Use of meta-annotations
34. Technical Concepts • A few internal mechanisms explained a bit more detailed • Good point to start looking at OWB: – WebApplicationLifeCycle – WebBeansConfigurationListener
35. How Dependency Injection works, the big picture • Creating the meta information at startup – Classparth Scanning and creating Managed Beans metainformation • Contextual Instance creation at runtime – Based on the Managed Beans, the Context will maintain the instances – ServletContextListener, ServletRequestListener, HttpSessionListener, HttpSessionActivationListener
36. Proxying • Passivation of non-serializable contextual instances (via it's contextual reference) • scope-differences This happens e.g. if a @RequestScoped class gets injected into a @SessionScoped one. • Interceptors, Decorators
37. Java ServiceLoader • OWB uses dynamic plugin loading via a java.util.ServiceLoader • No hardcoded dependencies to 'fat' libraries in the core • Simply drop in a plugin.jar into the classpath
38. Deployment and Runtime • OWB can run in e.g. the following constellations – J2EE container – ServletEngine + EJB microcontainer – ServletEngine + JPA + JSF – ServletEngine + Wicket – Standalone + SWT or Swing – ...
39. Portable Extensions (JSR-299 SPI) • JSR-299 defines a set of SPI APIs to easily extend it's core in a portable fashion • Enables 3rd party libraries to run on any JSR-299 container • Integration via java.util.ServiceLoader and JSR-299 'Container Lifecycle Events'.
40. Documentation • JSR-330 @Inject • JSR-299 Contexts and Dependency Injection • JSR-318 EJB-3.1 (pt2: Interceptor spec) • JSR-250 Common Annotations • Apache OpenWebBeans
