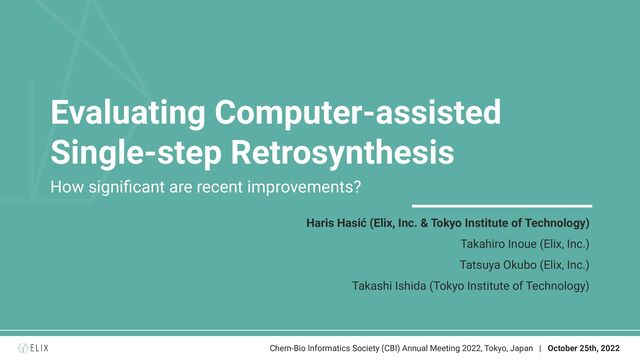

   Evaluating Computer-assisted
   Single-step Retrosynthesis
   How significant are recent improvements?
   Haris Hasić (Elix, Inc. & Tokyo Institute of Technology)
   Takahiro Inoue (Elix, Inc.)
   Tatsuya Okubo (Elix, Inc.)
   Takashi Ishida (Tokyo Institute of Technology)


   View Slide

2. 1. Introduction
   ￭ Chemical Synthesis
   ￭ Computer-assisted Retrosynthesis
   ￭ Single-step Retrosynthesis
   ￭ Research Objective
   2. Experiments & Results
   ￭ Experiment Design
   ￭ Top-50 Accuracy
   ￭ Top-10 Accuracy
   ￭ Top-50 Uniqueness and Chemical Validity Rate
   3. Conclusion
   ￭ Conclusion
   ￭ Future Work
   4. Appendix
   Presentation Contents
   Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan 2


   View Slide

3. 3
   Introduction
   Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan


   View Slide

4. Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
   Chemical Synthesis
   4
   ￭ The artificial execution of chemical reactions to obtain a single or multiple target chemical compounds.
   [1] (2017, Zhang, B. et al.): https://doi.org/10.1515/hc-2017-0152.
   [2] PubChem Chemical Compound Database: https://pubchem.ncbi.nlm.nih.gov/. Accessed On: October 13th, 2022.
   [3] Reaxys Chemical Reaction Database: https://www.reaxys.com/. Accessed On: October 13th, 2022.
   N,N-dimethylprop-2-ynamide
   PubChem ID [2]: 11240440
   4-Methylbenzaldehyde
   PubChem ID [2]: 7725
   2-Amino-5-methylpyridine
   PubChem ID [2]: 15348
   Target [1]: Zolpidem
   PubChem ID [2]: 5732
   Commercially available chemical compounds.
   Intermediate chemical compounds.
   Target chemical compounds.
   Yield [3]:
   67.0%
   Yield [3]:
   89.0%


   View Slide

5. ￭ Strategy for planning chemical synthesis by analysing target chemical compounds and chemical reactions in
   reverse relying on computing power rather than human experts.
   5
   Computer-assisted Retrosynthesis
   Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
   Commercially available chemical compounds.
   Intermediate chemical compounds.
   Target chemical compounds.
   Synthesis Route
   Planning
   Target [1]: Zolpidem
   PubChem ID [2]: 5732
   Single-step Retrosynthesis
   …
   [1] (2017, Zhang, B. et al.): https://doi.org/10.1515/hc-2017-0152.
   [2] PubChem Chemical Compound Database: https://pubchem.ncbi.nlm.nih.gov/. Accessed On: October 13th, 2022.


   View Slide

6. Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
   Single-step Retrosynthesis
   6
   ￭ A mechanism for suggesting precursor chemical compounds for a given target chemical compound.
   [1] (2017, Liu, B. et al.): https://doi.org/10.1021/acscentsci.7b00303.
   [2] (2017, Segler, M.H.S. and Waller, M.P.): https://doi.org/10.1002/chem.201605499.
   [3] (2020, Shi, C. et al.): https://doi.org/10.48550/arXiv.2003.12725.
   Commercially available chemical compounds.
   Intermediate chemical compounds.
   Target chemical compounds.
   Template-based Approaches [2]
   CN(C)C(=O)CC1=C(N=C2C=CC(C)=CN12)C1=CC=C(C)C=C1
   CC1=CNC(C=C1)N=CC1=CC=C(C)C=C1.CN(C)C(=O)C#C
   Template-free Approaches [1]
   Semi-template-based Approaches [3]


   View Slide

7. ￭ The main research objective is to answer the following questions:
   1. What is the current state-of-the-art single-step retrosynthesis approach?
   2. Are the recent frequent improvements actually significant?
   3. How easy/difficult is it to re-produce the reported results?
   Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
   Research Objective
   7
   [1] (2020, Dai, H. et al.): https://doi.org/10.48550/arXiv.2001.01408.
   [2] (2021, Somnath, V.R. et al.): https://doi.org/10.48550/arXiv.2006.07038.
   [3] (2022, Ucak, U.V. et al.): https://doi.org/10.1038/s41467-022-28857-w.
   [4] (2022, Zhong, Z. et al.): https://doi.org/10.1039/d2sc02763a.
   Experiments on the
   benchmark datasets show
   a significant 8.1%
   improvement over existing
   state-of-the-art methods in
   top-one accuracy. [1]
   Our model achieves a
   top-1 accuracy of 53.7%,
   outperforming previous
   template-free and
   semi-template-based
   methods. [2]
   The overall accuracy with
   singly and doubly mutated
   predictions was 61.6%,
   outperforming current
   state-of-the-art methods. [3]
   We compare the proposed
   R-SMILES with various
   state-of-the-art baselines and
   show that it significantly
   outperforms them all,
   demonstrating the superiority
   of the proposed method. [4]


   View Slide

8. 8
   Experiments & Results
   Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan


   View Slide

9. 9
   Experiment Design
   Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
   * As of July, 2022. ** On the USPTO-MIT dataset.
   [1] (2020, Dai, H. et al.): https://doi.org/10.48550/arXiv.2001.01408.
   [2] (2020, Tetko, I.V. et al.): https://doi.org/10.1038/s41467-020-19266-y.
   [3] (2021, Somnath, V.R. et al.): https://doi.org/10.48550/arXiv.2006.07038.
   [4] (2021, Chen, S. and Jung, Y.): https://doi.org/10.1021/jacsau.1c00246.
   [5] (2022, Ucak, U.V. et al.): https://doi.org/10.1038/s41467-022-28857-w.
   [6] (2022, Zhong, Z. et al.): https://doi.org/10.1039/d2sc02763a.
   [7] (2017, Coley, C.W. et al.): https://doi.org/10.1021/acscentsci.7b00355.
   [8] (2020, Jin, W. et al.): https://doi.org/10.48550/arXiv.1709.04555.
   [9] (2021, Kearnes, S.M. et al.): https://doi.org/10.1021/jacs.1c09820.
   Step 1. Literature Review * Step 2. Dataset Preparation Step 3. Evaluation
   USPTO-50k
   [7]
   USPTO-MIT
   [8]
   ORD (Non-USPTO)
   [9]
   Top-N Accuracy - Aggregated
   accuracy that reflects probability of
   the ground truth being found within
   the first N suggestions.
   Other single-step retrosynthesis metrics:
   1. MaxFrag Accuracy
   2. Suggestion Duplication Rate
   3. Suggestion Chemical Validity
   4. Round-trip Accuracy
   5. Coverage Rate
   6. Diversity Rate…
   Approach Year Type Top-1 (%)
   GLN [1] 2020 TB 52.5
   GraphRetro
   [3]
   2021 Semi-TB 53.7
   LocalRetro [4] 2021 TB 53.4
   Approach Year Type Top-1 (%)
   AT [2] 2020 TF 53.5
   RetroTRAE [5] 2022 TF 61.6 **
   R-SMILES [6] 2022 TF 56.3


   View Slide

10. Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
    Top-50 Accuracy
    10
    All of the evaluated
    approaches
    under-delivered on
    the Top-N Accuracy
    reported in the
    original publication.
    Because of the faulty
    performance, the AT
    and RetroTRAE Top-N
    accuracy values are
    considered as not
    representative.
    The reported
    LocalRetro Top-N
    accuracy considered
    isomers as identical
    chemical compounds.


    View Slide

11. Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
    Top-10 Accuracy
    11
    ￭ Even though the improvements are
    statistically significant (0.01 < p < 0.05)
    according to the Wilcoxon Signed-rank
    Test, they are consistently lower than
    reported in the original publications.
    ￭ The final ranking of the evaluated
    single-step retrosynthesis approaches in
    terms of Top-1 Accuracy is as follows:
    1. R-SMILES: 53.6 ± 0.558 → -2.7
    2. LocalRetro: 52.6 ± 0.650 → -0.8
    3. GLN: 51.7 ± 0.691 → -0.8
    4. GraphRetro: 51.2 ± 0.583 → -2.5


    View Slide

12. Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
    Top-50 Uniqueness and Chemical Validity Rate
    12
    The GraphRetro
    approach is limited
    as it consistently
    generates around 10
    suggestions even for
    higher beam sizes.


    View Slide

13. 13
    Conclusion
    Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan


    View Slide

14. Chem-Bio Informatics Society (CBI) Annual Meeting 2022, Tokyo, Japan
    Conclusion
    14
    1. What is the current state-of-the-art for single-step retrosynthesis?
    ￭ In the case of template-free approaches and overall, the state-of-the-art approach is R-SMILES.
    ￭ In the case of template-based approaches, the state-of-the-art approach is LocalRetro.
    3. How easy/difficult is it to re-produce the reported results?
    ￭ Template-free single-step retrosynthesis approaches are significantly more complex to implement and train
    successfully than template-based approaches.
    2. Are the recent improvements actually significant?
    ￭ The limited number of samples indicates that the improvements are statistically significant (0.01 < p < 0.05)
    according to the Wilcoxon Signed-rank Test, but consistently lower than reported in the original publications.
    Conclusion: The recently observed incremental improvements represent optimization of incomplete
    ideas rather than significant progress, and the field of computer-assisted single-step retrosynthesis
    remains stagnant, with performances insufficient for a practically standalone product.
