SaltConf2014: Google+SaltStack

High level overview of Google Cloud Platform, Deep dive on Compute Engine, and live-demo of salt-cloud and Compute Engine

video: https://www.youtube.com/watch?v=hzBpPzQ_kzE

Transcript

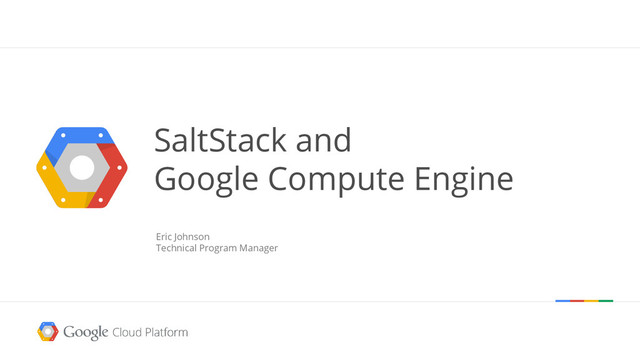

1. SaltStack and Google Compute Engine Eric Johnson Technical Program Manager
2. Agenda: January 30th, 2014 Whirlwind Tour of Google Cloud Platform Google Compute Engine Using SaltStack and Compute Engine (demo) 1 2 3
3. Whirlwind Tour of Google Cloud Platform Google Compute Engine Using SaltStack and Compute Engine (demo) 1 2 3
4. For the past 15 years, Google has been building out the world’s fastest, most powerful, highest quality cloud infrastructure on the planet. Images by Connie Zhou Why Google Cloud Platform?
5. A Network that Spans the Globe
6. Innovating Software & Driving Technology Forward Spanner Dremel MapReduce Big Table Colossus 2012 2013 2002 2004 2006 2008 2010 GFS Compute Engine
7. Building Products that Scale Google Maps Gmail Google Drive YouTube
8. “[Google's] ability to build, organize, and operate a huge network of servers and fiber- optic cables with an efficiency and speed that rocks physics on its heels. This is what makes Google Google: its physical network, its thousands of fiber miles, and those many thousands of servers that, in aggregate, add up to the mother of all clouds.” - Wired Images by Connie Zhou
9. Storage Cloud Storage Cloud SQL Cloud Datastore Compute Compute Engine App Engine App Services BigQuery Cloud Endpoints Google Cloud Platform
10. Compute Compute Engine App Engine Storage Cloud Storage Cloud SQL Cloud Datastore App Services BigQuery Cloud Endpoints Power Computation
11. Storage Cloud Storage Cloud SQL Cloud Datastore Storing What You Want, However You Want Compute Compute Engine App Engine App Services BigQuery Cloud Endpoints
12. App Services BigQuery Cloud Endpoints Building Robust, Intelligent Systems Storage Cloud Storage Cloud SQL Cloud Datastore Compute Compute Engine App Engine
13. Whirlwind Tour of Google Cloud Platform Google Compute Engine Using SaltStack and Compute Engine (demo) 1 2 3
14. • IaaS: VMs, Network, Storage • Google DNA (speed, scale, reliable, secure) • Fast Provisioning, Consistent Performance • Enterprise Ready • 24x7 Support • 99.95% monthly SLA • ISO 27001, SSAE-16 SOC 1,2,3 • Accessible Through • Web @ https://cloud.google.com/console • gcutil command-line utility • REST API • Partners (Commercial and FOSS) Google Compute Engine
15. Launching 100 virtual machines
16. Block Storage Persistent Disks
17. Persistent Disk 10 TB • Data and root partitions • Billed only by capacity (GB/month) • Performance caps scale linearly with size • Volume striping is automatic • Differential snapshots • Create new PDs based on snapshots
18. PD Use-cases Root Stateful root volume User managed data volume Root RW Data RO Data Instant distribution of static content
19. Global Snapshot and Restore GCS vol1 vol2 vol3 vol1. t2 vol2. t2 vol3. t3 t1 t1 t1 t1 t1 t1 t1 t1 t1 t1 t1 t1 t1 t2 t2 t2 t2 t3 t3 t3 • Point in time snapshot to Google Cloud Storage (GCS) • Differential snapshots • GCS global replication! • Restore from snapshot anywhere in the world us-central1-a europe-west1-a
20. Virtual Machines
21. standard • For workloads with balanced CPU and memory highmem • For workloads with higher memory requirements highcpu • For workloads with higher CPU requirements Shared Core Instances • For inexpensive prototyping and staging workloads (g1-small, f1-micro) Machine Types Machine Type Virtual Cores Memory (GB) n1-standard-1 1 3.75 n1-standard-2 2 7.50 n1-standard-4 4 15.00 n1-standard-8 8 30.00 n1-standard-16 16 60.00 n1-highmem-2 2 13.00 n1-highmem-4 4 26.00 n1-highmem-8 8 52.00 n1-highmem-16 16 104.00 n1-highcpu-2 2 1.80 n1-highcpu-4 4 3.60 n1-highcpu-8 8 7.20 n1-highcpu-16 16 14.40
22. Images + Custom Kernel Support (debian backports works great for docker)
23. Sub-hour Billing 1 minute granularity 10 minute minimum
24. Enhanced Reliability us-central1-a scheduled maintenance event Live Migration • No downtime during scheduled datacenter maintenance events Automatic Restart • Instances automatically restarted if subjected to system events such as hardware failure
25. Networking
26. Images by Connie Zhou Networking • Google's Network • Projects are isolated private networks • TCP, UDP, ICMP only • Multiple private network groups and firewalls • Tags and address ranges • Addresses • public: static or ephemeral • private: ephemeral with DNS • Routes, gateways, VPNs, and IP Forwarding
27. Region: us-central1 Target Pool (tp-a) Load-balancer • Region based • Session affinity • Hashed on src ip:port and dst ip:port • Consists of: • Target pool: collection of instances • Forwarding rules: protocol:port, pool • HTTP health check: optional us-central1-b us-central1-a www0 www1 www2 www3 Forwarding Rules tcp:443 ➔ tp-a tcp:80 ➔ tp-a Internet http://googlecloudplatform.blogspot.com/2013/11/compute-engine-load-balancing-hits-1-million-requests-per-second.html
28. ...and
29. Noteworthy • Metadata • Startup scripts • SSH Keys • Tags (instance/network) • OAuth2 and Scopes • Access other Google Cloud Platform services • Ecosystem is growing • Partners: RightScale, Scalr, New Relic, MongoLab, MapR, and many more... • Open Source: Salt, Chef, Puppet, Ansible, Vagrant, Docker, CoreOS, fog, libcloud
30. Whirlwind Tour of Google Cloud Platform Google Compute Engine Using SaltStack and Compute Engine (demo) 1 2 3
31. Start to finish 1. Use the Developers Console to create the salt master (metadata: saltdemo=yup) salt This is a Compute Engine instance named "salt"
32. Start to finish 1. Use the Developers Console to create the salt-master (metadata: saltdemo=yup) 2. Use salt-cloud to create 4 instances (2 per zone), install apache us-central1-a minion1 minion3 us-central1-b minion2 minion4 salt # salt-cloud -P -m /etc/salt/demo.map # salt 'minion*' state.highstate Google Public API
33. Start to finish 1. Use the Developers Console to create the salt-master (metadata: saltdemo=yup) 2. Use salt-cloud to create 4 instances (2 per zone) 3. Use salt-cloud networking functions Region: us-central1 Target Pool (lb-tp) us-central1-a minion1 minion3 us-central1-b minion2 minion4 Forwarding Rules tcp:80 ➔ lb-tp Public LB IP: a.b.c.d salt # salt-cloud -f create_fwrule gce ... # salt-cloud -f create_lb gce ...
34. Start to finish 1. Use the Developers Console to create the salt-master (metadata: saltdemo=yup) 2. Use salt-cloud to create 4 instances (2 per zone) 3. Use salt-cloud networking functions 4. Generate some HTTP requests to LB IP Region: us-central1 Target Pool (lb-tp) us-central1-a minion1 minion3 us-central1-b minion2 minion4 Forwarding Rules tcp:80 ➔ lb-tp Public LB IP: a.b.c.d Internet dst port 80 salt
35. The salt master via custom "startup-script" metadata startup-script 1 #!/bin/bash 2 3 SALT=$(curl -s http://metadata/computeMetadata/v1beta1/instance/attributes/saltdemo) 4 5 if [ "$SALT" = "yup" ]; then 6 # update and install dependencies (libcloud 0.14.0 + bugfix) 7 apt-get install vim tmux git python-pip -y 8 pip install git+https://github.com/apache/libcloud@58f3722ba54dc79cc9ef40271f6a3d39d6e8841d 9 10 # salt master 11 curl -L http://bootstrap.saltstack.org | sudo sh -s -- -M -N git v2014.1.0rc3 12 13 # dev gce provider 14 git clone https://github.com/erjohnso/salt 15 cp salt/salt/cloud/clouds/gce.py /usr/lib/python2.7/dist-packages/salt/cloud/clouds/gce.py 16 17 # set up root 18 mkdir /root/.gsutil 19 echo 1391212799 > /root/.gsutil/.last_software_update_check 20 gsutil cp gs://5ej/saltconf/root-ssh/goo* /root/.ssh 21 chmod 600 /root/.ssh/google_compute_engine 22 23 # copy salt config/srv files 24 gsutil cp -Rp gs://5ej/saltconf/etc / 25 gsutil cp -Rp gs://5ej/saltconf/srv / 26 fi
36. Compute Engine provider configuration 1 zone1a: 2 minion: 3 master: salt 4 image: debian-7 5 size: n1-standard-1 6 location: us-central1-a 7 make_master: False 8 deploy: True 9 delete_boot_pd: True 10 tags: '["minion", "salt", "z1a"]' 11 provider: gce-config 12 13 zone1b: 14 minion: 15 master: salt 16 image: debian-7 17 size: n1-standard-1 18 location: us-central1-b 19 make_master: False 20 deploy: True 21 delete_boot_pd: True 22 tags: '["minion", "salt", "z1b"]' 23 provider: gce-config /etc/salt/cloud.profiles /etc/salt/cloud 1 providers: 2 gce-config: 3 project: 'google.com:erjohnso' 4 service_account_email_address: '...@developer.gserviceaccount.com' 5 service_account_private_key: '/etc/salt/pkey.pem' 6 provider: gce /etc/salt/demo.map 1 zone1a: 2 - minion1 3 - minion3 4 zone1b: 5 - minion2 6 - minion4
37. Available now and more coming! • Standard salt-cloud compatibility • Create, destroy instances • --list-sizes, --list-images, --list-locations • --show_instance myinstance Available Now!! Coming Soon!! • Plus... Persistent Disks and Snapshots • create_disk, delete_disk, show_disk, attach_disk, detach_disk • create_snapshot, delete_snapshot, show_snapshot • Plus... Networks and Firewall Rules • create_network, delete_network, show_network • create_fwrule, delete_fwrule, show_fwrule • Plus... Load-balancer and HTTP Health Checks • create_lb, delete_lb, show_lb, lb_attach, lb_detach
38. cloud.google.com Google Compute Engine: https://cloud.google.com/products/compute-engine Salt + Compute Engine: http://salt.readthedocs.org/en/latest/topics/cloud/gce.html
