High Frequency Trading Infrastructure and Quality Assurance

Transcript

1. High Frequency Trading

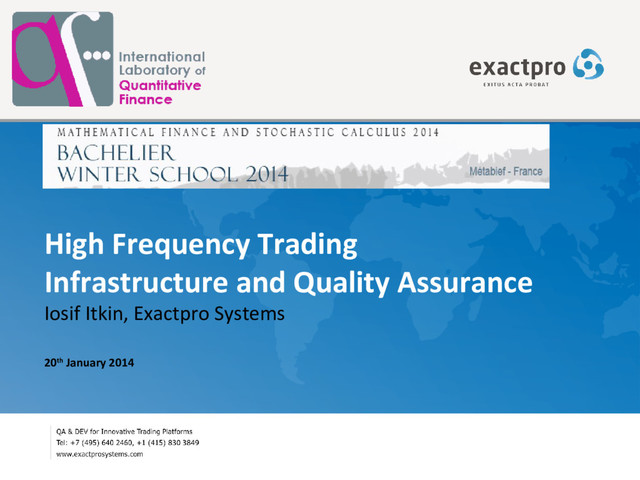

   Infrastructure and Quality Assurance
   Iosif Itkin, Exactpro Systems
   20th January 2014


   View Slide

2. Contents
   • Quality Assurance and Risk Assessment
   • High Frequency Trading Technology
   • Fat Finger Problems
   • Flash Crash
   • Circuit Breakers
   • Facebook IPO
   • ABN and ATG on NASDAQ
   • Knight Capital Events
   • Monitoring Systems
   2


   View Slide

3. Exactpro Systems Company Overview
   3
   • A specialist firm focused on functional and non
   functional testing of securities data distribution,
   trading systems, risk management and post-trade
   infrastructures
   • An independent company incorporated in 2009 with
   10 people, now employing over 210 specialists
   • A US company registered and head-quartered in San
   Rafael, California, with four QA & development
   centres in Russia and sales support in the UK
   • We build software to verify trading and back-office
   systems for exchanges, brokers and other companies
   in securities industry
   http://linkedin.com/in/iosifitkin


   View Slide

4. Quality Assurance and Risk Assessment
   4
   Minimal


   View Slide

5. Quality Assurance and Risk Assessment
   5
   Minimal Life & Health


   View Slide

6. Quality Assurance and Risk Assessment
   Financial Services
   Money and Reputation
   6
   Minimal Life & Health


   View Slide

7. Trading System Types
   7


   View Slide

8. Achieving High Availability
   • Minimize the number of faults and the effect/recovery time
   of faults in a system
   • Avoid a single-point-of-failure by utilizing redundant parts and
   rerouting (failover)
   • Have a comprehensive monitoring system in place
   • Reduce the impact of environmental faults by using UPS and
   off-site data mirroring and/or replication provided for "hot"
   repair of failed components
   8


   View Slide

9. Trading Architecture Sample from Cinnober
   9


   View Slide

10. Ariane 5 First Launch
    • 4 June 1996
    • Maiden flight of Ariane 5 unmanned missile
    • Loss of guidance and attitude information 37 seconds after
    ignition Explosion at 3700 meters 3 seconds later
    • Number conversion from 64 bits into 16 bits
    • Ada language invalid operand error
    • The same version of software was used for Ariane 4
    • Horizontal velocity appeared to be much higher
    • Testing using simulators without SRI itself
    • Both primary and secondary systems failed
    10


    View Slide

11. High Frequency Trading System
    • Hundreds of millions of orders per day;
    • Micro-bursts with thousands of transactions within
    milliseconds;
    • Latencies 3,000 times faster than the blink of an eye…
    • …and equal to time it takes a flying passenger jet to cover the
    distance of 2 cm or light getting from here to Frasne
    11


    View Slide

12. Brokerage System
    12


    View Slide

13. Mizuho Securities
    • 12 October 2005
    • Attempts to sell a single J-Com stock for 610,000 Yen ($5,041)
    • Mistakenly price and quantity were swapped
    • Risk systems failure:
    – Mizuho Securities
    – Tokyo Stock Exchange
    • Estimated loss $225 millions
    • This type of errors is called
    Fat Finger
    13


    View Slide

14. USS Yorktown
    • 21 September 1997
    • CG-47 Aegis pilot version for “Smart Ship” program
    • All systems outage, including propulsion system for 2.5 hours
    • Incorrect data entry into Remote Data Base Manager caused
    overflow in the database, LAN shutdown and disconnection of
    all controlling terminals
    • Software defect – division by zero
    14


    View Slide

15. Fat Finger Order on NASDAQ from ABN AMRO Client
    • 18 September 2012, Stockholm. A trader had the intention of
    posting a sell order for 5,000 SKF B shares. Due to an input
    error with the Client, the order volume field was populated
    with a negative value (-5,000)
    • Instead of returning an error, the system converted the value
    into a random 9-digit figure - 294,962,296
    • The Sell Order corresponded to approximately 71 % of the
    total outstanding volume in the SKF B share. The Sell Order
    resulted in execution of 813,442 shares
    15


    View Slide

16. Flash Crash
    • 6 May 2010, Waddell & Reed hedges exposure in equities
    • Algo to sell 75,000 E-mini contracts (~$4.1b) with 9% participation target
    • No price or time constraints in the algo, only volume traded during the
    previous minute
    • Initial selling was absorbed by HFT and arbitrageurs - buy E-mini, sell SPY or
    basket of equities. Lack of liquidity and hot-potato exchange between HFT
    increased volumes and selling pressure from the algo
    • Sharp decline in prices within 5 minutes. Trigger of across the board
    volatility interruptions
    • Participants are leaving the market, causing liquidity
    crisis in equities and execution against stub quotes
    • Market recovers within minutes
    16


    View Slide

17. Limit Order Book
    17


    View Slide

18. Limit Order Book
    18


    View Slide

19. Limit Order Book
    19


    View Slide

20. Limit Order Book
    20


    View Slide

21. Price Boundaries
    21


    View Slide

22. Price Boundaries
    22


    View Slide

23. Price Boundaries
    23


    View Slide

24. Price Boundaries
    24


    View Slide

25. Circuit Breaker
    25


    View Slide

26. Circuit Breaker
    26


    View Slide

27. Circuit Breaker
    27


    View Slide

28. Circuit Breaker
    28


    View Slide

29. Circuit Breaker
    29


    View Slide

30. Facebook IPO
    • 18 May 2012, NASDAQ, One of the largest IPOs in history
    • Secondary trading is preceded by a designate Display Only Period (DOP)
    • Multi-component architecture that included Matching Engine, IPO Cross
    Application and Execution Application
    • At the end of the DOP, NASDAQ’s “IPO Cross Application” analyzes all of
    the buy and sell orders to determine the price at which the largest
    number of shares will trade and then NASDAQ’s matching engine
    matches buy and sell orders at that price. Usually takes 1-2 ms
    • NASDAQ allowed orders to be cancelled at any time up until the end of
    the DOP – including the very brief interval during which the IPO cross
    price is calculated. After calculation is completed the system performed
    orders validation check between ME and “IPO Cross Application”. If any of
    the orders were cancelled after the start of the cross, the system will have
    to repeat the calculation
    30


    View Slide

31. Facebook IPO
    • Over 496k orders participated in the cross and its duration exceeded
    20ms
    • Order cancellation arrived during this period and application had to
    repeat the calculation. Two more cancellations arrived during the second
    iteration and four more during the third
    • IPO Cross Application went into infinite loop at 11:05
    • NASDAQ team switched off validation check on the secondary system and
    performed failover 25 minutes after the start of the loop
    • Unknown at that moment 38k orders submitted between 11:11 and 11:30
    were stuck and had not participated in the uncross. It created another
    discrepancy, this time with Execution App and Members who were not
    able to receive confirmation for orders executed in the cross until 13:50
    31


    View Slide

32. ABN and ATG Auction Uncross Problem on NASDAQ
    • 28 August 2013 the SEB A share opened significantly lower
    than on the previous day. The opening price was 51.80, which
    was around 24% lower than the closing price
    • A contributing factor was trading performed during the
    opening auction by Algorithmic Trading Group (ATG), using a
    certain algorithm that it had developed through Sponsored
    Access arrangements with ABN Amro Clearing Bank
    • Because of a shortcoming of the said algorithm, it registered,
    amended and cancelled the orders as soon as the limit price
    was equal or cross the equilibrium price of the order book
    32


    View Slide

33. Knight Capital Events
    • 1 August 2012, USA
    • Knight Capital – one of the most successful HFT firms
    • Implemented changes related to Retail Liquidity Program в
    NYSE
    • SMARS – ultra-fast order router
    • Source code responsible for the legacy functionality
    PowerPeg
    • 212 parent orders, millions child orders
    • Accumulated loss – $460m or $170k/sec
    • Incorrectly configured risk systems
    • Deployment on 7 servers instead of 8…
    33


    View Slide

34. North American Blackout
    • 14 August 2003, USA and Canada
    • Cascade power outage
    • Race conditions resulted in buffer overflow in alerting system
    • Should operators disconnected 4% of the overall load the
    losses estimated to be $10b could have been avoided
    34


    View Slide

35. Market Surveillance and Monitoring
    • Process all events
    • Aggregate them
    • Look for patterns using
    flexible rules
    • Replay for Investigation
    • Store everything as
    evidence
    35


    View Slide

36. Thank You
    • Program analysis
    • Software verification
    • Financial models validation
    • Load distribution modeling
    • Research of risk controls and circuit breakers
    36
    http://tmpaconf.org


    View Slide

37. References
    • A Cinnober white paper on: Latency October 2009 update
    • SEC Release No. 34-69655 / May 29, 2013
    • SEC Release No. 34-70694 / October 16, 2013
    • NASDAQ OMX Stockholm Disciplinary Committee DECISION 2013-02-21
    • NASDAQ OMX Stockholm Disciplinary Committee DECISION 2014-01-13
    • Findings Regarding the Market Events of May 6, 2010
    • The Future of Computer Trading in Financial Markets
    • TMPA-2013: Tools & Methods of Program Analysis
    • Software Horror Stories
    • Slide Share - http://www.slideshare.net/IosifItkin
    37
