1. Query and Update Records with GraphQL Mutations in LWC
2. Coffee on us. The first 4,000 attendees to provide feedback on this event will receive a $5 Starbucks gi card.* 1. Download the Salesforce Events mobile app. 2. Navigate to surveys. 3. Complete (4) session surveys and the Event Survey. 4. Redeem your gift at Badge Pickup in-person on the last day of the event. *Restrictions apply. See terms and conditions at sforce.co/survey-terms
3. Fabien Taillon Partner & CTO at Texeï Salesforce MVP Hall of Fame

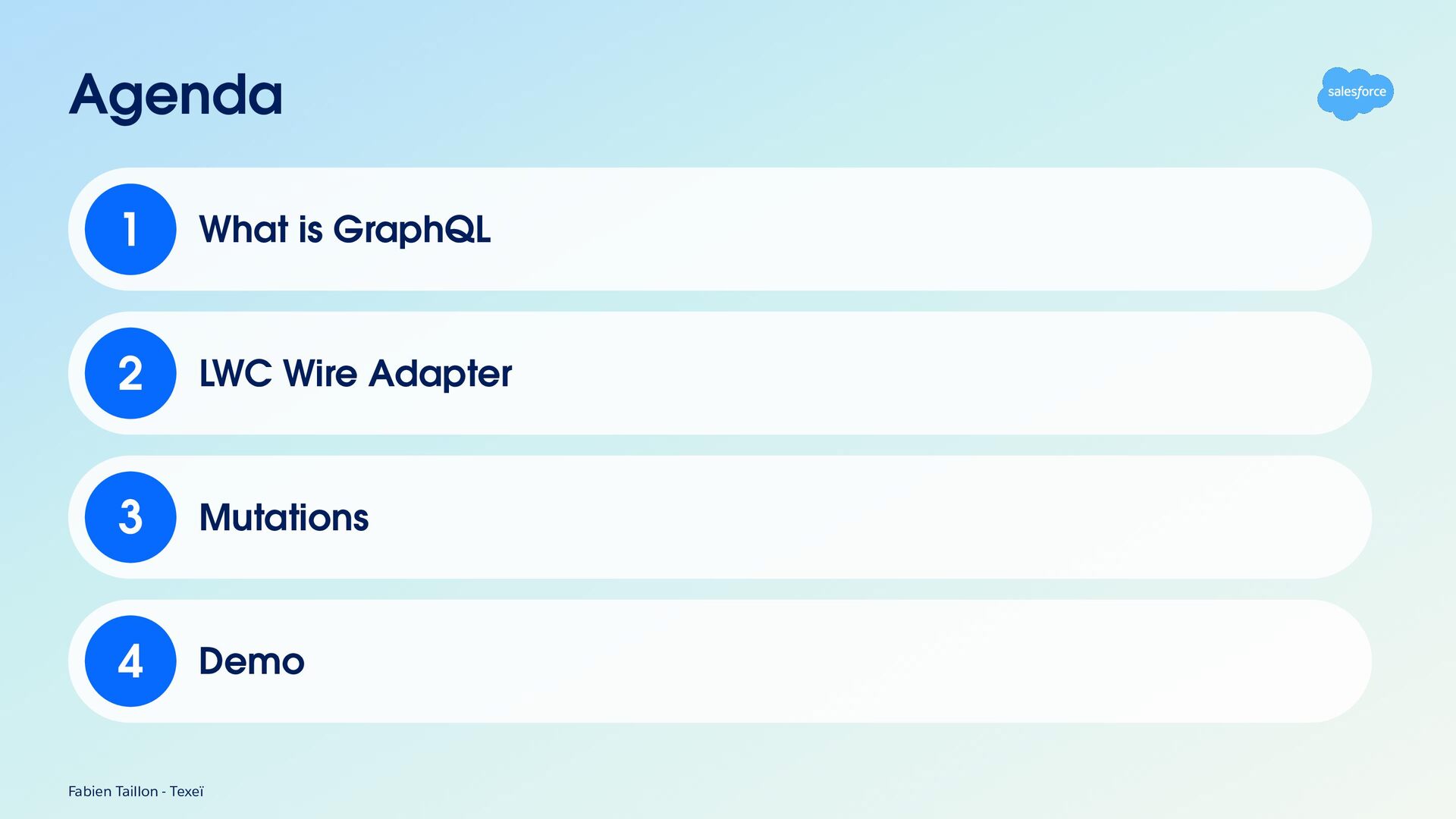

4. Agenda 1 What is GraphQL 2 LWC Wire Adapter 3 Mutations 4 Demo Fabien Taillon - Texeï

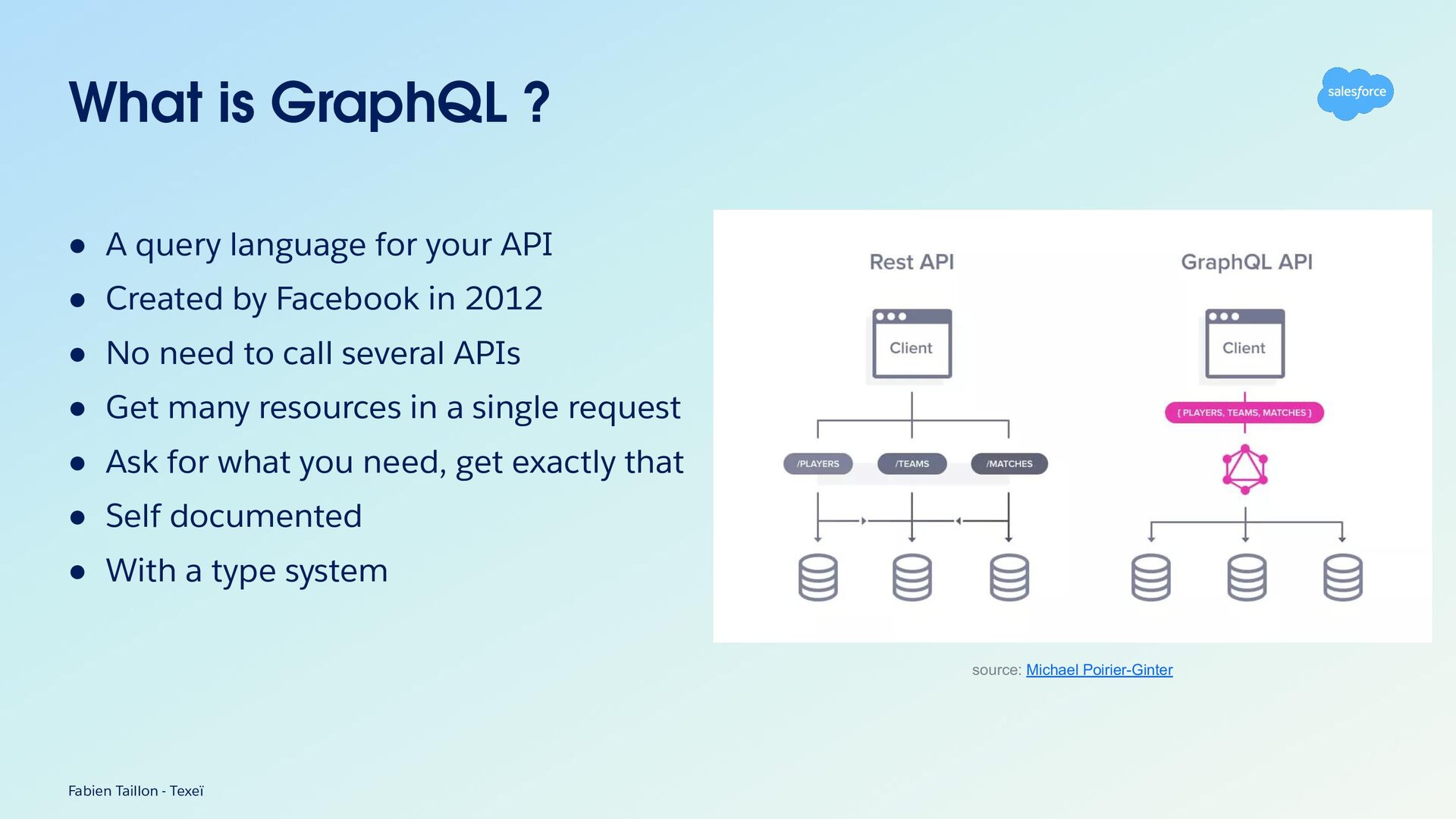

5. What is GraphQL ? • A query language for your API • Created by Facebook in 2012 • No need to call several APIs • Get many resources in a single request • Ask for what you need, get exactly that • Self documented • With a type system source: Michael Poirier-Ginter Fabien Taillon - Texeï

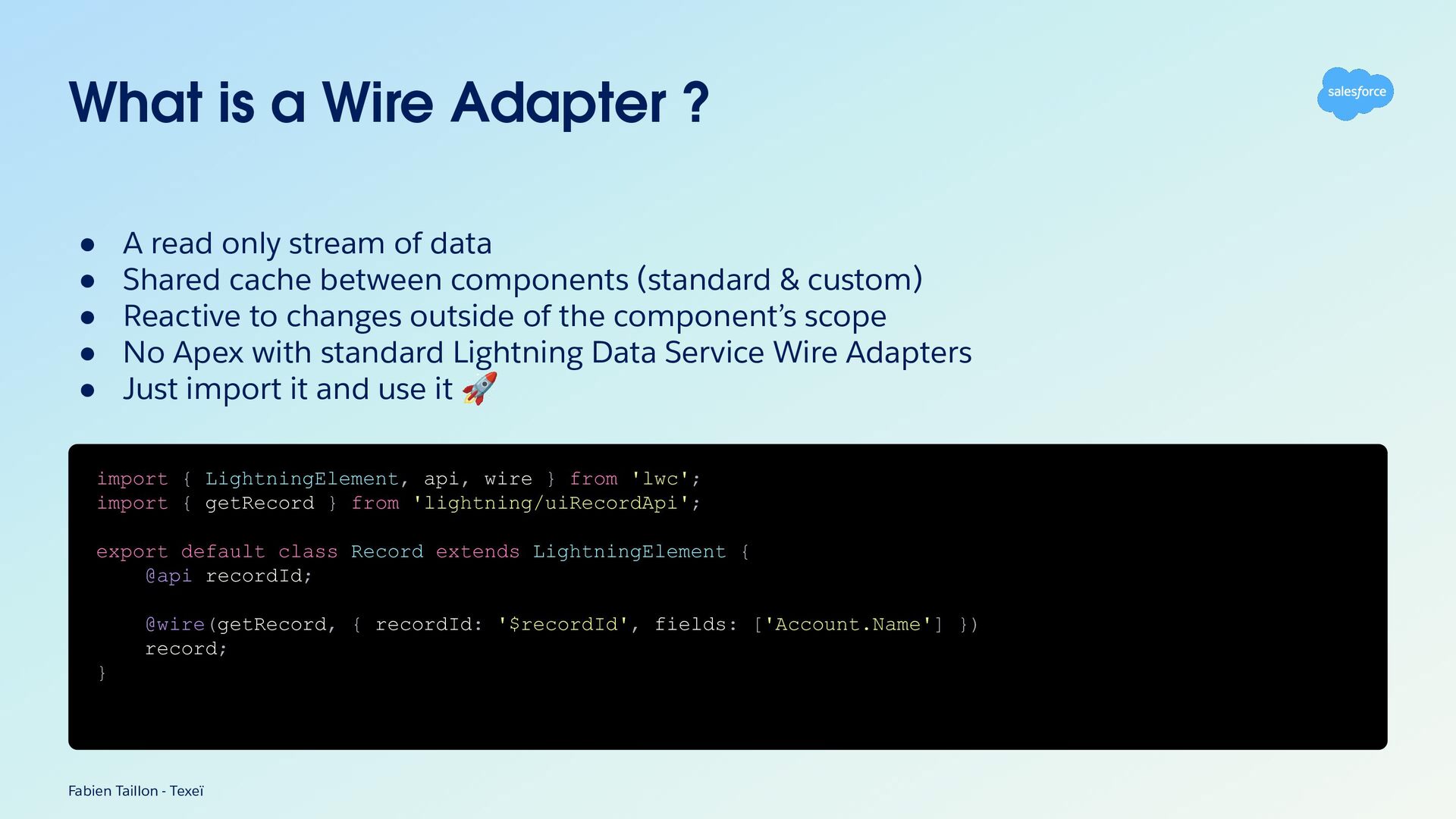

6. What is a Wire Adapter ? • • • • • A read only stream of data Shared cache between components (standard & custom) Reactive to changes outside of the component’s scope No Apex with standard Lightning Data Service Wire Adapters Just import it and use it 🚀 import { LightningElement, api, wire } from 'lwc'; import { getRecord } from 'lightning/uiRecordApi'; export default class Record extends LightningElement { @api recordId; @wire(getRecord, { recordId: '$recordId', fields: ['Account.Name'] }) record; } Fabien Taillon - Texeï

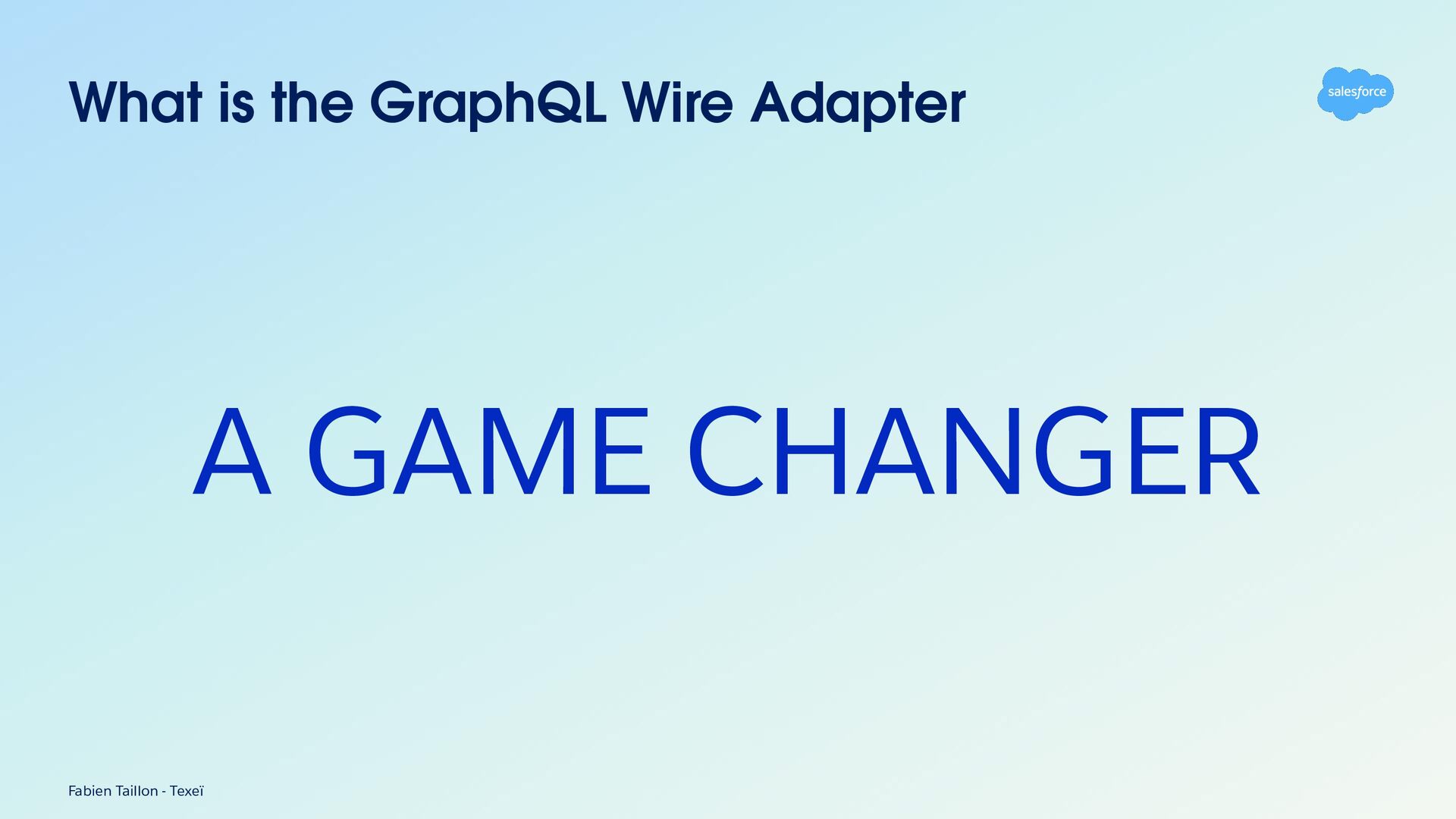

7. What is the GraphQL Wire Adapter A GAME CHANGER Fabien Taillon - Texeï

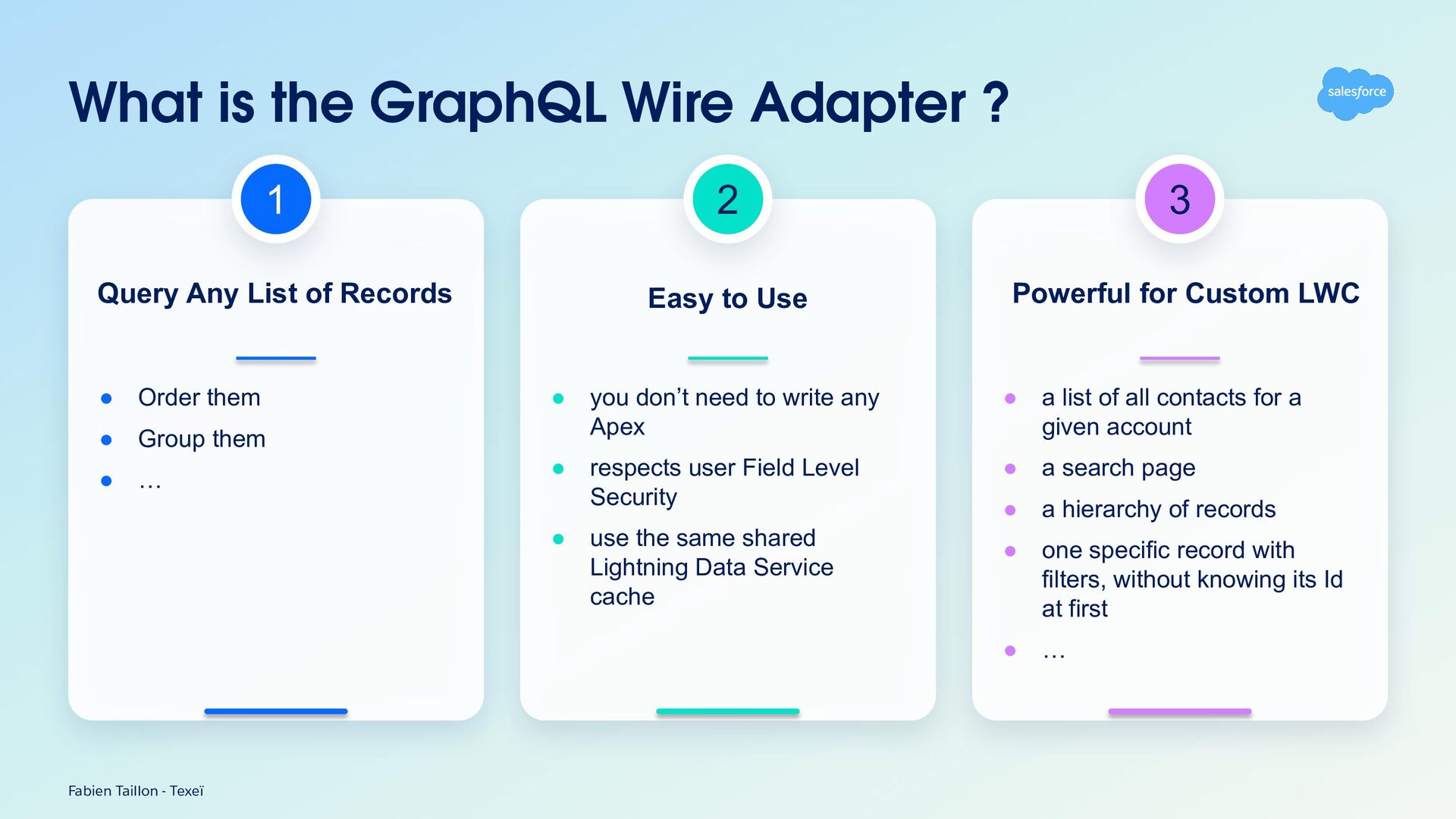

8. What is the GraphQL Wire Adapter ? 1 2 3 Query Any List of Records Easy to Use Powerful for Custom LWC • Order them • Group them • … • you don’t need to write any Apex • a list of all contacts for a given account • respects user Field Level Security • a search page • a hierarchy of records • one specific record with filters, without knowing its Id at first • … • Fabien Taillon - Texeï use the same shared Lightning Data Service cache

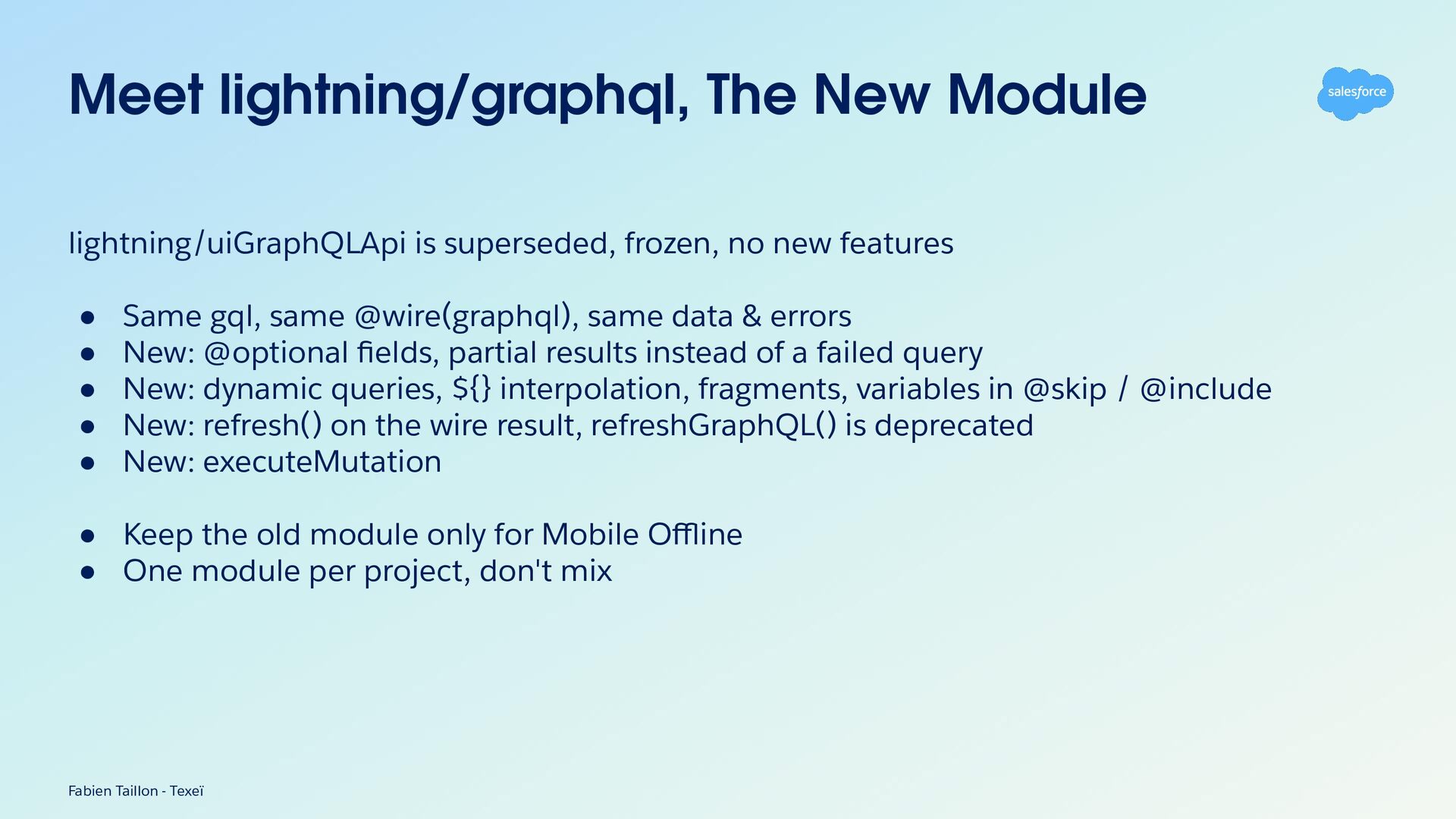

9. Meet lightning/graphql, The New Module lightning/uiGraphQLApi is superseded, frozen, no new features • • • • • Same gql, same @wire(graphql), same data & errors New: @optional fields, partial results instead of a failed query New: dynamic queries, ${} interpolation, fragments, variables in @skip / @include New: refresh() on the wire result, refreshGraphQL() is deprecated New: executeMutation • Keep the old module only for Mobile Offline • One module per project, don't mix Fabien Taillon - Texeï

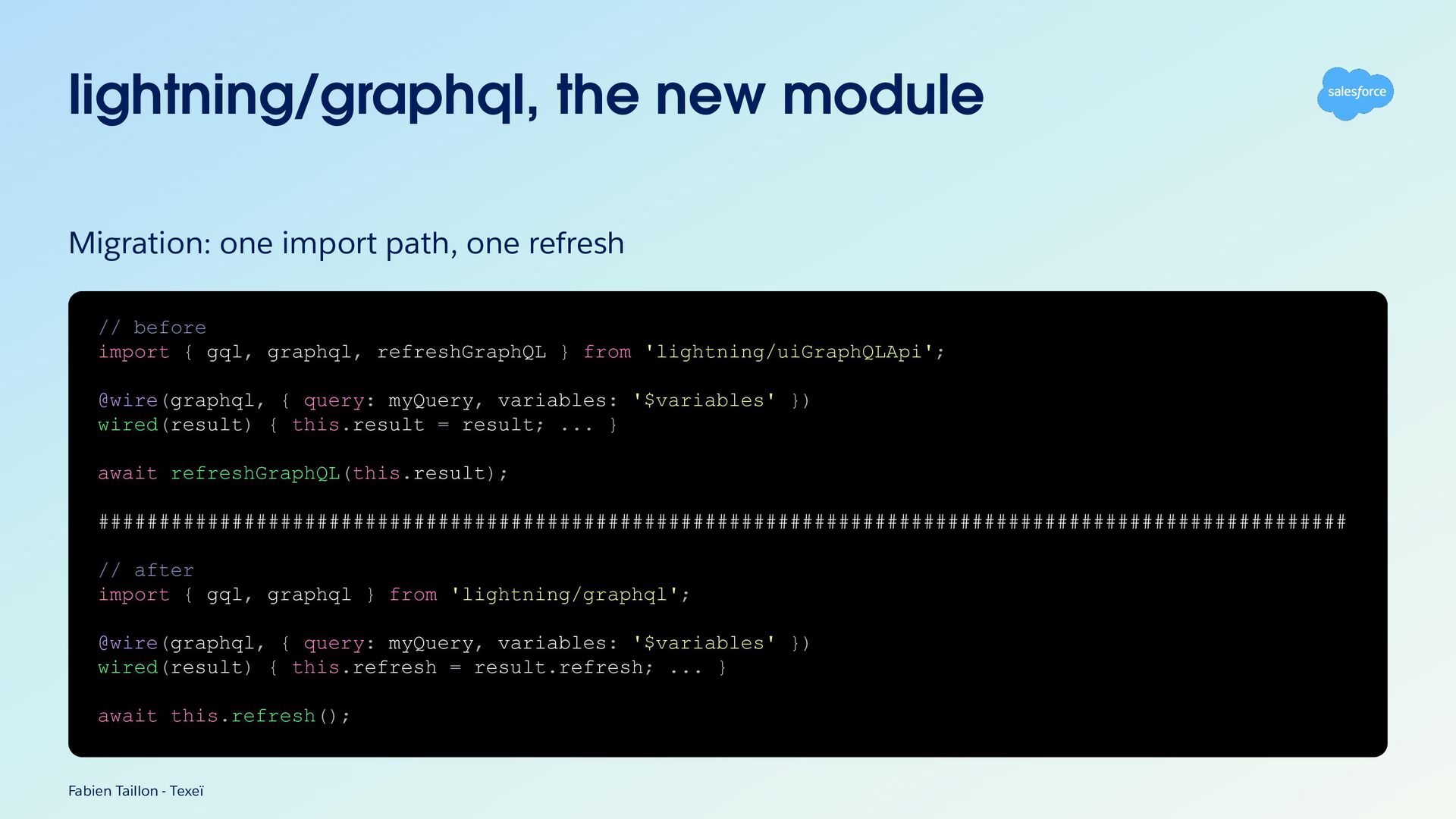

10. lightning/graphql, the new module Migration: one import path, one refresh // before import { gql, graphql, refreshGraphQL } from 'lightning/uiGraphQLApi'; @wire(graphql, { query: myQuery, variables: '$variables' }) wired(result) { this.result = result; ... } await refreshGraphQL(this.result); ####################################################################################################### // after import { gql, graphql } from 'lightning/graphql'; @wire(graphql, { query: myQuery, variables: '$variables' }) wired(result) { this.refresh = result.refresh; ... } await this.refresh(); Fabien Taillon - Texeï

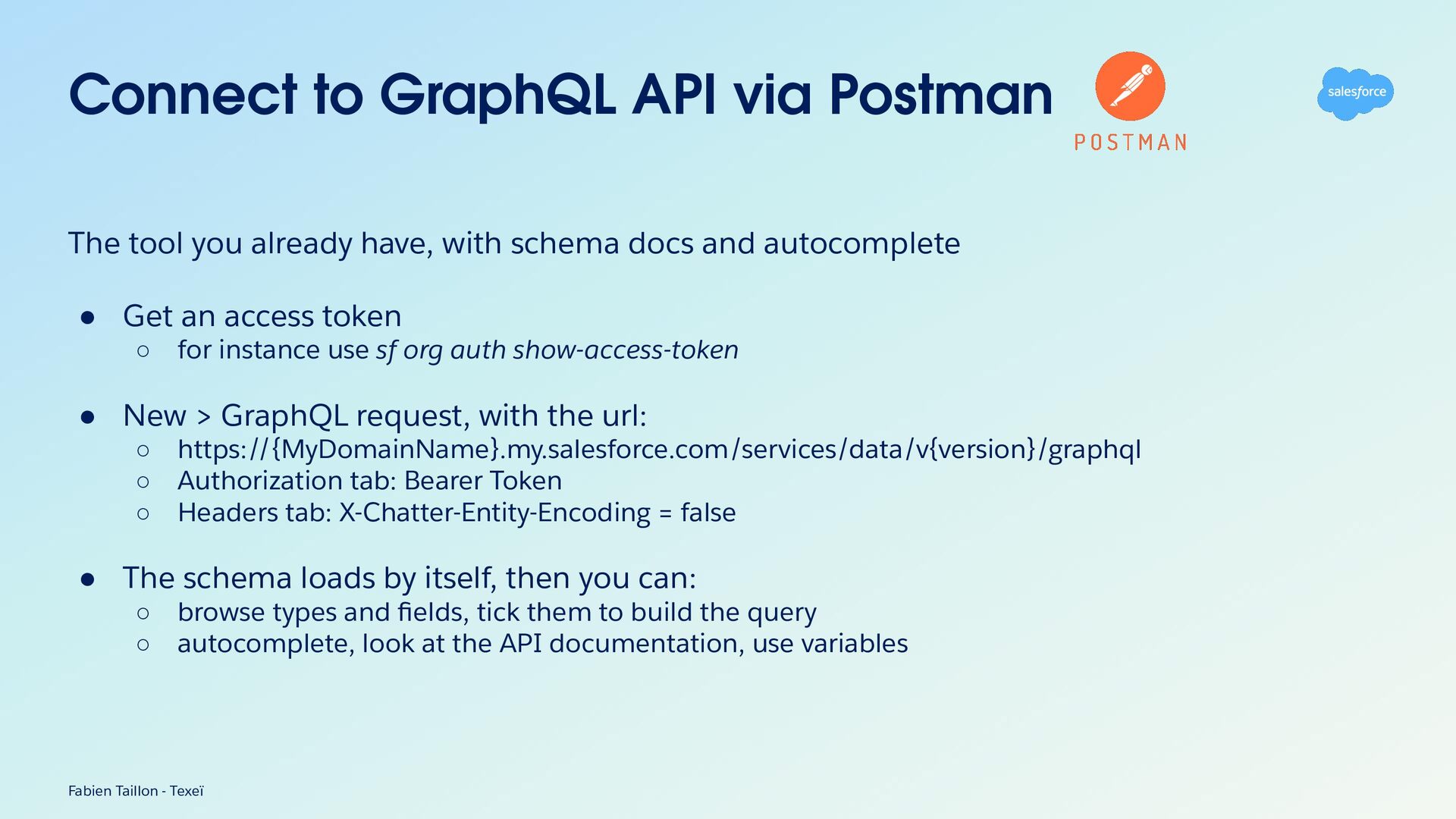

11. Connect to GraphQL API via Postman The tool you already have, with schema docs and autocomplete • Get an access token ◦ for instance use sf org auth show-access-token • New > GraphQL request, with the url: ◦ https://{MyDomainName}.my.salesforce.com/services/data/v{version}/graphql ◦ Authorization tab: Bearer Token ◦ Headers tab: X-Chatter-Entity-Encoding = false • The schema loads by itself, then you can: ◦ browse types and fields, tick them to build the query ◦ autocomplete, look at the API documentation, use variables Fabien Taillon - Texeï

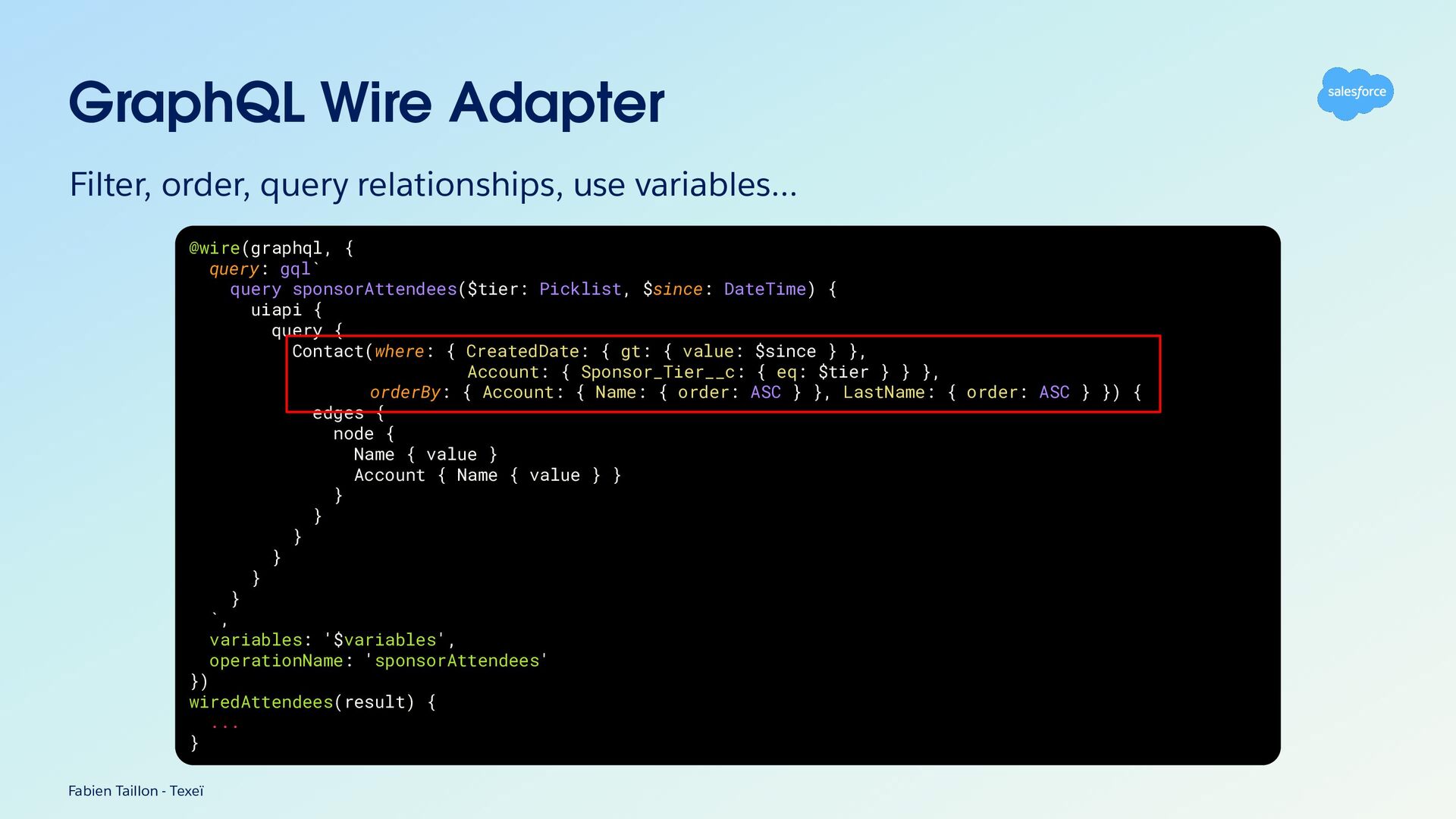

12. GraphQL Wire Adapter Filter, order, query relationships, use variables… @wire(graphql, { query: gql` query sponsorAttendees($tier: Picklist, $since: DateTime) { uiapi { query { Contact(where: { CreatedDate: { gt: { value: $since } }, Account: { Sponsor_Tier__c: { eq: $tier } } }, orderBy: { Account: { Name: { order: ASC } }, LastName: { order: ASC } }) { edges { node { Name { value } Account { Name { value } } } } } } } } `, variables: '$variables', operationName: 'sponsorAttendees' }) wiredAttendees(result) { ... } Fabien Taillon - Texeï

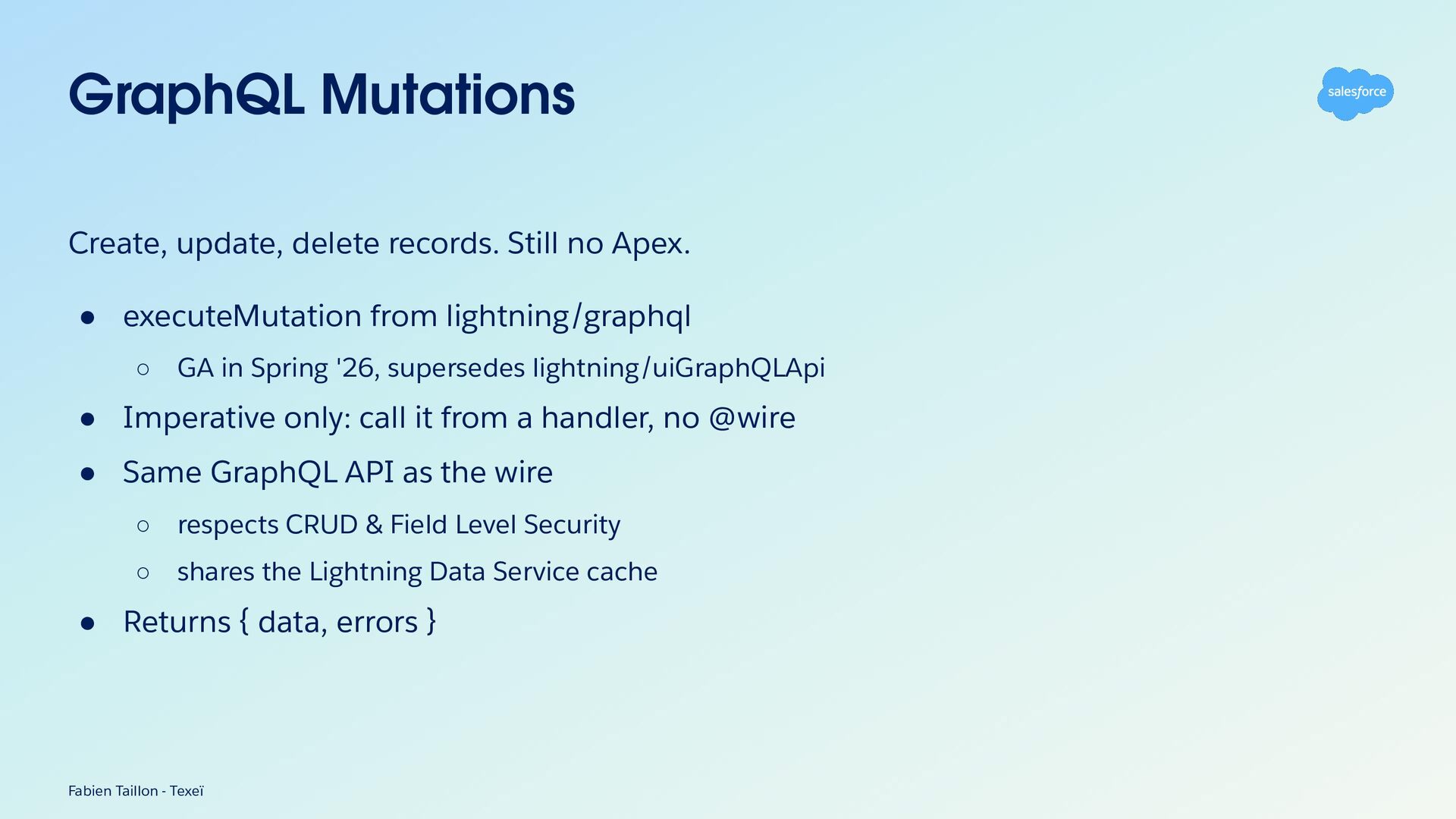

13. GraphQL Mutations Create, update, delete records. Still no Apex. • executeMutation from lightning/graphql ◦ GA in Spring '26, supersedes lightning/uiGraphQLApi • Imperative only: call it from a handler, no @wire • Same GraphQL API as the wire ◦ respects CRUD & Field Level Security ◦ shares the Lightning Data Service cache • Returns { data, errors } Fabien Taillon - Texeï

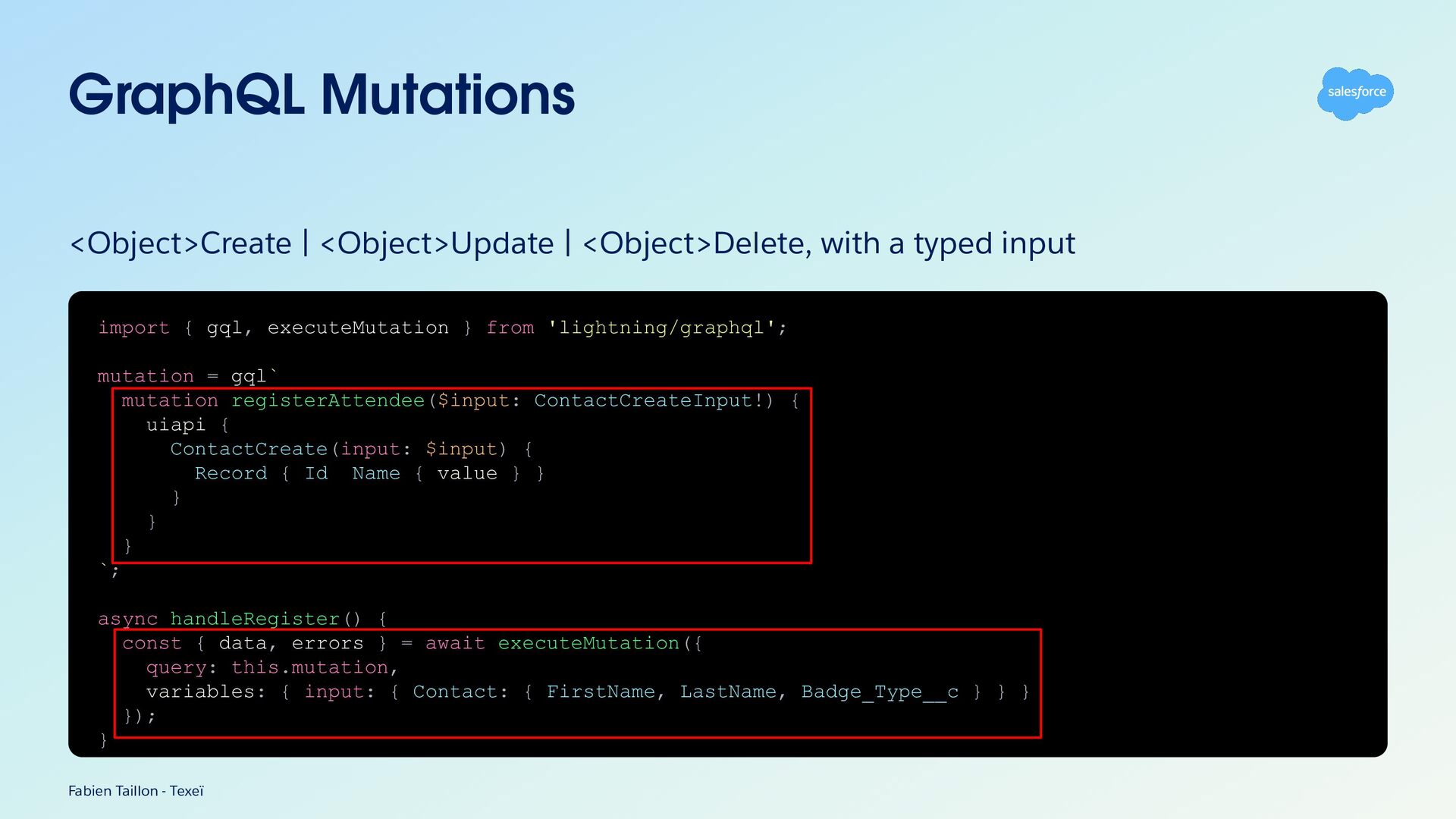

14. GraphQL Mutations <Object>Create | <Object>Update | <Object>Delete, with a typed input import { gql, executeMutation } from 'lightning/graphql'; mutation = gql` mutation registerAttendee($input: ContactCreateInput!) { uiapi { ContactCreate(input: $input) { Record { Id Name { value } } } } } `; async handleRegister() { const { data, errors } = await executeMutation({ query: this.mutation, variables: { input: { Contact: { FirstName, LastName, Badge_Type__c } } } }); } Fabien Taillon - Texeï

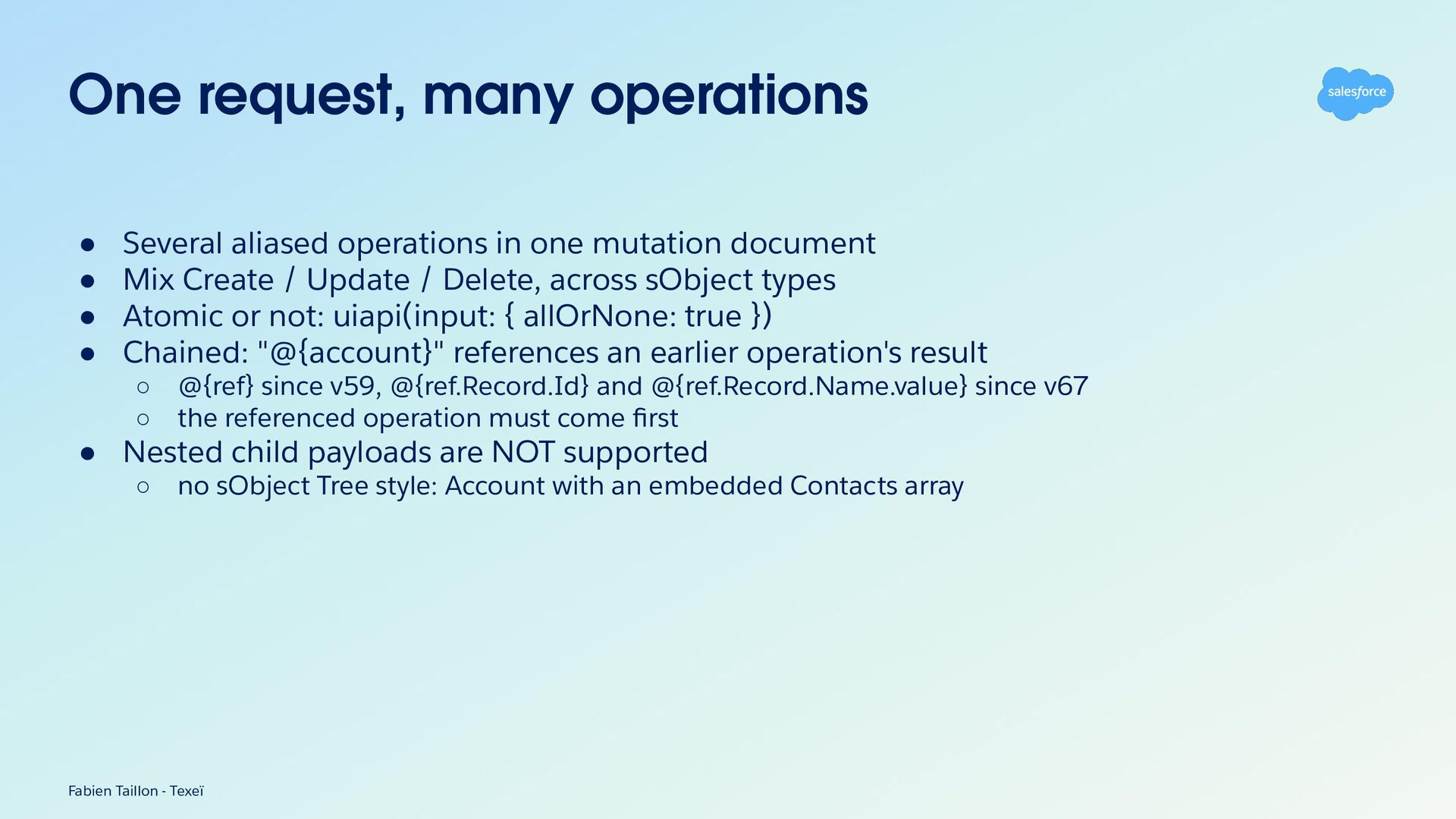

15. One request, many operations • • • • Several aliased operations in one mutation document Mix Create / Update / Delete, across sObject types Atomic or not: uiapi(input: { allOrNone: true }) Chained: "@{account}" references an earlier operation's result ◦ @{ref} since v59, @{ref.Record.Id} and @{ref.Record.Name.value} since v67 ◦ the referenced operation must come first • Nested child payloads are NOT supported ◦ no sObject Tree style: Account with an embedded Contacts array Fabien Taillon - Texeï

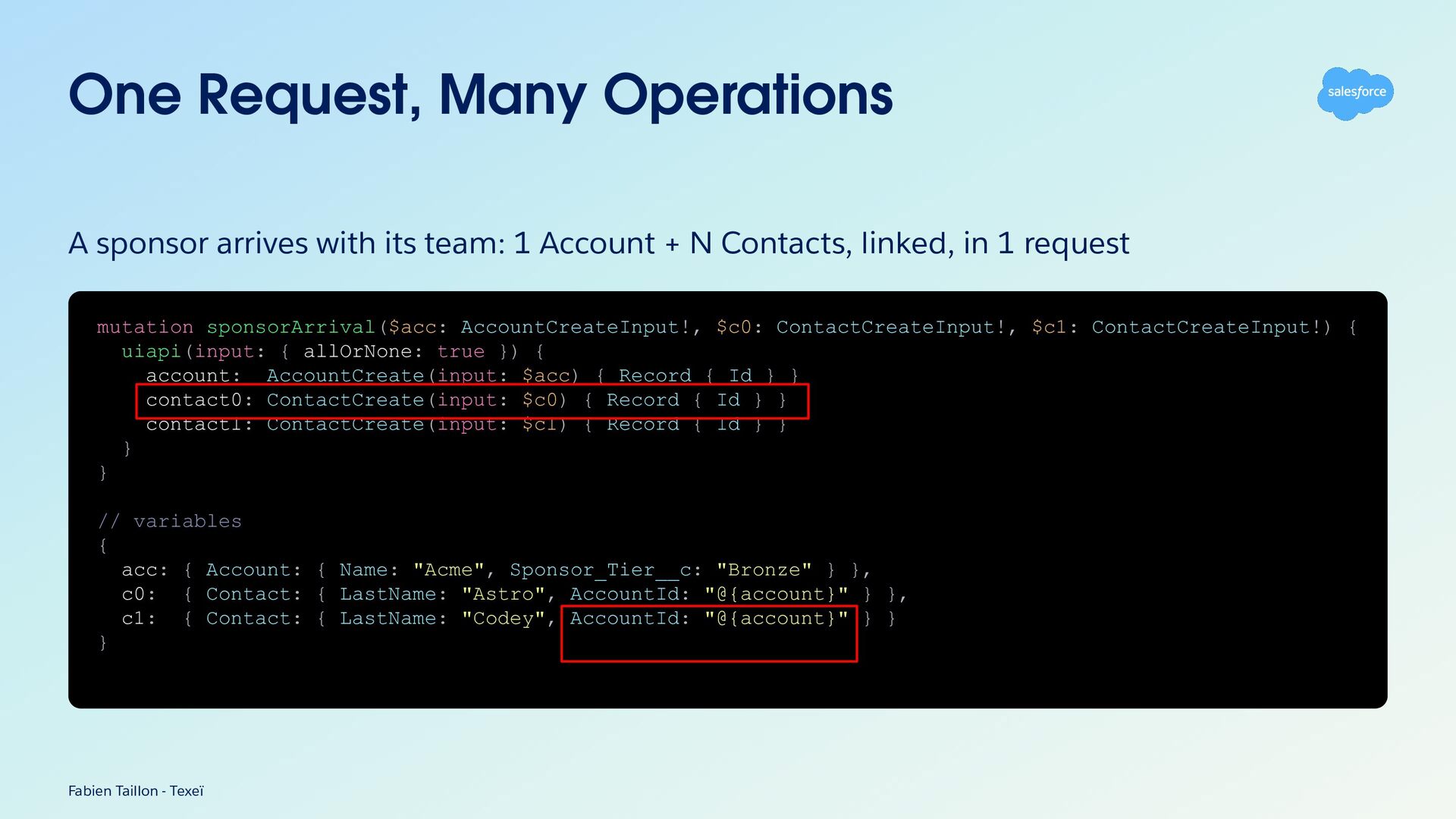

16. One Request, Many Operations A sponsor arrives with its team: 1 Account + N Contacts, linked, in 1 request mutation sponsorArrival($acc: AccountCreateInput!, $c0: ContactCreateInput!, $c1: ContactCreateInput!) { uiapi(input: { allOrNone: true }) { account: AccountCreate(input: $acc) { Record { Id } } contact0: ContactCreate(input: $c0) { Record { Id } } contact1: ContactCreate(input: $c1) { Record { Id } } } } // variables { acc: { Account: { Name: "Acme", Sponsor_Tier__c: "Bronze" } }, c0: { Contact: { LastName: "Astro", AccountId: "@{account}" } }, c1: { Contact: { LastName: "Codey", AccountId: "@{account}" } } } Fabien Taillon - Texeï

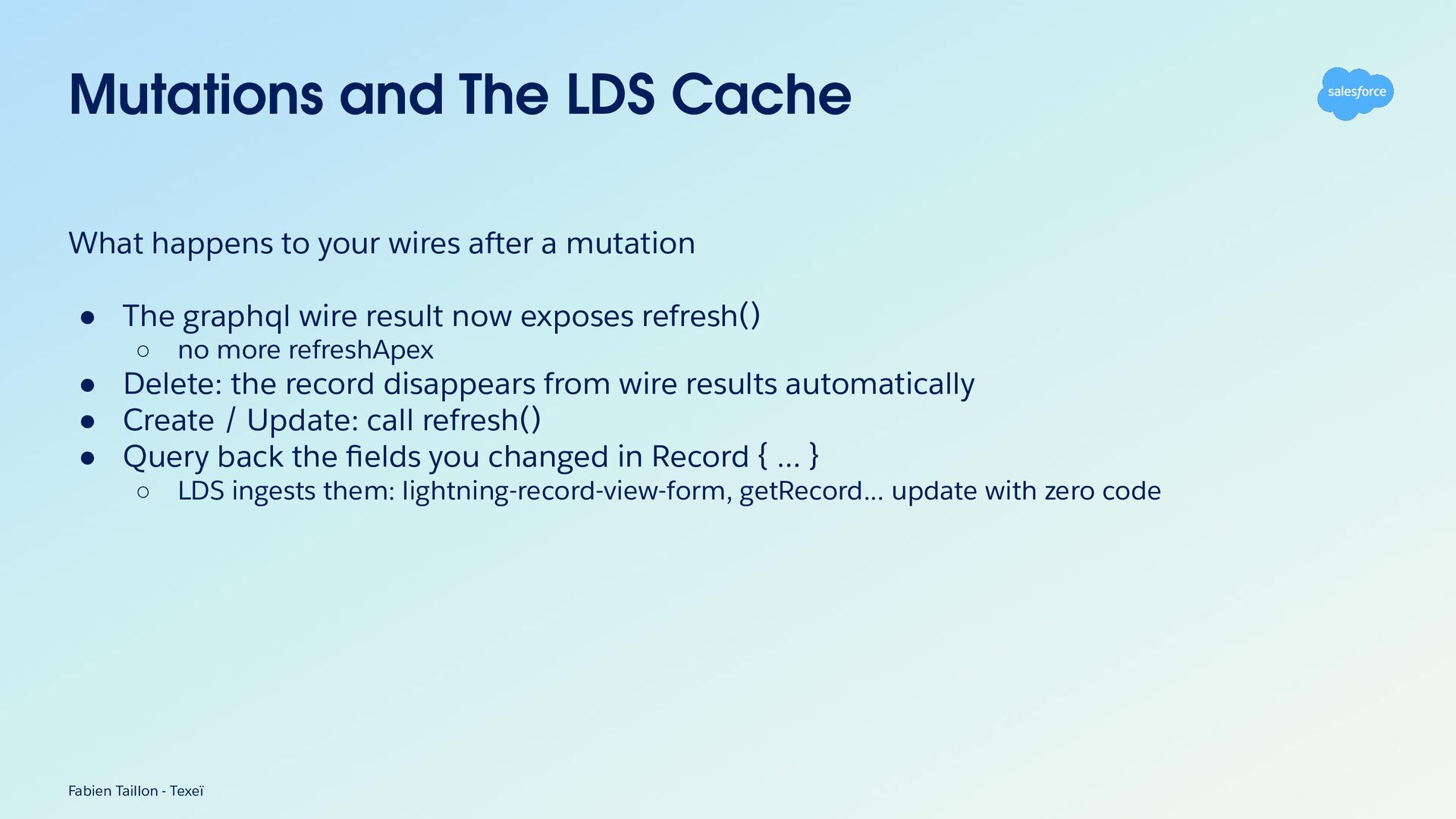

17. Mutations and The LDS Cache What happens to your wires after a mutation • The graphql wire result now exposes refresh() ◦ no more refreshApex • Delete: the record disappears from wire results automatically • Create / Update: call refresh() • Query back the fields you changed in Record { ... } ◦ LDS ingests them: lightning-record-view-form, getRecord... update with zero code Fabien Taillon - Texeï

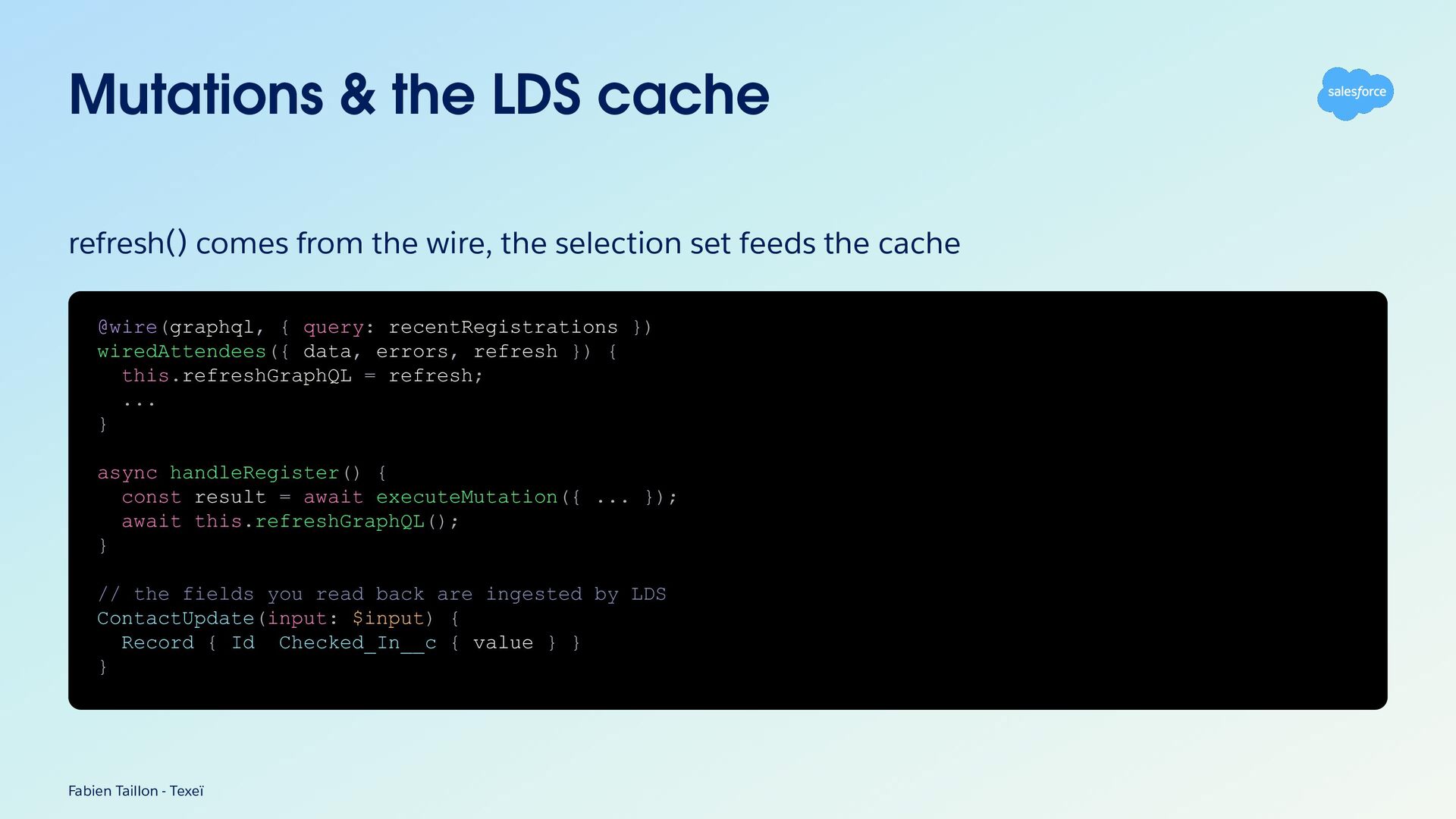

18. Mutations & the LDS cache refresh() comes from the wire, the selection set feeds the cache @wire(graphql, { query: recentRegistrations }) wiredAttendees({ data, errors, refresh }) { this.refreshGraphQL = refresh; ... } async handleRegister() { const result = await executeMutation({ ... }); await this.refreshGraphQL(); } // the fields you read back are ingested by LDS ContactUpdate(input: $input) { Record { Id Checked_In__c { value } } } Fabien Taillon - Texeï
19. DEMO

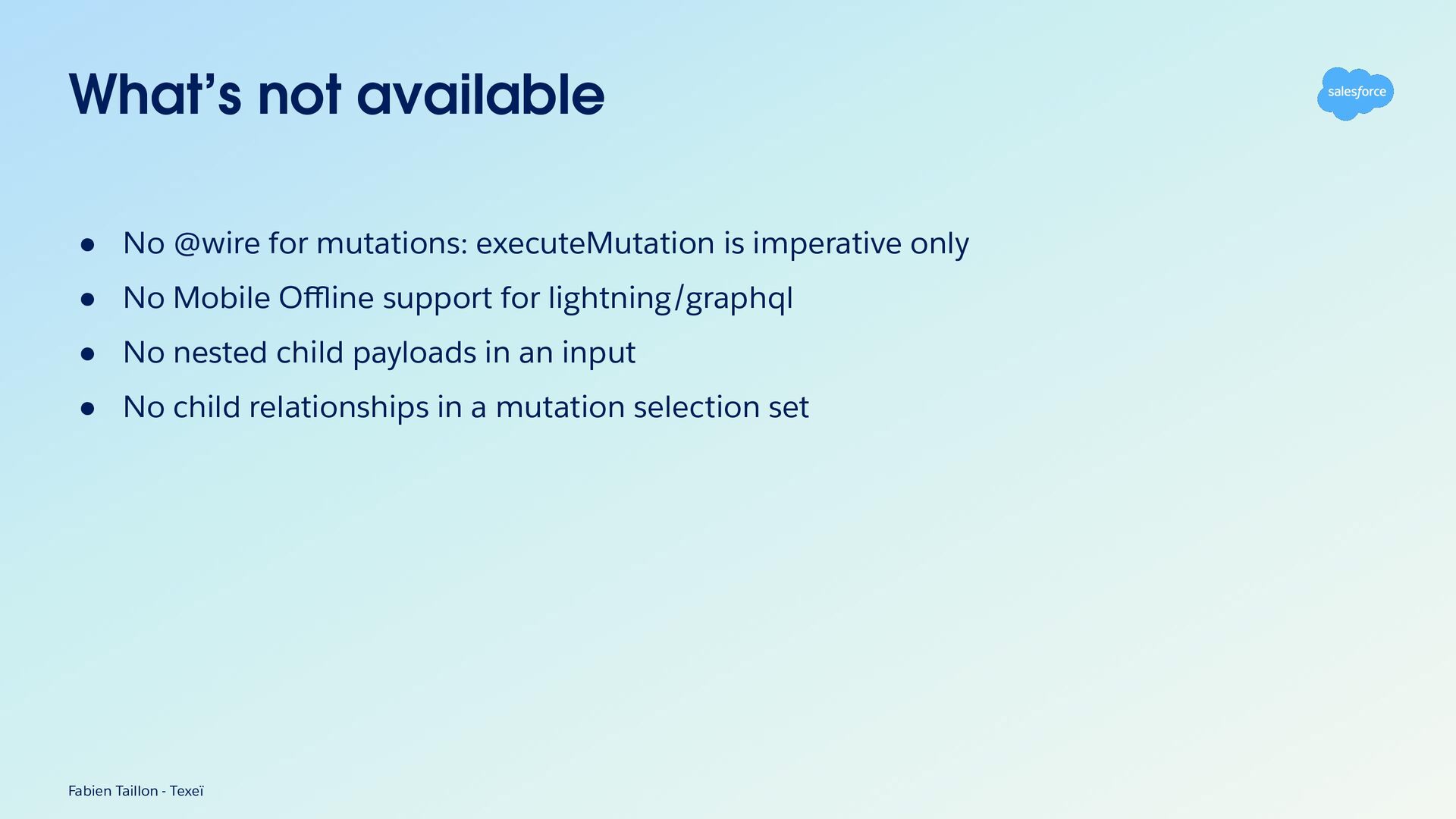

20. What’s not available • No @wire for mutations: executeMutation is imperative only • No Mobile Offline support for lightning/graphql • No nested child payloads in an input • No child relationships in a mutation selection set Fabien Taillon - Texeï

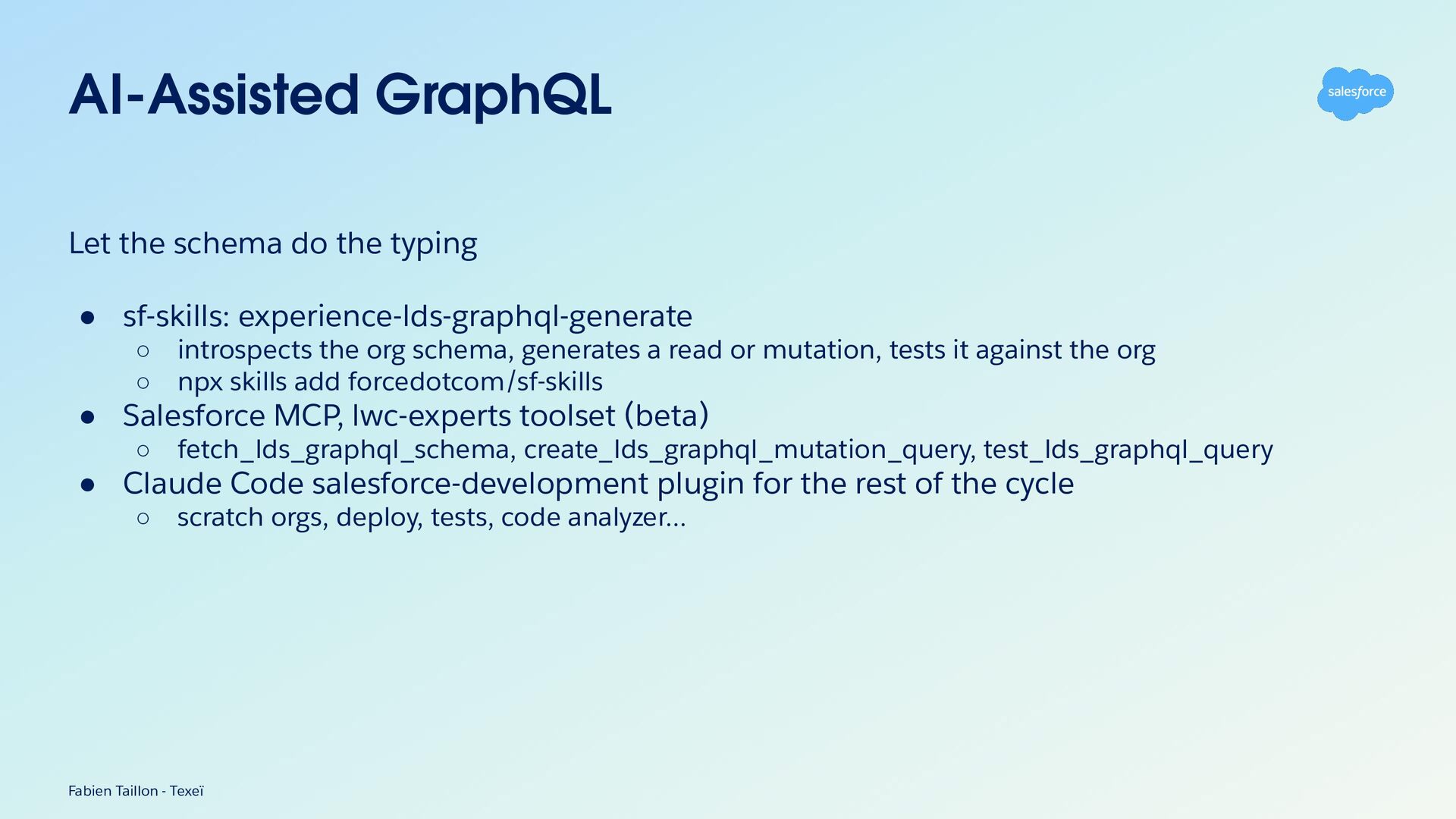

21. AI-Assisted GraphQL Let the schema do the typing • sf-skills: experience-lds-graphql-generate ◦ introspects the org schema, generates a read or mutation, tests it against the org ◦ npx skills add forcedotcom/sf-skills • Salesforce MCP, lwc-experts toolset (beta) ◦ fetch_lds_graphql_schema, create_lds_graphql_mutation_query, test_lds_graphql_query • Claude Code salesforce-development plugin for the rest of the cycle ◦ scratch orgs, deploy, tests, code analyzer… Fabien Taillon - Texeï

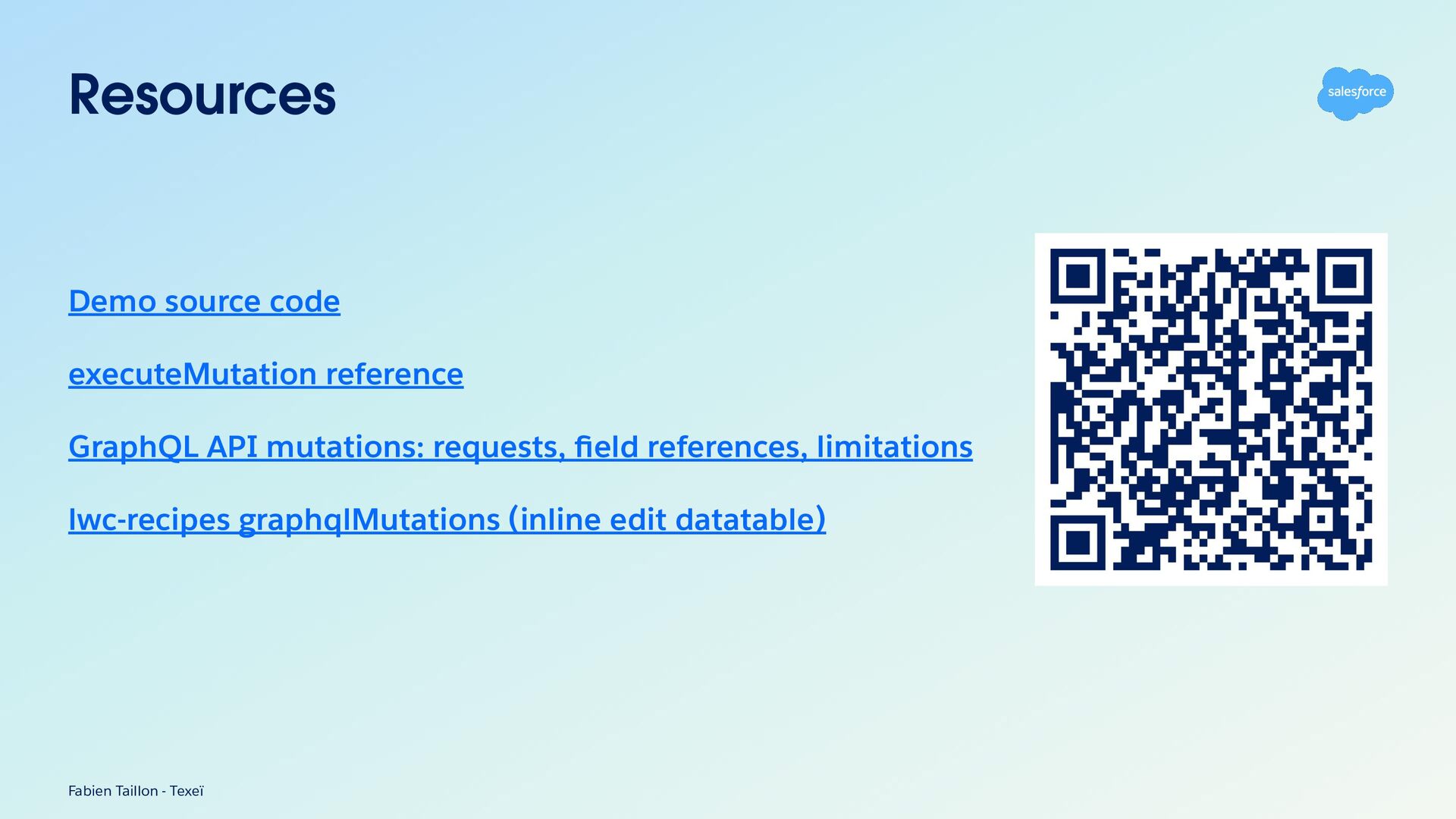

22. Resources Demo source code executeMutation reference GraphQL API mutations: requests, field references, limitations lwc-recipes graphqlMutations (inline edit datatable) Fabien Taillon - Texeï
23. Thank you
