Containerization and Compliance CoreOS Fest 2015 Frank Macreery CTO, Aptible
@fancyremarker
None
HIPAA The Health Insurance Portability and Accountability Act of 1996
HIPAA: What?
None
Protected Health Information (PHI)
Protected Health Information (PHI) "is created or received by a
health care provider or health plan…"
Protected Health Information (PHI) "relates to the health or condition
of an individual; the provision of health care to an individual; or the payment for the provision of health care to an individual…"
Protected Health Information (PHI) "identifies the individual"
HIPAA: Who?
Covered Entities Health plans, health care clearinghouses, health care providers
Business Associates An entity which "creates, receives, maintains, or transmits
protected health information"
None
None
None
None
Omnibus Final Rule Published January 2013 Effective Date: March 2013
Compliance Date: September 2013
HIPAA: Why?
Office of Civil Rights (OCR) The enforcement agency for HIPAA
Between 2011 and 2014, 115 audits were conducted.
Between 2011 and 2014, 115 audits were conducted. HHS estimates
there are between 200k–400k Business Associates.
While an OCR audit is unlikely, a vendor assessment by
a major hospital or insurer is almost certain.
Auditing Implementation is not enough
Auditing means… Documenting a mitigation for every vulnerability
Heartbleed
Heartbleed POODLEbleed
Heartbleed POODLEbleed xBleed???
How do we prove that PHI was unaffected by xBleed?

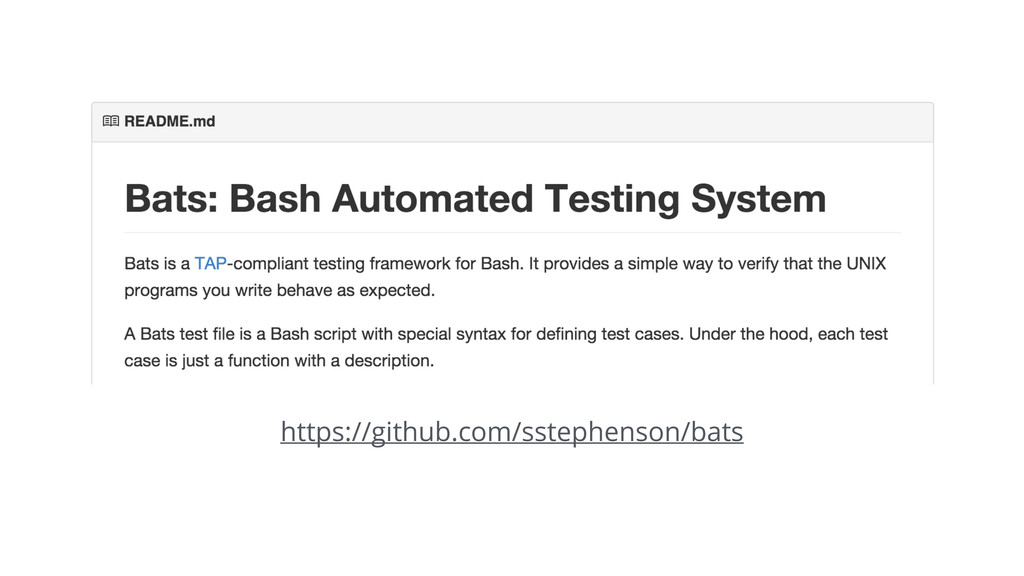

Integration Tests Document every security response
https://github.com/sstephenson/bats
# Dockerfile # Install and configure NGiNX... # ... ADD
test /tmp/test RUN bats /tmp/test https://github.com/aptible/docker-nginx Image: quay.io/aptible/nginx
#!/usr/bin/env bats # /tmp/test/nginx.bats @test "It should pass an external
Heartbleed test" { install_heartbleed wait_for_nginx Heartbleed localhost:443 uninstall_heartbleed }
#!/usr/bin/env bats # /tmp/test/nginx.bats @test "It should pass an external
Heartbleed test" { install_heartbleed wait_for_nginx Heartbleed localhost:443 uninstall_heartbleed }

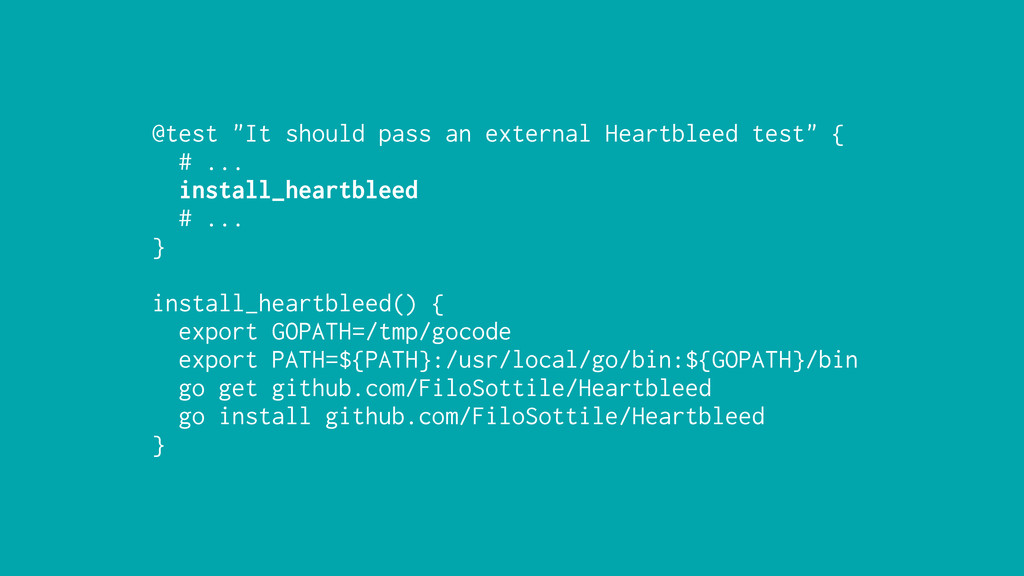

@test "It should pass an external Heartbleed test" { #
... install_heartbleed # ... } install_heartbleed() { export GOPATH=/tmp/gocode export PATH=${PATH}:/usr/local/go/bin:${GOPATH}/bin go get github.com/FiloSottile/Heartbleed go install github.com/FiloSottile/Heartbleed }

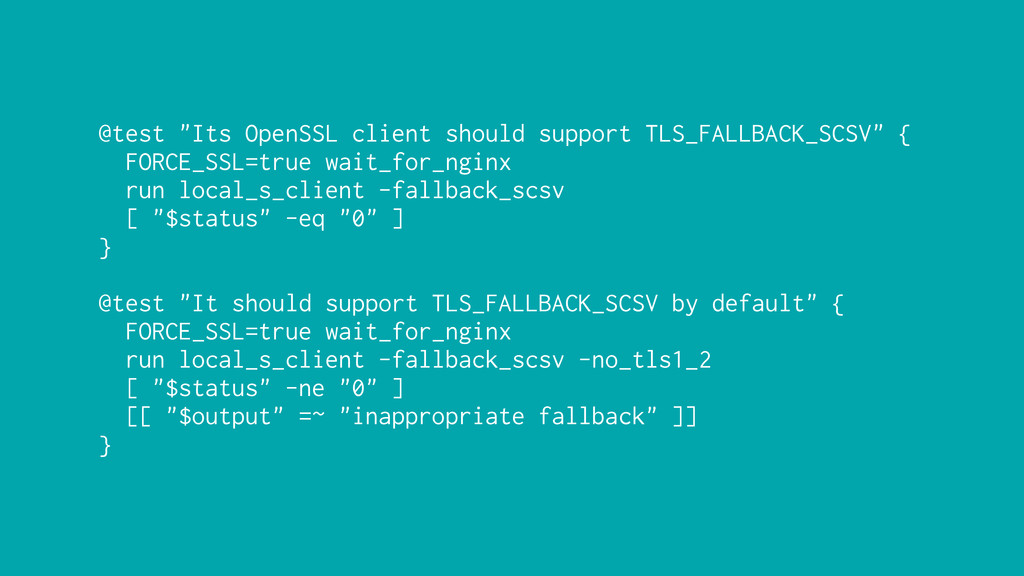

@test "Its OpenSSL client should support TLS_FALLBACK_SCSV" { FORCE_SSL=true wait_for_nginx
run local_s_client -fallback_scsv [ "$status" -eq "0" ] } @test "It should support TLS_FALLBACK_SCSV by default" { FORCE_SSL=true wait_for_nginx run local_s_client -fallback_scsv -no_tls1_2 [ "$status" -ne "0" ] [[ "$output" =~ "inappropriate fallback" ]] }
Integration tests happen during each image build
Integration tests happen during each image build Images are built
automatically via Quay Build Triggers
None

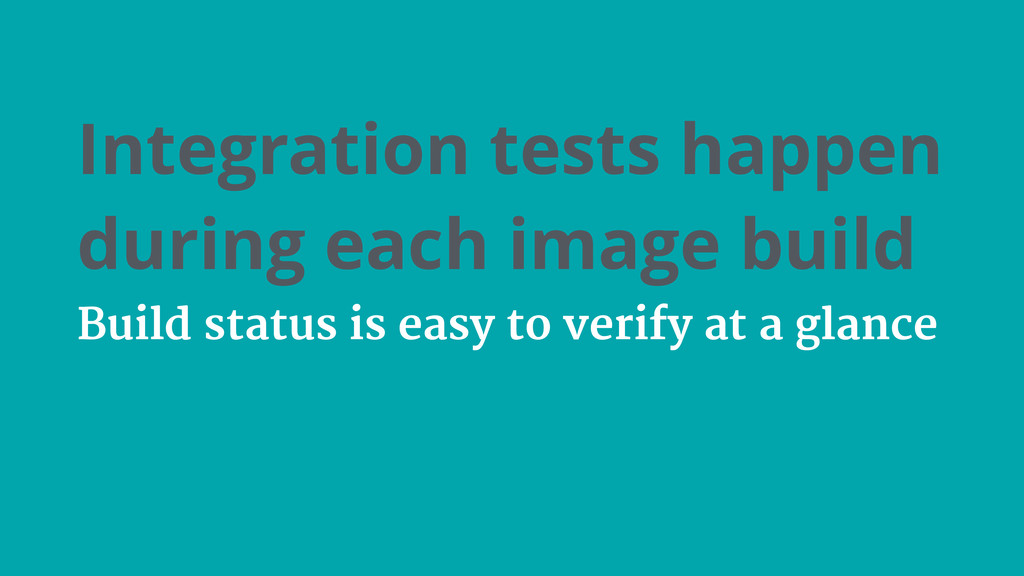

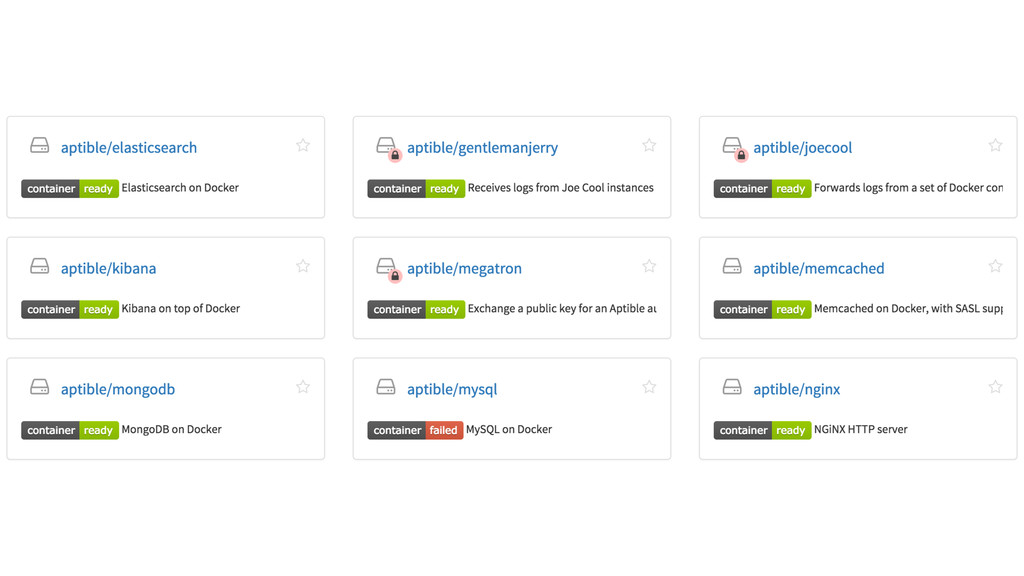

Integration tests happen during each image build Build status is
easy to verify at a glance
None

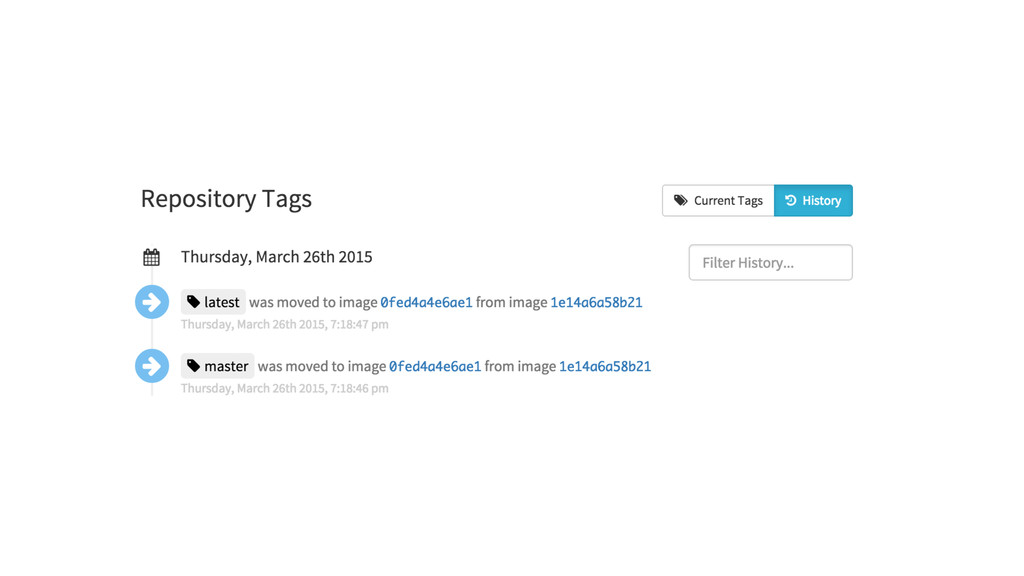

Integration tests happen during each image build Quay Time Machine
lets us roll back an image to any previous state
None
Standardized Security Use containers to solve problems only once
BAA Business Associate Agreement
AWS "Approved" Services
AWS "Approved" Services EC2 ELB EBS S3 Glacier Redshift
But… You have to play by the rules
EC2 Must use dedicated instances for PHI
EBS All PHI volumes must be encrypted
ELB TCP mode only (no SSL termination)
None
TCP TCP HTTP HTTP
No HTTP means no HTTP forwarding headers X-Forwarded-For
10.51.0.183 - - [22/Apr/2015:03:32:01 +0000] "POST /hubot/slack-webhook HTTP/1.1" 200 5
"-" "Slackbot 1.0 (+https://api.slack.com/robots)" 10.51.0.198 - - [22/Apr/2015:04:52:03 +0000] "GET / HTTP/1.1" 404 13 "-" "-" 10.51.0.183 - - [24/Apr/2015:20:08:36 +0000] "POST /hubot/slack-webhook HTTP/1.1" 200 5 "-" "Slackbot 1.0 (+https://api.slack.com/robots)" 10.51.0.198 - - [22/Apr/2015:05:02:31 +0000] "GET / clientaccesspolicy.xml HTTP/1.1" 404 35 "-" "-" Application only sees ELB addresses
PROXY Protocol Adds routing headers to TCP messages
PROXY TCP4 8.8.8.8 4.44.4.44 56324 443 (encrypted...) GET / HTTP/1.1
Host: www.example.com
How should we configure HTTP and PROXY Protocol containers?
server { <% if ENV['PROXY_PROTOCOL'] == 'true' %> listen 80
proxy_protocol; set_real_ip_from 0.0.0.0/0; real_ip_header proxy_protocol; access_log /proc/self/fd/1 proxy_log; <% else %> listen 80; <% end %> }
server { <% if ENV['PROXY_PROTOCOL'] == 'true' %> listen 80
proxy_protocol; set_real_ip_from 0.0.0.0/0; real_ip_header proxy_protocol; access_log /proc/self/fd/1 proxy_log; <% else %> listen 80; <% end %> }
ENV configuration $PROXY_PROTOCOL
ENV configuration $PROXY_PROTOCOL $FORCE_SSL $HSTS_MAX_AGE $UPSTREAM_SERVERS (…)
ENV configuration Makes testing easier

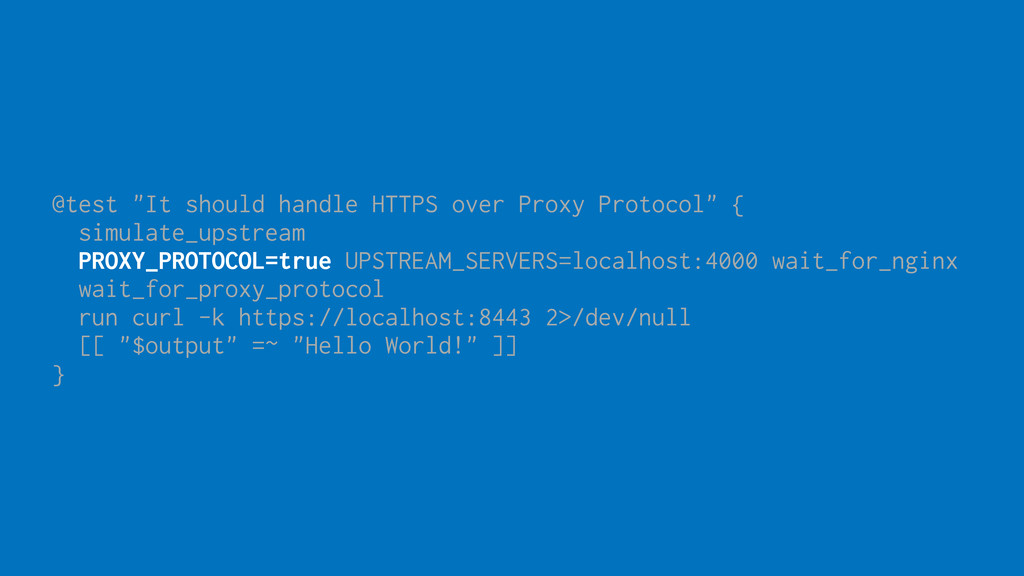

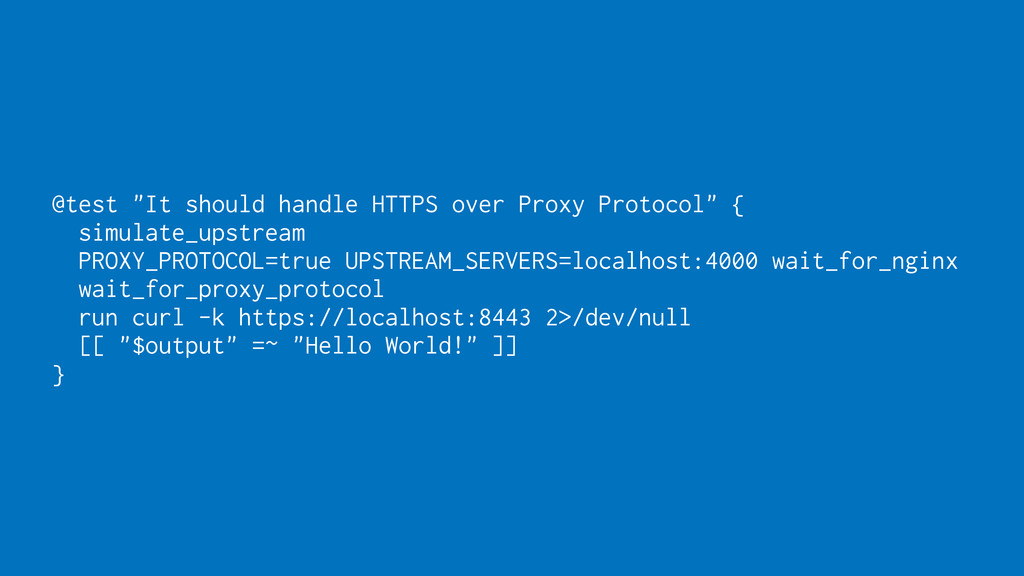

@test "It should handle HTTPS over Proxy Protocol" { simulate_upstream
PROXY_PROTOCOL=true UPSTREAM_SERVERS=localhost:4000 wait_for_nginx wait_for_proxy_protocol run curl -k https://localhost:8443 2>/dev/null [[ "$output" =~ "Hello World!" ]] }
@test "It should handle HTTPS over Proxy Protocol" { simulate_upstream
PROXY_PROTOCOL=true UPSTREAM_SERVERS=localhost:4000 wait_for_nginx wait_for_proxy_protocol run curl -k https://localhost:8443 2>/dev/null [[ "$output" =~ "Hello World!" ]] }
ENV configuration Abstracts implementation details: could be NGiNX, HAProxy, …
ENV configuration Simplifies configuration management: central store doesn’t need to
know parameters in advance
STANDARDIZE ALL THE THINGS!
Standardized Database Image Spec Initialization, Authentication, Encryption
Initialization docker run quay.io/aptible/db --initialize

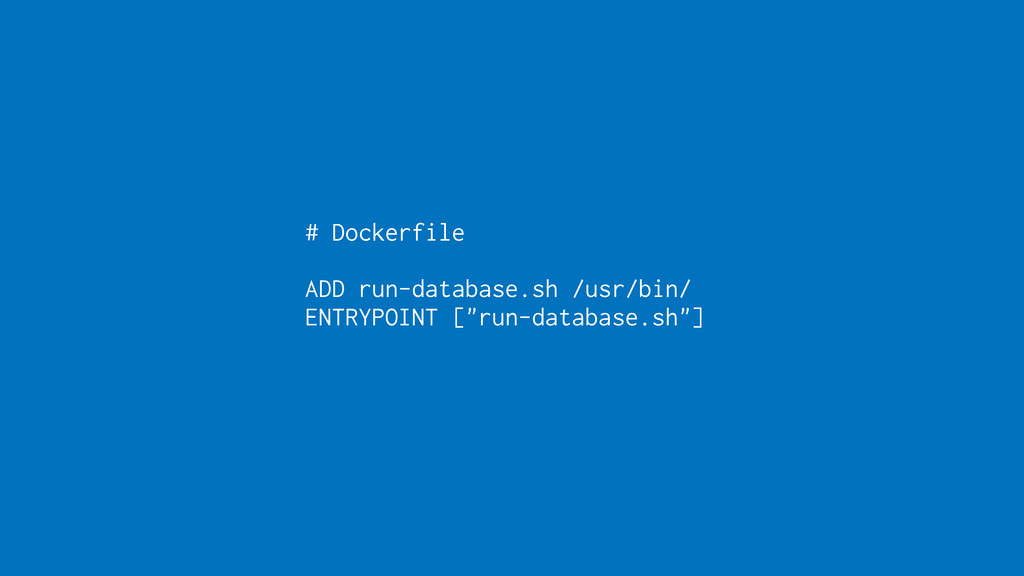

# Dockerfile ADD run-database.sh /usr/bin/ ENTRYPOINT ["run-database.sh"]
#!/bin/bash if [[ "$1" == "--initialize" ]]; then chown -R
postgres:postgres "$DATA_DIRECTORY" su postgres <<COMMANDS /usr/lib/postgresql/9.3/bin/initdb -D "$DATA_DIRECTORY" /etc/init.d/postgresql start psql --command "CREATE USER ${USERNAME:-aptible} WITH SUPERUSER PASSWORD '$PASSPHRASE'" psql --command "CREATE DATABASE ${DATABASE:-db}" /etc/init.d/postgresql stop COMMANDS exit fi su postgres -c "/usr/lib/postgresql/9.3/bin/postgres -D "$DATA_DIRECTORY" \ -c config_file=/etc/postgresql/9.3/main/postgresql.conf" https://github.com/aptible/docker-postgresql
#!/bin/bash if [[ "$1" == "--initialize" ]]; then chown -R
postgres:postgres "$DATA_DIRECTORY" su postgres <<COMMANDS /usr/lib/postgresql/9.3/bin/initdb -D "$DATA_DIRECTORY" /etc/init.d/postgresql start psql --command "CREATE USER ${USERNAME:-aptible} WITH SUPERUSER PASSWORD '$PASSPHRASE'" psql --command "CREATE DATABASE ${DATABASE:-db}" /etc/init.d/postgresql stop COMMANDS exit fi su postgres -c "/usr/lib/postgresql/9.3/bin/postgres -D "$DATA_DIRECTORY" \ -c config_file=/etc/postgresql/9.3/main/postgresql.conf"

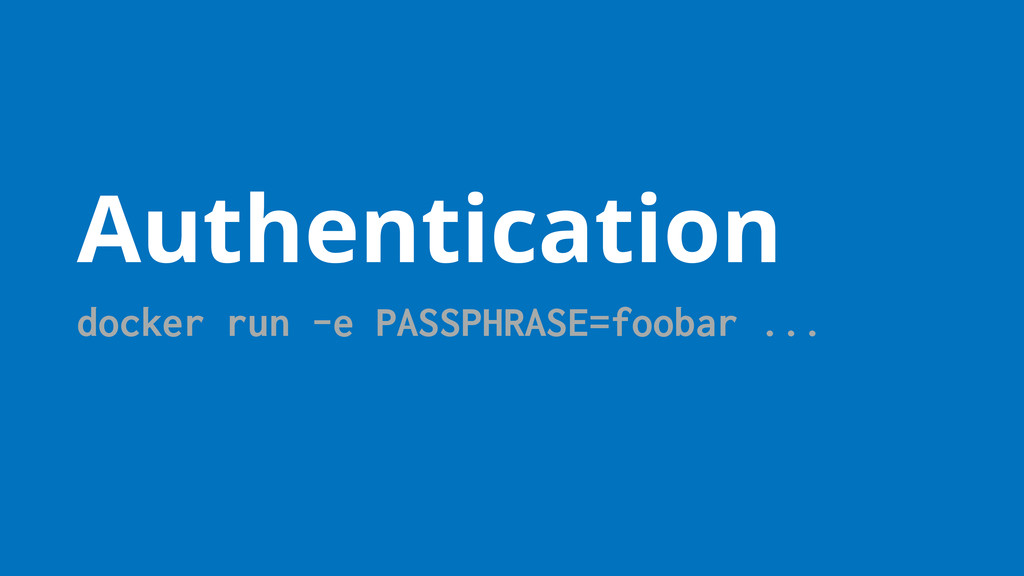

Authentication docker run -e PASSPHRASE=foobar ...
#!/bin/bash if [[ "$1" == "--initialize" ]]; then chown -R
postgres:postgres "$DATA_DIRECTORY" su postgres <<COMMANDS /usr/lib/postgresql/9.3/bin/initdb -D "$DATA_DIRECTORY" /etc/init.d/postgresql start psql --command "CREATE USER ${USERNAME:-aptible} WITH SUPERUSER PASSWORD '$PASSPHRASE'" psql --command "CREATE DATABASE ${DATABASE:-db}" /etc/init.d/postgresql stop COMMANDS exit fi su postgres -c "/usr/lib/postgresql/9.3/bin/postgres -D "$DATA_DIRECTORY" \ -c config_file=/etc/postgresql/9.3/main/postgresql.conf"
Encryption Use container volumes to identify PHI storage directories

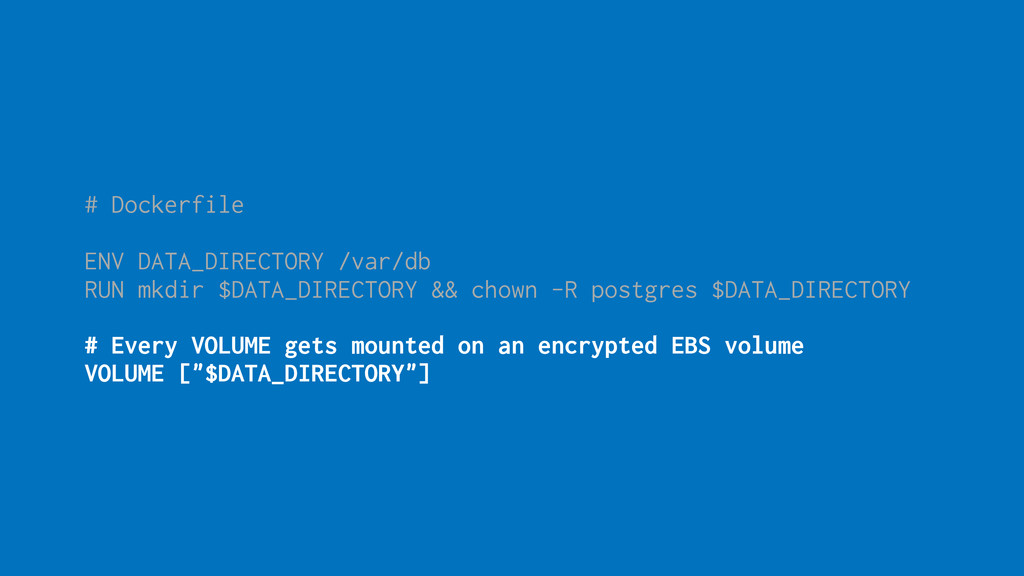

# Dockerfile ENV DATA_DIRECTORY /var/db RUN mkdir $DATA_DIRECTORY && chown
-R postgres $DATA_DIRECTORY # Every VOLUME gets mounted on an encrypted EBS volume VOLUME ["$DATA_DIRECTORY"]
# Dockerfile ENV DATA_DIRECTORY /var/db RUN mkdir $DATA_DIRECTORY && chown
-R postgres $DATA_DIRECTORY # Every VOLUME gets mounted on an encrypted EBS volume VOLUME ["$DATA_DIRECTORY"]
Auditing Containers help automate and document incident response
Standardized Security Containers help standardize and abstract common functionality like
SSL termination, for encryption in transit
Standardized Security Containers provide a way to standardize database security
and encryption at rest
Thank you
@fancyremarker
[email protected]
