Docker for Ruby Developers NYC.rb, August 2015 Frank Macreery CTO,
Aptible @fancyremarker https://speakerdeck.com/fancyremarker
None
Docker What’s it all about?
None
None
Docker Containers: The new virtual machines?
https://www.docker.com/whatisdocker Then: Virtual Machines
https://www.docker.com/whatisdocker
https://www.docker.com/whatisdocker Now: Containers
https://www.docker.com/whatisdocker
Getting Started with Docker
boot2docker

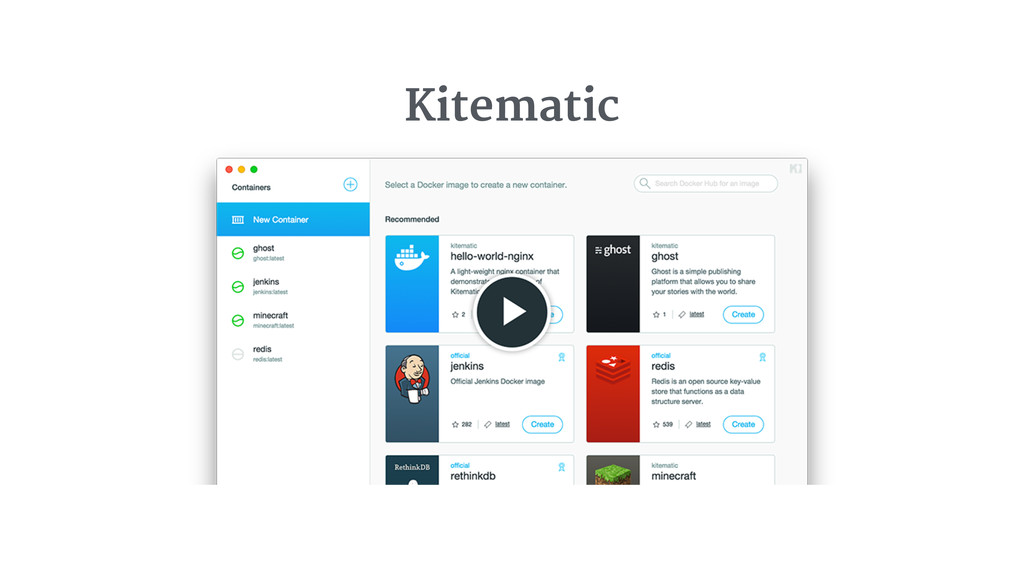

Kitematic
Getting Started with Docker Install boot2docker via http://boot2docker.io/#installation echo 'eval
"$(boot2docker shellinit)"' >> ~/.bashrc
Getting Started with Docker Alternatively (if you have Homebrew and
VirtualBox installed)… brew install boot2docker brew install docker
Getting Started with Docker Images and containers
docker pull quay.io/aptible/nginx:latest
docker pull quay.io/aptible/nginx:latest Reference to a Docker image
docker pull quay.io/aptible/nginx:latest Image "repositories" can have many "tags"

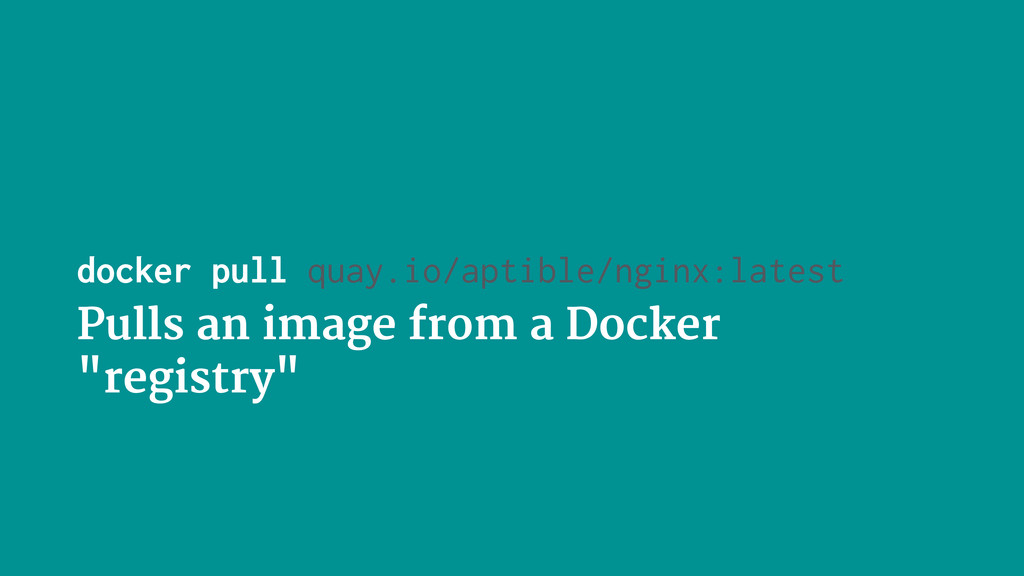

docker pull quay.io/aptible/nginx:latest Pulls an image from a Docker "registry"
A single Docker image consists of many "layers"
docker images
docker run -d -p 80:80 -p 443:443 \ quay.io/aptible/nginx:latest

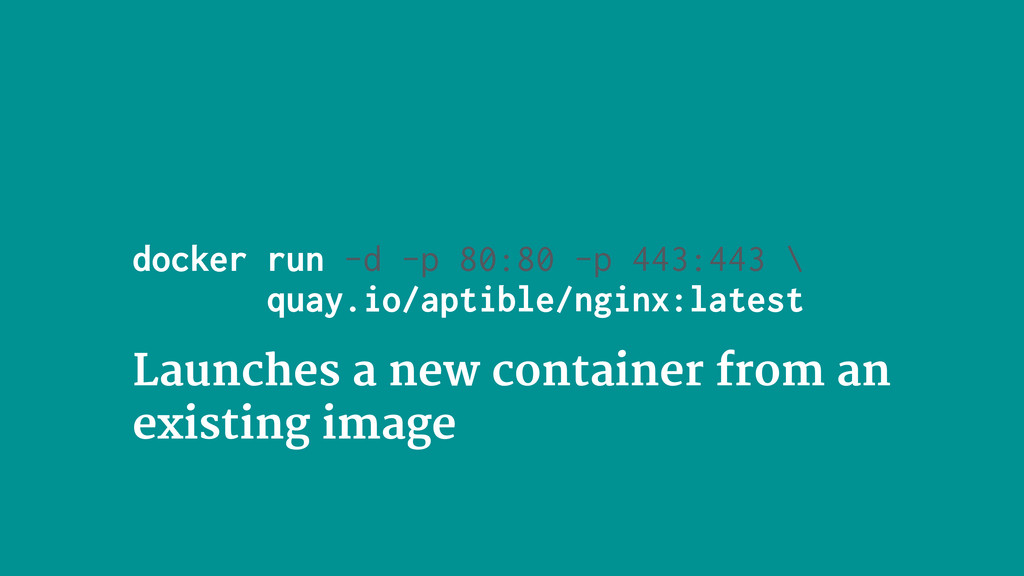

docker run -d -p 80:80 -p 443:443 \ quay.io/aptible/nginx:latest Launches
a new container from an existing image
docker run -d -p 80:80 -p 443:443 \ quay.io/aptible/nginx:latest Forward
container ports to the host (host port:container port)
docker run -d -p 80:80 -p 443:443 \ quay.io/aptible/nginx:latest Run
container in background
docker ps
None
None
Simplifying SOA Service-oriented architectures without the complexity
Dev/prod parity?
None
What makes dev/prod parity so hard?
What makes dev/prod parity so hard? 1 production deployment, many
development/ staging environments
What makes dev/prod parity so hard? SOA simplifies each service’s
responsibilities, but often at the cost of additional deployment complexity
What makes dev/prod parity so hard? The more services you
have, the harder it is to achieve dev/prod parity
What makes dev/prod parity so hard? The more engineers you
have, the harder it is to standardize dev parity
None
None
None
README != Automation
Dev/prod parity via Docker
Dev/prod parity via Docker Define services in terms of Docker
images

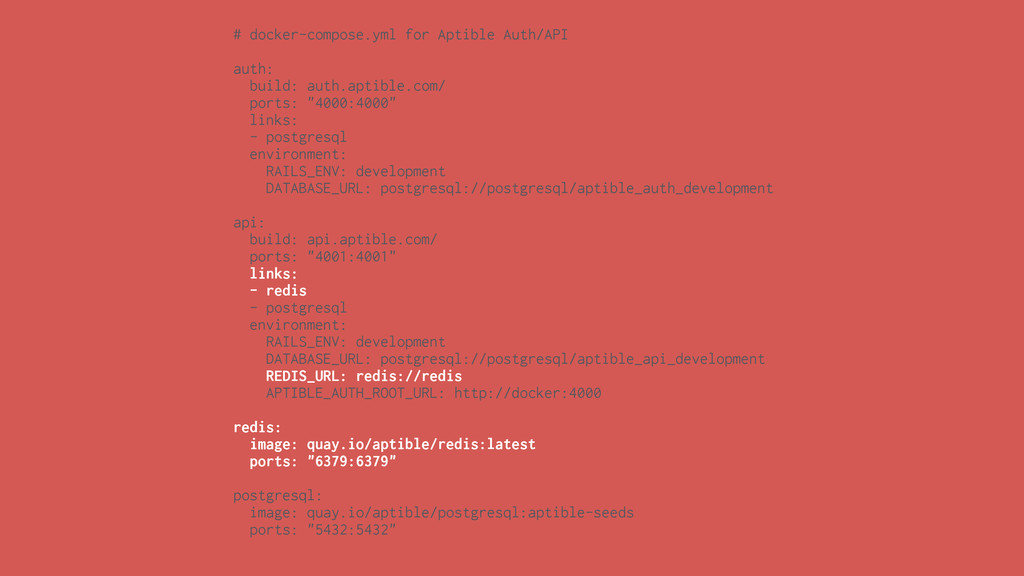

# docker-compose.yml for Aptible Auth/API auth: build: auth.aptible.com/ ports: "4000:4000"
links: - postgresql environment: RAILS_ENV: development DATABASE_URL: postgresql://postgresql/aptible_auth_development api: build: api.aptible.com/ ports: "4001:4001" links: - redis - postgresql environment: RAILS_ENV: development DATABASE_URL: postgresql://postgresql/aptible_api_development REDIS_URL: redis://redis APTIBLE_AUTH_ROOT_URL: http://docker:4000 redis: image: quay.io/aptible/redis:latest ports: "6379:6379" postgresql: image: quay.io/aptible/postgresql:aptible-seeds ports: "5432:5432"
# docker-compose.yml for Aptible Auth/API auth: build: auth.aptible.com/ ports: "4000:4000"
links: - postgresql environment: RAILS_ENV: development DATABASE_URL: postgresql://postgresql/aptible_auth_development api: build: api.aptible.com/ ports: "4001:4001" links: - redis - postgresql environment: RAILS_ENV: development DATABASE_URL: postgresql://postgresql/aptible_api_development REDIS_URL: redis://redis APTIBLE_AUTH_ROOT_URL: http://docker:4000 redis: image: quay.io/aptible/redis:latest ports: "6379:6379" postgresql: image: quay.io/aptible/postgresql:aptible-seeds ports: "5432:5432"
# docker-compose.yml for Aptible Auth/API auth: build: auth.aptible.com/ ports: "4000:4000"
links: - postgresql environment: RAILS_ENV: development DATABASE_URL: postgresql://postgresql/aptible_auth_development api: build: api.aptible.com/ ports: "4001:4001" links: - redis - postgresql environment: RAILS_ENV: development DATABASE_URL: postgresql://postgresql/aptible_api_development REDIS_URL: redis://redis APTIBLE_AUTH_ROOT_URL: http://docker:4000 redis: image: quay.io/aptible/redis:latest ports: "6379:6379" postgresql: image: quay.io/aptible/postgresql:aptible-seeds ports: "5432:5432"
# docker-compose.yml for Aptible Auth/API auth: build: auth.aptible.com/ ports: "4000:4000"
links: - postgresql environment: RAILS_ENV: development DATABASE_URL: postgresql://postgresql/aptible_auth_development api: build: api.aptible.com/ ports: "4001:4001" links: - redis - postgresql environment: RAILS_ENV: development DATABASE_URL: postgresql://postgresql/aptible_api_development REDIS_URL: redis://redis APTIBLE_AUTH_ROOT_URL: http://docker:4000 redis: image: quay.io/aptible/redis:latest ports: "6379:6379" postgresql: image: quay.io/aptible/postgresql:aptible-seeds ports: "5432:5432"
Dev/prod parity via Docker Use the same service/image configuration in
production as in development (Docker Compose, Swarm, Kubernetes…)
Containerized SSL Infrastructure management made easy
Elastic Load Balancer (ELB) EC2 Instance EC2 Instance NGiNX NGiNX
TCP/HTTPS TCP/HTTPS HTTP HTTP

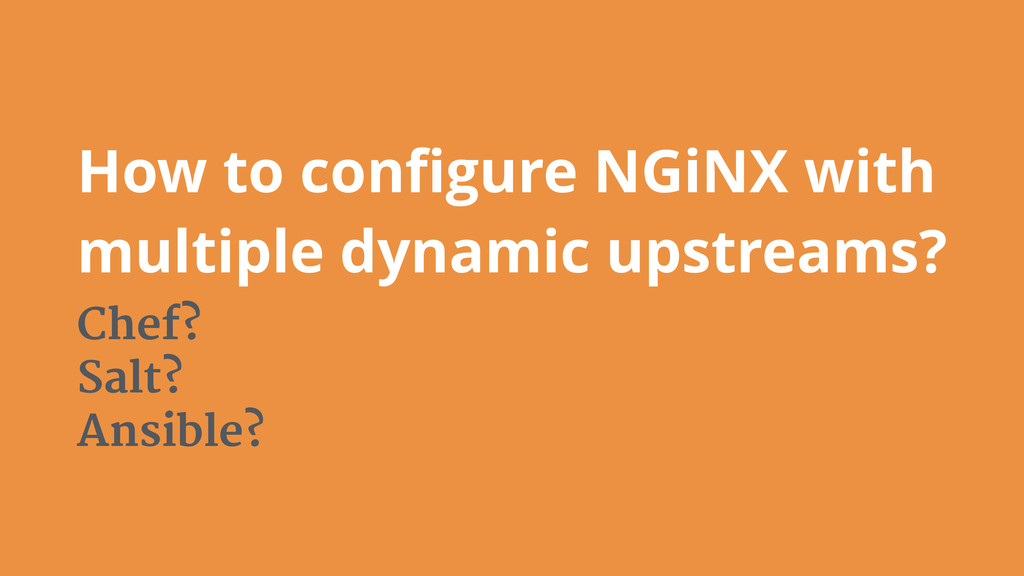

How to configure NGiNX with multiple dynamic upstreams? Chef? Salt?
Ansible?
ENV configuration $UPSTREAM_SERVERS

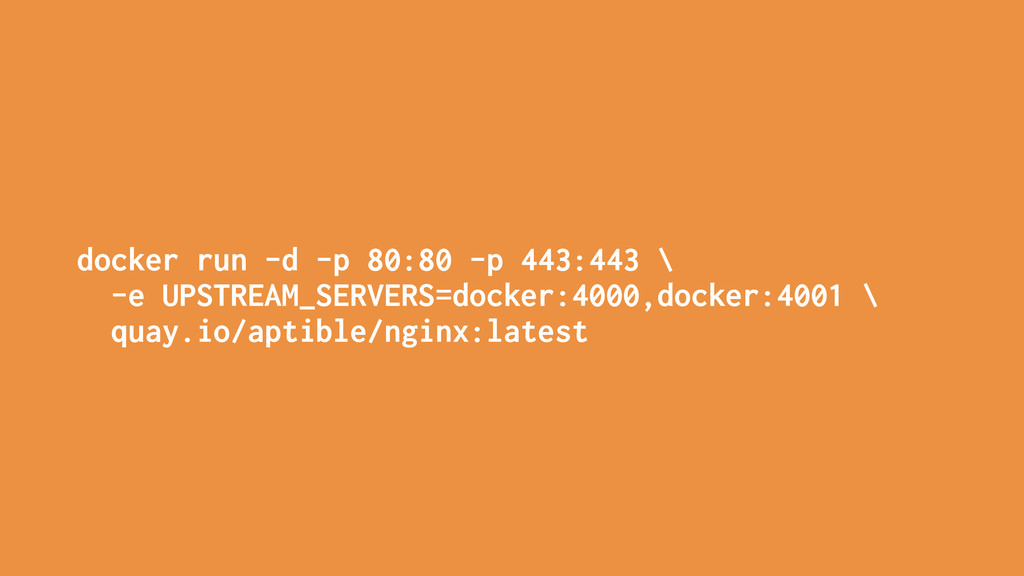

docker run -d -p 80:80 -p 443:443 \ -e UPSTREAM_SERVERS=docker:4000,docker:4001
\ quay.io/aptible/nginx:latest
docker run -d -p 80:80 -p 443:443 \ -e UPSTREAM_SERVERS=docker:4000,docker:4001
\ quay.io/aptible/nginx:latest
ENV configuration Makes testing easier
https://github.com/sstephenson/bats
# Dockerfile # Install and configure NGiNX... # ... ADD
test /tmp/test RUN bats /tmp/test https://github.com/aptible/docker-nginx Image: quay.io/aptible/nginx
#!/usr/bin/env bats # /tmp/test/nginx.bats @test "It should accept a list
of UPSTREAM_SERVERS" { simulate_upstream UPSTREAM_SERVERS=localhost:4000 wait_for_nginx run curl localhost 2>/dev/null [[ "$output" =~ "Hello World!" ]] }
#!/usr/bin/env bats # /tmp/test/nginx.bats @test "It should accept a list
of UPSTREAM_SERVERS" { simulate_upstream UPSTREAM_SERVERS=localhost:4000 wait_for_nginx run curl localhost 2>/dev/null [[ "$output" =~ "Hello World!" ]] }
@test "It should accept a list of UPSTREAM_SERVERS" { simulate_upstream
UPSTREAM_SERVERS=localhost:4000 wait_for_nginx run curl localhost 2>/dev/null [[ "$output" =~ "Hello World!" ]] } simulate_upstream() { nc -l -p 4000 127.0.0.1 < upstream-response.txt }

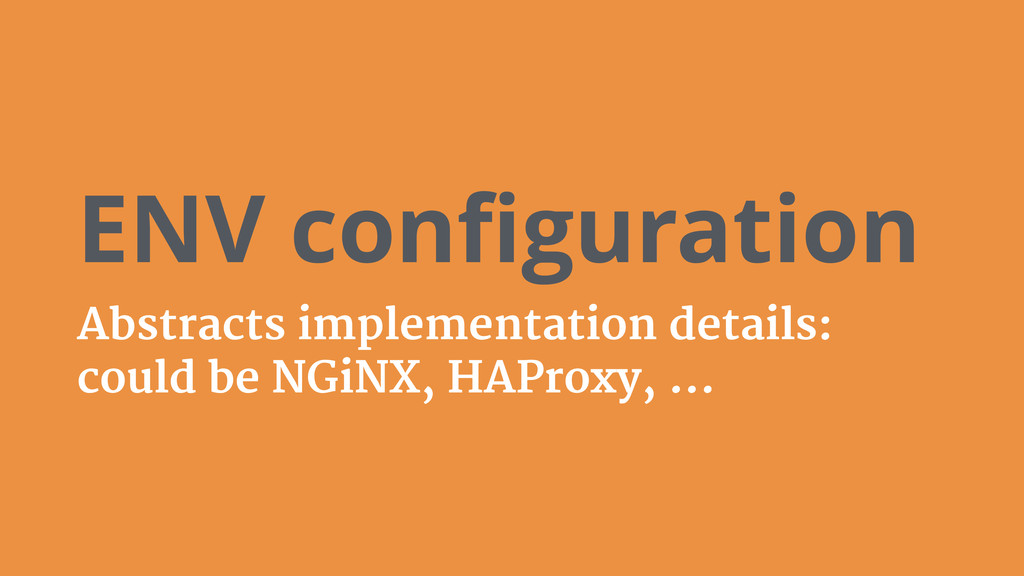

ENV configuration Abstracts implementation details: could be NGiNX, HAProxy, …
ENV configuration Simplifies configuration management: central store doesn’t need to
know parameters in advance
ENV configuration $UPSTREAM_SERVERS $FORCE_SSL $DISABLE_WEAK_CIPHER_SUITES (…)
Vulnerability Response Fix, test, docker push, restart
Heartbleed
Heartbleed POODLEbleed
Heartbleed POODLEbleed xBleed???
Integration Tests Document and test every vulnerability response
#!/usr/bin/env bats # /tmp/test/nginx.bats @test "It should pass an external
Heartbleed test" { install_heartbleed wait_for_nginx Heartbleed localhost:443 uninstall_heartbleed }

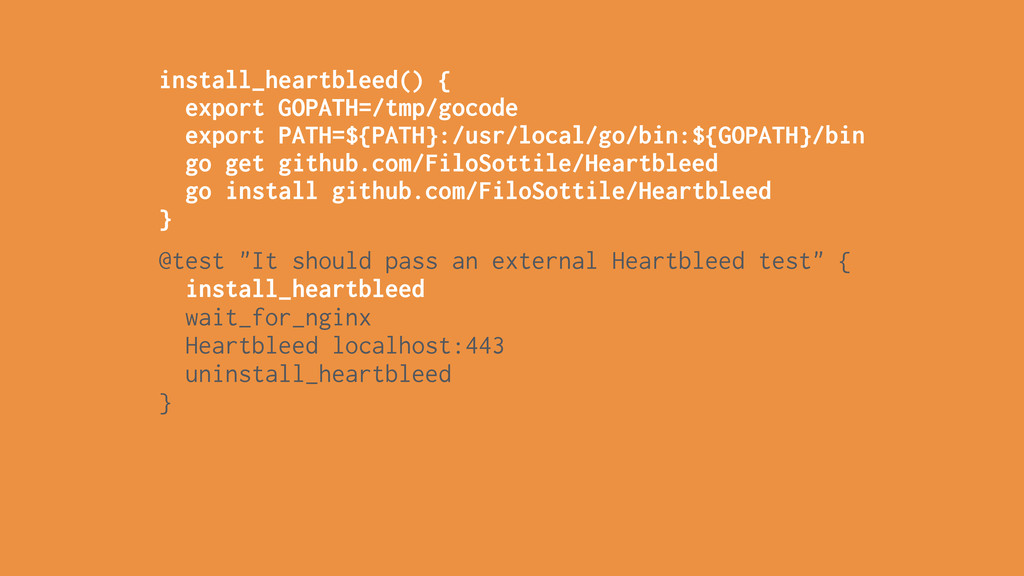

@test "It should pass an external Heartbleed test" { install_heartbleed
wait_for_nginx Heartbleed localhost:443 uninstall_heartbleed } install_heartbleed() { export GOPATH=/tmp/gocode export PATH=${PATH}:/usr/local/go/bin:${GOPATH}/bin go get github.com/FiloSottile/Heartbleed go install github.com/FiloSottile/Heartbleed }

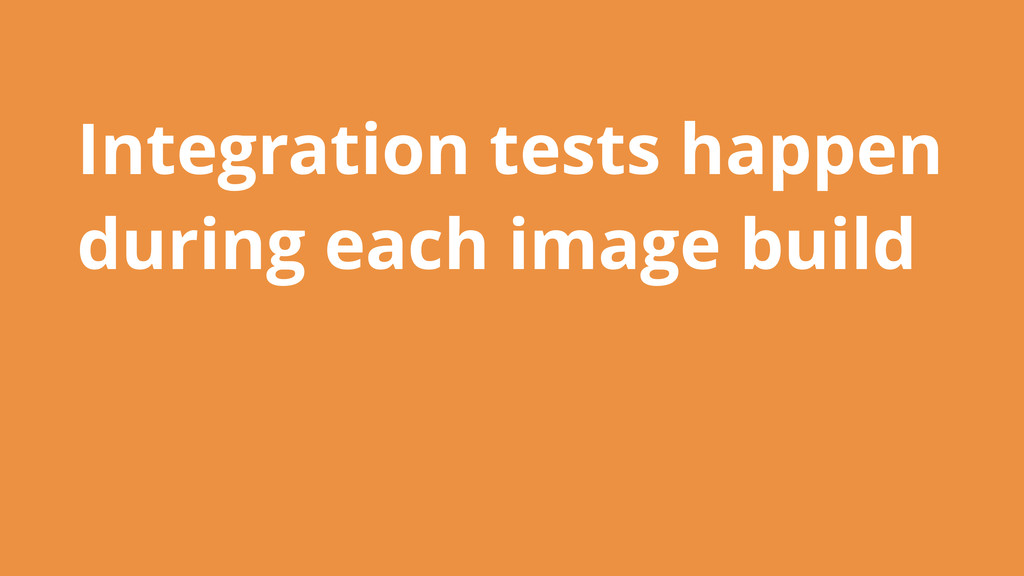

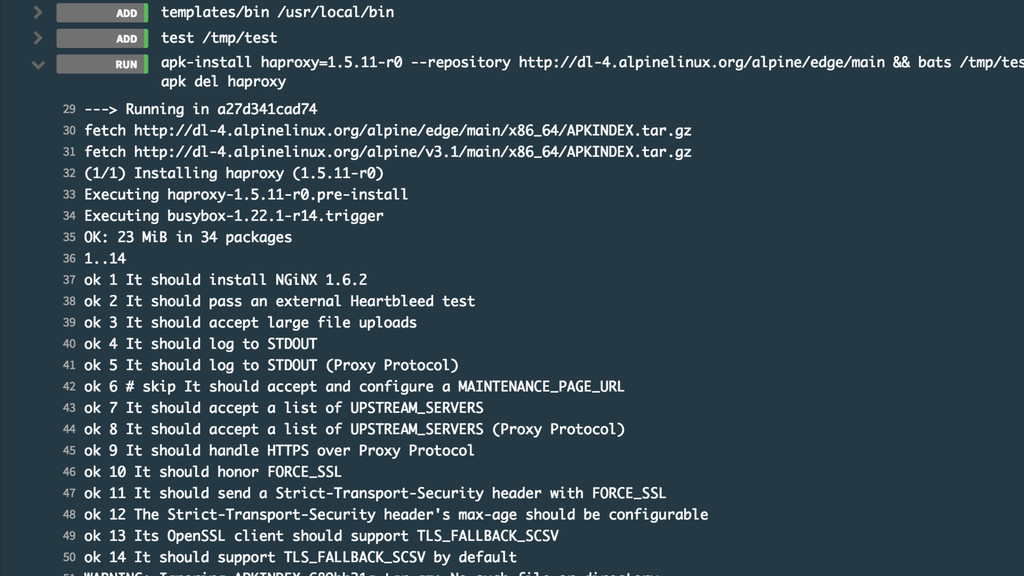

Integration tests happen during each image build
Integration tests happen during each image build Images are built
automatically via Quay Build Triggers
None

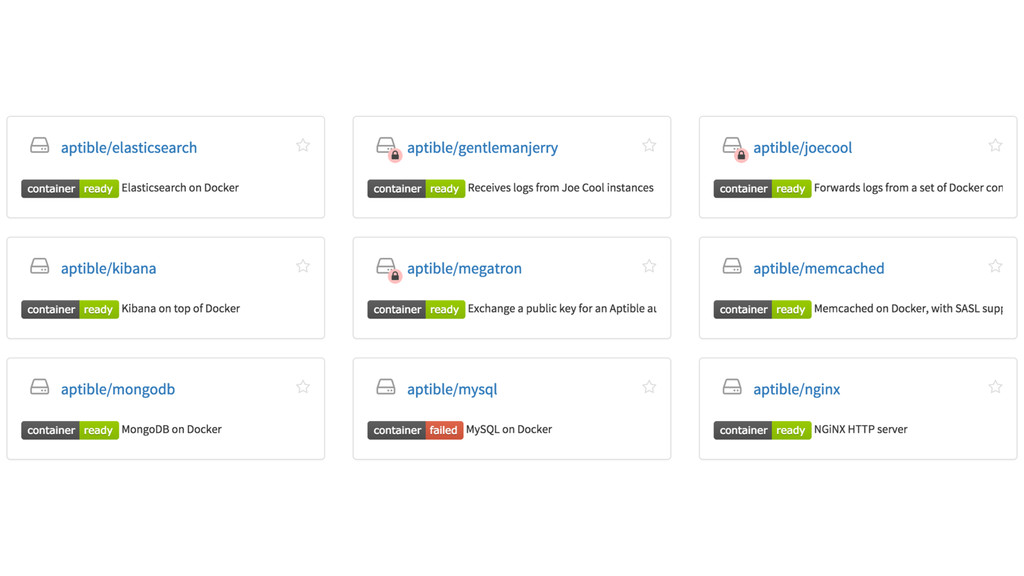

Integration tests happen during each image build Build status is
easy to verify at a glance
None
Integration tests happen during each image build Quay Time Machine
lets us roll back an image to any previous state
None
Database Deployment Standardizing an "API" across databases
None
New databases mean new dependencies
New databases mean new dependencies How to document setup steps
for engineers?
New databases mean new dependencies How to deploy in production?
New databases mean new dependencies How to perform common admin
tasks? Backups? Replication? CLI access? Read-only mode?
Wrap Databases in a Uniform API Standardizing an "API" across
databases
#!/bin/bash # run-database.sh command="/usr/lib/postgresql/$PG_VERSION/bin/postgres -D "$DATA_DIRECTORY" -c config_file=/etc/postgresql/ $PG_VERSION/main/postgresql.conf" if
[[ "$1" == "--initialize" ]]; then chown -R postgres:postgres "$DATA_DIRECTORY" su postgres <<COMMANDS /usr/lib/postgresql/$PG_VERSION/bin/initdb -D "$DATA_DIRECTORY" /etc/init.d/postgresql start psql --command "CREATE USER ${USERNAME:-aptible} WITH SUPERUSER PASSWORD '$PASSPHRASE'" psql --command "CREATE DATABASE ${DATABASE:-db}" /etc/init.d/postgresql stop COMMANDS elif [[ "$1" == "--client" ]]; then [ -z "$2" ] && echo "docker run -it aptible/postgresql --client postgresql://..." && exit psql "$2" elif [[ "$1" == "--dump" ]]; then [ -z "$2" ] && echo "docker run aptible/postgresql --dump postgresql://... > dump.psql" && exit pg_dump "$2" elif [[ "$1" == "--restore" ]]; then [ -z "$2" ] && echo "docker run -i aptible/postgresql --restore postgresql://... < dump.psql" && exit psql "$2"
#!/bin/bash # run-database.sh command="/usr/lib/postgresql/$PG_VERSION/bin/postgres -D "$DATA_DIRECTORY" -c config_file=/etc/postgresql/ $PG_VERSION/main/postgresql.conf" if
[[ "$1" == "--initialize" ]]; then chown -R postgres:postgres "$DATA_DIRECTORY" su postgres <<COMMANDS /usr/lib/postgresql/$PG_VERSION/bin/initdb -D "$DATA_DIRECTORY" /etc/init.d/postgresql start psql --command "CREATE USER ${USERNAME:-aptible} WITH SUPERUSER PASSWORD '$PASSPHRASE'" psql --command "CREATE DATABASE ${DATABASE:-db}" /etc/init.d/postgresql stop COMMANDS elif [[ "$1" == "--client" ]]; then [ -z "$2" ] && echo "docker run -it aptible/postgresql --client postgresql://..." && exit psql "$2" elif [[ "$1" == "--dump" ]]; then [ -z "$2" ] && echo "docker run aptible/postgresql --dump postgresql://... > dump.psql" && exit pg_dump "$2" elif [[ "$1" == "--restore" ]]; then [ -z "$2" ] && echo "docker run -i aptible/postgresql --restore postgresql://... < dump.psql" && exit psql "$2"
--initialize: Initialize data directory --client: Start a CLI client --dump:
Dump database to STDOUT --restore: Restore from dump --readonly: Start database in RO mode

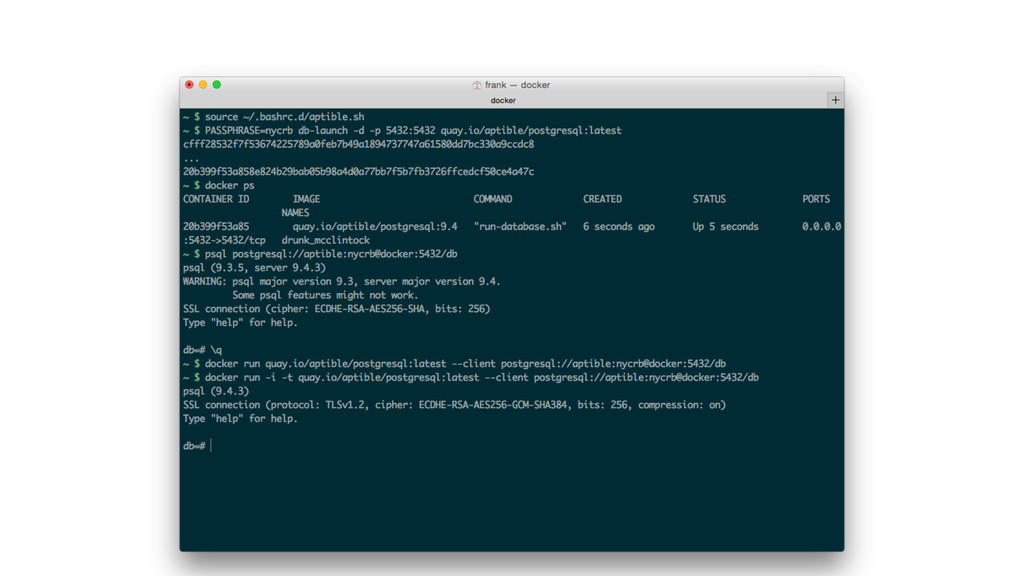

db-launch () { container=$(head -c 32 /dev/urandom | md5); passphrase=${PASSPHRASE:-foobar};
image="${@: -1}"; docker create --name $container $image docker run --volumes-from $container \ -e USERNAME=aptible -e PASSPHRASE=$passphrase \ -e DB=db $image --initialize docker run --volumes-from $container $@ } http://bit.ly/aptible-dblaunch
docker create --name $container $image http://bit.ly/aptible-dblaunch 1. Create "volume container"
docker run --volumes-from $container \ -e USERNAME=aptible -e PASSPHRASE=$passphrase \
-e DB=db $image --initialize http://bit.ly/aptible-dblaunch 2. Initialize database data volume
docker run --volumes-from $container $@ http://bit.ly/aptible-dblaunch 3. Run database
None
Thank you
@fancyremarker
[email protected]
https://speakerdeck.com/fancyremarker
