TTN Mongolia - An Experimental IoT Platform

Presents the first 2 LoRaWAN gateways deployed for TheThingsNetwork in Ulaanbaatar

Transcript

1. The Things Network Mongolia AN EXPERIMENTAL IOT PLATFORM SICT, MUST AUG 16, 2017 ULAANBAATAR

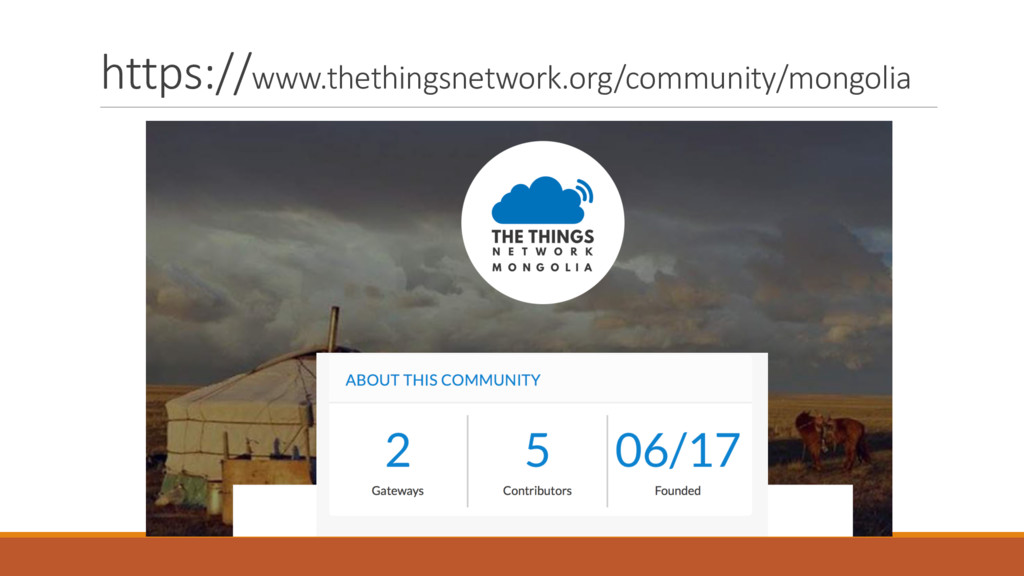

2. https://www.thethingsnetwork.org/community/mongolia

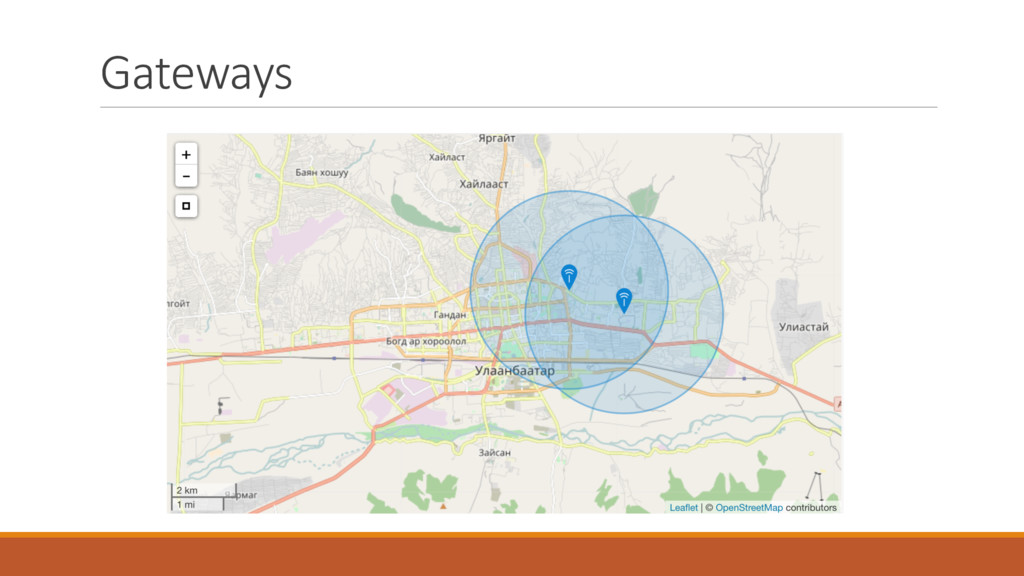

3. Gateways

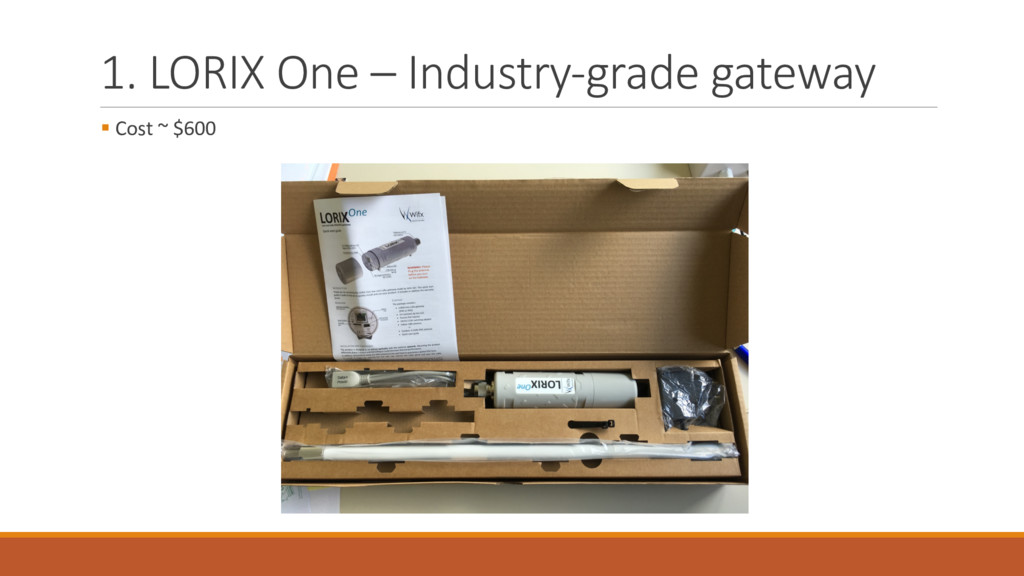

4. 1. LORIX One – Industry-grade gateway § Cost ~ $600

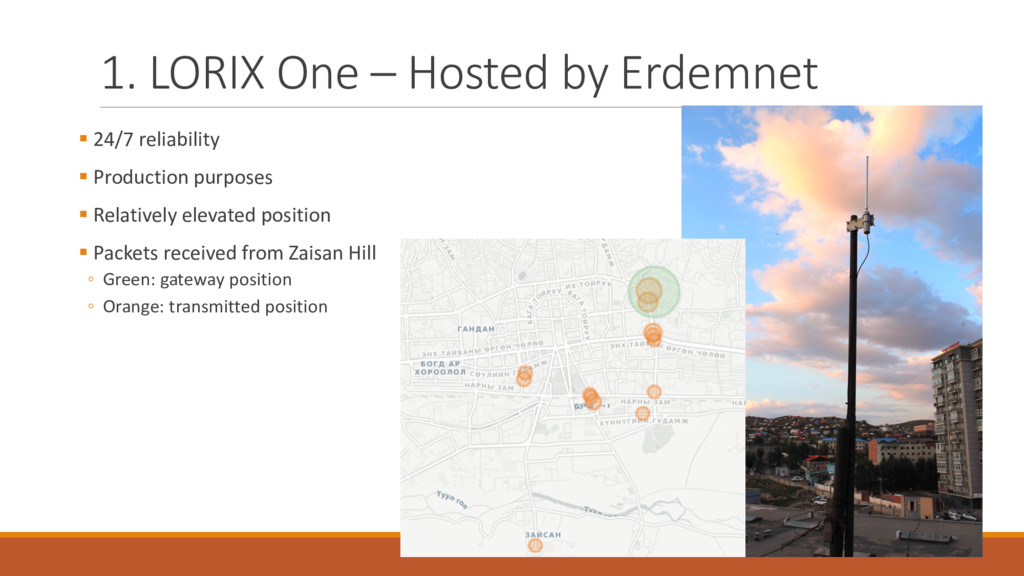

5. 1. LORIX One – Hosted by Erdemnet § 24/7 reliability § Production purposes § Relatively elevated position § Packets received from Zaisan Hill ◦ Green: gateway position ◦ Orange: transmitted position

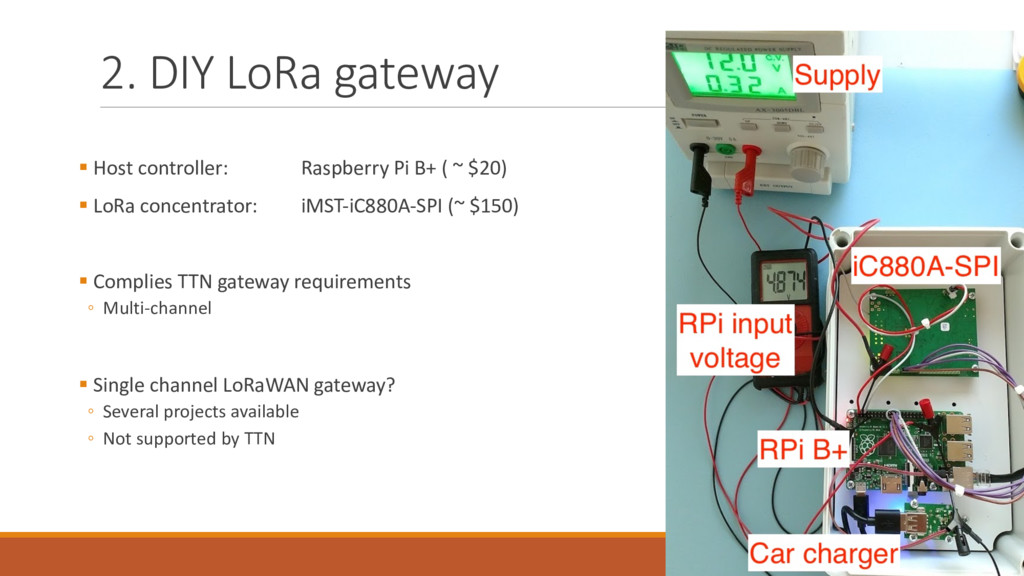

6. 2. DIY LoRa gateway § Host controller: Raspberry Pi B+ ( ~ $20) § LoRa concentrator: iMST-iC880A-SPI (~ $150) § Complies TTN gateway requirements ◦ Multi-channel § Single channel LoRaWAN gateway? ◦ Several projects available ◦ Not supported by TTN

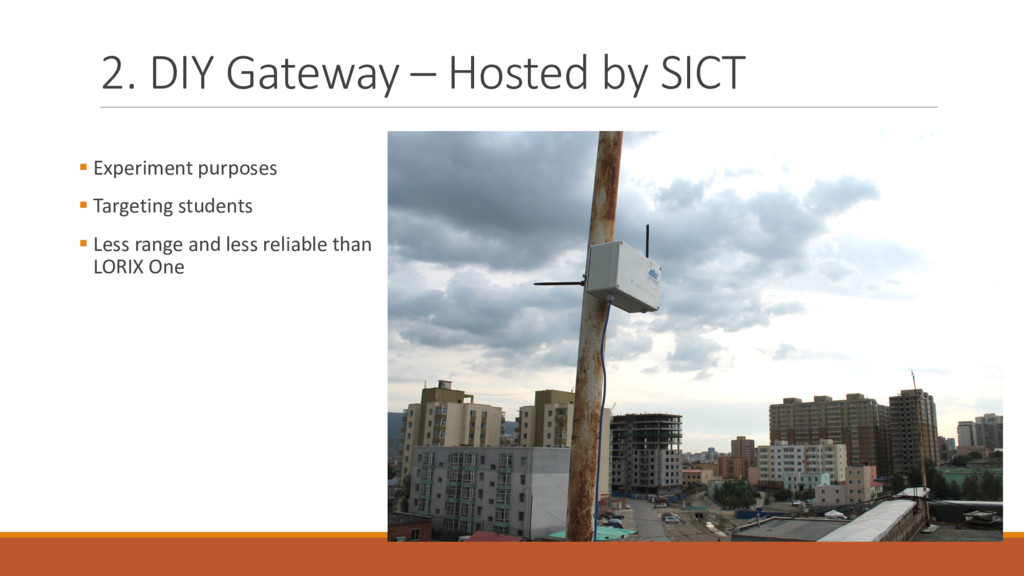

7. 2. DIY Gateway – Hosted by SICT § Experiment purposes § Targeting students § Less range and less reliable than LORIX One

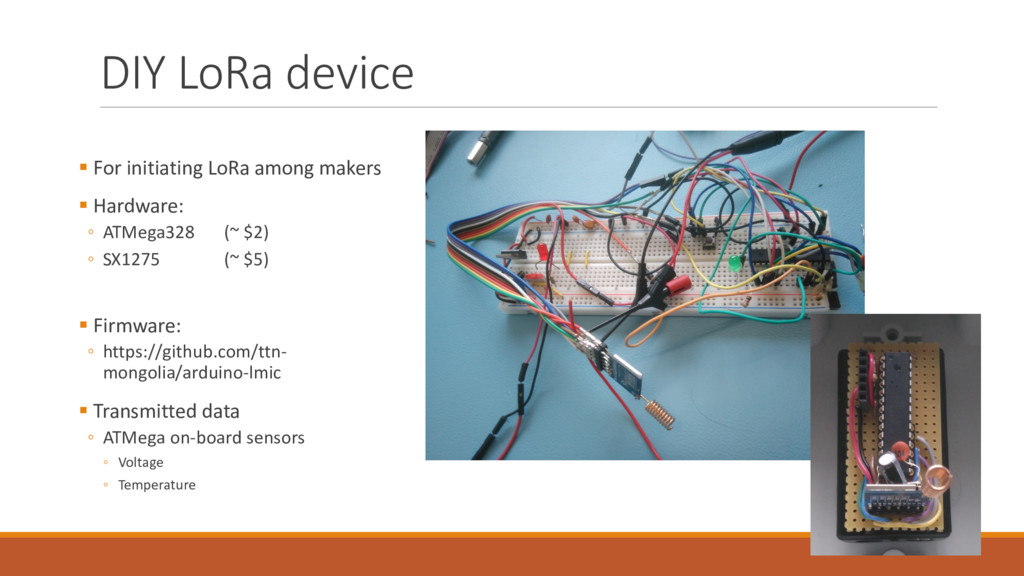

8. DIY LoRa device § For initiating LoRa among makers § Hardware: ◦ ATMega328 (~ $2) ◦ SX1275 (~ $5) § Firmware: ◦ https://github.com/ttn- mongolia/arduino-lmic § Transmitted data ◦ ATMega on-board sensors ◦ Voltage ◦ Temperature

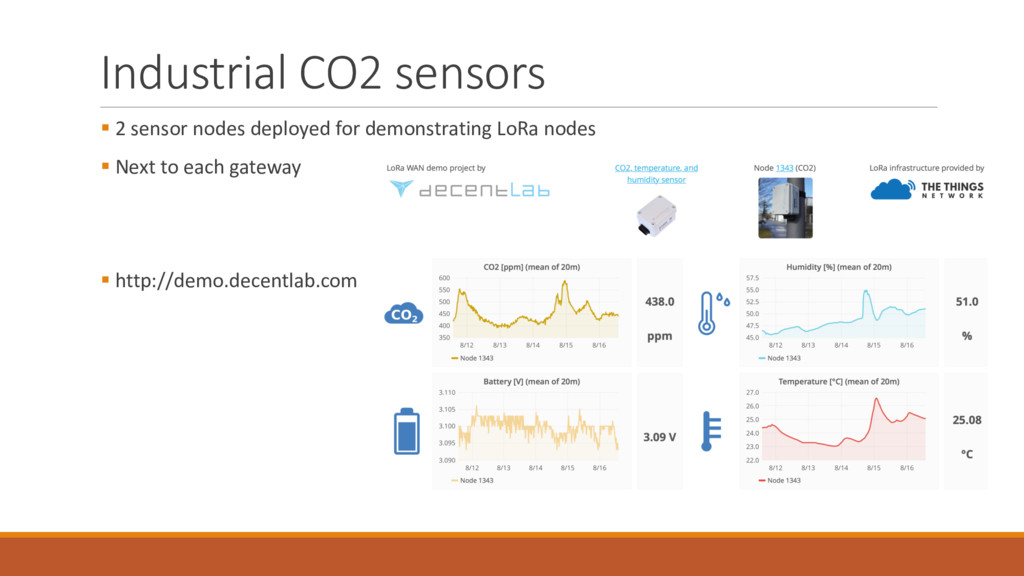

9. Industrial CO2 sensors § 2 sensor nodes deployed for demonstrating LoRa nodes § Next to each gateway § http://demo.decentlab.com

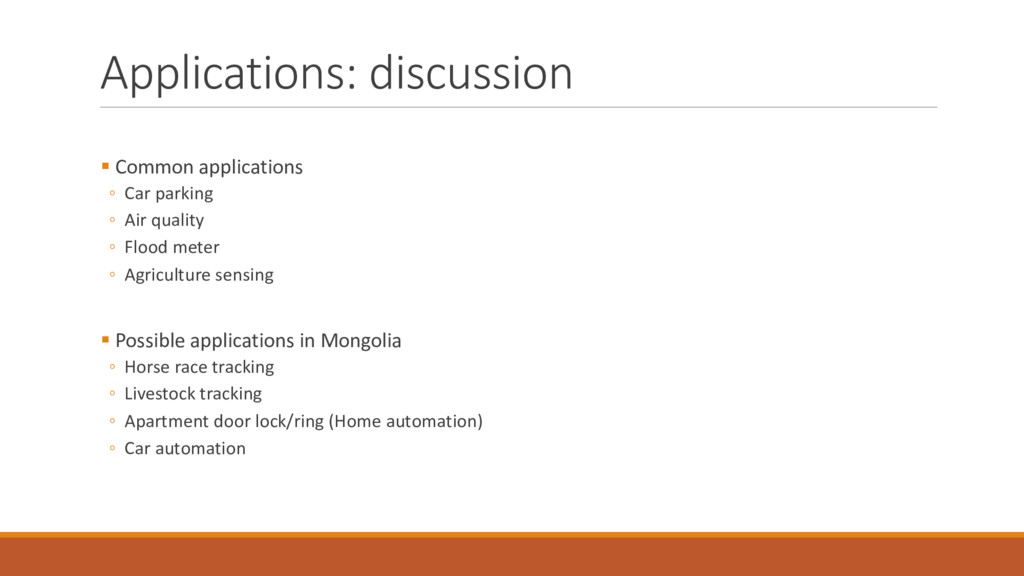

10. Applications: discussion § Common applications ◦ Car parking ◦ Air quality ◦ Flood meter ◦ Agriculture sensing § Possible applications in Mongolia ◦ Horse race tracking ◦ Livestock tracking ◦ Apartment door lock/ring (Home automation) ◦ Car automation

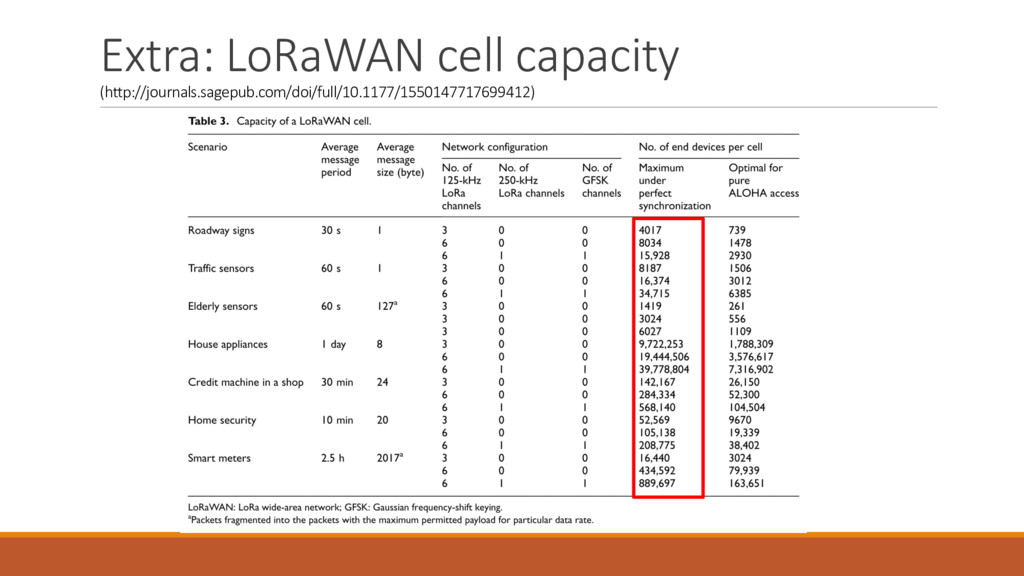

11. Extra: LoRaWAN cell capacity (http://journals.sagepub.com/doi/full/10.1177/1550147717699412)

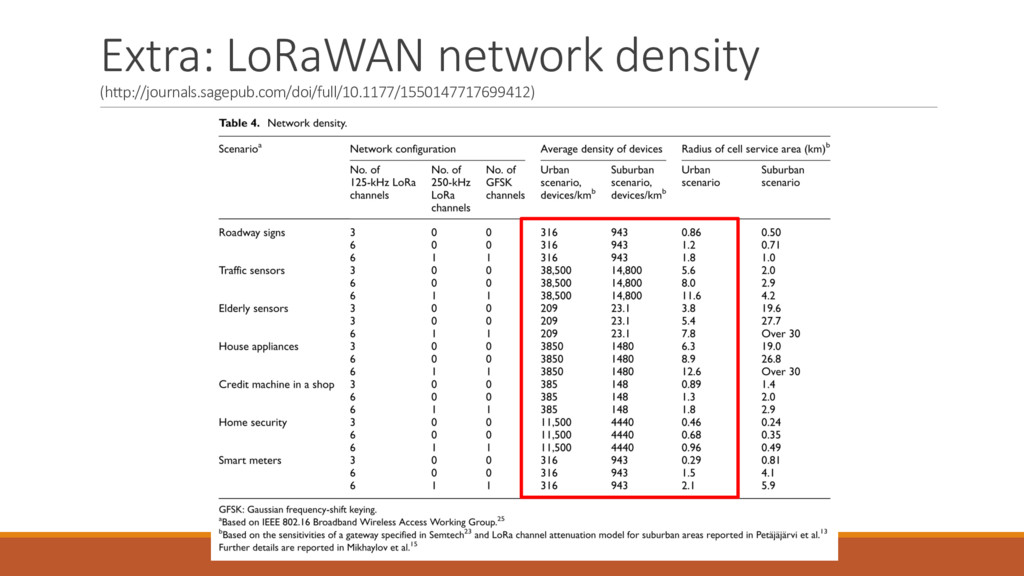

12. Extra: LoRaWAN network density (http://journals.sagepub.com/doi/full/10.1177/1550147717699412)
13. Thank you for your attention
