Deploying Rails applications to AWS

A manifesto of best practices

Transcript

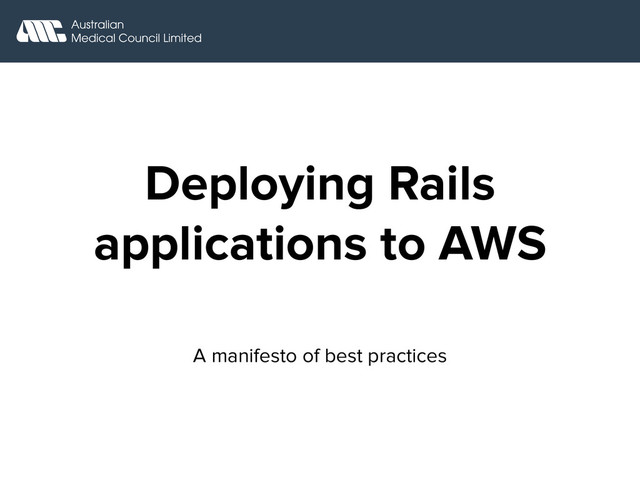

1. Deploying Rails applications to AWS A manifesto of best practices
2. 12 factor apps • VI. Processes
 Execute the app as one or more stateless processes • VIII. Concurrency
 Scale out via the process model • XI. Logs
 Treat logs as event streams • Read it all! http://12factor.net/
4. Identity and Access Management (IAM)
7. Command Line Interface
8. Command Line Interface Install with: $ pip install awscli $ brew install awscli Configure with: $ aws configure

9. Simple Storage Service (S3)
12. Asset Sync AssetSync.configure do |config| config.aws_iam_roles = true config.fog_provider = 'AWS' config.fog_region = 'ap-southeast-2' config.fog_directory = 'your-app-bucket' ! # Automatically replace files with their equivalent # gzip compressed version config.gzip_compression = true end
14. Refile Refile consists of several parts: 1. Backends: cache and persist files (filesystem, S3, etc.) 2. Model attachments: map files to model columns 3. A Rack application: streams files and accepts uploads 4. Rails helpers: conveniently generate markup in your views 5. A JavaScript library: facilitates direct uploads
15. Elastic Compute Cloud (EC2)
16. Amazon Machine Images (AMIs) • Start with a base AMI (Ubuntu, Amazon Linux, etc.) • Provision your application decencies and create your own AMI • Look to automate the provisioning with a tool like Ansible • Provision all the way up to the point at which you can deploy your application and it will run
17. Route 53 DNS Cloud Front CDN Elastic Load Balancer Availability Zone A Availability Zone B S3 0. /assets/* 1. /* * autoscale * logs go into CloudWatch
18. Auto scaling
19. Auto Scaling • Triggered by auto-scaling events • Auto-scaling events typically triggered by CloudWatch alerts • Also triggered by an Availability Zone outages • Instances join the active group when their health check is “green” • Launch configurations can contain user data, which can include scripts to pull down application code
20. CloudWatch
21. Cloud Watch • AWS-level monitoring (CPU, Network, etc.) • System level monitoring (Memory, Disk, etc.), using perl agent + 5 minute cron schedule • Log streams • Define alerts • CloudWatch alerts > SNS topics > PagerDuty
25. CloudFront
26. CloudFront CDN • Create a distribution and assign your apps primary domain as a CNAME, eg. youapp.com • You can potentially assign other CNAME aliases assets-1.yourapp.com, assets-1.yourapp.com, etc. • Set up multiple origins and behaviours to route some traffic to S3 and the rest to your ELB/Rails app • Upload your SSL certificate
28. Route 53
29. Route 53 • DNS • Alias DNS to AWS serving points (S3 buckets, CloudFront distributions, ELBs) • Domain registration • Health Checks (pings) • Health Check > SNS Topic > PagerDuty
32. Relational Database Service (RDS)
33. RDS • MySQL • Postgres • Aurora • Oracle • MS SQL • Auto-patching • Multi-AZ (replication) • Automated backups/minor version patching • CloudWatch monitoring
34. Virtual Private Cloud (VPC)
35. VPCs • Isolate environments/applications into their own group/network • Routing tables • Internet gateway • Peering two VPCs is possible if you want a shared services tier, e.g. ActiveDirectory
36. CloudFormation
37. Splitting it all up • Setting up your VPC CloudFormation • Provisioning your AMI Ansible / Packer • Provisioning your application AWS resources CloudFormation • Deploying your application Capistrano / Code Deploy • Packaging your last deploy for new autoscaled instances to pick up before going “green” on the load balancer User data shell script to tarball deploy directory and put in S3
