2. Betclic Feedback Xamarin Hugo Mercier Laurent Dutrillaux

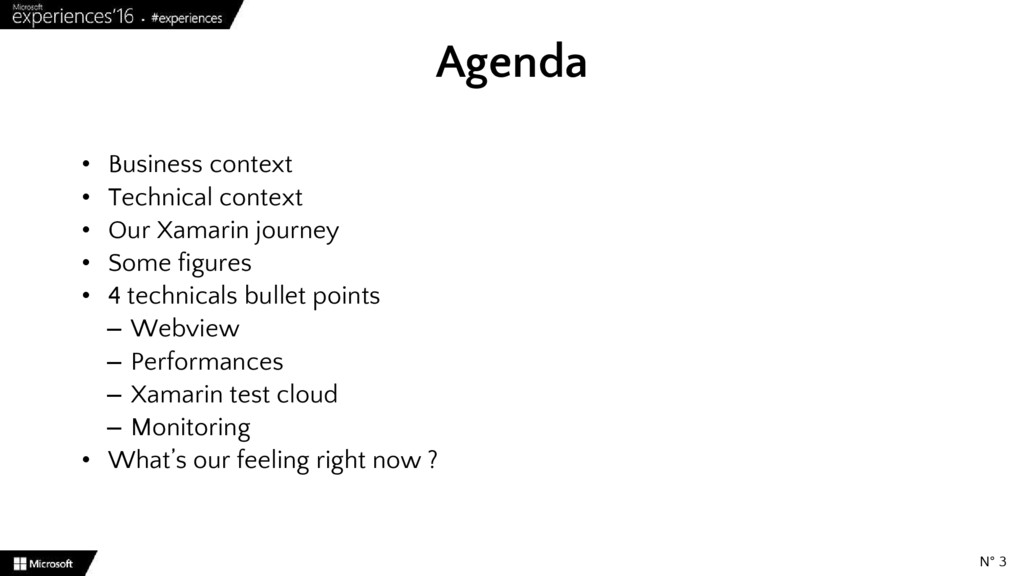

3. • Business context • Technical context • Our Xamarin journey • Some figures • 4 technicals bullet points – Webview – Performances – Xamarin test cloud – Monitoring • What’s our feeling right now ? Agenda N° 3
4. Contexts
5. Business Context Multi , multi, multi , … N° 5 Multi-brand Multi-device Multi-law

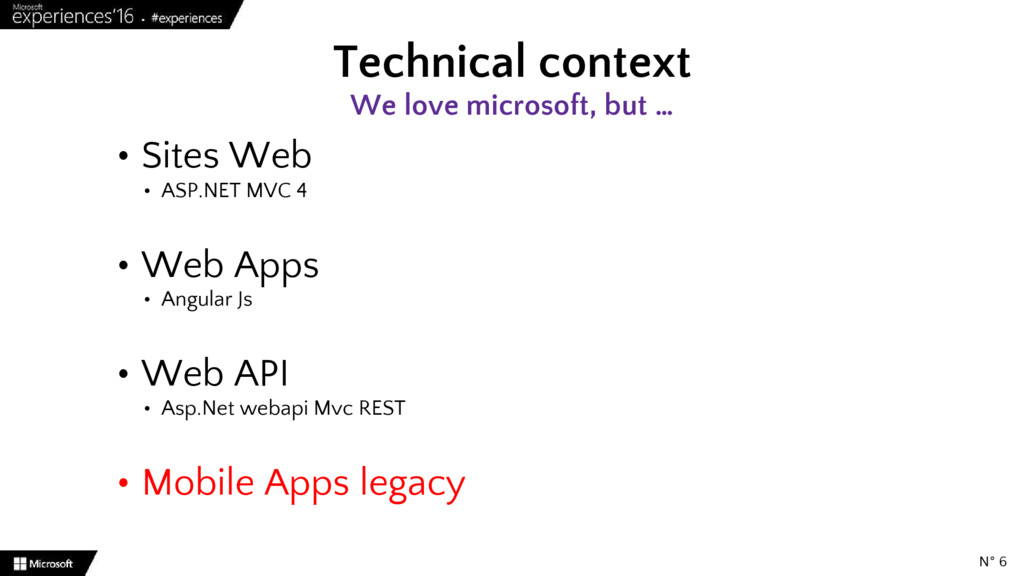

6. Technical context We love microsoft, but … N° 6 • Sites Web • ASP.NET MVC 4 • Web Apps • Angular Js • Web API • Asp.Net webapi Mvc REST • Mobile Apps legacy
7. we could talk about one hour N° 7 V S V S

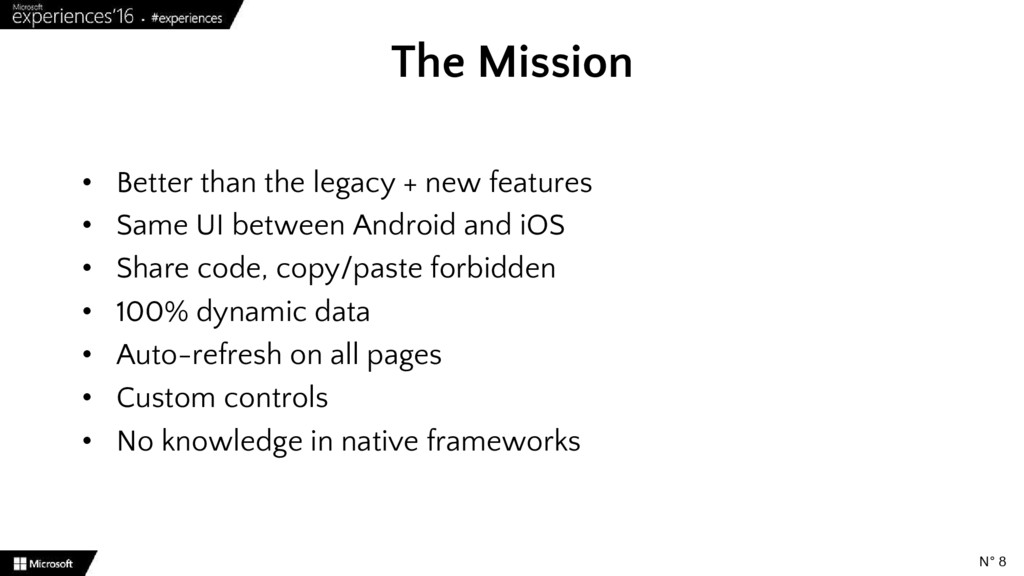

8. • Better than the legacy + new features • Same UI between Android and iOS • Share code, copy/paste forbidden • 100% dynamic data • Auto-refresh on all pages • Custom controls • No knowledge in native frameworks The Mission N° 8

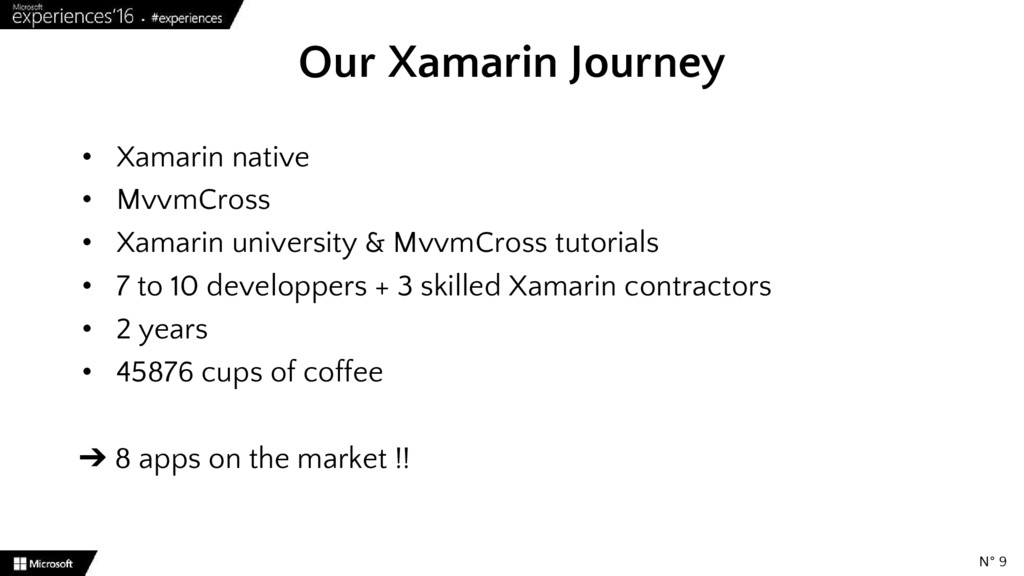

9. • Xamarin native • MvvmCross • Xamarin university & MvvmCross tutorials • 7 to 10 developpers + 3 skilled Xamarin contractors • 2 years • 45876 cups of coffee ➔ 8 apps on the market !! Our Xamarin Journey N° 9

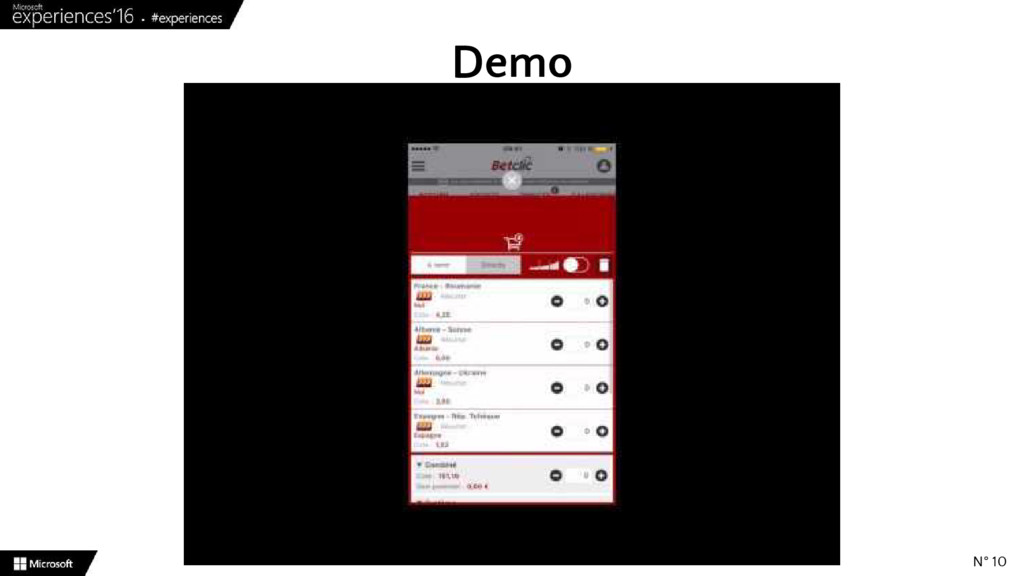

10. Demo N° 10
11. Some figures

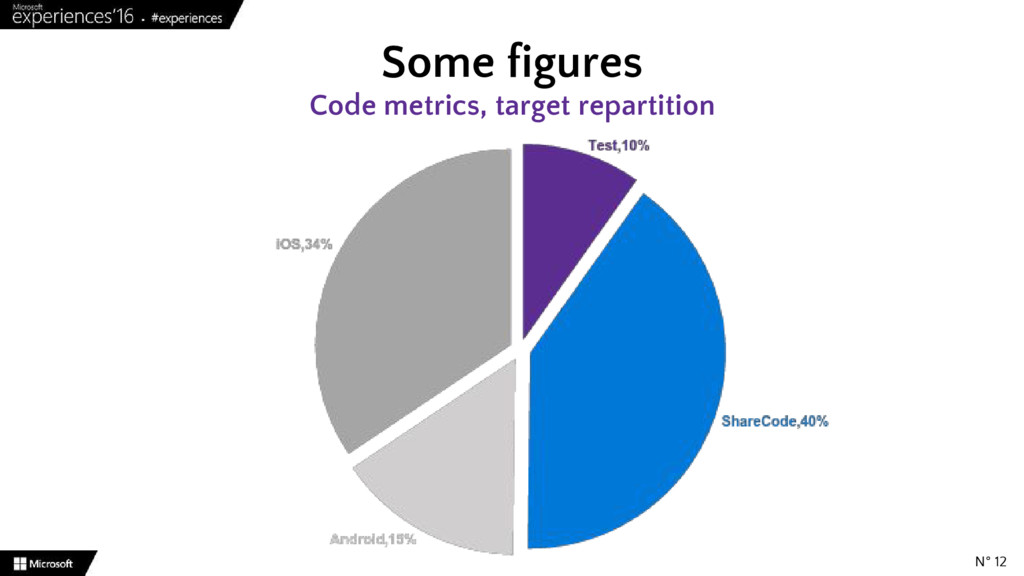

12. Some figures Code metrics, target repartition N° 12

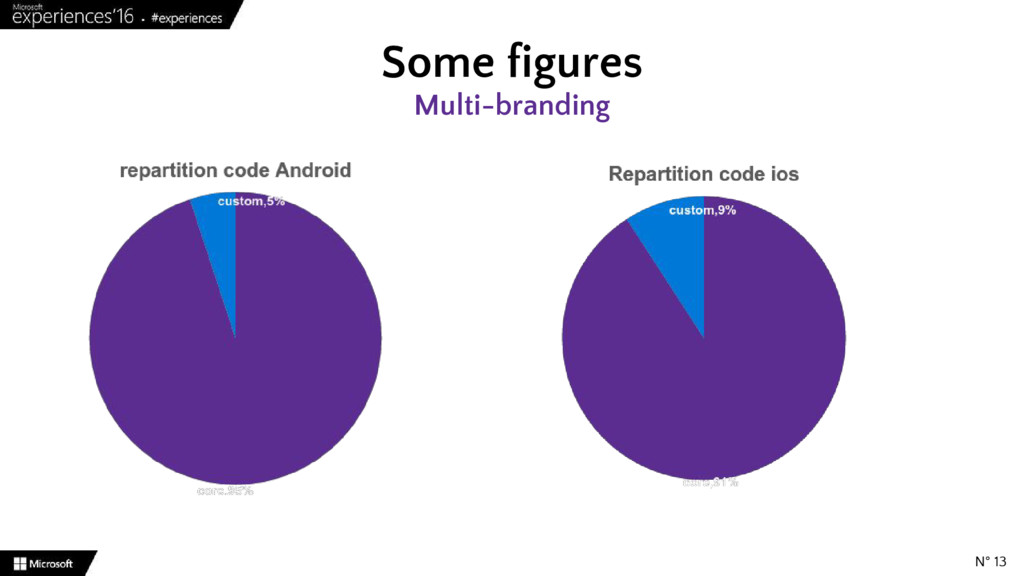

13. Some figures Multi-branding N° 13
14. Webviews
15. Advantages : • No migration required to native app • Always up-to-date Webview Why ? N° 15

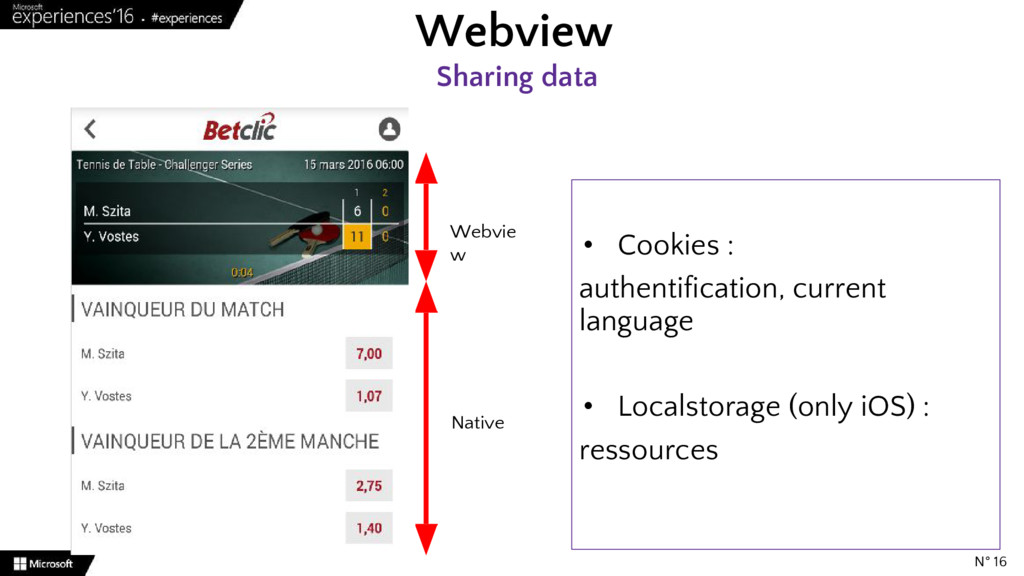

16. Webview Sharing data N° 16 Webvie w Native • Cookies : authentification, current language • Localstorage (only iOS) : ressources

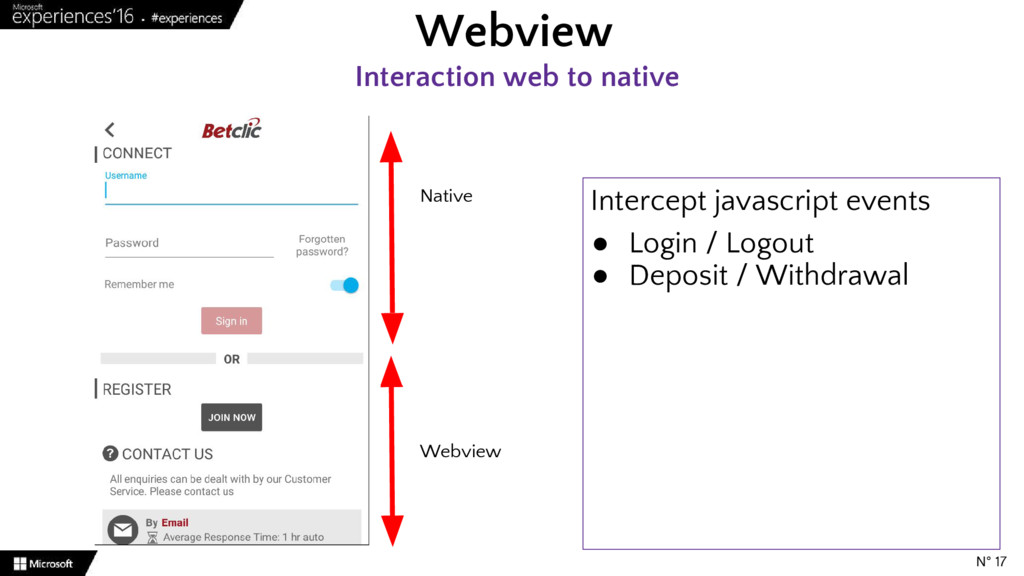

17. Webview Interaction web to native N° 17 Webview Native Intercept javascript events • Login / Logout • Deposit / Withdrawal
18. Webview Optimization N° 18 Webview Native Intercept out-going ajax request Data already available ?

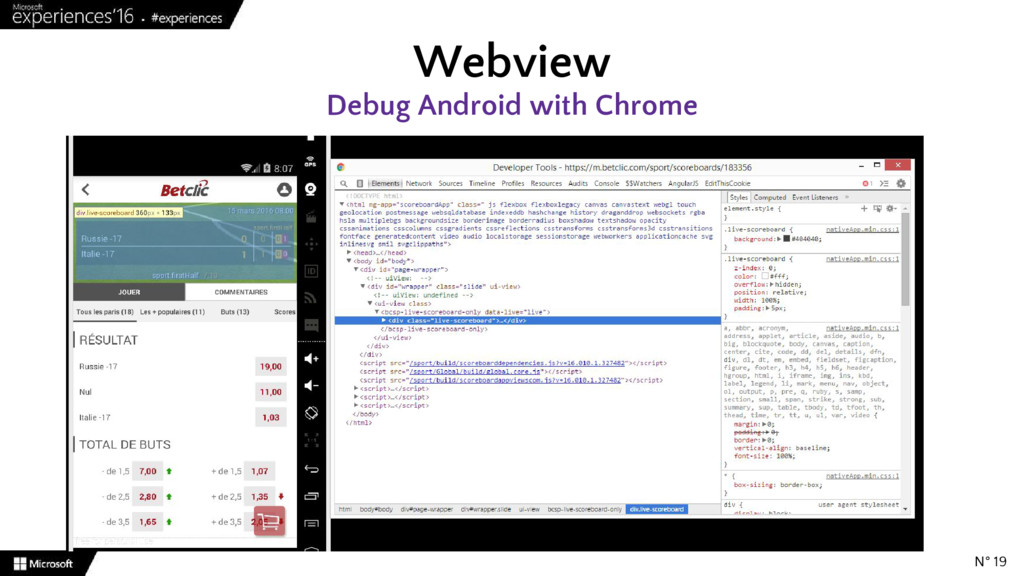

19. Webview Debug Android with Chrome N° 19

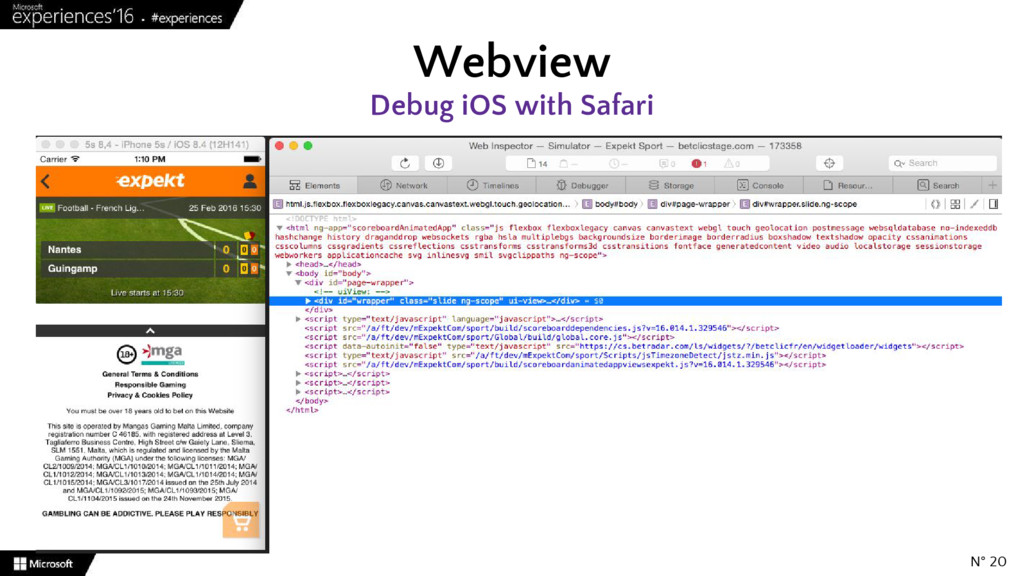

20. Webview Debug iOS with Safari N° 20
21. Resilience and Quickness

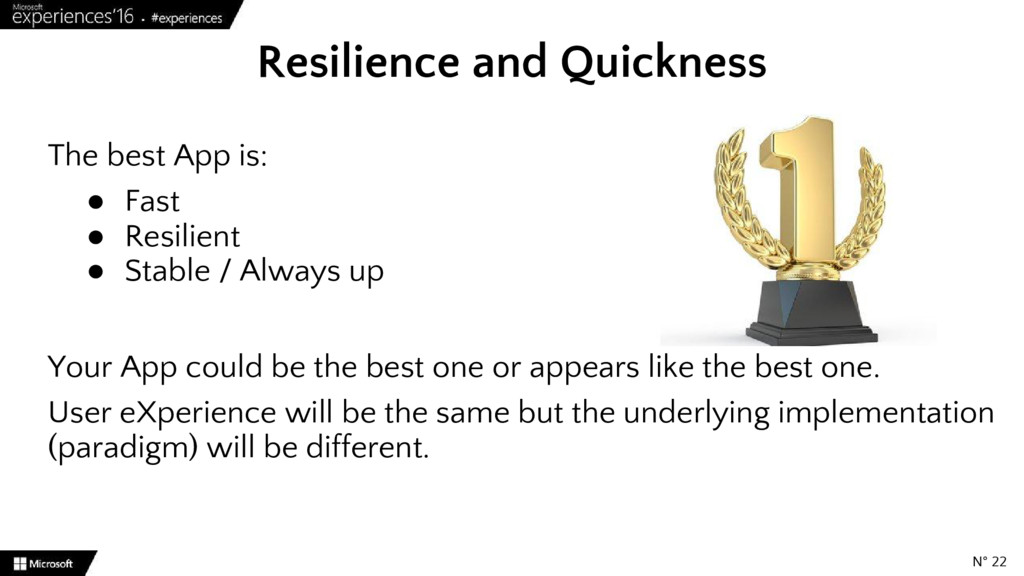

22. The best App is: • Fast • Resilient • Stable / Always up Your App could be the best one or appears like the best one. User eXperience will be the same but the underlying implementation (paradigm) will be different. Resilience and Quickness N° 22

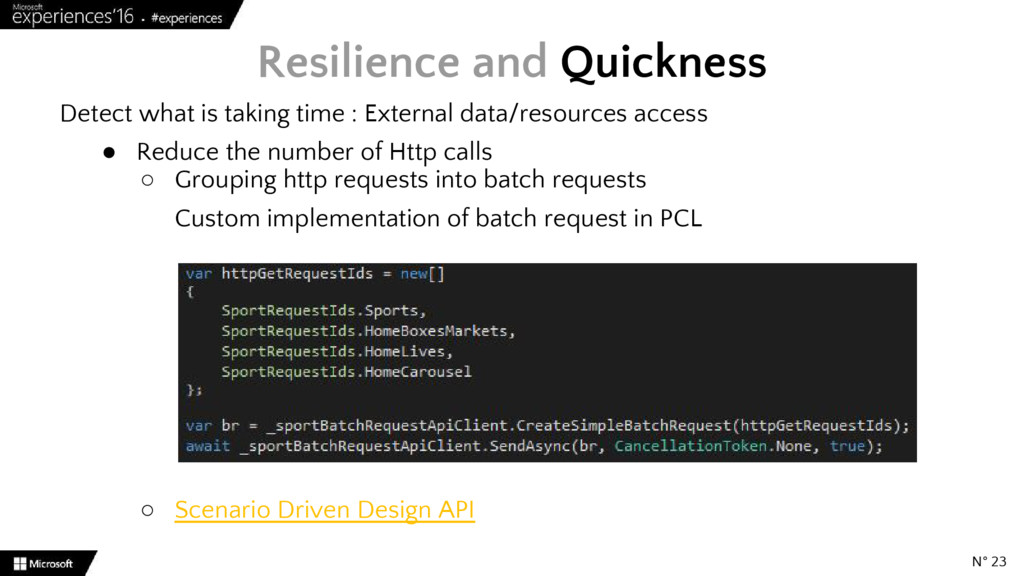

23. Detect what is taking time : External data/resources access • Reduce the number of Http calls ◦ Grouping http requests into batch requests Custom implementation of batch request in PCL ◦ Scenario Driven Design API Resilience and Quickness N° 23
24. Detect what is taking time : External data/resources access • Catching network ◦ Avoid useless network calls MVVMCross Connectivity plugin • Anticipate user navigation / Use speculative requests ◦ Bootstrap your Apps ◦ Load in background the screens the user should see Resilience and Quickness N° 24

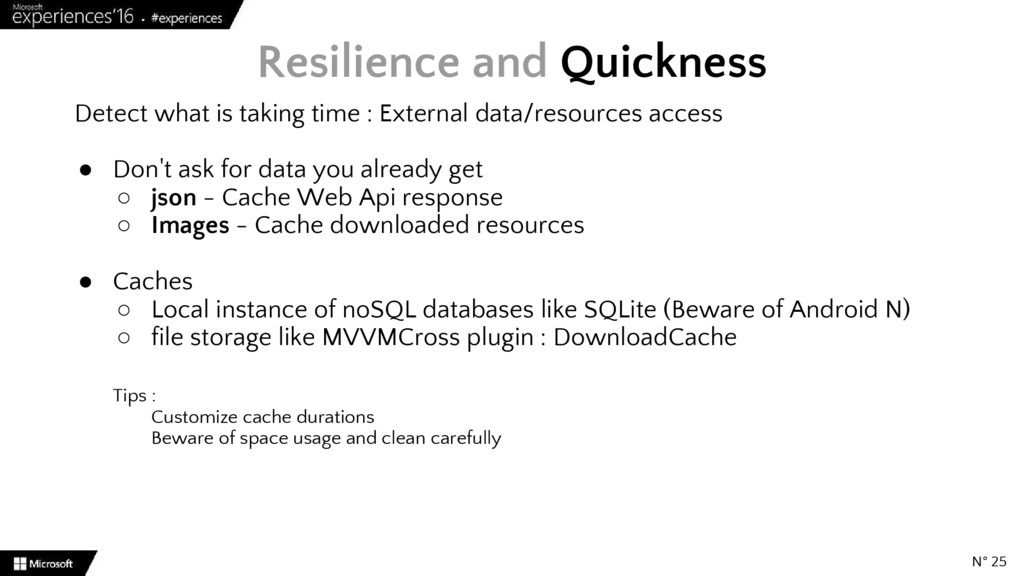

25. Detect what is taking time : External data/resources access • Don't ask for data you already get ◦ json - Cache Web Api response ◦ Images - Cache downloaded resources • Caches ◦ Local instance of noSQL databases like SQLite (Beware of Android N) ◦ file storage like MVVMCross plugin : DownloadCache Tips : Customize cache durations Beware of space usage and clean carefully Resilience and Quickness N° 25

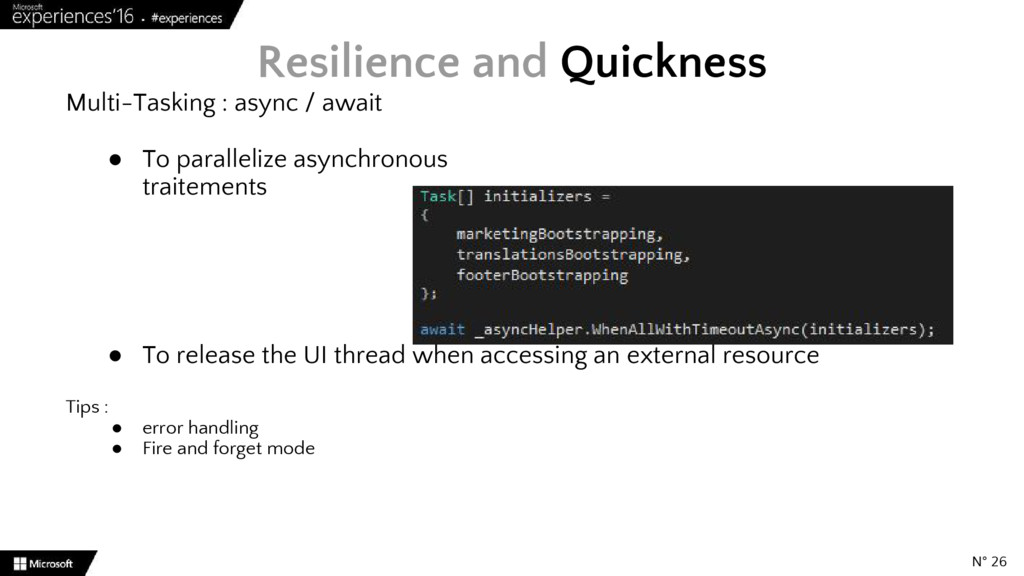

26. Multi-Tasking : async / await • To parallelize asynchronous traitements • To release the UI thread when accessing an external resource Tips : • error handling • Fire and forget mode Resilience and Quickness N° 26

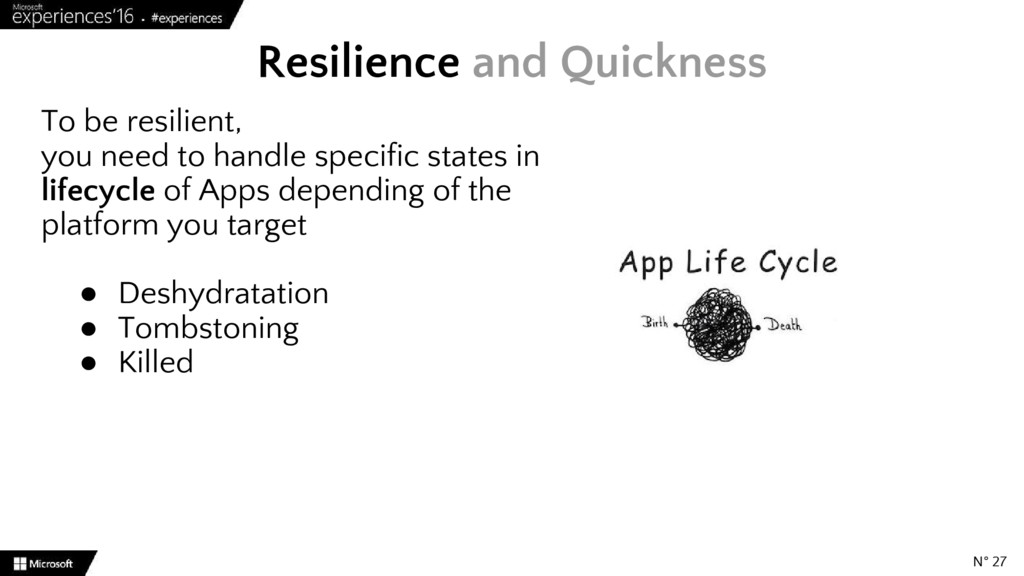

27. To be resilient, you need to handle specific states in lifecycle of Apps depending of the platform you target • Deshydratation • Tombstoning • Killed Resilience and Quickness N° 27
28. Lifecycle of Apps Resilience and Quickness N° 28

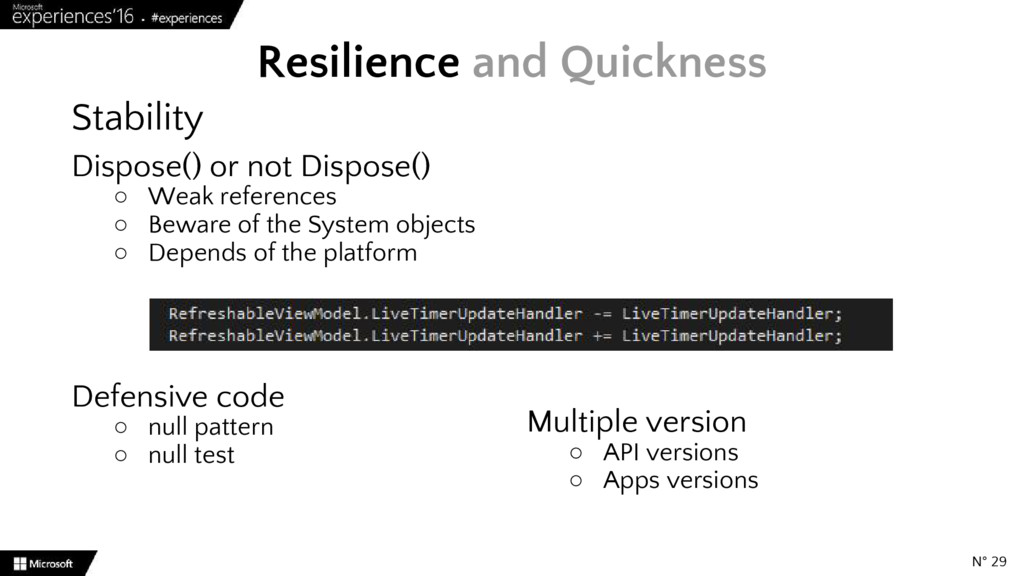

29. Stability Dispose() or not Dispose() ◦ Weak references ◦ Beware of the System objects ◦ Depends of the platform Defensive code ◦ null pattern ◦ null test Resilience and Quickness N° 29 Multiple version ◦ API versions ◦ Apps versions

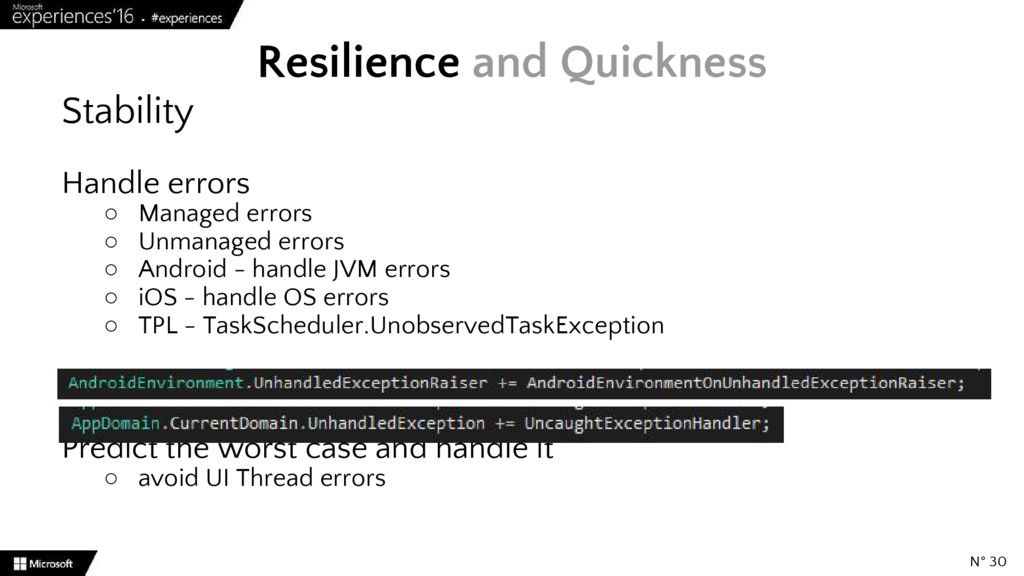

30. Stability Handle errors ◦ Managed errors ◦ Unmanaged errors ◦ Android - handle JVM errors ◦ iOS - handle OS errors ◦ TPL - TaskScheduler.UnobservedTaskException Predict the worst case and handle it ◦ avoid UI Thread errors Resilience and Quickness N° 30
31. Xamarin Test cloud

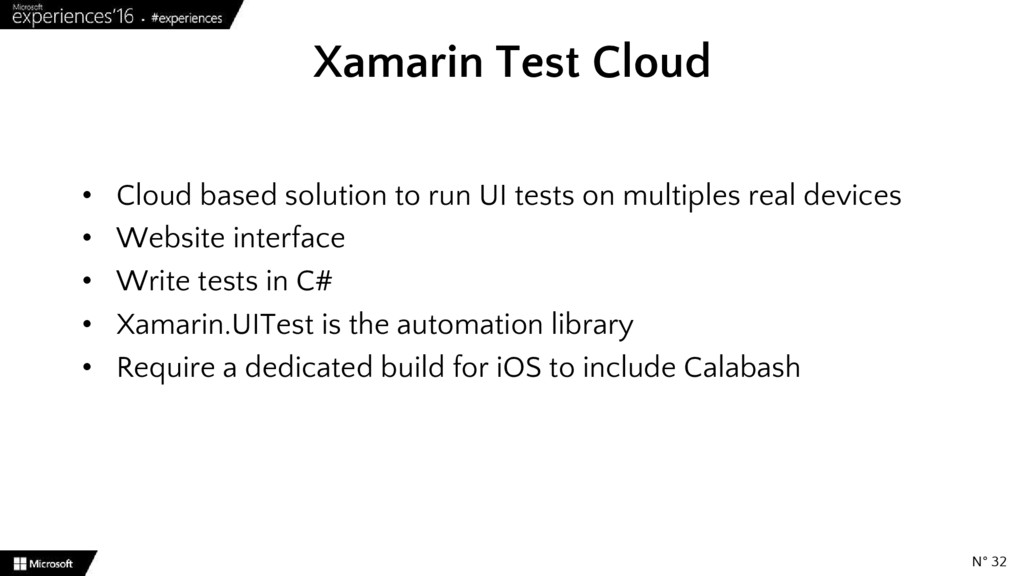

32. • Cloud based solution to run UI tests on multiples real devices • Website interface • Write tests in C# • Xamarin.UITest is the automation library • Require a dedicated build for iOS to include Calabash Xamarin Test Cloud N° 32

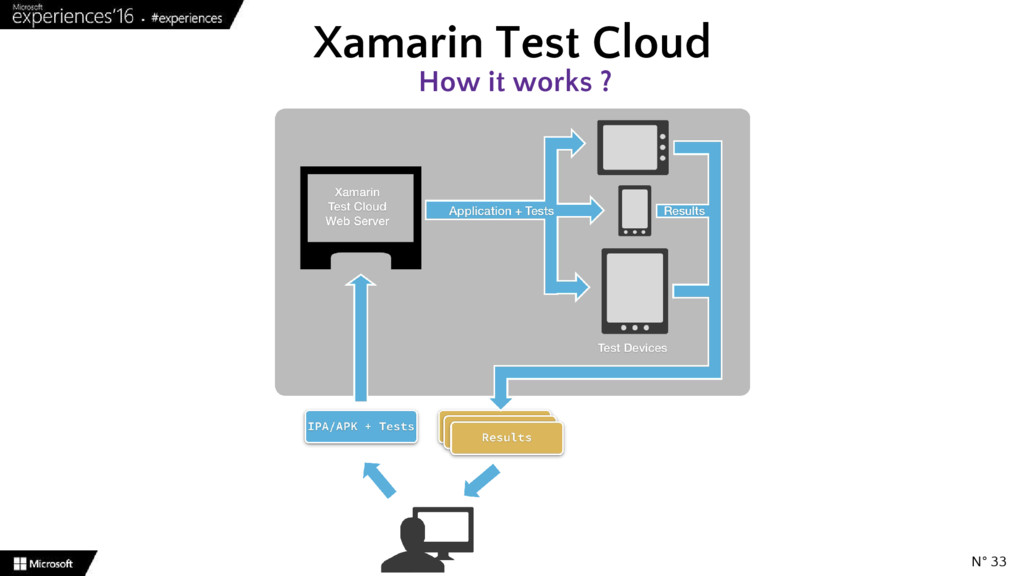

33. Xamarin Test Cloud How it works ? N° 33

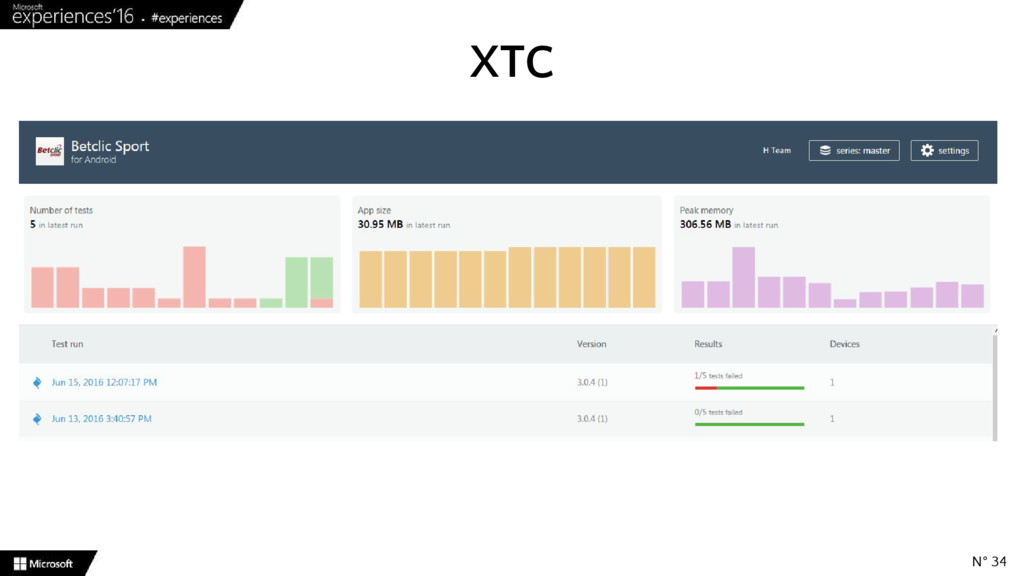

34. XTC N° 34

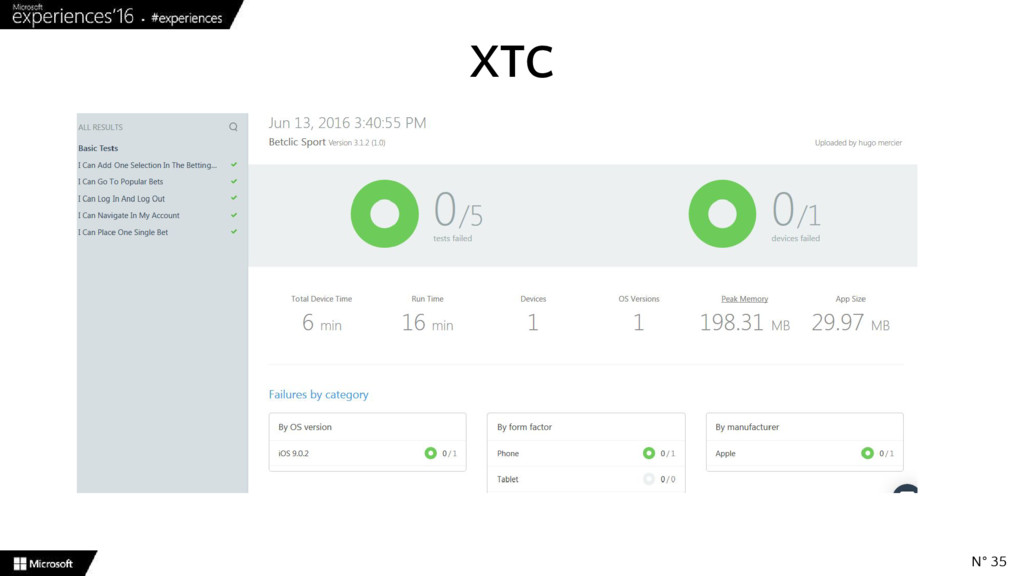

35. XTC N° 35

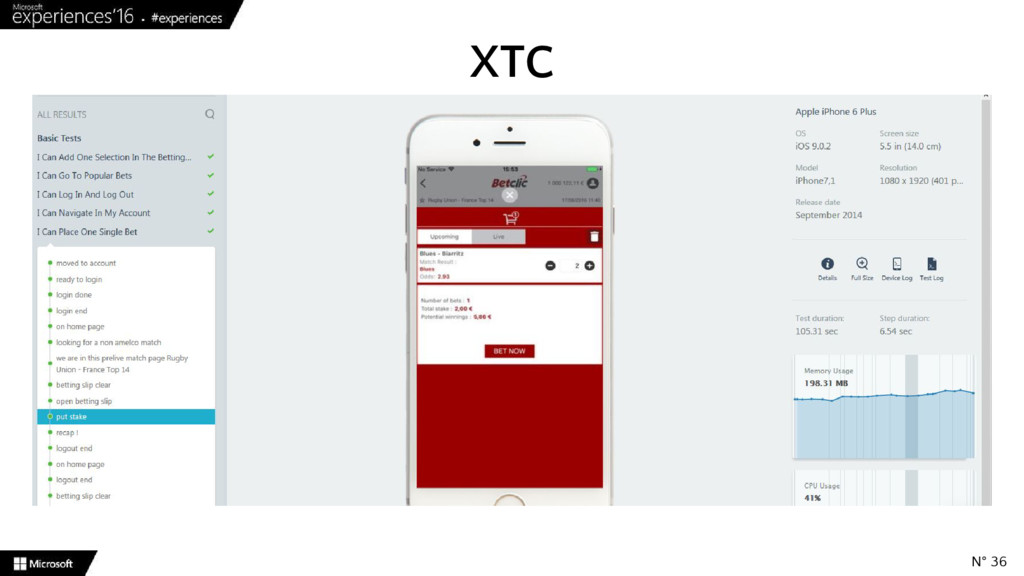

36. XTC N° 36
37. XTC N° 37

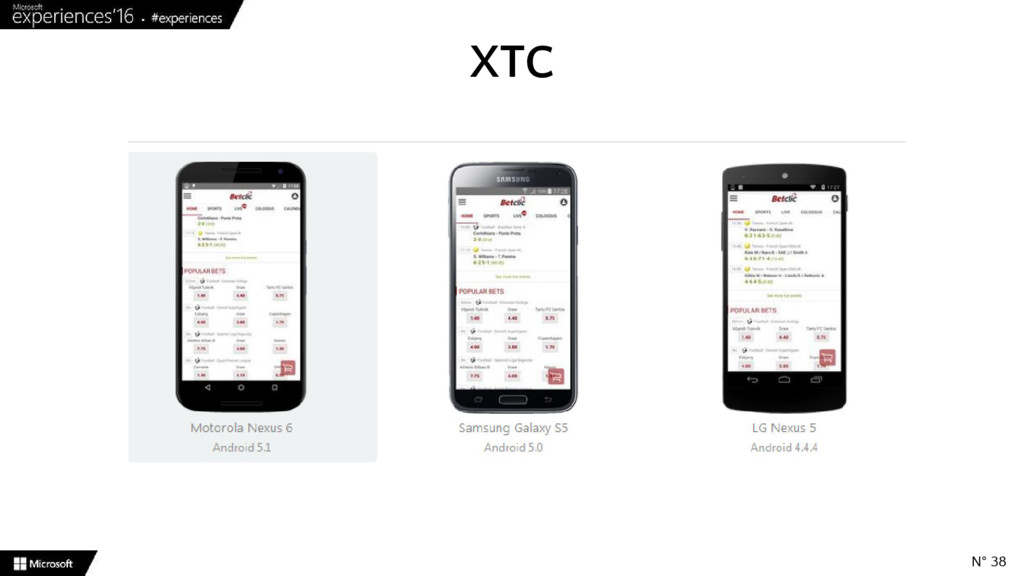

38. XTC N° 38

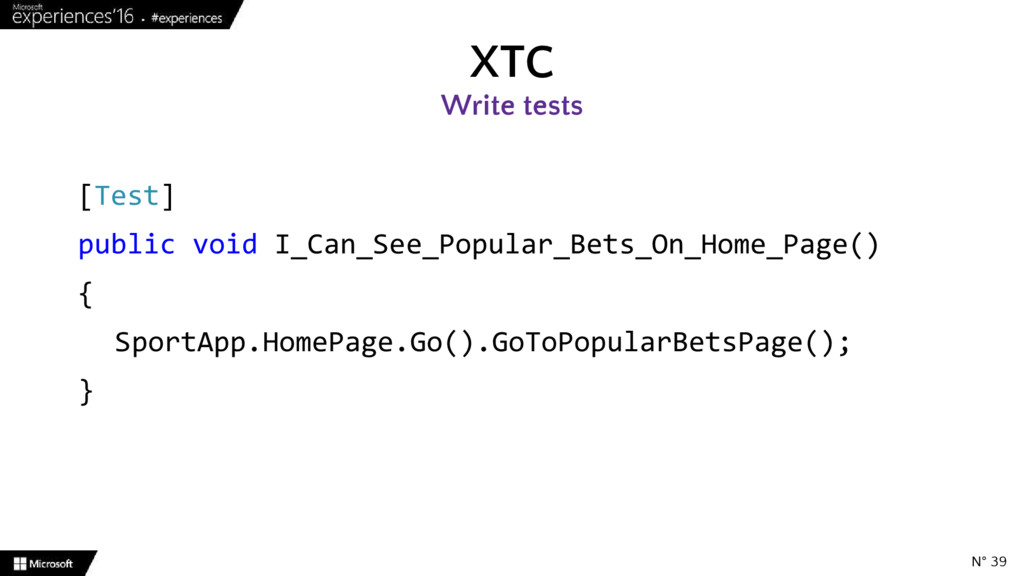

39. [Test] public void I_Can_See_Popular_Bets_On_Home_Page() { SportApp.HomePage.Go().GoToPopularBetsPage(); } XTC Write tests N° 39
40. XTC Write tests N° 40 Fluent Page Object Pattern in Automated Testing public HomePage Go() { Phone.Tap(NavigationBarHome); Phone.Screenshot("on home page"); return this; } public HomePage GoToPopularBets() { Phone.ScrollDownTo(PopularMarketsGroupHeader, HomeMainList); return this; } Xamarin UiTest FrameWork Ids

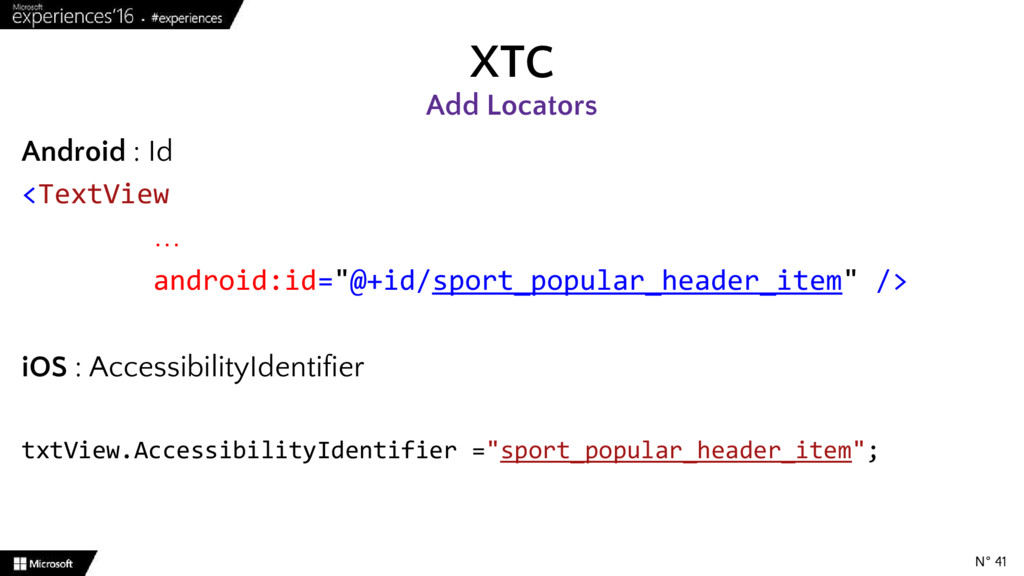

41. Android : Id <TextView … android:id="@+id/sport_popular_header_item" /> iOS : AccessibilityIdentifier txtView.AccessibilityIdentifier ="sport_popular_header_item"; XTC Add Locators N° 41
42. Monitoring

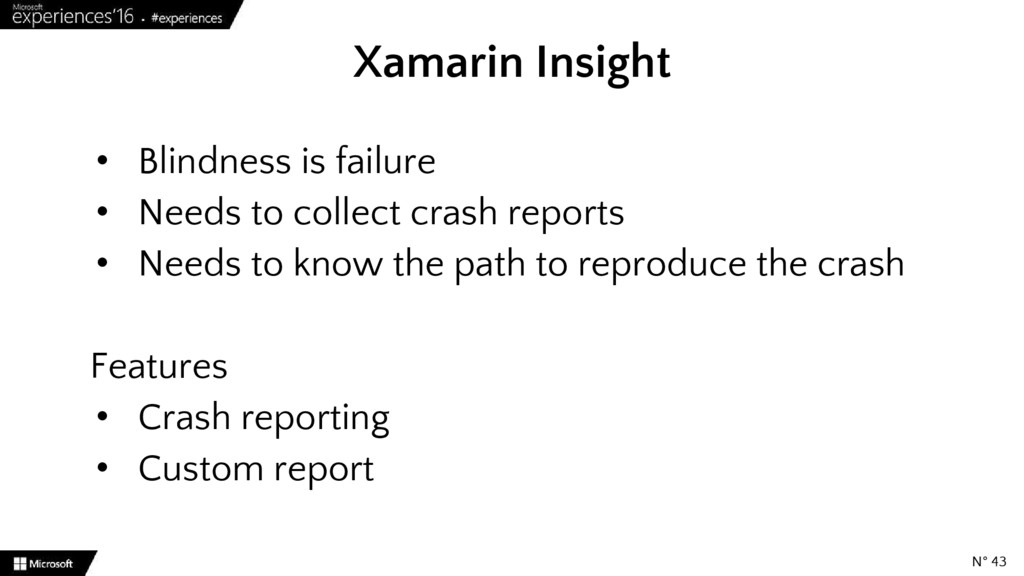

43. • Blindness is failure • Needs to collect crash reports • Needs to know the path to reproduce the crash Features • Crash reporting • Custom report Xamarin Insight N° 43

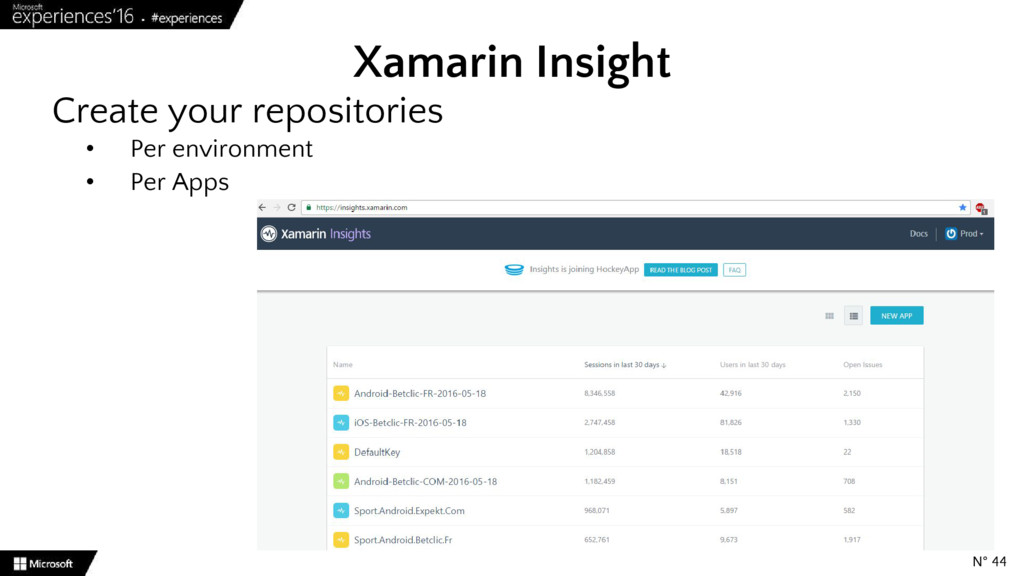

44. Xamarin Insight Create your repositories • Per environment • Per Apps N° 44

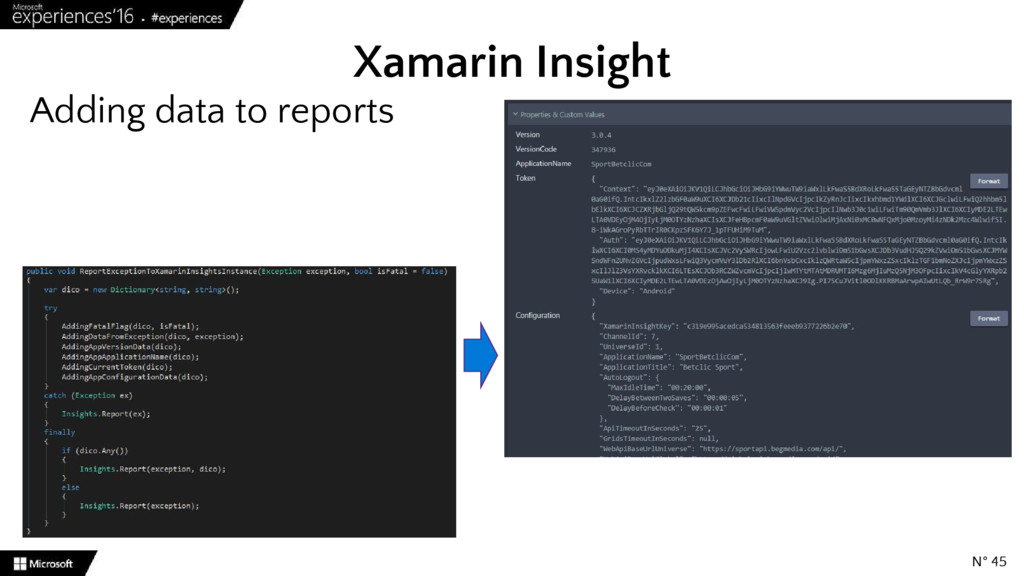

45. Adding data to reports Xamarin Insight N° 45
46. Aggregated reports by call stacks Filtering functionalities Xamarin Insight N° 46

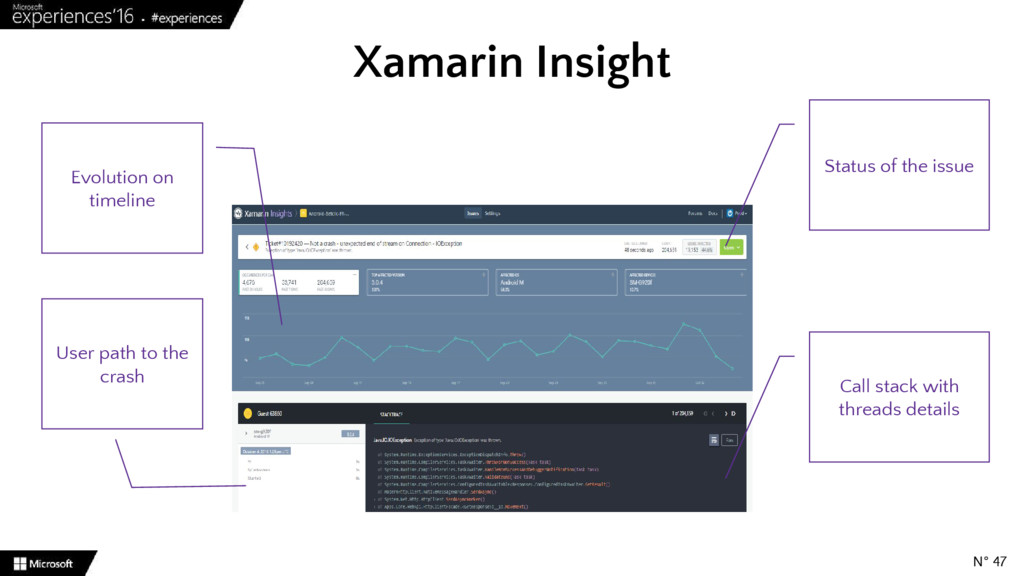

47. Xamarin Insight Call stack with threads details Evolution on timeline User path to the crash Status of the issue N° 47

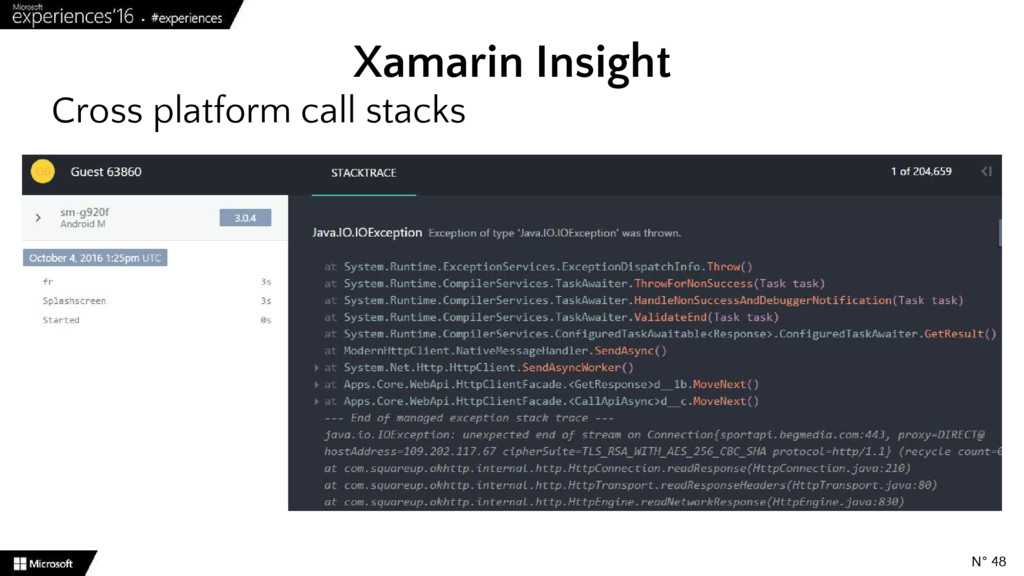

48. Cross platform call stacks Xamarin Insight N° 48

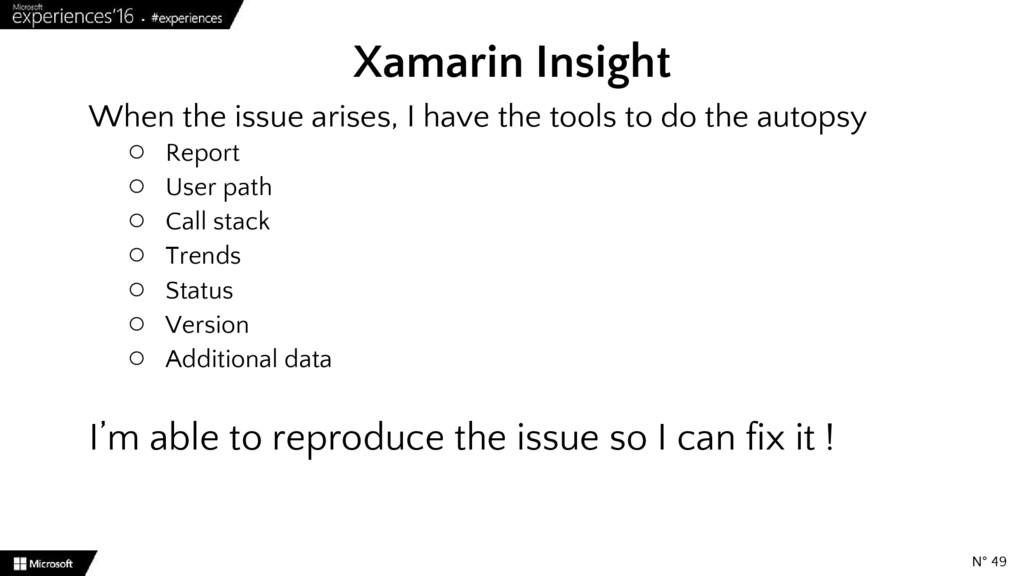

49. Xamarin Insight When the issue arises, I have the tools to do the autopsy ◦ Report ◦ User path ◦ Call stack ◦ Trends ◦ Status ◦ Version ◦ Additional data I’m able to reproduce the issue so I can fix it ! N° 49

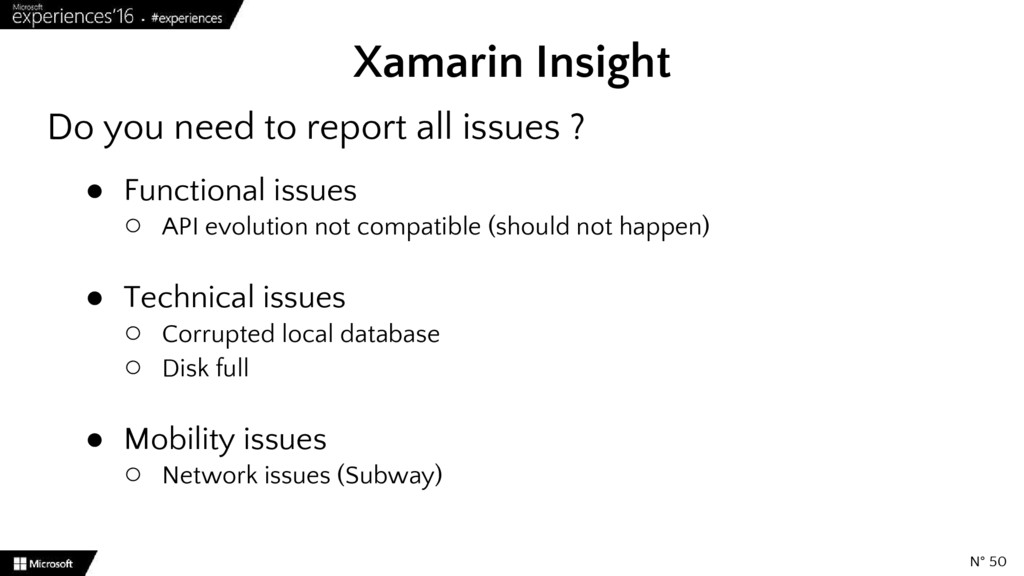

50. Do you need to report all issues ? • Functional issues ◦ API evolution not compatible (should not happen) • Technical issues ◦ Corrupted local database ◦ Disk full • Mobility issues ◦ Network issues (Subway) Xamarin Insight N° 50
51. VNext … Ongoing merge N° 51
52. Conclusion

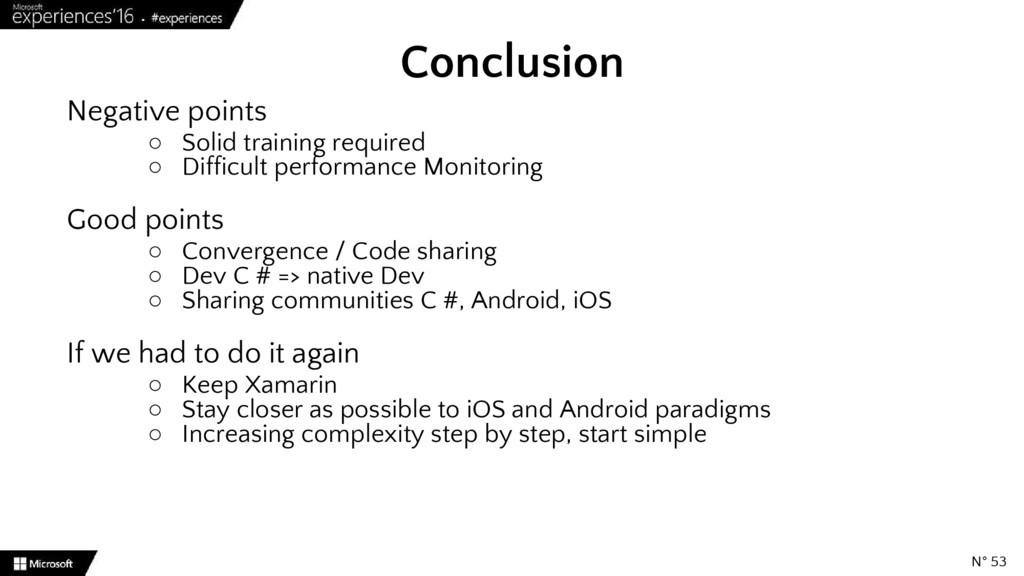

53. Negative points ◦ Solid training required ◦ Difficult performance Monitoring Good points ◦ Convergence / Code sharing ◦ Dev C # => native Dev ◦ Sharing communities C #, Android, iOS If we had to do it again ◦ Keep Xamarin ◦ Stay closer as possible to iOS and Android paradigms ◦ Increasing complexity step by step, start simple Conclusion N° 53
54. N° 54
55. Xamarin • https://xamarin.com/ • https://insights.xamarin.com/ • https://xamarin.com/university MvvmCross • http://mvvmcross.com/ • https://mvvmcross.wordpress.com/ • https://github.com/MvvmCross/MvvmCross links Betclic • Site Web : https://www.betclic.fr/sport/ • Web App : https://m.betclic.fr/sport/ Expekt • Site Web : https://en.expekt.com/sport/ • Web App : https://m.expekt.com/sport/
56. Intervenants Betclic Hugo Mercier – hugo.paris19@gmail.com Laurent Dutrillaux – laurent.dutrillaux@gmail.com
57. Code samples

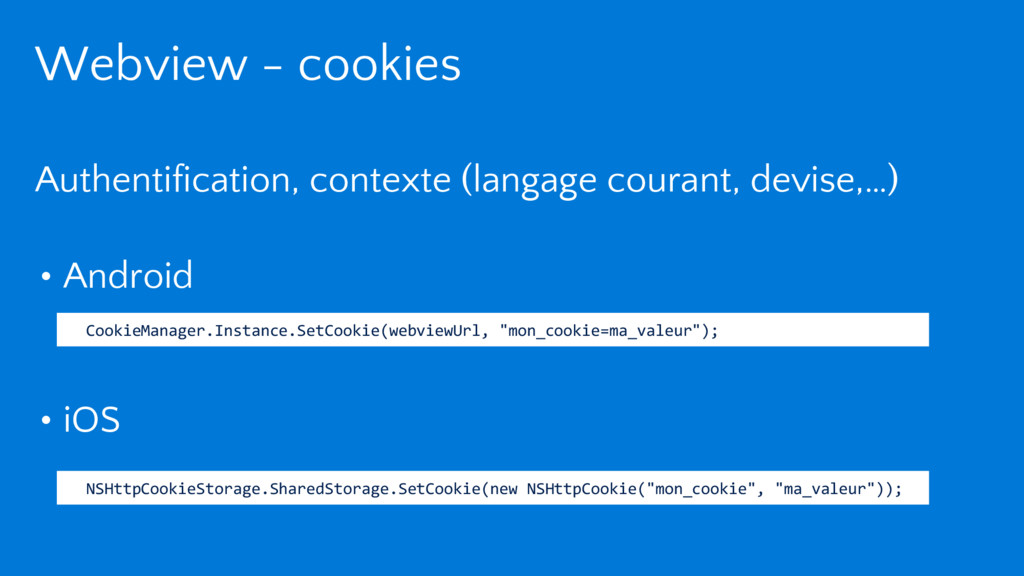

58. Authentification, contexte (langage courant, devise,…) • Android • iOS Webview - cookies CookieManager.Instance.SetCookie(webviewUrl, "mon_cookie=ma_valeur"); NSHttpCookieStorage.SharedStorage.SetCookie(new NSHttpCookie("mon_cookie", "ma_valeur"));

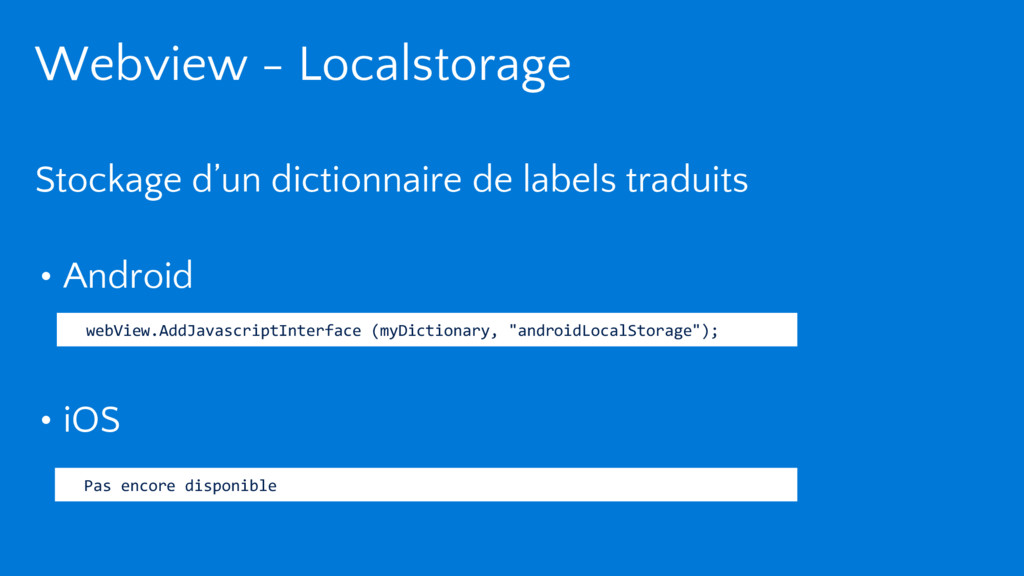

59. Stockage d’un dictionnaire de labels traduits • Android • iOS Webview - Localstorage webView.AddJavascriptInterface (myDictionary, "androidLocalStorage"); Pas encore disponible

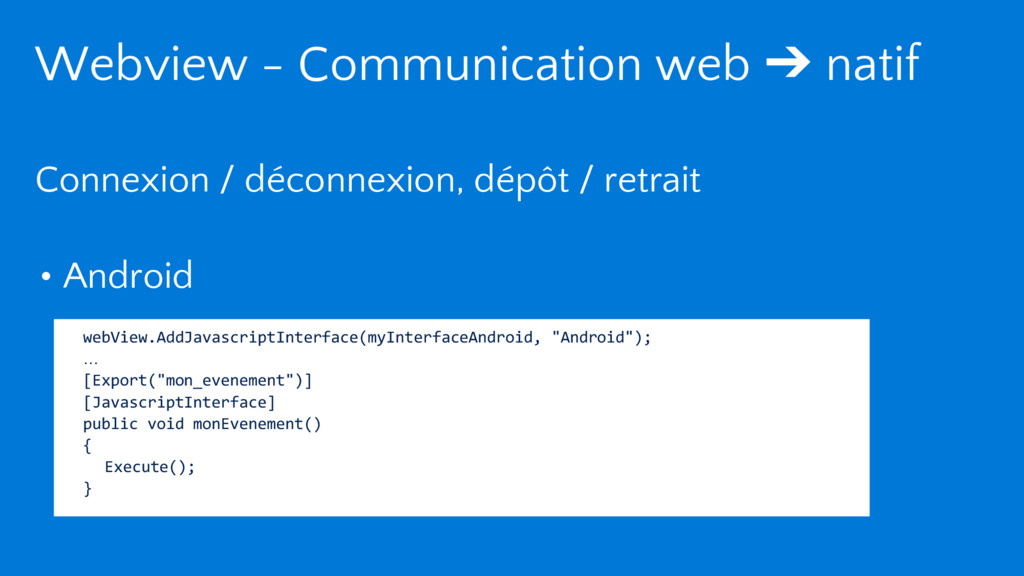

60. Connexion / déconnexion, dépôt / retrait • Android Webview - Communication web ➔ natif webView.AddJavascriptInterface(myInterfaceAndroid, "Android"); … [Export("mon_evenement")] [JavascriptInterface] public void monEvenement() { Execute(); }

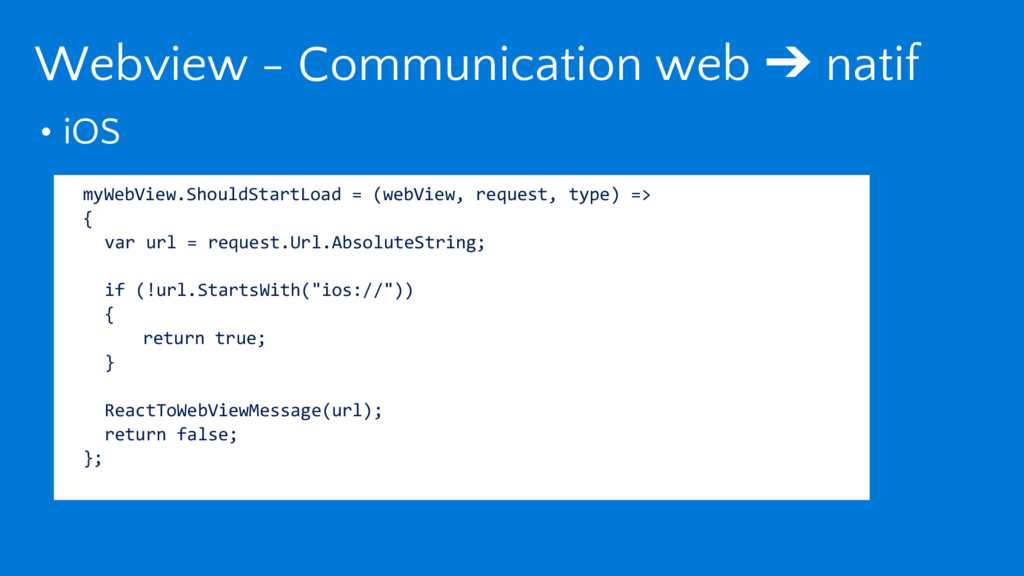

61. • iOS Webview - Communication web ➔ natif myWebView.ShouldStartLoad = (webView, request, type) => { var url = request.Url.AbsoluteString; if (!url.StartsWith("ios://")) { return true; } ReactToWebViewMessage(url); return false; };
62. Utiliser des données déjà présentes en mémoire • Android Webview - Interception des requêtes sortantes public class MyViewClient : WebViewClient { public override WebResourceResponse ShouldInterceptRequest(WebView view, IWebResourceRequest request) { var urlString = request.Url.ToString().ToLower(); if (IsDataAlreadyInMemory(urlString)) return DataInMemory(urlString); return base.ShouldInterceptRequest(view, request); } }

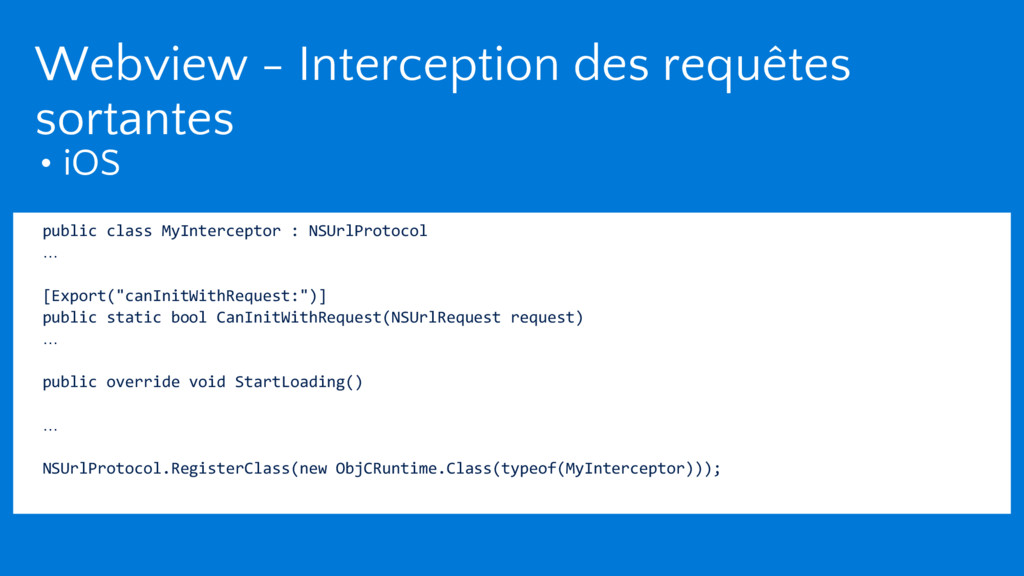

63. • iOS Webview - Interception des requêtes sortantes public class MyInterceptor : NSUrlProtocol … [Export("canInitWithRequest:")] public static bool CanInitWithRequest(NSUrlRequest request) … public override void StartLoading() … NSUrlProtocol.RegisterClass(new ObjCRuntime.Class(typeof(MyInterceptor)));
