Hilt Annotation 뜯어보기

Mash-Up 14기 안드로이드팀 10분 세미나 : Hilt Annotation 뜯어보기

Transcript

1. 2024.04.20 Hilt Annotation 뜯어보기 Mash-Up 14th 10min. Seminar Android Team 이재 성

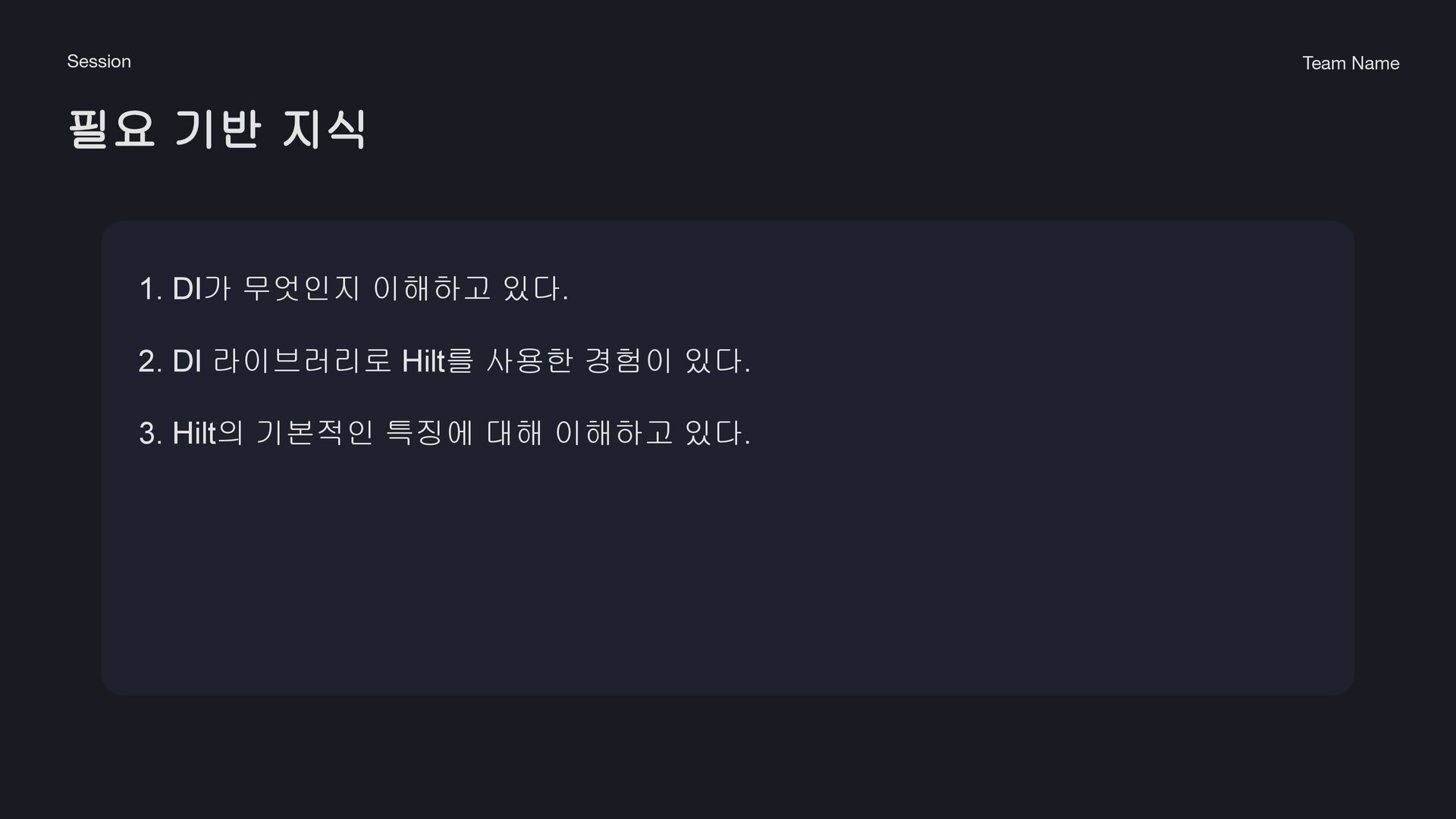

2. 필요 기반 지식 Session Team Name 1. DI가 무엇인지 이해하고 있다. 2. DI 라이브러리로 Hilt를 사용한 경험이 있다. 3. Hilt의 기본적인 특징에 대해 이해하고 있다.

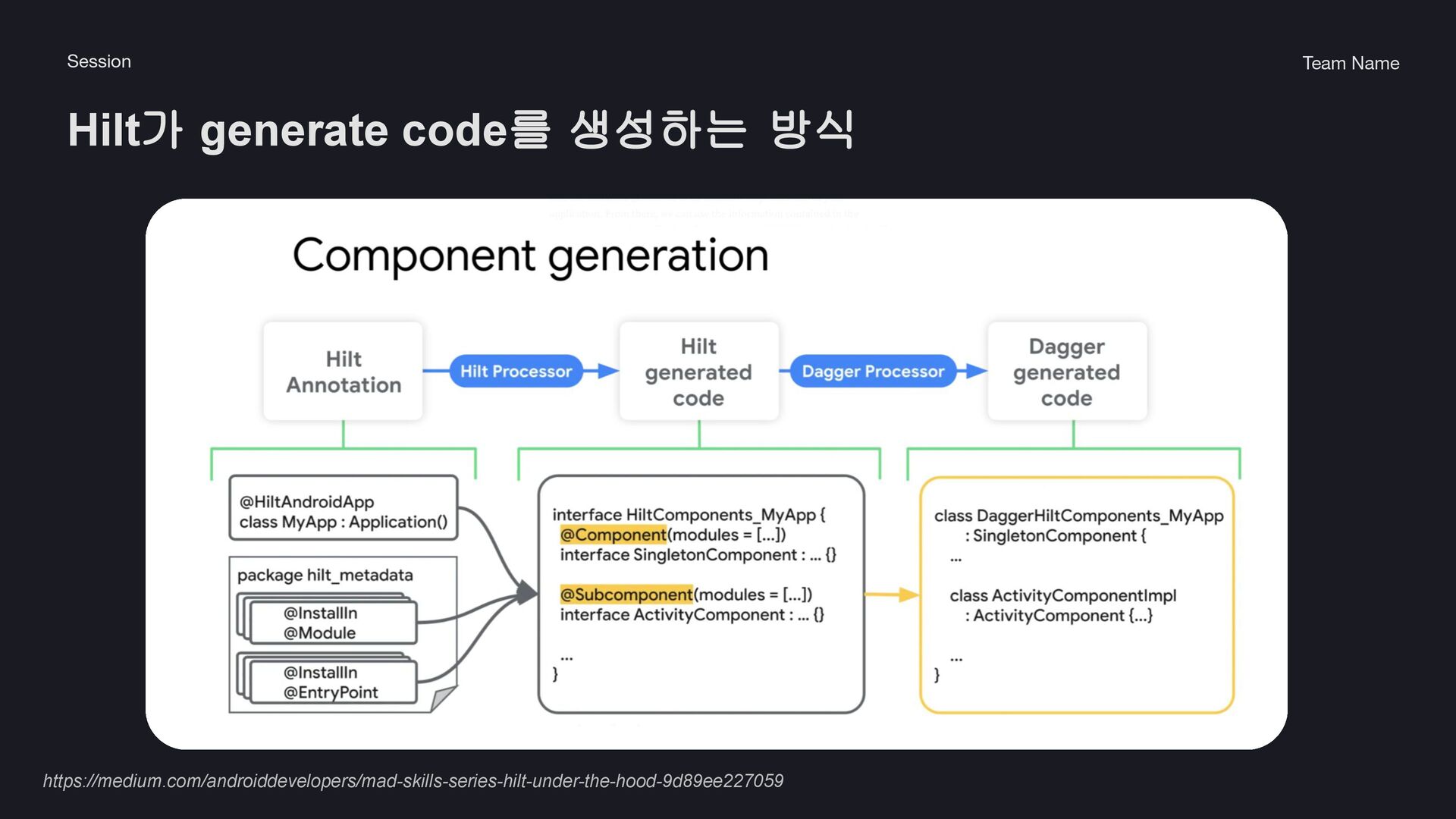

3. Hilt가 generate code를 생성하는 방식 Session Team Name https://medium.com/androiddevelopers/mad-skills-series-hilt-under-the-hood-9d89ee227059

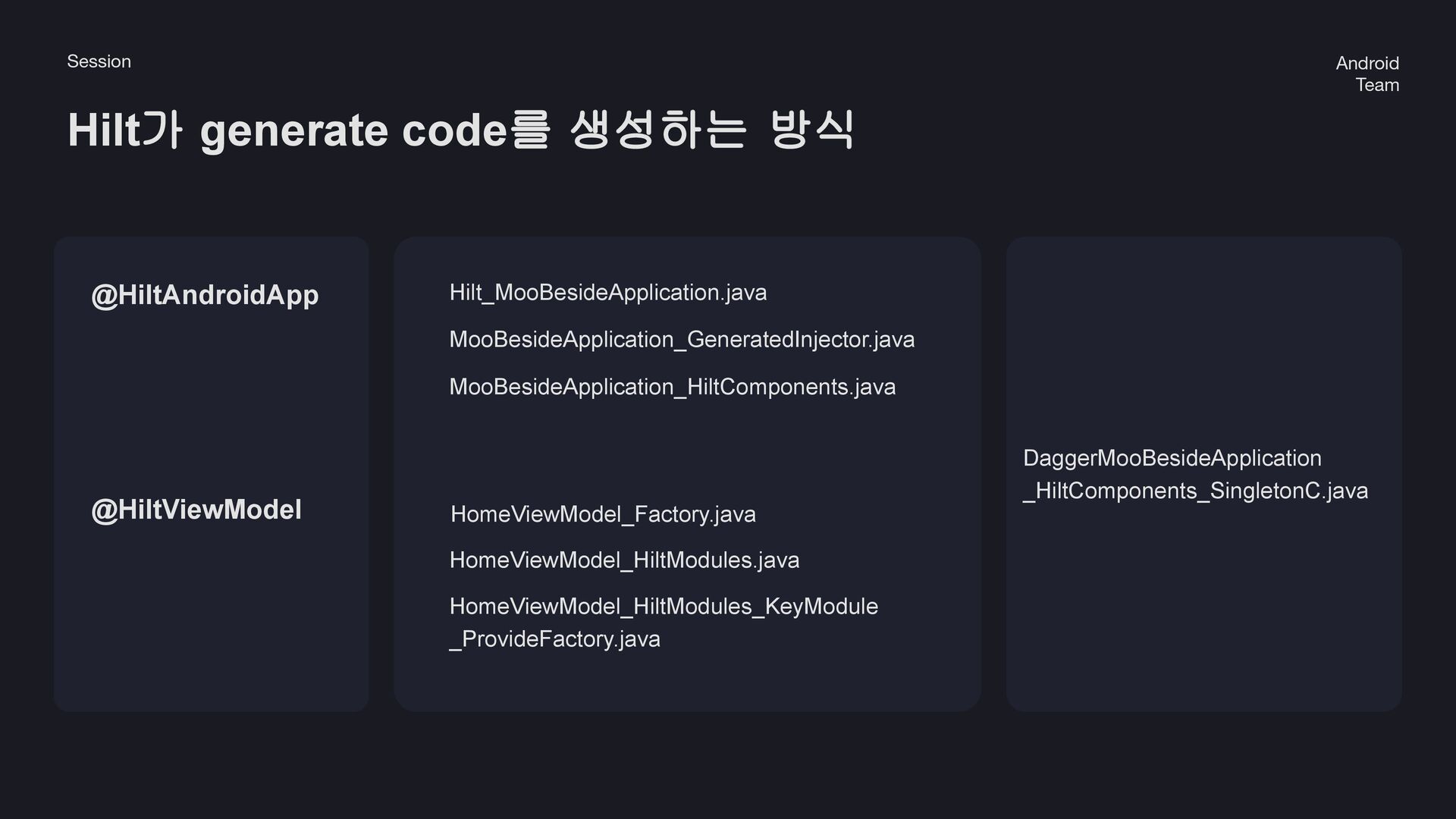

4. Session Android Team Hilt_MooBesideApplication.java Hilt가 generate code를 생성하는 방식 @HiltAndroidApp @HiltViewModel MooBesideApplication_GeneratedInjector.java MooBesideApplication_HiltComponents.java HomeViewModel_HiltModules.java HomeViewModel_HiltModules_KeyModule _ProvideFactory.java DaggerMooBesideApplication _HiltComponents_SingletonC.java HomeViewModel_Factory.java
5. @HiltAndroidApp

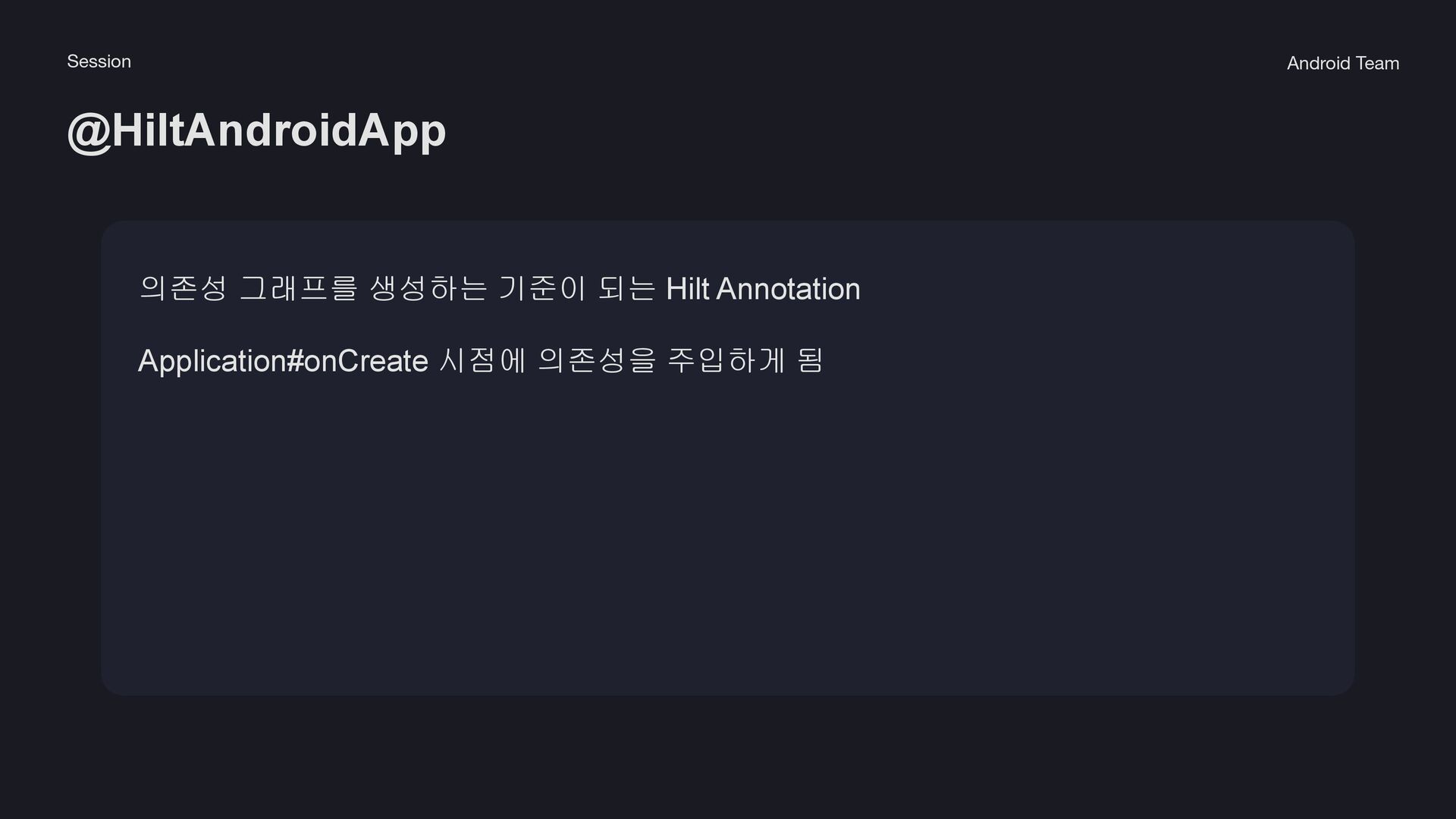

6. @HiltAndroidApp Session 의존성 그래프를 생성하는 기준이 되는 Hilt Annotation Application#onCreate 시점에 의존성을 주입하게 됨 Android Team

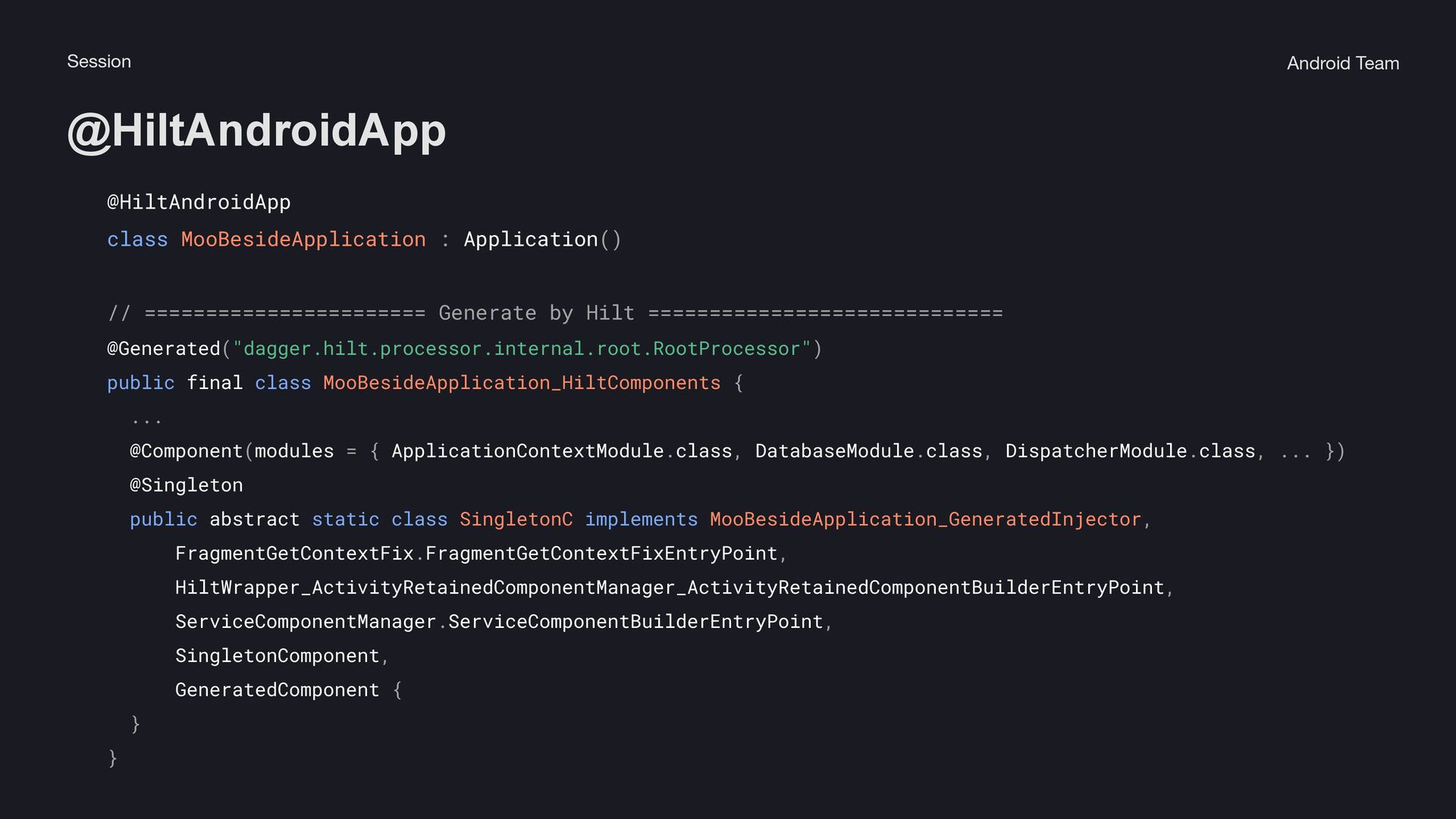

7. @HiltAndroidApp Session @HiltAndroidApp class MooBesideApplication : Application() // ======================= Generate by Hilt ============================= @Generated("dagger.hilt.processor.internal.root.RootProcessor") public final class MooBesideApplication_HiltComponents { ... @Component(modules = { ApplicationContextModule.class, DatabaseModule.class, DispatcherModule.class, ... }) @Singleton public abstract static class SingletonC implements MooBesideApplication_GeneratedInjector, FragmentGetContextFix.FragmentGetContextFixEntryPoint, HiltWrapper_ActivityRetainedComponentManager_ActivityRetainedComponentBuilderEntryPoint, ServiceComponentManager.ServiceComponentBuilderEntryPoint, SingletonComponent, GeneratedComponent { } } Android Team

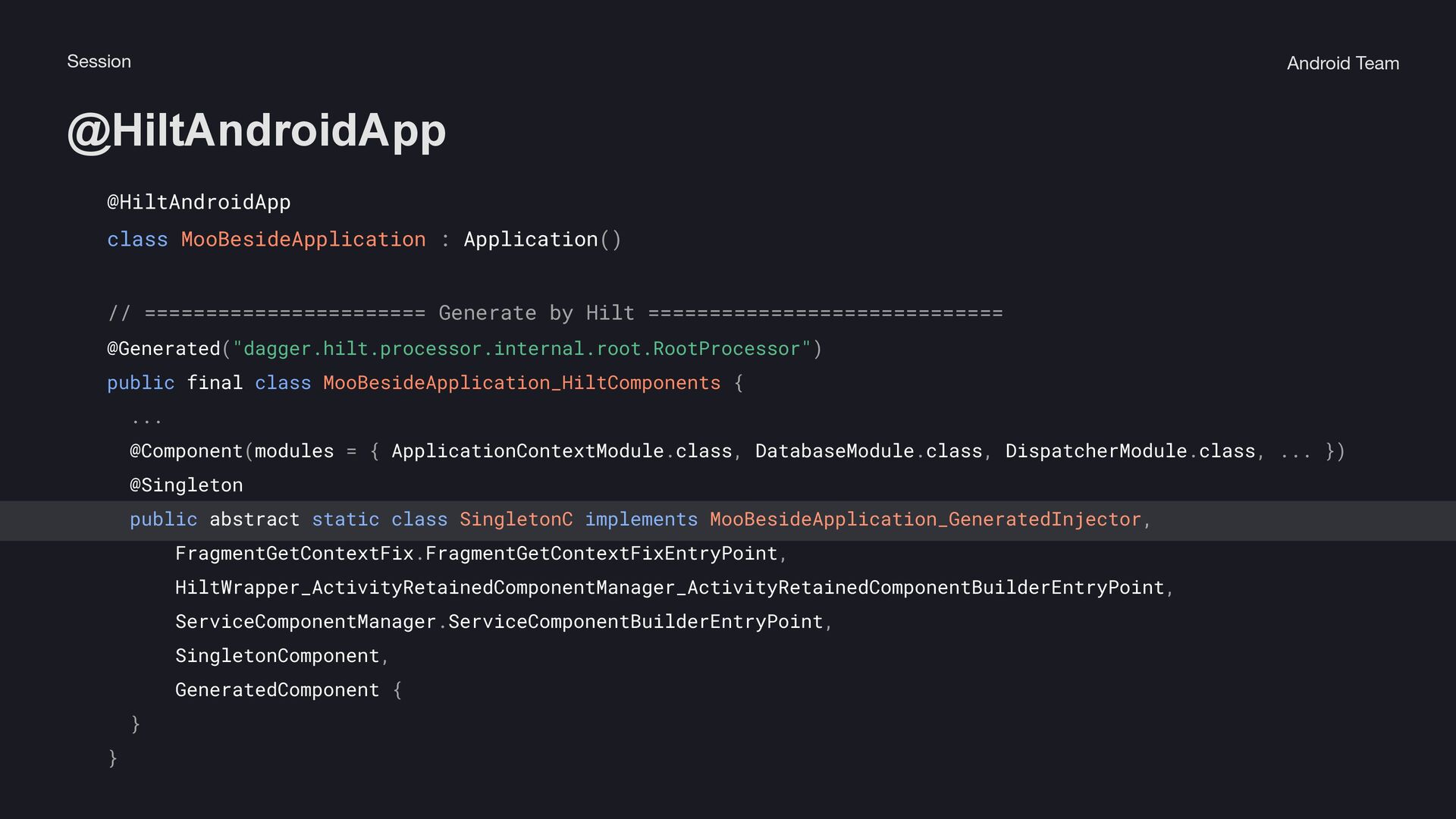

8. @HiltAndroidApp Session @HiltAndroidApp class MooBesideApplication : Application() // ======================= Generate by Hilt ============================= @Generated("dagger.hilt.processor.internal.root.RootProcessor") public final class MooBesideApplication_HiltComponents { ... @Component(modules = { ApplicationContextModule.class, DatabaseModule.class, DispatcherModule.class, ... }) @Singleton public abstract static class SingletonC implements MooBesideApplication_GeneratedInjector, FragmentGetContextFix.FragmentGetContextFixEntryPoint, HiltWrapper_ActivityRetainedComponentManager_ActivityRetainedComponentBuilderEntryPoint, ServiceComponentManager.ServiceComponentBuilderEntryPoint, SingletonComponent, GeneratedComponent { } } Android Team

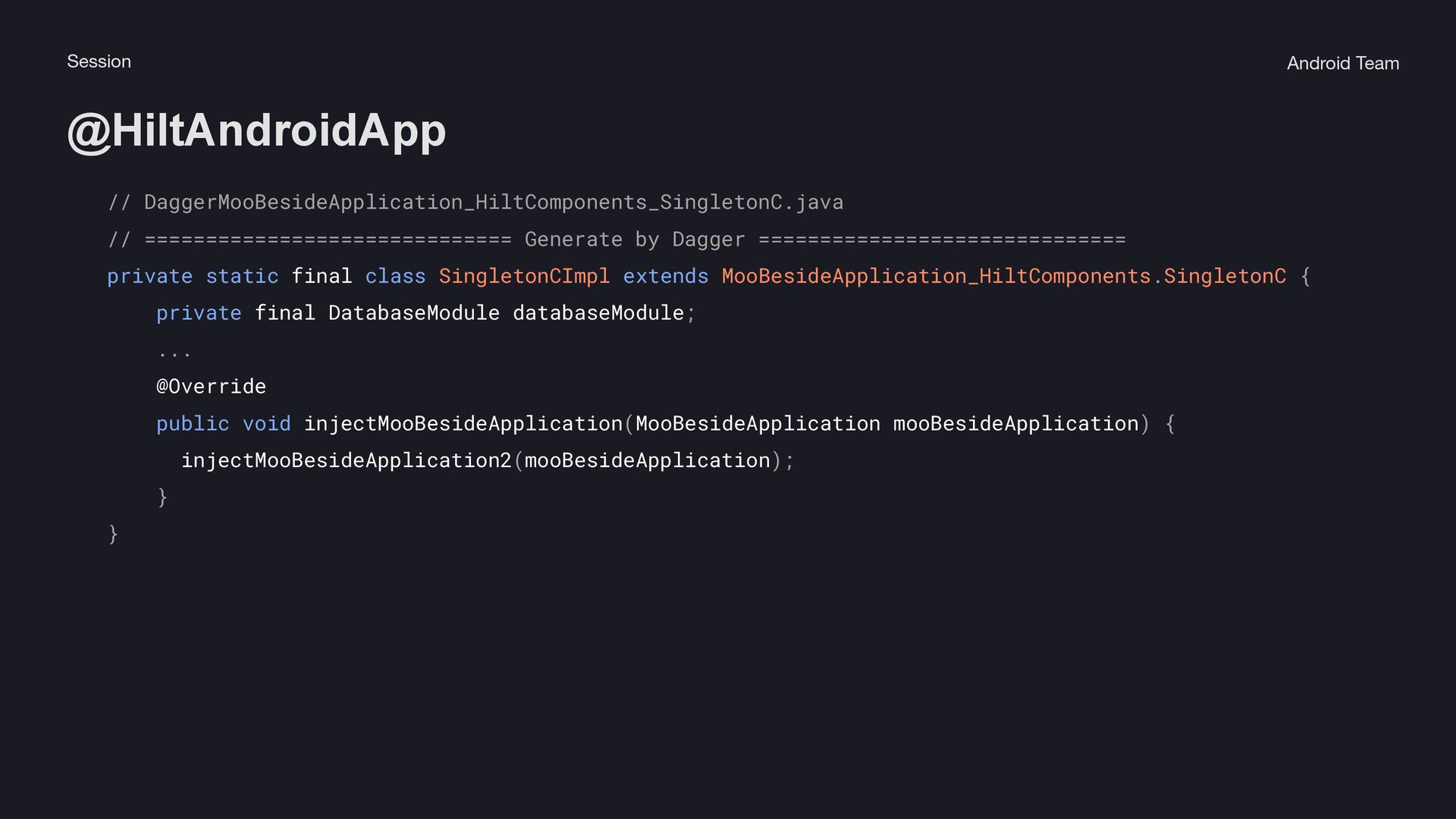

9. @HiltAndroidApp Session // DaggerMooBesideApplication_HiltComponents_SingletonC.java // ============================== Generate by Dagger ============================== private static final class SingletonCImpl extends MooBesideApplication_HiltComponents.SingletonC { private final DatabaseModule databaseModule; ... @Override public void injectMooBesideApplication(MooBesideApplication mooBesideApplication) { injectMooBesideApplication2(mooBesideApplication); } } Android Team

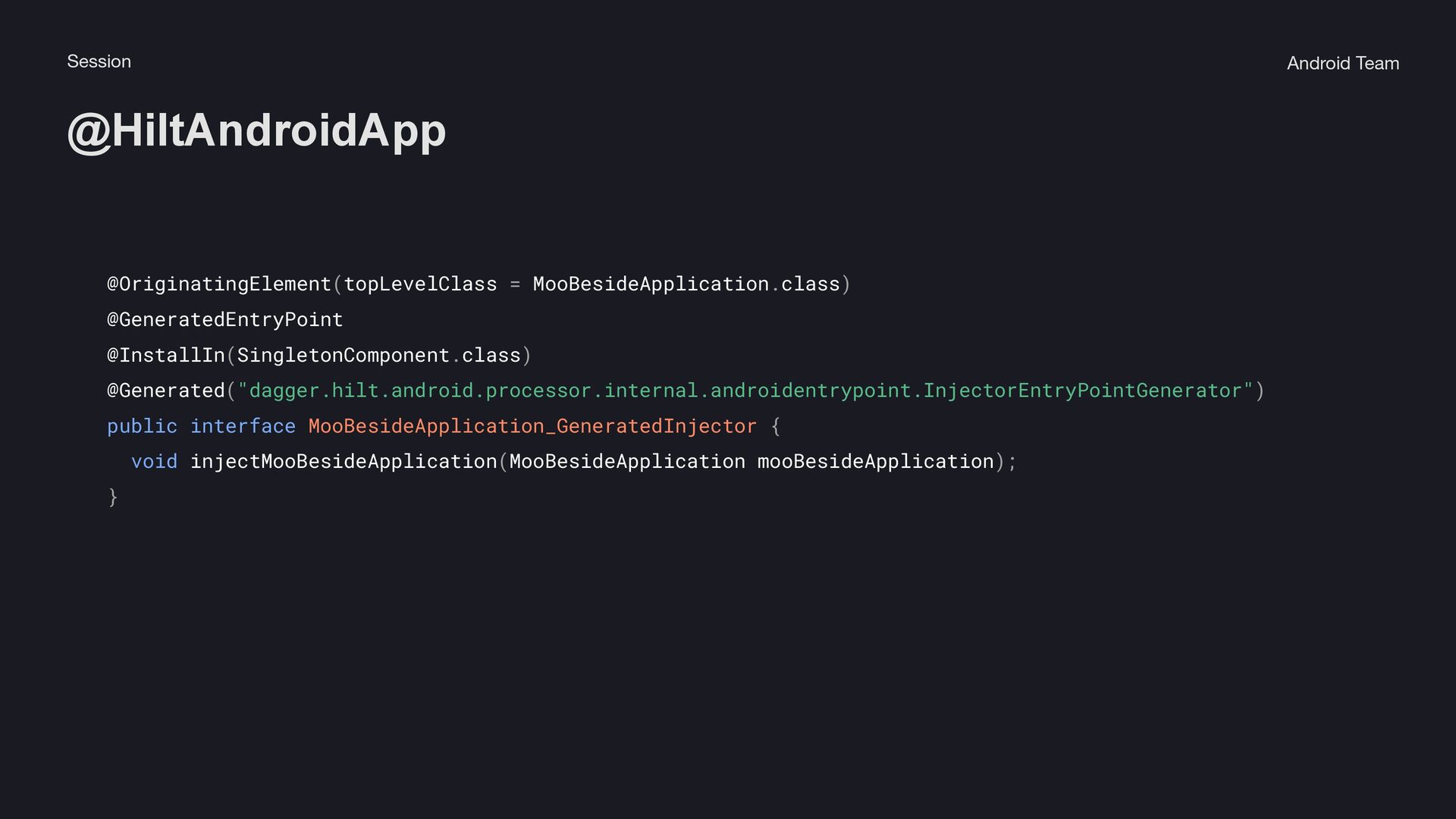

10. @HiltAndroidApp Session @OriginatingElement(topLevelClass = MooBesideApplication.class) @GeneratedEntryPoint @InstallIn(SingletonComponent.class) @Generated("dagger.hilt.android.processor.internal.androidentrypoint.InjectorEntryPointGenerator") public interface MooBesideApplication_GeneratedInjector { void injectMooBesideApplication(MooBesideApplication mooBesideApplication); } Android Team

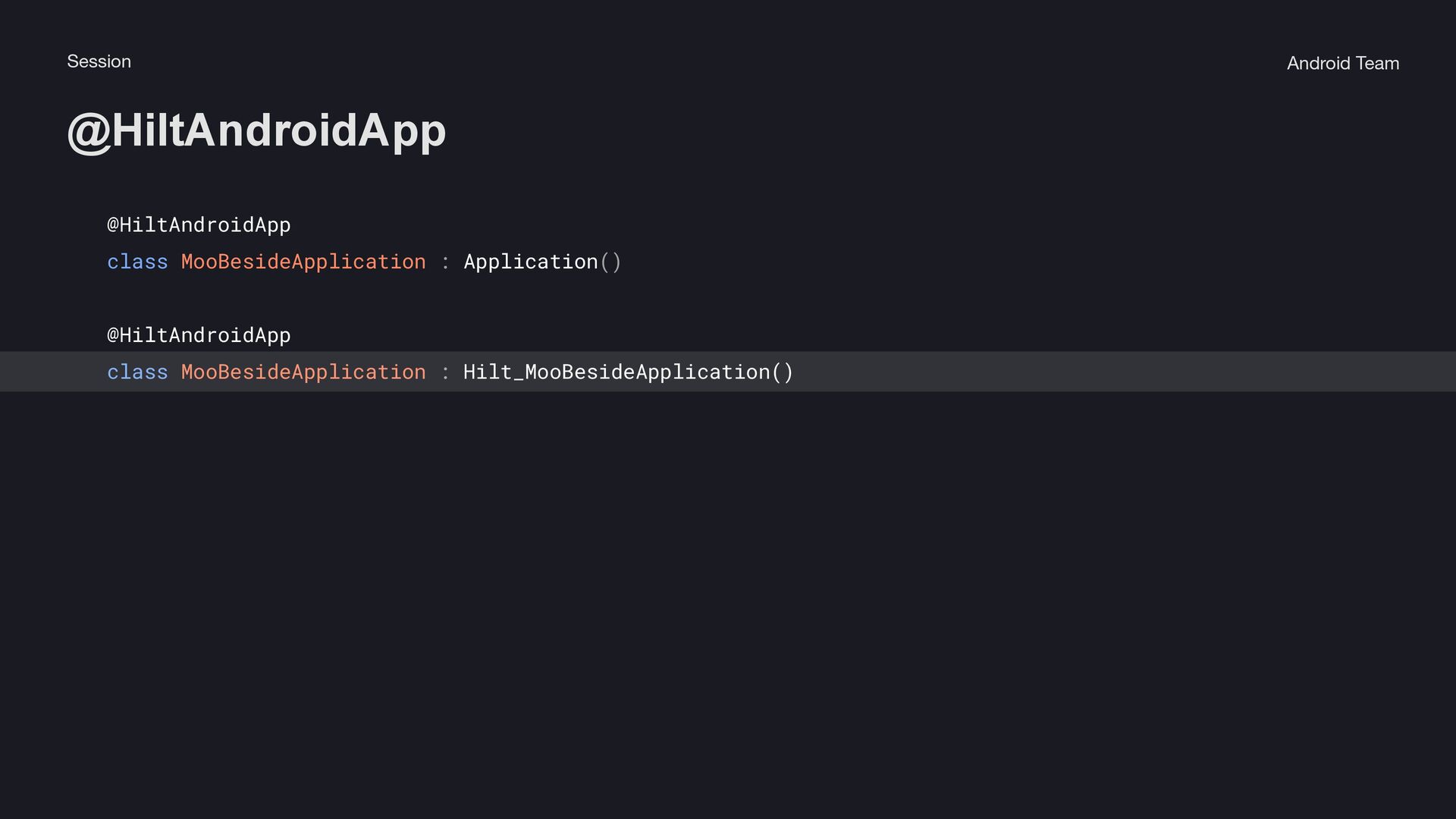

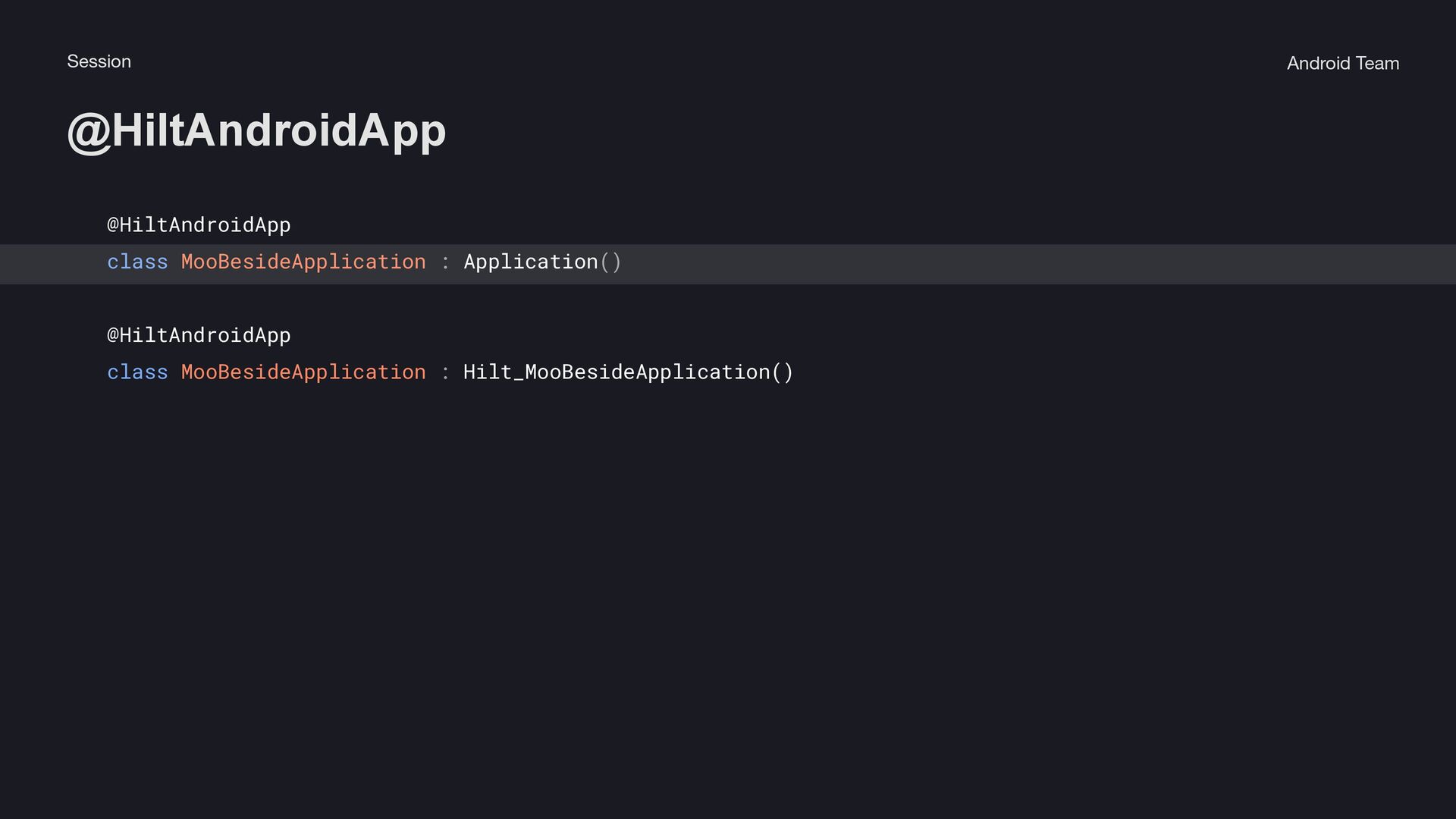

11. @HiltAndroidApp Session @HiltAndroidApp class MooBesideApplication : Application() @HiltAndroidApp class MooBesideApplication : Hilt_MooBesideApplication() Android Team
12. @HiltAndroidApp Session @HiltAndroidApp class MooBesideApplication : Application() @HiltAndroidApp class MooBesideApplication : Hilt_MooBesideApplication() Android Team

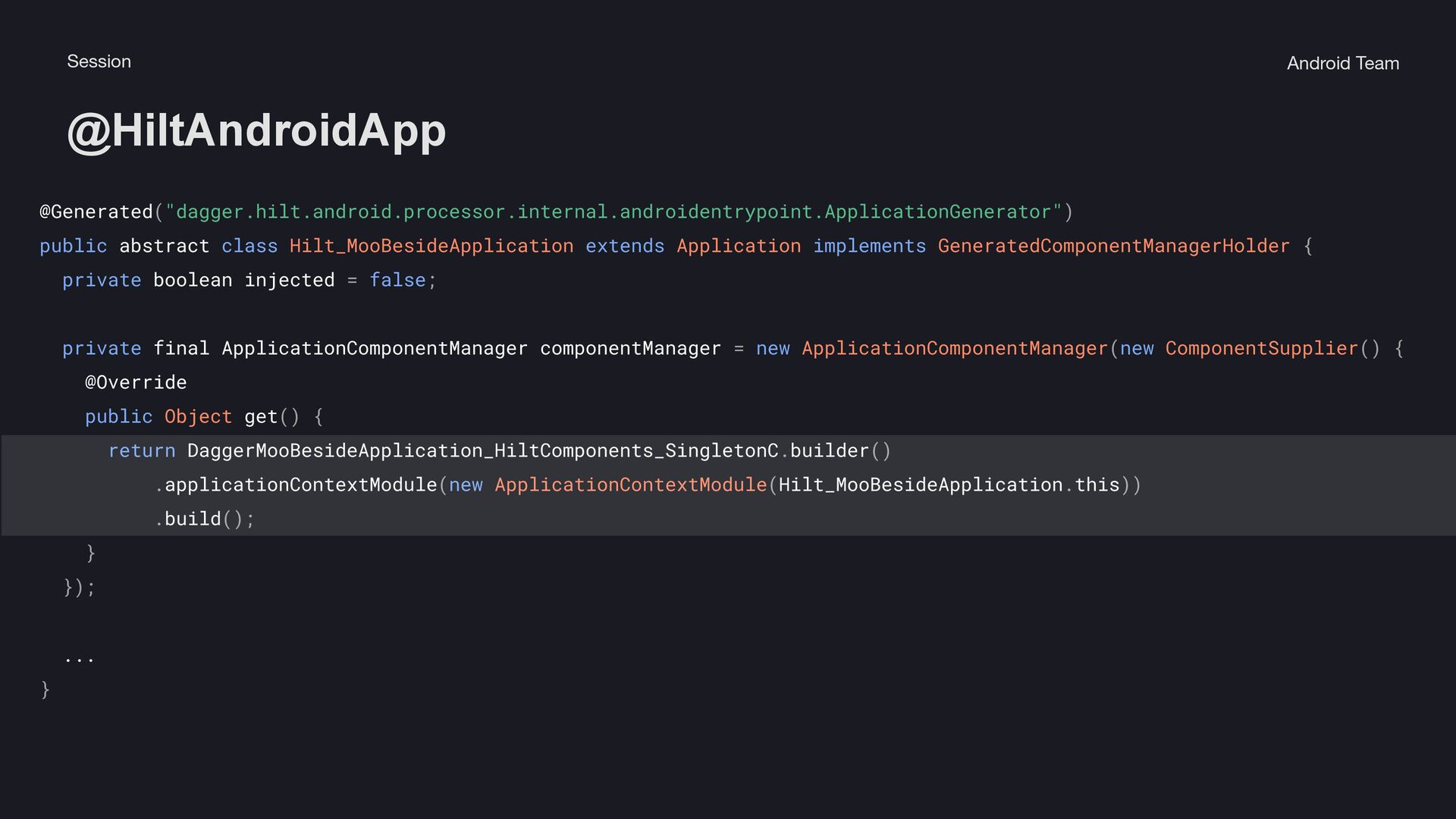

13. @HiltAndroidApp Session @Generated("dagger.hilt.android.processor.internal.androidentrypoint.ApplicationGenerator") public abstract class Hilt_MooBesideApplication extends Application implements GeneratedComponentManagerHolder { private boolean injected = false; private final ApplicationComponentManager componentManager = new ApplicationComponentManager(new ComponentSupplier() { @Override public Object get() { return DaggerMooBesideApplication_HiltComponents_SingletonC.builder() .applicationContextModule(new ApplicationContextModule(Hilt_MooBesideApplication.this)) .build(); } }); ... } Android Team

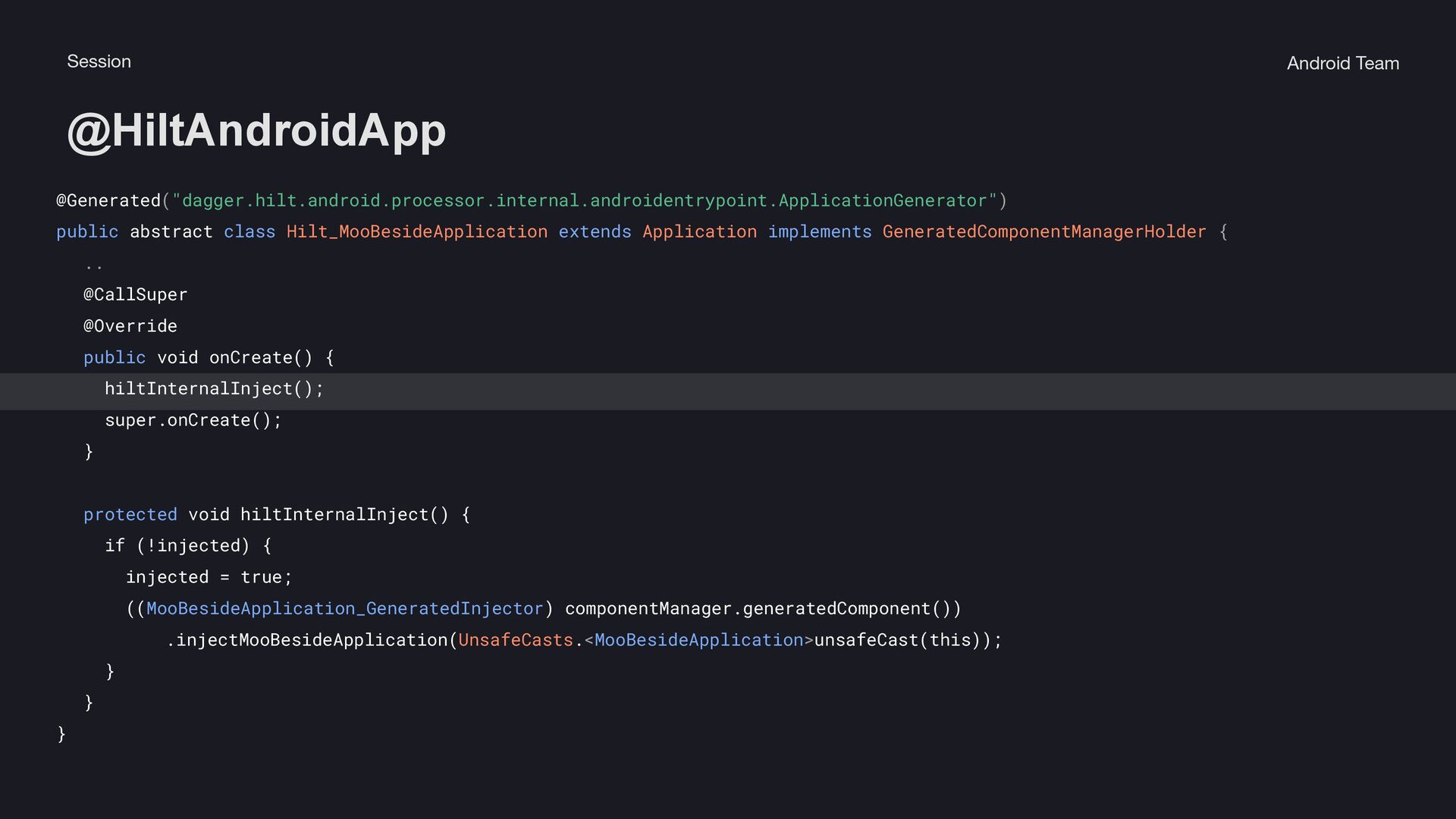

14. @HiltAndroidApp Session @Generated("dagger.hilt.android.processor.internal.androidentrypoint.ApplicationGenerator") public abstract class Hilt_MooBesideApplication extends Application implements GeneratedComponentManagerHolder { .. @CallSuper @Override public void onCreate() { hiltInternalInject(); super.onCreate(); } protected void hiltInternalInject() { if (!injected) { injected = true; ((MooBesideApplication_GeneratedInjector) componentManager.generatedComponent()) .injectMooBesideApplication(UnsafeCasts.<MooBesideApplication>unsafeCast(this)); } } } Android Team
15. @HiltAndroidApp Session Android Team @Generated("dagger.hilt.android.processor.internal.androidentrypoint.ApplicationGenerator") public abstract class Hilt_MooBesideApplication extends Application implements GeneratedComponentManagerHolder { .. @CallSuper @Override public void onCreate() { hiltInternalInject(); super.onCreate(); } protected void hiltInternalInject() { if (!injected) { injected = true; ((MooBesideApplication_GeneratedInjector) componentManager.generatedComponent()) .injectMooBesideApplication(UnsafeCasts.<MooBesideApplication>unsafeCast(this)); } } }
16. @HiltViewModel

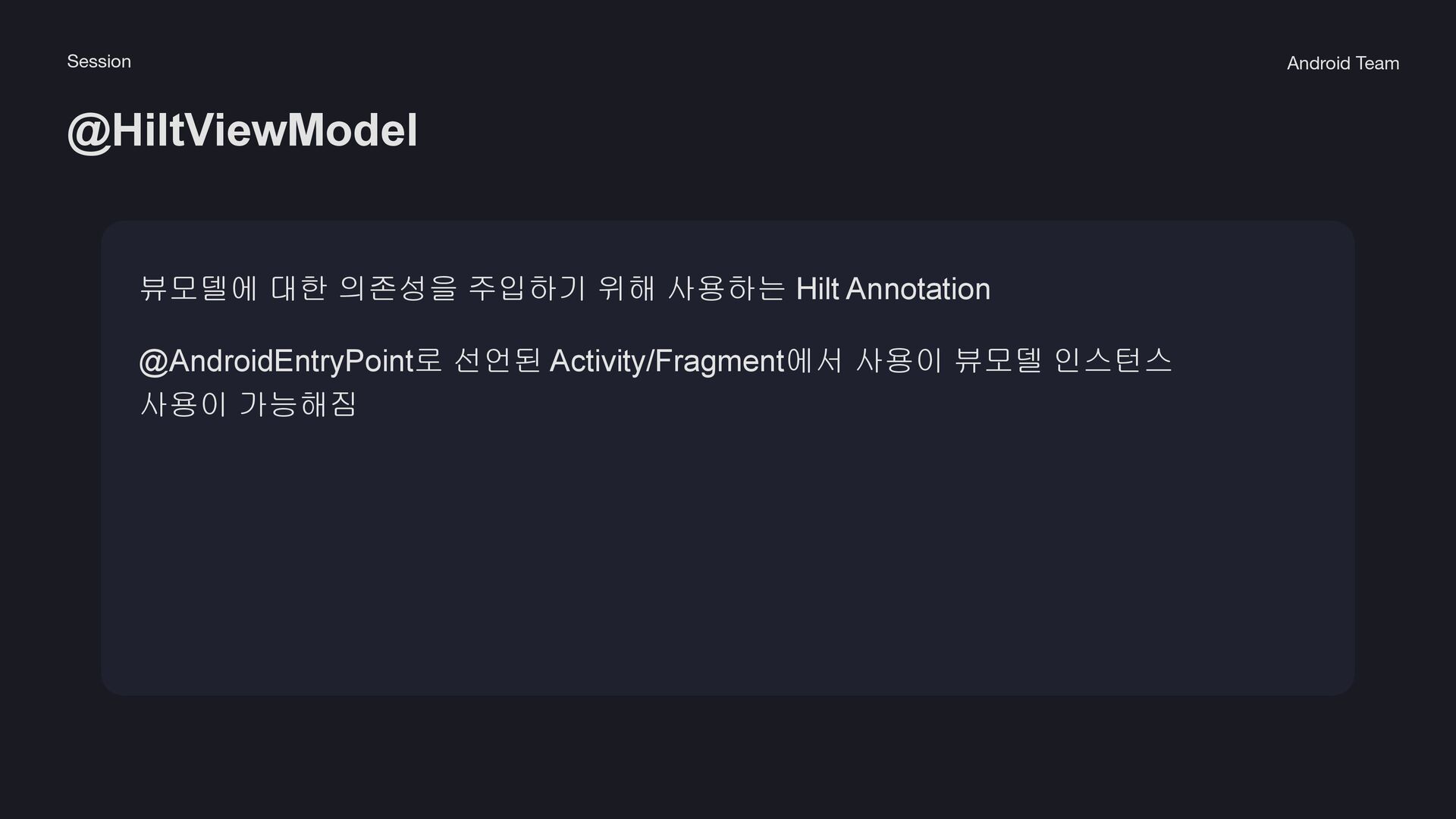

17. @HiltViewModel Session 뷰모델에 대한 의존성을 주입하기 위해 사용하는 Hilt Annotation @AndroidEntryPoint로 선언된 Activity/Fragment에서 사용이 뷰모델 인스턴스 사용이 가능해짐 Android Team

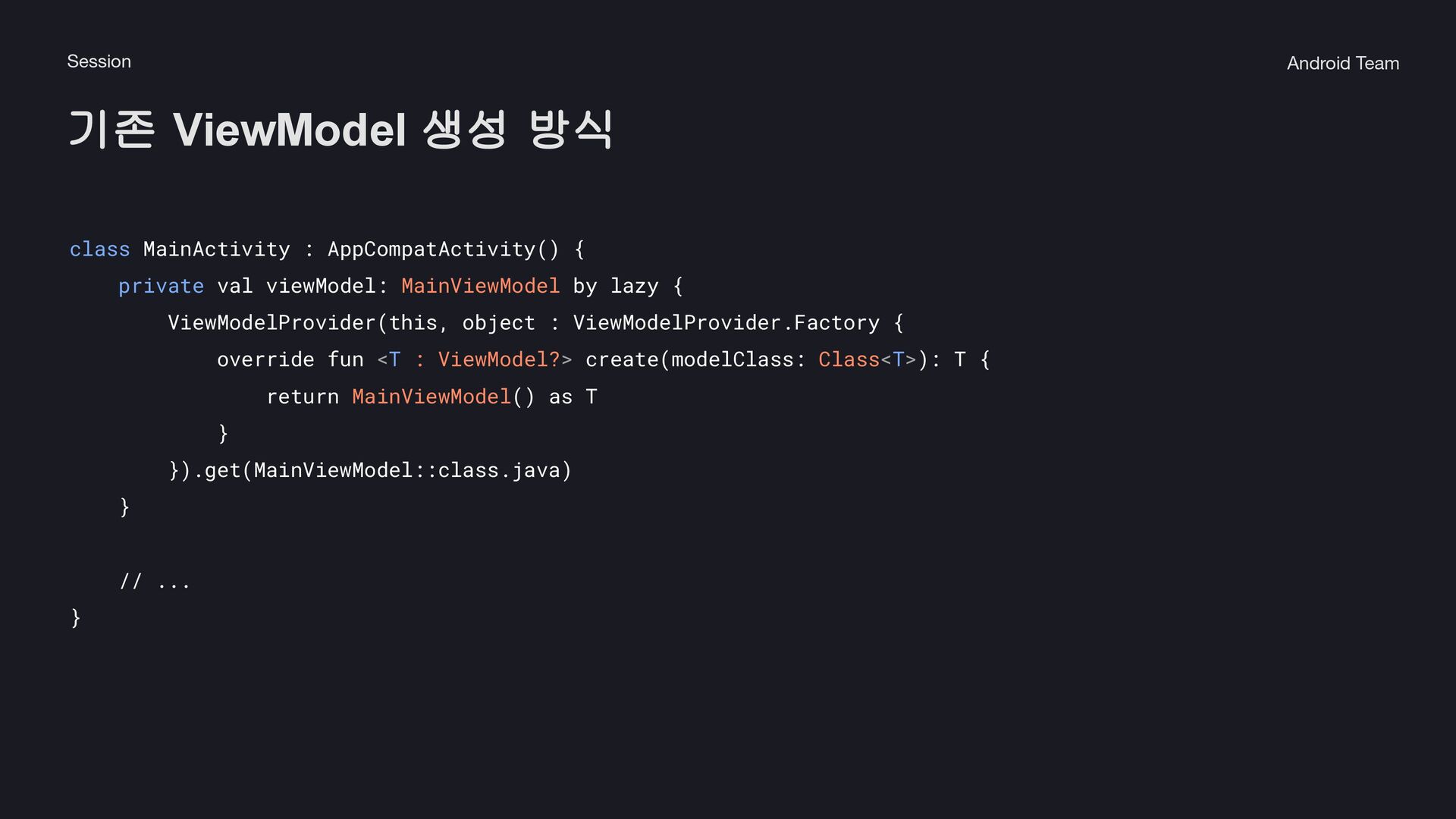

18. 기존 ViewModel 생성 방식 Session Android Team class MainActivity : AppCompatActivity() { private val viewModel: MainViewModel by lazy { ViewModelProvider(this, object : ViewModelProvider.Factory { override fun <T : ViewModel?> create(modelClass: Class<T>): T { return MainViewModel() as T } }).get(MainViewModel::class.java) } // ... }

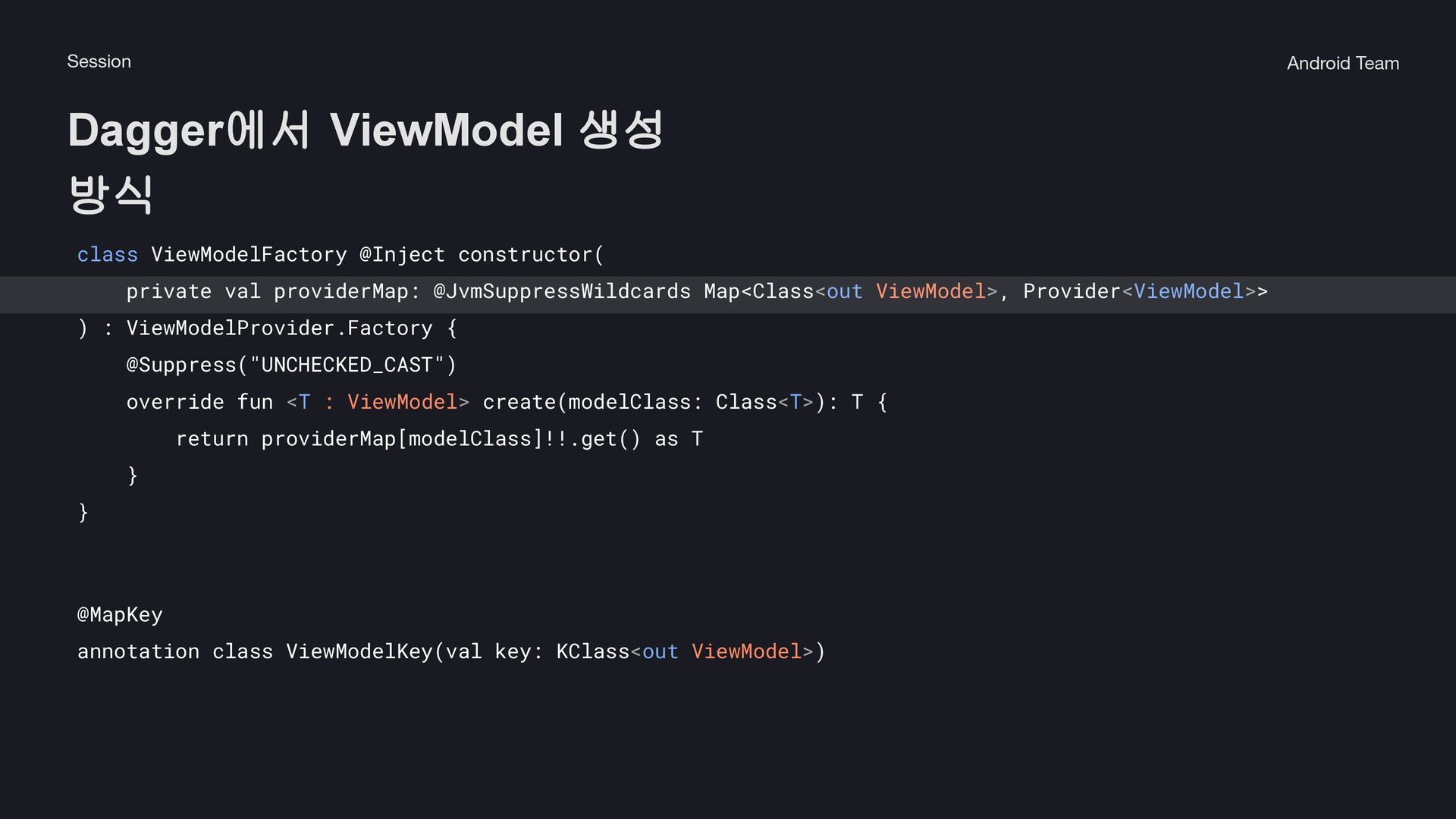

19. Dagger에서 ViewModel 생성 방식 Session Android Team class ViewModelFactory @Inject constructor( private val providerMap: @JvmSuppressWildcards Map<Class<out ViewModel>, Provider<ViewModel>> ) : ViewModelProvider.Factory { @Suppress("UNCHECKED_CAST") override fun <T : ViewModel> create(modelClass: Class<T>): T { return providerMap[modelClass]!!.get() as T } } @MapKey annotation class ViewModelKey(val key: KClass<out ViewModel>)

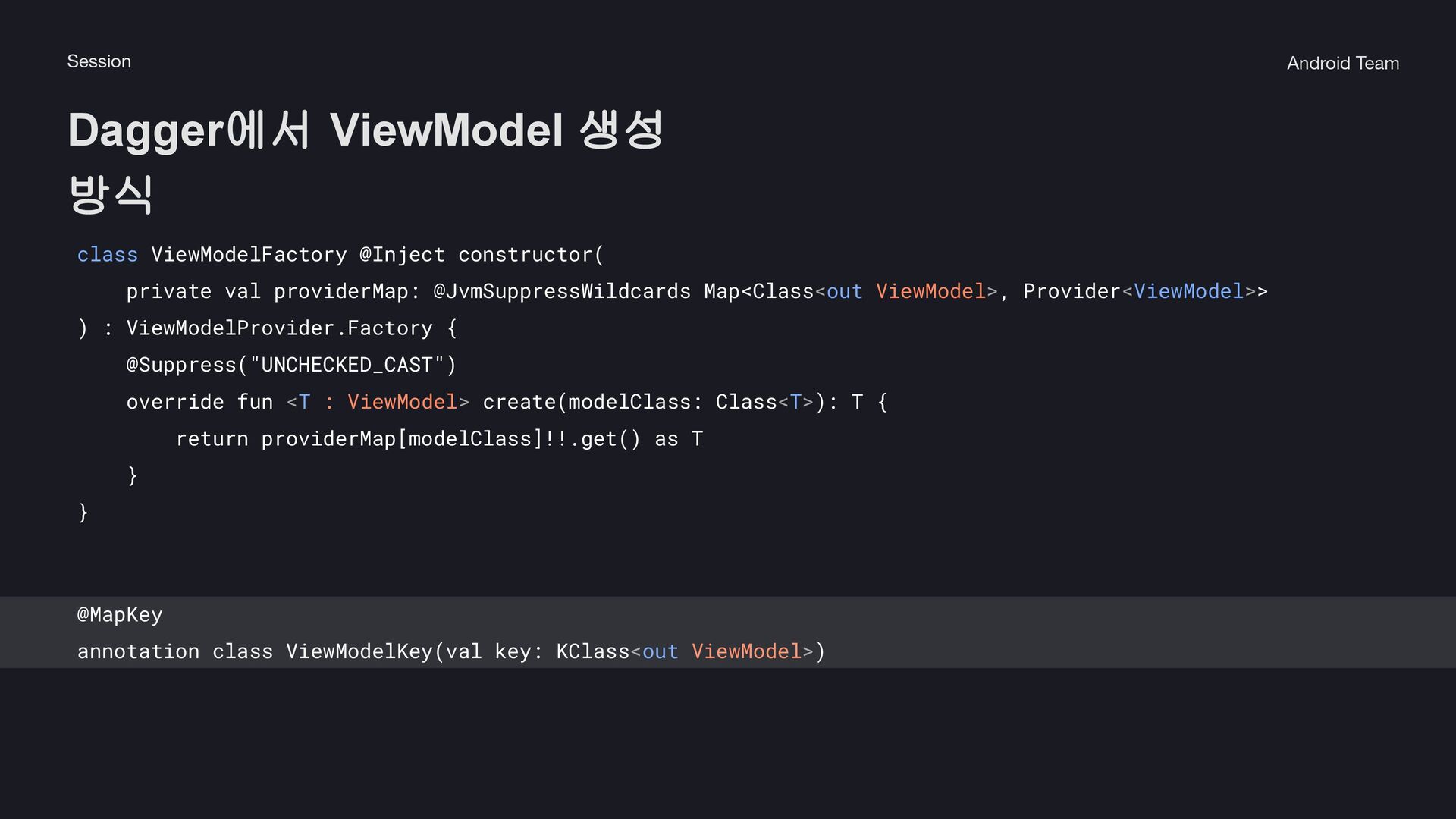

20. Dagger에서 ViewModel 생성 방식 Session Android Team class ViewModelFactory @Inject constructor( private val providerMap: @JvmSuppressWildcards Map<Class<out ViewModel>, Provider<ViewModel>> ) : ViewModelProvider.Factory { @Suppress("UNCHECKED_CAST") override fun <T : ViewModel> create(modelClass: Class<T>): T { return providerMap[modelClass]!!.get() as T } } @MapKey annotation class ViewModelKey(val key: KClass<out ViewModel>)

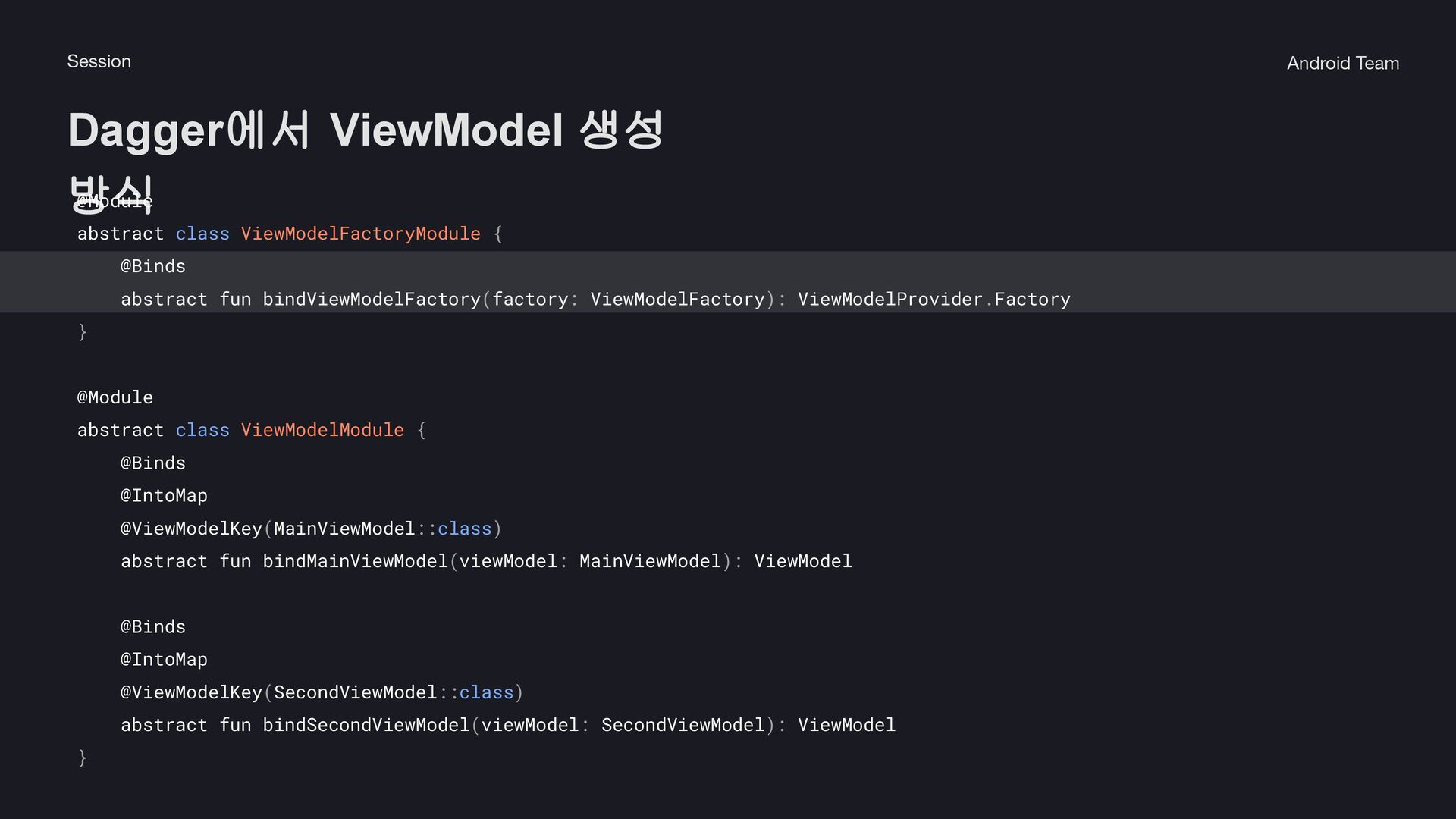

21. Dagger에서 ViewModel 생성 방식 Session Android Team @Module abstract class ViewModelFactoryModule { @Binds abstract fun bindViewModelFactory(factory: ViewModelFactory): ViewModelProvider.Factory } @Module abstract class ViewModelModule { @Binds @IntoMap @ViewModelKey(MainViewModel::class) abstract fun bindMainViewModel(viewModel: MainViewModel): ViewModel @Binds @IntoMap @ViewModelKey(SecondViewModel::class) abstract fun bindSecondViewModel(viewModel: SecondViewModel): ViewModel }

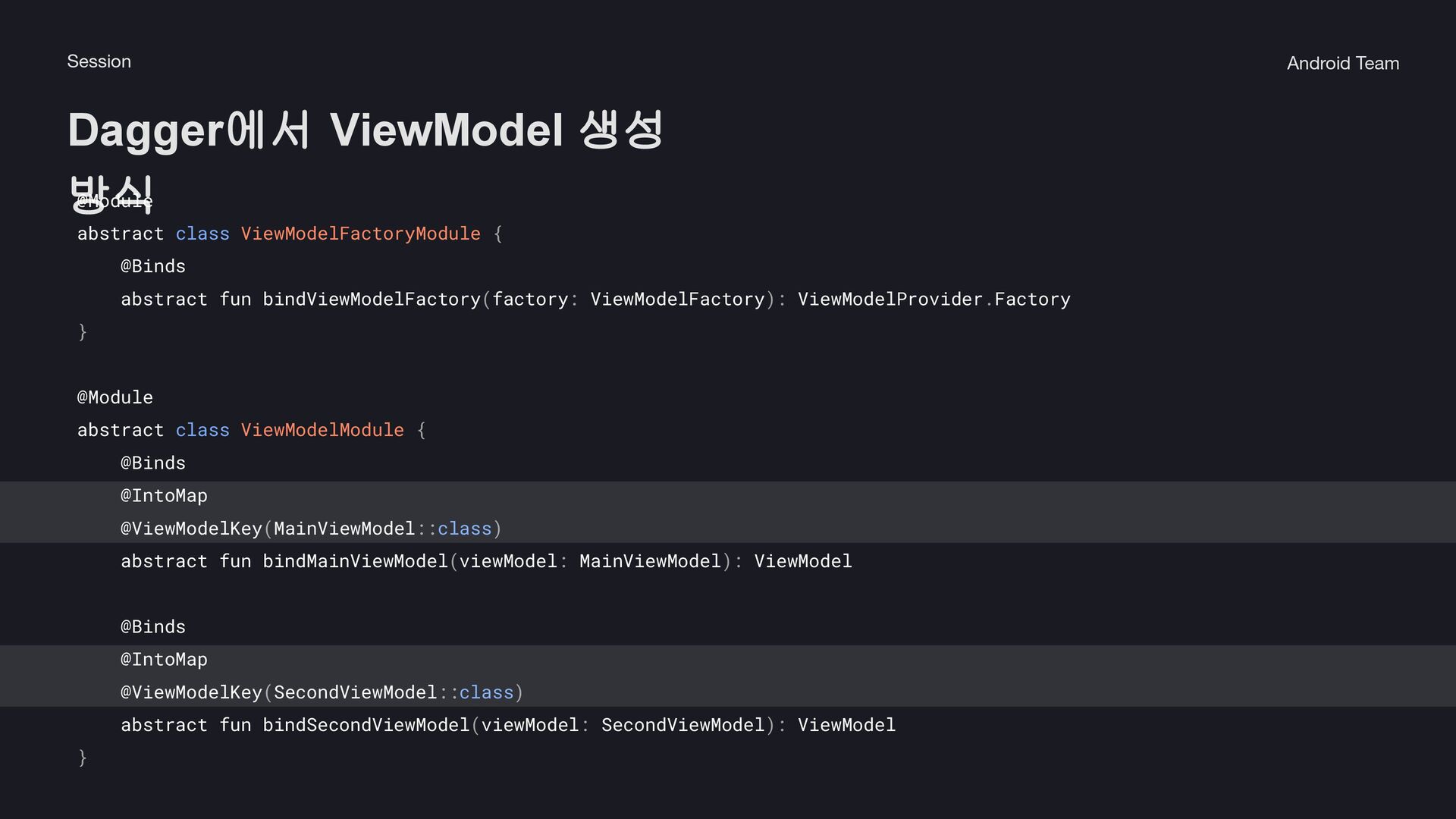

22. Dagger에서 ViewModel 생성 방식 Session Android Team @Module abstract class ViewModelFactoryModule { @Binds abstract fun bindViewModelFactory(factory: ViewModelFactory): ViewModelProvider.Factory } @Module abstract class ViewModelModule { @Binds @IntoMap @ViewModelKey(MainViewModel::class) abstract fun bindMainViewModel(viewModel: MainViewModel): ViewModel @Binds @IntoMap @ViewModelKey(SecondViewModel::class) abstract fun bindSecondViewModel(viewModel: SecondViewModel): ViewModel }

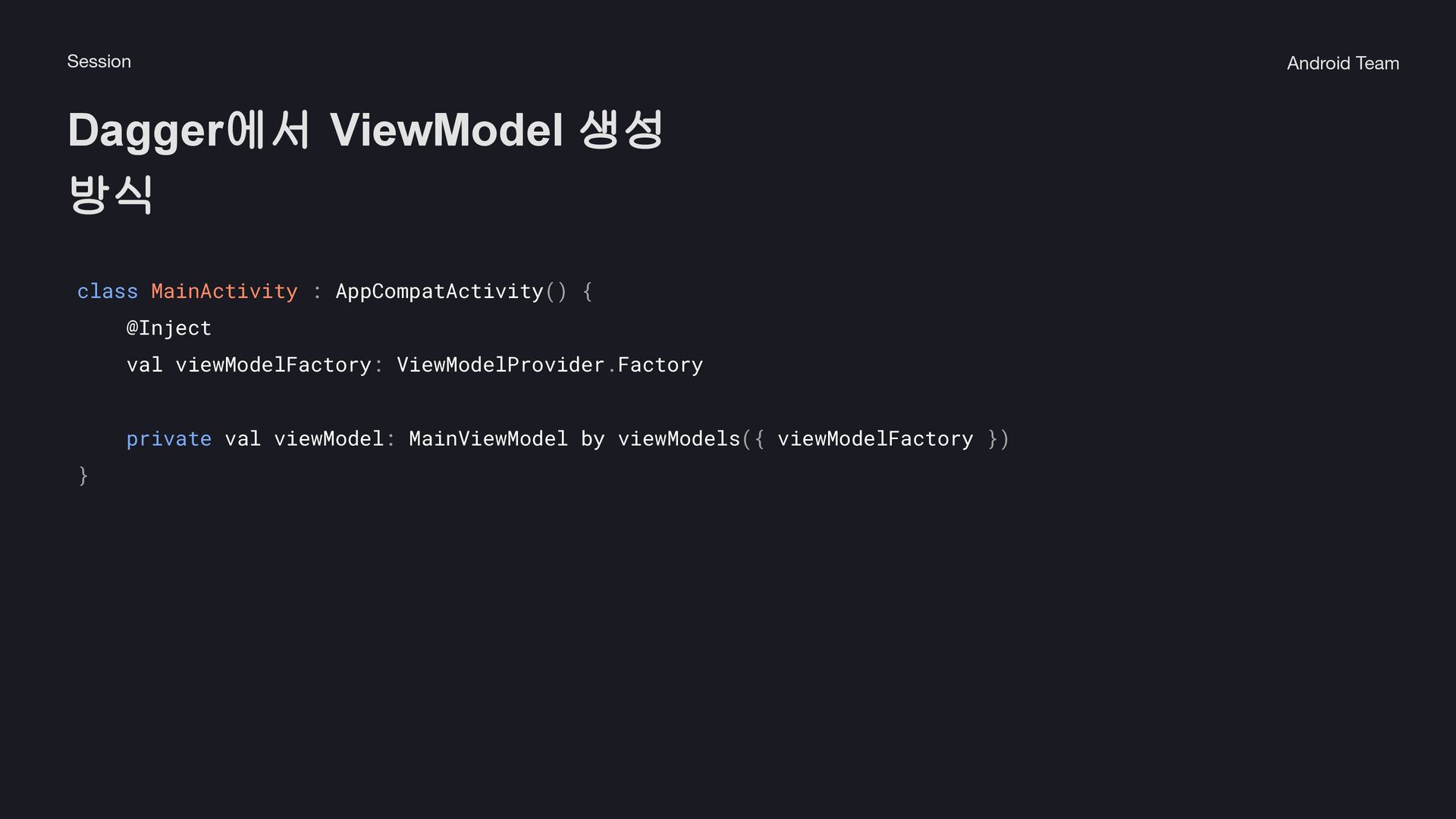

23. Dagger에서 ViewModel 생성 방식 Session Android Team class MainActivity : AppCompatActivity() { @Inject val viewModelFactory: ViewModelProvider.Factory private val viewModel: MainViewModel by viewModels({ viewModelFactory }) }

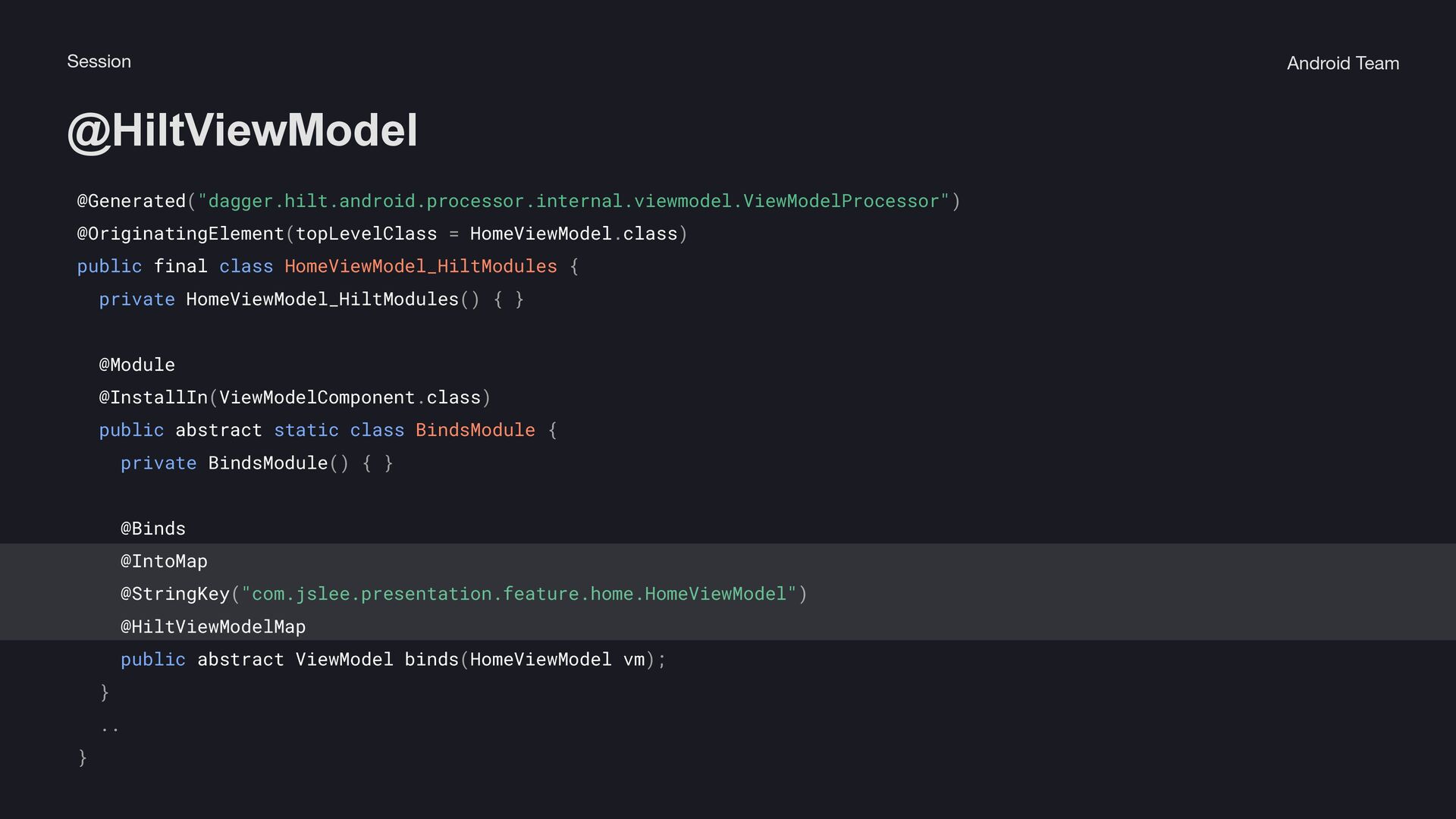

24. @HiltViewModel Session Android Team @Generated("dagger.hilt.android.processor.internal.viewmodel.ViewModelProcessor") @OriginatingElement(topLevelClass = HomeViewModel.class) public final class HomeViewModel_HiltModules { private HomeViewModel_HiltModules() { } @Module @InstallIn(ViewModelComponent.class) public abstract static class BindsModule { private BindsModule() { } @Binds @IntoMap @StringKey("com.jslee.presentation.feature.home.HomeViewModel") @HiltViewModelMap public abstract ViewModel binds(HomeViewModel vm); } .. }

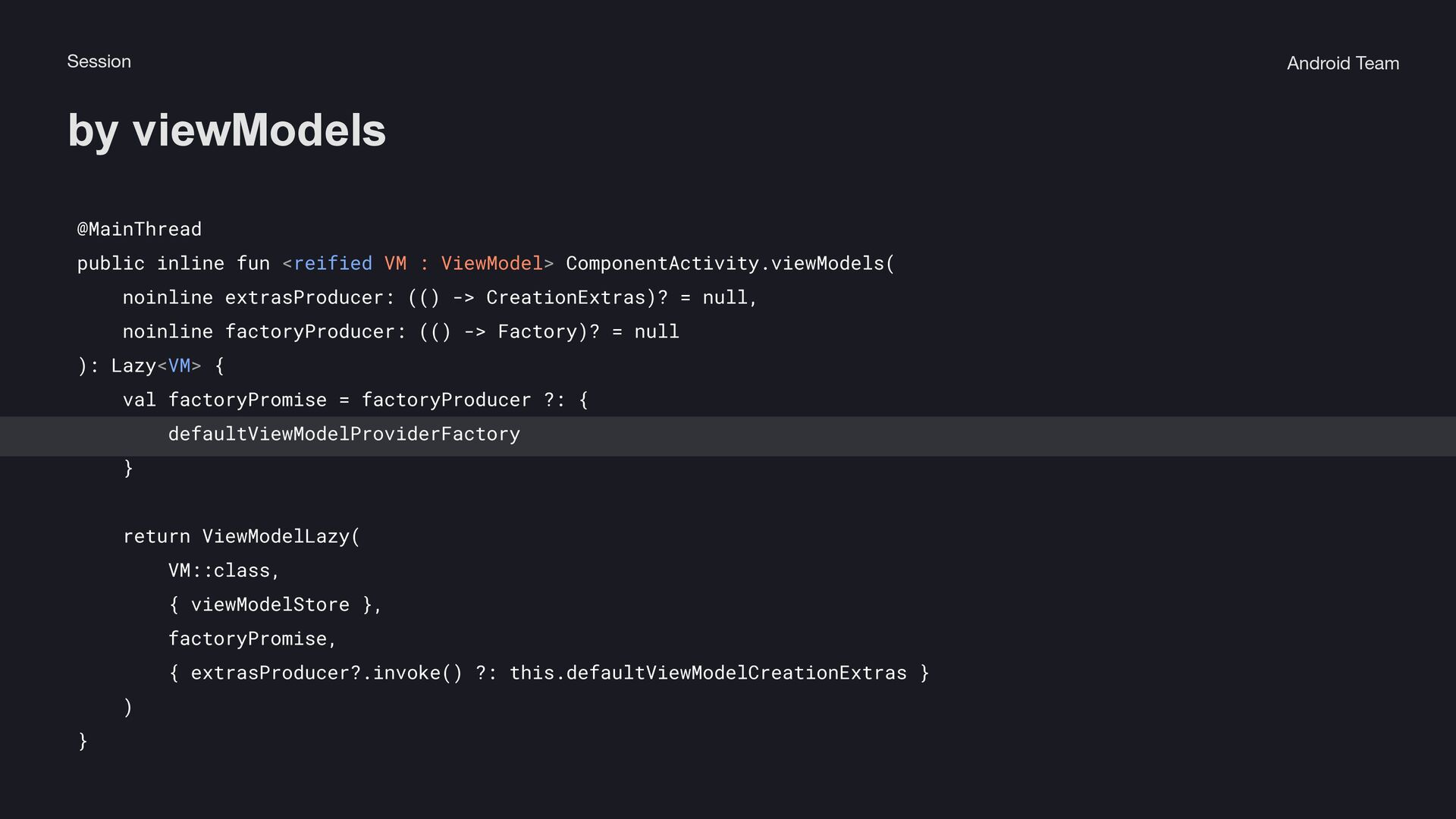

25. by viewModels Session Android Team @MainThread public inline fun <reified VM : ViewModel> ComponentActivity.viewModels( noinline extrasProducer: (() -> CreationExtras)? = null, noinline factoryProducer: (() -> Factory)? = null ): Lazy<VM> { val factoryPromise = factoryProducer ?: { defaultViewModelProviderFactory } return ViewModelLazy( VM::class, { viewModelStore }, factoryPromise, { extrasProducer?.invoke() ?: this.defaultViewModelCreationExtras } ) }

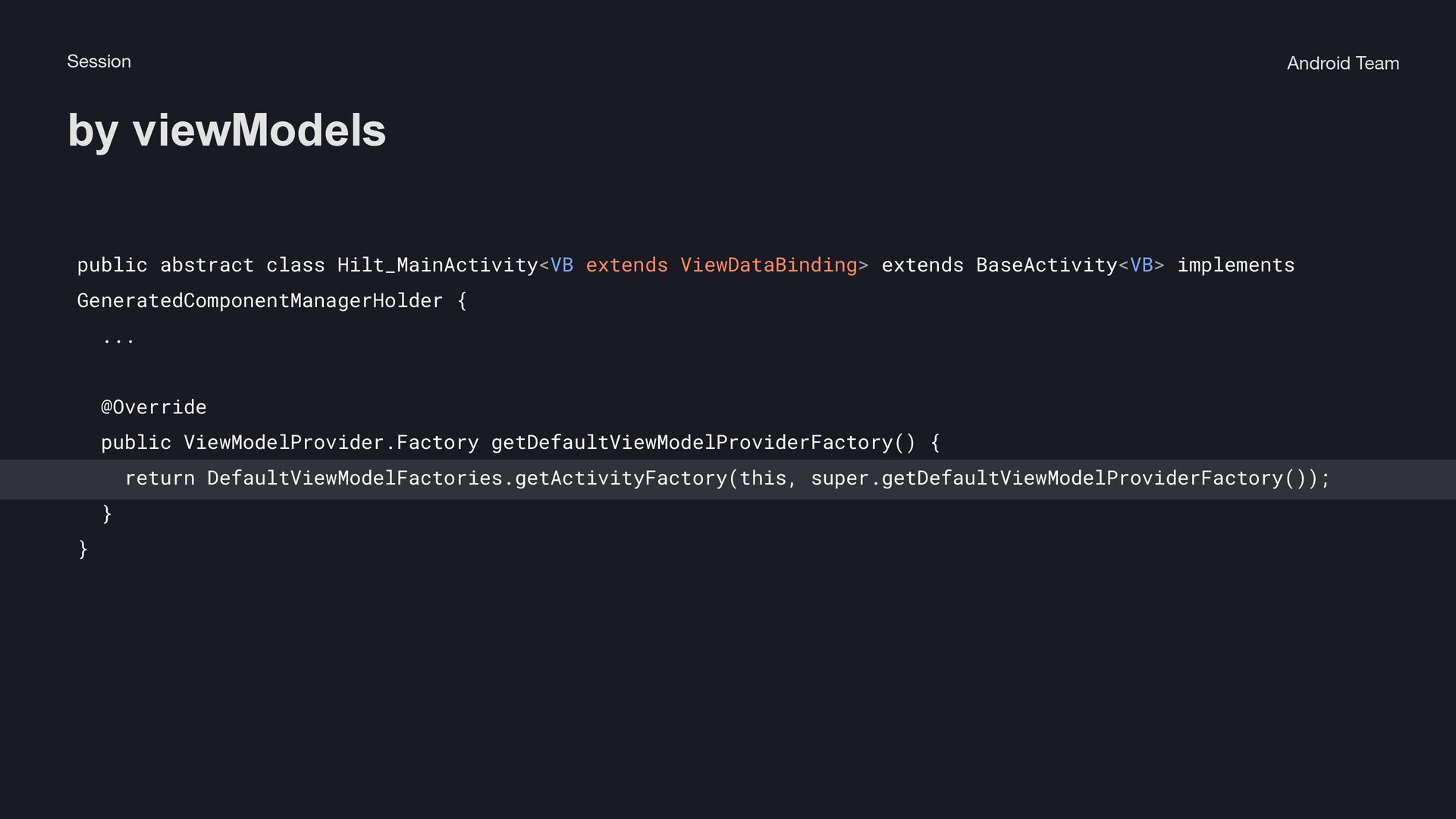

26. by viewModels Session Android Team public abstract class Hilt_MainActivity<VB extends ViewDataBinding> extends BaseActivity<VB> implements GeneratedComponentManagerHolder { ... @Override public ViewModelProvider.Factory getDefaultViewModelProviderFactory() { return DefaultViewModelFactories.getActivityFactory(this, super.getDefaultViewModelProviderFactory()); } }
27. @HiltViewModel Session Android Team public final class DefaultViewModelFactories { public static ViewModelProvider.Factory getActivityFactory(ComponentActivity activity, ViewModelProvider.Factory delegateFactory) { return EntryPoints.get(activity, ActivityEntryPoint.class) .getHiltInternalFactoryFactory() .fromActivity(activity, delegateFactory); } .. ViewModelProvider.Factory fromActivity( ComponentActivity activity, ViewModelProvider.Factory delegateFactory) { return getHiltViewModelFactory( activity, activity.getIntent() != null ? activity.getIntent().getExtras() : null, delegateFactory); } }

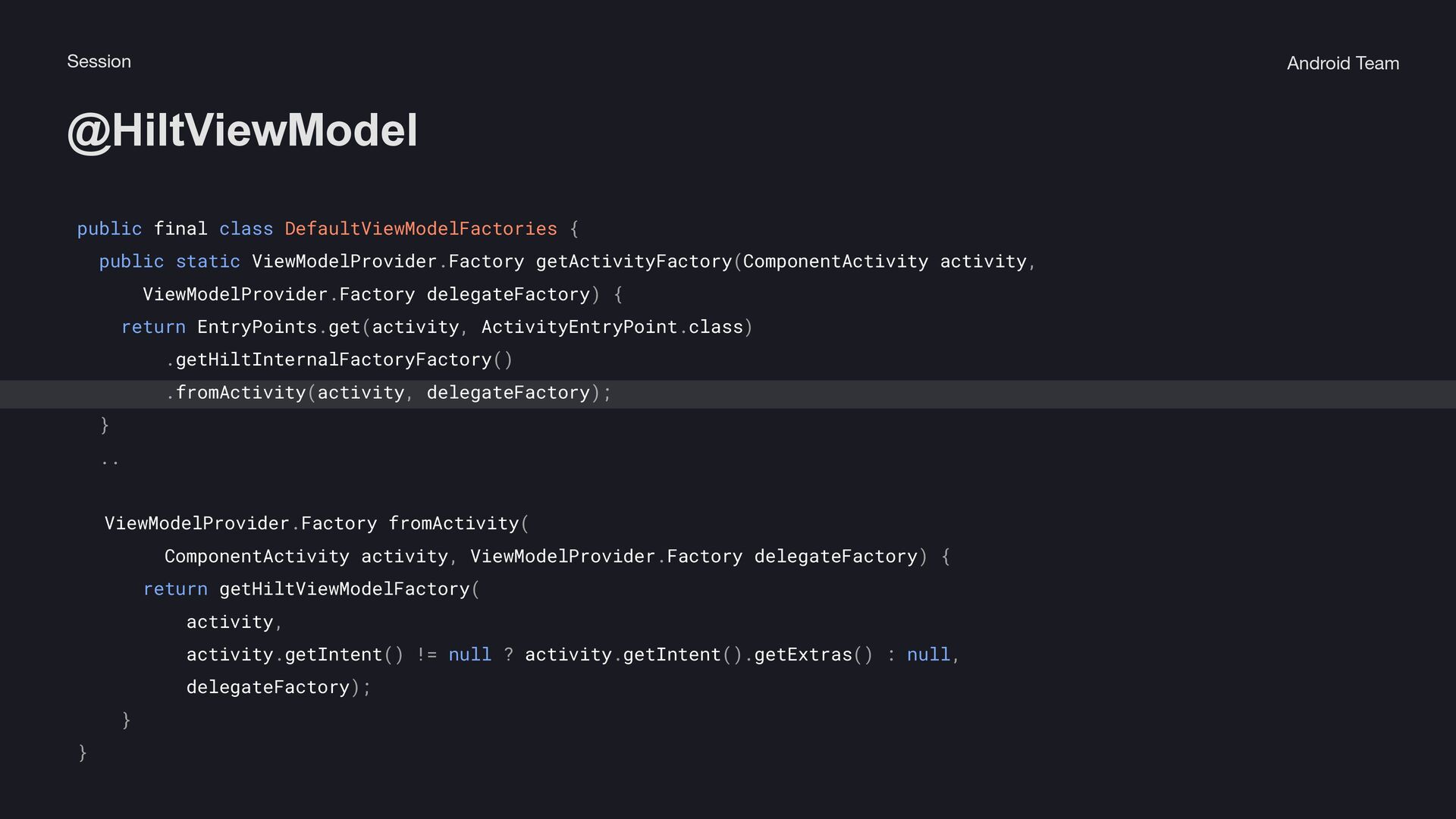

28. @HiltViewModel Session Android Team public final class DefaultViewModelFactories { public static ViewModelProvider.Factory getActivityFactory(ComponentActivity activity, ViewModelProvider.Factory delegateFactory) { return EntryPoints.get(activity, ActivityEntryPoint.class) .getHiltInternalFactoryFactory() .fromActivity(activity, delegateFactory); } .. ViewModelProvider.Factory fromActivity( ComponentActivity activity, ViewModelProvider.Factory delegateFactory) { return getHiltViewModelFactory( activity, activity.getIntent() != null ? activity.getIntent().getExtras() : null, delegateFactory); } }

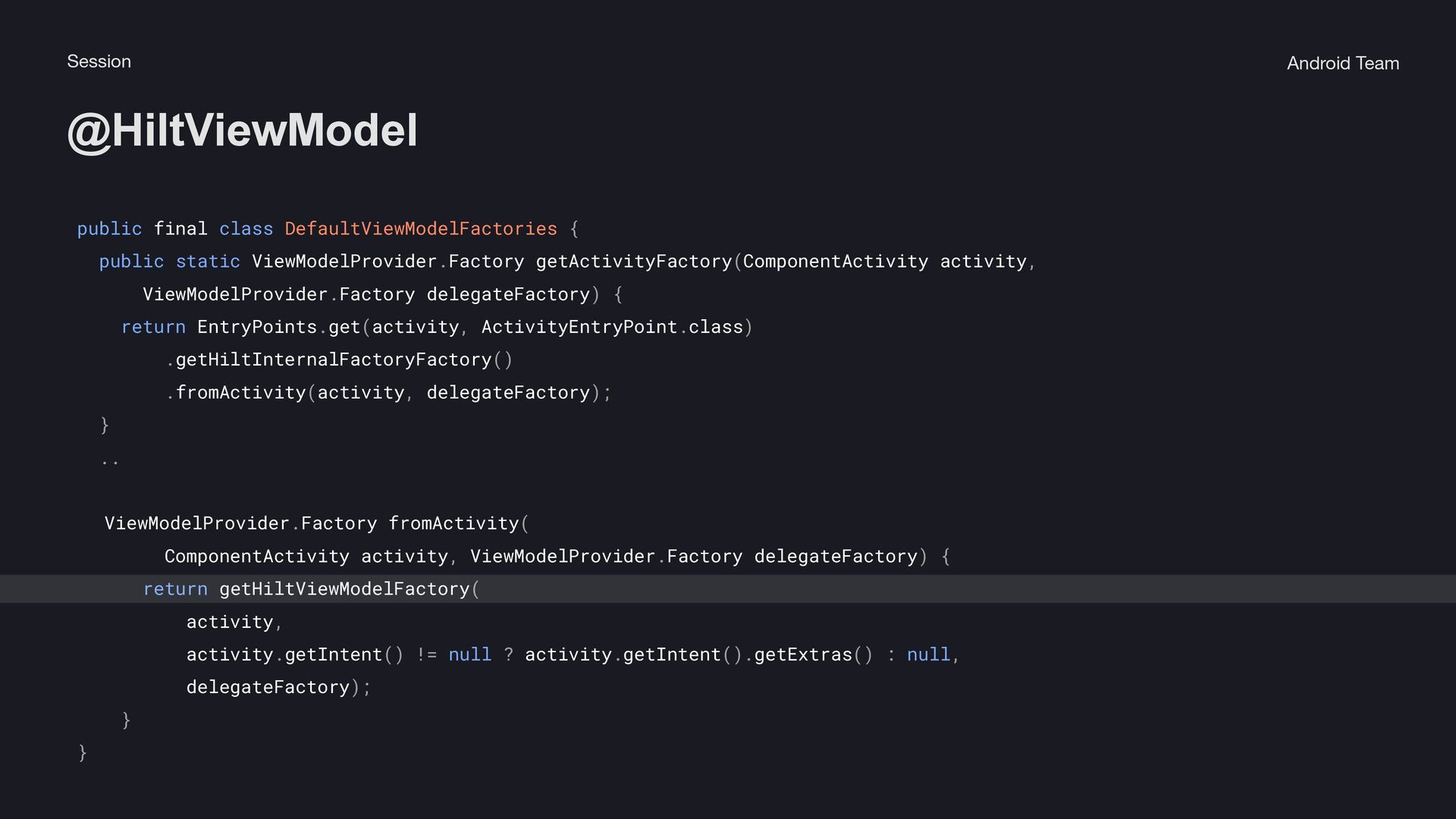

29. @HiltViewModel Session Android Team public final class DefaultViewModelFactories { public static ViewModelProvider.Factory getActivityFactory(ComponentActivity activity, ViewModelProvider.Factory delegateFactory) { return EntryPoints.get(activity, ActivityEntryPoint.class) .getHiltInternalFactoryFactory() .fromActivity(activity, delegateFactory); } .. ViewModelProvider.Factory fromActivity( ComponentActivity activity, ViewModelProvider.Factory delegateFactory) { return getHiltViewModelFactory( activity, activity.getIntent() != null ? activity.getIntent().getExtras() : null, delegateFactory); } }
30. 정리

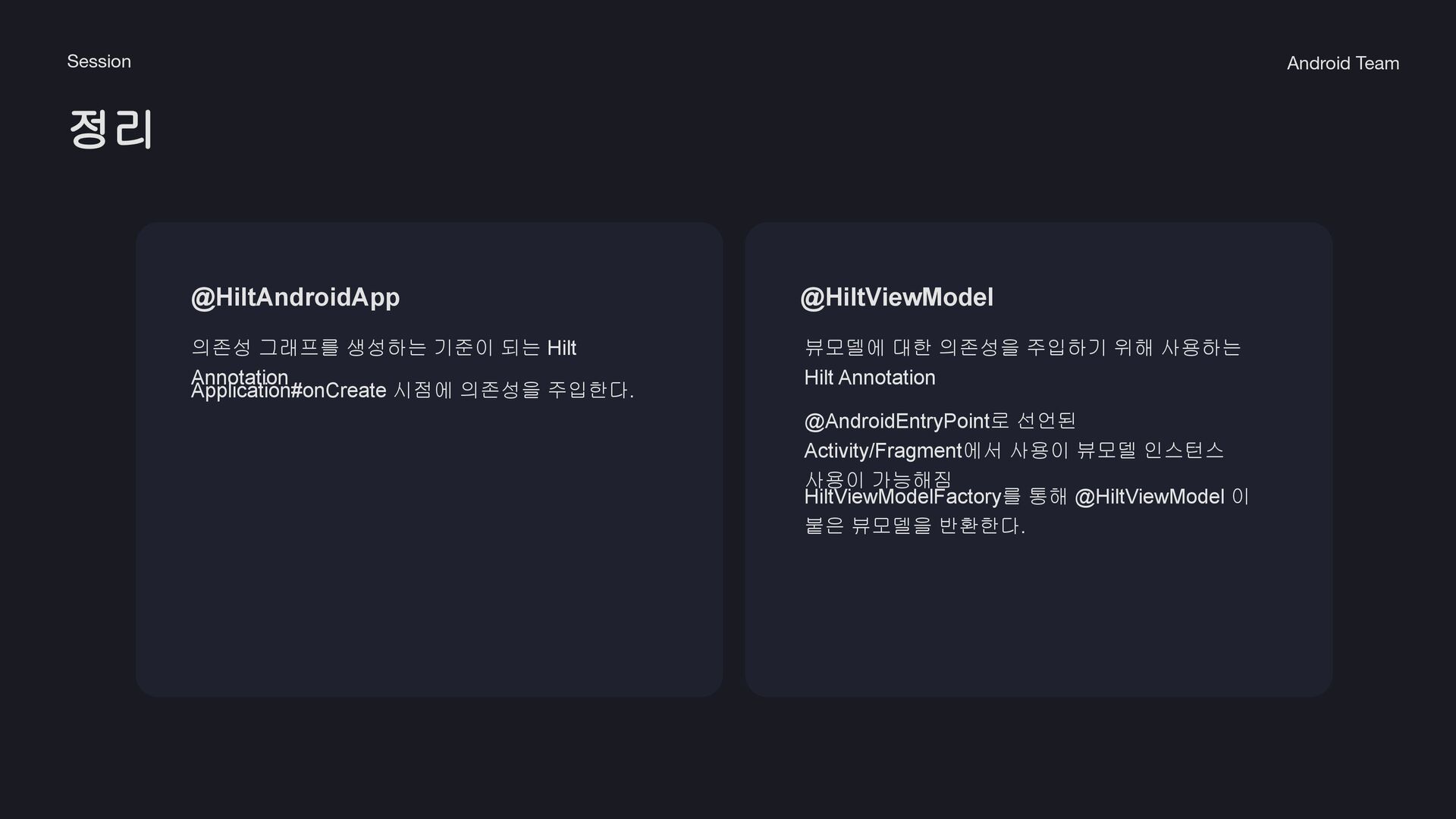

31. 정리 Session @HiltViewModel @HiltAndroidApp 의존성 그래프를 생성하는 기준이 되는 Hilt Annotation Application#onCreate 시점에 의존성을 주입한다. 뷰모델에 대한 의존성을 주입하기 위해 사용하는 Hilt Annotation @AndroidEntryPoint로 선언된 Activity/Fragment에서 사용이 뷰모델 인스턴스 사용이 가능해짐 HiltViewModelFactory를 통해 @HiltViewModel 이 붙은 뷰모델을 반환한다. Android Team
32. 2024.04.20 Thank you. Android Team 이재 성 Mash-Up 14th 10min. Seminar
