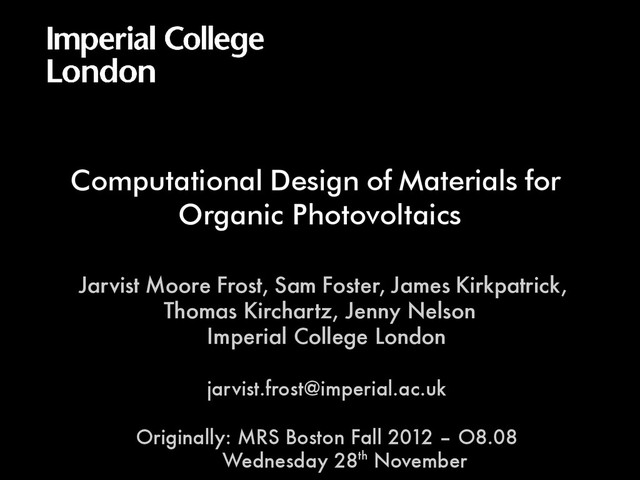

  1. Computational Design of Materials for Organic Photovoltaics Jarvist Moore Frost,

    Sam Foster, James Kirkpatrick, Thomas Kirchartz, Jenny Nelson Imperial College London jarvist.frost@imperial.ac.uk Originally: MRS Boston Fall 2012 – O8.08 Wednesday 28th November
  2. Tight Binding - The Hückel Method [[ S J 0.

    0. ] [ J S J 0. ] [ 0. J S J ] [ 0. 0. J S ]] H = Hamiltonian very easy to solve Parameters semi-empirical (can derive from DFT) Can treat extremely large systems
  3. (Boon Kar, 2008) High Mobility Polyfluorine & the β-phase

  4. PF8 Proposed Structures Grell et al. (Macromolecules 1999, 32, 5810-5817)

    Chen et al. (Macromolecules 2004, 37, 6833-6838) Planar Zig-Zag [2,1 Helix] Complex Unit Cell [Longer Helix]
  5. Polyfluorene Copolymers F5 F8 Sumitomo

  6. None
  7. Transition Time for Backbone Movements (extracted from MD oligomer simulation,

    PF8)
  8. None
  9. MD Representation → Stiff QM Representation (via Votca) Polyfluorene Tetramer

    Simulation 250 tetramers – 3.5ns
  10. Transfer Integrals: PF8 vs. PF5:8 F8-F8-F8-F8 F8-F5-F8-F5

  11. Predicted Mobility in PF8 vs. PF5:8 cm2 / Vs Simulated

    Hole Mobilities Simulated Tetramer Densities
  12. Processing magic → di-octyl Polyfluorene can be persuaded to have

    high mobilities Samples are glassy Induction of the Beta-phase strongly reduces mobility
  13. β-Phase α-Phase HOMO Spin Density B3LYP/6-31g* "Formation of the β-phase

    effectively corresponds to crystallization in one dimension, a remarkably uncommon phenomenon in nature." http://pubs.acs.org/doi/pdfplus/10.1021/nl071207u
  14. 0 1 2 3 4 5 6 7 eV In

    Vacuum, Beta Phase structures are strained But at accessible energies
  15. Need larger systems for representative DoS → Python TightBinding http://www.physics.rutgers.edu/pythtb/

    Hybrid DFT on Octamers (B3LYP/6-31g* & tuned BNL/6-31g*) - get some trap formation (up to 140 meV)
  16. None
  17. 50meV Gaussian Site Energy Disorder

  18. Beta Phase Energetic Trap (5 sites)

  19. Beta Phase Energetic Trap (10 sites) For Wide Enough trap

    ~10 sites (no confinement), Trap depth = site Energy change
  20. P3HT–like polymer (normally flat) A pproxim ate torsional distribution as

    norm al distribution C onsider beta phase to be sm all pockets of flat regions – (i.e. J is m axim ised is these regions to J0)
  21. Disordered (torsionally) But FLAT (minima) polymer 70meV

  22. Polyfluorene–like polymer (Helix / twisted rod) • Approximate torsional distribution

    as normal distribution (around 45 degree minima) • Consider beta phase to be small pockets of flat regions of polymer – (i.e. J is maximised is these regions to J0)
  23. Disordered (torsionally) TWISTED (~PFO) polymer 596meV

  24. Conclusions • In polymers, Torsion is important – In P3HT,

    torsion suffcient to describe DoS – In PFO, natural background twist makes extended regions (Beta phase) deep traps – Traps are not always what one imagines (and be careful what you wish for) Even (or especially?) 1930s electronic-structure techniques can offer useful insights
