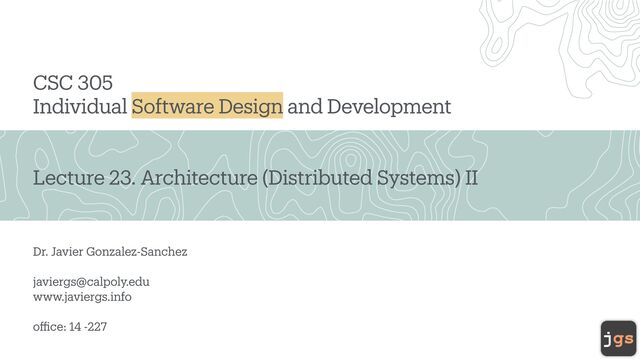

1. Dr. Javier Gonzalez-Sanchez javiergs@calpoly.edu www.javiergs.info o ffi ce: 14 -227 CSC 305 Individual Software Design and Development Lecture 23. Architecture (Distributed Systems) II
2. Collaboration 2 Stu C St F M Pe St C S F M Pe
3. Architecture 3
4. Communication Protocols Sockets • - Wh a t: Low-level communic a tion mech a nism for exch a nging d a t a between two systems. • - How: Utilizes TCP/UDP protocols for reli a ble/unreli a ble d a t a tr a nsfer. • - Use C a se: Direct communic a tion between client-server a pplic a tions (e.g., f ile tr a nsfer a nd ch a t). WebSockets • - Wh a t: Full-duplex communic a tion protocol over a single TCP connection. • - How: En a bles persistent, bidirection a l communic a tion between client a nd server in re a l- time. • - Use C a se: Re a l-time a pplic a tions like live ch a ts, g a ming, a nd stock tr a ding pl a tforms. MQTT (Mess a ge Queuing Telemetry Tr a nsport) • Wh a t: Lightweight mess a ging protocol designed for low-b a ndwidth, high-l a tency networks. • How: Uses a publish-subscribe p a ttern for e ff icient communic a tion between devices. • Use C a se: Ide a l for IoT a pplic a tions, sm a rt home devices, a nd sensor networks. 4
5. Publisher-Subscriber MQTT
6. Message Queuing 6
7. Message Queuing (Topics) 7
8. MQTT Wh a t is MQTT? • MQTT (Mess a ge Queuing Telemetry Tr a nsport) is a lightweight, publish-subscribe network protocol. • Designed for constr a ined devices a nd low-b a ndwidth, high-l a tency, or unreli a ble networks. Key Fe a tures • Simple a nd e a sy to implement. • Low b a ndwidth consumption. • Reli a ble mess a ge delivery. • Sc a l a ble to millions of devices. 8
9. MQTT Architecture Broker • The centr a l server th a t h a ndles mess a ge distribution. • Ex a mples: Mosquitto, HiveMQ, EMQX, AWS MQ. Clients • Devices or a pplic a tions th a t publish (send) a nd subscribe (receive) mess a ges. • Ex a mples: Sensors, mobile a pps, a nd IoT devices. Topics • Hier a rchic a l n a mesp a ces for org a nizing mess a ges. • Ex a mple: home/livingRoom/temper a ture. 9
10. MQTT Work f low Connect • Clients connect to the broker. Subscribe • Clients subscribe to topics of interest. Publish • Clients publish mess a ges to topics. Receive • Clients receive mess a ges from topics they a re subscribed to. Disconnect • Clients disconnect from the broker. 10
11. Eclipse Paho for Java Wh a t is Eclipse P a ho? • A set of MQTT client libr a ries developed by the Eclipse Found a tion. • It supports multiple l a ngu a ges, such a s J a v a , Python, J a v a Script, etc. J a v a Dependency (M a ven) <dependency> <groupId>org.eclipse.paho</groupId> <artifactId>org.eclipse.paho.client.mqttv3</artifactId> <version>1.2.5</version> </dependency> 11
12. https://github.com/CSC3100/MQTT
13. Quality-of-service options • 0 – "at most once": A.K.A. "fire-and-forget." This option is suitable when message loss is acceptable, as it doesn't require acknowledgment or persistence. • 1 – "at least once": This option should be chosen when message loss is unacceptable, and your subscribers can handle duplicate messages. • 2 – "Exactly once": This option is ideal when message loss is unacceptable, and your subscribers cannot handle duplicate messages. 13
14. https://github.com/CSC3100/MQTT
15. Summary • MQTT: Lightweight, e ff i cient protocol for IoT and other use cases. • Mosquitto: A popular open-source MQTT broker. • Eclipse Paho: A versatile MQTT client library. • Java Example: https://github.com/CSC3100/MQTT 15
16. Questions 16
17. Lab
18. Challenge 18 * Could you create an MQTT version for the CLICK AND DRAW A DOT app? (yes, it is basically joining the two source codes) * Could it be possible to have it BI-DIRECTIONAL?
