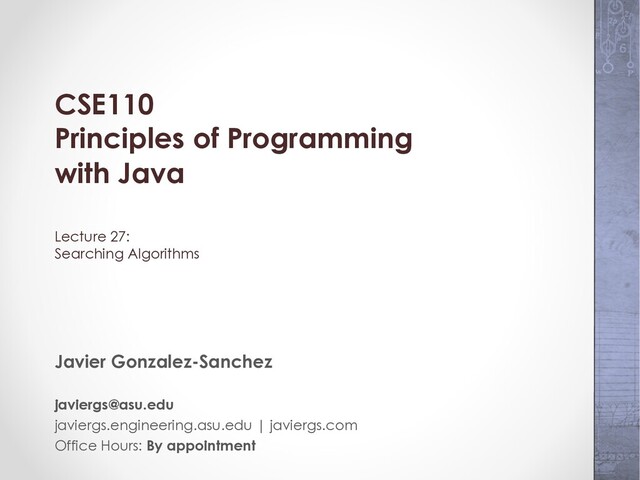

  1. CSE110
    Principles of Programming
    with Java
    Lecture 27:
    Searching Algorithms
    Javier Gonzalez-Sanchez
    [email protected]
    javiergs.engineering.asu.edu | javiergs.com
    Office Hours: By appointment

    View Slide

  2. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 2
    Search Algorithms
    • Search: locate an item in an array of information
    (primitive type or objects)
    • Common searching algorithms includes:
    • Linear search
    • Binary search

    View Slide

  3. Linear Search

    View Slide

  4. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 4
    Linear Search
    • Looks sequentially at each element of a given
    collection of elements until either the target is found
    or we come to the end of the list (not found)

    View Slide

  5. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 5
    Linear Search
    // Searches and returns the index of where the
    // searched element is located.
    // Returns -1 if the target is not found.
    public static int linearSearch (int[] numbers, int target) {
    int position = -1; //it is not found yet
    for (int index=0; index < numbers.length; index++) {
    if (numbers[index] == target) {
    position = index; //save the index of search element
    break;
    // OR
    // return index;
    }
    }
    return position;
    }

    View Slide

  6. Binary Search

    View Slide

  7. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 7
    Binary Search
    • It uses Divide and Conquer approach.
    • Pre-Condition: The search pool is sorted.
    • Instead of starting the search at one end, we begin
    in the middle
    • Used to look up a word in a dictionary or a name in
    a phone book.

    View Slide

  8. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 8
    Binary Search
    1. For example, find the number 29 in the following
    sorted list of numbers:
    8 15 22 29 36 54 55 61 70 73 88
    0 1 2 3 4 5 6 7 8 9 10

    View Slide

  9. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 9
    Binary Search
    2. Compare the target to the middle value 54
    8 15 22 29 36 54 55 61 70 73 88
    0 1 2 3 4 5 6 7 8 9 10

    View Slide

  10. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 10
    Binary Search
    3. if 29 is in the list, it is in the front half of the list since it
    is smaller than 54.
    8 15 22 29 36 54 55 61 70 73 88
    0 1 2 3 4 5 6 7 8 9 10

    View Slide

  11. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 11
    Binary Search
    3. if 29 is in the list, it is in the front half of the list since it
    is smaller than 54.
    4. With one comparison, we’ve eliminated half of the
    data
    8 15 22 29 36 54 55 61 70 73 88
    0 1 2 3 4 5 6 7 8 9 10

    View Slide

  12. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 12
    Binary Search
    5. Then compare to 22, eliminating another quarter of
    the data
    6. etc.
    8 15 22 29 36 54 55 61 70 73 88
    0 1 2 3 4 5 6 7 8 9 10
    8 15 22 29 36 54 55 61 70 73 88
    0 1 2 3 4 5 6 7 8 9 10

    View Slide

  13. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 13
    Binary Search
    8 15 22 29 36 54 55 61 70 73 88
    0 1 2 3 4 5 6 7 8 9 10
    start, end, middle
    0, 10, (10 + 0) / 2 = 5
    0, 4, (4 + 0 ) / 2 = 2
    3, 4, (4 + 3 ) / 2 = 3
    3

    View Slide

  14. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 14
    Binary Search
    // Searches using a binary search
    // returns the index of where the searched element is located.
    // returns -1 if the target is not found.
    public static int binarySearch (int[] data, int target) {
    int start = 0, end = data.length-1, middle;
    int position = -1; //return -1 if not found
    boolean found = false;
    while (found == false && start <= end) {
    middle = (start + end)/2;
    if (data[middle] == target){
    found = true;
    position = middle;
    } else if (data[middle] > target)
    end = middle - 1;
    else
    start = middle + 1;
    }
    return position; //return -1 if not found
    }

    View Slide

  15. Binary Search
    Using Recursion

    View Slide

  16. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 16
    Recursive Binary Search Method
    • Assume an array a sorted in ascending order, and
    an item X
    • We want to write a method that searches for X
    within the array a, returning the index of X if it is
    found, and returning -1 if X is not in the array
    • A recursive strategy for searching a portion of the
    array from lo to hi is to set m to position of middle of
    portion of array:

    View Slide

  17. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 17
    Recursive Binary Search Method
    • If (a[m]== X), we found X, so return m
    • if (a[m] > X), recursively search a[lo … m-1]
    • if (a[m] < X), recursively search a[m+1 … hi]

    View Slide

  18. Javier Gonzalez-Sanchez | CSE110 | Summer 2020 | 18
    Recursive Binary Search Method
    int bSearch(int[] a, int x, int lo, int hi) {
    int m = (lo + hi) /2;
    if(lo > hi)
    return -1; // base
    if(a[m] == x)
    return m; // base
    if(a[m] > x)
    return bSearch(a, x, lo, m-1);
    else
    return bSearch(a, x, m+1, hi);
    }

    View Slide

  19. CSE110 - Principles of Programming
    Javier Gonzalez-Sanchez
    [email protected]
    Summer 2020
    Disclaimer. These slides can only be used as study material for the class CSE110 at ASU. They cannot be distributed or used for another purpose.
