Scaling osquery with osctrl

Understanding well how the osquery remote API works is the first step to build scalable software around it. We will discuss the approach to go from just a few nodes to dozens of thousands while keeping everything working smoothly.

None of the secret sauce is actually secret, since it’s still open source!

Osquery (https://osquery.io) is an open source tool, originally developed by the Facebook Security team and currently managed by its own community as part of the Linux Foundation. It allows you to run a SQL engine on top of your operative system, and to use SQL queries to extract information about the health state and changes of the systems in your networks. This tool enhances the incident response capabilities of a Security team and it is important to understand the differences between the osquery shell (osqueryi) and the osquery daemon (osqueryd) and how to use them in a large enterprise network. In particular the remote API of osquery.

Understanding well how the osquery remote API works is the first step to build scalable software around it. We will discuss the approach to go from just a few nodes to dozens of thousands while keeping everything working smoothly. None of the secret sauce is actually secret, since it’s still open source!

A solution to enhance the detection capabilities of osquery is osctrl (https://osctrl.net), a fast and efficient osquery management solution, that implements its remote API as TLS endpoint, and allows to monitor, configure and interact with all your production or corporate assets, that use osquery as host instrumentation solution.

Osctrl has been used in corporate and production environments with thousands of nodes, thanks to its ability to scale and provide a reliable solution. Its particular architecture is key to scale, whether the environment is cloud, virtualized, container based or even bare metal.

Transcript

1. Scaling osquery @javutin
2. ➔ Former: ➔ Current: Javier Marcos de Prado Staff Security Engineer @ Page 2 @javutin $ whoami @javutin javuto

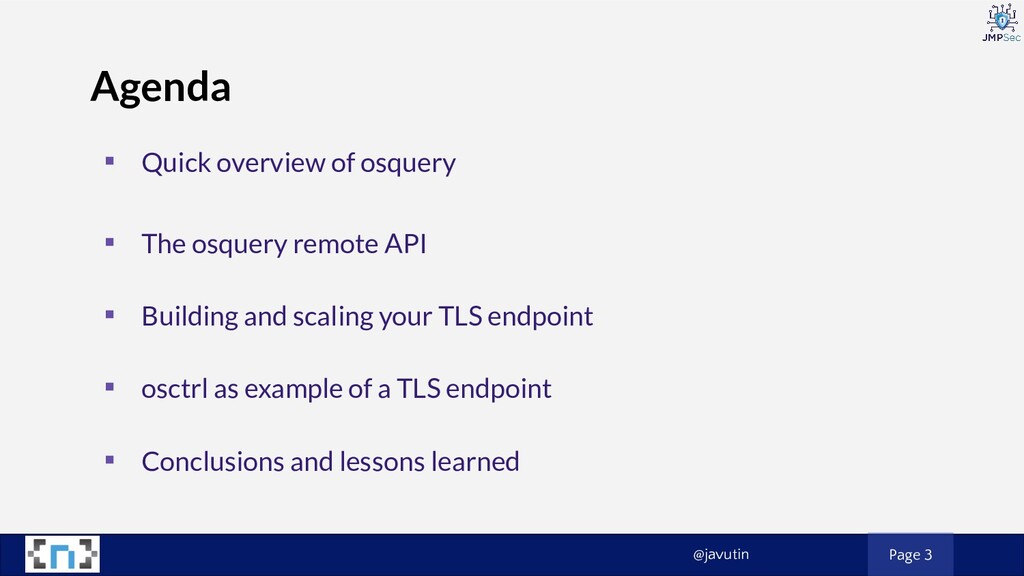

3. Page 3 Agenda ▪ Quick overview of osquery ▪ The osquery remote API ▪ Building and scaling your TLS endpoint ▪ osctrl as example of a TLS endpoint ▪ Conclusions and lessons learned @javutin
4. Quick overview of osquery Page 4 @javutin

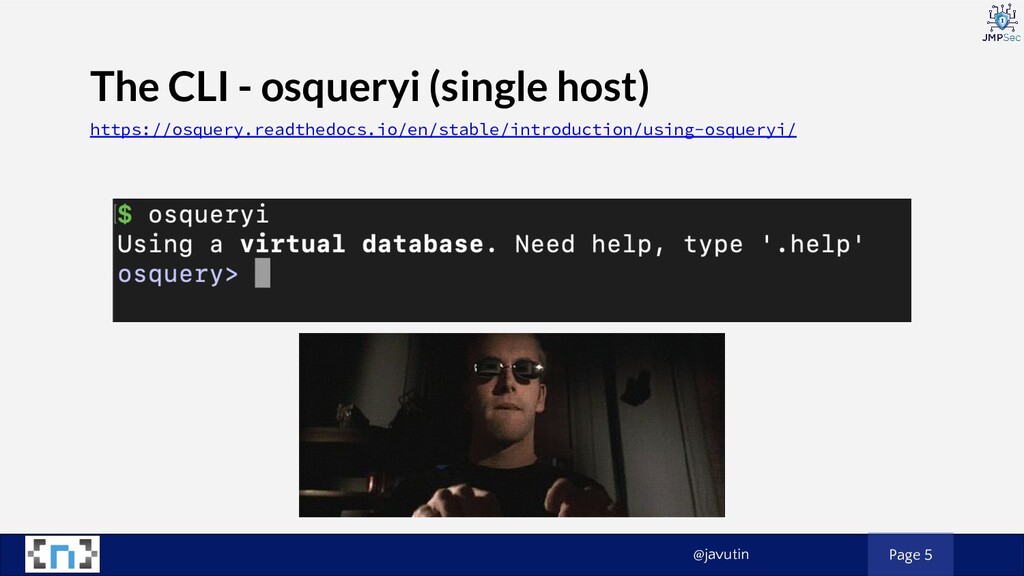

5. Page 5 The CLI - osqueryi (single host) https://osquery.readthedocs.io/en/stable/introduction/using-osqueryi/ @javutin

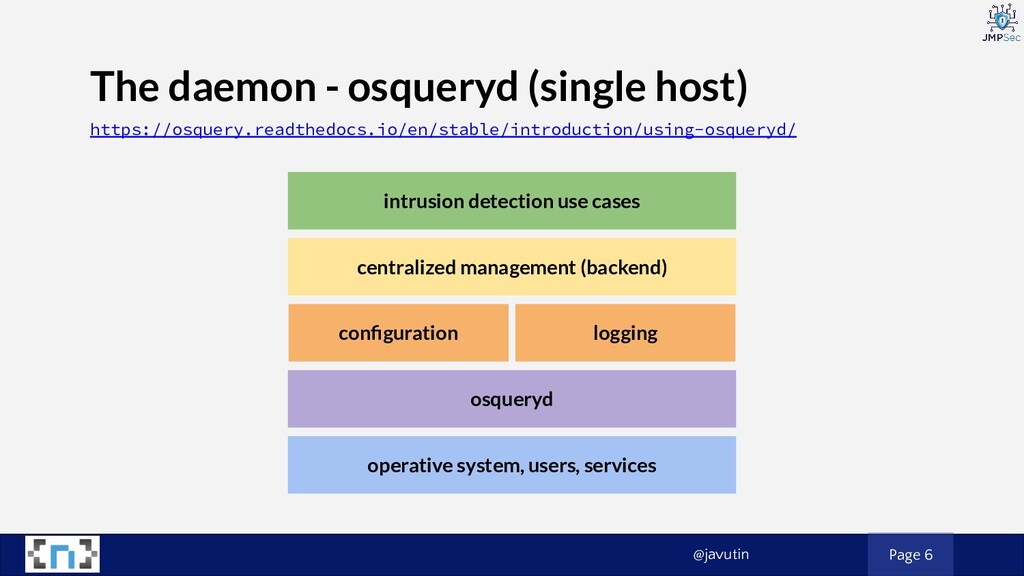

6. Page 6 The daemon - osqueryd (single host) https://osquery.readthedocs.io/en/stable/introduction/using-osqueryd/ intrusion detection use cases centralized management (backend) operative system, users, services configuration logging osqueryd @javutin

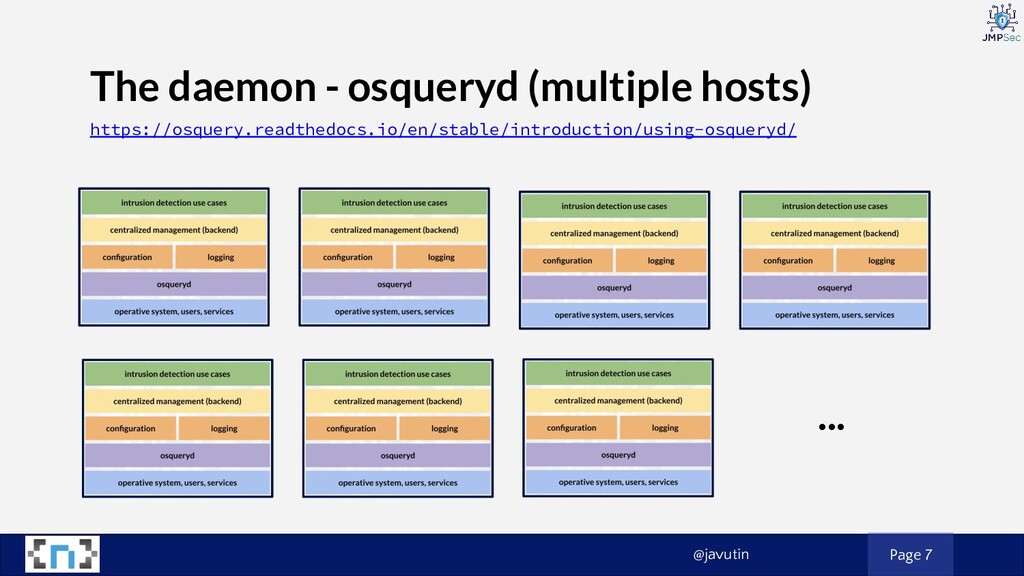

7. Page 7 The daemon - osqueryd (multiple hosts) https://osquery.readthedocs.io/en/stable/introduction/using-osqueryd/ ... @javutin

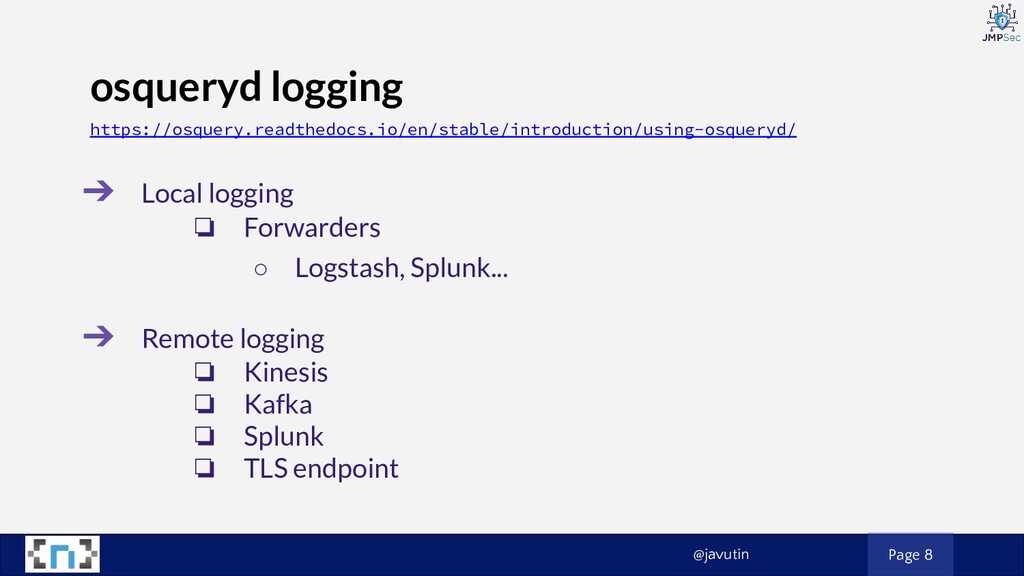

8. Page 8 osqueryd logging https://osquery.readthedocs.io/en/stable/introduction/using-osqueryd/ ➔ Local logging ❏ Forwarders ◦ Logstash, Splunk... ➔ Remote logging ❏ Kinesis ❏ Kafka ❏ Splunk ❏ TLS endpoint @javutin

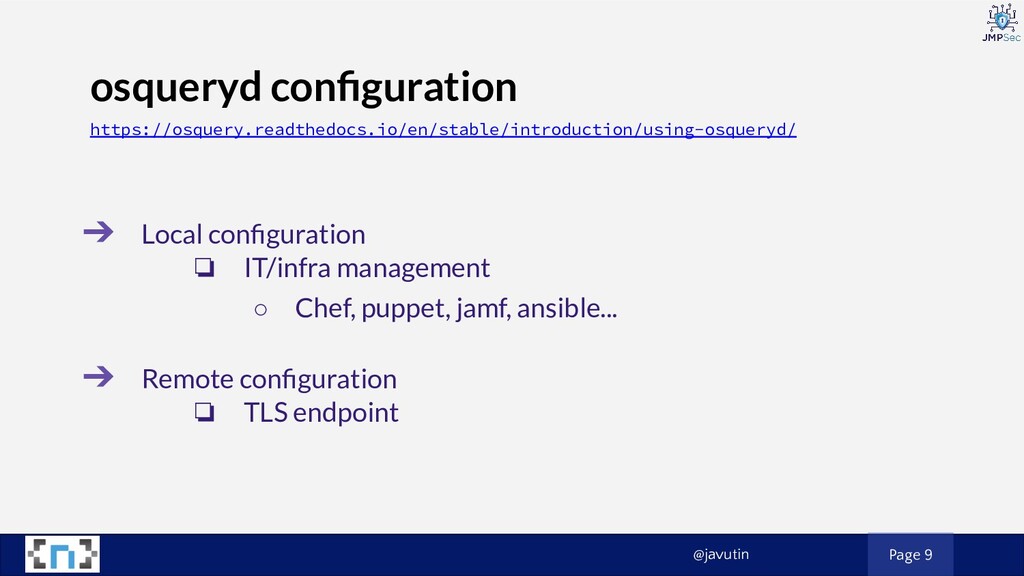

9. Page 9 osqueryd configuration https://osquery.readthedocs.io/en/stable/introduction/using-osqueryd/ ➔ Local configuration ❏ IT/infra management ◦ Chef, puppet, jamf, ansible... ➔ Remote configuration ❏ TLS endpoint @javutin
10. The osquery remote API Page 10 @javutin

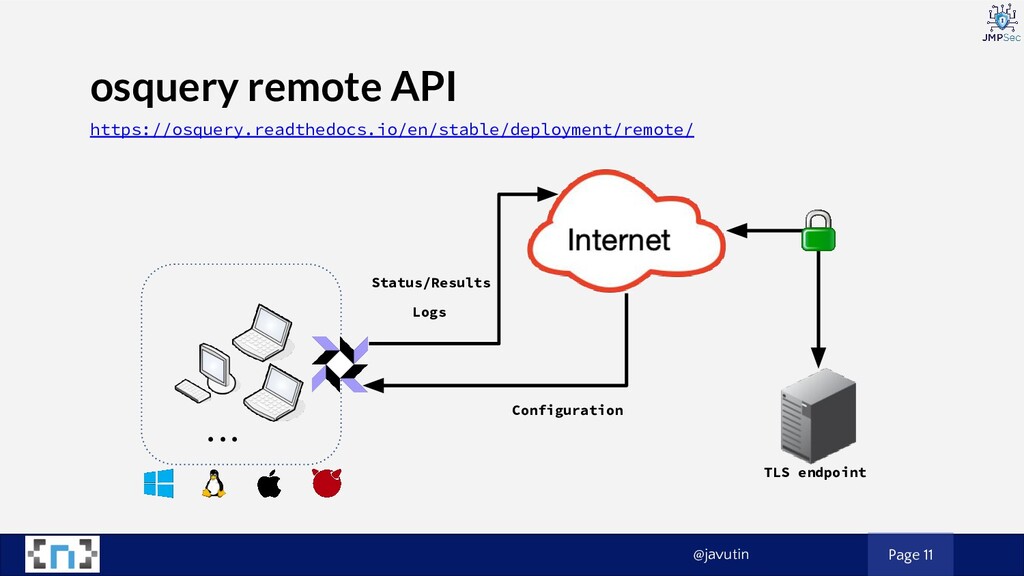

11. Page 11 osquery remote API https://osquery.readthedocs.io/en/stable/deployment/remote/ ... Status/Results Logs Configuration TLS endpoint @javutin

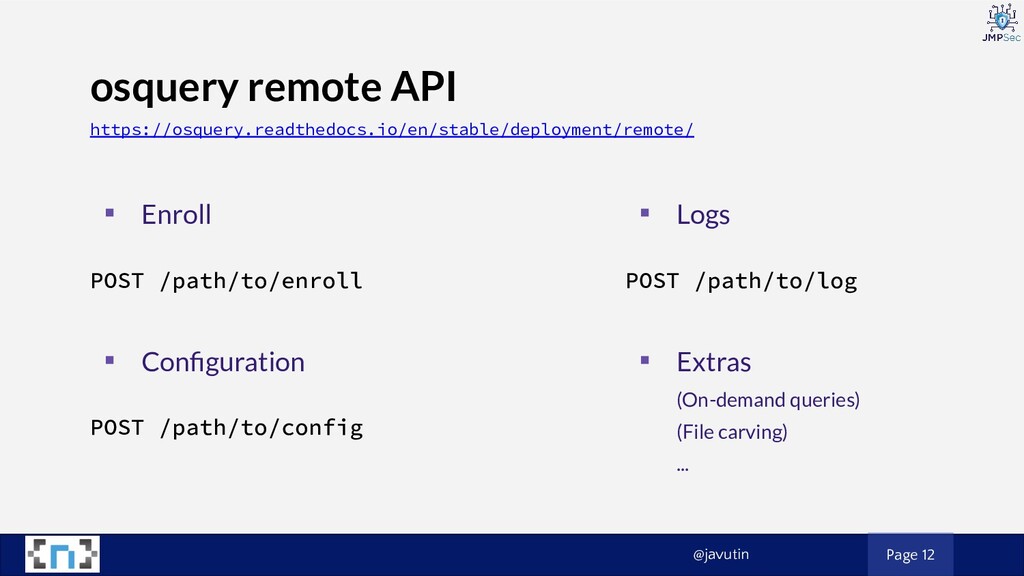

12. Page 12 osquery remote API ▪ Enroll POST /path/to/enroll ▪ Configuration POST /path/to/config ▪ Logs POST /path/to/log ▪ Extras (On-demand queries) (File carving) ... https://osquery.readthedocs.io/en/stable/deployment/remote/ @javutin

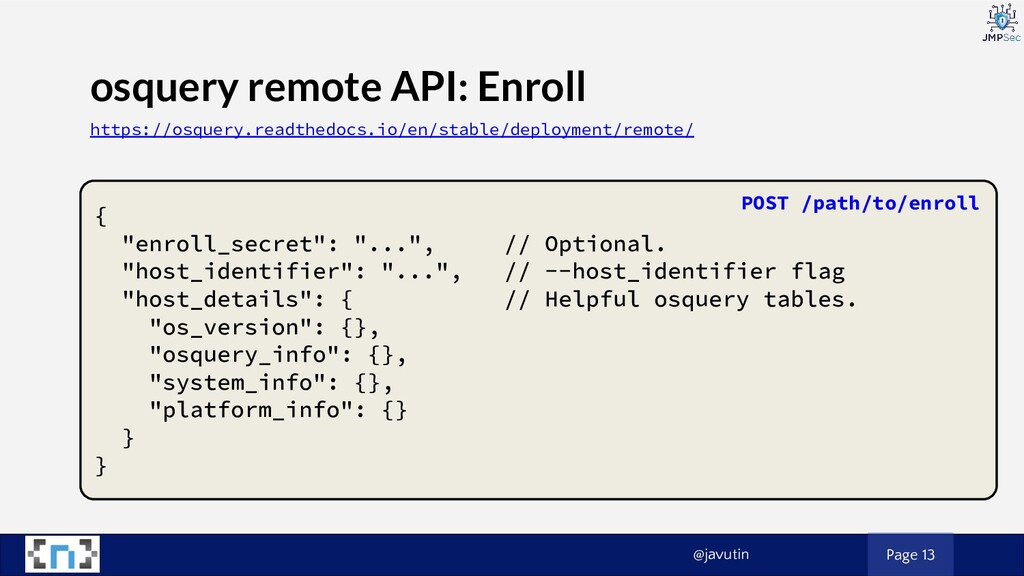

13. Page 13 osquery remote API: Enroll https://osquery.readthedocs.io/en/stable/deployment/remote/ { "enroll_secret": "...", // Optional. "host_identifier": "...", // --host_identifier flag "host_details": { // Helpful osquery tables. "os_version": {}, "osquery_info": {}, "system_info": {}, "platform_info": {} } } POST /path/to/enroll @javutin

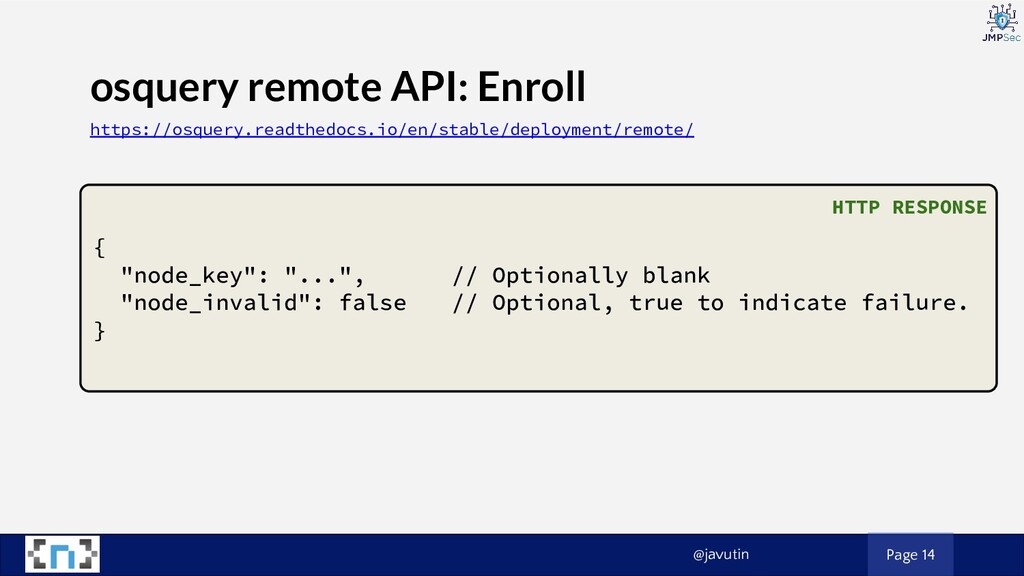

14. Page 14 osquery remote API: Enroll https://osquery.readthedocs.io/en/stable/deployment/remote/ { "node_key": "...", // Optionally blank "node_invalid": false // Optional, true to indicate failure. } HTTP RESPONSE @javutin

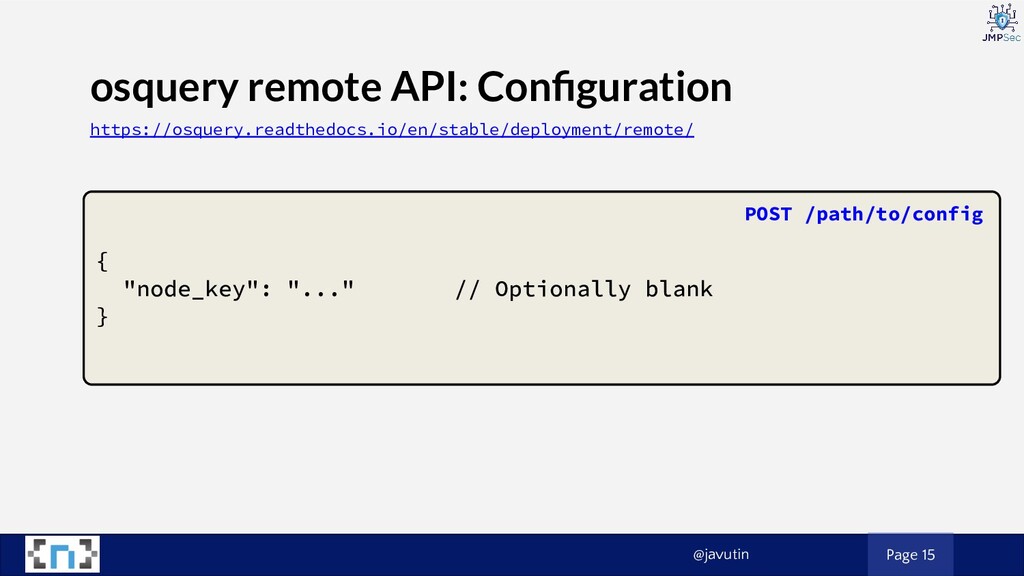

15. Page 15 osquery remote API: Configuration https://osquery.readthedocs.io/en/stable/deployment/remote/ { "node_key": "..." // Optionally blank } POST /path/to/config @javutin

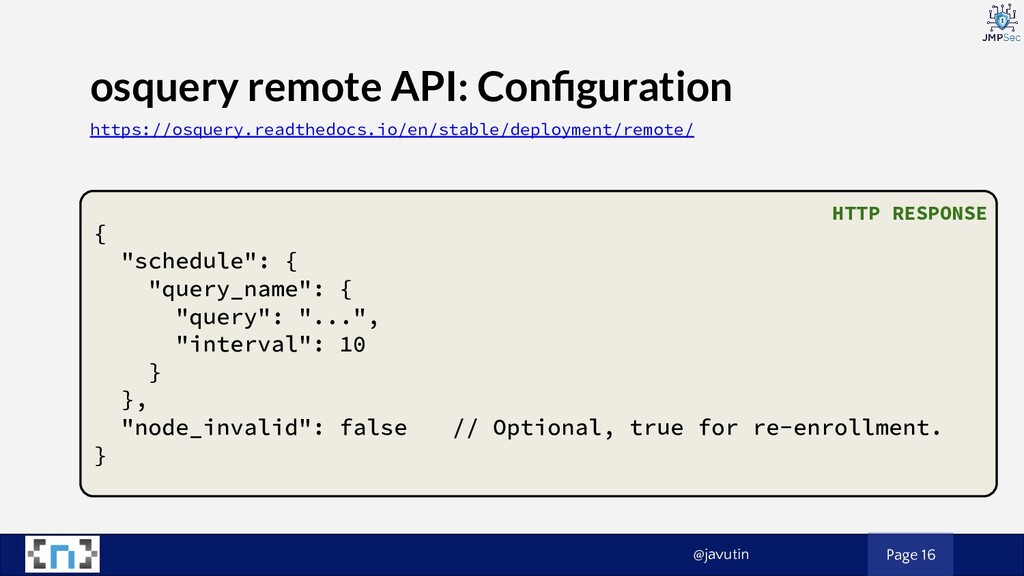

16. Page 16 osquery remote API: Configuration https://osquery.readthedocs.io/en/stable/deployment/remote/ { "schedule": { "query_name": { "query": "...", "interval": 10 } }, "node_invalid": false // Optional, true for re-enrollment. } HTTP RESPONSE @javutin

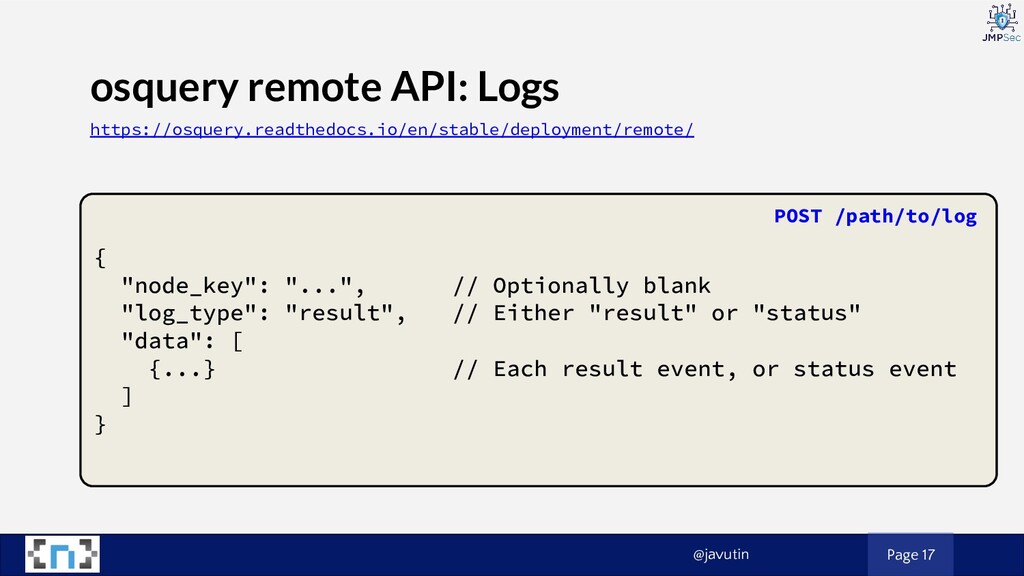

17. Page 17 osquery remote API: Logs https://osquery.readthedocs.io/en/stable/deployment/remote/ { "node_key": "...", // Optionally blank "log_type": "result", // Either "result" or "status" "data": [ {...} // Each result event, or status event ] } POST /path/to/log @javutin

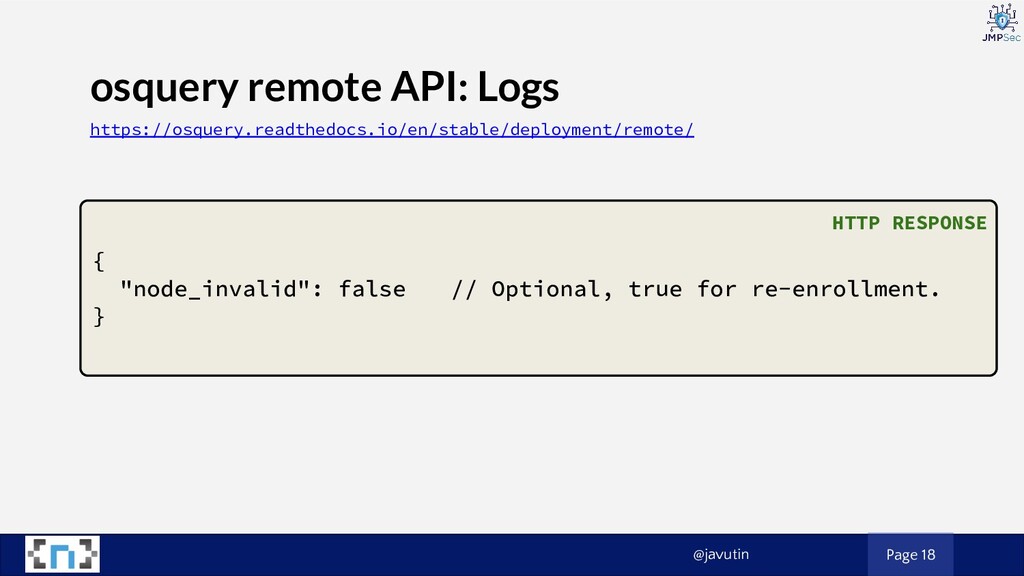

18. Page 18 osquery remote API: Logs https://osquery.readthedocs.io/en/stable/deployment/remote/ { "node_invalid": false // Optional, true for re-enrollment. } HTTP RESPONSE @javutin

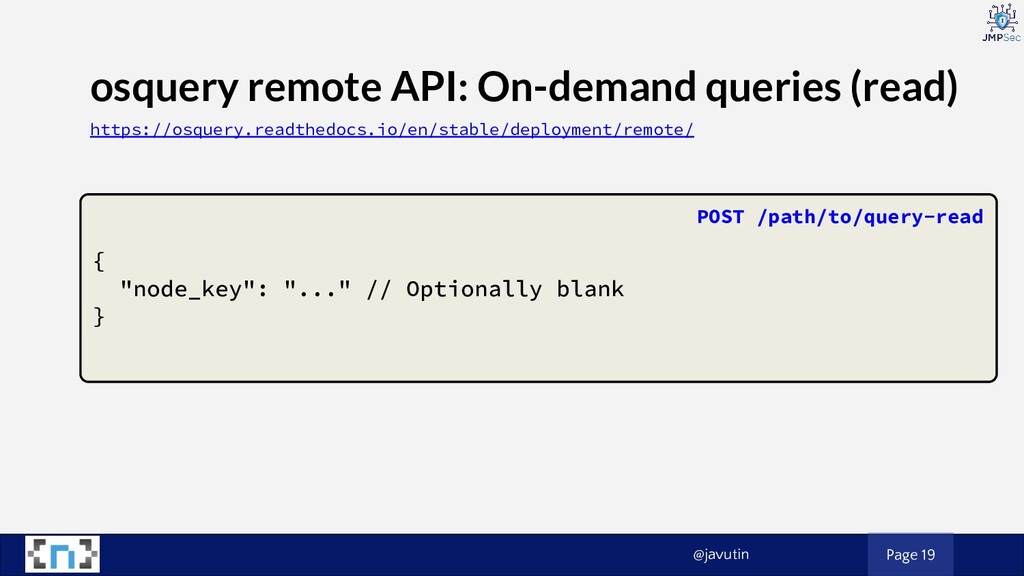

19. Page 19 osquery remote API: On-demand queries (read) https://osquery.readthedocs.io/en/stable/deployment/remote/ { "node_key": "..." // Optionally blank } POST /path/to/query-read @javutin

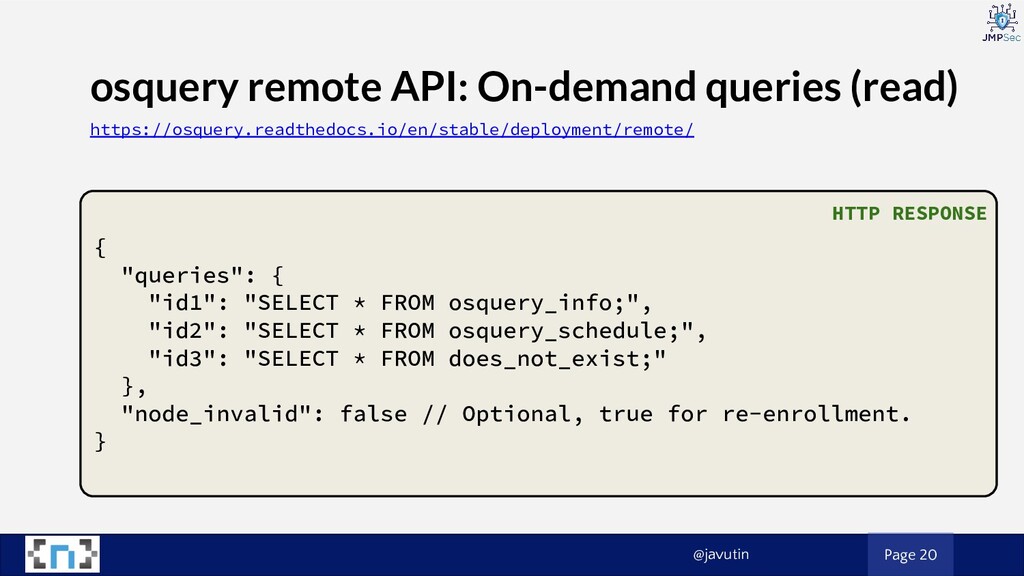

20. Page 20 osquery remote API: On-demand queries (read) https://osquery.readthedocs.io/en/stable/deployment/remote/ { "queries": { "id1": "SELECT * FROM osquery_info;", "id2": "SELECT * FROM osquery_schedule;", "id3": "SELECT * FROM does_not_exist;" }, "node_invalid": false // Optional, true for re-enrollment. } HTTP RESPONSE @javutin

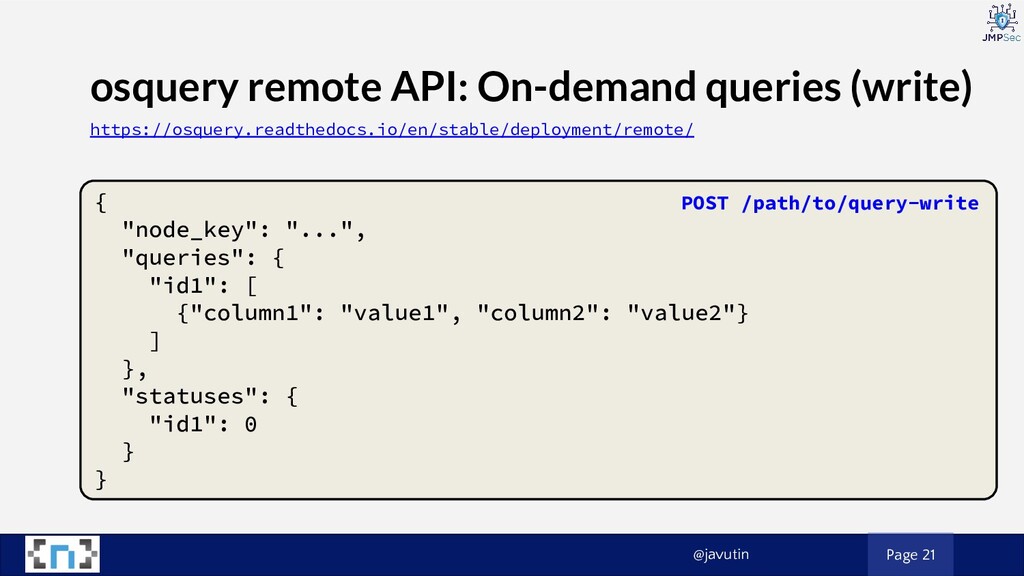

21. Page 21 osquery remote API: On-demand queries (write) https://osquery.readthedocs.io/en/stable/deployment/remote/ { "node_key": "...", "queries": { "id1": [ {"column1": "value1", "column2": "value2"} ] }, "statuses": { "id1": 0 } } POST /path/to/query-write @javutin

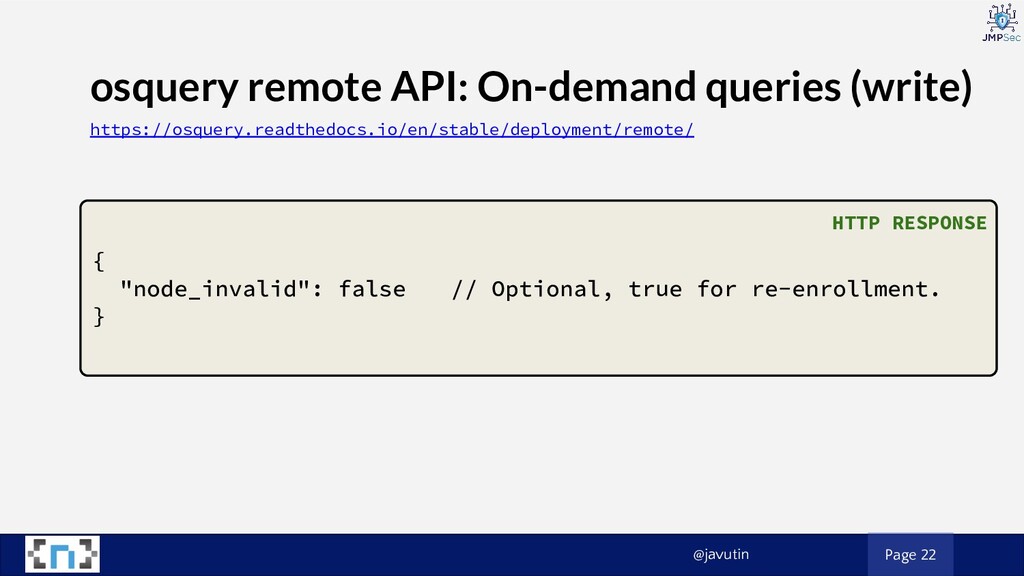

22. Page 22 osquery remote API: On-demand queries (write) https://osquery.readthedocs.io/en/stable/deployment/remote/ { "node_invalid": false // Optional, true for re-enrollment. } HTTP RESPONSE @javutin

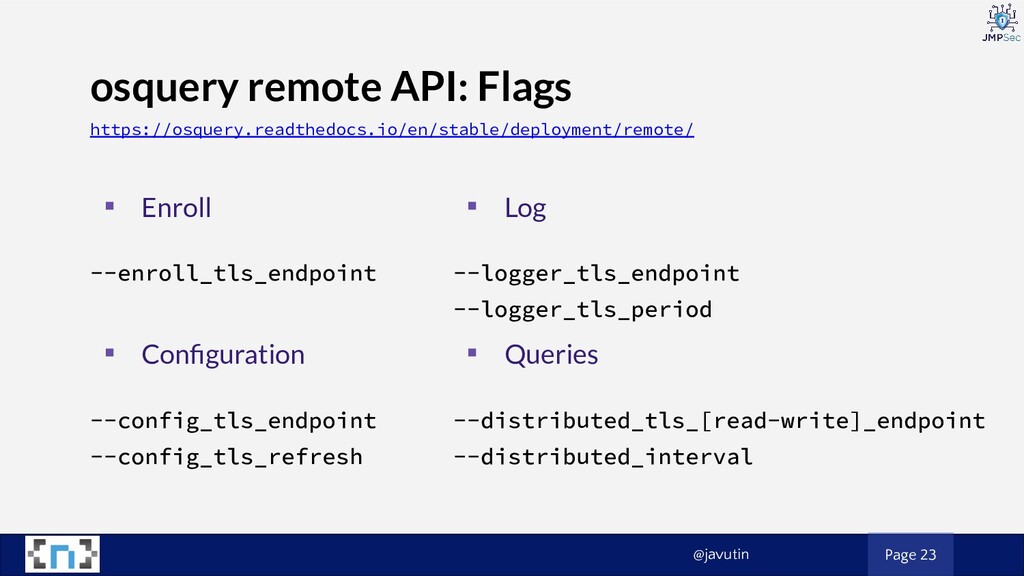

23. Page 23 osquery remote API: Flags https://osquery.readthedocs.io/en/stable/deployment/remote/ ▪ Enroll --enroll_tls_endpoint ▪ Configuration --config_tls_endpoint --config_tls_refresh ▪ Log --logger_tls_endpoint --logger_tls_period ▪ Queries --distributed_tls_[read-write]_endpoint --distributed_interval @javutin
24. Building and scaling a TLS endpoint Page 24 @javutin

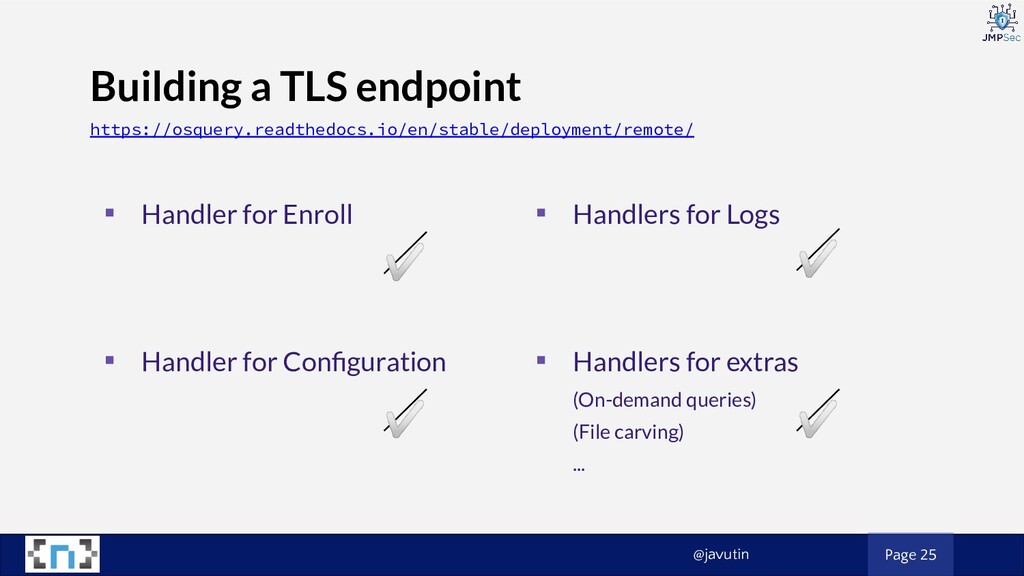

25. Page 25 Building a TLS endpoint ▪ Handler for Enroll ▪ Handler for Configuration ▪ Handlers for Logs ▪ Handlers for extras (On-demand queries) (File carving) ... https://osquery.readthedocs.io/en/stable/deployment/remote/ ✅ ✅ ✅ ✅ @javutin

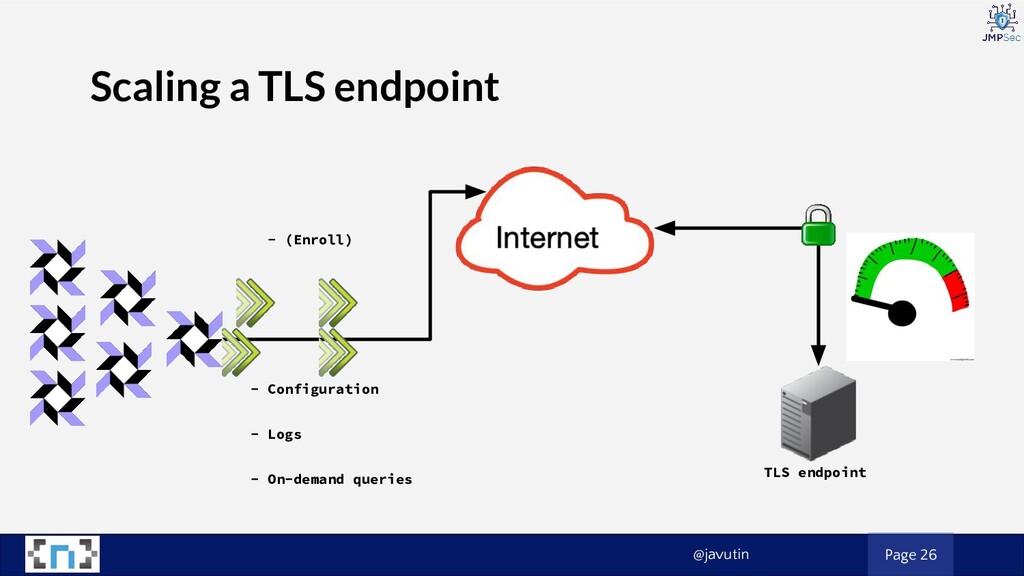

26. Page 26 Scaling a TLS endpoint - Configuration TLS endpoint - Logs - On-demand queries - (Enroll) @javutin

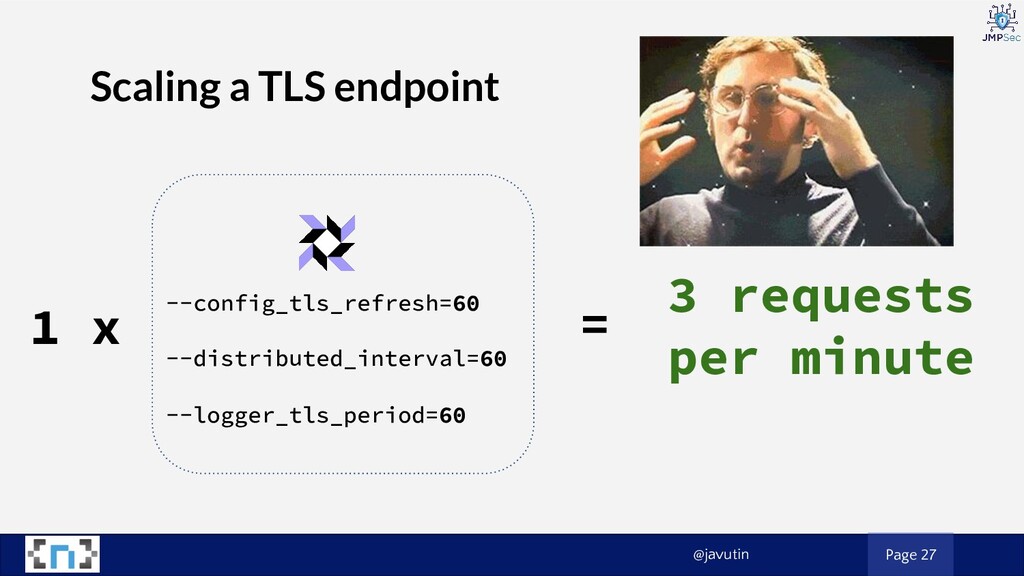

27. Page 27 Scaling a TLS endpoint 1 x --config_tls_refresh=60 --logger_tls_period=60 --distributed_interval=60 = 3 requests per minute @javutin
28. Page 28 Scaling a TLS endpoint N x --config_tls_refresh=300 --logger_tls_period=600 --distributed_interval=100 = @javutin

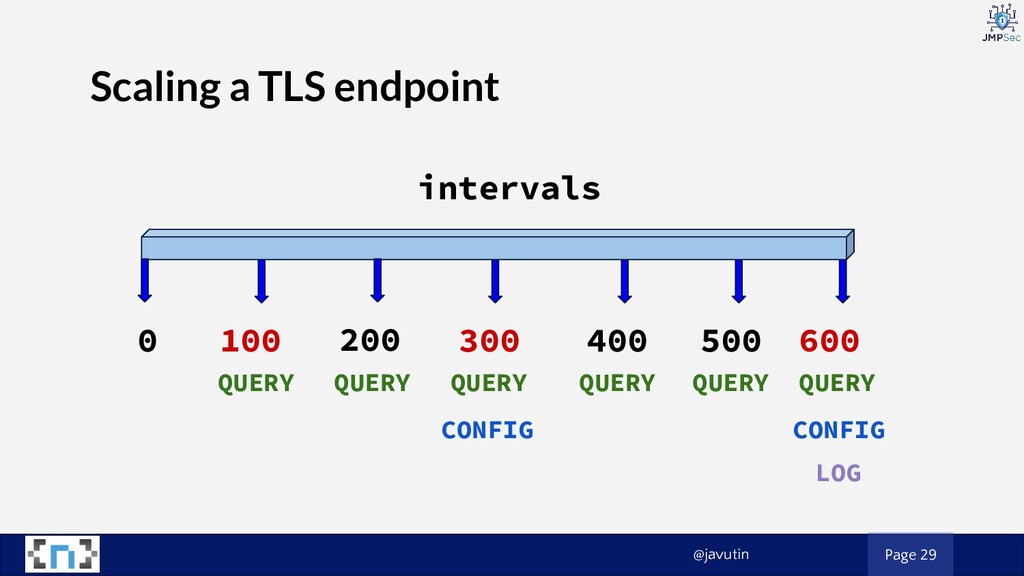

29. Page 29 Scaling a TLS endpoint LOG CONFIG QUERY intervals 600 300 0 100 200 400 500 CONFIG QUERY QUERY QUERY QUERY QUERY @javutin

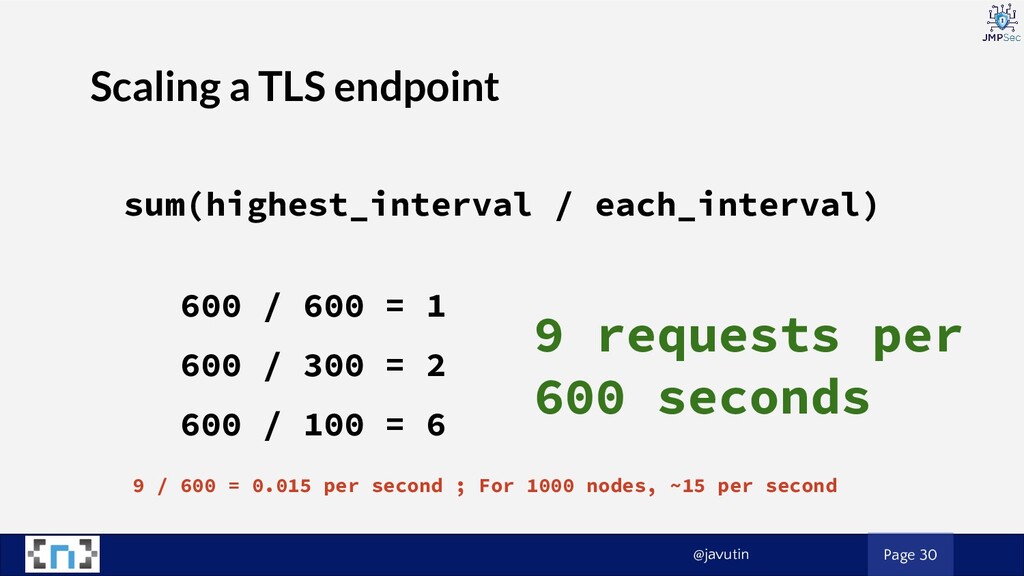

30. Page 30 Scaling a TLS endpoint sum(highest_interval / each_interval) 600 / 600 = 1 600 / 300 = 2 600 / 100 = 6 9 requests per 600 seconds 9 / 600 = 0.015 per second ; For 1000 nodes, ~15 per second @javutin

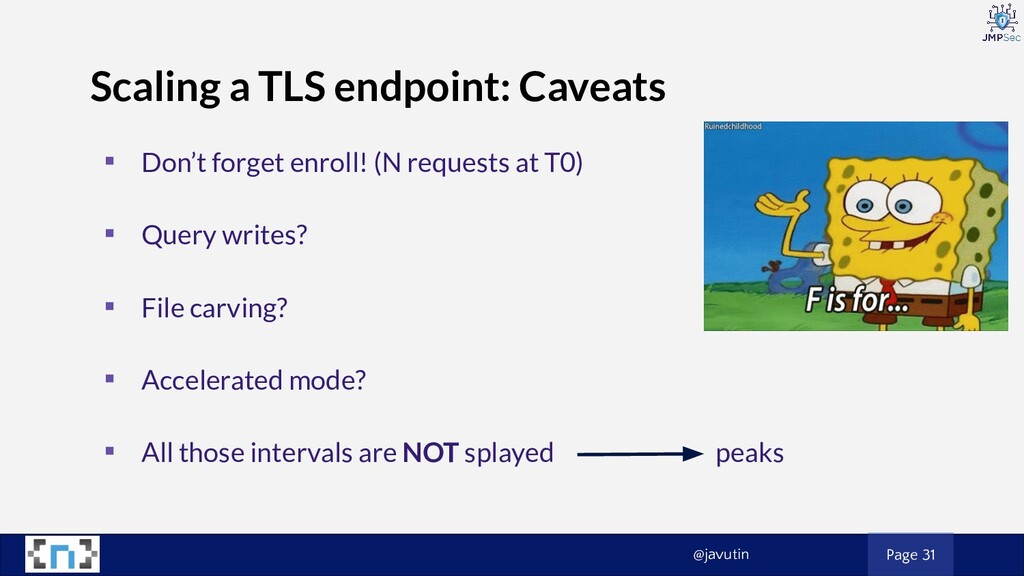

31. Page 31 Scaling a TLS endpoint: Caveats ▪ Don’t forget enroll! (N requests at T0) ▪ Query writes? ▪ File carving? ▪ Accelerated mode? ▪ All those intervals are NOT splayed peaks @javutin
32. Example TLS endpoint: osctrl Page 32 @javutin
33. Fast and efficient osquery management Page 33 https://osctrl.net github.com/jmpsec/osctrl @javutin

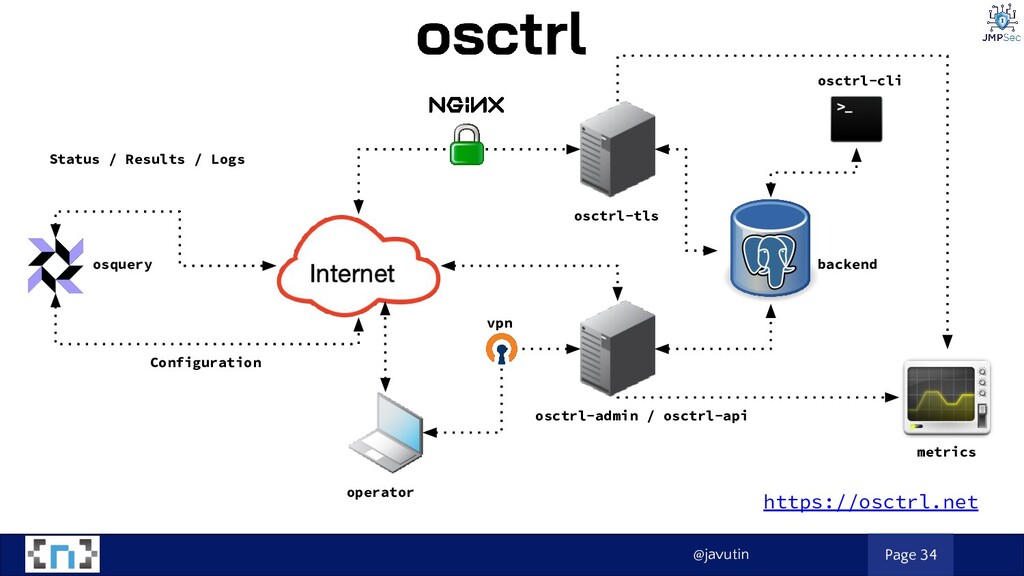

34. Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Page 34 osctrl-admin / osctrl-api Status / Results / Logs Configuration osctrl-tls operator backend metrics osctrl-cli osquery vpn https://osctrl.net @javutin

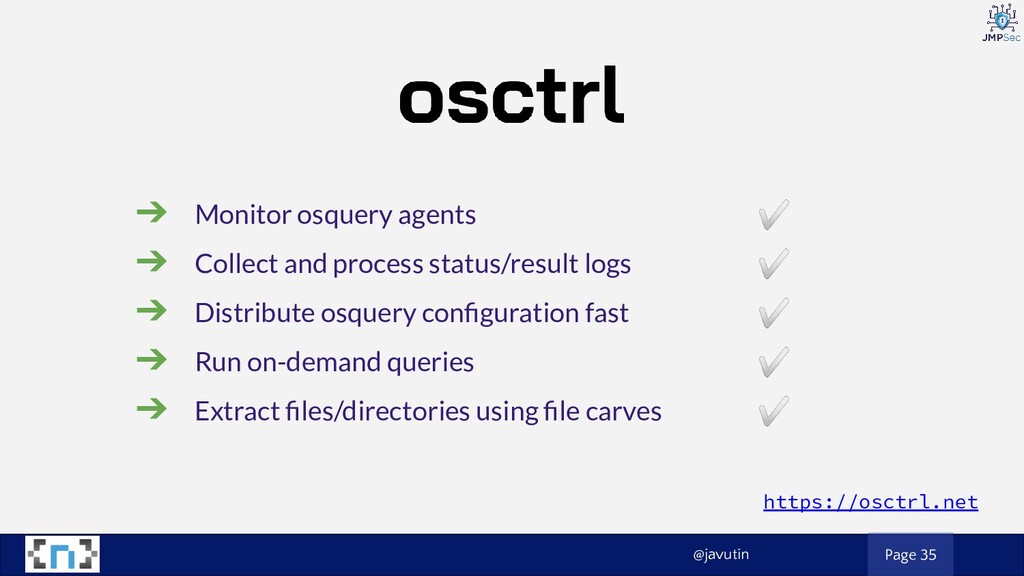

35. Page 35 ➔ Monitor osquery agents ✅ ➔ Collect and process status/result logs ✅ ➔ Distribute osquery configuration fast ✅ ➔ Run on-demand queries ✅ ➔ Extract files/directories using file carves ✅ https://osctrl.net @javutin
36. Demo Page 36 @javutin

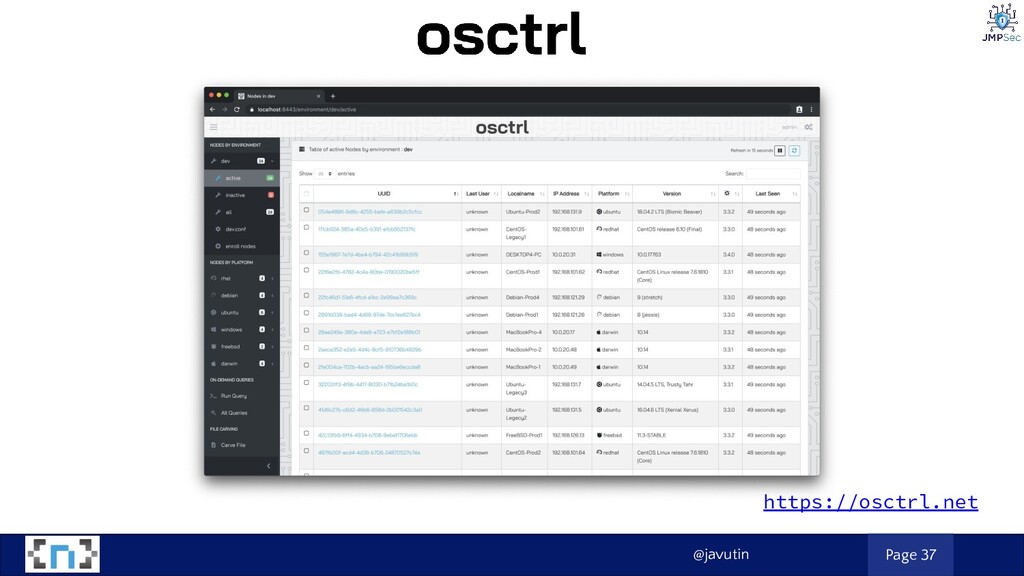

37. Page 37 https://osctrl.net @javutin
38. Page 38 Future work in ▪ More functionality in osctrl-api ▪ More functionality in osctrl-cli ▪ Query packs, dashboard, graphics! ▪ Functionality based on tags ▪ Better backend usage to avoid CPU spikes @javutin https://github.com/jmpsec/osctrl/issues
39. Conclusions Page 39 @javutin

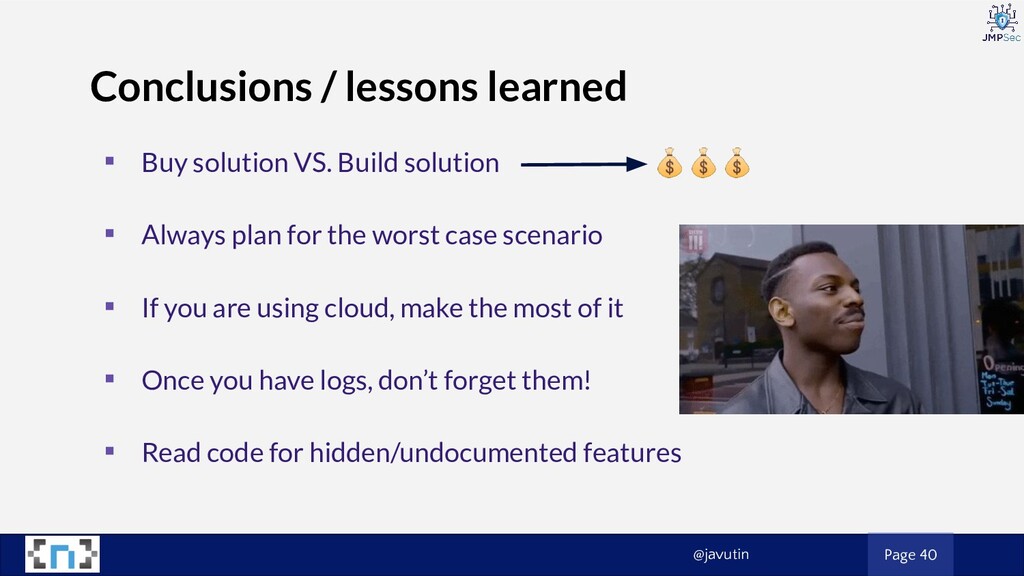

40. Page 40 Conclusions / lessons learned ▪ Buy solution VS. Build solution ▪ Always plan for the worst case scenario ▪ If you are using cloud, make the most of it ▪ Once you have logs, don’t forget them! ▪ Read code for hidden/undocumented features @javutin
41. Page 41 Any questions? @javutin
42. Thank you! @javutin #ncn2k20
