The workflowr R package: a framework for reproducible and collaborative data science

The workflowr R package helps scientists organize their research in a way that promotes effective project management, reproducibility, collaboration, and sharing of results. workflowr combines literate programming (knitr and rmarkdown) and version control (Git, via git2r) to generate a website containing time-stamped, versioned, and documented results. Any R user can quickly and easily adopt workflowr, which includes four key features: (1) workflowr automatically creates a directory structure for organizing data, code, and results; (2) workflowr uses the version control system Git to track different versions of the code and results without the user needing to understand Git syntax; (3) to support reproducibility, workflowr automatically includes code version information in webpages displaying results and; (4) workflowr facilitates online Web hosting (e.g. GitHub Pages) to share results. Our goal is that workflowr will make it easier for scientists to organize and communicate reproducible research results. Documentation and source code are available at https://github.com/jdblischak/workflowr.

Transcript

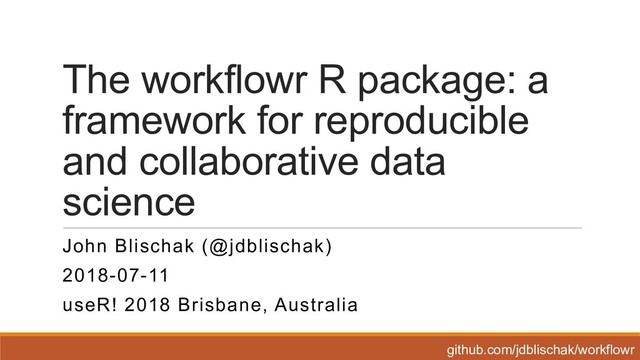

1. The  workflowr R  package:  a
   framework  for  reproducible
   and  collaborative  data
   science
   John  Blischak  (@jdblischak)
   2018-­07-­11
   useR!  2018  Brisbane,  Australia
   github.com/jdblischak/workflowr


   View Slide

2. My  computational  challenges
   Organizing  files
   Tracking  intermediate  results
   Sharing  results
   John  Blischak  -­ github.com/jdblischak/workflowr


   View Slide

3. John  Blischak  -­ github.com/jdblischak/workflowr


   View Slide

4. Literate  programming
   John  Blischak  -­ github.com/jdblischak/workflowr
   Source  code Results
   file.Rmd file.html
   yihui.name/knitr rmarkdown.rstudio.com


   View Slide

5. R  Markdown  websites
   John  Blischak  -­ github.com/jdblischak/workflowr rmarkdown.rstudio.com


   View Slide

6. Version  control
   John  Blischak  -­ github.com/jdblischak/workflowr
   version:  2rko6xn
   message:  Start  new…
   version:  d1zyskv
   message:  Update  parameters…
   version:  z6o3b97
   message:  Label  axes…
   git-­scm.com
   github.com/ropensci/git2r


   View Slide

7. Version  control  terminology
   repository – the  tracked  files  and  their  revision  history
   commit – a  snapshot  of  the  current  state  of  the  files
   John  Blischak  -­ github.com/jdblischak/workflowr


   View Slide

8. Web  hosting
   GitHub  Pages  – hosts  one  website  per  code  repository
   John  Blischak  -­ github.com/jdblischak/workflowr pages.github.com


   View Slide

9. workflowr
   Organized
   Reproducible
   Shareable
   John  Blischak  -­ github.com/jdblischak/workflowr
   Version-­controlled  websites


   View Slide

10. Organized
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

11. Start  a  new  project
    >  wflow_start("myproject")
    1.  Creates  directory  with  template  files
    2.  Changes  working  directory
    3.  Initiates  Git  repository  and  commits  files
    Also  available  as  RStudio Project  Template
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

12. Organized  directory  structure
    John  Blischak  -­ github.com/jdblischak/workflowr
    R  Markdown  files
    HTML  files
    Website  options


    View Slide

13. Reproducible
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

14. Run  code  in  clean  environment
    John  Blischak  -­ github.com/jdblischak/workflowr
    >  wflow_build(c("f1.Rmd",  "f2.Rmd"))
    f1.Rmd
    f2.Rmd
    github.com/r-­lib/callr


    View Slide

15. Tracking  intermediate  results
    >  wflow_publish("analysis/file.Rmd")
    Performs  3-­steps:
    1. Commits  analysis/file.Rmd
    2. Builds analysis/file.Rmd
    3. Commits  docs/file.html and  figure  files
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

16. Combining  rmarkdown and  Git
    John  Blischak  -­ github.com/jdblischak/workflowr
    Source  code Results
    1ong9jt ln412fy
    Source  code Results
    wr1q7bk 3tg6lse


    View Slide

17. View  past  results
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

18. Other  reproducibility  features
    output:  workflowr::wflow_html
    Records  the  session  information  at  the  end
    Sets  a  seed  prior  to  running  code
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

19. Reproducibility  report
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

20. Shareable
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

21. Distribute  results  for  sharing
    Create  new  GitHub  repository
    >  wflow_git_push()
    John  Blischak  -­ github.com/jdblischak/workflowr
    ©  2018  GitHub  Inc.
    pages.github.com


    View Slide

22. Installation
    1. Install  R
    ◦ (Recommended)  Install  RStudio
    ◦ (Optional)  Install  pandoc
    ◦ (Optional)  Install  Git
    2. Install  workflowr from  CRAN
    ◦ install.packages("workflowr")
    3. Create  an  account  on  GitHub
    Documentation:  https://jdblischak.github.io/workflowr
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

23. In  summary,  using  workflowr…
    Enables  you  to  start  working  reproducibly  immediately
    Allows  you  to  focus  on  your  analysis
    Shares  your  results  online
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

24. Acknowledgements
    Co-­authors:  Peter  Carbonetto,  Matthew  Stephens
    Early  adopters  for  testing  and  feedback
    Authors  and  contributors  to  knitr,  rmarkdown,  git2r,  callr
    John  Blischak  -­ github.com/jdblischak/workflowr


    View Slide

25. workflowr
    Organized
    Reproducible
    Shareable
    John  Blischak  -­ github.com/jdblischak/workflowr
    Version-­controlled  websites


    View Slide
