Showcase Driven Development

Showcase Driven Development is a really simple idea that can help teams to continuously integrate their work into a mainline branch thanks to the ability to showcase every stage of their progress.

Transcript

1. Showcase Driven Development
2. Jérôme Alves Lead iOS Developer at Heetch @jegnux
3. Continuous Integration

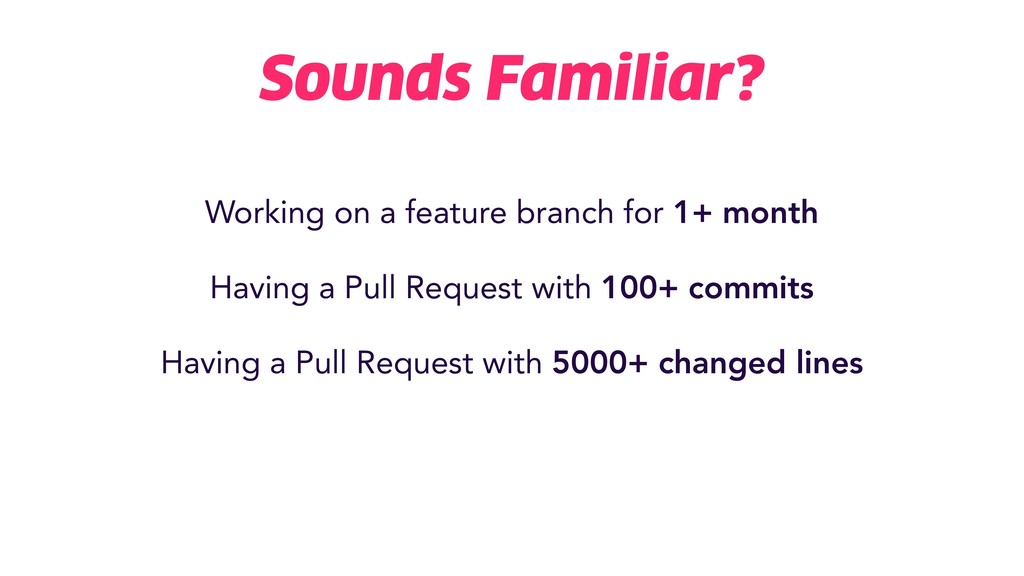

4. Sounds Familiar? Working on a feature branch for 1+ month Having a Pull Request with 100+ commits Having a Pull Request with 5000+ changed lines

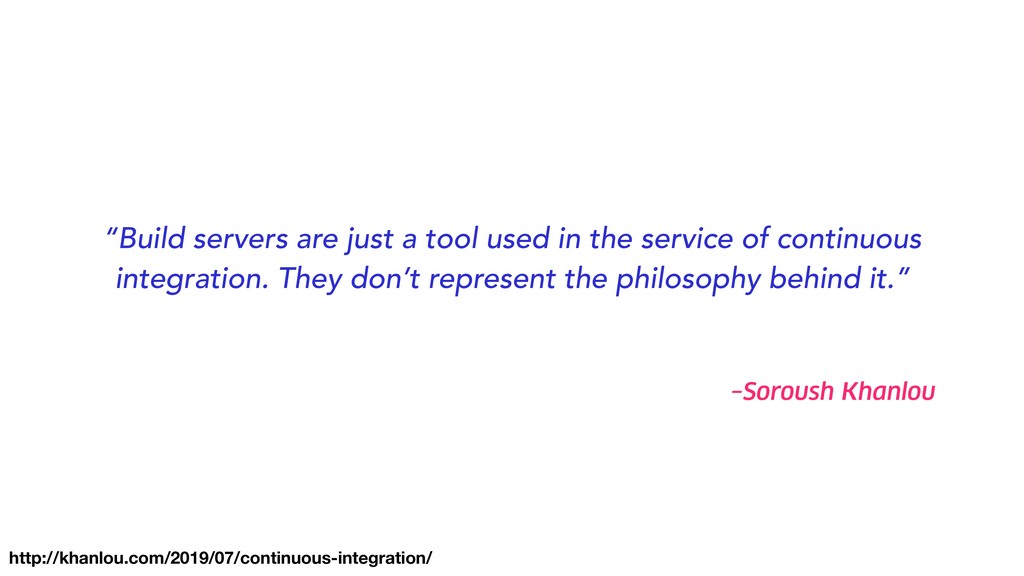

5. –Soroush Khanlou “Build servers are just a tool used in the service of continuous integration. They don’t represent the philosophy behind it.” http://khanlou.com/2019/07/continuous-integration/
6. –Soroush Khanlou “The name carries the meaning quite well — continuously (as frequently as possible) integrate your work into some shared place, usually the mainline branch.” http://khanlou.com/2019/07/continuous-integration/

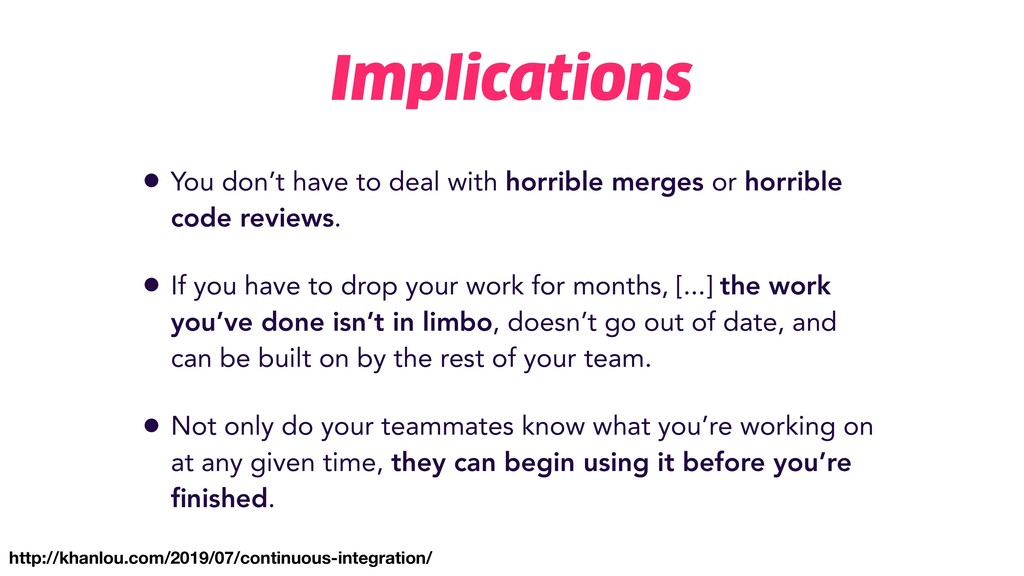

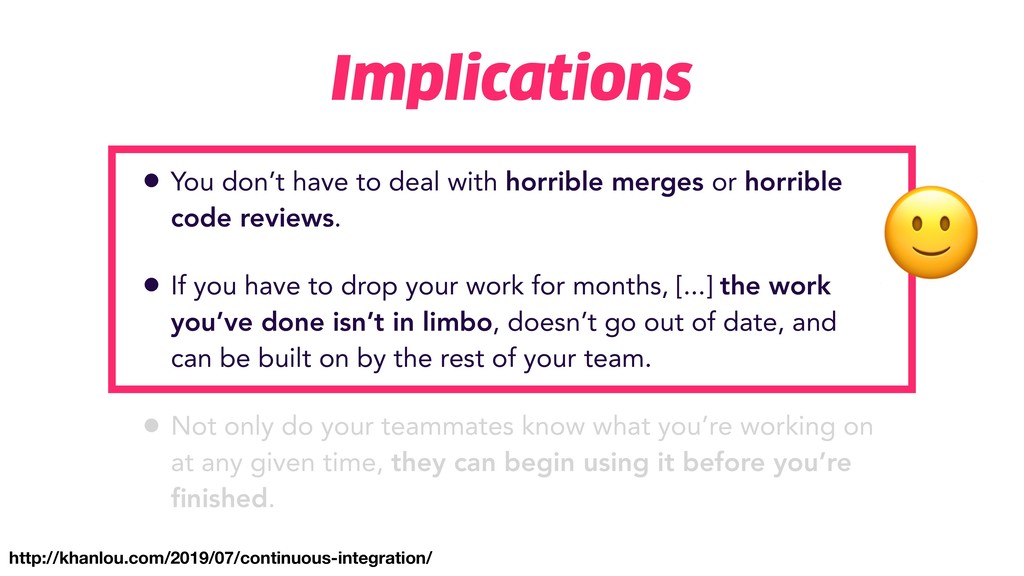

7. Implications • You don’t have to deal with horrible merges or horrible code reviews. • If you have to drop your work for months, [...] the work you’ve done isn’t in limbo, doesn’t go out of date, and can be built on by the rest of your team. • Not only do your teammates know what you’re working on at any given time, they can begin using it before you’re finished. http://khanlou.com/2019/07/continuous-integration/

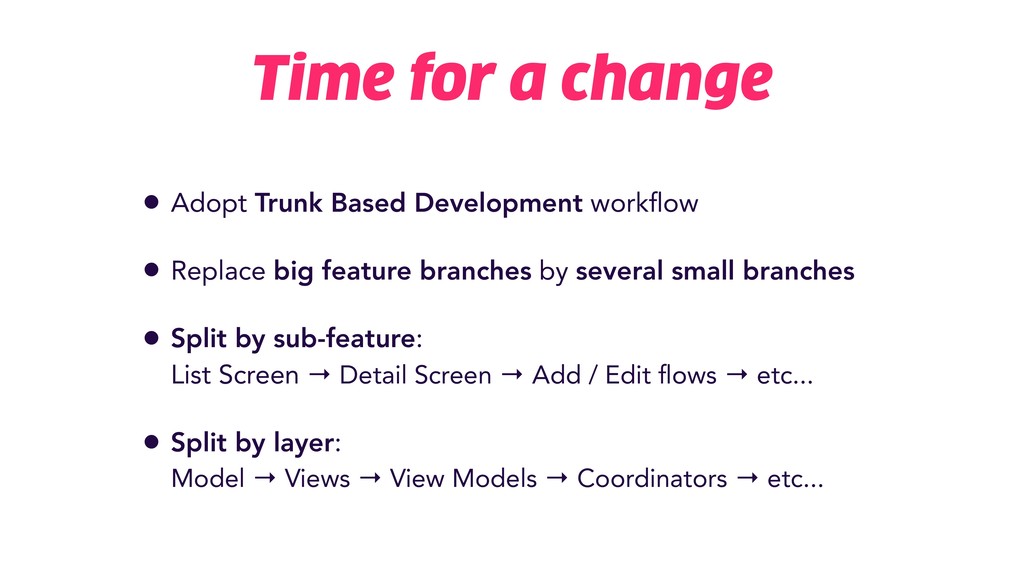

8. Time for a change • Adopt Trunk Based Development workflow • Replace big feature branches by several small branches • Split by sub-feature:
 List Screen → Detail Screen → Add / Edit flows → etc... • Split by layer:
 Model → Views → View Models → Coordinators → etc...
9. Implications • You don’t have to deal with horrible merges or horrible code reviews. • If you have to drop your work for months, [...] the work you’ve done isn’t in limbo, doesn’t go out of date, and can be built on by the rest of your team. • Not only do your teammates know what you’re working on at any given time, they can begin using it before you’re finished. http://khanlou.com/2019/07/continuous-integration/

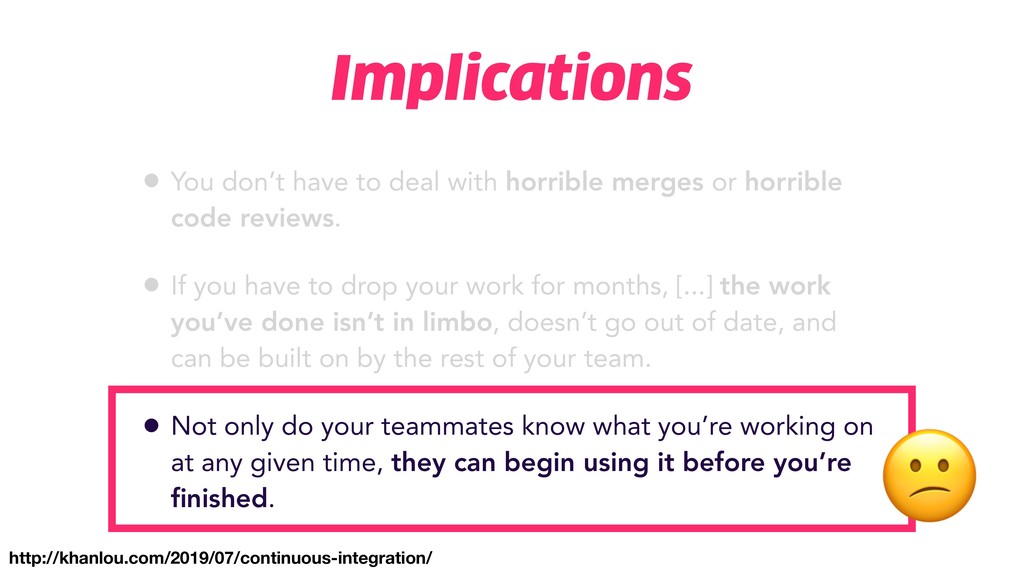

10. Implications • You don’t have to deal with horrible merges or horrible code reviews. • If you have to drop your work for months, [...] the work you’ve done isn’t in limbo, doesn’t go out of date, and can be built on by the rest of your team. • Not only do your teammates know what you’re working on at any given time, they can begin using it before you’re finished. http://khanlou.com/2019/07/continuous-integration/
11. Playgrounds!

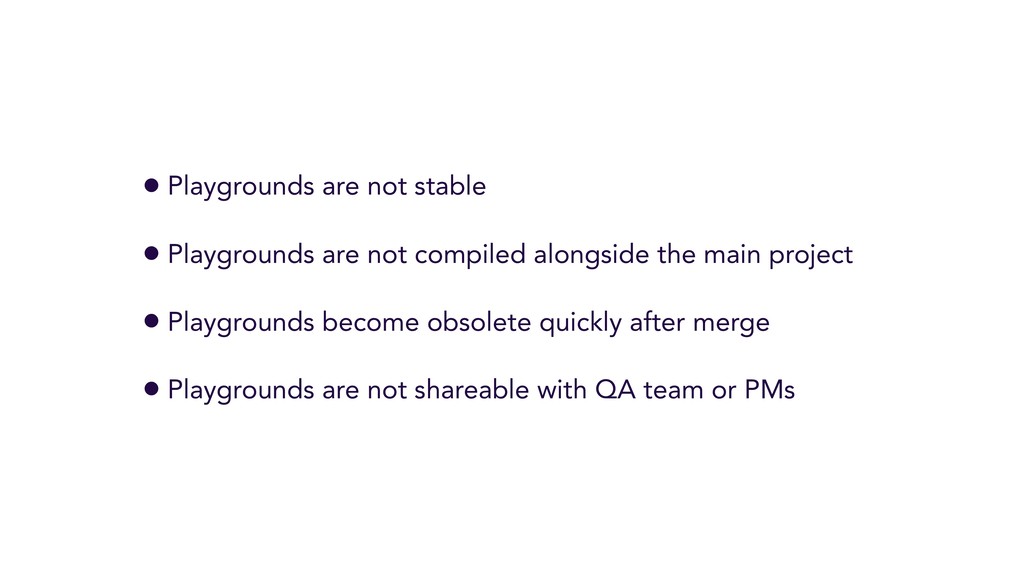

12. • Playgrounds are not stable • Playgrounds are not compiled alongside the main project • Playgrounds become obsolete quickly after merge • Playgrounds are not shareable with QA team or PMs
13. –Not Hair Force One “What would be a Playground... without the grunt?”
14. Showcases

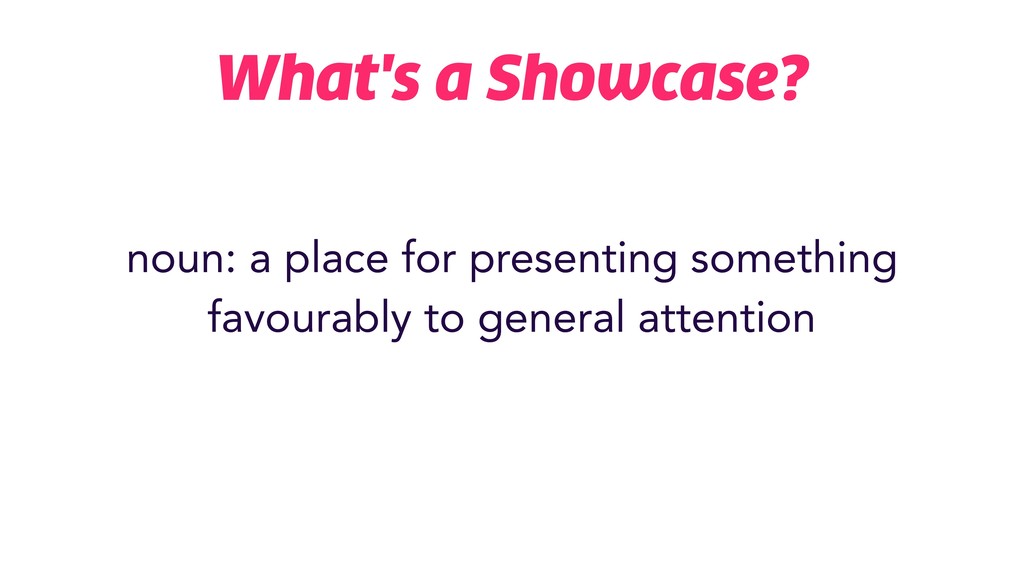

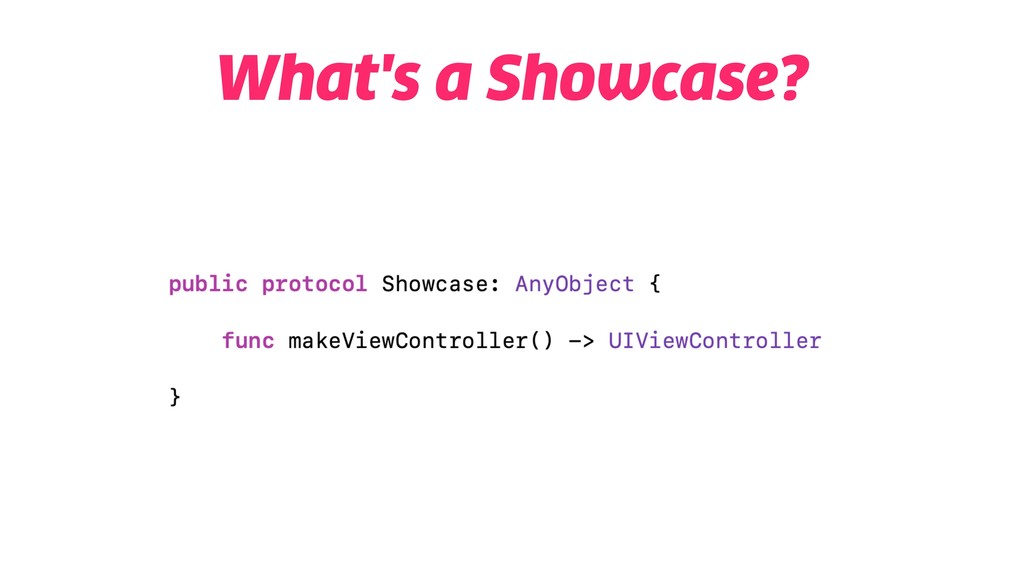

15. What's a Showcase? noun: a place for presenting something favourably to general attention
16. What's a Showcase?

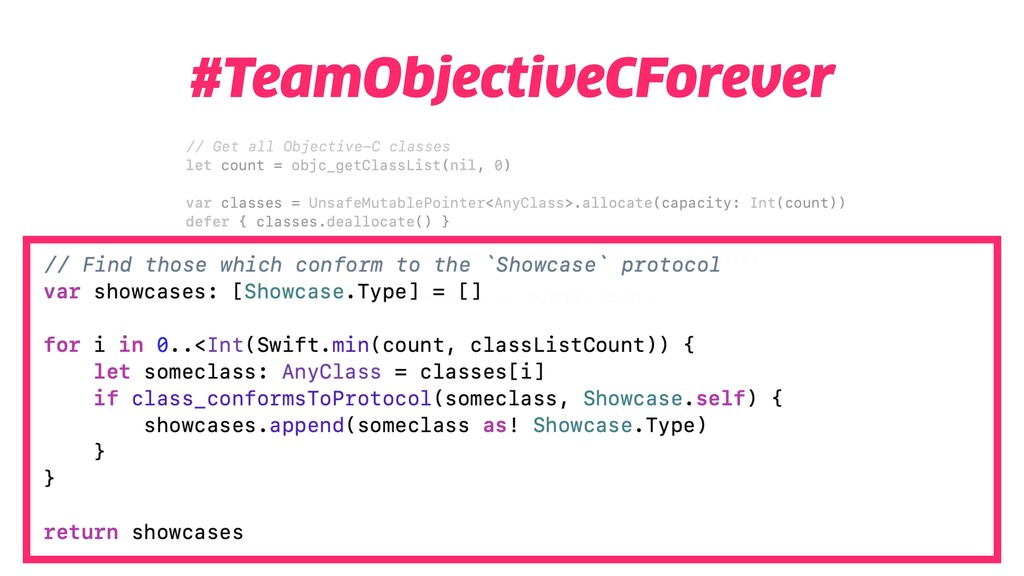

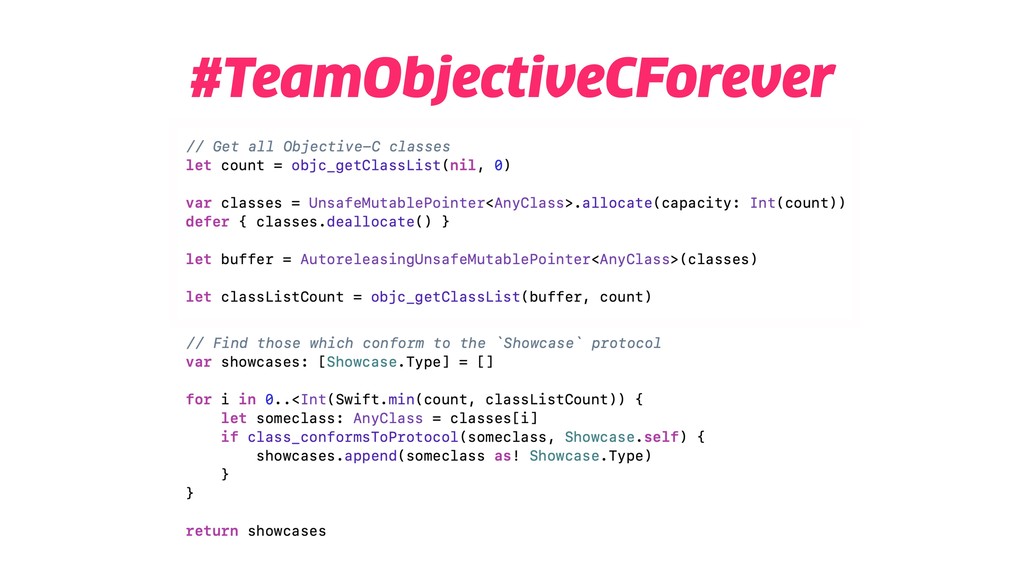

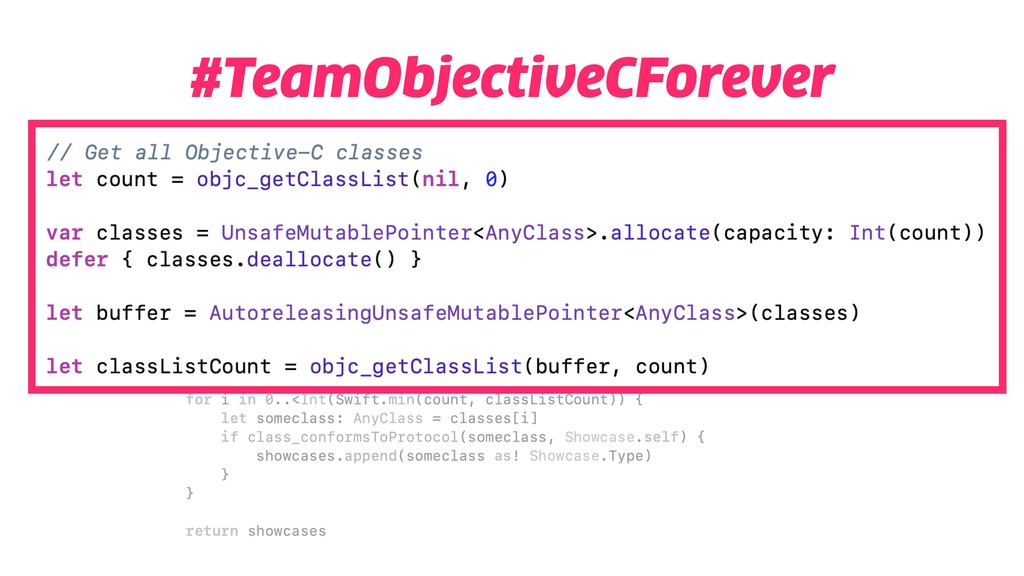

17. #TeamObjectiveCForever
18. #TeamObjectiveCForever

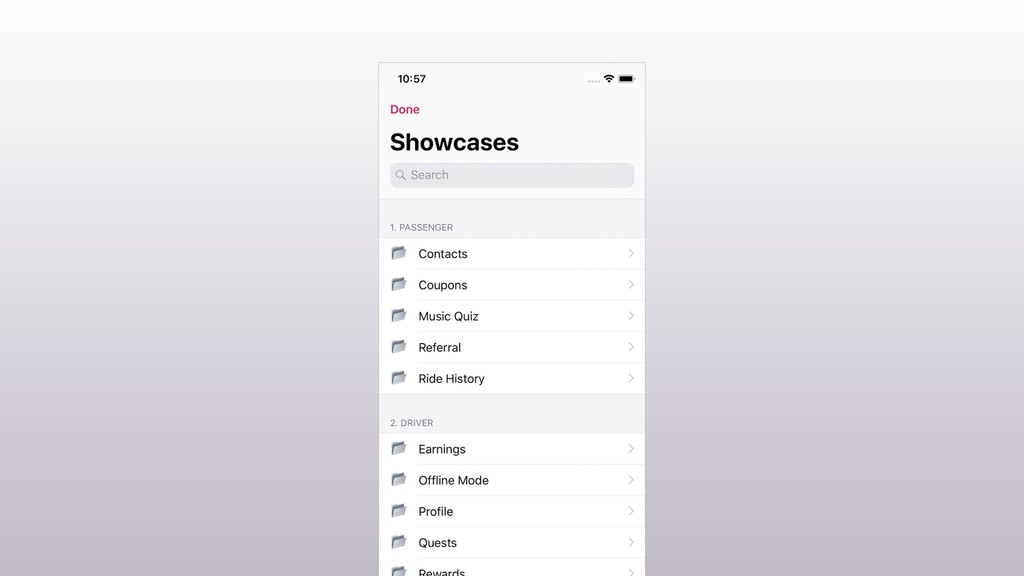

19. #TeamObjectiveCForever
21. Showcase Driven Development In Practice
22. The Header View

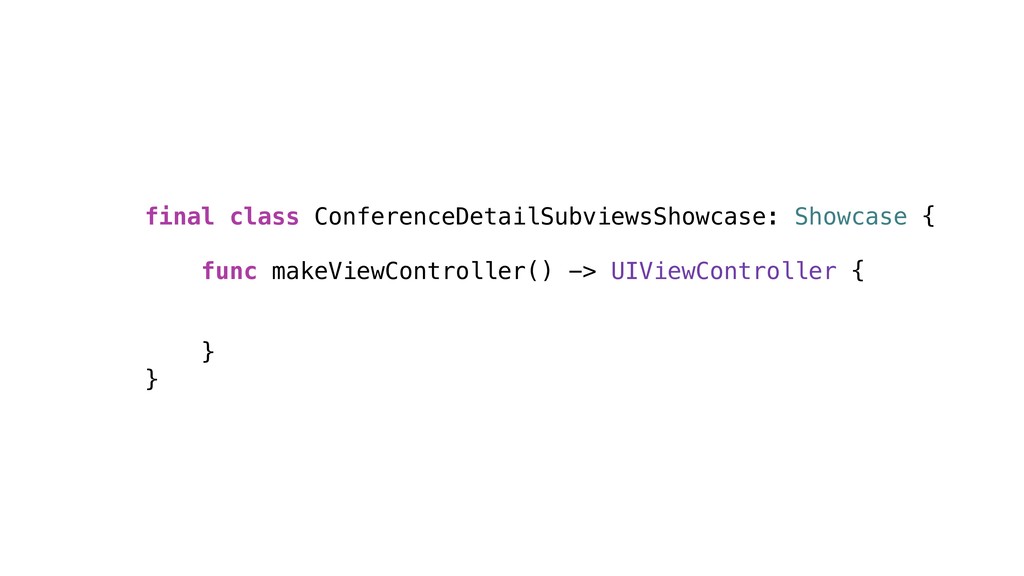

23. final class ConferenceDetailSubviewsShowcase: Showcase { func makeViewController() -> UIViewController { } }

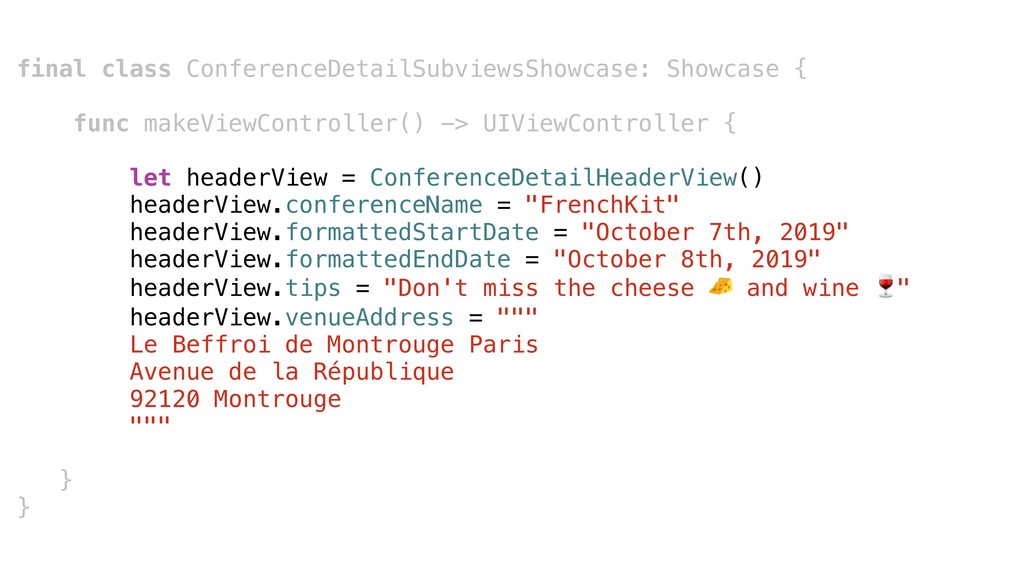

24. final class ConferenceDetailSubviewsShowcase: Showcase { func makeViewController() -> UIViewController { let headerView = ConferenceDetailHeaderView() headerView.conferenceName = "FrenchKit" headerView.formattedStartDate = "October 7th, 2019" headerView.formattedEndDate = "October 8th, 2019" headerView.tips = "Don't miss the cheese and wine " headerView.venueAddress = """ Le Beffroi de Montrouge Paris Avenue de la République 92120 Montrouge """ } }

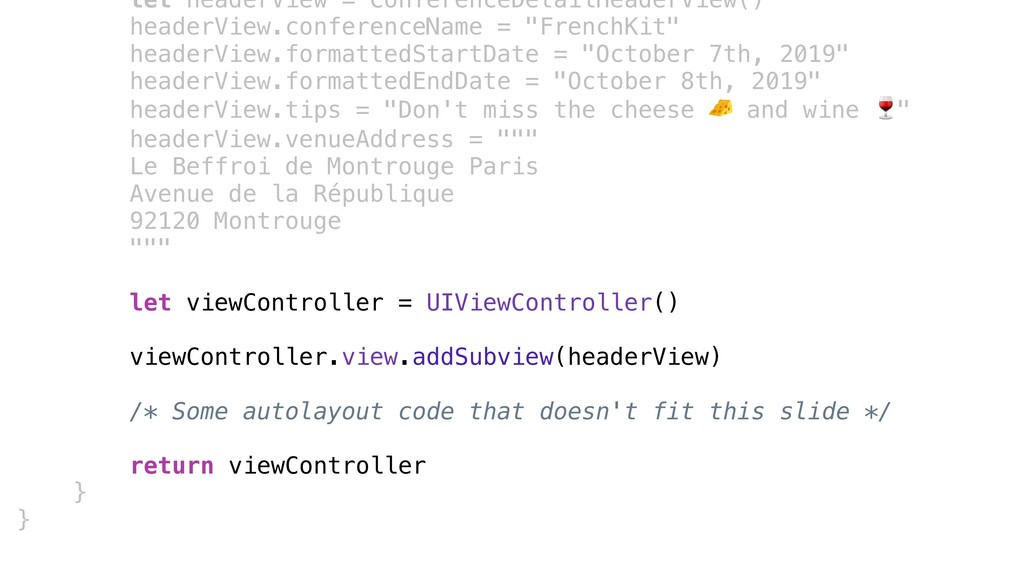

25. let headerView = ConferenceDetailHeaderView() headerView.conferenceName = "FrenchKit" headerView.formattedStartDate = "October 7th, 2019" headerView.formattedEndDate = "October 8th, 2019" headerView.tips = "Don't miss the cheese and wine " headerView.venueAddress = """ Le Beffroi de Montrouge Paris Avenue de la République 92120 Montrouge """ let viewController = UIViewController() viewController.view.addSubview(headerView) /* Some autolayout code that doesn't fit this slide */ return viewController } }

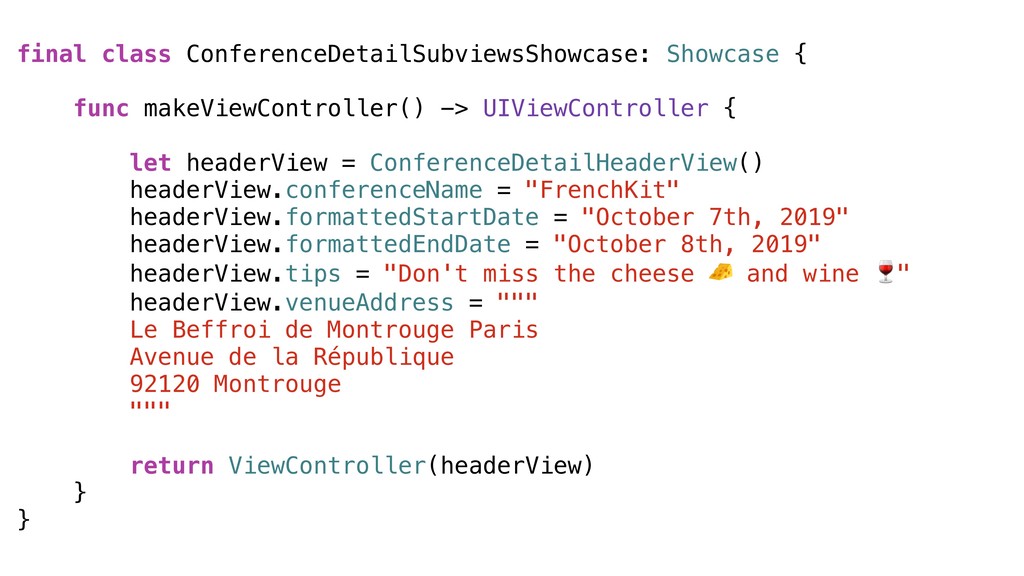

26. final class ConferenceDetailSubviewsShowcase: Showcase { func makeViewController() -> UIViewController { let headerView = ConferenceDetailHeaderView() headerView.conferenceName = "FrenchKit" headerView.formattedStartDate = "October 7th, 2019" headerView.formattedEndDate = "October 8th, 2019" headerView.tips = "Don't miss the cheese and wine " headerView.venueAddress = """ Le Beffroi de Montrouge Paris Avenue de la République 92120 Montrouge """ return ViewController(headerView) } } final class ConferenceDetailSubviewsShowcase: Showcase { func makeViewController() -> UIViewController { let headerView = ConferenceDetailHeaderView() headerView.conferenceName = "FrenchKit" headerView.formattedStartDate = "October 7th, 2019" headerView.formattedEndDate = "October 8th, 2019" headerView.tips = "Don't miss the cheese and wine " headerView.venueAddress = """ Le Beffroi de Montrouge Paris Avenue de la République 92120 Montrouge """ return ViewController(headerView) } }
28. The Cell's Content View

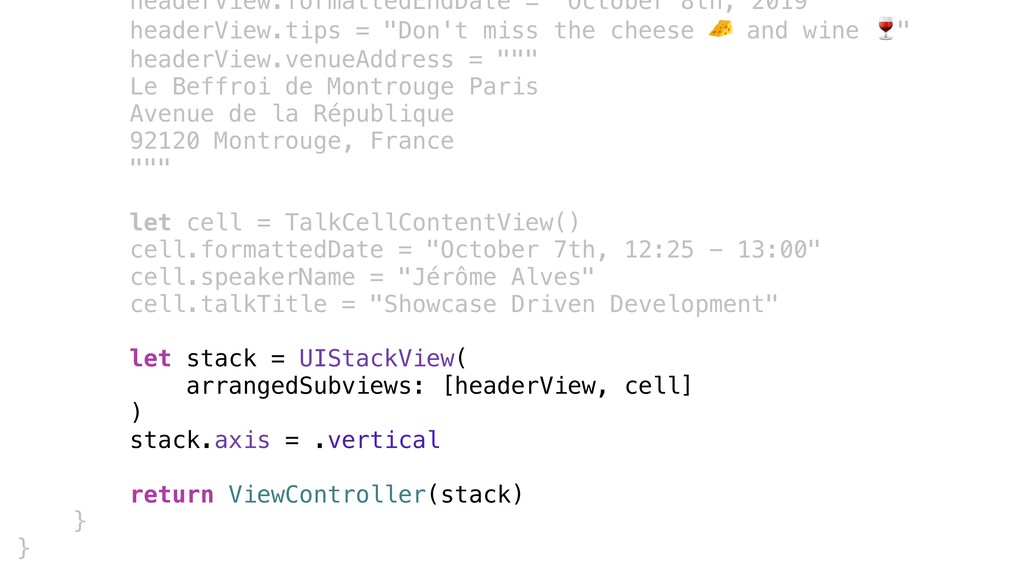

29. func makeViewController() -> UIViewController { let headerView = ConferenceDetailHeaderView() headerView.conferenceName = "FrenchKit" headerView.formattedStartDate = "October 7th, 2019" headerView.formattedEndDate = "October 8th, 2019" headerView.tips = "Don't miss the cheese and wine " headerView.venueAddress = """ Le Beffroi de Montrouge Paris Avenue de la République 92120 Montrouge, France """ let cell = TalkCellContentView() cell.formattedDate = "October 7th, 12:25 - 13:00" cell.speakerName = "Jérôme Alves" cell.talkTitle = "Showcase Driven Development" return ViewController(headerView) } }

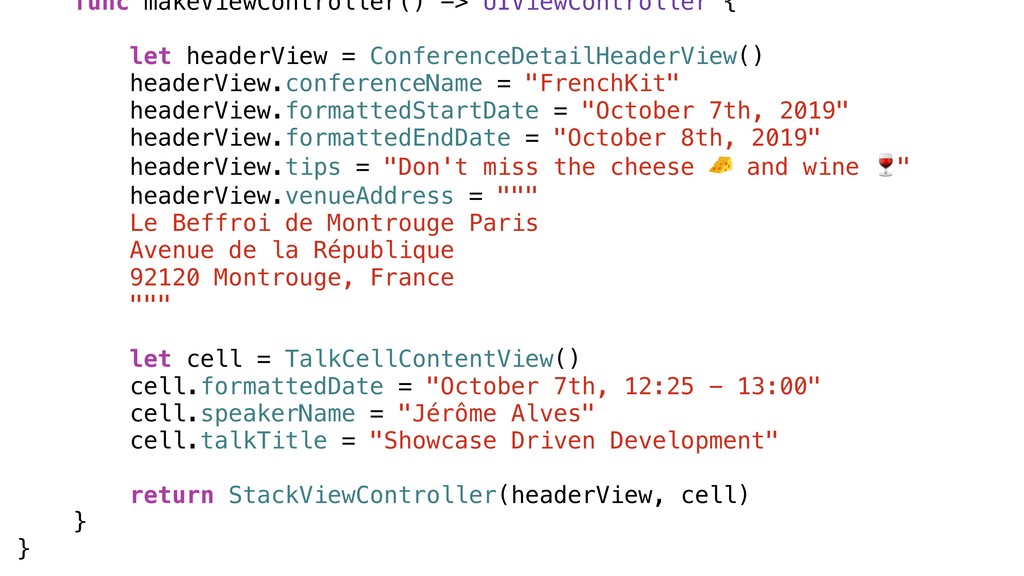

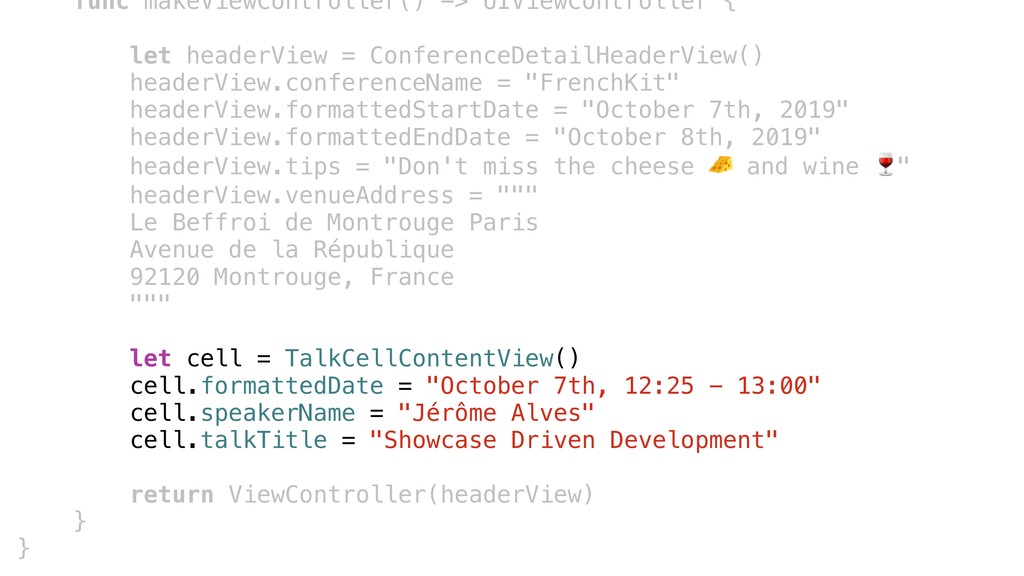

30. headerView.formattedEndDate = "October 8th, 2019" headerView.tips = "Don't miss the cheese and wine " headerView.venueAddress = """ Le Beffroi de Montrouge Paris Avenue de la République 92120 Montrouge, France """ let cell = TalkCellContentView() cell.formattedDate = "October 7th, 12:25 - 13:00" cell.speakerName = "Jérôme Alves" cell.talkTitle = "Showcase Driven Development" let stack = UIStackView( arrangedSubviews: [headerView, cell] ) stack.axis = .vertical return ViewController(stack) } }
31. func makeViewController() -> UIViewController { let headerView = ConferenceDetailHeaderView() headerView.conferenceName = "FrenchKit" headerView.formattedStartDate = "October 7th, 2019" headerView.formattedEndDate = "October 8th, 2019" headerView.tips = "Don't miss the cheese and wine " headerView.venueAddress = """ Le Beffroi de Montrouge Paris Avenue de la République 92120 Montrouge, France """ let cell = TalkCellContentView() cell.formattedDate = "October 7th, 12:25 - 13:00" cell.speakerName = "Jérôme Alves" cell.talkTitle = "Showcase Driven Development" return StackViewController(headerView, cell) } } func makeViewController() -> UIViewController { let headerView = ConferenceDetailHeaderView() headerView.conferenceName = "FrenchKit" headerView.formattedStartDate = "October 7th, 2019" headerView.formattedEndDate = "October 8th, 2019" headerView.tips = "Don't miss the cheese and wine " headerView.venueAddress = """ Le Beffroi de Montrouge Paris Avenue de la République 92120 Montrouge, France """ let cell = TalkCellContentView() cell.formattedDate = "October 7th, 12:25 - 13:00" cell.speakerName = "Jérôme Alves" cell.talkTitle = "Showcase Driven Development" return StackViewController(headerView, cell) } }
33. The View Controller

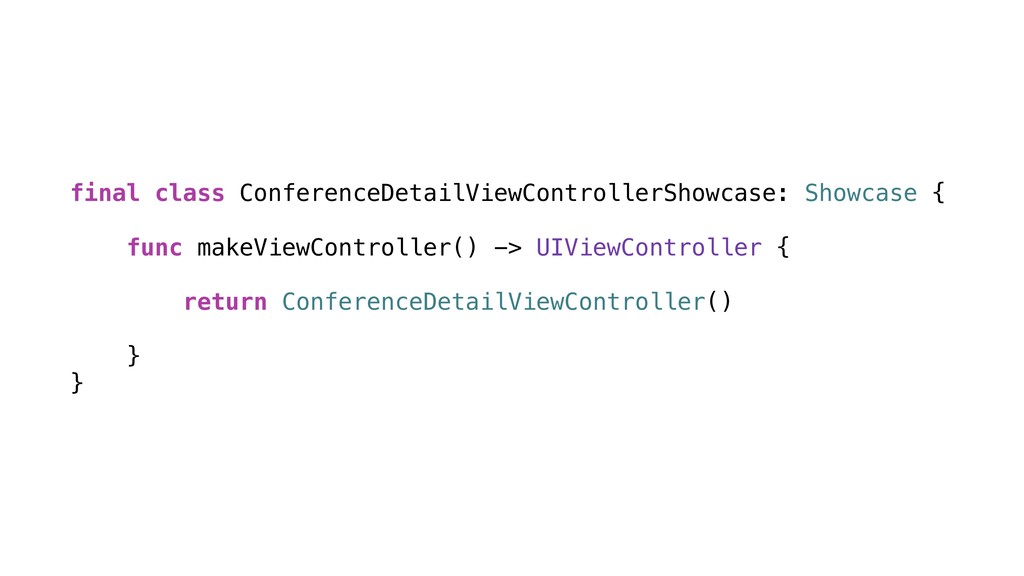

34. final class ConferenceDetailViewControllerShowcase: Showcase { func makeViewController() -> UIViewController { return ConferenceDetailViewController() } }

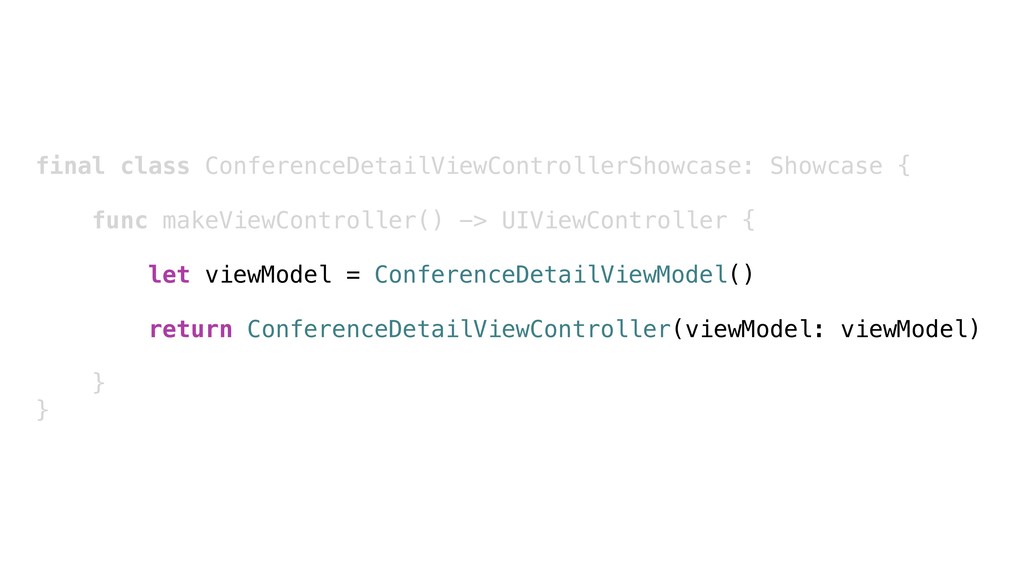

35. final class ConferenceDetailViewControllerShowcase: Showcase { func makeViewController() -> UIViewController { let viewModel = ConferenceDetailViewModel() return ConferenceDetailViewController(viewModel: viewModel) } }

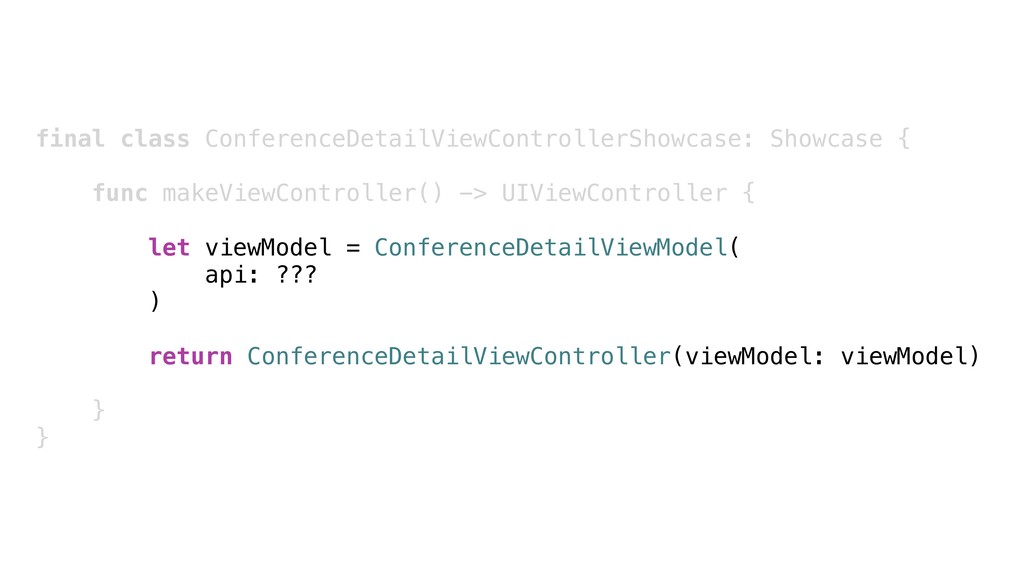

36. final class ConferenceDetailViewControllerShowcase: Showcase { func makeViewController() -> UIViewController { let viewModel = ConferenceDetailViewModel( api: ??? ) return ConferenceDetailViewController(viewModel: viewModel) } }

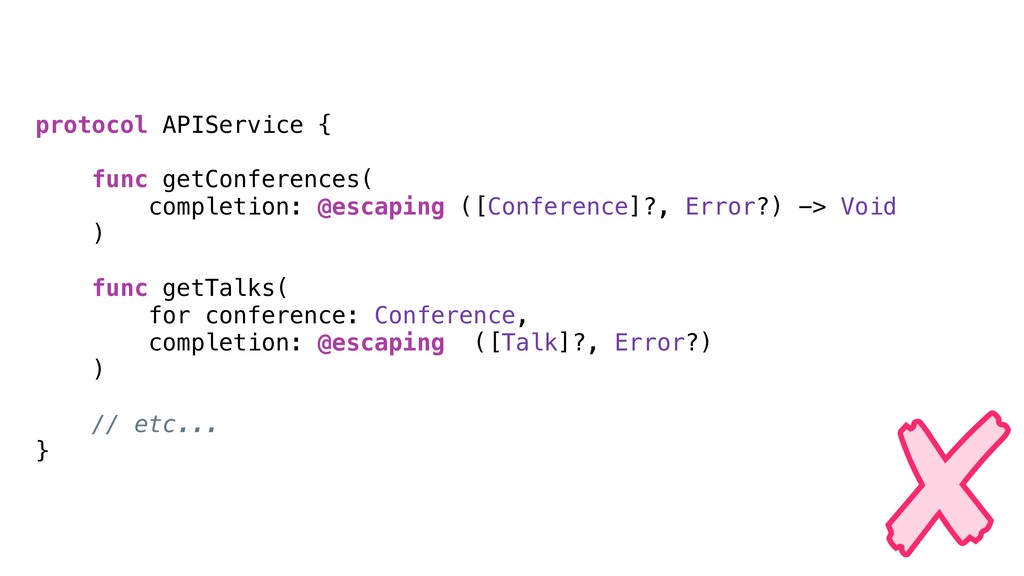

37. protocol APIService { func getConferences( completion: @escaping ([Conference]?, Error?) -> Void ) func getTalks( for conference: Conference, completion: @escaping ([Talk]?, Error?) ) // etc... }

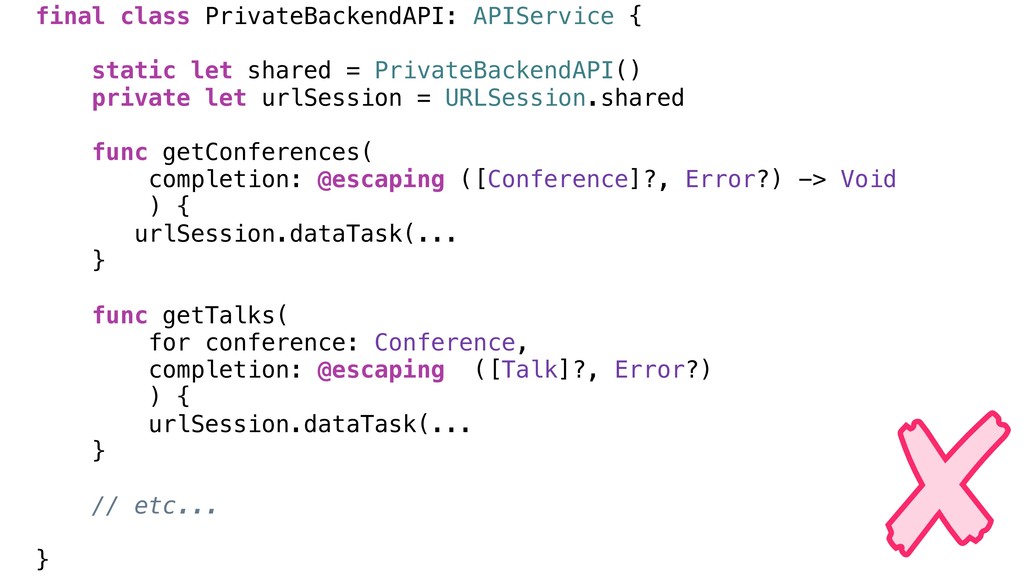

38. final class PrivateBackendAPI: APIService { static let shared = PrivateBackendAPI() private let urlSession = URLSession.shared func getConferences( completion: @escaping ([Conference]?, Error?) -> Void ) { urlSession.dataTask(... } func getTalks( for conference: Conference, completion: @escaping ([Talk]?, Error?) ) { urlSession.dataTask(... } // etc... }

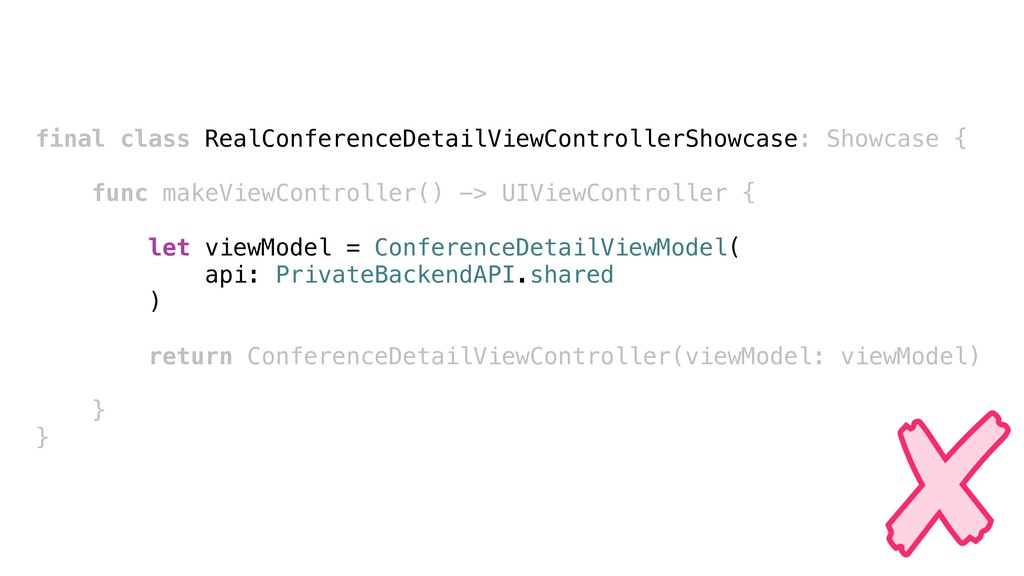

39. final class RealConferenceDetailViewControllerShowcase: Showcase { func makeViewController() -> UIViewController { let viewModel = ConferenceDetailViewModel( api: PrivateBackendAPI.shared ) return ConferenceDetailViewController(viewModel: viewModel) } }

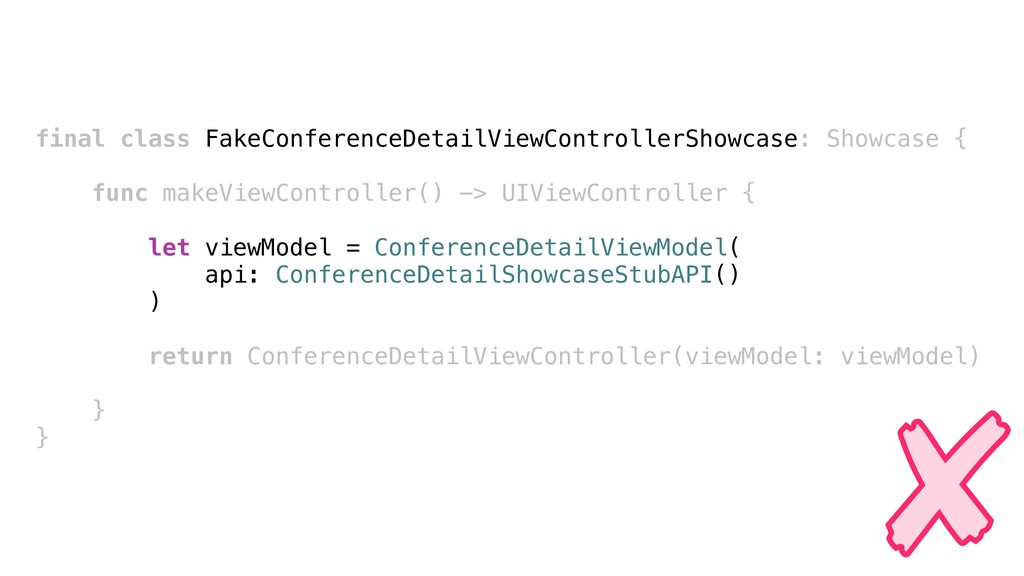

40. final class FakeConferenceDetailViewControllerShowcase: Showcase { func makeViewController() -> UIViewController { let viewModel = ConferenceDetailViewModel( api: ConferenceDetailShowcaseStubAPI() ) return ConferenceDetailViewController(viewModel: viewModel) } }

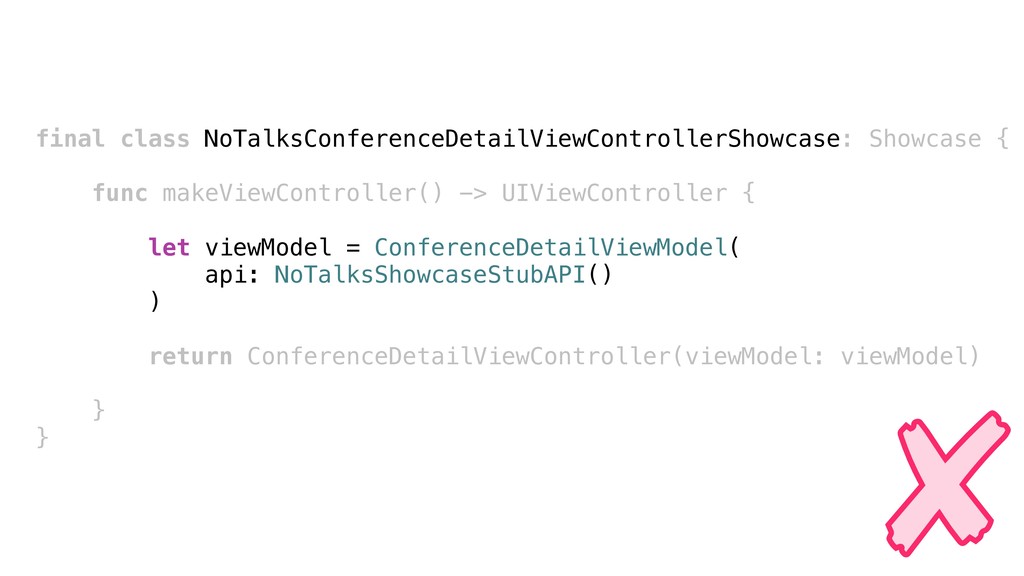

41. final class NoTalksConferenceDetailViewControllerShowcase: Showcase { func makeViewController() -> UIViewController { let viewModel = ConferenceDetailViewModel( api: NoTalksShowcaseStubAPI() ) return ConferenceDetailViewController(viewModel: viewModel) } }

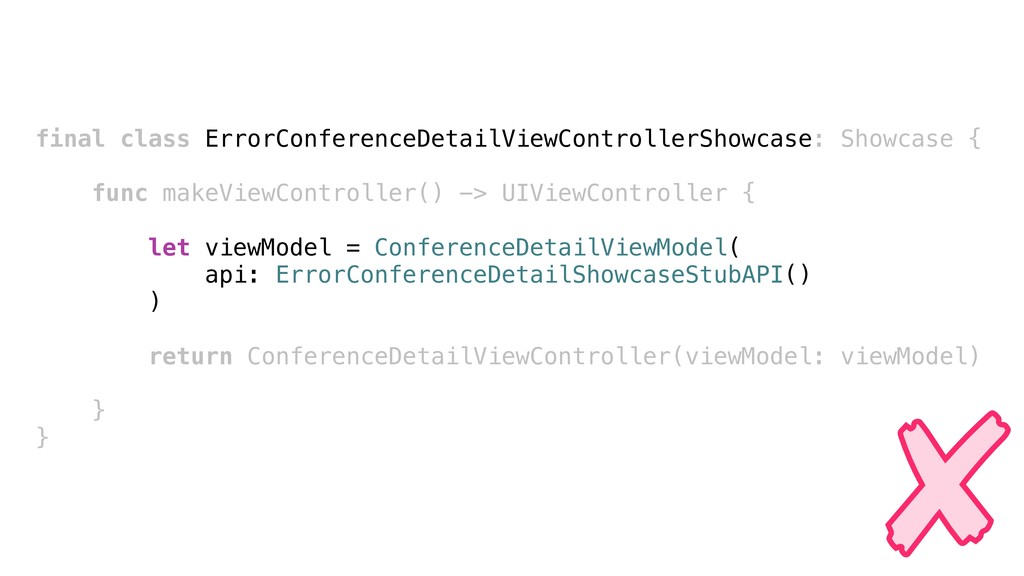

42. final class ErrorConferenceDetailViewControllerShowcase: Showcase { func makeViewController() -> UIViewController { let viewModel = ConferenceDetailViewModel( api: ErrorConferenceDetailShowcaseStubAPI() ) return ConferenceDetailViewController(viewModel: viewModel) } }
43. Dependency Injection is Dead Long Live Data Injection

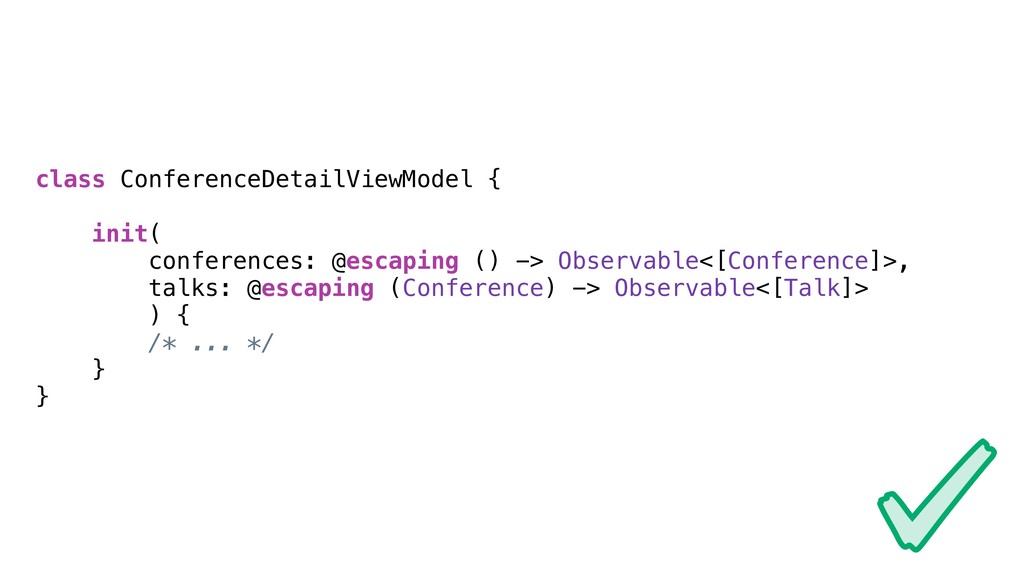

44. class ConferenceDetailViewModel { init( conferences: @escaping () -> Observable<[Conference]>, talks: @escaping (Conference) -> Observable<[Talk]> ) { /* ... */ } }

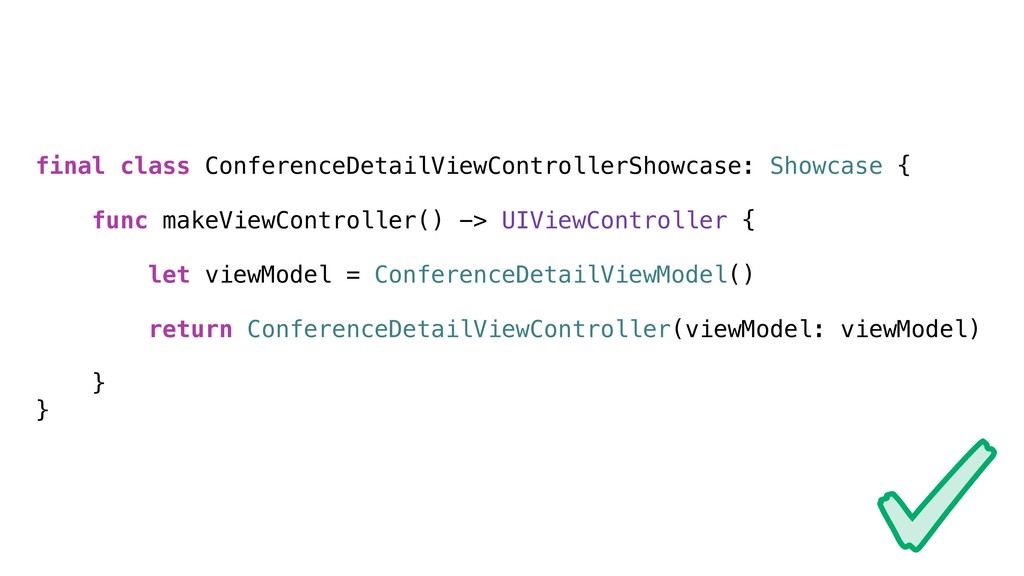

45. final class ConferenceDetailViewControllerShowcase: Showcase { func makeViewController() -> UIViewController { let viewModel = ConferenceDetailViewModel() return ConferenceDetailViewController(viewModel: viewModel) } }

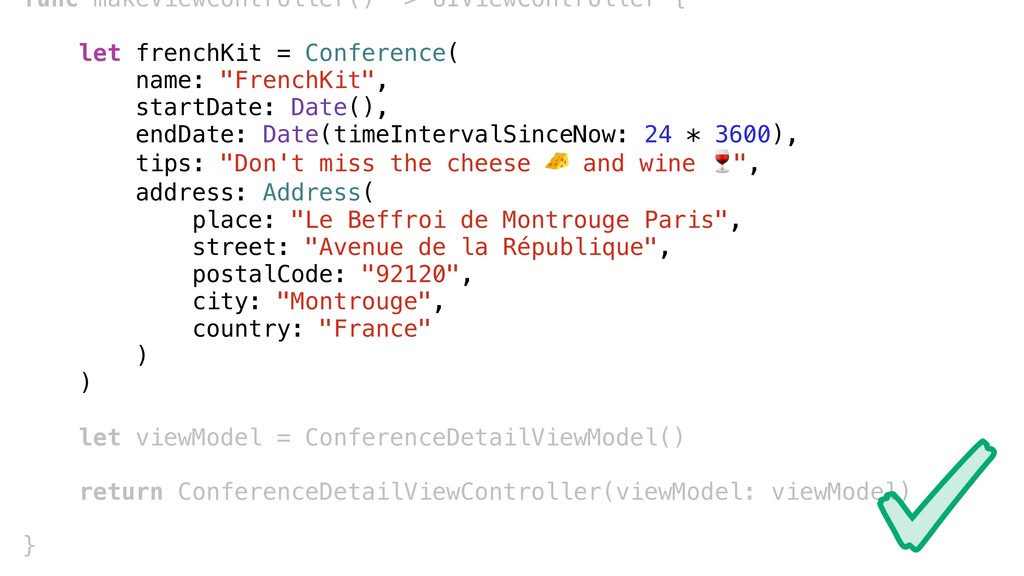

46. func makeViewController() -> UIViewController { let frenchKit = Conference( name: "FrenchKit", startDate: Date(), endDate: Date(timeIntervalSinceNow: 24 * 3600), tips: "Don't miss the cheese and wine ", address: Address( place: "Le Beffroi de Montrouge Paris", street: "Avenue de la République", postalCode: "92120", city: "Montrouge", country: "France" ) ) let viewModel = ConferenceDetailViewModel() return ConferenceDetailViewController(viewModel: viewModel) }

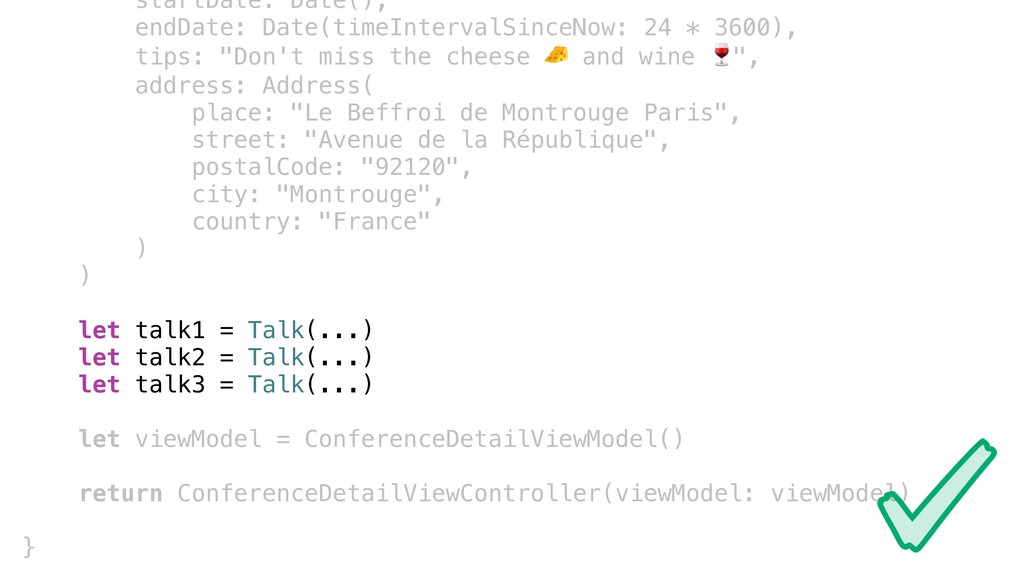

47. startDate: Date(), endDate: Date(timeIntervalSinceNow: 24 * 3600), tips: "Don't miss the cheese and wine ", address: Address( place: "Le Beffroi de Montrouge Paris", street: "Avenue de la République", postalCode: "92120", city: "Montrouge", country: "France" ) ) let talk1 = Talk(...) let talk2 = Talk(...) let talk3 = Talk(...) let viewModel = ConferenceDetailViewModel() return ConferenceDetailViewController(viewModel: viewModel) }

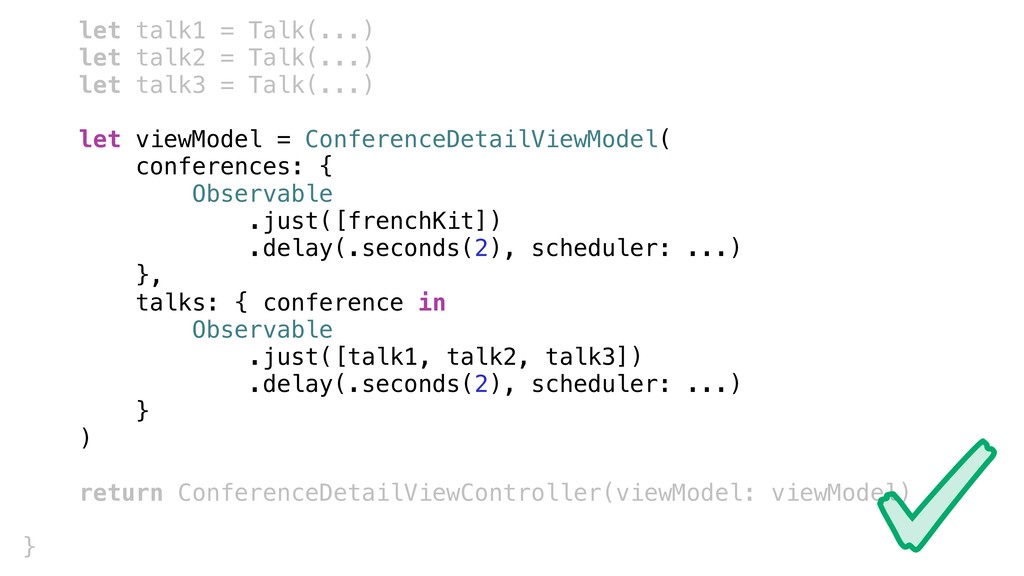

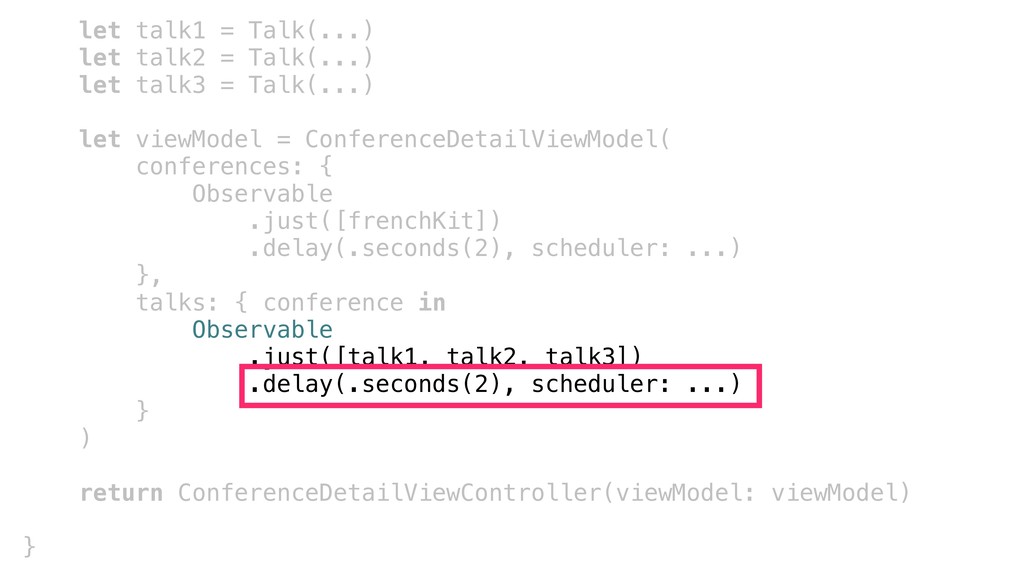

48. let talk1 = Talk(...) let talk2 = Talk(...) let talk3 = Talk(...) let viewModel = ConferenceDetailViewModel( conferences: { Observable .just([frenchKit]) .delay(.seconds(2), scheduler: ...) }, talks: { conference in Observable .just([talk1, talk2, talk3]) .delay(.seconds(2), scheduler: ...) } ) return ConferenceDetailViewController(viewModel: viewModel) }

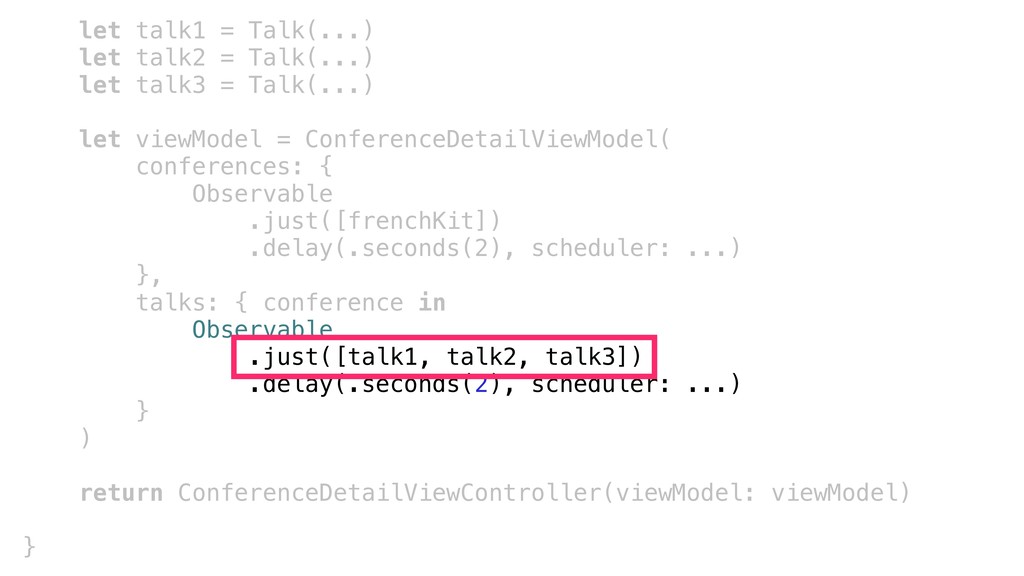

49. let talk1 = Talk(...) let talk2 = Talk(...) let talk3 = Talk(...) let viewModel = ConferenceDetailViewModel( conferences: { Observable .just([frenchKit]) .delay(.seconds(2), scheduler: ...) }, talks: { conference in Observable .just([talk1, talk2, talk3]) .delay(.seconds(2), scheduler: ...) } ) return ConferenceDetailViewController(viewModel: viewModel) }
50. let talk1 = Talk(...) let talk2 = Talk(...) let talk3 = Talk(...) let viewModel = ConferenceDetailViewModel( conferences: { Observable .just([frenchKit]) .delay(.seconds(2), scheduler: ...) }, talks: { conference in Observable .just([talk1, talk2, talk3]) .delay(.seconds(2), scheduler: ...) } ) return ConferenceDetailViewController(viewModel: viewModel) }

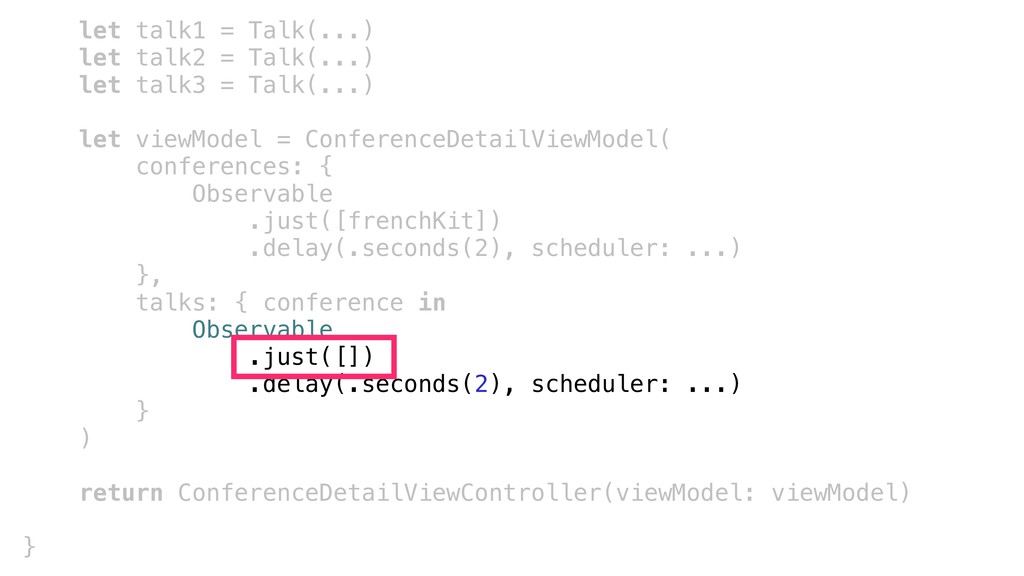

51. let talk1 = Talk(...) let talk2 = Talk(...) let talk3 = Talk(...) let viewModel = ConferenceDetailViewModel( conferences: { Observable .just([frenchKit]) .delay(.seconds(2), scheduler: ...) }, talks: { conference in Observable .just([]) .delay(.seconds(2), scheduler: ...) } ) return ConferenceDetailViewController(viewModel: viewModel) }

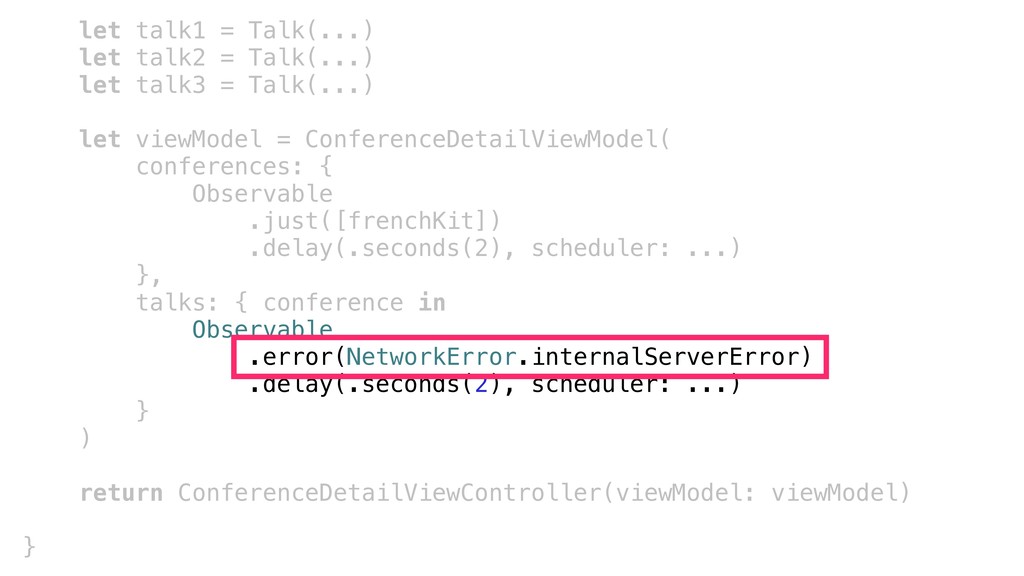

52. let talk1 = Talk(...) let talk2 = Talk(...) let talk3 = Talk(...) let viewModel = ConferenceDetailViewModel( conferences: { Observable .just([frenchKit]) .delay(.seconds(2), scheduler: ...) }, talks: { conference in Observable .error(NetworkError.internalServerError) .delay(.seconds(2), scheduler: ...) } ) return ConferenceDetailViewController(viewModel: viewModel) }

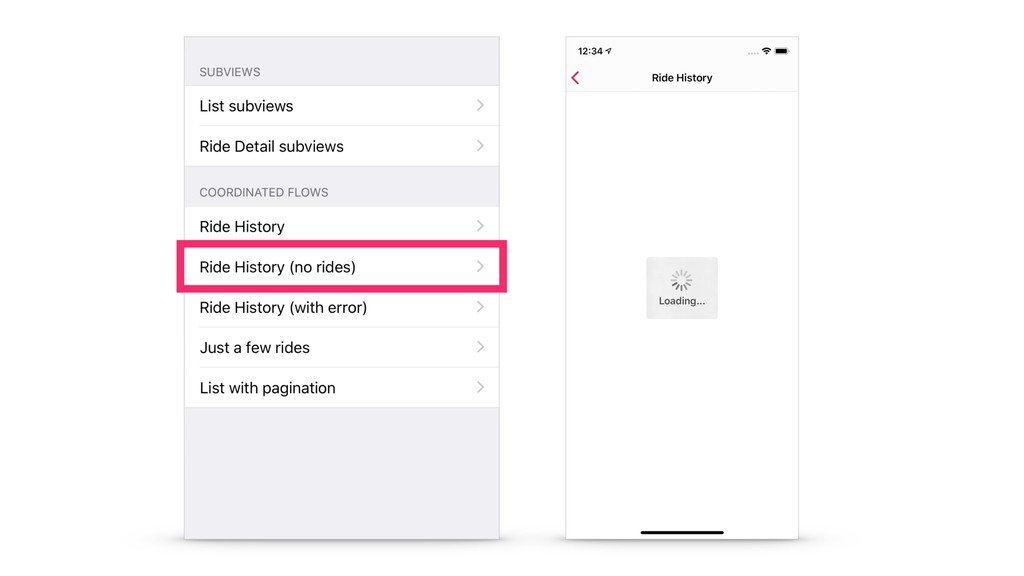

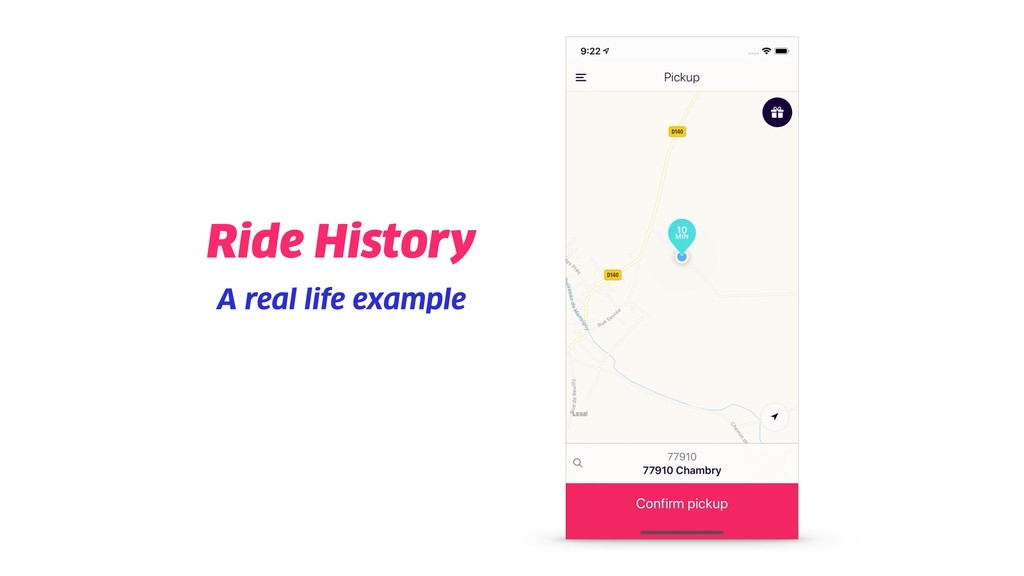

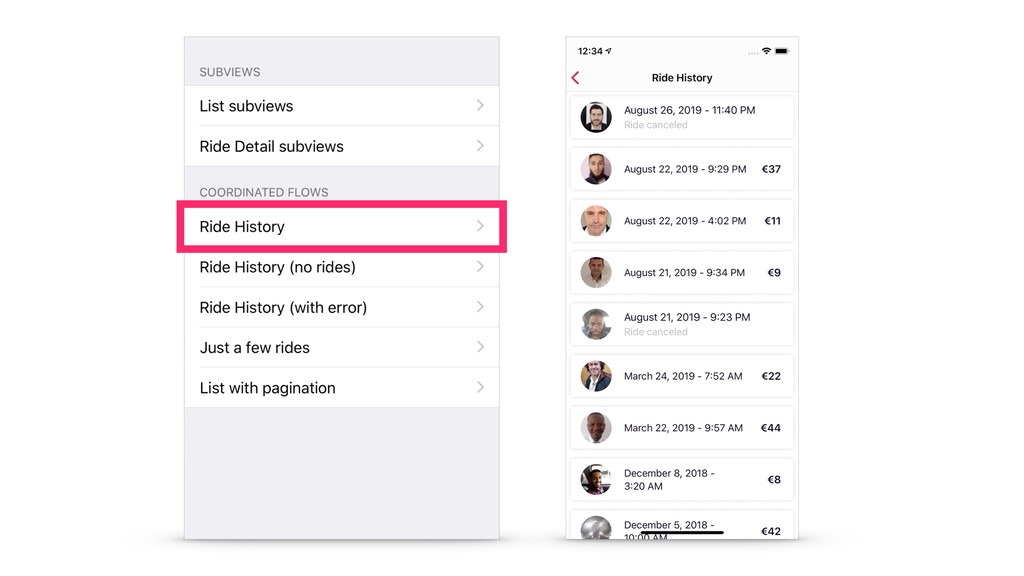

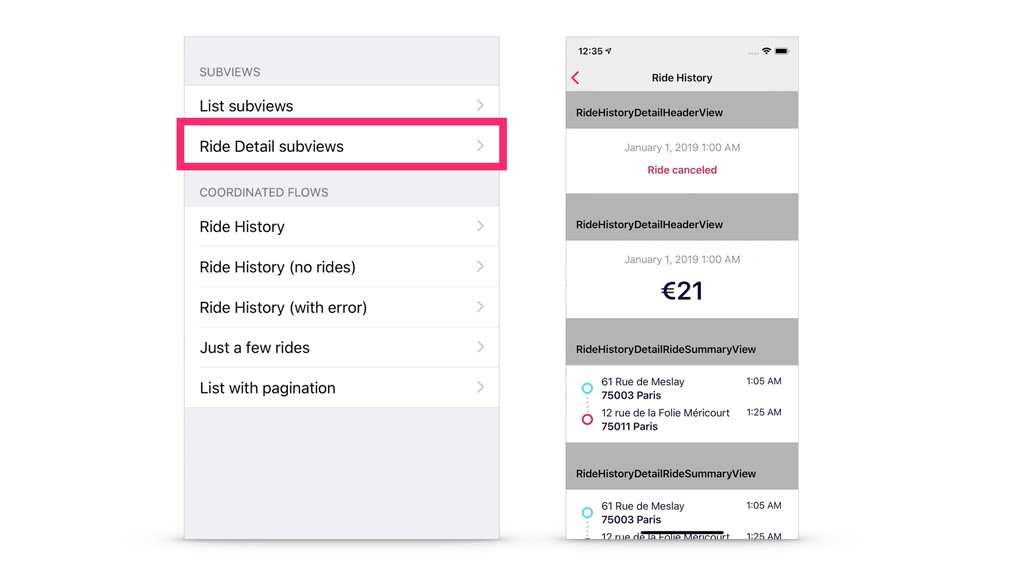

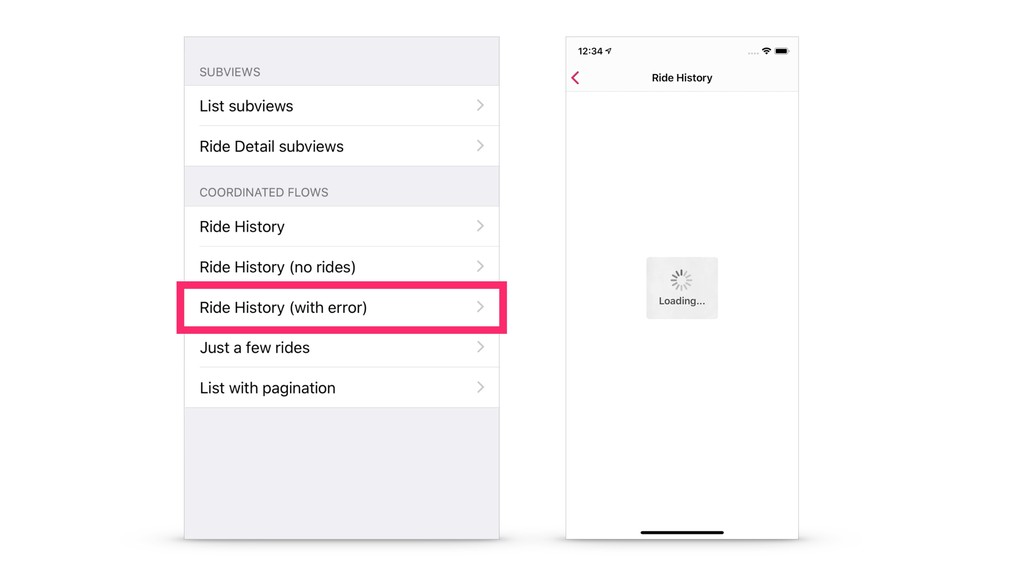

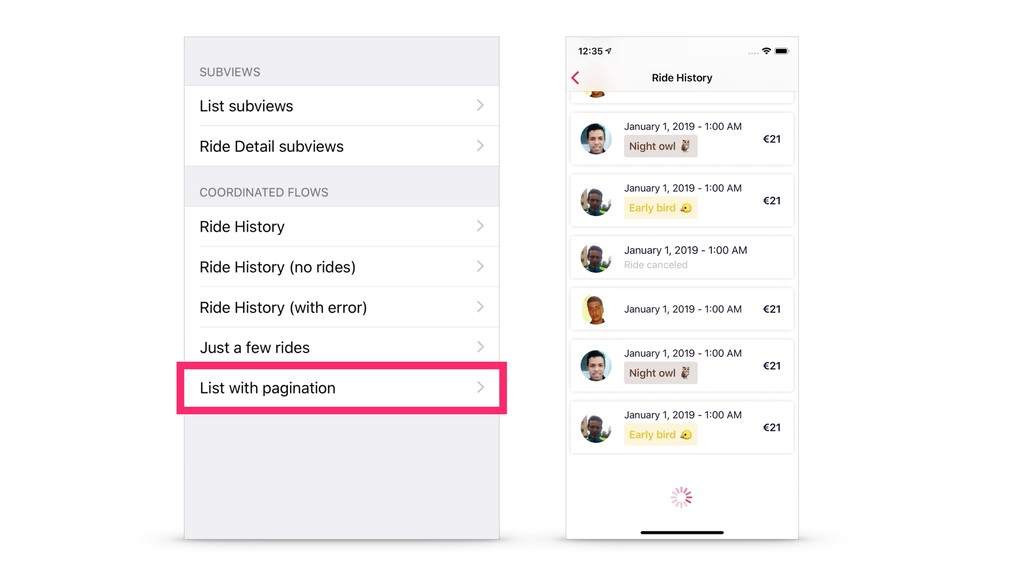

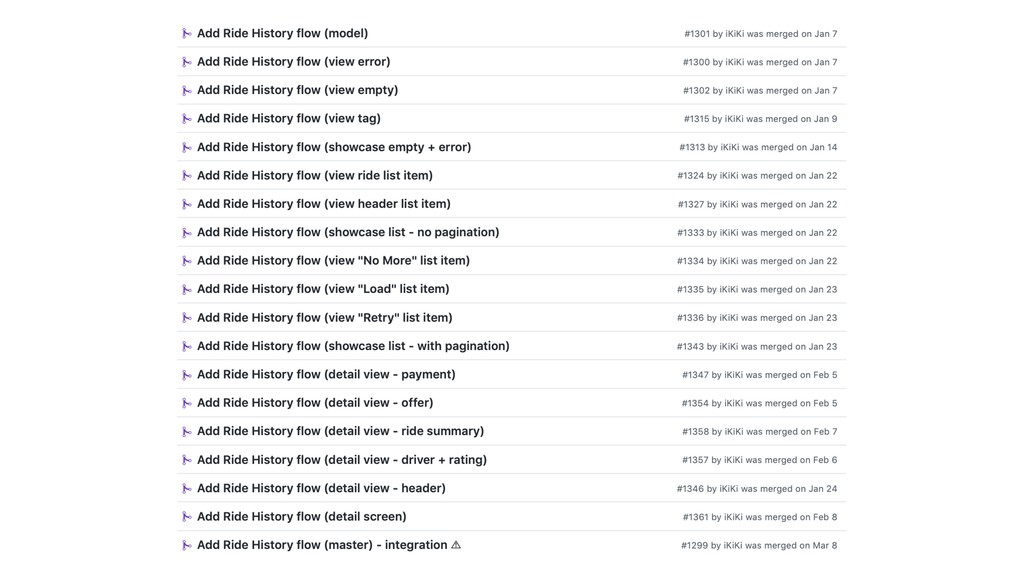

54. Ride History A real life example

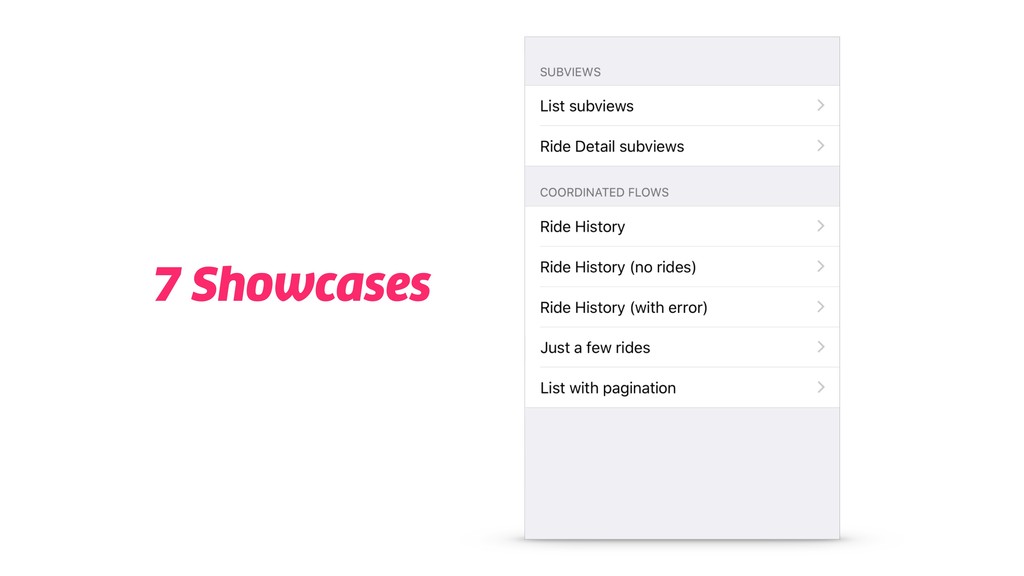

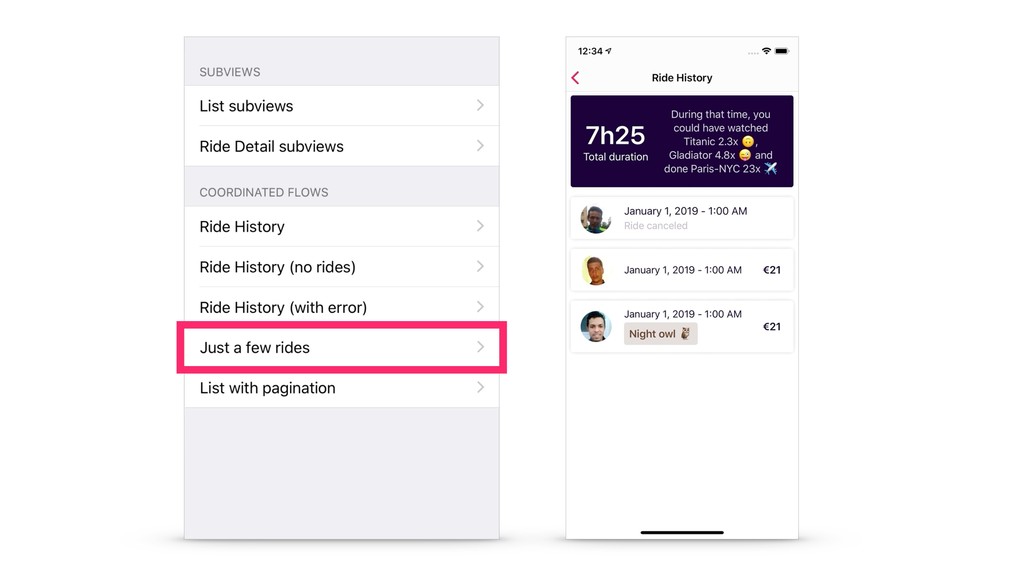

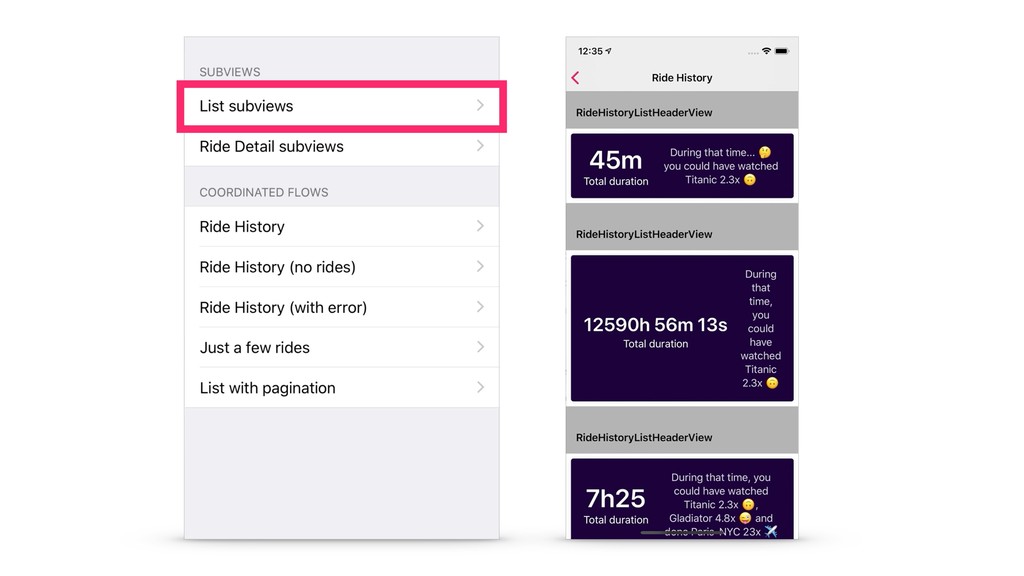

55. 7 Showcases

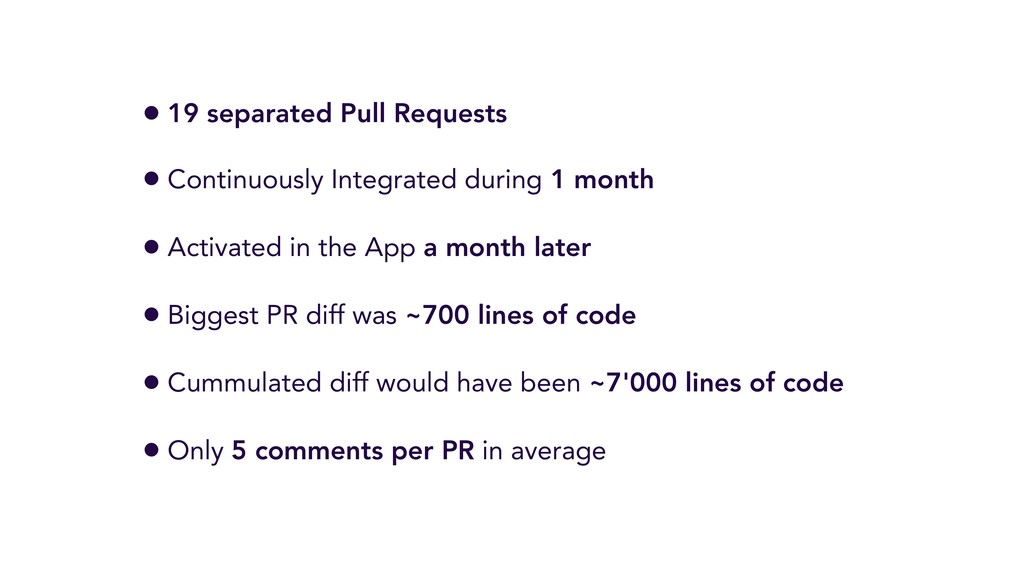

64. • Continuously Integrated during 1 month • Activated in the App a month later • Biggest PR diff was ~700 lines of code • Cummulated diff would have been ~7'000 lines of code • Only 5 comments per PR in average • 19 separated Pull Requests
65. NOW THAT'S, KIDS, HOW I MET REAL CONTINUOUS INTEGRATION
66. Different Flavors of Showcases

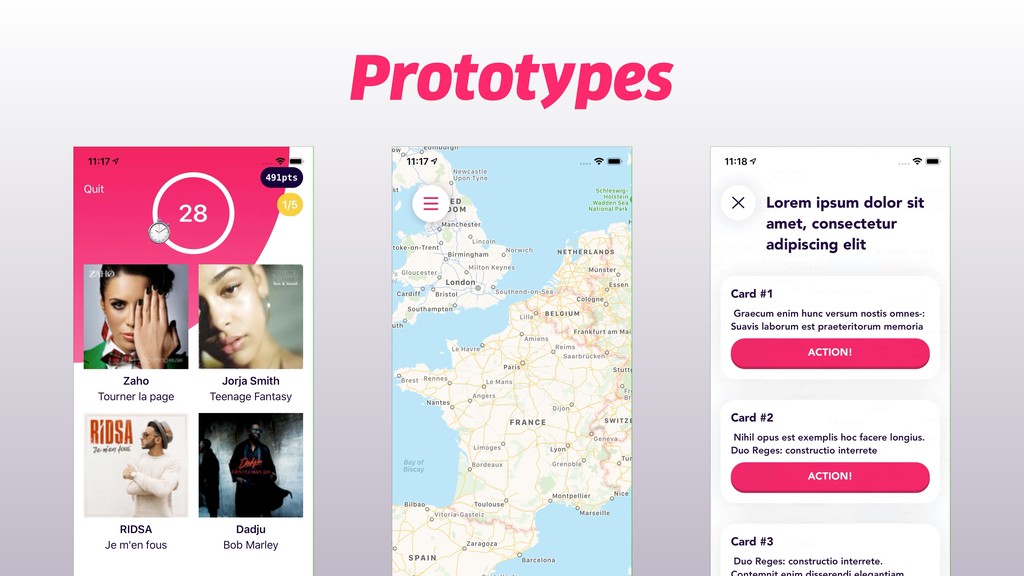

67. Prototypes

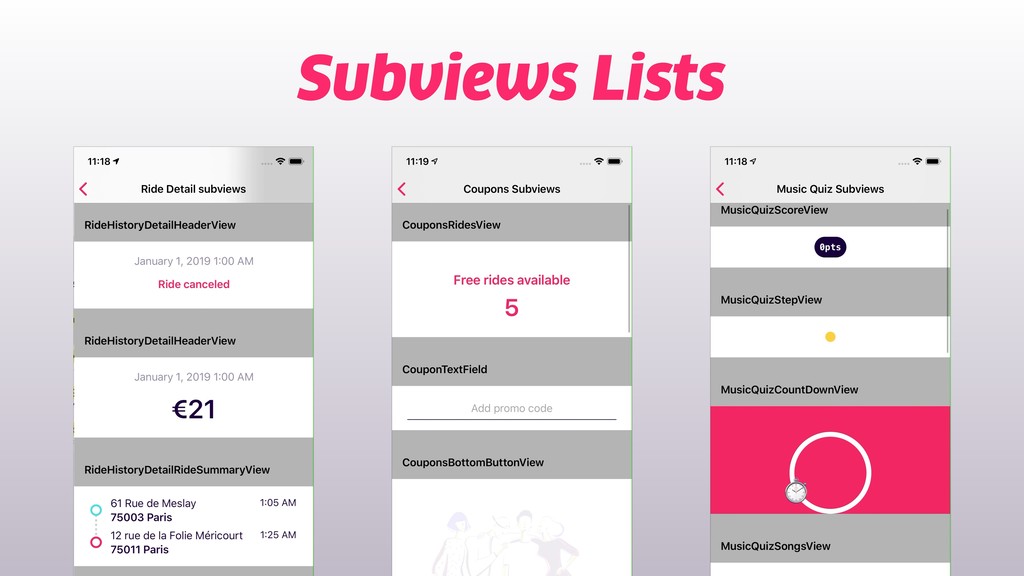

68. Subviews Lists

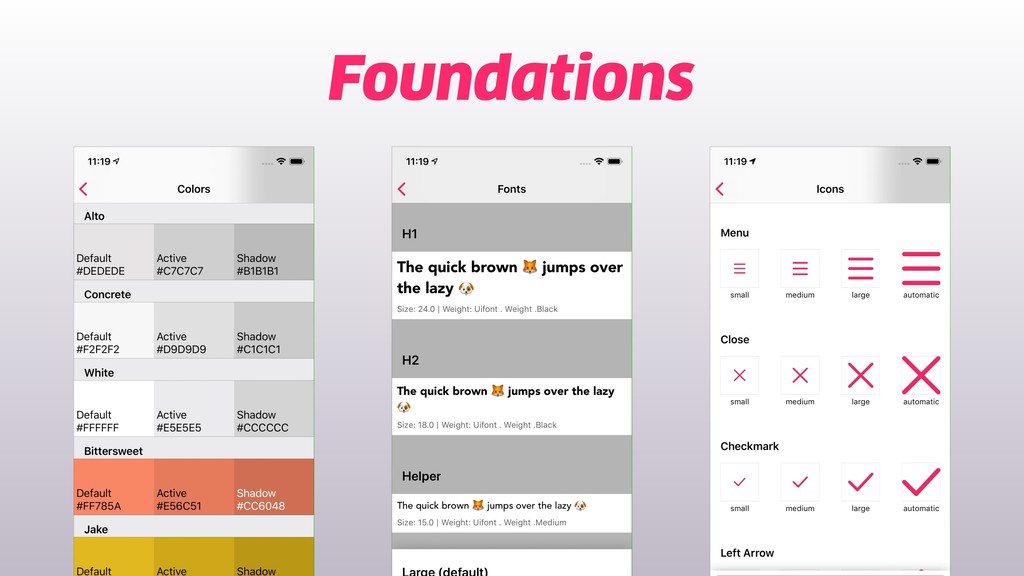

69. Foundations

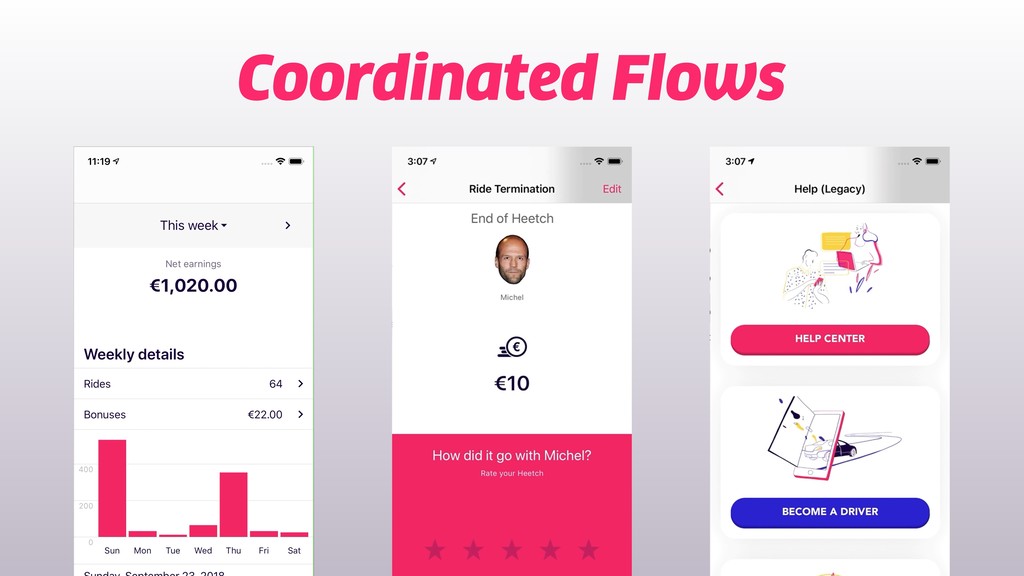

70. Coordinated Flows

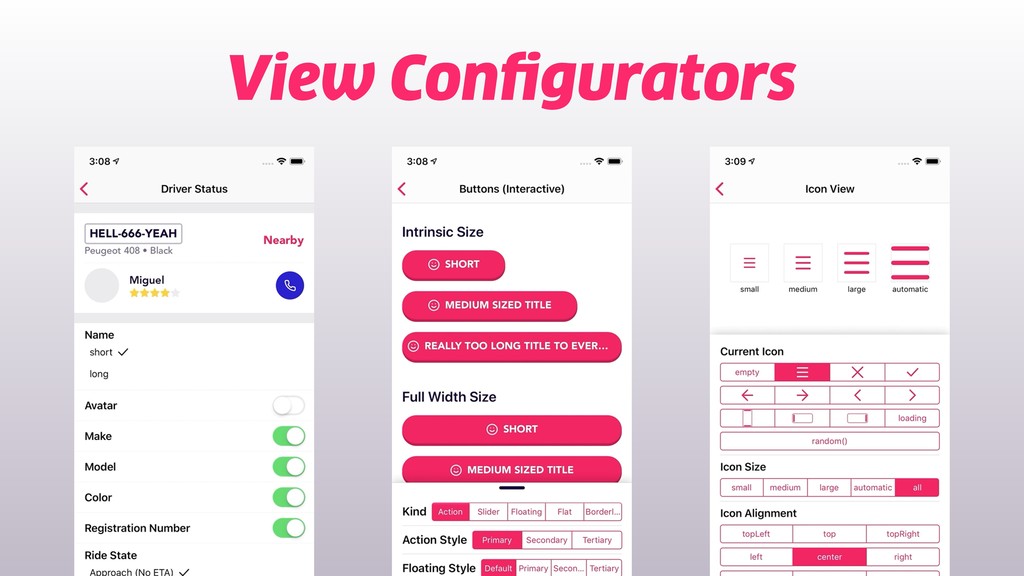

71. View Configurators
72. How to start?

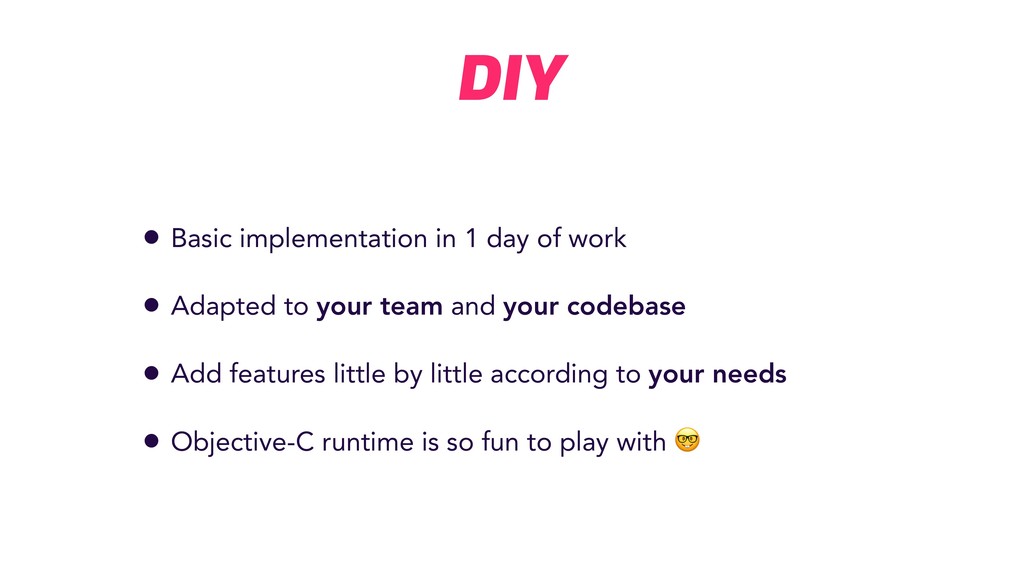

73. DIY • Basic implementation in 1 day of work • Adapted to your team and your codebase • Add features little by little according to your needs • Objective-C runtime is so fun to play with

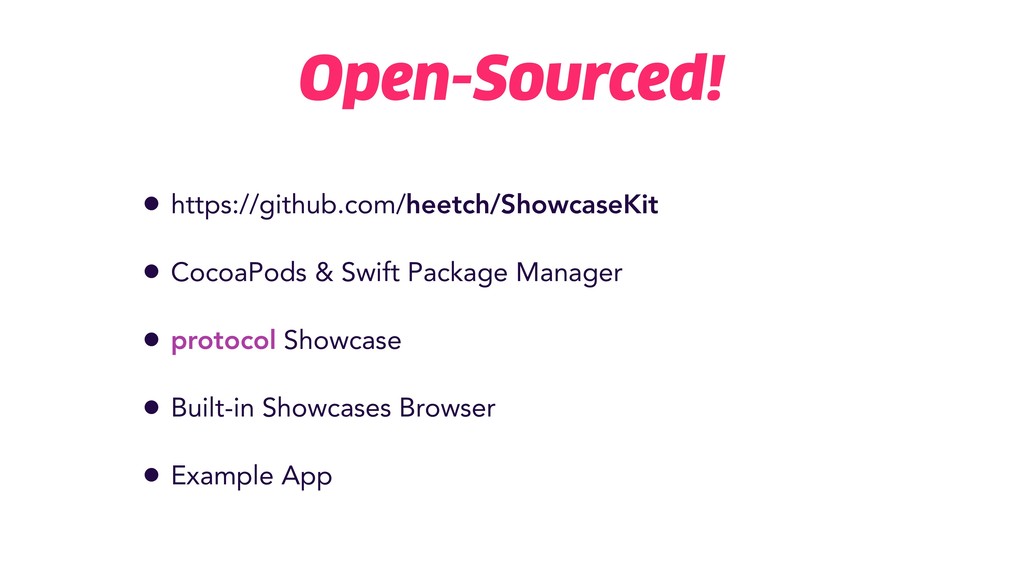

74. Open-Sourced! • https://github.com/heetch/ShowcaseKit • CocoaPods & Swift Package Manager • protocol Showcase • Built-in Showcases Browser • Example App
75. merci @jegnux
