UBC STAT545 2015 cm103 Data cleaning via Gapminder

Data cleaning illustrated through preparation of Gapminder data to become an R data package.
Lecture slides from UBC STAT545 2015 are usually intended as complement to, e.g., a hands-on activity.

Transcript

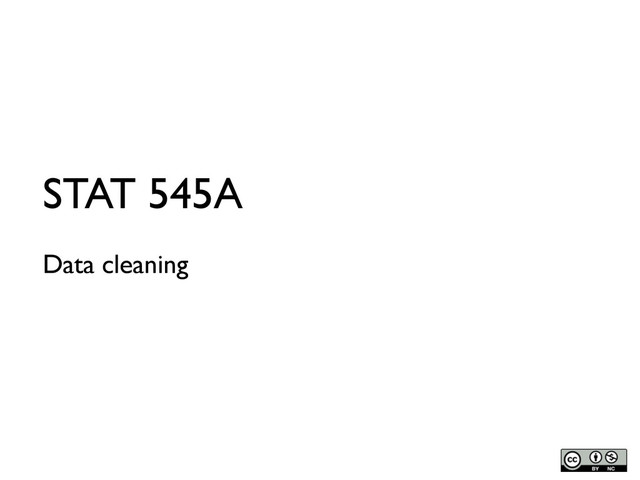

1. STAT 545A
   Data cleaning


   View Slide

2. Dr. Jennifer (Jenny) Bryan
   Department of Statistics and Michael Smith Laboratories
   University of British Columbia
   jenny@stat.ubc.ca
   https://github.com/jennybc
   http://www.stat.ubc.ca/~jenny/
   @JennyBryan ← personal, professional Twitter
   https://github.com/STAT545-UBC
   http://stat545-ubc.github.io
   @STAT545 ← Twitter as lead instructor of this course


   View Slide

3. Data cleaning


   View Slide

4. View Slide

5. View Slide

6. View Slide

7. Make it easy to revisit your cleaning.
   Think: when, not if, I need to re-run this....
   Yes, I am saying clean your data with R.
   Yes, that will be uncomfortable.
   No, in the long run, it will NOT be faster to
   just use Excel.
   Stay strong young padawan!


   View Slide

8. Running example:
   The Gapminder data you’ve grown to know and love!
   An R data package available on CRAN and GitHub:
   https://cran.r-project.org/web/packages/gapminder/index.html
   https://github.com/jennybc/gapminder
   To use the Gapminder data:
   install.packages(gapminder)
   ## OR
   devtools::install_github("jennybc/gapminder")
   library(gapminder)
   If you look at package source, e.g. on GitHub, the data-raw directory
   holds the raw data and all the code and intermediates necessary to
   bring you the 1704 rows and 6 variables we work with.


   View Slide

9. Visit the source of the gapminder package on GitHub:
   https://github.com/jennybc/gapminder
   Copy the the HTTPS clone URL to clipboard ...
   Create new RStudio Project >
   Version Control >
   Git >
   and paste the URL
   This will get you the package source. Note this is not
   the same as installing the package.


   View Slide

10. Step 0:
    Save the raw data!
    I often revoke my own write permission.
    See the original Excel workbooks I downloaded
    from Gapminder.org in 2008 - 2009:
    https://github.com/jennybc/gapminder/tree/master/data-raw/xls


    View Slide

11. Step 1:
    Get the data out of Excel.
    Save as a delimited file. Or ...
    Use, e.g., readxl::read_excel(), to access the Excel
    file directly from R. Or ...
    Even better, do both!


    View Slide

12. Step 1:
    Get the data out of Excel.
    See the delimited data I extracted “by hand” from Excel in
    2008 - 2009.
    https://github.com/jennybc/gapminder/tree/master/data-raw/xls-manual-extract
    See also my scripts for direct extraction via R. Note: they
    were written before readxl existed and thus use a
    different package.
    https://github.com/jennybc/gapminder/blob/master/data-raw/01_extract-from-excel-pop.r
    https://github.com/jennybc/gapminder/blob/master/data-raw/02_extract-from-excel-lifeExp.r
    https://github.com/jennybc/gapminder/blob/master/data-raw/03_extract-from-excel-gdpPercap.r


    View Slide

13. Excel is great for browsing delimited files.
    Even OK for editing, in certain situations.
    if the desired file is greyed out when you try to open ...
    use the “enable” drop-down menu to expand what Excel considers open-able
    you can even go nuts and enable “All Files”
    in particular, Excel is unnecessarily squeamish about the *.tsv extension commonly used
    with tab-delimited files
    File > Open...


    View Slide

14. Excel can write delimited files.
    File > Save As... Format
    Excel will try to freak you out with a warning.
    For plain ol’ data, ignore and proceed.
    The sky is falling!


    View Slide

15. Step 2:
    Get the data into R.
    Read the delimited export with read.table() or readr
    substitutes. Or ...
    Use, e.g., readxl::read_excel(), to access the Excel
    file directly from R.
    In either case, don’t settle for a lousy import.
    USE THE ARGUMENTS!
    https://github.com/jennybc/gapminder/blob/master/data-raw/01_extract-from-excel-pop.r
    https://github.com/jennybc/gapminder/blob/master/data-raw/02_extract-from-excel-lifeExp.r
    https://github.com/jennybc/gapminder/blob/master/data-raw/03_extract-from-excel-gdpPercap.r


    View Slide

16. read.table(file, header = FALSE, sep = "", quote = "\"'",
    dec = ".", numerals = c("allow.loss", "warn.loss", "no.loss"),
    row.names, col.names, as.is = !stringsAsFactors,
    na.strings = "NA", colClasses = NA, nrows = -1,
    skip = 0, check.names = TRUE, fill = !blank.lines.skip,
    strip.white = FALSE, blank.lines.skip = TRUE,
    comment.char = "#",
    allowEscapes = FALSE, flush = FALSE,
    stringsAsFactors = default.stringsAsFactors(),
    fileEncoding = "", encoding = "unknown", text, skipNul = FALSE)
    These arguments are available for a reason.
    You will eventually need all of them.
    Ask me how I know.


    View Slide

17. View Slide

18. Get minimally correct, useful data:
    Drop variables, create new variables, rename variables.
    Drop rows.
    Convert lead into gold:
    - weird character dates --> proper dates
    - numbers with “helpful” commas (1,000) --> numbers (1000)
    - etc.
    Reshape data.
    Turn character into factor or factor into character.
    Replace obviously bad data with good data or proper NA.


    View Slide

19. save all this intermediate data!
    preferably as text
    use all the wisdom imparted in STAT 545 re: writing data to file
    http://stat545-ubc.github.io/block026_file-out-in.html
    https://github.com/jennybc/gapminder/blob/master/data-raw/01_pop.tsv
    https://github.com/jennybc/gapminder/blob/master/data-raw/02_lifeExp.tsv
    https://github.com/jennybc/gapminder/blob/master/data-raw/03_gdpPercap.tsv


    View Slide

20. Integrate data that’s spread out in multiple files/
    objects:
    Use proper join / merge functions.
    Scrutinize the result. Is everything OK?
    https://github.com/jennybc/gapminder/blob/master/data-raw/04_merge-pop-lifeExp-gdpPercap.r
    https://github.com/jennybc/gapminder/blob/master/data-raw/04_gap-merged.tsv
    https://github.com/jennybc/gapminder/blob/master/data-raw/05_smell-test-gap-merged.r


    View Slide

21. this is what happens with manual data entry for
    “country” in three separate Excel workbooks ... chaos!


    View Slide

22. ## continent
    gap_dat$continent %>% levels # 7 levels for continent,
    including ""
    gap_dat$continent %>% summary
    # Africa Americas Asia Europe FSU Oceania
    # 301 613 343 557 1302 122 74
    ## 301 rows have no continent data :(


    View Slide

23. Fix data that can be rescued.
    Discard the rest.
    https://github.com/jennybc/gapminder/blob/master/data-raw/06_fill-and-fix-continent.r
    https://github.com/jennybc/gapminder/blob/master/data-raw/06_gap-merged-with-continent.tsv


    View Slide

24. save your final clean, ready-to-analyze data!
    use all the wisdom imparted in STAT 545 re:
    writing data to file
    so, probably, as text AND in an R-specific format
    https://github.com/jennybc/gapminder/blob/master/data-raw/07_filter-every-five-years.r
    https://github.com/jennybc/gapminder/blob/master/data-raw/07_gap-every-five-years.tsv
    https://github.com/jennybc/gapminder/tree/master/data


    View Slide

25. 2014 in-class activity
    pick an entry point into the Gapminder
    cleaning and walk through a script
    come up with at least one
    - question
    - observation
    - improvement!
    for discussion at the end of class


    View Slide

26. another possible in-class activity
    re-visit Gapminder cleaning
    - with readxl and/or readr
    walk through one of the scripts and
    modernize it
    come up with at least one
    - question
    - observation
    - improvement!
    for discussion at the end of class


    View Slide
