Using apex + apexbeat for Java application monitoring

Slide deck for the elasticsearch meetup in Zürich March 2017

Transcript

1. using apex + apexbeat for Java application monitoring Elasticsearch Meetup Zürich 01.03.2017 Jens Saade jens@verticle.io

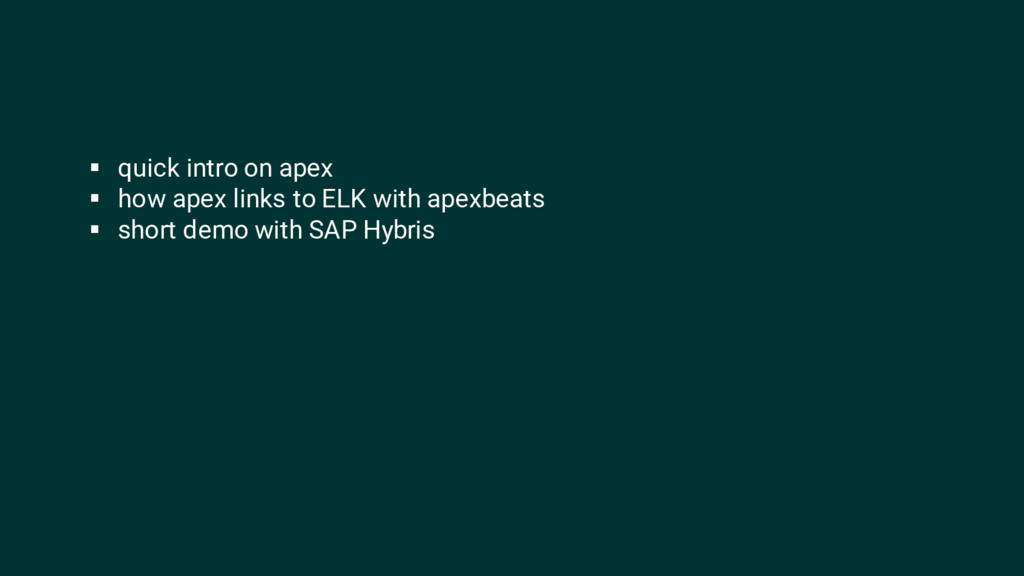

2. § quick intro on apex § how apex links to ELK with apexbeats § short demo with SAP Hybris
3. about me § working as an Java Engineer for GK Software, building POS Systems § domains: Retail, E-Commerce, Product Information Mgmt (PIM) § formerly Pironet, unic, NSM § founded NauticNetworks (B2B2C Marketplace) in 2008 *RIP § (nearly) founded Verticle in 2016 § creator of APEX and apexbeat

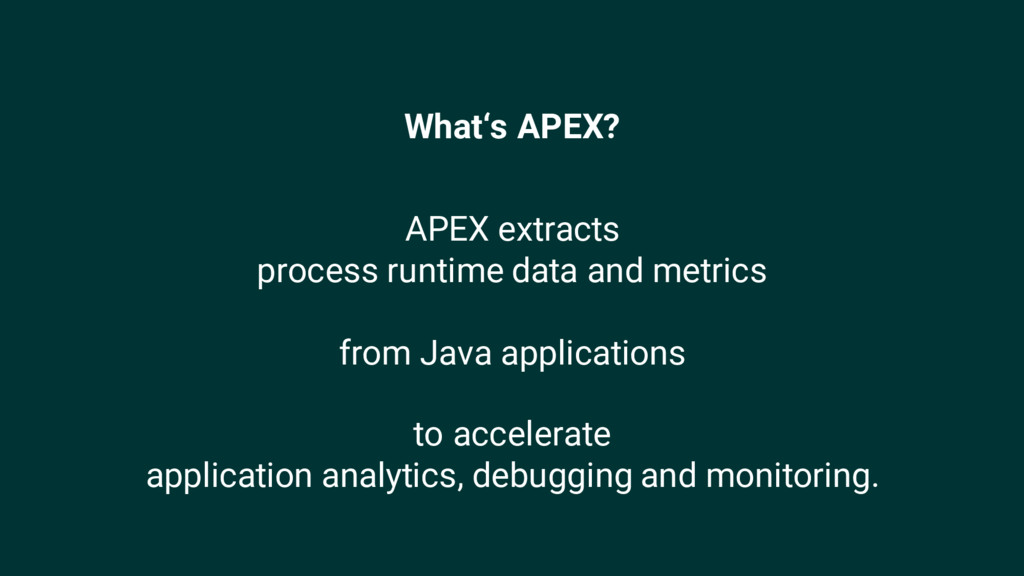

4. What‘s APEX? APEX extracts process runtime data and metrics from Java applications to accelerate application analytics, debugging and monitoring.

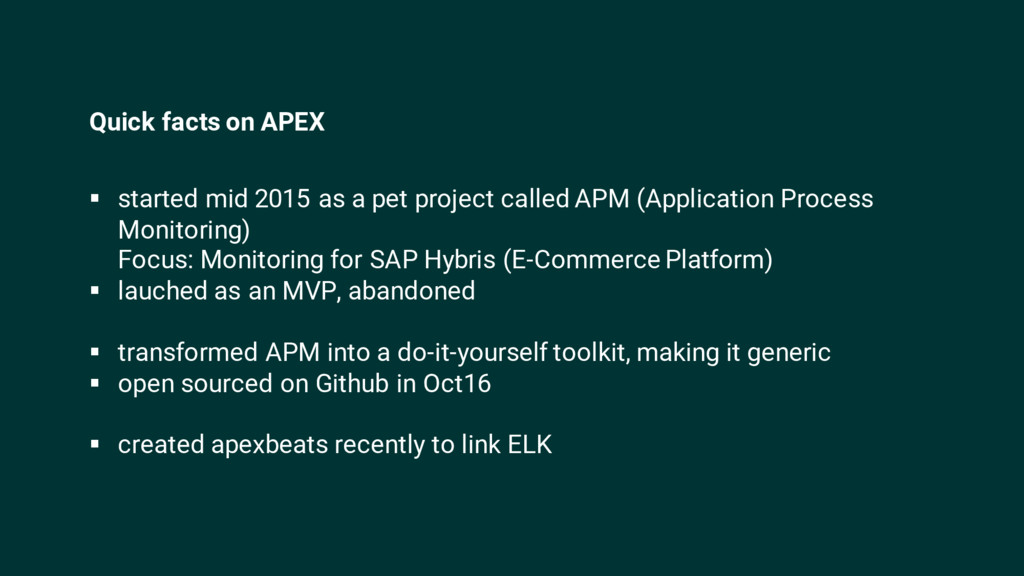

5. Quick facts on APEX § started mid 2015 as a pet project called APM (Application Process Monitoring) Focus: Monitoring for SAP Hybris (E-Commerce Platform) § lauched as an MVP, abandoned § transformed APM into a do-it-yourself toolkit, making it generic § open sourced on Github in Oct16 § created apexbeats recently to link ELK

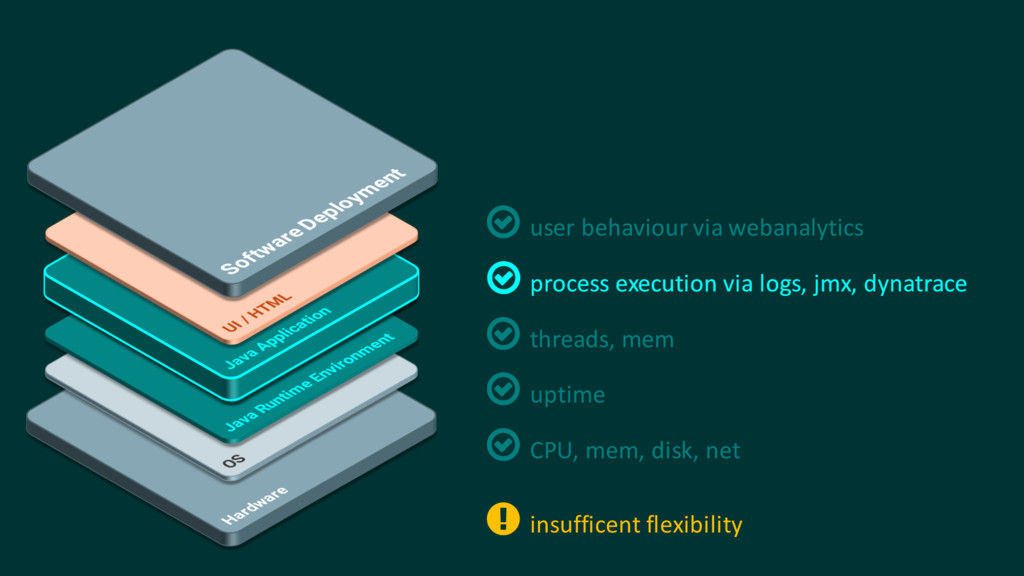

6. ◦ user behaviour via webanalytics ◦ CPU, mem, disk, net ◦ uptime ◦ threads, mem ◦ process execution via logs, jmx, dynatrace ◦ process execution via logs, jmx, dynatrace " insufficent flexibility
7. goals § target processes executions § extract  their  runtime  data § visualize  &  analyze  it § also  target  closed/compiled   src restrictions § no rebuilds or redeployments § infrequent  restarts  OK § easy  to  apply  and  extend

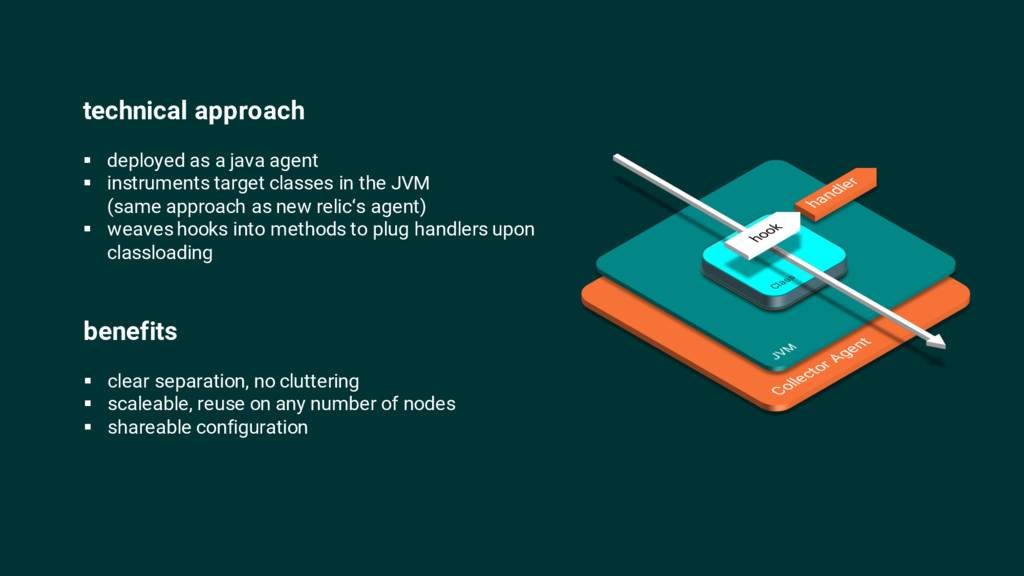

8. technical approach § deployed as a java agent § instruments target classes in the JVM (same approach as new relic‘s agent) § weaves hooks into methods to plug handlers upon classloading benefits § clear separation, no cluttering § scaleable, reuse on any number of nodes § shareable configuration

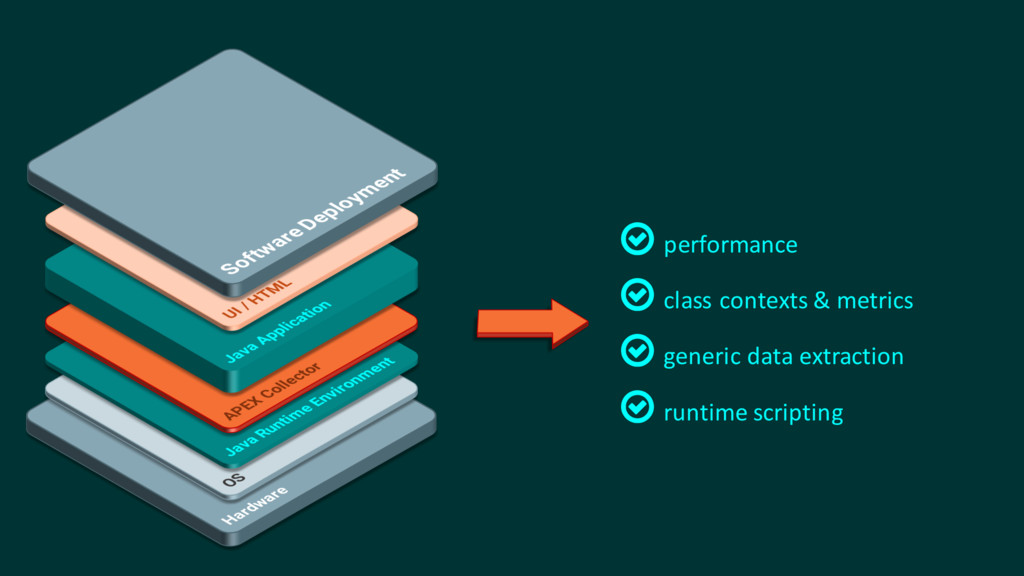

9. ◦ performance ◦ generic data extraction ◦ class contexts & metrics ◦ runtime scripting

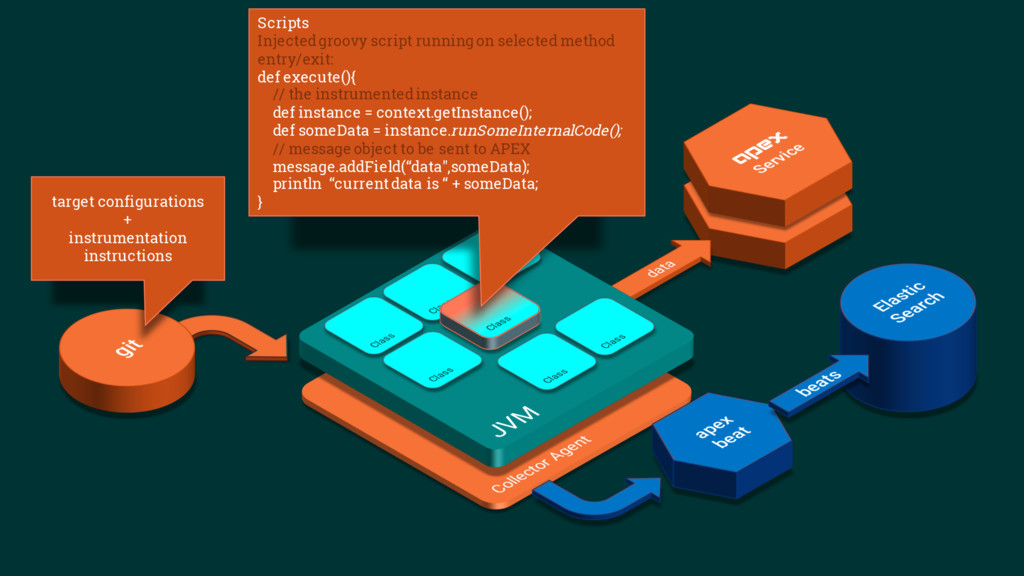

10. Scripts Injected groovy script running on selected method entry/exit: def execute(){ // the instrumented instance def instance = context.getInstance(); def someData = instance.runSomeInternalCode(); // message object to be sent to APEX message.addField(“data",someData); println “current data is “ + someData; } target configurations + instrumentation instructions

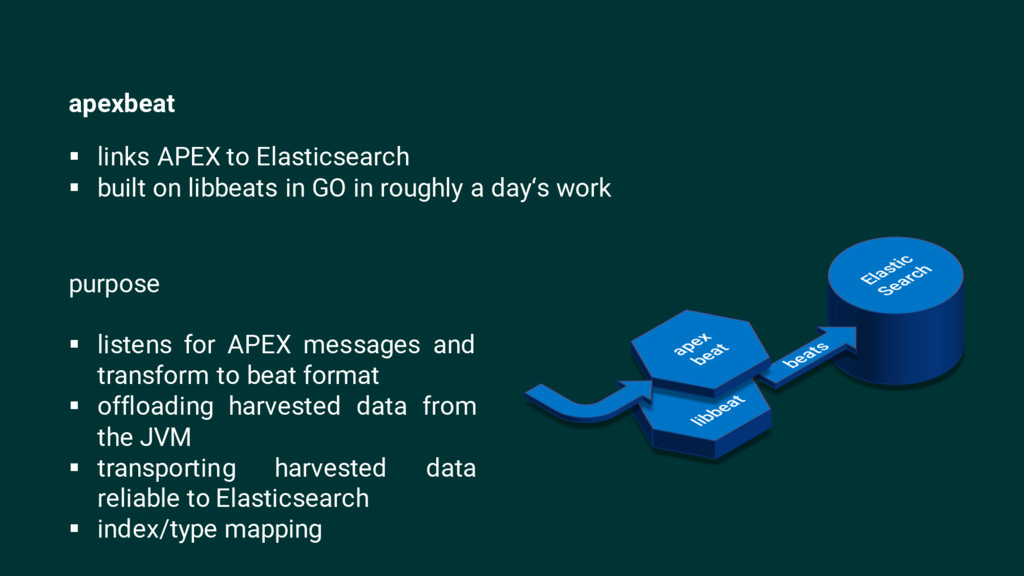

11. purpose § listens for APEX messages and transform to beat format § offloading harvested data from the JVM § transporting harvested data reliable to Elasticsearch § index/type mapping apexbeat § links APEX to Elasticsearch § built on libbeats in GO in roughly a day‘s work

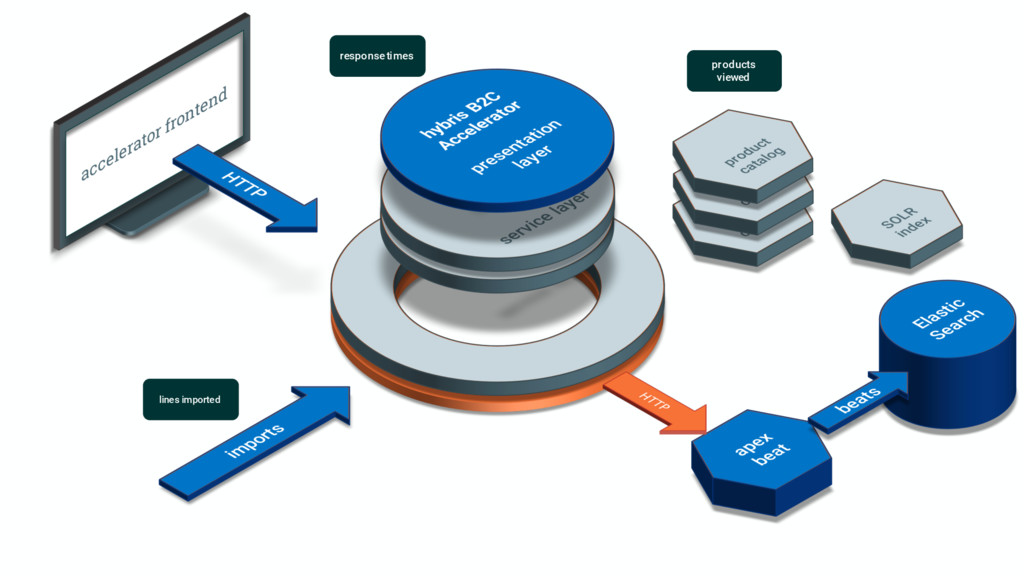

12. lines imported response times products viewed
13. demo § SAP Hybris demo shop § APEX, with configuration + log entries in Hybris § apexbeat, forwarding metrics § Kibana dashboard
14. More on apex and apexbeat § Code repositories on Github § dockerized demo on Dockerhub visit http://toolkits.verticle.io for details and docs. jens@verticle.io @jenssaade
