Reactive Patterns and Distributed Systems - OUGN 2018

Presented by me and my colleague Arturo Viveros (https://twitter.com/gugalnikov) at OUGN 2018.

Transcript

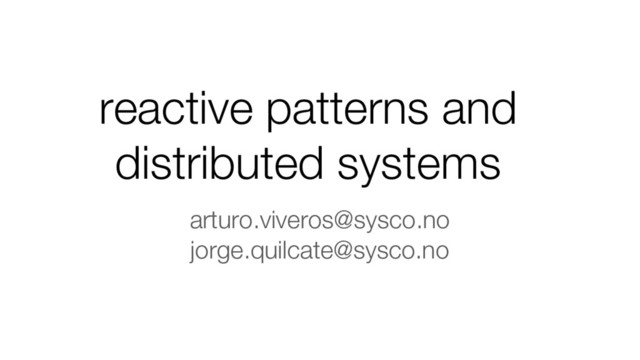

1. reactive patterns and distributed systems arturo.viveros@sysco.no jorge.quilcate@sysco.no
2. agenda • Intro to Reactive Systems • Back-Pressure • Stream-Processing • Observability
3. Reactive Systems
4. data on the outside vs data on the inside “Going [from monolithic architecture] to SOA is like going from Newton’s physics to Einstein’s physics. Newton’s time marched forward uniformly with instant knowledge at a distance. Before SOA, distributed computing strove to make many systems look like one with RPC, 2PC, etc [...]
5. data on the outside vs data on the inside [...] In Einstein’s universe, everything is relative to one’s perspective. SOA has “now” inside and the “past” arriving in messages.” - Pat Helland
6. data on the outside vs data on the inside “perhaps we should rename the “extract microservice” refactoring operation to “change model of time and space” ;).” - Adrian Colyer
7. distributed systems & complexity
8. “we want more, of everything, and we want it now” - YOUR CUSTOMERS
9. Reactive Manifesto Value Form Means
10. Adopting Reactive Patterns (i.e. Ivy Pattern) -Why Reactive?, O’Reilly, Konrad Malawski
11. Back-Pressure
12. What is Back Pressure? • Systems should be designed and implemented to react assertively under sustained load • This is often neglected although such conditions are usually expected and highly predictable • Negotiating back pressure usually requires some sort of Flow Control • Which in simpler terms is the ability to say “hey, slow down!!”, or even “stop it!!”
13. There are Several types of Back Pressure • Fast publisher / slow subscriber • Insufficient buffer • Accumulation without discharge • Packet size variation • Clogged channel • Etc.
14. Dealing with Back Pressure within Integrations is quite Important… Failing to account for it can have a “domino effect”, overloading and eventually crippling many of the participating systems.
15. Meterpoint Data Collection IoT Devices Customer Management Work Order Management Delivery Experience Web Data Warehouse System AQ REST / FTP SOAP Event Streams REST CQRS DSO Central Authorities Grid Companies REST Mobile The more Complex the Integration, the more Important (and challenging) it is to Handle Back Pressure
16. There are Several ways to Handle Back Pressure… • Dynamic push / pull • Static / Dynamic Quotas • Buffers • Ack / Nack • Throttling • Caching • Circuit breaker • Scaling • Some / all of the above • Etc…
17. But make sure you are doing something to handle it “Simply put, an unchecked Kafka consumer is a DoS attack on your application waiting to happen” -https://medium.com/@petermelias/kafka-consumer-patterns-and-gotchas-1bfc04cd643b “Unbounded queues are fundamentally broken because it puts the correctness of your system in someone else's hand” -@ztellman
18. And Always Take into Account System’s Reactions to Back Pressure… are highly contagious (Newton’s 3rd law) can propagate exponentially (butterfly effect)
20. So, a Robust Solution for Back Pressure / Flow Control should always be non-blocking requires some complex service choreography
22. Backpressure with Akka Streams + Kafka • Akka Streams ◦ Ideal for Fast Data ◦ Seamless Integration ◦ Abstraction to configure end-to-end Backpressure ◦ Fully Asynchronous & non-blocking • Kafka ◦ Dynamic durable buffer ◦ Horizontally scalable ◦ Load distribution ◦ No data loss settings (Producer, Consumer, Broker) ◦ Quotas
23. “With the use of asynchronous and back-pressured APIs, we’re able to push our systems to their limits, but not beyond them” -Why Reactive?, O’Reilly, Konrad Malawski
24. Demo: Back-Pressure -Fast Producer, Fast Consumers -Fast Producer, Fast and Slow Consumers -Fast Producer, Fast and Slow Consumers with buffering: OverflowStrategy.dropNew -Fast Producer, Fast and Slow Consumers with buffering: OverflowStrategy.backpressure
25. Stream Processing and Event-Driven Services
26. “MAKING SURE **ALL DATA** ENDS UP IN THE **RIGHT PLACES**” data integration
32. data input # ETL * Batches of records (Bounded sequence) * Time inside records * Denormalized View * Stage Tables, Files # EAI * Individual Messages * Batches are discouraged * MQ, Web Services * Normalized View # Stream Processing * Streams of Events (Unbounded sequence) * Event Log
33. data processing (i.e. vetro) # ETL * Transforming operational model into target schema. * Denormalization # EAI * Stateless processing * Remote Lookups (e.g. DB queries) * Cache for performance (e.g. Coherence) * Imperative approach / Side effects # Streaming Platform * Stateless and *Stateful* processing * Local Materialized views / Avoid remote Lookups * Functional approach / No side effects
34. data output # ETL * Data Warehouse # EAI * Operational back-ends # Streaming Platform * Both (Lambda Architecture)
37. # Event-Driven Services * embedded library in any application * event-log + your application * makes stream processing accessible to any use case (very low latency) Stream Processing visions # Big data, Real-Time Map-Reduce * central CLUSTER * custom packaging, deployment & monitoring * suitable for analytics-type use-cases (+/- low latency)
39. One more reason to start with event-driven stream processing
40. state and events: “the future is a function of the past”
41. immutability changes everything “transaction logs records ALL THE CHANGES made to the database [...] THE TRUTH IS IN THE LOG. the database is a cache of a subset of log.” Immutability changes everything - Pat Helland http://cidrdb.org/cidr2015/Papers/CIDR15_Paper16.pdf
42. From Caches to Materialized Views r = cache.get(key) if (!r) { r = db.get(key) cache.put(key, r) } return k App Cache Database
43. From Caches to Materialized Views * cache invalidation? * race conditions? * consistency issues? * cold start/bootstrapping? App Cache Database
44. From Caches to Materialized Views Traditional Views: * *procrastinating* approach create view example from select foo from bar …; => rewrite result at query time create materialized view example from select foo from bar …; Materialized Views: * *proactive* approach
45. materialized views in an *unbounded database* Turning the Database Inside Out - Martin Kleppmann https://www.confluent.io/blog/turning-the-database-inside-out-with-apache-samza/
46. Kafka Streams: Streams-Relational Processing Platform Build Services on a Backbone of Events - Ben Stopford https://www.confluent.io/blog/build-services-backbone-events/
47. Demo: Comparing a EAI Integration with Stream Processing
48. observability
50. Observability is for **unknown unknowns** Is about making a system more: * Debuggable: tracking down failures and bugs * Understandable: answer questions, trends A Superset of: * Monitoring: how to operate a system * Instrumentation: how to develop a system to be monitoriable Observability for Emerging Infra: What Got You Here Won't Get You There - Charity Majors https://www.youtube.com/watch?v=1wjovFSCGhE
51. Observability methods
52. Observability methods
53. > demo: understanding what your systems are and what they could become
54. sysco reactive integration platform
55. Thanks! github.com/sysco-middleware/talk-observability-tracing-kafka
