JUGNsk Meetup #11. Александр Филатов: "Java PathFinder: летим на Марс без багов и дедлоков."

Java Path Finder: летим на Марс без багов и дедлоков
1 Александр Филатов, Huawei

О себе 2 2014 - 2019: разработчик в Excelsior JET
(JVM с AOT компиляцией) Специализация: сборка мусора, алгоритмы синхронизации 2019 - сейчас: разработчик в Huawei Novosibirsk Research Center Специализация: Java concurrency

Concurrency 3 Parallelism

Concurrency 4 Parallelism

Concurrency Threads Mutable shared memory 5

Concurrency Threads Mutable shared memory data races 6 problems

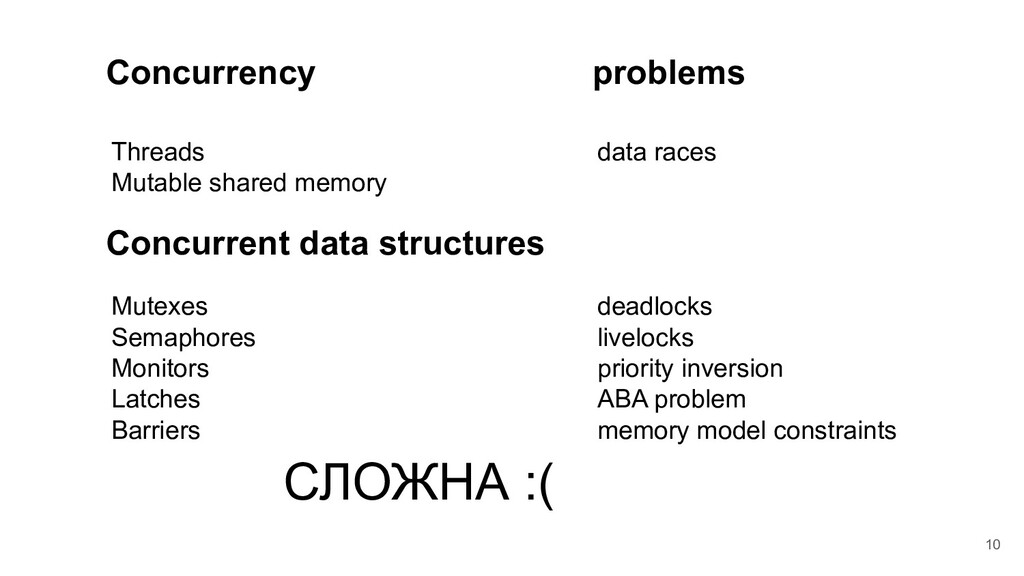

Concurrency Threads Mutable shared memory Mutexes Semaphores Monitors Latches Barriers
data races 7 problems Concurrent data structures

data races deadlocks livelocks priority inversion ABA problem memory model constraints 8 problems Concurrent data structures

data races deadlocks livelocks priority inversion ABA problem memory model constraints 9 problems Concurrent data structures Алексей Шипилев: Close Encounters of The Java Memory Model Kind https://shipilev.net/blog/2016/close-encounters-of-jmm-kind/ https://www.youtube.com/watch?v=C6b_dFtujKo

data races deadlocks livelocks priority inversion ABA problem memory model constraints 10 problems Concurrent data structures СЛОЖНА :(

data races deadlocks livelocks priority inversion ABA problem memory model constraints 11 problems Concurrent data structures Плохо тестируется Плохо отлаживается

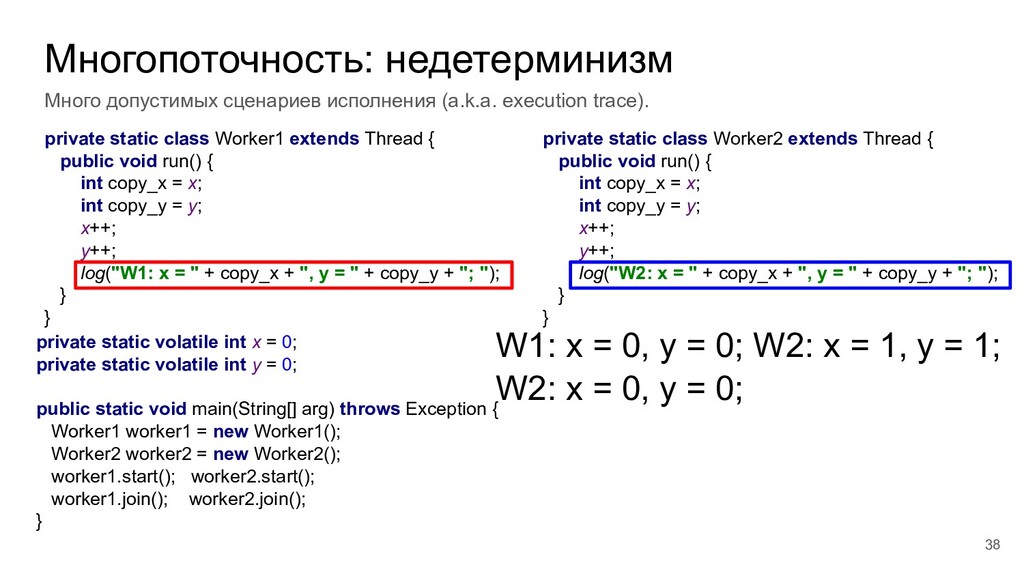

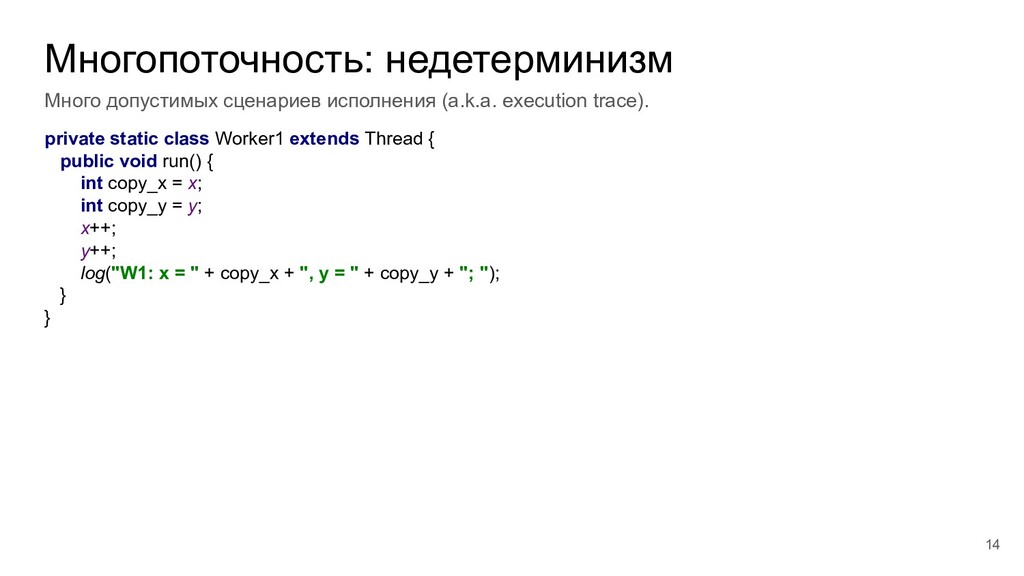

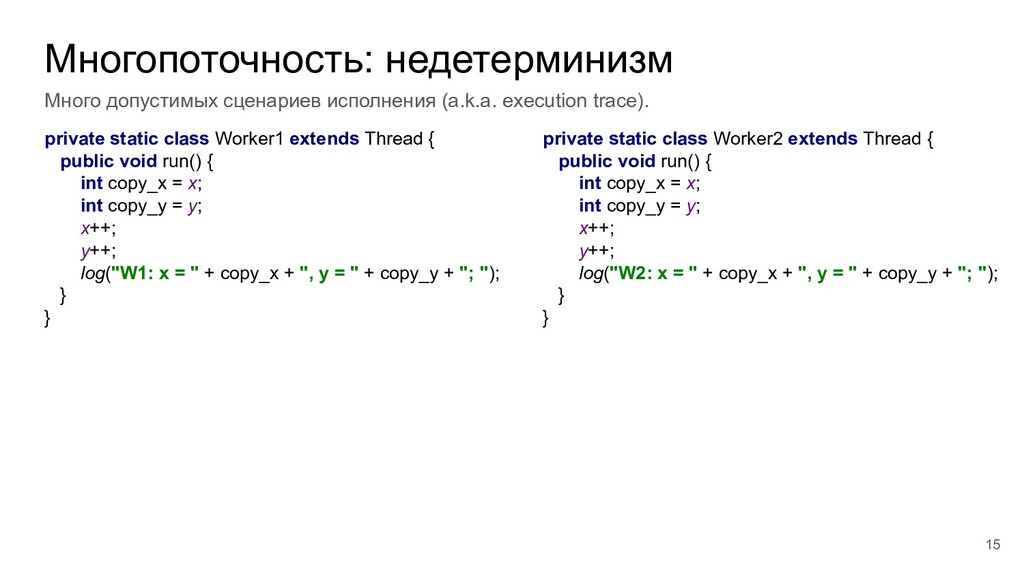

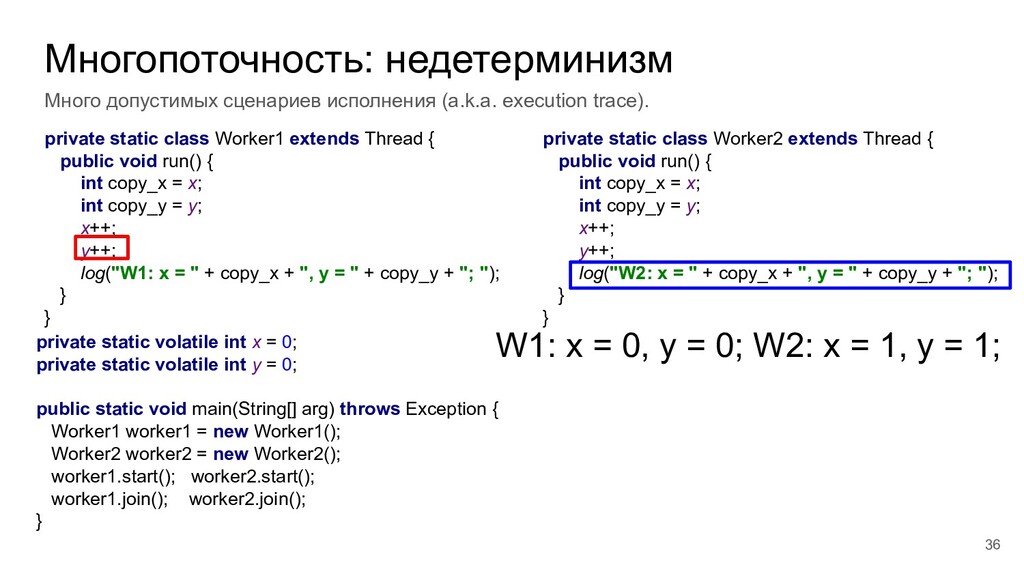

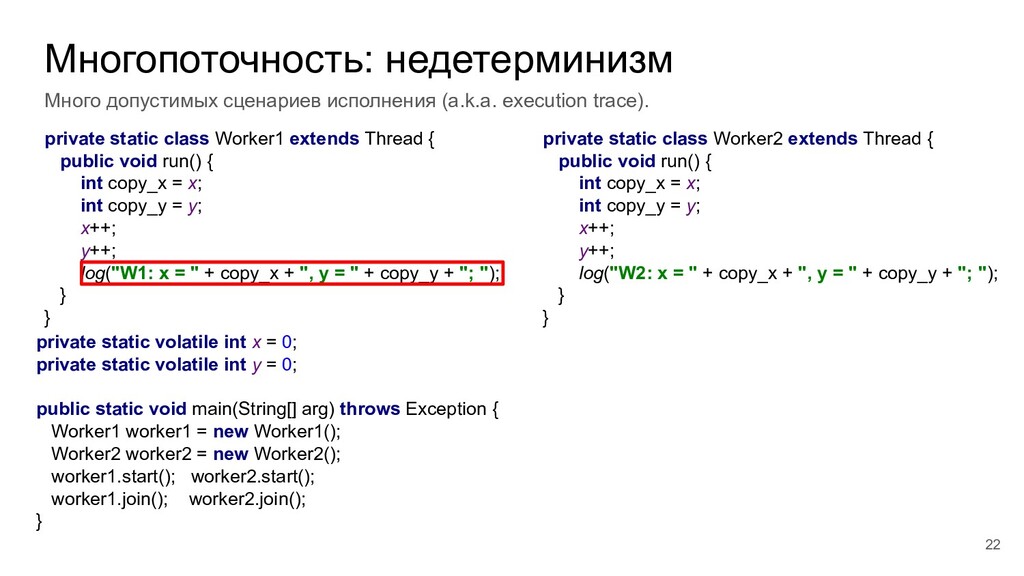

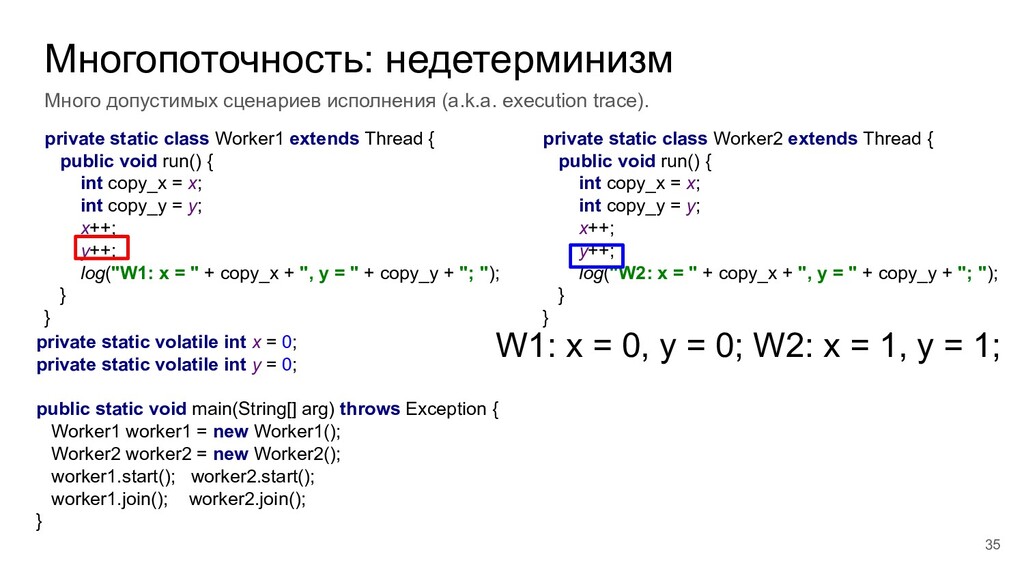

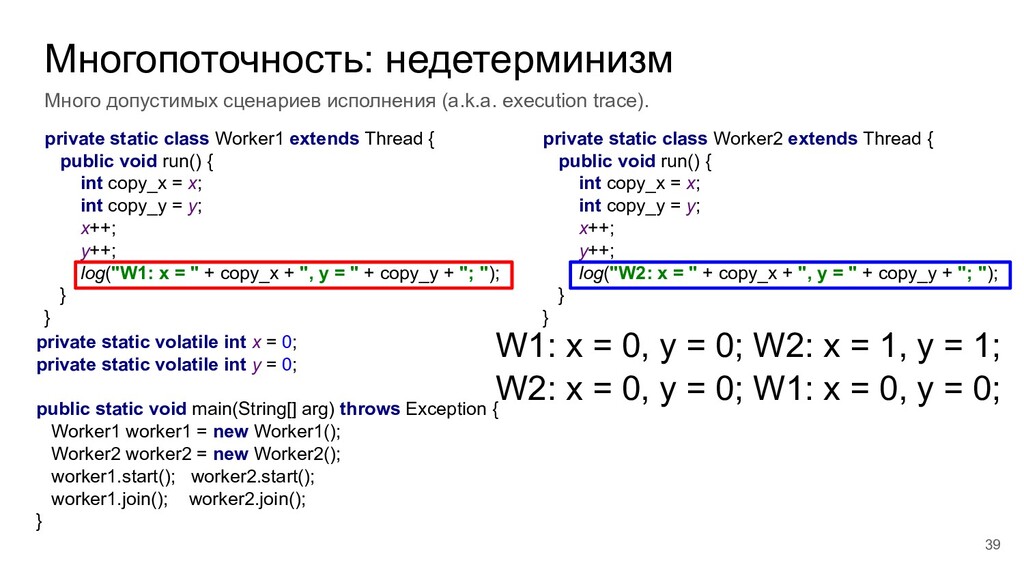

Многопоточность: недетерминизм Много допустимых сценариев исполнения (a.k.a. execution trace). 12

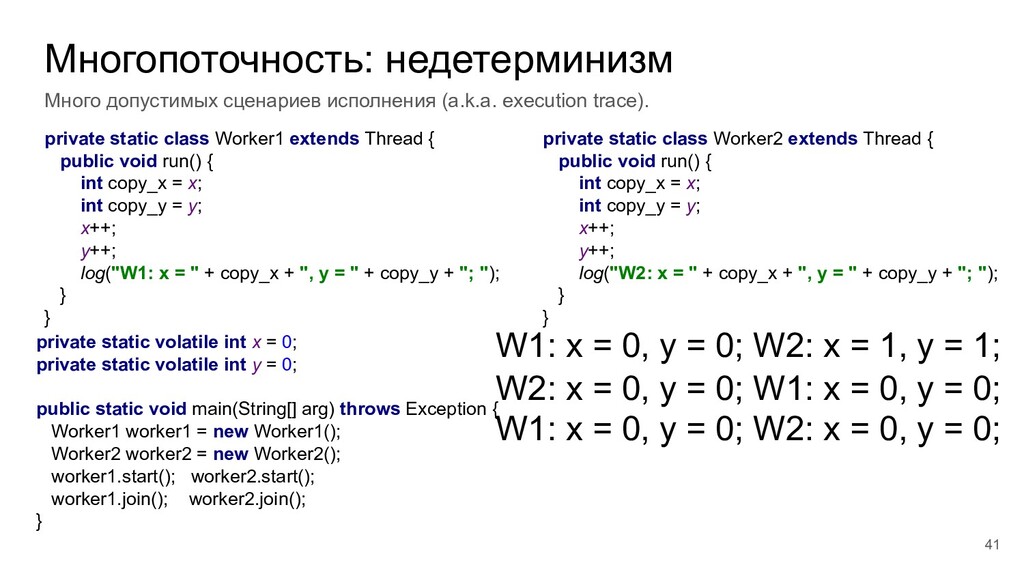

Многопоточность: недетерминизм Много допустимых сценариев исполнения (a.k.a. execution trace). private
static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } 13

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } 14

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } 15

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } 16

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } 17

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } 23 W1: x = 0, y = 0;

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } 28 W1: x = 0, y = 0; W2: x = 1, y = 1;

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } W1: x = 0, y = 0; W2: x = 1, y = 1; 29

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } W1: x = 0, y = 0; W2: x = 1, y = 1; 37 W2: x = 0, y = 0;

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } W1: x = 0, y = 0; W2: x = 1, y = 1; 38 W2: x = 0, y = 0;

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } W1: x = 0, y = 0; W2: x = 1, y = 1; 39 W2: x = 0, y = 0; W1: x = 0, y = 0;

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } W1: x = 0, y = 0; W2: x = 1, y = 1; 40 W2: x = 0, y = 0; W1: x = 0, y = 0;

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } W1: x = 0, y = 0; W2: x = 1, y = 1; 41 W2: x = 0, y = 0; W1: x = 0, y = 0; W1: x = 0, y = 0; W2: x = 0, y = 0;

static class Worker1 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W1: x = " + copy_x + ", y = " + copy_y + "; "); } } private static class Worker2 extends Thread { public void run() { int copy_x = x; int copy_y = y; x++; y++; log("W2: x = " + copy_x + ", y = " + copy_y + "; "); } } private static volatile int x = 0; private static volatile int y = 0; public static void main(String[] arg) throws Exception { Worker1 worker1 = new Worker1(); Worker2 worker2 = new Worker2(); worker1.start(); worker2.start(); worker1.join(); worker2.join(); } W1: x = 0, y = 0; W2: x = 0, y = 0; W1: x = 0, y = 0; W2: x = 0, y = 1; W1: x = 0, y = 0; W2: x = 1, y = 0; W1: x = 0, y = 0; W2: x = 1, y = 1; W1: x = 0, y = 1; W2: x = 0, y = 0; W1: x = 1, y = 0; W2: x = 0, y = 0; W1: x = 1, y = 1; W2: x = 0, y = 0; 42

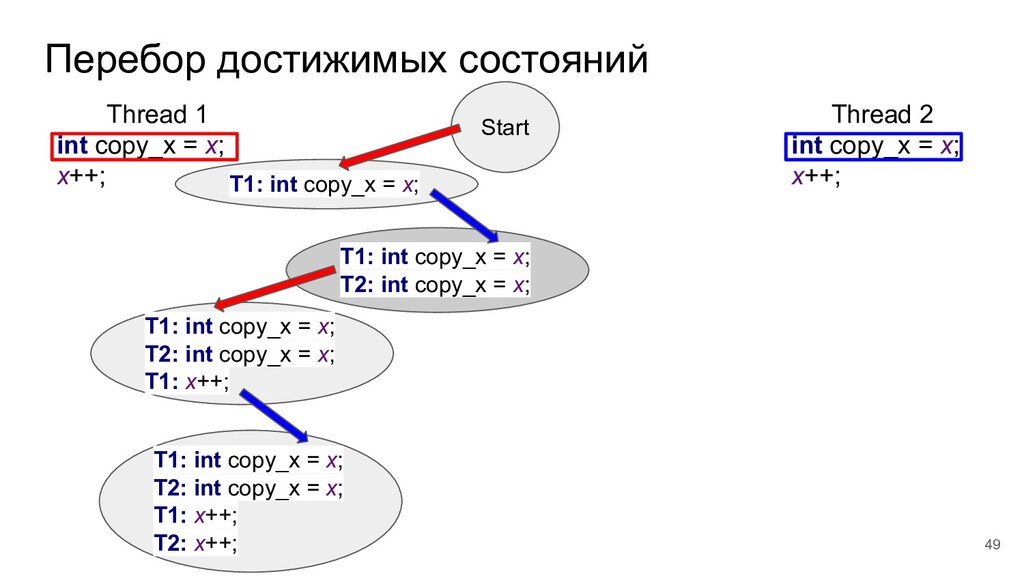

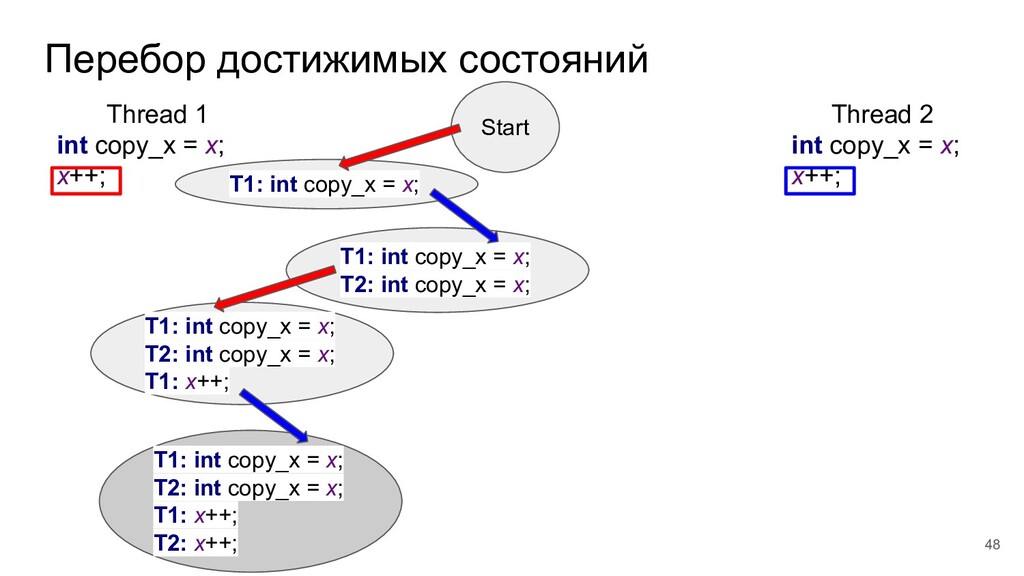

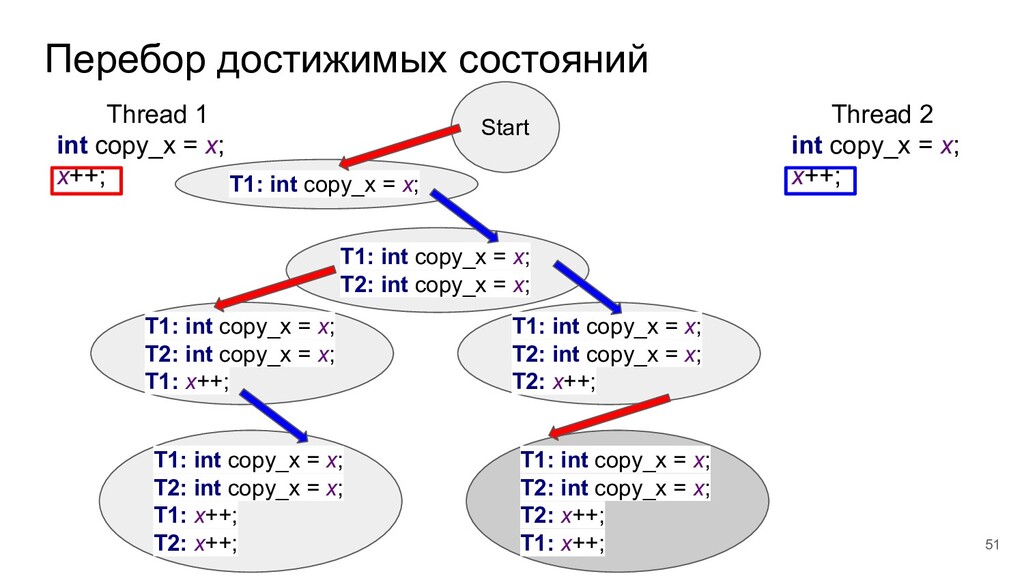

Перебор достижимых состояний Thread 1 int copy_x = x; x++;
43 Thread 2 int copy_x = x; x++;

Thread 2 int copy_x = x; x++; Start 44

Start 45 T1: int copy_x = x; Thread 2 int copy_x = x; x++;

Start 46 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++;

Start 47 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++;

Start 48 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T2: x++;

Start 49 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T2: x++;

Start 50 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++;

Start 51 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++; T1: x++;

Start 52 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++; T1: x++;

Start 53 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++; T1: x++; T1: int copy_x = x;

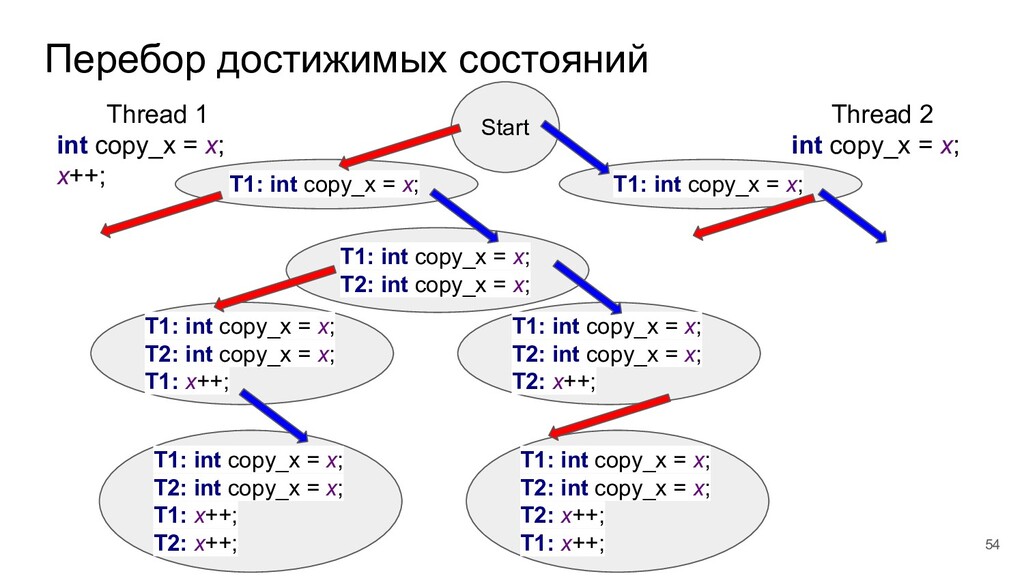

Start 54 T1: int copy_x = x; T1: int copy_x = x; T2: int copy_x = x; Thread 2 int copy_x = x; x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T1: int copy_x = x; T2: int copy_x = x; T1: x++; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++; T1: int copy_x = x; T2: int copy_x = x; T2: x++; T1: x++; T1: int copy_x = x;

Перебор достижимых состояний Строим дерево допустимых сценариев выполнения 55

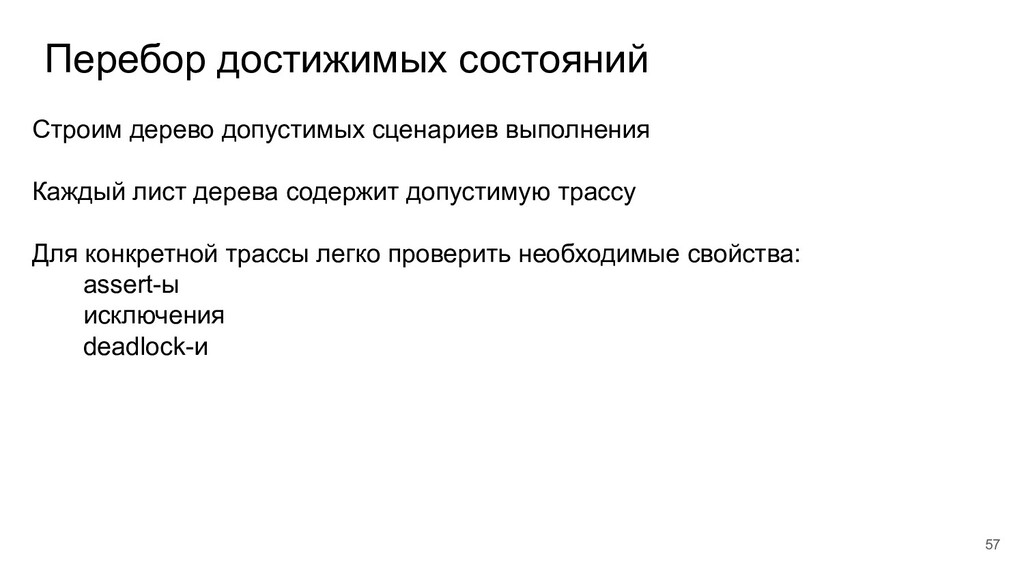

Перебор достижимых состояний Строим дерево допустимых сценариев выполнения Каждый лист
дерева содержит допустимую трассу 56

дерева содержит допустимую трассу Для конкретной трассы легко проверить необходимые свойства: assert-ы исключения deadlock-и 57

дерева содержит допустимую трассу Для конкретной трассы легко проверить необходимые свойства: assert-ы исключения deadlock-и Если во всех листьях все хорошо => программа принципиально не может сломаться 58

дерева содержит допустимую трассу Для конкретной трассы легко проверить необходимые свойства: assert-ы исключения deadlock-и Если во всех листьях все хорошо => программа принципиально не может сломаться 59

Перебор достижимых состояний Если во всех листьях все хорошо =>
программа принципиально не может сломаться А сколько их? 60

программа принципиально не может сломаться А сколько их? 61

программа принципиально не может сломаться А сколько их? Очень много. 62

программа принципиально не может сломаться 63

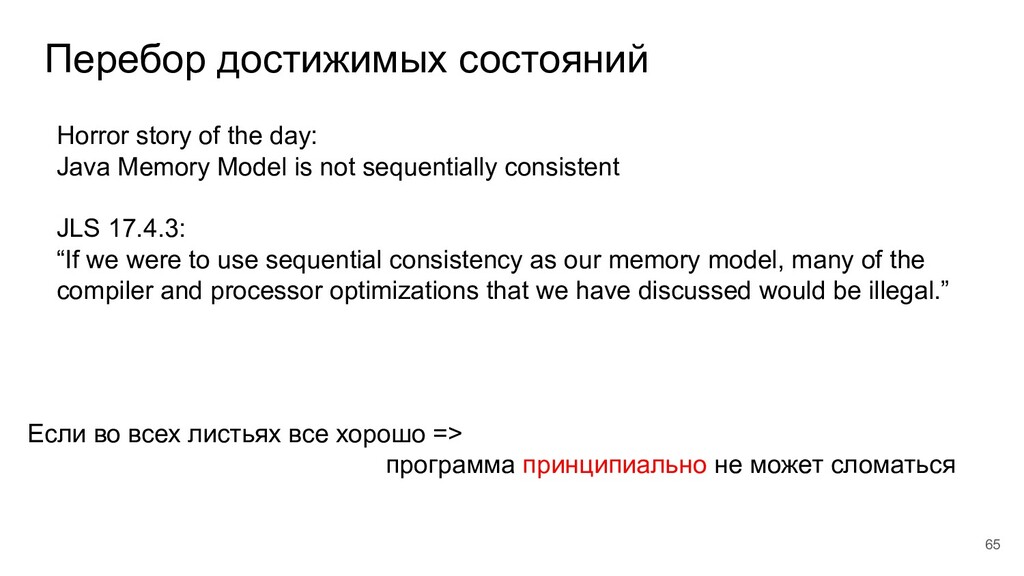

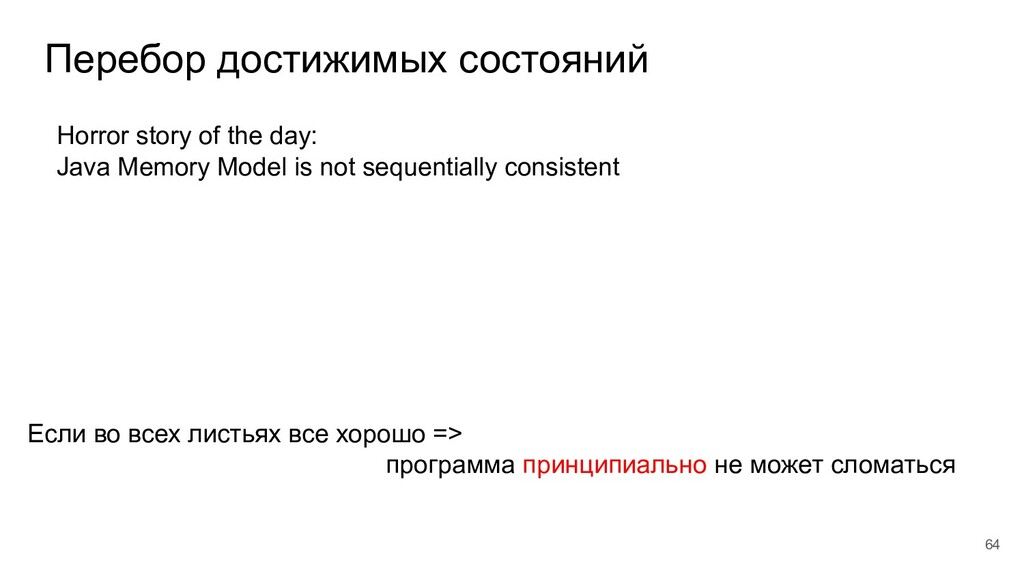

программа принципиально не может сломаться Horror story of the day: Java Memory Model is not sequentially consistent 64

программа принципиально не может сломаться Horror story of the day: Java Memory Model is not sequentially consistent JLS 17.4.3: “If we were to use sequential consistency as our memory model, many of the compiler and processor optimizations that we have discussed would be illegal.” 65

программа принципиально не может сломаться 66

программа принципиально не может сломаться Если существует трасса с ошибочным поведением => программа некорректна. И мы знаем как воспроизвести ошибку. 67

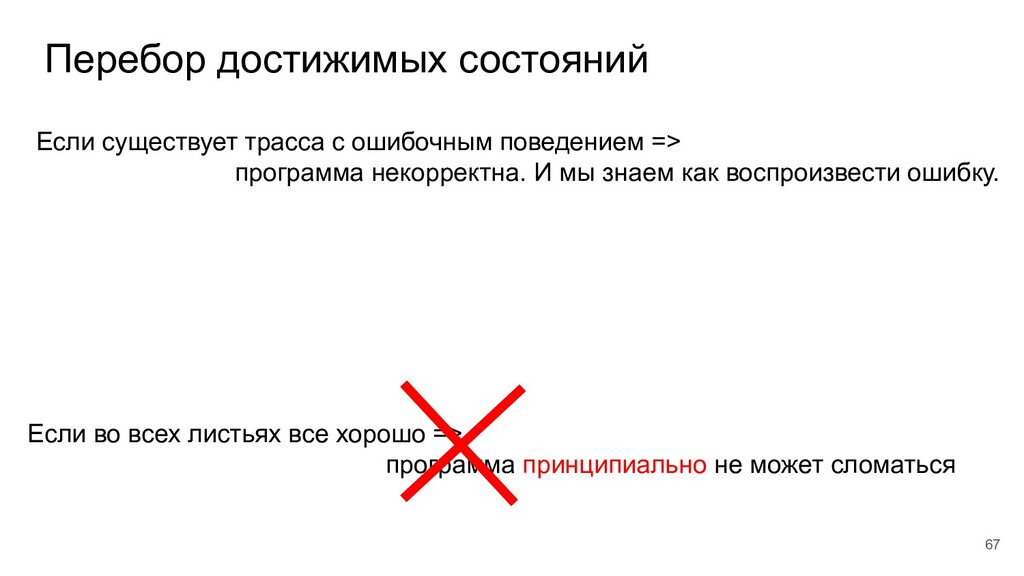

Перебор достижимых состояний Если существует трасса с ошибочным поведением =>
программа некорректна. И мы знаем как воспроизвести ошибку. Тестирование 2.0 68

Проверка моделей (software model checking) Allen Emerson, E.; Clarke, Edmund
M. (1980) "Characterizing correctness properties of parallel programs using fixpoints" Turing Award 2007: Clarke, Emerson, Sifakis “for their seminal work founding and developing the field of model checking” Известные инструменты: SPIN (verification of the kernel’s sleep and wakeup primitives in Plan 9) TLA+ http://research.microsoft.com/en-us/um/people/lamport/tla/formal-methods-amazon.pdf 69

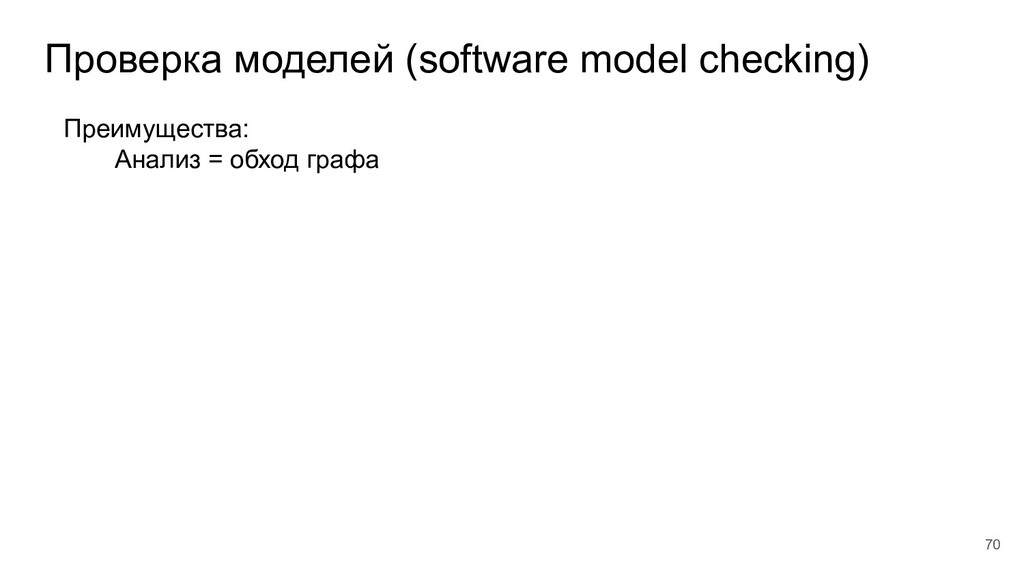

Проверка моделей (software model checking) Преимущества: Анализ = обход графа
70

Способны построить контрпример 71

Способны построить контрпример Мощнее железо 一 быстрее анализ 72

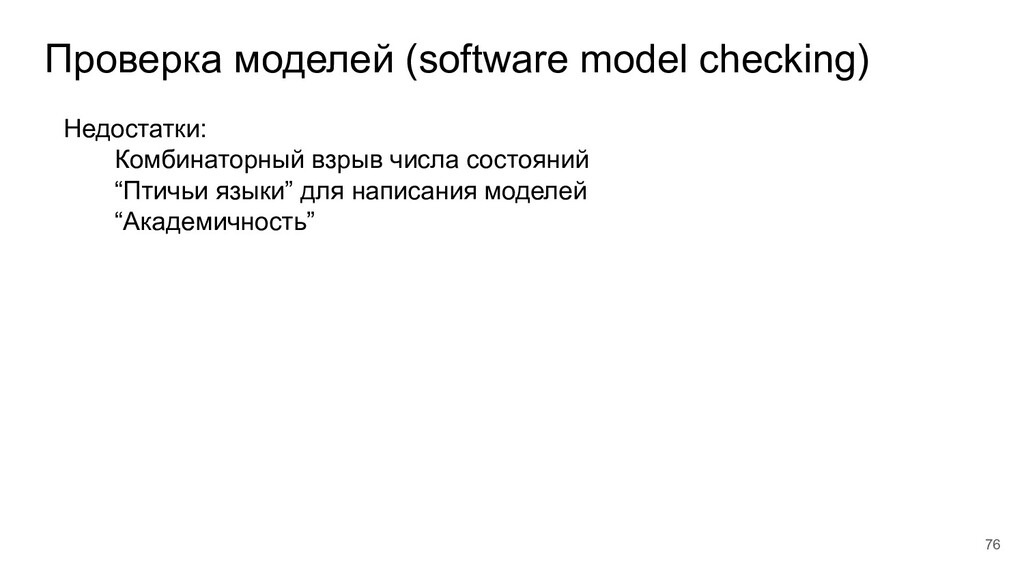

Проверка моделей (software model checking) Недостатки: Комбинаторный взрыв числа состояний
73

“Птичьи языки” для написания моделей 74

“Птичьи языки” для написания моделей 75 https://github.com/elastic/elasticsearch-formal-models/blob/master/ZenWithTerms/tla/ZenWithTerms.tla

“Птичьи языки” для написания моделей “Академичность” 76

“Птичьи языки” для написания моделей “Академичность” 77 In logic, linear temporal logic or linear-time temporal logic[1][2] (LTL) is a modal temporal logic with modalities referring to time. In LTL, one can encode formulae about the future of paths, e.g., a condition will eventually be true, a condition will be true until another fact becomes true, etc. https://en.wikipedia.org/wiki/Linear_temporal_logic

“Птичьи языки” для написания моделей “Академичность” 78 www.patricktrentin.com/teaching/fm2018/lesson04/lesson04.pdf

Java Path Finder “Extensible model checking framework for Java bytecode
programs” Разработан в НАСА (Ames Research Center) Apache-2.0 license: https://github.com/javapathfinder/jpf-core По сути 一 исследовательская JVM, написанная на Java 79

Multiple producer multiple consumer intrusive queue public abstract class Queue
{ public static class Node { public Queue.Node next; } public abstract void enqueue(Node element); // null if empty public abstract Node dequeue(); } 80

Baseline implementation public class BaselineQueue extends Queue { private final
LinkedList<Queue.Node> impl = new LinkedList<>(); @Override public synchronized void enqueue(Queue.Node element) { impl.add(element); } @Override public synchronized Queue.Node dequeue() { return impl.poll(); } } 81

Baseline implementation public class BaselineQueue extends Queue { private final
LinkedList<Queue.Node> impl = new LinkedList<>(); @Override public synchronized void enqueue(Queue.Node element) { impl.add(element); } @Override public synchronized Queue.Node dequeue() { return impl.poll(); } } Это было просто :) Прокачка памяти Плохая масштабируемость 82

next next next next next Head Tail 83

next next next next next Head Tail enqueue() 84

next next next next next Head Tail enqueue() 85

next next next next next Head Tail enqueue() next 86

next next next next next Head Tail enqueue() next 87

next next next next next Head Tail next 88

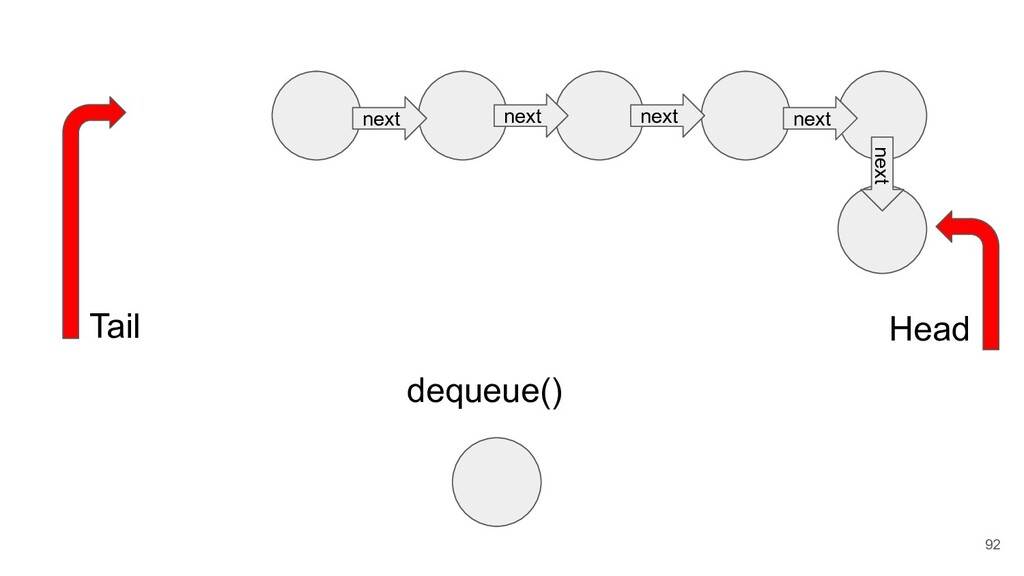

next next next next next Head Tail next dequeue() 89

next next next next next Head Tail next dequeue() 90

next next next next Head Tail next dequeue() 91

next next next next Head Tail next 95

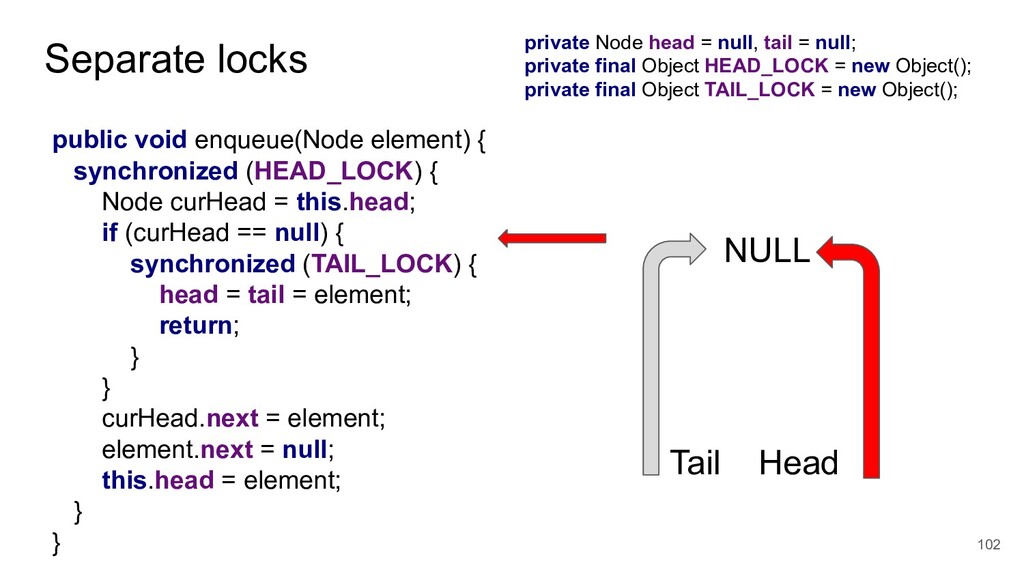

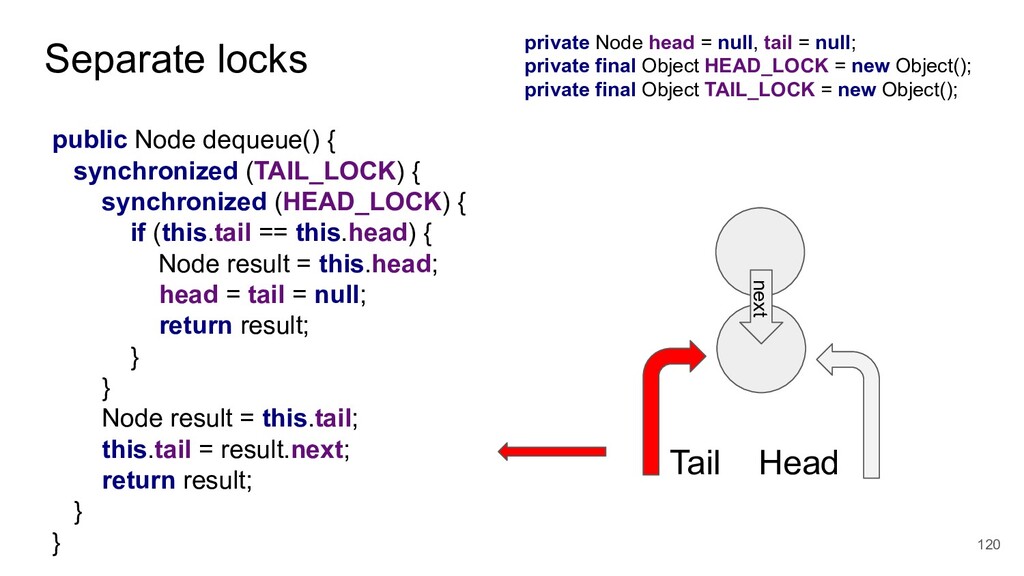

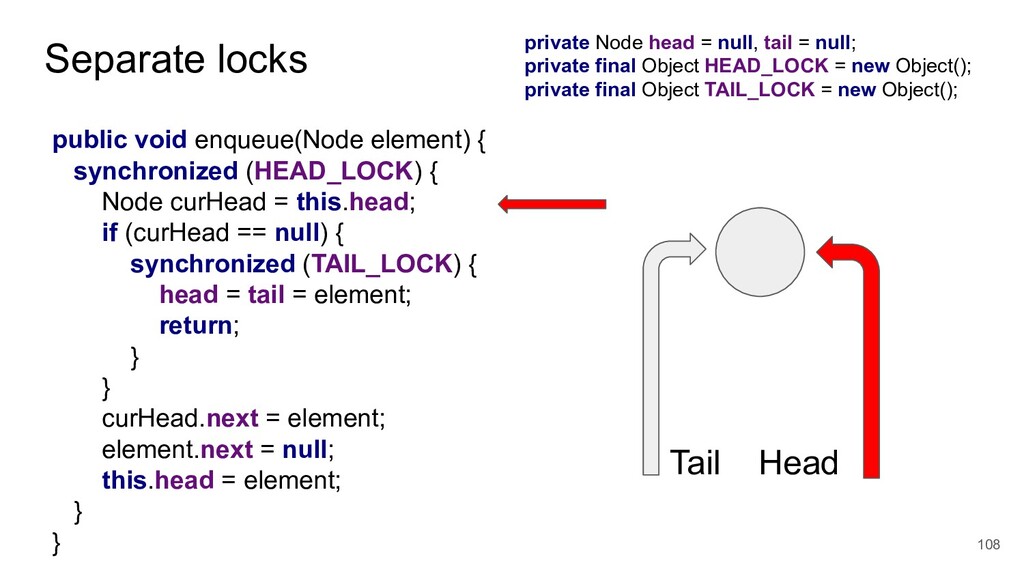

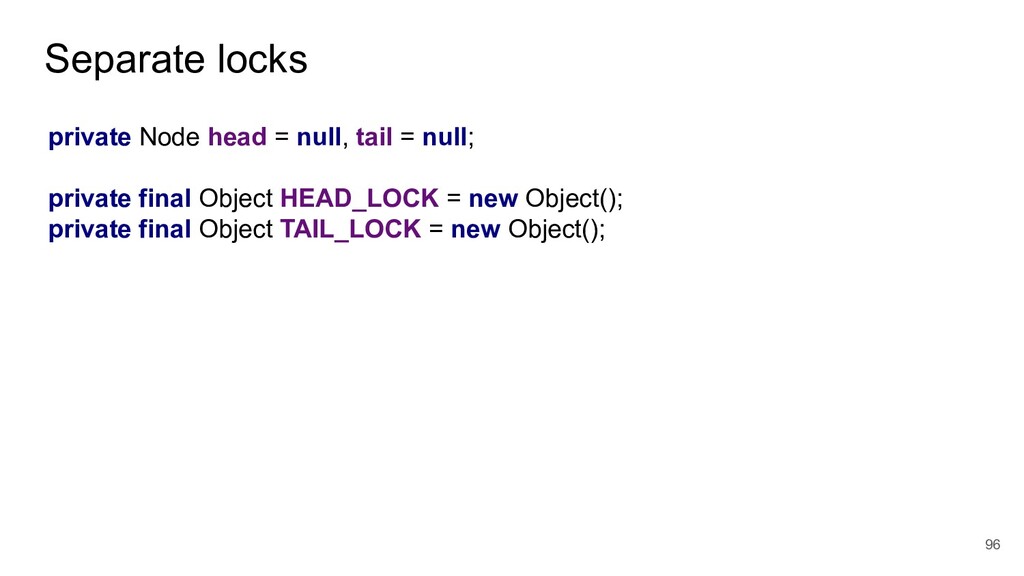

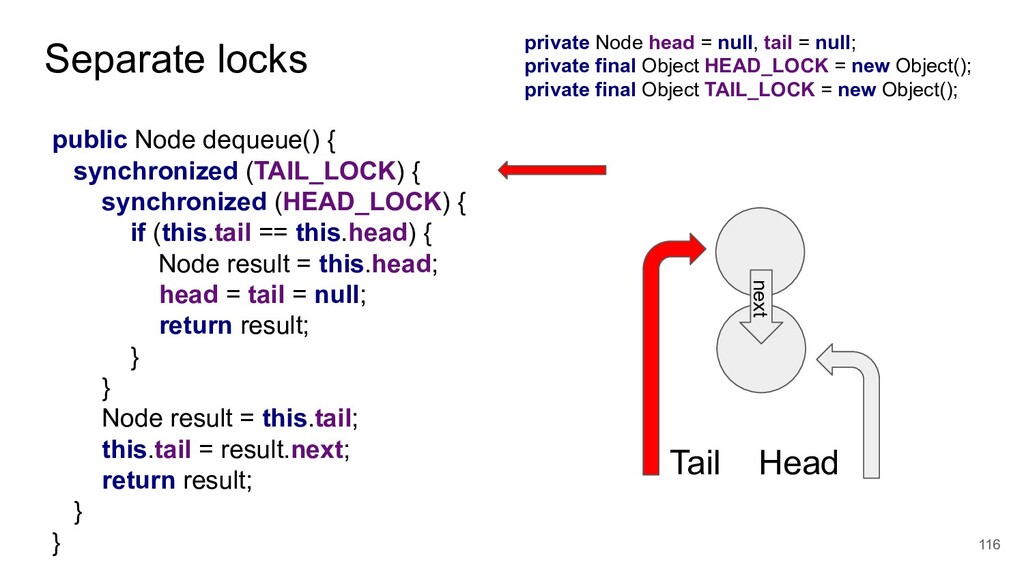

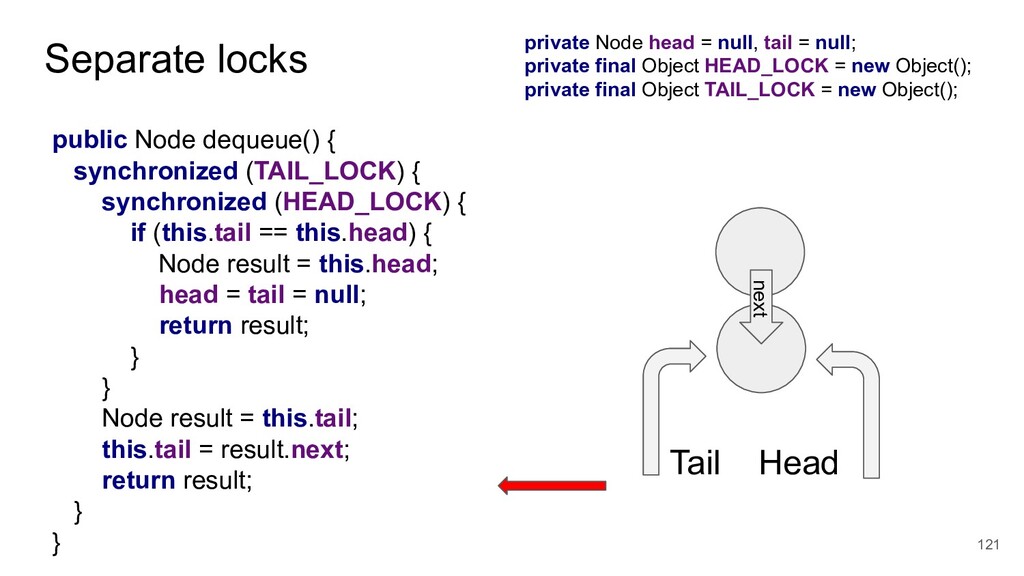

Separate locks private Node head = null, tail = null;
private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); 96

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); 97

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; } } Head Tail NULL 98

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; } } Head Tail 104

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; } } Head Tail next 110

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); public Node dequeue() { synchronized (TAIL_LOCK) { synchronized (HEAD_LOCK) { if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; } } 114

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); public Node dequeue() { synchronized (TAIL_LOCK) { synchronized (HEAD_LOCK) { if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; } } Head Tail next 115

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); public Node dequeue() { synchronized (TAIL_LOCK) { synchronized (HEAD_LOCK) { if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; } } Head Tail 122

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); public Node dequeue() { synchronized (TAIL_LOCK) { synchronized (HEAD_LOCK) { if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; } } Head Tail NULL 128

private final Object HEAD_LOCK = new Object(); private final Object TAIL_LOCK = new Object(); public Node dequeue() { synchronized (TAIL_LOCK) { synchronized (HEAD_LOCK) { if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; } } public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; } } 131

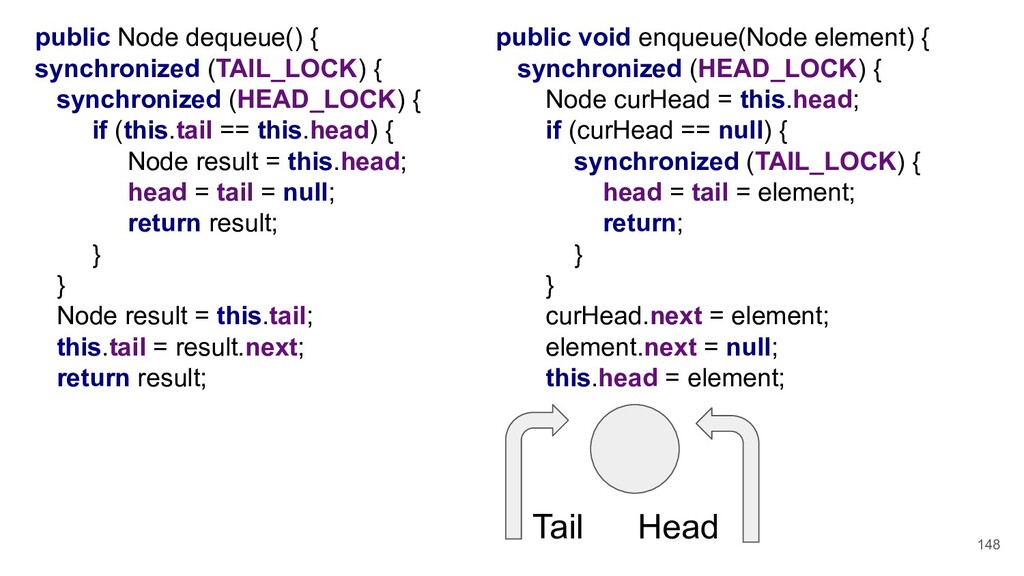

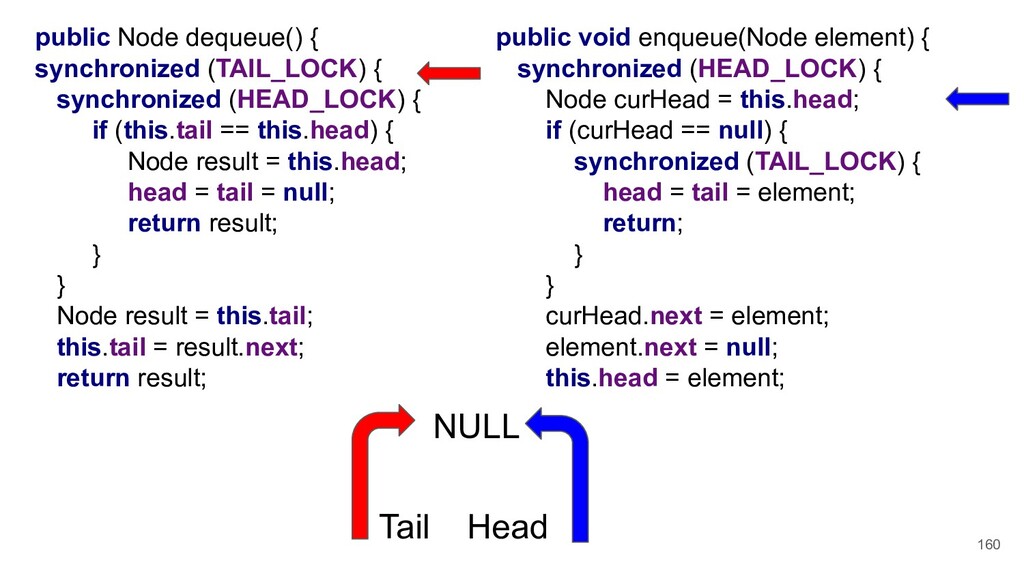

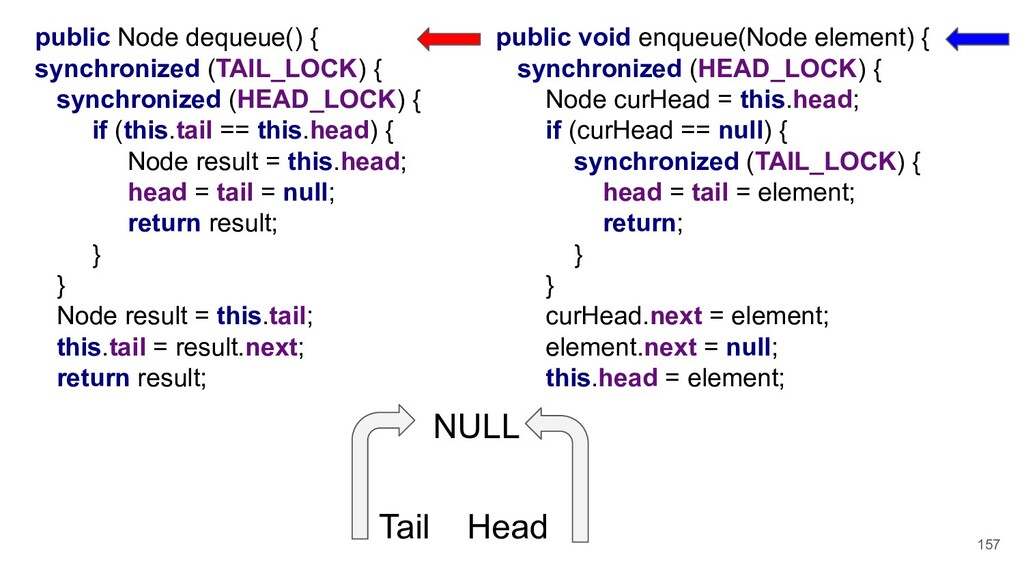

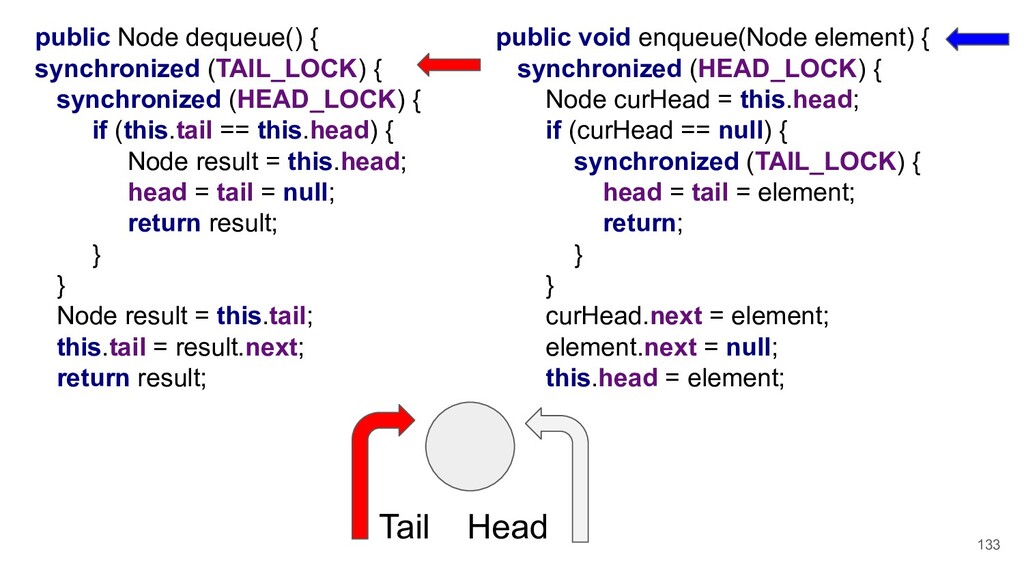

public Node dequeue() { synchronized (TAIL_LOCK) { synchronized (HEAD_LOCK) {
if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail 132

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail BLOCKED! 136

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail BLOCKED! 140 next

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail BLOCKED! 141 next

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail 142 next

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail next 145

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Видишь суслика? Есть ли баги? 149

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Ага, какой-то там анализатор будет их героически находить. Видишь суслика? Есть ли баги? 150

Запускаем JPF ====================Test.jpf==================== target=Test target.args= classpath=. sourcepath=. report.console.property_violation = output,trace
151

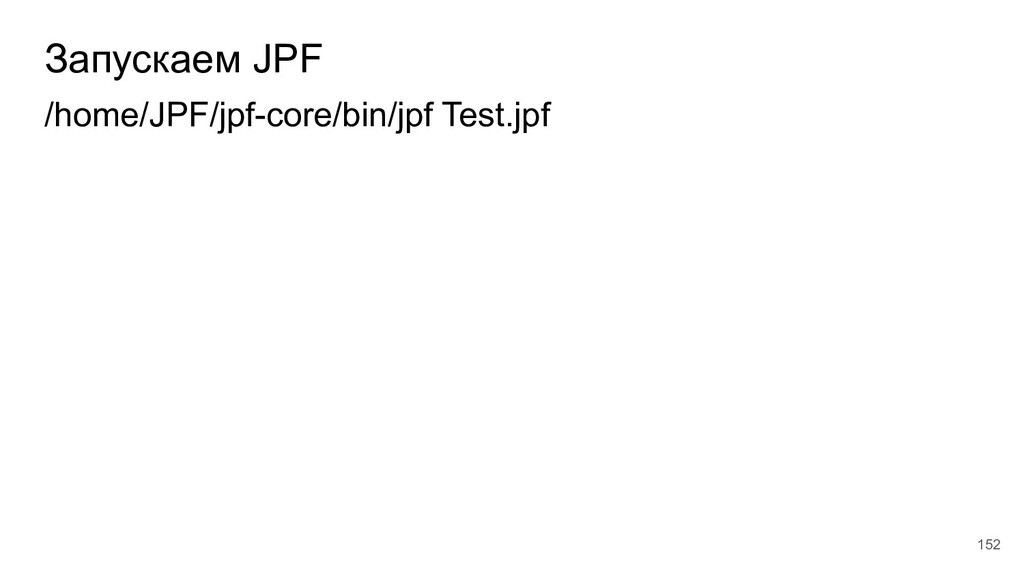

Запускаем JPF /home/JPF/jpf-core/bin/jpf Test.jpf 152

Запускаем JPF /home/JPF/jpf-core/bin/jpf Test.jpf JavaPathfinder core system v8.0 (rev 32)
- (C) 2005-2014 United States Government. All rights reserved. ================================= system under test Test.main() ================================= search started: 10/24/19 10:43 PM ================================= trace #1 --------------------------------- transition #0 thread: 0 gov.nasa.jpf.vm.choice.ThreadChoiceFromSet {id:"ROOT" ,1/1,isCascaded:false} [3157 insn w/o sources] Test.java:64 : private static final Random rand = new Random(123); [2 insn w/o sources] Test.java:64 : private static final Random rand = new Random(123); Test.java:1 : import java.util.Random; [1 insn w/o sources] Test.java:67 : Queue q = QueueProvider.getQueue(); 153

Запускаем JPF /home/JPF/jpf-core/bin/jpf Test.jpf JavaPathfinder core system v8.0 (rev 32)
- (C) 2005-2014 United States Government. All rights reserved. ================================= system under test Test.main() ================================= search started: 10/24/19 10:43 PM ================================= trace #1 --------------------------------- transition #0 thread: 0 gov.nasa.jpf.vm.choice.ThreadChoiceFromSet {id:"ROOT" ,1/1,isCascaded:false} [3157 insn w/o sources] Test.java:64 : private static final Random rand = new Random(123); [2 insn w/o sources] Test.java:64 : private static final Random rand = new Random(123); Test.java:1 : import java.util.Random; [1 insn w/o sources] Test.java:67 : Queue q = QueueProvider.getQueue(); 270 строк: все действия каждого потока 154

Запускаем JPF: результат ====================================================== results error #1: gov.nasa.jpf.vm.NotDeadlockedProperty "deadlock encountered:
thread java.lang.Thread:{i..." ====================================================== statistics elapsed time: 00:00:00 states: new=603,visited=447,backtracked=1017,end=3 search: maxDepth=54,constraints=0 choice generators: thread=602 (signal=0,lock=108,sharedRef=349,threadApi=91,reschedule=54), data=0 heap: new=409,released=295,maxLive=390,gcCycles=971 instructions: 20933 max memory: 77MB loaded code: classes=69,methods=1506 155

Запускаем JPF: результат ====================================================== results error #1: gov.nasa.jpf.vm.NotDeadlockedProperty "deadlock encountered:
thread java.lang.Thread:{i..." ====================================================== statistics elapsed time: 00:00:00 states: new=603,visited=447,backtracked=1017,end=3 search: maxDepth=54,constraints=0 choice generators: thread=602 (signal=0,lock=108,sharedRef=349,threadApi=91,reschedule=54), data=0 heap: new=409,released=295,maxLive=390,gcCycles=971 instructions: 20933 max memory: 77MB loaded code: classes=69,methods=1506 156

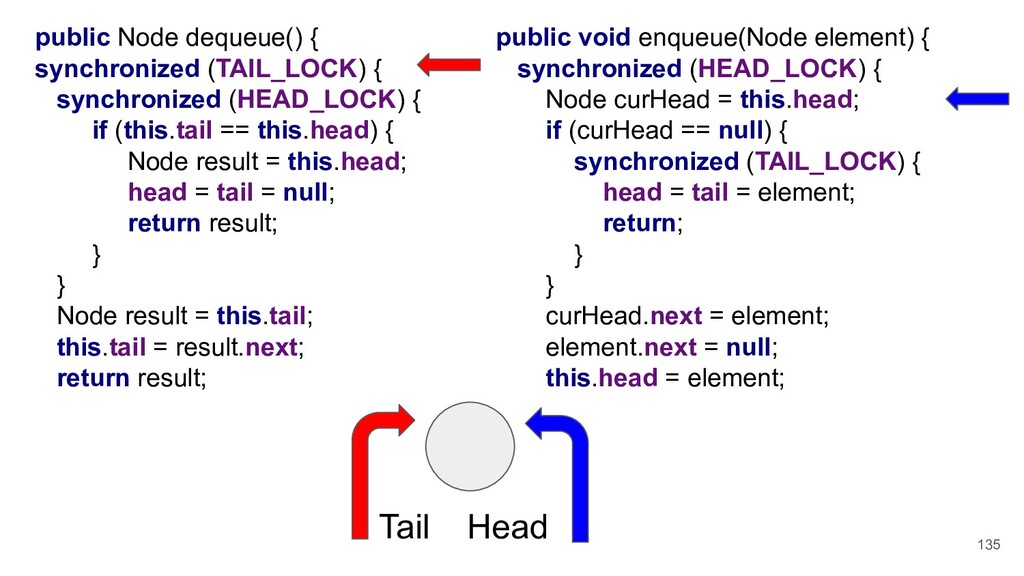

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail NULL 157

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail NULL BLOCKED! 163

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail NULL BLOCKED! 164

if (this.tail == this.head) { Node result = this.head; head = tail = null; return result; } } Node result = this.tail; this.tail = result.next; return result; public void enqueue(Node element) { synchronized (HEAD_LOCK) { Node curHead = this.head; if (curHead == null) { synchronized (TAIL_LOCK) { head = tail = element; return; } } curHead.next = element; element.next = null; this.head = element; Head Tail NULL BLOCKED! BLOCKED! 165

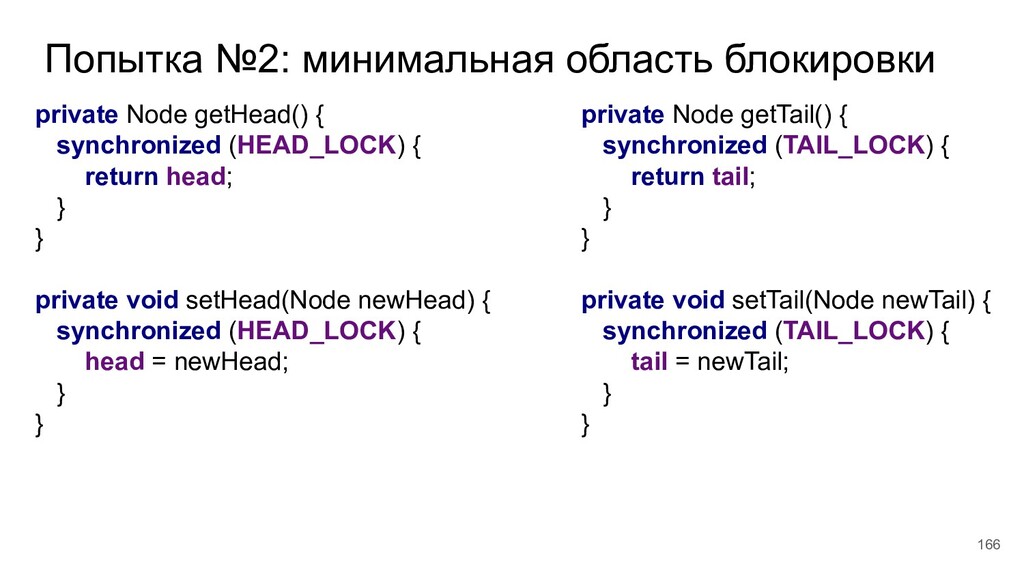

Попытка №2: минимальная область блокировки private Node getHead() { synchronized
(HEAD_LOCK) { return head; } } private void setHead(Node newHead) { synchronized (HEAD_LOCK) { head = newHead; } } private Node getTail() { synchronized (TAIL_LOCK) { return tail; } } private void setTail(Node newTail) { synchronized (TAIL_LOCK) { tail = newTail; } } 166

Попытка №2: минимальная область блокировки public void enqueue(Node element) {
Node curHead = getHead(); if (curHead == null) { setHead(element); setTail(element); return; } curHead.next = element; element.next = null; setHead(element); } public Node dequeue() { Node tailCopy = getTail(); Node headCopy = getHead(); if (tailCopy == headCopy) { setHead(null); setTail(null); return headCopy; } setTail(tailCopy.next); return tailCopy; } 167

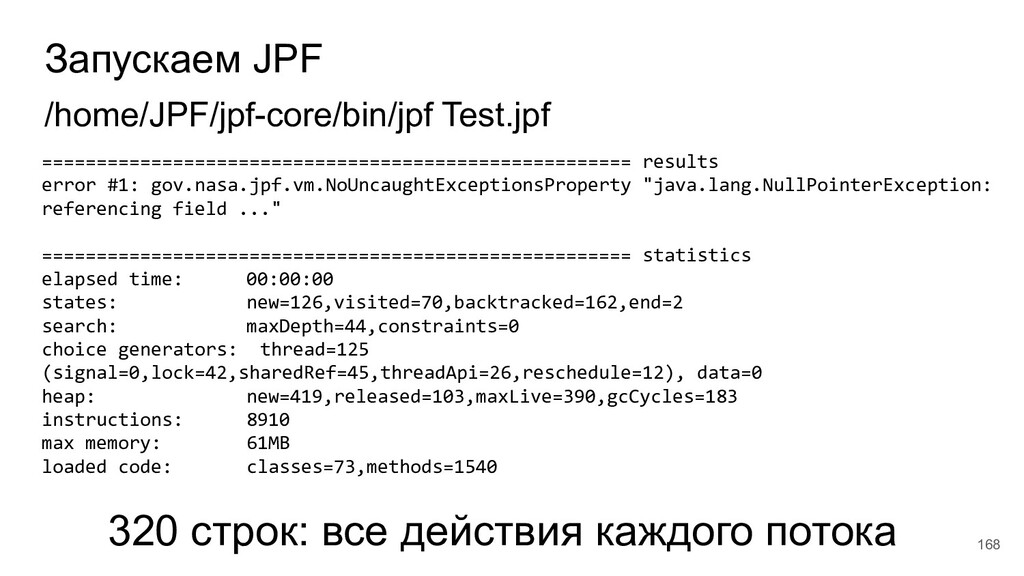

Запускаем JPF /home/JPF/jpf-core/bin/jpf Test.jpf ====================================================== results error #1: gov.nasa.jpf.vm.NoUncaughtExceptionsProperty "java.lang.NullPointerException:
referencing field ..." ====================================================== statistics elapsed time: 00:00:00 states: new=126,visited=70,backtracked=162,end=2 search: maxDepth=44,constraints=0 choice generators: thread=125 (signal=0,lock=42,sharedRef=45,threadApi=26,reschedule=12), data=0 heap: new=419,released=103,maxLive=390,gcCycles=183 instructions: 8910 max memory: 61MB loaded code: classes=73,methods=1540 320 строк: все действия каждого потока 168

Запускаем JPF ====================Test.jpf==================== target=Test target.args= classpath=. sourcepath=. search.class = gov.nasa.jpf.search.heuristic.BFSHeuristic
report.console.property_violation = output,trace 169

Запускаем JPF /home/JPF/jpf-core/bin/jpf Test.jpf ====================================================== results error #1: gov.nasa.jpf.vm.NoUncaughtExceptionsProperty "java.lang.NullPointerException:
referencing field ..." ====================================================== statistics elapsed time: 00:00:00 states: new=351,visited=305,backtracked=655,end=0 search: maxDepth=16,constraints=0 choice generators: thread=281 (signal=0,lock=155,sharedRef=123,threadApi=3,reschedule=0), data=0 heap: new=591,released=44,maxLive=389,gcCycles=586 instructions: 14320 max memory: 61MB loaded code: classes=73,methods=1540 180 строк (было 320) 170

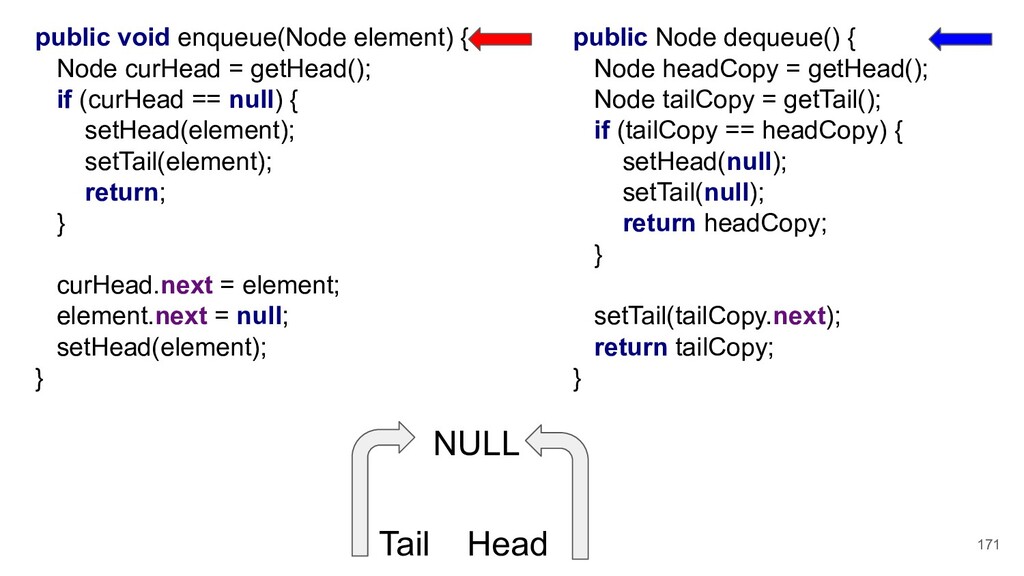

public void enqueue(Node element) { Node curHead = getHead(); if
(curHead == null) { setHead(element); setTail(element); return; } curHead.next = element; element.next = null; setHead(element); } public Node dequeue() { Node headCopy = getHead(); Node tailCopy = getTail(); if (tailCopy == headCopy) { setHead(null); setTail(null); return headCopy; } setTail(tailCopy.next); return tailCopy; } 171 Head Tail NULL

(curHead == null) { setHead(element); setTail(element); return; } curHead.next = element; element.next = null; setHead(element); } public Node dequeue() { Node headCopy = getHead(); Node tailCopy = getTail(); if (tailCopy == headCopy) { setHead(null); setTail(null); return headCopy; } setTail(tailCopy.next); return tailCopy; } 182 Head Tail NULL NullPointerException

Что-нибудь серьезное? 183

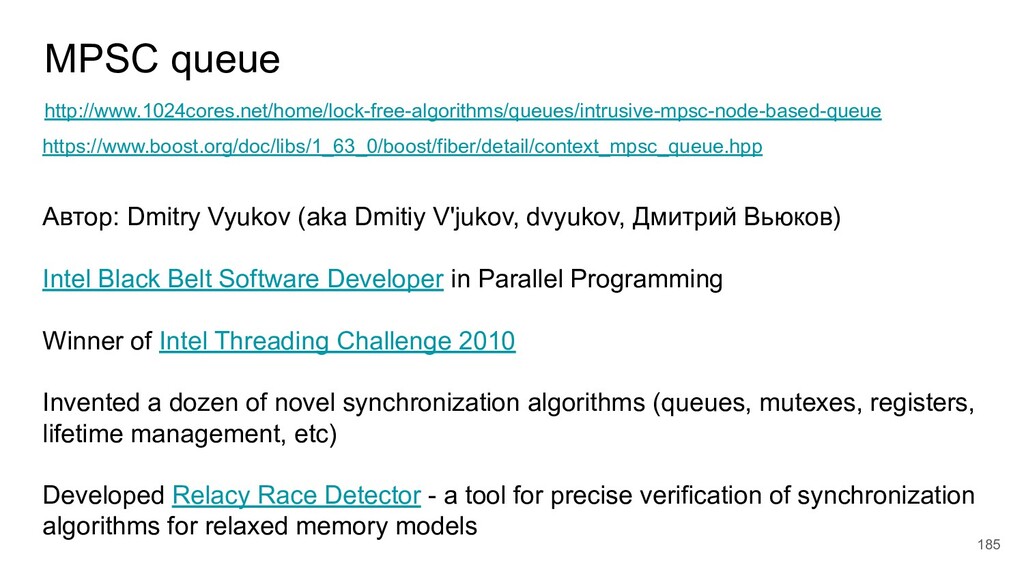

MPSC queue http://www.1024cores.net/home/lock-free-algorithms/queues/intrusive-mpsc-node-based-queue 184 https://www.boost.org/doc/libs/1_63_0/boost/fiber/detail/context_mpsc_queue.hpp

MPSC queue http://www.1024cores.net/home/lock-free-algorithms/queues/intrusive-mpsc-node-based-queue 185 Автор: Dmitry Vyukov (aka Dmitiy V'jukov,
dvyukov, Дмитрий Вьюков) Intel Black Belt Software Developer in Parallel Programming Winner of Intel Threading Challenge 2010 Invented a dozen of novel synchronization algorithms (queues, mutexes, registers, lifetime management, etc) Developed Relacy Race Detector - a tool for precise verification of synchronization algorithms for relaxed memory models https://www.boost.org/doc/libs/1_63_0/boost/fiber/detail/context_mpsc_queue.hpp

MPSC queue http://www.1024cores.net/home/lock-free-algorithms/queues/intrusive-mpsc-node-based-queue 186

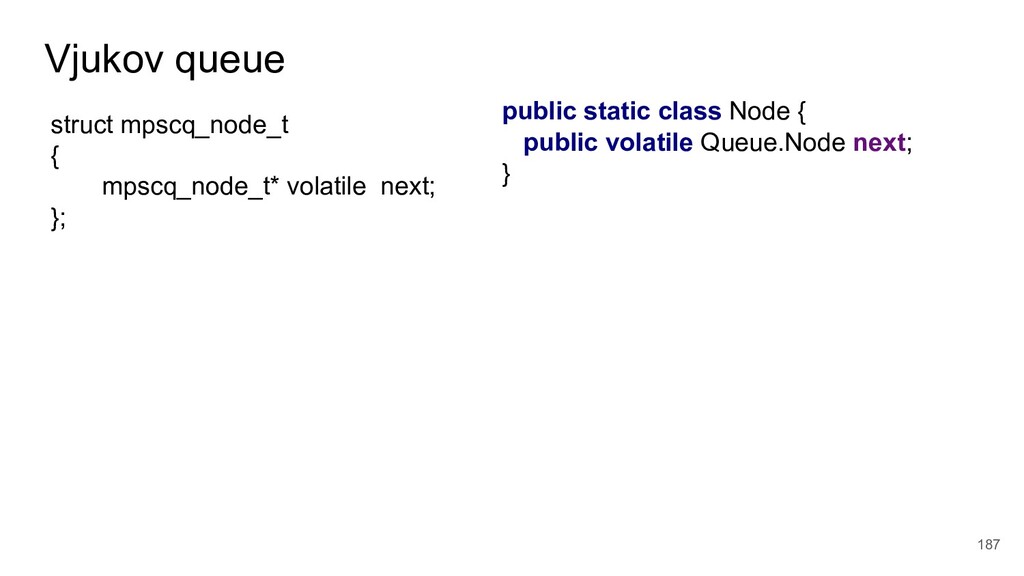

Vjukov queue 187 public static class Node { public volatile
Queue.Node next; } struct mpscq_node_t { mpscq_node_t* volatile next; };

Vjukov queue 188 public static class Node { public volatile
Queue.Node next; } struct mpscq_node_t { mpscq_node_t* volatile next; }; struct mpscq_t { mpscq_node_t* volatile head; mpscq_node_t* tail; mpscq_node_t stub; }; public class VjukovQueue extends Queue { volatile Node head; Node tail; Node stub;

Vjukov queue 189 VjukovQueue() { stub = new Node(); head
= stub; tail = stub; stub.next = null; } void mpscq_create(mpscq_t* self) { self->head = &self->stub; self->tail = &self->stub; self->stub.next = 0; }

190 mpscq_node_t* mpscq_pop(mpscq_t* self) { mpscq_node_t* tail = self->tail; mpscq_node_t*
next = tail->next; if (tail == &self->stub) { if (0 == next) return 0; self->tail = next; tail = next; next = next->next; } if (next) { self->tail = next; return tail; } public Node dequeue() { Node tail = this.tail; Node next = tail.next; if (tail == this.stub) { if (null == next) return null; this.tail = next; tail = next; next = next.next; } if (next != null) { this.tail = next; return tail; }

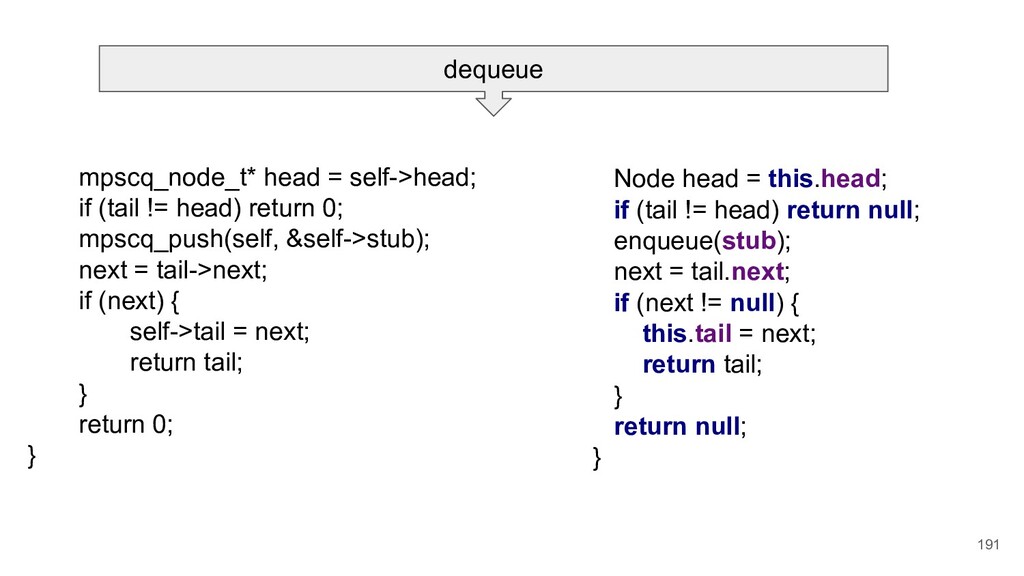

191 mpscq_node_t* head = self->head; if (tail != head) return
0; mpscq_push(self, &self->stub); next = tail->next; if (next) { self->tail = next; return tail; } return 0; } Node head = this.head; if (tail != head) return null; enqueue(stub); next = tail.next; if (next != null) { this.tail = next; return tail; } return null; } dequeue

Vjukov queue 192 void mpscq_push(mpscq_t* self, mpscq_node_t* n) { n->next
= 0; mpscq_node_t* prev = XCHG(&self->head, n); prev->next = n; }

= 0; mpscq_node_t* prev = XCHG(&self->head, n); prev->next = n; } public void enqueue(Node element) { element.next = null; Node prev = XCHG(element); prev.next = element; }

Vjukov queue 195 public void enqueue(Node element) { element.next =
null; Node prev = XCHG(element); prev.next = element; } private Node XCHG(Node n) { synchronized (this) { Node old = head; head = n; return old; } }

Vjukov queue 196 public void enqueue(Node element) { element.next =
null; Node prev = XCHG(element); prev.next = element; } private Node XCHG(Node n) { synchronized (this) { Node old = head; head = n; return old; } } private AtomicReference<Node> head = new AtomicReference<>(); private Node XCHG(Node n) { return head.getAndSet(n); }

Data integrity problem 197 А что если dequeue() вернет один
и тот же объект разным потокам? Как отследить, что такая ситуация не возникает?

Data integrity problem 198 А что если dequeue() вернет один
и тот же объект разным потокам? Как отследить, что такая ситуация не возникает? static class CheckedNode extends Queue.Node { volatile int x = 0; void beforeRelease() { // before enqueue assert x == 0; x = 1; assert x == 1; } void afterAcquire() { // after dequeue assert x == 1; x = 0; assert x == 0; } }

Data integrity problem 199 static void startInNewThread(Runnable r) { new
Thread(r).start(); } static void task(Queue q) { CheckedNode n = new CheckedNode(); n.beforeRelease(); q.enqueue(n); CheckedNode v = q.dequeue(); if (v != null) v.afterAcquire(); } static void test() { Queue q = new VjukovQueue(); startInNewThread(() -> task(q)); startInNewThread(() -> task(q)); }

Data integrity problem 200 ====================================================== results error #1: gov.nasa.jpf.vm.NoUncaughtExceptionsProperty "java.lang.AssertionError
at Test$CheckedNode.afte..." ====================================================== statistics elapsed time: 00:00:00 states: new=720,visited=637,backtracked=1356,end=35 search: maxDepth=19,constraints=0 choice generators: thread=623 (signal=0,lock=90,sharedRef=457,threadApi=2,reschedule=74), data=0 heap: new=802,released=1890,maxLive=395,gcCycles=1259 instructions: 25342 max memory: 77MB loaded code: classes=72,methods=1553

Data integrity problem 201 ====================================================== results error #1: gov.nasa.jpf.vm.NoUncaughtExceptionsProperty "java.lang.AssertionError
at Test$CheckedNode.afte..." ====================================================== statistics elapsed time: 00:00:00 states: new=720,visited=637,backtracked=1356,end=35 search: maxDepth=19,constraints=0 choice generators: thread=623 (signal=0,lock=90,sharedRef=457,threadApi=2,reschedule=74), data=0 heap: new=802,released=1890,maxLive=395,gcCycles=1259 instructions: 25342 max memory: 77MB loaded code: classes=72,methods=1553

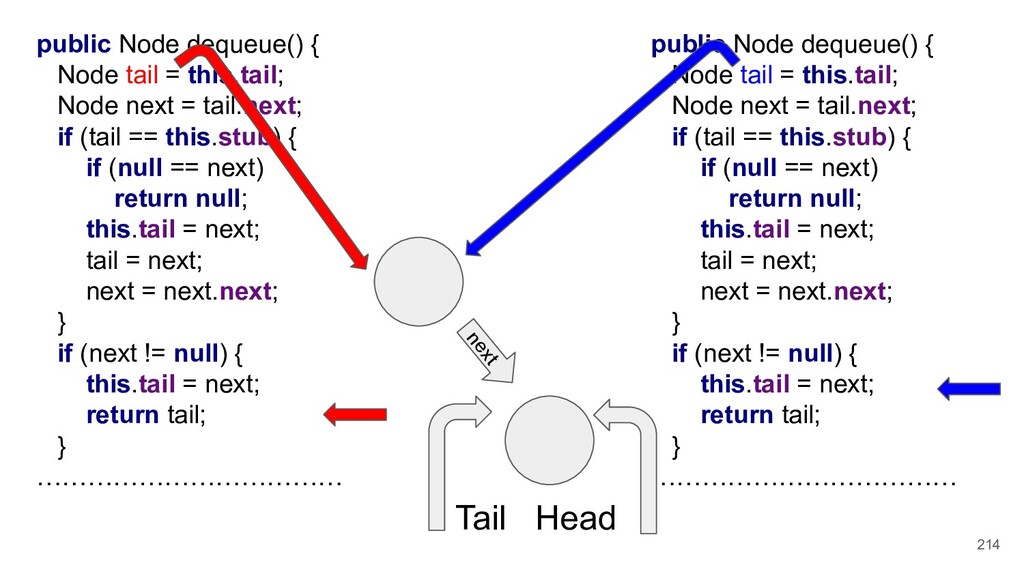

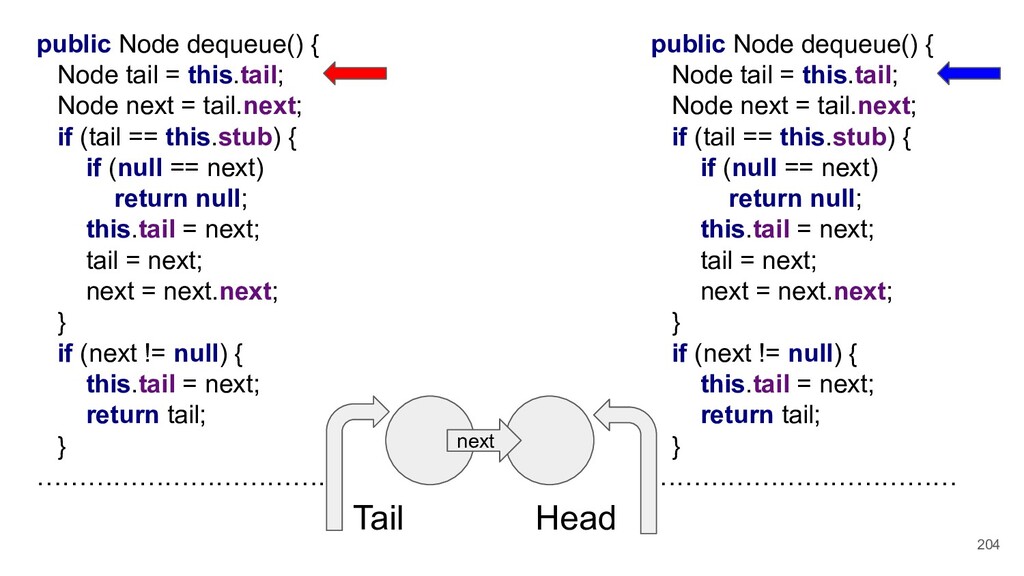

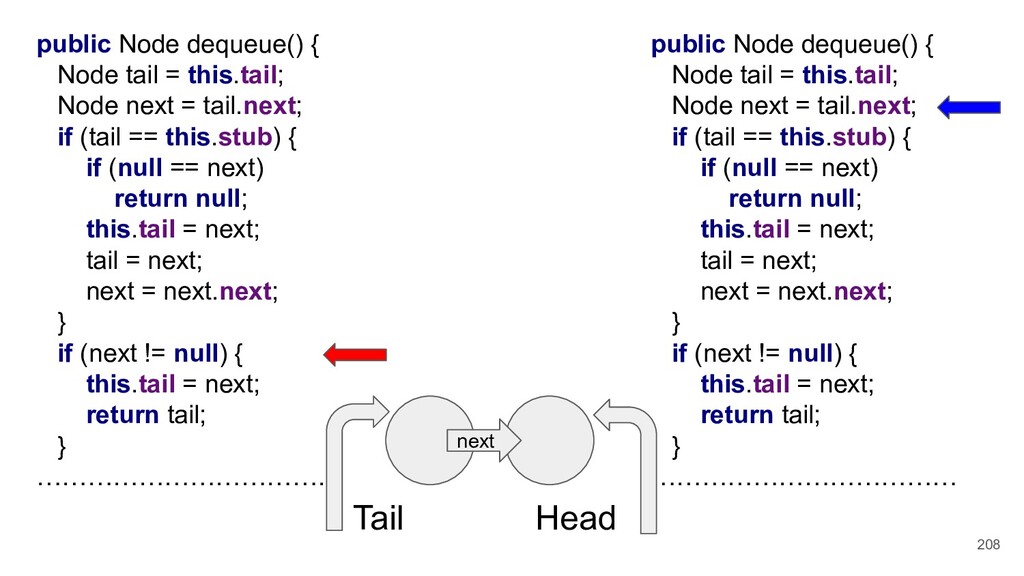

202 public Node dequeue() { Node tail = this.tail; Node
next = tail.next; if (tail == this.stub) { if (null == next) return null; this.tail = next; tail = next; next = next.next; } if (next != null) { this.tail = next; return tail; } ……………………………… public Node dequeue() { Node tail = this.tail; Node next = tail.next; if (tail == this.stub) { if (null == next) return null; this.tail = next; tail = next; next = next.next; } if (next != null) { this.tail = next; return tail; } ……………………………… Head Tail next

next = tail.next; if (tail == this.stub) { if (null == next) return null; this.tail = next; tail = next; next = next.next; } if (next != null) { this.tail = next; return tail; } ……………………………… public Node dequeue() { Node tail = this.tail; Node next = tail.next; if (tail == this.stub) { if (null == next) return null; this.tail = next; tail = next; next = next.next; } if (next != null) { this.tail = next; return tail; } ……………………………… Head Tail next Почему?

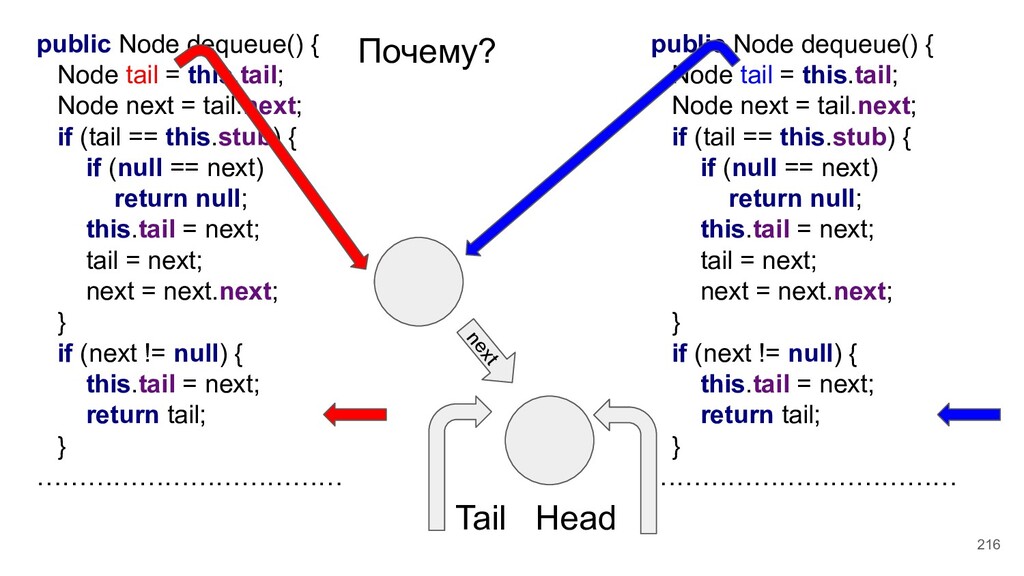

217 Почему?

218 Почему?

219 Почему? Multiple Producer Single Consumer Правильная структура данных использовалась
в неправильном контексте

220 Почему? Multiple Producer Single Consumer Правильная структура данных использовалась
в неправильном многопоточном контексте

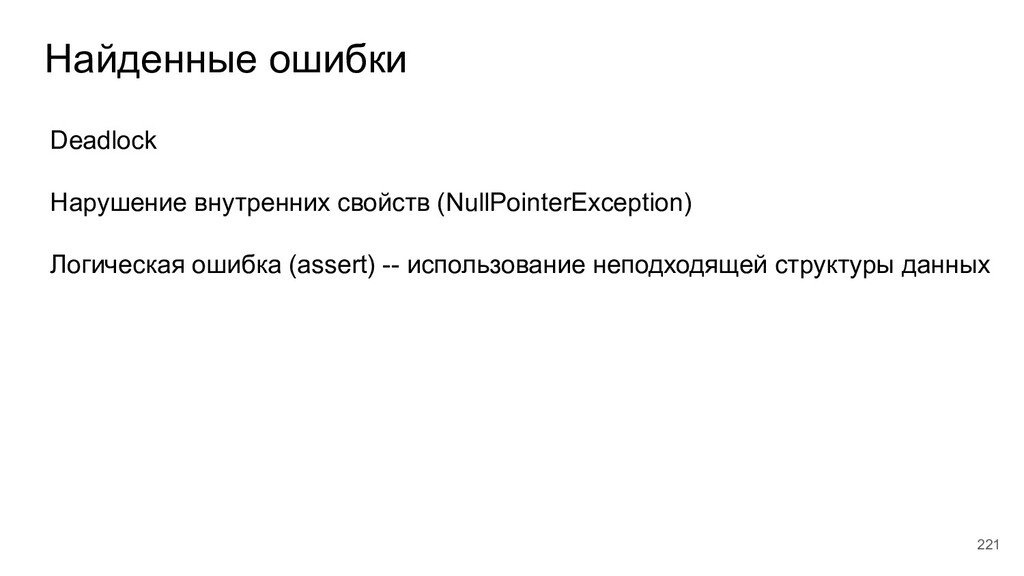

Найденные ошибки 221 Deadlock Нарушение внутренних свойств (NullPointerException) Логическая ошибка
(assert) -- использование неподходящей структуры данных

(assert) -- использование неподходящей структуры данных Требуются правильные тесты и правильные проверки.

(assert) -- использование неподходящей структуры данных Требуются хорошие многопоточные тесты и правильные проверки.

(assert) -- использование неподходящей структуры данных Требуются хорошие многопоточные тесты и достаточный набор assert-ов.

KSUH: real case 226 “A Fair Fast Scalable Reader-Writer Lock
“, 1993 Orran Krieger, Michael Stumm, Ron Unrau, Jonathan Hanna In Proc. of the International Conference on Parallel Processing Реализация на C. Верифицирован с помощью SPIN (модель на C-подобном языке Promela)

KSUH: real case 227 “A Fair Fast Scalable Reader-Writer Lock
“, 1993 Orran Krieger, Michael Stumm, Ron Unrau, Jonathan Hanna In Proc. of the International Conference on Parallel Processing Реализация на C. Верифицирован с помощью SPIN (модель на C-подобном языке Promela) Разные языки для реализации и для моделирования.

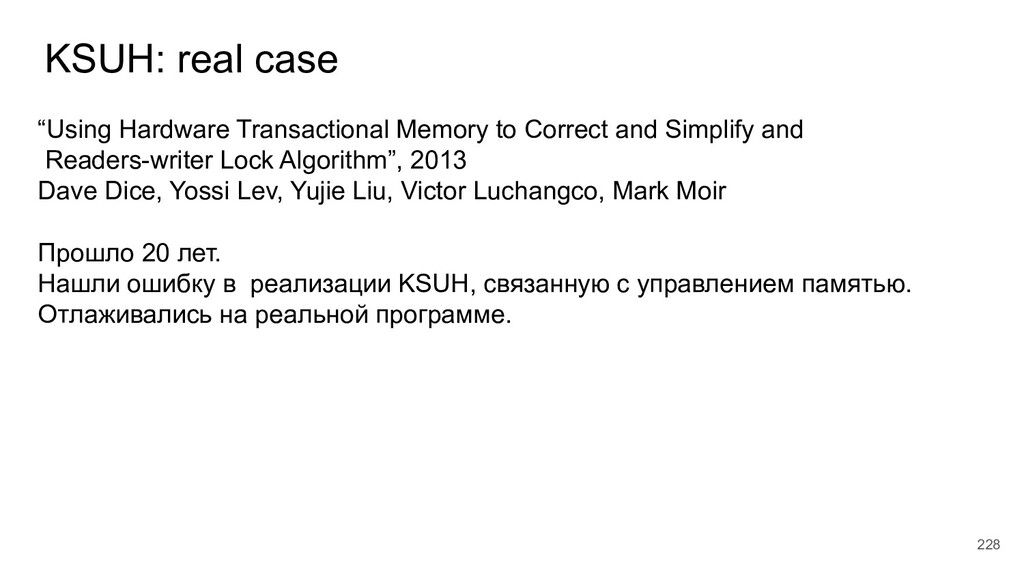

KSUH: real case 228 “Using Hardware Transactional Memory to Correct
and Simplify and Readers-writer Lock Algorithm”, 2013 Dave Dice, Yossi Lev, Yujie Liu, Victor Luchangco, Mark Moir Прошло 20 лет. Нашли ошибку в реализации KSUH, связанную с управлением памятью. Отлаживались на реальной программе.

and Simplify and Readers-writer Lock Algorithm”, 2013 Dave Dice, Yossi Lev, Yujie Liu, Victor Luchangco, Mark Moir Прошло 20 лет. Нашли ошибку в реализации KSUH, связанную с управлением памятью. Отлаживались на реальной программе. Java Path Finder: Весь класс 250 строк. Тест 90 строк. Анализ нашел проблему за 7 минут. Понадобилось 700Mb RAM.

and Simplify and Readers-writer Lock Algorithm”, 2013 Dave Dice, Yossi Lev, Yujie Liu, Victor Luchangco, Mark Moir Прошло 20 лет. Нашли ошибку в реализации KSUH, связанную с управлением памятью. Отлаживались на реальной программе. Java Path Finder: Весь класс 250 строк. Тест 90 строк. Анализ нашел проблему за 7 минут. Понадобилось 700Mb RAM. Люди с учеными степенями

and Simplify and Readers-writer Lock Algorithm”, 2013 Dave Dice, Yossi Lev, Yujie Liu, Victor Luchangco, Mark Moir Прошло 20 лет. Нашли ошибку в реализации KSUH, связанную с управлением памятью. Отлаживались на реальной программе. Java Path Finder: Весь класс 250 строк. Тест 90 строк. Анализ нашел проблему за 7 минут. Понадобилось 700Mb RAM. Люди с учеными степенями Роботы

Ограничения JPF Масштабируемость 10 KLOC 3-4 одновременно работающих потока 3-6
часов на один тест 10-20GB RAM 232

часов на один тест 10-20GB RAM Не гарантирует корректность Нужно писать assert-ы Нужно писать тесты Тонкости JMM 233

часов на один тест 10-20GB RAM Не гарантирует корректность Нужно писать assert-ы Нужно писать тесты Тонкости JMM Safe harbor Перед принятием решения проконсультируйтесь со специалистами. 234

Спасибо за внимание! 235

JUGNsk Meetup #11. Александр Филатов: "Java PathFinder: летим на Марс без багов и дедлоков."

JUGNsk Meetup #11. Александр Филатов: "Java PathFinder: летим на Марс без багов и дедлоков."

More Decks by jugnsk

Other Decks in Programming

Featured

Transcript
