Jumabek Alikhanov @Information Security Research Lab, Inha University YOLO9000: Better,
Faster, Stronger (CVPR 2017, Best Paper Honorable Mention) 1
1. Introduction & Previous Work 2. Better detection performance 3.
Faster processing speed 4. Detecting more classes(object types) 5. Conclusion CONTENTS 2
Task & Evaluation Metric mAP- mean Avarage Precision 3 https://github.com/rafaelpadilla/Object-Detection-Metrics
YOLO v1 Network Output shape = (S, S, B×5 +
C) = (7, 7, 2×5 + 20) = (7, 7, 30). 4
YOLOv1: Loss Function pi-conditional class Prob. Ci - box confidence
score 5 Localization Confidence Classification
Previously Pascal 2007 mAP Speed DPM v5 33.7 .07 FPS
14 s/img R-CNN 66.0 .05 FPS 20 s/img Fast R-CNN 70.0 .5 FPS 2 s/img Faster R-CNN 73.2 7 FPS 140 ms/img YOLO 63.4 45 FPS 22 ms/img 6
Previously Pascal 2007 mAP Speed DPM v5 33.7 .07 FPS
14 s/img R-CNN 66.0 .05 FPS 20 s/img Fast R-CNN 70.0 .5 FPS 2 s/img Faster R-CNN 73.2 7 FPS 140 ms/img YOLO 63.4 45 FPS 22 ms/img 7
Better Performance 8
9 YOLO Train on ImageNet Fine-tune on detection Resize network
10 Fine-tune 448x448 Classifier: +3.5% mAP Train on ImageNet Fine-tune
on detection Resize, fine-tune on ImageNet
Anchor boxes use static initialization
Use k-means clustering to find better initializations https://github.com/Jumabek/darknet_scripts
None
Static Anchors vs Dimension Clusters 14
Box Location Prediction 15
Dimension Clusters: +5% mAP
17 Multi-scale training: +1.5% mAP
YOLOv2: Fast, Accurate Detection
Huang, Jonathan, et al. "Speed/accuracy trade-offs for modern convolutional object
detectors." arXiv preprint arXiv:1611.10012 (2016).
Huang, Jonathan, et al. "Speed/accuracy trade-offs for modern convolutional object
detectors." arXiv preprint arXiv:1611.10012 (2016).
Huang, Jonathan, et al. "Speed/accuracy trade-offs for modern convolutional object
detectors." arXiv preprint arXiv:1611.10012 (2016). YOLOv2
None
Faster Detection Speed 23
Speed is not just parameter counts or FLOPs Top 1
Top 5 FLOPs GPU Speed VGG-16 70.5 90.0 30.95 Bn 100 FPS Extraction (YOLOv1) 72.5 90.8 8.52 Bn 180 FPS Resnet50 75.3 92.2 7.66 Bn 90 FPS
Darknet19: A good balance of speed and accuracy Top 1
Top 5 FLOPs GPU Speed VGG-16 70.5 90.0 30.95 Bn 100 FPS Extraction (YOLOv1) 72.5 90.8 8.52 Bn 180 FPS Resnet50 75.3 92.2 7.66 Bn 90 FPS Darknet19 74.0 91.8 5.58 Bn 200 FPS
Why is it fast? Simple & efficient architecture C implementation
26
Stronger - Detecting more classes 27
- 14 million images - 22k classes - Classification labels

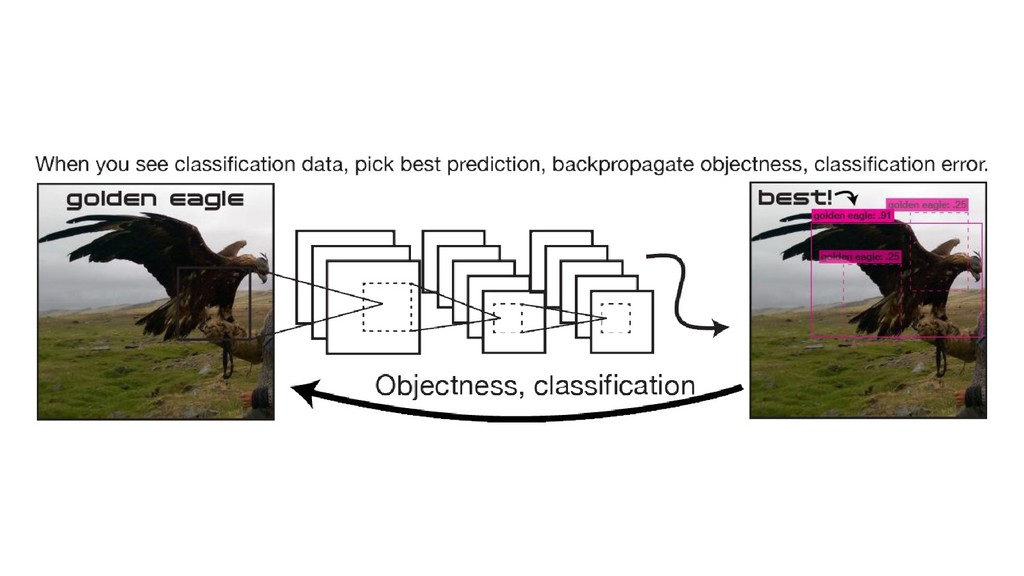

- 100k images - 80 classes - Detection labels Golden eagle
Typically use softmax over all classes
Can’t just mash classes together...
Can’t just mash classes together...
WordNet has structure but it’s messy
None
None
... Each node is a conditional probability
... Each node is a conditional probability P(Bedlington terrier) =
P(object) * P (living thing | object) * ….. P(canine | mammal) * P(dog | canine) * P(terrier | dog) * P(Bedlington terrier | terrier)
None
None
None
None
None
None
None
None
None
None
Conclusion • YOLOv2 and YOLO9000 real-time detection systems • YOLOv2
state of the art and faster than other systems • 9K object category detection by YOLO9000 47
1. CVPR paper - https://pjreddie.com/media/files/papers/YOLO9000.pdf 2. Article - https://medium.com/@jonathan_hui/real-time-object-detection-with-yolo-yolov2-28b1b93e2088 3.
Author’s Presentation - https://docs.google.com/presentation/d/14qBAiyhMOFl_wZW4dA1CkixgXwf0zKGbpw_0oHK8yEM/edit#slide=id.g1f9fb98e4b_0 _132 References 48
