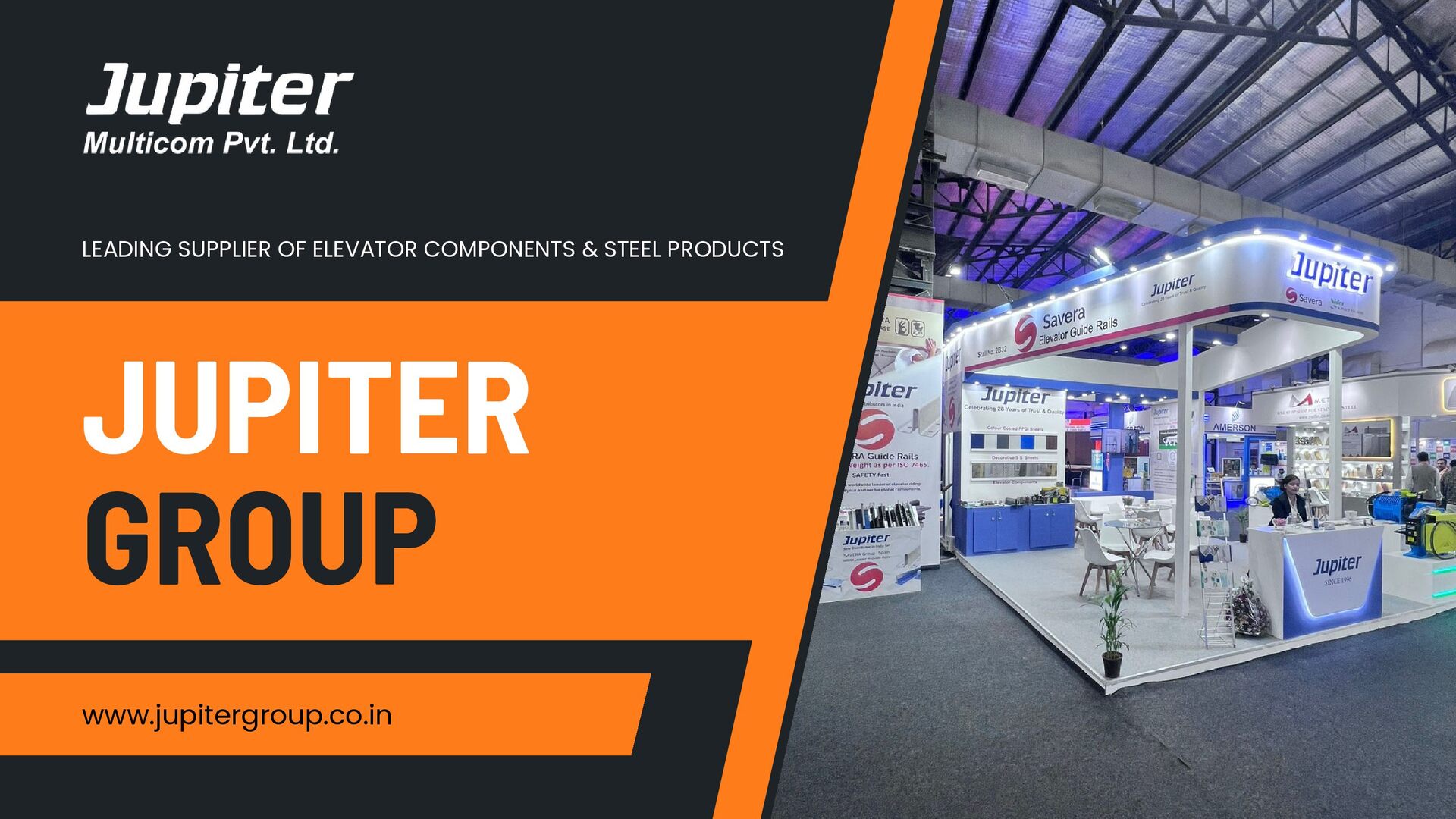

1. JUPITER GROUP LEADING SUPPLIER OF ELEVATOR COMPONENTS & STEEL PRODUCTS www.jupitergroup.co.in
2. Jupiter Group is a Mumbai based group serving Indian Industries for last 29 years. We are Importer, Stockiest and Distributor of Elevator Accessories, Guide Rails, Raw Guide Tee Section, Stainless steel sheets & Profiles, Construction Steel, Alloy Steel etc. Jupiter Group vision is driven by spirit of challenge. We add value to life of our associates and together prosper globally. WELCOME TO JUPITER GROUP
3. reallygreatsite.com Clients Target Jupiter Group is a Mumbai-based company with 29+ years of experience, specializing in elevator components, guide rails, and stainless steel products. As an importer, stockiest, and distributor, the company is known for quality, strength, and precision in industrial and construction materials. JUPITER GROUP VISION IS DRIVEN BY SPIRIT OF CHALLENGE. WE ADD VALUE TO LIFE OF OUR ASSOCIATES AND TOGETHER PROSPER GLOBALLY. About Our Company OUR PRINCIPAL Savera Group. Spain, Prabhat Steel Industries. Mumbai, JNF Stainless Steel. Beijing are top Manufacturers to procure our Products We have gained an edge over our competitors due to our association with the leading vendors of the industry. Our vendors manufacture their products using quality basic material and test them on well defined quality parameters. Our rich vendor base also enables us to offer our clients a flawless range of products at competitive prices.

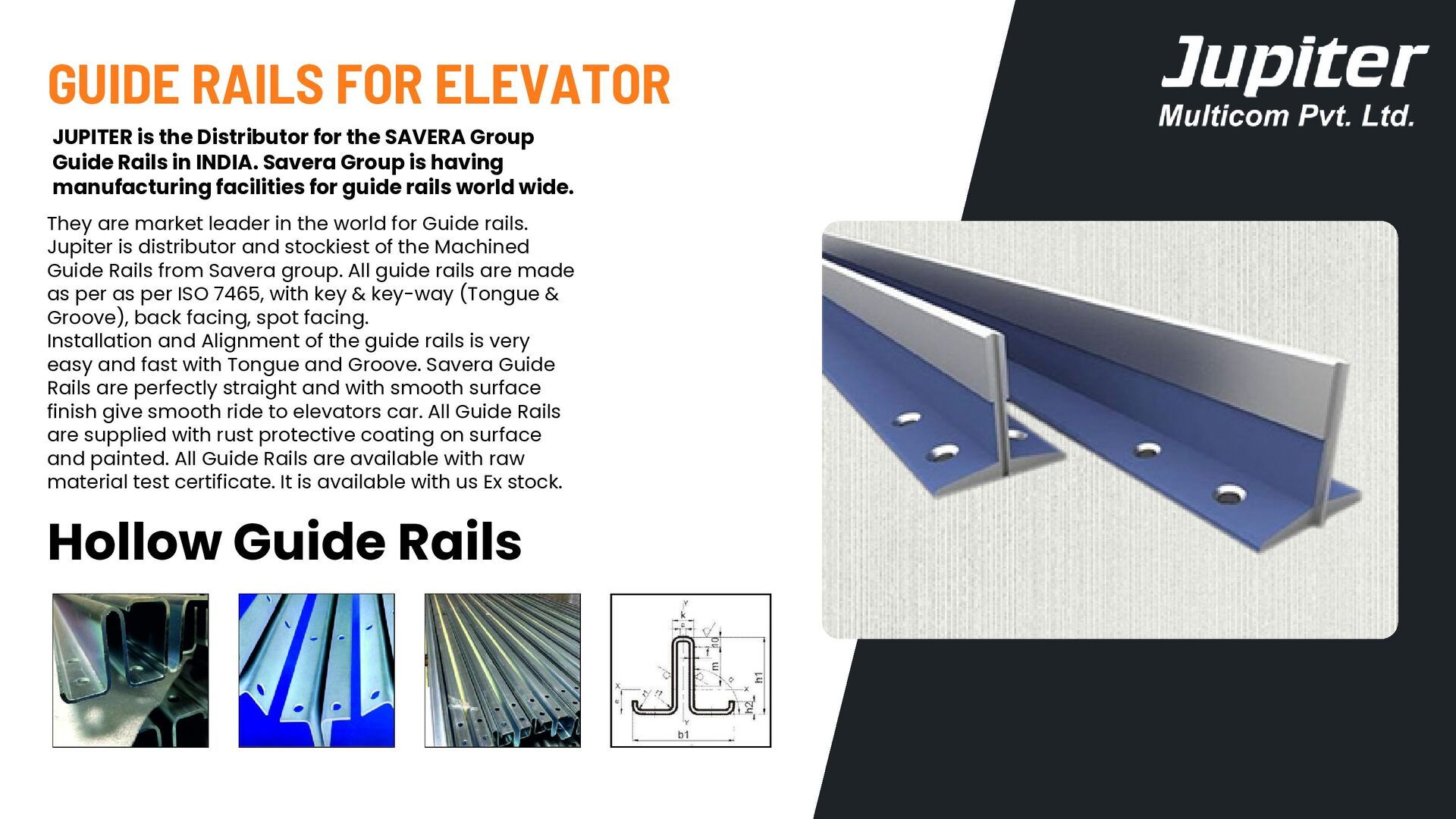

4. GUIDE RAILS FOR ELEVATOR JUPITER is the Distributor for the SAVERA Group Guide Rails in INDIA. Savera Group is having manufacturing facilities for guide rails world wide. They are market leader in the world for Guide rails. Jupiter is distributor and stockiest of the Machined Guide Rails from Savera group. All guide rails are made as per as per ISO 7465, with key & key-way (Tongue & Groove), back facing, spot facing. Installation and Alignment of the guide rails is very easy and fast with Tongue and Groove. Savera Guide Rails are perfectly straight and with smooth surface finish give smooth ride to elevators car. All Guide Rails are supplied with rust protective coating on surface and painted. All Guide Rails are available with raw material test certificate. It is available with us Ex stock. Hollow Guide Rails

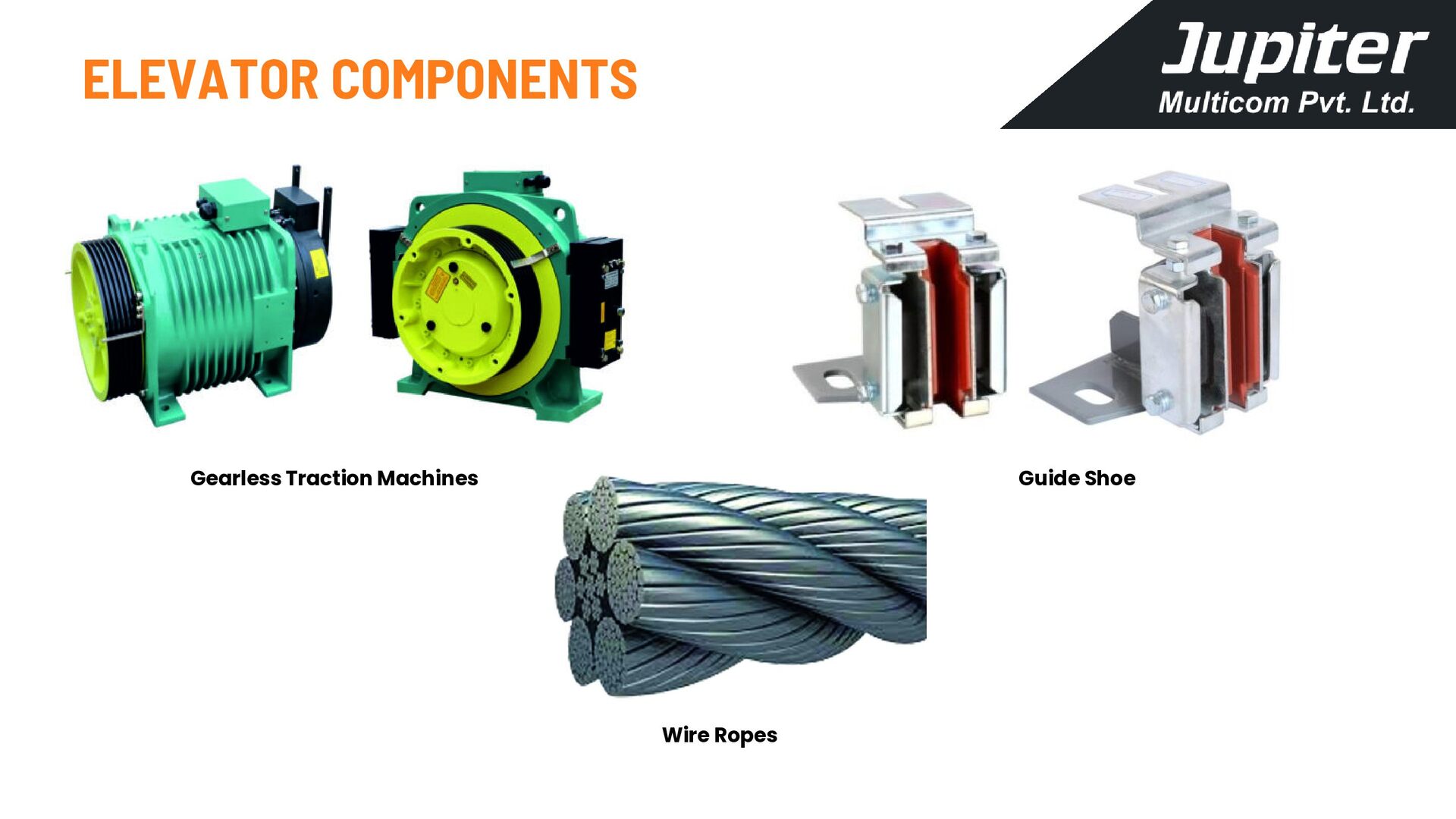

5. ELEVATOR COMPONENTS Gearless Traction Machines Guide Shoe Wire Ropes

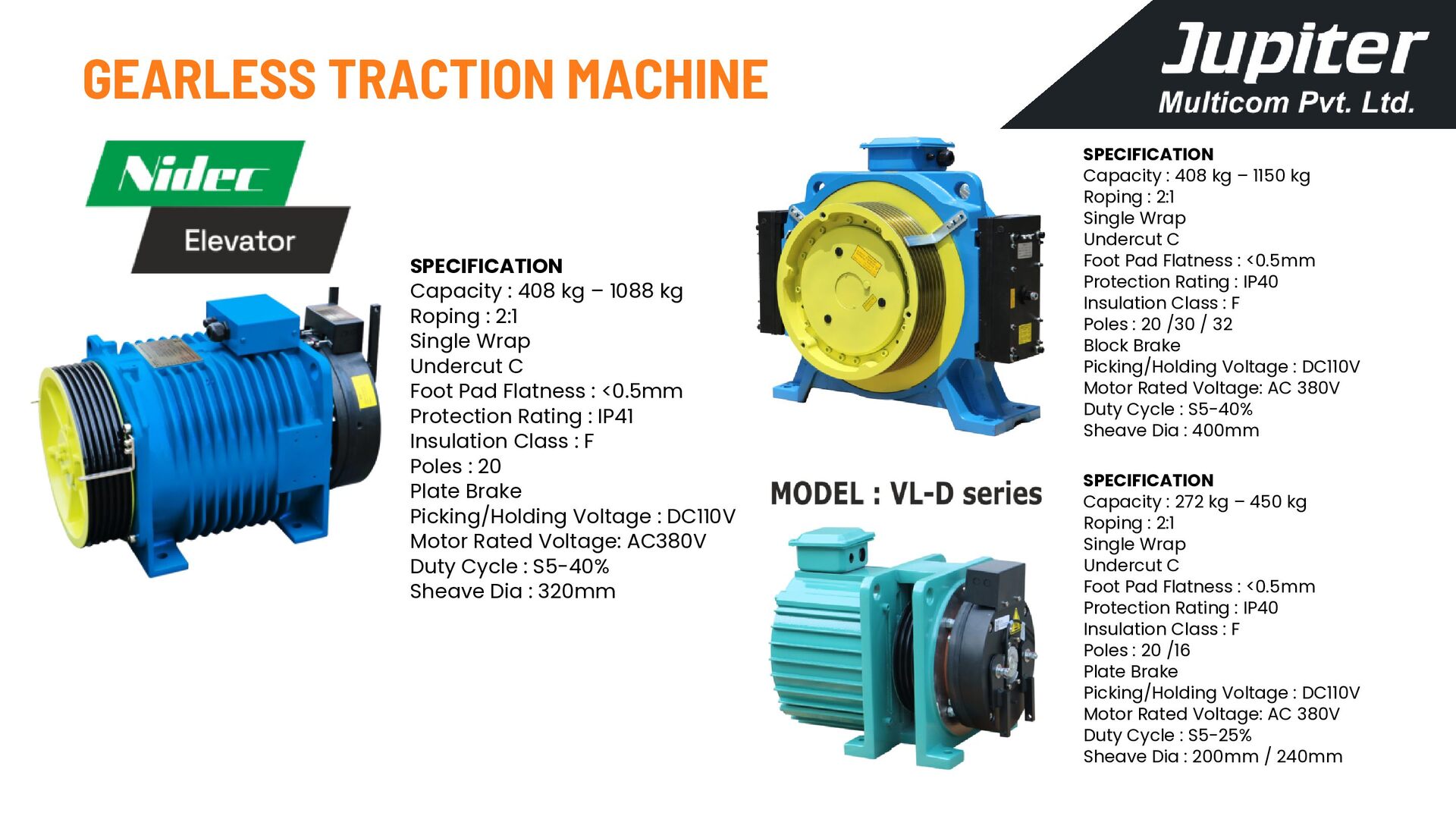

6. GEARLESS TRACTION MACHINE SPECIFICATION Capacity : 272 kg – 450 kg Roping : 2:1 Single Wrap Undercut C Foot Pad Flatness : <0.5mm Protection Rating : IP40 Insulation Class : F Poles : 20 /16 Plate Brake Picking/Holding Voltage : DC110V Motor Rated Voltage: AC 380V Duty Cycle : S5-25% Sheave Dia : 200mm / 240mm SPECIFICATION Capacity : 408 kg – 1150 kg Roping : 2:1 Single Wrap Undercut C Foot Pad Flatness : <0.5mm Protection Rating : IP40 Insulation Class : F Poles : 20 /30 / 32 Block Brake Picking/Holding Voltage : DC110V Motor Rated Voltage: AC 380V Duty Cycle : S5-40% Sheave Dia : 400mm SPECIFICATION Capacity : 408 kg – 1088 kg Roping : 2:1 Single Wrap Undercut C Foot Pad Flatness : <0.5mm Protection Rating : IP41 Insulation Class : F Poles : 20 Plate Brake Picking/Holding Voltage : DC110V Motor Rated Voltage: AC380V Duty Cycle : S5-40% Sheave Dia : 320mm

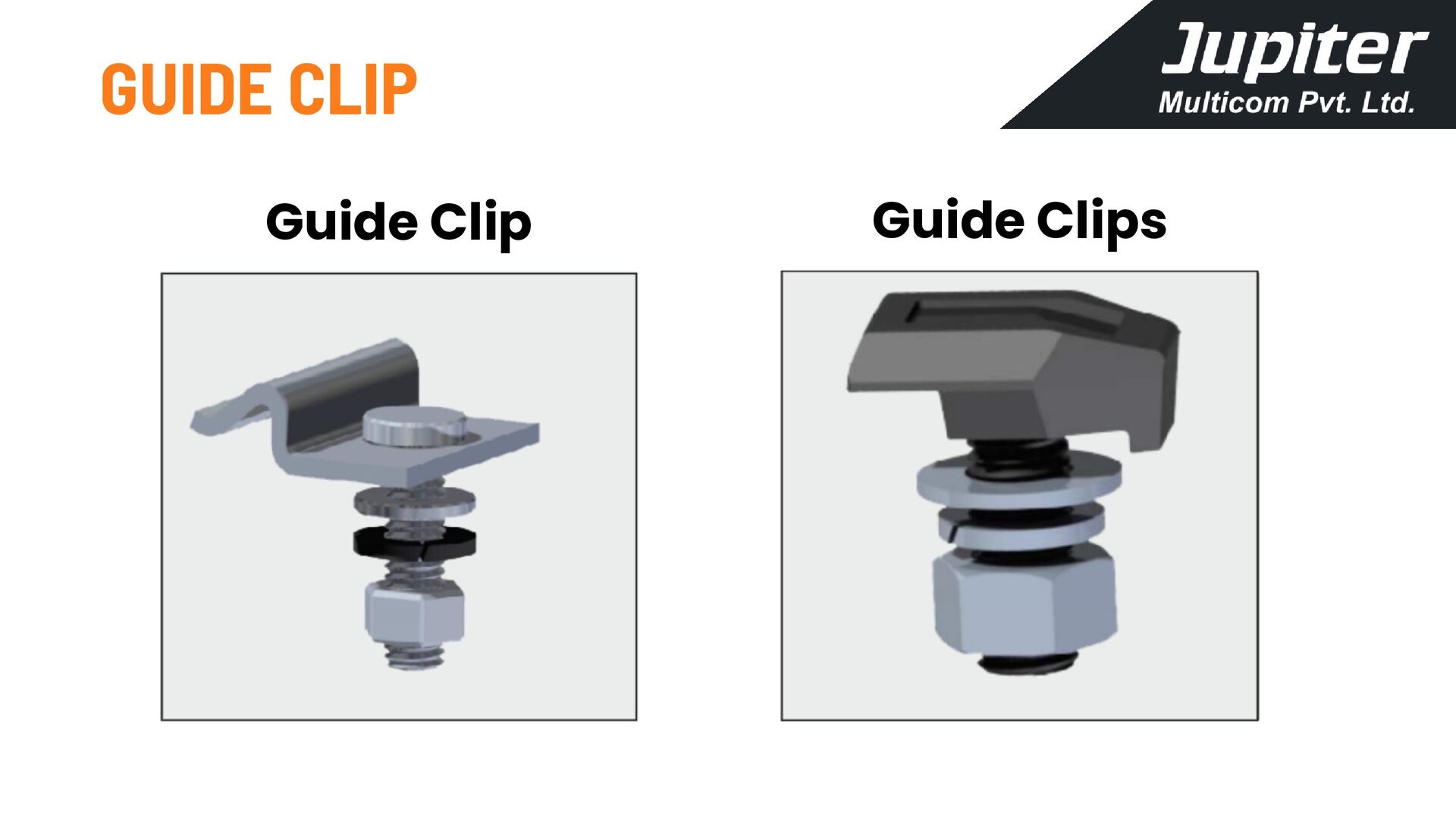

7. GUIDE CLIP Guide Clip Guide Clips

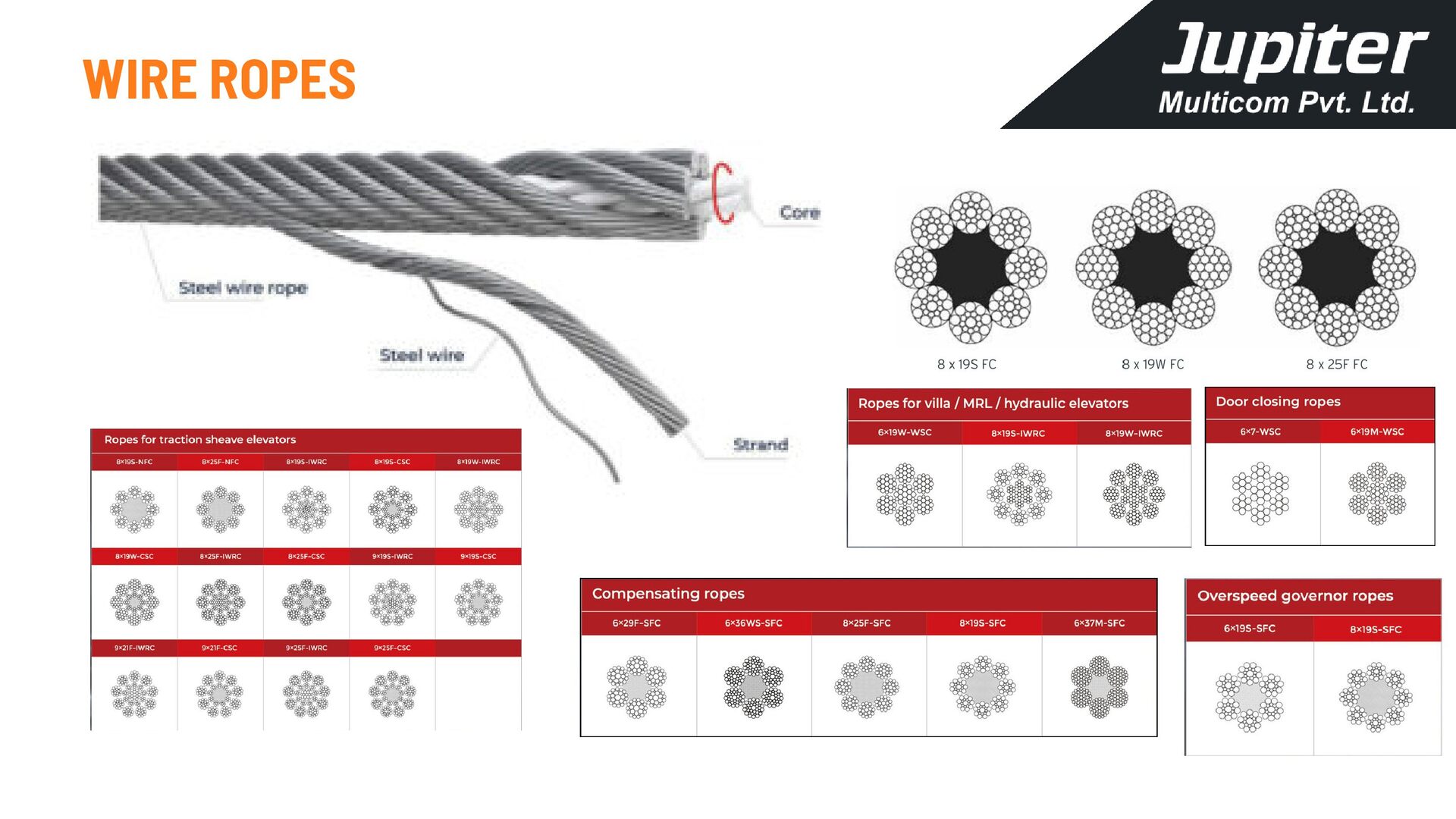

8. WIRE ROPES

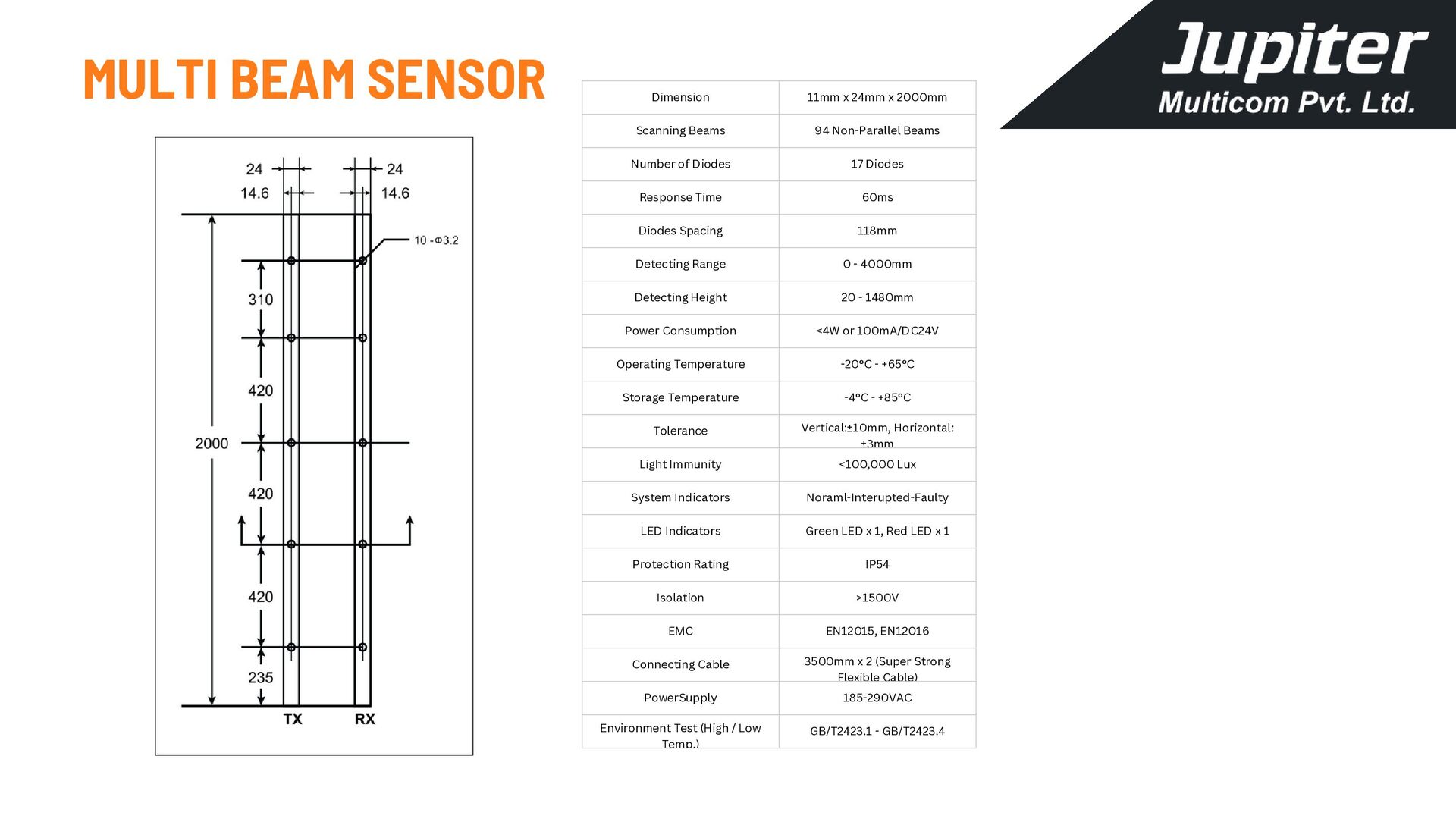

9. Dimension 11mm x 24mm x 2000mm Scanning Beams 94 Non-Parallel Beams Number of Diodes 17 Diodes Response Time 60ms Diodes Spacing 118mm Detecting Range 0 - 4000mm Detecting Height 20 - 1480mm Power Consumption <4W or 100mA/DC24V Operating Temperature -20°C - +65°C Storage Temperature -4°C - +85°C Tolerance Vertical:±10mm, Horizontal: ±3mm Light Immunity <100,000 Lux System Indicators Noraml-Interupted-Faulty LED Indicators Green LED x 1, Red LED x 1 Protection Rating IP54 Isolation >1500V EMC EN12015, EN12016 Connecting Cable 3500mm x 2 (Super Strong Flexible Cable) PowerSupply 185-290VAC Environment Test (High / Low Temp.) GB/T2423.1 - GB/T2423.4 MULTI BEAM SENSOR

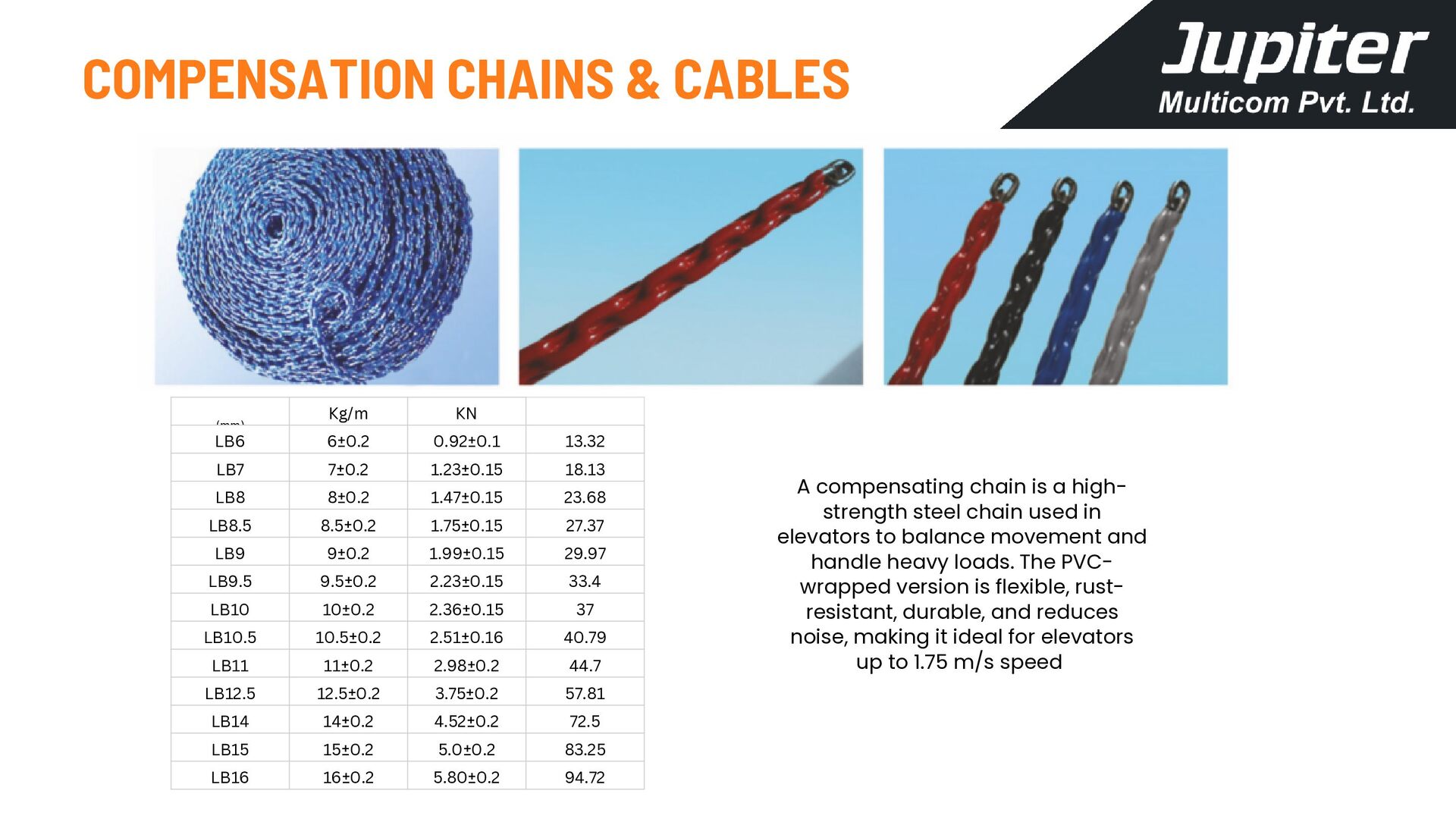

10. (mm) Kg/m KN LB6 6±0.2 0.92±0.1 13.32 LB7 7±0.2 1.23±0.15 18.13 LB8 8±0.2 1.47±0.15 23.68 LB8.5 8.5±0.2 1.75±0.15 27.37 LB9 9±0.2 1.99±0.15 29.97 LB9.5 9.5±0.2 2.23±0.15 33.4 LB10 10±0.2 2.36±0.15 37 LB10.5 10.5±0.2 2.51±0.16 40.79 LB11 11±0.2 2.98±0.2 44.7 LB12.5 12.5±0.2 3.75±0.2 57.81 LB14 14±0.2 4.52±0.2 72.5 LB15 15±0.2 5.0±0.2 83.25 LB16 16±0.2 5.80±0.2 94.72 COMPENSATION CHAINS & CABLES A compensating chain is a high- strength steel chain used in elevators to balance movement and handle heavy loads. The PVC- wrapped version is flexible, rust- resistant, durable, and reduces noise, making it ideal for elevators up to 1.75 m/s speed

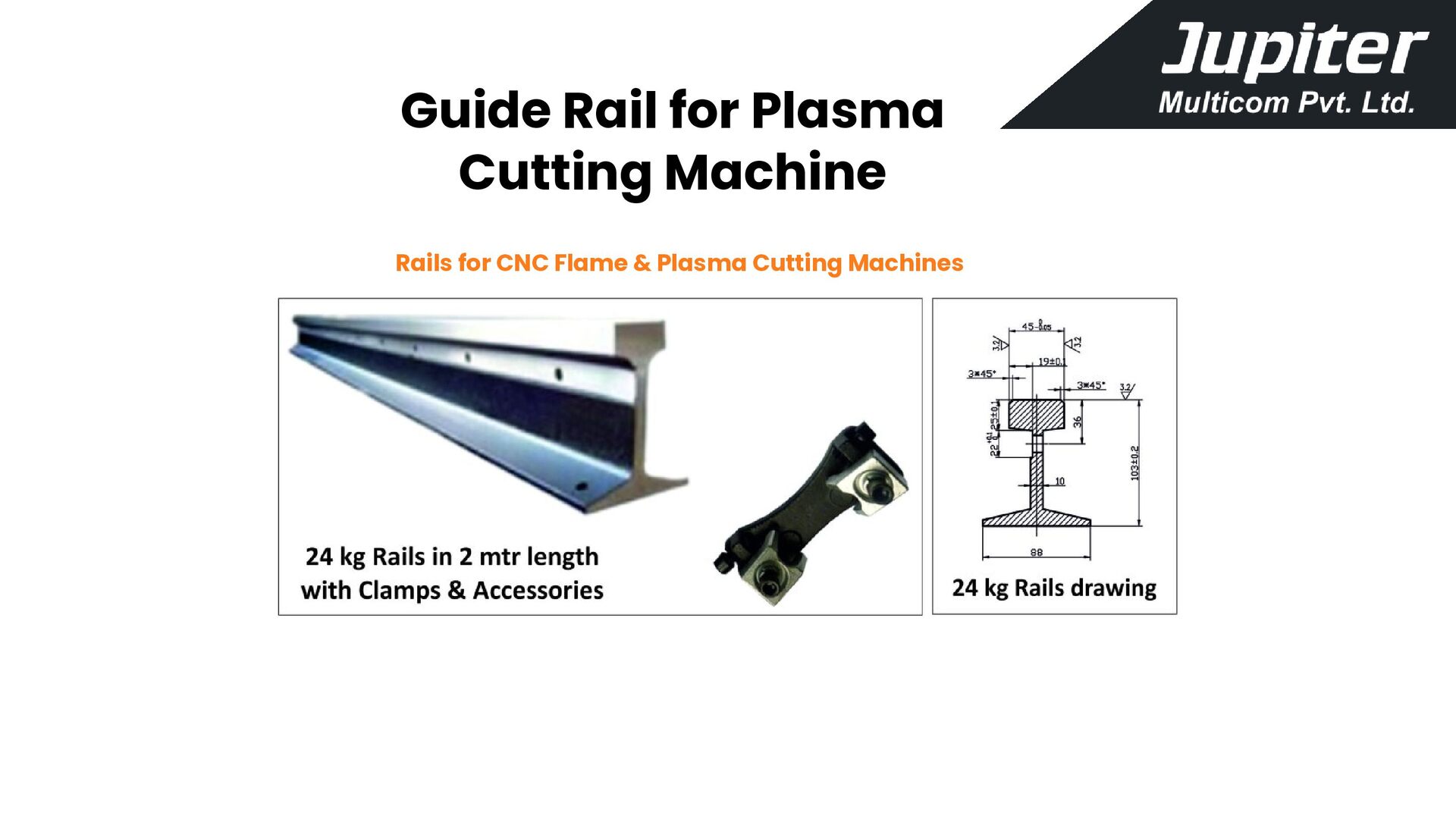

11. Guide Rail for Plasma Cutting Machine Rails for CNC Flame & Plasma Cutting Machines

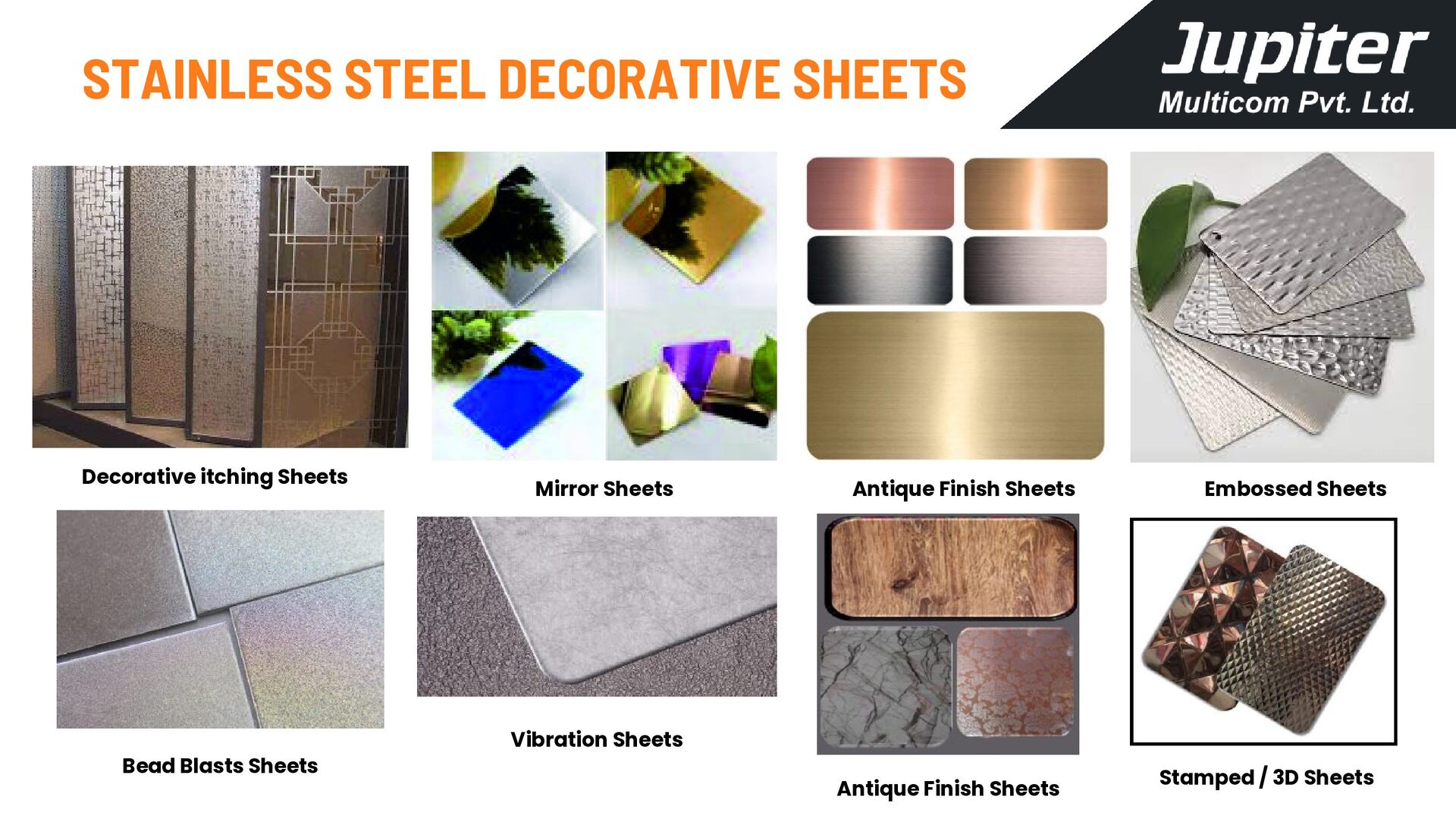

12. STAINLESS STEEL DECORATIVE SHEETS Decorative itching Sheets Mirror Sheets Antique Finish Sheets Embossed Sheets Bead Blasts Sheets Vibration Sheets Antique Finish Sheets Stamped / 3D Sheets

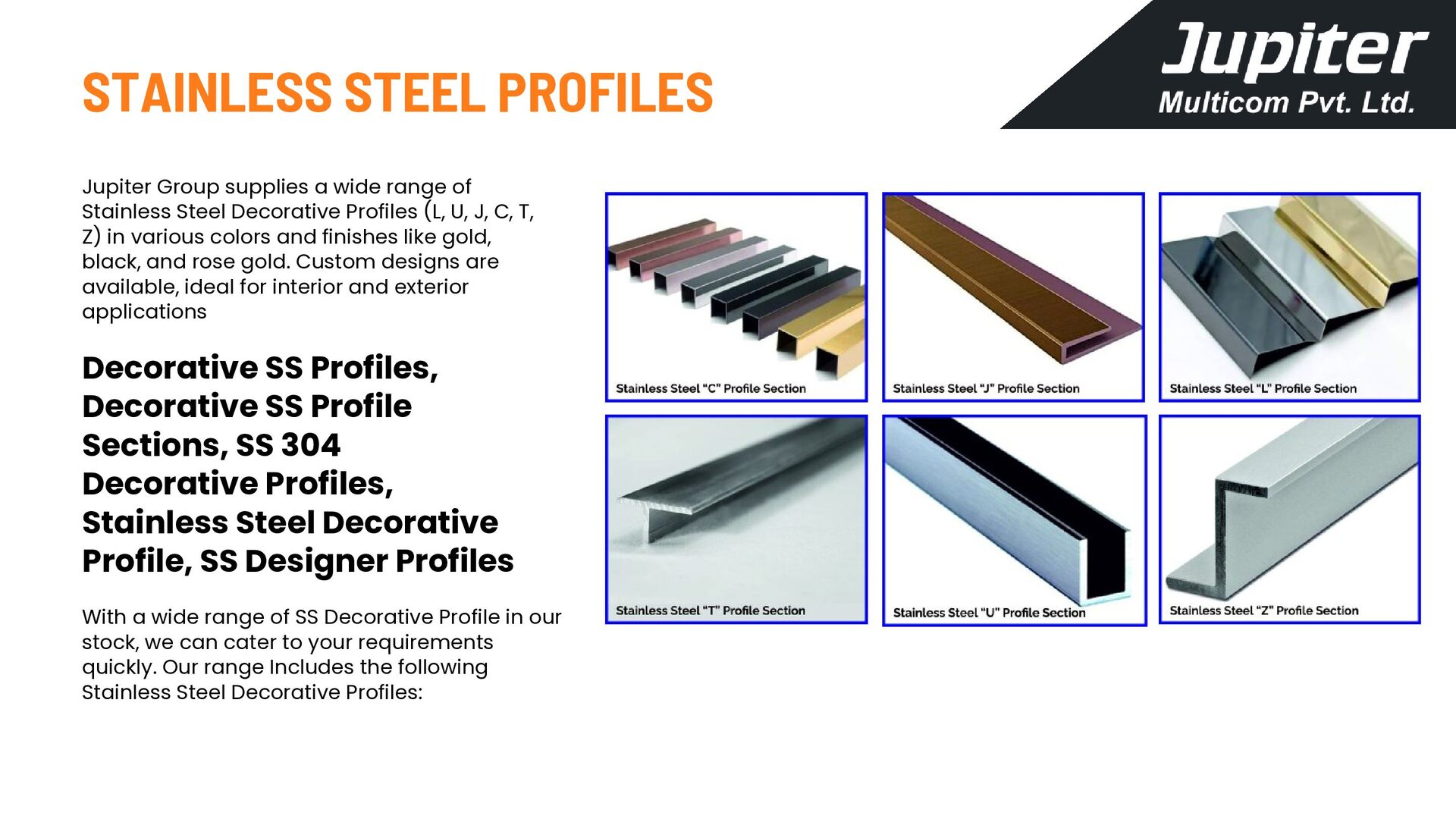

13. STAINLESS STEEL PROFILES Jupiter Group supplies a wide range of Stainless Steel Decorative Profiles (L, U, J, C, T, Z) in various colors and finishes like gold, black, and rose gold. Custom designs are available, ideal for interior and exterior applications Decorative SS Profiles, Decorative SS Profile Sections, SS 304 Decorative Profiles, Stainless Steel Decorative Profile, SS Designer Profiles With a wide range of SS Decorative Profile in our stock, we can cater to your requirements quickly. Our range Includes the following Stainless Steel Decorative Profiles:
14. STAINLESS STEEL PRODUCTS

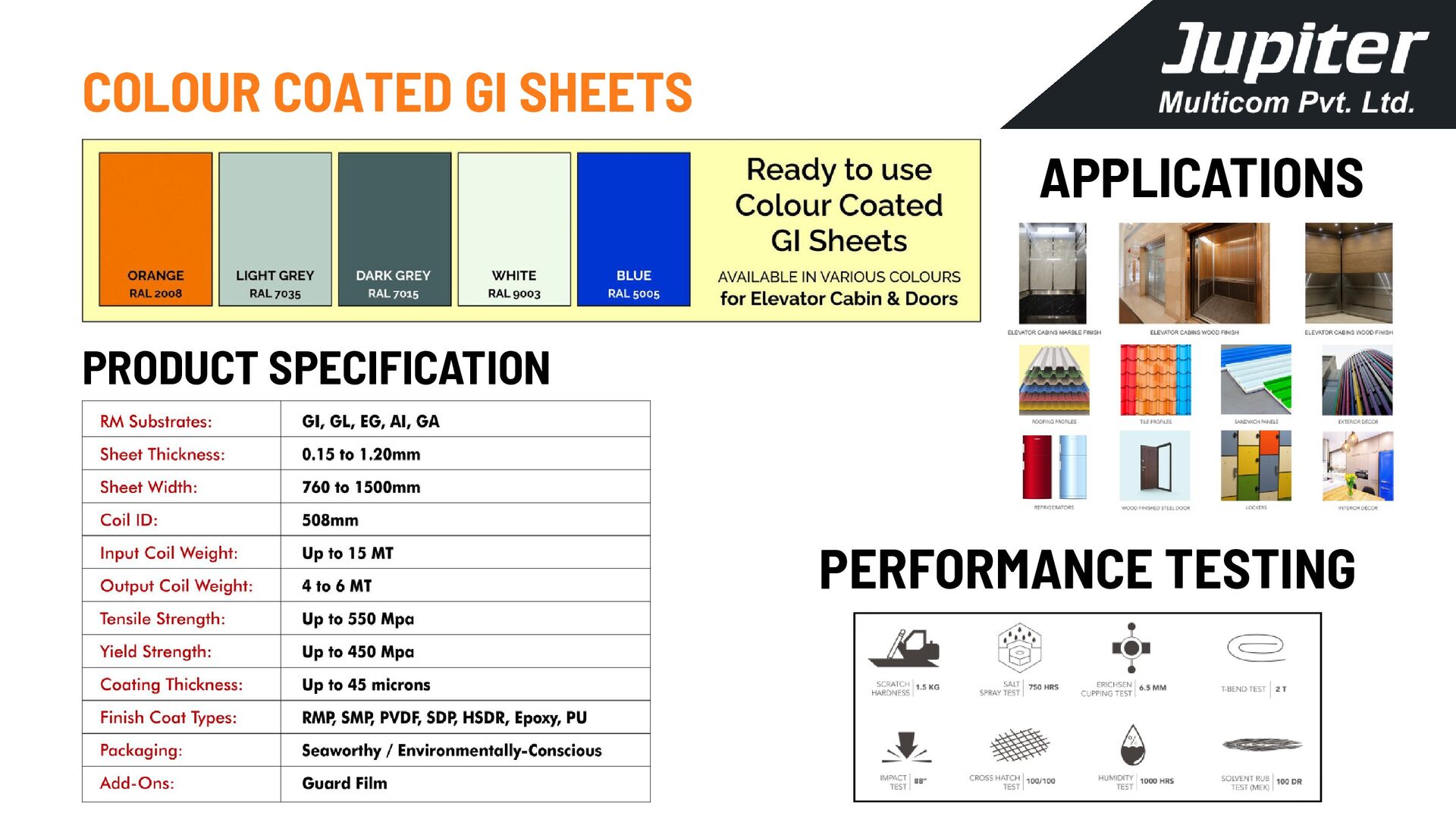

15. COLOUR COATED GI SHEETS PRODUCT SPECIFICATION APPLICATIONS PERFORMANCE TESTING
16. Contact Us 91-22-28633235 / 91-22-28083984 www.jupitergroup.co.in office@jupitergroup.co.in jupiter.savera@gmail.com B/105, Shanti Building No.2, Mathuradas Extension Road, Kandivali (W), Mumbai – 400 067, Maharashtra, INDIA.
