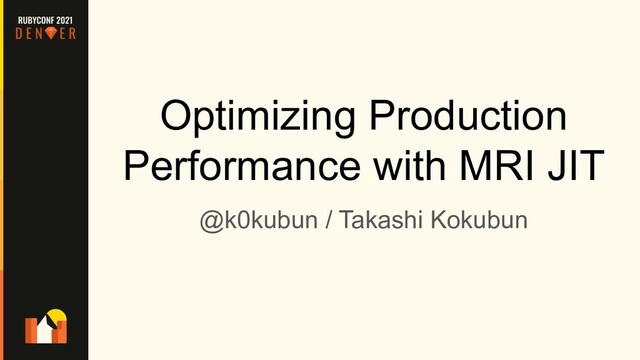

1. Optimizing Production
   Performance with MRI JIT
   @k0kubun / Takashi Kokubun


   View Slide

2. Self introduction
   ● GitHub, Twitter: @k0kubun
   ● Ruby committer: JIT, ERB, IRB
   ● Company: Treasure Data


   View Slide

3. Agenda
   ● Introduction to MRI JIT
   ● Tuning JIT performance for Rails
   ● Warming up MRI JIT
   ● The future of MRI JIT


   View Slide

4. Introduction to MRI JIT


   View Slide

5. The list of MRI JITs
   ● MJIT
   ● YJIT
   ● MIR


   View Slide

6. MJIT
   ● Merged in Ruby 2.6
   ● Optionally enabled by --jit
   ● Run a C compiler at runtime
   ● Support GCC, Clang, and MSVC


   View Slide

7. YJIT
   ● To be merged in Ruby 3.1
   ● Optionally enabled by --yjit
   ● In-process x86 assembler


   View Slide

8. MIR
   ● JIT framework, motivated by MJIT
   ● Planned to be integrated with MRI
   ● Inline C functions without a C compiler


   View Slide

9. Layers of JIT implementation
   VM
   JIT
   compiler
   Codegen
   RTL
   YARV
   RTL-MJIT
   MJIT (C compiler)
   YARV-MJIT
   (mjit_compile.c)
   MIR
   YJIT
   yjit_codegen.c
   MIR-based
   JIT
   Ruby 2.6~3.0 Feature #12589
   MIR
   YJIT


   View Slide

10. Today's theme
    ● How to make your application faster in Ruby 3.0
    ○ i.e. with MJIT


    View Slide

11. Tuning JIT performance for Rails


    View Slide

12. If you don't tune MJIT
    https://speed.yjit.org


    View Slide

13. Tuned peak performance
    https://gist.github.com/k0kubun/cbc5251be1c19e36b7b7f786db302465


    View Slide

14. Key ideas
    ● Some versions are slow
    ● TracePoint, GC.compact, and Ractor
    ● Change --jit-max-cache for Ruby 3.0
    ● Wait until everything is compiled


    View Slide

15. Some versions are slow
    ● Don't use Ruby 2.x
    ○ Ruby 3.0 has better CPU cache efficiency
    ● Even Ruby 3 has slow versions
    ○ MJIT doesn't work properly in Ruby 3.0.1
    ○ Ruby 3.0.0 is OK, but others might have throttling issues


    View Slide

16. TracePoint, GC.compact, and Ractor
    ● MJIT can be disabled when GC.compact or
    TracePoint is used
    ○ Ruby 3.1 shows "JIT cancel" on --jit-verbose=1 when it
    happens
    ● However, Ruby 3.1 supported TracePoint :class
    events for Zeitwerk
    ● MJIT has performance issues when you have
    Ractors


    View Slide

17. Change --jit-max-cache for Ruby 3.0
    ● The default --jit-max-cache is 100 in Ruby 3.0
    ● It should be large enough to compile everything, like
    10,000
    ○ Use --jit-verbose=1 to see what's happening


    View Slide

18. Wait until everything is compiled
    ● When a C compiler is running, the interpreter
    becomes slower
    ○ We've found no workaround so far
    ● So be sure to see the end of compilation with
    --jit-verbose=1
    ○ This can take some minutes


    View Slide

19. Warming up MRI JIT


    View Slide

20. --jit-min-calls
    ● The default of --jit-min-calls is 10,000
    ● You need to wait until the benchmarked path is used
    10,000 times


    View Slide

21. The lifecycle of JIT-ed code
    ● MJIT's code has multiple stages:
    ○ Fragmented code with full optimizations
    ○ Fragmented code with partial optimizations
    ○ Compacted code with partial optimizations
    ● All methods should be in the last stage to see the
    peak performance


    View Slide

22. JIT recompile
    ● MJIT disables optimizations that didn't work and
    recompiles the code
    ● Look for "JIT recompile" shown by --jit-verbose=1
    ● Your log should NOT end with "MJIT recompile" to
    see the peak performance


    View Slide

23. Optimization switches for each method
    ● disable_ivar_cache
    ● disable_exivar_cache
    ● disable_send_cache
    ● disable_inlining
    ● disable_const_cache


    View Slide

24. JIT compaction
    ● Once everything is compiled, MJIT schedules "JIT
    compaction"
    ● Your --jit-verbose=1 log should end with this to see
    the peak performance


    View Slide

25. The future of MRI JIT


    View Slide

26. Why do we have multiple JITs?
    ● Are we competing?
    ○ No, we contribute to each other's project as well
    ● Multi-tier JIT?
    ○ Efficiently mixing the code of MJIT and YJIT might be hard
    ○ At least MJIT needs to be replaced by MIR for better control


    View Slide

27. A short-term idea
    ● We should probably focus on YJIT
    ○ It is already faster and has more developers than MJIT
    ○ MJIT's warmup is too slow by design


    View Slide

28. A long-term idea
    ● Unblock inlining over C methods
    ○ YJIT cannot inline and optimize C methods as is
    ○ MJIT has Ruby → C inlining, but not C → Ruby yet
    ○ Rewrite more C methods to Ruby and/or integrate MIR


    View Slide

29. Conclusion
    ● There's a way to speed up Rails with MJIT
    ● We're shifting to YJIT for better performance


    View Slide
