영지식 증명과 블록체인

#ZKP #Research #Klaytn

블록체인에서는 노드들이 투명하게 동일한 원장을 유지하며 모든 트랜잭션들을 실행하고 검증하기 때문에, 프라이버시와 확장성의 문제가 있습니다. 블록체인 씬에서는 프라이버시와 확장성 문제를 해결 하기위해 영지식 증명 기술(zero Knowledge proof)을 적용한 많은 연구개발들이 진행 중에 있습니다.

영지식 증명이란 상대방에게 어떠한 정보도 제공하지 않은 채, 자신이 해당 정보를 가지고 있다는 사실을 증명할 수 있는 기술입니다.이러한 영지식 증명 기술을 블록체인에 적용하게 되면 거래를 공개하지 않아도 거래의 유효성을 검증할 수 있어 프라이버시 문제를 해결할 수 있고, 수많은 트랜잭션의 실행과 검증 대신에 하나의 영지식 증명 검증으로만 수많은 트랜잭션의 실행과 검증을 대체 할 수 있는 computation compress work이 가능하여 확장성 문제를 해결합니다.

본 세션에서는 클레이튼에서의 진행하고 있는 ZKP를 활용한 Privacy 연구와 확장성에 대한 연구에 대해 소개드립니다. 설명에는 문제의 해결방식과 분석에 대한 내용을 설명 드리고자 합니다. 사전 지식이 없어도 쉽게 이해 할 수 있도록 설명 드리고자 하니 많은 관심 부탁드립니다.

발표자 : iron.cho
크러스트유니버스 코어 데브팀의 아이언입니다. 블록체인의 문제들을 연구개발로 해결하는일을 하고 있습니다.

Transcript

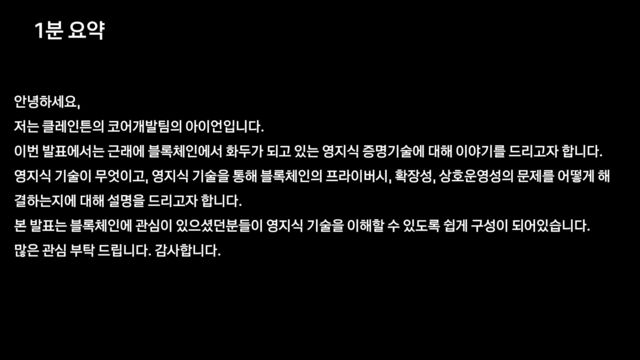

1. 1분 요약
   안녕하세요,


   저는 클레인튼의 코어개발팀의 아이언입니다.


   이번 발표에서는 근래에 블록체인에서 화두가 되고 있는 영지식 증명기술에 대해 이야기를 드리고자 합니다.


   영지식 기술이 무엇이고, 영지식 기술을 통해 블록체인의 프라이버시, 확장성, 상호운영성의 문제를 어떻게 해
   결하는지에 대해 설명을 드리고자 합니다.


   본 발표는 블록체인에 관심이 있으셨던분들이 영지식 기술을 이해할 수 있도록 쉽게 구성이 되어있습니다.


   많은 관심 부탁 드립니다. 감사합니다.




   View Slide

2. : #೥కೞక #৔૑ध੉ # ࠶۾୓ੋীࢲ
   Copyright 2022. Kakao Corp. All rights reserved. Redistribution or public display is not permitted without written permission from Kakao.
   ৔૑ध ૐݺҗ ࠶۾୓ੋ
   ઑࣻജ iron.cho
   ௼۞झ౟ ਬפߡझ
   if(kakao)2022


   View Slide

3. ־ҳࣁਃ ?
   Klaytn Core Dev Team| Research Part
   Iron.cho
   ✓ 3FTFBSDIPOUIF"EWBODFE5FDIOPMPHZ3FRVJSFEGPS,MBZUO$PSF3FTFBSDIPO
   ;,1SFMBUFE*OUFSPQFSBCJMJUZ 4DBMBCJMJUZ BOE1SJWBDZ


   ✓ Activating the Blockchain Research Community: Planning and Implementation of the
   Blockchain Research Center(BRC) Program #Ӗ۽ߥ ࠶۾୓ੋ োҳ ݍ૘ # ਬݎ઱
   • Ph.d Computer Science -Research Blockchain
   • Emblock - Blockchain core and application tech
   • Microsoft - Testing windows 8.1 project


   View Slide

4. 1. ৔૑ध ૐݺ (zero knowledge proof, Zkp )?
   2. Zkp Research – Privacy
   3. zkp Research - Scalability
   4. Zkp Research – Interoperability


   View Slide

5. 이 발표 내용구성은 zkp를 쉽게 설명하기위해 구성 되어있습니다.


   (zkp 기술은 난이도가 조금 있고 ? 사전지식이 많이 필요로 합니다.)


   정확한 기술의 구성과 용어들은 참조 자료들을 꼭 봐주세요 !


   View Slide

6. 1. ৔૑ध ૐݺ (zero knowledge proof, Zkp )?


   View Slide

7. 블록체인의 Mass Adoption에 뭐선 129
   Scalability, Privacy, Interoperability ….
   탈중앙화 (Decentralized)


   합의 (Consensus)


   투명성 (Transparency)


   안전하게 (Secure)


   View Slide

8. ZKP
   How ?




   View Slide

9. Zero knowledge Proof #알리바바 동글


   증명하는데 지식이 없다.


   Alice
   Bob
   나의 어떠한 사실 또는 정보가 참이라는것을 증명 하고 싶어


   Alice의 어떠한 사실 또는 정보를 몰라도 나는 참인지 알수가 있어




   View Slide

10. Alice
    Bob
    Age = 23


    Balance = 100 Klay


    Degree = M.S
    ?
    Age = 23


    Balance = 100 Klay


    Degree = M.S
    Alice Age = 23 True


    Balance = 100 Klay True


    Degree = M.S True


    View Slide

11. Alice Bob
    Age = 23


    Balance = 100 Klay


    Degree = M.S
    Age = 23


    Balance = 100 Klay


    Degree = M.S
    Trust : Service
    Age True


    Balance True


    Degree True
    Alice


    View Slide

12. Alice Bob
    Age = 23


    Balance = 100 Klay


    Degree = M.S
    Blockchain[Cypress]
    Age True


    Balance True


    Degree True
    Age = 23


    Balance = 100 Klay


    Degree = M.S
    Alice


    View Slide

13. Alice Bob
    Age = 23


    Balance = 100 Klay


    Degree = M.S
    Age True


    Balance True


    Degree True
    π ≈ Proof
    ?
    Alice
    ?
    Blockchain[Cypress]


    View Slide

14. Z K P
    In [1] cryptography, a zero
    -
    knowledge proof or zero
    -
    knowledge protocol is a method by
    which one party (the prover) can prove to another party (the veri
    fi
    er) that a given
    statement is true while the prover avoids conveying any additional information apart
    from the fact that the statement is indeed true. The essence of zero
    -
    knowledge proofs
    is that it is trivial to prove that one possesses knowledge of certain information by
    simply revealing it; the challenge is to prove such possession without revealing the
    information itself or any additional information


    Completeness: true
    ->
    honest prove, honest veri
    fi
    er


    Soundness : false
    ->
    dishonest prove, veri
    fi
    er


    Zero
    -
    knowledge : veri
    fi
    er , zero Zero
    -
    knowledge


    Property
    Ref[1] :https://en.wikipedia.org/wiki/Zero-knowledge_proof#cite_note-:0-1


    View Slide

15. Non-Interactive Zero-Knowledge Proof system
    Non-Interactive zero-knowledge proof system, Prover sends Proof to Verifier only once
    ✓ Send a message only once
    ✓ Connectionless
    Blockchain
    Zk Snarks [2]
    Zk SNARK zero-knowledge Succinct Non-interactive Argument of Knowledges
    Non- interactive Succinctness
    ✓ Assume verifier has limited computational resources
    ✓ Reduce ZKP's proof size and verify quickly
    ✓ Maximize the practicality of non-interactive ZKP
    Ref[2]: https://eprint.iacr.org/2016/260.pdf


    View Slide

16. Z K P
    How ?
    Zero Knowledge Proof
    prove and verify
    ݃ߨ


    View Slide

17. Zk Snark
    Algebraic Circuit
    Problem

    (Code)
    R1CS
    QAP (Quadratic Arithmetic Program)
    Elliptic Curve Pairings
    f(x): y= x³+2x²+x+1.
    (x=2, y=19)
    Code
    Gate1: x*(x+2) = sym1
    Gate2: sym1*x = sym2
    Gate3: (sym2 + x +1) * 1 = y
    (~out)
    C= A*B
    Circuit
    0 1 0 0 0
    0 0 1 0 0
    1 1 0 1 0
    2 1 0 0 0
    0 1 0 0 0
    1 0 0 0 0
    0 0 1 0 0
    0 0 0 1 0
    0 0 0 0 1
    A B
    C
    (A • S) (B • S) - C • S = 0
    ੗ࣁೠ zk snark ੄ ਗܻח ଵઑ ੗ܐ [2]ܳ ଵઑ೧઱ࣁਃ !
    1 4 -3 1 0
    -1.5 -4 4 -1.5 0
    0.5 1 -1 0.5 0
    A[t]
    B[t]
    C[t]
    7 0 0 0 0
    -6.5 1.5 0 0 0
    1.5 -0.5 0 0 0
    0 0 3 -3 1
    0 0 -2.5 4 -1.5
    0 0 0.5 -1 0.5
    A(t_0) * B(t_0) — C(t_0) = H(t_0) * Z(t_0)
    Trusted Party (t_0)
    A(t_0), B(t_0), C(t_0), H(t_0)
    Discrete Logarithm Problem


    e(G,G) A(t_0)*B(t_0)-C(t_0)
    = e(G,G) H(t_0)* Z(t_0)
    e(π_a, π_b) / e(π_c, G) = e (π_h, Z(t_0) * G)
    1) Check QAP divisibility
    2)Check validity of knowledge commitments forA,B,C:
    3)Check same coefficients were used
    π_a, π_b, π_c, π_h
    π_a', π_b', π_c', π_s'
    Bilinear Pairing
    Verifier
    Proof
    A[t], B[t], C[t], Z(t)
    ݃ߨ


    View Slide

18. Zk Snark Magic
    Algebraic Circuit
    R1CS
    QAP
    Elliptic Curve Pairings
    ✓F( ) = Original Problem

    ✓x = secret (witness)

    ✓y = result

    ✓F(x) = y
    ✓F’( ) = Transform Problem

    -> Proving , Verifying

    ✓Proving (x) = π (Proof)

    ✓Verify (π) = result (True | False)
    ≈ zkp੄ ޙઁ߸ച


    View Slide

19. CRS common reference string ≈ Proving Key(Pk), Verifying Key (Vk)
    Alice = Prover
    Age == 23
    Balance == 100 Klay
    Degree == M.S
    Problem = F()
    λ) : security parameter
    (Toxic wasted)
    Zk Snark Magic
    ≈ Transform the problem into zero knowledge proof
    X=23
    Balance = 100 Klay
    Degree = M.S
    w= witness
    Trust Party
    Transform Problem = F’()

    Proving(), Verifying()
    Proving (w, pk ) = π (proof)
    Verifying(π, vk)
    Cypress-Blockchain
    True | False
    Verifying Contract
    Compile
    Generate Proof
    Generate Verifying Contract
    Verifying Proof
    Setup


    View Slide

20. zkp੄ ؊ ݆਷ ੿ࠁܳ ਗೞन׮ݶ ?
    Klay Makers zkp Workshop
    • Awesome : https://github.com/matter-labs/awesome-zero-knowledge-proofs
    • https://eprint.iacr.org/2016/260.pdf
    • Zcash ZKP : https://z.cash/technology/zksnarks/
    • Vitalik Buterin's blog series on SNARKs
    • https://eprint.iacr.org/2013/879.pdf
    • https://www.youtube.com/user/hhanh01/videos
    • https://www.youtube.com/watch?v=_6TqUNVLChc
    • https://eprint.iacr.org/2013/279.pdf


    View Slide

21. 2. Zkp Research – Privacy


    View Slide

22. Blockchain Privacy
    Transparent Privacy


    View Slide

23. > not broadcast private data on public network
    > not privacy friendly
    Web 2.0 Web 3.0
    Apps DApps
    privacy friendly


    View Slide

24. Digital Asset
    Native Coin, Token
    Transaction ≈ Sender, Receiver, amount
    + Ownership (Digital Signature)


    View Slide

25. Segregating Unlinking Hiding
    Off-payment channel
    Onetime Address
    Mixing
    Ring Signature
    Ledger Segregating Transaction ≈ Sender, Receiver, amount
    + Ownership (Digital Signature)


    View Slide

26. Blockchain
    Wallet
    Bob(EOA)
    Alice(EOA)
    100 Klay
    Alice(EOA)
    Transaction ≈ Sender, Receiver, amount
    + Ownership (Digital Signature)
    Alice state Update
    Bob state Update
    Tx = Alice Sig, Alice addr, Bob addr , 100
    If tx valid :
    1. Owner Ship (Signature)
    2. Balance (Integrity)
    3. Double Spending
    4. Protocol Rule


    View Slide

27. যڌѱ ৔૑ध ૐݺਵ۽ ?
    zero-knowledge proof
    ≈ no any information except whether the statement is true or false.
    Transaction ≈ Sender, Receiver, amount
    Transaction -> Valid?
    Blockchain
    + Ownership (Digital Signature)
    π


    View Slide

28. ޙઁ 1 : Hiding Transaction ≈ Sender, Receiver, amount
    Balance,Sender, Receiver, amount
    KLAYTN (State Model)
    Contract
    >cryptography
    UTXO Model
    To


    Address
    Alice


    Address
    Alice
    V
    V = V’ + V’’
    Unspent
    Spent
    Balance,Sender, Receiver, amount


    View Slide

29. ޙઁ 2 : Transaction validation & update
    Cypress-Blockchain
    Verify () if π is valid
    Balance , Sig
    Sender, Receiver, amount
    Update


    View Slide

30. CM := Hash(v||addr||o) Commitment
    Alice(EOA)
    Cypress-Blockchain
    Bob(EOA)
    CM1
    = Hash(100Klay|Alice | O)
    CM2= Hash(100Klay|Bob | O)
    CM1
    CM2
    Update
    How to ?
    1. Owner Ship (Signature)
    2. Balance (Integrity)
    3. Double Spending
    4. Protocol Rule


    View Slide

31. How to ?
    > Owner Ship (Signature)
    2. Balance (Integrity)
    > Double Spending
    4. Protocol Rule
    Alice(EOA)
    Cypress-Blockchain
    Bob(EOA)
    CM1
    = Hash(100Klay|Alice | O)
    CM2
    = Hash(100Klay|Bob | O)
    Nullifier
    COM
    CM1
    CM2
    CM3
    CM4
    ,,,
    ..
    Nf Double Spending
    Nf = Hash (Skown
    ,cm1
    )
    Ownership
    Skown
    Skown


    View Slide

32. How to ?
    1. Owner Ship (Signature)
    > Balance (Integrity)
    3. Double Spending
    4. Protocol Rule
    Alice(EOA)
    Cypress-Blockchain
    Bob(EOA)
    CM1= Hash(100Klay|Alice | O)
    CM2= Hash(100Klay|Bob | O)
    Co-Path = A,B, Cm1
    Cm1
    A
    B
    Membership Proof
    RT


    View Slide

33. How to ?
    1. Owner Ship (Signature)
    2. Balance (Integrity)
    3. Double Spending
    > Protocol Rule
    ✓ Membership proof (rt, Cm1, Path)
    ✓ CM1
    = Hash(100Klay|Alice | O)

    ✓ CM2
    = Hash(100Klay|Bob | O)
    ✓ nf1 = Hash (Skown
    ,Cm1
    )

    ✓ PCT bob

    ✓ PCT Audit

    ✓ Update process
    ZKP
    π (proof)
    Verify :

    ✓ CM2


    ✓ rt

    ✓ nf
    1
    ✓ If π is valid : Update
    ✓ Cypress-Blockchain


    View Slide

34. money laundering drug trafficking
    Audit
    Cypress-Blockchain
    Zkp

    Privacy
    money laundering drug trafficking
    Blockchain
    Zkp

    Privacy
    “Azeroth [3] [Auditable Zero-knowledge Transactions in Smart Contracts] ”
    Performance + Audit
    https://www.zkrypto.com/

    Zkp core, tech.

    Rollup

    Privacy,

    Voting,

    did
    [3] : Azeroth https://eprint.iacr.org/2022/211.pdf


    View Slide

35. Transaction Type Proof Generate time Gas
    Zether[4]
    transfer 17.9 sec 606 million
    withdraw 8.5 sec 245 million
    Zeth[5]
    transfer 13.2 sec 142 million
    withdraw 13.5 sec 145million
    Azeroth
    zkTrasnfer(transfer,withdra
    w)
    0.9 sec 150 million
    • Private Network Solo Consensus Node CN 1 / PN 1 / EN 1 (local
    network): macmini i7
    • Zether(sigma-bulletproof)
    • Zeth (GROTH16)
    • Azeroth (GROTH16)
    • Azeroth (GROTH16) Tx_Latency : 3.5 sec (Client : 1.9 + KLAYTN Blockchain : 1.6 )

    • Zk Freindly cryptography, Optimization

    Ref[4] : https://crypto.stanford.edu/~buenz/papers/zether.pdf
    Ref[5] : https://arxiv.org/pdf/1904.00905.pdf


    View Slide

36. Research on improvement of Azeroth
    ✓ Usability
    ✓ Wallet support
    ✓ Security
    ✓ Performance (Gas) : Layer 2 , Membership proof, Structure
    Next !


    View Slide

37. 3. zkp Research - Scalability


    View Slide

38. Blockchain Scalability
    탈중앙화 (Decentralized)


    합의 (Consensus)


    투명성 (Transparency)


    안전하게 (Secure)
    Low TPS, High gas Cost, Storage ….


    View Slide

39. Sharding, Consensus, Network, Storage, cryptography EVM…
    Mainchain L1
    Lightning network, state channel, side chain, Plasma..
    ..
    And
    ..
    Rollup
    L2 Solution(L1 offchain)


    View Slide

40. Cypress-
    Blockchain
    Layer 1 Layer 2 Tx1
    Tx2
    Tx3
    Tx4
    Tx5
    Tx6
    ..
    .
    Contract
    Batch
    StateRoot
    Data (Highly compression )
    Single Transaction L2 1000 Transaction
    >
    Valid ?


    View Slide

41. যڌѱ ৔૑ध ૐݺਵ۽ ?
    zero-knowledge proof
    ≈ no any information except whether the statement is true or false.
    ≈ L2 Transactions Transactions ->ZKP ->π (Proof)
    Layer1
    Contract
    Verify


    View Slide

42. zk Rollup Structure
    ]
    • L1 Trust L2 Zkp proof -> L1 verify
    • Compression effect on transaction execution and validation
    Layer1 Layer 2
    π (proof)
    Tx1
    Tx2
    Tx3
    Tx4
    Tx5
    Tx6
    ..
    .
    ERC20, ETHER


    Transfer


    Deposit


    Withdraw
    Tx verification
    conditions
    Circuit Constraint
    Block1
    Block2
    Block3
    π (proof)
    π (proof)
    Πblock
    Data

    State Root
    Aggregate
    Verify (Πblock
    )


    View Slide

43. zk Rollup Structure
    Alice Bob
    Deposit
    Withdraw
    (Full Exit)
    Alice Bob
    Layer2
    L2 State
    Deposit
    Withdraw


    (Full Exit)
    Layer1
    Contract
    L1 Transaction L1 -> L2-> L2 –Block Commit (stateRoot, L2 data), commit proof -> L1-verify -> Finalize state


    L2 Transaction L2-> L2 -> L2-Block Commit (stateRoot, L2 data), commit proof -> L1-verify -> Finalize state
    Zkp proof -> Verify Block & finalize state
    L1 Transaction
    L2
    Transaction
    Server Prover
    State Merkle Tree
    Transaction state : Committed, Verified


    View Slide

44. zk Rollup Structure
    Alice Bob
    Deposit
    Withdraw
    (Full Exit)
    Alice Bob
    Layer2
    L2 State
    Deposit
    Withdraw


    (Full Exit)
    Layer1
    Contract
    L1 Transaction L1 -> L2-> L2 –Block Commit (stateRoot, L2 data), commit proof -> L1-verify -> Finalize state


    L2 Transaction L2-> L2 -> L2-Block Commit (stateRoot, L2 data), commit proof -> L1-verify -> Finalize state
    Zkp proof -> Verify Block & finalize state
    L1 Transaction
    L2
    Transaction
    Server Prover
    State Merkle Tree
    Transaction state : Committed, Verified


    View Slide

45. zk Rollup Structure
    ▪Data Availability : The L2 data update for every block is published over the mainchain network
    ▪Users can always retrieve the funds from the Rollup even if validator(s) stop cooperating because the data is
    available -> Modular Blockchain
    ▪On chain Operation -> withdraw
    ▪ Opcode,
    ▪ Account,
    ▪ Amount
    ▪ …
    ▪ ..
    ▪L2 Data (Highly compression )


    View Slide

46. zk EVM (2.0)
    • zkEVM : virtual machine that runs zero-knowledge proofs in a manner compatible with zero-knowledge proof
    computations.
    • Zkp complexity -> Smart Contract Deploy (lang support) -> Proof , Circuit , verify
    • Supports smart contract development toolz
    • zk-friendly : Hash function (SHA256, Keccak256), cryptographic , computation


    View Slide

47. • Rollup & Zk EVM
    • L2 Cost & Block Commit (block size chunk), zk Snark 1 ≈ 1000
    • Tps & Tx Latency


    View Slide

48. 4. Zkp Research – Interoperability


    View Slide

49. Blockchain
    Interoperability
    Bridge


    View Slide

50. Bridge
    Contract Contract
    Trust party
    Service provider
    Operator, Validator
    Security threats
    Blockchain A Blockchain B
    Contract Contract
    Trustless
    Blockchain A Blockchain B


    View Slide

51. How can we make a trustless bridge?




    zero-knowledge proof
    no any information except whether the statement is true or false.
    Blockchain A
    Blockchain B
    Blockchain B
    Blockchain B
    π
    π
    Alice(EOA)
    Alice(EOA)
    Contract Contract
    Blockchain A Blockchain B
    π
    >> Each isolated chain only trusts zkp Proof






    View Slide

52. যڌѱೞݶনଃ୓ੋীࢲ౟ے੥࣌੉ৢ߄ܰѱ୊ܻоغ঻Ҋ࠶۾ীನೣ੉غ঻חо


    #MPDL)FBEFSℵ$POTFOTVT/PEF
    > Blockchain Consensus
    >Transaction Execution
    ! Difficult (Consensus)
    ! High computation cost off chain (Cryptography)
    ! Non-ZKP
    Next
    )FBEFSSFDFJQUT3PPUNFSLMF3PPU 5Y@SFDFJQU .FSLMF
    1BUI



    5Y@SFDFJQU-PH<*EY>'SPN6TFS.$


    5Y@SFDFJQU-PH<*EY>5P#SJEHF"EES.$
    IBSEDPEFE



    5Y@SFDFJQU-PH<*EY>"NPVOU"NPVOU


    5Y@SFDFJQU-PH<*EY>%FTUJOBUJPO#SJEHF"EES4$
    IBSE
    DPEFE



    5Y@SFDFJQU-PH<*EY>4$@"DDPVOU6TFS4$


    5Y@SFDFJQU4UBUVT IBSEDPEFE





    View Slide

53. View Slide
