GraphQL & Java: The less obvious

A presentation on the less obvious aspects of introducing GraphQL into a Java-based stack, and an approach to dynamic schema generation. Originally presented at Codemotion Amsterdam 2017.

Transcript

1. Java  &  GraphQL:  The  less  obvious Bojan Tomić AMSTERDAM 16 - 17 MAY 2017

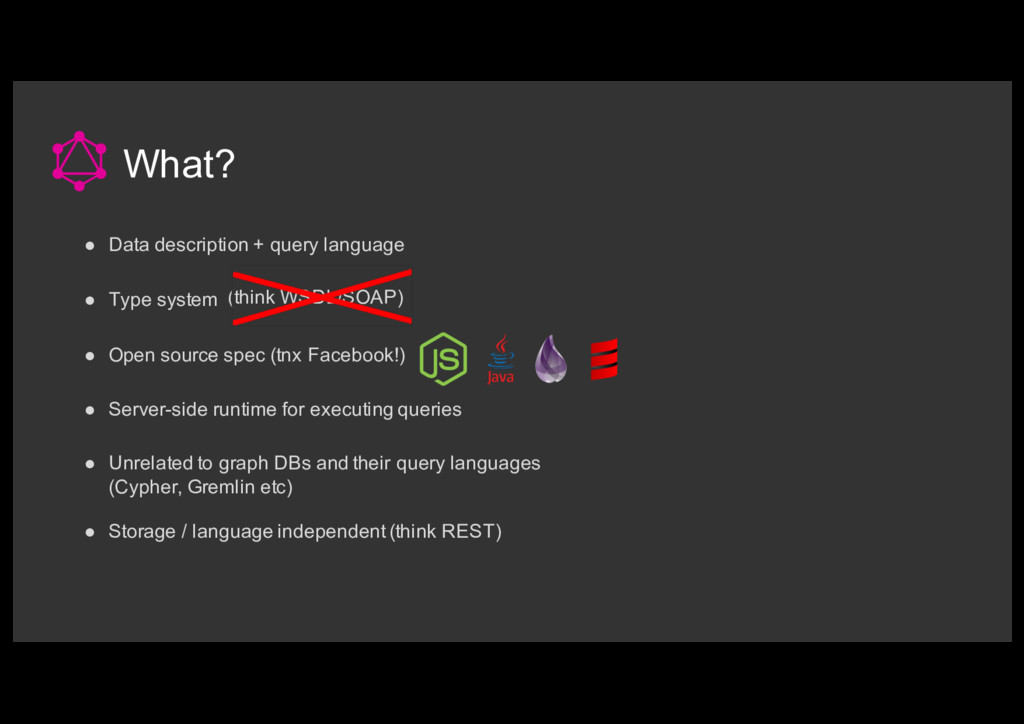

2. What? • Server-­side  runtime  for  executing  queries • Type  system • Storage  /  language  independent  (think  REST) • Open  source  spec  (tnx Facebook!) (think  WSDL/SOAP) • Unrelated  to  graph  DBs  and  their  query  languages (Cypher,  Gremlin  etc) • Data  description  +  query  language

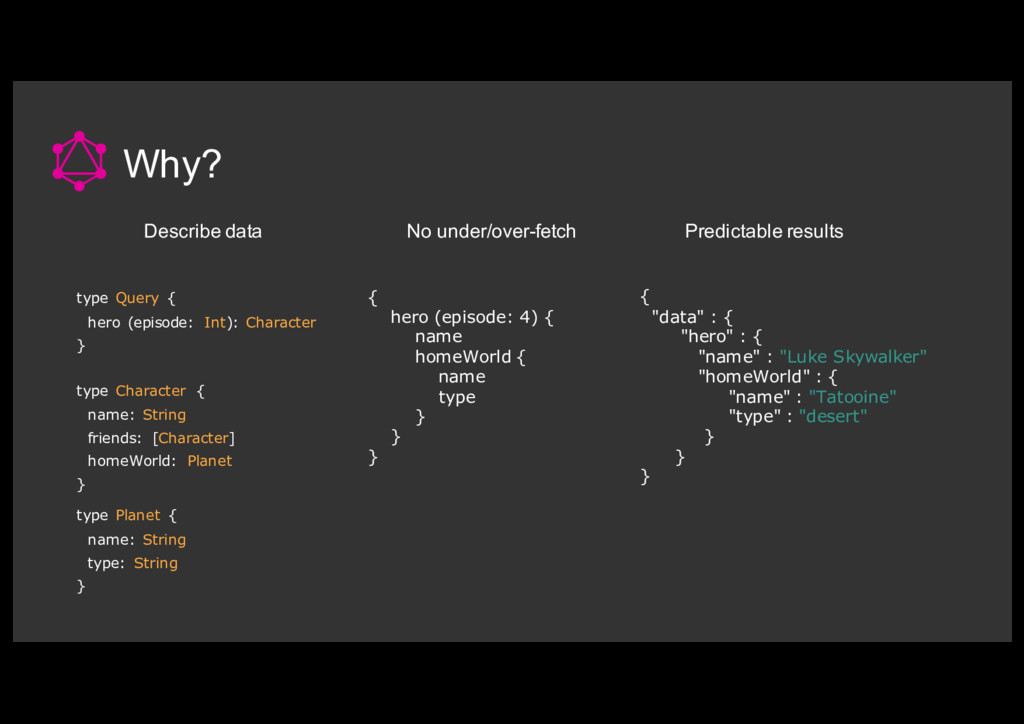

3. Why? Describe  data Predictable  results No  under/over-­fetch type Query { hero (episode: Int): Character } { hero (episode: 4) { name homeWorld { name type } } } { "data" : { "hero" : { "name" : "Luke Skywalker" "homeWorld" : { "name" : "Tatooine" "type" : "desert" } } } type Character { name: String friends: [Character] homeWorld: Planet } type Planet { name: String type: String }

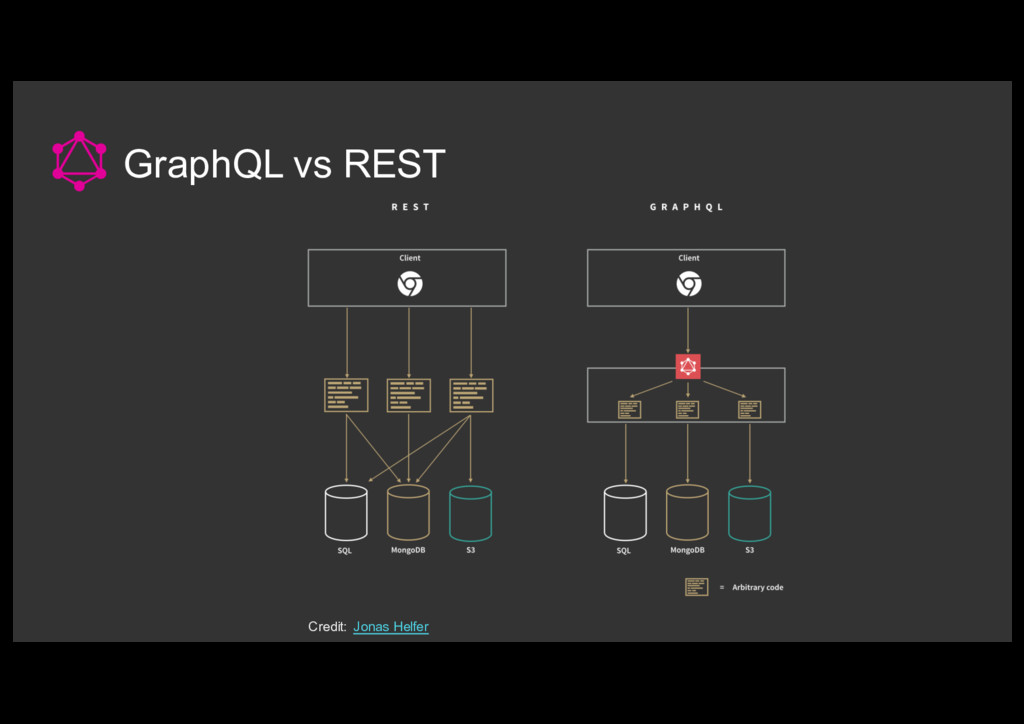

4. GraphQL  vs  REST Credit:   Jonas  Helfer
5. graphql-­java  :  Defining  the  schema GraphQLObjectType person= newObject() .name("Person") .field(newFieldDefinition() .name("addresses") .type(new GraphQLList(address)) .dataFetcher(env -> dataBase.query(…))) .field(newFieldDefinition() .name("name") .type(Scalars.GraphQLString)) .build(); GraphQLObjectType address = newObject() .name("Address") .field(newFieldDefinition() .name("streetName") .type(Scalars.GraphQLString) .build()) .field(newFieldDefinition() .name("houseNumber") .type(Scalars.GraphQLInt) .build()) .build();

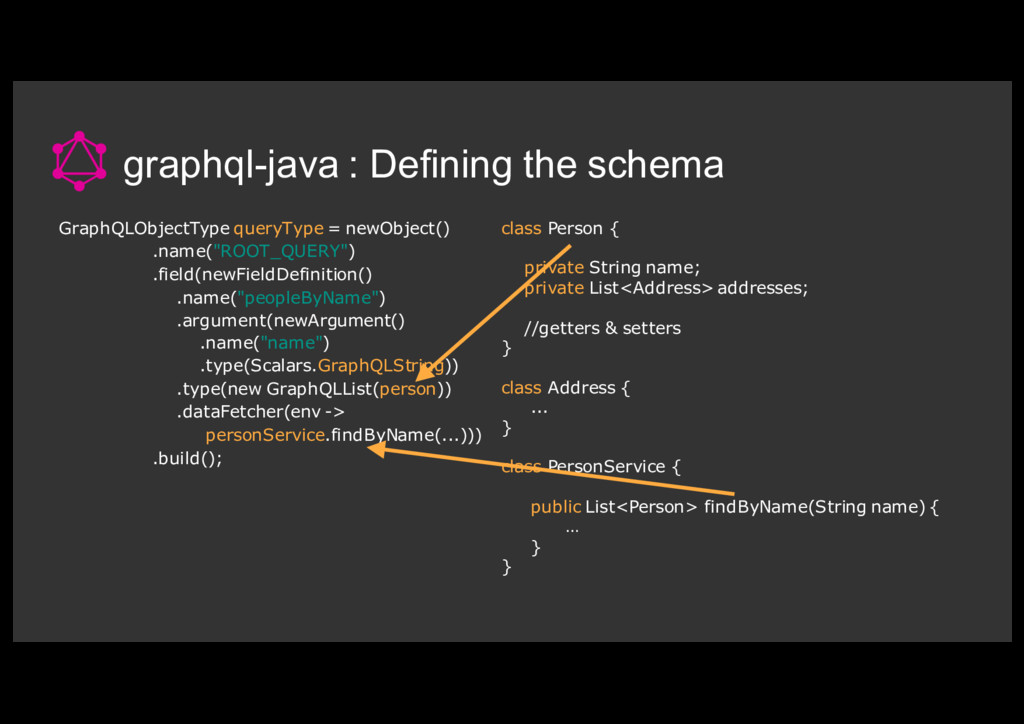

6. graphql-­java  :  Defining  the  schema GraphQLObjectType queryType = newObject() .name("ROOT_QUERY") .field(newFieldDefinition() .name("peopleByName") .argument(newArgument() .name("name") .type(Scalars.GraphQLString)) .type(new GraphQLList(person)) .dataFetcher(env -> personService.findByName(...))) .build(); class Person { private String name; private List<Address> addresses; //getters & setters } class Address { ... } class PersonService { public List<Person> findByName(String name) { … } }
7. The  problem  :  Duplication o Duplicates   type  definitions o Another  layer  to  maintain

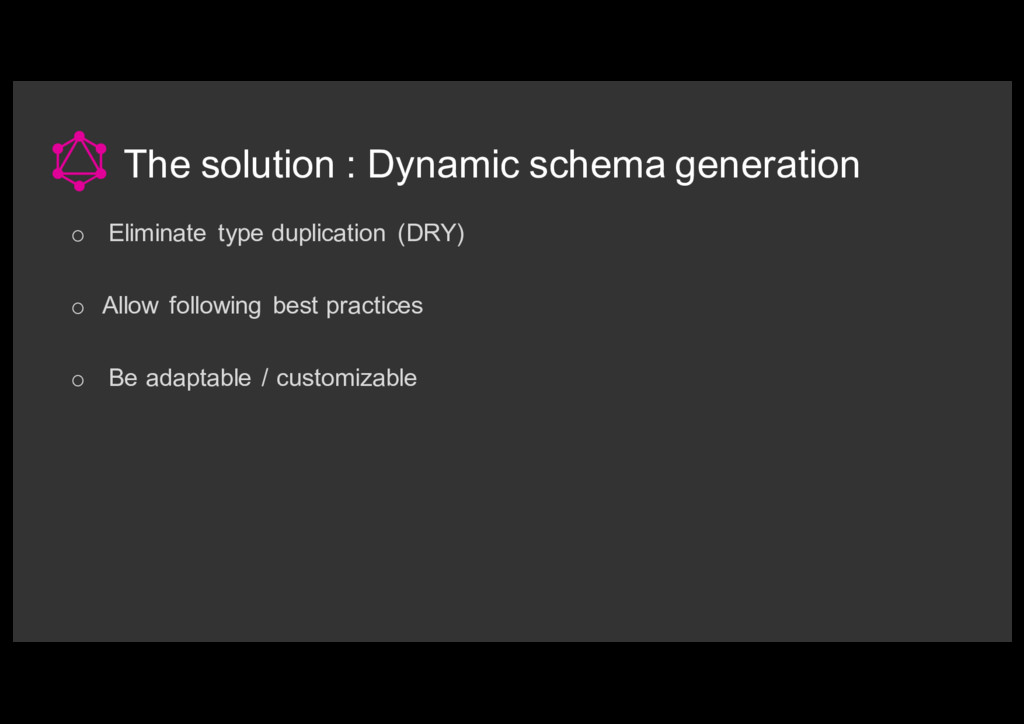

8. The  solution  :  Dynamic  schema  generation o Allow   following   best  practices o Be  adaptable  /  customizable o Eliminate   type  duplication   (DRY)
9. Introducing  GraphQL  SPQR

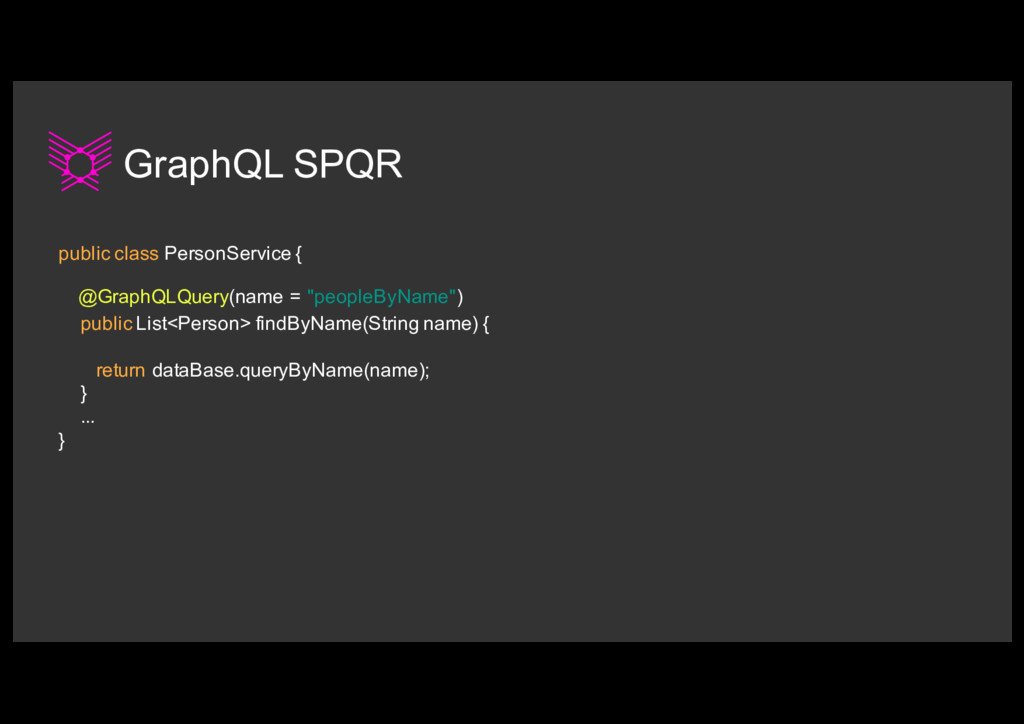

10. GraphQL  SPQR public  class PersonService { public List<Person>  findByName(String  name)  { return dataBase.queryByName(name);;   } ... } @GraphQLQuery(name  =  "peopleByName")

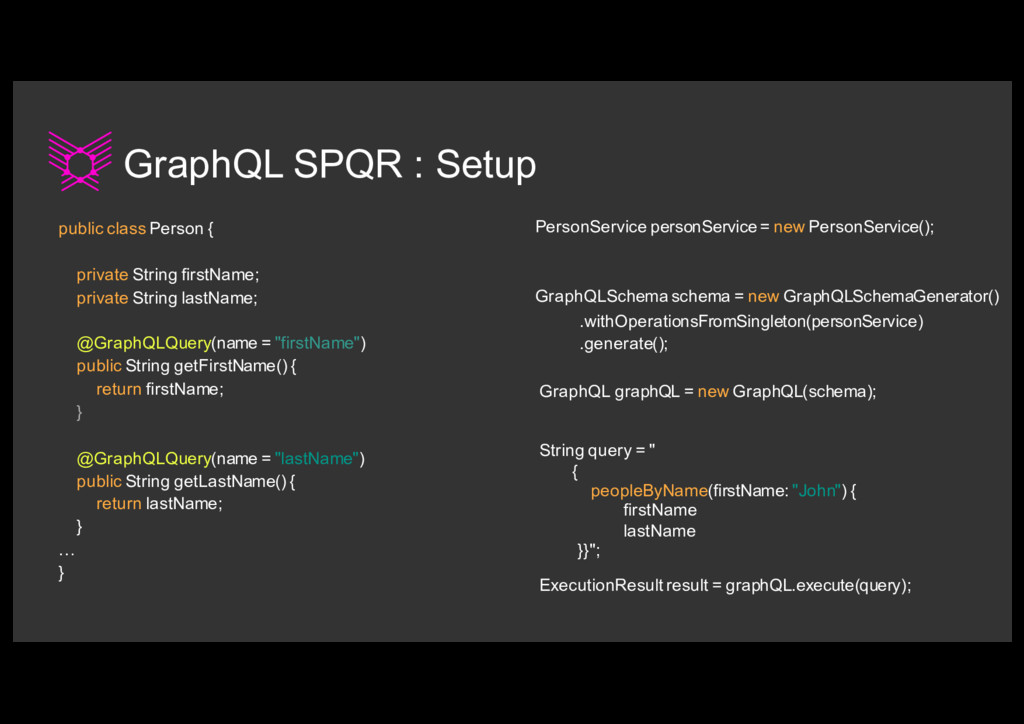

11. GraphQL  SPQR  :  Setup public  class Person  { private String  firstName;; private String  lastName;; @GraphQLQuery(name  =  "firstName") public String  getFirstName()  { return firstName;; } @GraphQLQuery(name  =  "lastName") public String  getLastName()  { return lastName;; } … } PersonService personService =  new PersonService();; GraphQLSchema schema  =  new GraphQLSchemaGenerator() .withOperationsFromSingleton(personService) .generate();; GraphQL graphQL =  new GraphQL(schema);; String  query  =  " { peopleByName(firstName:  "John")  { firstName lastName }}";; ExecutionResult result  =  graphQL.execute(query);;
12. GraphQL SPQR  :  Queries public  class PersonService { @GraphQLQuery(name  =  "twitterProfile") public TwitterProfile getTwitterProfile ( Person  person)  { return twitterApi.getProfile(person);; } @GraphQLQuery(name  =  "peopleByName") public List<Person>  findByName(  ...  )  { ... }         } { peopleByName (firstName :  "John")  { firstName lastName } } @GraphQLContext twitterProfile { handle numberOfTweets } { twitterProfile ( person:  { firstName :  "John" lastName :  "Doe" }) handle numberOfTweets } }
13. Demo DEMO  TIME

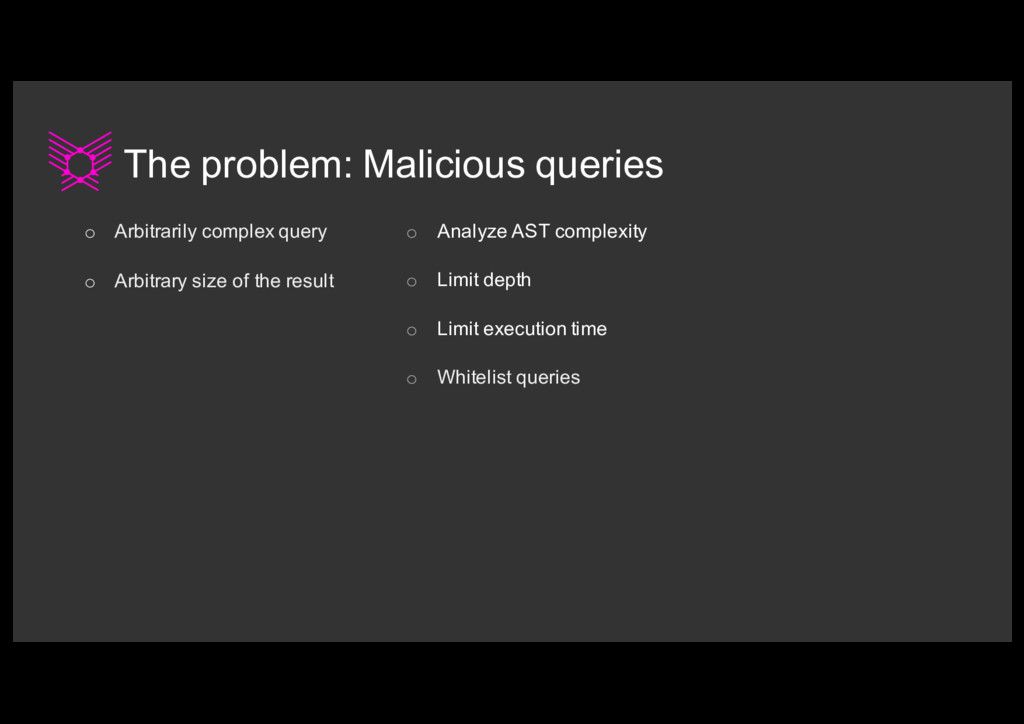

14. The  problem:  Malicious queries o Arbitrarily  complex  query o Arbitrary  size  of  the  result o Analyze  AST  complexity o Limit  depth o Limit  execution  time o Whitelist queries

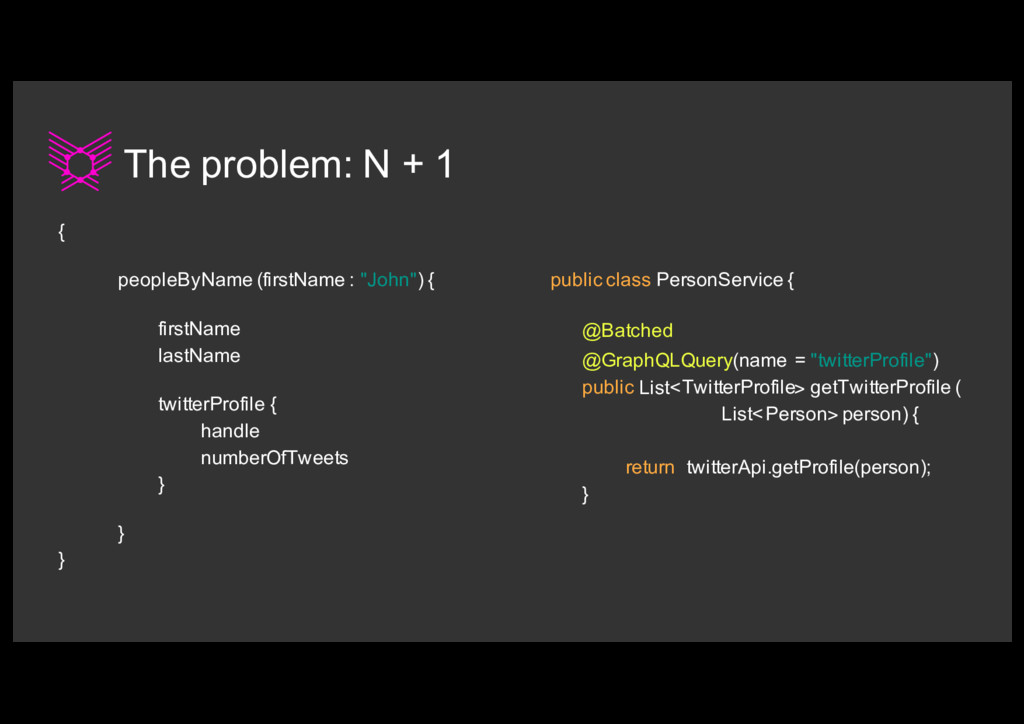

15. The  problem:  N  +  1 { peopleByName (firstName :  "John")  { firstName lastName twitterProfile { handle numberOfTweets } } } public  class PersonService { @GraphQLQuery(name  =  "twitterProfile") public TwitterProfile getTwitterProfile ( Person person)  { return twitterApi.getProfile(person);; } @Batched List< List< > >

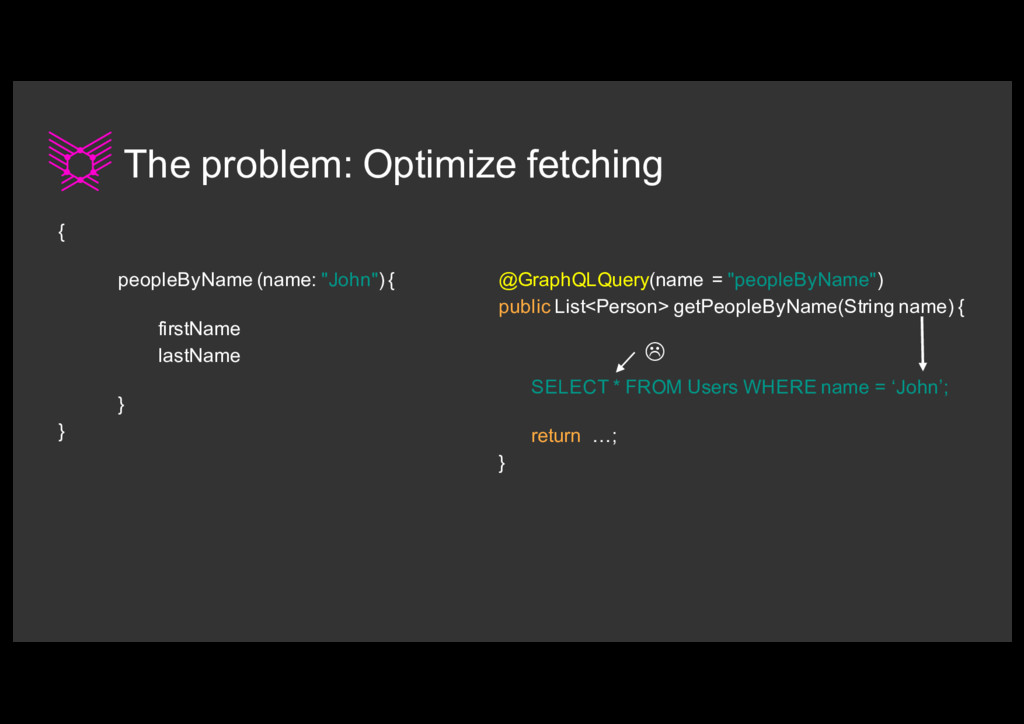

16. The  problem:  Optimize  fetching { peopleByName (name:  "John")  { firstName lastName } } @GraphQLQuery(name  =  "peopleByName") public List<Person>  getPeopleByName(String  name)  { SELECT  *  FROM  Users  WHERE  name  =  ‘John’;; return …;; } L

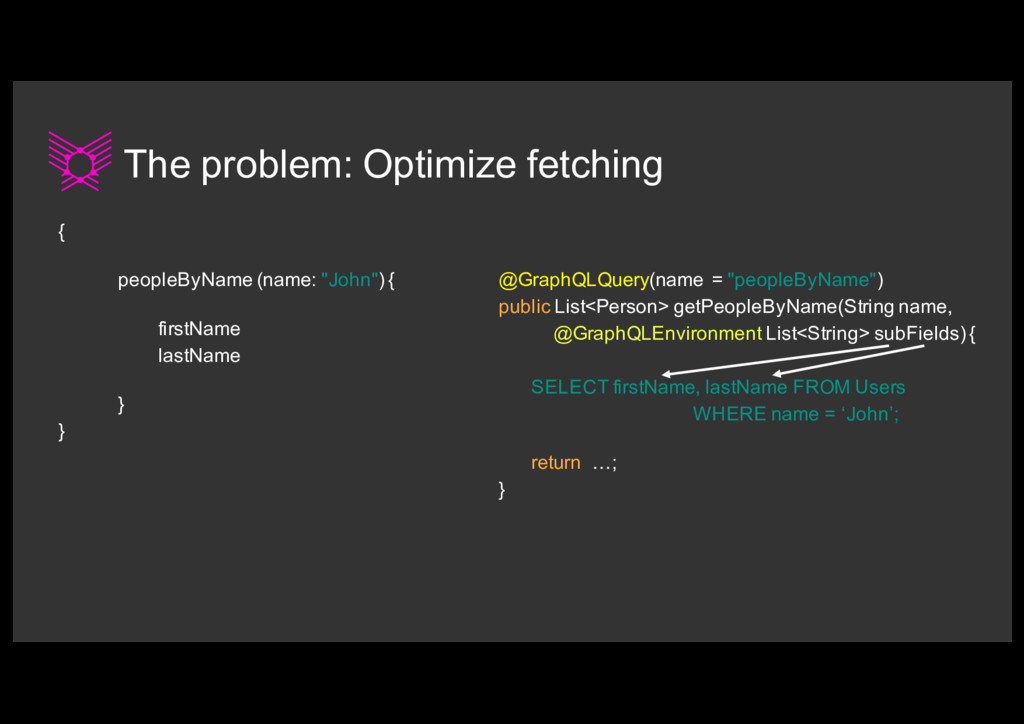

17. The  problem:  Optimize  fetching { peopleByName (name:  "John")  { firstName lastName } } @GraphQLQuery(name  =  "peopleByName") public List<Person>  getPeopleByName(String  name, @GraphQLEnvironment List<String>  subFields)  { SELECT  firstName,  lastName FROM  Users   WHERE  name  =  ‘John’;; return …;; }

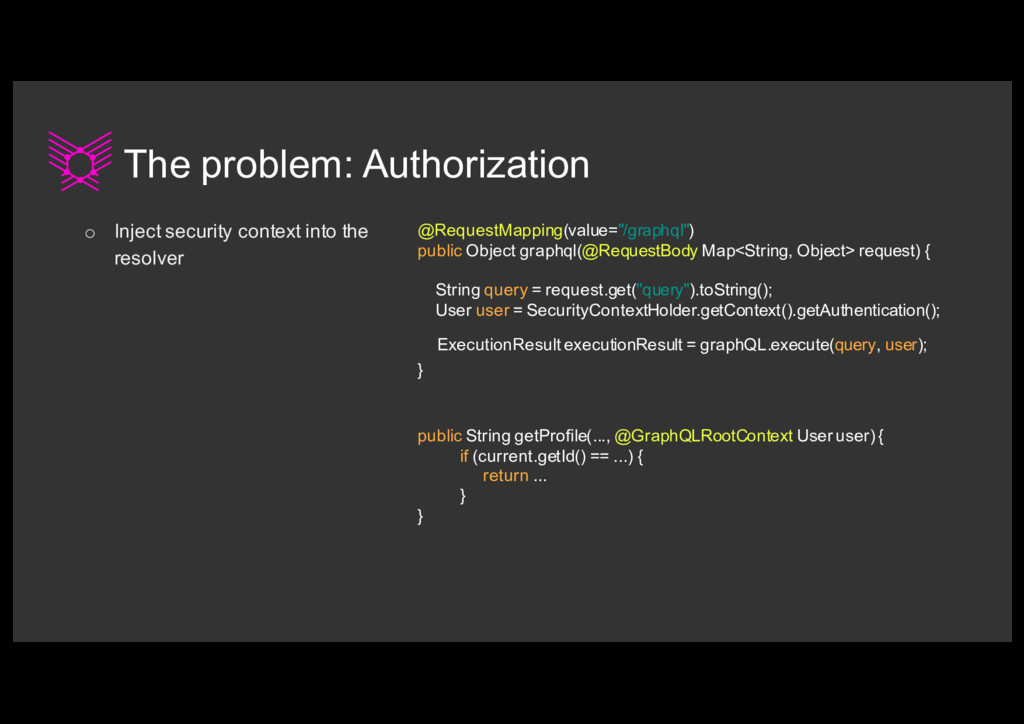

18. The  problem:  Authorization o Inject  security  context  into  the   resolver @RequestMapping(value="/graphql") public Object  graphql(@RequestBody Map<String,  Object>  request)  { String  query =  request.get("query").toString();; User  user =  SecurityContextHolder.getContext().getAuthentication();; } public String  getProfile(...,  @GraphQLRootContext User  user)  { if (current.getId()  ==  ...)  { return ...   } } ExecutionResult executionResult =  graphQL.execute(query,  user);;

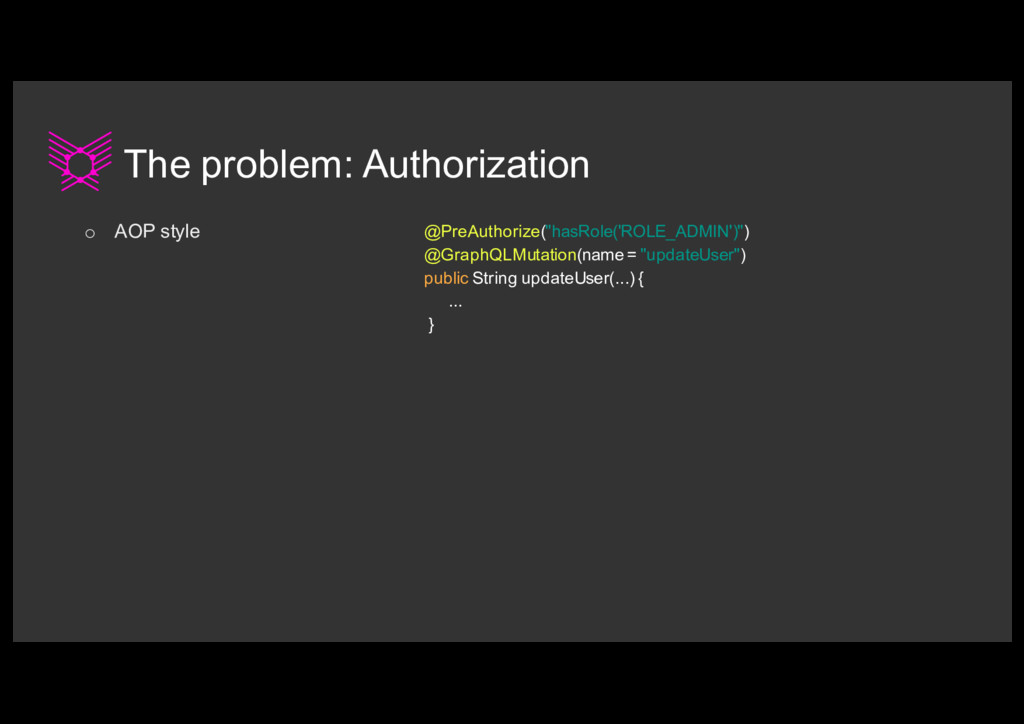

19. The  problem:  Authorization @PreAuthorize("hasRole('ROLE_ADMIN')")         @GraphQLMutation(name  =  "updateUser") public String  updateUser(...)  { ... } o AOP  style

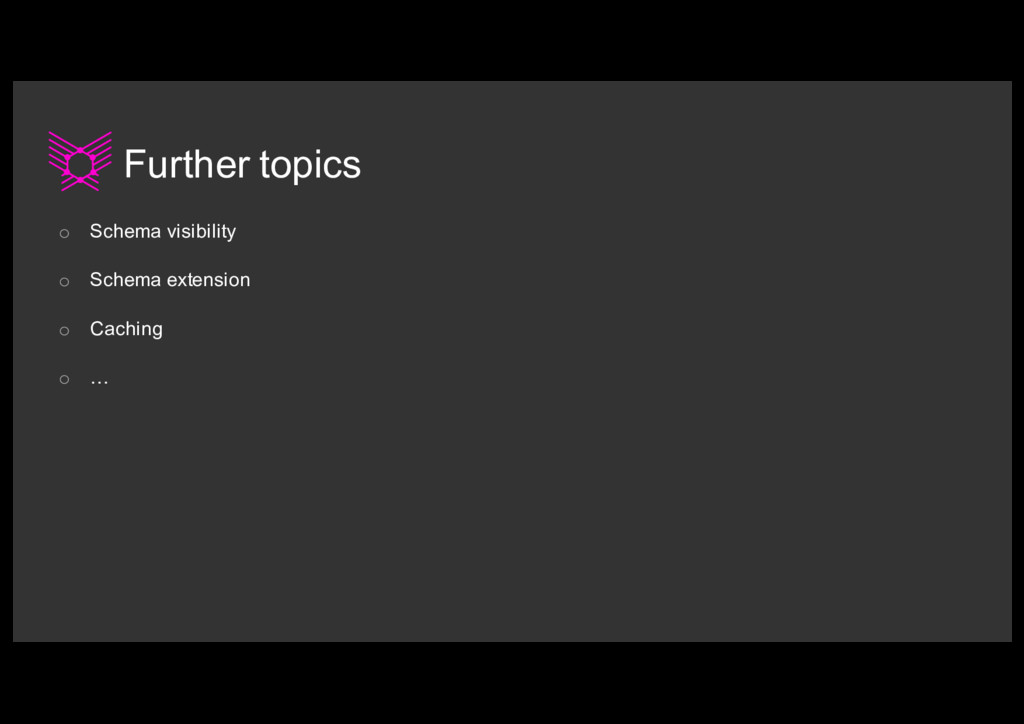

20. Further  topics o Schema  visibility o Schema  extension o Caching o …
21. Closing Bojan Tomić leangen.io github.com/leangen @kaqqao
22. Questions
