1. Network Lawliet
2. Outline • OSI Layers • Packet Format • Wireshark Overview
3. OSI Layers • Application • Presentation • Session • Transport • Network • Data Link • Physical IP Packets are encapsulated in Ethernet Frames.
4. Application Socket Transport TCP/UDP Segment Port Network IP Packet IP Network Interface (eth0 / wlan0) Data Link Ethernet Frame MAC Physical Application Socket Transport Network Network Interface Data Link Physical Data Data TCP Header Data TCP Header IP Header Data TCP Header IP Header Ethernet Header Ethernet Tail OSI Layers
5. Application Transport Network Data Link UDP TCP IP ARP RARP ICMP RTSP SMTP DHCP SSH FTP RTP TFTP RTMP POP PPP Ethernet
6. TCP v.s. UDP Connection Oriented v.s. Connectionless
7. TCP Header Format TCP Segment Header : 20 bytes
8. UDP Header Format UDP Segment Header : 8 bytes
9. TCP
10. UDP
11. Port : 0 ~ 65535 1.well-known ports : 0 ~ 1023 2.registered ports : 1024 ~ 49151 3.dynamic / private ports : 49152 ~ 65535
12. IP Packet IP Packet Header : 20 bytes
13. IP Class
14. Private IP
15. Destination IP Source IP Subnet Mask Destination Domain Source Domain compare Different : to Router Same : 1.ARP table 2.to ARP
16. ARP table : IP Address <-> MAC
17. Ethernet II Frame ** Physical Layer : Synchronize Ethernet Frame Header/Tail : 14 bytes + 4 bytes
18. Data Link • HUB copy to every ports • Switch table : MAC Address <-> ports Broadcast or Multicast
20. Data Link Ethernet Card receives Frames : • if ((Destination MAC Address) == (MACAddress) ) • Broadcast or Multicast • Promiscuous Mode

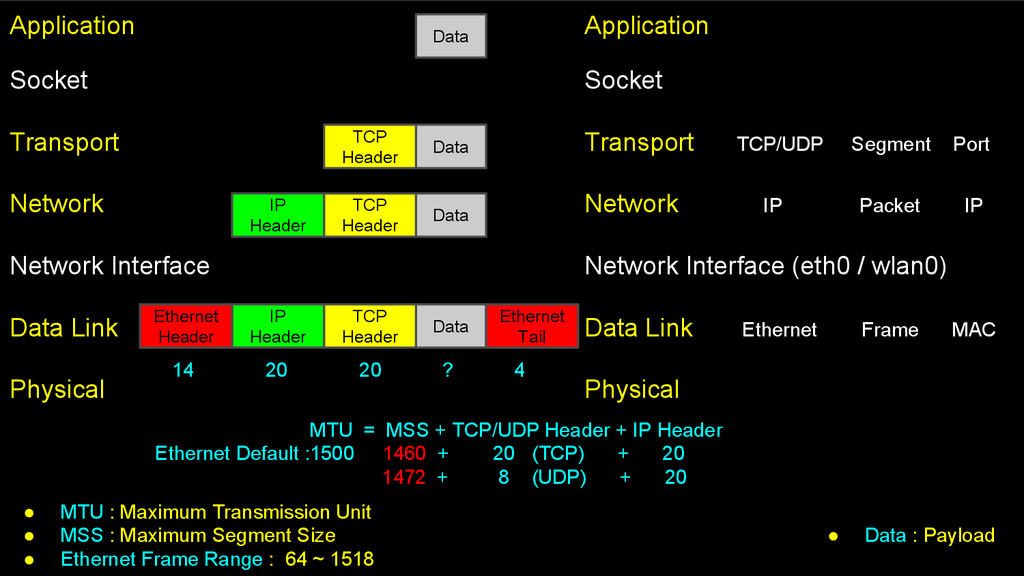

21. Application Socket Transport TCP/UDP Segment Port Network IP Packet IP Network Interface (eth0 / wlan0) Data Link Ethernet Frame MAC Physical Application Socket Transport Network Network Interface Data Link Physical Data Data TCP Header Data TCP Header IP Header Data TCP Header IP Header Ethernet Header Ethernet Tail 14 20 20 ? 4 MTU = MSS + TCP/UDP Header + IP Header Ethernet Default :1500 1460 + 20 (TCP) + 20 1472 + 8 (UDP) + 20 • MTU : Maximum Transmission Unit • MSS : Maximum Segment Size • Ethernet Frame Range : 64 ~ 1518 • Data : Payload
22. Wireshark capture the packets Where ?

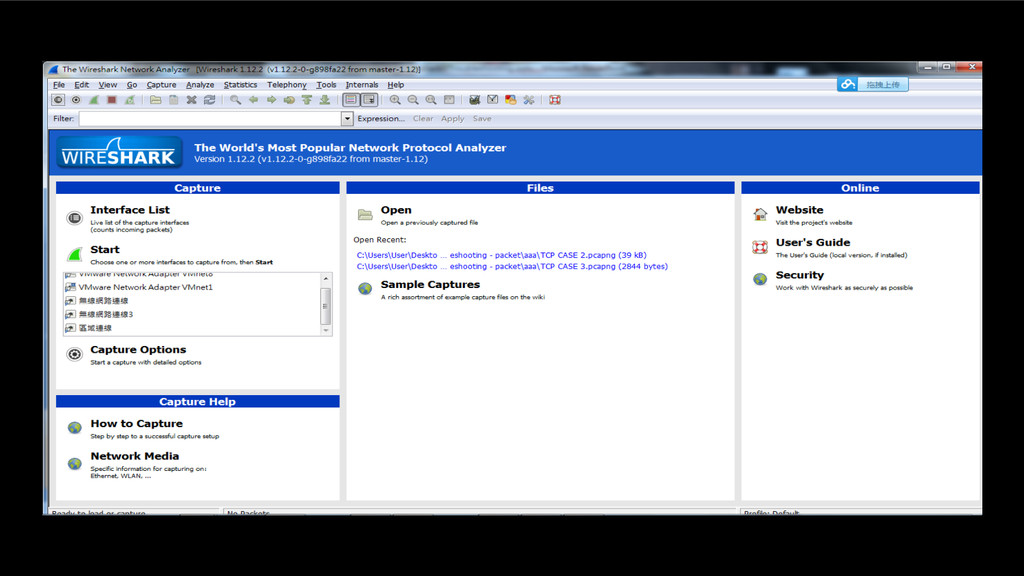

27. Wireshark start to capture How ?
31. Wireshark TCP 3-way handshaking
32. TCP Header Format 1 2 3 4 5 6 7 8 9
37. TCP Header Format 1 2 3 4 5 6 7 8 9
38. 1 2 3 4 5 6 7 8
43. RTSP • OPTIONS • DESCRIBE • SETUP • PLAY • TEARDOWN

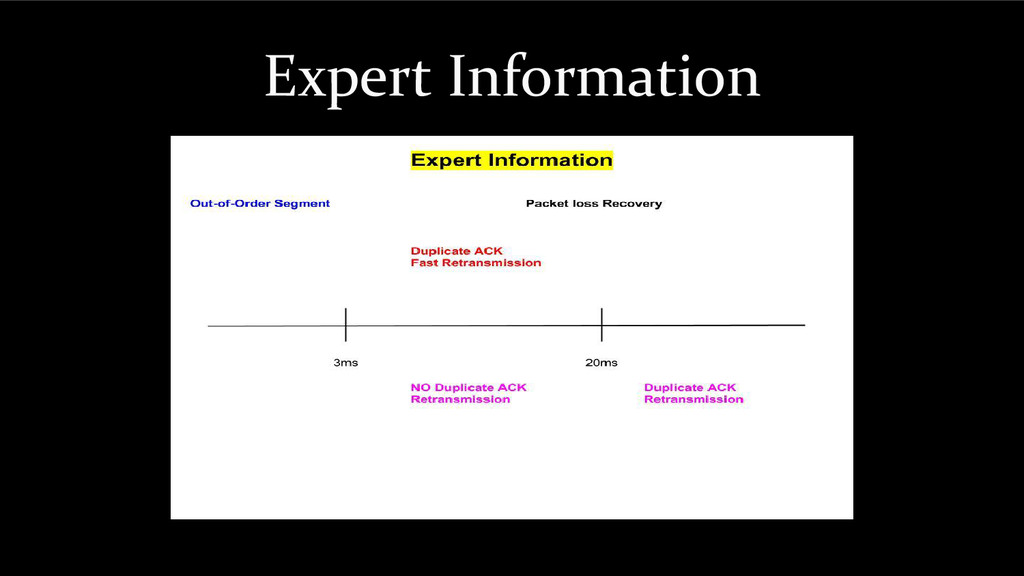

52. Expert Information • Out-of-Order Segment (packet arrives < 3 ms) • Packet loss Recovery - Duplicate ACK Fast Retransmission (packet arrives < 20 ms of a Duplicate ACK) - Retransmission (packet arrive > 3 ms and not related to Duplicte ACK) (packet arrives >= 20 ms of Duplicate ACK)
53. Fast Retransmission
54. Retransmission
55. Expert Information
56. Thanks for attending this presentation.
