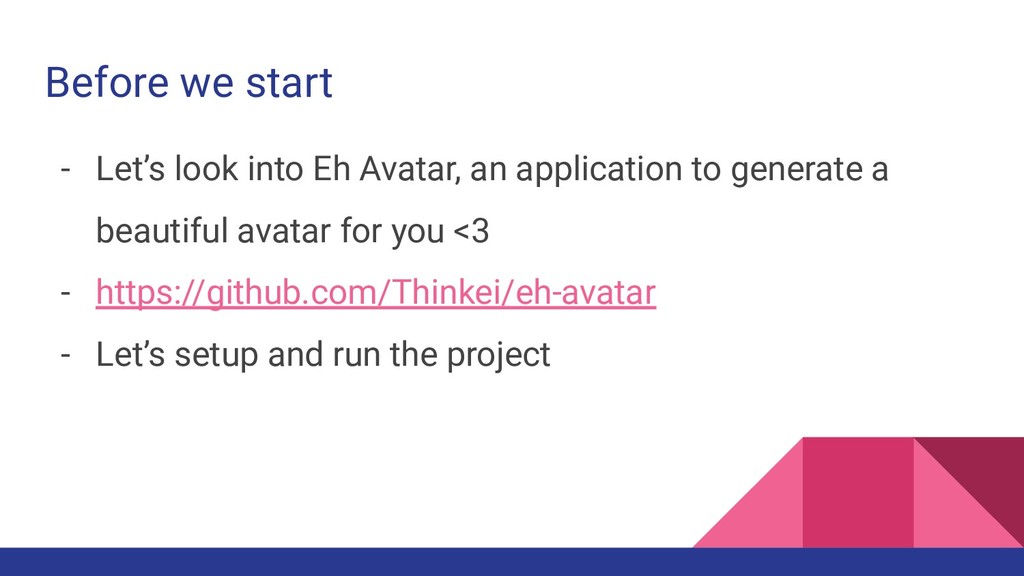

  1. - Let’s look into Eh Avatar, an application to generate

    a beautiful avatar for you <3 - https://github.com/Thinkei/eh-avatar - Let’s setup and run the project Before we start

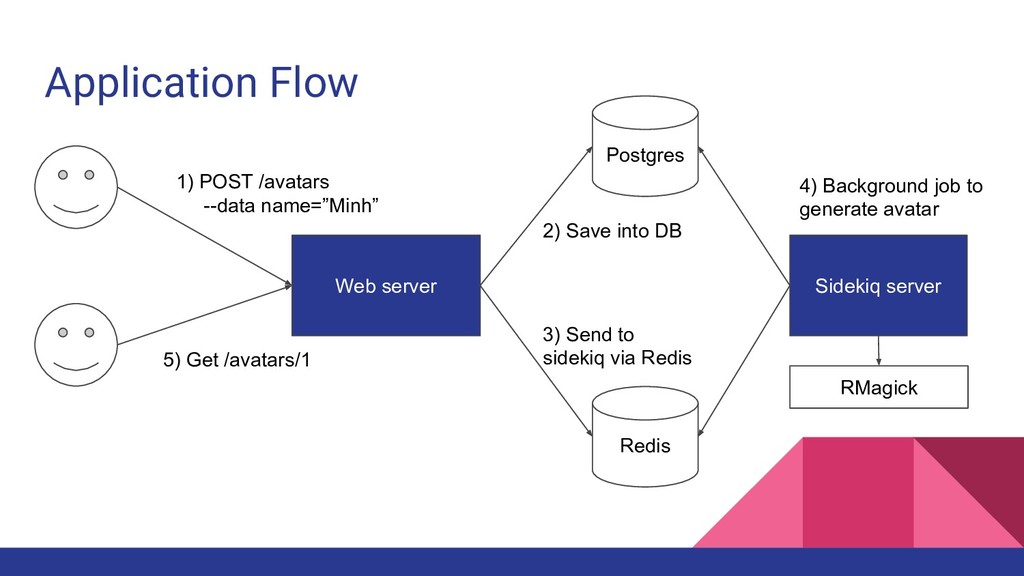

  2. Application Flow Web server 1) POST /avatars --data name=”Minh” Postgres

    Sidekiq server Redis 2) Save into DB 3) Send to sidekiq via Redis 4) Background job to generate avatar RMagick 5) Get /avatars/1

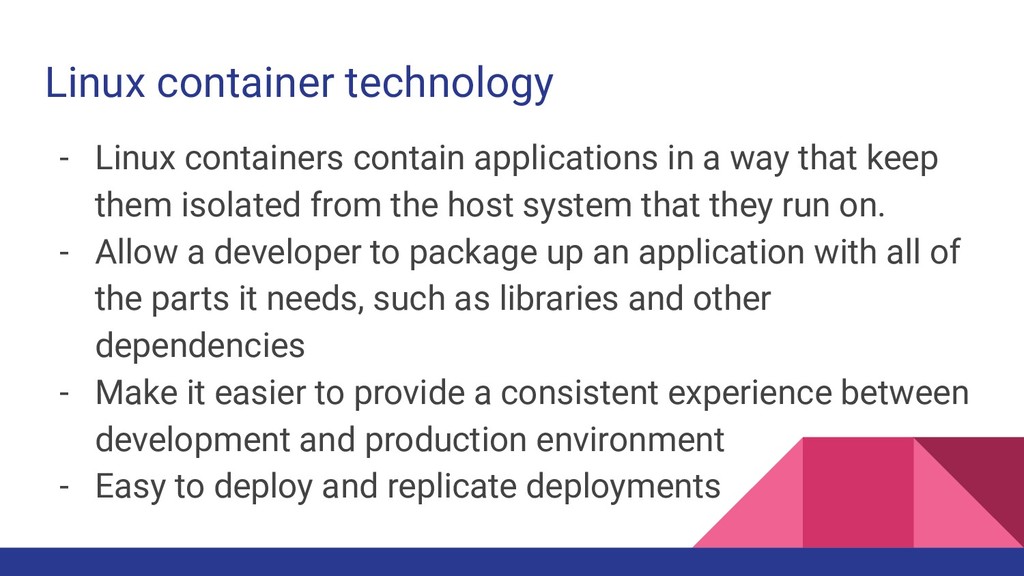

  3. Linux container technology - Linux containers contain applications in a

    way that keep them isolated from the host system that they run on. - Allow a developer to package up an application with all of the parts it needs, such as libraries and other dependencies - Make it easier to provide a consistent experience between development and production environment - Easy to deploy and replicate deployments

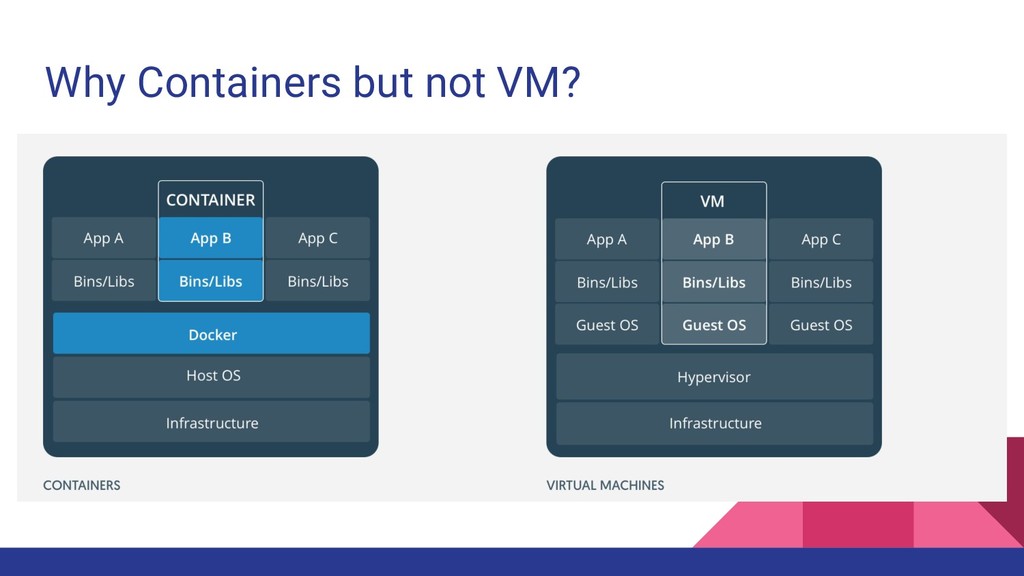

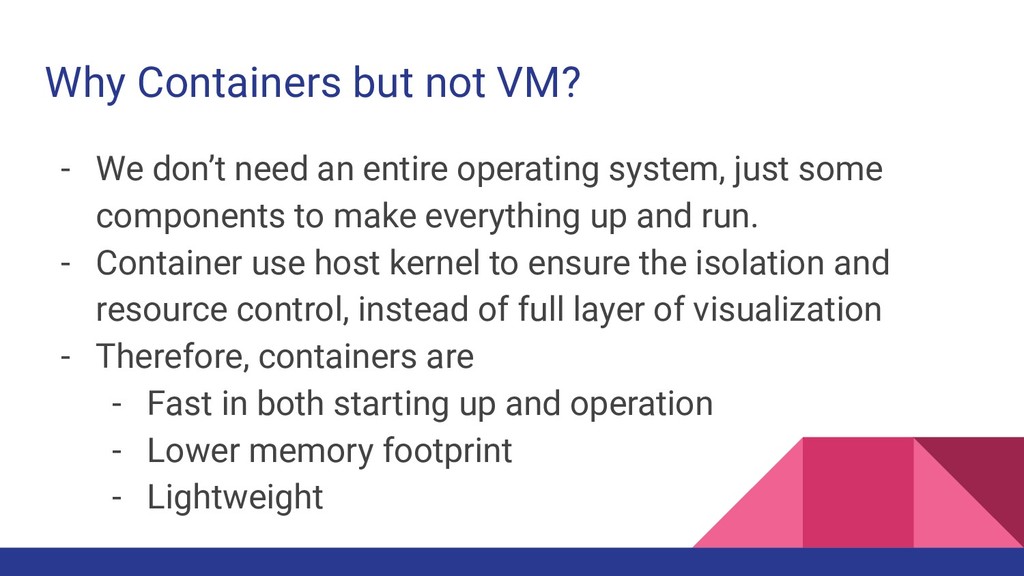

  4. Why Containers but not VM? - We don’t need an

    entire operating system, just some components to make everything up and run. - Container use host kernel to ensure the isolation and resource control, instead of full layer of visualization - Therefore, containers are - Fast in both starting up and operation - Lower memory footprint - Lightweight

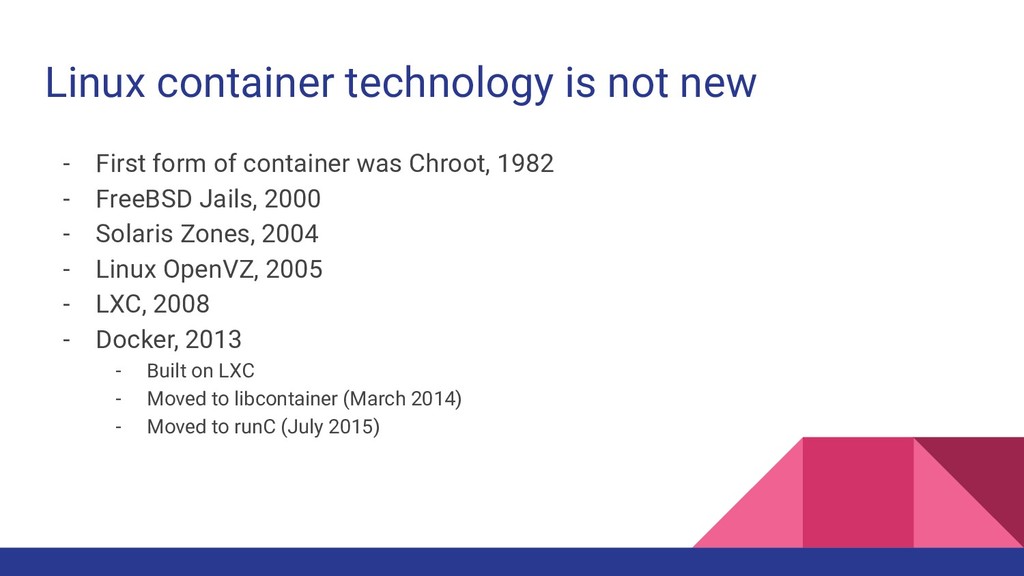

  5. Linux container technology is not new - First form of

    container was Chroot, 1982 - FreeBSD Jails, 2000 - Solaris Zones, 2004 - Linux OpenVZ, 2005 - LXC, 2008 - Docker, 2013 - Built on LXC - Moved to libcontainer (March 2014) - Moved to runC (July 2015)
  6. What is Docker? - Container solution that provides full packages:

    - Image management - Resource Isolation - File System Isolation - Network Isolation - Change Management - Sharing - Process Management - Service Discovery (DNS since 1.10)

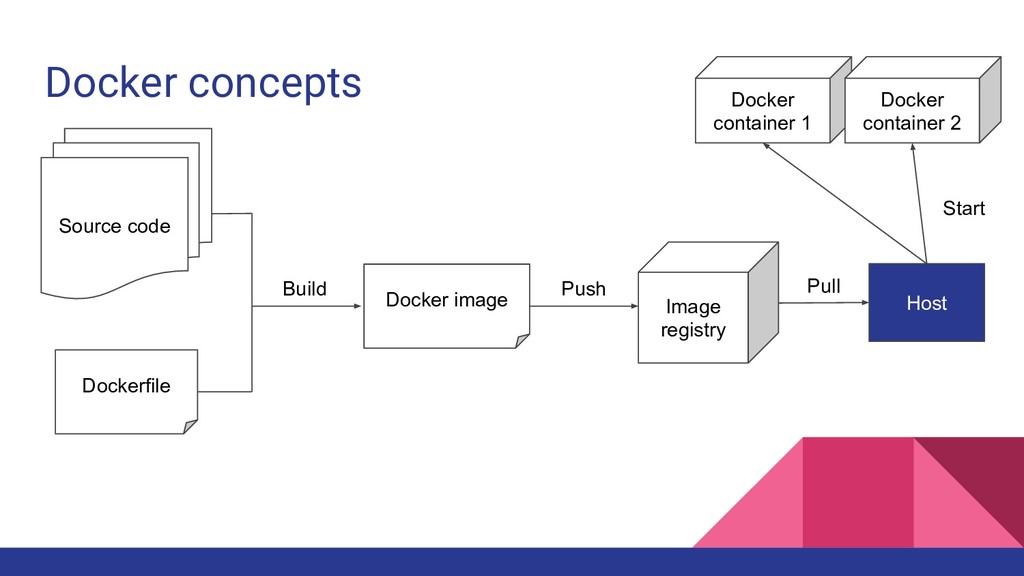

  7. Docker concepts Source code Dockerfile Build Docker image Push Image

    registry Host Pull Docker container 1 Docker container 2 Start

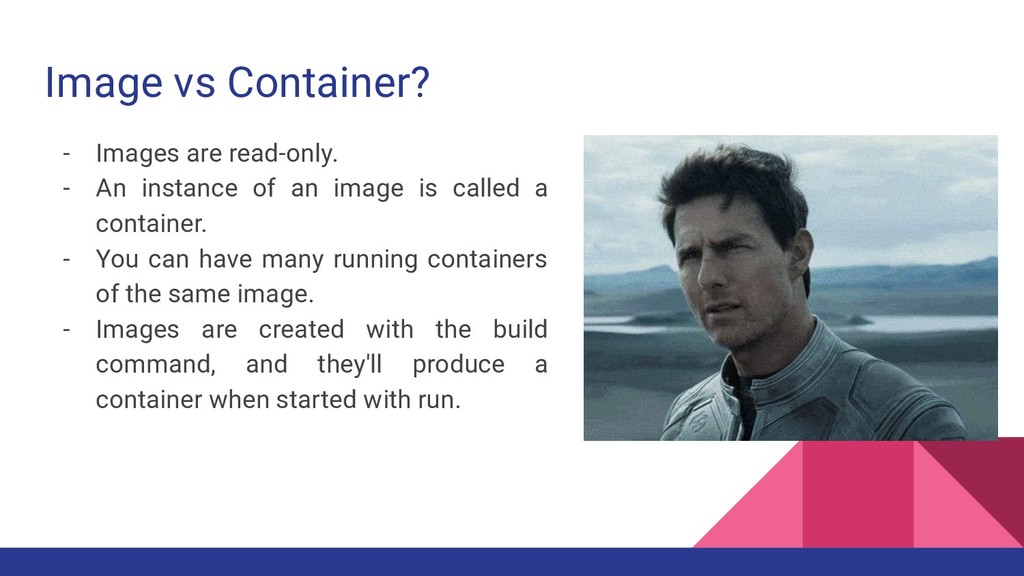

  8. Image vs Container? - Images are read-only. - An instance

    of an image is called a container. - You can have many running containers of the same image. - Images are created with the build command, and they'll produce a container when started with run.

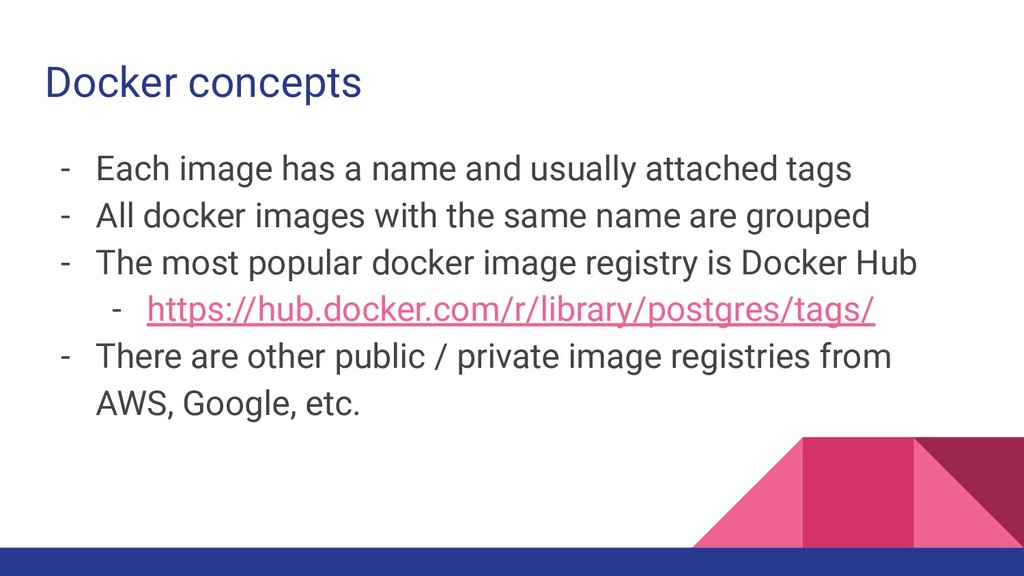

  9. Docker concepts - Each image has a name and usually

    attached tags - All docker images with the same name are grouped - The most popular docker image registry is Docker Hub - https://hub.docker.com/r/library/postgres/tags/ - There are other public / private image registries from AWS, Google, etc.

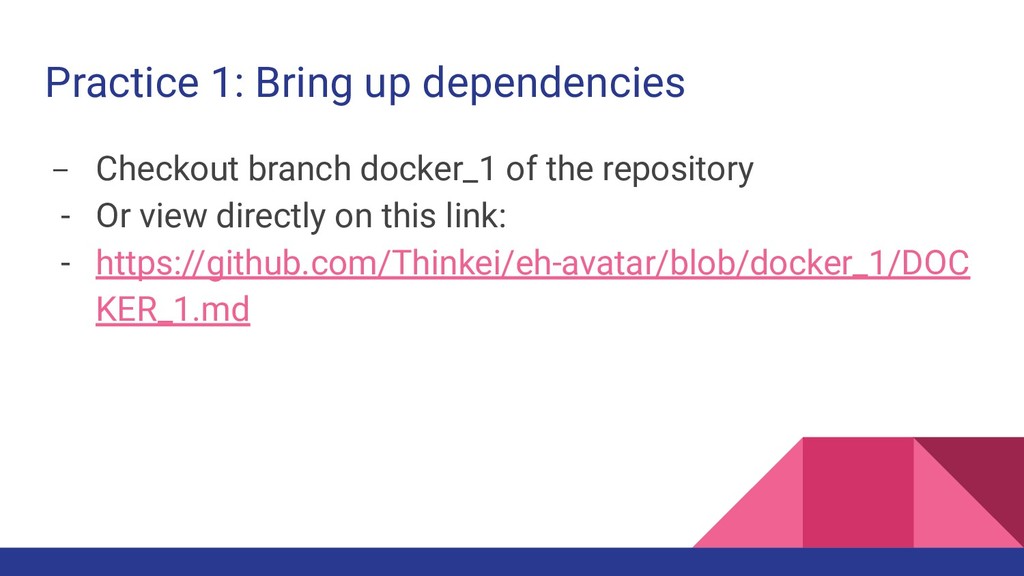

  10. Practice 1: Bring up dependencies - Checkout branch docker_1 of

    the repository - Or view directly on this link: - https://github.com/Thinkei/eh-avatar/blob/docker_1/DOC KER_1.md

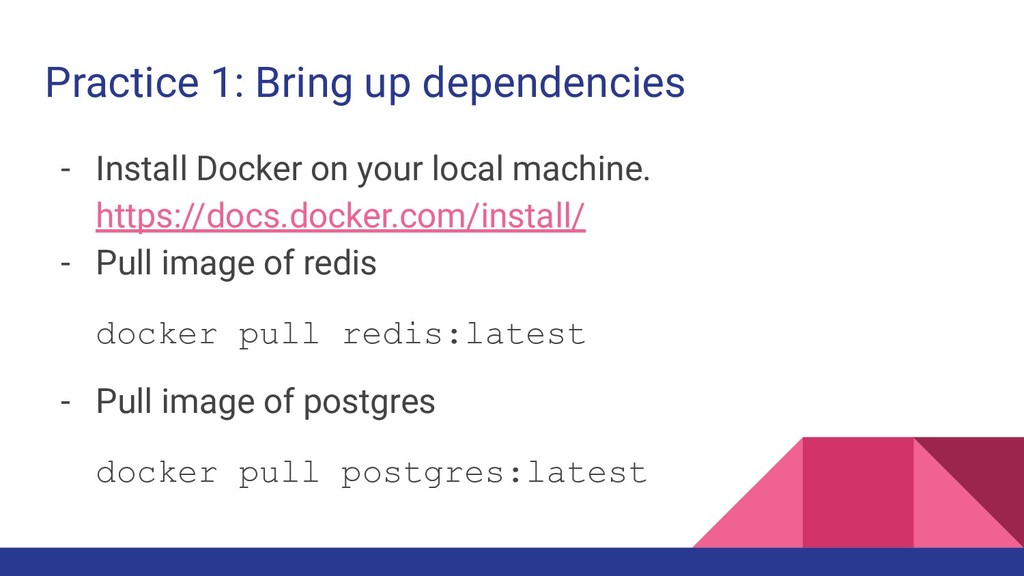

  11. Practice 1: Bring up dependencies - Install Docker on your

    local machine. https://docs.docker.com/install/ - Pull image of redis docker pull redis:latest - Pull image of postgres docker pull postgres:latest

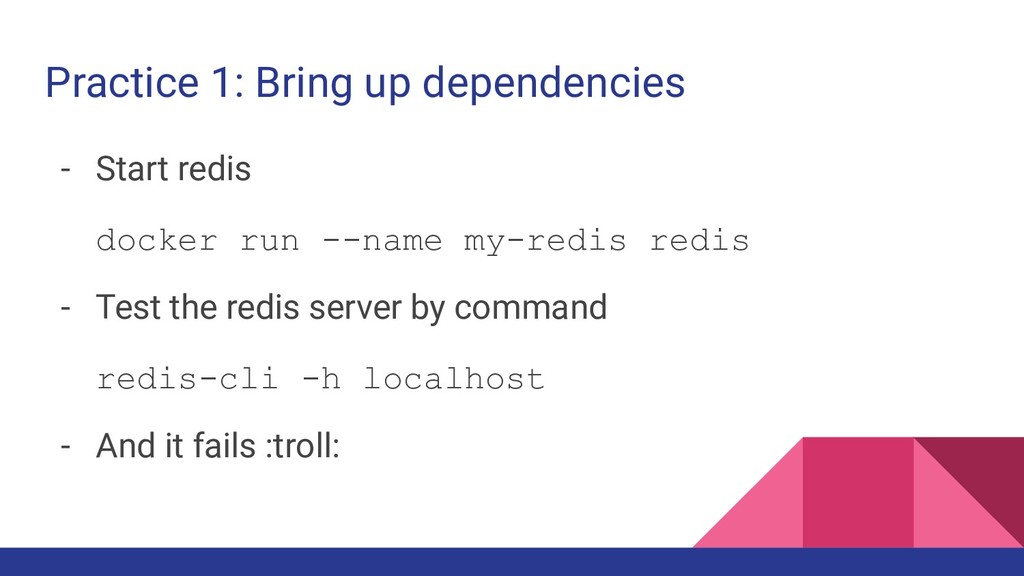

  12. Practice 1: Bring up dependencies - Start redis docker run

    --name my-redis redis - Test the redis server by command redis-cli -h localhost - And it fails :troll:

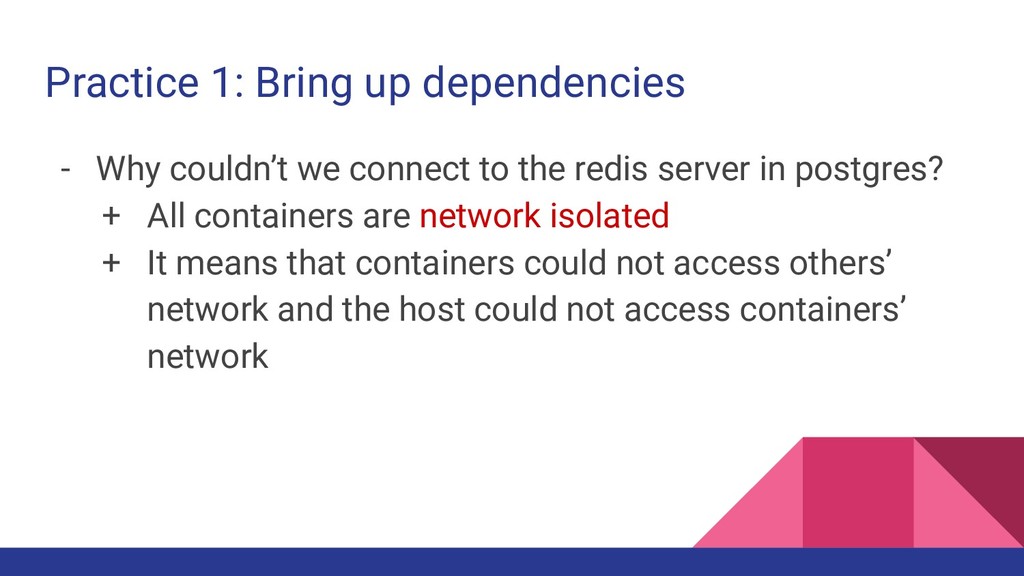

  13. Practice 1: Bring up dependencies - Why couldn’t we connect

    to the redis server in postgres? + All containers are network isolated + It means that containers could not access others’ network and the host could not access containers’ network

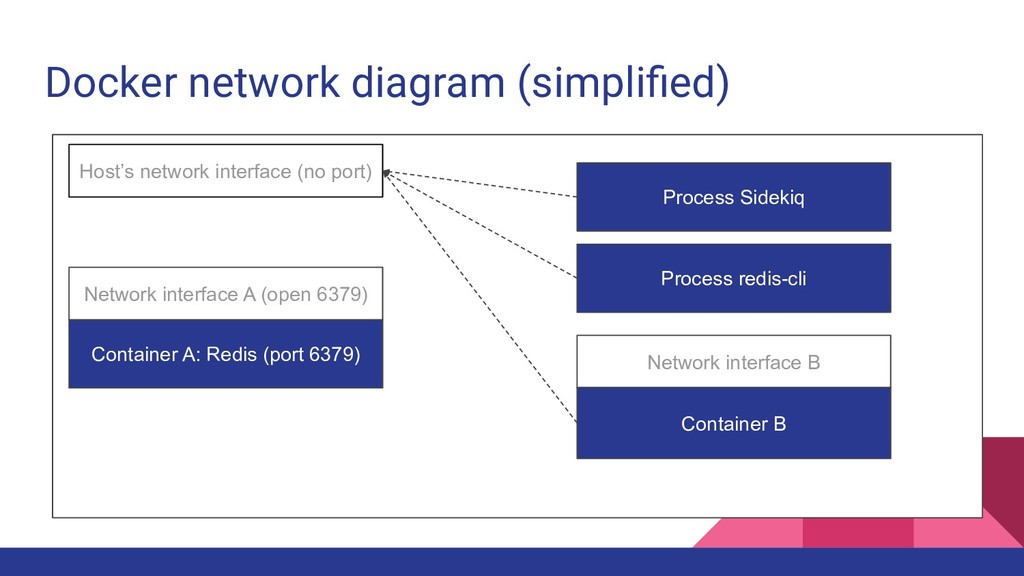

  14. Docker network diagram (simplified) Host’s network interface (no port) Network

    interface A (open 6379) Container A: Redis (port 6379) Network interface B Container B Process Sidekiq Process redis-cli

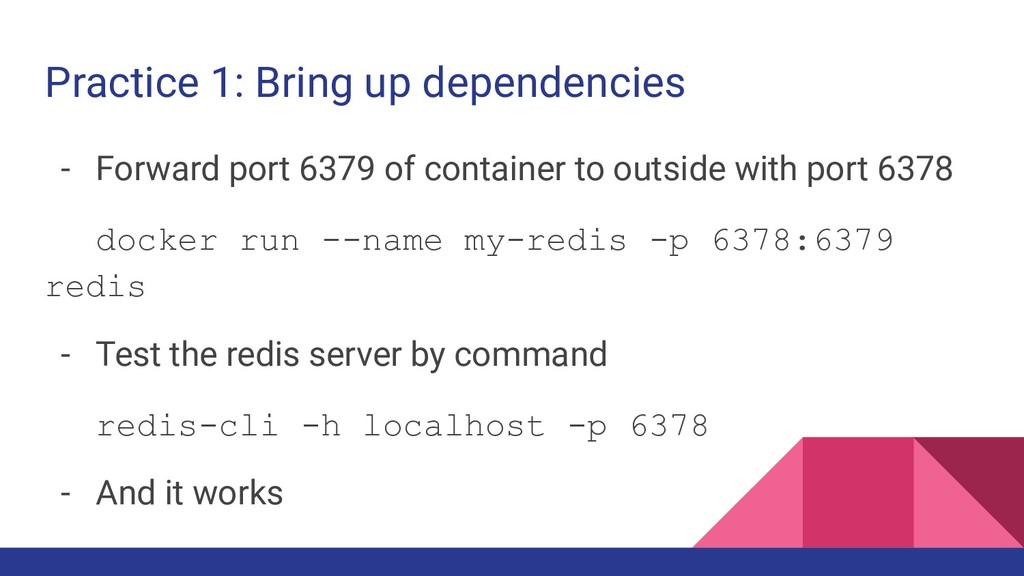

  15. Practice 1: Bring up dependencies - Forward port 6379 of

    container to outside with port 6378 docker run --name my-redis -p 6378:6379 redis - Test the redis server by command redis-cli -h localhost -p 6378 - And it works
  16. Docker network diagram (simplified) Host’s network interface (open 6378) Network

    interface A (open 6379) Container A: Redis (port 6379) Network interface B Container B Process Sidekiq Process redis-cli
  17. Practice 1: Bring up dependencies - Bring up postgres docker

    run \ --name my-postgres \ -p 5433:5432 \ -e POSTGRES_PASSWORD=password \ -e POSTGRES_USER=username \ -e POSTGRES_DB=ehavatar \ postgres

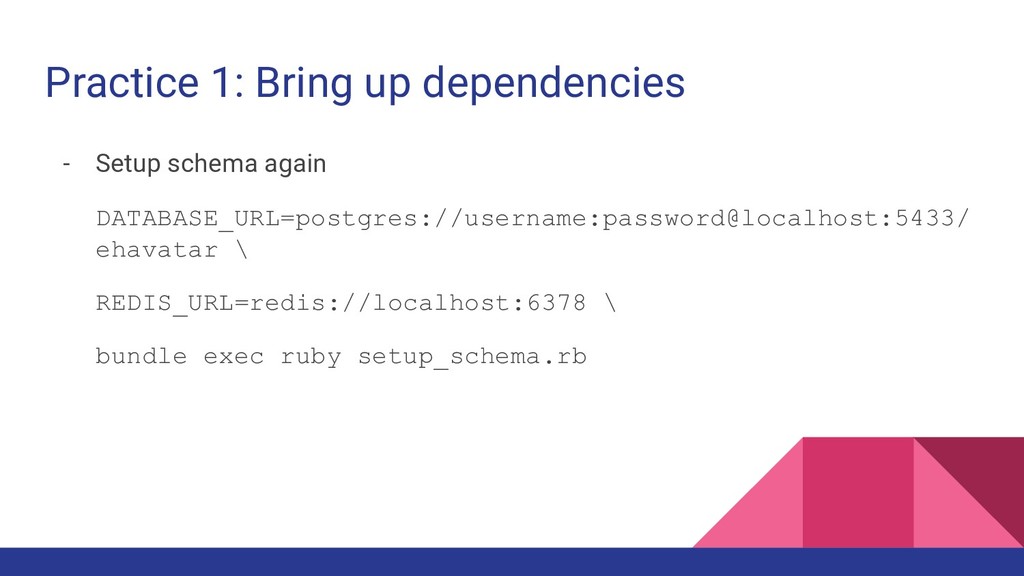

  18. Practice 1: Bring up dependencies - Setup schema again DATABASE_URL=postgres://username:password@localhost:5433/

    ehavatar \ REDIS_URL=redis://localhost:6378 \ bundle exec ruby setup_schema.rb

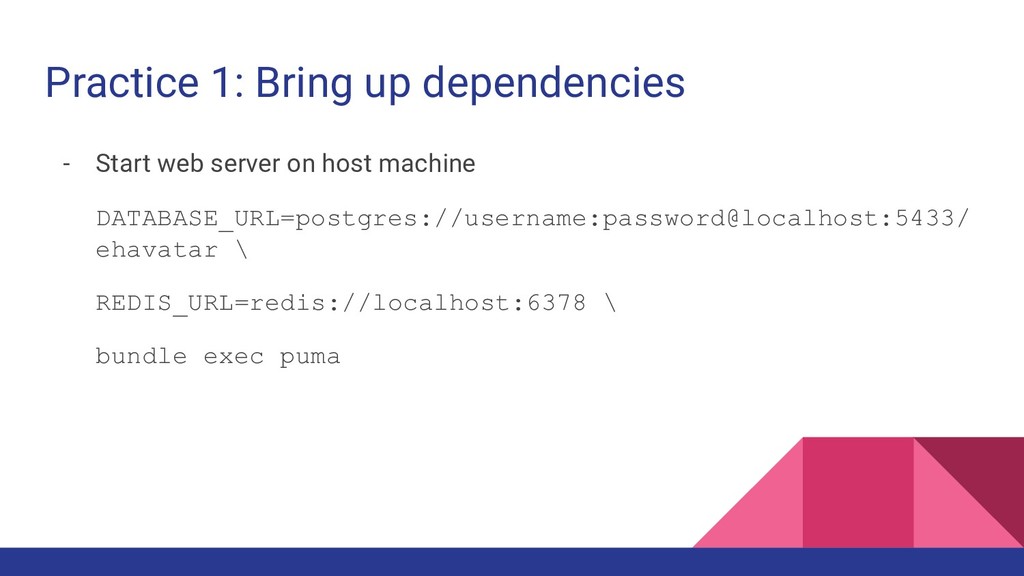

  19. Practice 1: Bring up dependencies - Start web server on

    host machine DATABASE_URL=postgres://username:password@localhost:5433/ ehavatar \ REDIS_URL=redis://localhost:6378 \ bundle exec puma
  20. Practice 1: Bring up dependencies - Start sidekiq on host

    machine DATABASE_URL=postgres://username:password@localhost:5433/ ehavatar \ REDIS_URL=redis://localhost:6378 \ bundle exec bundle exec sidekiq -r ./config/environment.rb

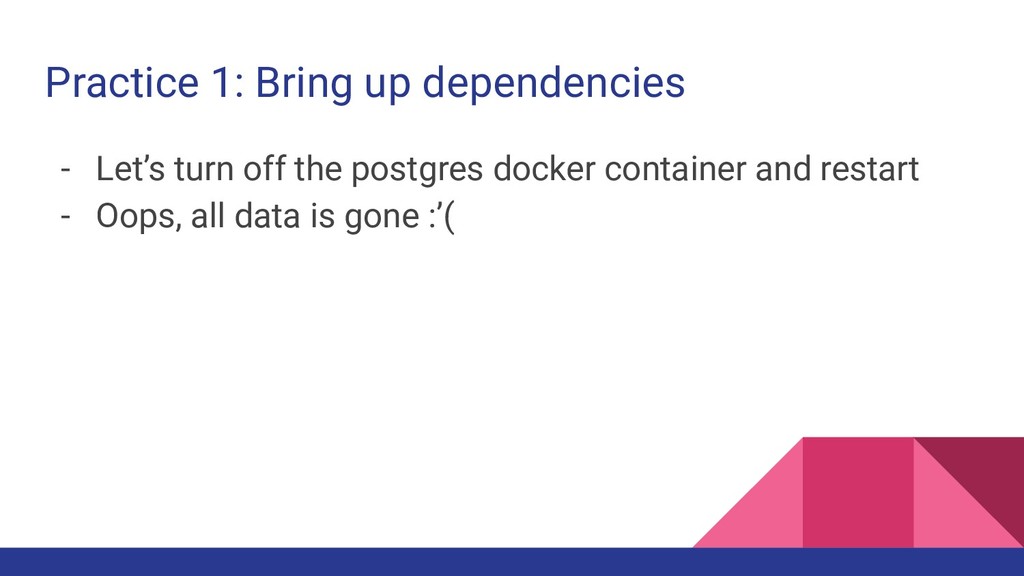

  21. Practice 1: Bring up dependencies - Let’s turn off the

    postgres docker container and restart - Oops, all data is gone :’(

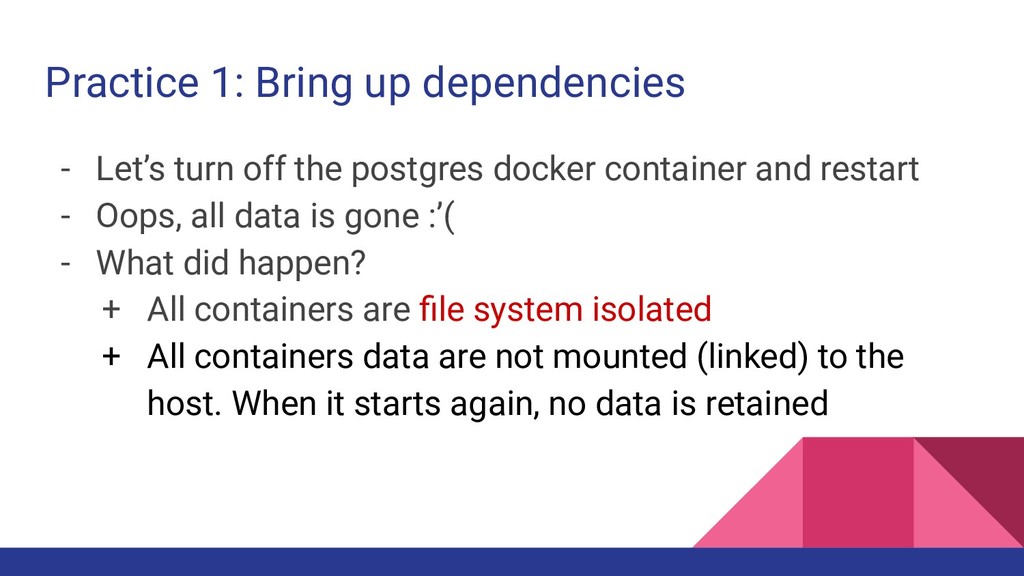

  22. Practice 1: Bring up dependencies - Let’s turn off the

    postgres docker container and restart - Oops, all data is gone :’( - What did happen? + All containers are file system isolated + All containers data are not mounted (linked) to the host. When it starts again, no data is retained
  23. Practice 1: Bring up dependencies - Try again with this

    command docker run \ --name my-postgres \ -p 5433:5432 \ -e POSTGRES_PASSWORD=password \ -e POSTGRES_USER=username \ -e POSTGRES_DB=ehavatar \ -e PGDATA=/var/data \ -v $(pwd)/tmp/data:/var/data \ postgres

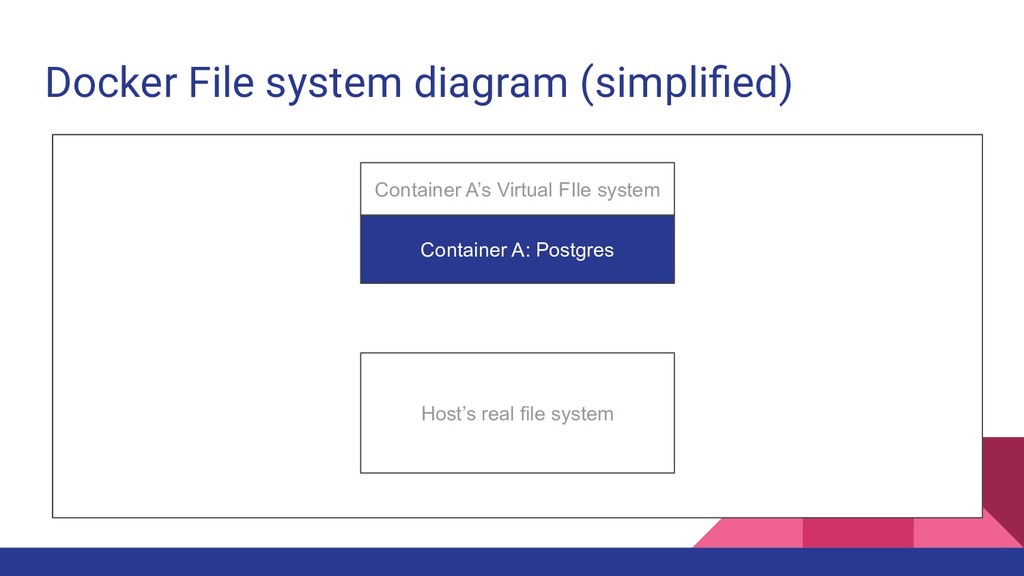

  24. Docker File system diagram (simplified) Container A’s Virtual FIle system

    Container A: Postgres Host’s real file system /var/data /Users/ahihi/tmp/data
  25. Docker concepts - Dockerfile is a text document that contains

    all the commands a user could call on the command line to assemble an image. - It defines: - Is current image based on other image? If yes, what is it? - Dependencies installation commands - How to start the container of this image? - What environments are allowed to be passed in? - Which ports the container will expose? - etc.
  26. Practice 2: Build your own docker image - Checkout branch

    docker_2 - Or view online at https://github.com/Thinkei/eh-avatar/blob/docker_1/DOC KER_1.md

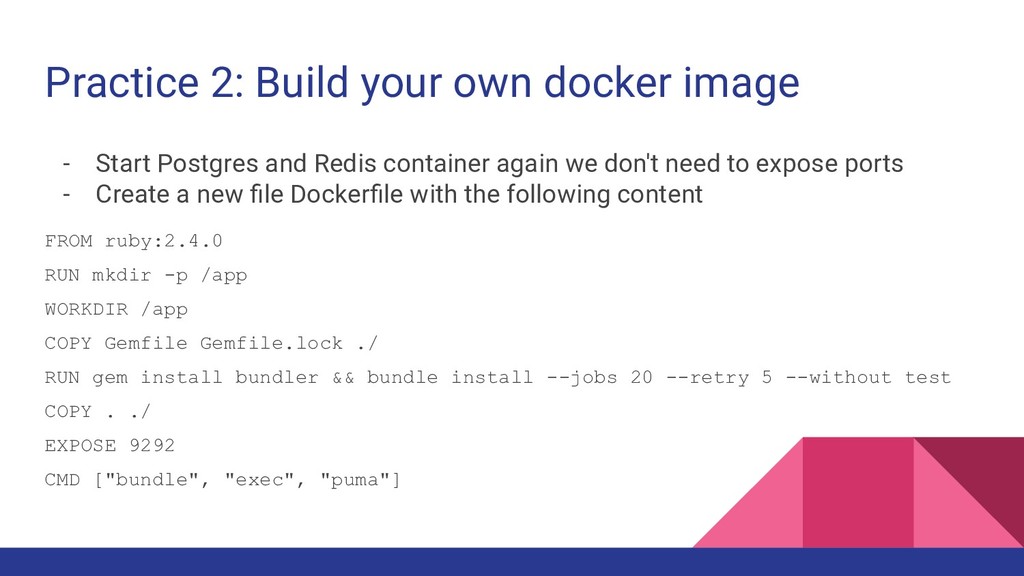

  27. Practice 2: Build your own docker image - Start Postgres

    and Redis container again we don't need to expose ports - Create a new file Dockerfile with the following content FROM ruby:2.4.0 RUN mkdir -p /app WORKDIR /app COPY Gemfile Gemfile.lock ./ RUN gem install bundler && bundle install --jobs 20 --retry 5 --without test COPY . ./ EXPOSE 9292 CMD ["bundle", "exec", "puma"]

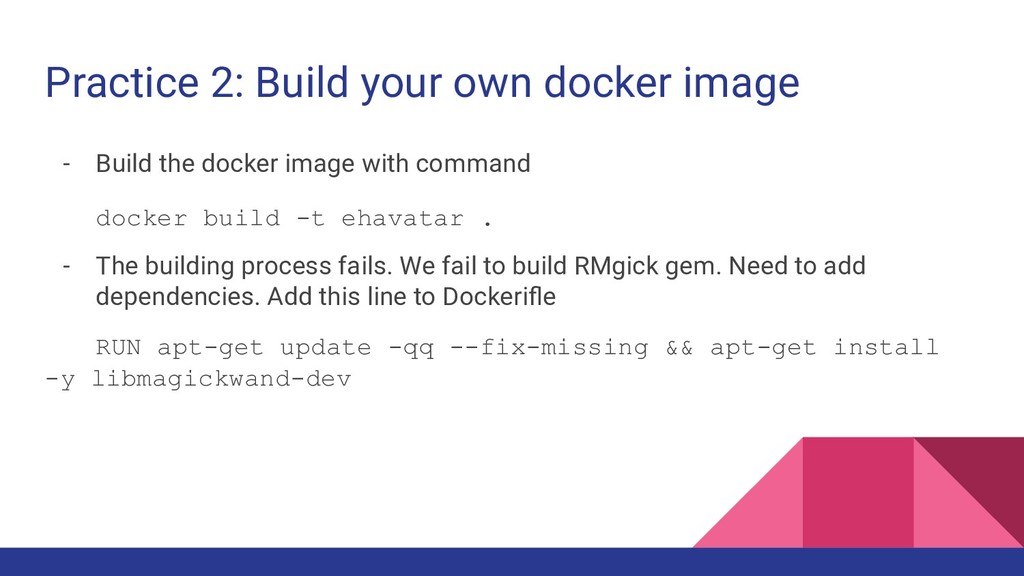

  28. Practice 2: Build your own docker image - Build the

    docker image with command docker build -t ehavatar . - The building process fails. We fail to build RMgick gem. Need to add dependencies. Add this line to Dockerifle RUN apt-get update -qq --fix-missing && apt-get install -y libmagickwand-dev

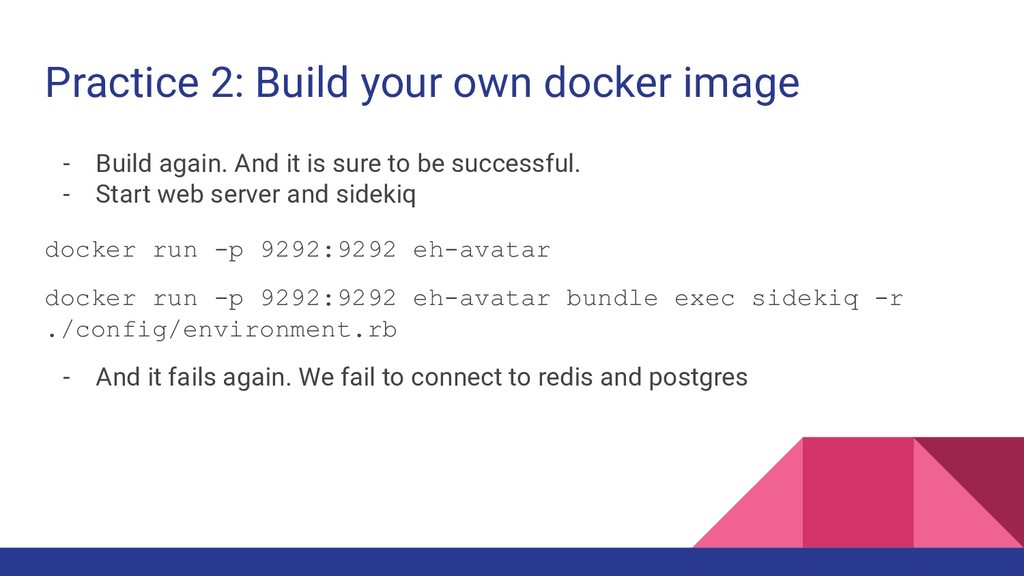

  29. Practice 2: Build your own docker image - Build again.

    And it is sure to be successful. - Start web server and sidekiq docker run -p 9292:9292 eh-avatar docker run -p 9292:9292 eh-avatar bundle exec sidekiq -r ./config/environment.rb - And it fails again. We fail to connect to redis and postgres
  30. Practice 2: Build your own docker image - Using `link`

    to link the application containers to dependencies docker run \ --link my-redis \ --link my-postgres \ -e DATABASE_URL=postgres://username:password@my-postgres:5432/ehavatar \ -e REDIS_URL=redis://my-redis:6379 \ -v $(pwd)/tmp:/app/tmp \ -p 9292:9292 \ eh-avatar

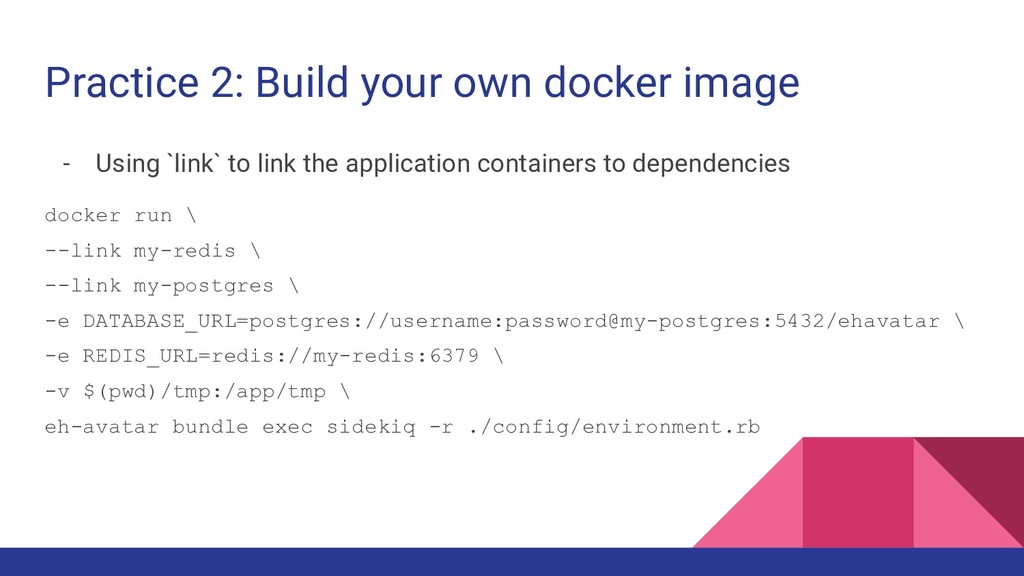

  31. Practice 2: Build your own docker image - Using `link`

    to link the application containers to dependencies docker run \ --link my-redis \ --link my-postgres \ -e DATABASE_URL=postgres://username:password@my-postgres:5432/ehavatar \ -e REDIS_URL=redis://my-redis:6379 \ -v $(pwd)/tmp:/app/tmp \ eh-avatar bundle exec sidekiq -r ./config/environment.rb

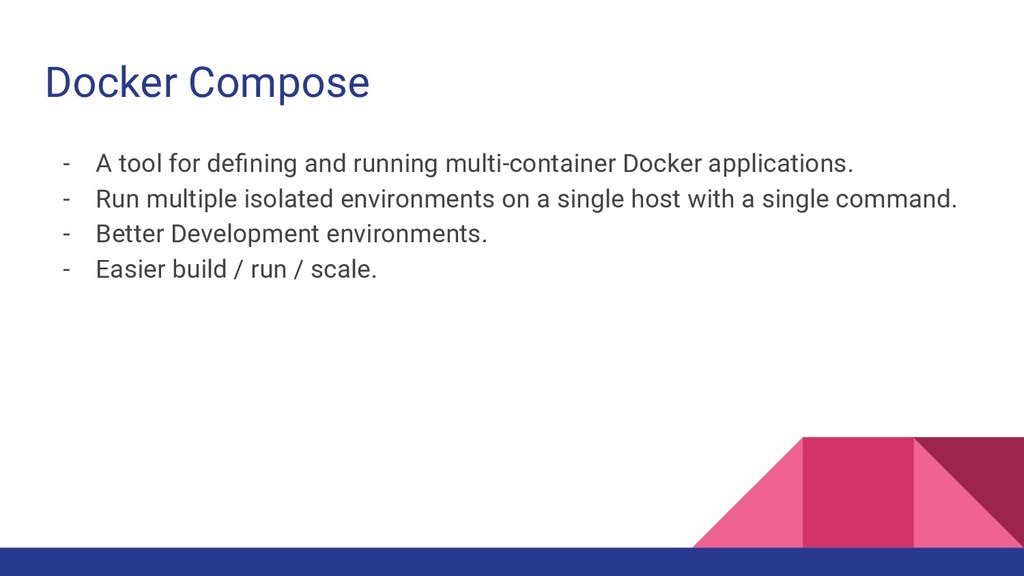

  32. Docker Compose - A tool for defining and running multi-container

    Docker applications. - Run multiple isolated environments on a single host with a single command. - Better Development environments. - Easier build / run / scale.

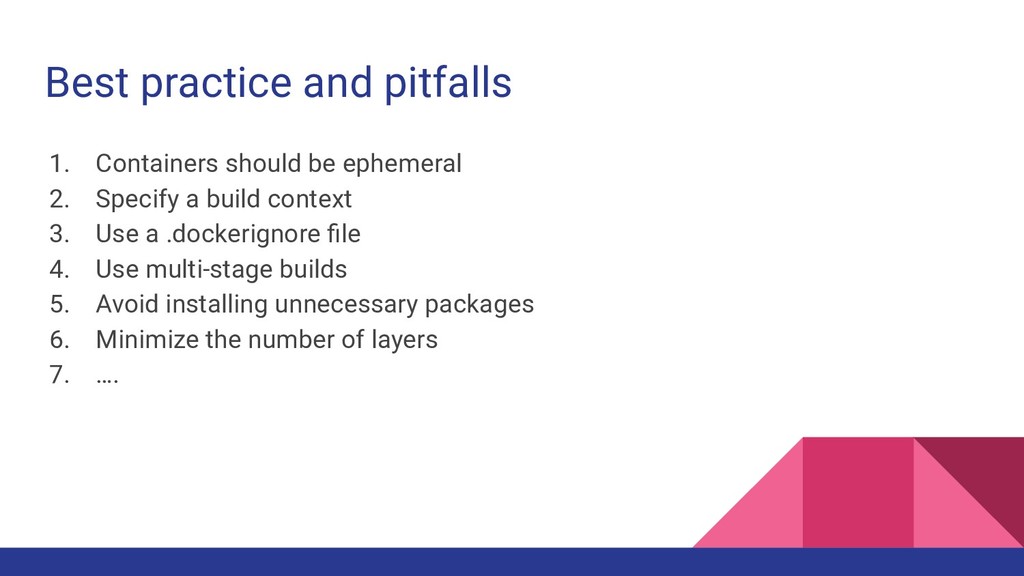

  33. Best practice and pitfalls 1. Containers should be ephemeral 2.

    Specify a build context 3. Use a .dockerignore file 4. Use multi-stage builds 5. Avoid installing unnecessary packages 6. Minimize the number of layers 7. ….
  34. After this, do you become a master of Docker? -

    This is just a beginning :troll: - There are a lot of things haven’t been mentioned yet
  35. Q&A
